Brand	Einhell
Model	RT-AC 400/100/10 D
Category	Compressor
Power Supply	400 V three-phase, 50 Hz
Motor Power	2.2 kW / 3.0 PS
Rotation Speed	2850 min⁻¹
Maximum Operating Pressure	10 bar
Tank Capacity	100 liters
Theoretical Suction Power	400 L/min
Sound Power Level	91.8 dB(A)
Sound Pressure Level	71.8 dB(A)
Protection Type	IP44
Weight	70 kg
Motor Oil Type	SAE 15W/40 or equivalent
Switch-on Pressure (pressure switch)	8 bar
Switch-off Pressure	10 bar
Ambient Operating Temperature	+5°C to +40°C
Warranty	2 years
After-sales Service	ISC GmbH (see manual)
Spare Parts	Available at www.isc-gmbh.info

Frequently Asked Questions - RT-AC 400/100/10 D EINHELL

How to start the compressor?

Ensure the On/Off switch (red button) is in the off position. Plug the CEE 16A plug into a suitable 400 V socket. Check the motor's rotation direction (arrow). If the motor rotates in the wrong direction, use the phase inverter. Then press the green button to start. The compressor will stop automatically at 10 bar.

How to adjust the output pressure?

Use the pressure regulator (7) to adjust the pressure on the pressure gauge (6). The set pressure is available at the quick coupling (5). The maximum pressure is 10 bar, but you can reduce it for certain tools.

How often should condensed water be drained?

Condensed water must be drained daily by opening the drain screw (11) at the bottom of the tank. Caution: Condensed water contains oil residues, dispose of it at a suitable collection point.

How to check and change the oil?

Place the compressor on a level surface. The oil level must be between MAX and MIN on the sight glass. To drain, disconnect the power, unscrew the drain plug (15) and collect the used oil. Fill with SAE 15W/40 oil or equivalent to the correct level. Replace the cap (14). First change after 100 hours, then every 500 hours.

What to do if the compressor does not start?

Check the mains voltage, fuse, and socket. Below +5°C, the motor may have difficulty starting. If the motor is too hot, let it cool down. If the problem persists, contact after-sales service.

How to clean the suction filter?

Unplug the unit. Loosen the two hexagon socket bolts (B) to remove the filter. Tap it or blow it out with compressed air (max 3 bar). Clean every 300 hours of service to avoid power loss.

Why does the compressor stop during operation?

Automatic stop is normal when pressure reaches 10 bar (cut-off pressure). If the compressor stops earlier, it may be due to overheating (overload switch) or a fault. Let it cool down and check the causes of overload.

Can I use the compressor for painting?

Yes, provided that paints and solvents with a flash point above 55°C are used. Wear a mask and eye protection. Work in a well-ventilated area (>30 m³) and do not smoke. Follow safety instructions.

How to tighten the V-belt?

Unplug the unit and remove the protective cover. Loosen the four motor fixing screws (A). Move the motor until the belt can be depressed by about 1-2 cm. Tighten the screws and refit the cover.

Where to find spare parts?

Spare parts are available at www.isc-gmbh.info. To order, indicate the device type (RT-AC 400/100/10 D), the article number, the identification number, and the required part number.

USER MANUAL RT-AC 400/100/10 D EINHELL

Close-up of a mechanical component with labeled parts (11 and 4), no readable text or symbols beyond labels

Mechanical assembly diagram showing a tire component with parts labeled 3 and 7 (no text or symbols beyond labels)

Close-up of a mechanical device with adjustment arrows and numbered part (9), no readable text or symbols present.

Close-up of a mechanical device with labeled parts (12 and 9), showing internal components and motion arrows (no readable text or symbols)

Close-up of a mechanical assembly with a hand adjusting components, no visible text or symbols

Mechanical assembly diagram showing motor and gear components with a directional arrow (no text or symbols)

Close-up of a circular mechanical component with a grid-patterned central feature, labeled 'A' and page number 16 (no readable text or symbols beyond labels)

Three black plastic electronic components with mounting holes and internal slots, labeled with number 1 (no text or symbols on the components themselves)

D

Achtung!

When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

1. Safety instructions

1.1 General safety instructions

⚠️ Important! The following basic safety precautions have to be taken when using this compressor in order to guard against the risk of electric shock, injury and fire. Read and note these instructions before you use the compressor.

This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely. Children must always be supervised in order to ensure that they do not play with the equipment.

1. Keep your work area tidy

- There is a higher risk of accident in an untidy work area.

2. Make allowance for environmental conditions

- Never leave the compressor in the rain. Never use the compressor in damp or wet conditions. Provide good lighting. Never use the compressor near combustible liquids or gases.

3. Protect yourself from electric shocks

- Avoid physical contact with earthed parts, e.g. pipes, radiators, cookers, refrigerators.

4. Keep children away!

- Do not allow other persons to touch the compressor or its cable. Keep them out of your work area.

5. Keep your compressor in a safe place

- When the compressor is not being used it should be kept in a dry, locked room out of the reach of the children.

6. Do not overload your compressor

- It is better and safer to work within the quoted

power range.

7. Wear suitable work clothes

- Do not wear loose garments or jewellery. There is a risk of them catching on moving parts. Rubber gloves and non-slip shoes are recommended when working outdoors. Put on a hair net if you have long hair.

8. Never use the cable for any purpose other than that intended

Never tow the compressor by its cable and never pull the power plug out of the socket by the cable. Protect the cable from heat, oil and sharp edges.

9. Look after your compressor

- Keep your compressor clean so that it works well and reliably. Follow the maintenance instructions. Check the power plug and cable regularly and have them replaced by a specialist if you discover any damage. Check any extension cables regularly and replace if damaged.

10. Pull out the power plug

- Whenever the compressor is not being used and before carrying out any maintenance work.

11. Avoid accidental starts

- Make sure that the switch is turned to OFF before you connect the compressor to the power supply.

12. Extension cables for outdoor use

- Use extension cables outdoors only if they are approved and marked accordingly.

13. Concentrate at all times

- Watch your work. Be sensible. Do not use the compressor if your mind is not on your work.

14. Examine your compressor for signs of damage

- Before you use the compressor again, carefully check its safety devices or any slightly damaged parts to make sure that they are working properly and as intended. Check moving parts to make sure that they are in good working order and are not jammed or damaged. All parts have to be properly fitted in order to be sure of meeting all the machine's requirements. Damaged safety devices and parts have to be repaired or replaced by a customer service workshop unless otherwise stated in this manual. Damaged switches have to be replaced by a customer service workshop. Do not use any tools with a switch that cannot be turned on and off.

15. Important!

- For your own safety, use only such accessories and auxiliary equipment as are listed in this manual or which are recommended and specified by the manufacturer. There is a high risk of suffering a serious accident if you use

GB

tools or accessories which are not listed in this manual or in the catalogue of recommended tools and accessories.

16. Have an electrician carry out repairs

- Repairs are to be carried out only by a qualified electrician. If not, the user may suffer serious accidents.

17. Noise

Use ear muffs when you use the compressor.

18. Replacing the power cable

To prevent injury, damaged power cables may only be replaced by the manufacturer or a qualified electrician.

1.2 Safety instructions for working with copressed air and blasting guns

●Compressors and lines reach high temperatures during operation. Avoid contact! Risk of burns!
●Gases or vapours drawn in by the compressor have to be kept free of constituents that may cause fire or explosions inside the compressor.
- When you disconnect the hose coupling, hold the coupling element in your hand to prevent injury from the whiplashing hose.
●Wear goggles when working with the blow-out gun. Injuries may easily result from foreign bodies and blasted parts.
●Never point the blow-out gun at other persons and never use it to clean clothes that are still being worn.

1.3.Safety information for paint spraying

●Never process paints or solvents with a flash point below 55°C.
●Never heat paints or solvents.
- It is imperative to use filtering equipment (face masks) when processing harmful liquids. Note also the information concerning safety precautions published by the manufacturers of these liquids.
●Smoking is prohibited during the spraying operation and in the work room. Paint vapours are highly flammable.
●Make sure there are no open fires or open lights in the work room. Sparking machines are not to be used.
●Do not keep or consume food and drink in the work room. Paint vapours are harmful.
●The details and designations of the Ordinance on Hazardous Substances, which are displayed on the outer packaging of the processed material, must be observed. Additional protective measures are to be undertaken if necessary, particularly the wearing of suitable clothing and masks.
●The work room has to be bigger than 30 m ^4 and

have sufficient ventilation for spraying and drying. Never spray into the wind. It is always imperative to observe the regulations of your local police authorities when spraying combustible or hazardous substances.

●Never process media such as white petroleum spirit, butyl alcohol and methylene chloride with the PVC pressure hose (reduced life span).

1.4 Operating pressure vessels

●An operator of a pressure vessel is required to keep the pressure vessel in good working order, to operate it properly, to supervise its use, to carry out essential maintenance and repair work immediately, and to introduce essential safety measures according to requirements.
●The supervisory authorities may order essential safeguards from case to case.
●A pressure vessel may not be operated if it has any defects which constitute a danger to employees or third parties.
●The pressure vessel must be regularly inspected for damage, e.g. rust. If you discover any damage, then please contact the customer service workshop.

Keep these safety instructions in a safe place.

2. Layout

1. Intake air filter
2. Pressure vessel
3. Wheel
4. Guide roller
5. Quick-lock coupling (regulated compressed air)
6. Pressure gauge (for reading the preset tank pressure)
7. Pressure regulator
8. ON/OFF switch
9. Transportation handle
10. Safety valve
11. Drainage screw for condensation water
12. Pressure gauge (for reading the tank pressure)
13. Quick-lock coupling (unregulated compressed air)
14. Oil sealing plug (oil filler opening)
15. Oil drainage screw
16. Oil level window

GB

3. Scope of use

The compressor is designed for generating compressed air for tools operated by compressed air.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

4. Technical data

Power supply: 400 V 3\~50 Hz

Motor rating in kW/HP: 2.2/3.0

Compressor speed in rpm: 2850

Operating pressure in bar: max. 10

Pressure vessel volume in litre: 100

Theoretical intake rate in l/min.: 400

Sound power level L_WA in dB: 91.8

Sound pressure level L_pA in dB: 71.8

Protection type: IP44

Machine weight in kg: 70

5. Points to note when setting up the compressor

●Examine the machine for signs of transit damage. Report any damage immediately to the company which delivered the compressor.
●The compressor should be set up near the working consumer.
●Avoid long air lines and long supply lines (extensions).
●Make sure the intake air is dry and dust-free.
- Do not set up the compressor in damp or wet rooms.
●The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5°C to +40°C). There must be no dust, acids, vapors, explosive gases or inflammable gases in the room.

●The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with sprayed water.
●The oil level in the compressor pump has to be checked before putting the equipment into operation.

6. Assembly and starting

⚠️ Important!

You must fully assemble the appliance before using it for the first time.

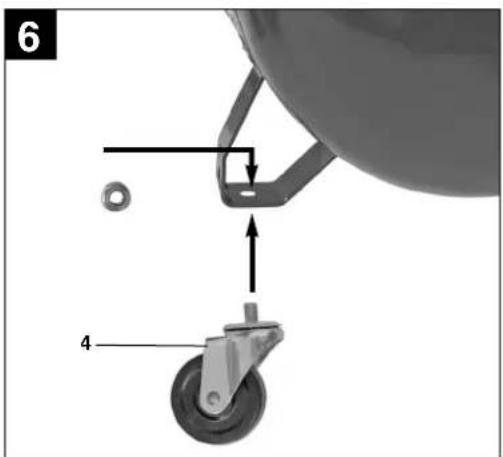

6.1 Fitting the wheels (3/4)

Fit the supplied wheels as shown in Fig. 6-7.

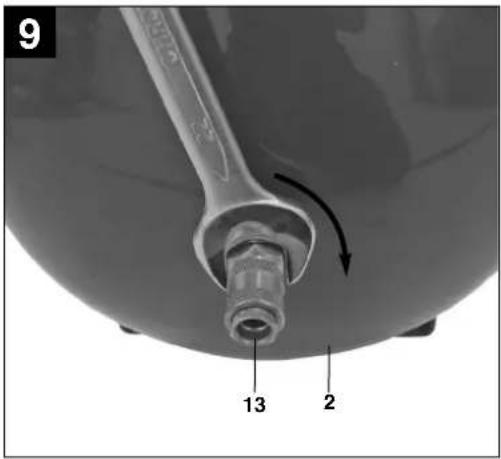

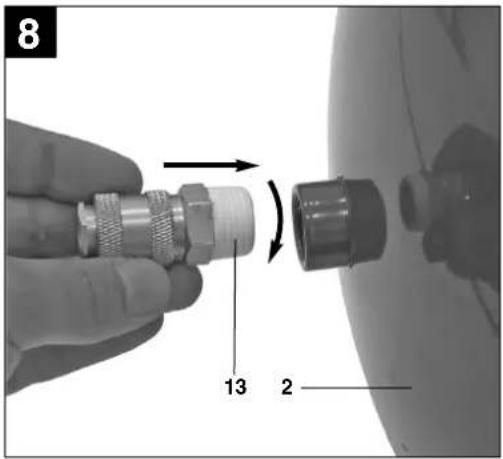

6.2 Fitting the quick-lock coupling for tank pressure (13)

Screw the quick-lock coupling for unregulated tank pressure (13) to the pressure vessel (2) as shown in Figures 8 to 9.

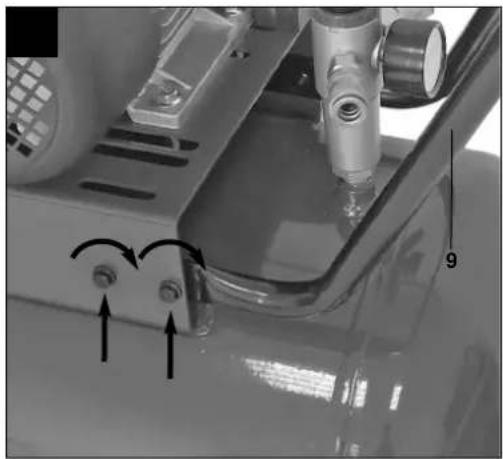

6.3 Fitting the transport handle (9)

Screw the transport handle (9) to the compressor as shown in Figures 10 to 12.

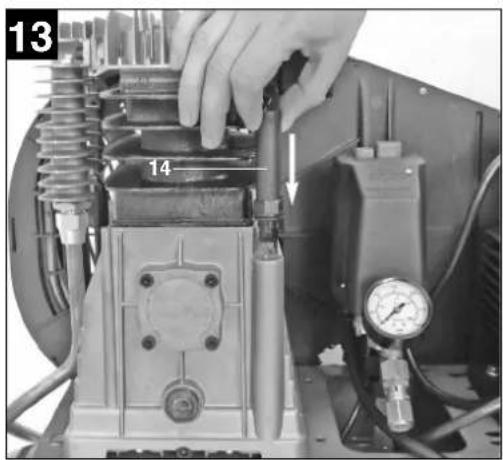

6.4. Replacing the oil sealing plug (14)

Remove the transportation cover from the oil filler opening with a screwdriver and insert the supplied oil sealing plug (14) into the oil filler opening (Fig. 13).

6.5. Power supply

●The compressor is equipped with a mains cable with a 16A CEE plug. This plug has a phase converter. Before you put the equipment into operation, check whether the motor rotates in the correct direction (see the direction arrow on the V-belt cover) by switching on the compressor briefly. If the compressor motor rotates in the wrong direction, you must correct the rotating field by reversing the phase converter in the plug (use a screwdriver to depress the phase converter slightly and turn it through 180°).
●The motor is equipped with an overload switch. If the compressor overloads, the overload switch will switch off the equipment automatically to protect the compressor from overheating. If the overload switch triggers, wait for the compressor to cool down.
●Long supply cables, extensions, cable reels etc. cause a drop in voltage and can impede motor start-up.
●In the case of low temperatures below +5°C,

GB

motor start-up is jeopardized as a result of stiffness.

6.6 On/Off switch (8)

To switch on the compressor, press the green knob (8).

To switch off the compressor, press the red knob (8) in again. (Fig. 2)

6.7 Adjusting the pressure: (Fig. 1)

●You can adjust the pressure on the pressure gauge (6) using the pressure regulator (7).

●The set pressure can be taken from the quick-lock coupling (5).

6.8 Setting the pressure switch

The pressure switch is set at the factory.

Switch-on pressure 8 bar

Switch-off pressure 10 bar

7. Cleaning and maintenance

⚠️ Important!

Pull the power plug before doing any cleaning and maintenance work on the appliance.

⚠️ Important!

Wait until the compressor has completely cooled down. Risk of burns!

⚠️ Important!

Always depressurize the tank before carrying out any cleaning and maintenance work.

7.1 Cleaning

• Keep the safety devices free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  ●We recommend that you clean the appliance immediately after you use it.
  ●Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance. Ensure that no water can get into the interior of the appliance.
• You must disconnect the hose and any spraying tools from the compressor before cleaning. Do not clean the compressor with water, solvents or the like.

7.2 Condensation water (Fig. 4)

The condensation water must be drained off each day by opening the drain valve (11) (on the floor of the pressure vessel).

⚠️ Important! The condensation water from the pressure vessel will contain residual oil. Dispose of the condensation water in an environmentally compatible manner at the appropriate collection point.

7.3 Safety valve (10)

The safety valve has been set for the highest permitted pressure of the pressure vessel. It is prohibited to adjust the safety valve or remove its seal.

7.4 Check the oil level at regular intervals

Place the compressor on a level and straight surface. The oil level must be between the two marks MAX and MIN on the oil oil level window (Fig. 14/Item 16). Changing the oil: Recommended hydraulic oil: SAE 15W/40 or an alternative of the same quality. It should be refilled for the first time after 100 hours of operation. Thereafter the oil should be drained and refilled after every 500 hours in service.

7.5 Changing the oil

Switch off the engine and pull the mains plug out of the socket. After releasing any air pressure you can unscrew the oil drainage screw (15) from the compressor pump. To prevent the oil from running out in an uncontrolled manner, hold a small metal chute under the opening and collect the oil in a vessel. If the oil does not drain out completely, we recommend tilting the compressor slightly.

Dispose of the old oil at a drop-off point for old oil.

When the oil has drained out, re-fit the oil drainage screw (15). Fill new oil through the oil filler opening (14) until it comes up to the required level. Then replace the oil sealing plug (14).

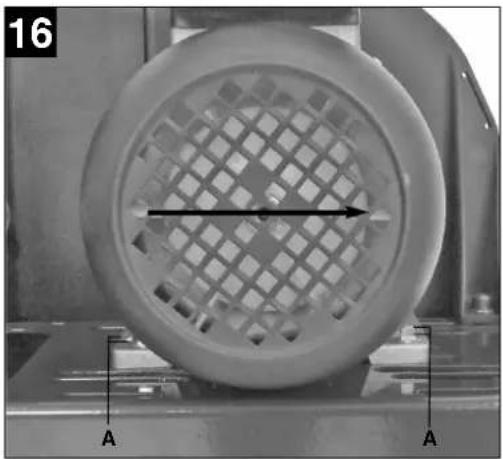

7.6 Retensioning the V-belt (Figs. 15-17)

●Pull out the power plug and remove the safety guard for the V-belt.
●Slacken the four motor fixing screws (A).
●Shift the motor until the V-belt is tensioned to the point where it can still be depressed by approx. 1-2 cm at the longest free position.
●Retighten the motor fixing screws (A) and refit the safety guard for the V-belt.

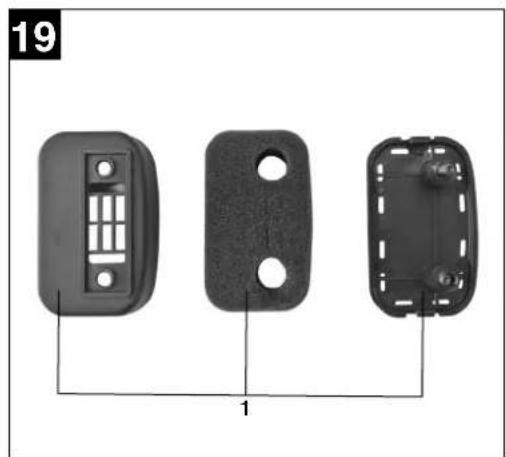

7.7 Cleaning the intake filter (1)

The intake filter prevents dust and dirt being drawn in. It is essential to clean this filter after at least every 300 hours in service. A clogged intake filter will decrease the compressor's performance dramatically. Undo the two Allen screws (B). You can

then remove the filter from the two halves of the plastic housing, tap it to remove the dirt, blast it down with low-pressure compressed air (approx. 3 bar) and re-insert it.(Fig. 18)

7.8 Storage

⚠️ Important!

Pull the mains plug out of the socket and ventilate the appliance and all connected pneumatic tools. Switch off the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorized person.

⚠️ Important!

Store the compressor only in a dry location which is not accessible to unauthorized persons. Always store upright, never tilted!

7.9 Ordering replacement parts

Please quote the following data when ordering replacement parts:

●Type of machine

●Article number of the machine
●Identification number of the machine
●Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

GB

9. Possible causes of failure

Problem Cause Solution
The compressor does not start 1.	No supply voltage 1. Check the supply voltage, the power plug and the socket-outlet.
	2. Insufficient supply voltage 2. Make sure that the extension cable is not too long. Use an extension cable with large enough wires.
	3. Outside temperature is too low 3.	Never operate with an outside temperature of below +5°C.
	4. Motor is overheated 4. Allow the motor to cool down. If necessary, remedy the cause of the overheating.
The compressor starts but there is no pressure	1. Leak in the non-return valve 1. Replace the non-return valve
	2. The seals are damaged. 2. Check the seals and have any damaged seals replaced by a service center
	3. The drainage screw for condensation water (11) leaks.	3. Tighten the screw by hand. Check the seal on the screw and replace if necessary.
The compressor starts, pressure is shown on the pressure gauge, but the tools do not start.	1. Loose hose connections 1. Check the compressed air hose and tools and replace if necessary.
	2. Leak in a quick-lock coupling 2. Check the quick-lock coupling and replace if necessary.
	3. Insufficient pressure set on the pressure regulator.	3. Open the pressure regulator further.

F

Attention!

Indkoblingstryk 8 bar

Udkoblingstryk 10 bar

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

©Nur für EU-Länder

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.

F

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

1. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

2. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

F BULLETIN DE GARANTIE

Chère Cliente, Cher Client,
