USER MANUAL BDS 580 HARMAN KARDON

The Harman Kardon BDS systems are sleek, high-performance 2.1 (BDS 280) and 5.1 (BDS 580) channel 3D Blu-ray Disc™ system with high fidelity amplified sound.

In the years since Harman Kardon engineers invented the high-fidelity system, we have taken to heart the philosophy of bringing the joy of home entertainment to as many people as possible, adding performance and ease-of-use features that enhance the experience. The BDS series of home entertainment systems offer a complete home entertainment solution with a wealth of listening and viewing options in one sleek system.

To get the maximum enjoyment from your new BDS system, we urge you to read this manual thoroughly, which:

• Contains a description of the system's features
  • Lists the items included in the box
  • Describes the BDS system and its components
• Includes step-by-step instructions that will help you set up and get started with the BDS system

CONTACT US: If you have any questions about this product, its installation or its operation, please contact your retailer or custom installer, or visit our website at:

www.harmankardon.com

Description and Features

The BDS system features:

• 65W per channel of powerful, clear audio
- Three HDMI inputs (one with MHL/Roku-ready) with 3D, UHD (4K) pass-through
• One HDMI output with Audio Return Channel (ARC), 2D to 3D conversion, and UHD upscaling
- Wi-Fi connectivity for Apple AirPlay ^® , DLNA 1.5, system updates and control, and streaming Internet services
• High quality Bluetooth audio streaming
• NFC for quick Bluetooth® pairing
- Dolby® Volume to maintain consistent sound levels without distracting changes

Connect the BDS system to online sources such as Picasa, AccuWeather, and Pandora®. The Harman Kardon BDS system is the world's first Blu-ray system with Dolby Volume. Enjoy the detail and clarity of your favorite movies and music in high fidelity sound with Dolby TrueHD® and DTS-HD® (BDS 580) and DTS Digital Surround (BDS 280).

Unpacking

The carton and shipping materials used to protect your new system during shipment were specially designed to cushion it from shock and vibration. We suggest that you save the carton and packing materials for use in shipping if you move or if the unit ever needs repair.

To minimize the size of the carton in storage, you may wish to flatten it. You can do it by carefully slitting the tape seams on the carton's bottom and collapsing it. You can store cardboard inserts in the same manner. Packing materials that cannot be collapsed should be saved along with the carton in a plastic bag.

If you do not wish to save the packaging material, note that the carton and other sections of the shipping-protection materials are recyclable. Please respect the environment and discard those materials at a local recycling center.

Remove the protective plastic film from the front-panel lens. Leaving the film in place will affect the performance of your remote control.

Included Items

The following are the items provided in the BDS system complete package.

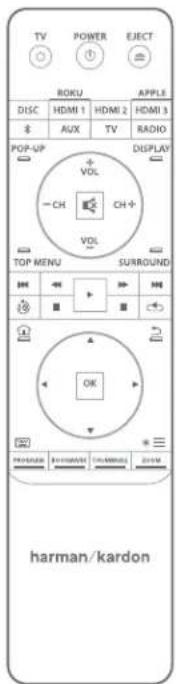

• One Remote Control

TV POWER EJECT Roku APPLE DISC HDMI 1 HDMI 2 HDMI 3 8 AUX TV RADIO POP-UP VOL DISPLAY CH CH+ VOL TOP MENU SURROUND OK harman/kardon

• One Power Cord

Line drawing of a cord with two connectors and a power plug, no text or symbols present

• One FM Antenna

Line drawing of a cable with a connector and terminal clip (no text or symbols)

• One EzSet/EQ™ Microphone

Simple line drawing of a cylindrical object connected to a vertical line with a bulb, no text or symbols present.

• Two Wi-Fi Antennas


Air Wi-Fi

• One HDMI Cable

Line drawing of a cable with two connectors (no text or symbols)

Three AAA Batteries

Three cylindrical objects with circular ends, no text or symbols present

NOTE: If any of these items is missing please contact Harman Kardon customer service at www.harmankardon.com

Installation Location

• To ensure proper operation and to avoid the potential for safety hazards, place the unit on a firm and level surface. When placing the unit on a shelf, be certain that the shelf and any mounting hardware can support the weight of the product.
• Provide adequate space behind the system for ventilation. If the product will be installed in a cabinet or other enclosed area, make sure there is sufficient air movement within the area.
  • Do not place the unit directly on a carpeted surface.
• Avoid installation in extremely hot or cold locations or in an area that is exposed to direct sunlight or heating equipment.
• Avoid moist or humid locations.
• Do not obstruct the fan vents on the rear panel or ventilation slots on the sides of the unit or place objects directly over or next to them.
• Do not place the system directly on top of a product that generates excessive heat.
• Due to the heat generated by the system, there is a remote possibility that the padding on the bottom of the system may leave marks on certain wood or wood-veneer materials. Use caution when placing the system on soft woods or other materials that heat or heavy objects may damage. Some surface finishes may be particularly sensitive to absorbing such marks, due to a variety of factors beyond Harman Kardon's control, including the nature of the finish, cleaning materials used, normal heat and vibration caused by the use of the product, or other factors. Your warranty will not cover this type of damage to furniture, so exercise caution in choosing an installation location for the component and in performing normal maintenance practices.
• The BDS system requires either a Wi-Fi home network signal or access to a physical Ethernet connection to access certain features such as Apple AirPlay ^® , DLNA ^® , control from the Harman Kardon Remote app, and streaming Internet services.

Verify Line Voltage before Using

Your BDS system has been designed to be used with 100 - 240-volt, 50Hz/60Hz AC current and includes a detachable IEC power cable intended for use in the region where the system is sold. Connection to a line voltage other than that for which the unit is intended can create a safety and fire hazard and may damage the unit. If you have any questions about the voltage requirements for your specific model or about the line voltage in your area, contact your dealer before plugging the unit into a wall outlet.

Moving the System

Before moving the system, first disconnect it from AC power and then remove any interconnection cables to other components.

Cleaning

When the system gets dirty, wipe it with a clean, soft, dry cloth. If necessary, and only after unplugging the AC power cord, wipe it with a soft cloth dampened with mild soapy water, then a fresh cloth with clean water. Wipe it dry immediately with a dry cloth.

IMPORTANT: NEVER use benzene, aerosol cleaners, thinner, alcohol or any other volatile cleaning agent.

NOTE: Do not use abrasive cleaners as they may damage the finish of metal parts. Avoid spraying insecticide near the unit.

Area Where Sold	Blu-ray Disc Region Code	DVD Region Code
USA, Canada
Europe, Middle East
Korea, S.E. Asia
Mexico, Latin America
Australia, New Zealand
Russia, India
China

BDS Front Panel Controls and Connections

nfc harman/kardon

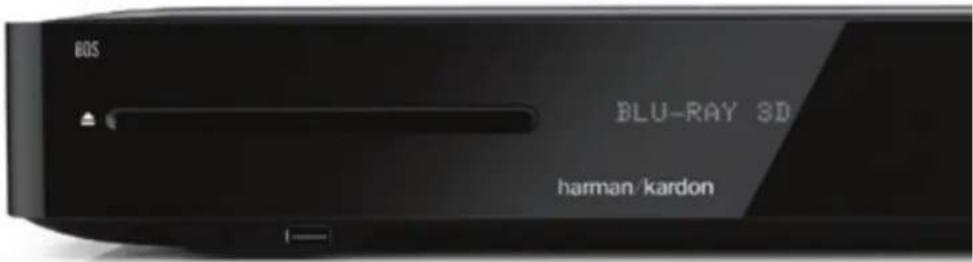

1. Disc slot
2. Headphone output and EzSet/EQ microphone input
3. USB/iPad/iPod/iPhone input
4. Volume ring and power button
5. NFC for Bluetooth pairing
6. Eject

7. Information display

8. Disc slot: Insert a compatible disc into the slot. The BDS system's disc slot accepts 5-inch (12 cm) and 3-inch (8 cm) discs.

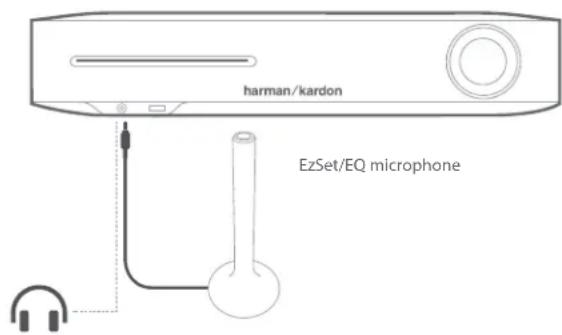

9. Headphone output and EzSet/EQ microphone input: Insert the 1/8-inch (3.5 mm) stereo mini connector from a set of headphones into this jack. When performing EzSet/EQ speaker calibration, insert the microphone here.

NOTE: When a plug is inserted into the headphone jack, the BDS system's speaker output becomes automatically mute; the HDMI audio output remains active.

1. USB/iPad/iPod/iPhone input: You can use the USB port to play audio files from an Apple iOS device connected to the port, and to play audio files and show video and picture files from a USB device inserted into the port. Insert the connector or device into the USB port oriented so it fits all the way into the port. You may insert or remove the connector or device at any time - there is no installation or ejection procedure. You can also use the USB port to perform firmware upgrades. If an upgrade for the BDS operating system is released in the future, you will be able to download it to the BDS system using this port. Complete instructions will be provided at that time.

IMPORTANT: Do not connect a PC or other USB host/controller to this port as it may damage both the BDS system and the other device.

NOTE: This USB port is rated for 2.1A output, which suggests, it is certified to charge iPad devices (as well as iPhone and iPod devices). There is a USB connector on the rear panel as well with similar functionality, rated for 1A to change iPhone and iPod devices.

1. Volume ring and power button: Volume can be adjusted by touching this capacitive ring. Slide clockwise around the ring to increase volume, counter-clockwise to decrease volume.

IMPORTANT: If at high volume levels the audio from the speakers begins to distort, reduce the volume as prolonged distortion can damage the system.

Press this capacitive button to turn the BDS system ON. If the system is already ON, press this button to push the system to Standby, Sleep or OFF mode.

The following table describes the different modes along with the LED display.

Mode Operation	LED display
ON Press the power button	White
Standby Long press on the	powerbutton	Amber
OFF Press the power button	when in operationalmode	OFF
Sleep • No activity for 15	min• Short press on thepower button on thefront panel.• Short press on theremote controlpower button orpower off commandfrom external IR orremote app	Amber

NOTE: While the system is powering on the volume ring will spin till the boot process is complete.

1. NFC for Bluetooth pairing: Near Field Communication (NFC) is used for fast Bluetooth pairing of compatible Android ^™ and Windows ^® mobile devices. Place the mobile device near the NFC logo on the top front of the system to pair or unfair.

NOTE: The system can be brought to Operational mode by tapping on the NFC area.

1. Eject button (appears only when a disc has been inserted): Touch this button to eject a disc from the BDS system's built-in disc slot. Before touching this button, make sure no objects block the disc-slot.

NOTE: If you do not remove the ejected disc within 90 seconds, it will automatically re-load into the disc slot for protection.

1. Information display: Various messages appear on this display in response to commands and to show the audio/video that is playing, the BDS system's settings or other aspects of the BDS system's status as described throughout this manual.

BDS Rear Panel Controls and Connections

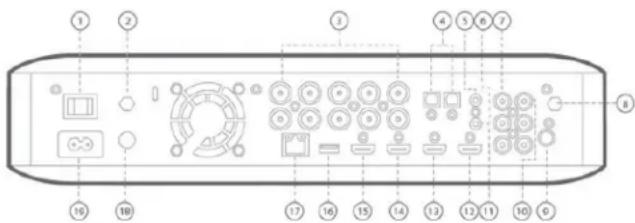

Diagram of a device rear panel with numbered components and labeled ports

1. Main Power Switch
2. Antenna Air
3. Speaker outputs
4. Optical Digital Audio (S/PDIF) inputs
5. Trigger Output
6. AUX 1 input and AUX 2 input
7. Subwoofer output
8. Antenna Wi-Fi
9. FM radio antenna output
10. Coaxial digital audio (S/PDIF) input
11. IR Remote input
12. HDMI output (ARC)
13. HDMI 1/MHL input
14. HDMI 2 input
15. HDMI 3 (Apple) input
16. USB input
17. Network Connector
18. WPS button

19. AC Power input

20. Main Power switch: This mechanical switch turns the BDS system's power supply ON or OFF. After you have made and verified all connections, set this switch to the ON position. During normal use, you will usually leave this switch set to ON; it cannot be turned ON or OFF using the remote control. To conserve energy when you are not using the system for an extended period of time, set this switch to OFF.

21. Antenna Air: Connect the antenna accessory labeled Air here for improved Wi-Fi reception.

22. Speaker Outputs: Use the speaker wires supplied with the speakers to connect the speakers to the proper terminals.

• The BDS system has connections for left and right speakers.

1. Optical Digital (S/PDIF) Inputs: Connect the optical digital output of an audio source component here. The signal may be a Dolby Digital, DTS ^® or standard PCM digital audio.

2. Trigger Output: This connector provides 12V DC whenever the system is ON. It can be used to turn on and off other devices such as a powered subwoofer.

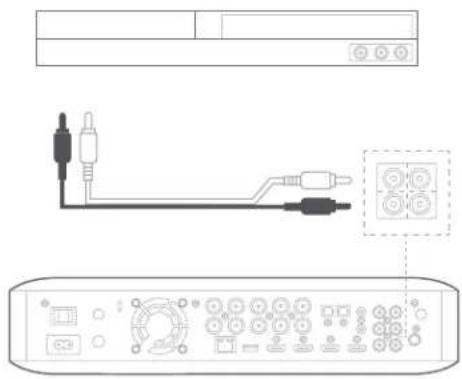

3. AUX 1 and AUX 2 Input: Use these connectors to connect to an audio source device (such as a tape deck). Do not connect a turntable to these connectors without a phono preamp.

4. Subwoofer Output: Use the supplied mono RCA audio cable to connect this jack to the subwoofer's Line-Level IN LFE jack.

5. Antenna Wi-Fi: Connect the antenna accessory labeled Wi-Fi here for improved Wi-Fi reception.

6. FM Radio Antenna Output: Connect the supplied FM antenna to this terminal.

7. Coaxial Digital Audio (S/PDIF) Input: Connect the coaxial digital output of an audio source component here. The signal may be a Dolby Digital bit stream, a DTS bit stream or a standard PCM digital-audio bit stream.

8. IR Remote Input: When the IR sensor on the front panel is blocked (for example, when the system is installed inside a cabinet); connect an optional IR receiver to the Remote IR Input connector.

9. HDMI Output (ARC): Connect the BDS system's HDMI output to your TV's HDMI input. If your TV is 3D capable, then you can watch 3D content in 3D either from the BDS system's built-in disc player or from other 3D-capable source devices connected to the BDS system's HDMI Input connectors (see below). The system's HDMI output connection also contains an Audio Return Channel (ARC) that carries a digital audio signal from your TV or video display back to the BDS. It allows you to listen to HDMI devices that are connected directly to your TV (such as a digital TV tuner) without making an additional connection from the device to the BDS system.

NOTE: You must enable the ARC output of your TV. Consult your TV's instruction manual for information.

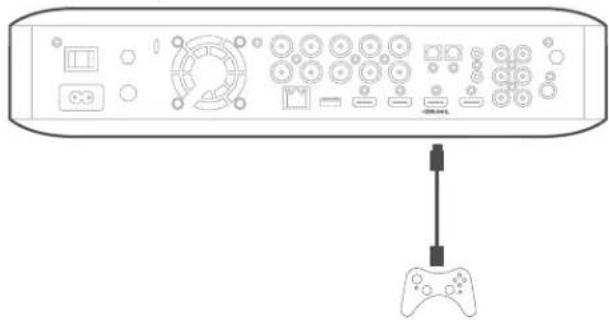

1. HDMI Inputs: You can connect up to three additional source devices to the BDS system provided the source devices have HDMI connectors. The HDMI connection transmits digital audio and video signals between devices, so you do not have to make any additional audio connections for devices you want to connect via an HDMI connector. The BDS system will pass 3D video signals from 3D capable HDMI source devices to the TV via the HDMI output connector.

Some HDMI inputs have special functionalities:

• HDMI 1/MHL input: This input accepts both HDMI and MHL connections. MHL can be used with many mobile smart devices to mirror their audio and video content on the BDS system while powering the device (check the owner's manual of your device). This connector is also compatible with the Roku Streaming Stick, which allows access to Roku services, controlled by the BDS remote control.

• HDMI 3 (Apple) input: This input accepts any HDMI source device, but if connected to Apple products, such as the Apple TV or Mac Mini, the BDS remote can be used to control them (this input on the remote control is pre-programmed with standard Apple device remote commands).

• USB Input: You can use the USB port to play audio files from an Apple iOS device connected to the port, and to play MP3 and WMA audio files and show video and picture files from a USB device inserted into the port. Insert the connector or device into the USB port oriented so it fits all the way into the port. You may insert or remove the connector or device at any time - there is no installation or ejection procedure. You can also use the USB port to perform firmware upgrades. If an upgrade for the BDS operating system is released in the future, you will be able to download it to the BDS system using this port. Complete instructions will be provided at that time.

IMPORTANT: Do not connect a PC or other USB host/controller to this port, or you may damage both the BDS system and the other device.

NOTE: This USB port is rated for 1A output and it suggests that it is certified to charge iPhone and iPod devices. There is a USB connector on the front panel as well with similar functionality, rated for 2.1A to additionally charge iPad devices.

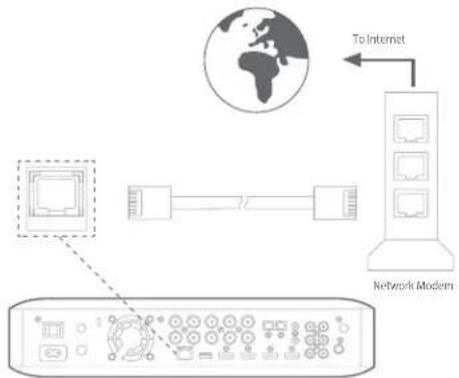

1. Network Connector: Use a Cat. 5 or Cat. 5E cable (not supplied) to connect the BDS system's Network connector to your home network to enjoy content from AirPlay, DLNA, and streaming services, as well as control from the Harman Kardon Remote app for iOS and Android. Additionally, system upgrades can be downloaded and installed from compatible devices that are joined to the network.

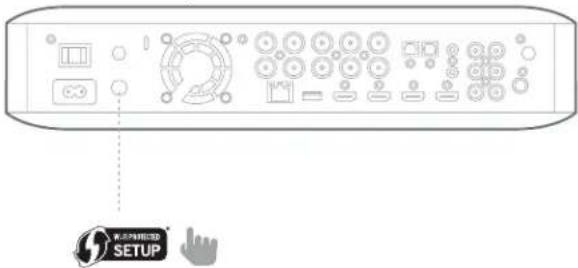

2. WPS Button: You can connect to the Internet using the WPS button.

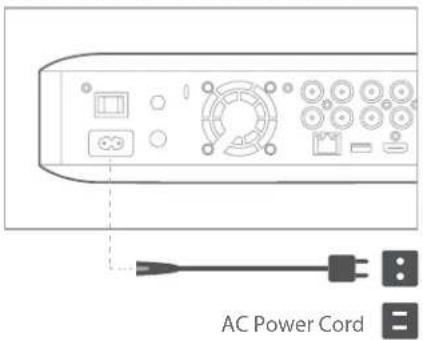

3. AC Power Input: After you have made and verified all other connections, plug the supplied AC power cord into this input and into an unswitched AC outlet.

Remote Control Functions

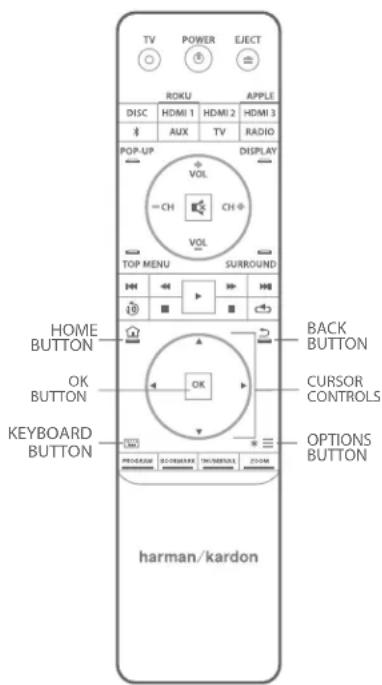

TV POWER EJECT ROKU APPLE DISC HDMI 1 HDMI 2 HDMI 3 AUX TV RADIO POP-UP DISPLAY VOL CH CH VOL TOP MENU SURROUND HOME BUTTON BACK BUTTON OK BUTTON CURSOR CONTROLS KEYBOARD BUTTON OPTIONS BUTTON harman/kardon

Power button: The BDS system has four different power modes:

• OFF (ON/Standby indicator not illuminated): When the rear-panel Main Power switch is in the OFF position or the power cord is unplugged the BDS system is off and will not respond to any commands. Plugging the power cord into a live AC outlet and setting the Main Power switch in the On position will put the system into the Standby mode.
• Standby (Power indicator glows solid amber): The Standby mode minimizes energy consumption when you are not using the BDS system. When the system is in Standby, it will not automatically turn on or play audio in response to a signal from an AirPlay device or a Bluetooth device. When the system is in Standby, pressing the Power button turns it on. To put the system into Standby when it is on, press the Power button for more than two seconds.

NOTE: To conserve energy you can have the system automatically enter the Standby mode whenever no control buttons have been pressed and no audio signal has been present for 15 minutes.

• Sleep (Power indicator glows solid amber): The Sleep mode mutes the BDS system's outputs and shuts off its OSD and front-panel display, but allows the system to automatically turn on and play audio in response to a signal from an AirPlay device or a Bluetooth device. When the system is in Sleep, pressing the Power button turns it on. To put the system into Sleep when it is on, press the Power button momentarily.
• ON (Power indicator glows solid white): When the BDS system is on it is operational.

TV Power button: After you program the remote control, pressing this button turns the TV's power ON and OFF.

Eject button: Press this button to eject a disc from the BDS system's built-in disc player. Before pressing this button, make sure no objects are blocking the disc slot opening.

Source buttons: Press one of these buttons to select a source device. This action will also turn on the BDS system from the Standby mode.

- The first press of the Aux button switches the BDS system to the last-used of the sources such as Coaxial Digital, Optical Digital 1, Optical Digital 2, Analog Audio I, Analog Audio 2, and HDMI ARC. Each successive press advances the BDS system through those sources. Pressing the Aux button also places the remote into the auxiliary-component control mode, enabling the remote to use any pre-programmed and/or learned functions.

NOTE: You must use the Home menu to select Bluetooth and network-based sources (DLNA, Pandora® and Picasa™).

Pop-Up button: Pressing this button while playing a Blu-ray Disc recording or DVD displays its disc menu.

NOTE: This feature is disc-dependent. Not all DVDs have pop-up menus. If a DVD has no pop-up menu, pressing the Pop-Up button may display the disc menu, depending on how the disc's menu system is authored.

Display button: When you are playing Blu-ray Disc and DVD recordings, pressing this button activates a bar display containing information about the currently-playing disc or program. When you are playing a video or photo slideshow from an inserted USB device, pressing this button displays the Status bar. The button does not function when the BDS system is playing materials from an iOS device, an auxiliary source or the radio.

Channel +/- buttons: These buttons have no effect on the BDS system, but can be programmed to control functions on an Aux component.

Volume +/- buttons: Press these buttons to increase or decrease the volume of the BDS system's speaker outputs.

NOTE: The Volume +/- buttons do not change the volume of the HDMI audio output.

IMPORTANT: Do not turn the volume buttons up to or past the point where the audio from the speakers becomes distorted. Doing so can damage the speakers.

Mute button: Press this button to mute the sound from the BDS system's speaker outputs. Press the button again to unmute the sound.

NOTE: The Mute button does not mute the HDMI audio output.

Top Menu button: Displays the top menu of the Blu-ray Disc or DVD that is playing.

NOTE: This feature is disc-dependent. Not all DVDs have top menus. If the DVD has no top menu, pressing the Top Menu button may display the disc menu, depending on how the disc's menu system is authored.

Surround button: Pressing this button cycles through all of the surround-sound modes that are available for the active program. Each press of the Surround button will change to the next mode in line. A pop-up display will appear, showing the modes as you cycle through them.

NOTE: Not all surround modes will be available for all programs.

Transport Control buttons: These buttons control the BDS system's built-in Blu-ray Disc player, iOS and USB devices and streaming sources. When the remote is in the Aux component control mode, they can control functions of the auxiliary component.

Replay button: Press this button to replay the previous 10 seconds of media playing on Blu-ray, DVD, CD, USB and data discs.

Repeat button: When the BDS system is playing a Blu-ray Disc recording, pressing this button cycles through the repeat modes such as Chapter, Title, OFF.

NOTE: Not all Blu-ray discs support repeat playback.

When the BDS system is playing a CD or listening to media stored on an iPod or USB device, this button cycles through the repeat modes such as Track, All, OFF.

Home button: Pressing this button returns the on-screen display to the Home screen from whatever screen is active when the button is pressed.

Back button: Pressing this button exits the current on-screen menu and displays the previous screen.

OK button: Press this button to select the highlighted item on the on-screen menu.

Cursor buttons: Use these buttons to navigate through items on the on-screen menu. Keypad button: Press this button to display a 10-keypad for entering letters and numbers, such as for network setup, disc track/chapter search and so on.

Options button: Pressing this button displays any available options for the item that is active at the time the button is pressed. When listening to an Aux source, pressing the Options button lets you adjust the audio delay to eliminate "lip sync" errors between the sound and picture when watching video programs with sound playing through one of the system's rear-panel audio inputs.

Program (Red) button: Press this button to create a programmed playback list for the currently-playing disc.

Zoom (Blue) button: Press the Zoom button to zoom in on or recede from a video image or slide. Use the Navigation buttons to zoom in on different sections of the image.

NOTE: This function is disc-dependent for Blu-ray Disc recordings and DVDs. Not all discs can be zoomed in.

Bookmark (Green) button: Press this button to activate the Bookmark function.

Thumbnail (Yellow) button: Press this button while playing a photo slide show to display thumbnail images of all photos in the slide show.

Red, Green, Yellow and Blue buttons: When the BDS system is playing a Blu-ray Disc recording, these buttons can activate features and menus that may vary from disc to disc. Refer to the menu instructions for each particular disc for more information.

NOTE: These Blu-ray Disc functions may override the Bookmark, Thumbnail, Program and Zoom functions.

Connections

CAUTION: Before making any connections to the BDS system, ensure that the AC cord is unplugged from the system and the AC outlet. Making speaker connections with the system plugged in and turned on could damage the speakers or the BDS system.

Speakers and the BDS system have corresponding (+) and (−) connection terminals.

Most speakers use red to denote the (+) terminal and black for the (−) terminal.

Your BDS system has color-coded speaker terminals:

BDS 280
White left channel (+)
Red right channel (+)
Black (−) on both channels
BDS 580
White front left (+)
Red front right (+)
Blue surround left (+)
Gray surround right (+)
Green center (+)
Black (−) on all channels

Black is used to denote the (−) terminals of all channels on the BDS system.

Be sure to connect each speaker identically: (+) on the speaker to (+) on the BDS system and (−) on the speaker to (−) on the BDS system. If one or more speakers are miswired, it results in thin sound, weak bass and a poor stereo image.

CAUTION: Make sure the (+) and (−) bare wires do not touch each other or the other terminal. Touching wires can cause a short circuit that can damage your BDS system.

Connecting a Powered Subwoofer

Use a mono RCA audio cable to connect the BDS system's Subwoofer output connector to your powered subwoofer; consult your subwoofer's owner's manual for information about making connections to your subwoofer.

Front right speaker Front left speaker Wire with black stripe is"- terminal

Connecting the FM Antenna

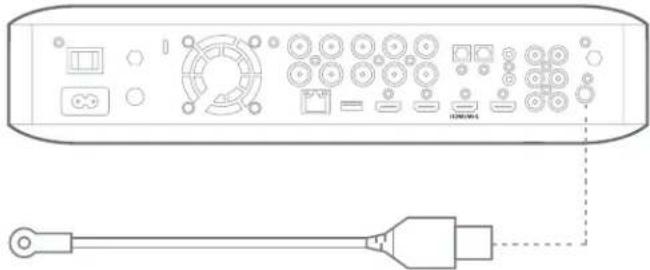

Connect the supplied antenna to the FM Antenna connector as shown in the following illustration. Fully extend the antenna wire and move it to different positions until you get the best reception of your favorite stations.

Line drawing of a device rear panel with ports and buttons, connected to a cable (no text or symbols)

Connecting a TV or Video Display

Use the supplied HDMI cable to connect the BDS system's HDMI output to your TV/video display's HDMI input. The BDS system is HDMI version 1.4b with 3-D and 30/36-bit Deep Color.

NOTE: If you have devices (such as a digital tuner) already connected directly to your TV, you can feed their sound to the BDS system via the HDMI output connector's Audio Return Channel, and they will not require additional connections to the system.

HDMI equipped TV TV

Connecting Your HDMI Source Devices

If you have any source devices with an HDMI connector, using it will provide the best possible video and audio performance quality. Since the HDMI cable carries both digital video and digital audio signals, you do not have to make any additional audio connections for devices you connect via an HDMI cable.

Front view of a computer monitor with ports and connectors, connected to a game controller (no text or symbols visible)

Connecting Your Digital Audio Source Devices

Optical Audio Source Device

If up to two of your non-HDMI source devices have optical digital outputs, connect them to the system's optical digital audio connectors.

Coaxial Digital Audio Source Device

If one of your non-HDMI source devices has a coaxial digital output, connect it to the system's Coaxial Digital Input connector.

NOTE: Make only one type of digital connection (HDMI, optical or coaxial) from each device.

TV

Connecting Analog Audio Source Devices

Use the system's Aux In connectors for up to two source devices that don't have HDMI or digital audio connectors.

Diagram of a remote control panel with ports and connectors, showing wiring connections without any text or symbols.

Connecting to a Local Area Network (LAN)

Use a Cat. 5/5E network cable (not supplied) to connect the BDS system's network connector directly to a network router, a network switch, a network modem or an Ethernet network wall jack that has Internet access.

NOTE: If you have a wireless home network, you can optionally skip this step and use the BDS on-screen menus to connect it to Wi-Fi later on.

Connecting the Subwoofer Trigger Output

If your system has equipment that can be controlled by a DC trigger signal, connect it to the system's Subwoofer Trigger connector with a mono 1/8-inch (3.5mm) mini-plug interconnect cable. The system will supply a 12V DC (100 mA) trigger signal at this connection whenever it is powered ON.

Diagram of a computer monitor with ports and indicators, no text or symbols present

Subwoofer

Connecting the IR Remote Input

The BDS system is equipped with an IR Remote Input connector that lets you remotely control the system when you place it inside a cabinet or in a location that is out of the line of sight of the remote control. Connect an external IR receiver to the system's IR Remote Input connector.

Remote IR input Connector ExternalIR Receiver BDS installed Inside Cabinet

Connecting the AC Power

The BDS system comes with a detachable AC power cord. This type of cord makes it easier for you to install and connect all other system wiring to the system's rear panel.

NOTE:

• The power requirement for the BDS system is 110V – 240V AC, 50/60Hz, 130W (BDS 580 system) or 90W (BDS 280 system).
• Before connecting the AC power cord to a wall outlet, confirm that you have correctly made all of the speaker connections, video connections and audio component connections.

Connect the female end of the system's detachable power cord to the rear panel AC Power input. Plug the other end into a working, unswitched AC outlet.

AC Power Cord

Connecting Headphones

Your BDS system's headphone connection accepts a standard 1/8-inch (3.5mm) stereo headphone plug. When you insert the headphone plug into the connector, the system's speaker outputs will mute; the HDMI audio output to the TV will not mute.

When headphones are connected to the system's Headphone jack, pressing the remote's Surround button cycles between these two modes:

• Harman Headphone, which virtualizes a multichannel surround soundtrack

down to two channels. This mode retains the soundtrack's original directional cues, allowing you to enjoy an enveloping surround-sound experience on any ordinary pair of stereo headphones.

- Headphone Bypass, which down mixes surround-sound programs into normal stereo. This mode does not retain any multichannel directional cues that may be in the original surround-sound program.

Connecting to Network through Wi-Fi

You can connect the unit to the internet through Wi-Fi.

WANATELLA SETUP

The following instructions help you to connect your unit to the network.

• From the home screen, select Settings > Network.
• Make sure Network Connection is set to ON.
- Set Type to Wi-Fi.
- Select your preferred method of connecting to your wireless network under Setup Wi-Fi.

There are four options for setting up wireless networks:

• Choosing a wireless network
- Configuring Wi-Fi by iOS
• WPS PBC (Push Button Control)
WPS PIN

Choosing a Wireless Network

To choose a wireless network:

1. Select Choose a network from the Setup Wi-Fi list.
2. Follow the instructions on the screen to select your wireless home network and enter your security password, if applicable.

Configuring Wi-Fi by iOS

Connect any iOS device (iPhone, iPod touch or iPad) to the front panel USB port of the BDS. Make sure Wi-Fi is enabled on your iOS device and that it is currently connected to your wireless home network.

NOTE: iOS version 5 or higher is required for iOS Wi-Fi sharing.

1. Select Configure Wi-Fi by iOS from the Setup Wi-Fi list. A pop-up will be displayed on your iOS device.

2. Select Allow to confirm that you want to share your Wi-Fi settings.

3. The connection should now be established automatically. Check the status on your TV for confirmation

harman/kardon

WPS PBC (Push Button Control)

1. Select WPS PBC from the Setup Wi-Fi list.
2. Press the WPS button on the rear panel of the BDS.
3. Next go to your wireless router and press its WPS button.
4. The connection should now be established automatically. Check the status on your TV for confirmation.

W/PAHANCED SETUP

WPS PIN

1. Select WPS PIN from the Setup Wi-Fi list. A PIN code is displayed on the screen.
2. Enter this same PIN on your wireless router's internal web page to connect. See your router's user manual for more details.

Wireless router harman/kardon

Preparing the Remote Control Installing the Batteries

Your system's remote control uses three AAA batteries (supplied). Insert the batteries as shown in the illustration, making sure to observe the correct polarity.

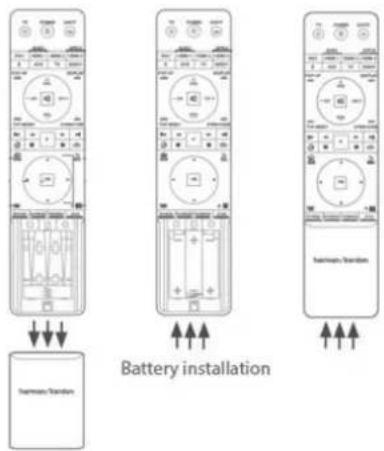

Battery installation

Using the Remote Control

When using the remote control, remember to aim it towards the system's front panel. Make sure that no objects, such as furniture, block the remote's view of the system. Bright lights, fluorescent lights, and plasma-video displays may interfere with the function of the remote.

• The remote control has a range of about 20 feet (6.1m), depending on the lighting conditions.
• You can use the remote at an angle of up to 30^ to either side of the BDS system.

If the remote seems to operate intermittently, or if pressing a button on the remote does not cause the remote control backlights to light up, make sure that the batteries are inserted correctly. If the remote still operates intermittently, replace all three batteries with new ones.

Programming the Remote Control

In addition to controlling the BDS system, you can program the unit's remote to control one auxiliary (aux) component. The remote is also capable of learning codes directly from other remotes. This ability allows you to combine learned commands with programmed codes, making the remote capable of controlling more than one aux component. Typical aux components would be your TV, a satellite system or a cable system. The remote will control the aux component(s) only when the aux source button has been pressed. Pressing any other source button will put the remote back into the normal BDS system control mode.

To Program the Remote to Control an Aux Component:

1. Check the set-up codes for the component type (for example, TV or cable box) and its brand in the Aux Component Remote-Control Code List, starting on page 23.

2. Turn on your auxiliary component.

3. Short press the aux button and then release it.

NOTE: The remote will remain in the programming mode for 20 seconds; you must perform step 4 within that time period.

1. Aim the remote towards the component you just turned on and enter a set-up code number from step 1, above. Use the Program (Red) button for the first digit; the Bookmark (green) button for the second digital; the Thumbnail (yellow) button for the third digit; and the Zoom (Blue) button for the last digit. If the code to be entered is "0" you do not need to press the corresponding button; for numbers "1" and above, press the button that number of times. When you have entered all four digits, press the OK button — the component should now turn off.
2. If the remote control turns the component off in step 4, press the aux button once again to store the set-up code number. To confirm that the code has been saved, the LED indicator will blink three times.

Auto Search Method

If you have tried all of the four digit set-up code numbers listed for your device and it still did not turn off, you should use the following auto search Method.

1. Turn on the device you would like the BDS remote to control, either manually or with its own remote control.
2. Short press the aux device button for three seconds; the BDS remote will enter set-up mode.

NOTE: The remote will remain in the programming mode for 20 seconds; you must perform step 3 within that time.

1. Select the region you are located in and the type of device that you are programming: for a US TV, do not press any of Program (Red), Bookmark (green), and Thumbnail (yellow) or Zoom (Blue) buttons.

• For an EU TV, press the Program (Red) button one (1) time
• For an HDTV, press the Program (Red) button two (2) times
• For a US cable tuner, press the Program (Red) button three (3) times
• For an EU cable tuner, press the Program (Red) button four (4) times
• For a US satellite tuner, press the Program (Red) button five (5) times
• For an EU satellite tuner, press the Program (Red) button six (6) times

1. Point the BDS remote control toward the device and press the Cursor Up button; each button press sends a power signal for one set-up code number. Continuing to press the Cursor Up button will produce a quick scanning of the set-up code numbers. Release the Cursor Up button as soon as the device turns off. If you go past the correct set-up code number, you can return to it by pressing the Cursor Down button, one code number at a time, until the device turns back on.
2. If the BDS remote control turns the component off in step 4, press the Aux button once again to store the set-up code number. To confirm that the code has been saved, the LED indicator will blink three times.

Programming Individual Button Codes on the Remote

You can program codes from other component remotes onto the BDS remote's buttons that are shown shaded in the following illustration:

1. Press and simultaneously hold down the Aux and the Program (Red) buttons on the BDS remote control for at least three seconds. The remote's Aux button will blink once.
2. Place the BDS system remote and the remote from which you want it to learn codes head-to-head about 1 inch (2.5cm) apart, with their IR transmitter windows facing one other.
3. Press the button on the BDS remote to which you want to teach a command. (The remote will remain in the learning mode for 20 seconds after the button is pushed.)
4. Press the button on the other remote that you want to teach to the BDS remote. When the IR code has been received and stored, the Aux button's LED will flash three times, and the BDs system remote will remain in the learning mode, ready to learn another code. If no IR code is received within 20 seconds, the Aux LED will flash rapidly several times, and the remote will exit the learning mode.
5. Repeat step 3 and step 4 for each command you want to teach the BDS system remote.

NOTE: If the aux button's LED goes out at any time, you will need to begin again from step 2 until it blinks three times.

1. Press the Aux button once, or wait for 20 seconds to cancel learning program mode.

NOTE: Any previously stored setup code will be erased when program mode is activated.

Channel Control "Punch Through" Commands

After programming the remote to control an auxiliary (aux) component, you can also program it to control the aux component's channel up/down and transport functions (play, pause, etc.) even when the remote is not in the aux control mode. for example, if the remote is programmed to operate your TV in the aux control mode, you can also have the TV's channel +/- functions "punch through" and operate even when the remote is in the Disc, Radio or USB control modes, for example.

NOTE: When this feature is active, TV or satellite channel +/- functions will override any existing channel controls set to that mode.

1. Press and hold the Source button for the main device the remote will be operating. The button will light up, go dark and then light up again. Release the button.
2. Select the type of punch-through programming.
   a. For "punch-through" channel control, press the Channel + button.
   b. For "punch-through" transport control, press the play button.
3. Press the Aux button. The original source button will flash to confirm operation. You can repeat step 1 – step 3 for any of the remote's source buttons (Disc, Radio, etc.).

NOTE: Punch-through channel and transport commands will override the existing commands for those buttons in the source modes you program. To undo Punch-through programming, follow the same steps as above, but press the same source button in step 1 and step 3.

Erasing a Learned Code and Restoring the Original Button Code

1. Press and simultaneously hold down the Aux and Bookmark (green) buttons on the BDS remote control for at least three seconds. The BDS remote will enter the learning mode after the Aux button LED turns on.
2. Press and release the remote control button that you want to erase. The aux button's LED will flash three times.
3. To erase other buttons, press the selected buttons.
4. To exit the erase mode, press aux button.

Resetting the Remote to Factory Default Condition

1. Press and simultaneously hold down the Aux and Thumbnail (yellow) buttons on the BDS remote control for at least three seconds.
2. The Aux LED will flash three times and exit learn-erase mode.

NOTE: By erasing all learned codes, all of the BDS remote buttons will return to their original functions.

Controlling an Apple TV

If you have connected an apple TV to the BDS system's HDMI 3 input, you can also use the BDS remote to control an apple TV that is streaming audio and video files stored on your home network, or accessing media from an Internet service such as Netflix, as shown in the illustration below.

Select any other input source to return the BDS remote to its normal operation.

Using the Remote after it is Programmed

Pressing the remote's Aux Input button will put the remote into the auxiliary-control mode, and it will control the auxiliary component(s) via the codes you have programmed into it.

To switch the remote back to the BDS system-control mode from the auxiliary-control mode, press any of the other Input buttons or the Home button.

Setting up the System

To set up your BDS system, you will use the remote to navigate through all of the onscreen menus and to make selections from them.

• Use the Cursor Up/Down buttons to navigate through the menu list.
- To select a highlighted item, press the OK button. The screen will change depending on your selection.
• To return to the previous screen, press the back button ◀.

1. When you turn on your BDS system for the first time, the on-screen menu will show the Initial Setup screens. The first screen allows you to select the language you want to use.

English Français Deutsch Русский Italiano Español Portugals (BR) - Welcome to the Harman Kardon BOS. Language harman / kardon

1. Press OK, and the initial setup Resolution screen will be displayed.


Auto 480/576 480p/576p 720p 1080l 1090p 2160p(UHD) Resolution harmen/kardon

1. Highlight your choice and press OK. Next, the initial setup Aspect Ratio screen will appear. 16:9 Full is the best choice for most displays.

16:9 Full 16:9 Normal 4:3 Pan & Scan 4:3 LetterBox Aspect Ratio harman/kardon

1. Highlight your choice and press the OK button. Setup is complete. Press OK once more to finish Initial Setup and show the home menu.


Setup is successful! Please press [OK] to exit.

Using the BDS System

Home Menu

Press the HOME to display the Home Menu screen:

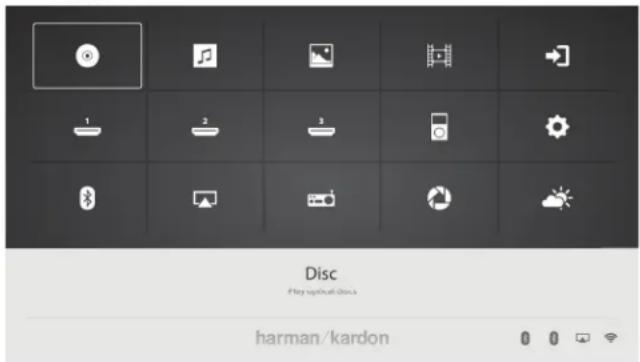

Disc Play audio/Discs harman/kardon

If a disc has been inserted into the system's built-in disc slot, it will be displayed on the list as either CDDA (CD), DVD Video (DVD) or Blu-ray Disc. If you have inserted a USB device into the system's USB port, it will appear on the list as USB.

NOTE: Digital and analog audio sources connected to the system's rear-panel digital and line inputs will not appear on the list. These sources can be accessed from the AUX source in the upper right of the Home Menu screen or by pressing the Aux input button on the remote control.

To select a source from the list, use the Cursor Up/Down buttons to highlight the desired source, and then press the OK button to select it. You can also select a source directly by pressing its Input button on the remote.

NOTE: Depending on the sources available in your region, there may be a second Home Menu screen for additional sources. Press the Cursor Down button while the cursor is on the bottom row of sources to access this additional screen.

Using the Disc Player

You Should Know

Disc Handling Precautions

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

Illustration of a hand holding a CD or DVD disc (no text or symbols visible)

• Do not stick paper or tape on the disc. If there is glue (or a similar substance) on the disc, remove the substance completely before using the disc.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts or leave it in a car parked in direct sunlight, as there can be a considerable rise in temperature inside the car.
  • After playing, store the disc in its case.

• Do not write on the label side with a ball-point pen or other sharp writing utensils.

• Be careful not to drop or bend the disc. Disc Cleaning Precautions
• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the centre out.
• Do not use solvents such as benzene, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

Regional Coding

Your BDS receiver is designed to be compatible with region management information that is encoded on most Blu-ray Disc recordings and DVD recordings. If there is a region code on a disc other than the one your BDS receiver is designed for, it will not play in your BDS receiver.

Copyright

Audio-visual material may consist of copyrighted works that must not be recorded without the permission of the owner of the copyright. Please refer to relevant laws covering copyright protection.

Copy Protection

Your BDS receiver is in compliance with HDCP (High-Definition Copy Protection), and a video display connected via the HDMI output must also be HDCP-compliant.

The BDS receiver supports Rovi copy protection. On Blu-ray Disc recordings and DVD discs that include a copy-protection code, if the contents of the disc are copied using a VCR, the copy-protection code prevents the videotape copy from playing normally.

Supported Disc Formats

The BDS receiver can play the following types of discs (5"/12 cm, and 3"/8 cm size):

• BD-Video (single-layer or double-layer)
• DVD-Video
• DVD+R/+RW
• DVD-R/-RW
• CDDA (CD digital audio)
• CD-R/RW

NOTE: The compatibility and performance of dual-layer discs is not guaranteed.

Loading and Playing a Disc

Hold the disc horizontally when loading it, and insert it gently into the Disc slot. The disc loading mechanism will take the disc and slide it into the unit.

• Do not load more than one disc into the Disc slot.
• Do not load the disc upside down.

After loading a disc into the player, press the Play button to begin playback.

Use the Play, Pause, Stop, Prev/Step, Next/Step, Search Forward/Slow and Search Reverse/Slow buttons to control disc playback.

Playback Features

Content play back control (Picture): You can control the picture using the buttons such as Play/Pause/Stop/Previous/Repeat/Next/Rotate/Zoom.

NOTE: The unit shall support the background music and picture slideshow simultaneously.

Content play back control (Music): You can control the picture using the buttons such as Play/Pause/Stop/Previous/Repeat/Next/Rotate/Backward/Forward.

Content Play back control (video): You can control the picture using the buttons such as Play/Pause/Stop/Previous/Repeat/Next/Rotate/Backward/Forward.

NOTE: The unit shall support the following video formats; AVI/MPG/H264/MKV.

Using DLNA

The Harman Kardon BDS system supports DLNA 1.5 Digital Media Player (DMP), Digital Media Renderer (DMR). Only supported media files will be played or supported metadata displayed on the screen. The supported files include audio, video, and photographs. The BDS system allows two DLNA servers to work simultaneously. It supports both the wired and wireless interfaces. The BDS can be controlled from an external control point. The following action can be controlled from an external device:

• Stop – Terminates the streaming
• Source selection – Terminates the streaming controlled by external control point and goes to respective source mode
• Power- Terminates the streaming controlled by external control point and goes to sleep mode
  • Volume control – Volume can be controlled by the external control point
• Clear/Exit – Terminates the streaming controlled by the external control point and goes to the previous mode/screen
• Home – Terminates the streaming controlled by the external control point and goes to home screen

Internet Services

The Harman Kardon BDS system supports various internet services such as Picasa, AccuWeather, and Pandora (US, Canada, Australia, and New Zealand only).

Picasa: Picasa is an image viewing, organizing and editing service. With BDS system, you can browse public Picasa photos or sign into your Picasa account to view your own. The BDS system supports Picasa service through network.

AccuWeather: AccuWeather is a popular weather forecasting website. You can get the weather forecast of many places throughout the world. You can access Accuweather in the BDS system through network and get the weather report from across the world.

Pandora: Pandora is a popular Internet radio service. BDS system supports Pandora service if connected to the Internet.

Playing Files from USB Devices and Data Discs

Your BDS system can play MP3 (up to 320 kbps bitrate) audio files, display JPEG photos and show MPEG 1 (layer 1), MPEG 2 (layers 2 and 3), and DivX home theatre profile audio/video files stored on a USB device or a CD/DVD data disc.

To access files on a device inserted into the system's USB ports, press the Home button and select Music, Photos, or Videos from the sources.

The screen will then show the device's file structure. Selecting a folder will show all files of the selected type of media in the folder. If there are files of the selected type in the device's root directory, they will also be shown.

To move up one directory level, press the Cursor Left button or select the arrow folder.

Playing Music Files

Music files can be played from connected USB drives, DLNA servers on your home network, or inserted data discs (Blu-ray, DVD, or CD). From the Home Menu screen, select Music. Select a folder containing music files and highlight a music file in the folder.

Music Folder 1 Folder 2 Music file 1 Music file 2 Music file 3 Music file 4 Music file 1 harman / kardon

Selecting a music file plays the file. If there are other music files in the folder that follow the selected file, the system will play them in the order they appear on the on-screen display.

If a selected MP3 file has an album cover-art ID3 tag, the art will be displayed on the screen.

Use the Play, Pause, Stop, Prev/Step, Next/Step, Search Down/Slow and Search Up/Slow buttons to control music-file playback. See Remote Control Functions, on page 8, for more information about the functions of these buttons.

When the BDS system is playing music files from a USB device or CD data disc, the Repeat and Options functions are slightly different from when they are playing Blu-ray Disc recordings, DVDs and music CDs.

• Repeat button: Pressing this button cycles through the following repeat modes: 1 (song), All (folder), OFF. The active repeat mode is indicated in the screen's top bar.
• Options button: Pressing this button displays any available options for the song currently playing:
  • File: Select a song to play.
  • Time: Display the track's elapsed time or the track's time remaining.

• Play Mode: Plays songs in their normal order, in random order (until you press the Stop button) or in shuffle order (plays each song in the folder one time in random order, then returns to the directory).
  • Bitrate: Shows the bitrate of the song currently playing.
  • Advance: Performs a rapid, audible search forward through the song.

• Replay: Each press of the OK button jumps back ten seconds during play.
  • Find: Lets you advance to a precise time in the track.

While playing music files from a USB device or data CD, you can also view photos that are on the same media. Press the Home button while the music file is playing, navigate to a folder containing photo files, and select a photo file to begin a slide show.

Viewing Photos

Photo files can be played from connected USB drives, DLNA servers on your home network, or inserted data discs (Blu-ray, DVD, or CD).

1. From the Home Menu screen, select Photo.
2. Select a folder containing photo files and highlight a photo file in the folder. A thumbnail of the highlighted photo will be displayed on the right of the screen.

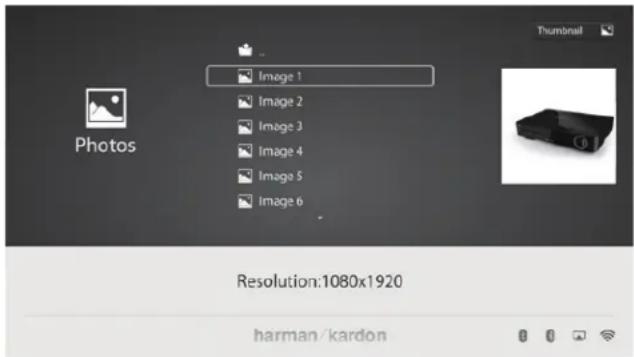

Photos Image 1 Image 2 Image 3 Image 4 Image 5 Image 6 Resolution:1080x1920 harman/kardon

1. Use these remote buttons while viewing photos:

2. Play button: Press this button to begin a slide show that displays the photos in the current folder or directory level (starting with the highlighted JPEG) for 15 seconds in the order they appear in the folder.

3. Pause button: Press this button to freeze the current photo on the screen. Press the Play button to resume the slide show.
4. Stop button: Press to end the slide show and return to the directory.
5. Next/Step and Previous/Step buttons: Press these buttons to skip to the next or previous photo file in the slide show or directory.
6. Cursor Up button: Pressing this button while a photo is displayed rotates the photo 180°.
7. Pressing this button while the directory list is displayed highlights the previous item in the directory.
8. Cursor Down button: Pressing this button while a photo is displayed shows a mirror image reflection of the photo. Pressing this button while the directory list is displayed highlights the next item in the directory.

9. Cursor Left button: Pressing this button while a photo is displayed rotates the photo 90° counter clockwise. Pressing this button while the directory list is displayed jumps to the next higher directory level.

10. Cursor Right button: Pressing this button while a photo is displayed rotates the photo 90° clockwise.

11. Options button: Pressing this button while a photo is displayed shows the Options menu, which gives you the following options:

• File: Select a file to view.
- Play Mode: View files in their normal order, in random order (until you press the Stop button) or in shuffle order (displays each image in the folder one time in random order, then returns to the directory).
- Slide Show: Select the amount of time you want each slide to be displayed: 5 seconds, 15 seconds or 30 seconds.
• Transition: Select from various types of image-to-image transitions.

Pressing the Options button when a directory is displayed shows the Playlist Options box.

• Thumbnail (Yellow) button: Pressing this button while playing a slide show displays thumbnail images of all photos in the slide show. Use the Cursor and OK buttons to highlight and select images to view.
• Zoom (Blue) button: Pressing this button during a slide show freezes an image and zooms in 2x size. Additional presses of the button change the zoom to 3x, 4x, 1/2x, 1/3x and 1/4x size.

Playing Videos

To play videos in BDS system:

1. In the top directory, select the Video or AVCHD folder.
2. Select a folder containing video files and highlight a video file in the active folder.

The video will automatically play. If there are other video files in the folder, the BDS system will play each one in the order they appear on the on-screen menu.

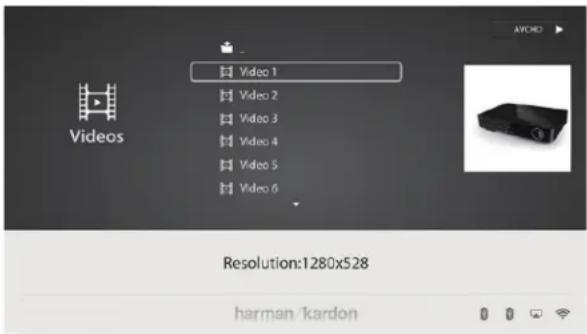

Video 1 Video 2 Video 3 Video 4 Video 5 Video 6 Resolution:1280x528 harman/kardon

1. Use the Play, Pause, Stop, Prev/Step, Next/Step, Search Forward/Slow and Search, Reverse/Slow buttons to control music file playback. When the BDS system is playing video files from a USB device or CD data disc, the Repeat and Options functions are slightly different from playing Blu-ray Disc recordings and DVDs.

2. Repeat button: Pressing this button cycles through the repeat modes such as 1 (current video), All (folder), OFF.

3. Options button: Pressing this button displays any available options for the video that is currently playing File, Title, Chapter, Time, Play Mode, Audio, Subtitle, Code Page, Bitrate, Advance, Replay, Adjust Lip Sync and Find.

Viewing HDMI Sources

Plug in an HDMI source device into the HDMI port on the back panel of the BDS system to view the available HDMI sources and use the remote control to accept the HDMI source you want. Connecting to an HDMI source allows you to transmit digital audio and video signals.

Listening to Audio Sources

Press the Aux button on the remote control. The system will switch to the audio input that was selected last. Subsequent presses of the Aux button will advance through the audio inputs in the following order: Coax In, Optical In 1, Optical In 2, Aux In 1, Aux In 2 and HDMI ARC (Audio Return Channel). The aux Input Now Playing screen will be displayed on the TV or flat-panel display.

In addition to playing the aux source through the system, pressing the Aux button places the remote in the aux-control mode. If you have programmed the remote to control an auxiliary component (either by entering in a code number or teaching commands to the remote), the remote operates according to that programming mode.

Lip sync delay: When playing an Aux source, audio and video processing circuitry may create a slight delay between the picture and sound. Pressing the Options button helps you adjust the audio delay to eliminate "lip sync" errors that may occur between the sound and picture in video programs with sound playing through one of the system's rear panel audio inputs. Use the Cursor Up/Down buttons to increase or decrease the audio delay until the perceived lip-sync errors disappear and the sound and picture are properly synchronized. The amount of audio delay is shown on the system's front panel Information display.

Listening to your iPod/iPhone/iPad

To listen to your iPod/iPhone/iPad through the BDS system:

1. Insert your iPod, iPhone or iPad into the USB port on the front panel of the BDS system.
2. Select iPod icon from the home screen.

A Now Playing screen will be displayed on your TV.

Use the following remote control buttons to browse and select content on your iPod/iPhone/iPad and control the device during playback:

• Cursor and OK buttons: Use these buttons to navigate and select items from the iPod/ iPhone/iPad menus.
• Exit button: Pressing this button while playing content displays the iPod/ iPhone menu. Pressing this button while a menu is displayed exits that menu and displays the previous screen.

• Previous/Step button: Press this button once to skip to the beginning of the current track. Press the button twice to skip to the beginning of the previous track.

• Next/Step button: Press this button to skip to the beginning of the next track.

• Search/Slow Reverse button: Press this button to search backward through the current track.
• Search/Slow Forward button: Press this button to search forward through the current track.
• Stop button: Press this button to stop playback.
• Play button: Press this button to play the item appearing on the system's display.
• Pause button: Press this button to pause the item that is playing. Pressing this button while the iPod/iPhone device is paused will resume play.
• Channel +/- buttons: Pressing the Channel + button moves up ten items in the active menu. Pressing the Channel - button moves down ten items in the active menu. Use these buttons to navigate through long menu lists quickly.
• Home button: Pressing the Home button will switch the display to the Home screen while you continue to hear the iPod/iPhone content through the BDS system. To display the iPod Now Playing screen again, press the Exit or Cursor Left button.
• Red button: Pressing the red button will toggle between modes such as Random Play (albums), Random Play (songs), Random Off.

•

Bluetooth

Bluetooth connectivity lets you stream audio wirelessly from a device that has been paired with the BDS receiver. After you have paired the BDS receiver with a Bluetooth device, you can select "Bluetooth" as the active source from the Home Menu.

Listening to Media via AirPlay®

The Harman Kardon BDS system supports AirPlay ^® . BDS is compatible with all devices that support AirPlay and the BDS volume can be controlled by AirPlay. If you have connected a BDS 280 or BDS 580 system to your home network, you can stream audio to it via AirPlay from compatible Apple devices with iOS 4.2 or newer and computers that have iTunes 10.1 or newer that are joined on the same network.

To initiate AirPlay streaming to the BDS system from a computer with iTunes:

- Launch iTunes, click the AirPlay button that appears at the bottom of the computer's iTunes window, and select HK BDS in displayed pop-up list.

Computer ✓ HK BDS Multiple Speakers... AirPlay Button Select "HK BDS" From Pop-UList

To initiate AirPlay streaming from an iPod, iPhone or iPad device:

Listening to FM Radio

Radio Input button: Pressing this button selects the BDS system's built-in FM radio as the system's active audio source. Pressing this button also puts the remote control into the control mode for the radio.

NOTE: Pressing this button when the BDS system is in the Standby mode will switch it on. If no station is found in the seek mode, it will come back to the original frequency.

Auto scan: Press the Auto scan button on the on-screen display to automatically scan the FM band and automatically set strong frequencies as presets.

OK button: Pressing this button sets the currently tuned-in frequency as a preset station.

Previous/Step button ◀◀◀ and Next/Step button ▶Passing these buttons scans to the next higher or lower receivable radio station.

Search/Slow Reverse button ◀◀ and Search/Slow Forward button ▶▶

Pressing these buttons increases or decreases the tuned frequency.

Channel +/- buttons: Pressing these buttons changes to the next higher or lower preset station.

Home button: Pressing the Home button will switch the BDS to the Home Menu screen while the radio continues to be heard through the BDS system. To display the Radio Now Playing screen again, press the Exit or Cursor Left button.

Configuring BDS for Speaker System

Before you use your BDS, you need to configure it to work with your particular speaker system. Harman Kardon's EzSet/EQ system uses the supplied EzSet/EQ microphone to perform this important step automatically.

Configuring BDS for your speaker system

harman/kardon EzSet/EQ microphone

IMPORTANT: Press the remote control "Disc" button before performing the EzSet/EQ procedure. The EzSet/EQ procedure is only available when the Disc input is selected.

To connect the microphone:

1. Plug the supplied EzSet/EQ microphone into the BDS's front panel headphone connector.
2. Place the microphone at ear height in your main listening position.
3. Press the remote control's Home button. The system's Home Menu screen will be displayed on the TV.
4. Use the cursor to highlight Settings then press OK to select it. The system settings menu will be displayed.
5. Use the down cursor button to select Sound and press OK.
6. Use the cursor to select EzSet/EQ and press OK.
7. Remain silent while the test noise plays through the speakers. As the test noise circulates among the speakers, the screen will show which speaker is being tested.
8. When the testing process is complete, the Testing message on the screen will change to All tests done!
9. Press the Back button to exit the EzSet/EQ test procedure.

NOTE: If the test fails, the 'Testing' message on the screen will change to 'Ez-Set/EQ failed'. Make sure all speakers are connected and the room is quiet.

1. Press the Back button, make sure all speakers are correctly connected and perform the test again from step 5.

Troubleshooting

Problems Solutions
The system does not power up (the Power indicator is not lit)	Check whether the system's Power cord is properly plugged into the system's AC Power connector.Check that the Power cord is plugged into a working AC outlet. If the outlet is controlled by a switch, make sure the switch is set in the ON position.Check that the system's main power switch (located on the rear panel) is in ON position.
Sound plays through the speakers, but there is no TV picture	Check the HDMI connection between the system and the TV.Check the HDMI connection or Component Video connection between the source device and the BDS system.Check that the TV is turned on and is set to the proper input source.Unplug the HDMI cable from the TV and plug it back in again.
There is no sound coming from just the subwoofer	Check that the subwoofer's Power cord is plugged into a working AC outlet.Check that the subwoofer's power switch is in the ON position.Check that the Subwoofer Level control is not turned all the way down (fully counter clockwise).Check that the audio connection between the system and the subwoofer has been properly made.Check the system's Settings: Configuration menu to make sure that the subwoofer volume has not been set at 10dB.
There is a constant hum in the sound	Check that all input cables are plugged all the way into their connectors.Check that all cables are at least 10 ft (3.3m) from fluorescent lights.Check that all cable connectors are clean. If necessary, wipe them with a cloth slightly moistened with alcohol.Set the subwoofer's power switch to OFF. If the hum goes away, there is a ground loop between the subwoofer and the system. Plugging the subwoofer's power cord into the same AC outlet that the system is plugged into should eliminate the ground loop.
The disc does not play	Check that the disc is inserted correctly (label side up).Check that the disc is the correct type: BD Video (single-layer or double-layer),DVD-Video, DVD+R/+RW, DVD-R/-RW, CDDA (CD digital audio), CD-R/RW. Other disc types will not play.Check that the disc surface is clean and not scratched.
There is noise or other interference in the picture while playing a Blu-ray Disc recordingor DVD	Check that the disc surface is clean and not scratched.
The sound and picture are out of sync when playing to an Aux source	Press the Options button and perform the Lip Sync adjustment to bring the sound and picture into synchronization.
Cannot tune in radio stations	Check that the FM antenna is correctly connected.Adjust the antenna's position. If necessary, use a powered FM antenna or an outdoor FM antenna.
The system does not respond to remote-control commands	Replace all three remote-control batteries with fresh ones, and make sure that they are installed with the correct polarity.Hold the remote closer to the system.Check that the system's remote sensor is in the line of sight of the remote control.
The remote does not control programmed components (TV or video)	Check that you have pressed the remote's Aux button before trying to operate the component.Re-program and/or re-teach the component's commands into the remote.
The O symbol appears on the screen when you press a remote-control button	The selected function is not permitted at the time the button is pressed.
The system does not respond to commands, or it behaves in an erratic way	Unplug the system's power cord from the AC outlet, wait 30 seconds, then plug it back in.

Specifications

BDS 280/580
Audio Section
Frequency Response @1W 20Hz – 20kHz, ±0.5dB
Slew rate 40V/μsec
Continuous average power, stereo mode 65 Watts per channel, 20Hz – 20kHz, @ <1% THD, both channels driven into 6 ohms
Input sensitivity/impedance (line inputs) 250mV/> 10kΩ
Signal-to-noise ratio (IHF-A) –90 dB
FM tuner section
Frequency range 87.5MHz – 108.0MHz (US and EU)
Usable sensitivity IHF >14dBf
Signal-to-noise ratio (mono/stereo) 55dB/55dB
Distortion (mono/stereo) 0.3%/0.5%
Stereo separation –40dB @ 1kHz
Image rejection 70dB
IF rejection 80dB
General
Power requirement 100 – 240V AC, 50/60Hz
Power consumption	90W maximum; <0.5W standby
Dimensions	400.2mm (L) x 283.8mm (W) x 78.5mm (H)
Weight	3.56 kg (BDS 280), 3.72kg (BDS 580)
THD/1kHz	DVD/CD: 0.1%
Supported disc formats	5-inch (12cm) or 3-inch (8cm)
Video section
Television format	NTSC or PAL (selectable)
HDMI® version	With 3-D and 30/36-bit Deep Color
Video signal receiver	NTSC (USA) or PAL (EU)

Aux Component Remote-Control Code List

TV/DVR

Manufacturer	Code Numbers
A MARK 0132 0122	1088 1105
ACER 0143 1167
ADMIRAL 0192 1105	1088 1023
ADVENT 0151
AIWA 0027 1110
AKAI 0053	1042	1093	1089	1056	1053
		1022	1020	1011
AKAL 0160 0123
AKURA 1020
ALBA 1040 1020
AMPRO 0164
ANAM 0122 0112 0109	0106 0045
ANSONIC 1049	1148	1144 1145	1146 1147
AOC 0128	0150	0123 0122	0037 0146
APEX 0154 2014 2016
ARC EN CIEL 1059 1056	1024 1019	1017
ARCAM 1017
ARISTONA 1086	1025	1060	1048	1047 1033
		1023	1022
ASA 1201 1096 1088	1023 1012
AUDIOVOX	0012 0155
AUTOVOX	1088 1044	1025
BANG & OLUFSEN	1088
BARCO 1202
BASICLINE 1020
BAUR 1102 1077 1076	1075
BEKO	1022
BENQ	0166 0170	1165
BLAUPUNKT	0084 1077	1076 1075	1011
BLU:SENS	0174	0178	0185	1098	1109
	1112	1120	1138	1170	1175
BLUE SKY 1144	1152	1148	1149	1150	1151
		1153	1154	1155	1156
	1157	1158
BRANDTELECTRONIQUE	1059 1056	1024 1019	1017
BRION VEGA	1203 1088	1023

Manufacturer	Code Numbers
BROCKSONIC	0206 0205	0072
BRUNS	1088 1023
BUSH 1092 1043 10	40 1020 10	10
BUSH(UK)	1044
CANDLE 0128 0123
CAPEHART	0059
CELLO 1178 1182
CENTURION	0171 0123
CENTURY 1088 1023
CETRONIC	0045
CGE 1105
CIHAN	1032
CITIZEN	0132 0128	0123 0045
CLASSIC 0045
COBY 0104
COMTEL	1032
CONCERTO	0128
CONTEC 0045 1010
CONTINENTAL EDISON	1059 1056	1024 1019	1017
CORANDO	0172
CORONADO	0132
CRAIG	0159 0158	0157 0045
CROSLEY	1088 1023
CROWN 0132 0045
CURTIS MATHES	0128 0123	0132 0080	0082
CXC 0045
DAEWO 0132		0128	0127	0119	0116
	0114	0111	0108	0106	0105
	0102	0087	0045	1022
DANSAI	1022
DAYTRON	0132 0128
DECCA 1091 1032
DECCA(UK)	1038
DEGRAAF	1015
DELL	0075
DGM	1190
DIBOSS	0186
DIGI LINK	0200

TV/DVR

Manufacturer Code Numbers
DIGIFUSION 1184
DIGITREX 1192
DISH NETWORK 018	8 2012
DIXI 1022
DORIC 1029
DUMONT 1201 119	9 1096 1088	1023
DUMONT-FINLUX 1	044 1012
DYNASTY 0045
DYNATECH 0063
DYNATRON 1022 10	20
DYNEX 0014 0083 0	107 0189
ELBE 1211 1105 1095
ELCIT 1032 1023
ELECTROGRAPH	0064
ELECTROHOME	0132 0115
ELEMENT 0048 0113
EMERSON	0205	0162	0159	0158	0157
	0139	0132	0128	0123	0045
	0126	1195	1088	1023
EMOTION	1189
EPSON	0074
ERRES	1033 1022
FENNER	1022
FERGUSON	1197	1196	1099	1077	1076
	1075	1062	1047	1024	1001
FIDELITY	1047
FIDELITY(UK)	1099
FINHER	1204
FINLANDIA	1018
FINLUX	1201	1199 1096	1088 1044
	1012
FIRST LINE	1157	1159	1160	1161	1163
	1164	1166	1168	1169
FISHER 1088 1043 10	23
FORGESTONE	1099 1047
FORMENTI	1088
FORMENTIPHOENIX	1088
FUJITSU	1195 0041	0042 0249	0250
FUNAI	0045

Manufacturer	Code Numbers
FUTURETECH	0045 0195	1195
GATEWAY	0198 0199
GBC	1043
GE	0163	0159	0145	0133	0128
	0123	0121	0087	0029
GEC(UK)	1061
GOODMANS	1043 1022	1010 1036	1041
GORENJE 1124 1034
GRANADA	1104	1033 1029	1022 1018
	1010
GRANADA(UK)	1043
GRUNDIG	0193	0203	1200	1096 1077
	1076	1075	1011
GVA	0131
HAIER	0135 0213	1028
HALL MARK	0128
HANNSPREE	1185
HANSEATIC 1043 10	22 1020 10	10
HARMAN KARDON	0201
HIFIVOX	1080	1059 1056	1024 1019
	1017
HINARI 1195 1043 1	020 1010
HISENSE	0137 0140	0216
HITACHI	0147	0144	0132	0128	0123
	1206	1101	1094	1093	1085
	1082	1080	1069	1066	1061
	1059	1058	1056	1055	1043
	1035	1026	1024	1018	1015
	1012	1010
HP	0076 0218
HUMAX 0217	1030
HYPER	1206
HYPERION	0073
HYTEK	0016
HYUNDAI 0220 0235
IKASU	1212
ILO	0009 0056
INFINITY	0148

TV/DVR

Manufacturer	Code Numbers
INKEL	0120
INNO HIT	1068
INSIGNIA	0099 0107
INTERFUNK	1104	1088	1056	1033	1024
	1023	1022	1020
INTERVISION 1121		1119	1118	1117	1116
	1115	1114	1113	1111
ISIS 1186
ITT 1100 1092 1046	1040
ITT-NOKIA 1100 1092 1058 1040
JBL 0148
JCPENNY 0145 0132	0128 0123	0115
JENSEN 0019
JET POINT 1208
JOHN LEWIS 1193
JVC 0134		0087	0079	1092	1056
	1053	1047	1043	1010
KARCHER 1068 1012
KATHREIN 1124 1034
KAWASHO	0173
KEC	0045
KENMARK 1183
KENNEDY	1025
KENWOOD	0204 0123
KLEGG	0066
KLH	0006
KMC	0132
KNEISSEL	1105
KNOLLSYSTEMS	0224
KOGAN 1180
KONKA	0225
KRIESLER 1060		1048	1047 1033	1025
	1023	1022
KTV	0162 0132	0123 0045
LEVEL	1191
LG(GOLDSTAR)	0132	0128	0122	0110	1073
	0002	0013	0086	1022
	2004
LINSAR	1187

Manufacturer	Code Numbers
LLOYTRON	0173 0172
LODGENET	0069
LOEWE	0227 1027
LOEWE OPTA	1088 1023	1022 1020
LOGIK	0069	1099	1091	1047	1038
LUMA	1022
LUXMAN	0128
LUXOR	1058
LXI	0148 0145	0077
M ELECTRONIC	1201
MAGNADYNE	1088 1023
MAGNASONIC	0015
MAGNAVOX 0148		0145	0132	0128	0123
	0030	0040	0088	0138	2007
	2008	2009	2010	2011
MANESTH 1022
MARANTZ 0148 0123	0115 1022
MARELLI	1088
MARK	1022
MARKS & SPENCER	1182
MATSUI	0148	1091	1043 1040	1038
	1020	1001
MAXENT	0199
MEDION	1031
MEMOREX	0128 0069
METZ	0084	1088	1077 1076	1075
	1023	1011
MGA	0128 0123	0115
MINERVA	0084	1200	1096 1077	1076
	1075	1011
MINTEK	0065
MISAKI	0195

TV/DVR

Manufacturer	Code Numbers
MITSUBISHI 0168		0167	0160	0128	0123
	0115	0077	1124	1092	1091
	1090	1089	1083	1082	1079
	1077	1076	1075	1057	1050
	1046	1043	1039	1038	1034
	1029	1023	1022	1020	1013
	1011	1010	1007
MOTOROLA 2005
MTC 0176 0175
MURPHY 1021
NATIONAL 0182		0181	0180 0179	0177
	0148	1018
NEC 0125		0123	0121 0115	0010
	1043	1010
NECKERMANN 1102	1088 1078	1023
NEON 1182
NIKEI 0045
NOBLEX 1204 1205
NOKIA 1100 1092 1	046 1040
NORDMENDE 1094		1093	1080	1069	1059
	1056	1053	1024	1019	1017
	1009
OKI 1045 1049 1081	1087 1097
OLEVIA 0007
ONKING 0045
ONWA	0045
OPTOMA	0229
OPTONICA	0077
ORION	0211	0210	0209	0208	0207
	0230	1210	1209	1091	1040
	1038
OTTO VERSAND	1207	1102	1092	1078	1077
	1076	1075	1043	1022	1020
	1010
PANASONIC	0169	0148	0087	0061	1137
	1136	1135	1134	1133	1132
	1131	1130	1129	1128	1002
	1004

Manufacturer	Code Numbers
PATHE' MARCONI	1059 1056	1024 1019	1017
PHILCO	0148	0132	0128	0123	0115
	0045	1105	1088	1023
PHILIPS	0148	0145	0132	0128	0123
	0036	0035	0034	0033	0089
	1108	1107	1104	1100	1099
	1095	1088	1086	1084	1078
	1071	1070	1068	1067	1061
	1060	1054	1048	1047	1046
	1033	1032	1027	1025	1023
	1022	1020	1014	1008	1176
	1177	1179	1181	1213
PIONEER	0128	0123	0024	1069 1056
	1024	1022	1020
POLAROID 0003 0004	0005 0006	0043
PORTLAND	0132 0128	0231
PROLINE	1209 1020
PROSCAN	0133
PROTECH	1022
PROTON	0165	0132 0128	0122 0059
	0008
QUASAR	0087 0032
QUELLE	1200	1096	1077	1076	1075
	1044	1038	1022	1020	1012
	1011
RADIO SHACK 0197	0045	0196 0180	0132 0128
RADIOLA	1078	1060	1048	1047 1033
	1025	1023	1022
RADIOMARELLI	1088	1083 1082	1029 1023
	1022
RBM(UK)	1044
RCA 0163		0161	0145	0133	0128
	0123	0115	0089	0188	2001
	2012
REALISTIC	0196		0167 0045	1029
REDIFFUSION 1083	1082
REX	1198 1025	1022

TV/DVR

Manufacturer	Code Numbers
RFT 1127	1122	1126 1125	1124 1123
RTF 1023
RUNCO 0153 0152	0044 0046
SAA 0183
SABA 1094	1059	1093	1088	1080	1069
		1056	1024	1023	1019
	1017	1009
SALORA 1058 1018
SAMPO 0128 0123	0059
SAMSUNG 0226	0022	0145	0132	0128	0124
		0020	1226	1208	1205
	1204	1068	1022	2003
SANYO 0054	1043	0026	0091	1092	1091
		1038	1023	1012	1010
SBR 1086	1033	1084	1061 1047	1046
		1022
SCEPTRE 0232
SCHNEIDER 1196	1047	1086	1078	1060	1048
		1033	1025	1023	1022
SCOTT 0132 0128 0	045 1195
SEARS 0145 0132 0	28
SELECO 0078	1022	1199 1198	1105 1025
SHARP	0132	0128	0077	0062 0092
	1207	1043	1010
SHERWOOD	0067
SIEMENS	0084	1077	1076 1075	1015
	1011	1010
SIGNATURE 0069
SINGER	1105 1088	1023
SINUDYNE	1209 1210
SOLE	0068 0233
SONY	0212	0194	0136	0130	0117
	0031	0028	0060	0093	1106
	1103	1102	1091	1065	1064
	1062	1043	1038	1016	1010
	1006	1172	1173	1174
SOUND WAVE 1020

Manufacturer	Code Numbers
SOUNDESIGN	0128 0045
SPECTRICON	0122
SSS	0045
STERN	1198 1025	1022
SUNKAI 1210
SUPERSCAN	0195
SUPRATECH	1139 1140	1141 1142	1143
SYLVANIA	0148	0145	0128	0123	0025
	0057	0094	0098	0142
SYMPHONIC	0184 0195
TANDBERG	1080 1056	1023
TANDY 0077
TATUNG	0063 2018
TCL 0234
TEAC	0095 0244
TECHNICS	0181
TECHWOOD	0128
TEKNIKA	0132	0128	0123 0115	0069
	0045	1195
TELEFUNKEN	1069 1059	1056 1024
TELERENT	0069
TENSAI 1022
TERA	0156
THOMSON	0191	0190	1094	1093	1082
	1080	1074	1072	1069	1059
	1056	1053	1044	1040	1024
	1019	1017	1009	1005	1003
THORN	1099 1047
THORN-FERGUSON	1196	1197	1201	1103 1102
	1099	1047	1024
TIVO	0051	0052 1051	1052 2207
	2204
TMK	0128
TOSHIBA	0202	0129	0063	0058	0096
	0103	1105	1096	1092	1063
	1044	1043	1042	1037	1010
	1001	1162
TOTEVISION	0132
TRISTAR 1099

TV/DVR

Manufacturer Code Numbers
TRIUMPH 1199 1044
TRUTECH 0055
UHER 1044
ULTRAVOX 1088 1023
UNIVERSUM 1201	1012	1102 1077	1076 1075
VIDEO CONCEPTS 0160
VIDEOCON 1188
VIDIKRON 0235 0253
VIDTECH 0128
VIEWSONIC 0011 0038 0047 0254 0255
VIORE 0245 0237
VISTRON 1194
VISUAL INNOVATIONS	1183
VITO 0070
VIZIO 0001 0002 0049 0050 0246
VOXSON 1088 1023
WARDS 0148 0132 0128 0069
WATSON 1077 1076 1075
WEGA	1088 1043	1010
WEGA COLOR 1023
WELTBLICK	1022
WESTINGHOUSE	0017	0018 0023	0060 0100
	1022
WINBOOK	0071
WINTERNITZ	1206
YAMAHA	0128 0123	0238 0239
YORK 0128
YUPITERU 0045
ZANUSSI 1198 1025	1022
ZENITH	0090	0069 0240	2002 2006
	2019
ZONDA 0122

Manufacturer	Code Numbers
ABC	3011	3001
ALLEGRO	3111
AMERICAST	3212
AMINO	3015 4031
ARCHER	3112
BELCOR	3113
BT CABLE	4007
CABLE STAR 3113 3033
CABLETIME	4016 4012	4011 4008
CISCO	3016 3021	4032 4033
CITIZEN	3111
CLYDE CABLEVISION	4017
COLOUR VOICE	3090 3085
COMCAST	3007	3040 3054	4014 4015
	4040
DECAST CANAL	4010
DIGI LINK 3114
EAGLE	3186
EASTERN 3070 3066
ELECTRICORD 3039
EMERSON	3112
FILMNET	4020 4018
FOXTEL	4019
FRANCE TELECOM	4021 4013
GEC	4017
GENERALINSTRUMENT	3054 4040
FOCUS	3116
FOXTEL	3043
G.I	3097 3096	3017 3011	3001
GC ELETRONICS	3113
GEMINI	3060 3032
GENERAL 3210

CABLE BOX

Manufacturer	Code Numbers
GENERAL INSTRUMENT	3210 3054
GOODMIND 3112
HANLIN 3208	3099	3175	3117 3101	3100
		3056
HITACHI 3188 3001
JASCO 3111
JERROLD 3210	3073	3188	3162	3097	3096
		3017	3011	3002	3001
	4022	4001
LINSAY 3118
MACOM 3191
MAGNAVOX 3068 3019 3017
MOTOROLA 3022	4035	3023	3021	3031 4034
		4036	4038
MOVIE TIME 3039 3035
NSC 3190 3035
OAK 3220 3197
PACE 3179
PANASONIC 3214 3189 3177 3176 3053
PANTHER 3114
PHILIPS 3090	4023	3085 3020	3019 3013
PIONEER	3216	3215	3209	3171 3119
	3041	3001	4002
POPULAR MECHANIC	3116
PRELUDE	3120
PRIMESTAR	3162
QUEST	3037 4041
RADIOSHACK	3213 3112	3111
RCA 3214 3053
RECOTON	3116
REGAL 3208 3101 3100 3099 3056
REMBRANT	3032
SAGEM	4028
SAMSUNG	3003	3186 3072	4024 4003
	4002
SATBOX	4004

Manufacturer	Code Numbers
SCIENTIFIC	3222	3221	3203	3183	3038
ATLANTA	4026	4025	4006	4005	4039
SEAM	3121
SIGNATURE	3188 3001
SPRUCER	3189 3177	3081 3053
STARCOM	3163 3011	3002
STARGATE	3120
TANDY	3024
TELECAPATION	3028
TELESERVICE	4011
TEXSCAN	3036
TFC	3122
TIMELESS 3123
TIVO	3029 3030	4029 4030
TOCOM	3205 3170
TUDI	4027
UNITED CABLE	3011 4001
UNIVERSAL	3113 3042	3039 3034	3033
VIDEOWAY	3211 3124
VIEWSTAR	3190	3089 3086	3053 3025
	3019
VISIOPASS	4009
WESTMINSTERCABLE	4007
ZENITH	3219 3211	3125 3065
ZENTEK	3116

SATELLITE TUNERS

Manufacturer	Code Numbers
AIWA 6141
AKAI 6033
ALBA 6111 6001
ALPHASTAR 5172
ALPHASTAR DBS 51	50
ALPHASTAR DSR 51	42
AMSTRAD 6132
ANKARO 6121
ASTRO 6183	6178	6182	6181	6180 6179
		6177	6176
BARCOM 6121
BIRDVIEW 5125
BLAUPUNKT 6090 6038
BUSH 6106 6048
BUSH(UK) 6053
CANAL 5078 6013
CANAL DIGITAL 6013
CANAL PLUS (CANAL+)	6013
CHANNEL MASTER	5061 5025	502	5020
CHAPARRAL	5151	5016	5015
CITOH	5060
DIRECTV	5009	5010	5014	6002 6003
	6005
DISH NETWORK 5064
DRAKE 5181 5113	5018	5017	5013
DX ANTENNA	5183 5079	5052	503
ECHOSTAR	5185	5184	5178	5177	5163
	5153	5152	5097	5095	5064
	5008	5038	5040	6047	6021
	6025	6028
ELECTRO HOME	5092
FERGUSON	6124	6111	6106	6067	6064
	6063	6053	6052	6048	6045
FINLUX	6010 6009
FOXTEL	5076 6016
FTE		6080
FUBA 6121 6047	6014
FUJITSU	5034 5029	5024

Manufacturer	Code Numbers
GOLDEN	6020
INTERSTAR
GOODMANS	6111
GRUNDIG	5074	6090	6067	6053 6038
	6015
HITACHI	5155 5004	6111	6106
HOUSTON	5163
TRACKER
HUGHES	5189 5137	5005	5006
HUMAX	5072 6007
ITT	6067
ITT-NOKIA	6067
JANIEL 5066
JERROLD 5184 5168	5154
KATHREIN 5110 6090	6080	6083	6001
KCPI	5080 6037
KOSMOS	6080
KYOTO GMIATLAN	6143
LEGEND	5153
LEMON	6174
LOEWE	6175
LORENZEN	6174 6165	6164	6163	6161
MACOM	5071 5070	5069	5065	5017
MAGNAVOX 5173 5161
MARANTZ	6033
MASPRO 6106 6053
MEMOREX	5153
METZ	6090
MINERVA	6090
MITSUBISHI	5007 6090
MOTOROLA 5012 5019
MULTISTAR	6080
NEC	6073 6046	6036	6030
NETA P562	6140
NEXTWAVE	5123
NOKIA	6067
NORSAT	5073	6046
OPTIMUS	5166
OTTO VERSAND	6090

SATELLITE TUNERS

Manufacturer	Code Numbers
PACE 5187		5028	5043	5082	6124
	6067	6064	6063	6053	6048
	6017	6039
PACE MSS SERIES 6067
PANASONIC 5169		5066 5157	5053 6124
	6031
PANSAT 5120
PERSONAL CABLE 5118
PHILIPS 5075		6124	6121 6053	6033
	6032	6019
PICO 5107
PREMIERE 5057 6008
PRESIDENT 5104 5081
PRIMESTAR 5175 5168 5154 5112 5002
QUADRAL 6173		6172	6171	6170 6169
	6168	6167	6166
QUELLE 6090
RADIOLA	6053
RADIX	6047
RCA	6047
REALISTIC	5190	5165	5139	5001 5158
	5058	5067	6035
SAMSUNG	5142	5022	5026	5045 6132
	6127	6080	6034
SAT	6127
SATELLITE SERVICE	5088 5035
SCIENTIFIC ATLANTA	5039 5056

Manufacturer	Code Numbers
SCHNEIDER	6053
SIEMENS	6090 6038
SKY	5043 5044	6006 6017	6018
SKY MASTER	6133
SKYLAB	6121
SONY	5105 5062	5041 6029
STAR CHOICE DBS	5159
STARCAST	5047
SUPER GUIDE	5123 5027
TECHNISAT 6047
TEECOM	5109	5093 5091	5090 5033
	5030
TELECOM	6041
TELEFUNKEN	6083
THORN-FERGUSON	6067	6064	6048	6063 6053
	6052	6045	6023
TOPFIELD	5063 6011
TOSHIBA	5023 5162		5161	5160	5126
		5180	5179	5166	5103
		5083	5081	5055	5054
		5050	5049	5048	5032
VIASAT	5077 6012
VORTEC	6142 6132
WISI	6127	6047 6026	6027 6022
	6004
ZEHNDER	6127 6080
ZENITH	5188	5119	5094	5087 5085
	5084	5059	6044

BOS BLU-RAY 3D harman/kardon

HARMAN

HARMAN International Industries, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA www.harmankardon.com

© 2013 HARMAN International Industries, Incorporated. All rights reserved. Features, specifications and appearance are subject to change without notice.

Harman Kardon is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners. The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

The Wi-Fi Protected Setup Identifier Mark is a mark of the Wi-Fi Alliance.

DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

AirPlay, iPad, iPhone, iPod, iPod touch and iPod nano are trademarks of Apple Inc., registered in the U.S. and other countries:

Made for iPhone 5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPad (3rd and 4th generation), iPad 2, iPad, iPad mini, iPod touch (1st through 5th generation), iPad nano (2nd through 7th generation).

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion, and Mac and PC with iTunes 10.2.2 or later.

Manufactured under license from Dolby Laboratories. Dolby, and the double-D symbol are trademarks of Dolby Laboratories.

DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.

DivX*, DivX Certified*, DivX Plus* HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

DivX Certified* to play DivX* and DivX Plus* HD (H.264/MKV) video up to 1080p HD including premium content.

The terms HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Blu-ray Disc™, Blu-ray™, Blu-ray 3D™, and the logos are trademarks of the Blue-ray Disc Association.

"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

Java is a registered trademarks of Oracle and/or its affiliates.

Google and YouTube are trademarks of Google Inc.
