USER MANUAL fi-6240 FUJITSU

fi-6140 / fi-6240 Image Scanner Operator's Guide

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP

fi-6140 / fi-6240 Image Scanner Operator's Guide P3PC-2062-02ENZ2

Next

Line drawings of two different printer designs (no text or symbols)

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING

CONTENTS MAP

TOP

CONTENTS MAP

Prev

Next

Back

INTRODUCTION

Regulatory Information
Trademarks
Liability
Conventions
Safety Precautions

Chapter 1 NAMES AND FUNCTIONS OF PARTS

1.1 Checking the Contents of the Scanner Package
1.2 Names and Functions of Parts
1.3 Functions of the Operator Panel

Chapter 2 BASIC SCANNER OPERATIONS

2.1 Turning the Scanner ON
2.2 Loading Documents on the ADF for Scanning

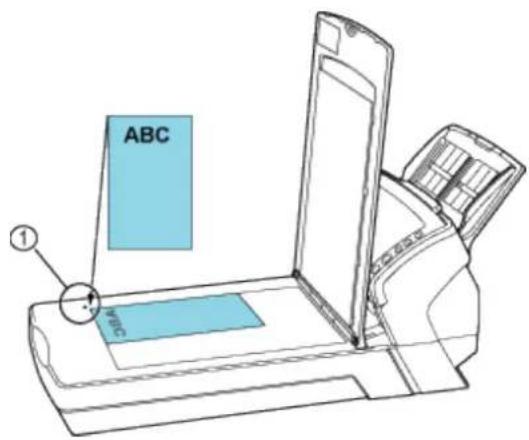

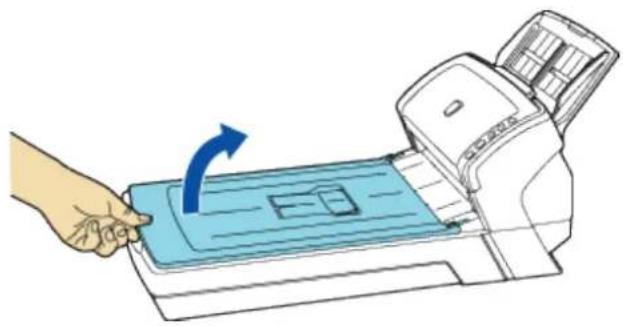

2.3 Loading Documents on the Flatbed for Scanning [fi-6240 only]
2.4 Scanning Documents

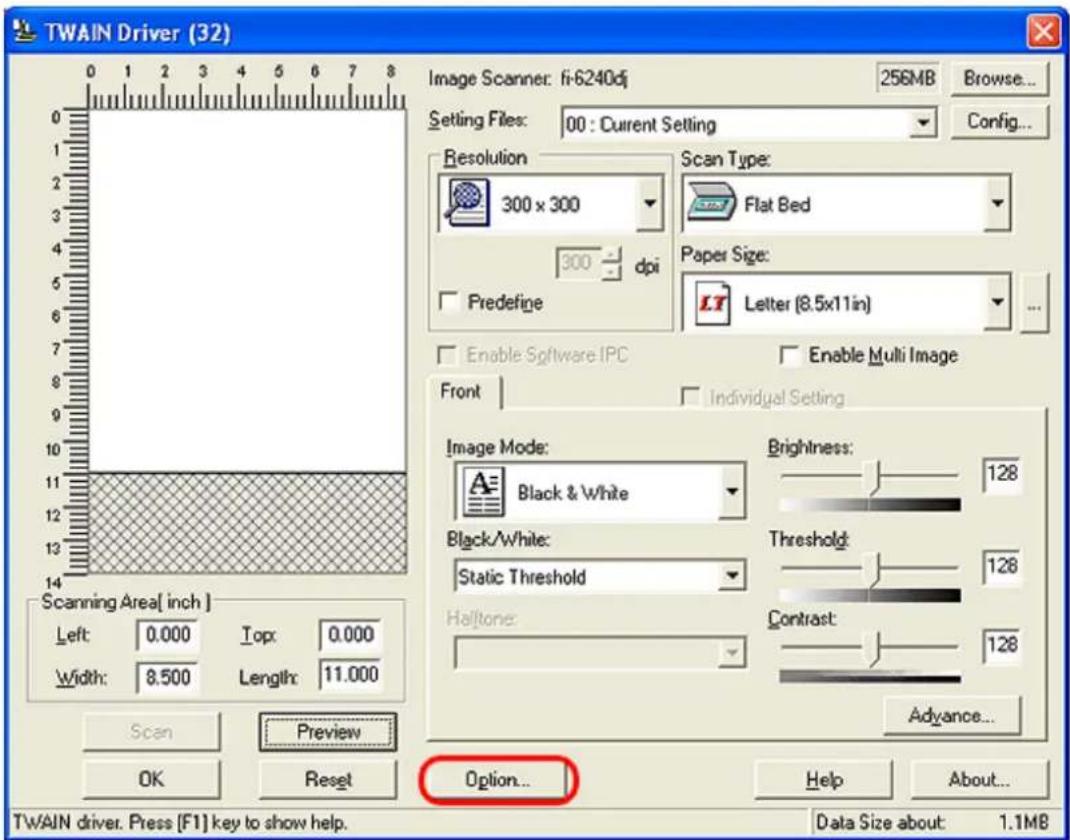

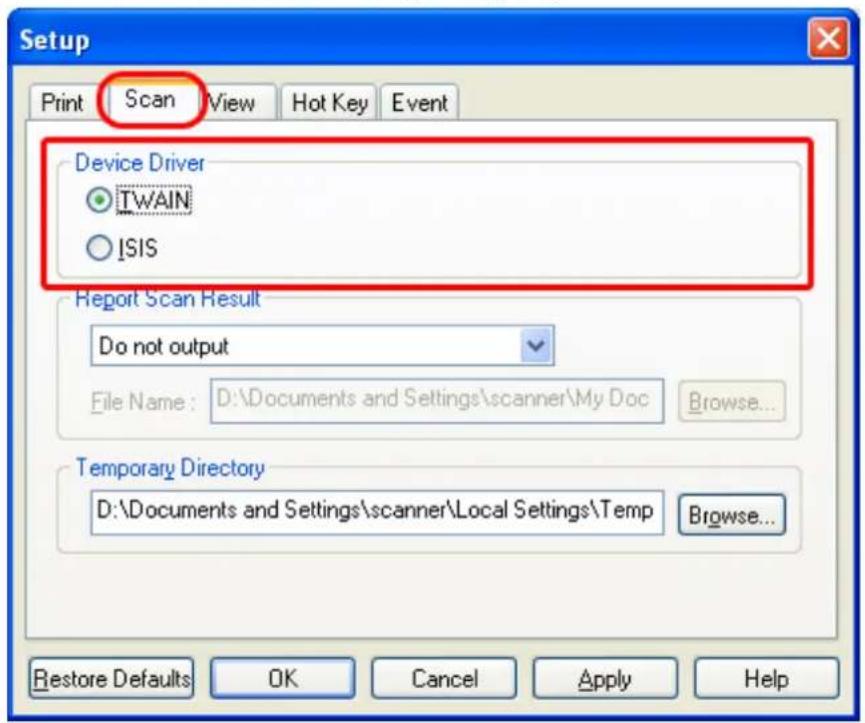

2.5 How to Use the Scanner Drivers

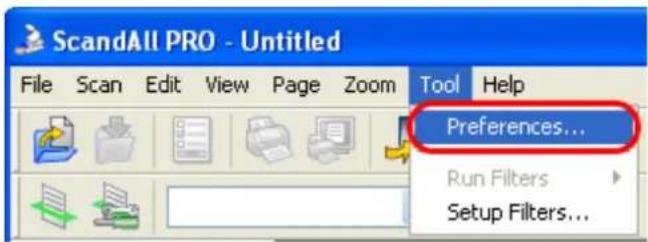

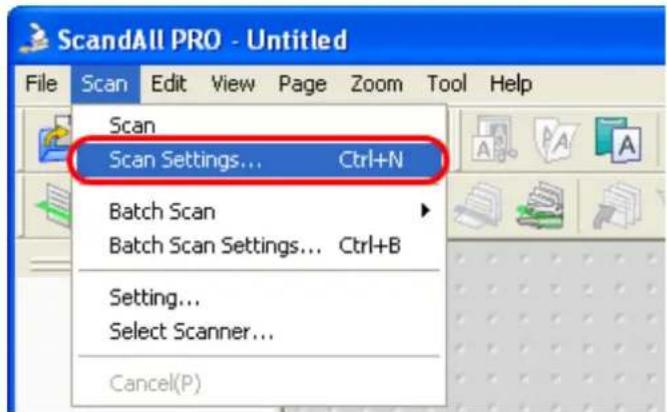

2.6 How to Use ScandAll PRO

Chapter 3 SCANNING VARIOUS TYPES OF DOCUMENTS

3.1 Scanning Both Sides of Documents
3.2 Scanning Books [fi-6240 only]

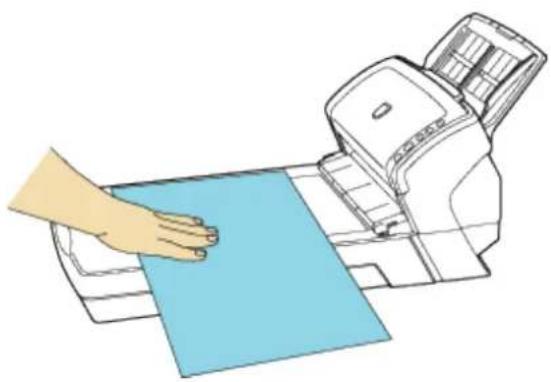

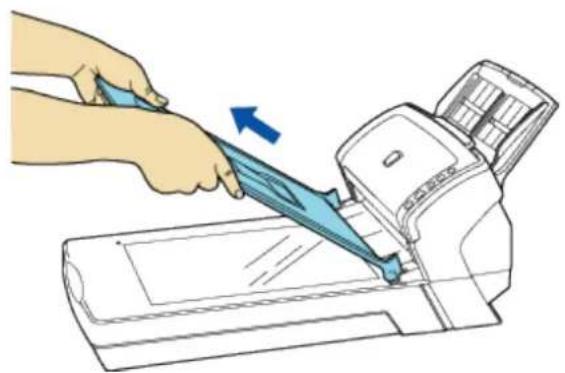

3.3 Scanning Large Documents with Flatbed [fi-6240 only]
3.4 Scanning Documents of Different Widths
3.5 Scanning Documents Longer Than A4/Letter Size

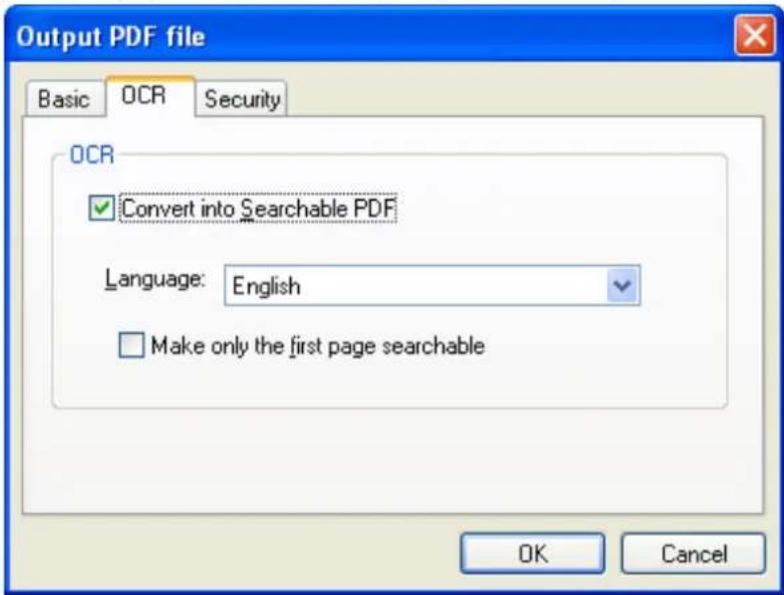

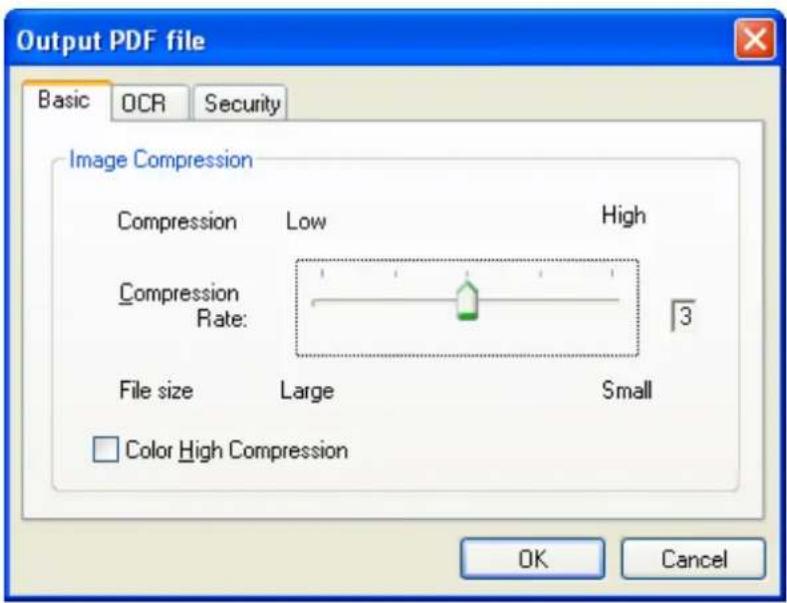

3.6 Saving Scanned Images in PDF Format

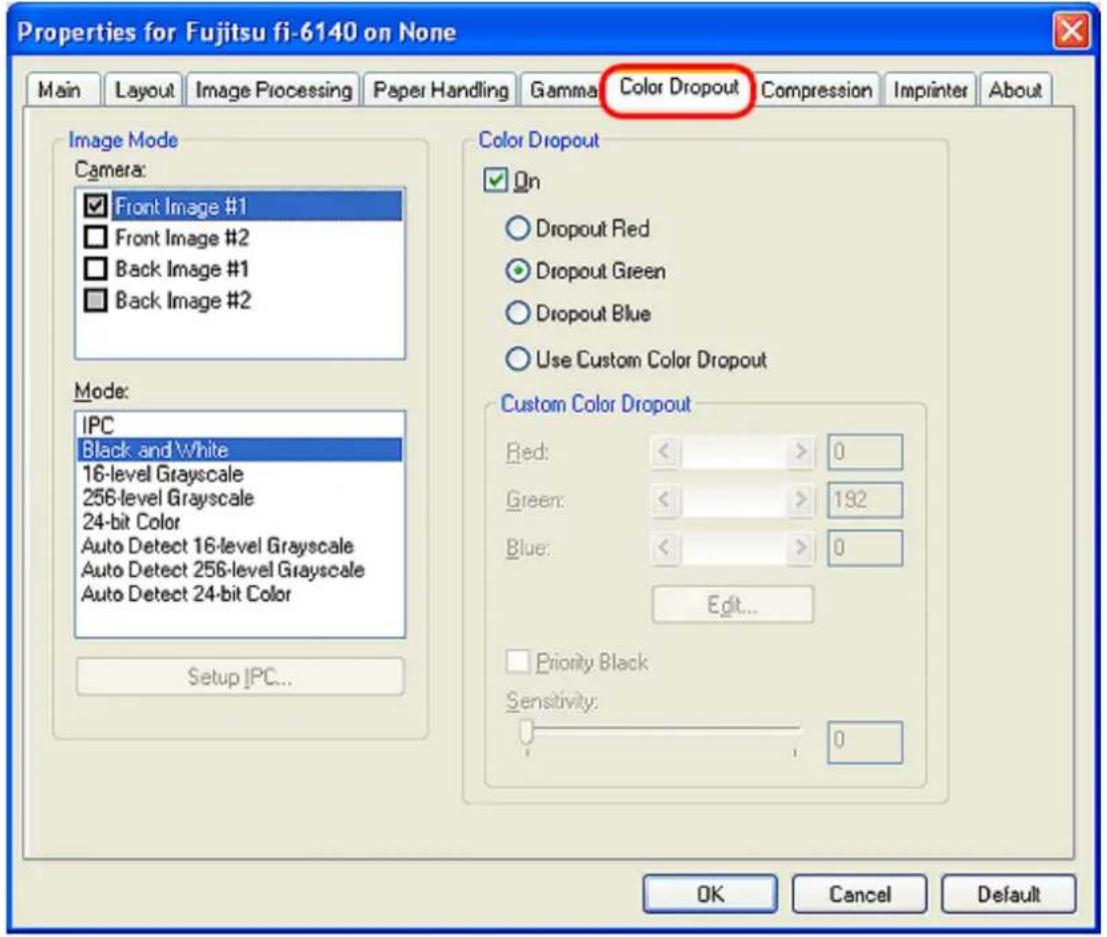

3.7 Excluding a Color in the Image (Dropout Color)
3.8 Skipping Blank Pages

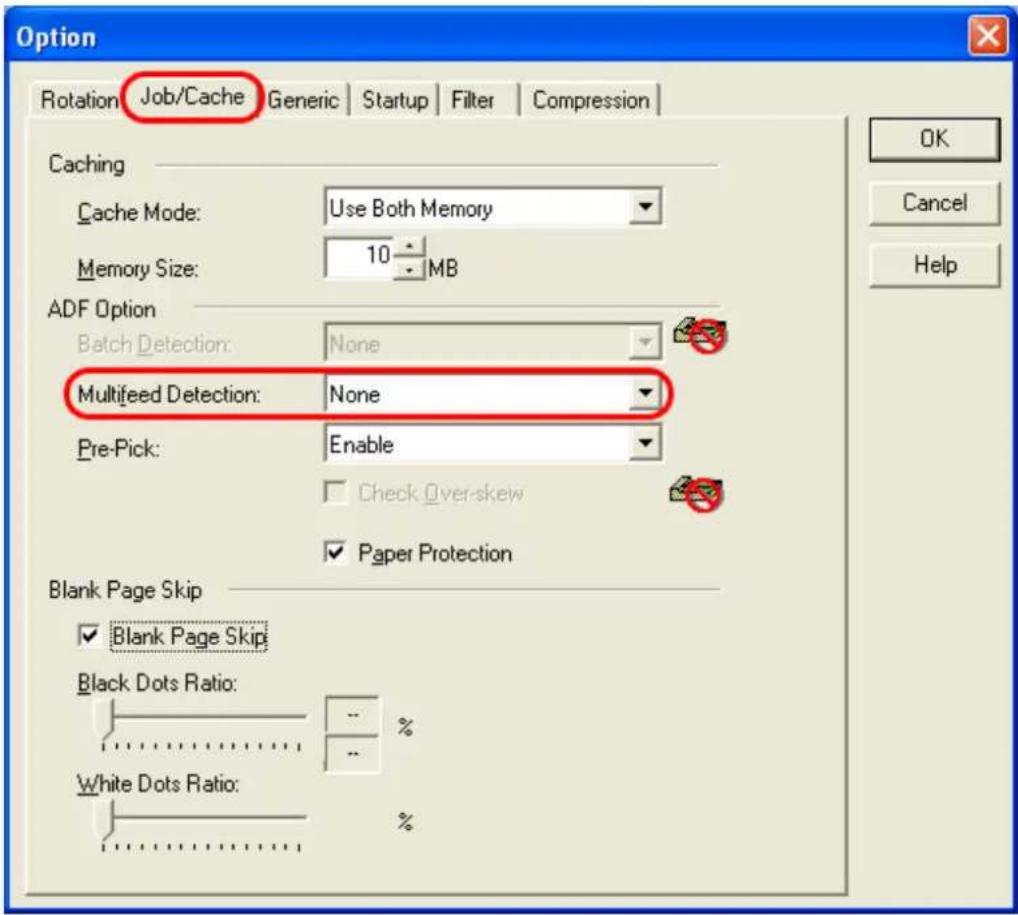

3.9 Detecting Multifeeds
3.10 Correcting Skewed Documents
3.11 Outputting Multi-Images
3.12 Color/Monochrome Auto Detection
3.13 Splitting a Page in Two Pages

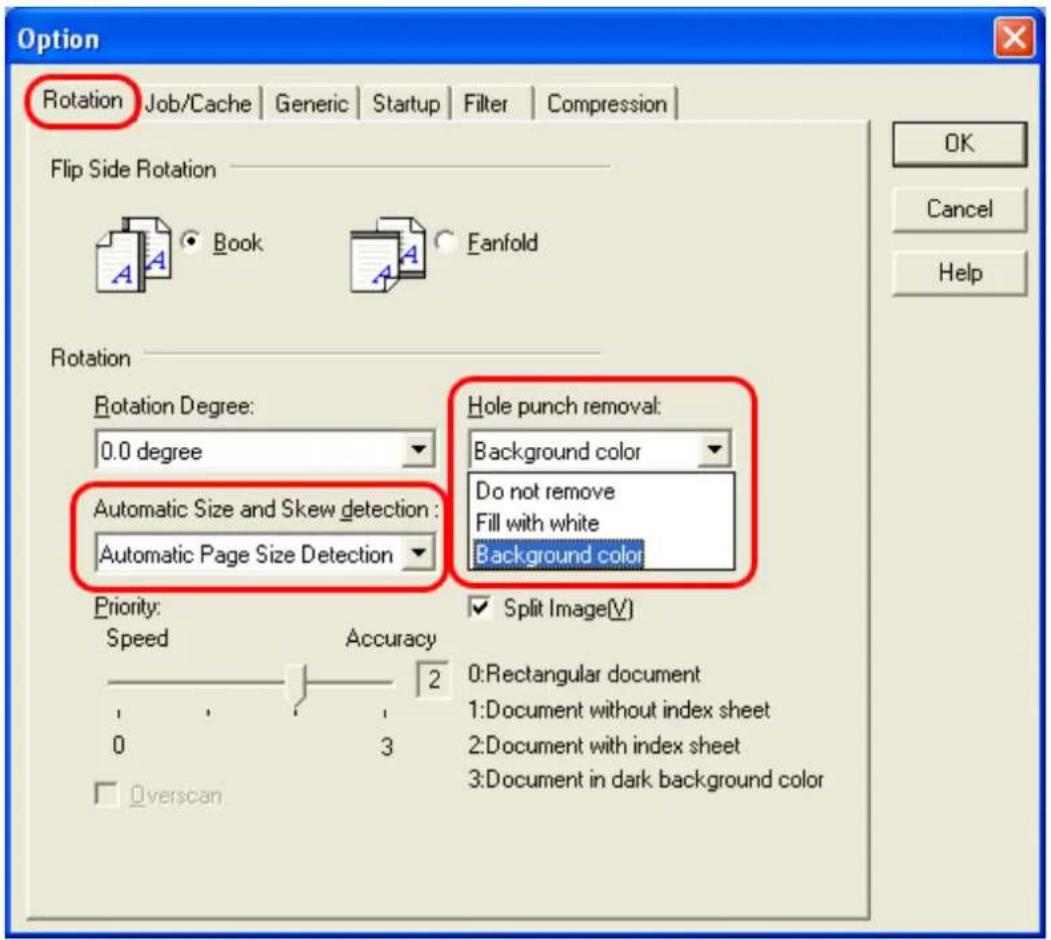

3.14 Removing Punch Holes from Images

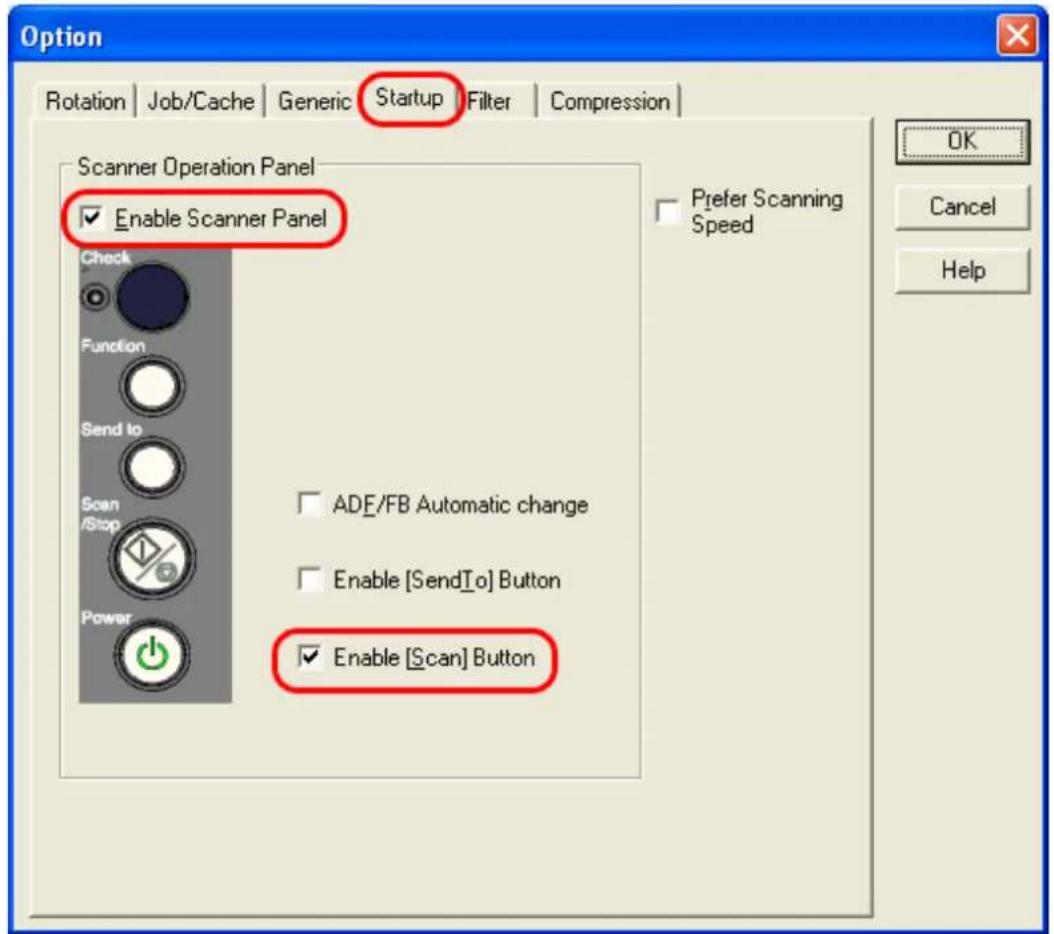

3.15 Scanning by Pressing the Scan Button on the Scanner
3.16 Splitting Documents by Patch Code
3.17 Scanning Using Barcodes
3.18 Not Detecting Multifeed for Fixed Format

Chapter 6 TROUBLESHOOTING

6.1 Removing Jammed Documents
6.2 Error Indications on the Operator Panel
6.3 Remedying Typical Troubles
6.4 Items to Check Before Contacting the Dealer Where You Bought the Scanner
6.5 Checking Labels on the Scanner

Chapter 7 ADF AND PAPER SPECIFICATION

7.1 Document Size
7.2 Document Quality
7.3 Maximum Document Loading Capacity
7.4 Area Not to be Perforated
7.5 Multifeed Detection Conditions

Chapter 8 SCANNER SETTINGS

8.1 Scanner Settings
8.2 Power Saving Setting

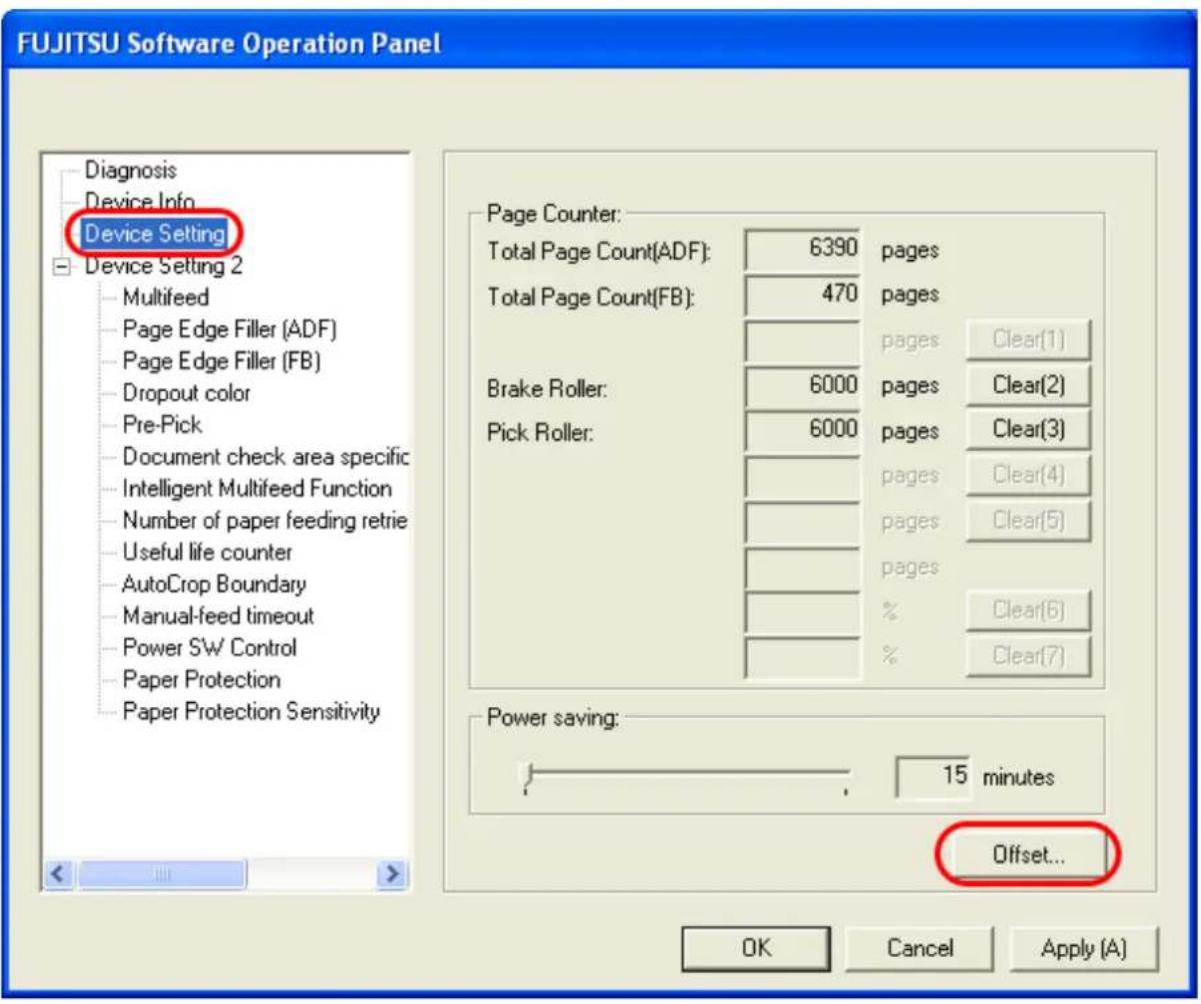

8.3 Offset/Scan Scale

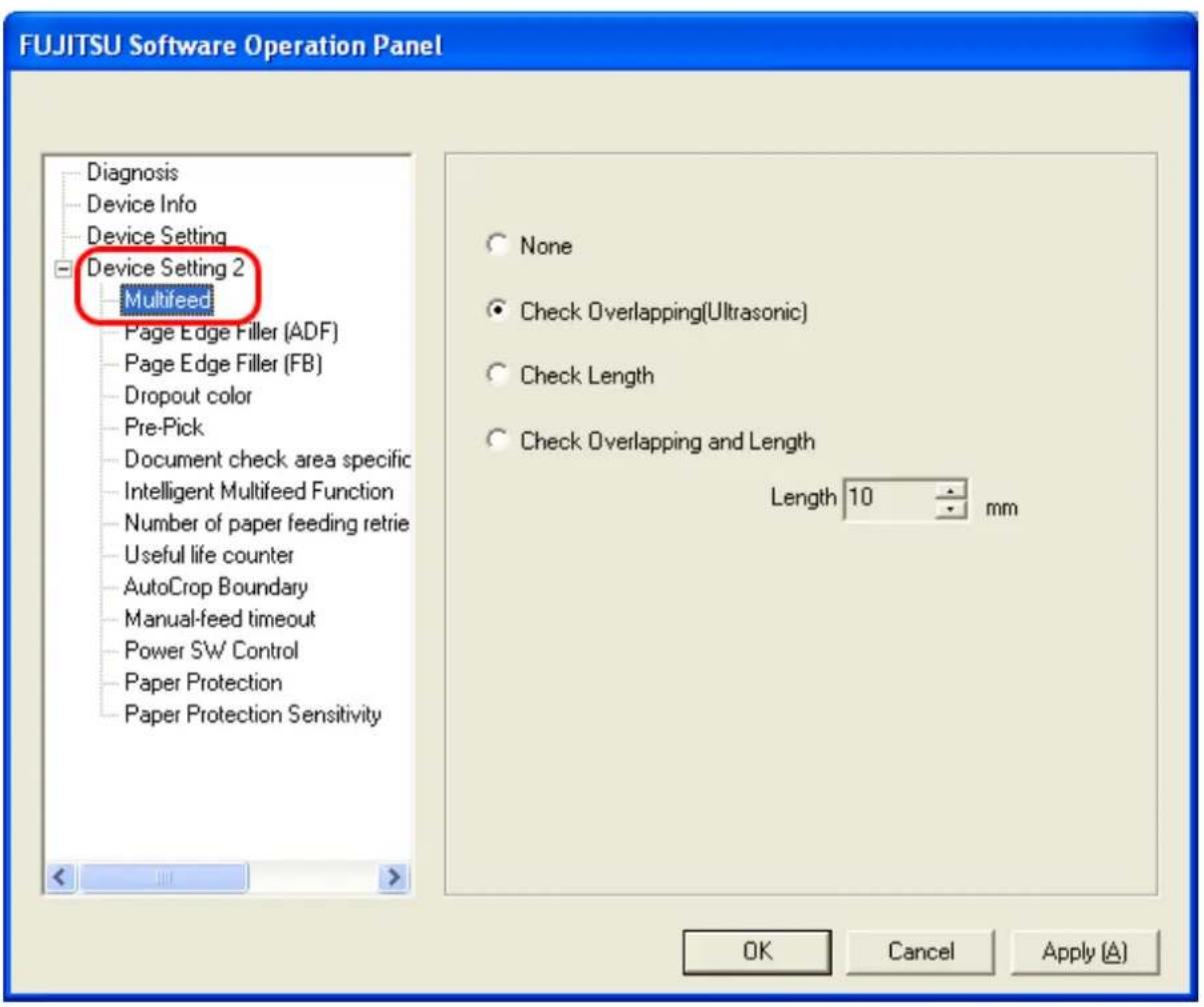

8.4 Multifeed Detection
8.5 Page Edge Filler
8.6 Dropout Color
8.7 Pre-Pick

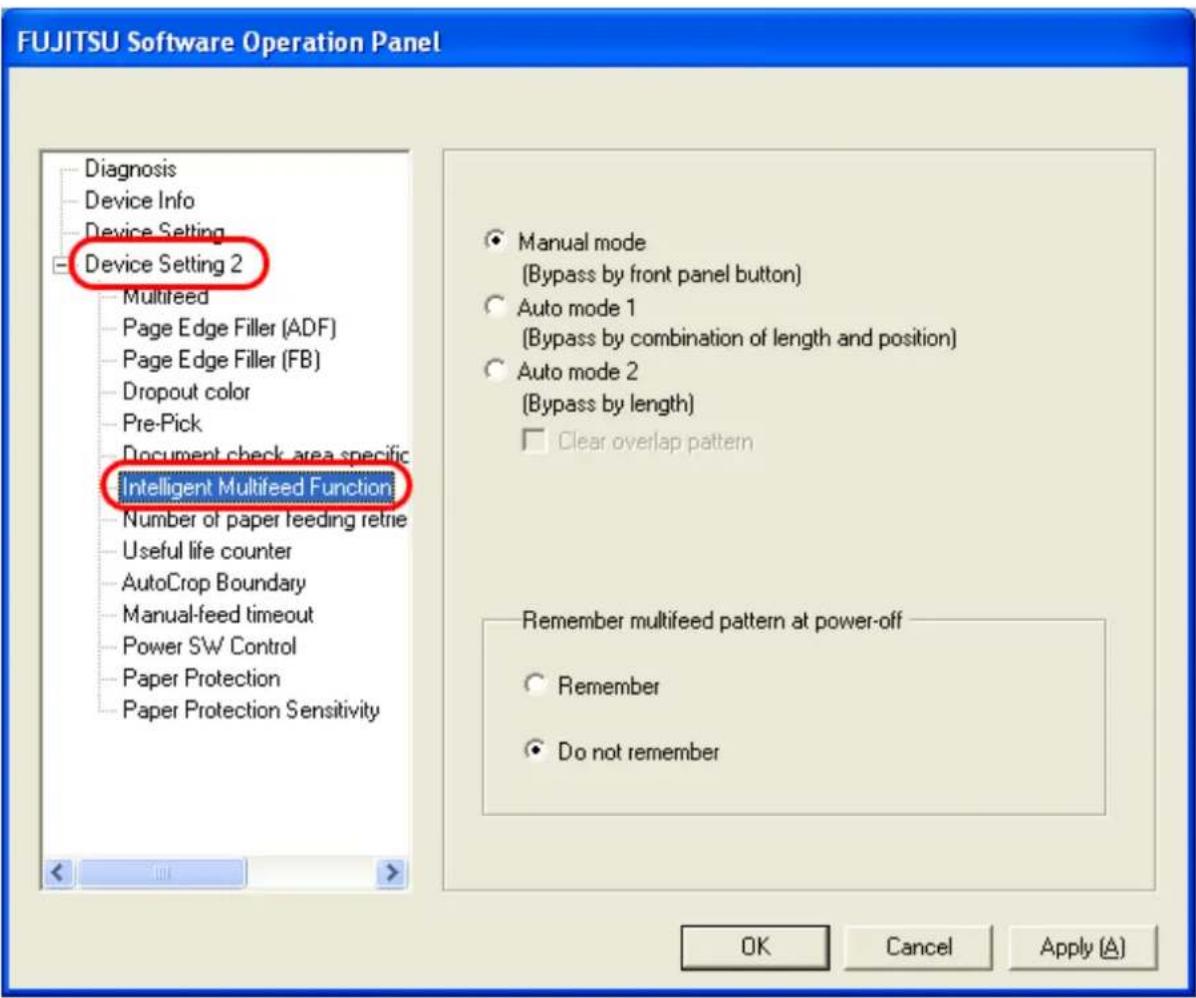

8.8 Intelligent Multifeed Setting

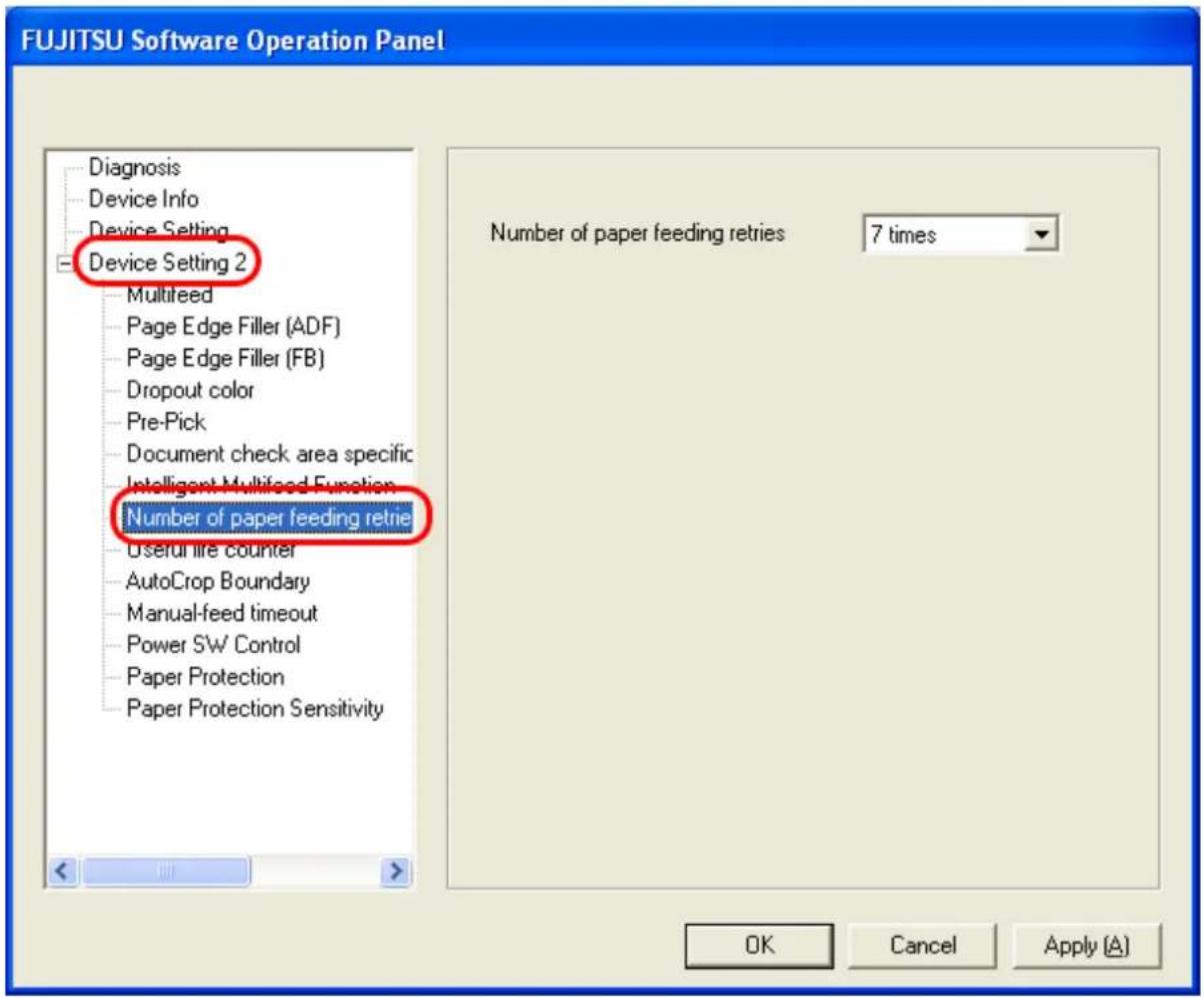

8.9 Paper Feeding Retry Times
8.10 Life Counter Setting
8.11 Setting for Manual-Feed Timeout

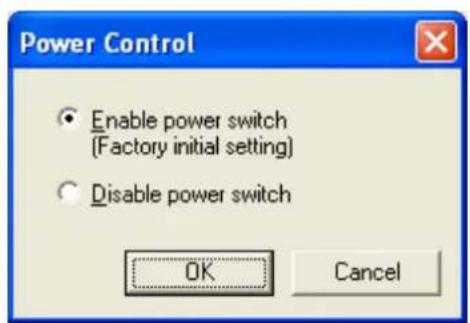

8.12 Power ON/OFF Control Setting
8.13 Paper Protection Setting
8.14 Paper Protection Detection Level Setting
8.15 AutoCrop Boudary

Chapter 9 SCANNER SPECIFICATION

9.1 Basic Specifications
9.2 Installation Specifications
9.3 External Dimensions

APPENDIX

APPENDIX1 Before Using the [Scan] or [Send to] Button
APPENDIX2 Glossary

Chapter 4 DAILY CARE

4.1 Cleaning Materials and Locations Requiring Cleaning

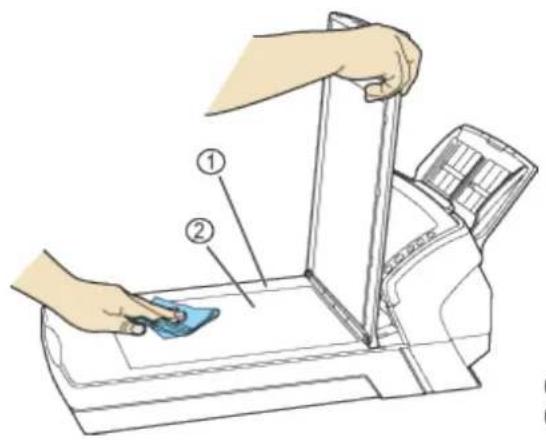

4.2 Cleaning the Flatbed [fi-6240 only]
4.3 Cleaning the ADF

Chapter 5 REPLACING CONSUMABLES

5.1 Consumables and Replacement Cycles
5.2 How to Check and Reset the Comsumables Counters
5.3 Replacing the Brake Roller
5.4 Replacing the Pick Roller

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING

CONTENTS MAP

TOP

INTRODUCTION

Prev

Next

Thank you for purchasing the fi-6140 / fi-6240 Duplex Color Image Scanner.

This document describes how to handle the fi-6140 / fi-6240 Duplex Color Image Scanner and basic operation methods. Before you start using the fi-6140 / fi-6240 Duplex Color Image Scanner be sure to thoroughly read this manual to ensure correct use.

CONTENTS

Line drawings of two different printer designs (no text or symbols)

• Copying of the contents of this manual in whole or in part and copying of the scanner application is prohibited under the copyright law.
  • The contents of this manual are subject to change without notice.
• PFU LIMITED is not liable whatsoever for any damages resulting from use of this scanner and procedures described in this manual, profit due to defects, and any claims by a third party.

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

Regulatory Information (1)

Prev

Next

1 2

FCC Declaration

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is located.
- Consult your dealer or an experienced radio/TV technician.

FCC warning:

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ATTENTION

The use of a shielded interface cable is required to comply with the Class B limits of Part 15 of FCC rules. The length of the AC cable must be 2 meters (6.6 feet) or less.

Canadian DOC Regulations

This digital apparatus does not exceed the Class B limit for radio noise emissions from digital apparatus set out in the Radio interference Regulations of the Canadian Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003.

Regulatory Information (2)

Prev

Next

1 2

International ENERGY STAR® Program

As an ENERGY STAR® Partner, PFU LIMITED has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

ENERGY STAR

The International ENERGY STAR® Office Equipment Program is an international program that promotes energy saving through the penetration of energy efficient computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, monitors, printers, facsimiles, copiers, scanners, and multifunction devices. Their standards and logos are uniform among participating nations.

Use in High-Safety Applications

This product has been designed and manufactured on the assumption that it will be used in office, personal, domestic, regular industrial, and general-purpose applications. It has not been designed and manufactured for use in applications (simply called "high-safety applications" from here on) that directly involve danger to life and health when a high degree of safety is required, for example, in the control of nuclear reactions at nuclear power facilities, automatic flight control of aircraft, air traffic control, operation control in mass-transport systems, medical equipment for sustaining life, and missile firing control in weapons systems, and when provisionally the safety in question is not ensured. The user should use this product with adopting measures for ensuring safety in such high-safety applications. PFU LIMITED assumes no liability whatsoever for damages arising from use of this product by the user in high-safety applications, and for any claims or compensation for damages by the user or a third party.

About the Use of Mercury

Hg Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state, or federal laws.

To avoid unexpected injury, read the following carefully. Doing the following actions may result in serious personal injuries:

• Do not put the substance contained in the lamp in your mouth as it has mercury.
• Do not incinerate, crush, or shred the lamps or scanner parts.
• Do not breathe the chemical liquid contained in the scanner lamps.

1 2

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

Trademarks

Prev

Next

Trademarks

Microsoft, and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. ISIS and QuickScan are trademarks or registered trademarks of EMC Corporation in the United States.

Adobe, the Adobe logo, and Acrobat are either registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Other product names are the trademarks or registered trademarks of the respective companies.

How Trademarks Are Indicated In This Manual

References to operating systems (OS) and applications are indicated as follows:

Windows 2000	Microsoft® Windows® 2000 Professional operating system
Windows XP	Microsoft® Windows® XP Professional operating system (32-bit/64-bit)Microsoft® Windows® XP Home Edition operating system
Windows Server 2003	Microsoft® Windows ServerTM 2003 Standard Edition operating system (32-bit/64-bit)
Windows Vista	Microsoft® Windows VistaTM Home Basic operating system (32-bit/64-bit)Microsoft® Windows VistaTM Home Premium operating system (32-bit/64-bit)Microsoft® Windows VistaTM Business operating system (32-bit/64-bit)Microsoft® Windows VistaTM Enterprise operating system (32-bit/64-bit)Microsoft® Windows VistaTM Ultimate operating system (32-bit/64-bit)

Where there is no distinction between the different versions of the above operating system, the general term "Windows" is used.

Adobe Acrobat

Adobe®Acrobat®

Where there is no distinction between the different versions of the above application, the general term "Adobe Acrobat" is used.

The version of Adobe Acrobat provided with this product may change without notice. If the instructions described in this manual differ from the actual displayed screen, refer to Acrobat's Help.

Manufacturer

PFU LIMITED

International Sales Dept., Imaging Bussines Division, Products Group Solid Square East Tower, 580 Horikawa-cho, Saiwai-ku, Kawasaki-shi Kanagawa 212-8563, Japan Phone: [phone]

All Rights Reserved. Copyright© PFU LIMITED 2007-2008

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

Liability

Prev

Next

BEFORE USING THIS PRODUCT, PLEASE READ THIS MANUAL CAREFULLY. IF THIS PRODUCT IS NOT USED CORRECTLY, UNEXPECTED INJURY CAN OCCUR TO USERS OR BYSTANDERS.

Keep this manual in a safe place so that it can be easily referred to during use of this product.

While all efforts have been made to ensure the accuracy of all information in this manual, PFU assumes no liability to any party for any damage caused by errors or omissions or by statements of any kind in this manual, its updates or supplements, whether such errors are omissions or statements resulting from negligence, accidents, or any other cause. PFU further assumes no liability arising from the application or use of any product or system described herein; nor any liability for incidental or consequential damages arising from the use of this manual. PFU disclaims all warranties regarding the information contained herein, whether expressed, implied, or statutory.

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4	TROUBLESHOOTING CONTENTS MAP TOP
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

Conventions (1)

Prev

Next

1 2

Safety Precautions

This manual describes important details for ensuring the safe and correct use of this product. Thoroughly read this manual before you start to use this product. In particular, be sure to read and fully understand the Safety Precautions described in this manual before you use this product.

Also, store this manual in a safe place so that it can be easily referred to during use of this product.

Warning Indications Used In This Manual

WARNING

This indication alerts operators to an operation that, if not strictly observed, may result in severe injury or death.

CAUTION

This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment.

Symbols Used In This Manual

This manual uses the following symbols in the explanations in addition to the warning indications.

This symbol alerts operators to particularly important information. Be sure to read this information.

This symbol alerts operators to helpful advice regarding operation.

A TRIANGLE symbol indicates that special care and attention is required. The drawing inside the triangle shows the specific caution.

A CIRCLE with a diagonal line inside shows action which users may not perform. The drawing inside or under the circle shows the specific action that is not allowed.

Outline characters on a colored background show instructions users should follow. It may also include the drawing that shows the specific instruction.

Clicking this icon plays movies.

ATTENTION

NOTE for using Windows XP Service Pack 2

The Internet's security function may restrict displaying movies. In order to display the movies, allow to run the blocked active content.

1 2

FUJITSU

fi-6140 / fi-6240 Image Scanner Operator's Guide

fi Series Ine Jeanner

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

Conventions (2)

Prev

Next

1 2

Screen Examples In This Manual

The screen examples in this manual are subject to change without notice in the interest of product improvement. If the actual displayed screen differs from the screen examples in this manual, operate by following the actual displayed screen while referring to the User's Manual of the scanner application you are using. The screenshots in this manual were captured from the FUJITSU TWAIN32 scanner driver, ScandAll PRO Image Capturing Utility Software, FUJITSU ISIS scanner driver, QuickScan™ image capturing software and Adobe® Acrobat®.

Warning Label

The following picture shows the warning label used in this scanner.

Technical diagram showing a mechanical assembly with warning symbols and a warning triangle pointing to a component.

Yellow triangular warning sign with black smoke symbol indicating steam or hazard

High Temperature

The part around this label (includes the glass surface inside the ADF) becomes hot during the operation. Be careful not to touch the glass surface inside the ADF.

ATTENTION

Do NOT remove from the scanner, stain or scratch the warning labels.

About Maintenance

The user must not perform repairs on this scanner.

Contact the store where you purchased the scanner or an authorized FUJITSU Image Scanner service provider to have repairs done on this product.

1 2

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

FUJITSU

fi-6140 / fi-6240 Image Scanner Operator's Guide

fi Series

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4	TROUBLESHOOTING CONTENTS MAP TOP
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

Safety Precautions (1)

Prev

Next

WARNING

Do not damage the AC cable.

A damaged AC cable may cause fire or electric shock. Do not place heavy objects on AC cables, or pull, bend, twist, heat, damage or modify AC cables. Do not use damaged AC cables or power plugs, or install any cables or power plugs to loose wall sockets.

Use only specified AC cables and interface cables.

Use only specified AC cables and interface cables. Failure to use the correct cables might cause electric shock and/or equipment failure. Please do not use the AC cable provided with this scanner for other devices, since this might cause equipment failure and other troubles or an electric shock.

Make sure to ground the scanner.

Make sure to ground to avoid electric shock. Be sure to ground before plugging into a power outlet. Unplug from the outlet before removing the ground connection.

Use this scanner only at the indicated power voltage. Do not connect to multiple-power strips.

Use this scanner only at the indicated power voltage and current. Improper power voltage and current might cause fire or electric shock. Do not connect to multiple-power strips.

Do not touch the AC cable with wet hands.

Do not touch the power plug with wet hands. Doing so can cause electric shock.

Wipe any dust from the power plug.

Wipe off any dust from metal parts on the power plug or metal fittings with a soft, dry cloth. Accumulated dust can cause fire or electric shock.

Do not install the device in locations that has oil smoke, steam, humidity, and dust.

Do not install the scanner in locations subject to oil smoke, steam, humidity, and dust. Doing so might cause a fire or electric shock.

FUJITSU

fi-6140 / fi-6240 Image Scanner Operator's Guide

fi Series Jennar

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4	TROUBLESHOOTING CONTENTS MAP TOP
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

Safety Precautions (2)

Prev

Next

WARNING

Do not use the scanner if there is a strange odor.

If you detect heat coming from the device or detect other problems such as smoke, strange smells or noises, immediately turn off the scanner and disconnect its power plug. Make sure that any smoke coming from it has stopped, before contacting the store where you bought the scanner or an authorized FUJITSU scanner service provider.

Turn the scanner OFF if it is damaged.

If the scanner is damaged for any reason, turn the scanner off and unplug the power cable. Contact the store where you purchased the scanner or an authorized scanner service provider.

Do not put liquids inside the scanner.

Do not insert or drop metal objects in to the scanner. Do not scan wet documents or documents with paper clips or staples. Do not splash or allow the scanner to get wet.

If foreign objects (water, small metal objects, liquids, etc.) get inside the scanner, immediately turn off the scanner and disconnect the power plug from the power outlet. Then, contact the store where you bought the scanner or an authorized FUJITSU scanner service provider. Pay particular attention to this warning in households where there are small children.

Unplug the scanner when a trouble occurs.

Immediately unplug the scanner when a trouble occurs. Never cut the ground connection until the scanner is unplugged from the power outlet.

Do not touch the inside of the scanner unless necessary.

Do not take apart or modify the scanner. The inside of the scanner contains high-voltage components. Touching these components might cause electric shock or fire.

FUJITSU

fi-6140 / fi-6240 Image Scanner Operator's Guide

fi Series

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4	TROUBLESHOOTING CONTENTS MAP TOP
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

Safety Precautions (3)

Prev

Next

CAUTION

Do not install the scanner on unstable surfaces.

Make sure that the scanner is installed on a flat, level surface and that none of its parts extend beyond the surface top, such as a desk or table. Do not install the scanner on unstable surfaces. Install the scanner on a level surface that is free of vibration to prevent it from falling. Install the scanner on a strong surface that will support the weight of the scanner and other devices.

Firmly insert the power plug.

Firmly insert the power plug as far it can go into the power outlet.

Do not block the ventilation ports.

Do not block the ventilation ports. Blocking the ventilation ports generates heat inside of scanner, which may result in fire or scanner failure.

Do not place heavy objects or stand on top of the scanner.

Do not place heavy objects on the scanner or use the scanner's surface top to perform other work. Improper installation might cause injuries and equipment failure.

Do not use the scanner immediately after moving it from a cold place into a warm room.

Do not use the device immediately after moving it from a cold place into a warm room. Condensation may occur, which might lead to scanning errors. Let the device dry about one or two hours before you use it.

Before moving the scanner, disconnect the power plug from the power outlet.

Do not move the scanner with the power and interface cables connected as this can damage the cables, which can later cause fire, electric shock as well as injury. Before moving the scanner, be sure to disconnect the power plug from the power outlet, and all other interface cables. Make sure that the floor is free of any obstructions.

FUJITSU

fi-6140 / fi-6240 Image Scanner Operator's Guide

fi Series

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4	TROUBLESHOOTING CONTENTS MAP TOP
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

Safety Precautions (4)

Prev

Next

CAUTION

Protect the scanner from static electricity.

Install the scanner away from strong magnetic fields and other sources of electronic noise. Also, protect the scanner against any static electricity, which can cause the scanner to malfunction.

Do not use aerosol sprays near the scanner.

Do not use aerosol sprays to clean the scanner. Aerosol sprays can blow dirt and dust inside the scanner, resulting in scanner failure or malfunction.

Avoid any contact when scanner is in use.

Avoid getting a sleeve, necktie, or hair caught up in any scanner mechanism during scanning since this may cause injuries.

Disconnect the power plug from the power outlet when the scanner is not used for a long period of time.

When the scanner is not going to be used for a long period of time, be sure to disconnect the power plug from the power outlet.

Do not install the scanner in direct sunlight.

Do not install the scanner under direct sunlight or near heating apparatus. Doing so might cause excessive heat to build up inside the scanner, which can cause scanner trouble or even fire. Install the scanner in a well-ventilated location.

Before moving the scanner, make sure the transport lock is locked. (fi-6240 only)

When moving the scanner, be sure to lock the transport lock in order to prevent damage to the scanner.

fi-6140 / fi-6240 Image Scanner Operator's Guide

fi Series

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING

CONTENTS MAP

TOP

Chapter 1 NAMES AND FUNCTIONS OF PARTS

Prev

Next

This chapter describes the scanner parts and their functions.

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

fi-6140 / fi-6240 Image Scanner Operator's Guide

fi Series Ine Jennifer

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

1.1 Checking the Contents of the Scanner Package

Prev

Next

When you open the scanner package, please handle the main unit and its attachments carefully. Make sure it contains all the parts listed in the package contents list that is included in the package box. If any parts are missing or defective, contact the dealer where you purchased the scanner or an authorized FUJITSU scanner service provider.

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING

CONTENTS MAP

TOP

1.2 Names and Functions of Parts

Prev

Next

This section describes the scanner parts and their functions.

Front

fi-6140 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

fi-6240 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑪ ⑫ ⑬ ⑭

No.	Name Function
1	ADF(Automatic Document Feeder)	Transports the document to the reading position automatically.
2	ADF paper chute Holds in place t	the document pages / sheets that are fed into the ADF.
3	Paper chute extension 1
4	Paper chute extension 2
5	Side Guide Adjusted to the width	of the paper in order not to scan skewed pages.
6	ADF open lever Pull this lever to	ward you to open the ADF.
7	Operator panel This panel consists of a Function No. Display, four operating push buttons, and a LED.
8	Stacker Scanned documents are	ejected from the ADF onto this stacker.
9	Stacker extension 1[fi-6140 only]
10	Stacker extension 2[fi-6140 only]
11	Stacker extension[fi-6240 only]
12	Flatbed (FB)[fi-6240 only]	Place documents on the glass sheet by sheet for single-sheet scanning.
13	Transport lock switch[fi-6240 only]	Used to lock the carrier unit inside the flatbed during transportation.

Inside

fi-6240 ① ② ③

No.	Name Function
1	Document bed Place	documents on the glass when scanning through the flatbed.
2	Document holding pad	Holds documents down on the document bed.
3	Document cover Holds	the documents loaded at the reading position when closed.

HINT

The document cover with a black document holding pad is optionally available. This type is convenient for scanning documents in black background when loading them from the flat bed.

• Name: Black Document Pad (fi-624BK)
• Parts No.: PA03540-D801

Rear

fi-6140 ① ② ③ ④ ⑤ ⑥

fi-6240 ① ③ ④ ⑤ ⑥

No.	Name
1	Security Slot
2	EXT connector (for imprinter connection) [fi-6140 only]
3	SCSI connector
4	SCSI ID switch
5	USB connector
6	DC inlet

Removable Parts

Parts that can be removed from the scanner are displayed below.

Technical diagram showing exploded view of a mechanical assembly with numbered components and component callouts

No.	Name
1	ADF paper chute
2	Pick roller
3	Brake roller
4	Document cover [fi-6240 only]

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

1.3 Functions of the Operator Panel

Prev

Next

The operator panel is located on the right side of the scanner. This panel is comprised of a Function Number display, four buttons, and a LED.

Check Function Send to Bean /Stop Power ① ② ③ ④ ⑤ ⑥

No.	Name Function
1	Check LED Lights when an error occurs.
2	Function Number Display Indicates the function number and error status.
3	Function Button Changes the Function activated by the Send to button (*).
4	Send to Button	Launches the linked application software (*). Resets an error.
5	Scan/Stop Button	Launches the linked application software (*). Resets an error. Cancels ongoing scanning.
6	Power Button/LED Turns the scanner ON and OFF. Lights when the scanner is turned ON.

*) About the settings on the launcher, refer to FUJITSU TWAIN32 scanner driver help, which is included in the "Setup CD-ROM," and Appendix 1 "Before Using the [Scan] or [Send to] Button."

■ Indications on the Function Number Display

Indication	Function
8 Blink	is only one time upon turning on the scanner.
P Indicates	that the scanner has been turned ON and is being initialized.
0 Indicates	that initialization will soon end.
1 Indicates	that initialization has ended successfully. This status is called "Ready Status."
JU	Indicates that a recoverable error occurred during scanning with the image scanner."J" or "U" and an "error number" is displayed alternately.When an error is indicated, press the [Scan] button or [Send to] button to return to the Ready Status ("1").
E	Indicates that an abnormality (alarm) occurred in the image scanner during its initialization or during scanning documents.
F
C	"E", "F", "C", "H", "A", or "L" and an "alarm number" are displayed alternately. When the alarm number is displayed, press the [Scan] button or [Send to] button to return to the Ready Status ("1").
H
L	If this alarm occurs, turn the power off and on again. If the alarm continues after turning the power on again, contact the dealer where you bought the scanner or an authorized FUJITSU scanner service provider.

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

fi-6140 / fi-6240 Image Scanner Operator's Guide

fi Series

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

Chapter 2 BASIC SCANNER OPERATIONS

Prev

Next

This chapter describes basic scanner operations.

In this chapter Windows XP screenshots are illustrated. The screens and operations may differ slightly if the OS that you are using is other than Windows XP.

Also, when the FUJITSU TWAIN32 or FUJITSU ISIS scanner driver is updated the screens and operations noted in this chapter will differ slightly. In such case, refer to the relevant manuals or materials, which are to be supplied when updating the driver.

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING

CONTENTS MAP

TOP

2.1 Turning the Scanner ON

Prev

Next

This section describes how to turn the scanner ON.

The following shows the procedure for turning the scanner ON.

1. Press the Power button on the Operator Panel.

The scanner is turned ON, and the Power LED on the Operator Panel lights in green.

Also, while the scanner is being initialized, the indication of the Function Number Display changes as follows: "8" -> "P" -> "0" -> "1"

The indication "1" means that the Operator Panel is in the Ready Status.

Check Function Send to Scan Stop Power Power button

HINT

To turn the scanner OFF, hold the Power button down for at least two seconds.

About Power ON/OFF Control

You can select to power the scanner on/off either by pressing the Power button, or by connecting / disconnecting the AC cable.

The procedure is as follows.

1. Confirm if the scanner is connected correctly to the PC, then power on the scanner.

For details on how to connect the scanner to a personal computer, refer to section "2.2 Connecting the Scanner to Your PC" of "fi-6140/fi-6240 Getting Started."

1. From the [start] menu, select [Control Panel].

→The [Control Panel] window appears.

1. Double-click the [Printer and Other Hardware] icon.

Control Panel File Edit View Favorites Tools Help Back Search Folders Control Panel Switch to Classic View See Also Windows Update Help and Support Other Control Panel Pick a category Appearance and Themes Printers and Other Hardware Network and Internet Connections User Accounts

The [Printer and Other Hardware] window appears.

1. Double-click the [Scanners and Cameras] icon.

Printers and Other Hardware File Edit View Favorites Tools Help Back Search Folders See Also Add Hardware Display Sounds, Speech, and Audio Devices Power Options System Printers and Other Hardware Pick a task... View installed printers or fax printers Add a printer or pick a Control Panel icon Hardware Printing Home or Small Office Networking Game Controllers Keyboard Mouse Phone and Modem Options Printers and Faxes Scanners and Cameras

The [Scanners and Cameras] window appears.

1. Select [fi-6140dj] or [fi-6240dj], and then select [Properties] from the menu.

For Windows XP or Windows Server 2003; right-click [fi-6140dj] or [fi-6240dj], and then select [Properties]. For Windows 2000 or Windows Vista; double-click the [fi-6140dj] or [fi-6240dj] icon.

Scanners and Cameras File Edit View Favorites Tools Help Back Search Folders Imaging Tasks Add an imaging device fi-6140dj Other Places

The properties dialogbox of fi-6140dj or fi-6240dj appears.

1. Click the [Device Set] tab.

fi-6240 dj Properties Diagnosis Device Info Device Set About General Events Color Management fi-6240dj Manufactured by FUJITSU Scanner Status Status: Device Ready On Port: \\.\sbscan0 Optical resolution: 600x600 DPI Diagnostics Test Scanner OK Cancel Apply

1. Click the [Power Control] button.

fi-6240dj Properties General Events Color Management Diagnosis Device Info Device Set About Page Counter: Total Page Count(ADF): 160 pages Total Page Count(FB): 290 pages Brake Roller: 0 pages Clear Pick Roller : 0 pages Clear pages Clear 0 % Clear Power saving: 0 minutes Multi feed Power Control Offset OK Cancel Apply

The [Power Control] window appears.

8. Enable [Power Control].

Select [Enable power switch] to power on/off the scanner by pressing the Power button. Select [Disable power switch] to power on/off the scanner by connecting/disconnecting the AC cable.

Power Control Enable power switch (Factory initial setting) Disable power switch OK Cancel

9. Click the [OK] button.

ATTENTION

Do not specify the above setting when [Enable USB power feeding] is selected for [Power SW Control] on Software Operation Panel. To clear the USB power feeding setting, always use Software Operation Panel. (Refer to "Chapter 8 SCANNER SETTINGS.")

Power Save Mode

The Power Save mode keeps the scanner in a low-powered state after it has been turned ON.

If no operation is performed on the scanner for 15 minutes, the scanner automatically switches to the Power Save mode. In the Power Save mode, the indication of the Function Number Display on the operator panel goes out, but the Power LED stays lit in green.

To return from the Power Save mode, perform one of the following:

• Load the document on the ADF paper chute.
• Press any button on the operator panel.
  The scanner will be turned OFF when pressing down the Power button for at least two seconds.
• Execute a command from the scanner driver.

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

2.2 Loading Documents on the ADF for Scanning

Prev

Next

HINT

Refer to Chapter "7 ADF AND PAPER SPECIFICATION" for information about the required document sizes and paper quality for ensuring correct operation when scanning documents from the ADF.

1. Align the edges of the documents.

1) Confirm that all the documents have the same width.
2) Check the number of sheets in the document stack.

(For details, see Section "7.3 Maximum Document Loading Capacity.")

• A4/letter-size paper or smaller that makes a document stack of 5 mm or less
• Maximum 50 sheets at A4/letter, 20 lb, or 80 g/m ^2

2. Fan the documents as follows:

Hand holding a blank white sheet against a blue background (no text or symbols visible)

① Select a stack of documents 5 mm or less high.
② Hold the document with both hands and fan it out several times.
③ Turn the document by 90 degrees, and then fan it in the different orientation again.

3. Load the document on the ADF paper chute.

Set the documents face-down in the ADF paper chute (so that the side to be scanned faces towards the ADF paper chute).

Illustration of a printer with a blue paper sheet being inserted, showing paper feed and paper roll (no text or symbols)

HINT

• Pull out the paper chute extensions to support the document when necessary.

Diagram of a printer with paper feed and paper stack, showing internal structure and page number (no text or symbols)

① Paper chute extensions

• ID cards can be loaded either in vertical or horizontal orientation.

ATTENTION

This scanner can scan ID cards through the Automatic Document Feeder with the following precautions.

- You can place up to three cards at a time into the Automatic Document Feeder. If the card is embossed (i.e., a card with raised lettering), place one card at a time.

Back side

• It is recommended that the front side of the card be placed face down in the Automatic Document Feeder.
• The card to be scanned should be within the ISO7810 compliance, type ID-1. Dimensions: 3.4 inch (height) x 2.1 inch (width)/ 86 mm x 54 mm

Thickness: 0.056 inches / 1.4 mm or less

*: 0.05 inches / 1.25 mm or less when documents are scanned in landscape orientation in binary mode at 200 dpi (60 ppm)

Material: PVC (Poly vinyl chloride) or PVCA (Polyvinyl chloride acetate)

Note: Before scanning your card, test with a dummy card of the same material to see if it can be fed into the ADF properly.

- Cards that are excessively rigid or less flexible may not feed smoothly and excessive noise may occur.

Note: If the cards do not feed smoothly, try:

- Scanning one card at a time.

- Enabling [Automatic Paper Size Detection]. For how to configure this setting, see Section "3.10 Correcting Skewed Documents."

- Raising the resolution.

• Cards should be clean from oil and without labels.

- Cards cannot be scanned when the imprinter is installed.

4. Adjust the side guides to the width of the documents.

Move the side guides so that they touch both sides of the documents. If there is any space between the side guides and the edges of documents, the scanned image may be skewed.

Diagram of a printer with paper feed and paper roll, showing internal structure and airflow direction (no text or symbols)

① Side guides

HINT

Use of the stacker or stacker extension prevents document sheets from dropping after they are scanned.

Use the stacker and stacker extension as shown in the figure below.

fi-6140

Illustration of a printer with a blue cover and arrow indicating rotation, no text or symbols present

fi-6240

Line drawing of a handheld electronic device with ports and casing (no text or symbols)

A ①

When the document size to scan is A5 or longer in length

B ① ②

B ①

When the document size to scan is A6 or longer in length and A5 or narrower in width (Do not force to open the stacker extension wider than the right angle. Otherwise, it may be damaged.)

A. Stacker
B. Stacker extension

5. Start up the scanner application, and scan the document.

For details on how to scan documents using the ScandAll PRO application, see Section "2.6 How to Use ScandAll PRO."

FUJITSU

fi-6140 / fi-6240 Image Scanner Operator's Guide

fi Series Ino Jennar

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

2.3 Loading Documents on the Flatbed for Scanning [fi-6240 only]

Prev

Next

1. Lift up the document cover.

Illustration of a hand pressing down on a printer's tray with a blue arrow indicating rotation (no text or symbols)

1. Load the document on the document bed with the scanning face down and the top left corner aligned with the reference point (①).

ABC ① DBA

① Reference point

1. Gently close the document cover.
2. Start up the scanner application, and scan the document.

For details on how to scan documents using the ScandAll PRO application, see Section "2.6 How to Use ScanAll PRO."

FUJITSU

fi-6140 / fi-6240 Image Scanner Operator's Guide

fi Series

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

2.4 Scanning Documents

This section describes how to scan documents using this scanner. The basic steps for scanning documents are as follows:

1. Load the document on the scanner's ADF paper chute or Flatbed.

For details on how to load documents, see Sections "2.2 Loading Documents on the ADF for Scanning" and "2.3 Loading Documents on the Flatbed for Scanning."

Illustration of a printer with a blue paper sheet being inserted, showing paper roll and paper feed (no text or symbols)

1. Launch an application you want to use for scanning. (The following shows an example screen when ScandAll PRO is selected.)

ScandAll PRO - Untitled File Scan Edit View Page Zoom Tool Help Profile1 1x1

1. Select a scanner to use.

ScandAll PRO - Untitled File Scan Edit View Page Zoom Tool Help Scan Scan Settings... Ctrl+N Batch Scan Batch Scan Settings... Ctrl+B Setting... Select Scanner... Cancel(P) Select Scanner Device: FUJITSU fi-6240di + sipc FUJITSU fi-6240di Select Cancel Select Scanner Device: Fujitsu fi-5530C2 Fujitsu fi-5650C Fujitsu fi-5750C Fujitsu fi-5900C Fujitsu fi-60F Fujitsu fi-6140 Fujitsu fi-6240 Fujitsu M3093GX Device: Select Cancel Settings... TWAIN ISIS Select a scanner to use. 2x1 no image

1. In the application, invoke a scanner driver.

ScandAll PRO - Untitled File Scan Edit View Page Zoom Tool Help Scan Scan Settings... Ctrl+N Batch Scan Batch Scan Settings... Ctrl+B Setting... Select Scanner... Cancel(P) TWAIN ISIS TWAIN Driver (32) Image Scanner: 642404& 256HB Browse... Setting Files 00: Current Setting Config... Resolution Scan Type 300 x 300 Flat Bed Paper Size PreDefine Letter (8.5x1 Tin) Enable Software IPC Enable Multi Image Front Industrial Setting Image Mode Brightness A Black & White 120 Black/White: Threshold 120 Static Threshold 120 Contrast 120 Show Advance OK Cancel Default TWIN driver: Press [F1] key to show help Data Size about 1.1KB Data per inch: 300 Other None Coping Fixed Empty Speed Accuracy Brightness 120 1 255 Contract Auto OK Cancel Default Configure parameters for scanning with a scanner. 2x1 no image

1. In the driver setup dialog box, configure settings for scanning.

6. Scan the document.

Line drawing of a printer with paper feed and blue paper being inserted (no text or symbols)

7. Save the scanned document image files.

HINT

• In this section, screenshots taken in ScandAll PRO are used as examples. Depending on the application you use, procedures and operations may differ from those examples herein.
• For more information about how to scan documents by using ScandAll PRO, see Section "2.6 How to Use ScandAll PRO."
  If you want to use other applications for scanning, refer to the respective manuals that come with the applications.

All Rights Reserved. Copyright 2007-2008 © PFU LIMITED

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

2.5 How to Use the Scanner Drivers

Prev

Next

To scan documents with the scanner, a scanner driver and application supported by the driver are prerequisites. This scanner is accompanied with two drivers; one is a TWAIN-compliant driver, FUJITSU TWAIN 32 Scanner Driver, and the other is an ISIS-compliant driver, FUJITSU ISIS Scanner Driver, and an application named ScandAllI PRO, which supports both the drivers FUJITSU TWAIN 32 and FUJITSU ISIS.

In this section, how to use these drivers is described.

For information about how to use ScandAll PRO and how to invoke a scanner driver via ScandAll PRO, see Section "2.6 How to Use ScandAll PRO."

FUJITSU TWAIN 32 Scanner Driver

The FUJITSU TWAIN 32 Scanner Driver is a driver for scanning documents with the scanner based on a TWAIN-compliant application.

Usually, you can configure the scanner settings in the scanner driver's setup dialog box, invoking a scanner driver via an application. (Depending on the application settings, this setup dialog box may not appear.)

HINT

How to invoke a scanner driver varies depending on the application. For details, refer to the manual or help of the application you use.

For information about how to invoke a driver via ScandAll PRO, see Section "2.6 How to Use ScandAll PRO."

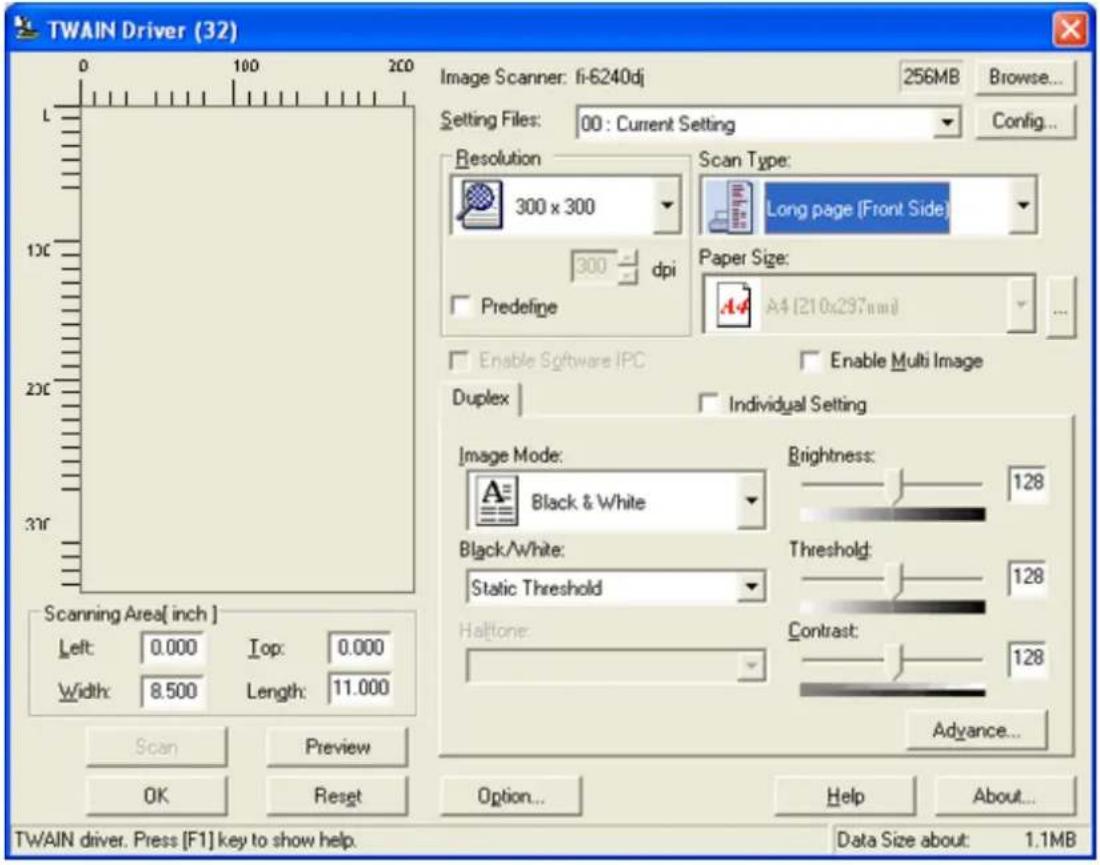

FUJI TSU TWAIN 32 Scanner Driver Setup

TWAIN Driver (32) Image Scanner: fi-6240dj 256MB Browse... Setting Files: 00 : Current Setting Config... Resolution Scan Type: 300 x 300 Flat Bed 300 dpi Paper Size: Letter (8.5x11in) Predefine Enable Software IPC Enable Multi Image Front Individual Setting Image Mode: Black & White Brightness: 128 Black/White: Static Threshold Threshold: 128 Haltone: Contrast: 128 Width: 8.500 Length: 11.000 Scan Preview OK Reset Option... Help About... TWAIN driver. Press [F1] key to show help. Data Size about: 1.1MB

Configure the FUJITSU TWAIN 32 Scanner Driver settings in the dialog box above. Major setting items are listed below.

* For details on each function, refer to "FUJITSU TWAIN 32 Scanner Driver Help."

Resolution

You can specify the resolution for scanning images.

Default values are selectable from the drop-down list, and a [custom] value (can be specified in increments of 1 dpi from 50 to 600 dpi) can also be selected by clicking a pair of up/down buttons.

By marking the [Predefine] checkbox, you can select one of three predefined settings, [Best], [Better], and [Normal], and this allows you to scan documents simply and quickly.

You can also set values of [Best], [Better], and [Normal] as desired in a window that appears when the [...] button is clicked.

Scan Type

You can specify the scanning side(s) of document or feeding source [fi-6240 only]; Front Side, Back Side, Duplex, or Flatbed. You can specify Front Side or Duplex for long-page documents whose size is longer than A3.

Paper Size

You can select the size of documents to be scanned from the list.

Windows for customizing the paper size will appear when you click the [...] button.

You can save any document size as a customized setting (up to three) or for changing the order of paper sizes in the list.

Image Mode

You can specify the image type to output the scanned documents.

Black & White Documents are scanned in binary (black and white) mode.

Halftone Documents are scanned through halftone processing in binary (black and white) mode.

Grayscale Documents are scanned in gradations from black to white. In this mode, you can select 256 gradations or 4 bits (16 gradations).

Color Documents are scanned in color mode. In this mode, you can select 24 bit Color, 256 Colors, or 8 Colors.

[Scan] Button

Clicking this button starts scanning documents with the current settings.

[Preview] Button

Documents are scanned preliminarily before the actual scanning.

You can confirm the image of the documents in the preview window.

[OK]/ [Close] Button

Clicking this button saves the current settings and closes this window.

[Reset] Button

This button is used to undo changes of settings.

[Help] Button

Clicking this button opens the [FUJITSU TWAIN 32 Scanner Driver Help] window.

The window also opens by pushing the [F1] key.

[About] Button

Clicking this button opens an information window about the FUJITSU TWAIN 32 Scanner Driver's version.

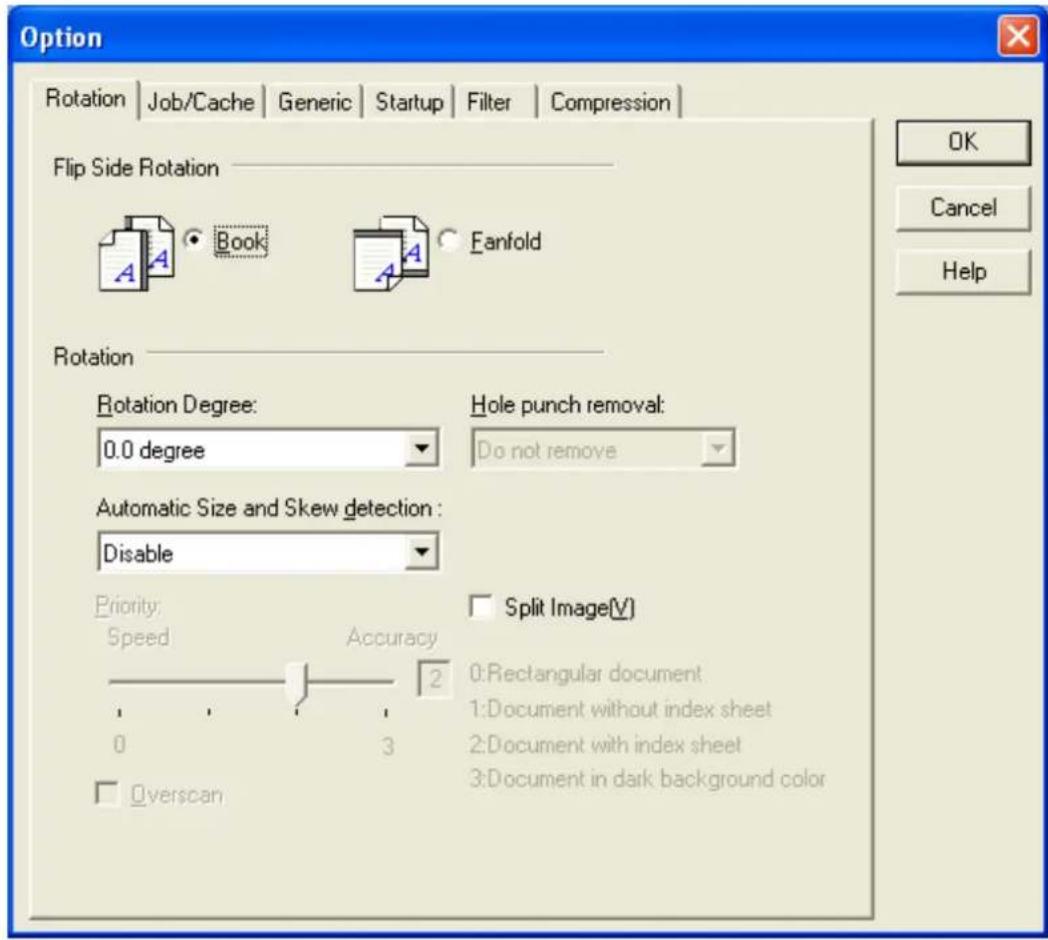

[Option] Button

You can set options in the dialog box below.

Option Rotation | Job/Cache | Generic | Startup | Filter | Compression | Flip Side Rotation Book Fanfold Rotation Rotation Degree: 0.0 degree Hole punch removal: Do not remove Automatic Size and Skew detection : Disable Priority: Split Image(V) Speed Accuracy 0 3 2 Overscan 0:Rectangular document 1:Document without index sheet 2:Document with index sheet 3:Document in dark background color OK Cancel Help

[Rotation] Tab

Select this tab when configuring settings for the image rotation, document size and skew detection, overscan, hole punch removal, and split image.

[Job/ Cache] Tab

Select this tab when setting cache mode, multifeed detection, blank page skipping, paper protection, etc.

[Generic] Tab

Select this tab to change the unit displayed in the Setting Window for the FUJITSU TWAIN 32 Scanner Driver. Select [mm], [inch], or [pixel].

[Startup] Tab

Select this tab for configuring settings on the scanner's Operator Panel.

[Filter] Tab

Select this tab for setting the image processing filter(s).

Digital Endoser A character string (alphanumerics) can be added in the scanned document.

Page Edge Filler Fills up the margins of the scanned document images with a selected color.

[Compression] Tab

Select this tab for setting the compression rate of JPEG Transfer.

[Advance] Button

Click this button for settings of the advanced image processing.

You can set Edge Extract, Gamma Pattern, Dropout Color, Reverse, etc.

[Config] Button

Click this button for configuring the Setting Files.

You can save the changes made to a Setting File. From the next scanning, a set of settings are quickly switched by using these Setting Files.

For details of each function, refer to the "FUJITSU TWAIN 32 Scanner Driver Help."

FUJITSU ISIS Scanner Driver

The FUJITSU ISIS Scanner Driver is a driver software used to scan documents with a scanner from an ISIS-compliant application.

Usually, you configure settings for scanning in the setup dialog box of the scanner driver, which is invoked from an application. (Depending on the application setting, the setup dialog box may not be displayed.)

HINT

How to invoke a scanner driver varies depending on the application. For details, refer to the manual or help of the application you use.

For information about how to invoke a driver via ScandAll PRO, see Section "2.6 How to Use ScandAll PRO."

FUJITSUISIS Scanner Driver Setup

[Main] Tab

Properties for Fujitsu fi-6140 on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Imprinter About Image Mode Camera: ✓ Front Image #1 ☐ Front Image #2 ☐ Back Image #1 ☐ Back Image #2 Mode: IPC Black and White 16-level Grayscale 256-level Grayscale 24-bit Color Auto Detect 16-level Grayscale Auto Detect 256-level Grayscale Auto Detect 24-bit Color Setup IPC... Dots per inch: 300 Dither: None ... Cropping: Fixed Priority: Speed Accuracy Brightness 128 1 255 Contrast Auto OK Cancel Default

Camera

You can selects a side or sides to scan.

The marked checkbox side is targeted for scanning.

When you mark only the Front Image checkbox, simplex scanning is performed. When you mark both the Front Image and Back Image checkboxes, duplex scanning is performed.

You can also specify two settings (#1/#2), Color/Grayscale and Binary (black-and-white), for each side, and output two types of images at a scan (multi-image).

Settings configured in this dialog box take effect on the selected side or sides (Front Image #1/Front Image #2/Back Image #1/Back Image #2).

HINT

If you select Color or Grayscale mode for a side (Front Image #1 or Back Image #1), you can select only Binary (black-and-white) mode for the same side (Front Image #2 or Back Image #2, respectively). In turn, if you select Binary (black-and-white) mode for a side (Front Image #1 or Back Image #1), you can select either Color or Grayscale mode for the same side (Front Side #2 or Back Image #2, respectively).

Mode

You can select a color mode to use from the menu.

IPC Documents are scanned in binary (black-and-white) mode with Image Processing Software Option. When this setting is selected, the [Setup IPC] button below becomes selectable. (This button is visible only if Image Processing Software Option is installed on the computer.)
Black & White Documents are scanned according to a binary threshold. Black and white are distinguished based on this set threshold. This mode is suitable for scanning line drawings and text only documents.
16-level Grayscale Documents are scanned in 16 gray levels. In this mode, each pixel uses 4 bits.
256-level Grayscale Documents are scanned in 256 gray levels. In this mode, each pixel uses 8 bits.
24-bit Color Documents are scanned as 24-bit full-color images. This mode is suitable for scanning color photographs. More memory is used than in Grayscale mode.
Auto Detect 16-level Grayscale 256-level Grayscale 24-bit Color	This mode automatically detects whether the scanned documents are color or binary (black-and-white). In this mode, color documents are output as color or grayscale images, and monochrome documents are output as binary (black-and-white) images. Under [Camera], configure settings for detected-as-color documents with # 1, and configure settings for detected-as-black-and-white documents with # 2.

[Setup IPC] Button

Click this button when configuring settings for scanning with Image Processing Software Option.

HINT

For how to configure settings for Image Processing Software Option, refer to "Image Processing Software Option User's Guide." To view "Image Processing Software Option User's Guide", from the [start] menu, select [All Programs] → [Image Processing Software Option] → [USER'S GUIDE].

Resolution

You can specify the number of pixels (dots) per inch.

Select a preset resolution from the list or type in any value (from 50 to 600, or 1200) in the box.

(If you enter a number from 601 to 1199, the resolution is automatically set to 300 dpi.)

The higher the resolution, the more memory is required.

Halftone

You can select a halftone pattern. This setting is available when [Black and White] is selected under [Mode].

Dither Pattern 0 This setting is suitable for scanning highly-colored photographs.

Dither Pattern 1 This setting is suitable for scanning highly-colored documents containing both text and photographs.

Dither Pattern 2 This setting is suitable for scanning lightly-colored photographs.

Dither Pattern 3 This setting is suitable for scanning lightly-colored documents containing both text and photographs.

Error Diffusion This function minimizes differences between a target pixel and pixels near the target.

Download This function processes gray tone images with the dithered pattern downloaded.

Cropping

Select how to crop scanned document images to output.

Fixed Scanned document images are output in a specified size.
Detect Length The rear end	of a scanned document is detected and scanning is performed for the original length. When shorter sheets are included in a batch of documents to scan, output images are adjusted to their original size.
Automatic The page size of	the scanned documents is automatically detected and the images are output in the detected page size. The skew of documents is also automatically detected and corrected to output correct images.

Brightness

You can set the brightness of the entire image. Specify a number from 1 (darkest) to 255 (brightest) as the brightness value. The higher the value, the brighter the image. The lower the value, the darker the image.

Contrast

You can set the contrast of the scanned image. Specify a number from 1 (low [soft]) to 100 (high [sharp]) to increase brightness for the entire image. Select a higher value to emphasize the difference in brightness between the light and dark areas of the image.

[Layout] Tab

Properties for Fujitsu fi-6140 on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Imprinter About Page Orientation ● Portrait ○ Landscape Page Size: Letter - 8.5 x 11 in Split Image □ On Off Feed Direction ● Top first ○ Bottom first ○ Left first ○ Right first Scan Area... OK Cancel Default

Page Orientation

You can select the page orientation (Portrait or Landscape).

Page Size

You can specify the paper size of documents to be scanned. Select a size from the drop-down list.

Split Image

You can split a scanned image into two. You can also rotate the split images by specifying the rotation angle.

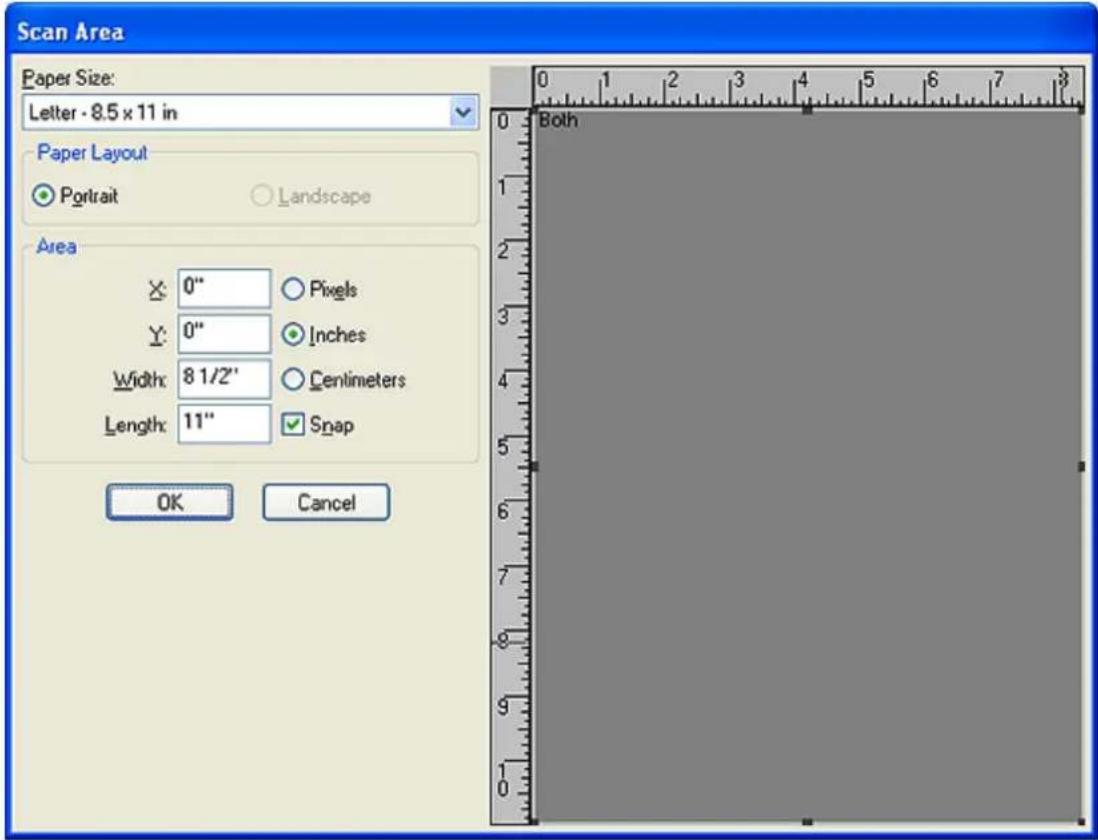

[Scan Area] Button

Clicking this button displays the [Scan Area] dialog box.

You can specify an area to be scanned for a page of the selected size. By dragging the rectangle on the page with the mouse, you can change the size of the area. You can also specify the area by typing in numbers in the boxes.

Scan Area Paper Size: Letter - 8.5 x 11 in Paper Layout ● Portrait ○ Landscape Area X: 0" ○ Pixels Y: 0" ● Inches Width: 8 1/2" ○ Centimeters Length: 11" ▼ Snap OK Cancel Both

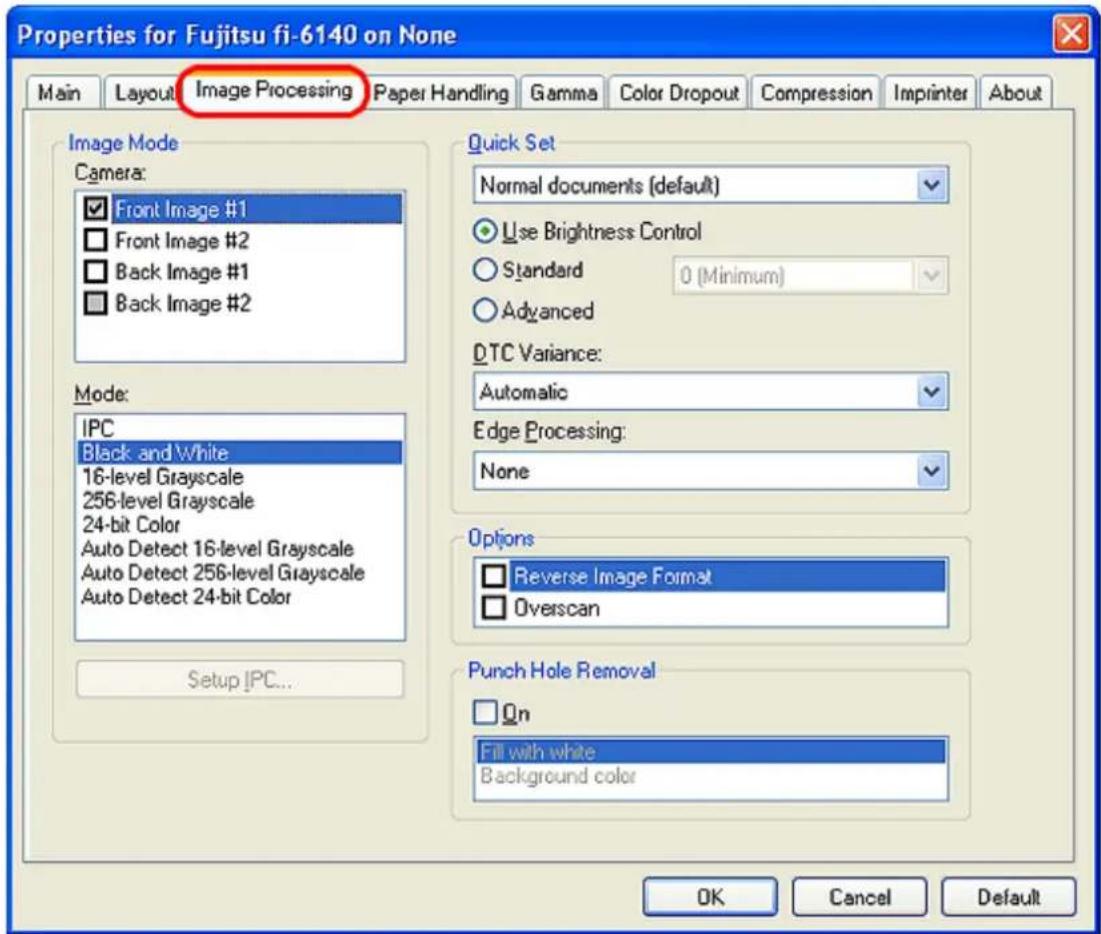

[Image Processing] Tab

Properties for Fujitsu fi-6140 on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Imprinter About Image Mode Camera: ✓ Front Image #1 ☐ Front Image #2 ☐ Back Image #1 ☐ Back Image #2 Mode: IPC Black and White 16-level Grayscale 256-level Grayscale 24-bit Color Auto Detect 16-level Grayscale Auto Detect 256-level Grayscale Auto Detect 24-bit Color Setup JPC... Quick Set Normal documents (default) Use Brightness Control Standard 0 (Minimum) Advanced DTC Variance: Automatic Edge Processing: None Options Reverse Image Format Overscan Punch Hole Removal On Fill with white Background color OK Cancel Default

Quick Set

Some image-processing-related settings, which are commonly used, are readily available. Select a setting pattern, and you do not have to configure settings one by one. The following setting patterns are available (Selectable only when [Black and White] is selected under [Mode]):

Normal documents (default)	This setting pattern is suitable for scanning business documents often handled in the office.
Advanced DTC Any types of	documents are binarized in good conditions. Even if you scan documents containing light text, text on the colored background, and color charts, which do not lend themselves to scanning based on the ordinary binarization, you can obtain high-quality images.
NCR forms with back-ground removed	You can remove the background and smooth out jaggies in the image.
Magazines, Brochures, etc.	This setting pattern is suitable for scanning magazines and brochures, which contain both text and images.
Custom Settings You can specify the following image-processing-related settings separately.

DTC Variance

You can select a DTC Variance setting depending on the brightness of the image.

Edge Processing

You can select a setting depending on how sharp you want to make the image.

Low, Mid, High Outlines of images are emphasized. Select a setting from Low, Mid, and High.

Smoothing Jaggies are smoothed.

Reverse Image Format

You can output reversed images.

Overscan

You can set the overscan function. Documents are scanned in a paper size larger than the one specified in the [Paper Size] drop-down list.

Hole Punch Removal

When scanning punched documents that have punch holes on them, their images are output with punch holes removed. The background color is "black."

Fill with white Punch hole m	arks are filled with white.
Background color Punch ho	e marks are filled with the most used color around the punch holes.

When scanning a color document, select [Background color]. If you select [Fill with white], punch holes will be filled with white.

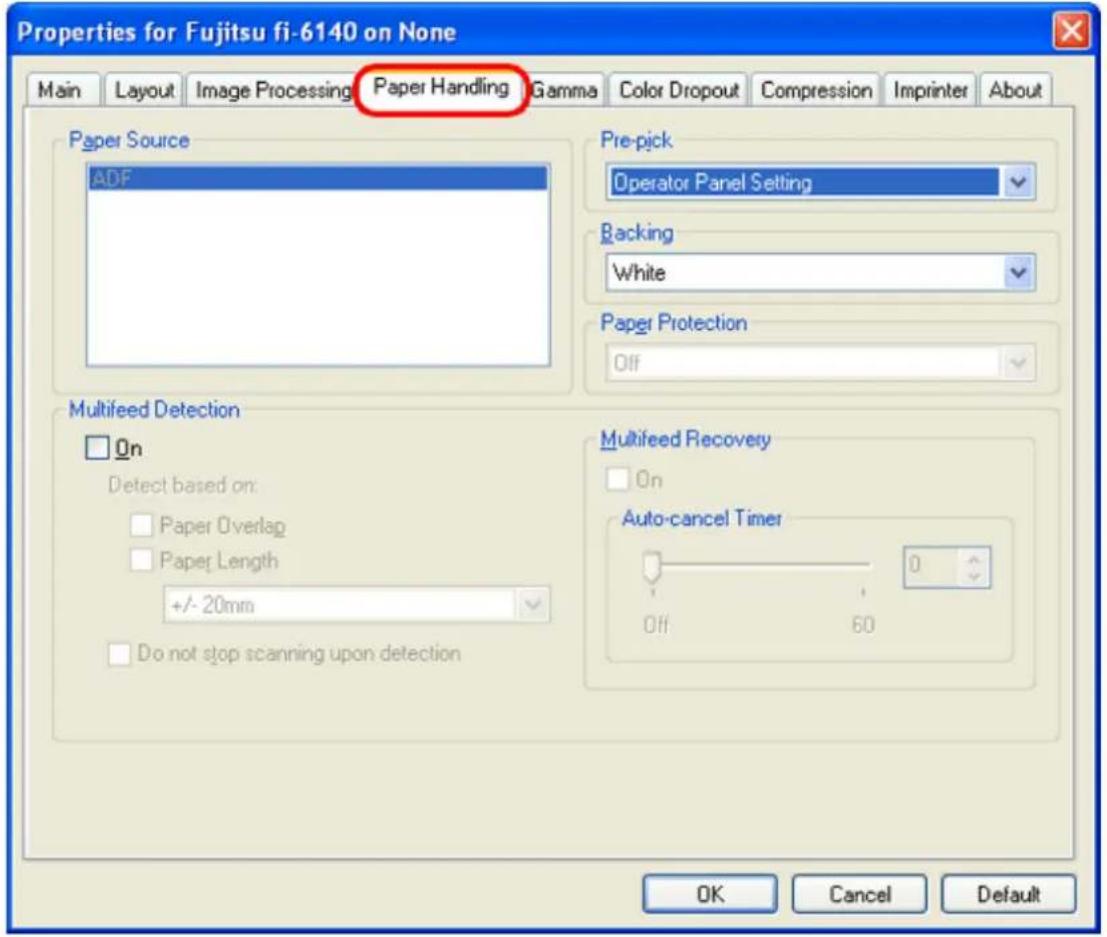

[Paper Handling] Tab

Properties for Fujitsu fi-6140 on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Imprinter About Paper Source ADF Pre-pick Operator Panel Setting Backing White Paper Protection Off Multifeed Detection On Detect based on: Paper Overlap Paper Length +/- 20mm Do not stop scanning upon detection Multifeed Recovery On Auto-cancel Timer Off 60 OK Cancel Default

Pre-pick

Pre-picking is a function that prepares the next document for scanning, feeding it to the position at which the scanning starts beforehand. You can specify whether you want to enable Pre-picking or not from this drop-down list.

Backing

You can specify the background color, white or black.

Paper Protection

Specify [Enable] to avoid making the document wrinkled or torn during loading. Specify [Disable] in case paper jams occur frequently during feeding.

Multifeed Detection

Multifeed refers to an error that occurs when more than one sheet of paper is fed into the ADF at the same time. You can specify based on what (overlap or length) a multifeed error can be detected so that you can stop scanning at error detection and receive an error message.

Do not stop scanning upon detection

If this checkbox is marked, the scanner ignores multifeed errors and continues scanning.

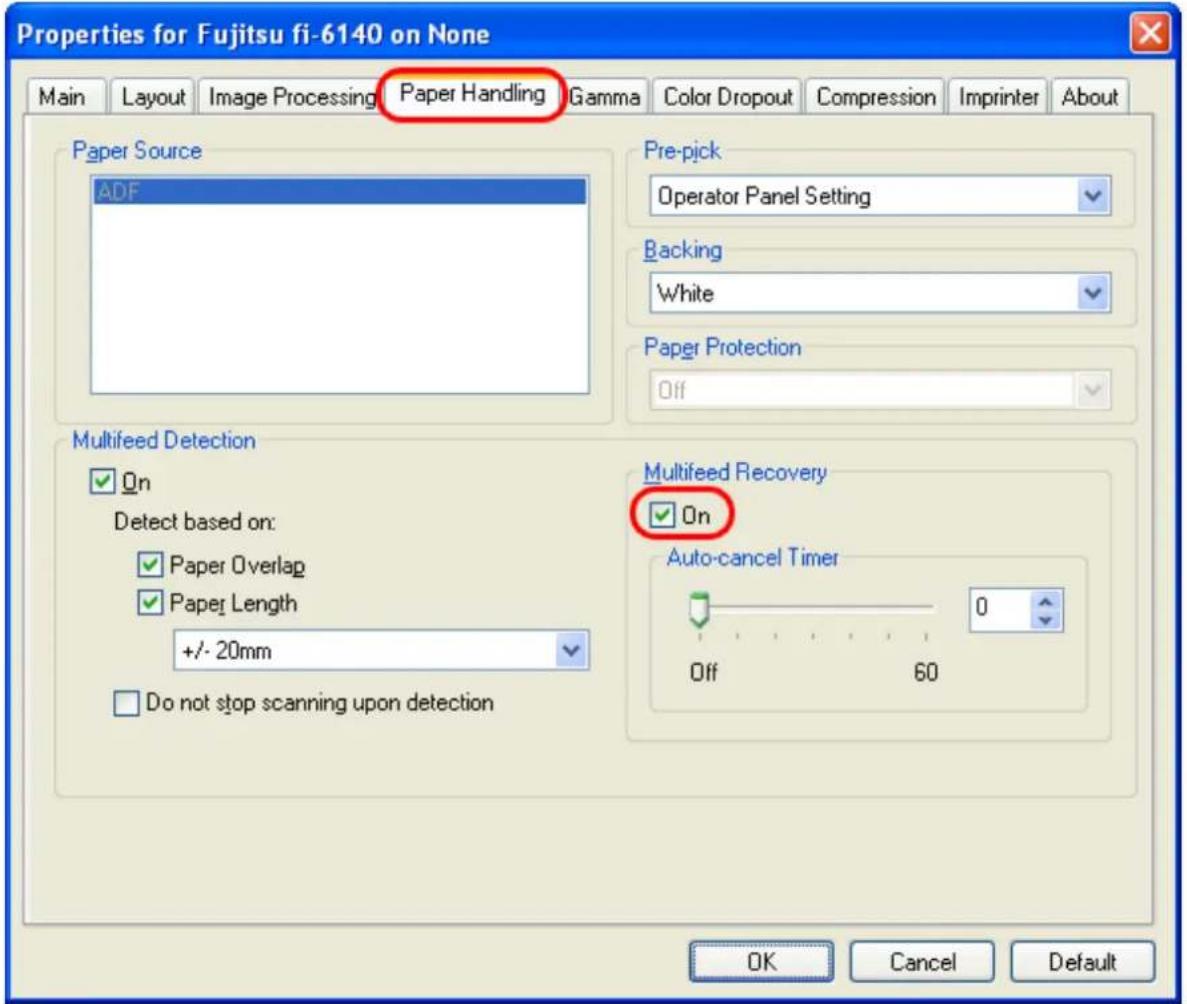

Multifeed Recovery

Mark the [On] checkbox under [Multifeed Recovery].

Auto-cancel Timer

Scanning is not restarted for the set period of time (minutes) after a multifeed error. If scanning is not started after the set minutes, the application is notified of the error by the driver. Note that if the Auto-cancel Timer is set to 0, the application will never be notified of the error.

[Gamma] Tab

Properties for Fujitsu fi-6140 on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Imprinter About Image Mode Camera: ✓ Front Image #1 ☐ Front Image #2 ☐ Back Image #1 ☐ Back Image #2 Mode: IPC Black and White 16-level Grayscale 256-level Grayscale 24-bit Color Auto Detect 16-level Grayscale Auto Detect 256-level Grayscale Auto Detect 24-bit Color Setup IPC... Pattern: Normal Custom Properties Gamma: < > 0.0 Brightness: < > 0 Contrast: < > Auto Shadow: < > 0 Highlight: < > 255 Reset OK Cancel Default

Pattern

You can configure gamma corrections. The gamma patterns include:

Binary (black and white) specified Normal, Soft, Sharp, Custom, Download

Grayscale/24-bit color specified Custom, Download

Custom Properties

You can specify custom properties (Gamma, Brightness, Contrast, Shadow, and Highlight) only when you select [Custom] as a Gamma pattern. Type in a numerical value in each box, click the forward/backward arrows, or drag the slider to increase/decrease the numerical value. Of those items, [Shadow] and [Highlight] can be specified only when a Color or Grayscale setting is selected under [Mode].

[Color Dropout] Tab

Properties for Fujitsu fi-6140 on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Imprinter About Image Mode Camera: ✓ Front Image #1 ☐ Front Image #2 ☐ Back Image #1 ☐ Back Image #2 Mode: IPC Black and White 16-level Grayscale 256-level Grayscale 24-bit Color Auto Detect 16-level Grayscale Auto Detect 256-level Grayscale Auto Detect 24-bit Color Setup IPC... Color Dropout ✓ On ○ Dropout Red ● Dropout Green ○ Dropout Blue ○ Use Custom Color Dropout Custom Color Dropout Red: < > 0 Green: < > 192 Blue: < > 0 Edit... □ Priority Black Sensitivity: OK Cancel Default

Color Dropout

Any of three primary colors (red-green-blue) can be dropped out from document images. For example, when scanning text in black with the red frame, selecting red color scans only text in black. This setting is available only when Black and White or Grayscale setting is selected.

[Compression] Tab

Properties for Fujitsu fi-6140 on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Imprinter About JPEG Quality: Download Custom Quality Table Download Quality Table... Sample Ratio: YUV 4:4:4 OK Cancel Default

JPEG Quality

You can specify compression levels and image quality for scanning in Color or Grayscale mode.

Sample Ratio

You can specify one of the sample ratios, by which images are compressed, listed in the order of precedence from highest (listed first) to lowest as follows: YUV 4:4:4 < YUV 4:2:2 < YUV 4:1:1. The higher the compression rate, the smaller the file size is, but the quality of the scanned image is degraded.

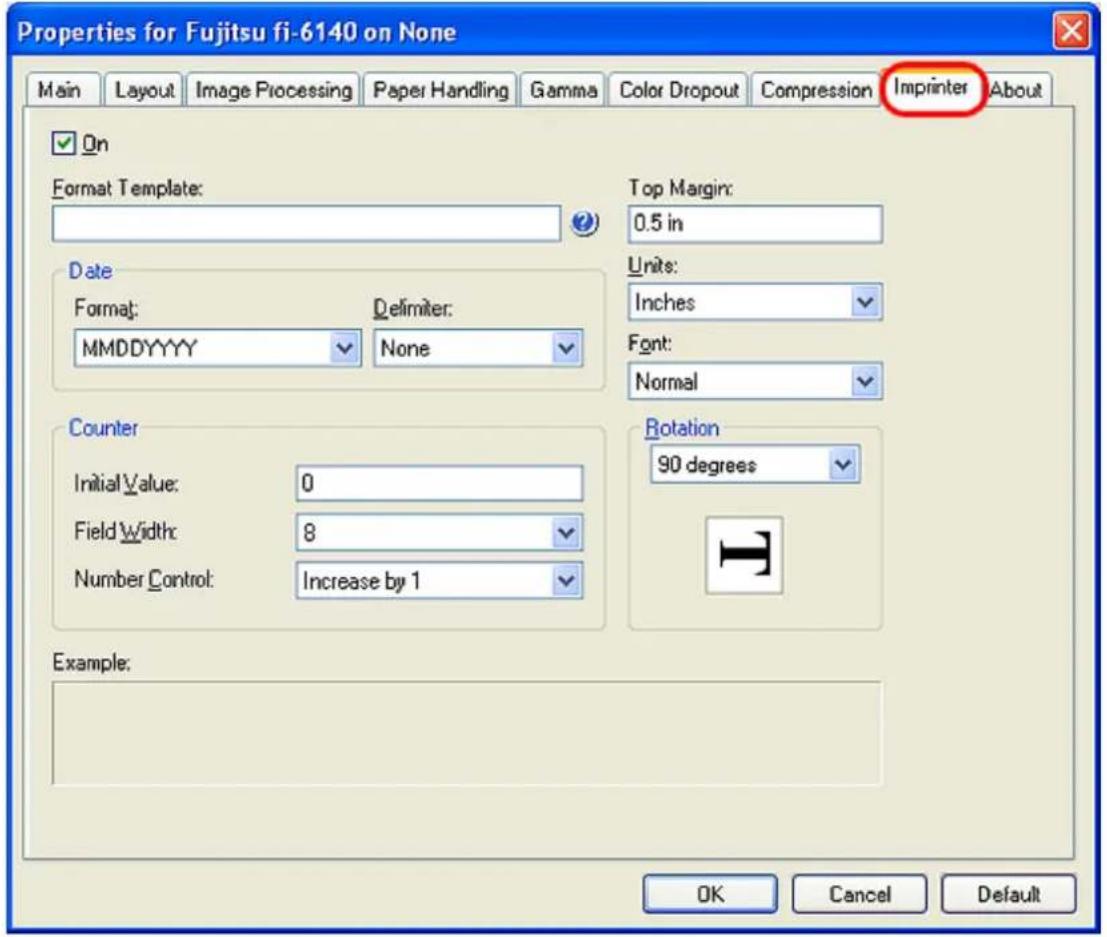

[Imprinter] Tab

You can configure settings for using the imprinter option (to be purchased separately). This tab is not displayed unless the imprinter option is installed.

Properties for Fujitsu fi-6140 on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Imprinter About On Format Template: Top Margin: 0.5 in Date Units: MMDDYYYY Defimiter: None Font: Normal Counter Initial Value: 0 Field Width: 8 Number Control: Increase by 1 Rotation 90 degrees Example: OK Cancel Default

[ON] Checkbox

Marking this checkbox enables the Imprinter function.

Format Template

Characters typed in this box are printed on documents. You can enter the following characters (up to 43 characters):

Alphabet A to Z,	a to z (single-width)
Numerics 0, 1 to	9 (single-width)
Symbols ! " $ # % & ' ( ) * + , - . / : ; <= > ? @ [ \ ] ^ _` { | } ~ (single-width)
Year/Month/Day	% Y
Time (HH:MM)	% T
Counter % S (Select from 3 to 8 as the number of digits.)
Other

ATTENTION

To print characters # and %, you have to type in ## and %% respectively because these are special characters. Take note that typing in only one character (#) displays the counter.

Date

You can specify how to indicate the date format.

Format Type in the initial value.

Delimiter Select a delimiter, which is a character that identifies the beginning or the end of a character string.

Counter

You can specify the rule to display the counter.

Initial Value Set the initial value of the counter.

Field Width Select the number of digits from 3 to 8.

Number Control Select the increment of the counter value.

Top Margin

You can set the distance between the top of the page and the top of the first line printed on the page with a numeric.

Range 0.5 to 10.5 in. (1.27 to 26.7 cm)

Minimum unit 0.1 in. (0.01 cm)

Units

You can specify the unit of the top margin; in inch, in cm, or in pixel.

Font

You can specify the font style from Normal, Bold, and Narrow for printing characters.

Rotation

You can specify the text direction for printing characters.

[About] Tab

Properties for Fujitsu fi-6140 on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Imprinter About FISx40C Version 2.1.10705.21001 Fujitsu fi-6140C / fi-6240C Copyright (c) 2007 EMC Corporation QuickDriver Version 1.0.10704.30001 Device Information: Model: Fujitsu fi-6140C Firmware Version: Imprinter Version: Serial Number: -1 Device Interface: SCSI Simplex/Duplex: Simplex Imprinter: Back First Read Date ADF Batch Counter: 0 ADF Pickroller Counter: 0 ADF PAD Counter: 0 EMC², Captiva, and ISIS are registered trademarks, and QuickDriver is a trademark of EMC Corporation. All other trademarks used herein are the property of their respective owners. © Copyright 2007 EMC Corporation. All rights reserved. OK Cancel Default

On this tab, you can view the information about the ISIS driver and the scanner connected to your computer.

PREFACE	CHAPTER 1	CHAPTER 2	CHAPTER 3	CHAPTER 4
CHAPTER 5	CHAPTER 6	CHAPTER 7	CHAPTER 8	CHAPTER 9
APPENDIX

TROUBLESHOOTING CONTENTS MAP TOP

2.6 How to Use ScandAll PRO

Prev

Next

ScandAll PRO is software for scanning images, which is in conformity with both TWAN/ISIS standards. Using the FUJITSU TWAIN 32 or FUJITSU ISIS scanner driver together with ScandAll PRO allows you to create document images. The following explains how to scan documents with the scanner through ScandAll PRO.

HINT

For information about the features of ScandAll PRO, refer to ScandAll PRO Help.

Launching ScandAll PRO

From the [Start] menu, select [All Programs]→[ScandAll PRO]→[ScandAll PRO].

→ScandAll PRO starts up.

ScandAll PRO - Untitled File Scan Edit View Page Zoom Tool Help 2x1 Ready 2x1 no image

Selecting a Scanner Driver

ScandAll PRO supports both TWAIN and ISIS standards and allows you to invoke either the TWAIN driver or the ISIS driver for scanning images with the scanner. This scanner comes with two drivers, FUJITSU TWAIN 32 Scanner Driver and FUJITSU ISIS Scanner Driver, which you can use with this scanner. The following explains how to select a scanner driver with ScandAll PRO (how to switch between the FUJITSU TWAIN and ISIS scanner drivers).

HINT

• In ScandAll PRO, the default [Device Driver] is [TWAIN].
- There is no functional difference between the FUJITSU TWAIN 32 and FUJITSU ISIS scanner drivers. You can use one of them according to your preferences.

1. From the [Tool] menu, select [Preferences].

ScandAll PRO - Untitled File Scan Edit View Page Zoom Tool Help Preferences... Run Filters Setup Filters...

→The [Setup] dialog box appears.

2. On the [Scan] tab, under [Driver], select either of drivers.

To use FUJITSU TWAIN 32 Scanner Driver, select [TWAIN]. To use FUJITSU ISIS Scanner Driver, select [ISIS].

Setup Print Scan View Hot Key Event Device Driver TWAIN ISIS Report Scan Result Do not output File Name: D:\Documents and Settings\scanner\My Doc Browse... Temporary Directory D:\Documents and Settings\scanner\Local Settings\Temp Browse... Restore Defaults OK Cancel Apply Help

3. Click the [OK] button to close the [Setup] dialog box.

Selecting a Scanner

To scan documents with a scanner, you have to select its name from the list beforehand. The following explains how to select a scanner to use.

1. From the [Scan] menu, select [Select Scanner].

The [Select Scanner] dialog box appears.

1. Select a scanner you want to use.

When the driver is FUJITSU TWAIN 32, select [FUJITSU fi-6140dj] or [FUJITSU fi-6240dj], and then click the [Select] button. When the driver is FUJITSU ISIS, select [Fujitsu fi-6140] or [Fujitsu fi-6240], and then click the [Select] button.

How to Display the Scanner Driver Setup Dialog Box

You can configure settings for scanning documents with the selected scanner in the setup dialog box of a scanner driver. Select the [Scan] menu, and then select [Setting] to display the setup dialog box.

ScandAll PRO - Untitled File Scan Edit View Page Zoom Tool Help Scan Scan Settings... Ctrl+N Batch Scan Batch Scan Settings... Ctrl+B Setting... Select Scanner... Cancel(P) TWAIN ISIS TWAIN Driver (32) Image Scanner: 642406 25948 Bravos... Setting Film: [0] Current Setting Config... Resolution Scan Type: 300 x 300 Flat Bed Paper Size: Preferge Letter (8.5x11m) Enable Software (F) Enable Shift Image Front Indirect Setting Image Mode Brightness A Black & White 120 Black/White: Threshold 120 Static Threshold 120 Hollow: Contrast 120 Advance... OK Reset Option Help About... TWAIN drive: Pass (F1) key to show help Data Size about 1.1MB Properties for Fujitsu fi-614D on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Inverter About Image Mode Camera: Front Image R1 Front Image R2 Back Image R1 Back Image R2 Mode iPC Black and White 16-level Grayscale 256-level Grayscale 24-b4 Color Auto Detect 16-level Grayscale Auto Detect 256-level Grayscale Auto Detect 24-b4 Color Data per inch: 300 Other None Coping Fixed Accuracy Brightness 128 1 296 Contrast Auto OK Cancel Default Configure parameters for scanning with a scanner. 2x1 no image

For information about setting items you can configure, see Section "2.5 How to Use the Scanner Drivers."

How to Scan Documents

With ScandAll PRO, you can scan documents with a scanner, in either of two ways:

Scan

You have to configure settings, such as the file format, destination, and scanning parameters, every time you scan a document.

Use [Scan] when you want to scan a small amount of documents as necessary.

Batch Scan

You may want to use the same settings repeatedly. You can configure settings such as the file format, destination, and scanning parameters, image-related properties, and an application to link with and create a profile with these settings saved.

You can create more than one profile beforehand, so you do not have to configure settings every time you scan documents. You only switch between profiles.

Use [Batch Scan] when you want to scan a large volume of documents using various profiles.

Scan

1. Place the document on the scanner.

For information about how to place documents, see Section "2.2 Loading Documents on the ADF for Scanning."

2. From the [Scan] menu, select [Scan Settings].

ScandAll PRO - Untitled File Scan Edit View Page Zoom Tool Help Scan Scan Settings... Ctrl+N Batch Scan Batch Scan Settings... Ctrl+B Setting... Select Scanner... Cancel(P)

Or, select the [Scan Settings] button ( ) on the toolbar.

→The [Scan Settings] dialog box appears.

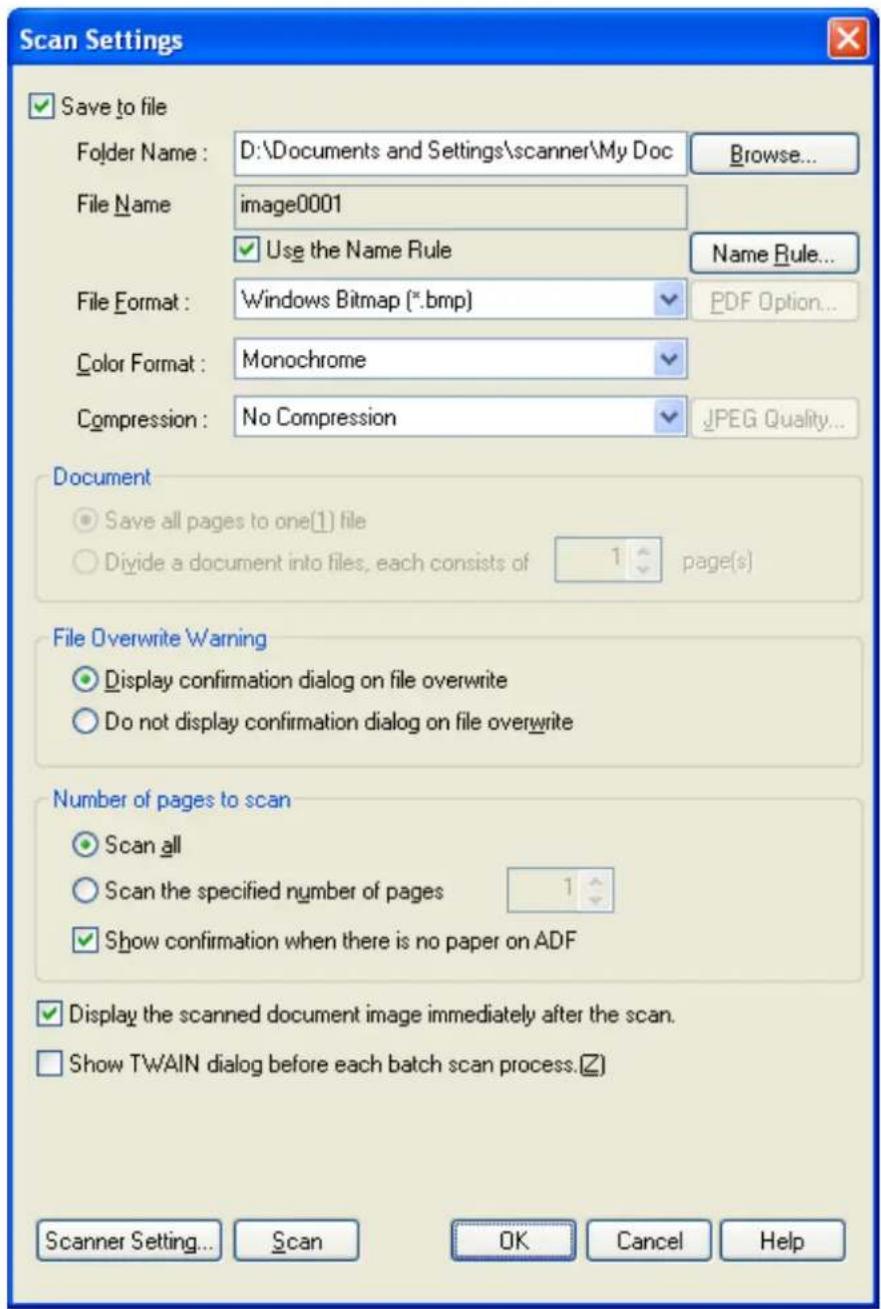

1. In the [Scan Settings] dialog box, configure various settings for saving scanned document images.

Scan Settings Save to file Folder Name: D:\Documents and Settings\scanner\My Doc Browse... File Name image0001 Use the Name Rule Name Rule... File Format: Windows Bitmap (*.bmp) PDF Option... Color Format: Monochrome Compression: No Compression JPEG Quality... Document Save all pages to one(1) file Divide a document into files, each consists of 1 page(s) File Overwrite Warning Display confirmation dialog on file overwrite Do not display confirmation dialog on file overwrite Number of pages to scan Scan all Scan the specified number of pages 1 Show confirmation when there is no paper on ADF Display the scanned document image immediately after the scan. Show TWAIN dialog before each batch scan process.(Z) Scanner Setting... Scan OK Cancel Help

[Save to file] Checkbox

To save scanned document images immediately after scanning, mark this checkbox. If you want to verify scans before saving them to file, clear this checkbox.

Folder Name

You can specify a folder to save scanned document images. Type in a full path in the box or click the [Browse] button to select a desired folder

File Name

A file name used to save scanned document image files is displayed. When you want to use the name rule for file names, mark the [Use the Name Rule] checkbox, click the [Name Rule] button to display the [Name Rule] dialog box, and change the naming rule. When creating multiple image files at a scan, you can specify how to name those files. Clear this checkbox when you want to specify a file name on this dialog box.

File Format

You can select a file format to save image files. Bitmap (*.bmp), TIFF (*.tif), JPEG (*.jpg/*.j2k), PDF (*.pdf), or PDF/A (*.pdf) can be selected. (When you select a multi-page format such as MultiPage TIFF, PDF, and PDF/A, multiple images can be saved in a file.)

Color Format

You can specify color mode (the number of colors to be used to display image data). When [None] is selected, you cannot select the compression format below. The default compression format is applied.

Compression

You can select how to compress files to save.

Document

When scanning a document containing more than one page, you can specify whether to create one file containing all pages or to divide into files each containing the specified number of pages. This becomes selectable only when a multi-page format is selected.

File Overwrite Warning

You can select whether to receive a confirmation message when scanned document image files with the same names already exist in the destination folder. If you select [Do not display confirmation dialog], those files are replaced with new ones.

Number of pages to scan

You can specify the number of pages to be scanned at a scan. To make a confirmation message when no paper remains in the ADF paper chute, mark the [Show confirmation when there is no paper on ADF] checkbox.

[Display the scanned document image immediately after the scan] Checkbox

Specify whether to preview a scanned document image or not. By default, this checkbox is marked. If memory becomes insufficient because the file size of a scanned document image is too large to display, clear this checkbox. (* Only when the [Save to file] checkbox is marked, this checkbox can be cleared.)

[Show TWAIN dialog before each batch scan process] Checkbox

Marking this checkbox displays the setup dialog box at a scan when the TWAIN driver is used for scanning. (* When the FUJITSU ISIS Scanner Driver is used, this checkbox is not available.)

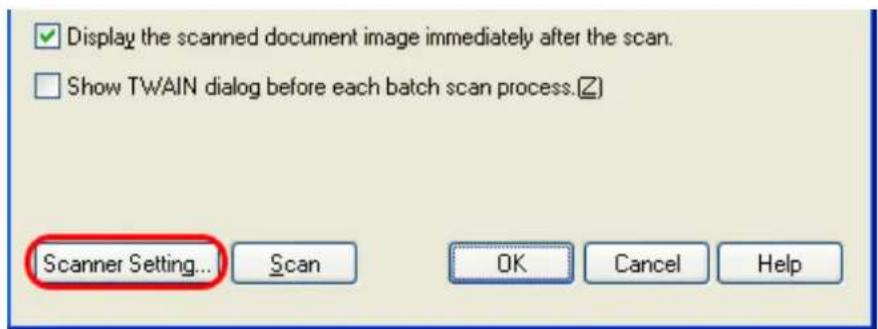

4. Click the [Scanner Setting] button.

Display the scanned document image immediately after the scan. Show TWAIN dialog before each batch scan process.(Z) Scanner Setting... Scan OK Cancel Help

The scanner driver setup dialog box appears.

5. Configure various settings for scanning documents.

For more details about the settings, see Section "2.5 How to Use Scanner Drivers."

TWAH Driver (32) Image Scanes: 652400 2504E Browse... Setting File Current Setting Config. Resolution Scan Type: 300 x 300 FlatBed 300 dpi Paper Size: Renderface Letter (R.5x11x1) Enable Dimensions (I/C) Enable Multi Image Front Individual Setting Image Mode Black & White Brightness 120 Black/White Threshold 120 Static Threshold 120 Noise: 120 Extract: 120 Mode: IFC Black and White 16-level Grayscale 256-level Grayscale 24-bit Color Auto Detect 16-level Grayscale Auto Detect 256-level Grayscale Auto Detect 24-bit Color Setup I/C... Dotz peg inch. 300 Other: None Cropping: Fixed Blank: Speed Accuracy Brightness 120 1 255 Contrast: Auto OK Cancel Default Scanning Area(inch): Left: 0.000 Top: 0.000 Width: 9.500 Length: 11.000 Scan Preview Options... Help About... Twash drive. Press [F1] keys to show help. Data Size about: 1.9M8 Properties for Fujitsu II-6140 on None Main Layout Image Processing Paper Handling Gamma Color Dropout Compression Impinter About Image Mode Camers: Front Image #1 Front Image #2 Back Image #1 Back Image #2 Mode: IFC 16-level Grayscale 256-level Grayscale 24-bit Color Auto Detect 16-level Grayscale Auto Detect 256-level Grayscale Auto Detect 24-bit Color Setup I/C... OK Cancel Default

1. When you finished setting, click the [OK] button in the dialog box (FUJITSU TWAIN 32 Scanner Driver/ FUJITSU ISIS Scanner Driver).

You are returned to the [Scan Setting] dialog box.

1. Click the [Scan] button.

Display the scanned document image immediately after the scan. Show TWAIN dialog before each batch scan process.② Scanner Setting... Scan OK Cancel Help

HINT

When you use the FUJITSU TWAIN 32 Scanner Driver, clicking the [Scan] button may display the scanner driver's setup dialog box. If so, you can also change settings in the dialog box displayed.

Click the [Scan] button to scan documents.

Click the [Close] button when you finish scanning.

Scan Preview OK Reset Option... TWAIN driver. Press [F1] key to show help.

If you do not want to display the scanner driver's dialog box, clear the [Show TWAIN dialog before each batch scan process] checkbox in the [Scan Settings] dialog box.

A document is scanned with the scanner, and the scanned document image is displayed on the ScandAll PRO window, and then the image is saved to file.

ScandAll PRO - My ScanSnap\samplepdf001.jpg [ 1 / 1 ] File Scan Edit View Page Zoom Tool Help 17.99% 2x1 Ready 2x1 17.99% 1 / 1 Pages

HINT

• If you do not mark the [Save to file] checkbox in the [Scan Settings] dialog box, scanned document images are not saved. To save the files, from the [File] menu, select [Save As].
• To scan the next document with the same settings, from the [Scan] menu, select [Scan]. Or, click the [Scan] button ( ) on the toolbar.

For information about other scanning operations, see Chapter "3 SCANNING VARIOUS TYPES OF DOCUMENTS." For more details about the features and operations of ScandAll PRO, refer to [ScandAll PRO Help].

Batch Scan

You can save various settings as profiles beforehand.

Batch Scan allows you to scan documents by using those profiles.

1. From the [Scan] menu, select [Batch Scan Settings].

ScandAll PRO - Untitled File Scan Edit View Page Zoom Tool Help Scan Scan Settings... Ctrl+N Batch Scan Batch Scan Settings... Ctrl+B Setting... Select Scanner... Cancel(P)

Or, click the [Batch Scan Settings] button ( ) on the toolbar.

The [Batch Scan Setting] dialog box appears.

Batch Scan Settings Profile : Profile Type Profile1 shared Searchable PDF Template Archived documents Template Scan color documents at one time Template Output color-monochrome simultaneously Template Add... Copy... Edit... Delete Profile lists Scan Close Help

2. Do the following as necessary:

- To create a new profile:

→ Click the [Add] button.

A new profile appears in the [Profile Editor] dialog box. (Go to step 3.)

- To create a new profile based on an existing profile:

Select a profile you want to use as the basis from the profile list, and then click the [Copy] button. A new profile based on the selected profile appears in the [Profile Editor] dialog box. (Go to step 3.)

- To change the settings of an existing profile:

→ Select a profile you want to change settings for, and click the [Edit] button. The selected profile appears in the [Profile Editor] dialog box. (Go to step 3.)

- To delete an existing profile from the profile list.

Select a profile you want to delete, and then click the [Delete] button. When you see a confirmation message, click the [Yes] button. The selected profile is deleted.

HINT

If the [Type] of a profile in the profile list is [Template], it is a sample profile. It cannot be used for scanning documents. Use sample profiles as the basis for you to create new profiles.

1. In the [Profile Editor] dialog box, configure settings for scanning and saving scanned document images.

Profile Editor General Scan File format and Name scheme Document separator Filter Linking Job Profile Name: Profile1 Description: Profile Type All User Current User Only Image Property Description File format: Windows Bitmap (*.bmp) Color Format: Monochrome File compression format: No Compression Pixel Type: Use Detail Scanner Settings Paper Size: Use Detail Scanner Settings Resolution: Use Detail Scanner Settings OK Cancel Apply Help

[General] Tab

You can type in a profile name and description, and select a profile type.

[Scan] Tab

You can configure settings for a scanner to use.

Clicking the [Detail Scanner Settings] button displays the setup dialog box of the scanner driver.

[File format and Name scheme] Tab

You can specify various parameters for saving scanned document images.

[Document separator] Tab

You can select how to separate documents.

Each separated document is counted according to the set Name Rule.

[Filter] Tab

You can select a filter to use for scanning.

[Linking] Tab

You can select what to do with scanned document images after scanning; send by e-mail, upload to the FTP server or Microsoft® SharePoint Server(*), print with a printer, or open with an application.

*: In this manual, Microsoft® SharePoint Portal Server 2003 and Microsoft® Office SharePoint Server 2007 are collectively referred to as "Microsoft® SharePoint Server."

Note: For details about the above settings, refer to ScandAll PRO Help.

4. Click the [OK] button.

→ You are returned to the [Batch Scan Settings] dialog box. Added or copied profiles by using the [Add] or [Copy] button appear in the profile list.

A: From the menu (Method 1)

1. Place the document on the scanner.

For information about how to place documents, see Section "2.2 Loading Documents on the ADF for Scanning."

2. From the [Scan] menu, select [Batch Scan Settings].

The [Batch Scan Settings] dialog box appears.

Batch Scan Settings Profile : Profile Type Profile1 shared Searchable PDF Template Archived documents Template Scan color documents at one time Template Output color-monochrome simultaneously Template Add... Copy... Edit... Delete Profile lists Scan Close Help

3. Select a profile you want to use for scanning.

4. Click the [Scan] button.

Scan Close Help

A document is scanned with the scanner, and the scanned document image is displayed on the ScandAll PRO window, and then the image is saved to file.

ScandAll PRO - My ScanSnap\samplepdf001.jpg [ 1 / 1 ] File Scan Edit View Page Zoom Tool Help 17.99% 2x1 Ready 2x1 17.99% 1 / 1 Pages

B: From the menu (Method 2)

1. Place the document on the scanner.

For information about how to place documents, see Section "2.2 Loading Documents on the ADF for Scanning."

1. From the [Scan] menu, select [Batch Scan], and then select [a profile name you want to use].

ScandAll PRO - Untitled File Scan Edit View Page Zoom Tool Help Scan Scan Settings... Ctrl+N Batch Scan Profile1 Batch Scan Settings... Ctrl+B Profile2 Setting... Select Scanner... Cancel(P)

A document is scanned with the scanner, and the scanned document image is displayed on the ScandAll PRO window, and then the image is saved to file.

ScandAll PRO - My ScanSnap\samplepdf001.jpg [ 1 / 1 ] File Scan Edit View Page Zoom Tool Help 17.99% 2x1 Ready 2x1 17.99% 1 / 1 Pages

C: From the toolbar

1. Place the document on the scanner.

For information about how to place documents, see Section "2.2 Loading Documents on the ADF for Scanning."

1. From the [Select the Batch File] drop-down list on the toolbar, select a profile to use.

ScandAll PRO - Untitled File Scan Edit View Page Zoom Tool Help Profile1 Profile2 Profile3 Profile4 Profile5

1. Click the [Start Batch Scan] button ( ) on the toolbar.

→ A document is scanned with the scanner, and the scanned document image is displayed on the ScandAll PRO window, and then the image is saved to file.

ScandAll PRO - My ScanSnap\samplepdf001.jpg [ 1 / 1 ] File Scan Edit View Page Zoom Tool Help 17.99% 2x1 Ready 2x1 17.99% 1 / 1 Pages
