USER MANUAL fi-5110C FUJITSU

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

fi-5110C Image Scanner Operator's Guide P3PC-1082-01EN

Line drawing of a printer with paper feed and paper tray (no text or symbols)

All Rights Reserved, Copyright©PFU LIMITED 2004

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Introduction

Thank you for purchasing the fi-5110C duplex color scanner.

This document describes how to handle fi-5110C Duplex Color scanner and basic operation methods. Before you start using fi-5110C Duplex Color scanner, be sure to thoroughly read this manual to ensure the correct use.

Contents Map

Illustration of a paper feeder machine with paper sheets and control panel (no text or symbols)

• Copying of the contents of this manual in whole or in part and copying of the scanner application is forbidden under the copyright law.
• The contents of this manual are subject to change without notice.
• PFU LIMITED. is not liable whatsoever for any damages resulting from use of this scanner and procedures described in this manual, profit due to defects, and any claims by a third party.

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Regulatory Information

FCC Declaration

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is located.
- Consult your dealer or an experienced radio/TV technician.

FCC warning:

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ATTENTION

The use of a shielded interface cable is required to comply with the Class B limits of Part 15 of FCC rules. The length of the AC cable must be 2 meters (6.6 feet) or less.

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Regulatory Information(2)

Canadian DOC Regulations

This digital apparatus does not exceed the Class B limit for radio noise emissions from digital apparatus set out in the Radio interference Regulations of the Canadian Department of Communications.

This Class B digital apparatus complies with Canadian ICES-003.

As an ENERGY STAR® Partner, PFU LIMITED has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

The International ENERGY STAR® Office Equipment Program is an international program that promotes energy saving through the penetration of energy efficient computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, monitors, printers, facsimiles, copiers, scanners, and multifunction devices. Their standards and logos ( ) are uniform among participating nations.

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Regulatory Information(3)

Use in High-safety Applications

This product has been designed and manufactured on the assumption that it will be used in office, personal, domestic, regular industrial, and general-purpose applications. It has not been designed and manufactured for use in applications (simply called "high-safety applications" from here on) that directly involve danger to life and health when a high degree of safety is required, for example, in the control of nuclear reactions at nuclear power facilities, automatic flight control of aircraft, air traffic control, operation control in mass-transport systems, medical equipment for sustaining life, and missile firing control in weapons systems, and when provisionally the safety in question is not ensured. The user should use this product with adopting measures for ensuring safety in such high-safety applications. PFU LIMITED assumes no liability whatsoever for damages arising from use of this product by the user in high-safety applications, and for any claims or compensation for damages by the user or a third party.

About the Use of Mercury

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state, or federal laws.

To avoid unexpected injury, read the following carefully.

Doing the following actions may result in serious personal injuries:

• Do not put the substance contained in the lamp in your mouth as it has mercury.
• Do not incinerate, crush, or shred the lamps or scanner parts.
• Do not breathe the chemical liquid contained in the scanner lamps.

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Trademarks

Trademarks

Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation in the United States and/or other countries.

ISIS, QuickScan and their respective logos are trademarks or registered trademarks of Pixel Translations, a division of Captiva Software Corporation in the United States.

Adobe, the Adobe logo, and Acrobat are either registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Other product names are the trademarks or registered trademarks of the respective companies.

How Trademarks Are Indicated In This Manual

References to operating systems (OS) and applications are indicated as follows

Windows 95	Microsoft® Windows® 95 operating system
Windows 98	Microsoft® Windows® 98 operating system
Windows Me	Microsoft® Windows® Millennium Edition operating system
Windows NT 4.0	Microsoft® WindowsNT® Server operating system Version4.0Microsoft® WindowsNT® Workstation operating system Version4.0
Windows 2000	Microsoft® Windows® 2000 Professional operating system
Windows XP	Microsoft® Windows® XP Professional operating systemMicrosoft® Windows® XP Home Edition operating system

Where there is no distinction between the different versions of the above operating system, the general term "Windows" is used.

Adobe Acrobat 6.0 Adobe® Acrobat® 6.0 standard

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Trademarks(2)

Manufacturer

PFU LIMITED

International Sales Dept., Imaging Bussines Division, Products Group Solid Square East Tower, 580 Horikawa-cho, Saiwai-ku, Kawasaki-shi Kanagawa 212-8563, Japan

Phone: [phone]

All Rights Reserved, Copyright(C) PFU LIMITED 2004

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Note, Liability

BEFORE USING THIS PRODUCT, PLEASE READ THIS MANUAL CAREFULLY. IF THIS PRODUCT IS NOT USED CORRECTLY, UNEXPECTED INJURY CAN OCCUR TO USERS OR BYSTANDERS

Keep this manual in a safe place so that it can be easily referred to during use of this product.

While all efforts have been made to ensure the accuracy of all information in this manual, PFU assumes no liability to any party for any damage caused by errors or omissions or by statements of any kind in this manual, its updates or supplements, whether such errors are omissions or statements resulting from negligence, accidents, or any other cause. PFU further assumes no liability arising from the application or use of any product or system described herein; nor any liability for incidental or consequential damages arising from the use of this manual. PFU disclaims all warranties regarding the information contained herein, whether expressed, implied, or statutory.

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Preface

Safety Precautions

This manual describes important details for ensuring the safe and correct use of this product. Thoroughly read this manual before you start to use this product. In particular, be sure to read and fully understand the Safety Precautions described in this manual before you use this product.

Also, store this manual in a safe place so that it can be easily referred to during use of this product.

Warning Indications Used In This Manual

This manual uses the following indications to ensure safe and correct use of this product, and to prevent possible danger and injury to the operator and other persons.

Warning

This indication alerts operators to an operation that, if not strictly observed, may result in severe injury or death.

Caution

This indication alerts operators to an operation that, if not strictly observed, may result in safety hazards to personnel or damage to equipment.

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Preface(2)

Symbols Used In This Manual

This manual uses the following symbols in the explanations in addition to the warning indications.

	This symbol alerts operators to particularly important information. Be sure to read this information.
	This symbol alerts operators to helpful advice regarding operation.
	A TRIANGLEsymbol indicates that special care and attention is required. The drawing inside the triangle shows the specific caution.
	ACIRCLEwith a diagonal line inside shows action which users may not perform.The drawing inside or under the circle shows the specific action that is not allowed.
	Outline characters on a colored background show instructions users should follow.It may also include the drawing that shows the specific instruction.
	Clicking in this icon will play a movie.

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Preface(3)

Screen Examples In This Manual

The screen examples in this manual are subject to change without notice in the interest of product improvement. If the actual displayed screen differs from the screen examples in this manual, operate by following the actual displayed screen while referring to the User's Manual of the scanner application you are using. The screenshots in this manual were captured from the FUJITSU TWAIN32 scanner driver, ScandAll 21 Image Capturing Utility Software, FUJITSU ISIS scanner driver, QuickScan™ image capturing software and Adobe® Acrobat®.

Warning Label

The following picture shows the warning label used in this scanner.

Photo of a mechanical device with a yellow warning sign indicating severe shock or hazard, featuring a warning symbol.

High Temperature

The glass surface inside the ADF becomes hot during the operation. Be careful not to touch the glass surface inside the ADF.

ATTENTION

Do not remove from the scanner, stain or scratch the warning labels.

About Maintenance

The user must not perform repairs on this scanner.

Contact the store where you purchased the scanner or an authorized FUJITSU Image Scanner service provider to have repairs done on this product.

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Safety Precautions

WARNING

The following are the important warnings described in this manual.

Do not damage the AC cable.

A damaged AC cable may cause fire or electric shock. Do not place heavy objects on AC cables, or pull, bend, twist, heat, damage or modify AC cables.

Do not use damaged AC cables or power plugs, or install any cables or power plugs to loose wall sockets.

Use only specified AC cables and connector cables.

Use only specified AC cables and connector cables. Failure to use the correct cables might cause electric shock and/or equipment failure.

Use this scanner only at the indicated power voltage. Do not connect to multiple-power strips.

Use this scanner only at the indicated power voltage and current. Improper power voltage and current might cause fire or electric shock. Do not connect to multiple-power strips.

Do not touch the AC cable with wet hands.

Do not touch the power plug with wet hands. Doing so can cause electric shock.

Wipe any dust from the power plug.

Wipe off any dust from metal parts on the power plug or metal fittings with a soft, dry cloth. Accumulated dust can cause fire or electric shock.

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Safety Precautions(2)

1 | 2 | 3 | 4

Do not install the scanner in locations subject to oil smoke, steam, humidity, and dust.

Do not install the scanner in locations subject to oil smoke, steam, humidity, and dust. Doing so might cause a fire or electric shock.

Turn the scanner OFF if it is damaged.

If the scanner is damaged for any reason, turn the scanner off and unplug the power cable. Contact the store where you purchased the scanner.

Do not put liquids inside the scanner.

Do not insert or drop metal objects in to the scanner. Do not scan wet documents or documents with paper clips or staples. Do not splash or allow the scanner to get wet.

If foreign objects (water, small metal objects, liquids, etc.) get inside the scanner, immediately turn off the scanner and disconnect the power plug from the power outlet. Then, contact the store where you bought the scanner or the Maintenance Service Center. Pay particular attention to this warning in households where there are small children.

Do not touch the inside of the scanner unless necessary.

Do not take apart or modify the scanner. The inside of the scanner contains high-voltage components. Touching these components might cause electric shock or fire.

Do not use the scanner if there is a strange odor.

If you detect heat coming from the device or detect other problems such as smoke, strange smells or noises, immediately turn off the scanner and disconnect its power plug. Make sure that any smoke coming from it has stopped, before contacting the store where you bought the scanner or an authorized FUJITSU scanner service provider.

1 | 2 | 3 | 4

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Safety Precautions(3)

1 | 2 | 3 | 4

CAUTION

The following are the important cautions described in this manual.

Do not install the scanner on unstable surfaces.

Make sure that the scanner is installed on a flat, level surface and that none of its parts extend beyond the surface top, such as a desk or table. Do not install the scanner on unstable surfaces. Install the scanner on a level surface that is free of vibration to prevent it from falling. Install the scanner on a strong surface that will support the weight of the scanner and other devices.

Do not block the ventilation ports.

Do not block the ventilation ports. Blocking the ventilation ports generates heat inside of scanner, which may result in fire or scanner failure.

Do not place heavy objects or stand on top of the scanner.

Do not place heavy objects on the scanner or use the scanner's surface top to perform other work. Improper installation might cause injuries and equipment failure.

Firmly insert the power plug.

Firmly insert the power plug as far it can go into the power outlet.

Avoid any contact when scanner is in use.

Avoid touching any scanner mechanism during scanning since this may cause injuries.

Do not use the scanner immediately after moving it from a cold place into a warm room.

Do not use the device immediately after moving it from a cold place into a warm room. Condensation may occur, which might lead to scanning errors. Let the device dry about one or two hours before you use it.

1 | 2 | 3 | 4

CONTENTS

INTRODUCTION

Regulatory Information

Trademarks

Note, Liability

Preface

Safety Precautions

1 NAMES AND FUNCTIONS OF PARTS

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

Safety Precautions(4)

Before moving the scanner, disconnect the power plug from the power outlet.

Do not move the scanner with the power and interface cables connected as this can damage the cables, which can later cause fire, electric shock as well as injury.

Before moving the scanner, be sure to disconnect the power plug from the power outlet, and all other data cables. Make sure that the floor is free of any obstructions.

Protect the scanner from static electricity.

Install the scanner away from strong magnetic fields and other sources of electronic noise. Also, protect the scanner against any static electricity, which can cause the scanner to malfunction.

Do not use aerosol sprays near the scanner.

Do not use aerosol sprays to clean the scanner. Aerosol sprays can blow dirt and dust inside the scanner, resulting in scanner failure or malfunction.

Disconnect the power plug from the power outlet when the scanner is not used for a long period of time.

When the scanner is not going to be used for a long period of time, be sure to disconnect the power plug from the power outlet.

Do not install the scanner in direct sunlight.

Do not install the scanner under direct sunlight or near heating apparatus. Doing so might cause excessive heat to build up inside the scanner, which can cause scanner trouble or even fire. Install the scanner in a well-ventilated location.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS

1.1 Names and functions of parts
1.2 Functions of the operator panel

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

1 NAMES AND FUNCTIONS OF PARTS

This chapter describes names and functions of parts.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS

1.1 Names and functions of parts

1.2 Functions of the operator panel

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

1.1 Names and functions of parts

Front view

Diagram of a printer with numbered parts labeled 1 through 6, showing internal structure and page layout.

No.	Name	Function
1	Automatic document feeder(ADF) It transports the document to the reading position automatically.
2	ADF paper chute Holds in place the document pages / sheets that are fed into the ADF.
3	Side guide It is adjusted to the width of the paper in order not to scan skewed pages.
4	ADF open lever Pull this lever to open the ADF.
5	Operator panel This panel consists of a Function No. display, four operating push buttons and a LED.
6	Stacker Scanned documents are ejected from the ADF onto this tray.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS

1.1 Names and functions of parts

1.2 Functions of the operator panel

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

1.1 Names and functions of parts(2)

Rear view

Diagram of a device casing with numbered parts labeled ⑦, ⑧, and ⑨ pointing to specific components.

No. Name Function
7	USB Interface connector Used for connecting a USB interface cable from a PC.
8	DC inlet Used for connecting the AC cable from the power outlet.
9	Security Cable Slot Used for connecting the security cable.

All Rights Reserved, Copyright©PFU LIMITED 2004

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS

1.1 Names and functions of parts

1.2 Functions of the operator panel

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

1.1 Names and functions of parts(3)

Removable Parts

Exploded view diagram of a washing machine with numbered parts for identification

No. Name
10	Pad ASSY
11	Sheet guide
12	ADF paper chute
13	Pick roller

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS

1.1 Names and functions of parts

1.2 Functions of the operator panel

2 BASIC SCANNER OPERATIONS

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

1.2 Functions of the operator panel

Diagram of a printer with labeled parts, showing front view and internal components

No. Name Function
1	Function No. display Indicates the function No. and error status.
2	Function button Changes the Function activated by the Send to button.
3	Send to button	Launches the linked application software.
4	Scan button
5	Power button Turns the scanner ON and OFF.
6	LED Lights when the scanner is turned ON.

Indications on the Function Number display

Indication	Meaning
8 Blinks	only one time upon turning on the scanner.
P Indicates that the scanner has been turned ON and is being initialized.
0 Indicates that initialization will soon end.
1 Indicates that initialization has ended successfully.The scanner is now in "Ready Status".
U Indicates that a temporary error occurred when documents were being scanned. A number appearing in alternation following the U (i.e. 1, 2 and 4) refers to the type of error.To return the scanner to the ready status ("1"), press "Scan" or "Send to" button.
E Indicates that a device (hardware) alarm has occurred during scanning of documents."E" and the alarm Number (2 to 9 and c ) will appear alternately.To return the scanner to the ready status ("1"), press "Scan" or "Send to" button.If this alarm occurs, turn the power off and on again. If the alarm continues after turning the power on again, contact your service engineer.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON
2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

This chapter describes basic scanner operations.

In this chapter Windows XP screenshots are illustrated.

The screens and operations may differ slightly if the OS that you are using is other than Windows XP. Also, when FUJITSU TWAIN32 or FUJITSU ISIS is updated the screens and operations noted in this chapter will differ slightly.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.1 Turning the scanner ON

This section describes how to turn the scanner ON.

The following shows the procedure for turning the scanner ON.

1. Press the power button on the operator panel.

The scanner is turned ON, and the green LED on the operator panel lights.

Also, while the scanner is being initialized, the indication of the Function Number display changes as follows:

"8"->"P"->"0"->"1" The indication "1" means that the operator panel is in the ready status.

Diagram of a dual-chamber electronic device with ports and a screen (no text or symbols)

power button

HINT

To turn the scanner OFF, hold the power button down for at least two seconds.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.1 Turning the scanner ON(2)

Power Save Mode

The Power Save mode keeps the scanner in a low-powered state after it has been turned ON.

If no operation is performed on the scanner for 15 minutes, the scanner automatically switches to the Power Save mode.

In the Power Save mode, the indication of the Function Number display on the operator panel goes out, but the green LED stays lit. To return from the Power Save mode, perform one of the following:

1. Load the document on the ADF paper chute.
2. Press any button on the operator panel.
   The scanner will be turned OFF when pressing down the power button for at least two seconds.
3. Execute a command from the scanner driver.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON
2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.2 Loading Documents on the ADF for Scanning

1. Confirm the following items before loading documents.

① Confirm that all the documents have the same width.
② Check the number of sheets in the document stack.

The standard number of sheets that can be loaded on the scanner is as follows:

• A4-size paper or smaller that makes a document stack of 5mm or less
• Maximum 50 sheet at A4, 20 lb, or 80 g/m ^2

2. Fan the documents as follows:

Two hands holding a blank white sheet against a black background (no text or symbols visible)

① Lightly grip both ends of the document, then bend and fan it.
② Repeat this operation a couple of times.
③ Rotate the document 90 degrees, then bend and fan it again.
④ Align the edges of the documents.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.2 Loading Documents on the ADF for Scanning(2)

3. Load the document on the ADF paper chute.

Pull out the ADF paper chute extension according to the length of the document.

①

White paper filter printer with paper sheets and a red arrow indicating extension (no text or symbols on the device itself)

Set the documents face-down in the ADF paper chute

② (so that the side to be scanned faces towards the ADF paper chute).

White paper printer with a red downward arrow indicating compression or download (no text or symbols visible)

Load the document facing the ADF paper chute.(face down)

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON
2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS
4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.2 Loading Documents on the ADF for Scanning(3)

1 | 2 | 3 | 4 | 5 | 6

ATTENTION

In case of operating with Windows XP OS:

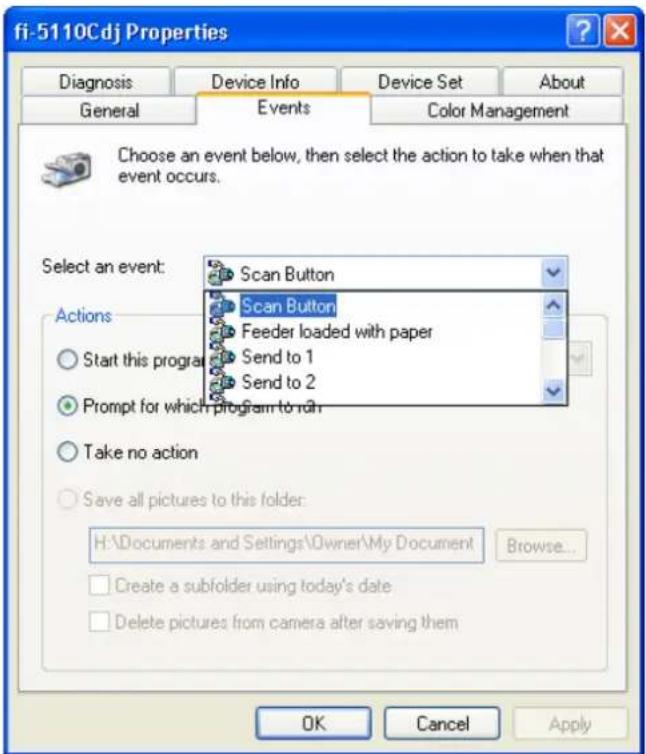

When the document is set on the ADF paper chute the following window may appear on the screen.

fi-5110Cdj Feeder loaded with paper Select the program to launch for this action: ScandAll 21 ToPDF ScandAll 21 ToPDF ScandAll 21 ToPrint ScandAll 21 ToPrint ScandAll 21 ToPrint ScandAll 21 ToPrint ScandAll 21 ToView ScandAll 21 ToView Always use this program for this action OK Cancel

In this window, you can select the application program which will perform the scanning.

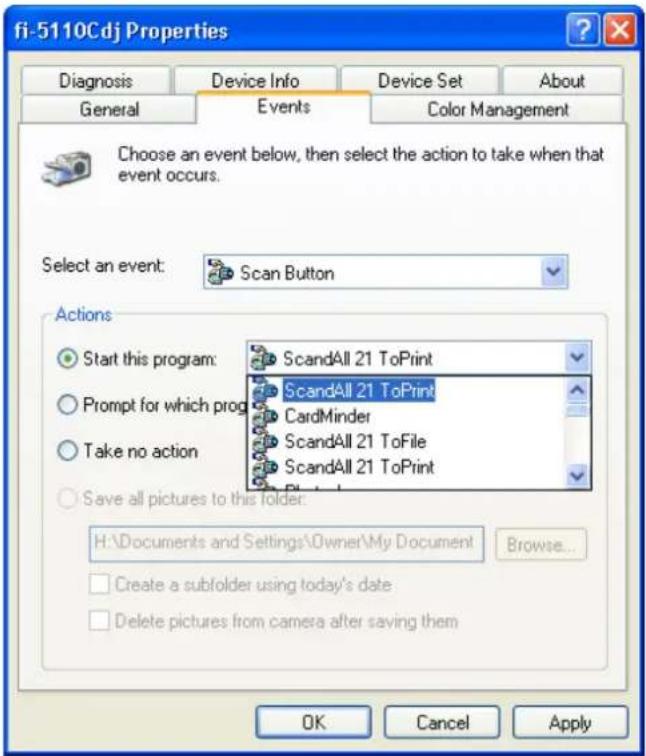

By selecting the application program from the "Select the program to launch for this action" menu and clicking the [OK] button, the selected program will be initiated.

For further information, please refer to "APPENDIX A Before using the [Scan] or the [Send to] button"

1 | 2 | 3 | 4 | 5 | 6

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON
2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.2 Loading Documents on the ADF for Scanning(4)

4. Adjust the side guides to the width of the documents.

Move the side guides so that they touch both sides of the documents.

If there is any space between the side guides and the edges of documents, the scanned image may be skewed.

Side guides

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS
4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.2 Loading Documents on the ADF for Scanning(5)

HINT

The stacker prevents document sheets from dropping after they are scanned. Use the stacker as follows:

1. Lift up the stacker towards you by inserting your fingertips into the handle on the scanner.

Handle

1. Lift the paper stop and swing forward by inserting your fingertips into the indentations on the scanner as shown in below figure.

Indentation

5. Start up the scanner application, and scan the document.

For details on how to scan documents using the ScandAll 21 application, refer to "2.3 Scanning Documents"

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON
2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS
4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.2 Loading Documents on the ADF for Scanning(6)

With the movie below, review how to load the document onto the ADF:

White plastic mechanical component with multiple slots and a small black connector, placed on a light blue surface (no text or symbols visible)

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON
2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.3 Scanning Documents

1. Load the document on the scanner's ADF paper chute.

For details on how to load documents, see "2.2 Loading Documents on the ADF for Scanning".

1. Start up ScandAll 21.

Select [Start] - [Program] - [Scanner Utility for Microsoft Windows] - [ScandAll 21].

→ This starts up ScandAll 21.

1. Select the scanner to be used.

Select [Select Source] from the [Scan] menu.

Untitled - ScandAll 21 File Scan Edit View Page Zoom Tools Help To View... Ctrl+A To File... To Ftp... To Adobe PDF... To Print... Select Source... Option...

→ The [Select Source] dialog box appears.

Select "FUJITSU fi-5110Cdj" and click the [Select] button.

Select Source Sources: FUJITSU fi-5110Cdj 9. (32-32) WIA fi-5110Cdj 1.0 (32-32) Select Cancel

1. Click the [Scan To View] button on the tool bar.

Untitled - ScandAll 21 File Scan Edit View Page Zoom Tools Help

The [TWAIN Driver] dialog box (screen for setting the scan conditions) appears.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON
2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS
4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.3 Scanning Documents(2)

1. Set the scan resolution, paper size and other scan conditions, and click the [Scan] button.

For details on settings in the [TWAIN Driver] dialog box, refer to "2.4 How to Use the Scanner Driver".

TWAIN Driver (32) Image Scanner: fi-5110Cd 16MB Browse... Setting Files: 00 : Current Setting Config... Resolution 300 x 300 Scan Type: ADF (Front Side) 300 dpi Paper Size: Predefine Letter (8.5x11in) Enable Software IPC Front Individual Setting Image Mode: Black & White Brightness: 128 Black/White: Static Threshold Threshold: 128 Nullitree: Contrast: 128 Advance... Scanning Area(inch) Left: 0.000 Top: 0.000 Width: 8.500 Length: 11.000 Scan Preview Close Reset Option... Help About... Push this button when you customize paper size or changing order of paper size in the list. Data Size about: 1.0MB

The document is scanned, and an image of the scanned document appears on the ScandAll 21 screen.

Untitled - ScandAll 21 File Scan Edit View Page Zoom Tools Help ISS (Image Scanner Interface Specification) A standard of API (application Program Interface) or product for imaging devices (cam- ners, digital camera, etc.) developed by Press Transactions, a division of Graphs Software. In order to use imaging devices designed on the ISS standard, it is necessary to install the driver software of the same standard. Aggy images Images that have shares projections or irregular shape on their edges. Job separation sheet A sheet inserted between documents in a batch for separating different jobs. Landscape A document is transported and used with the Short side parallel to the moving direction. Landscape orientation A document is transported and scanned with the long side vertical to the moving direction. Letter size A standard paper size used in the U.S.A. and other countries. Paper size is 8-10 x 11 inches. Line drawing mode Switching line drawing mode makes threshold and contrast settings effective but presents log sizes from being set. The specified threshold value determines whether tools or white cases are examined. Line drawing mode is therefore appropriate for scanning set and line set images. Multi Feed detection A scanner function which detects acceleration feeding of multiple sheets into the ADF. This can be set as both embedded dashed. Mirror image The read image is symmetrical shaped to produce a mirror image of the original detected in the main scanning direction. GL-6 | Ready 15.73% Page 1 of 1

For details on scanning other types of documents, refer to "Chapter 3 SCANNING VARIOUS TYPES OF DOCUMENTS". For details on ScandAll 21 functions and operations, refer to ScandAll 21 Help.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS
4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.4 How to Use the Scanner Driver

FUJITSU TWAIN32 Scanner Driver

FUJITSU TWAIN32 Scanner Driver is designed for scanning documents with FUJITSU image scanner fi series by using application software that complies with the TWAIN standard.

The following describes the procedure with examples of ScandAll 21 for ordinary scanning by using this driver software.

1. Procedure for Basic Scanning Operation

① Startup the application.
From the [Start] menu, select [Programs]-[Scanner Utility for Microsoft Window] and click [ScandAll 21].
② Select your scanner on the window below.
Select [Select Source] from the [Scan] menu.

Untitled - ScandAll 21 File Scan Edit View Page Zoom Tools To View... Ctrl+A To File... To Ftp... To Adobe PDF... To Mail... To Print... Select Source... Option...

③ Select [FUJITSU fi-5110Cdj] and then click the [Select] button.

Select Source Sources: FUJITSU fi-5110Cdj 9. (32:32) WIA-fi-5110Cdj 1.0 (32:32) Select Cancel

④ Load the documents on the scanner.
For details on loading documents, refer to "2.2 Loading Documents on the ADF for Scanning".
⑤ Open the TWAIN Driver window.

Select [Scan To View] from the [Scan] menu.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning

2.3 Scanning Documents

2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

2.4 How to Use the Scanner Driver(2)

HINT

ScandAll 21 provide scanning methods as follows:

• [To View...]: Displays scanned images on the window.
• [To File...]: Saves scanned images as files (*.BMP, *.TIF, *.JPG).
• [To FTP...]: Transfers scanned images to a FTP server.
• [To Adobe PDF...]: Saves scanned images as PDF files. (*Adobe Acrobat must be installed beforehand.)
- [To Microsoft Share Point Portal Server...]: Transfers scanned images to Microsoft Share Point Portal Server.
• [To Mail...]: Launches mailer software and attaches scanned images to e-mail.

For details, refer to "ScandAll 21 Help".

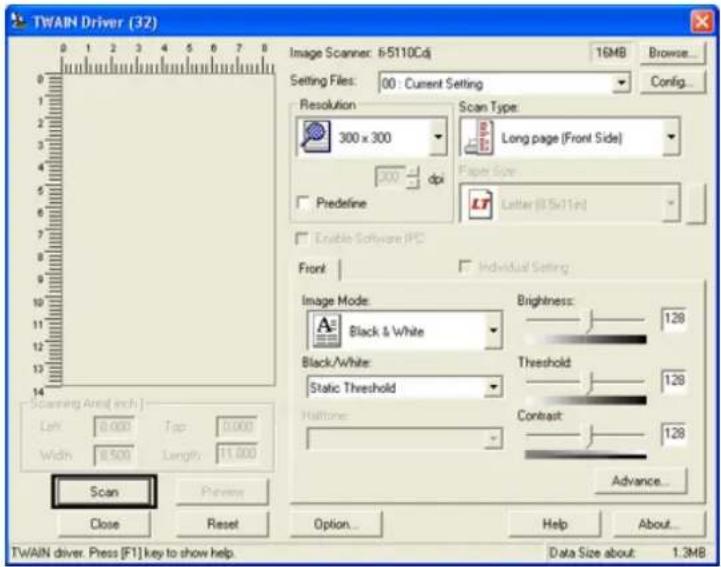

⑥ Configure settings for scanning and click the [Scan] button.

TWAIN Driver (32) Image Scanner: #5110Cdj 16MB Browse... Setting Files: 00 : Current Setting Config... Resolution 300 x 300 Scan Type: ADF (Front Side) 3.00 dpi Paper Size: Letter (8.5x11in) Predefine Enable Software IPC Front Individual Setting Image Mode: Black & White Brightness: 128 Black/A/White: Static Threshold Threshold: 128 Width: 8.500 Length: 11.000 Knitions: Contrast: 128 Advance... Scanning Area(inch ) Left: 0.000 Top: 0.000 Width: 8.500 Preview Close Reset Option... Help About... Push this button when you customize paper size or changing order of paper size in the list. Data Size about: 1.0MB

For details about the settings on this window, refer to "Setting Window for FUJITSU TWAIN32

Scanner Driver".

The images of scanned documents are displayed on the [ScandAll 21] window.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning

2.3 Scanning Documents

2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

2.4 How to Use the Scanner Driver(3)

Untitled - Scandal 21 File Scan Edit View Page Zoom Tools Help ISS (Image Scanner Interface Specification) A standard of API (Application Program Interface) or product for imaging devices (cam- nets, digital cameras, etc.) developed by Pixel Translations, a division of Capivas both ware. In order to use imaging devices designed on the ISS standard, it is necessary to install the drive software of the same standard. Jaggy images Images that have sharp projections or irregular shapes on their edges. Job separation sheet A sheet inserted between documents in a batch for separating different jobs. Landscape A document is transported and read with the Short side parallel to the moving direction. Landscape orientation A document is transported and scanned with the long side vertical to the moving dire- tion. Letter size A standard paper size used in the U.S.A. and other countries. Paper size is 9-10 x 71 inches. Line drawing mode Drawing line drawing mode makes horizontally and contrast settings effective but presents brightness from being set. The specified threshold value determines whether touch or white pixels are equal. Line drawing mode is therefore appropriate for scanning text and line of images. Multi Feed detection A scalar function which treats accidental feeding of multiple sheets into the ADF. This can be set as both embedded/indirect. Mirror image The next image is systematically Apped to produce a mirror image of the original detected in the Main scanning direction. GL-6 | Ready 15.73% Page 1 of 1

Depending on the settings of the application software, images may not be displayed. For details, refer to the documentation or Help file of your application. e.x.) When you select [To File...] from the [Scan] menu of ScandAll 21, images of scanned documents are not displayed on the window.

⑦ Save the scanned images.

Select [Save As...] from the [File] menu to save the scanned images. If you wish to start another scanning, return to procedure 4.

⑧End the application.

Select [Exit] from the [File] menu.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON
2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS
4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.4 How to Use the Scanner Driver(4)

2. Setting Window for FUJITSU TWAIN32 Scanner Driver

TWARN Driver (32) Image Scanner: fi-5110Cj 16MB Browse... Setting Files: 00 : Current Setting Config... Resolution 300 x 300 Scan Type: ADF (Front Side) 300 dpi Paper Size: Predefine Letter (8.5x11in) Enable Software IPC Front Individual Setting Image Mode: Black & White Brightness: 128 Black/White: Static Threshold Threshold: 128 Haltone: Contrast: 128 Width: 8.500 Length: 11.000 Advance... Scan Preview Close Reset Option... Help About... Push this button when you customize paper size or changing order of paper size in the list. Data Size about: 1.0MB

You can configure settings for the FUJITSU TWAIN32 Scanner Driver on this window. The following describes the main setting items.

☐ For details on each functions, refer to "FUJITSU TWAIN32 Scanner Driver Help" (appears by pressing [Help] or the [F1] key).
- Depending on the type of your scanner, available setting items or range of setting values vary.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning

2.3 Scanning Documents

2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

2.4 How to Use the Scanner Driver(5)

Resolution

Specifies the resolution of scanning.

It can be specified by selecting a default value from the list or customizing (specify any resolution in 1 dpi unit).

By marking the [Predefine] checkbox, you can select one from three predefined settings as [Normal], [Fine], [Super Fine] to scan documents instead of setting details by yourself.

Otherwise, you can change the details of the predefined settings on the [Resolution Setting] window, which appears when you click on the [...] button.

Scan Type

Specifies the feeding method, the side(s) to be scanned (Front Side, Back Side, Duplex) or details of Long page (the size of documents longer than A4).

Paper Size

Select the size of documents to be scanned from this list.

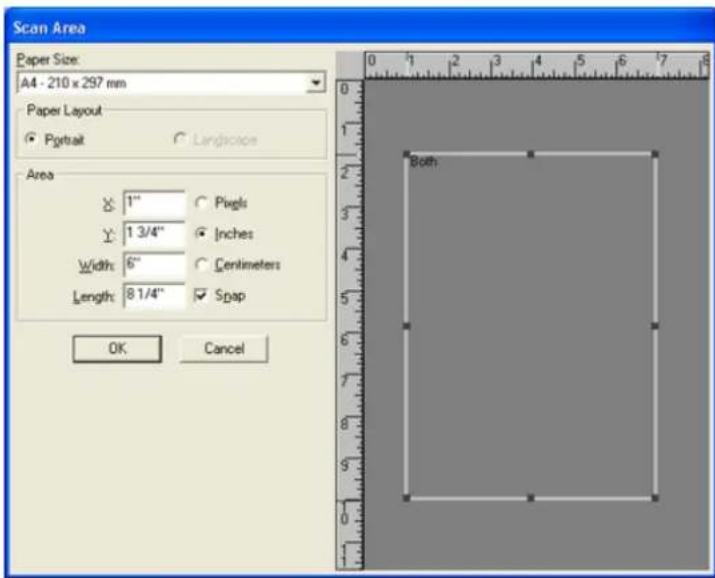

Windows for customizing the paper size will appear when you click on [...] besides the list. You can save any document size as a customized setting (up to three) or for changing the order of the paper size in the list.

Image Mode

Specifies the image type for the scanned documents.

Black & White	Documents are scanned in binary (black and white).
Halftone	Documents are scanned through halftone processing in black and white.
Grayscale	Documents are scanned in gradations from black to white. For this mode you can select 256 gradations or 4 bit (16 gardations).
Color	Documents are scanned in color. For this mode, you can select 24 bit Color, 256 Color or 8 Color.

[Scan] button

Starts scanning documents with the current settings.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON
2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver
3 SCANNING VARIOUS TYPES OF DOCUMENTS
4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS
Appendix

2.4 How to Use the Scanner Driver(6)

[Preview] button

Documents are scanned preliminarily before the actual scanning.

You can confirm the image of the documents in the preview window.

[Close] button

Saves the current settings and closes this window.

[Reset] button

Used to undo changes of settings.

[Help] button

Opens the "FUJITSU TWAIN32 Scanner Driver Help" window. The window also opens by pushing the [F1] key.

[About...] button

Opens an information window about the FUJITSU TWAIN32 Scanner Driver's version.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning

2.3 Scanning Documents

2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

2.4 How to Use the Scanner Driver(7)

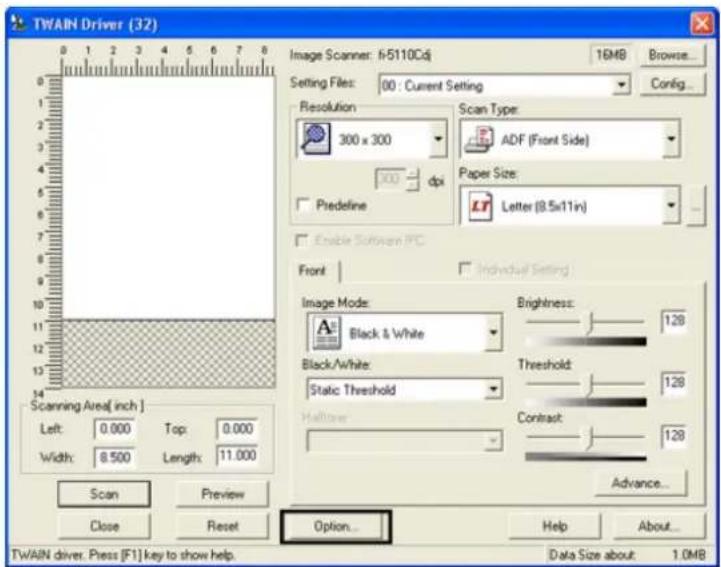

[Option...] button

You can set up the details of optional functions on the window below.

Option Rotation | Job/Cache | Generic | Startup | Filter | Compression | Flip Side Rotation Book Fanfold Rotation Rotation Degree: 0.0 degree Automatic Size and Skew detection : End of Page Detection Proxy: Speed Accuracy Overscan OK Cancel Help

[Rotation] tab

Select this tab when setting image rotation, detection of document size, etc.

[Job/Cache] tab

Select this tab when setting cache mode, multi feed detection, blank page skipping, etc.

[Generic] tab

Select this tab to change the unit displayed on the Setting Window for the FUJITSU TWAIN32

Scanner Driver. (Millimeters, Inches, and Pixels are available)

[Startup] tab

Select this tab for setting the Scanner Operation Panel.

[Filter] tab

Select this tab for setting the image processing filter(s).

Page Edge Filler: Fills up the margins of the scanned documents with a selected color.

Digital Endoser: A character string, such as the alphabet and numbers, can be added in the scanned document.

[Compression] tab

Select this tab for setting the compression rate of JPEG Transfer.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS
4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.4 How to Use the Scanner Driver(8)

[Advance...] button

Click this button for settings of the advanced image processing.

You can set Edge Extract, Gamma Pattern, White Level Follower, Dropout Color, Reverse, etc.

[Config...] button

Click this button for configuring the Setting Files.

You can save the changed settings as a Setting File. From next scanning, the settings are quickly changed by using these Setting Files.

For details of each function, refer to the "FUJITSU TWAIN32 Scsnner Driver Help".

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning

2.3 Scanning Documents

2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

2.4 How to Use the Scanner Driver(9)

FUJITSU ISIS Scanner Driver

FUJITSU ISIS Scanner Driver is designed for scanning documents with FUJITSU image scanner fi series by using application software that complies with The ISIS standard.

The following describes the procedure with examples of QuickScan for ordinary scanning by using this driver software.

The procedure may vary depending on your application. If you use an application other than QuickScan, please refer to its Guide or Help for further information.

1. Procedure for Basic Scanning Operation

Startup the application.

①

From the [Start] menu, select [Programs] - [QuickScan] and click [QuickScan].

② Select your scanner on the window below.

→ Select [Scan] - [Select Scanner] on the menu bar.

QuickScan Pro Demo File Edit Scan View Tools Demo Help Select Scanner... Preview Settings... Ctrl+E Preview Scan New Batch... Ctrl+B Insert... Rescan Page... 1 Binary TIFF 2 Color JPEG

③

Select fi-5110C, then click the [OK] button.

Scanner Selection Scanner: Fujitsu fi-4750L Fujitsu fi-4860C Fujitsu fi-4990C Fujitsu fi-5110C Fujitsu fi-5650C Fujitsu fi-5750C Fujitsu M3093DG Fujitsu M3093GX OK Cancel Setup...

④

Select [Scan] - [New Batch] on the menu bar.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON

2.2 Loading Documents on the ADF for Scanning

2.3 Scanning Documents

2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS

4 DAILY CARE

5 REPLACING CONSUMABLES

6 TROUBLESHOOTING

7 DOCUMENT SPECIFICATIONS FOR ADF

8 OPTIONS

9 SCANNER SPECIFICATIONS

Appendix

2.4 How to Use the Scanner Driver(10)

⑤

Select the profile for scanning.

New Batch... Select a Profile Binary TIFF Color JPEG Color JPEG (2) Color JPEG (3) Grayscale JPEG Add Profile... Edit Profile... Delete Profile 24 bit color scanning saved as JPEG Path: H:\Documents and Settings\Owner\My Documents File Name: untitled.jpg Browse... First Batch Continue Batch Custom Batch Next Batch: 1/2 Next Page: 1 Scan Cancel

- When creating a new profile

Select one from an already existing profiles and click the [Add Profile...] button.

→ A new profile will be created based on the profile you selected.

- When changing the settings of already existing profiles

Select one from an already existing profiles and click [Edit Profile...] button.

→ The settings of the selected profile can be changed.

- When using an existing profile.

Select one from the already existing profiles.

→ Scanning will be started according to the settings of the selected profile.
→ Go to procedure 9.

⑥ Select the [Scan] tab and click the [Scanner Settings] on the [Profile Editor] window.

Profile Editor General | Output Scan | Job Separation | IP | Logging | Pages are Rotated Advanced Options Before Scan Advanced Options During Scan Use flatbed if feeder is empty Sides Simplex Duplex if Available Scanner Settings OK Cancel

The configuration window of ISIS driver appears.

CONTENTS

INTRODUCTION

1 NAMES AND FUNCTIONS OF PARTS
2 BASIC SCANNER OPERATIONS

2.1 Turning the scanner ON
2.2 Loading Documents on the ADF for Scanning
2.3 Scanning Documents
2.4 How to Use the Scanner Driver

3 SCANNING VARIOUS TYPES OF DOCUMENTS
4 DAILY CARE
5 REPLACING CONSUMABLES
6 TROUBLESHOOTING
7 DOCUMENT SPECIFICATIONS FOR ADF
8 OPTIONS
9 SCANNER SPECIFICATIONS

Appendix

2.4 How to Use the Scanner Driver(11)

Configure settings for scanning and click the [OK] button.

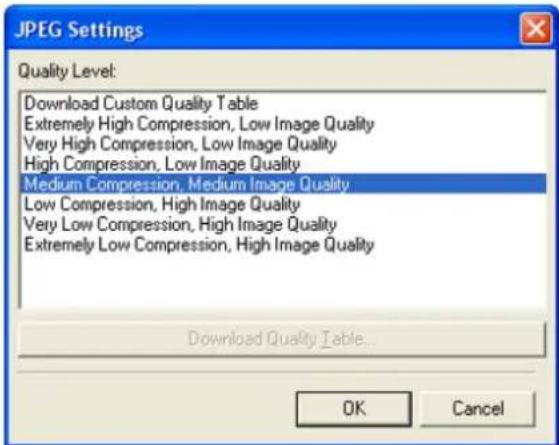

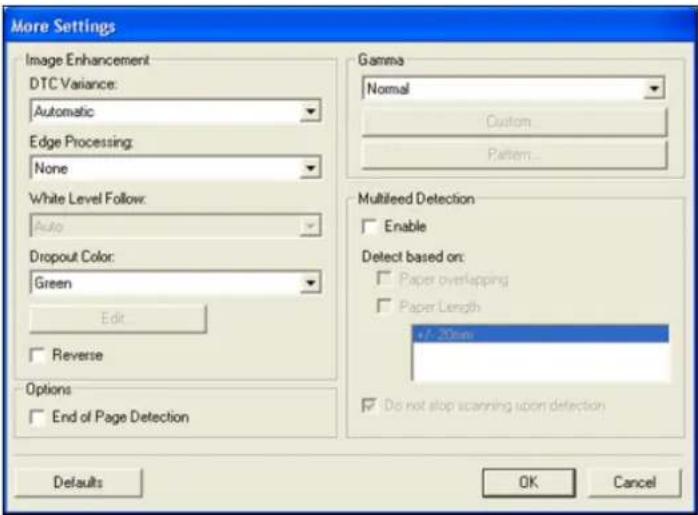

Fujitsu fi-5110C on STI - 0000 Image Mode Black & White Scan Type Automatic Resolution 300 Paper Size: Scanner's Maximum Paper Layout Portrait Landscape Haltone None Pattern... Feed Top edge list Brightness Manual Automatic 128 Darken Normal Lighten Contrast Manual Automatic Auto Default Side Both Font Back More... Area... JPEG... About... OK Cancel

For details on this dialog box, refer to "Configuration Window of FUJITSU ISIS Scanner Driver".

⑧ The [Profile Editor] window appears. Click the [OK] button to return to [New batch] dialog. Load the documents on the scanner.

⑨

⑩

Click the [Scan] button.

New Batch... Select a Profile Binary TIFF Color JPEG Color JPEG (2) Color JPEG (3) Grayscale JPEG Add Profile... Edit Profile... Delete Profile 24 bit color scanning saved as JPEG Path: H:\Documents and Settings\Owner\My Documents File Name: untitled.jpg Browse... First Batch Continue Batch Custom Batch Next Batch: Next Page: Scan Cancel

→ Scanned images are displayed on the window.

Refer to the "QuickScan Overview" or the "QuickScan Help" for further information on functions and operations of QuickScan. After the installation of QuickScan, it is registered in the [Start] menu.
