IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions
5. Do not use this apparatus near water.
6. Clean only with dry cloth

7. Do not block any ventilation openings.
   Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the carl, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a carl is used, use caution when moving the carl/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Ruler all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION:

To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet.

The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user

FCC INFORMATION (For US customers)

1. COMPLIANCE INFORMATION

Product Name: Integrated Network AV Receiver Model Number: AVR-1912

This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation

Denon Electronics (USA), LLC

(a D&M Holdings Company)

100 Corporate Drive

Mahwah, NJ 07430-2041

Tel. [phone]

2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product.

3. IMPORTANT

When connecting this product to network hub or router, use only a shielded STP or SCTP LAN cable which is available at retailer.

Follow all installation instructions. Failure to follow instructions could void your authority, granted by the FCC, to use the product.

4. NOTE

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

- Recipient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the product into an outlet on a circuit different which the receiver is connected

- Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for help

For Canadian customers:

This Class B digital apparatus complies with Canadian ICES-003.

NOTES ON USE

WARNINGS

• Avoid high temperatures
  Allow for sufficient heat dispersion when installed in a rack.
• Handle the power cord carefully
  Hold the plug when unplugging the cord.
• Keep the unit free from moisture, water, and dust
• Unplug the power cord when not using the unit for long periods of time.
• Do not obstruct the ventilation holes.
• Do not let foreign objects into the unit.
• Do not let insecticides, benzene, and thinner come in contact with the unit.
• Never disassemble or modify the unit in any way.
• Ventilation should not be impeded by covering the ventilation openings
  with items, such as newspapers, tablecloths or curtains.
• Naked flame sources such as lighted candles should not be placed on
  the unit
• Observe and follow local regulations regarding battery disposal.
• Do not expose the unit to dripping or splashing fluids.
• Do not place objects filled with liquids, such as vases, on the unit
• Do not handle the mains cord with wet hands.
• When the switch is in the OFF (STANDBY) position, the equipment is not
  completely switched off from MAINS.
  • The equipment shall be installed near the power supply so that the power
  supply is easily accessible.

□ CAUTIONS ON INSTALLATION

Diagram showing two labeled cross-sections of a building facade with asterisk annotations and a 'Wall' label.

* For proper heat dispersal, do not install this unit in a confined

space, such as a bookcase or similar enclosure.

• More than 12 in. (0.3 ml) is recommended.
• Do not place any other equipment on this unit.

Getting started

Thank you for purchasing this DENON product. To ensure proper operation, please read this owner's manual carefully before using the product. After reading them, be sure to keep them for future reference.

Contents

Getting started 1
Accessories 1 Features 2
Cautions on handling 2

Basic version 3

Connections 4
Important information 4
Connecting an HDMI-compatible device....b
Connecting a TV 8
Connecting a Blu-ray Disc player/DVD player 8
Connecting a set-top box (Satellite tuner/Cable TV) 9
Connecting a digital camcorder....9
Connecting a control dock for iPod....10
Connecting an iPod or USB memory device to the USB port.....10
Connecting an antenna....11
Connecting a CD player....11

Settings 13

Set up speakers (Audyssey® Auto Setup) 13

Making the network settings (Network Setup)....19

Playback (Basic operation) 20

Important information 20

Playing a Blu-ray Disc player/DVD player 21

Playing a CD player 21

Playing an iPod 22

Tuning in radio stations....26

Playing a network audio 28

Playing a USB memory device 42

Selecting a listening mode (Surround mode) 44

Selecting a listening mode....44

Advanced version 48

Speaker installation/connection (Advanced connection)....49

Install 49

Connect 51

Set up speakers 56

Playback (Advanced operation) 58

Convenient functions 58

Playback in ZONE2 (Separate room) 68

Audio output ...... 68 Playback ...... 69

Quick select function....69

Sleep timer function 69

How to make detailed settings....70

Menu map 70

Examples of menu screen displays 71

Examples of menu and front display 72

Inputting characters 73

Audio Adjust 75

Information 81

System Setup 82

Input Setup 95

Operating the connected devices by remote control unit ....101

Operating AV devices 101

Registering preset codes 102

Operating devices 104

Specifying the zone used with the main remote control unit…106

Resetting the remote control unit 106

Information 107

Part names and functions 108

Front panel 108

Display 109

Rear panel 110

Remote control unit 111

Other information 113

Trademark information....113

Surround 114

Relationship between video signals and monitor output....118

Explanation of terms....119

Troubleshooting 122

Resetting the microprocessor 125

Specifications 126

Accessories

Check that the following parts are supplied with the product.

① Getting Started....1

② CD-ROM (Owner's manual) 1

③ Warranty (for North America model only)....1

④ Service network list....1

⑤ Remote control unit (RC-1156) 1

⑥ R6/AA batteries 2

⑦ Setup microphone

(DM-A409, Cord length: Approx. 19.7 ft / 6.0 m) ..... 1

⑧ AM loop antenna....1

⑨ FM indoor antenna 1

Features

Fully discrete, identical quality and power for all 7 channels (125 W x 7ch)

The unit is equipped with a power amplifier that reproduces high-fidelity sound in surround mode with equal quality and power for all channels, true to the original sound.

The power amplifier circuit adopts a discrete-circuit configuration that achieves high-quality surround sound reproduction.

Supports internet radio, music, and photograph streaming

Supports AirPlay® (page 62)

When connected to a network, this unit can play audio files and still images such as photographs that are stored on your computer. You can also listen to internet radio and a host of other online music sources that use network technology. This unit also supports AirPlay that lets you stream your music library from an iPhone, iPad, iPod touch or iTunes.

Compatible with "Denon Remote App" for performing basic operations of the unit with an iPhone or iPod touch \*1

"Denon Remote App" is application software that allows you to perform basic operations with an iPhone or iPod touch such as turning the unit ON/OFF, controlling the volume, and switching the source.

*1 Download "Denon Remote App" from iTunes® App Store. The unit needs to be connected to a LAN and the iPhone/iPod touch needs to be connected to the same network by WiFi (wireless LAN).

Setup wizard, providing easy-to-follow setup instructions

First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc.

Easy to use, Graphical User Interface

This unit is equipped with an easy to see "Graphical User Interface" that uses menu displays and levels. The use of level displays increases operability of the this unit.

Direct play for iPod® and iPhone® via USB (page 10)

Music data from an iPod can be played back if you connect the USB cable supplied with the iPod via the USB port of this unit, and also an iPod can be controlled with the remote control unit for this unit. When an iPod is connected, merely pressing iPod ▶ on the main unit starts playback of music from the iPod.

Supports HDMI 1.4a with 3D, ARC, Deep Color, "x.v.Color", Auto Lip Sync and HDMI control function (page 6)

This unit can output 3D video signals input from a Blu-ray Disc player to a TV that supports a 3D system. This unit also supports the ARC (Audio Return Channel) function, which reproduces TV sound with this unit via an HDMI cable used for connecting the unit and a TV ^*2 .

*2 The TV should support the ARC function.

6-HDMI inputs and 1-output

The unit is equipped with 6 HDMI input connectors for connecting devices with HDMI connectors, such as a Blu-ray Disc player, game machine, HD video camera, etc.

High definition audio support

The unit is equipped with a decoder which supports high-quality digital audio format for Blu-ray Disc players such as Dolby TrueHD, DTS-HD Master Audio, etc.

Cautions on handling

• Before turning the power on

Check once again that all connections are correct and that there are no problems with the connection cables.

- Power is supplied to some of the circuitry even when the unit is set to the standby mode. When going on vacation or leaving home for long periods of time, be sure to unplug the power cord from the power outlet.

- About condensation

If there is a major difference in temperature between the inside of the unit and the surroundings, condensation (dew) may form on the operating parts inside the unit, causing the unit not to operate properly.

If this happens, let the unit sit for an hour or two with the power turned off and wait until there is little difference in temperature before using the unit.

• Cautions on using mobile phones

Using a mobile phone near this unit may result in noise. If that occurs, move the mobile phone away from this unit when it is in use.

- Moving the unit

Turn off the power and unplug the power cord from the power outlet. Next, disconnect the connection cables to other system units before moving the unit.

- About care

• Wipe the cabinet and control panel clean with a soft cloth.
• Follow the instructions when using a chemical cleaner
• Benzene, paint thinner or other organic solvents as well as insecticide may cause material changes and discoloration if brought into contact with the unit, and should therefore not be used.

Basic version

Basic version

Here, we explain the connections and basic operation methods for this unit.

● Connections page 4
● Settings page 13
● Playback (Basic operation) page 20
- Selecting a listening mode (Surround mode) page 44

Connection

page 7,8

Playback

-

Connection

page 7,8

Playback

page 21

Connection

page 7,9

Playback

-

Connection

page 10

Playback

page 24

Connection

page 7

Playback

-

Connection

page 11

Playback

page 26

Connection

page 7,8

Playback

page 21

Connection

page 11

Playback

page 21

Connection

page 10

Playback

page 22

Connection

page 10

Playback

page 42

Connection

page 9

Playback

-

Connection

page 12

Playback

page 28

For speaker connections, see page 51, 📄 page 6 "Connecting the speakers".

Connections

Important information

• Make connections as follows before using this unit. Select an appropriate connection type according to the devices to be connected.
• You may need to make some settings on this unit depending on the connection method. Refer to each description for more information.
• Select the cables (sold separately) according to the devices being connected.

NOTE

• Do not plug in the power cord until all connections have been completed. (When the Setup wizard is running, follow the instructions in the Setup wizard screen for making connections.)
• When running the Setup wizard, turn off the power supply of connected devices.
• When making connections, also refer to the operating instructions of the other devices being connected.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Do not bundle power cords together with connection cables. Doing so can result in noise.

Converting input video signals for output (Video conversion function)

This unit is equipped with four types of video input connectors (HDMI, Component video, S-Video and video) and two types of video output connectors (HDMI and video). Use the connectors corresponding to the devices to be connected. This function automatically converts various formats of video signals input to this unit into the formats used to output the video signals from this unit to a monitor.

• The video conversion function supports the NTSC, PAL, SECAM, NTSC 4.43, PAL-N, PAL-M and PAL-60 formats.
• Resolutions of HDMI-compatible TVs can be checked at "HDMI Monitor Information" (page 81).

NOTE

• HDMI signals cannot be converted into analog signals.
- Component video input signals cannot be converted into Video format.
- When a non-standard video signal from a game machine or some other source is input, the video conversion function might not operate.

See overleaf

Important information

Examples of screen display

- Menu screen

• Status display screen When the input source is switched.

When the volume is adjusted.

Menu Audio Adjust Information Setup Wizard System Setup Input Setup Sunt-Parameter Time Auxiliary Settings Manual IQ RESTORER Audio Delay

Status display: The operating status appears briefly on the screen when the input source is switched or the volume is changed.

NOTE

• If you operate the menu while playing back 3D video content or computer's resolution (e.g. VGA), the playback video is replaced by the menu screen. The playback video is not displayed behind the menu screen.
• This unit does not show the status display while playing back 3D video content or computer's resolution (e.g. VGA).
• The menu screen and status display are displayed when this unit and a TV are connected by HDMI. Furthermore, the menu screen and status display are not displayed when this unit and a TV are connected by VIDEO.

Connecting an HDMI-compatible device

You can connect up to seven HDMI-compatible devices (6-inputs/1-output) to the unit.

HDMI function

This unit supports the following HDMI functions:

•3D
• Deep Color (page 119)
• Auto Lip Sync (page 86, 119)
- "x.v.Color", sYCC601 color, Adobe RGB color, Adobe YCC601 color (page 119, 120, 121)
• High definition digital audio format
• ARC (Audio Return Channel)
- Content Type
• C EC (HDMI control)

Copyright protection system

In order to play back digital video and audio such as BD-Video or DVD-Video via HDMI connection, both this unit and TV or the player need to support the copyright protection system known as HDCP (High-bandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of data encryption and authentication of the connected AV devices. This unit supports HDCP.
- If a device that does not support HDCP is connected, video and audio are not output correctly. Read the owner's manual of your television or player for more information.

About HDMI cables

• When a device supporting Deep Color is connected, use a cable compatible with "High Speed HDMI cable" or "High Speed HDMI cable with Ethernet".
• When the ARC function is used, connect a device with a "Standard HDMI cable with Ethernet" or "High Speed HDMI cable with Ethernet" for HDMI 1.4a.

HDMI control function (page 58)

This function allows you to operate external devices from the unit and operate the unit from external devices.

NOTE

• The HDMI control function may not work depending on the device it is connected to and its settings.
• You cannot operate a TV or Blu-ray Disc player/DVD player that is not compatible with the HDMI control function.

About 3D function

This unit supports input and output of 3D (3 dimensional) video signals of HDMI 1.4a. To play back 3D video, you need a TV and player that provide support for the HDMI 1.4a 3D function and a pair of 3D glasses.

NOTE

• When playing back 3D video, refer to the instructions provided in the manual of your playback device together with this manual.
• If you operate the menu while playing back 3D video content, the playback video is replaced by the menu screen. The playback video is not displayed behind the menu screen.
• This unit does not show the status display while playing back 3D video content.
• If 3D video with no 3D information is input, the menu screen and status display on this unit are displayed over the playback video.
• If 2D video is converted to 3D video on the television, the menu screen and status display on this unit are not displayed correctly. To view the menu screen and status display on this unit correctly, turn the television setting that converts 2D video to 3D video off.

About ARC (Audio Return Channel) function

The Audio Return Channel in HDMI 1.4a enables a TV, via a single HDMI cable, to send audio data "upstream" to this unit.

NOTE

• To enable the ARC function, set "HDMI Control" to "ON" (37 page 86).
• When connecting a TV that does not support the ARC function, a separate connection using an audio cable is required. In this case, refer to "Connecting a TV" (25 page 8) for the connection method.

About Content Type

HDMI 1.4a enables simple, automated picture setting selection with no user intervention.

NOTE

To enable the Content Type, set "Video Mode" to "Auto" (page 98).

See overleaf

Cables used for connections

- This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable.

Connecting an HDMI-compatible device

• When this unit is connected to other devices with HDMI cables, connect this unit and TV also with an HDMI cable.
• When connecting a device that supports Deep Color, please use a "High Speed HDMI cable" or "High Speed HDMI cable with Ethernet".
• Video signals are not output if the input video signals do not match the monitor's resolution. In this case, switch the Blu-ray Disc/DVD player's resolution to a resolution with which the monitor is compatible.
• When this unit and monitor are connected with an HDMI cable, if the monitor is not compatible with HDMI audio signal playback, only the video signals are output to the monitor.

NOTE

The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be limited by the HDMI audio specifications of the connected device regarding permissible inputs.

Connecting to a device equipped with a DVI-D connector

When an HDMI/DVI conversion cable (sold separately) is used, the HDMI video signals are converted to DVI signals, allowing connection to a device equipped with a DVI-D connector.

NOTE

• No sound is output when connected to a device equipped with a DVI-D connector. Make separate audio connections.
• Signals cannot be output to DVI-D devices that do not support HDCP.
• Depending on the combination of devices, the video signals may not be output.

□Settings related to HDMI connections

Set as necessary. For details, see the respective reference pages.

Input Assign (page 97)

Set this to change the HDMI input connector to which the input source is assigned.

HDMI Setup (page 86)

Make settings for HDMI video/audio output.

• Auto Lip Sync • HDMI Audio Out • HDMI Control

• Standby Source • P.Off Control

NOTE

The audio signal input from the HDMI input connector can be output as an output signal from the HDMI output connector by setting the HDMI audio output destination to TV. Audio signal's input via the Analog/Coaxial/Optical input connectors cannot be output from the HDMI output connector.

Connecting a TV

• Select the connector to use and connect the device.
• For video connections, see "Converting input video signals for output (Video conversion function)" (page 4).
• For instructions on HDMI connections, see "Connecting an HDMI-compatible device" (page 6).

To listen to TV audio through this device, use the optical digital connection.

NOTE

The optical connection is not required when a TV compatible with the ARC function (Audio Return Channel HDMI 1.4a standard function) is connected to this unit via an HDMI connection. For details, see "About ARC (Audio Return Channel) function" (C\$ page 6) or refer to the instruction manual for your TV.

Cables used for connections

Video cable (sold separately) Video cable Audio cable (sold separately) Optical cable

TV VIDEO AUDIO VIDEO IN OPT.CAL OUT VOLUME DATA COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTUM COMPUTIMUM

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned. "Input Assign" (16 page 9/1)

Connecting a Blu-ray Disc player/DVD player

• You can enjoy video and audio from a Blu-ray Disc or DVD.
• Select the connector to use and connect the device.
• For instructions on HDMI connections, see "Connecting an HDMI-compatible device" (page 6).

Cables used for connections

Video cable (sold separately) Video cable Audio cables (sold separately) Audio cable

DVD player VIDEO AUDIO VIDEO OUT AUDIO L R Blu-ray Disc player AUDIO AUDIO L R Blu-ray Disc player

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned. "Input Assign" (page 97)

When you want to play back HD Audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus, DTS Express) and Multichannel PCM with this unit, use an HDMI connection (Tpage 6 "Connecting an HDMI-compatible device").

Connecting a set-top box (Satellite tuner/Cable TV)

• You can watch satellite or cable TV.
- Select the connector to use and connect the device.
- For instructions on HDMI connections, see "Connecting an HDMI-compatible device" (page 6).

Cables used for connections
Satellite tuner/Cable TV VIDEO COMPONENT VIDEO OUT VIDEO OUT CCAXIAL OUT AUDIO OUT AUDIO OUT

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned.

Connecting a digital camcorder

• You can enjoy video and audio from a digital camcorder.
• For instructions on HDMI connections, see "Connecting an HDMI-compatible device" (page 6).

Cables used for connections

Video cable (sold separately) Video cable Audio cable (sold separately) Audio cable

Digital camcorder VIDEO OUT AUDIO OUT L R U U N A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

in Set as Necessary

Set this to change the digital input connector or component video input connector to which the input source is assigned.

You can enjoy games by connecting a game machine via the V.AUX input connector. In this case, select the input source to "V.AUX".

NOTE

When a non-standard video signal from a game machine or some other source is input, the video conversion function might not operate. In this case, use the monitor output of the same connector as the input.

Connecting a control dock for iPod

• Connect a control dock for iPod to the unit to enjoy video and music stored on an iPod.
• For a control dock for iPod, use ASD-1R or ASD-11R made by DENON (sold separately).
• For instructions on the control dock for iPod settings, refer to the control dock for iPod's operating instructions.

Control dock for iPod A80-11R Use the AV/Control Cable supplied with the DENON control dock for iPod.

Connecting an iPod or USB memory device to the USB port

You can enjoy music stored on an iPod or USB memory device.

Cables used for connections

To connect an iPod to this unit, use the USB cable supplied with the iPod.

USB memory device Gf iPod Network Internet Internet Internet Internet

• When you want to play back a video file stored on an iPod, use a DENON control dock for iPod (ASD-1R and ASD-11R, sold separately) (page 10 "Connecting a control dock for iPod").
• With iPods, playback is possible with iPhone, iPod touch, classic and nano released from the 5th-generation of iPods. For details, check page 24.
• DENON does not guarantee that all USB memory devices will operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power, use the AC adapter.

NOTE

• USB memory devices will not work via a USB hub.
- Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.
- This unit does not support playback on an iPad. Do not connect an iPad to the unit.
- When connecting an iPhone to this unit, keep the iPhone at least 20 cm away from this unit. If the iPhone is kept closer to this unit and a telephone call is received by the iPhone, noise may be output from this device.

Connecting an antenna

• Connect the FM antenna or AM loop antenna supplied with the unit to enjoy listening to radio broadcasts.
• After connecting the antenna and receiving a broadcast signal page 26 "Listening to FM/AM broadcasts", fix the antenna with tape in a position where the noise level becomes minimal.

AM loop antenna (supplied) Direction of broadcasting station FM outdoor antenna 75 Ω coaxial cable AM outdoor antenna Ground

□AM loop antenna assembly

1 Put the stand section through the bottom of the loop antenna from the rear and bend it forward.
2 Insert the projecting part into the square hole in the stand.

Stand Square hole Projecting part Loop antenna

□Using the AM loop antenna

Suspending on a wall

Suspend directly on a wall without assembling.

Standing alone

Use the procedure shown above to assemble.

NOTE

• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.
• If the signal has noise interference, connect the ground terminal (GND) to reduce noise.
• If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For details, inquire at the retail store where you purchased the unit.

Connecting a CD player

• You can enjoy CD sound.
• Select the connector to use and connect the device.

Cables used for connections

CD player AUDIO ALCOO OUT L R U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U U V1 V2 V3 V4 V5 V6 V7 V8 V9 V10 V11 V12 V13 V14 V15 V16 V17 V18 V19 V20 V21 V22 V23 V24 V25 V26 V27 V28 V29 V30 V31 V32 V33 V34 V35 V36 V37 V38 V39 V40 V41 V42 V43 V44 V45 V46 V47 V48 V49 V50 V51 V52 V53 V54 V55 V56 V57 V58 V59 V60 V61 V62 V63 V64 V65 V66 V67 V68 V69 V70 V71 V72 V73 V74 V75 V76 V77 V78 V79 V80 V81 V82 V83 V84 V85 V86 V87 V88 V89 V90 V91 V92 V93 V94 V95 V96 V97 V98 V99 U

In Set as Necessary

Set this to change the digital input connector to which the input source is assigned.
"Input Assign" (page 97)

Connecting to a home network (LAN)

• This unit lets you play via your home network (LAN) music files stored on a computer and music content such as that from Internet radio.
  You can also operate this unit from a computer using the Web control function.
• You can update by downloading the latest firmware from the DENON website.
  For more information, on the menu, select "Firmware Update" (page 93).
• See "Network Setup" on the menu page 881 for more information on network setting.

Cables used for connections

For connections to the Internet, contact an ISP (Internet Service Provider) or a computer shop.

Required system

Broadband internet connection

Modem

Device that connects to the broadband circuit and conducts communications on the Internet.
A type that is integrated with a router is also available.

Router

When using this unit, we recommend you use a router equipped with the following functions:

• Built-in DHCP st
This function automatically assigns IP addresses on the LAN.
• Built-in 100BASE-TX switch
When connecting multiple devices, we recommend a switching hub with a speed of 100 Mbps or greater.

☐Ethernet cable (CAT-5 or greater recommended)

- Use only shielded STP or SoTP LAN cable which is available at retailer.

- Some flat type Ethernet cables are easily affected by noise. We recommend using a normal type cable.

• If you have an Internet provider contract for a line on which network settings are made manually, make the settings at "Network Setup" (ICE) page 88.
• With this unit, it is possible to use the DHCP and Auto IP functions to make the network settings automatically.
• When using this unit with the broadband router's DHCP function enabled, this unit automatically performs the IP address setting and other settings.

When using this unit connected to a network with no DHCP function, make the settings for the IP address, etc., at "Network Setup" (IT page 88).

- When setting manually, check the setting contents with the network administrator.

NOTE

• A contract with an ISP is required to connect to the Internet. No additional contract is needed if you already have a broadband connection to the Internet.
• The types of routers that can be used depend on the ISP. Contact an ISP or a computer shop for details.
• DENON assumes no responsibility whatsoever for any communication errors or troubles resulting from customer's network environment or connected devices.
• This unit is not compatible with PPPoE. A PPPoE-compatible router is required if you have a contract for a type of line set by PPPoE.
• Do not connect an ETHERNET connector directly to the LAN port/Ethernet connector on your computer.
• To listen to audio streaming, use a router that supports audio streaming.

Settings

Here, we explain "Audyssey® Auto Setup", which allows you to automatically make the optimal settings for your speakers, and "Network Setup", which allows you to connect this unit to a home network (LAN).

This unit lets you play via your home network (LAN) music files stored on a computer and music content such as that from Internet radio.

□ Set up speakers (AudysseyAuto Setup) (page 13)

Making the network settings (Network Setup) (page 19)

Playback (Basic operation) (page 20)

Selecting a listening mode (Surround mode) ( page 44)

Playback (Advanced operation) (page 58)

Set up speakers (Audyssey® Auto Setup)

GUI

The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called "Audyssey® Auto Setup".

To perform measurement, place the setup microphone in multiple locations all around the listening area. For best results, we recommend you measure in six positions, as shown in the illustration (up to six positions).

• When performing Audyssey® Auto Setup, Audyssey MultEQ®/ Audyssey Dynamic EQ®/Audyssey Dynamic Volume® functions become active (page 78, 791).
• To set up the speakers manually, use "Speaker Setup" (page 83) on the menu.

NOTE

- Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows, silence cell phones, televisions, radios, air conditioners, fluorescent lights, home appliances, light dimmers, or other devices as measurements may be affected by these sounds.

• Cell phones should be placed away from all audio electronics during the measurement process as Radio Frequency Interference (RFI) may cause measurement disruptions (even if the cell phone is not in use).
• Do not unplug the setup microphone from the main unit until Audyssey® Auto Setup is completed.
• Do not stand between the speakers and setup microphone or allow obstacles in the path while the measurements are being made. This will cause inaccurate readings.
• Loud test sounds may be played during Audyssey® Auto setup. This is part of normal operation. If there is background noise in room, these test signals will increase in volume.
• Operating (p) ▲▼ during the measurements will cancel the measurements.
  • Measurement cannot be performed when headphones are connected.

About setup microphone placement

- Measurements are performed by placing the setup microphone successively at multiple positions throughout the entire listening area, as shown in [Example ①]. For best results, we recommend you measure in six positions, as shown in the illustration (up to six positions).

- Even if the listening environment is small as shown in [Example ②], measuring at multiple points throughout the listening environment results in more effective correction.

[Example ①]

RLSW CFR : Measuring positions) *M SRSW

[Example ②]

RLSWCFR : Measuring positions) SL *M SR

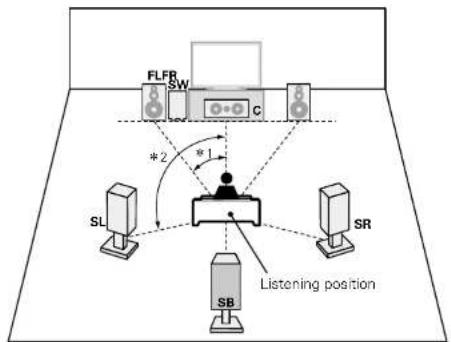

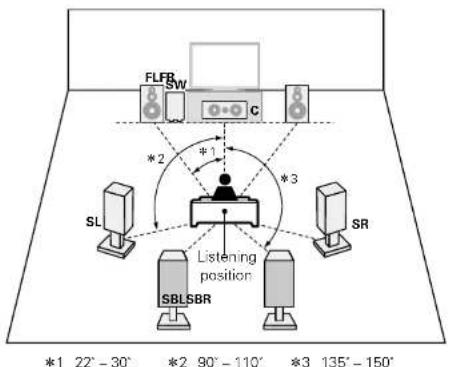

FL Front speaker (L) SW Subwoofer

FR Front speaker (R) C Center speaker

SL Surround speaker (L) SR Surround speaker (R)

About the main listening position (\*M)

The main listening position is the position where listeners would normally sit or where one would normally sit alone within the listening environment. Before starting Audyssey® Auto Setup, place the setup microphone in the main listening position. Audyssey MultEO® uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.

See overleaf

1

Set up the microphone

Mount the setup microphone on a tripod or stand and place it in the main listening position.

When placing the setup microphone, adjust the height of the sound receptor to the level of the listener's ear.

Sound receptor Setup microphone

If you do not have a tripod or stand, set up the microphone on, for example, a seat without a back.

NOTE

• Do not hold the setup microphone in your hand during measurements.
• Avoid placing the setup microphone close to a seat back or wall as sound reflections may give inaccurate results.

2

Set up the subwoofer

If using a subwoofer capable of the following adjustments, set up the subwoofer as shown below.

□ When using a subwoofer with a direct mode

Set the direct mode to "On" and disable the volume adjustment and crossover frequency setting.

☐ When using a subwoofer without a direct mode

Make the following settings

• Volume : "12 o'clock position"
• Crossover frequency : "Maximum/Highest Frequency"
- Low pass filter: "Off"
- Standby mode: "Off"

3

Set up the remote control unit

Set up the zone mode

Press ZONE SELECT to switch the zone mode to

M (MAIN ZONE).

The M indicator lights.

□ Set up the operation mode

Press AMP to set the remote control unit to AMP-operation mode.

AMP Press AMP

STEP 1

Preparation

4 Connect the setup microphone to the SETUP MIC jack of this unit.

When the setup microphone is connected, the following screen is displayed.

Aydyssey Auto Setup Preparation Connect the speakers and place then according to the recommendations in the manual. Next [RETURN][ENTER] Ed

5 Select "Next" and then press ENTER.

6 Use △▽ to select "Auto Setup Start" and then press ENTER.

Audiessay Auto Setup MultiEQ Preparation Set the following items if necessary. App Assign Channel Select... Auto Setup Start [RETURN][ENTER] F

Here, we explain setup using the example of 5.1-channel speaker playback.

For settings other than 5.1-channel surround, select "Amp Assign" and perform step 4 to 5 of "Set up "Amp Assign"' (page 56).

If unused channels are set with "Channel Select", measuring time can be shortened. For setting, perform steps 7 to 11 of "Set up "Channel Select" (page 57).

STEP 2

Detect & Measure (Main)

• In STEP 2, you will perform measurements at the main listening position.
• This step automatically checks the speaker configuration and speaker size, and calculates the channel level, distance, and crossover frequency.
  It also corrects distortion in the listening area.

7 Select "Measure" and then press ENTER.

When measuring begins, a test tone is output from each speaker.
• Measurement requires several minutes.

8 The detected speakers are displayed.

- The illustration below shows an example of when the front speakers, center speaker, subwoofer, and surround speakers have been detected.

Audyssey Auto Setup MultiFQ Detect Check Front Yes Center Yes Subwave Yes Surround Yes Retry Next - Measure [ENTER] Enter [RETURN] Cancel

NOTE

If a connected speaker is not displayed, the speaker may not be connected correctly. Check the speaker connection.

9 Use to select “Next Measure” and then press ENTER.

See overleaf

STEP 2 (Continued)

Detect & Measure (Main)

NOTE

If "Caution" is displayed:

Go to "Error messages" (page 18), check any related items, and perform the necessary procedures.

If the problem is resolved, return and restart "Audyssey® Auto Setup".

When performing Audyssey® Auto Setup over again

Press to select "Retry", and then press ENTER.

When measuring has stopped

① Press RETURN ↩, to the "Cancel Auto Setup?" prompt is displayed.
② Press ◀ to select "Yes", then press ENTER.

Setting up the speakers again

Repeat the operation from step 4 of STEP 1 Preparation

STEP 3

Measure (2nd - 6th)

• In STEP 3, you will perform measurements at multiple positions (two to six positions) other than the main listening position.
• Just one position can be measured but measuring multiple positions increases the accuracy of the correction of acoustic distortion within the listening area.

10 Move the setup microphone to position 2, use △▽ to select "Measure", and then press ENTER.

The measurement of the second position starts. Measurements can be made in up to six positions.

Audyssey Auto Setup MultEq Measure (2nd) Please place the microphone at ear height at 2nd listening position. Measure Next → Calculate [RETURN][ENTER] E

If you want to omit measurements from the next position onward, select "Next—Calculate". (Go to STEP4 Calculate)

11 Repeat step 10, measuring positions 3 to 6.

When measurement of position 6 is completed, a "Measurements finished," message is displayed.

Audyssey Auto Setup MultFQ Measure (Finish) Measurements Finished. Retry Next → Calculate [RETURN][ENTER] L

STEP 4

Calculate

12 On the STEP 3 > screen, use △▽ to select "Next → Calculate", and then press ENTER.

Measuring results are analyzed, and the frequency response of each speaker in the listening room is determined.

Audyssey Auto Setup MultFQ Calculate Now calculating Please wait 0%

- Analysis takes several minutes to complete. The time required for this analysis depends on the number of speakers connected. The more connected speakers there are, the longer it takes to perform analysis.

See overleaf

STEP 5 Check

13 Use △▽ to select the item you want to check, and then press ENTER.

Audyssey Auto Setup MailEQ Check Check processing result. To proceed, press Next > Set Connection Check Distance check Up level check Crossover Check NEXT → STOP [RETURN][ENTER] E

• Subwoofers may measure a greater reported distance than the actual distance due to added electrical delay common in subwoofers.
• If you want to check another item, press RETURN ↩.

14 Use △▽ to select "Next → Store" and then press ENTER.

NOTE

• If the result differs from the actual connection status, or if "Caution!" is displayed, see "Error messages" ( page 18). Then carry out Audyssey® Auto Setup again.
• If you change speaker positions or orientation, perform Audyssey® Auto Setup again to find the optimal equalizer settings.

STEP 6 Store

15 Select "Store" and then press ENTER. Save the measurement results.

Audyssey Auto Setup MaltEQ Store Press "Store" to store calculation result. Store [RETURN][ENTER] E

Store Now storing Please wait... 0% Audyssey Auto Setup Munt20 [RETURN]+ENTER 5

• Saving the results requires about 10 seconds.
• If the measuring results are not to be saved, press RETURN ↩. A message "Cancel Auto Setup?" will be displayed. Press ◀ then select "Yes". All the measured Audyssey® Auto Setup data will be erased.
• During saving of measurements results, "Now storing Please wait..." is displayed. When saving is completed, "Storing complete. Auto Setup is now finished." is displayed.

NOTE

During saving of measurement results, be sure not to turn off the power.

Finish

16 Unplug the setup microphone from the unit's SETUP MIC jack.

17 Set Audyssey Dynamic Volume®.

Audiyssey Auto Setup MultiEQ Finish Starting complete. Auto Setup is now finished. Please install microphone. Turn on Dynamic Volume? Yes No [ENTER] Exit

- This feature adjusts the output volume to the optimal level while constantly monitoring the level of the audio input to the unit. Optimal volume control is performed automatically without any loss in the dynamism and clarity of the sound when, for example, the volume suddenly increases for commercials shown during television programs.

□ When turning Dynamic Volumeon

- Use to select "Yes", and then press ENTER.

The unit automatically enters "Evening" mode.

□ When turning Dynamic Volumeoff

- Use to select "No", and then press ENTER.

NOTE

After performing Audyssey ^® Auto Setup, do not change the speaker connections or subwoofer volume. In event of a change, perform Audyssey ^® Auto Setup again.

Error messages

NOTE

• An error message is displayed if Audyssey® Auto Setup could not be completed due to speaker placement, the measurement environment, etc. If this happens, check the relevant items, be sure to take the necessary measures, then perform Audyssey® Auto Setup over again.
• If the result still differs from the actual connection status after remeasurement or the error message still appears, it is possible that the speakers are not connected properly. Turn this unit off, check the speaker connections and repeat the measurement process from the beginning.
• Be sure to turn off the power before checking speaker connections.

Examples Error details Measures
	The connected setup microphone is broken, or a device other than the supplied setup microphone is connected.Not all speakers could be detected.The front L speaker was not properly detected.	Connect the included setup microphone to the SETUP MIC jack of this unit.Check the speaker connections.
	There is too much noise in the room for accurate measurements to be made.Speaker or subwoofer sound is too low for accurate measurements to be made.	Either turn off any device generating noise or move it away.Perform again when the surroundings are quieter.Check the speaker installation and the direction in which the speakers are facing.Adjust the subwoofer's volume.
	The displayed speaker could not be detected.(The screen on the left indicates that the front right speaker cannot be detected.)	Check the connections of the displayed speaker.
	The displayed speaker is connected with the polarity reversed.(The screen on the left indicates that the polarity phases of the front right speakers are reversed.)	Check the polarity of the displayed speaker.For some speakers, this error message may be displayed even if the speaker is properly connected.If you are sure the connection is correct, press △▽ to select "Skip", then press ENTER.

Set up speakers (Audyssey® Auto Setup)

Parameter Check

This function enables you to check the measurement results and equalizer characteristics after Audyssey® Auto Setup.

1 Use to select "Parameter Check" and then press ENTER.

Auto Setup • Parameter Check Sp. Config. Check Distance Check Ch. Level Check Crossover Check EQ Check

2 Use △▽ to select the item you want to check, then press ENTER or ▷.

Measurement results for each speaker are displayed.

Sp.Config. Check Check the speaker configuration.

Distance Check Check the distance.

Ch. Level Check Check the channel level.

Crossover Check Check the crossover frequency.

EQ Check Check the equalizer.

- If "EQ Check" is selected, press to select equalizing curve ("Audyssey" or "Audyssey Flat") to be checked. Use <> to switch the display between the different speakers.

3 Press RETURN ↩. The confirmation screen reappears. Repeat step 2.

Retrieving Audyssey® Auto Setup settings

If you set "Restore" to "Yes", you can return to Audyssey® Auto Setup measurement result (value calculated at the start by MultEO®) even when you have changed each setting manually.

Making the network settings (Network Setup)

GUI

This unit can be connected to a home network (LAN) to listen to Internet radio or play back music files and still image (JPEG) files stored on a computer.

1 Connect the Ethernet cable (E page 12 "Connecting to a home network (LAN)").

2 Turn on this unit (page 5 "Getting Started"). This unit performs automatic network setup due to the DHCP function. When connecting to a network that has no DHCP function, perform the setting in "Network Connect." (page 88).

Playback (Basic operation)

Settings (page 13)

☐ Selecting the input source (page 20)
□ Adjusting the master volume (page 21)
□ Turning off the sound temporarily (page 21)

□ Playing a Blu-ray Disc player/DVD player (i page 21)

□ Playing a CD player (page 21)
□ Playing an iPod (page 22)
□ Tuning in radio stations (page 26)
Playing a network audio (page 28)
Playing a USB memory device (page 42)

Selecting a listening mode (Surround mode) ( page 44)

Playback (Advanced operation) (page 58)

Important information

Before starting playback, make the connections between the different devices and the settings on the unit.

NOTE

Also refer to the operating instructions of the connected devices when playing them.

Selecting the input source

Press the input source select button (BD, SAT/CBL, TV, NET/USB, DVD, V.AUX, DOCK, TUNER, GAME1,

GAME2, CD) to be played back.

The desired input source can be selected directly.

You can also use the following operation to select an input source.

Using the button on the main unit

Press the input source select button (TUNER, BD, SAT/CBL, TV, GAME1/2, DVD, DOCK, CD, V.AUX, NET/USB) to be played back.

- When iPod ▶ on the main unit is pressed, the input source of this unit is switched to "DOCK" or "NET/USB" and the connected iPod is automatically played (IC) page 25 "iPod play function".

□Using the "Source Select" menu

Switch the remote control unit to the M (MAIN ZONE) mode when performing this operation (C7 page 101 "Operating AV devices"). If the remote control unit is in Z2 (ZONE2I mode, the "Source Select" menu will not be displayed when SOURCE SELECT is proceed.

Source Select The currently selected input source is highlighted. Player Video Tuner Network BD SAT/CBL TUNER Favorites DVD TV Internet Radio CD GAME1 Media Server DOCK GAMF2 Flickr USB/iPod V.AUX Pandora Napster Rhapsody [ENTER] Enter[ ] Move

① Press SOURCE SELECT
Display the "Source Select" menu.
② Use to select the input source, then press ENTER.
The input source is set and the source selection menu is turned off.

• When using with an iPod connected directly to the USB port of this unit, select "USB/iPod" for the input source.
• Input sources that are not going to be used can be set ahead of time. Make this setting at "Source Delete" (page 92).
• To turn off the source selection menu without selecting an input source, press SOURCE SELECT again.
• When SOURCE SELECT is pressed, the AMP-operation mode starts automatically (15 page 101).

Important information

Adjusting the master volume

(page 92) is "Relative"

[Adjustable range]

-80.5dB - 18.0dB

[Adjustable range] 0.0 - 99.0

- The variable range differs according to the input signal and channel level setting.

You can also operate via the main unit. In this case, perform the following operations.

Turn MASTER VOLUME to adjust the volume.

Turning off the sound temporarily

- The sound is reduced to the level set at "Mute Level" (page 92).

- To cancel, press 📋 again. Muting can also be canceled by adjusting the master volume.

Playing a Blu-ray Disc player/DVD player

The following describes the procedure for playing Blu-ray Disc player/DVD player.

Playing a CD player

The following describes the procedure for playing CD player.

1 Prepare for playback. ① Tum on the power of the subwoofer and player.
② Load the disc in the player.

Playing an iPod

There are two methods for iPod playback.

① Use a DENON control dock for iPod to play back. You can play back both video, photo and audio.
② Connect an iPod directly to the USB port to play back (page 24).
You can play back audio only.

① Use a DENON control dock for iPod to play back

If you use a separately sold DENON control dock for iPod (ASD-1R or ASD-11R), you will be able to play back videos, photos, music, and other content on the iPod.

□Listening to music on an iPod

1 Prepare for playback.

① Connect the DENON control dock for iPod to this unit (47 page 10 "Connecting a control dock for iPod").
② Set the iPod in the DENON control dock for iPod.

2 Press ON to turn on power to the unit.

3 Press DOCK to switch the input source to "DOCK".

- If "Browse mode" is selected in step 4, the following screen is displayed on a TV screen, depending on the connected control dock for iPod.

(When using an ASD-1R) (When using an ASD-11R)

- In "Browse mode", the iPod display is as shown at right.

NOTE

If the connections screen is not displayed, the iPod may not be properly connected. Reconnect it.

4 Press SEARCH and hold it down for 2 seconds or more to select the display mode.

- There are two modes for displaying the contents recorded on the iPod.

Browse mode Display iPod information on the TV screen. - English letters, numbers and certain symbols are displayed. Incompatible characters are displayed as “,” (period).
Remote mode Display iPod information on the iPod screen. - "Remote iPod" is displayed on the display of this unit.

Display mode		Browse mode Remote mode
Playable files	Music file	√	√
	Photo file		√ *2
	Video file	√ *1	√ *2
Active buttons	Remote control unit (This unit)	√	√
	iPod		√

*1 When using an ASD-11R DENON control dock for iPod.
*2 Video may not be output, depending on the combination of ASD-1R or ASD-11R DENON control dock for iPod and iPod.

5 Use △▽ to select the item, then press ENTER or ▷ to select the file to be played.

6 Press ENTER, ▷ or ▶. Playback starts.

• You can specify the duration of the on-screen display to be displayed (default: 30 sec) at menu "iPod" i@page 931. Press △▽◀▶ to return to the original screen.
• To play back compressed audio with extended bass or treble reproduction, we recommend playback in RESTORER mode (ICE page 80). The default setting is "Mode3".
• In Browse mode, press STATUS on the main unit during playback to check the title name, artist name, and album name on the display of this unit.

NOTE

• Press STANDBY and set this unit's power to the standby mode before disconnecting the iPod. You can also switch the input source to other than "DOCK" and then disconnect the iPod.
• Depending on the type of iPod and the software version, some functions may not operate.
• Note that DENON will accept no responsibility whatsoever for any problems arising with the data on an iPod when using this unit in conjunction with the iPod.

See overleaf

□ Viewing videos on an iPod in the Browse mode

When an iPod equipped with a video function is connected to a DENON ASD-11R control clock for iPod, image files can be played in the Browse mode.

1 Use △▽ to select "Videos", then press ENTER or ▷.

2 Use △▽ to select the search item or folder, then press ENTER or ▷.

3 Use △▽ to select the video file then press ENTER, ▷ or ▶. Playback starts.

□Viewing photos and videos on an iPod in the Remote mode

This unit can play back on a TV screen photos and data stored on an iPod equipped with a slide show or video function.

1 Press and hold SEARCH to set the Remote mode. "Remote iPod" is displayed on the display of this unit.
2 Watching the iPod's screen, use △▽ to select "Photos" or "Videos".
- Depending on the iPod model, it may be necessary to operate the iPod unit directly.
3 Press ENTER until the image you want to view is displayed.

"TV Out" at the iPod's "Slide show Settings" or "Video Settings" must be set to "On" in order to display the iPod's photo data or videos on the monitor. For details, see the iPod's operating instructions.

NOTE

Video may not be output, depending on the combination of ASD-1R or ASD-11R and iPod.

Playing an iPod

□iPod operation

Operation buttons Function
MENU Amp menu
	Cursor operation /Auto search (cue, ) /Manual search (Press and hold, )
ENTER(Press and release)	Enter / Pause
ENTER(Press and hold)	Stop
SEARCH(Press and release)	Page search mode *
SEARCH(Press and hold)	Browse / Remote mode switching
RETURN ↙	Return
◀◀ ▶▶(Press and hold)	Manual search(fast-reverse/fast-forward)
▶	Playback / Pause
I◀◀ ▶▶	Auto search (cue)
II	Pause
■	Stop
TV 1/∅	TV power on/standtry (Default : SONY)
TV INPUT Switch TV input: (Default : SONY)

- Repeat playback | page 99 "Repeat"

- Shuffling playback (page 99 "Shuffle")

* When the menu screen is displayed, preSEARCH, then press < (previous page) or > (next page). To cancel, press △▽ or SEARCH.

② Connect an iPod directly to the USB port to play back

You can use the USB cable provided with the iPod to connect the iPod with the unit's USB port and enjoy music stored on the iPod.

- This unit supports audio playback from the iPod (fifth generation or later), iPod nano, iPod classic, iPod touch and iPhone (it is not compatible with iPod shuffle).

1 Connect the iPod to the USB port (page 10 "Connecting an iPod or USB memory device to the USB port").

2 Press ON to turn on power to the unit.

3 Press NET/USB to switch the input source to "NET/USB".

DENON [AVR-1912] [7:30] DENON Internet Radio Media Server Pip Flipers Pickets Pandora Press

4 Use △▽ to select "iPod", then press ENTER or ▷.

iPod Playlists Animals Albums Songs Podcasts Genres Computers C:\8\DENON P\Search

NOTE If the "iPod" is not displayed, the iPod may not be properly connected. Reconnect it.

Playing an iPod

5 Press SEARCH and hold it down for 2 seconds or more to select the display mode.

- There are two modes for displaying the contents recorded on the iPod.

Browse mode Display iPod information on the TV screen.

- English letters, numbers and certain symbols are displayed. Incompatible characters are displayed as “.” (period).

Remote mode Display iPod information on the iPod screen.

- "Remote iPod" is displayed on the display of this unit.

- The Remote mode is not supported on fifth generation iPod or first generation iPod nano.

Display mode		Browse mode Remote mode
Playable files	Music file	√	√
	Video file		*
Active buttons	Remote control unit (This unit)	√	√
	iPod		√

* Only the sound is played.

6 Use △▽ to select the item, then press ENTER or ▷ to select the file to be played.

7 Press ENTER, ▷ or ▶. Playback starts.

- You can specify the duration of the on-screen display to be displayed (default: 30 sec) at menu "iPod" (page 93). Press △▽◀ ▷ to return to the original screen.

- To play back compressed audio with extended bass or treble reproduction, we recommend playback in RESTORER mode (1 page 80). The default setting is "Mode3".

- In Browse mode, press STATUS on the main unit during playback to check the title name, artist name, and album name.

NOTE

- Depending on the type of iPod and the software version, some functions may not operate.

- Note that DENON will accept no responsibility whatsoever for any problems arising with the data on an iPod when using this unit in conjunction with the iPod.

See overleaf

iPod operation

Operation buttons	Function
MENU Amp menu
	Cursor operation /Auto search (cue, ) /Manual search (Press and hold, )
ENTER(Press and release)	Enter / Pause
ENTER(Press and hold)	Stop
SEARCH(Fross and release)	Page search *1 / Character sort *2
SEARCH(Fross and hold)	Browse / Remote mode switching
RETURN [IMAGE]	Return
◀◀ ▶▶▶(Press and hold)	Manual search(fast-reverse/fast-forward)
▶	Playback / Pause
I◀◀ ▶▶▶▶	Auto search (cue)
■	Pause
■	Stop
TV 1/0	TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)

• Repeat playback (page 99 "Repeat")
• Random playback (page 99 "Shuffle")

*1 When the menu screen is displayed, press SEARCH, then press ◀ (previous page) or ▷ (next page).

To cancel, press or SEARCH twice.

*2 When the menu screen is displayed, press SEARCH twice, then press ◀ to select the first letter you want to search mode.

- If it is not possible to search the list, "unsorted list." is displayed. To cancel, press or SEARCH.

If the list is not in alphabetical order, you may not be able to perform a character sort.

Playing an iPod

iPod play function

If iPod ▶ is pressed when a control dock for iPod or an iPod (USB) is connected, the iPod starts playback.

Press iPod ▶.

• This unit's input source switches to "DOCK" or "NET/USB".
• iPod playback starts.

NOTE

If both a control dock for iPod ("DOCK") and an iPod ("NET/USB") are connected, playback with control dock for iPod ("DOCK") takes priority.

Tuning in radio stations

Listening to FM/AM broadcasts

1
Press TUNER to switch the input source to "TUNER".
2
Press BAND to select "FM" or "AM".
FM When listening to an FM broadcast. AM When listening to an AM broadcast.

TUNER FM 87.50MHz AUTO Now Pinning AI ▶ ▶ ▶ Tuning/ | / | ▶ | Band | ▶ ▶ Mode [Ch: ] Preset [MIDK] Memory [SEARCH] Search

3
Tune in the desired broadcast station.

① To tune in automatically (Auto tuning)
Press MODE to light the "AUTO" indicator on the display, then use TUNING ▲ or TUNING ▼ to select the station you want to hear.
② To tune in manually (Manual tuning)
Press MODE to turn off the display's "AUTO" indicator, then use TUNING ▲ or TUNING ▼ to select the station you want to hear.

[NO TEXT]

• If the desired station cannot be tuned in with auto tuning, tune it in manually.
• When tuning in stations manually, press and hold TUNING ▲ or TUNING ▼ to change frequencies continuously.
• The time (default : 30 sec) for which the menu are displayed can be set at menu "Tuner" (page 93). Press to return to the original screen.

□Presetting radio stations (Manual preset)

Your favorite broadcast stations can be preset so that you can tune them in easily. Up to 56 stations can be preset.

- Stations can be preset automatically at "Auto Preset" (page 96). If "Auto Preset" is performed after performing "Manual preset", the "Manual preset" settings will be overwritten.

1

TUNER FM 87.30MHz AUTO New Playing A1 ▶ ▶ ▶ Tuning | / | ▶ | Band | ▶ ▶ | Made [O] ▶ Presat | [MEMOR] | Memory | [SL4] | Search

2

TUNER To store preset. Select: AI-68 [SHIFT] [F-B] [MEMOY] A1 Tuning/ | | Band | Made/ [CI-7] Preset [MEMORY] Memory

3

Press SHIFT to select the block (A to G) in which the channel (1 to 8 per a block) is to be preset, then press CH+, CH- or 1-8 to select the preset number.

4

Press MEMORY again to complete the setting.

• To preset other stations, repeat steps 1 to 4.

Default settings

Block (A – G) and Channel (1 – 8)	Default Settings
A1 – AB	87.50 / 89.10 / 98.10 / 107.90 / 90.10 / 90.10 / 90.10 / 90.10 MHz
B1 – BB	520 / 600 / 1000 / 1400 / 1500 / 1710 kHz, 90.10 / 90.10 MHz
C1 – C8 90.10	MHz
D1 – D8 90.10	MHz
E1 – E8 90.10	MHz
F1 – F8 90.10	MHz
G1 – G8 90.10	MHz

Specify a name for the preset broadcast station (Preset Name) (page 96)

See overleaf

Tuning in radio stations

□ Listening to preset stations

2 Press CH +, CH - or 1 - 8 to select the desired preset channel.

You can also operate via the main unit. In this case, perform the following operations.

Press TUNER PRESET CH + or TUNER PRESET CH - to select a preset radio station.

□Direct frequency tuning

You can enter the receiving frequency directly to tune in.

2 Input frequencies using the 0–9.

- If is pressed, the immediately preceding input is cancelled.

3 When setting is completed, press ENTER. The preset frequency is tuned in.

Tuner (FM/AM) operation

Operation buttons Function
CH +,- Preset channel selection
MENU Amp menu
△▽◀▶	Cursor operation
ENTER Enter
SEARCH Direct frequency tuning
RETURN ▼	Return
BAND HW/AM switching
MODE Switch search modes
TUNING ▲▼	Tuning (up/down)
0-9	Preset channel selection (1-8)/Direct frequency tuning (0-9)
SHIFT	Preset channel block selection
MEMORY	Preset memory registration
TV 1/∅	TV power on/standby (Default:SONY)
TV INPUT	Switch TV input (Default:SONY)

Playing a network audio

Follow this procedure to play Internet radio stations or music or still picture (JPEG) files stored on a computer.

Important information

☐ About the internet radio function

• Internet radio refers to radio broadcasts distributed over the Internet.
  Internet radio stations from around the world can be received.
  • This unit is equipped with the following Internet radio functions:

• Stations can be selected by genre and location.
- Up to 56 Internet radio stations can be preset.
- Internet radio stations in MP3 and WMA (Windows Media Audio) format can be listened to.
- Your favorite radio stations can be registered by accessing an exclusive DENON Internet radio URL from a Web browser on a computer.
- The function is managed for individual users, so you must provide your MAC or e-mail address.

Exclusive URL: http://www.radiodenon.com

• The radio station database service may be suspended without notice.
• This unit's Internet radio station list is created using a radio station database service (vTuner). This database service provides a list edited and created for this unit.

Media player

This function lets you play music files and playlists (m3u, wpl) stored on a computer (media server) connected to this unit via a network.

With this unit's network audio playback function, connection to the server is possible using one of the technologies below.

• Windows Media Player Network Sharing Service
• Windows Media DRM10

Album art function

When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file includes album art data, the album art can be displayed while the music files are playing.

If you use Ver.11 or later of Windows Media Player, the album art for WMA files can be displayed.

Slide show function

You can play back image (JPEG) files that are stored in folders on a media server and photographs on Flickr as a slideshow.

Also, you can set the time display that is shown during playback (page 100).

This unit plays back image JPEGI files in the orientation in which they are stored in the folder.

☐ Function that simultaneously plays back music and image files from the network

You can playback music and image files at the same time by playing back music files, and then playing back image files.

Also, when selecting music files after playing back image files, press SEARCH when the music playback screen is displayed. Music files and image files can be played back simultaneously. At this time, set "Slide Show" (page 100) in the menu to "ON".

Internet Radio DENON 04:01 100% New Playing Tube Radio station MP3 J2kbps Select Reset Memory Picture View

Network contents that can be played back simultaneously are as follows.

• Music files: Favorites, Internet Radio, Media Server, iPod Browse Mode (NET/USB)
• Image files: Media Server, USB, Flickr

[Compatible formats]

	Internet radio Media server *1
WMA (Windows Media Audio)	√	√
MP3 (MPEG-1 Audio Layer-3)	√	√
WAV		√
MPEG-4 AAC		√*2
FLAC (Free Lossless Audio Codec)		√
JPEG		√

A server or server software compatible with distribution in the corresponding formats is required to play music files via a network.

Media server

• This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
• This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
  • This unit is compatible with WMA META tags.
  • WAV format Quantization bit rate: 16 bits
• FLAC format Quantization bit rate: 16 or 24 bits

*2 Only files that are not protected by copyright can be played on this unit.

Content downloaded from pay sites on the internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer's settings.

[Compatible formats]

SB,	Sampling frequency	Bit rate Extension
WMA (Windows Media Audio)	32/44.1/48 kHz	48 – 192 kbps .wma
MP3 (MPEG-1 Audio Layer 3)	32/44.1/48 kHz	32 – 320 kbps .mp3
WAV 32/44.1/48 kHz - .wav
MPEG-4 AAC	32/44.1/48 kHz	16 – 320 kbps	.aac/.m4a/.mp4
FLAC (Free Lossless Audio Codec)	32/44.1/48/88.2/96 kHz	–	.flac

See overleaf

About Flickr

Flickr is an online photograph sharing service that started in 2004. You can use the this unit to view photographs that have been made public by Flickr users. You do not need an account to use Flickr. To view photographs that you recorded yourself, you need an account in order to upload these photographs to the Flickr server. For details, see the Flickr homepage. http://www.flickr.com/

About Napster

Napster is a monthly subscription music distribution service provided by Napster LLC. This service allows users to download and play pieces of music they want to hear on this unit. Before you can use Napster, you will need to visit the Napster website on your PC to create an account and register as a member. For details, access the following site: http://www.napster.com/choose/index_default.html

□About Pandora

Pandora is an automated music recommendation and Internet radio service created by the Music Genome Project. When you first listen to Pandora, it is necessary to subscribe to a Pandora account at the Pandora homepage by your PC and register this machine. See the Pandora homepage for details. http://www.pandora.com/denon

About Rhapsody

Rhapsody is a paid music broadcast service of RealNetworks. When you first listen to Rhapsody, it is necessary to subscribe to a Rhapsody account at the Rhapsody homepage by your PC and register this machine. See the Rhapsody homepage for details. http://www.rhapsody.com/denon

Listening to internet radio

1 Prepare for playback.

① Check the network environment, then turn on this unit's power page 12 "Connecting to a home network (LAN)".

② If settings are required, make the "Network Connect." ( page 88).

2 Press NET/USB to switch the input source to "NET/USB".

3 Press △▽ to select "Internet Radio", then press ENTER or ▷.

- Selecting "Internet Radio" in the "Source Select" menu, lets you directly select "Internet Radio".

4 Press △▽ to select the item you want to play, then press ENTER or ▷.

5 Repeat step 4 until the station list is displayed. The station list is displayed.

6 Press to select the station, then press ENTER or .

Playback starts once buffering reaches "100%".

- There are many Internet radio stations on the Internet, and the quality of the programs they broadcast as well as the bit rate of the tracks varies widely.

Generally, the higher the bit rate, the higher the sound quality, but depending on the communication lines and server traffic, the music or audio signals being streamed may be interrupted. Inversely, lower bit rates mean a lower sound quality but less tendency for the sound to be interrupted.

- "Server Full" or "Connection Down" is displayed if the station is busy or not broadcasting.

- On this unit, folder and file names can be displayed as titles. Any characters that cannot be displayed are replaced with “.” (period).

- To play back compressed audio with extended bass or treble reproduction, we recommend playback in RESTORER mode (CT page 80). The default setting is "Mode3".

- You can specify the duration of the on-screen display to be displayed (default: 30 sec) at menu "NET/USB" (page 92). Press △▽◀ ▷ to return to the original screen.

- When STATUS on the main unit is pressed, the display can be switched between the title name and radio station name.

□Playing the last played Internet radio station

Simply press INTERNET RADIO 📋 on the main unit to switch the input source to "Internet Radio" and play the last played radio station.

Press INTERNET RADIO

The source switches to "Internet Radio" and the last played radio station plays.

- If INTERNET RADIO 📋 on the main unit is pressed, the same function as with the remote control unit can be obtained.

- When INTERNET RADIO is pressed, the AMP-operation mode starts automatically (page 101).

See overleaf

Recently played internet radio stations

Recently played internet radio stations can be selected from "Recently Played".

Up to 20 stations stored in "Recently Played".

1 Press △▽ to select “Recently Played”, then press ENTER or ▷.

2 Press △▽ to select the item you want to play, then press ENTER or ▷.

☐Searching stations by keyword (Alphabetic strings)

1 Press △▽ to select "Search by Keyword", then press ENTER or ▷.

Search by Keyword DENON aA SPACE INSERT DELETE OK InputSelect Search aA 10key

2 Input the characters, then press OK.

- For character input, see page 73.

□Presetting internet radio stations

Preset Internet radio stations can be selected directly.

1 While the Internet radio station you want to preset is playing, press MEMORY.

2 Press △▽ to select "Preset", then press ENTER. Internet Radio DENON 03:14 190% Favorites Present New Playing CASTING WMA 65.00% Select Preset New Memory

3 Press SHIFT, then press CH +, CH - or 1 - 8 to select the desired preset number.

Internet Radio DENOM To store preset. Select AI G8 SETTO--OK New Playing CASTING VMA G8 Select Preset Save Memory

DENON OK Cancel SOLD

4 Press MEMORY again to complete the setting. The Internet radio station is now preset.

Playing a network audio

□Listening to preset internet radio stations

After pressing SHIFT, press CH +, CH - or 1 - 8 to select the registered preset number.

This unit automatically connects to the Internet and playback begins.

Registering Internet radio stations to PRESET CHANNEL buttons

• Up to three Internet radio stations can be registered to the PRESET 1-3 buttons on the remote control unit or main unit.
• Recommended Internet radio stations have already been registered to the PRESET 1–3 buttons.

While the internet radio station you want to preset is playing, press and hold PRESET 1 - 3 for at least 3 seconds.

The internet radio station is now preset.

NOTE

If registered at a number that has already been preset, the previously registered setting is cleared.

Listening to an Internet radio station registered to a PRESET CHANNEL button

Press one of the registered PRESET 1-3.

See overleaf

□ Registering internet radio stations as your favorites

Favorites are listed at the top of the menu screen, so when a station is registered as a favorite it can be tuned in easily.

1 Press MEMORY while the Internet radio station you want to register is playing.

2 Press △▽ to select "Favorites", then press ENTER. Internet Radio DEMON Favorites 100% New Playing Preset MIFI 1/3bps Preset Memory Select

3 Press ◀ to select "Add". The Internet radio station is registered.

Internet Radio DENON 00:14 100% Is it replaced? Add Cancel New Playing MPI Lockbox Select Preset Free Memory

- If you do not want to register the station, press ▷.

□Listening to internet radio stations registered in your favorites

1 Press SOURCE SELECT to display the "Source Select" menu, then select "Favorites" (page 20).
2 Press △▽ to select the Internet radio station, then press ENTER or ▷. This unit automatically connects to the Internet and playback begins.

□Clearing internet radio stations from your favorites

1 Press SOURCE SELECT to display the "Source Select" menu, then select "Favorites" (page 20).

2 Press △▽ to select the Internet radio station you want to clear, then press MEMORY.

Scanned image of a remote control interface with labeled buttons and a central rotary knob

3 Press ◀ to select "Remove". The selected Internet radio station is cleared. Favorites [2-3] DENON Press Algencora Chong 1 is it selected? Remove Cancel OK Preset Delete

- To cancel the operation without clearing the station, press ▷.

Internet radio operation

Operation buttons Function
INTERNET RADIO	Last played internet radio station
PRESET 1-3 Preset channel (1-3) selection
CH+, - Preset channel (A1 - CBI) selection
MENU Amp mono
△▽<>	Cursor operation
ENTER (Press and release)	Enter
ENTER (Press and hold)	Stop
SEARCH Page search	*1 / Character sort *2
RETURN	Return
■	Stop
1-B Preset channel selection
SHIFT Preset channel block selection
MEMORY	Favorites / Preset memory registration
TV I/ ◊	TV power on/standby (Default : SONY)
TV INPUT Switch	TV input (Default : SONY)

*1 When the menu screen is displayed, press SEARCH, then press ◀ (previous page) or ▷ (next page).

To cancel, press or SEARCH twice.

*2 When the menu screen is displayed, press SEARCH twice, then press ◀ to select the first letter you want to search mode. • If it is not possible to search the list, "unsorted list," is displayed. To cancel, press △▽ or SEARCH.

If the list is not in alphabetical order, you may not be able to perform a character sort.

Playing files stored on a computer

Use this procedure to play music files, image files or playlists.

1

Prepare for playback.

① Check the network environment, then turn on this unit's power (3 page 12 "Connecting to a home network (LAN)").
② If settings are required, make the "Network Connect." (page 88).
③ Prepare the computer (Computer's operating instructions).

2
Press SOURCE SELECT to display the "Source Select" menu, then select "Media Server" (page 20).
3
Press △▽ to select the server including the file to be played, then press ENTER or ▷.
4
Press to select the search item or folder, then press ENTER or .
5
Repeat step 4 until the file is displayed.
6
Press △▽ to select the file, then press ENTER or ▷. Playback starts once buffering reaches "100%".

• Connections to the required system and specific settings must be made in order to play music files (page 12).
• Before starting, you must launch the computer's server software and set the files as server contents. For details, see the operating instructions of your server software.
• Depending on the size of the still picture (JPEG) file, some time may be required for the file to be displayed.
• The order in which the tracks/files are displayed depends on the server specifications. If the tracks/files are not displayed in alphabetical order due to the server specifications, searching by the first letter may not work properly.
• WIMA Lossless files can be played when using a server supporting transcoding, such as Windows Media Player Ver. 11 or later.
• To play back compressed audio with extended bass or treble reproduction, we recommend playback in RESTORER mode (Page 80). The default setting is "Mode3".
• You can specify the duration of the on-screen display to be displayed (default: 30 sec) at menu "NET/USB" (page 92). Press △▽◀ ▷ to return to the original screen.
• Use STATUS on the main unit to switch between displaying the title name, artist name or album name.

□Playing files that have been preset or registered in your favorites

Files can be preset, registered in your favorites and played using the same operations as for Internet radio stations (page 31).

NOTE

• Presettings are erased by overwriting them.
• When the operations described below is performed, the media server's database is updated and it may no longer be possible to play preset or favorite music files.
• When you quit the media server and then restart it.
• When music files are deleted or added on the media server.
• When using an ESCIENT server, place "ESCIENT" before the server name.

Playing a network audio

□Media server operation

Operation buttons Function
INTERNET RADIO [IMAGE]	Last played internet radio station
PRESET 1 - 3 Preset channel (I - 3) selection
CH +,- Preset channel (A1 - G8) selection
MENU Amp menu
Δ▽◇◇	Cursor operation /Auto search (cue, △▽)
ENTER(Press and release)	Enter / Pause
ENTER(Press and hold)	Stop
SEARCH Page search	*1 / Character sort*2
RETURN [IMAGE]	Return
▶	Playback / Pause
I ◀ ◀ ▶▶ I	Auto search (cue)
II	Pause
■	Stop
1 - 8 Preset channel selection
SHIFT Preset channel block selection
MEMORY	Favorites / Preset memoryregistration
TV I/○	TV power on/standby (Default :SONY)
TV INPUT Switch TV input (Default : SONY)

• Repeat playback | page 100 "Repeat"
• Random playback (page 100 "Random")
• Slide show playback (page 100 "Slide Show")

* When the menu screen is displayed, press SEARCH, then press ◀ (previous page) or ▷ (next page).
To cancel, press or SEARCH twice.
*2 When the menu screen is displayed, press SEARCH twice, then press ◀ to select the first letter you want to search mode.
- If it is not possible to search the list, "unsorted list." is displayed. To cancel, press or SEARCH.

If the list is not in alphabetical order, you may not be able to perform a character sort.

Viewing photographs on the Flickr site

You can view photographs shared by particular users, or all of the photographs shared on Flickr.

□ Viewing photographs shared by particular users

1 Prepare for playback.

① Check the network environment, then turn on this unit's power (a page 12 "Connecting to a home network (LAN)".
② If settings are required, make the "Network Connect." (page 88).

2 Press SOURCE SELECT to display the "Source Select" menu, then select "Flickr" (1 page 20).

3 Use △▽ to select "Add Flickr Contact", then press ENTER or ▷.

Add Flickr Contact All Contact

ENTER ENTER

4 Enter "Contact".

5 After inputting the "Contact", then press ENTER. The "Contact" entered in step 4 is displayed.

• For character input, see page 73.
• If the Contact you typed in cannot be found, "The Flickr Contact you entered could not be found" appears. Check and type in the correct Contact.

6 Press △▽ to select the folder, and then press ENTER or ▷.

Favorites Displays the favorite photographs of the specified user.

Photostream Displays a list of shared photographs.

PhotoSets Displays the folder (photograph album) list.

Contacts Displays Contacts registered for Flickr Contact by a specified user.

Remove this Contact Deletes a user from Flickr Contact.

7 Press to select the file, and then press ENTER or ▷.

The selected file is displayed.

Playing a network audio

□Viewing all photographs on Flickr

1 Prepare for playback.

① Check the network environment, then turn on this unit's power ( page 12 "Connecting to a home network (LAN)".
② If settings are required, make the "Network Connect." (page 88).

2 Press SOURCE SELECT to display the "Source Select" menu, then select "Flickr" (page 20).

3 Use △▽ to select "All Content", then press ENTER or ▷.

Flicur Add filcr Contract At Content Reset

ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER ENTER

4 Press △▽ to select the folder, and then press ENTER or ▷.

Interestingness Displays photographs that are popular from the number of user comments or number of times they are added as favorites.

Recent Displays the most recently added photographs.

Search by text Search for photographs by keyword.

5 Press △▽ to select the file, and then press ENTER or ▷.

The selected file is displayed.

NOTE

Depending on the file format, some photographs cannot be viewed.

See overleaf

Playing a network audio

□ Flickr operation

Operation buttons Function
INTERNET RADIO	Last played internet radio station
PRESET 1-3 (Preset channel (1-3) selection
CH+,- Preset channel (A1-G8I selection
MENU Amp menu
△▽◇◇	Cursor operation / Auto search (cue, △▽)
ENTER (Press and release)	Enter
ENTER (Press and hold)	Stop
SEARCH Page Search	*
RETURN	Return
■	Stop
1-8 Preset channel selection
SHIFT Preset channel block selection
TV I/∅	TV power or/standby (Default: SONY)
TV INPUT Switch	TV input (Default: SONY)

• Slide show playback (page 100 "Slide Show")
  * When the menu screen is displayed, press SEARCH, then press ◀
  (previous page) or ▷ (next page)
  To cancel, press △▽ or SEARCH

Listening to Napster

1 Prepare for playback.
① Check the network environment, then turn on this unit's power (a page 12 "Connecting to a home network (LAN)".
② If settings are required, make the "Network Connect." ( page B8).

2 Press SOURCE SELECT to display the "Source Select" menu, then select "Napster" (page 20).

3 Use △▽▷ to input "Username" and "Password".

Napical Account DENON User name: Password OK Enter Username Cancel

• For character input, see page 73.

4 After inputting the "Username" and "Password", select "OK", then press ENTER.

If the "Username" and "Password" match, the top menu for Napster is displayed.

NOTE

• The password should be no longer than 99 characters.
- Press RETURN ↩ to cancel the input. When "Cancel input?" is displayed, select "Yes", then press ENTER.

□Searching from Napster menu

1 Use △▽ to select search item or folder, then press ENTER or ▷.
2 Repeat step 1 until the track is displayed.
3 Use △▽ to select the track item, then press ENTER or ▷.

☐Entering a character sort for the track you want to listen to

- You can search by artist name, album name or track name.

2 Use to select the search item, then press ENTER.

3 Input the characters, then press OK.

Search by Artist DENON a/aA SPACE INSERT DELETE OK Select Input Cancel a/a 10 Key

• For character input, see page 73.

Playing a network audio

☐Registering tracks in my Napster library

1 Press ▷ while the track you wish to register is playing.
2 Select "Add to my library", then press ENTER or ▷. The track is entered in the Library.

Listening to tracks registered in my Napster library

1 Use △▽ to select "My Napster Library", then press ENTER or ▷.
2 Use to select the information or track, then press ENTER.

• To play back compressed audio with extended bass or treble reproduction, we recommend playback in RESTORER mode (5 page 80). The default setting is "Mode3".
• You can specify the duration of the on-screen display to be displayed (default: 30 sec) at menu "NET/USB" (page 92). Press △▽◀ ▷ to return to the original screen.
• Use STATUS on the main unit to switch between displaying the title name, artist name or album name.

See overleaf

Playing a network audio

□ Napster operation

Operation buttons Function
INTERNET RADIO Last played internet radio station
PRESET 1 - 3 Preset channel (1 - 3) selection
CH +, - Preset channel (A1 - G8) selection
MENU Amp menu
Δ▽◇	Cursor operation / Auto search (cue, △▽)
ENTER (Press and release)	Enter
ENTER (Press and hold)	Stop
SEARCH Search menu / Page search *
RETURN	Return
▶	Playback
|◀|▶|	Auto search (cue)
■	Stop
1 - 8 Preset channel selection
SHIFT Preset channel block selection
TV I/○	TV power or/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)

- Repeat playback [page 100 "Repeat"]

- Random playback (page 100 "Random")

* When the menu screen is displayed, preSEARCH twice, then press ◀ (previous page) or ▷ (next page).

To cancel, press △▽ or SEARCH.

Listening to Pandora

1 Prepare for playback.

① Check the network environment, then turn on this unit's power (a page 12 "Connecting to a home network (LANI)").
② If settings are required, make the "Network Connect." ( page B8).

2 Press SOURCE SELECT to display the "Source Select" menu, then select "Pandora" (page 20).

Pensione Account DENON I have a Pensione account I am now to Pensione Enter Cancel

- If you do not have a Pandora account, press to select "I am new to Pandora". The URL of Pandora and activation code are displayed. Access the Pandora web page from your PC and register the displayed activation code and account information. Then press

ENTER

Pandora Account I have a Pandora account I am here to Pandora Please go to http://www.pandora.com/denon and follow the instructions here to create a new account. Your activation today is: 20/08/04

Playing a network audio

3 If you have a Pandora account, press △▽ to select "I have a Pandora account", then press ENTER or ▷.

4 Input "Email address" and "Password".

Pandora Account DENON Email address Password OK Cancel Enter Email address

• For character input, see page 73.

5 After inputting the "Email address" and "Password", select "OK", then press ENTER.

If the "Email address" and "Password" match, the top menu for Pandora is displayed.

NOTE

Press RETURN ↩ to cancel the input. When "Cancel input?" is displayed, select "Yes", then press ENTER.

See overleaf

Playing a network audio

Creating an original radio station

You can create up to 100 original radio stations.

1
Use to select "New Station", then press ENTER or ▷.

My Station 173 DENON New Station Quick Mix DMIT Radio Exit Sign out

2
Input a "Track or Artist", then press OK.

New Station DAX2 A E C D E F C H I J K I M N O P Q R S T U V W X Y Z O 1 4 5 6 7 8 9 10 S X & ' ' ' - - - + a:A SPACE INSERT DELETE OK InputSelect Cancel m.s.A 10 Key

• For character input, see page 73.
You can search and display a list by track or artist.

3

Use to select “Search by artist” or “Search by track”, then press ENTER.

New Station DENON D8MZ A N O S a/ASPACE M Z # # INSERT DELETE OK InputSelect Cancel Name: A Auto Key

Press , select a file (e.g. D&M2) from the list, and press ENTER or .

Selected file is played back.

"Radio" is added to the end of a filename, and your original radio station is created (e.g. D&M2 Radio).

My Station New Station Quick Mix D&MI Radio D&MI Radio

□Listening to a created radio station

Listening to a created radio station (e.g. D&M2 Radio)

By specifying your favorite track or artist name, music that has a similar rhythm or sound is chosen and streamed.

Press △▽ and select the radio station ("D&M2 Radio") that you want to listen to, and press ENTER or ▷.

In Pandora, you can search for the track name or artist name using "D&M2" as a keyword. When the search is complete, tracks that have a similar rhythm or sound are streamed.

100Hz Audio DENON New Painting 100Hz Sony A3x5 A2x8 MP1 12400s Paste Strip Select Menu

Listening to created radio stations at random

Use △▽ to select "Quick Mix", then press ENTER or ▷.

Created radio stations are selected at random, and tracks are streamed.

See overleaf

Arranging tracks within radio stations

You can sort tracks by operating the Pandora menu screen while a track is playing.

Press ▷ while a track is playing.

The Pandora menu screen is displayed.

Menu I like this track I don't like this track Why is this track playing? Create station Bookmark this track I'm tired of this track Delete this station

I like this track

• Press when you like the track that is being played
• It will return to the Play Screen. And 🏠 (Thumbs up) icon is displayed. (The icon is not displayed on the next track.)
• Press when you don't like the track that is being played.
• It will return to the Play Screen. And 📋 (Thumbs down) icon is displayed. (The icon is not displayed on the next track.)
• Displays the reason why Pandora selected this track.

Create station

- Creates a Station for the Track or Artist being played.

• Bookmarks the track currently being played.
- You can check on a computer or iPhone etc.
• For details, see the Pandora web page.
- Press when you don't like the track that is being played.
• The track will not be played for 1 month.
- Press when you want to delete the station that is being played.

NOTE

• You can Skip up to 6 Tracks that are being played back within 1 hour.
• You can create up to 100 New Stations (radio stations).

Sign out

Disassociate this unit from your Pandora account.

2 When the popup menu appears, press ◀ ▷ to select "Yes", then press ENTER.

Pandora operation

Operation buttons Function
MENU Amp menu
△▽◀▶	Cursor operation /Auto search (cue, ▽)
ENTER(Press and release)	Enter / Pause
ENTER(Press and hold)	Stop
SEARCH Page search *
RETURN ↩	Return
▶	Playback
▶▶I	Auto search (level)
II	Pause
■	Stop
TV 1/∅	TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)

* When the menu screen is displayed, press SEARCH twice, then press ◀ (previous page) or ▷ (next page).

To cancel, press or SEARCH

Listening to Rhapsody

1 Prepare for playback.

① Check the network environment, then turn on this unit's power (a page 12 "Connecting to a home network (LANI)").
② If settings are required, make the "Network Connect." ( page B8).

2 Press SOURCE SELECT to display the "Source Select" menu, then select "Rhapsody" ( page 20).

3 Use △▽ to select "Sign in to your account", then press ENTER or ▷.

DENSON Start a Monday load Stop in to your email

4 Input Username and Password.

Rhapsody account sign in DENON Username: Password OK Enter Username Cancel

- For character input, see page 73.

5 After inputting the "Username" and "Password", select "OK", then press ENTER.

If the "Username" and "Password" match, the top menu for Rhapsody is displayed.

NOTE

• The password should be no longer than 99 characters.
- Press RETURN to cancel the input. When "Cancel input?" is displayed, select "Yes", then press ENTER.

Select the search mode

① Search from Rhapsody latest information

1 Use △▽ to select "Rhapsody Music Guide", then press ENTER or ▷.

2 Press △▽ to select the information for track selection, then press ENTER or ▷.
- For character input, see page 73.

3 Repeat step 2 until the track is displayed.

4 Use to select the track, then press ENTER or .

Playing a network audio

② Enter a character search for the track you want to listen to

1 Use △▽ to select "Search", then press ENTER or ▷.
2 Use to select the search item, then press ENTER or .
- You can search by artist name, album name, track name or keyword.

3 Enter the characters, then press ENTER.

③ Search from the Rhapsody internet radio station

1 Use △▽ to select "Rhapsody Channels", then press ENTER or ▷.

2 Repeat step 1 until the radio station is displayed.

3 Use △▽ to select radio station, then press ENTER or ▷.

The search display appears.

④ Listening to tracks registered in my library

1 Use △▽ to select "My Library", then press ENTER or ▷.
2 Repeat step 1 until the track is displayed.
3 Use to select the information or track, then press ENTER or ▷.

After selecting, the information is displayed

See overleaf

Track menu

Press ▷ during playback to display the track menu.

Rhapsody Jump to albums Jump to album Similar albums Similar albums Add to my library Rating ① ② ③ Preset

Search from the similar music

Use to select the search item, then press ENTER or .

Registering tracks in my library

Use △▽ to select "Add to my library", then press ENTER or ▷. The track is entered in the library.

Rating function

1 Use △▽ to select "Rating", then press ENTER or ▷.

Use ◀▷ to select the rating, then press ENTER.

• To play back compressed audio with extended bass or treble reproduction, we recommend playback in RESTORER mode (T page B0). The default setting is "Mode3".
• You can specify the duration of the on-screen display to be displayed (default: 30 sec) at menu "NET/USB" (page 92). Press △▽◀ ▷ to return to the original screen.
• Use STATUS on the main unit to switch between displaying the title name, artist name or album name.

Playing a network audio

□Rhapsody operation

	Operation buttons Function
	INTERNET RADIO [IMAGE]	Last played internet radio station
	PRESET 1 - 3 Preset channel (I1 - 3) selection
	CH+, - Preset channel (A1 - G8) selection
	MENU Amp menu
		Cursor operation /Auto search (cue, )
	ENTER(Press and release)	Enter / Pause
	ENTER(Press and hold)	Stop
	SEARCH Page search	*1 / Character sort*2
	RETURN [IMAGE]	Return
	▶	Playback / Pause
	|◀◀ ▶▶|	Auto search (cue)
	II	Pause
	■	Stop
	1 - 8 Preset channel selection
	SHIFT Preset channel block selection
	TV I/○	TV power on/standby (Default :SONY)
	TV INPUT Switch TV input (Default : SONY)

Operation buttons Function
INTERNET RADIO [IMAGE]	Last played internet radio station
PRESET 1 - 3 Preset channel (1 - 3) selection
CH +, - Preset channel (A1 - G8) selection
MENU Amp menu
△▽◇◇	Cursor operation /Auto search (cue, △▽)
ENTER(Press and release)	Enter / Pause
ENTER(Press and hold)	Stop
SEARCH Page search	*1 / Character sort*2
RETURN [IMAGE]	Return
▶	Playback / Pause
I◀◀ ▶▶▶I	Auto search (cue)
II	Pause
■	Stop
1 - 8 Preset channel selection
SHIFT Preset channel block selection
TV I / ◊	TV power on/standby (Default :SONY)
TV INPUT Switch TV input (Default : SONY)

- Repeat playback | 37 page 100 "Repeat"

- Random playback (page 100 "Random")

*1 When the menu screen is displayed, press SEARCH, then press ◀ (previous page) or ▷ (next page).

To cancel, press or SEARCH twice.

*2 When the menu screen is displayed, press SEARCH twice, then press ◀ to select the first letter you want to search mode.

- If it is not possible to search the list, "unsorted list." is displayed. To cancel, press or SEARCH.

If the list is not in alphabetical order, you may not be able to perform a character sort.

Playing a USB memory device

Playing back music or still picture (JPEG) files recorded on a USB memory device.

Important information

USB memory devices

A USB memory device can be connected to the USB port of this unit to play music and still picture (JPEG) files stored on the USB memory device.

Also, files stored on an iPod can be played when the iPod is connected directly to the USB port of this unit. See "Connect an iPod directly to the USB port to play back" (13 page 24).

• Only USB memory devices conforming to mass storage class and MTP (Media Transfer Protocol) standards can be played on this unit.
• This unit is compatible with USB memory devices in "FAT16" or "FAT32" format.

Album art function

When an MP3 music file includes album art data, the album art can be displayed while playing the file.

Slide show function

Still picture (JPEG) files stored on USB memory devices can be played as slide shows.

Also, you can set the time display that is shown during playback (page 100).

This unit plays back image JPEGI files in the orientation in which they are stored in the folder.

☐ Function that simultaneously plays back music and ima files from the network

You can playback music and image files at the same time by playing back music files, and then playing back image files. Also, when selecting music files after playing back image files, press SEARCH when the music playback screen is displayed. Music files and image files can be played back simultaneously. At this time, set "Slide Show" (57 page 100) in the menu to "ON".

Internet Radio DENON 04:01 1.00% New Paying Title Audio labels MP2 32kbps Select Preset Memory Picture View

Network contents that can be played back simultaneously are as follows.

• Music files: Favorites, Internet Radio, Media Server, iPod Browse Mode (NET/USB)
• Image files: Media Server, USB, Flickr

[Compatible formats]

	USB memory devices *1
WMA (Windows Media Audio)	√*2
MP3 (MPEG-1 Audio Layer 3)	√
WAV	√
MPEG-4 AAC	√*3
FLAC (Free Lossless Audio Codec)	√
JPEG	√

• This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
• This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
• This unit is compatible with WMA META tags.
  • WAV format Quantization bit rate: 16 bits
• FLAC format Quantization bit rate: 16 or 24 bits

*2 Copyright-protected files can be played on certain portable players compatible with MTP.

*3 Only files that are not protected by copyright can be played on this unit.

Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer's settings.

[Compatible formats]

	Sampling frequency	Bit rate Extension
WMA (Windows Media Audio)	32/44.1/48 kHz	48 – 192 kbps .wma
MP3 (MPEG-1 Audio Layer-3)	32/44.1/48 kHz	32 – 320 kbps .mp3
WAV 32/44.1/48 kHz	-	.wav
MPEG-4 AAC	32/44.1/48 kHz	16 – 320 kbps	.aac/.mla/.mp4
FLAC (Free Lossless Audio Codec)	32/44.1/48/88.2/96 kHz	-	.flac

See overleaf

Playing files stored on USB memory devices

1 Connect the USB memory device to the USB port (page 10 "Connecting an iPod or USB memory device to the USB port").

2 Press NET/USB to switch the input source to "NET/USB".

DENON[JAVR 1912] [179] DENON Favorites Internet Radio Media Server USB Flickr Computer Pandora

3 Use △▽ to select "USB", then press ENTER or ▷.

USB CDMA CDMA2 CDMA3 Music1.mp4 Music2.mp3 Music3.mp3 Music4.mp3 P/Search

Screenshot of a remote control interface with labeled buttons and a play button

- Selecting "USB/iPod" in the "Source Select" menu, lets you directly select "USB".

4 Press △▽ to select the search item or folder, then press ENTER or ▷.

5 Press △▽ to select the file, then press ENTER, ▷ or ▶. Playback starts.

• You can specify the duration of the on-screen display to be displayed (default: 30 sec) at menu "NET/USB" (page 92). Press △▽◀ ▷ to return to the original screen.
• To play back compressed audio with extended bass or treble reproduction, we recommend playback in RESTORER mode (Page 80). The default setting is "Mode3".
• If the USB memory device is divided into multiple partitions, only the top partition can be selected.
• This unit is compatible with MP3 files conforming to "MPEG-1 Audio Layer-3" standards.

NOTE

• Note that DENON will accept no responsibility whatsoever for any problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device.
  • USB memory devices will not work via a USB hub.
• DENON does not guarantee that all USB memory devices will operate or be supplied power. When using a USB portable hard disk that can draw power from an AC adapter, we recommend using the AC adapter.
• It is not possible to connect and use a computer via the USB port of this unit using a USB cable.

USB operation

	ON	ON	ON
100%	100%	100%	100%
100%	100%	100%	100%
100%	100%	100%	100%
100%	100%	100%	100%
100%	100%	100%	100%
100%	100	100	100
100%	100	100	100
100%	100	100	100
100%	100	100	100
100%	100	100	100
100%	100	100	100
150%	150%	150%	150%
150%	150%	150%	150%
150%	150%	150%	150%
150%	150%	150%	150%
150%	150%	150%	150%
150%	150	150	150

Operation buttons Function
INTERNET RADIO [IMAGE]	Last played internet radio station
PRESET 1 - 3 Preset channel (1 - 3) selection
CH+, - Preset channel (A1 - C8) selection
MENU Amp menu
	Cursor operation /Auto search (cue, )
ENTER(Press and release)	Enter / Pause
ENTER(Press and hold)	Stop
SEARCH Page search	*1 / Character sort *2
RETURN [IMAGE]	Return
▶	Playback / Pause
|◀◀ ▶▶▶|	Auto search (cue)
■	Pause
■	Stop
1 - 8 Preset channel selection
SHIFT Preset channel block selection
TV 1/ ◊	TV power on/standcy (Default :SONY)
TV INPUT Switch TV input (Default : SONY)

• Repeat playback | page 100 "Repeat"
• Random playback (page 100 "Random")
• Slide show playback (page 100 "Slide Show")

*1 When the menu screen is displayed, press SEARCH, then press ◀ (previous page) or ▷ (next page). To cancel, press △▽ or SEARCH twice.

*2 When the menu screen is displayed, press SEARCH twice, then press ◀ to select the first letter you want to search mode. • If it is not possible to search the list, "unsorted list." is displayed. To cancel, press △ or SEARCH.

If the list is not in alphabetical order, you may not be able to perform a character sort.

Selecting a listening mode (Surround mode)

This unit can play input audio signals in multi-channel surround mode or in stereo mode.

Select a listening mode suitable for the playback contents (cinema, music, etc.) or according to your liking.

Selecting a listening mode

1 Play the selected device (page 21 - 42).

2 Press MOVIE, MUSIC, GAME or DIRECT to select a listening mode.

• Each time MOVIE, MUSIC or GAME is pressed, the listening mode is switched.

MOVIE Switches to the listening mode suitable for enjoying movies and TV programs.
MUSIC Switches to the listening mode suitable for enjoying music.

GAME Switches to the listening mode suitable for enjoying games.

DIRECT Switches the listening mode to Direct or Pure Direct mode. In Direct mode, the audio is played back exactly how it was recorded.

- Pressing MOVIE, MUSIC or GAME displays a list of the surround modes that can be selected on the TV screen. While the list is displayed, you can also use to select a surround mode.

[Example] When MOVIE is pressed

MOVIE SURROUND STUDIO DOLEY PLT Cinema DOLEY Pro Logic DTS NEOX cinema MULTI CIT STEREO MONO MOVIE

□Listening mode

• The following listening modes can be selected using the MOVIE, MUSIC, GAME, and DIRECT buttons.
- Adjust the sound field effect with the menu "Surr.Parameter" (page 76) to enjoy your favorite sound mode.

Operation button	Input signal Listening mode
MOVIE	2-channel *1	STEREO
		DOLBY PLIIx Cinema *2
		DOLBY PLII Cinema *2
		DOLBY Pro Logic *2
		DTS NEO:6 Cinema *2
		DOLBY PLIIz Height *2
		MULTI CH STEREO
		MONO MOVIE
		VIRTUAL
	Multi-channel *3	STEREO
	Dolby Digital	DOLBY DIGITAL
		DOLBY DIGITAL EX
		DOLBY DIGITAL + PLIIx Cinema
		DOLBY DIGITAL + PLIIz
	Dolby TrueHD	DOLBY TrueHD
		DOLBY TrueHD + EX
		DOLBY TrueHD + PLIIx Cinema
		DOLBY TrueHD + PLIIz
	Dolby Digital Plus	DOLBY DIGITAL Plus
		DOLBY DIGITAL Plus + EX
		DOLBY DIGITAL Plus + PLIIx Cinema
		DOLBY DIGITAL Plus + PLIIz
	DTS	DTS SURROUND
		DTS ES DSCRT 6.1
		DTS ES MTRX 6.1
		DTS 96/24
		DTS 96 ES MTRX
		DTS ES DSCRT
		DTS + NEO:6
		DTS + PLIIx Cinema
		DTS + PLIIz
	DTS-HD / DTS Express	DTS-HD HI RES
		DTS-HD MSTR
		DTS Express
		DTS-HD + NEO:6
		DTS-HD + PLIIx Cinema
		DTS HD + PLIIz

Operation button	Input signal Listening mode
MOVIE	PCM multi-channel	MULTI CH INMULTI CH IN 7.1MULTI IN + Dolby EXMULTI IN + PLIIx CinemaMULTI IN + PLIIz
	Multi-channel *3	MULTI CH STEREOMONO MOVIEVIRTUAL

*1 2-channel also includes analog input.
*2 This mode plays back 2-channel source in 5.1 or 7.1-channel playback. It cannot be selected when headphones are used, or when only front speakers are used.
*3 Some listening modes cannot be selected, depending on the audio format or number of channels of the input signal. For details, see "Types of input signals, and corresponding surround modes" (page 116).

See overleaf

Selecting a listening mode

Operation button	Input signal Listening mode
MUSIC	2-channel *1	STEREO DOLBY PLIIx Music *2 DOLBY PLII Music *2 DTS NEO:6 Music *2 DOLBY PL IIz Height *2 MULTI CH STEREO ROCK ARENA JAZZ CLUB MATRIX VIRTUAL
	Multi-channel *3	STEREO
	Dolby Digital	DOLBY DIGITAL DOLBY DIGITAL EX DOLBY DIGITAL + PLIIx Music DOLBY DIGITAL + PLIIz
	Dolby TrueHD	DOLBY TrueHD DOLBY TrueHD + EX DOLBY TrueHD + PLIIx Music DOLBY TrueHD + PLIIz
	Dolby Digital Plus	DOLBY DIGITAL Plus DOLBY DIGITAL Plus + EX DOLBY DIGITAL Plus + PLIIx Music DOLBY DIGITAL Plus + PLIIz
	DTS	DTS SURROUND DTS ES DSCRT 6.1 DTS ES MTRX 6.1 DTS 96/24 DTS 96 ES MTRX DTS ES DSCRT DTS + NEO:6 DTS + PLIIx Music DTS + PLIIz
	DTS-HD / DTS Express	DTS-HD HI RES DTS-HD MSTR DTS Express DTS-HD + NEO:6 DTS-HD + PLIIx Music DTS-HD + PLIIz
	PCM multi-channel	MULTI CH IN MULTI CH IN 7.1 MULTI IN + Dolby EX MULTI IN + PLIIx Music MULTI IN + PLIIz
	Multi-channel *3	MULTI CH STEREO ROCK ARENA JAZZ CLUB MATRIX VIRTUAL

Operation button	Input signal Listening mode
GAME	2-channel *1	STEREODOLBY PLIIx Game *2DOLBY PLII Game *2DOLBY PLIIz Height *2MULTI CH STEREOVIDEO GAMEVIRTUAL
	Multi-channel *3	STEREO
	Dolcy Digital	DOLBY DIGITALDOLBY DIGITAL EXDOLBY DIGITAL + PLIIz
	Dolcy TrueHD	DOLBY TrueHDDOLBY TrueHD + EXDOLBY TrueHD + PLIIz
	Dolcy Digital Plus	DOLBY DIGITAL PlusDOLBY DIGITAL Plus + EXDOLBY DIGITAL Plus + PLIIz
	DTS	DTS SURROUNDDTS ES DSCRT 6.1DTS ES MTRX 6.1DTS 96/24DTS 96 ES MTRXDTS ES DSCRDTS + NEO:6DTS + PLIIz
	DTS-HD / DTS Express	DTS-HD HI RESDTS-HD MSTRDTS ExpressDTS-HD + NEO:6DTS-HD + PLIIz
	PCM multi-channel	MULTI CH INMULTI CH IN 7.1MULTI IN + Dolby EXMULTI IN + PLIIz
	Multi-channel *3	MULTI CH STEREOVIDEO GAMEVIRTUAL
DIRECT	All	DIRECTPURE DIRECT

*1 2-channel also includes analog input.

*2 This mode plays back 2-channel source in 5.1 or 7.1-channel playback. It cannot be selected when headphones are used, or when only front speakers are used.

*3 Some listening modes cannot be selected, depending on the audio format or number of channels of the input signal. For details, see "Types of input signals, and corresponding surround modes" ( page 116).

Views on the TV screen or display

DOLBY D +, + PLIiz
1	2

① Shows a decoder to be used
- A DOLBY DIGITAL Plus decoder is displayed as "DOLBY D +".
② Shows a decoder that creates sound output from the surround
back speakers.
- "+ PLIIz" indicates the front height sound from front height speakers.

See overleaf

☐ Description of listening mode types

Dolby listening mode

Listening mode type Description
DOLBY PLIIx*1	This mode can be selected when a Dolby Pro Logic IIx decoder is used to play back 2-channel source in 6.1/7.1-channel surround sound including the surround back channel.By adding the surround back channel, a stronger surround feeling is obtained compared to Dolby Pro Logic II.There are three playback modes: “Cinema” mode that is optimized for movie playback, “Music” mode that is optimized for music playback, and “Game” mode that is optimized for game play.
DOLBY PLII	This mode can be selected when a Dolby Pro Logic II decoder is used to play back 2-channel source in 5.1-channel surround sound with a natural, realistic feel.
DOLBY Pro Logic This mode can be selected when a DOLBY Pro Logic decoder is used to play 2-channel source in 4.1-channel surround sound (Left/Center/Right/Surround Monol).
DOLBY PLIIz*2	This mode can be selected when a Dolby Pro Logic IIz decoder is used to play back 2-channel source in 7.1-channel surround sound with added front height channel.By adding a front height channel, the vertical expression is emphasized, improving the three-dimensionality of the sound.
DOLBY DIGITAL This mode can be selected when playing sources recorded with Dolby Digital.
DOLBY DIGITAL EX*1	This mode improves the depth, dimension, and expressiveness of the sound stage by sound field playback including surround back channels.
DOLBY TrueHD This mode can be selected when playing sources recorded in Dolby TrueHD.
DOLBY DIGITAL Plus This mode can be selected when playing sources recorded with Dolby Digital Plus.

*1 This can be selected when "Speaker Config." – "S.Back" is not set to "None".

*2 This can be selected when "Speaker Config." – "F.Height" is not set to "None".

DTS listening mode

Listening mode type Description

DTS NEO:6 This mode can be selected when a DTS NEO:6 decoder is used to play back2-channel source in 6.1/7.1-channel surround sound including the surround back channel.There is a “Cinema” mode optimized for movie playback, and a “Music” mode optimized for music playback.

DTS SURROUND This mode can be selected when playing sources recorded in DTS.

DTS ES DSCR6.1 This mode can be selected when playing sources recorded in DTS-ES.Provides optimum playback of DTS-ES Discrete signal's using surround back.

DTS ES MTRX6.1 This mode can be selected when playing sources recorded in DTS-ES.Surround back channel data encoded in DTS-ES Matrix recording software is played from the surround back channel.

DTS 96/24 This mode can be selected when playing sources recorded in DTS 96/24.

DTS-HD This mode can be selected when playing sources recorded in DTS-HD.

DTS Express This mode can be selected when playing sources recorded in DTS Express.

PCM multi-channel listening mode

Listening mode type Description
MULTI CH IN This mode	can be selected when playing multi-channel PCM sources.

See overleaf

Selecting a listening mode

DENON original listening mode

Listening mode type Description

MULTI CH STEREO This mode is for enjoying stereo sound from all speakers.The same sound as that from the front speakers (L/R) is played back at the same level from the surround speakers (L/R) and surround back speakers (L/R).

ROCK ARENA This mode is for enjoying the atmosphere of a live concert in an arena.

JAZZ CLUB This mode is for enjoying the atmosphere of a live concert in a jazz club.

MONO MOVIE This mode is for playing monaural movie sources with surround sound.When playing sources recorded in monaural in the "MONO MOVIE" mode, the sound will be off balance with a single channel (left or right), so input to both channels.

VIDEO GAME This mode is suited for achieving surround sound with video games.

MATRIX This mode lets you add a spacious feel to stereo music sources.

VIRTUAL This mode is for enjoying surround effects using only the front speakers or headphones.

STEREO listening mode

Listening mode type Description

STEREO This is the mode for playing in stereo. The tone can be adjusted.·Sound is output from the front left and right speakers and subwoofer.·If multichannel signals are input, they are mixed down to 2-channel audio and are played.

Direct listening mode

Listening mode type Description
DIRECT Sound recorded	in source is played as is.· Surround back signals or front height signals are not created.
PURE DIRECT This mode	is for playback in higher sound quality than in "Direct playback" mode.Tum the display of the amplifier off to stop the analogue video circuit. This suppresses the source of noise that affects sound quality.· Surround back signals or front height signals are not created.

In Direct listening mode, the following items cannot be adjusted.

• Tone ( page 78)

- MultEQ® (page 78)

• Dynamic Volume®

- RESTORER (page 80)

NOTE

• Video signals are only output when HDMI signals are played in the PURE DIRECT mode.

- When in the PURE DIRECT mode, the menu screen is not displayed.

Advanced version

Advanced version

Here, we explain functions and operations that let you make better use of this unit.

● Speaker installation/connection (Advanced connection) page 49
● Playback (Advanced operation) page 58
● Playback in ZONE2 (Separate room) page 68
● How to make detailed settings page 70
● Operating the connected devices by remote control unit page 101

Speaker installation/connection (Advanced connection)

Here we describe the installation, connection and setup methods for speakers other than 5.1-channel speakers. For the installation, connection and setup methods for 5.1-channel speakers, see page 4 "Setup wizard".

Use Audyssey® Auto Setup function of this unit to automatically detect the number of connected speakers and perform optimal settings for the speakers to be used.

Install

This unit is compatible with Dolby Pro Logic IIz (17 page 119), which offers an even wider and deeper surround sensation. When using Dolby Pro Logic IIz, install front height speakers.

Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm) higher than ear level.

Front height speaker • Point slightly downwards At least 3.3 ft / 1 m * Front speaker [Viewed from the side] Surround speaker 2 - 3 ft / 60 - 90 cm Surround back speaker • Point slightly downwards * Recommended for Dolby Pro Logic IIz

NOTE

It is not possible to use the surround back speakers and front height speakers simultaneously.

When 7.1ch (Front height speaker) installed

FL SW C FR FHRFHL *2 *1 *3 SL SR Listening position *1 22°-30° *2 22°-45° *3 90°-110°

[Speaker abbreviations]

FL Front speaker (L) SB Surround back speaker

FR Front speaker (R) SBL Surround back speaker (L)

C Center speaker

SW Subwoofer

SL Surround speaker (L)

SR Surround speaker (R)

SBR Surround back speaker (R)

FHL Front height speaker (L)

FHR Front height speaker (R)

See overleaf

When 7.1ch (Surround back speaker) installed

[Speaker abbreviations]
FL Front speaker (L) SB Surround back speaker
FR Front speaker (R) SBL Surround back speaker (L)
C Center speaker SBR Surround back speaker (R)
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)

When 6.1ch (Surround back speaker) installed

*1 22°-30° *2 90°-110°

When Front A/B speakers installed

• For the method of connecting 5.1-channel speakers, see 📄 page 6 "Connecting the speakers".
• For the method of connecting the TV, see page 3 "Connect this unit to the television using an HDMI cable (sold separately)".

7.1-channel (Surround back speaker) connection

The illustration on the right shows a connection example for performing 7.1-channel playback using the surround back speakers.

If you connect the surround back and front height speakers before you start playback, the audio is played back by automatically switching the speakers in accordance with the surround mode or input signals. To perform 7.1-channel playback using the surround back speakers, set "Amp Assign" to "NORMAL" in steps 3 and 4 for "Set up 'Amp Assign'" (129 page 56).

NOTE

• For speaker cable connections, see 📄 page 6 "Connecting the speakers"
• Connect so that the speaker cable core wires do not protrude from the speaker terminal. The protection circuit may be activated if the core wires touch the rear panel or if the + and - sides touch each other (12 page 120 "Protection Circuit").
• Never touch the speaker terminals while the power supply is connected. Doing so could result in electric shock (When the Setup wizard is running, follow the instructions in the Setup wizard screen for making connections.).
• Use speakers with the speaker impedances shown below.

Speaker terminals Speaker Impedance
FRONT	6 - 16 Ω
CENTER
SURROUND
SURF. BACK / AMP ASSIGN

7.1-channel (Front height speaker) connection

The illustration on the right shows a connection example for performing 7.1-channel playback using the front height speakers.

If you connect the surround back and front height speakers before you start playback, the audio is played back by automatically switching the speakers in accordance with the surround mode or input signals.

To perform 7.1-channel playback using the front height speaker, set "Amp Assign" to "F.HEIGHT" in steps 3 and 4 for "Set up "Amp Assign" (page 68).

NOTE

• For speaker cable connections, see page 6 "Connecting the speakers".
  • For speaker impedance, see page 51.

Connect

6.1-channel (Surround back speaker) connection

If using only one surround back speaker (with a 6.1-channel connection), connect to the "L" side of the SURR. BACK/AMP ASSIGN terminal.

For speaker settings in this case, see "When 6.1ch (Surround back speaker) installed" (page 50).

To perform 6.1-channel playback using the surround back speaker, set "Amp Assign" to "NORMAL" in steps 3 and 4 for "Set up "Amp Assign" (page 56).

Also use the "Speaker Config." setting (page 83) to set "S.Back" to "1spkr".

NOTE

- For speaker cable connections, see 📄 page 6 "Connecting the speakers".

• For speaker impedance, see page 51.

Connect

Front A/B connection

You can connect a second set of speakers to this unit and use them for playback. In this case, set "Amp Assign" to "Front B" in steps 3 and 4 for "Set up "Amp Assign" (X2 page 56).

For surround playback of a multichannel source, if you connect the center speaker, surround speakers and subwoofers, 5.1-channel playback is available. Front speakers can be separated separately, depending on the speaker's specifications or playback source such as front speakers (A) for multichannel playback and front speakers (B) for 2-channel playback (C) page 85 "Front Sp Setup").

NOTE

• For speaker cable connections, see 📄 page 6 "Connecting the speakers".
  • For speaker impedance, see page 51.

2.1-channel connection

Diagram of an electronic device setup with labeled components including a power supply, control panel, and a person operating equipment.

NOTE

• For speaker cable connections, see 📄 page 6 "Connecting the speakers".
  • For speaker impedance, see page 51.

Connect

Bi-Amp connection

You can use the front speakers via the b-amp connection.

A bi-amp connection is to connect separate amplifiers to the tweeter terminals and woofer terminals of speakers compatible with the bi-amp function. This prevents the back electromotive force (returned force without output) of the woofer sent to the tweeter, which affects the sound quality of the tweeter, and you can enjoy playback with higher-quality sound.

In this case, set "Amp Assign" to "Bi-AMP" in steps 3 and 4 for "Set up "Amp Assign" (page 58).

For surround playback of a multichannel source, if you connect the center speaker, surround speakers and subwoofers, 5.1-channel playback is available.

NOTE

• For speaker cable connections, see 📄 page 6 "Connecting the speakers".
  • For speaker impedance, see page 51.
• Use speakers compatible with bi-amp connections.
• When making biamp connections, be sure to remove the short-circuiting plate or wire between the speaker's woofer and tweeter terminals.

Connect

Set up speakers

around items indicate the settings.

Here we describe how to set up speakers other than 5.1-channel speakers.

For the method of setting up 5.1-channel speakers, see page 4 "Setup wizard".

First install and connect the speakers to this unit.

Before Auto Setup measurement, the settings shown below can be made.

• Changing the amplifier assignment (Amp Assign)
  The signal output from the SURR.BACK/AMP ASSIGN speaker terminal of this unit can be switched to match your speaker environment (page 56 "Set up "Amp Assign").
• Setting the channels to be used (Channel Select)
  If channels that are not to be used are set in advance, measurement for the set channels is skipped, and measuring time can be reduced. You can also change the number of surround back speakers (OF page 57 "Set up "Channel Select").

1

Set up the

remote control unit

Set up the zone mode

Press ZONE SELECT to switch the zone mode to

M (MAIN ZONE).

The M indicator lights.

Set up the operation mode

Press AMP to set the remote control unit to AMP-operation mode.

AMP Press AMP

Connect the setup microphone.

When the setup microphone is connected, the following screen is displayed.

Preparation Connect the speakers and place then according to the recommendations in the manual. Next [RETURN][ENTER] EN

3 Select "Next", and then press ENTER.

4

Set up "Amp Assign"

Use △▽ to select "Amp Assign", and then press

ENTER
[RETURN][ENTER] E]]
    G["Amp Assign ZONE2"] --> H["Formula 2"]
    H --> I["[ZONE2"]
[RETURN][ENTER] E]]

See overleaf

5

Use ◀ ▷ to select the configuration of the connected speakers.

NORMAL

Select the "NORMAL" setting to perform 7.1-channel playback using the surround back speakers.

ZONE2

Select the "ZONE2" setting to assign the unit's built-in power amplifier for ZONE2 and output the audio in stereo.

Bi-AMP

Select the "Bi-AMP" setting to connect the front speakers via the bi-amp connection.

Front B

Select the "Front B" setting to use the second set of front speakers for playback.

F.HEIGHT

Select the "F_HEIGHT" setting to use the front height speaker for playback.

6

Press RETURN → to exit the "Amp Assign" setting.

Set up speakers

7

Set up "Channel Select"

Use △▽ to select "Channel Select", and then press ENTER.

8

Use to select a channel.

Front

Select for setting the front speakers to be used. In this case, go to step 9.

- "Front" can be set when "Amp Assign" is set to "Front B".

Subwoofer

Select for no subwoofer to be used. In this case, go to step 10.

Surround

Select the number of surround back speakers to be used. In this case, go to step 11.

- "Surround Back" can be set when "Amp Assign" is set to "NORMAL".

9

Press ◀ ▷ to select a front speaker.

A

Select this to use front speaker A.

B

Select this to use front speaker B.

A+B

Select this to use front speakers A and B simultaneously.

10

Use ◀▷ to set whether or not a subwoofer channel is measured.

Measure

Set for measuring a subwoofer.

Skip

Set for no measuring of a subwoofer

11

Use to set whether or not a surround back channel is measured.

Measure (2 sp)

Set for measuring two surround back speakers.

(2 sp)

Set for measuring a surround back speaker.

Skip

Set for no measuring of a surround back speaker.

12

Press RETURN ↩. Proceed to page 15 STEP1 Preparation

NOTE

After performing Audyssey® Auto Setup, do not change the speaker connections or subwoofer volume. In event of a change, perform Audyssey® Auto Setup again.

Playback (Advanced operation)

Settings (page 13)

Playback (Basic operation) (page 20)

Selecting a listening mode (Surround mode) page 44

HDMI control function (1 page 58)
Sleep timer function (page 59)
Adjusting the volume of the speakers (page 60)
Quick select function (page 61)
AirPlay (page 62)
□ Party mode function (page 63)
□ Zone Management function (page 64)
☐ Operating a media controller to play music and stir pictures (page 65)
□ Web control function (page 66)
☐ Various memory functions (page 67)

Convenient functions

HDMI control function

If you connect the unit and an HDMI control function compatible TV or player with an HDMI cable and then enable the HDMI control function setting on each device, the devices will be able to control each other.

Operations possible by HDMI control

• This unit power off can be linked to the TV power off step.
• You can switch audio output devices with a TV operation. When you set "Output audio from amp" in the TV audio output setup operation, you can switch the amp power on.

- You can adjust this unit volume in the TV volume adjustment operation.

- You can switch this unit input sources through linkage to TV input switching.

- When playing the player, this unit input source switches to the source for that player.

- If you switch the input source of the unit to "TV", you can play TV audio with this unit (page 6 "About ARC (Audio Return Channel) function").

- When "HDMI Control" (page 86) in the menu is set to "ON", signals input to the HDMI input connector are output to the television or other device connected to the HDMI output connector, even if the power of this unit is in standby (pass-through function).

• To play the audio of a TV that does not support the ARC function with the unit, connect the TV with an optical digital connection.
- To use the pass-through function, connect an HDMI connection device that is compatible with HDMI control.

Setting procedure

1 Set the HDMI output connector corresponding with the HDMI control function. Set "HDMI Control" (25 page 86) to "ON".

2 Turn the power on for all the devices connected by HDMI cable.

3 Set the HDMI control function for all devices connected by HDMI cable.

• Please consult the operating instructions for the connected devices to check the settings.
• Carry out steps 2 and 3 should any of the devices be unplugged.

4 Switch the television input to the HDMI input connected to this unit.
5 Switch this unit input to the HDMI input source and check if the picture from the player is ok.
6 When you turn the TV's power to standby, check that the power of this unit also goes to standby.

If the HDMI control function does not operate properly, check the following points.

• Is the TV or player compatible with the HDMI control function?
• Is "HDMI Control" (page 86) set to "ON"?
• Is "P.Off Control" (1 page 86) set to "All" or "Video"?
• Are the HDMI control function settings of all devices correct?

See overleaf

NOTE

• When "HDMI Control" is set to "ON", it consumes more standby power.
• The HDMI control function controls operations of a TV that is compatible with the HDMI control function. Make sure that the TV and HDMI are connected when you perform HDMI control.
• Some functions may not operate depending on the connected TV or player. Check the owner's manual of each device for details beforehand.
• When "P,Off Control" on the menu is set to "OFF" (page 86), this unit is not set to standby even if the connected device is in the standby mode.
• When connection changes are implemented, such as adding connections to HDMI devices, linked operations may be initialized. In this case, you will need to reconfigure the settings.
• When "HDMI Control" is set to "ON", it is not possible to assign an HDMI connector to "TV" at "Input Assign" (page 97).
• Should any of the operations below be performed, the interlocking function may be reset, in which case, repeat steps 2 and 3.
• "Input Assign" – "HDMI" (page 97) setting has changed.
• There is a change to the connection between the devices and the HDMI, or an increase in devices.

Convenient functions

Sleep timer function

The power automatically goes into standby once the set time has elapsed.

This is convenient for playing sources while going to sleep.

Press SLEEP and display the time you want to set.

The "SLEEP" indicator on the display lights.
- The time switches as shown below each time SLEEP is pressed.

To confirm the countdown time before putting the unit to sleep

Press SLEEP.

"Sleep : *min" appears on the display.

* Countdown time

To cancel the sleep timer

Press SLEEP to set "OFF".
The "SLEEP" indicator on the display turns off

• The sleep timer setting is canceled if this unit's power is set to standby.
• The sleep timer function can be set separately for the different zones (page 69 "Sleep timer function").

Convenient functions

Adjusting the volume of the speakers

You can adjust the channel level either according to the playback sources or to suit your taste, as described below.

☐ Adjusting the volume of the different speakers

1 Press ZONE SELECT to switch the zone mode to M (MAIN ZONE). The M indicator lights.
2 Press AMP to set the remote control unit to AMP-operation mode.
3 Press CH LEVEL.

Channel Level Front L -8.5dB Front R -11.8dB Subwoofer -0.0dB Subwoofer < ON >

4 Use to select the speaker. The speaker that can be set switches each time one of the buttons is pressed.

5 Use ◀ ▷ to adjust the volume.

- You can directly turn "OFF" the subwoofer outputs during 2-channel playback in DIRECT or STEREO mode. Select "Subwoofer" and use ◀ to select "ON" or "OFF".

Channel Level Front L -8.5dB Front R -11.8dB Subwoofer OFF

When a headphone jack is inserted, the headphone channel level can be adjusted.

□Adjusting the volume of groups of speakers (Fader function)

This function lets you adjust (fadel the sound all at once from the front (front speaker / front height speaker / center speaker) or rear (surround speaker / surround back speaker).

1 Press ZONE SELECT to switch the zone mode to M (MAIN ZONE). The M indicator lights.
2 Press AMP to set the remote control unit to AMP-operation mode.
3 Press CH LEVEL.
4 Press ∇ to select “Fader”, then select the item to be adjusting using ◀ ▷.

Channel Level Front L 1.0dB Front R 1.0dB Center 1.0dB Subwoofer 10.5dB Surround L 0.0dB Surround R 0.0dB Frontfooter Read

5 Use ◀▷ to adjust the volume of the speakers. (◀: front, ▷: rear)

• The fader function does not affect the subwoofer
• The fader can be adjusted until the volume of the speaker is adjusted to the lowest value of -12 dB.

Convenient functions

Quick select function

All of the settings in step 1 can be memorized together. By memorizing frequently used settings, you can quickly access and enjoy a playback environment that is consistently the same.

Saving the settings

1 Set the items below to the settings you want to save.

① Input source* (37 page 20)
② Volume page 211
③ Surround mode (page 44)
④ Video Select (page 98)
⑤ Audyssey Setting

(Audyssey MultEQ ^® , Audyssey

Dynamic EQ ^® , Audyssey Dynamic

Volume ^⑤ (12 page 78)

* The "NET/USB" source of MAIN ZONE can even memorize the menu screen of each content (Internet Radio, Media Server, iPod/USB, etc.).

2 Press and hold the desired QUICK SELECT until "Memory" appears on the display.

The current settings will be memorized.

[Quick select defaults]

	Input source Volume
QUICK SELECT 1 BD	-40 dB
QUICK SELECT 2 SAT/CBL	-40 dB
QUICK SELECT 3 GAME1	-40 dB
QUICK SELECT 4 NET/USB (iPod/USB)	-40 dB

□Recalling the settings

Press QUICK SELECT at which the settings you want to call out are saved.

Naming quick select settings

See "Quick Sel.Name" (page 93).

• The Quick Select function can be set separately for the different zones (the page 69 "Quick select function")
• If QUICK SELECT on the main unit is pressed, the same function as with the remote control unit can be obtained.

NOTE

Input sources stored with the quick select function cannot be selected if they have been deleted at "Source Delete" (page 92). In this case, store them again.

AirPlay

Enjoy music from your iTunes library with DENON quality sound anywhere in your home.

Use the Apple Remote app* for iPhone, iPod touch and iPad to control iTunes from any room in your home.

* Available as a free download from the App Store.

Setting procedure

1 Install iTunes 10, or later, on a Mac or Windows PC that is connected to the same network as this unit.

2 Turn this unit ON.

Set "Network Standby" to "ON" for this unit.

NOTE

When "Network Standby" is set to "ON", the unit consumes more standby power.

3 Launch iTunes and click the AirPlay icon ▲ displayed in the lower right of the window and select this unit from the list.

Software interface window with a small icon and control buttons, no readable text or symbols

4 Choose a song and click play in iTunes. The music will stream to this unit.

□Multiple Speakers

You can easily stream music from iTunes to multiple speakers in your home.

1 Click the AirPlay icon ▲ and select "Multiple Speakers" from the list.

2 Check the speakers you want to use.

Multiple Speakers Master Volume My Computer This Computer DENON:[AVR-1912] AirPlay Device

☐Streaming music stored in iPhone, iPod touch, or iPad directly to the unit

If you update your "iPhone/iPod touch/iPad" to iOS 4.2.1 or later, you can stream music stored in your "iPhone/iPod touch/iPad" directly to this unit.

1 Tap the AirPlay icon

2 Select the speaker you want to use.

Convenient functions

Remote operations

You can use your DENON remote control to play and pause iTunes, as well as skip to next and previous tracks.

1 Open Preferences in iTunes, and click "Devices".

2 Check "Allow iTunes control from remote speakers".

iTunes General Playback Sharing Show Pause Control Discus Advanced Restore backups Delete Backup □ Recent iPods, iTunes, and iPods from syncing automatically □ Warm when more than 5% of the data on this computer will be changed □ Get for remote speakers connected with Airplay □ Allow iTunes correct from remote speakers □ Get for iPad touch, Prime and iPad Remate Target All Remotes Reset Sync History OK Cancel

• AirPlay is displayed on the menu screen while AirPlay is being operated.

• Source input will be switched to "NET/USB" when AirPlay playback is started.
• You can stop AirPlay playback by pressing the ◀ or choosing other input source.

• To see song and artist names together, press STATUS on the main unit.

- For information about how to use iTunes, also see the Help for iTunes.

- The screen may differ depending on the OS and software versions.

Party mode function

The same network audio (Internet radio, Media server or iPod DIRECT) can be played on multiple DENON products equipped with the Party Mode function and connected in a network.

The party mode consists of one organizer and up to four attendees. When one unit starts the party mode as the organizer, up to four devices on which the party mode function is activated automatically participate in the party as attendees. "Party Mode" (C2) page 901 must be set to "ON" ahead of time in order to use the party mode function.

□ Starting the party mode as the organizer

1 Press PARTY to become the organizer.

"Enter Party Mode?" is displayed.

- An error message is displayed when you are not connected to a network.

2 Press ◀ ▷ to select "Yes", then press ENTER.

The input source automatically switches to "NET/USB" and the attendees are automatically selected.

3 Play the desired track.

ENTLA PARTS

Canceling the party mode

1 While in the party mode, press PARTY.

"Exit Party Mode?" is displayed on the menu screen.

2 Press ◀▷ to select "Yes", then press ENTER.

"Power off attendees component?" is displayed.

3 Press ◀ ▷ to select "Yes" or "No", then press ENTER.

Yes The power of the attendees is turned off and the party mode is canceled.

No The party mode is canceled without turning off the power of the attendees.

□Participating in the party mode as an attendee

• When the organizer starts the party mode, up to four attendees are selected automatically. No operation is required.
• The input source automatically switches to "NET/USB" and the same network audio as on the organizer is played.
• If there are fewer than four attendees, a device can join the party mode after it has started. To participate in the party mode, perform the operation described below.

1 Press PARTY.

"Enter Party Mode?" is displayed.

• An error message is displayed when you are not connected to a network.
  2 Press ◀ ▷ to select "Yes", then press ENTER.

When you start the party mode, the monitor of the attendee (child) displays the network menu screen for the organizer (parent).

Convenient functions

3 Press △▽◀ ▷ and ENTER to select the desired track.

The party mode function can only be used on a combination of DENON devices that are equipped with the party mode function.

Canceling the party mode

1 While in the party mode, press PARTY. "Exit Party Mode?" is displayed on the menu screen.
2 Press ◀▷ to select "Yes", then press ENTER.
In this case, the other devices remain in the party mode.

"Flickr", "Napster", "Pandora", "Rhapsody" and "USB" are not available in the Party Mode.

There can only be one organizer in the network. To form a new party mode, first cancel the current party mode.

Zone Management function

The status of devices connected to the same network can be displayed. Additionally, network menu browsers and volume controls can be performed via the network for the connected devices. This is useful when playing back network services of a device located in a separate room:

Only devices compatible with the Zone Management function can be operated.

With the Zone Management function, the network menu screen and playback screen of the target device to be controlled are displayed but playback with this unit is not possible. If you also want to play the same music as the other device, use the Party Mode function.

1 Press △▽ to select "Network Setup" – "Other" – "Zone Management" from the menu, and then press ENTER or ▷.

Network Standby Character PC Language Friendly Name Party Mode Zone Management Notification

2 Press △▽ to select the Friendly Name of the device, and then press ENTER or ▷.

Zone Management [0-1] DENON [AVR 1912] DENON [RCD N7]

• Displays up to a maximum of 10 DENON products connected on the same network.

3 Press to select “Device Control”, and then press ENTER.

When the device control mode is started, the network menu of the connected device is displayed on this unit's television screen.

PIVSON [AVR-1912] Model AVR-1912 Power Or Select Source BD Volume Level -70.0dB Device Control [RETURN][ENTER]

NOTE

• If the selected device is compatible with the Zone Management function, "Device Control" mode starts.
• If the selected device is in Party Mode or being controlled with Zone Management, "Device Control" is not displayed.

4 Press △▽◀▷ and ENTER to select the desired track.

DENON [AVR-1912] (1/7) DENON REMOTE GENDER Favorites Internet Radio Media Server Radio Nagster Radio Radio Radio

• When in device control mode, RLSO BSWWCL on the television screen of the controlling device, and RLCKB played on the television screen of the device being controlled.

The zone management function can only be used on a combination of DENON devices that are equipped with the zone management function.

NOTE

• The volume of the selected device can be controlled using CH+ (volume up) and CH- (volume down) of this unit, but the volume level is not displayed. Be careful not to increase the volume too high.
• For services that require an account, set the account settings on the target device in advance. Also, some functions of the device may be restricted in "Device Control" mode.

☐To end "Device Control" mode

1 Press MENU in "Device Control" mode.

"Exit Device Control Mode?" is displayed on the TV screen.

2 Press ◀▷ to select "Yes", then press ENTER.

"Power off Remote component?" is displayed on the TV screen.

3 Press ◀ ▷ to select "Yes" or "No", then press ENTER.

Yes Turns off the target device and ends "Device Control" mode.

No Ends "Device Control" mode without turning off the power off the target device.

"Device Control" mode can also be ended from the controlled device side.

① Press MENU on the controlled device.
② When "Exit Device Control Mode?" is displayed on the TV screen, select "Yes" and then press ENTER.

Convenient functions

Operating a media controller to play music and still pictures

• Perform this procedure using a media controller conforming to the DLNA (Digital Living Network Alliance) standard.
• This function allows you to play content located on a computer (media server) or connected on a network by operating a media controller on the same network.
  • There are two types of operations on the media controller

□ Playing content on a computer (Media server)

1 From the media controller, browse the media server on the same network and choose the content you want to play.

2 From the media controller, select this unit from among the products on the network. Playback of the content selected in step 1 begins.

• When selecting this unit from the media controller, the name of this unit is displayed at "Friendly Name" ( page 90 "Friendly Name").
• The following operations are possible from the media controller:
• File operations (play, stop, pause, track search)
• Play mode settings (repeat/random)
  • Volume adjustment

□Playing contents on a media controller
④ Operate.| B["Wireless LAN-compatible router"]
    B --> C["Media controller"]
    C --> D["Windows 7 PC (Windows Media Player 12)"]
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333

1 Select the content you want to play from among the media controller.

2 From the media controller, select this unit from among the products on the network. Playback of the content selected in step 1 begins.

• When selecting this unit from the media controller, the name of this unit is displayed at "Friendly Name" (page 90 "Friendly Name").
  • The following operations are possible from the media controller:
• File operations (play, stop, pause, track search)
• Play mode settings (repeat/random)
  • Volume adjustment

• displayed on the menu screen while the media controller is being operated.

• For the various settings and operating procedures, see the operating instructions of the media controller being used.
• When selecting this unit from the media controller, the name of this unit is displayed at "Friendly Name". "Friendly Name" can be edited at "Friendly Name" (page 90) as desired so that it is easily distinguishable from other devices.
• When playback is started from the media controller, this unit's input source automatically switches to "NET/USB". Also, when the "Network Standby" setting (C5 page 90) is set to "ON", the power automatically turns on.

NOTE

When operations related to browsing or playback (play, stop, pause, track search) are performed on this unit while operating the media controller, the connection to the network is disconnected. The network connection is also disconnected when the party mode is started.

Web control function

You can operate this unit using a browser.

1 Switch the "Network Standby" setting to "ON". (page 90).

2 Check the IP address of this unit with "Network Info." (page 91).

Network Info. Friendly Name DHCP IP Address MAC Address DENON [AVR-1912] ON 0192.168.100.151 0005cd-004210 Checking the IP address. [ ] Return

3 Enter the IP address of this unit in browser's address box.

For example, if the IP address of this unit is "192.168.100.19", enter "http://192.168.100.19/".

File Edit View Tools Help Options INDEX Web Controller DENON [AVR-1 912] MAIN ZONE Status 0 -26.0dB ZONEF2 Status 0 48dB Web Controller Config.

① Entering the IP address.

4 When the top menu is displayed, click on the menu item you want to operate.

② Click when you operate each zone. It [Example 1]

③ Click to change the Web control screen setting (Example 2)

5 Operate. [Example 1] Main zone control screen

CONTROL QUICK SELECT CHANNEL LEVEL NET AUDIO USB Paul Dark Paul Direct MAIN ZONE POWER MAIN ZONE ON STANDBY ON OFF Sleep Timer SOURCE NET USE Player Video Network Tuner SORROUND STUDIO Add To Your Favored Top Menu 10 11 12 13 14 15 16 17 18 19 20 MOVIL MUSIC GAML

④ Click to perform individual operations.
Changes to individual operation screens. It is [Example 3]
⑤ Click when you update to the latest information.
Normally, there is a change to the latest information each time you operate. When operating from the main unit, click this or else the screen will not be updated.
⑥ Click to add a setting to "Favorites" in your browser.
We recommend registering the setting screens for the different zones in the browser's favorites so as not to accidentally perform menu operations for zones you do not intend to operate.
⑦ Click to return to the top menu.
Displayed when setting "Top Menu Link Setup" to "ON" in [Example 2]
⑧ Click when you perform a power operation of the unit.
⑨ Click an icon to change the input source.
⑩ Click "v" and then select a surround mode from the displayed items.
⑪ To adjust the main volume, click "<", ">" or the volume display.

See overleaf

Convenient functions

[Example 2] Web configuration screen

⑫ Click "ON" when performing Top Menu Link Setup. When set up, return to the top menu from each operation screen. (Default setting: "OFF")

⑪ Click this item to return to the top menu.

[Example 3] Net Audio operating screen

ZONE CONTROL QUICK SELECT CHANNEL LEVEL NET AUDIO / USB iPad Dock iPod Direct NET AUDIO/USB(MAIN ZONE) Back DENON:[AVR-1912] Favorites Internet: Radio Media Server Flickt Nassier Pandora Rispoody 14 15 16 17 Part Start End(Att ON) End(Att OFF) Preset MHz/CMVORY CHARACTER MEMORY CONTROL REPEAT SAW 18 ONE FALL 20.00E 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130

⑭ Click the menu items. from which you want to play.

⑮ Click "v" to select the preset channel you want to play.

When registering presets, click "v" to select the channel you want to register, and then click "MEMORY".

⑰ When searching using an acronym, click "v" and select from the displayed characters.

⑱ Click this item to play back repeatedly.

⑲ Click this item to play back randomly.

Various memory functions

☐ Personal memory plus function

This function sets the settings (input mode, surround mode, HDMI output mode, MultEQ®, Dynamic EQ®, audio delay etc.) last selected for the individual input sources.

The surround parameters, tone settings and the volumes of the different speakers are stored for the individual surround modes.

□ Last function memory

This function stores the settings which were made before going into the standby mode.

When the power is turned back on, the settings are restored.

Playback in ZONE2 (Separate room)

• You can operate this unit so as to enjoy audio in a room (ZONE2) other than the MAIN ZONE (room where the unit is located).
• You can simultaneously play back the same source in both the MAIN ZONE, ZONE2. You can also play back separate sources in the MAIN ZONE and ZONE2.

Audio output

Zone playback by speaker output

The ZONE2 audio signals are output from this unit's SURR.BACK/AMP ASSIGN speaker terminals using the amplifier assignment function.

□Connecting and setting the speakers

"Amp Assign" setting(15 page 83) and audio signals output	Connecting the speakers
ZONE2 Output signal: Stereo (L / R)

NOTE

It is not possible to play the digital audio signals input from the HDMI, COAXIAL or OPTICAL connectors in ZONE2. Play using analog connections (in stereo).

Playback

1 Press ZONE SELECT to switch the zone mode to ☐2 (ZONE2).
2 Press AMP to set the remote control unit to AMP-operation mode.
3 Press ZONE/DEVICE | to turn on the ZONE2 power.

The Z2 cator on the display lights.

• Also press input source select button when in standby mode, the power turns on.
• When ZONE/DEVICE ⏻ is pressed, ZONE2 turns off.
• Power in ZONE2 can be turned on or off by pressing ZONE2 ON/OFF on the main unit.

4 Press the input source select button.
The audio signal of the selected source is output to ZONE2.
• To perform an operation with the main unit, press ZONE2 SELECT many times.

Input source select buttons

Adjusting the volume

Use 1(1) ▲▼ to adjust the volume.

[Adjustable range] --- -80dB --40dB -18dB

(When the "Volume Display" (page 92) setting is "Relative")

[Adjustable range] 0-41-99

(When the "Volume Display" ( page 92) setting is "Absolute") • At time of purchase, "Volume Limit" ( page 91) is set to "-10dB (71)".

Turn MASTER VOLUME after pressing ZONE2 SELECT on the main unit to adjust the sound volume.

Turning off the sound temporarily

Press

The sound is reduced to the level set at "Mute Level" (page 91) in the menu.
- To cancel, either adjust the volume or press 📄 again. - The setting is canceled when the zone's power is turned off.

See overleaf

Quick select function

It is also possible to save four settings for ZONE2.

Saving the settings

1 Set the items below to the settings you want to save.

① Input source (page 68)
② Volume 127 page 681

NOTE

The settings for each content (Internet Radio, Media Server, iPod, etc.) cannot be memorized for the "NET/USB" source of ZONE2.

2 Press ZONE SELECT to switch the zone mode to ☐ (ZONE2).

3 In the zone mode for which you want to operate, press and hold the desired QUICK SELECT until "Memory" appears on the display.

The current settings will be memorized.

[Quick select defaults]

	Input source Volume
ZONE2 QUICK SELECT 1	3D -40dB
ZONE2 QUICK SELECT 2	SAT/CBL -40dB
ZONE2 QUICK SELECT 3	--
ZONE2 QUICK SELECT 4	NETA/USB -40dB

□Recalling the settings

1 Press ZONE SELECT to switch the zone mode to ☐2 (ZONE2).
2 Press QUICK SELECT at which the settings you want to call out are saved.

Naming quick select settings

See "Quick Sel.Name" (page 93).

Sleep timer function

This is useful when you want to sleep while listening in ZONE2.

1 Press ZONE SELECT to switch the zone mode to ☐2 (ZONE2).
2 Press SLEEP and display the time you want to set.
- The time switches as shown below each time SLEEP is pressed.

MULTI 70 60

To confirm the countdown time before putting the unit to sleep

Press SLEEP

"Z2 Sleep: *min" appears on the display.
* Countdown time

To cancel the sleep timer

Press SLEEP to set "OFF".

The sleep timer is also canceled when this unit is set to the standby mode or the ZONE2 power is turned off.

How to make detailed settings

Menu map

For menu operation, connect a TV to this unit and display the menu on the TV screen. For menu operations, see the following page.

Setting items Detailed items	Description Page
Audio Adjust Surr.Parameter Adjusts surround sound parameters.			76
			78
Tone Adjusts the tonal quality of the sound.			78
Audyssey Settings Makes Audyssey MultEQ, Audyssey Dynamic EQ and Audyssey Dynamic Volume settings.			78
Manual EQ Uses the graphic equalizer to adjust the tone of each speaker.			79
RESTORER Uncompresses compressed sources and apply bass boost for richer sound.			80
Audio Delay Compensates for incorrect timing between video and audio.			80
Information Status Shows information about current settings.			81
Audio Signal Shows information about audio input signals.			81
HDMI Information Displays the HDMI input/output signals and HDMI monitor information.			81
Auto Surround Displays the settings stored for the auto surround mode.			81
Quick Select Displays the settings stored for the Quick Select function.			81
Preset Channel	Shows information about tuner or network preset channels.		81
Setup Wizard		Perform the installation, connection, and setup procedures to prepare the unit for operation following guidance.	4
System Setup	Speaker Setup	Sets the speaker size and distance, the channel level, etc.	83
	HDMI Setup Makes settings for HDMI video/audio output.		86
	Audio Setup Makes settings for audio playback.		87
	Network Setup Makes network settings.		88
	ZONE2 Setup	Makes settings for audio playback in a ZONE2 system.	91
	Option Setup	Makes various other settings.	92
	Language	Sets the language for display the menu on the TV screen.	94
Input Setup Displayed items of the "Input Setup" menu differs, depending on the selected input source.	Auto Preset	Uses the auto preset function to program radio stations.	96
	Preset Skip	Sets the preset memories that you do not want to display when tuning.	96
	Preset Name Assigns name to a preset memory.		96
	Input Assign	Changes input connector assignment.	97
	Video	Makes the video settings.	98
	Input Mode	Sets the audio input mode and decode mode.	99
	Rename	Changes the display name for this source.	99
	Source Level Adjusts the playback level of the audio input.		99
	Playback Mode	Makes settings for iPod, USB memory device or network source playback.	99
	Still Picture	Makes settings for still picture playback.	100

Examples of menu screen displays

Typical examples are described below.

[Example 1] Menu selection screen (Top menu)

③ Selected setup item
④ Options of the selected setup item

[Example 2] Audyssey ^® Auto Setup screen (with illustration)

⑤ History icon
⑥ Operation guidance text
⑦ Illustration
⑧ Operation button guidance

List

Examples of menu and front display

Below we describe typical examples of displays on the TV screen and on the set's display window.

	Menu display Front display Description
Top menu display			1Press MENU to display the menu screen.2TV screen: Displays the selected line. Display: Displays the selected item.• Use △▽ to move to the item you want to set.
Display when changing settings			1TV screen: Displays the selected line. Display: Displays the selected item.• Use △▽ to move to the item you want to set.2Press ENTER to set to the mode in which the setting can be made.
Display when resetting			1Press △ to select "Default", then press ENTER.2Press ◀ to select "Yes", then press ENTER.

Inputting characters

You can change the names as desired using the "Preset Name" (E page 96), "Rename" (E page 99), "Rhapsody Account" (E page 91), "Napster Account" (E page 91), "Zone Rename" (E page 93), "Quick Sel.Name" (E page 93) and character input for the network functions.

For inputting characters, there are three methods, as shown below.

Method for inputting characters

Method Operations
Using the keyboard screen	• Operating with the remote control unit• Select a character on the TV screen to input characters.
Using the number buttons(10 Key input screen)	• Operating with the remote control unit.• Multiple characters are assigned to a button, and each time the button is pressed, a character is switched.
Using the cursor buttons(10 Key input screen)	• Operating with the remote control unit.• Use △▽◀ ▷ and ENTER to input characters.

Keyboard screen

□Display of a keyboard input screen

Rename BD A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! * # $ % & ' ( ) * + , : < = > G:\A\SPACE\H [ -] INSERT\DETE\OK\: 5 7 8 9 [RETURN][ENTER]\hp [SFARCH] 10Key[SHIFT] a:/A

① Character input section
② Cursor
③ Keyboard section
④ Uppercase and lowercase switch key
⑤ Space key
⑥ Cursor keys
⑦ Insert key
⑧ Delete key
⑨ OK key
⑩ Guide for operation buttons

Using the keyboard screen

1 Display the screen for inputting characters (page 70 "Menu map").
2 Select a character to be changed. ① Press to select [] or [] .
② Press ENTER to place the cursor at the character to be changed. Each time ENTER is pressed, the cursor moves by one character.

3 Select a character to be input with then press ENTER.
- The types of characters that can be input are as shown below.

[Upper case characters/Numbers/Symbols] ABCDEFGHIJKLMNOPQRSTUVWXYZ

0123456789

! " # \$ % & ' ( ) * + , ; <= >

[Lower case characters/Numbers/Symbols]

abcdefghijklmnopqrstuvwxyz

0123456789

. @ - _ / : \~ ? [ \ ] ^ { | }

• When you press SHIFT while you type in, you can change uppercase characters to lowercase and vice versa.
  4 Repeat steps 2 and 3 to change the name.
  5 Use to select [OK], then press ENTER.

See overleaf

10 Key input screen

☐ Display of a 10 Key input screen

Rename Default TUNER CD BD DVD TV SAT/CBL TUNER CD BD DVD TV SAT/CBL [90-9] Input [SEARCH] Keyboard [CH.] Insert [CH.] Delete [RETURN][ENTER]

① Character input section
② Guide for operation buttons

Using the number buttons

1 Display the screen for inputting characters (page 70 "Menu map").

2 Press SEARCH while a keyboard screen is displayed. A 10 Key input screen is displayed.

- When a button from 0 - 9 is pressed while the soft keyboard screen is being displayed, the screen switches to the 10 Key input screen.

3 Place the cursor at the character to be changed with ◀ ▷ and press the number button (0 - 9) until the desired character is displayed.

- The types of characters that can be input are as shown below.

1. @ - / : "MNOm⁶n°o 6
   2 ABCabc2PQRSpqs7
   3 DEFdef3TUVtuv8
   4 GHIghi4WXYZxyz9
   5 JKLjk15 0 (Space) ! " #S % & ' () * + ,
   ^201 ;<=>?[]^{}{|}

2. When you press SHIFT while you type in, you can change uppercase characters to lowercase and vice versa.

3. For entering the characters assigned to one number button continuously, press ▷ to move the cursor to the right after entering a character then enter the next character.
4. For entering characters assigned to separate buttons, press the number button continuously. The cursor automatically moves to the next position, and the entered character is registered.

4 Repeat step 3 to change the name then press ENTER to register it.

Example: For changing the input source from "DVD" to "DENON"

1 Place the cursor at "V".	DWD
2 Press 3 twice. "V" changes to "E".	DEFD
3 Press 6 twice. "E" is automatically registered, and "D" changes to "N".	DEN
4 Press D. "N" is registered.	DEN■
5 Press 6 three times. Input "O".	DENC
6 Press D. "O" is registered.	DENC■
7 Press 6 twice. Input "N".	DENON

⑧ Press ENTER to register the input source name.

Inputting characters

Using the cursor buttons

1 Display the screen for inputting characters (page 70 "Menu map").
2 Press SEARCH while a keyboard screen is displayed. A 10 Key screen is displayed.
3 Use ◀▷ to set the cursor to the character you want to change.
4 Use to change the character, then press ENTER.
- The types of characters that can be input are as shown below.
[Upper case characters] ABCDEFGHIJKLMNOPQRSTUVWXYZ [Lower case characters] abcdefghijklmnopqrstuvwxyz [Symbols] ! " # \$ % & ' ( ) * +, -, :; < = > ? @ [ \ ] ^ _ { | } - [Numbers] 0123456789 (Space)
- When you press SHIFT while you type in, you can change uppercase characters to lowercase and vice versa.
5 Repeat steps 3 and 4 to change the name then press ENTER to register it.

Audio Adjust

GUI

The sound being played in the surround mode can be adjusted to your liking.

The items (parameters) that can be adjusted depend on the signal being input and the currently set surround mode. For details on the adjustable parameters, see "Surround modes and surround parameters" (C7 page 114).

NOTE

Some setting items cannot be set while playback is stopped. Make the settings during playback.

Menu operation

1 Press ZONE SELECT to switch the zone mode to M (MAIN ZONE). The M indicator lights. 2 Press AMP to set the remote control unit to AMP-operation mode. 3 Press MENU. The menu is displayed on the TV screen. 4 Use △▽ to select the menu to be set or operated. 5 Press ENTER or ▷ to enter the setting. • To return to the previous item, press RETURN ↩. • Exiting the Menu, press MENU while the menu is displayed. The menu display disappears.

Items that can be set with the "Audio Adjust" procedure

Surr.Parameter (page 76)

Tone (page 7B)

Audyssey Settings (page 78)

Manual EQ (1-7 page 79)

Default settings are underlined.

Adjust surround sound parameters. It may not be possible to set this item depending on the input signal ( page 114 "Surround modes and surround parameters").

NOTE

You cannot set the surround parameters in the PURE DIRECT mode.

Setting items Setting details

ModeSet the play modes for the different surround modes.	In the PLIIx or PLII modeCinema: Surround sound mode optimized for movie sources.Music: Surround sound mode optimized for music sources.Game: Surround sound mode optimized for games.Pro Logic: Dolby Pro Logic playback mode (PLII mode only).In the PLIIz modeHeight: Dolby PLIIz Height playback mode.In the DTS NEO:6 modeCinema: Surround sound mode optimized for movie sources.Music: Surround sound mode optimized for music sources.When "Surr.Parameter" - "PLIIz Height" (page 77) is set to "ON", the "Height" mode is set automatically.The "Music" mode is also effective for movie sources including a lot of stereo music.
Cinema EQSoften the treble range of movie soundtracks for better understanding.	ON: "Cinema EQ" is used.OFF: "Cinema EQ" is not used.
DRCCompress dynamic range (difference between loud and soft sounds).	Auto: Automatic dynamic range compression on/off control according to source. This can be set in the Dolby TrueHD mode.Low / Middle / High: These set the compression level.OFF: Dynamic range compression always off.
D.CompCompress dynamic range (difference between loud and soft sounds).	OFF: Turn dynamic range compression off.Low / Middle / High: These set the compression level.

Audio Adjust

Setting items Setting details
LFEAdjust the low-frequency effects level (LFE).	-10dB – 0dBFor proper playback of the different sources, we recommend setting to the values below.Dolloy Digital sources : "0dB"DTS movie sources : "0dB"DTS music sources : "-10dB"
C.ImageAssign center channel signal to front left and right channels for wider sound.	0.0 – 1.0 (0.3)
PanoramaAssign front L/R signal also to surround channels for wider sound.	ON : Set.OFF : Do not set.
DimensionShift sound image center to front or rear to adjust playback balance.	0 – 6 (3)
C.WidthAssign center channel signal to front left and right channels for wider sound.	0 – 7 (3)
Delay TimeAdjust delay time to control sound stage size.	0ms – 300ms (30ms)
Effect LevelAdjust effect signal level.	1 – 15 (10)Set to a lower level if the positioning and sense of phase of the surround signals seems unnatural.
Room SizeDetermine size of acoustic environment.	Small : Simulate acoustics of a small room.Medium-S : Simulate acoustics of a medium-small room.Medium : Simulate acoustics of a medium room.Medium-L : Simulate acoustics of a medium-large room.Large : Simulate acoustics of a large room.NOTE"Room Size" does not indicate the size of the room in which sources are played.

See overleaf

Audio Adjust

Setting items Setting details
Height GainControl the front height channel volume.	Low: Reduce the front height channel volume.Middle: Front height channel sound is output with standard sound volume.High: Increase the front height channel volume.NOTE"Height Gain" is displayed for the following settings.When the "Speaker Config." - "F.Height" setting (page 84) is set other than to "None".When surround mode is "PLIiz" or the PLIiz decoder is used.
PLIiz HeightDetermine whether to use front height channel.	ON: Audio is output from the front height speaker.OFF: Audio is not output from the front height speaker.NOTE"PLIiz Height" is displayed with the settings listed below.When the "Speaker Config." - "F.Height" setting (page 84) is set to other than "None"."PLIiz Height" cannot be set if the HD Audio source being played includes a front height channel. In this case, the Front height channel is played back without decoding in PLIiz mode, using the input signal.
AFDM(Auto flag detect mode)Detect the source's surround back channel signal and set the optimum surround mode automatically.	ON: Set.OFF: Do not set.[Example] Playing Dolby Digital software (with EX flag)When "AFDM" is set to "ON", the surround mode is automatically set to the DOLBY D + PLIiz C mode.To play in the DOLBY DIGITAL EX mode, set "AFDM" to "OFF" and "Surr.Parameter" - "S.Back" to "MTRX ON".Some Dolby Digital EX sources do not include EX flags. If the playback mode does not switch automatically even when "AFDM" is set to "ON", set "Surr.Parameter" - "S.Back" to "MTRX ON" or "PLIiz C".

Setting items Setting details
S.BackSets the method of generating of the surround back channel.	For 2-channel sourcesON: The surround back channel is used.OFF: No signal is played from the surround back channels.For multi-channel sourcesSet the decoding method for the surround back channel.ON*1: Convert the 5.1-channel source of the DTS/DTS-HD input signals to the 7.1-channel output recommended by DTS and then play.MTRX ON: Generate and play the surround back channel signals from the surround channel signals by means of the Dolby Digital EX decoder.ES MTRX*2: Generate and play the surround back channel signals from the surround channel signals of the DTS source by means of the DTS-FS decoder.PLIIx C*3: Generate and play the surround back signals by decoding the signals in the Dolby Pro Logic IIx Cinema mode.PLIIx M: Generate and play the surround back signals by decoding the signals in the Dolby Pro Logic IIx Music mode.OFF: Do not play the surround back channel.*1 This can be selected when playing the 5.1-channel source of DTS/ DTS-HD.*2 This can be selected when playing DTS sources.*3 This can be selected when "Speaker Config." - "S.Back" (ICpage 83) is set to "2spkrs".If the source being played contains a surround back signal, the decoder type is automatically selected by the AFDM function. Set "AFDM" to "OFF" to switch to your preferred decoder.NOTEIf the setting in "Speaker Config." - "S.Back" (ICpage 83) is "None", "S.Back" is not displayed.
SubwooferTurn subwoofer output on and off.	ON: The subwoofer is used.OFF: The subwoofer is not used.NOTEThis can be set when the surround mode is "DIRECT" (ICpage 44) and the "Subwoofer Mode" (ICpage 84) is "LFE+Main".
DefaultThe "Surr.Parameter" settings are returned to the default settings.	Yes: Reset to the defaults.No: Do not reset to the defaults.When you select "Default" and press ENTER, the "Return settings to the default?" prompt is displayed. Select either "Yes" or "No", and press ENTER.

See overleaf

Tone

Setting items Setting details
Tone ControlSet the tone control function to ON and OFF.	ON : Allow tone adjustment loass, treblel.OFF : Playback without tone adjustment."Tone Control" can be set when "Dynamic FO®" I38 page 791 is set to "OFF".NOTE."Tone Control" settings are not reflected to ZONE2.The tone cannot be adjusted in the "DIRECT" mode.
BassAdjust low frequency range (bass).	-6dB - +6dB"Bass" can be set when "Tone Control" is set to "ON".
TrebleAdjust high frequency range treblel.	-6dB - +6dB"Treble" can be set when "Tone Control" is set to "ON".

Audio Adjust

Audyssey Settings

Default settings are underlined.

Set Audyssey MultEQ ^® , Audyssey Dynamic EQ ^® and Audyssey Dynamic Volume ^® . These can be selected after Audyssey ^® Auto Setup has been performed. For additional information on Audyssey technology, please see page 119.

NOTE

• If you have not performed Auto Setup, or if you change the speaker settings after performing Auto Setup, you may not be able to select Dynamic EO®/Dynamic Volume®.
  In this case, either perform Audyssey® Auto Setup over again or perform "Restore" (page 19) to return to the settings after Audyssey® Auto Setup was run.
• When HD Audio for which the sampling frequency exceeds 96 kHz is played back, the "Audyssey Settings" cannot be set.

Setting items Setting details

MultEQ®

MultEQ ^® corrects both time and frequency response problems in the listening area based on Audyssey ^® Auto Setup calibration. We recommend "Audyssey". MultEQ ^® is the prerequisite function for Dynamic EQ ^® and Dynamic Volume ^® .

Audyssey: Optimize the frequency response of all speakers.
Audyssey Byp.L/R : Optimize frequency response of speakers except front L and R speakers.
Audyssey Flat : Optimize frequency response of all speakers to flat response.
Manual : Apply frequency response set with "Manual EQ" (page 79). OFF : Turn "MultEQ®" equalizer off.

• "Audyssey", "Audyssey Byp. L/R" and "Audyssey Flat" can be selected after Audyssey® Auto Setup has been performed. "Audyssey" is automatically selected after performing Audyssey® Auto Setup. When "Audyssey", "Audyssey Byp. L/R" or "Audyssey Flat" is selected, illuminates.
• After running Audyssey® Auto Setup, if the Speaker Configuration, Distance, Channel Level, and Crossover Frequency have changed without increasing the number of speakers measured, only AUDYSSEY MULING illuminates.

NOTE

• "MultEQ®" and "Manual" cannot be selected when "EQ Customize" is set to "Not Used" (page 87).
• When using headphones, "MultEO®" is automatically set to "OFF".

"MultEQ", "Dynamic EQ" and "Dynamic Volume" settings are stored for each input source.

See overleaf

Setting items Setting details
Dynamic EQ®Solve the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Works with MultEQ®.	ON: Use Dynamic EQ®.OFF: Do not use Dynamic EQ®.
Reference OffsetAudyssey Dynamic EQ®is referenced to the standard film mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, film reference level is not always used in music or other non-film content. Dynamic EQ®Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard.	0dB(Film Ref): This is the default setting and should be used when listening to movies.5dB: Select this setting for content that has a very wide dynamic range, such as classical music.10dB: Select this setting for jazz or other music that has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below film reference.15dB: Select this setting for pop/rock music or other program material that is mixed at very high listening levels and has a compressed dynamic range.
Dynamic Volume®Solve the problem of large variations in volume level between TV, movies and other content (between quiet passages and loud passages, etc.) by automatically adjusting to the user's preferred volume setting.	Midnight: Most adjustment to softest and loudest sounds.Evening: Medium adjustment to loudest and softest sound.Day: Least adjustment to loudest and softest sounds.OFF: Do not use "Dynamic Volume®".

Audio Adjust

RESTORER

Compressed audio formats such as MP3, WMA (Windows Media Audio) and MPEG-4 AAC reduce the amount of data by eliminating signal components that are hard for the human ear to hear. The RESTORER function generates the signals eliminated upon compression, restoring the sound to conditions near those of the original sound before compression. It also corrects the sense of volume of the base to obtain richer sound with compressed audio signals.

Setting details

OFF: Do not use RESTORER.

Mode1 (RESTORER 64): Optimized mode for compressed sources with very weak highs.

Mode2 (RESTORER 96): Apply suitable bass and treble boost for all compressed sources

Mode3 (RESTORER HO): Optimized mode for compressed sources with normal highs.

• This item can be set with analog signals or PCM signal (fs = 44.1/48 kHz) is input.
• "RESTORER" settings are stored for each input source.
• This item default setting for "IPod" and "NET/USB" is "Mode3". All others are set to "OFF".
• When set to something other than "OFF", RSTRsplayed.
• This cannot be set when the surround mode is set to "DIRECT" or "PURE DIRECT".

Audio Delay

Default settings are underlined.

While viewing video, manually adjust the time to delay audio output.

Setting details

0ms - 200ms

• This item can be set within the range of 0 to 100 ms when "Auto Lip Sync" is set to "ON" and when
  a TV compatible with Auto Lip Sync is connected.
• Store "Audio Delay" for each input source.
• Audio Delay for game mode can be set when "Video Mode" (IC page 98) is set to "Auto" or "Game".

Information

GUI

Show information about receiver settings, input signals, etc.

Items Setting details

StatusShow information about current settings.	MAIN ZONEThis item shows information about settings for MAIN ZONE.The information displayed differs according to the input source.Select Source / Name / Surround Mode / Input Mode /Decode Mode / Assign / Video Select / Video Mode /Content Type etc.
	ZONE2This item shows information about settings for ZONE2.Power / Select Source / Volume Level"Status" for ZONE2 is displayed when "Amp Assign" is set to "ZONE2".
Audio SignalShow information about audio input signals.	Surround Mode: The currently set surround mode.Signal: The input signal type.fs: The input signal's sampling frequency.Format: The number of channels in the input signal (front, surround, LFE).Offset: The dialogue normalization correction value.Flag: This is displayed when inputting signals including a surround back channel. "MATRIX" is displayed with Dolby Digital EX and DTS-ES Matrix signals, "DISCRETE" with DTS-ES Discrete signals.
	Dialogue normalization functionThis function is automatically activated when playing Dolby Digital sources.It automatically corrects the standard signal level for individual program sources.The correction value can be checked using the STATUS on the main unit.Offset - 4dBThe figure is the corrected value.This cannot be changed.
HDMI InformationShow information about HDMI input/output signals and monitor.	HDMI Signal InformationResolution / Color Space / Pixel Depth
	HDMI Monitor InformationInterface / Support Resolution
Auto SurroundShow information about auto surround mode settings.	Analog/PCM 2ch / Digital 2ch / Digital 5.1ch / Multi ch

Items Setting details

Quick SelectShow information about"Quick select function"(page 61) settings.

Quick Select 1 / Quick Select 2 / Quick Select 3 / Quick Select 4 / ZONE2 Quick Select 1 / ZONE2 Quick Select 2 / ZONE2 Quick Select 3 / ZONE2 Quick Select 4Name / Volume Level / Select Source / Video Select / MultEO®/ Dynamic EO®/ Dynamic Volume®/ Auto Surround Mode Analog/PCM 2ch / Auto Surround Mode Digital 2ch / Auto Surround Mode Digital 5.1ch / Auto Surround Mode Multi ch"ZONE2 Quick Select" is displayed when "Amp Assign" is set to "ZONE2".

Preset ChannelShow information aboutpreset channels.TUNER NET/USB

Preset 1 – 3A1 – G8"Preset 1 – 3" is displayed when the input source is "NET/USB".

System Setup

GUI

Set when changing Audyssey® Auto Setup settings, or when changing the audio, video, display or other settings.

• If you change the speaker settings after performing Audyssey ^ Auto Setup, it will not be possible to set Audyssey MultEQ ^ , Audyssey Dynamic EQ ^ and Audyssey Dynamic Volume ^ (page 78, 79).
• Can be used without changing the settings. Please set if necessary.

Menu operation

1 Press ZONE SELECT to switch the zone mode to M (MAIN ZONE). The M indicator lights. 2 Press AMP to set the remote control unit to AMP-operation mode. 3 Press MENU. The menu is displayed on the TV screen. 4 Press △▽ to select the menu to be set or operated. 5 Press ENTER or ▷ to enter the setting. • To return to the previous item, press RETURN ↩. • Exiting the Menu, press MENU while the menu is displayed. The menu display disappears.

Items that can be set with the "System Setup" procedure

Speaker Setup (page 83) HDMI Setup (page 86) Audio Setup (page 87) Network Setup (page 88) ZONE2 Setup (page 91) Option Setup (page 92) Language (page 94)

Speaker Setup

Default settings are underlined.

Perform when setting the speakers manually or when changing settings made in Audyssey® Auto Setup.

- If you change the speaker settings after performing Audyssey® Auto Setup, it will not be possible to select Audyssey MultEQ®, Audyssey Dynamic EQ® and Audyssey Dynamic Volume® (13 page 78, 79).

- "System Setup" can be used without changing the settings. Please set if necessary.

Setting items Setting details

Amp Assign

The signal output from the SURR BACK/AMP ASSIGN speaker terminal of this unit can be switched to match your speaker environment.

NORMAL: Select the "NORMAL" setting to perform 7.1-channel playback using the surround back.

ZONE2 : Select the "ZONE2" setting to assign the unit's built-in power amplifier for ZONE2 and output the audio in stereo.

Bi-AMP : Select the "Bi-AMP" setting to connect the front speakers via the bi-amp connection.

Front B: Select the "Front B" setting to use the second set of front speakers for playback. You can switch the front speakers A and B to be used for playback in accordance with the 2-channel playback or multi-channel playback mode. When you select this Front B setting, also perform the "Front Sp Setup" (107 page 85) procedure.

F.HEIGHT : Select the "F.HEIGHT" setting to use the front height speaker for playback.

Speaker Config.

Select speaker configuration and size (bass reproduction capability).

Front : Set the front speaker size.

• Large : Use a large speaker that can adequately play back low frequencies.

- Small: Use a small speaker that has inadequate playback capacity for low frequencies.

NOTE

Do not use the outward shape of the speaker to determine selection of a "Large" or "Small" speaker. Instead, use the frequencies set in "Crossover Freq." (37 page 85) as the standard for determining bass reproduction capability.

- When "Subwoofer" is set to "No", "Front" is automatically set to "Large".

- When "Front" is set to "Small", "Center", "Surround", "S.Back" and "F.Height" can not be set to "Large".

Center : Set the presence and size of the center speaker.

- Large : Use a large speaker that can adequately play back low frequencies.

- Small: Use a small speaker that has inadequate playback capacity for low frequencies.

- None : Select when a center speaker is not connected.

"Large" is not displayed when "Front" is set to "Small".

Setting items Setting details

Speaker Config. {Continued}

Subwoofer : Set the presence of a subwoofer. • Yes : Use a subwoofer.

- No : Select when a subwoofer is not connected.

When "Front" is set to "Small", "Subwoofer" is automatically set to "Yes".

Surround : Set the presence and size of the surround speakers.

• Large : Use a large speaker that can adequately play back low frequencies.

- Small: Use a small speaker that has inadequate playback capacity for low frequencies.

- None : Select when the surround speakers are not connected.

- When "Surround" is set to "Large", "S.Back" and "F.Height" can be set to "Large".

- When "Surround" is set to "None", "S.Back" and "F.Height" are automatically set to "None".

S.Back : Set the presence, size and number of surround back speakers.

• Large : Use a large speaker that can adequately play back low frequencies.

- Small: Use a small speaker that has inadequate playback capacity for low frequencies.

- None: Select when the surround back speakers are not connected.

• 2spkrs : Use two surround back speakers.

- 1spkr: Use only one surround back speaker. When you select this setting, connect the surround back speaker to the left (L) channel.

Even when the "S.Back" setting is other than "None", sound may not be emitted from the surround back speaker, depending on the playback source. In this case, make "Surr.Parameter" - "S.Back" setting other than "OFF" (page 77).

NOTE

When "Amp Assign" setting (page 83) is "NORMAL", you can make the "S.Back" setting.

See overleaf

System Setup

Setting items Setting details

Speaker Config.(Continued)

F.Height: Set the presence and size of the front height speakers.• Large: Use a large speaker that can adequately play back low frequencies.• Small: Use a small speaker that has inadequate playback capacity for low frequencies.• None: Select when the front height speakers are not connected.NOTEWhen "Amp Assign" setting (LFPage 83) is "F.HEIGHT", you can make the "F.Height" setting.

Bass SettingSet subwoofer and LFE signal range playback.

Subwoofer Mode: Select low range signals to be reproduced by subwoofer.• LFE: The low range signal of the channel set to "Small" speaker size is added to the LFE signal output from the subwoofer.• LFE+Main: The low range signal of all channels is added to the LFE signal output from the subwoofer.√"Subwoofer Mode" can be set when "Speaker Config." - "Subwoofer"(LFPage 83) is set to "Yes".• Play music or a movie source and select the mode offering the strongest bass.• Select "LFE+Main" if you want the bass signals to always be produced from the subwoofer.NOTEIf "Front" and "Center" for "Speaker Config." are set to "Large", and "Subwoofer Mode" is set to "LFE", no sound may be output from the subwoofer, depending on the input signal or selected surround mode.LPF for LFE: Set LFE signal playback range. Set this when you want to change the playback frequency of the subwoofer.• 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz

Setting items Setting details

DistanceSet distance from listening position to speakers.Measure beforehand the distance from the listening position to each speaker.	Unit : Set the unit of distance.•Feet / Meters
	Step : Set the minimum variable width of the distance.•1ft/0.1ft•0.1m/0.01m
	Default The "Distance" settings are returned to the default settings.•Yes : Reset to the defaults.•No : Do not reset to the defaults.When you select "Default" and press ENTERthe "Return settings to the default?" prompt is displayed. Select either "Yes" or "No", and press ENTER.
	Front L / Front R / Center / Subwoofer / Surround L / Surround R / S.Back L*/S.Back R*/F.Height L / F.Height R : Select the speaker.* When the "Speaker Config." - "S.Back" setting (page 83) is set to "1spkr", "S.Back" is displayed.•0.0ft-60.0ft/0.00m-18.00m : Set the distance.The speakers that can be selected differ depending on the "Amp Assign" (page 83) and "Speaker Config." (page 83) settings.Default settings :Front L / Front R / Center / Subwoofer / F.Height L / F.Height R : 12.0 ft (3.60 m)Surround L / Surround R / S.Back L / S_Back R : 10.0 ft (3.00 m)Set the difference in the distance between the speakers to less than 20.0 ft (6.00 m).NOTESpeakers set to "None" in "Speaker Config." (page 83) are not displayed.

See overleaf

System Setup

Setting items Setting details

Channel Level

Set the volume of the test tone to be the same when it is output from each speaker.

Test Tone Start : Output test tone.

- Front L / F.Height L / Center / F.Height R / Front R / Surround R / S.Back R* / S.Back L* / Surround L / Subwoofer : Select the speaker.

* When the "Speaker Config." – "S.Back" setting (12 page 83) is set to "1spkr", "S.Back" is displayed.

- -12.0dB - +12.0dB (0.0dB) : Adjust the volume.

When "Channel Level" is adjusted, the adjusted values are set for all the surround modes. To adjust the channel level separately for the different surround modes, use the operation see page 60.

NOTE

- Speakers set to "None" in the "Speaker Config." (page 83) settings are not displayed.

- When a headphones jack is inserted in the PHONES jack of this unit, the "Channel Level" is not displayed.

Default: The "Channel Level" settings are returned to the default settings. - Yes: Reset to the defaults.

- No : Do not reset to the defaults.

When you select "Default" and press ENTER, the "Return settings to the default?" prompt is displayed. Select either "Yes" or "No", and press ENTER.

Setting items Setting details

Crossover Freq.

Set the maximum frequency of the bass signal output from each channel to the subwoofer. Set the Crossover Frequency to suit the bass reproduction capability of the speaker being used.

Crossover : Set the crossover frequency.

- 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz

Advanced : Specify crossover frequency for each speaker.

- Front / Center / Surround / S.Back / F.Height : Select the speaker. - 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz : Set the crossover frequency.

• "Crossover Freq." can be set when the "Bass Setting" – "Subwoofer Mode" ( page 84) setting is "LFE+Main", or when you have a speaker that is set to "Small".
• Always set the crossover frequency to "80Hz". When using small speakers, however, we recommend setting the crossover frequency to a higher frequency.
• For speakers set to "Small", sound below the crossover frequency is cut from the sound output. The cut bass sound is output from the subwoofer or front speakers.
• The speakers that can be set when "Advanced" is selected differ depending on to the "Subwoofer Mode" setting ( page 84).
• When "LFE" is selected, speakers set to "Small" at "Speaker Config." can be set. If the speakers are set to "Large", "Full Band" is displayed and the setting cannot be made.
• If set to "LFE+Main", this setting can be made regardless of the speaker size.

Front Sp Setup

Set the front speakers to use for every surround mode.

2CH DIRECT/STEREO : The front speakers used in the direct, stereo and pure direct play modes (2 channel) are set in advance.
• A : Front speaker A is used.
• B : Front speaker B is used.
- A+B : Both front speakers A and B are used
MULTI CH : The front speakers used in modes other than the direct, stereo and pure direct play modes (2 channel) are set in advance.
• A : Front speaker A is used.
• B : Front speaker B is used.
- A+B : Both front speakers A and B are used.

See overleaf

System Setup
HDMI Setup Default settings are underlined.

Setting items Setting details
Auto Lip SyncMake automatic compensation for timing shift in audio and video output.	ON: Compensated.OFF: Not compensated.
HDMI Audio OutSelect HDMI audio output device.	AMP: Play back through speakers connected to the unit.TV: Play back through TV connected to the unit.The audio signal input from the HDMI input connector can be output as an output signal from the HDMI output connector by setting the HDMI audio output destination to TV.Audio signals input via the Analog/Coaxial/Optical input connectors cannot be output from the HDMI output connector.When the HDMI control function is activated, priority is given to the TV audio setting (page 58 "HDMI control function").
HDMI ControlYou can link operations with devices connected to HDMI and compatible with HDMI Control.	ON: Use HDMI control function.OFF: Do not use HDMI control function.When a device that is not compatible with the HDMI control function is connected, set "HDMI Control" to "OFF".Please consult the operating instructions for each connected device to check the settings.Refer to "HDMI control function" (page 58) for more information about the HDMI control function.NOTEWhen "HDMI Control" is set to "ON", it consumes more standby power. If you are not using this unit for an extended period, it is recommended that you unplug the power cord from the power outlet."HDMI Control" does not work when the power to the device is off. Either turn power on or set to standby.The HDMI control function controls operations of a TV that is compatible with the HDMI control function. Make sure that the TV and HDMI are connected when you perform HDMI control.If the "HDMI Control" settings have been changed, always reset the power to connected devices after the change.

Setting items Setting details
Standby SourceSets the HDMI input source to put into standby when the power is on.	Last: This item is set at the last-used input source.HDMI1 / HDMI2 / HDMI3 / HDMI4 / HDMI5 / HDMI6: Put the respective input source into standby."Standby Source" can be set when "HDMI Control" is set to "ON".
P.Off ControlLinks the power standby of this unit to external devices.	All: If power to a connected TV is turned off independently of the input source, power to this unit is automatically set to standby.Video: If power to a connected TV is turned off when the input source is BD / DVD / TV / SAT/CBL / GAME1 / GAME2 / V.AUX / DOCK, power to this unit is automatically set to standby.OFF: This unit does not link with power to a TV."P.Off Control" can be set when "HDMI Control" is set to "ON".

Audio Setup

Default settings are underlined.

Make settings for audio playback.

Setting items Setting details

2ch Direct/StereoSelect the method for setting the speakers used in the 2-channel direct and stereo playback modes.	Setting: Select the method for setting the speakers used in the 2-channel direct and stereo playback modes.• Basic: The settings at "Speaker Setup" (page 83) are applied.• Custom: Make separate settings for 2-channel. Make the following settings:
	Front: Set the front speaker size.• Large: Use a large speaker that can adequately play back low frequencies.• Small: Use a small speaker that has inadequate playback capacity for low frequencies.✓ If "Speaker Config." - "Subwoofer" (page 83) is set to "No", the setting is automatically set to "Large".
	SW: Set the presence of a subwoofer.• Yes: Use a subwoofer.• No: Select when a subwoofer is not connected.✓ If "Speaker Config." - "Subwoofer" (page 83) is set to "No", the setting is automatically set to "No". If the "Front" setting is "Small", the setting is automatically "Yes".
	SW Mode: Select low range signals to be reproduced by subwoofer.• LFE: When the "2ch Direct/Stereo" - "Front" setting is set to "Large", the LFE signal alone is output from the subwoofer. Also, when the "2ch Direct/Stereo" - "Front" setting is set to "Small", the front channel low range signal is added to the LFE signal output from the subwoofer.• LFE+Main: The front channel low range signal is added to the LFE signal output from the subwoofer.✓ This setting can be set made "2ch Direct/Stereo" - "SW" is set to "Yes".
	Crossover: Set the maximum frequency of the bass signal output from each channel to the subwoofer.• 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz✓This setting can be set made "2ch Direct/Stereo" - "SW" is set to "Yes".• If the "2ch Direct/Stereo" - "Front" setting is "Large" and the "SW Mode" setting is "LFE", "Full Band" is displayed and the setting cannot be made.

Setting items Setting details
2ch Direct/Stereo(Continued)	Distance FL / Distance FR : Select the speaker.0.0ft – 60.0ft (12.0ft) / 0.00m – 18.00m (3.60m) : Set the distance to the speaker.Set the difference in the distance between the speakers to less than 20.0 ft (6.00 m).
	Level FL / Level FR : Select the speaker.-12.0dB – +12.0dB (0.0dB) : Adjust the level of each channel.
Auto SurroundMake setting for memorizing surround mode setting for each input signal type.	ON : Memorize settings. Automatically play with the last used surround mode.OFF : Do not memorize settings. Surround mode does not change according to input signal.The auto surround mode function lets you store in the memory the surround mode last used for playing the four types of input signals listed below.Analog and PCM 2-channel signalsDolby Digital and DTS 2-channel signalsDolby Digital and DTS multi-channel signalsLPCM Multi-channel signalsWhen playing in PURE DIRECT, the surround mode does not change even if the input signal is changed.
EQ CustomizeSet the equalizers that will not be used to not be displayed when the “MultEQ®” equalizer is selected.The equalizer mode in which “Not Used” is selected cannot be stored and recalled in the Quick Select function.	Audyssey Byp. L/R : Set when not using “Audyssey Byp. L/R” equalizer.Used: Use.Not Used: Do not use.Set so that “Audyssey Byp. L/R” settings can be made when Audyssey® Auto Setup is performed.Audyssey Flat : Set when not using “Audyssey Flat” equalizer.Used: Use.Not Used: Do not use.Set so that “Audyssey Flat” settings can be made when Audyssey® Auto Setup is performed.Manual : Set when not using the “Manual” equalizer.Used: Use.Not Used: Do not use.

Network Setup

Default settings are underlined.

Make network settings.

Setting items Setting details

Network Connect.

Make settings for wired LAN.

Only set "Network Connect." when connecting to a network without a DHCP function.

Network Connect. DHCP IP Address Off 192.168.0.1 Exit Detail ① Network Connect. DHCP IP Address OFF 192.168.000.001 Subnet Mask 255.255.253.000 Default Gateway 000.000.000.000 Primary DNS 000.000.000.000 Secondary DNS 000.000.000.000 Proxy Exit ② ③ ④

① On the menu, select "Network Connect." - "Detail" and press ENTER.

② Use to set "DHCP" to "OFF", then press ENTER.

The DHCP function is disabled.

System Setup

Setting items Setting details

Network Connect. (Continued)

③ Use △▽◀▷ or 0-9 to input the address and press ENTER

- IP Address : Set the IP address within the ranges shown below. The Network Audio function cannot be used if other IP addresses are set.

CLASS A: 10.0.0.1 - 10.255.255.254

CLASS B: 172.16.0.1 - 172.31.255.254

CLASS C: 192.168.0.1 - 192.168.255.254

- Subnet Mask: When connecting an xDSL modem or terminal adapter directly to this unit, input the subnet mask indicated in the documentation supplied by your provider. Normally input 255.255.255.0.

- Default Gateway : When connected to a gateway (router), input its IP address.

- Primary DNS, Secondary DNS : If there is only one DNS address indicated in the documentation supplied by your provider, input it at "Primary DNS". If there are two or more DNS addresses, input the first one at "Secondary DNS".

④ Use to select “Exit” and press ENTER. Setup is complete.
- When connecting to the network via a Proxy server, select "Proxy" and press ENTER (1 page 89 "Proxy settings").

• If you are using a broadband router (DHCP function), there is no need to make the settings at "IP Address" and "Proxy", since the DHCP function is set to "ON" in this unit's default settings.
• If this unit is being used connected to a network without the DHCP function, the network settings must be made. In this case, some knowledge of networks is required. For details, consult a network administrator.
• If you cannot connect to the Internet, recheck the connections and settings (12 page 12).
• If you do not understand about Internet connection, contact your ISP (Internet Service Provider) or the store from which you purchased your computer.
• When you want to cancel the setting during IP address input, press RETURN ↩.

See overleaf

System Setup

Setting items Setting details

Network Connect. (Continued)

Proxy settings : Make this setting when connecting to the Internet via a proxy server.

Network Connect. DHCP OFF IP Address 192.188.3.1 Exit Detail ① Network Connect. DHCP ON IP Address 192.188.000.001 Subnet Mask 255.255.255.000 Default Gateway 000.000.000.000 Primary DNS 000.000.000.000 Secondary DNS 000.000.000.000 Proxy Exit ②

① On the menu, select "Network Connect." - "Detail" and press ENTER.
② Use to set "Proxy" and press ENTER.

Setting items Setting details

Network Connect. (Continued)

③ Use ◀ ▷ to set "Proxy" to "ON" and press ∇. The proxy server is enabled.
④ Use ◀ ▷ to select the proxy server input method, and then press ▽. Address : Select when inputting by address. Name : Select when inputting by domain name.
⑤ Use △▽◀▷ or 0-9 to input the proxy server address or domain name and press ENTER. When "Address" is selected in step ④: Input the address When "Name" is selected in step ④: Input the domain name • For character input, see page 73.
⑥ Use △▽◀▷ or 0-9 to input the proxy server port number and press ENTER ⑦ Use ▽ to select "Exit" and press ENTER. Setup is complete.

See overleaf

System Setup

Setting items Setting details

OtherNetwork function on/off setting during standby, and PC language setting.	Network Standby: Set the network function on/off during standby.ON: Network is on during standby. Main unit operable with a network compatible controller.OFF:Suspend network function during standby.Set to "ON" when using the web control function.NOTEWhen "Other" – "Network Standby" is set to "ON", it consumes more standby power.Character: When characters are not displayed correctly, set the MP3 ID3-Tag character code type reproduced by the USB memory device.Auto: Auto-select character code.Latin: Select ISO 8859-1 Latin-1.Japanese: Select Shift-JIS.If the characters are not properly displayed when set to "Auto", set to "Latin" or "Japanese".
	PC Language: Select computer environment language.Arabic / Chinese(simplified) / Chinese(traditional) / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Italian / Japanese / Korean / Norwegian / Polish / Portuguese / Portuguese(Brazil) / Russian / Spanish / Swedish / Turkish
	Friendly Name: The Friendly Name is the name of this unit displayed on the network. Up to 63 characters can be input. The default Friendly Name on first use is "DENON[JAVR-1912}".For character input, see page 23.Default: Restores Friendly Name, which you had changed, to the default setting.Yes: Reset to the defaults.No: Do not reset to the defaults.When you select "Default" and press ENTER, the "Return settings to the default?" prompt is displayed. Select either "Yes" or "No", and press ENTER.

Setting items Setting details

Other(Continued)

Party Mode: Set the Party Mode.Party Mode: Set the Party Mode function.ON: Enable party mode function.OFF: Disable party mode function.Refer topage 63,"Party mode function" for more information on the party mode function.Party Start Lev.: Make settings for volume level when the party mode is started.Last:The same volume as set before the party mode was started.- - - (0): Always use the muting on condition when the party mode is started.-80dB – 18dB (1 – 99): Start party mode with your preferred volume.This can be set when "Party Mode" is set to "ON".This is displayed from 0 to 99 when "Volume Display" ( page 92) is set to "Absolute".You can set to the upper limit set with "Volume Limit" ( page 92).

Zone Management: See "Zone Management function" ( page 64).

See overleaf

Setting items Setting details
Other(Continued)	Notification : Sets the display of a notification message when the latest firmware is released.Update : Displays a notification message on this unit's menu screen when the latest firmware is released with "Firmware Update". The notification message is displayed for about 20 seconds when the power is turned on. Connect to broadband Internet (3C page 12) when using this function.ON : Display update message.OFF : Do not display update message.When you press ENTER during display of the notification message, the "Check for Update" screen is displayed (Refer to page 93 for more information on "Firmware Update").Press RETURN ↩ to erase the notification message.Upgrade : Display a notification message on this unit's menu screen when downloadable firmware is released with "Add New Feature". The notification message is displayed for about 20 seconds when the power is turned on. Connect to broadband Internet (3C page 12) when using this function.ON : Display upgrade message.OFF : Do not display upgrade message.When you press ENTER during display of the notification message, the "Add New Feature" screen is displayed (Refer to page 93 for more information on "Add New Feature").Press RETURN ↩ to erase the notification message.
Rhapsody AccountSet or change Username and Password (3C page 40 "Listening to Rhapsody").	Username / Password / ClearFor character input, see page 73.
Napster AccountSet or change Username and Password (3C page 35 "Listening to Napster").	Username / Password / ClearFor character input, see page 73.
Network Info.Display network information.	Friendly Name / DHCP=ON or OFF / IP Address / MAC Address

ZONE2 Setup Default settings are underlined.

Set the audio to play back with multi-zone (ZONE2). "ZONE2 Setup" is displayed when "ZONE2" is selected with "Amp Assign".
Setting items Setting details
Lch LevelAdjust the left channel output level.	-12dB - +12dB (0dB)
Rch LevelAdjust the right channel output level.	-12dB - +12dB (0dB)
Volume LimitMake a setting for maximum volume.	OFF: Do not set a maximum volume.-20dB (61) / -10dB (71) / 0dB (81)This is displayed from 0 to 99 when "Volume Display" (page 92) is set to "Absolute".
Power On LevelDefine the volume setting that is active when the power is turned on.	Last: Use the memorized setting from the last session.---- (0): Always mute when power is turned on.-80dB - 18dB (1 - 99): The volume is adjusted to the set level.This is displayed from 0 to 99 when "Volume Display" (page 92) is set to "Absolute".
Mute LevelSet the amount of attenuation when muting is on.	Full: The sound is muted entirely.-40dB: The sound is attenuated by 40 dB down.-20dB: The sound is attenuated by 20 dB down.

Option Setup

Default settings are underlined.

Make various other settings.

Setting items Setting details

Volume ControlSet the MAIN ZONE (roomwhere the unit is located)volume setting.	Volume Display : Set how volume is displayed.Relative : Display -dB (Mini), in the range -80.5 dB to 18 dB.Absolute : Display in the range 0 (Mini) to 99.The "Volume Display" setting is applied also to the "Volume Limit" and "Power On Level" display method.The "Volume Display" setting applies to all zones.
	Volume Limit : Make a setting for maximum volume.OFF : Do not set a maximum volume.-20dB (61) / -10dB (71) / 0dB (81)
	Power On Level : Define the volume setting that is active when the power is turned on.Last : Use the memorized setting from the last session.----(0) : Always use the muting on condition when power is turned on.-80dB - 18dB (1 - 99) : The volume is adjusted to the set level.
	Mute Level : Set the amount of attenuation when muting is on.Full : The sound is muted entirely.-40dB : The sound is attenuated by 40 dB down.-20dB : The sound is attenuated by 20 dB down.
Source DeleteRemove from the displayinput sources that are notused.	BD / DVD / TV / SAT/CBL / GAME1 / GAME2 / V.AUX / DOCK / NET/USB / TUNER / CD : Select input source that is not used.ON : Use this source.Delete : Do not use this source.
	NOTEInput sources being used in the various zones cannot be deleted.Input sources set to "Delete" cannot be selected using the input source select button.

Setting items Setting details

GUI

Make the settings related to displays on the TV screen.

Screensaver: Make screensaver settings.

- ON: The screensaver is activated during menu display, NET/USB, iPod or TUNER screen display if no operation is performed for an approximately 5-minute continuous period. When you press < 1 > , the screensaver is cancelled and the screen before that screen saver started is displayed.

• OFF : Screensaver is not activated.

Format : Set the video signal format to be output for the TV you are using.

• NTSC : Select NTSC output

• PAL : Select PAL output.

"Format" can also be set by the following procedure. However, the menu screen is not displayed.

1. Press and hold the main unit's PRESET 1 and PRESET 3 for at least 3 seconds.

"V.Format:" appears on the display.

1. Press the main unit's TUNER PRESET CH +, - and set the video signal format.

2. Press the main unit's INTERNET RADIO 📋 to complete the setting.

NOTE

When a format other than the video format of the connected TV is set, the picture will not be displayed properly.

Text : Display the details of operation when switching surround mode, input mode, etc.

• ON : Turn display on.

• OFF : Turn display off

Master Volume : Display the master volume during adjustment.

- Bottom : Display at the bottom.

- Top : Display at the top.

• OFF : Turn display off.

When the master volume display is hard to see when superimposed on movie subtitles, set to "Top".

NET/USB : Set the NET/USB screen display time when the input source is "NET/USB".

• Always : Show display continuously.
• 30s : Show display for 30 seconds after operation.
- 10s : Show display for 10 seconds after operation.
• OFF : Turn display off.

See overleaf

System Setup

Setting items Setting details
GUI(Continued)	Tuner: Set the tuner screen display time when the input source is "Tuner".• Always: Show display continuously.• 30s: Show display for 30 seconds after operation.• 10s: Show display for 10 seconds after operation.• OFF: Turn display off.
	iPod: Set the iPod screen display time when the input source is "DOCK" or "iPod (USB)".• Always: Show display continuously.• 30s: Show display for 30 seconds after operation.• 10s: Show display for 10 seconds after operation.• OFF: Turn display off.
Remote Setup GuideSearch a preset code to register in the remote control unit.	See "Registering preset codes" (ICE page 102).
Quick Sel.NameChange the "Quick Select" display title to one you prefer.	• Up to 16 characters can be input.• For character input, see page 73.
Zone RenameChange the display title of each zone to one you prefer.	• Up to 10 characters can be input.• For character input, see page 73.
DimmerAdjust the display brightness of this unit.	Bright: Normal display brightness.Dim: Reduced display brightness.Dark: Very low display brightness.OFF: Turns the display off.
Setup LockProtect settings from inadvertent change.	ON: Turn protection on.OFF: Turn protection off.⚠ When canceling the setting, set "Setup Lock" to "OFF".NOTEWhen "Setup Lock" is set to "ON", the settings listed below can no longer be changed. Also, "SETUP LOCKED!" is displayed if you attempt to operate related settings.• Menu operations • Channel Level

Setting items Setting details
Firmware UpdateUpdate the firmware of the receiver.	Check for Update: Check for firmware updates. You can also check approximately how long it will take to complete an update.Start: Execute the update process.When updating starts, the power indicator becomes red and the menu screen is shut down. The amount of update time which has elapsed is displayed.When updating is complete, the power indicator becomes green and normal status is resumed.If updating fails, the set automatically retries, but if updating is still not possible, one of the messages shown below is displayed. If the display reads as shown below, check the settings and network environment, then update again.
	Display Description
	Updating fail Updating failed.
	Login failed Failure to log into server.
	Server is busy Server is busy. Wait a while then try again.
	Connection fail Failure in connecting to server.
	Download fail Downloading of the firmware has failed.
Add New Feature Display new features that can be downloaded to this unit and perform an update.	Upgrade: Execute the upgrade process.When updating starts, the power indicator becomes red and the menu screen is shut down. The amount of update time which has elapsed is displayed.When upgrading is complete, the power indicator becomes green and normal status is resumed.If the upgrade is not successful, an error message identical to those in "Firmware Update" will appear on the display. Check the settings and network environment, then update again.Upgrade Status: Display a list of the additional functions provided by the upgrade.See the DENON website for details about updates.When the procedure is complete, "Registered" is displayed in this menu and updates can be carried out. If the procedure has not been carried out, "Not Registered" is displayed.The ID number shown on this screen is needed when carrying out the procedure.The ID number can also be displayed by pressing and holding the main unit's TUNER PRESET + and TUNER PRESET – for at least 3 seconds.

See overleaf

Notes concerning use of "Firmware Update" and "Add New Feature"

• In order to use these functions, you must have the correct system requirements and settings for a broadband Internet connection (1 page 12).
• Do not turn off the power until updating or upgrading is completed.
• Even with a broadband connection to the Internet, approximately 1 hour is required for the updating/upgrading procedure to be completed.
• Once updating/upgrade starts, normal operations on this unit cannot be performed until updating/upgrading is completed.
• Furthermore, updating/upgrading the firmware may reset the backup data for the parameters, etc. set for this unit.
• If the update or upgrade fails, press and hold the ON/STANDBY on the main unit for more than 5 seconds, or remove and re-insert the power cord. "Update retry" appears on the display and update restarts from the point at which update failed. If the error continues despite this, check the network environment.

Language Default settings are underlined.

Set the language for display on the menu screen.

Setting details

English / Español

"Language" can also be set by the following procedure. However, the menu screen is not displayed.

1. Press and hold the main unit's PRESET 1 and PRESET 3 for at least 3 seconds.

"V.Format:" appears on the display.
2. Press the main unit's STATUS and set "Lang:"
3. Press the main unit's TUNER PRESET CH +, - and set the language.
4. Press the main unit's INTERNET RADIO to complete the setting

• Information regarding the "Firmware Update" function and "Add New Feature" will be announced on the DENON web site each time related plans are defined.
• When usable new firmware is released with "Firmware Update" or "Add New Feature", a notification message is displayed on the menu screen. When you do not want to be notified, set "Notification" - "Update" (page 91) and "Upgrade" (page 91) to "OFF".

Input Setup

GUI

Perform settings related to input source playback.

- You do not have to change the settings to use the unit. Make settings when needed.

Menu operation

1 Press ZONE SELECT to switch the zone mode to M (MAIN ZONE). The M Indicator lights. 2 Press AMP to set the remote control unit to AMP-operation mode. 3 Press MENU. The menu is displayed on the TV screen. 4 Use △▽ to select the menu to be set or operated. 5 Press ENTER or ▷ to enter the setting. • To return to the previous item, press RETURN ▼. • Exiting the Menu, press MENU while the menu is displayed. The menu display disappears.

Items that can be set with the "Input Setup" procedure

Auto Preset (page 96) Preset Skip (page 96) Preset Name (page 96) Input Assign (page 97) Video (page 98) Input Mode (Audio) (page 99) Rename (page 99) Source Level (Audio) (page 99) Playback Mode (page 99) Still Picture (page 100)

Important information

☐About the display of input sources

In this section, the configurable input sources for each item are shown as follows.

NOTE

Input sources that have been set to "Delete" at "Source Delete" (page 92) cannot be selected.

Auto Preset

Use the auto preset function to program radio stations.
Setting items Setting details
StartStart the auto preset process.TUNER	If an FM station cannot be preset automatically, select the desired station by tuning it in manually, then preset it manually.

Preset Skip Default settings are underlined.

Setting items Setting details
BlockSelect the preset memory block.TUNER	A / B / C / D / E / F / G
Block PresetsSkip all channels of the selected preset memory blocks.TUNER	ON: Display the selected preset memory block.Skip: Do not display the selected preset memory block.
A1 - G8Set by individual preset channels in the currently selected preset memory block.TUNER	ON: Display the selected preset channel.Skip: Do not display the selected preset channel.If you set "Block Presets" to "Skip", you can skip by blocks (A - G)

Input Setup

Preset Name

Setting items Setting details
BlockSelect the preset memory block.TUNER	A / B / C / D / E / F / G
A1 - G8Change the display name of the selected channel.TUNER	• Up to eight characters can be input.• For character input, see page /3.
DefaultThe changed preset name is returned to the default setting.	Yes: Reset to the defaults.No : Do not reset to the defaults.When you select "Default" and press ENTER, the "Return settings to the default?" prompt is displayed. Select either "Yes" or "No", and press ENTER.

Input Assign

Examples of "Input Assign" menu screen displays

This screen appears when the "Input Setup" – "each input source" – "Input Assign" menu is selected. Use the "Input Assign" menu to change the ② HDMI input connectors, ③ Digital input connectors, and ④ component input connectors that are assigned to the ① input sources in default settings.

Input assignments menu operations

1 Use to move the highlight to the item you want to set.
2 Press ENTER, then use ◀ ▷ to select the input connector to be assigned.
3 Press ENTER to register the setting.

Setting items Setting details

HDMI

Set this to change the HDM input connectors assigned to the input sources.

BD	DVD	TV
SAT/CBL		GAME1
GAME2	V.AUX	DOCK

HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4 / HDMI 5 / HDMI 6

None : Do not assign an HDMI input connector to the selected input source.
- At time of purchase, the settings of the different input sources are as shown below.

Input source BD DVD TV SAT/CBI
Default setting	HDMI 1	HDMI 2	None	HDMI 3
Input source	GAME1	GAME2	VAUX	DOCK
Default setting	HDMI 4	HDMI 5	HDMI 6	None

• An input source to which an HDMI input connector cannot be assigned is displayed as "----".
• To play the video signal assigned at "HDMI" combined with the audio signal assigned at "Input Assign" – "Digital", select "Digital" at "Input Mode" (page 99).
• The audio signals input from the analog and digital connectors are not output to the monitor.
• When a control dock for iPod is connected, signals cannot be assigned to the HDMI connectors.
• When "HDMI Control" (page 86) is set to "ON", HDMI input connector cannot be assigned to "TV".

COAX (coaxial) / OPT (optical)

None : Do not assign a digital input connector to the selected input source
- At time of purchase, the settings of the different input sources are as shown below.

Input source ED		DVD	TV SAT/CBL GAME1
Default setting	None	None	OPT	COAX	None
Input source	GAME2	V.AUX	DOCK	CD
Default setting	None	None	None	None

See overleaf

Input Setup

Setting items Setting details

Component

(Component video) Set this to change the component video input connectors assigned to the input sources.

BD	DVD	TV
SAT/CBL		GAME1
GAME2	V.AUX	DOCK

RCA

None : Do not assign a component video input connector to the selected input source.

- At time of purchase, the settings of the different input sources are as shown below.

Input source BD	DVD TV SAT/CBL
Default setting	None None	None RCA
Input source GAME1		GAME2 VAUK		DOCK
Default setting	None None	None None

- An input source to which an component video input connector cannot be assigned is displayed as "----".

- When a control dock for iPod is connected, signals cannot be assigned to the component video connectors.

Yes : Reset to the defaults.

No : Do not reset to the defaults.

If you select "Default" and press ENTER, the message "Return settings to the default?" is displayed. Select "Yes" or "No", and then press ENTER.

Video Default settings are underlined.

* "BD", "TV", "GAME1" or "GAME2" can be set when "HDMI" (page 97) or "Component" (page 98) has been assigned.

Setting items Setting details

Video Select

Video of another input source is played back combined with the playing audio.

SOURCE : Play the picture and sound of the input source.

BD / DVD / TV / SAT/CBL / GAME1 / GAME2 / V.AUX / DOCK : Select video input source to view. This can be set for individual input sources.

"BD", "TV", "GAME1" and "GAME2" can be selected only when a component video is assigned as an input source.

NOTE

- It is not possible to select HDMI input signals.

- Input sources for which "Delete" is selected at "Source Delete" (page 92) cannot be selected.

Video Mode

Make settings for video processing.

BD	*	DVD	TV
SAT/CBL			GAME1
GAME2	*	V.AUX	DOCK

Auto : Process video automatically based on the HDMI content information.

Game : Always process video appropriate for game content. Movie : Process video normally.

- If "Video Mode" is set to "Auto", the mode is switched according to the input contents.

- If a source is played in both MAIN ZONE (audio and video) and ZONE2 (audio only) modes in the same room, audio in MAIN ZONE and ZONE2 modes may sound out of synchronization, but this is not malfunction. In this case, setting to "Game" mode may improve audio synchronization.

Default

The "Input Assign" settings are returned to the default settings.

Input Mode (Audio)

Default settings are underlined.

The input modes available for selection may vary depending on the input source.

Setting items Setting details

Input ModeSet the audio input modes for the different input sources.It is normally recommended to set the audio input mode to "Auto".

Auto: Automatically detect input signal and perform playback.HDMI: Play only signals from HDMI input.Digital: Play only signals from digital input.Analog: Play only signals from analog input."HDMI" can be set for input sources for which "HDMI" is assigned at "Input Assign" page 971."Digital" can be set for input sources for which "Digital" is assigned at "Input Assign" page 971.If the input source is set to "TV", "GAME1" or "GAME2", it cannot be set to "Analog".When digital signals are properly input, the Digicator lights on the display. If the Digicator does not light, check the digital input connector assignment and the connections.If "HDMI Control" is set to "ON" and a TV compatible with the ARC is connected via the HDMI MONITOR connectors, the input mode whose input source is "TV" is fixed to ARC.

Decode ModeSet the audio decode mode for input source.BD DVD TVSAT/CBL GAME1GAME2 V.AUX DOCKCD

Auto: Detect type of digital input signal and decode and play automatically.PCM Decode and play only PCM input signals.DTS: Decode and play only DTS input signals.This item can be set for input sources for which "HDMI" or "Digital" is assigned at "Input Assign" page 971.Normally set this mode to "Auto". Set "PCM" and "DTS" when inputting the corresponding input signal.

Rename

Change the display name of the selected input source.

Setting items Setting details

RenameChange the display name of the selected input source.	• Up to eight characters can be input.• For character input, see page /3.
DefaultThe input source name is returned to the default setting.	Yes: Reset to the defaults.No: Do not reset to the defaults.If you select "Default" and press ENTER, the message "Return settings to the default?" is displayed. Select "Yes" or "No", and then press ENTER.

Source Level (Audio) Default settings are underlined.

• This function corrects the playback level of the selected input source's audio input.
• Make this setting if there are differences in the input volume levels between the different sources.

Setting details

-12dB - +12dB (0dB)

The analog input level and digital input level can be adjusted independently for input sources for which "HDMI" or "Digital" is assigned at "Input Assign" (page 97).

Playback Mode Default settings are underlined.

Input source: "DOCK"

Setting items Setting details
RepeatMake settings for repeat mode.DOCK	All : All files are played repeatedly.One : A file being played is played repeatedly.OFF : Repeat playback mode is canceled.
ShuffleMake settings for shuffle mode.DOCK	Songs : Shuffle songs.Albums : Shuffle albums.OFF : Shuffle playback mode is canceled.

See overleaf

Input Setup
Input source: “NET/USB”
Setting items Setting details
RepeatMake settings for repeat mode.	All: All files are played repeatedly (All files in a Folder or an album are played repeatedly).One:A file being played is played repeatedly.OFF: Repeat playback mode is canceled.
Media ServerNapster
RhapsodyUSB/iPod
RandomMake random mode settings.	ON: Enable random playback.OFF: Disable random playback.
Media ServerNapster
RhapsodyUSB/iPod
Still Picture Default settings are underlined.
Make settings for playing back still picture images.
Setting items Setting details
Slide ShowMake slide show settings.	ON: Display still picture images in a slide show.OFF: The slide show is not played back.
NET/USB
IntervalSet the time for displaying a single image when playing back images in the slide show.	5s – 60s
NET/USB

Operating the connected devices by remote control unit

Registering the supplied preset codes in the remote control unit enables you to operate devices made by other manufacturers.

Operating AV devices

1 Press ZONE SELECT to select a zone for operation.
The zone mode indicator corresponding to the operating zone lights.
- The mode switches each time ZONE SELECT is pressed.
M Select for the operations in MAIN ZONE.
Z2 Select for the operations in ZONE2.
Z3 Not used.

BENON DENON

2 Press the input source select button (page 20).

• The input source for the zone selected in step 1 is switched.
• The operation mode of the remote control unit is switched as shown in the table.

Input source select button	Input source of this unit	Operation mode
		Devices controllable with the remote control unit
	- This unit (AMP-operation) *2
	BD	Device registered on the BD button
	SAT/CBL	Device registered on the SAT/CBL button
	TV	Device registered on the TV button
	NETUSB	NET/USB Network function
	DVD	Device registered on the DVD button
	V.AUX	Device registered on the V.AUX button
	DOCK	DOCK Control dock for iPod
	TUNER	TUNER Radio of this unit
	GAME1	GAME1 Device registered on the GAME1 button
	GAME2	GAME2 Device registered on the GAME2 button
	CD	CD Device registered on the CD button

*1 If a preset code is registered for this button, the remote control unit of this unit can control another devices.
*2 This operation mode enables you to operate iPod, USB, Control dock for iPod, Network function and TUNER.

When the SOURCE SELECT is pressed, the AMP-operation mode starts automatically.

NOTE

If the mode of the remote control unit is set to other than AMP-operation mode, press AMP to switch the remote control unit to the AMP-operation mode to perform the following operations:
- For menu operation by pressing MENU
- For setting the channel level of the unit by pressing CH LEVEL
- For turning power in each zone on or off by pressing ZONE/DEVICE I or ZONE/DEVICE ⏻.

3 Operate this unit or the device whose input source is switched.

• For details, refer to the operating instructions for each device. For operations of iPod, TUNER and USB memory device, see the following pages.
  • iPod (1 page 23, 25)
  • TUNER (page 27)
  • Network function (page 31, 32, 34, 36, 39, 41)
  • USB memory device (page 43)

Registering preset codes

When preset codes are registered in the included remote control unit, it can then be used to operate any devices you have, such as DVD players or TVs made by different manufacturers. In this menu, you can search and display the preset codes that can be preset in the included remote control unit.

Buttons used for operating the devices ① ZONE/DEVICE I, ZONE/DEVICE

For switching power of each device on or off.

② △▽◀ ▷ ENTER. RETURN

For menu operation of each device.

③ MENU. SETUP. TOP MENU

For displaying the menu of each device.

④

⑤ Number button (0 - 9 +10)

⑤ CH+CH

① CH+, CH-

⑦ IV 17, IV INPUT

For operating a TV

This button is enabled in any mode.

For details on operation with the remote control unit, see pages 23, 25, 27, 31, 32, 34, 36, 39, 41, 43, 104.

☐Default settings for preset codes

The devices shown below are registered for each input source button as default. Settings can be changed according to the devices to be used.

Input source select button	Category Brand	Preset code
BD	Blu-ray Disc player DENON 32258
SATCEL	Satellite set top box DirecTV 01377
TV	Television SONY 10810
DVD	DVD player DENON 32134
VAUX	Digital camcorder (DVD recorder)	Panasonic 21378
DOCK *	Control dock for iPod DENON 72516
GAME1	Cable set top box Motorola 01376
GAME2	Cable set top box	Scientific Atlanta	01877
CD	CD player	DENON 42867

* If a control dock for iPod is not to be used, the preset code for another device can be set to DOCK.

NOTE

The preset code cannot be registered to NET/USB, TUNER or PHONO.

1 Press ZONE SELECT to switch the zone mode to M (MAIN ZONE). The M indicator lights.

2 Press AMP to set the remote control unit to AMP-operation mode.

3 Press MENU. The menu is displayed on the TV screen.

4 Use to select "System Setup" – "Option Setup" – "Remote Setup Guide" and then press ENTER or ▷.

Option Setup Volume Control Device Select Source Delete GUI RemoteSetupRules Quick Sel. Name Zone Rename Diameter Setup Lock

MENI 1V MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENI MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MENi MEN i

5 Pressing , select the device category for preset registration. Then press ENTER.

RemoteSetupGuide Please select the device you want to control. Blue-ray CABLE CABLE: PVR CD CD Recorder DVD

- For "TV", "TV/DVD" or "TV/VCR" categories, only the preset code for TV can be registered.

- The pages can be switched by pressing the remote control unit's CH+ or CH- .

See overleaf

Registering preset codes

6 Pressing , select the first letter of the device brand name. Then press ENTER.

RemoteSetupGuide Please select the first letter of the brand name of the device. DVD [CH17]Page17 I [1/24]

• The first character is displayed as 1, A to Z. (Initials for the brand are displayed for each category.)
  For brand names that start with numbers and symbols, select "1".
• When there are several pages of brand names, the pages can be switched by pressing the remote control unit's CH + or CH -.

7 Pressing , select the device brand name. Then press ENTER.

RemoteSetupGuide Please select the brand name. Danitux Denit Disney DSE DVD Durabrand

- When there are several pages of brand names, the pages can be switched by pressing the remote control unit's CH + or CH- .

NOTE

If the desired brand name is not listed, the supplied remote control unit cannot control the device. Use the remote control unit supplied with the device to be used.

8 The procedures for registering remote control codes and remote control preset registration are displayed.

RemoveSetupGuide Device DVD Brand Demon Code 304981/1:3] 1.Press[INPUT SOURCE], 2.Press and hold [DEVICE DN8] for 5 seconds. 3.Input Code with [0-9]. 4.Press any key to check device. OK[QUICK1]N[QUICK2] Return[QUICK3]

NOTE

If a wrong brand name is selected, press QUICK SELECT 3. The following screen is displayed:

RemoteSetupGuide Press [AMP] button. And press [ENTER] button to return Brand select menu. OK

Press AMP then ENTER to return to step 7.

9 Press the input source button on which the preset code is to be registered (BD, SAT/CBL, TV, DVD, V.AUX, DOCK, GAME1, GAME2 or CD).

- For TV, only the preset code for the categories "TV", "TV/DVD", or "TV/WCR" can be registered.

10 Press and hold ZONE/DEVICE | for at least 3 seconds. The zone mode indicator flashes twice.

11 Enter a five-digit code using 0 - 9. Press the buttons with an interval less than 10 seconds.

RemoteSetupGuide Device Brand Code DVD Denom 50430[1/3] 1. Press[INPUT SOURCE] 2. Press and hold [DEVICE ONIO] for 3 seconds. 3. Input Code with [0-9]. 4. Press any key to check device. OK[QUICK1] NC[QUICK2] Return[QUICK3]

• When the code is registered.
  → The zone mode indicator flashes twice.
• When the code is not registered correctly
  → The mode indicator slowly flashes once. Perform from step 9 again.
• When an input number is not correct
  → Press ON once then perform the operations from step 9 again.

12. Operate the device being used to check the operation. If the device is operating, press QUICK SELECT 1.

→ Go to step 13.
- If the device is not operating, press QUICK SELECT 2.
→ Go to step 14.

13 The screen shown below is displayed, and registration of the preset code is completed.

RemoteSetupGuide Remote Setup Guide is finished. Press [AMP] button. And press [ENTER] button to return MENU. OK

- The menu screen is retrieved. Press AMP then ENTER.

See overleaf

Registering preset codes

14 Either of the screens below is displayed.

①

RemoteSetupGuide Selected code is not matched Please try other codes.

- The screen is displayed for 3 seconds, then the next preset registration screen is displayed automatically.

②

RemoteSetupGuide Sorry, your remote is not supported. This function can not be used for your device. Press [AMP] button. And press [ENTER] button to return MENU.

[It screen ① is displayed]

The device may be operating with the preset code displayed next.

The preset registration screen is displayed. Repeat steps 9 to 12.

【It screen ② is displayed】

The device cannot be controlled with the remote control unit supplied with this unit. Use the remote control unit supplied with the device to be used. The menu screen is retrieved. Press AMP then ENTER.

Some manufacturers use more than one type of remote control code. Preset codes to change the number and verify correct operation.

NOTE

Depending on the model and year of manufacture of your device, some buttons may not operate.

Operating devices

The supplied remote control unit can control a device other than this unit.

1 Press the input source select button to which the preset code for the device you want to operate has been registered (page 101).

2 Operate the device.

- For details, refer to the device's operating instructions.

☐Blu-ray Disc player / HD-DVD player / DVD player / DVD recorder operation

Operation buttons Function

CH+, - Switch channels (up/down)
MENU (Popup) (Menu
TOP MENU Top menu
△▽◀ ▷	Cursor operation
ENTER Enter
SETUP Setup
RETURN ↩	Return
◀◀ ▶▶▶	Manual search (fast-reverse/fast-forward)
▶	Playback
|◀◀ ▶▶▶|	Auto search (cue)
||	Pause
■	Stop
0-9,+10	Select title, chapter or channel selection
TV 1/◇	TV power on/standby (Default : SONY)
TV INPUT Switch TV input (Default : SONY)
ZONE/DEVICE I Power on*
ZONE/DEVICE ◊ Power standby*

* This may power some devices on/standby.

□CD player / CD recorder operation

Operation buttons	Function
ΔV◀>	Cursor operation
ENTER Enter
.	Manual search(‘fast-reverse/fast-forward’)
	Playback
	Auto search (cue)
	Pause
	Stop
	Track selection
	TV power on/standby (Default: SONY)
	Switch TV input. (Default: SONY)
Z	E1 Power on*
ZONE/DEVICE ◎	Power standby*

* This may power some devices on/standby.

See overleaf

Digital video recorder (DVR) / video cassette recorder (VCR) operation

Operation buttons	Function
CH +, - Switch channels (up/down)
MENU Menu
△▽◀▶	Cursor operation
ENTER Enter
SETUP Setup
RETURN ↙	Return
◀◀ ▶▶	Manual search (fast-reverse/fast-forward)
▶	Playback
I◀◀ ▶▶▶	Auto search (cue)
■	Pause
■	Stop
0 - 9, +10	Select title, chapter or channel selection
TV I/○	TV power on/standby (Default: SONY)
TV INPUT Switch TV input (Default: SONY)
ZONE/DEVICE I Power on*
ZONE/DEVICE ○ Power standby*

□TV operation

Operation buttons	Function
CH+, -Switch channels (up/down)
MENU Menu
△▽◀▶	Cursor operation
ENTER Enter
SETUP Setup
RETURN □	Return
	Manual search (fast-reverse/fast-forward)
▶	Playback
|◀◀▶▶|	Auto search (louel)
||	Pause
■	Stop
0-9,+10 Channel selection
TV 1/◇	TV power on/standby (Default: SONY)
TV INPUT Switch TV input (Default: SONY)
ZONE/DEVICE | Power on*
ZONE/DEVICE ◊ Power standby*
* This may power some devices on/standby.

Operating devices
☐ Set top box for satellite (SAT) / cable (CBL) / IP TV operation

* This may power some devices on/standby.
* This may power some devices on/standby.

Specifying the zone used with the main remote control unit

When the ZONE SELECT button is pressed, only the set zone can be operated with the remote control unit.

1 Press and hold ZONE/DEVICE for at least 3 seconds. The zone mode indicator flashes twice.
2 Press ZONE SELECT. The zone mode indicator flashes twice.
3 Press 1 – 3 to set. The zone mode indicator flashes twice. [Settable items] 1 When only using "MAIN ZONE" 2 When using "MAIN ZONE" / "ZONE2" 3 When using "MAIN ZONE" / "ZONE2" / "ZONE3" (Default)

Resetting the remote control unit

Settings for the remote control unit are returned to the default values.

1 Press and hold ZONE/DEVICE for at least 3 seconds. The zone mode indicator flashes twice.
2 Press 9, 8 and 1, in that order. M indicator flashes four times. All the settings are restored to their defaults.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 DENON

Information

Information

Here, we list various information related to this unit. Please refer to this information as needed.

● Part names and functions page 108
● Other information page 113
● Troubleshooting page 122
Specifications page 126
Index page 127

Part names and functions

Front panel

For buttons not explained here, see the page indicated in parentheses ().

DOLEY 2400 @duo Home HOMI 3D Multi Zone 1314161512 1110 DENOT Network METHO-PLUG 171819 ON TURBOY HAVA 120000000000000000000000000000000000000000000000000000000000000000000000000 7541321 9

① Power operation button (ON/STANDBY) ...... Turns power to this unit on and off (standby).
② Power indicator ③ Headphones jack (PHONES) When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

4 QUICK SELECT buttons (61, 69)
5 INTERNET RADIO (💡) button ...... (29)

6 PRESET CHANNEL buttons (1 - 3)....(30)
⑦ USB/iPod port ...... (10)
8 V.AUX INPUT connectors .... (9) Remove the cap covering the connectors when you want to use them.

⑨ SETUP MIC jack (15, 56)
⑩ MASTER VOLUME control knob....(21)
⑪ Master volume indicator

⑫ Display (109)
13 Remote control sensor (112)
⑭ Tuner preset channel buttons (TUNER PRESET CH +, -) ..... (27)
⑮ ZONE SELECT button 168.101
16 ZONE2 ON/OFF button (68)
⑰ Input source select buttons....(20, 68)
⑱ iPod play button (iPod ▶) (25)
19 STATUS button (81)

Display

dts HD Neo 6 (STEREO TUNED AUTO) MASTER | TrueHD | DIGITAL + | PL II HDMI RSTR AUTO HDMI DIGITAL SBACK AUDIOSEY MULTEQ DYN VOLEQ SLEEP MUTE 00.8 dB SP A B:22 PCM DIG ANAL 21345

① Decoder indicators

These light when the respective decoders are operating.

② Input signal indicators

③ Information display

The input source name, surround mode, setting values and other information are displayed here.

4 Front speaker indicator

This lights according to the setting of the front A and B speakers.

⑤ Multi-zone indicators

This lights up when ZONE2 (separate room) power is turned on (page 68).

6 Master volume indicator

⑦ Sleep timer indicator

This lights when the sleep mode is selected (1 page 59, 69).

⑧ MUTE indicator

This lights when the mute mode is selected (page 21).

⑨ Audyssey® indicators

Light up as follows, depending on the setting of "MultEQ ^ " (1 page 78), "Dynamic EQ ^ " (1 page 79) and "Dynamic Volume ^ " (1 page 79).

AUDYSSEY	When "MultEQ®", "Dynamic EQ®" and "Dynamic Volume®" are "ON".
MULTEQ
DYN VOL
AUDYSSEY	When "MultEQ®" and "Dynamic EQ®" are "ON" and "Dynamic Volume®" is "OFF".
MULTEQ
DYN EQ
AUDYSSEY	When "MultEQ®" is "ON" and "Dynamic EQ®" and "Dynamic Volume®" are "OFF".
MULTEQ

⑩ Surround back indicator

This lights when audio signals are being output from the surround back speakers (page 83).

⑪ Input mode indicators

Set the audio input modes for the different input sources (1 page 99).

⑫ RESTORER indicator

This lights when the RESTORER mode is selected (4 page 80).

⑬ HDMI indicator

This lights when playing using HDMI connections.

14 Tuner reception mode indicators

These light according to the reception conditions when the input source is set to "TUNER".

STEREO : In the FM mode, this lights up when receiving stereo broadcasts.

TUNED : Lights up when the broadcast is properly tuned in.

AUTO : Lights up when in the auto tuning mode.

Rear panel

See the page indicated in parentheses (1).

81041 DOX CONTROL ETHERMINT DIGITAL ASSEMBLED CONTROL/SAT/COL OPTICAL (TM) HDMI (ASSEMBLED) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 Class 2 Wiring

① FM/AM antenna terminals ..... (11)
② Analog audio connectors....(8.9.11)
③ PRE OUT connectors....(6, 51, 52, 53, 54, 55)
4 S-VIDEO/VIDEO connectors (8.9.10)
⑤ COMPONENT VIDEO connectors....(9)
⑥ Speaker terminals 6, 51, 52, 53, 54, 55

⑦ Power cord
⑧ HDMI connectors 3.7
9 Digital audio connectors (8.9)
⑩ ETHERNET connector ...... (12)
⑪ DOCK CONTROL jack (10)

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

Remote control unit

For buttons not explained here, see the page indicated in parentheses ( ).

SELECT ZONE STANDARD ON 19 20 M 22 23 BD 54CBL TV NETAS DVD VAUX DOCK TUNER GAME1 GAME2 DVD CD GARER SELECT FUSE1 PRET1 PRET1 + AMP CH - MENU ENTER SETUP RETURN SEARCH BAND MODE TUSUVE TUSUVE 1 2 3 MOVIE 4 5 6 MUSIC 7 8 9 GAME SHIFT 0 +10 DIRECT PARTY SLEEP I/O INPUT I DENON NC-116

① ZONE SELECT button ..... (68, 101)

② Zone mode indicators ..... (101)

③ Input source select buttons....(20, 68)

4 QUICK SELECT buttons (61, 69)

5 INTERNET RADIO button (29) ...... (29)

6 Preset channel buttons (PRESET 1 - 3)....(30)

⑦ AMP button....(101)

⑧ Channel buttons (CH +, -)……(26, 27, 30, 102, 104, 105)

⑨ Muting button (③) …… (21, 68)

⑩ MENU button....(75)

⑪ Cursor buttons (△▽◀▷) ..... (72, 73, 74, 75)

⑫ SEARCH button 122, 24, 27, 35, 74

13 System buttons ....(23, 25, 31, 32, 34, 36, 39, 41, 43, 104, 105)

- Search buttons (◄◄, ►►)

- Skip buttons (◀◀, ▶▶▶) - Play button (▶▶)

- Pause button

- Stop button (■)

Tuner system buttons....(27)

• FM/AM band switching button (BAND)

- Tuning mode button (MODE)

- Tuning up / Tuning down buttons (TUNING ▲▼)

14 Character buttons ..... (74)

⑮ MEMORY buttons (26, 30, 31)

16 Number buttons

126,30,102,103,104,105

⑰ SHIFT button (26, 30, 74)

18 TV operation buttons

(TV I / ⏻ / INPUT)....(104, 105)

19 Remote control signal transmitter ..... (112)

20 Power buttons (ON / STANDBY) ...... (5)

② SOURCE SELECT button ..... (20)

22 Master volume control buttons (1) ▲▼) ..... (21, 68)

23 Channel level button (CH LEVEL) ..... (60)

24 RETURN button (→) ..... (75)

25 ENTER button (72, 73, 74, 75)

26 Surround mode buttons....(44)

• MOVIE button

- MUSIC button

- GAME button

- DIRECT button

⑳ SLEEP button (59, 69)

28 PARTY button 163

29 ZONE/DEVICE power buttons (68, 104, 105)

NOTE

The DVR and PHONO buttons cannot be used.

See overleaf

Remote control unit

Inserting the batteries

① Slide the rear lid in the direction of the arrow and remove it.

② Load the two batteries properly as indicated by the marks in the battery compartment.

③ Put the rear cover back on.

NOTE

• Insert the specified batteries in the remote control unit.
• Replace the batteries with new ones if the set does not operate even when the remote control unit is operated close to the unit. (The supplied batteries are only for verifying operation.)
• When inserting the batteries, be sure to do so in the proper direction, following the and marks in the battery compartment.

• To prevent damage or leakage of battery fluid

• Do not use a new battery together with an old one.
• Do not use two different types of batteries.
• Do not attempt to charge dry batteries.
• Do not short-circuit, disassemble, heat or dispose of batteries in flames.
• Do not keep the battery in a place exposed to direct sunlight or in places with extremely high temperatures, such as near a heater.

- If the battery fluid should leak, carefully wipe the fluid off the inside of the battery compartment and insert new batteries.

- Remove the batteries from the remote control unit if it will not be in use for long periods.

- Used batteries should be disposed of in accordance with the local regulations regarding battery disposal.

- The remote control unit may function improperly if rechargeable batteries are used.

Operating range of the remote control unit

Point the remote control unit at the remote sensor when operating it.

Approx. 23 ft/7 m 30°-30°

NOTE

The set may function improperly or the remote control unit may not operate if the remote control sensor is exposed to direct sunlight, strong artificial light from an inverter type fluorescent lamp or infrared light.

Other information

□ Trademark information (page 113)
□ Surround (page 114)

☐ Relationship between video signals and monitor output (page 118)
Explanation of terms (page 119)

m = 311

Trademark information

This product uses the following technologies:

DOLBY

TRUEHD

PRO LOGIC IIz

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

dts-hd

Master Audio

Manufactured under license under U.S. Patent #s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

HDMI

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

AUDYSSEY

MULTEQ

DYNAMIC VOLUME

Manufactured under license from Audyssey Laboratories™. U.S. and foreign patents pending. Audyssey MultEO® is a registered trademark of Audyssey Laboratories. Audyssey Dynamic EO® is a registered trademark of Audyssey Laboratories. Audyssey Dynamic Volume® is a registered trademark of Audyssey Laboratories.

Made for

Pod

iF

hone

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone, may affect wireless performance.

AirPlay, the AirPlay logo, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc.

- Individual users are permitted to use iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch for private copy and playback of non-copyrighted contents and contents whose copy and playback is permitted by law. Copyright infringement is prohibited by law.

Plays

Windows

Media ^11

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Surround

This unit is equipped with a digital signal processing circuit that lets you play program sources in the surround mode to achieve the same sense of presence as in a movie theater.

Surround modes and surround parameters

This table shows the speakers that can be used in each surround mode and the surround parameters adjustable in each surround mode.

Symbols in the table

○ This indicates the audio output channels or surround parameters that can be set.
© This indicates the audio output channels. The output channels depend on the settings of "Speaker Config." (47 page B3).

*1 A signal for each channel contained in an input signal is output as audio.

*2 If "Surr.Parameter" - "PLIIz Height" (page 77) is set to "ON", sound is output from the front height speakers.

*3 Only when "Subwoofer Mode" is set to "LFE+Main" (page 3), sound is output from the subwoofer.

*4 If this surround mode is selected, only the "Height" mode setting is available for "Surr.Parameter" - "Mode" (page 78).

*5 This item can be selected when "Sum.Parameter" - "Mode" (page 70) is set to "Cinema".

*6 This item can be selected when "Sum.Parameter" - "Mode" (page 76) is set to "Cinema" or "Pro Logic".

*/ This item cannot be set when "Sum.Parameter" - "S.Back" 16 page 7/1 is set to "PLIIx Music".

*8 This item can be selected when a Dolby TrueHD signal is played.

*9 This item can be selected when a Dolby Digital or DTS signal is played.

*10 This item can be selected when a Dolby Digital or OTS signal or DVD-Audio is played.

*3 Only when "Subwoofer Mode" is set to "LFE+Main" (C:\page 8/4), sound is output from the subwoofer.
*11 This item can be selected when "Sum.Parameter" - "PLIIz Height" (29 page 77) is set to "ON"
*12 If "Speaker Config." - "F.Height" is set to "None", this item cannot be selected.
*13 This item can be selected when a Dolby Digital or DTS signal is played
*14 This item cannot be set when "Dynamic EQ 00" is page 791 is set to "ON".
*15 In this surround mode, base is +6 dB, and treble is +4 dB. (Default)
*16 This item cannot be set when "MultEQ®" (page 78) is set to "OFF" or "Manual".
*17 This item cannot be set when "Dynamic EO®" (page 79) is set to "OFF".
*18 This item can be set when the input signal is analog. PCM 48 kHz or 44.1 kHz.
*19 For HD Audio whose sampling frequency of an input signal is more than 96 kHz, this sound parameter cannot be set.

Surround

□ Types of input signals, and corresponding surround modes

This table shows the input signal that can be played in each surround mode. Check the audio signal of the input source then select the surround mode.

Symbols in the table

● This indicates the default surround mode.
© This indicates the surround mode that is fixed when "AFDM" (2-3 page 771 is set to "ON".
○ This indicates the selectable surround mode.

Surround mode (257 page 44)

NOTE

Input signal types and formats

ANALOG

PCM DTS-HD OXS DOULY DOULY DIGITAL

LINEAR PCM (with flag)

LINEAR PCM (2ch)

DTS-HD Master Audio

DTS-HD High Resolution Audio

DTS EXPRESS

DTS CS DSPORT (With Flag)

DTS CS MTRX (With Flag)

DTS (5.1ch)

DTS 86/24

DOULY TrueHD

DOULY DIGITAL Plus

DOULY DIGITAL EX (With Flag)

DOULY DIGITAL EX (With no Flag)

DOULY DIGITAL (5.1/5/3ch/3ch)

DTS SURROUND

●

DTS-HD NSTR

●

DTS-HD HI RES

DTS ES DISCRTE.1

*1*3●

DTS ES MTRX6.1

*1*3●○

DTS SURROUND

○○

●

DTS 96/24

●

DTS (-HD) + PLLIx CINEMA

*2*3

○

○

○

○

○

○

DTS (-HD) - PLLIx MUSIC

*1*3

○

○

○

○

○

○

DTS (-HD) + R II>

*4

○

○

○

○

○

○

○

DTS EXPRESS

●

DTS (-HD) + NLOG

*1*3○

○○○○

○

DTS NC0.6 CINEMA

○

○

○

DTS NC0.6 MUSIC

○

○

○

DOULY SURROUND

DOULY TrueHD

●

DOULY DIGITAL+

●

DOULY DIGITAL EX

*1*3

○

○

○

DOULY ID-(H)D)-EX

*1*3

○○

DOULY DIGITAL

○

●

●

DOULY ID-(H)-ID-(PLIIx CINEMA

*2*3

○

○

●○

○

○

DOULY ID-(H)-ID-(PLIIx MUSIC

*1*3

○

○

○

○

○

DOULY ID-(H)-ID-(PLIIz

*4

○

○

○

○

○

DOULY PRO LOGIC IIx CINEMA

*1*3

○

○

○

DOULY PRO LOGIC IIx MUSIC

*1*3

○

○

○

DOULY PRO LOGIC IIx GAME

*1*3

○

○

○

DOULY PRO LOGIC II>

*4

○

○

○

DOULY PRO LOGIC II CINEMA

○

○

○

DOULY PRO LOGIC II music

○

○

○

DOULY PRO LOGIC II GAME

○

○

○

DOULY PRO LOGIC

○

○

○

*1 If "Speaker Config." - "S.Back" (page 83) is set to "None", this surround mode cannot be selected.
*2 If "Speaker Config." - "S.Back" (page 83) is set to "1spkr" or "None", this surround mode cannot be selected.
*3 This surround mode can be selected when "Amp Assign" (8 page 83) is set to "NORMAL"

4 If "Speaker Config" - "F Height" [37 page 84] is set to "None", this surround mode cannot be selected

Surround

*1 If "Speaker Config." - "S.Back" (page 83) is set to "None", this surround mode cannot be selected.
*2 If "Speaker Config." - "S.Back" (page 83) is set to "1spkr" or "None", this surround mode cannot be selected.
*3 This surround mode can be selected when "Amp Assign" (page 83) is set to "NORMAL"
*4 If "Speaker Config." - "F.Height" (page 84) is set to "None", this surround mode cannot be selected.

Relationship between video signals and monitor output

Input connector Output connector Menu displayed
HDMI COMPONENT S-VIDEO VIDEO HDMI VIDEO HDMI VIDEO
× × × × ×						Only the menu is displayed	×
×	×	×	○	○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○△○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○●○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
×	×	○	×	○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
×	×	×	×	○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
×	○	×	×	○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
×	○	×	×	○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
×	×	×	×	○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
×	×	×	×	○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
×	×	×	×	○○○○○○○○○○○○○○○○○○○○○○○○○○○○
×	×	×	×	○○○○○○○○○○○○○○○○○○○○○○○○○○

○ Video signal input present
No video signal input
○<> The input signal between the <> marks is output.
No video signal output
○ ( ) Superimposed on the picture indicated in ( ).
× () Only the picture in ( ) is output.

The main zone video conversion function is compatible with the following formats: NTSC, PAL, SECAM, NTSC4.43, PAL-N, PAL-M and PAL-60.

NOTE

• If you operate the menu while playing back 3D video content or computer's resolution (e.g. VGA), the playback video is replaced by the menu screen. The playback video is not displayed behind the menu screen.
• This unit does not show the status display while playing back 3D video content or computer's resolution (e.g. VGA).

Explanation of terms

A

Adobe RGB color, Adobe YCC601 color

Like "x.v.Color", each of these color spaces defines a palette of available colors that is larger than the traditional RGB color model.

AirPlay

AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod touch to a compatible device via the network.

App Store

App Store is a site that sells application software for such devices as the iPhone or iPod touch, and is operated by Apple Inc.

Audyssey Dynamic EQ®

Dynamic EQ ^® solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Audyssey Dynamic EQ ^® works in tandem with Audyssey MultEQ ^® to provide well-balanced sound for every listener at any volume level.

Audyssey Dynamic Volume ^®

Dynamic Volume ^® solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Audyssey Dynamic EQ ^® is integrated into Dynamic Volume ^® so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same.

Audyssey MultEQ®

MultEQ ^® is a room equalization solution that calibrates any audio system so that it can achieve optimum performance for every listener in a large listening area. Based on several room measurements, MultEQ ^® calculates an equalization solution that corrects for both time and frequency response problems in the listening area and also performs a fully automated surround system setup.

Auto Lip Sync

If you connect the unit to a TV that supports the Auto Lip Sync function, it can automatically correct delay between the audio and video.

D

Deep Color

This technology allows expression of more number of colors than the conventional 8 bits and can reproduce colors close to natural ones without color streak.

DLNA

DLNA and DLNA CERTIFIED are trademarks and/or service marks of Digital Living Network Alliance. Some contents may not be compatible with other DLNA CERTIFIED™ products.

Dolby Digital

Dolby Digital is a multi-channel digital signal format developed by Dolby Laboratories.

A total of 5.1 channels are played: 3 front channels ("FL", "FR" and "C"), 2 surround channels ("SL" and "SR") and the "LFE" channel for low frequencies.

Because of this, there is no crosstalk between channels and a realistic sound field with a "three-dimensional" feeling (sense of distance, movement and positioning) is achieved.

A realistic, powerful sense of presence is achieved when playing movie sources in AV rooms as well.

Dolby Digital EX

Dolby Digital EX is a 6.1-channel surround format proposed by Dolby Laboratories that allows users to enjoy in their homes the "DOLBY DIGITAL SURROUND EX" audio format jointly developed by Dolby Laboratories and Lucas Films.

The 6.1 channels of sound, including surround back channels, provide improved sound positioning and expression of space.

Dolby Digital Plus

Dolby Digital Plus is an improved Dolby Digital signal format that is compatible with up to 7.1 channels of discrete digital sound and also improves sound quality thanks to extra data bit rate performance. It is upwardly compatible with conventional Dolby Digital, so it offers greater flexibility in response to the source signal and the conditions of the playback device.

Dolby Pro Logic II

Dolby Pro Logic II is a matrix decoding technology developed by Dolby Laboratories.

Regular music such as that on CDs is encoded into 5 channels to achieve an excellent surround effect. The surround channel signals are converted into stereo and full band signals (with a frequency response of 20 Hz to 20 kHz or greater) to create a "three-dimensional" sound image offering a rich sense of presence for all stereo sources.

Dolby Pro Logic IIx

Dolby Pro Logic IIx is a further improved version of the Dolby Pro Logic II matrix decoding technology. Audio signals recorded in 2 channels are decoded to achieve a natural sound with up to 7.1 channels. There are three modes: "Music" suited for playing music, "Cinema" suited for playing movies, and "Game" which is optimized for playing games.

Dolby Pro Logic IIz

Dolby Pro Logic Ilz introduces a new dimension to Home Entertainment through the addition of a pair of front height channels. Compatible with stereo, 5.1-channel and 7.1-channel content, Dolby Pro Logic Ilz provides enhanced spaciousness, depth and dimension to movies, concert video and video game playback while maintaining the full integrity of the source mix.

Dolby Pro Logic IIz identifies and decodes spatial cues that occur naturally in all content, directing this information to the front height channels, complementing the performance of left and right surround sound speakers. Content that is encoded with Dolby Pro Logic IIz height channel information can be even more revealing, with perceptually discrete height channel information bringing an exciting new dimension to home entertainment. Dolby Pro Logic IIz, with front height channels is also an ideal alternative for households that cannot support the placement of back surround speakers of a typical 7.1-channel system but may have bookshelf space available to support the addition of height speakers.

Dolby TrueHD

Dolby TrueHD is a high definition audio technology developed by Dolby Laboratories, using lossless coding technology to faithfully reproduce the sound of the studio master.

This format provides the facility to support up to 8 audio channels with a sampling frequency of 96kHz/24bit resolution and up to 6 audio channels with a sampling frequency of 192kHz/24bit resolution. Dolby TrueHD is adopted for applications that put very high importance on sound quality.

Downmix

This function converts the number of channels of surround audio to less number of channels and plays back.

DTS

This is an abbreviation of Digital Theater System, which is a digital audio system developed by DTS. When playing back audio by connecting this system with a device such as DTS amplifier, accurate sound field position and realistic sound effect as if you are in a movie theater can be obtained.

DTS 96/24

DTS 96/24 is a digital audio format enabling high sound quality playback in 5.1 channels with a sampling frequency of 96 kHz and 24 bit quantization on DVD-Video.

DTS Digital Surround

DTS Digital Surround is the standard digital surround format of DTS, Inc., compatible with a sampling frequency of 44.1 or 48 kHz and up to 5.1 channels of digital discrete surround sound.

DTS-ES™ Discrete 6.1

DTS-ESTM Discrete 6.1 is a 6.1-channel discrete digital audio format adding a surround back (SB) channel to the DTS digital surround sound.

Decoding of conventional 5.1-channel audio signals is also possible according to the decoder.

DTS-ES™ Matrix 6.1

DTS-ES™ Matrix 6.1 is a 6.1-channel discrete digital audio format inserting a surround back (SB) channel to the DTS digital surround sound through matrix encoding. Decoding of conventional 5.1-channel audio signals is also possible according to the decoder.

DTS Express

DTS Express is an audio format supporting low bit rates (max. 5.1 channels, 24 to 256 kbps).

DTS-HD

This audio technology provides higher sound quality and enhanced functionality than the conventional DTS and is adopted as an optional audio for Blu-ray Disc. This technology supports multi-channel, high data transfer speed, high sampling frequency, and lossless audio playback. Maximum 7.1-channels are supported in Blu-ray Disc.

Explanation of terms

DTS-HD High Resolution Audio

DTS-HD High Resolution Audio is an improved version of the conventional DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling frequencies of 96 or 48 kHz and up to 7.1 channels of discrete digital sound. High data bit rate performance provides high quality sound. This format is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.

DTS-HD Master Audio

DTS-HD Master Audio is a lossless audio format created by Digital Theater System (DTS). This format provides the facility to support up to 8 audio channels with a sampling frequency of 96kHz/24bit resolution and up to 6 audio channels with a sampling frequency of 192kHz/24bit resolution. It is fully compatible with conventional products, including conventional DTS digital surround 5.1-channel data.

DTS NEO:6 ^TM Surround

DTS NEO:6™ is a matrix decoding technology for achieving 6.1-channel surround playback with 2-channel sources. It includes "DTS NEO:6 Cinema" suited for playing movies and "DTS NEO:6 Music" suited for playing music.

Dynamic range

The difference between the maximum undistorted sound level and the minimum discernible level above the noise emitted by the device.

F

FLAC

FLAC stands for Free lossless Audio Codec, and is a lossless free audio file format. Lossless means that the audio is compressed without any loss in quality. The FLAC license is as shown below.

Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESSOR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

H

HDCP

When transmitting digital signals between devices, this copyright protection technology encrypts the signals to prevent content from being copied without authorization.

HDMI

This is an abbreviation of High-Definition Multimedia Interface, which is an AV digital interface that can be connected to a TV or amplifier. Video signal and audio signal can be connected using 1 cable.

1

iTunes

iTunes is the name of the multimedia player provided by Apple Inc. It enables management and playback of multimedia contents including music and movies. iTunes supports many main file formats including AAC, WAV, and MP3.

L

LFE

This is an abbreviation of Low Frequency Effect, which is an output channel that emphasizes low frequency effect sound. Surround audio is intensified by outputting 20 Hz to 120 Hz deep bass.

M

MAIN ZONE

The room where this unit is placed is called the MAIN ZONE.

MP3 (MPEG Audio Layer-3)

This is an internationally standardized audio data compression scheme, using the "MPEG-1" video compression standard. It compresses the data volume to about one eleventh its original size while maintaining sound audio levels as a music CD

MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4

These are the names for digital compression format standards used for the encoding of video and audio. Video standards include "MPEG-1 Video", "MPEG-2 Video", "MPEG-4 Visual", "MPEG-4 AVC". Audio standards include "MPEG-1 Audio", "MPEG-2 Audio", "MPEG-4 AAC".

P

Progressive (sequential scanning)

This is a scanning system of video signal that displays 1 frame of video as one image. Compared to the interlace system, this system provides images with less flickering and bleeding.

Protection Circuit

This is a function to prevent damage to devices within the power supply when an abnormality such as an overload, excess voltage occurs or temperature for any reason.

In this unit, the power indicator blinks and the unit enters standby mode when an abnormality occurs.

s

Sampling frequency

Sampling involves taking a reading of a sound wave (analog signal) at regular intervals and expressing the height of the wave at each reading in digitized format (producing a digital signal).

The number of readings taken in one second is called the "sampling frequency". The larger the value, the closer the reproduced sound is to the original.

Speaker impedance

This is an AC resistance value, indicated in (ohms). Greater power can be obtained with this value smaller.

sYCC601 color

Like "x.v.Color", each of these color spaces defines a palette of available colors that is larger than the traditional RGB color model.

V

vTuner

This is a free online content server for Internet radio. Note that usage fees are included in upgrade costs.

For inquiries about this service, visit the vTuner site below.

vTuner website: http://www.raciodenon.com

This product is protected by certain intellectual property rights of Nothing Else Matters Software and BridgeCo. Use or distribution of such technology outside of this product is prohibited without a license from Nothing Else Matters Software and BridgeCo or an authorized subsidiary.

Explanation of terms

w

x

Windows Media DRM

This is a copyright protection technology developed by Microsoft.

Content providers are using the digital rights management technology for Windows Media contained in this device (WM-DRM) to protect the integrity of their content (Secure Content) so that their intellectual property, including copyright, in such content is not misappropriated. This device uses WM-DRM software to play Secure Content (WM-DRM Software). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content (Secure Content Owners) may request that Microsoft revoke the WM-DRM Software's right to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM-DRM Software's ability to play unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation list onto your device on behalf of Secure Content Owners.

Windows Media Player Ver.11 or later

This is a media player distributed free of charge by Microsoft Corporation.

It can play playlists created with Ver.11 or later of Windows Media Player, as well as WMA, DRM WMA, WAV, and other files.

WMA (Windows Media Audio)

This is audio compression technology developed by Microsoft Corporation.

WMA data can be encoded using Windows Media® Player Ver.7, 7.1, Windows Media® Player for Windows® XP and Windows Media® Player 9 Series.

To encode WMA files, only use applications authorized by Microsoft Corporation. If you use an unauthorized application, the file may not work properly.

x.v.Color

This function lets HDTVs display colors more accurately. It enables display with natural, vivid colors. "x.v.Color" is a Sony registered trademark.

Z

ZONE2

This unit can operate in a room other than the room where this unit is placed (MAIN ZONE) (ZONE2 playback). The room for ZONE2 playback is called ZONE2.

Troubleshooting

If a problem should arise, first check the following:

1. Are the connections correct?

2. Is the set being operated as described in the owner's manual?

3. Are the other devices operating properly?

If this unit does not operate properly, check the items listed in the table below. Should the problem persist, there may be a malfunction.

In this case, disconnect the power immediately and contact your store of purchase.

[General]

Symptom Cause/Solution Page
Power does not turn on.	Check whether the power plug is correctly inserted into the power outlet.The protection circuit is active. Disconnect the power plug from the electric outlet, wait 5 to 10 seconds and then insert it back into the outlet.	120
Display is off.	Set "Dimmer" on the menu to something other than "OFF".	93
The power indicator is blinking red in intervals of approximately 2 seconds.	The temperature inside the unit has risen. Please turn off power once, and re-apply the power after the temperature has fallen sufficiently.Please re-install this unit in a place having good ventilation.	--
The power indicator is blinking red in intervals of approximately 0.5 seconds.	Please use speakers which have the specified impedance.The speaker cable has shorted its touching. Firmly twist the core wire in the speaker cable, and then re-connect it to the speaker terminal.	6.516
After turning on the power, the power indicator is blinking red in intervals of approximately 0.5 seconds.	This unit amplifier circuit has failed. Turn off the power and please contact the DENON service adviser.	-
Set does not operate properly.	Reset the microprocessor.	125

[HDMI]

Symptom Cause/Solution Page
No audio is output with HDMI connection.	Check the connection of the HDMI connectors.When outputting HDMI audio from the speakers, set "HDMI Audio Out" on the menu to "AMP".When outputting HDMI audio from a TV, set "HDMI Audio Out" on the menu to "TV".	78686
No video is output with HDMI connection.	Check the connection of the HDMI connectors.Set the input source to match the connected HDMI connector.Check whether the TV is compatible with copyright protection (HDCP). If connected to a device not compatible with HDCP, video will not be output correctly.	77.206
When the following operations are performed on devices compatible with HDMI control, the same operations occur on this unit.Power ON/OFFSwitching audio output devicesAdjust volumeSwitch input source	Set "HDMI Control" in the menu to "OFF".Furthermore, if you do not want to link the power off operation with devices compatible with HDMI control, set "P.Off Control" in the menu to "OFF".	58.86

[Video]

Symptom Cause/Solution Page
No picture appears.	Check the TV connection.Set the TV input correctly.

[Audio]

Symptom Cause/Solution Page
Audio is not output.	Check the connections for all devices.Check the speaker connections and configurations.Check whether the audio device power is turned on.Adjust the master volume.Cancel the mute mode.Select a suitable input source.Select a suitable input mode.Disconnect the headphones. No sound is output from the speakers or the PRE OUT connectors when headphones are connected.	3.7, 8, 9,10, 11, 126.83, 84-21, 6821, 6820, 6899108
No sound is produced from surround speaker.	Check if the surround speakers are connected to the SURROUND terminals.	-
No sound is produced from surround back speaker.	Check if "Amp Assign" is set appropriately in order to output audio from the surround back speakers.Set "Speaker Config." - "S.Back" on the menu to something other than "None".Set "Surr.Parameter" - "S.Back" on the menu to something other than "OFF".Set the surround mode to something other than "STEREO" and "VIRTUAL".	83837744
No sound is produced from front height speaker.	Set "Surr.Parameter" - "PUHz Height" on the menu to "ON".Check if "Amp Assign" is set appropriately in order to output audio from the front height speakers.Set "Speaker Config." - "F.Height" on the menu to something other than "None".	778384
No sound is produced from subwoofer.	Check the subwoofer connections.Turn on the subwoofer's power.Set "Speaker Config." - "Subwoofer" on the menu to "Yes".If "Front" and "Center" for "Speaker Config." are set to "Large", and "Subwoofer Mode" is set to "LFE", no sound may be output from the subwoofers, depending on the input signal or selected surround mode.	6.51, 62, 63,54, 55-8383, 84
DTS sound is not output.	Set "Decode Mode" on the menu to "Auto" or "DTS".	99
Dolby TrueHD, DTS-HD, Dolby Digital Plus audio is not output.	Make HDMI connections.	7

Symptom Cause/Solution Page
Dolby PLII mode or DTS NEO:6 mode cannot be selected.	• Check that "Speaker Config." - "Center" or "Surround" is set to other than "None". If the speaker system is 2.0/2.1ch, this surround mode cannot be selected.• When headphones are used, Dolby PLII or DTS NEO:6 cannot be selected.	83-
Audyssey MultEQ®, Audyssey Dynamic EQ® and Audyssey Dynamic Volume® cannot be selected.	• Switch the surround mode to other than "DIRECT" or "PURE DIRECT".• When headphones are used, MultEQ®, Dynamic EQ® and Dynamic Volumen® cannot be selected.	44-
Dynamic EQ® and Dynamic Volumen® cannot be selected.	• Make Audyssey® Auto Setup.	13.56
RESTORER cannot be selected.	• Check that an analog signal or PCM signal (fs=44.1/48 kHz) is input. For playback of multichannel signals such as Dolby Digital or DTS surround, RESTORER cannot be used.• Switch the surround mode to other than "DIRECT" or "PURE DIRECT".	8044

[Radio]

Symptom Cause/Solution Page
Reception fails, or there is a lot of noise or distortion.	Change the antenna orientation or position.Separate the AM loop antenna from the unit.Use an FM outdoor antenna.Separate the antenna from other connection cables.	11111111

[Control dock for iPod]

Symptom Cause/Solution Page
iPod cannot be played.	Check the iPod connections.Insert the AC adaptor of the iPod control dock into the power outlet.Switch the input source to "DOCK".	10-20

[Internet radio / Media server / iPod / USB memory device / Flickr / Napster / Pandora / Rhapsody]

Symptom Cause/Solution Page
When a USB memory device is connected, "USB" is not displayed on the menu.	The set cannot recognize a USB memory device. Check the connection.A USB memory device not conforming to mass storage class or MTP standards is connected. Connect a USB memory device conforming to mass storage class or MTP standards.A USB memory device that the set cannot recognize is connected. This is not a malfunction. DENON does not guarantee that all USB memory devices will operate or receive power.USB memory device is connected via USB hub. Connect the USB memory device directly to the USB port.	10----
Files on a USB memory device cannot be played.	USB memory device is in format other than FAT16 or FAT32. Set the format to FAT16 or FAT32. For details, refer to the USB memory device's operating instructionsUSB memory device is divided into multiple partitions. When divided into multiple partitions, only files stored in the top partition can be played.Files are stored in a non-compatible format. Record the files in a compatiole format.You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.	--------4242
The file names are not displayed properly (“...”, etc.I).	Characters that cannot be displayed are used. This is not a malfunction. On this unit, characters that cannot be displayed are replaced with a “..” (period).	-
Internet radio cannot be played.	Ethernet cable is not properly connected or network is disconnected. Check the connection status.Program is being broadcast in non-compatible format. Only Internet radio programs in MP3 and WMA can be played on this unit.The router's firewall is activated. Check the router's firewall settings.Radio station is not currently broadcasting. Choose a radio station that is currently broadcasting.IP address is wrong. Check the set's IP address.	1228--2991
Files stored on a computer cannot be played.	Files are stored in a non-compatible format. Record in a compatible format.You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.Set and computer are connected by USB cable. The set's USB port cannot be used for connection to a computer.	2828--
Server is not found, or it is not possible to connect to the server.	The computer's or router's firewall is activated. Check the computer's or router's firewall settings.Computer's power is not turned on. Turn on the power.Server is not running. Launch the server.Set's IP address is wrong. Check the set's IP address.	--------91

Symptom Cause/Solution Page
iPod cannot be played.	Some iPods do not support being used connected directly to the USB port.	10
Cannot connect to preset or favorite radio stations.	Radio station is not currently broadcasting. Wait a while before trying again.Radio station is not currently in service. It is not possible to connect to radio stations that are no longer in service.	--
For some radio stations, "Radio station server full" or "Connection down" is displayed and station cannot be connected to.	Station is congested or not currently broadcasting. Wait a while before trying again.	-
Sound is broken during playback.	Network's signal transfer speed is slow or communications lines or radio station is congested. This is not a malfunction. When playing broadcast data with a high bit rate, the sound may be broken, depending on the communications conditions.	-
Sound quality is poor or played sound is noisy.	File being played has a low bit rate. This is not a malfunction. -
Cannot login to Rhapsody. ("Incorrect Username or Password" is displayed.)	Login information is incorrect. Check if the Username for Rhapsody has been properly entered. Re-enter the Password. (Password is not displayed.)www.rhapsody.com/denon	40
Cannot compile Playlist.	This unit does not respond to playlist compilation. When the playlist is compiled in PC Application, it is registered to "My Library". In this way, the playlist can be played in this unit	-
Cannot delete Rhapsody Channel registered in "My Channels".	Cannot be done with this unit. Delete from PC Application. -
Cannot delete Tracks, Playlists, Channels registered in "My Library"	Cannot be done with this unit. Delete from PC Application. -
Cannot login to Napster. ("Incorrect Username or Password" is displayed.)	Login information is incorrect. Check if the Username for Napster has been properly entered. Re-enter the Password. (Password is not displayed.)http://www.napster.com/choose/index_default.html	29, 35, 91

See overleaf

Symptom Cause/Solution Page
Cannot login to Pandora. I"Email address" or "Password" is displayed.I	• Login information is incorrect. Check if the "Email address" for Pandora has been properly entered. Re-enter the "Password". (Password is not displayed.)http://www.pandora.com/denon	29.37

[AirPlay]

Symptom Cause/Solution Page
The AirPlay iconis not displayedin iTunes or on theiPhone/iPod touch/iPad.	This unit and the computer or iPhone/iPod touch/iPad are not connected to the same network (LAN). Connect the computer or iPhone/iPod touch to the same network as this unit.Tunes or the iPhone/iPod touch/iPad do not have firmware that supports AirPlay installed. Update to the latest firmware.	1293
No sound.	The volume in iTunes or on the iPhone/iPod touch/iPad is set to the minimum setting. Adjust the volume to the optimum level.This unit is not selected in the screen that is displayed when iTunes or the iPhone/iPod touch/iPad is started. Start iTunes or switch on the iPhone/iPod touch/iPad, click the AirPlay icon in the displayed screen, and select this unit.	-62

[Remote Control Unit]

Symptom Cause/Solution Page
The set cannot be operated with the remote control unit.	Batteries are worn out. Replace with new batteries.Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30^ .Remove any obstacle between this unit and the remote control unit.Insert the batteries in the proper direction, checking the and marks.The set's remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the remote control sensor will not be exposed to strong light.The ZONE SELECT setting is not correct. Press ZONE SELECT to select the zone to operate.The operation mode does not match the settings of the device to operate. Check the operation mode.	112112112112112101101

Resetting the microprocessor

Perform this procedure if the display is abnormal or if operations cannot be performed. When the microprocessor is reset, all the settings are reset to their default values.

ON/STANDBY PRESET CHANNEL 2 PRESET CHANNEL 3

1 Turn off the power using ON/STANDBY.

2 Press ON/STANDBY while simultaneously pressing PRESET CHANNEL 2 and PRESET CHANNEL 3.

3 Once the display starts flashing at intervals of about 1 second, release the two buttons.

If in step 3 the display does not flash at intervals of about 1 second, start over from step 1.

Specifications

□ Audio section

• Power amplifier

Rated output: Front

90 W + 90 W 18 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.

125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)

Center:

30 W 18 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.J

125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)

Surround:

90 W + 90 W 18 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.I

125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)

Surround back:

30 W + 30 W 18 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.I

125 W + 125 W (6 Ω, 1 kHz with 0.7 % T.H.D.)

Output connectors: 6 - 16 Ω

• Analog

Input sensitivity/Input impedance: 200 mV/47 kΩ

Frequency response: 10 Hz \~ 100 kHz \~ +1, -3 dB (DIRECT mode)

S/N: 100 dB (HF-A weighted, DIRECT mode)

Video section

• Standard video connectors

Input/output level and impedance: 1 Vp-p, 75 Ω

Frequency response: 5 Hz - 10 MHz — 0, -3 dB

□ Tuner section [FM] [AM]

Note: V at 75 Ω, 0 dBI = 1 x 10 ^12 W

Receiving Range: 87.5 MHz - 107.9 MHz 520 kHz - 1710 kHz

Usable Sensitivity: 1.2 μV (12.8 dB) 18 μV

50 dB Quieting Sensitivity: MONO 2.8 μV (20.2 dB)

S/N (IHF-A):

MONO 70 cB

STEREO 67 dB

MONO 0.7%

STEREO 1.0%

General

Power supply:

Power consumption:

AC 120 V, 60 Hz

460 W

0.1 W (Standby)

3 W (CEC standby)

Remote control unit (RC-1156)

Batteries:

Maximum external dimensions:

R6/AA Type (two batteries)

2-3/32" (W) × 0-13/16" (H) × 1-7/64" (D) (53 × 224 × 28 mm)

Weight:

5.6 oz (160 g, including batteries)

For purposes of improvement, specifications and design are subject to change without notice.

Index

Numerics

2.1 channel	54
2ch Direct/Stereo	87
3D	6
6.1-channel	50, 53
7.1-channel	49, 50, 51, 52

A

Accessories	1
Add New Feature	93
Adjust Channel	79
Adjusting the master volume	21
Adobe RGB color / Adobe YCC601 color	119
AFDM	77
AirPlay	62, 119
AM loop antenna	11
Amp Assign	83
App Store	119
ARC	6
Audio Adjust	75
Audio Delay	80
Audio Setup	87
Audyssey ^® Auto Setup	13, 56
Audyssey Dynamic EO ^®	79, 119
Audyssey Dynamic Volume ^®	79, 119
Audyssey Multi EO ^®	78, 119
Audyssey Settings	78
Auto Lip Sync	86, 119
Auto Preset	96
Auto Setup	13, 56
Auto Surround	87

B

Bass	78
Bass Setting	84
Bi-amp	55
Browse mode	22, 24

C

Cable
Audio cable	8, 9, 11
Coaxial digital cable	9
Component video cable	9
Ethernet cable	12
HDMI cable	7
Optical cable	8
Video cable	8, 9
Channel Level	60, 85
Characters	73
C. Image	76

Cinema EQ	76
Condensation	2
Connection
Antenna	11
Blu-ray Disc player	7, 8
Cable TV	9
CD player	11
Control dock for iPod	10
Digital camcorder	7, 9
DVD player	7, 8
Game console	7
HDMI	6
Home network (LAN)	12
iPod (USB)	10
Satellite tuner	9
Set-top box	7, 9
Speaker	51
TV	7, 8
USB memory device	10
Content Type	6
Crossover Freq.	85
Curve Copy	79
C.Width	76

D

D Comp	76
Decode Mode	99
Deep Color	6, 119
Delay Time	76
Dimension	76
Dimmer	93
Display	109
Distance	84
DLNA	119
Dolby
Dolby Digital	119
Dolby Digital EX	119
Dolby Digital Plus	119
Dolby Pro Logic II	119
Dolby Pro Logic IIX	119
Dolby Pro Logic IIZ	49, 119
Dolby TrueHD	119
Downmix	119
DRC	76
DTS	119
DTS 96/24	119
DTS Digital Surround	119
DTS-ES Discrete 6.1	119
DTS-ES Matrix 6.1	119
DTS Express	119
DTS-HD	119
DTS-HD High Resolution Audio	120
DTS-HD Master Audio	120

DTS NEO:6TM Surround	120
Dynamic EQ®	79
Dynamic range	120
Dynamic Volume®	79

E

Effect Level	76
EQ Customize	87
Error messages (Auto Setup)	18

F

Fador function	60
F. Height	84
Firmware Update	93
FLAC	120
Flick	29, 33
FM/AM	26
FM incoor antenna	11
Front A/B (connection)	50, 54
Front height speaker	49, 52
Front Panel	108
Front Sp Setup	85

G

GUI

92

H

HDCP	6, 120
HDMI	6, 120
HDMI 1.4a	6
HDMI Audio Out	86
HDMI Control	58, 86
HDMI Setup	86
Headphones	108
Height Gain	77

1

Information	81
Audio Signal	81
Auto Surround	81
HDMI Information	81
Preset Channel	81
Quick Select	81
Status	81
Input Assign	97
Input Mode	99
Input Setup	95
Input signal	116
Inputting characters	73
Interval	100
Pod PLAY	25
Tunes	120

L

Language	94
Lch Level	91
LFE	76, 120
Listening mode	44
Listening position	13

M

MAIN ZONE	120
Manual EQ	79
Master volume	92
Media controller	65
Menu map	70
Mode	76
MP3	120
MPEG	120
MultEQ®	78
Mute Level	91, 92

N

Napster	29, 35
Network Setup	19, 88
Napster Account	91
Network Connect	88
Network Info	91
Other	90
Rhapsody Account	91

0

Option Setup	92
Add New Feature	93
Dimmer	93
Firmware Update	93
GUI	92
Quick Sol.Name	93
Remote Setup Guide	93
Setup Lock	93
Source Delete	92
Volume Control	92
Zone Rename	93

P

Pandora 29,37
Panorama 76
Parameter Check 19
Party mode 63
Playback
Blu-ray Disc player 21
CD player 21
Direct 47
DVD player 21
Flickr 33
FM/AM 26
Internet radio 29
iPod (Control dock for iPod) 22
Pod (USB) 24
Media server 32
MP3 28,42
MPEG-4 AAC 28,42
Napster 35
Network audio 28
Pandora 37
Pure direct 47
Rhapsody 40
Stereo 47
USB memory device 42
WMA 28,42
ZONE2 68
Playback Mode (Control dock for iPod) 99
Playback Mode (NET/USBI) 100
PLIIz Height 77
P.Off Control 86
Power On Level 91,92
Preset codes 93,102
Preset Name 96
Preset Skip 96
Presetting radio stations 26
Progressive 120
Protection circuit 120

Q

Quick select 61,69

Quick Sel.Name 93

R

Random 100
Rch Level 91
Rear panel 110
Reference Offset 79
Remote control setting 14,56
Remote control unit 101, 111
Inserting the batteries.... 112
Operating AV devices 101
Operating devices 104
Registering Preset Codes 102
Remote mode 22, 24
Remote Setup Guide 93
Rename 99
Repeat 99,100
Resetting the microprocessor 125
RESTORER 80
Rhapsody 29,40
Room Size 76

S

Sampling frequency 120
S.Back 77,83
Screensaver 92
Selecting the input source 20
Setup Lock 93
Shuffle 99
Sleep timer 59,69
Slide Show 100
Source Delete 92
Source Level 99
Speaker
Connect 51
Install 49
Set up 13, 19, 56
Speaker Config. 83
Speaker impedance 120
Speaker Setup 83
Standby Source 86
Still Picture 100
Subwoofer....77
Subwoofer setting....14
Surround back speaker 50, 51, 53
Surround mode 44,114
Surr, Parameter 76
sYCC601 color 120
System Setup 82

T

Tone 78
Tone Control 78
Trademark 113
Treble 78
Troubleshooting 122
Turning off the sound temporarily....21

V

Video 98
Video conversion....4
Video Mode 98
Video Select 98
Volume Control 92
Volume Display 92
Volume Limit 91, 92
vTuner 120

W

Web control 66
Windows Media DRM 121
Windows Media Player Ver.11 121
WMA 121

X

x.v.Color 6,121

Z

ZONE2....68,109,121

ZONE2 Setup 91

Zone Management 64

Zone Rename 93

Dimensions

Unit : in. (mm)

55/64 (22.0) 13 21/64 (338.5) 15 3/64 (382.0) 27/32 (21.5)

Weight : 22 lbs 7.8 oz (10.2 kg)

17 1/8 (435.0) 5 25/32 (147.0) 6 3/8 (162.0) 19/32 (15.0)

DENON

www.denon.com

D&M Holdings Inc. 3520 10020 009D
