USER MANUAL WNR2200 NETGEAR

N300 Wireless Router with USB WNR2200 User Manual

White wireless router device with control panel and indicator lights (no visible text or symbols on body)

NETGEAR®

NETGEAR, Inc.

350 E. Plumeria Drive

San Jose, CA 95134 USA

202-10667-01

September 2010

v1.0

© 2010 by NETGEAR, Inc. All rights reserved.

Product Registration, Support, and Documentation

Register your product at http://www.NETGEAR.com/register. Registration is required before you can use our telephone support service. Product updates and Web support are always available by going to: http://www.netgear.com/support.

Setup documentation is available on the CD, on the support website, and on the documentation website. When the wireless router is connected to the Internet, click the Knowledgebase or the Documentation link under Web Support in the main menu to view support information.

Trademarks

NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of NETGEAR. Inc. in the United States and/or other countries. Microsoft, Windows, and Windows NT are registered trademarks and Windows Vista is a trademark of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Certificate of the Manufacturer/Importer

It is hereby certified that the N300 Wireless Router with USB WNR2200 has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions.

Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations.

Regulatory Compliance Information

This section includes user requirements for operating this product in accordance with National laws for usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority.

NOTE: This product's firmware limits operation to only the channels allowed in a particular Region or Country. Therefore, all options described in this user's guide may not be available in your version of the product.

Europe – EU Declaration of Conformity

Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards:

EN300 328, EN301 893, EN301 489-17, EN60950

A printed copy of the EU Declaration of Conformity certificate for this product is provided in the WNR2200 product package.

Europe – Declaration of Conformity in Languages of the European Community

Cesky [Czech]	NETGEAR Inc. tímto prohlašuje, že tento Radiolan je ve shode se základními požadavky a dalšími prislušnými ustanoveními smcrnice 1999/5/ES.
Dansk [Danish]	Undertegnede NETGEAR Inc. erklærer herved, at følgende udstyr Radiolan overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German]	Hiermit erklärt NETGEAR Inc., dass sich das Gerät Radiolan in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian]	Käesolevaga kinnitab NETGEAR Inc. seadme Radiolan vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English	Hereby, NETGEAR Inc., declares that this Radiolan is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español [Spanish]	Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek]	ME THN ΠΑΡΟΥΣΑ NETGEAR Inc. ΔΗΛΩΝΕΙ OTI Radiolan ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/EK.
Français [French]	Par la présente NETGEAR Inc. déclare que l'appareil Radiolan est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian]	Con la presente NETGEAR Inc. dichiara che questo Radiolan è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]	Ar šo NETGEAR Inc. deklarē, ka Radiolan atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citicm ar to saistītajícm notcikumícm.
Lictuvių [Lithuanian]	Šiuo NETGEAR Inc. deklaruoja, kad šis Radiolan atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch]	Hierbij verklaart NETGEAR Inc. dat het toestel Radiolan in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, NETGEAR Inc., jiddikjara li dan Radiolan jikkonforma mal-htigijiet essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian]	Alulírott, NETGEAR Inc. nyilatkozom, hogy a Radiolan megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak.
Polski [Polish]	Niniejszym NETGEAR Inc. oświadcza, że Radiolan jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]	NETGEAR Inc. declara que este Radiolan está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian]	NETGEAR Inc. izjavlja, da je ta Radiolan v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak]	NETGEAR Inc. týmto vyhlasuje, _e Radiolan splňa základné po_iadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]	NETGEAR Inc. vakuuttaa täten että Radiolan tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish]	Härmed intygar NETGEAR Inc. att denna Radiolan står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Íslenska [Icelandic]	Hér með lýsir NETGEAR Inc. yfir því að Radiolan er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Norsk [Norwegian]	NETGEAR Inc. erklærer herved at utstyret Radiolan er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.

FCC Requirements for Operation in the United States

FCC Information to User

This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals

FCC Guidelines for Human Exposure

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC Declaration Of Conformity

We NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the model WNR2200 N300 Wireless Router with USB WNR2200 complices with Part 15 of FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This product will be used for indoor operations.

This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user.

Industry Canada Statement

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. The device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

This Class B digital apparatus complies with Canadian ICES-003.

The Country Code Selection feature is disabled for products marketed in the United States and Canada.

Caution:

N300 Wireless Router with USB WNR2200

Tested to Comply

with FCC Standards

FOR HOME OR OFFICE USE

Modifications made to the product, unless expressly approved by NETGEAR, Inc., could void the user's right to operate the equipment.

Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications

Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate.

Product and Publication Details

Model Number: WNR2200

Publication Date: September 2010

Product Family: Wireless Router

Product Name: N300 Wireless Router with USB WNR2200

Home or Business Product: Home

Language: English

Publication Part Number: 202-10667-01

Contents

About This Manual

Conventions, Formats, and Scope ......xi

How to Print This Manual ....xii

Revision History ......xii

Chapter 1

Configuring Your Internet Connection

Using the Setup Manual 1-1

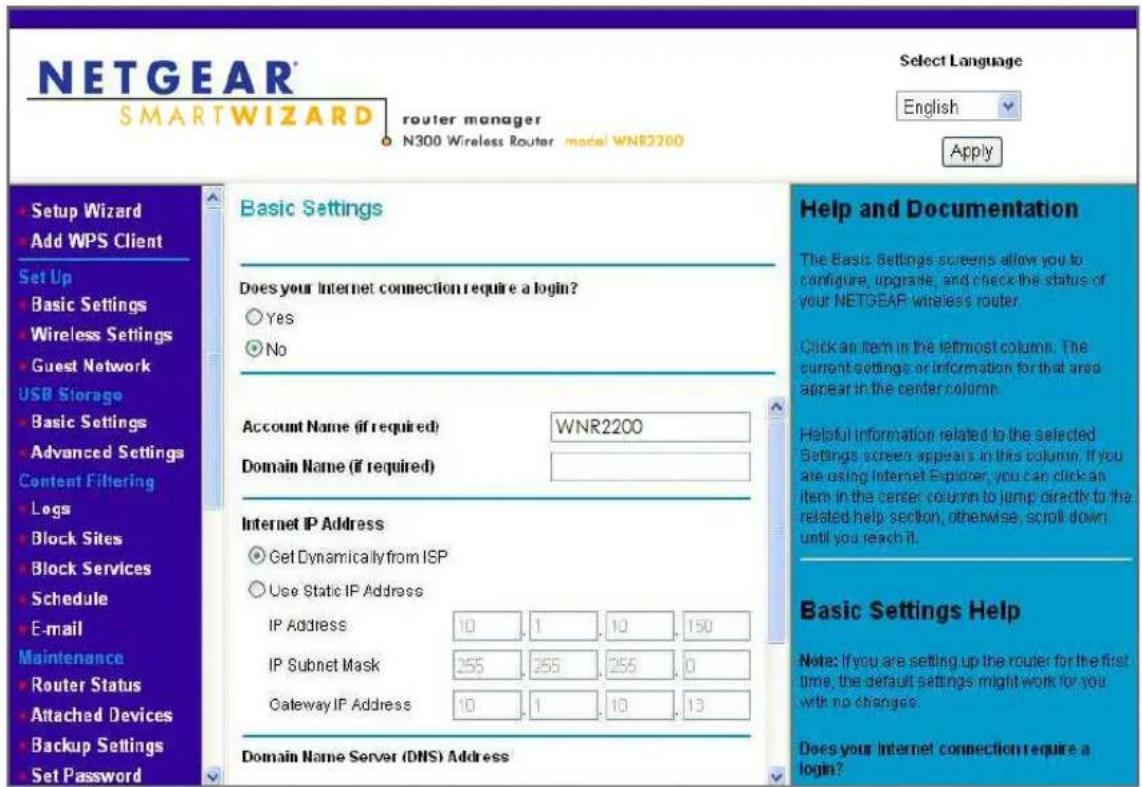

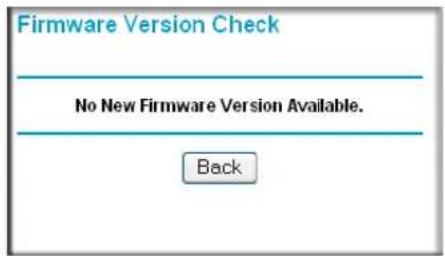

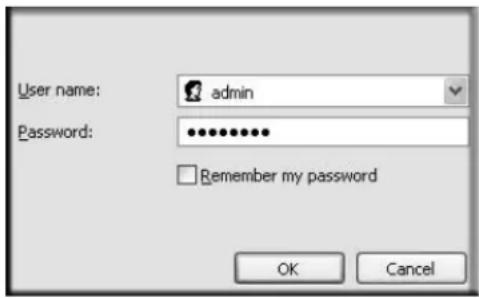

Logging In to Your Wireless Router 1-2

Selecting a Language for Your Screen Display 1-4

Using the Setup Wizard 1-6

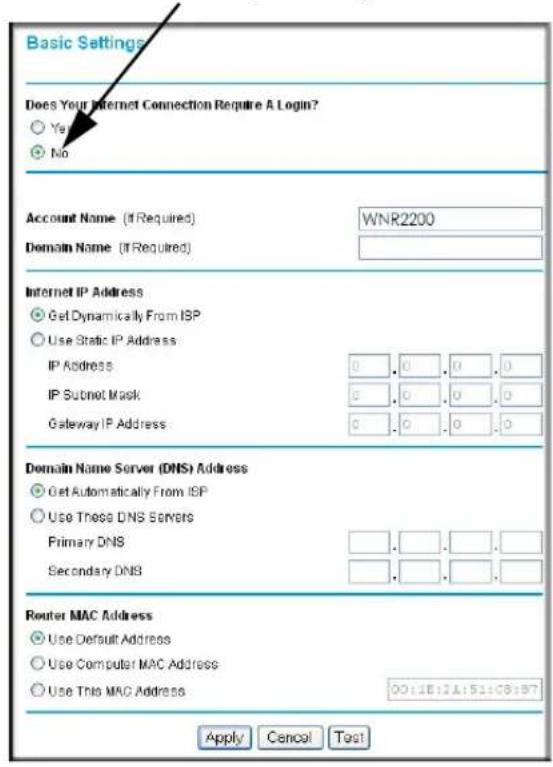

Viewing or Manually Configuring Your ISP Settings 1-6

Chapter 2

Safeguarding Your Network

Planning Your Wireless Network 2-1

Wireless Placement and Range Guidelines 2-2

Wireless Security Options 2-3

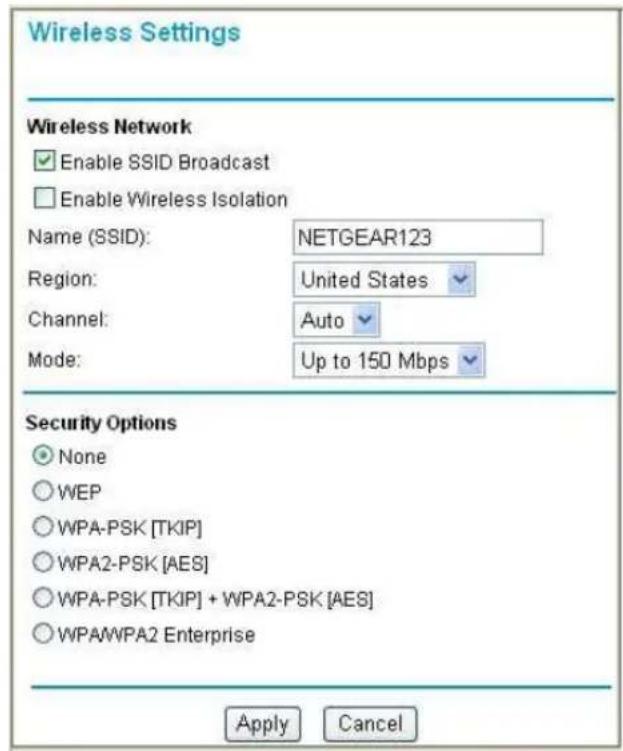

Manually Configuring Your Wireless Settings 2-4

Configuring WEP Wireless Security 2-8

Configuring WPA, WPA2, or WPA/WPA2 Wireless Security 2-10

Using Push 'N' Connect (WPS) to Configure Your Wireless Network ....2-12

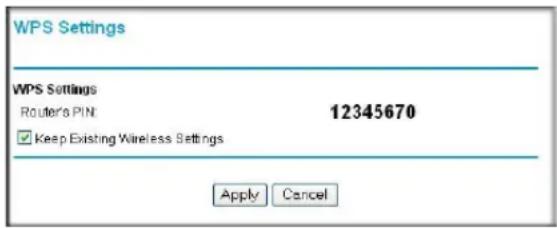

Using a WPS Button to Add a WPS Client 2-13

Using PIN Entry to Add a WPS Client 2-14

Configuring Advanced WPS Settings 2-16

Connecting Additional Wireless Client Devices After WPS Setup 2-17

Adding More WPS Clients 2-17

Adding Both WPS and Non-WPS Clients 2-17

Restricting Access to Your Router 2-19

Adding Guest Networks 2-20

Chapter 3

Protecting Your Network

Protecting Access to Your Wireless Router 3-1

Changing the Built-In Password 3-2

Restricting Access by MAC Address 3-2

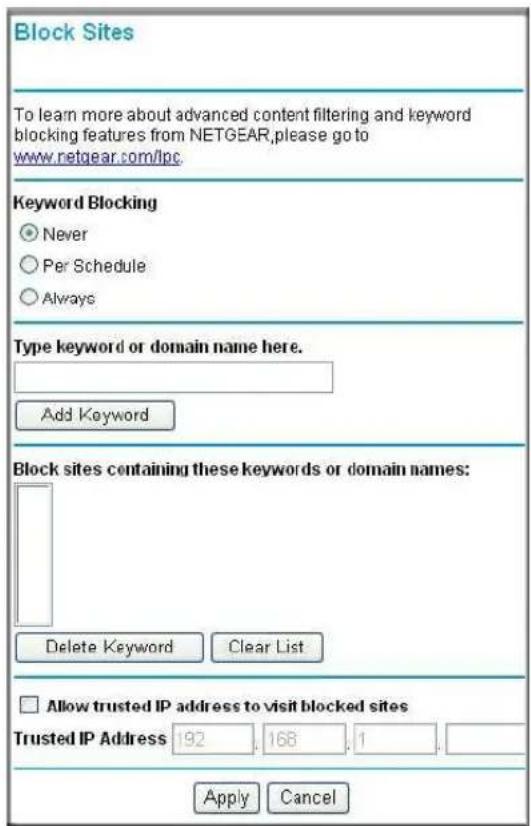

Blocking Access to Internet Sites 3-4

Blocking Access to Internet Services 3-6

Configuring a User-Defined Service 3-7

Scheduling Blocking 3-8

Configuring E-mail Alert and Web Access Log Notifications 3-9

Viewing Logs of Web Access or Attempted Web Access 3-10

Setting the Time ....3-11

Chapter 4

Using Network Monitoring Tools

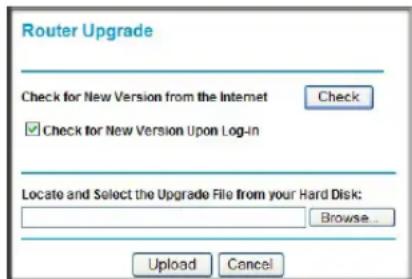

Upgrading the Router Firmware 4-1

Upgrading Automatically to New Router Software 4-3

Upgrading Manually to New Router Software 4-3

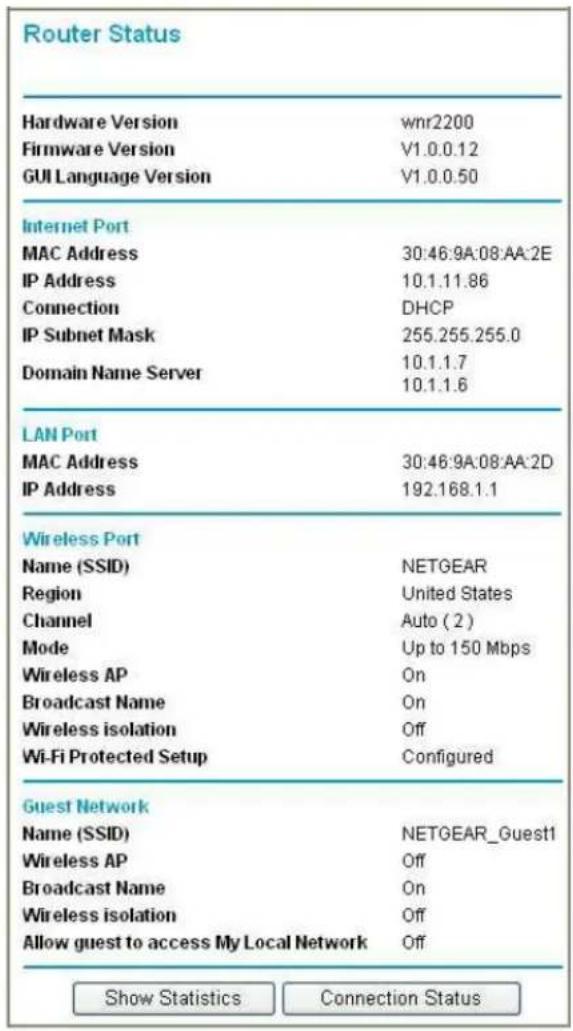

Viewing Wireless Router Status Information 4-5

Connection Status 4-7

Statistics 4-8

Viewing a List of Attached Devices 4-9

Managing the Configuration File 4-10

Backing Up and Restoring the Configuration 4-10

Erasing the Configuration 4-11

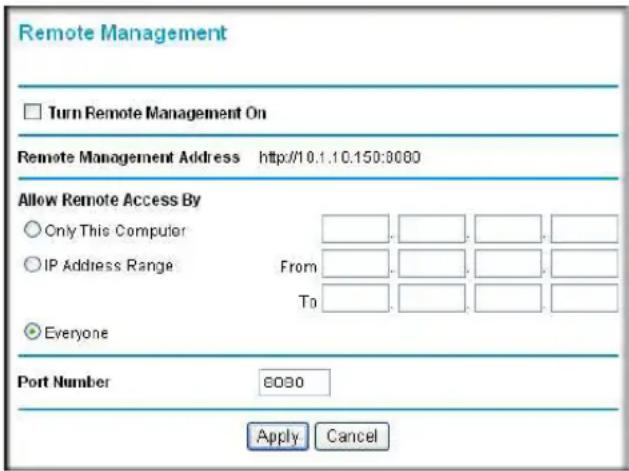

Enabling Remote Management Access 4-12

Traffic Meter 4-14

Chapter 5

Customizing Your Network Settings

Using the LAN Setup Options ....5-1

Using the Router as a DHCP Server 5-4

Address Reservation 5-4

Using a Dynamic DNS Service ....5-5

Configuring the WAN Setup Options 5-7

Setting Up a Default DMZ Server 5-8

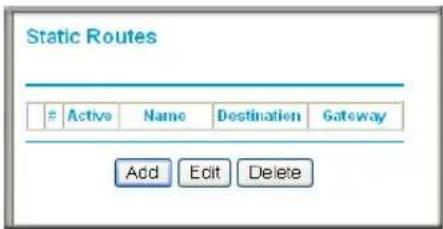

Configuring Static Routes 5-9

Allowing Inbound Connections to Your Network 5-11

How Your Computer Accesses a Remote Computer through Your Router .....5-11

How Port Triggering Changes the Communication Process ....5-13

How Port Forwarding Changes the Communication Process ....5-14

How Port Forwarding Differs from Port Triggering 5-15

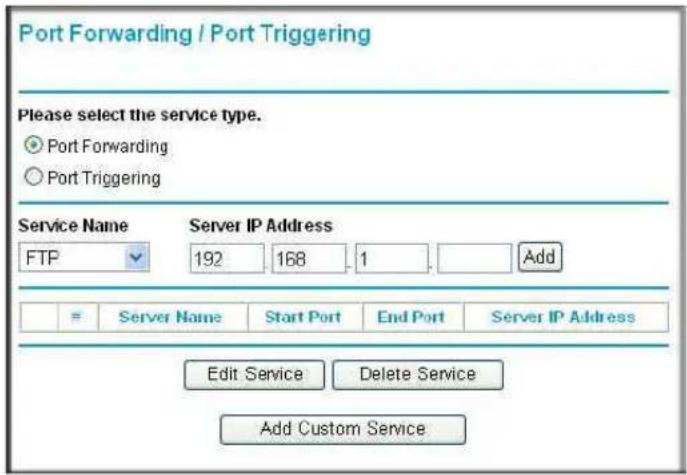

Configuring Port Forwarding to Local Servers 5-16

Adding a Custom Service 5-17

Editing or Deleting a Port Forwarding Entry 5-18

Configuring Port Triggering 5-18

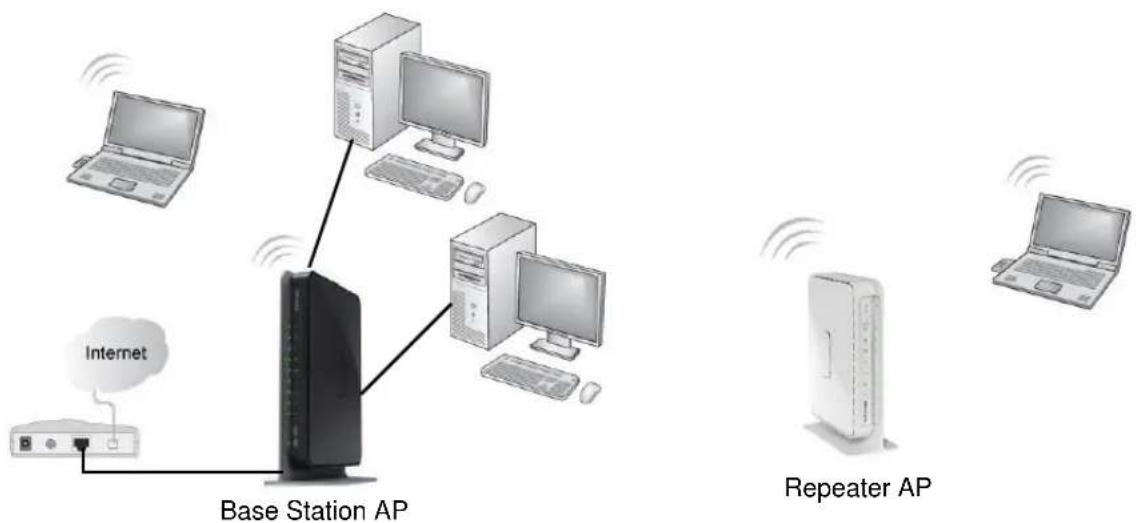

Wireless Repeating (Also Called WDS) 5-22

Wireless Repeating Function 5-23

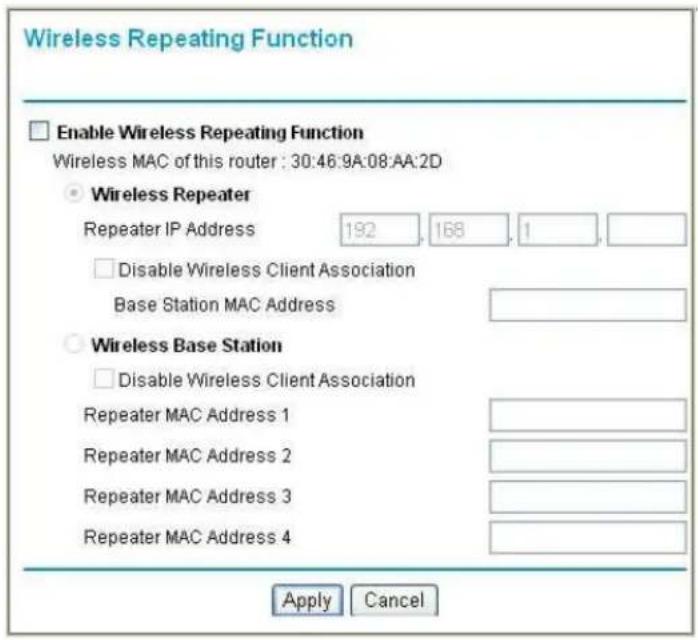

Setting Up the Base Station 5-24

Setting Up a Repeater Unit 5-25

Chapter 6

Fine-Tuning Your Network

Assessing Your Speed Requirements 6-2

Optimizing Your Network Bandwidth 6-3

Optimizing Wireless Performance 6-5

Changing the MTU Size 6-6

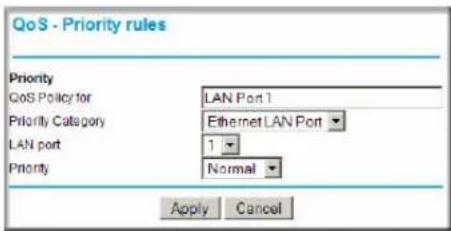

Quality of Service (QoS) 6-7

Using WMM QoS for Wireless Multimedia Applications 6-8

Configuring QoS for Internet Access 6-8

Universal Plug and Play 6-13

Chapter 7

USB Storage

USB Drive Requirements 7-1

File Sharing Scenarios 7-2

USB Storage Basic Settings 7-4

Editing a Network Folder 7-6

Configuring USB Storage Advanced Settings 7-7

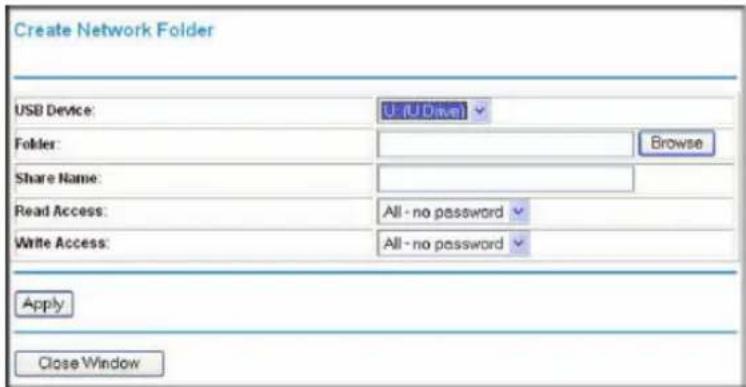

Creating a Network Folder 7-9

ReadyShare Access 7-10

Unmounting a USB Drive 7-10

Specifying Approved USB Devices 7-11

Connecting to the USB Drive from a Remote Computer 7-12

Locating the Internet Port IP Address 7-12

Accessing the Router's USB Drive Remotely Using FTP 7-12

Connecting to the USB Drive with Microsoft Network Settings 7-12

Enabling File and Printer Sharing 7-13

Chapter 8

Troubleshooting

Quick Tips 8-1

Troubleshooting Basic Functions 8-3

Cannot Access the Router Main Menu 8-4

Cannot Access the Internet 8-5

Troubleshooting a Network Using the Ping Utility 8-6

Testing the LAN Path to Your Router 8-7

Testing the Path from Your Computer to a Remote Device 8-8

Problems with Date and Time 8-8

Wireless Connectivity 8-9

Using Your Wireless Card Setup Program 8-9

Setting Up and Testing Basic Wireless Connectivity 8-10

Restoring the Default Configuration and Password 8-13

Appendix A

Default Configuration and

Technical Specifications

Restoring the Default Factory Configuration Settings ...... A-1

Technical Specifications ...... A-3

Appendix B

Related Documents

Index

About This Manual

The user manual provides information for configuring the features of the NETGEAR® N300 Wireless Router with USB WNR2200 beyond initial configuration settings. Initial configuration instructions can be found in the NETGEAR Wireless Router Setup Manual. You should have basic to intermediate computer and Internet skills.

Conventions, Formats, and Scope

The conventions, formats, and scope of this manual are described in the following paragraphs:

- Typographical conventions. This manual uses the following typographical conventions:

Italic Emphasis, books, CDs

Bold User input, IP addresses, GUI screen text

Fixed Command prompt, CLI text, code

Italic URL links

- Formats. This manual uses the following formats to highlight special messages:

	Note: This format is used to highlight information of importance or special interest.
	Tip: This format is used to highlight a procedure that will save time or resources.
	Warning: Ignoring this type of note might result in a malfunction or damage to the equipment, a breach of security, or a loss of data.

- Scope. This manual is written for the WNR2200 router according to these specifications:

Product Version N300 Wireless Router with USB WNR2200

Manual Publication Date September 2010

For more information about network, Internet, firewall, and VPN technologies, see the links to the NETGEAR website in Appendix B, “Related Documents.”

Note: Product updates are available on the NETGEAR, Inc. website at http://www.netgear.com/support.

How to Print This Manual

To print this manual, your computer must have the free Adobe Acrobat reader installed in order to view and print PDF files. The Acrobat reader is available on the Adobe Web site at http://www.adobe.com.

Tip: If your printer supports printing two pages on a single sheet of paper, you can save paper and printer ink by selecting this feature.

Revision History

NETGEAR, Inc. is constantly searching for ways to improve its products and documentation. The following table indicates any changes that might have been made since the WNR2200 router was introduced.

Table 1-1. Publication Revision History

Version Date Description
v1.0 September 2010 Original		publication.

Chapter 1

Configuring Your Internet Connection

This chapter describes how to configure your WNR2200 router Internet connection. When you install your wireless router using the Resource CD as described in the NETGEAR Router Setup Manual, these settings are configured automatically for you. This chapter provides instructions on how to log in to the wireless router for further configuration.

Note: NETGEAR recommends using the Smart Wizard™ on the Resource CD for initial configuration, as described in the NETGEAR Wireless Router Setup Manual.

This chapter includes:

• "Using the Setup Manual"
- “Logging In to Your Wireless Router” on page 1-2
- “Selecting a Language for Your Screen Display” on page 1-4
- “Using the Setup Wizard” on page 1-6
- “Viewing or Manually Configuring Your ISP Settings” on page 1-6

Using the Setup Manual

For first-time installation of your wireless router, refer to the NETGEAR Router Setup Manual. The Setup Manual explains how to launch the NETGEAR Smart Wizard on the Resource CD to step you through the procedure to connect your router, modem, and computers. The Smart Wizard will assist you in configuring your wireless settings and enabling wireless security for your network. After initial configuration using the Setup Manual, you can use the information in this Reference Manual to configure additional features of your wireless router.

For installation instructions in a language other than English, see the language options on the Resource CD.

Logging In to Your Wireless Router

You can log in to the wireless router to view or change its settings.

Note: Your computer must be configured for DHCP. For help with configuring DHCP, see the documentation that came with your computer or see the link to the online document in “Preparing Your Network” in Appendix B.

To log in to the wireless router:

1. Type http://www.routerlogin.net, or http://www.routerlogin.com, or the router's LAN IP address (default is 192.168.1.1) in the address field of your browser, and then press Enter. A login window displays:

User name: admin Password: ************ Remember my password OK Cancel

Figure 1-1

1. Enter admin for the router user name and your password (or the default, password). For information about how to change the password, see “Changing the Built-In Password” on page 3-2.

Note: The router user name and password are not the same as any other user name or password you might use to log in to your Internet connection.

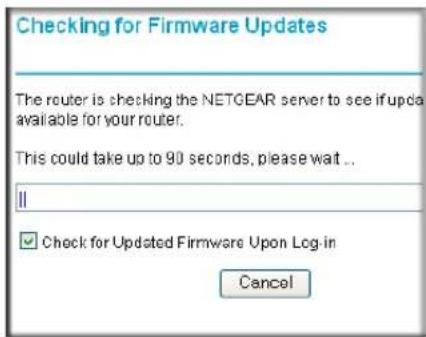

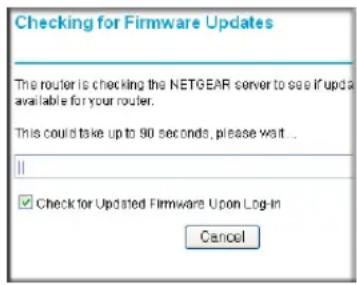

The Checking for Firmware Updates screen displays unless you previously cleared the Check for Updated Firmware Upon Log-in check box.

Checking for Firmware Updates The router is checking the NETGEAR server to see if upda available for your router. This could take up to 90 seconds, please wait ... // ✓ Check for Updated Firmware Upon Log-in Cancel

Figure 1-2

If the router discovers a newer version of the software, you are asked if you want to upgrade to the new software (see “Upgrading the Router Firmware” on page 4-1 for details). If no new firmware is available, the following message displays.

Firmware Version Check No New Firmware Version Available. Back

Figure 1-3

1. The Basic Settings screen displays showing the wireless router's settings.

NETGEAR® SMARTWIZARD router manager N300 Wireless Router model WNR2200 Select Language English Apply Setup Wizard Add WPS Client Set Up Basic Settings Wireless Settings Guest Network USB Storage Basic Settings Advanced Settings Content Filtering Legs Block Sites Block Services Schedule E-mail Maintenance Router Status Attached Devices Backup Settings Set Password Basic Settings Does your Internet connection require a login? Yes No Account Name (if required) WNR2200 Domain Name (if required) Internet IP Address Get Dynamically from ISP Use Static IP Address IP Address 10 1 10 150 IP Subnet Mask 255 255 255 0 Gateway IP Address 10 1 10 13 Domain Name Server (DNS) Address Help and Documentation The Basic Settings screens allow you to configure, upgrade, and check the status of your NETGEAR wireless router. Click an item in the setmost column. The current settings or information for that area appear in the center column. Helpful information related to the selected Settings screen appears in this column. If you are using Internet Explorer, you can click an item in the center column to jump directly to the related help section, otherwise, scroll down until you reach it. Basic Settings Help Note: If you are setting up the router for the first time, the default settings might work for you with no changes. Does your Internet connection require a login?

Figure 1-4

If the wireless router is connected to the Internet, you can click the Knowledge Base link or the Documentation link under Web Support to view support information or the documentation for the wireless router. If you do not click Logout, the wireless router waits for 5 minutes after no activity before it automatically logs you out.

Selecting a Language for Your Screen Display

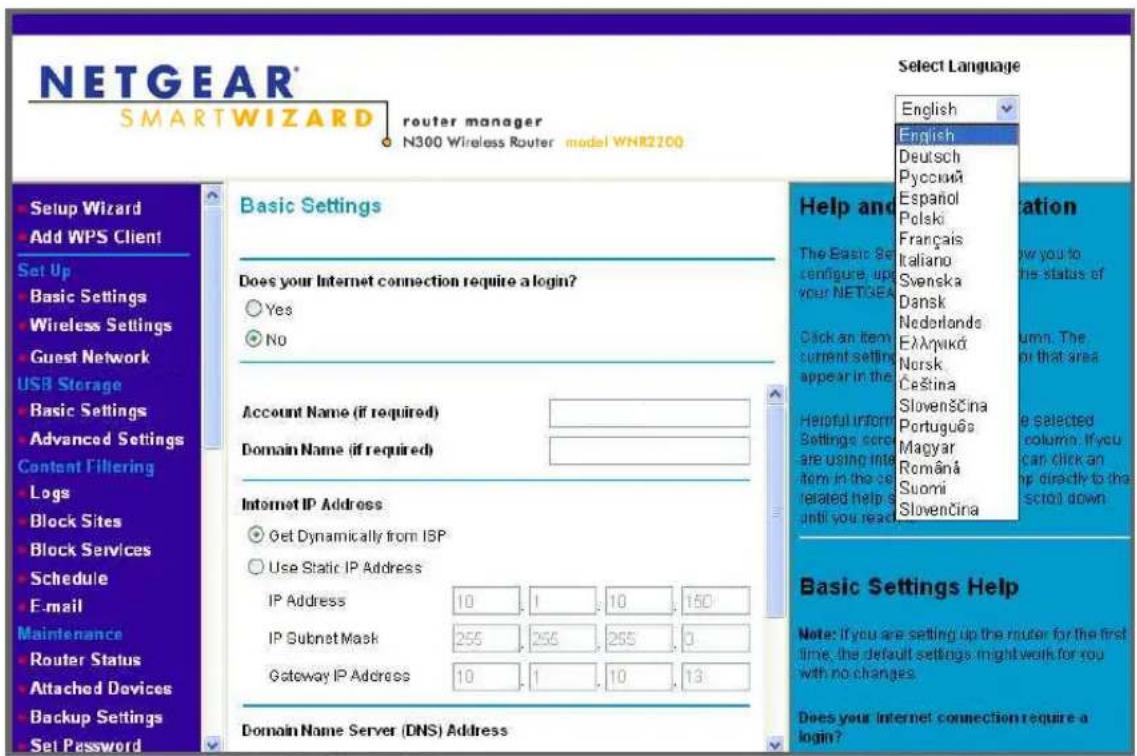

Using the Select Language drop-down menu, located in the upper right corner of the Router Manager screen, you can display the router manager screens in any of languages shown in Figure 1-5:

NETGEAR® SMARTWIZARD router manager N300 Wireless Router model WHR2200 Setup Wizard Add WPS Client Set Up Basic Settings Wireless Settings Guest Network USB Storage Basic Settings Advanced Settings Content Filtering Logs Block Sites Block Services Schedule E-mail Maintenance Router Status Attached Devices Backup Settings Set Password Basic Settings Does your Internet connection require a login? Yes No Account Name (if required) Domain Name (if required) Internet IP Address Get Dynamically from ISP Use Static IP Address IP Address 10 1 10 150 IP Subnet Mask 255 255 255 0 Gateway IP Address 10 1 10 13 Domain Name Server (DNS) Address Select Language English English Deutsch Русский Español Polski Français Italiano Svenska Dansk Nederlands Еллнукá Norsk Češina Slovenčina Português Magyar Româná Suomi Slovenčina Help and The Basic Set cendigure, up your NETGEAR Click an item to the status of current setting appear in the Helpful information. Settings are using Info item in the co- related help s until you read. Basic Settings Help Note: if you are setting up the router for the first time, the default settings might work for you with no changes. Does your internet connection require a login?

Figure 1-5

The language is set to English by default. The default language, as well as German, Spanish, and Portuguese are always stored in flash memory. When you select a language other than those automatically stored in flash memory, if you are connected to the Internet at the time you select it, that language is also stored in memory.

• If you are connected to the Internet and select a language that is not already stored in flash memory, the language is downloaded from the NETGEAR server and stored in the current language partition of flash memory.
• If you are not connected to the Internet when you select a language, you can only select as the current language one of the languages that is stored in flash memory.

To specify a language to be used on your router manager screens, do the following:

1. Expand the list and select the language you want.
2. Click Apply.

The language you select is then downloaded and displayed in the language selection box, and your screen display will be in the selected language.

Note: If you are not connected to the Internet and select a language that is not stored in flash memory, your selection may fail. If you see a “download fails” message after your language selection, make sure you are connected to the Internet and make your selection again.

Using the Setup Wizard

You can manually configure your Internet connection using the Basic Settings screen, or you can allow the Smart Setup Wizard to detect your Internet connection. The Smart Setup Wizard searches your Internet connection for servers and protocols to determine your ISP configuration.

This feature is not the same as the Smart Wizard on the Resource CD that is used for installation. To use the Smart Setup Wizard to assist with configuration or to verify the Internet connection settings, follow this procedure:

1. From the top of the main menu, select Setup Wizard.
2. Select Yes for the Auto-Detect Connection Type, and then click Next to proceed.
3. Enter your ISP settings, as needed.
4. At the end of the Setup Wizard, click Test to verify your Internet connection. If you have trouble connecting to the Internet, see Chapter 8, "Troubleshooting."

Viewing or Manually Configuring Your ISP Settings

To view or configure the basic settings:

1. Log in to the wireless router as described in “Logging In to Your Wireless Router” on page 1-2.
2. On the Basic Settings screen, select Yes or No depending on whether your ISP requires a login. This selection changes the fields available on the Basic Settings screen.
3. Yes. If your ISP requires a login, select the encapsulation method. Enter the login name. If you want to change the login time-out, enter a new value in minutes.

4. No. If your ISP does not require a login, enter the account name, if required, and the domain name, if required.

5. Enter the settings for the IP address and DNS server. If you enter or change a DNS address, restart the computers on your network so that these settings take effect.

6. If no login is required, you can specify the MAC Address setting.
7. Click Apply to save your settings.
8. Click Test to test your Internet connection. If the NETGEAR website does not appear within one minute, see Chapter 8, "Troubleshooting".

When your Internet connection is working, you do not need to launch the ISP's login program on your computer to access the Internet. When you start an Internet application, your wireless router automatically logs you in.

The fields that are displayed depend on whether or not your Internet connection requires a login.

ISP does not require login

Basic Settings Does Your Internet Connection Require A Login? Yes No Account Name (If Required) WNR2200 Domain Name (If Required) Internet IP Address Get Dynamically From ISP Use Static IP Address IP Address 0.0.0.0 IP Subnet Mask 0.0.0.0 Gateway IP Address 0.0.0.0 Domain Name Server (DNS) Address Get Automatically From ISP Use These DNS Servers Primary DNS Secondary DNS Router MAC Address Use Default Address Use Computer MAC Address Use This MAC Address 0011E12A151C8197 Apply Cancel Test

ISP does require login

Basic Settings Does your Internet connection require a login? Yes No Internet Service Provider Other Login guest Password Service Name (if required) Connection Mode Dial on Demand Idle Time out (in minutes) 5 Internet IP Address Got Dynamically from ISP Use Static IP Address IP Address 0 0 0 0 Domain Name Server (DNS) Address Got Automatically from ISP Use These DNS Servers Primary DNS Secondary DNS Apply Cancel Test

Figure 1-6

The following table explains the fields in the Basic Settings screen.

Table 1-1. Basic Settings screen fields

Settings Description
Does Your ISP Require a Login? • Yes		• No
These fields appear only if no login is required.	Account Name (If required)	Enter the account name provided by your ISP. This might also be called the host name.
	Domain Name (If required)	Enter the domain name provided by your ISP.
These fields appear only if your ISP requires a login.	Internet Service Provider	• PPTP (Point to Point Tunneling Protocol). This is used primarily in Austrian DSL services.• Telstra Bigpond. This setting is only for older cable modem service accounts that still require a Bigpond Login utility. Telstra has discontinued this type of account. Those with Telstra DSL accounts and newer cable modem accounts should select No for Does Your Internet Connection Require A Login?.• Other. This is the default setting. It is for PPPoE (Point to Point Protocol over Ethernet), the protocol used by most DSL services worldwide.
	Login The login name provided by your ISP. This is often an e-mail address.
	Password The password provided by your ISP.
	Service Name If your ISP provided a Service Name, enter it here.
	Connection Mode Specify when the router will connect to and disconnect from the Internet.• Always On. The router logs in to the Internet immediately after booting and never disconnects.• Dial on Demand. The router logs in only when outgoing traffic is present and logs out after the idle time-out.• Manually Connect. The router logs in or logs out only when you click Connect or Disconnect in the Router Status screen.
	Idle Timeout (In minutes) If you want to change the Internet login time-out, enter a new value in minutes. This determines how long the wireless router keeps the Internet connection active after there is no Internet activity from the LAN. Entering an Idle Timeout value of 0 (zero) means never log out.Internet IP Address• Get Dynamically from ISP. Your ISP uses DHCP to assign your IP address. Your ISP automatically assigns these addresses.• Use Static IP Address. Enter the IP address that your ISP assigned. Also enter the IP subnet mask and the gateway IP address. The gateway is the ISP's wireless router to which your wireless router will connect.
Domain Name Server (DNS) Address The D		DNS server is used to look up site addresses based on their names.• Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your ISP automatically assigns this address.• Use These DNS Servers. If you know that your ISP does not automatically transmit DNS addresses to the wireless router during login, select this option, and enter the IP address of your ISP's primary DNS server. If a secondary DNS server address is available, enter it also.
This field appears only if no login is required.	Router MAC Address The	Ethernet MAC address that will be used by the wireless router on the Internet port. Some ISPs register the Ethernet MAC address of the network interface card in your computer when your account is first opened. They will then accept traffic only from the MAC address of that computer. This feature allows your wireless router to masquerade as that computer by “cloning” its MAC address.• Use Default Address. Use the default MAC address of the router (normally the LAN MAC address).• Use Computer MAC Address. The wireless router will capture and use the MAC address of the computer that you are now using. You must be using the one computer that is allowed by the ISP.• Use This MAC Address. Enter the MAC address that you want to use.

Chapter 2

Safeguarding Your Network

For a wireless connection, the SSID, also called the wireless network name, and the wireless security setting must be the same for the wireless router and wireless computers or wireless adapters. NETGEAR strongly recommends that you use wireless security.

Warning: Computers can connect wirelessly at a range of several hundred feet. This can allow others outside of your immediate area to access your network.

This chapter includes:

• “Planning Your Wireless Network”
• “Manually Configuring Your Wireless Settings” on page 2-4
• “Using Push 'N' Connect (WPS) to Configure Your Wireless Network” on page 2-12
• “Connecting Additional Wireless Client Devices After WPS Setup” on page 2-17
• “Restricting Access to Your Router” on page 2-19

Note: For information about restricting access to USB storage devices, see “Configuring USB Storage Advanced Settings” on page 7-7.

Planning Your Wireless Network

For compliance and compatibility between similar products in your area, the operating channel and region must be set correctly.

To configure the wireless network, you can either specify the wireless settings, or you can use Wi-Fi Protected Setup (WPS) to automatically set the SSID and implement WPA/WPA2 security.

- To manually configure the wireless settings, you must know the following:

- SSID. The default SSID for the wireless router is NETGEAR.

• The wireless radio frequency (2.4GHz or 5GHz) that each wireless adapter supports.
• Wireless security option. To successfully implement wireless security, check each wireless adapter to determine which wireless security option it supports.

See “Manually Configuring Your Wireless Settings” on page 2-4.

- Push 'N' Connect (WPS) automatically implements wireless security on the wireless router while, at the same time, allowing you to automatically implement wireless security on any WPS-enabled devices (such as wireless computers and wireless adapter cards). You activate WPS by pressing a WPS button on the wireless router, clicking an onscreen WPS button, or entering a PIN number. This generates a new SSID and implements WPA/WPA2 security.

Note: NETGEAR's Push 'N' Connect feature is based on the Wi-Fi Protected Setup (WPS) standard (for more information, see http://www.wi-fi.org). All other Wi-Fi-certified and WPS-capable products should be compatible with NETGEAR products that implement Push 'N' Connect.

To set up your wireless network using the WPS feature:

• Use the WPS button on the side of the wireless router (there is also an onscreen WPS button), or enter the PIN of the wireless device.
• Make sure that all wireless computers and wireless adapters on the network are Wi-Fi certified and WPA or WPA 2 capable, and that they support WPS configuration.

See “Using Push 'N' Connect (WPS) to Configure Your Wireless Network” on page 2-12.

Wireless Placement and Range Guidelines

The range of your wireless connection can vary significantly based on the physical placement of the wireless router. The latency, data throughput performance, and notebook power consumption of wireless adapters also vary depending on your configuration choices.

For best results, place your wireless router according to the following guidelines:

• Near the center of the area in which your PCs will operate.
• In an elevated location such as a high shelf where the wirelessly connected PCs have line-of-sight access (even if through walls).
• Away from sources of interference, such as PCs, microwave ovens, and 2.4 GHz cordless phones.

• Away from large metal surfaces.

• Put the router in a vertical position to provide the best side-to-side coverage. Put the router in a horizontal position to provide the best up-and-down coverage.

• If using multiple access points, it is better if adjacent access points use different radio frequency channels to reduce interference. The recommended channel spacing between adjacent access points is 5 channels (for example, use Channels 1 and 6, or 6 and 11).

The time it takes to establish a wireless connection can vary depending on both your security settings and placement. WEP connections can take slightly longer to establish. Also, WEP encryption can consume more battery power on a notebook computer.

Wireless Security Options

Indoors, computers can connect over 802.11g wireless networks at a maximum range of up to 300 feet. Such distances can allow for others outside your immediate area to access your network.

Unlike wired network data, your wireless data transmissions can extend beyond your walls and can be received by anyone with a compatible adapter. For this reason, use the security features of your wireless equipment. The WNR2200 router provides highly effective security features which are covered in detail in this chapter. Deploy the security features appropriate to your needs.

There are several ways you can enhance the security of your wireless network:

Figure 2-1

• WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP Shared Key authentication and WEP data encryption block all but the most determined eavesdropper. This data encryption mode has been superseded by WPA-PSK and WPA2-PSK.
• WPA-PSK (TKIP), WPA2-PSK (AES). Wi-Fi Protected Access (WPA) using a pre-shared key to perform authentication and generate the initial data encryption keys. The very strong authentication along with dynamic per frame re-keying of WPA makes it virtually impossible to compromise.

For more information about wireless technology, see the link to the online document in “Wireless Networking Basics” in Appendix B.

Manually Configuring Your Wireless Settings

You can view or manually configure the wireless settings for the wireless router in the Wireless Settings screen. If you want to make changes, make sure to note the current settings first.

Note: If you use a wireless computer to change the wireless network name (SSID) or wireless security settings, you will be disconnected when you click Apply. To avoid this problem, use a computer with a wired connection to access the wireless router.

To view or manually configure the wireless settings:

1. Log in to the wireless router at its default LAN address of http://www.routerlogin.net with its default user name of admin, and default password of password, or using whatever password and LAN address you have chosen for the wireless router.

2. Select Wireless Settings from the main menu to display the Wireless Settings screen:

Wireless Settings Wireless Network Enable SSID Broadcast Enable Wireless Isolation Name (SSID): NETGEAR123 Region: United States Channel: Auto Mode: Up to 150 Mbps Security Options None WEP WPA-PSK [TKIP] WPA2-PSK [AES] WPA-PSK [TKIP] + WPA2-PSK [AES] WPAWPA2 Enterprise Apply Cancel

Figure 2-2

The settings for this screen are explained in Table 2-1 on page 2-6.

1. Select the region in which the wireless router will operate.
2. For initial configuration and test, leave the other settings unchanged.

3. To save your changes, click Apply.

4. Configure and test your computers for wireless connectivity.

Program the wireless adapter of your computers to have the same SSID and wireless security settings as your wireless router. Check that they have a wireless link and are able to obtain an IP address by DHCP from the wireless router. If there is interference, adjust the channel.

Table 2-1. Wireless Settings

Settings Description
Region Selection The location where the router is used. Select from the countries in the drop-down list. Note: In the US, the region is pre-selected as the United States.
Wireless Network Enable SSID Broadcast		The SSID of any wireless access adapter must match the SSID you configure in the wireless router. If they do not match, you will not get a wireless connection to the wireless router. Clear this check box to disable broadcast of the SSID, so that only devices that know the correct SSID can connect. Disabling SSID broadcast nullifies the wireless network discovery feature of some products such as Windows XP.
	Name (SSID) This is the wireless network name. Enter a 32-character (maximum) name in this field. This field is case-sensitive. In a setting where there is more than one wireless network, different wireless network names provide a means for separating the traffic. Any device that you want to participate in a wireless network must use the SSID.
	Channel The wire less channel fields determine the operating frequency used for the 11N or 11G wireless networks. Do not change the wireless channel unless you experience interference (shown by lost connections or slow data transfers). If this happens, you might need to experiment with different channels to see which is the best.
	Mode Specify the wireless mode to be used. The options are: • Up to 54 Mbps. Legacy mode, using a maximum speed of up to 54 Mbps for b/g networks. • Up to 150 Mbps. Neighbor friendly mode, for reduced interference with neighboring wireless networks. Provides two transmission streams with different data on the same channel at the same time, but also allows 802.11b and 802.11g wireless devices. This is the default value for the 2.4 GHz b/g/n wireless network. • Up to 300 Mbps. Performance mode, using a maximum Wireless-N speed of up to 300 Mbps.
Security Options	None. You can use this setting to establish wireless connectivity before implementing wireless security. NETGEAR strongly recommends that you implement wireless security.WEP (Wired Equivalent Privacy). This option is only available for “Up to 54 Mbps” wireless mode. For other wireless modes, this option is disabled. Use encryption keys and data encryption for data security. Select 64-bit or 128-bit encryption. See“Configuring WEP Wireless Security.” When you select this option, these additional areas appear on your screen:Security Encryption (WEP). Select the Authentication Type (Automatic or Shared Key) and the Encryption Strength (64 bit or 128 bit).Security Encryption (WEP) Key. Enter the Passphrase, select a key, and click Generate.WPA-PSK [TKIP] (WiFi Protected Access Pre-Shared Key). This option is only available for “Up to 54 Mbps” wireless mode. For other wireless modes, this option is disabled. Allow only computers configured with WPA to connect to the wireless router. When you select this option, this additional area appears on your screen:Security Options (WPA-PSK). Enter the WPAPassphrase (Network key). The passphrase must be between 8 and 63 ASCII characters or exactly 64 hex digits.WPA2-PSK [AES] (Wi-Fi Protected Access with 2 Pre-Shared Keys). Allow only computers configured with WPA2 to connect to the wireless router. When you select this option, this additional area appears on your screen:Security Options (WPA2-PSK). Enter the WPAPassphrase (Network key). The passphrase must be between 8 and 63 ASCII characters or exactly 64 hex digits.WPA-PSK [TKIP] + WPA2-PSK [AES]. Allow computers configured with either WPA-PSK or WPA2-PSK security to connect to the wireless router. When you select this option, this additional area appears on your screen:Security Options (WPA-PSK + WPA2-PSK). Enter the WPA passphrase (Network key). The passphrase must be between 8 and 63 ASCII characters or exactly 64 hex digits.WPA/WPA2 Enterprise. Allow computers configured with either WPA-PSK or WPA2-PSK security to connect to the wireless router. When you select this option, this additional area appears on your screen:Security Options (WPA/WPA2 Enterprise)WPA Mode. Select the WPA Mode from the drop-down list (WPA [TKIP], WPA2 [AES], or WPA [TKIP + WPA2 [AES]).RADIUS server IP Address. Enter the IP address of the RADIUS server.RADIUS server Port. The RADIUS server port number is listed in this field.RADIUS server Shared Secret. Enter the Shared Secret.

Configuring WEP Wireless Security

Note: WEP security is only available when you select Up to 54 Mbps on the Wireless Settings screen.

Note: If you use a wireless computer to configure wireless security settings, you will be disconnected when you click Apply. Reconfigure your wireless computer to match the new settings, or access the wireless router from a wired computer to make further changes.

To configure WEP data encryption:

1. Log in to the wireless router at its default LAN address of http://www.routerlogin.net with its default user name of admin, and default password of password, or using whatever password and LAN address you have chosen for the wireless router.

2. From the main menu, select Wireless Settings to display the Wireless Settings screen. Set the Security Options by selecting the WEP radio button in the Security Options section:

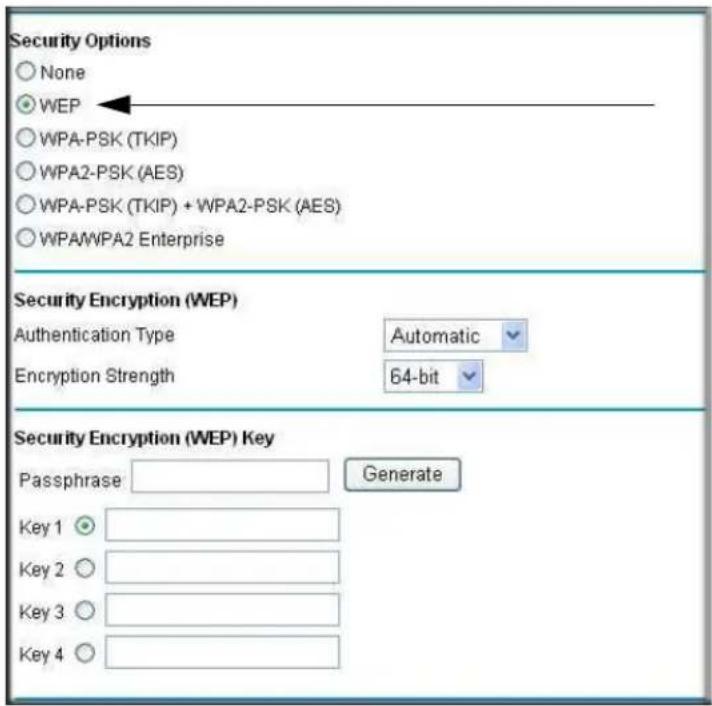

Security Options None WEP WPA-PSK (TKIP) WPA2-PSK (AES) WPA-PSK (TKIP) + WPA2-PSK (AES) WPA/WPA2 Enterprise Security Encryption (WEP) Authentication Type Automatic Encryption Strength 64-bit Security Encryption (WEP) Key Passphrase Generate Key 1 Key 2 Key 3 Key 4

Figure 2-3

1. Select the Authentication Type: Automatic or Shared Key.

Note: The authentication scheme is separate from the data encryption. You can select an automatic authentication scheme, which may not run authentication, but still leaves the data transmissions encrypted. If you require strong security, use both the Shared Key and WEP encryption settings.

1. Select the Encryption Strength setting:

2. WEP 64-bit encryption. Enter 10 hexadecimal digits (any combination of 0–9, a–f, or A–F).

3. WEP 128-bit encryption. Enter 26 hexadecimal digits (any combination of 0–9, a–f, or A–F).

4. Enter the encryption keys. You can manually or automatically program the four data encryption keys. These values must be identical on all computers and access points in your network:

- Passphrase. To use a passphrase to generate the keys, enter a passphrase, and click Generate. This automatically creates the keys. Wireless stations must use the passphrase or keys to access the wireless router.

Note: Not all wireless adapters support passphrase key generation.

- Key 1 – Key 4. These values are not case-sensitive. You can manually enter the four data encryption keys. These values must be identical on all computers and access points in your network. Enter 10 hexadecimal digits (any combination of 0–9, a–f, or A–F).

1. Select which of the four keys will be the default.

Data transmissions are always encrypted using the default key. The other keys can be used only to decrypt received data. The four entries are disabled if WPA-PSK or WPA authentication is selected.

1. Click Apply to save your settings.

Configuring WPA, WPA2, or WPA/WPA2 Wireless Security

To set up wireless security, you can either manually configure it in the Wireless Settings screen, or you can use Wi-Fi Protected Setup (WPS) to automatically set the SSID and implement WPA/WPA2 security (see "Using Push 'N' Connect (WPS) to Configure Your Wireless Network" on page 2-12.

Both WPA and WPA2 provide strong data security. WPA with TKIP is a software implementation that can be used on Windows systems with Service Pack 2 or later. NETGEAR recommends using WPA2 with AES, which provides the strongest security. WPA2 with AES is a hardware implementation; see your device documentation before implementing it. Consult the product documentation for your wireless adapter for instructions for configuring WPA settings.

Note: If you use a wireless computer to configure wireless security settings, you will be disconnected when you click Apply. If this happens, reconfigure your wireless computer to match the new settings, or access the wireless router from a wired computer to make further changes.

To configure WPA or WPA2 in the wireless router:

1. Log in to the wireless router at its default LAN address of http://www.routerlogin.net with its default user name of admin and default password of password, or using whatever password and LAN address you have chosen for the wireless router.

2. Select Wireless Settings from the main menu.

3. On the Wireless Setting screen, select the radio button for the WPA or WPA2 option of your choice.

Wireless Network Enable SSID Broadcast Enable Wireless Isolation Name (SSID): NETGEAR123 Region: United States Channel: Auto Mode: Up to 150 Mbps Security Options None WEP WPA-PSK [TKIP] WPA2-PSK [AES] WPA-PSK [TKIP] + WPA2-PSK [AES] WPA/WPA2 Enterprise Security Options (WPA2-PSK) Passphrase: (8-63 characters or 64 hex digits) Apply Cancel

Figure 2-4

1. The settings displayed on the screen depend on which security option you select.

2. For WPA-PSK or WPA2-PSK, enter the passphrase.

3. For WPA/WPA2 Enterprise, enter the settings for the Radius server. For WPA-802.1x or WPA2-802.1x, these settings are required for communication with the primary Radius server.

4. WPA Mode. Select WPA [TKIP], WPA2 [AES], or WPA [TKIP] + WPA2 [AES].

5. RADIUS Server IP Address. The IP address of the Radius server. The default is 0.0.0.0
   • RADIUS Server Port. Port number of the Radius server. The default is 1812.

6. RADIUS Server Shared Secret. This shared key is shared between the wireless access point and the Radius server during authentication.

7. To save your settings, click Apply.

Using Push 'N' Connect (WPS) to Configure Your Wireless Network

If your wireless clients support Wi-Fi Protected Setup (WPS), you can use this feature to configure the wireless router's SSID and security settings and, at the same time, connect the wireless client securely and easily to the wireless router. Look for the symbol on your client device (computers that will connect wirelessly to the wireless router are clients). WPS automatically configures the network name (SSID) and wireless security settings for the wireless router (if the wireless router is in its default state) and broadcasts these settings to the wireless client.

Note: NETGEAR's Push 'N' Connect feature is based on the Wi-Fi Protected Setup (WPS) standard (for more information, see http://www.wi-fi.org). All other Wi-Fi-certified and WPS-capable products should be compatible with NETGEAR products that implement Push 'N' Connect.

Some considerations regarding WPS are:

- WPS supports these types of wireless security: None, WPA-PSK, WPA2-PSK, and WEP (with the authentication type set to Automatic on the Wireless Settings screen). WEP security with shared key authentication is not supported by WPS.

- If your wireless network will include a combination of WPS capable devices and non-WPS capable devices, NETGEAR suggests that you set up your wireless network and security settings manually first, and use WPS only for adding additional WPS capable devices. See “Adding Both WPS and Non-WPS Clients” on page 2-17.

A WPS client can be added using the Push Button method or the PIN method.

• Using the Push Button. This is the preferred method. See the following section, “Using a WPS Button to Add a WPS Client” on page 2-13.
• Entering a PIN. For information about using the PIN method, see “Using PIN Entry to Add a WPS Client” on page 2-14.

Using a WPS Button to Add a WPS Client

Any wireless computer or wireless adapter that will connect to the wireless router wirelessly is a client. The client must support a WPS button, and must have a WPS configuration utility, such as the NETGEAR Smart Wizard or Atheros Jumpstart.

To use the wireless router WPS button to add a WPS client:

1. Log in to the wireless router at its default LAN address of http://www.routerlogin.net with its default user name of admin and default password of password, or using whatever LAN address and password you have set up.
2. On the wireless router main menu, select Add a WPS Client, and then click Next. The following screen displays:

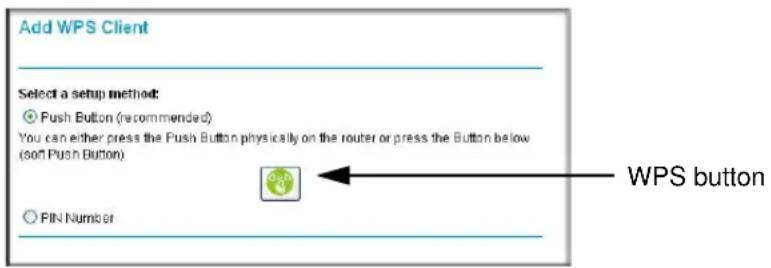

Add WPS Client Select a setup method: ● Push Button (recommended) You can either press the Push Button physically on the router or press the Button below (soft Push Button) ○ PIN Number WPS button

Figure 2-5

By default, the Push Button (recommended) radio button is selected.

1. Either press the WPS button on the side of the wireless router, or click the onscreen button. The wireless router tries to communicate with the client for 2 minutes.
2. Go to the client wireless computer, and run a WPS configuration utility. Follow the utility's instructions to click a WPS button.
3. Go back to the wireless router screen to check for a message.

The wireless router WPS screen displays a message confirming that the client was added to the wireless network. The wireless router generates an SSID, and implements WPA/WPA2 wireless security. The wireless router will keep these wireless settings unless you change them, or you clear the Keep Existing Wireless Settings check box in the WPS Settings screen.

WPS Settings WPS Settings Router's PIN 12345670 ✓ Keep Existing Wireless Settings Apply Cancel

Figure 2-6

1. Note the new SSID and WPA/WPA2 password for the wireless network. You can view these settings in the Wireless Settings screen. See “Manually Configuring Your Wireless Settings” on page 2-4.

To access the Internet from any computer connected to your wireless router, launch a browser such as Microsoft Internet Explorer or Mozilla Firefox. You should see the wireless router's Internet LED blink, indicating communication to the ISP.

Note: If no WPS-capable client devices are located during the 2-minute time frame, the SSID will not be changed, and no security will be implemented on the wireless router.

Using PIN Entry to Add a WPS Client

Any wireless computer or wireless adapter that will connect to the wireless router wirelessly is a client. The client must support a WPS PIN, and must have a WPS configuration utility, such as the NETGEAR Smart Wizard or Atheros Jumpstart.

The first time you add a WPS client, make sure that the Keep Existing Wireless Settings check box on the WPS Settings screen is cleared. This is the default setting for the wireless router, and allows it to generate the SSID and WPA/WPA2 security settings when it implements WPS. After WPS is implemented, the wireless router automatically selects this check box so that your SSID and wireless security settings remain the same if other WPS-enabled devices are added later.

To use a PIN to add a WPS client:

1. Log in to the wireless router at its default LAN address of http://www.routerlogin.net with its default user name of admin and default password of password, or using whatever LAN address and password you have set up.

2. On the wireless router main menu, select Add a WPS Client (computers that will connect wirelessly to the wireless router are clients), and then click Next. The Add WPS Client screen displays:

Add WPS Client Select a setup method: ○ Push Button (recommended) ● PIN Number If your Adapter supports WPS, please click on "Generate a client Security Pin to input on the API/Router/Gateway" and put the generated client PIN number here. Enter Client's PIN: Next

Figure 2-7

1. Select the PIN Number radio button.

2. Go to the client wireless computer. Run a WPS configuration utility. Follow the utility's instructions to generate a PIN. Take note of the client PIN.

3. From the wireless router Add WPS Client screen, enter the client PIN number, and then click Next.

- The wireless router tries to communicate with the client for 4 minutes.

- The wireless router WPS screen displays a message confirming that the client was added to the wireless network. The wireless router generates an SSID, and implements WPA/WPA2 wireless security.

1. Note the new SSID and WPA/WPA2 password for the wireless network. You can view these settings in the Wireless Settings screen. See “Manually Configuring Your Wireless Settings” on page 2-4

To access the Internet from any computer connected to your wireless router, launch a browser such as Microsoft Internet Explorer or Mozilla Firefox. You should see the wireless router's Internet LED blink, indicating communication to the ISP.

Note: If no WPS-capable client devices are located during the 4-minute time frame, the SSID will not be changed and no security will be implemented on the wireless router.

Configuring Advanced WPS Settings

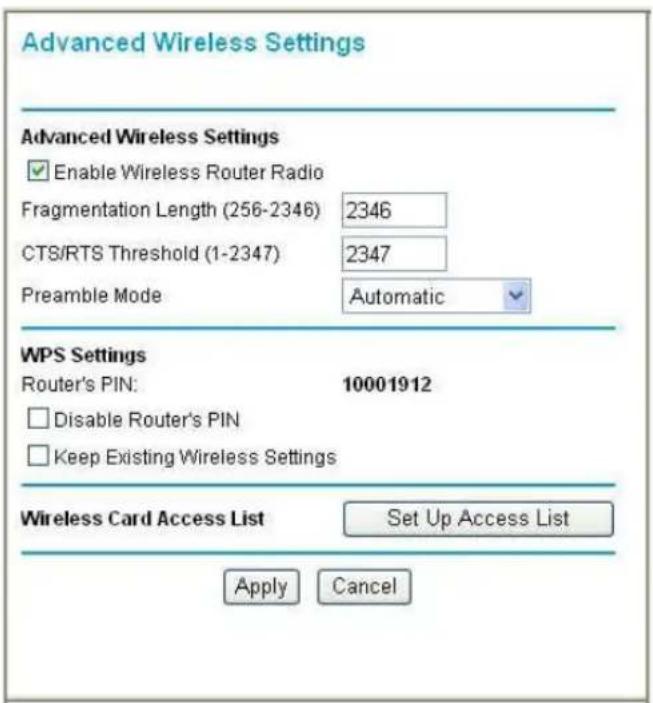

From the Advanced menu, select Advanced Wireless Settings to display the following screen:

Advanced Wireless Settings Advanced Wireless Settings ✓ Enable Wireless Router Radio Fragmentation Length (256-2346) 2346 CTS/RTS Threshold (1-2347) 2347 Preamble Mode Automatic WPS Settings Router's PIN: 10001912 □ Disable Router's PIN □ Keep Existing Wireless Settings Wireless Card Access List Set Up Access List Apply Cancel

Figure 2-8

The WPS Settings area displays the wireless router PIN, and allows you to Disable Router's PIN and to Keep Existing Wireless Settings for the wireless network.

By default, the Keep Existing Wireless Settings check box is unchecked. This allows the wireless router to automatically generate the SSID and WPA/WPA2 security settings when it implements WPS. After WPS is implemented or changes in wireless settings are applied, the wireless router automatically selects this check box so that your SSID and wireless security settings remain the same if you add WPS-enabled devices or if you manually add non WPS-capable devices later.

Note: If you clear the Keep Existing Wireless Settings check box, all wireless settings and connections will be lost.

Connecting Additional Wireless Client Devices After WPS Setup

You can add more WPS clients to your wireless network, or you can add a combination of WPS-enabled clients and clients without WPS.

Adding More WPS Clients

Note: Your wireless settings remain the same when you add another WPS-enabled client, as long as the Keep Existing Wireless Settings check box is selected in the Advanced Wireless screen (listed under the Advanced heading in the wireless router main menu). If you clear this check box, when you add the client, a new SSID and passphrase will be generated, and all existing connected wireless clients will be disassociated and disconnected from the wireless router.

To add a wireless client device that is WPS-enabled:

1. Follow the procedures in “Using a WPS Button to Add a WPS Client” on page 2-13 or “Using PIN Entry to Add a WPS Client” on page 2-14.
2. To view a list of all devices connected to your wireless router (including wireless and Ethernet-connected), see “Viewing a List of Attached Devices” on page 4-9.

Adding Both WPS and Non-WPS Clients

For non-WPS clients, you cannot use the WPS setup procedures to add them to the wireless network. You must record, and then manually enter your security settings (see “Manually Configuring Your Wireless Settings” on page 2-4).

To connect a combination of non-WPS enabled and WPS-Enabled clients to the wireless router:

1. Restore the wireless router to its factory default settings (press and hold the Reset button on the back of the router for 5 seconds).

When the factory settings are restored, all existing wireless clients are disassociated and disconnected from the wireless router.

1. Configure the network names (SSIDs), select the WPA/PSK + WPA2/PSK radio button on the Wireless Settings screen (see "Manually Configuring Your Wireless Settings" on page 2-4). and click Apply. On the WPA/PSK + WPA2/PSK screen, select a passphrase and click Apply. Record this information to add additional clients.

2. For the non-WPS devices that you want to connect, open the networking utility and follow the utility's instructions to enter the security settings that you selected in Step 2 (the SSID, WPA/PSK + WPA2/PSK security method, and passphrase).

3. For the WPS devices that you want to connect, follow the procedure "Using a WPS Button to Add a WPS Client" on page 2-13 or "Using PIN Entry to Add a WPS Client" on page 2-14.

The settings that you configured in Step 2 are broadcast to the WPS devices so that they can connect to the wireless router.

Note: To make sure that your new wireless settings remain in effect, verify that the Keep Existing Wireless Settings checkbox is selected in the WPS Settings screen.

1. To view a list of all devices connected to your wireless router (including wireless and Ethernet-connected), see “Viewing a List of Attached Devices” on page 4-9.

Restricting Access to Your Router

You can use the Advanced Wireless Settings screen to enable or disable the wireless router. From the main menu, select Advanced Wireless Settings to display the following screen:

Advanced Wireless Settings Advanced Wireless Settings ✓ Enable Wireless Router Radio Fragmentation Length (256-2346) 2346 CTS/RTS Threshold (1-2347) 2347 Preamble Mode Automatic WPS Settings Router's PIN: 10001912 □ Disable Router's PIN □ Keep Existing Wireless Settings Wireless Card Access List Set Up Access List Apply Cancel

Figure 2-9

- Enable Wireless Router Radio.

You can completely turn off the wireless portion of the wireless router. For example, if you use your notebook computer to wirelessly connect to your wireless router, and you take a business trip, you can turn off the wireless portion of the wireless router while you are traveling. Other members of your household who use computers connected to the wireless router via Ethernet cables can still use the wireless router. To do this, clear the Enable Wireless Router Radio check box on the Advanced Wireless Settings screen, and then click Apply. (You can also turn the wireless portion of the router by pressing the Wireless button on the front of the router.)

The Fragmentation Threshold, CTS/RTS Threshold, and Preamble Mode options are reserved for wireless testing and advanced configuration only. Do not change these settings.

• WPS Settings. For information about WPS settings, see "Using Push 'N' Connect (WPS) to Configure Your Wireless Network" on page 2-12.
• Restricting access by MAC address. You can use a Wireless Card Access List to restrict access. See “Restricting Access by MAC Address” on page 3-2.

Adding Guest Networks

Adding a guest network allows visitors at your home to use the Internet without having to know your wireless security key. You can add a guest network to the wireless network.

To add a guest network, do the following:

1. Select Guest Network from the Setup menu. The Guest Network Settings screen appears

Guest Network Settings Wireless Settings - Profile 1 Enable Guest Network Enable SSID Broadcast Allow guest to access My Local Network Enable Wireless Isolation Guest Wireless Network Name (SSID) : NETGEAR_Guest1 Security Options - Profile 1 None WEP WPA-PSK [TKIF] WPA2-PSK [AES] WPA-PSK [TKIF] + WPA2-PSK [AES] WPAWFA2 Enterprise Apply Cancel

Figure 2-10

1. Select any of the following Wireless settings:

- Enable Guest Network – When this check box is selected, the guest network is enabled, and guests can connect to your network using the SSID of this profile.

• Enable SSID Broadcast – If selected, the Wireless Access Point broadcasts its name (SSID) to all Wireless Stations. Stations with no SSID can adopt the correct SSID for connections to this Access Point.
• Enable Wireless Isolation – If selected, the wireless client under this SSID can only access the Internet, and cannot access other wireless clients, even clients under the same SSID, Ethernet clients, or this device.

• Allow Guest to access MY Local Network – If selected, any user who connects to this SSID can access local networks associated with the router like users in the primary SSID.

• Give the wireless network a name.

The name is case-sensitive and can be up to 32 characters. The same name must be assigned to all wireless devices in your network. NETGEAR recommends that you change the name to a different value.

1. Select a Security option from the list.

2. Click Apply to save your selections.

Chapter 3

Protecting Your Network

This chapter describes how to use the content filtering and reporting features of the N300 Wireless Router with USB WNR2200 to protect your network. You can find these features by selecting the items under Content Filtering in the wireless router main menu.

This chapter includes the following sections:

• “Protecting Access to Your Wireless Router”
• “Restricting Access by MAC Address” on page 3-2
• “Blocking Access to Internet Sites” on page 3-4
• “Blocking Access to Internet Services” on page 3-6
• “Scheduling Blocking” on page 3-8
• “Viewing Logs of Web Access or Attempted Web Access” on page 3-10
• “Configuring E-mail Alert and Web Access Log Notifications” on page 3-9
• “Setting the Time” on page 3-11

Protecting Access to Your Wireless Router

For security reasons, the wireless router has its own user name and password. Also, after a period of inactivity for a set length of time, the administrator login automatically disconnects. When prompted, enter admin for the wireless router user name and password for the wireless router password. You can use procedures in the following sections to change the wireless router password and the amount of time for the administrator's login time-out.

Note: The user name and password are not the same as a user name or password you might use to log in to your Internet connection.

NETGEAR recommends that you change this password to a more secure password. The ideal password should contain no dictionary words from any language, and should be a mixture of both upper and lower case letters, numbers, and symbols. Your password can be up to 30 characters.

Changing the Built-In Password

1. Log in to the wireless router at its default LAN address of http://www.routerlogin.net with its default user name of admin, default password of password, or using whatever password and LAN address you have chosen for the wireless router.
2. From the main menu, under the Maintenance heading, select Set Password to display the Set Password screen:
3. To change the password, first enter the old password, and then enter the new password twice.
4. Click Apply to save your changes.

Note: After changing the password, you must log in again to continue the configuration. If you have backed up the wireless router settings previously, you should do a new backup so that the saved settings file includes the new password.

Restricting Access by MAC Address

For increased security, you can restrict access to the wireless network to allow only specific PCs based on their MAC addresses. You can restrict access to only trusted PCs so that unknown PCs cannot wirelessly connect to the WNR2200 router. MAC address filtering adds an obstacle against unwanted access to your network, but the data broadcast over the wireless link is fully exposed.

To restrict access based on MAC addresses:

1. Log in to the wireless router at its default LAN address of http://www.routerlogin.net with its default user name of admin, and default password of password, or using whatever password and LAN address you have chosen for the wireless router.

Note: If you configure the router from a wireless computer, add your computer's MAC address to the access list. Otherwise you will lose your wireless connection when you click Apply. You must then access the wireless router from a wired computer, or from a wireless computer that is on the access control list, to make any further changes.

1. From the Advanced menu, select Wireless Settings, and then click Set Up Access List to display the Wireless Card Access List screen.

Figure 3-1

1. Click Add to add a wireless device to the wireless access control list. The Wireless Card Access Setup screen opens and displays a list of currently active wireless cards and their Ethernet MAC addresses.

Wireless Card Access Setup Available Wireless Cards Device Name MAC Address 9300UNIT2 00:0f:b5:0d:ab:19 Wireless Card Entry Device Name: 9300UNIT2 MAC Address: 00:0f:b5:0d:ab:19 Add Cancel Refresh

Figure 3-2

1. Adjust the list as needed for your network. You can add devices using either of the following methods:

- If the computer is in the Available Wireless Cards table, select the radio button of that computer to capture its MAC address.

- Use the Add button to enter the MAC address of the device to be added. The MAC address can usually be found on the bottom of the wireless device.

Note: If no device name appears when you enter the MAC address, you can type a descriptive name for the computer that you are adding.

1. Click Add, and then click Apply to save these settings. Now, only devices on this list will be allowed to wirelessly connect to the router.

Blocking Access to Internet Sites

The WNR2200 router allows you to restrict access based on Web addresses and Web address keywords. Up to 255 entries are supported in the Keyword list.

Keyword application examples:

• If the keyword XXX is specified, the URL www.zzzyyqq.com/xxx.html is blocked.
• If the keyword .com is specified, only websites with other domain suffixes (such as .edu, .org, or .gov) can be viewed.

To block access to Internet sites:

1. Select Block Sites under Content Filtering in the main menu. The Block Sites screen displays.

Block Sites To learn more about advanced content filtering and keyword blocking features from NETGEAR,please go to www.netgear.com/lpc. Keyword Blocking ● Never ○ Per Schedule ○ Always Type keyword or domain name here. Add Keyword Block sites containing these keywords or domain names: Delete Keyword Clear List □ Allow trusted IP address to visit blocked sites Trusted IP Address 192 168 1 . Apply Cancel

Figure 3-3

1. Enable keyword blocking by selecting either Per Schedule or Always.

To block by schedule, be sure to specify a time period in the Schedule screen. For information about scheduling, see “Scheduling Blocking” on page 3-8.

Block all access to Internet browsing during a scheduled period by entering a dot (.) as the keyword, and then set a schedule in the Schedule screen.

1. Add a keyword or domain by entering it in the keyword field and clicking Add Keyword. The keyword or domain name then appears the Block sites containing these keywords or domain names list.

Delete a keyword or domain name by selecting it from the list and clicking Delete Keyword.

1. You can specify one trusted user, which is a computer that is exempt from blocking and logging. Specify a trusted user by entering that computer's IP address in the Trusted IP Address fields.

Since the trusted user is identified by IP address, you should configure that computer with a fixed IP address.

1. Click Apply to save all your settings in the Block Sites screen.

Blocking Access to Internet Services

The wireless router allows you to block the use of certain Internet services by computers on your network. This is called service blocking or port filtering. Services are functions performed by server computers at the request of client computers. For example, Web servers serve Web pages, time servers serve time and date information, and game hosts serve data about other players' moves. When a computer on your network sends a request for service to a server computer on the Internet, the requested service is identified by a service or port number. This number appears as the destination port number in the transmitted IP packets. For example, a packet that is sent with destination port number 80 is an HTTP (Web server) request.

To block access to Internet services:

1. Select Block Services under Content Filtering in the main menu. The Block Services screen displays.

Block Services Services Blocking ● Never ○ Per Schedule ○ Always Service Table

Service Type Port IP

Add Edit Delete Apply Cancel

Figure 3-4

1. Enable service blocking by selecting either Per Schedule or Always, and then click Apply.

To block by schedule, be sure to specify a time period in the Schedule screen. For information about scheduling, see “Scheduling Blocking” on page 3-8.

1. Specify a service for blocking by clicking Add. The Block Services Setup screen displays.

Block Services Setup Service Type AIM Protocol TCP Starting Port 5190 (1~65534) Ending Port 5190 (1~65534) Service Type/User Defined AIM Filter Services For : ○ Only This IP Address: 192 168 1 . ○ IP Address Range: 192 168 1 . to 192 168 1 . ● All IP Addresses Add Cancel

Figure 3-5

1. From the Service Type list, select the application or service to be allowed or blocked. The list already displays several common services, but you are not limited to these choices. To add any additional services or applications that do not already appear, select User Defined.

2. Select the radio button for the IP address configuration you want to block, and then enter the IP addresses in the appropriate fields.

You can block the specified service for a single computer, a range of computers (having consecutive IP addresses), or all computers on your network.

1. Click Add to enable your Block Services Setup selections.

Configuring a User-Defined Service

To define a service, first you must determine which port number or range of numbers is used by the application. The service port numbers for many common protocols are defined by the Internet Engineering Task Force (IETF) and published in RFC1700, “Assigned Numbers.” Service numbers for other applications are typically chosen from the range 1024 to 65535 by the authors of the application. You can often determine port number information by contacting the publisher of the application, by asking user groups or newsgroups, or by searching.

• Enter the starting port and ending port numbers. If the application uses a single port number, enter that number in both fields.
• If you know that the application uses either TCP or UDP, select the appropriate protocol. If you are not sure, select Both.

Scheduling Blocking

To schedule blocking:

1. Select Schedule under Content Filtering in the main menu. The Schedule screen displays.

Schedule Days to Block: Every Day Sunday Monday Tuesday Wednesday Thursday Friday Saturday Time of day to block::(use 24-hour clock) All Day Start Blocking 0 Hour 0 Minute End Blocking 24 Hour 0 Minute Time Zono (GMT+05.00) Beijing, Chongqing, Hong Kong, Urumqi Automatically adjust for daylight savings time Current Time: Sunday, Jan 02, 2000 09:19:24 Apply Cancel

Figure 3-6

1. Configure the schedule for blocking keywords and services.

a. Days to Block. Select days on which you want to apply blocking by selecting the appropriate check boxes. Select Every Day to select the check boxes for all days. Click Apply.

b. Time of Day to Block. Select a start and end time in 24-hour format. Select All Day for 24-hour blocking. Click Apply.

Be sure to select your time zone in the E-mail screen as described in “Setting the Time” on page 3-11.

1. Click Apply to save your settings.

Configuring E-mail Alert and Web Access Log Notifications

To receive logs and alerts by e-mail, you must provide your e-mail account information. To configure e-mail alert and web access log notifications:

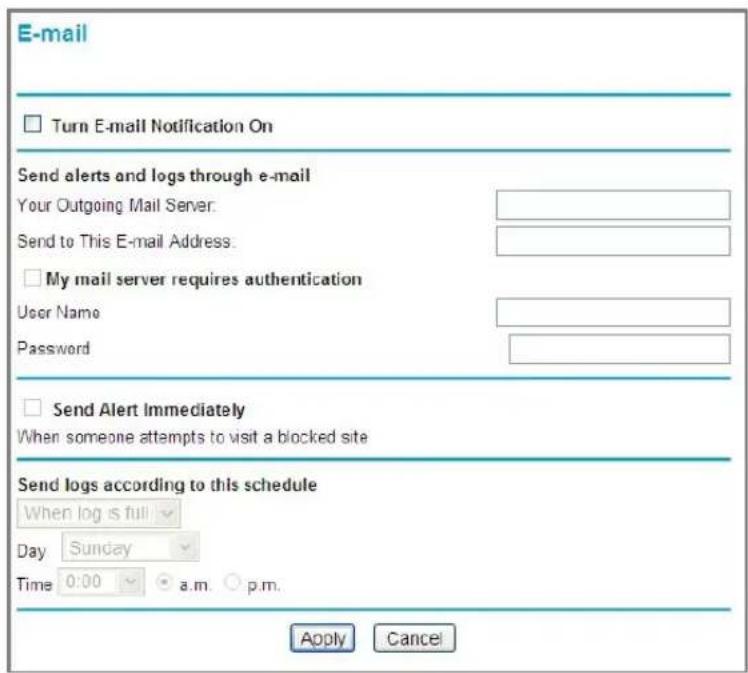

1. Select E-mail under Content Filtering in the main menu. The E-mail screen displays.

E-mail Turn E-mail Notification On Send alerts and logs through e-mail Your Outgoing Mail Server. Send to This E-mail Address. My mail server requires authentication User Name Password Send Alert Immediately When someone attempts to visit a blocked site Send logs according to this schedule When log is full Day Sunday Time 0:00 a.m. p.m. Apply Cancel

Figure 3-7

1. To receive e-mail logs and alerts from the router, select the Turn E-mail Notification On check box.

a. Enter the name of your ISP's outgoing (SMTP) mail server (such as mail.myISP.com) in the Your Outgoing Mail Server field. You might be able to find this information in the configuration screen of your e-mail program. If you leave this field blank, log and alert messages will not be sent by e-mail.
b. Enter the e-mail address to which logs and alerts are sent in the Send To This E-mail Address field. This e-mail address will also be used as the From address. If you leave this field blank, log and alert messages will not be sent by e-mail.

1. If your outgoing e-mail server requires authentication, select the My Mail Server requires authentication check box.

a. Enter your user name for the outgoing e-mail server in the User Name field.

b. Enter your password for the outgoing e-mail server in the Password field.

1. You can specify that logs are automatically sent by e-mail with these options:

- Send alert immediately. Select this check box for immediate notification of attempted access to a blocked site or service.

- Send Logs According to this Schedule. Specifies how often to send the logs: Hourly, Daily, Weekly, or When Full.

- Day. Specifies which day of the week to send the log. Relevant when the log is sent weekly or daily.

– Time. Specifies the time of day to send the log. Relevant when the log is sent daily or weekly.

If you select the Weekly, Daily, or Hourly option and the log fills up before the specified period, the log is automatically e-mailed to the specified e-mail address. After the log is sent, the log is cleared from the router's memory. If the router cannot e-mail the log file, the log buffer might fill up. In this case, the router overwrites the log and discards its contents.

1. Click Apply to save your settings.

So that the log entries are correctly time-stamped and sent at the correct time, be sure to set the time as described in the next section.

Viewing Logs of Web Access or Attempted Web Access

The log is a detailed record of the websites you have accessed or attempted to access. Up to 256 entries are stored in the log. Log entries appear only when keyword blocking is enabled and no log entries are made for the trusted user.

Select Logs under Content Filtering in the main menu. The Logs screen displays.

[admin login] from source 192.168.1.2, Friday, June 26,2009 13:29:13 [UPnP set event: add_net_rule] from source 192.168.1.4 Friday, June 26,2009 13:05:04 [DHCP IP: 192.168.1.4] to MAC address 00:16:50:b8:e2:e5, Friday, June 26,2009 13:04:47 [admin login] from source 192.168.1.2, Friday, June 26,2009 09:59:42 [UPnP set event: add_net_rule] from source 10.20.1.228 Friday, June 26,2009 09:39:11 [DHCP IP: 192.168.1.3] to MAC address 00:18:f3:54:06:33, Friday, June 26,2009 09:37:18 [admin login] from source 192.168.1.3, Friday, June 26,2009 09:28:31 [Time synchronized with NTP server] Friday, June 26,2009 09:25:32 [Initialized, firmware version: V1.0.4.26] Friday, June 26,2009 09:25:32

Figure 3-8

Table 3-1. Log Entry Descriptions

Field Description
Date and time The date	and time the log entry was recorded.
Source IP The IP address	ss of the initiating device for this log entry.
Target address The name	or IP address of the website or newsgroup visited or to which access was attempted.
Action Whether the access	was blocked or allowed.

To refresh the log screen, click the Refresh button.

To clear the log entries, click the Clear Log button.

To e-mail the log immediately, click the Send Log button.

Setting the Time

The WNR2200 router uses the Network Time Protocol (NTP) to obtain the current time and date from one of several network time servers on the Internet. To localize the time for your log entries, you must specify your time zone:

• Time Zone. Select your local time zone. This setting is used for the blocking schedule and for time-stamping log entries.
• Automatically Adjust for Daylight Savings Time. Select this check box if your region supports daylight savings time. When this check box is set, the router will adjust the time by adding one hour during the daylight savings time period. When daylight savings time ends, be sure to un-check this check box.

Chapter 4

Using Network Monitoring Tools

This chapter describes features to help you manage your N300 Wireless Router with USB WNR2200.

This chapter includes the following sections:

• “Upgrading the Router Firmware”
• “Viewing Wireless Router Status Information” on page 4-5
• “Viewing a List of Attached Devices” on page 4-9
• “Managing the Configuration File” on page 4-10
• “Enabling Remote Management Access” on page 4-12
• “Traffic Meter” on page 4-14

Upgrading the Router Firmware

The routing software (also called firmware) of the WNR2200 router is stored in flash memory, and can be upgraded as NETGEAR releases new software. Your router can download and install the new software, or you can download upgrade files from the NETGEAR website and manually send the upgrade file to the router using your browser.

Tip: To ensure that you are always using the latest router firmware, enable the Firmware Upgrade Assistant feature so that the router will automatically detect a new version of the firmware on the Internet and alert you to its availability.

The Checking for Firmware Updates screen appears at login unless you clear the Check for Updated Firmware Upon Log-in check box.

Checking for Firmware Updates The router is checking the NETGEAR server to see if upd available for your router. This could take up to 90 seconds, please wait... // ✓ Check for Updated Firmware Upon Log-In Cancel

Figure 4-1

A screen is also provided for upgrading the router. From the main menu, under Maintenance, select Router Upgrade to display the Router Upgrade screen.

Router Upgrade Check for New Version from the Internet Check ✓ Check for New Version Upon Log-in Locate and Select the Upgrade File from your Hard Disk: Browse... Upload Cancel

Figure 4-2

From this screen, you can check for new software versions by clicking the Check button. If a new version is found, you can download and install it in one step. To enable the Smart Wizard to automatically check for a new software version upon login, select the Check for New Version Upon Log-in check box.
Alternatively, you can manually install an upgrade file stored on your computer.

Tip: Before upgrading the router software, use the router Settings Backup screen to save your configuration settings. A router upgrade might cause the router settings to revert to the factory defaults. If this happens, after completing the upgrade, you can restore your settings from the backup.

Upgrading Automatically to New Router Software

If you have selected Check for New Version Upon Log-in, your router alerts you to the new software when you log in. Otherwise, you can click the Check button in the Router Upgrade screen to search for new software.

If the router discovers a newer version of software, the message on the left displays when you log in. If no new firmware is available, the message on the right displays.

Firmware Version Check A New Firmware Version Is Found. Do You Want to Upgrade to the New Version Now? Current Version V1.0.3.5 New Version V1.0.3.8 Yes No

Firmware Version Check No New Firmware Version Available. Back

Figure 4-3

To automatically upgrade to the new software, click Yes to allow the router to download and install the new software file from NETGEAR.

Warning: When uploading software to the WNR2200 router, do not interrupt the Web browser by closing the window, clicking a link, or loading a new page. If the browser is interrupted, it could corrupt the software.

When the upload is complete, your router automatically restarts. The upgrade process typically takes about three minutes. Read the new software release notes to determine whether you must reconfigure the router after upgrading.

Upgrading Manually to New Router Software

To manually select, download, and install new software to your router:

1. Under Maintenance on the main menu, select Router Status. Note the version number of your router firmware.
2. Go to the WNR2200 support page on the NETGEAR website at http://www.netgear.com/support.

3. Check the most recent firmware version offered against the firmware version shown in the Router Status screen.

4. If the version on the NETGEAR website is more recent, download the file to your computer.

5. Under Maintenance on the main menu, select Router Upgrade.
6. Click Browse, and locate the firmware image that you downloaded to your PC (the file ends in .img or .chk).
7. Click Upload to send the firmware to the router.

Warning: When uploading software to the WNR2200 router, do not interrupt the Web browser by closing the window, clicking a link, or loading a new page. If the browser is interrupted, it could corrupt the software.

When the upload is complete, your router automatically restarts. The upgrade process typically takes about three minutes. Read the new software release notes to determine whether you must reconfigure the router after upgrading.

Viewing Wireless Router Status Information

To view router status and usage information, from the main menu, under the Maintenance heading, select Router Status. The Router Status screen displays.

Router Status Hardware Version wnr2200 Firmware Version V1.0.0.12 GUI Language Version V1.0.0.50 Internet Port MAC Address 30:46:9A:08:AA:2E IP Address 10.1.11.86 Connection DHCP IP Subnet Mask 255.255.255.0 Domain Name Server 10.1.1.7 10.1.1.6 LAN Port MAC Address 30:46:9A:08:AA:2D IP Address 192.168.1.1 Wireless Port Name (SSID) NETGEAR Region United States Channel Auto (2) Mode Up to 150 Mbps Wireless AP On Broadcast Name On Wireless isolation Off Wi-Fi Protected Setup Configured Guest Network Name (SSID) NETGEAR_Guest1 Wireless AP Off Broadcast Name On Wireless isolation Off Allow guest to access My Local Network Off Show Statistics Connection Status

Figure 4-4

You can use the Show Statistics and Connection Status buttons to view additional status information, as described in “Connection Status” on page 4-7 and “Statistics” on page 4-8. The following table explains Router Status screen fields.

Table 4-1. Wireless Router Status Fields

Field Description
Hardware Version The router model.
Firmware Version The version of the router firmware. It changes if you upgrade the router.
GUI Language Version The localized language of the GUI.
Internet Port	MAC Address The Media Access Control address. This is the unique physical address being used by the Internet (WAN) port of the router.
	IP Address The IP address being used by the Internet (WAN) port of the router. If no address is shown, or is 0.0.0.0, the router cannot connect to the Internet.
	DHCP • None. The router uses a fixed IP address on the WAN.• DHCP Client. The router obtains an IP address dynamically from the ISP.
	IP Subnet Mask The IP subnet mask being used by the Internet (WAN) port of the router. For an explanation of subnet masks and subnet addressing, click the link to the online document “TCP/IP Networking Basics” in Appendix B.
	Domain Name Server	The Domain Name Server addresses being used by the router. A Domain Name Server translates human-language URLs such as www.netgear.com into IP addresses.
LAN Port MAC Address The Media Access Control address. This is the unique physical address being used by the Ethernet (LAN) port of the router.
	Wireless Settings	Name (SSID): The 11N wireless network name (SSID) being used by the wireless port of the router. The default is NETGEAR.
		Region: The geographic region where the router is being used. It might be illegal to use the wireless features of the router in some parts of the world.
		Channel: Identifies the operating channel of the wireless port being used. The default channel is Auto. When Auto is selected, the router will find the best operating channel available. If you notice interference from nearby devices, you can select a different channel. Channels 1, 6, and 11 will not interfere with each other.
		Mode: Indicates the wireless communication mode:Up to 54MbpsUp to 150Mbps (default)Up to 300Mbps
		Wireless AP: Indicates whether the radio feature of the router is enabled. If this feature is not enabled, the Wireless light on the front panel is off.
		Broadcast Name: Indicates whether the router is broadcasting its SSID.
Wi-Fi Protected Setup Indicates whether Wi-Fi Protected Setup is configured.

Connection Status

To view the connection status, on the Router Status screen, click Connection Status.

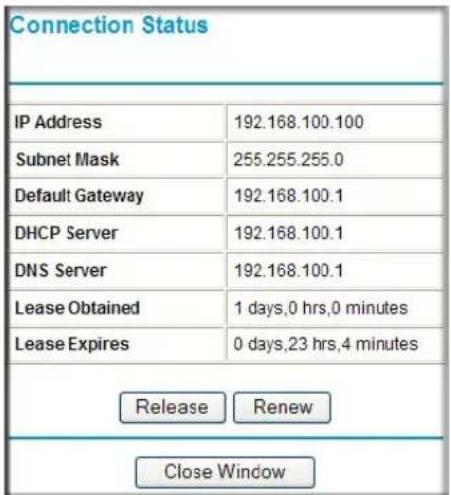

Connection Status IP Address 192.168.100.100 Subnet Mask 255.255.255.0 Default Gateway 192.168.100.1 DHCP Server 192.168.100.1 DNS Server 192.168.100.1 Lease Obtained 1 days,0 hrs,0 minutes Lease Expires 0 days,23 hrs,4 minutes Release Renew Close Window

Figure 4-5

The following table describes the connection status settings.

Table 4-2. Connection Status Settings

Item Description
IP Address The IP address that is assigned to the router.
Subnet Mask The subnet mask that is assigned to the router.
Default Gateway The IP address for the default gateway that the router communicates with.
DHCP Server The IP address for the Dynamic Host Configuration Protocol server that provides the TCP/IP configuration for all the computers that are connected to the router.
DNS Server The IP address of the Domain Name Service server that provides translation of network names to IP addresses.
Lease Obtained The date and time that the lease was obtained.
Lease Expires The date and time that the lease will expire.

• Click the Release button to release the connection status items (that is, all items return to 0).
• Click the Renew button to renew to the connection status items (that is, all items are refreshed).
• Click the Close Window button to close the Connection Status screen.

Statistics

To view statistics, on the Router Status screen, click Show Statistics.

Attached Devices Wired Devices

IP Address MAC Address Device Name

1 192.168.7.230 00.0D A2.02.9B.D7 BETAWORX 2 192.168.7.10 00:23:54:4A:F3:31 PCLENOVO-1 Wireless Devices (Wireless intruders also show up here)

IP Address MAC Address Device Name

Refresh

Figure 4-6

The following table describes the router statistics.

Table 4-3. Router Statistics

Item Description
System Up Time The time elapsed since the router was last restarted.
Port The statistics for the WAN (Internet) and LAN (Ethernet) ports. For each port, the screen displays:
	Status The link status of the port.
	TxPkts The number of packets transmitted on this port since reset or manual clear.
	RxPkts The number of packets received on this port since reset or manual clear.
	Collisions The number of collisions on this port since reset or manual clear.
	Tx B/s The current transmission (outbound) bandwidth used on the WAN and LAN ports.
	Rx B/s The current reception (inbound) bandwidth used on the WAN and LAN ports.
	Up Time The time elapsed since this port acquired the link.
Poll Interval The intervals at which the statistics are updated in this screen.

• To change the polling frequency, enter a time in seconds in the Poll Interval field, and click Set Interval.
  • To stop the polling entirely, click Stop.

Viewing a List of Attached Devices

The Attached Devices table lists all IP devices that the router has discovered on the local network. From the main menu, under Maintenance, select Attached Devices to view the table.

Attached Devices IP Address Device Name MAC Address 1 192.168 0.2 e machine 00:48:54:80 d7:83 Refresh

Figure 4-7

For each device, the table shows the IP address, NetBIOS host name or device name (if available), and the Ethernet MAC address. To force the router to look for attached devices, click Refresh.

Note: If the router is rebooted, the table data is lost until the router rediscovers the devices.

Managing the Configuration File

The configuration settings of the WNR2200 router are stored within the router in a configuration file. You can back up (save) this file to your computer, restore it, or reset it to the factory default settings. From the main menu, under Maintenance, select Backup Settings.

Backup Settings Save a Copy of Current Settings Backup Restore Saved Settings from a File Browse... Restore Revert to Factory Default Settings Erase

Figure 4-8

The following sections describe the available options.

Backing Up and Restoring the Configuration

The Restore and Backup options in the Backup Settings screen let you save and retrieve a file containing your router's configuration settings.

To save your settings, click Back Up. Your browser extracts the configuration file from the router and prompts you for a location on your computer to store the file. You can give the file a meaningful name at this time, such as comcast.cfg.

Tip: Before saving your configuration file, change the administrator password to the default, password. Then change it again after you have saved the configuration file. If you forget the password, you will need to reset the configuration to factory defaults.

To restore your settings from a saved configuration file, enter the full path to the file on your computer, or click Browse to browse to the file. When you have located it, click Restore to send the file to the router. The router then reboots automatically.

Warning: Do not interrupt the reboot process.

Erasing the Configuration

Under some circumstances (for example, if you move the router to a different network or if you have forgotten the password), you might want to erase the configuration and restore the factory default settings. After an erase, the router's user name is admin, the password is password, the LAN IP address is 192.168.1.1 (or www.routerlogin.net), and its DHCP server is enabled.

• To erase the configuration, click the Erase button in the Backup Settings screen.
• To restore the factory default configuration settings when you do not know the login password or IP address, you must use the restore factory settings button on the bottom of the router (see “Restoring the Default Configuration and Password” on page 8-13).

Enabling Remote Management Access

The remote management feature allows you to upgrade or check the status of your WNR2200 router via the Internet. From the main menu, under Advanced, select Remote Management.

Remote Management □ Turn Remote Management On Remote Management Address http://10.1.10.150:8080 Allow Remote Access By ○ Only This Computer ○ IP Address Range From To ● Everyone Port Number 6030 Apply Cancel

Figure 4-9

Note: Be sure to change the router's default configuration password to a very secure password. The ideal password should contain no dictionary words from any language, and should be a mixture of letters (both uppercase and lowercase), numbers, and symbols. Your password can be up to 30 characters.

To configure your router for remote management:

1. Select the Turn Remote Management On check box.
2. Under Allow Remote Access By, specify what external IP addresses will be allowed to access the router's remote management.

Note: For enhanced security, restrict access to as few external IP addresses as practical.

- To allow access from any IP address on the Internet, select Everyone.

• To allow access from a range of IP addresses on the Internet, select IP Address Range. Enter a beginning and ending IP address to define the allowed range.

• To allow access from a single IP address on the Internet, select Only This Computer. Enter the IP address that will be allowed access.

• Specify the port number for accessing the management interface.

Normal Web browser access uses the standard HTTP service port 80. For greater security, enter a custom port number for the remote management Web interface. Choose a number between 1024 and 65535, but do not use the number of any common service port. The default is 8080, which is a common alternate for HTTP.

1. Click Apply to have your changes take effect.

Note: When accessing your router from the Internet, type your router's WAN IP address into your browser's address or location field, followed by a colon (:) and the custom port number. For example, if your external address is 134.177.0.123 and you use port number 8080, then enter http://134.177.0.123:8080 in your browser.

Traffic Meter

Traffic Metering allows you to monitor the volume of Internet traffic passing through your router's Internet port. With the Traffic Meter utility, you can set limits for traffic volume, set a monthly limit, and get a live update of traffic usage.

To monitor traffic on your router, do the following:

1. On the Advanced menu, click Traffic Meter.

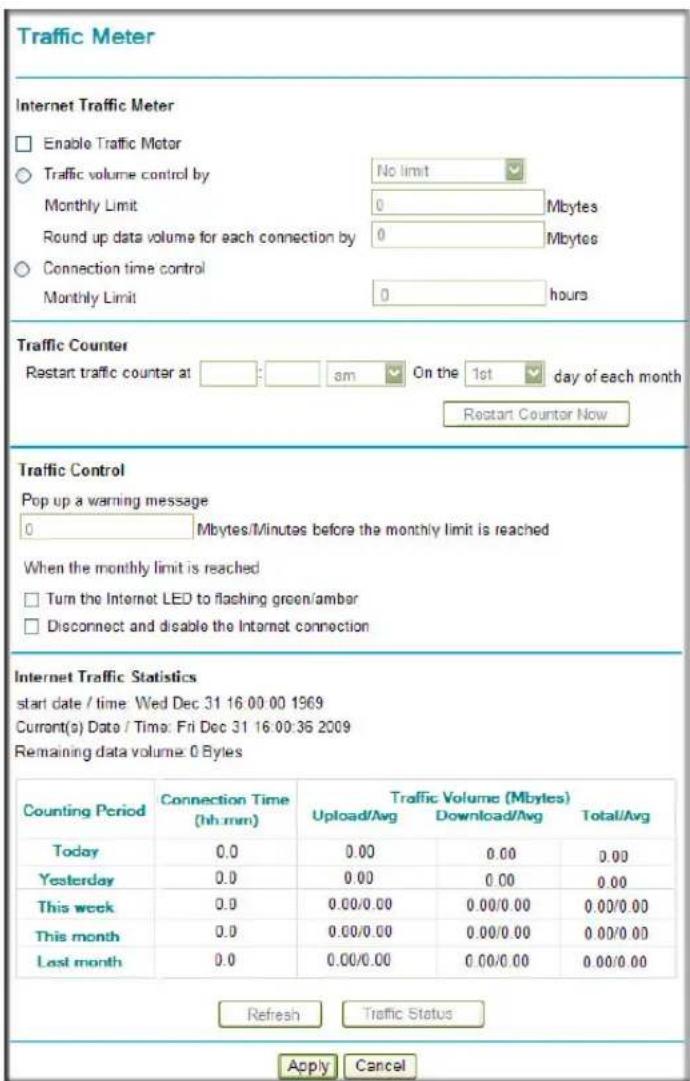

Traffic Meter Internet Traffic Meter Enable Traffic Motor Traffic volume control by No limit Monthly Limit 0 Mbytes Round up data volume for each connection by 0 Mbytes Connection time control Monthly Limit 0 hours Traffic Counter Restart traffic counter at : am On the 1st day of each month Restart Counter Now Traffic Control Pop up a warning message 0 Mbytes/Minutes before the monthly limit is reached When the monthly limit is reached Turn the Internet LED to flashing green/ambar Disconnect and disable the Internet connection Internet Traffic Statistics start date / time: Wed Dec 31 16:00:00 1969 Current(s) Date / Time: Fri Dec 31 16:00:35 2009 Remaining data volume: 0 Bytes Counting Period Connection Time (hh:mm) Traffic Volume (Mbytes) Upload/Avg Download/Avg Total/Avg Today 0.0 0.00 0.00 0.00 Yesterday 0.0 0.00 0.00 0.00 This week 0.0 0.00/0.00 0.00/0.00 0.00/0.00 This month 0.0 0.00/0.00 0.00/0.00 0.00/0.00 Last month 0.0 0.00/0.00 0.00/0.00 0.00/0.00 Refresh Traffic Status Apply Cancel

Figure 4-10

1. To enable the Traffic Meter, click the Enable Traffic Meter check box.

2. If you would like to record and restrict the volume of Internet traffic, click the Traffic volume control by radio button. You can select one of the following options for controlling the traffic volume:

3. No Limit – No restriction is applied when the traffic limit is reached.

4. Download only – The restriction is applied to incoming traffic only.

5. Both Directions – The restriction is applied to both incoming and outgoing traffic.

6. You can limit the amount of data traffic allowed per month:

7. By specifying how many Mbytes per month are allowed.

8. By specifying how many hours of traffic are allowed.

9. Set the Traffic Counter to begin at a specific time and date.

10. Set up Traffic Control to issue a warning message before the month limit of Mbytes or Hours is reached. You can select one of the following to occur when the limit is attained:

11. The Internet LED flashes green or amber.

12. The Internet connection is disconnected and disabled.

13. Set up Internet Traffic Statistics to monitor the data traffic.

14. Click the Traffic Status button if you want a live update on Internet traffic status on your router.
15. Click Apply to save your settings.

Chapter 5

Customizing Your Network Settings

This chapter describes advanced features of the N300 Wireless Router with USB WNR2200. This chapter includes the following sections:

• “Using the LAN Setup Options”
• “Using a Dynamic DNS Service” on page 5-5
• “Configuring the WAN Setup Options” on page 5-7
• “Configuring Static Routes” on page 5-9
• “Allowing Inbound Connections to Your Network” on page 5-11
• “Configuring Port Forwarding to Local Servers” on page 5-16
• “Configuring Port Triggering” on page 5-18
• “Wireless Repeating (Also Called WDS)” on page 5-22

Using the LAN Setup Options

The LAN Setup screen allows configuration of LAN IP services such as Dynamic Host Configuration Protocol (DHCP) and Routing Information Protocol (RIP).

The router is shipped preconfigured to use private IP addresses on the LAN side and to act as a DHCP server. The router's default LAN IP configuration is:

• LAN IP address: 192.168.1.1
- Subnet mask: 255.255.255.0

These addresses are part of the designated private address range for use in private networks and should be suitable for most applications. If your network has a requirement to use a different IP addressing scheme, you can make those changes in the LAN Setup screen.

To configure LAN IP settings, log in to the router, and under the Advanced heading, select LAN Setup. The following screen displays:

LAN Setup Device Name LAN TCP/IP Setup IP Address 192 . 168 . 1 . 1 IP Subnet Mask 255 . 255 . 255 . 0 RIP Direction None RIP Version Disabled Use Router as DHCP Server Starting IP Address 192 . 168 . 1 . 2 Ending IP Address 192 . 168 . 1 . 254 Address Reservation

IP Address Device Name Mac Address

Add Edit Delete Apply Cancel

Figure 5-1

If you make changes you must click Apply in order for the changes to take effect.

Note: If you change the LAN IP address of the router while connected through the browser, you will be disconnected. You must then open a new connection to the new IP address and log in again.

The LAN Setup fields are explained in the following table.

Table 5-1. LAN Setup

Settings Description
Device Name A descriptive name for the router	which will be shown in the Network on Windows Vista and the Network Explorer on all Windows systems. The Device Name field cannot be blank.

Table 5-1. LAN Setup

Settings Description
LAN TCP/IP Setup	IP Address The LAN IP address	ess of the wireless router.
	IP Subnet Mask The LAN subnet mask of the wireless router. Combined with the IP address, the IP Subnet Mask allows a device to know which other addresses are local to it, and which must be reached through a gateway or wireless router.
	RIP Direction RIP (Router Information Protocol) allows a wireless router to exchange routing information with other routers. This setting controls how the wireless router sends and receives RIP packets. Both is the default.Both or Out Only. The wireless router broadcasts its routing table periodically.Both or In Only. The wireless router incorporates the RIP information that it receives.
	RIP Version This controls the format and the broadcasting method of the RIP packets that the wireless router sends. It recognizes both formats when receiving. By default, the RIP function is disabled.RIP-1 is universally supported. It is adequate for most networks, unless you have an unusual network setup.RIP-2 carries more information. Both RIP-2B and RIP-2M send the routing data in RIP-2 format. RIP-2B uses subnet broadcasting. RIP-2M uses multicasting.
DHCP Server For more information	Use Router as a DHCP Server	This check box is usually selected so that the wireless router functions as a Dynamic Host Configuration Protocol (DHCP) server. See “Using the Router as a DHCP Server” on page 5-4.
	Starting IP Address Specify the start of the range for the pool of IP addresses in the same subnet as the wireless router.
	Ending IP Address Specify the end of the range for the pool of IP addresses in the same subnet as the wireless router.
Address Reservation For more information, see “Address Reservation” on page 5-4.		When you specify a reserved IP address for a computer on the LAN, that computer receives the same IP address each time it access the router's DHCP server. Assign reserved IP addresses to servers that require permanent IP settings.

Using the Router as a DHCP Server

By default, the router functions as a DHCP server, allowing it to assign IP, DNS server, and default gateway addresses to all computers connected to the router's LAN. The assigned default gateway address is the LAN address of the router. The router assigns IP addresses to the attached computers from a pool of addresses specified in this screen. Each pool address is tested before it is assigned to avoid duplicate addresses on the LAN.

For most applications, the default DHCP and TCP/IP settings of the router are satisfactory. Click the link to the online document “TCP/IP Networking Basics” in Appendix B for an explanation of DHCP and information about how to assign IP addresses for your network.

Specify the pool of IP addresses to be assigned by setting the starting IP address and ending IP address. These addresses should be part of the same IP address subnet as the router's LAN IP address. Using the default addressing scheme, you should define a range between 192.168.1.2 and 192.168.1.254, although you might wish to save part of the range for devices with fixed addresses.

The router delivers the following parameters to any LAN device that requests DHCP:

• An IP Address from the range you have defined
• Subnet Mask
• Gateway IP Address (the router's LAN IP address)
• Primary DNS Server (if you entered a primary DNS address in the Basic Settings screen; otherwise, the router's LAN IP address)
• Secondary DNS Server (if you entered a secondary DNS address in the Basic Settings screen)

To use another device on your network as the DHCP server, or to manually configure the network settings of all of your computers, clear the Use Router as DHCP Server check box. Otherwise, leave it selected. If this service is not selected and no other DHCP server is available on your network, you will need to set your computers' IP addresses manually or they will not be able to access the router.

Address Reservation

When you specify a reserved IP address for a computer on the LAN, that computer always receives the same IP address each time it accesses the router's DHCP server. Reserved IP addresses should be assigned to computers or servers that require permanent IP settings.

To reserve an IP address:

1. Click Add.

2. In the IP Address field, type the IP address to assign to the computer or server. (Choose an IP address from the router's LAN subnet, such as 192.168.1.x.)

3. Type the MAC address of the computer or server.

Tip: If the computer is already present on your network, you can copy its MAC address from the Attached Devices screen and paste it here.

1. Click Apply to enter the reserved address into the table.

Note: The reserved address is not assigned until the next time the computer contacts the router's DHCP server. Reboot the computer or access its IP configuration and force a DHCP release and renew.

To edit or delete a reserved address entry:

1. Select the radio button next to the reserved address you want to edit or delete.

2. Click Edit or Delete.

Using a Dynamic DNS Service

If your Internet Service Provider (ISP) gave you a permanently assigned IP address, you can register a domain name and have that name linked with your IP address by public Domain Name Servers (DNS). However, if your Internet account uses a dynamically assigned IP address, you do not know in advance what your IP address will be, and the address can change frequently. In this case, you can use a commercial Dynamic DNS service, which allows you to register your domain to their IP address, and forwards traffic directed at your domain to your frequently changing IP address.

Note: If your ISP assigns a private WAN IP address (such as 192.168.x.x or 10.x.x.x), the Dynamic DNS service will not work because private addresses are not routed on the Internet.

Your router contains a client that can connect to the Dynamic DNS service provided by DynDNS.org. You must first visit their website at www.dyndns.org and obtain an account and host name, which you configure in the router. Then, whenever your ISP-assigned IP address changes,

your router automatically contacts the Dynamic DNS service provider, logs in to your account, and registers your new IP address. If your host name is hostname, for example, you can reach your router at hostname.dyndns.org.

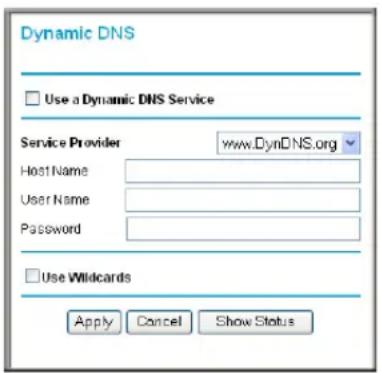

From the main menu, under Advanced, select Dynamic DNS to display the Dynamic DNS screen.

Dynamic DNS Use a Dynamic DNS Service Service Provider www.DynDNS.org HostName User Name Password Use Wildcards Apply Cancel Show Status

Figure 5-2

To configure Dynamic DNS:

1. Register for an account with one of the Dynamic DNS service providers whose names appear in the Service Provider list. For example, for DynDNS.org, select www.dyndns.org.
2. Select the Use a Dynamic DNS Service check box.
3. Select the name of your Dynamic DNS service provider.
4. Type the host name (or domain name) that your Dynamic DNS service provider gave you.
5. Type the user name for your Dynamic DNS account. This is the name that you use to log in to your account, not your host name.
6. Type the password (or key) for your Dynamic DNS account.
7. If your Dynamic DNS provider allows the use of wildcards in resolving your URL, you can select the Use Wildcards check box to activate this feature. For example, the wildcard feature causes *.yourhost.dyndns.org to be aliased to the same IP address as yourhost.dyndns.org.
8. Click Apply to save your configuration.

Configuring the WAN Setup Options

The WAN Setup screen lets you configure a DMZ (demilitarized zone) server, change the Maximum Transmit Unit (MTU) size, and enable the wireless router to respond to a ping on the WAN (Internet) port. From the main menu, under Advanced, click WAN Setup to view the WAN Setup screen.

WAN Setup Disable SPI Firewall Default DMZ Server 10 0 0 Respond to Ping on Internet Port MTU Size(In bytes) 1500 NAT Filtering Secured Open Disable SIP ALG Apply Cancel

Figure 5-3

The WAN Setup fields are described in the following table:

Table 5-2. WAN Setup Settings

Setting Description
Disable SPI Firewall The Stateful Packet Inspection (SPI) firewall protects your network and computers against attacks and intrusions. A stateful packet firewall carefully inspects incoming traffic packets, looking for known exploits such as malformed, oversized, or out-of-sequence packets. The firewall should be disabled only in special circumstances, such as when you are troubleshooting application issues.
Default DMZ Server This feature is sometimes helpful when you are using some online games and videoconferencing. Be careful when using this feature because it makes the firewall security less effective. See the following section, Configuring Static Routes.
Respond to Ping on Internet Port	If you want the wireless router to respond to a ping from the Internet, select this check box. This should be used only as a diagnostic tool, since it allows your wireless router to be discovered. Do not select this check box unless you have a specific reason to do so.
MTU Size (in bytes) The normal MTU (Maximum Transmit Unit) value for most Ethernet networks is 1500 bytes, or 1492 Bytes for PPPoE connections. For some ISPs you might need to reduce the MTU. This is rarely required, and should not be done unless you are sure it is necessary for your ISP connection. See “Changing the MTU Size” on page 6-6.

Table 5-2. WAN Setup Settings

Setting Description
NAT Filtering Network Address	ss Translation (NAT) determines how the router processes inbound traffic. Secured NAT provides a secured firewall to protect the computers on the LAN from attacks from the Internet, but might prevent some Internet games, point-to-point applications, or multimedia applications from functioning. Open NAT provides a much less secured firewall, but allows almost all Internet applications to function.
Disable SIP ALG Select this	feature if you have a SIP (Session Initiation Protocol) telephone or other SIP base devices, and you want them to communicate with other people. If you have been unable to build a successful SIP connection, selecting this check box allows for such a connection without compromising other SIP ALG (Application-level gateway) firewall settings, such as Disable SPI Firewall. If you are not using SIP devices, leave this check box unchecked.

Setting Up a Default DMZ Server

The default DMZ server feature is helpful when you are using some online games and videoconferencing applications that are incompatible with Network Address Translation (NAT). The router is programmed to recognize some of these applications and to work correctly with them, but there are other applications that might not function well. In some cases, one local computer can run the application correctly if that computer's IP address is entered as the default DMZ server.

Warning: DMZ servers pose a security risk. A computer designated as the default DMZ server loses much of the protection of the firewall and is exposed to exploits from the Internet. If compromised, the DMZ server computer can be used to attack other computers on your network.

Incoming traffic from the Internet is usually discarded by the router unless the traffic is a response to one of your local computers or a service that you have configured in the Port Forwarding/Port Triggering screen. Instead of discarding this traffic, you can have it forwarded to one computer on your network. This computer is called the default DMZ server.

The WAN Setup screen lets you configure a default DMZ server.

To assign a computer or server to be a default DMZ server:

1. Click the Default DMZ Server check box.
2. Type the IP address.

3. Click Apply.

Configuring Static Routes

Static routes provide additional routing information to your router. Under usual circumstances, the router has adequate routing information after it has been configured for Internet access, and you do not need to configure additional static routes. You must configure static routes only for unusual cases such as multiple routers or multiple IP subnets located on your network.

As an example of when a static route is needed, consider the following case:

• Your primary Internet access is through a cable modem to an ISP.
• You have an ISDN router on your home network for connecting to the company where you are employed. This router's address on your LAN is 192.168.1.100.
• Your company's network address is 134.177.0.0.

When you first configured your router, two implicit static routes were created. A default route was created with your ISP as the gateway, and a second static route was created to your local network for all 192.168.1.x addresses. With this configuration, if you attempt to access a device on the 134.177.0.0 network, your router forwards your request to the ISP. The ISP forwards your request to the company where you are employed, and the request is likely to be denied by the company's firewall.

In this case you must define a static route, telling your router that 134.177.0.0 should be accessed through the ISDN router at 192.168.1.100.

In this example:

• The Destination IP Address and IP Subnet Mask fields specify that this static route applies to all 134.177.x.x addresses.
• The Gateway IP Address field specifies that all traffic for these addresses should be forwarded to the ISDN router at 192.168.1.100.
  • A Metric value of 1 will work since the ISDN router is on the LAN.
• Private is selected only as a precautionary security measure in case RIP is activated.

Select Static Routes under Advanced in the main menu. The Static Routes screen displays.

Static Routes

Active Name Destination Gateway

Add Edit Delete

Figure 5-4

To add or edit a static route:

1. Click Add to open the Static Routes screen.

Static Routes Route Name Private Active Destination IP Address IP Subnet Mask Gateway IP Address Metric Apply Cancel

Figure 5-5

1. In the Route Name field, type a name for this static route. (This is for identification purposes only.)
2. Select the Private check box if you want to limit access to the LAN only. If Private is selected, the static route is not reported in RIP.
3. Select the Active check box to make this route effective.
4. Type the destination IP address of the final destination.
5. Type the IP subnet mask for this destination. If the destination is a single host, type 255.255.255.255.

6. Type the gateway IP address, which must be a router on the same LAN segment as the WNR2200 router.

7. Type a number between 1 and 15 as the metric value.

This represents the number of routers between your network and the destination. Usually, a setting of 2 or 3 works, but if this is a direct connection, set it to 1.

1. Click Apply to have the static route entered into the table.

Allowing Inbound Connections to Your Network

By default, the WNR2200 router blocks any inbound traffic from the Internet to your computers except for replies to your outbound traffic. However, you might need to create exceptions to this rule for the following purposes:

• To allow remote computers on the Internet to access a server on your local network.
• To allow certain applications and games to work correctly when their replies are not recognized by your router.

Your router provides two features for creating these exceptions: port forwarding and port triggering. This section explains how a normal outbound connection works, followed by two examples explaining how port forwarding and port triggering operate and how they differ.

How Your Computer Accesses a Remote Computer through Your Router

When a computer on your network needs to access a computer on the Internet, your computer sends your router a message containing source and destination address and process information. Before forwarding your message to the remote computer, your router must modify the source information and must create and track the communication session so that replies can be routed back to your computer.

Here is an example of normal outbound traffic and the resulting inbound responses:

1. You open Internet Explorer, beginning a browser session on your computer. Invisible to you, your operating system assigns a service number (port number) to every communication process running on your computer. In this example, let's say Windows assigns port number 5678 to this browser session.

2. You ask your browser to get a Web page from the Web server at www.example.com. Your computer composes a Web page request message with the following address and port information:

3. The source address is your computer's IP address.

4. The source port number is 5678, the browser session.

5. The destination address is the IP address of www.example.com, which your computer finds by asking a DNS server.

6. The destination port number is 80, the standard port number for a Web server process.
   Your computer then sends this request message to your router.

7. Your router creates an entry in its internal session table describing this communication session between your computer and the Web server at www.example.com. Before sending the Web page request message to www.example.com, your router stores the original information and then modifies the source information in the request message, performing Network Address Translation (NAT):

8. The source address is replaced with your router's public IP address.
   This is necessary because your computer uses a private IP address that is not globally unique and cannot be used on the Internet.

9. The source port number is changed to a number chosen by the router, such as 33333. This is necessary because two computers could independently be using the same session number.

Your router then sends this request message through the Internet to the Web server at www.example.com.

1. The Web server at www.example.com composes a return message with the requested Web page data. The return message contains the following address and port information:

2. The source address is the IP address of www.example.com.

3. The source port number is 80, the standard port number for a Web server process.
4. The destination address is the public IP address of your router.
   • The destination port number is 33333.

The Web server then sends this reply message to your router.

1. Upon receiving the incoming message, your router checks its session table to determine whether there is an active session for port number 33333. Finding an active session, the router then modifies the message, restoring the original address information replaced by NAT. The message now contains the following address and port information:

2. The source address is the IP address of www.example.com.

3. The source port number is 80, the standard port number for a Web server process.
4. The destination address is your computer's IP address.
5. The destination port number is 5678, the browser session that made the initial request.

Your router then sends this reply message to your computer, which displays the Web page from www.example.com.

1. When you finish your browser session, your router eventually senses a period of inactivity in the communications. Your router then removes the session information from its session table, and incoming traffic is no longer accepted on port number 33333.

How Port Triggering Changes the Communication Process

In the preceding example, requests are sent to a remote computer by your router from a particular service port number, and replies from the remote computer to your router are directed to that port number. If the remote server sends a reply back to a different port number, your router will not recognize it and will discard it. However, some application servers (such as FTP and IRC servers) send replies back to multiple port numbers. Using the port triggering function of your router, you can tell the router to open additional incoming ports when a particular outgoing port originates a session.

An example is Internet Relay Chat (IRC). Your computer connects to an IRC server at destination port 6667. The IRC server not only responds to your originating source port, but also sends an “identify” message to your computer on port 113. Using port triggering, you can tell the router, “When you initiate a session with destination port 6667, you must also allow incoming traffic on port 113 to reach the originating computer.” Using steps similar to the preceding example, the following sequence shows the effects of the port triggering rule you have defined:

1. You open an IRC client program, beginning a chat session on your computer.
2. Your IRC client composes a request message to an IRC server using a destination port number of 6667, the standard port number for an IRC server process. Your computer then sends this request message to your router.
3. Your router creates an entry in its internal session table describing this communication session between your computer and the IRC server. Your router stores the original information, performs Network Address Translation (NAT) on the source address and port, and sends this request message through the Internet to the IRC server.
4. Noting your port triggering rule, and having observed the destination port number of 6667, your router creates an additional session entry to send any incoming port 113 traffic to your computer.

5. The IRC server sends a return message to your router using the NAT-assigned source port (as in the previous example, let's say port 33333) as the destination port. The IRC server also sends an "identify" message to your router with destination port 113.

6. Upon receiving the incoming message to destination port 33333, your router checks its session table to determine whether there is an active session for port number 33333. Finding an active session, the router restores the original address information replaced by NAT and sends this reply message to your computer.

7. Upon receiving the incoming message to destination port 113, your router checks its session table and learns that there is an active session for port 113, associated with your computer. The router replaces the message's destination IP address with your computer's IP address and forwards the message to your computer.
8. When you finish your chat session, your router eventually senses a period of inactivity in the communications. The router then removes the session information from its session table, and incoming traffic is no longer accepted on port numbers 33333 or 113.

To configure port triggering, you need to know which inbound ports the application needs. Also, you need to know the number of the outbound port that will trigger the opening of the inbound ports. You can usually determine this information by contacting the publisher of the application, or user groups or newsgroups.

Note: Only one computer at a time can use the triggered application.

How Port Forwarding Changes the Communication Process

In both of the preceding examples, your computer initiates an application session with a server computer on the Internet. However, you might need to allow a client computer on the Internet to initiate a connection to a server computer on your network. Normally, your router ignores any inbound traffic that is not a response to your own outbound traffic. You can configure exceptions to this default rule by using the port forwarding feature.

A typical application of port forwarding can be shown by reversing the client-server relationship from our previous Web server example. In this case, a remote computer's browser needs to access a Web server running on a computer in your local network. Using port forwarding, you can tell the router, “When you receive incoming traffic on port 80 (the standard port number for a Web server process), forward it to the local computer at 192.168.1.123.” The following sequence shows the effects of the port forwarding rule you have defined:

1. The user of a remote computer opens Internet Explorer and requests a Web page from www.example.com, which resolves to the public IP address of your router. The remote computer composes a Web page request message with the following destination information:

2. The destination address is the IP address of www.example.com, which is the address of your router.

3. The destination port number is 80, the standard port number for a Web server process.
   The remote computer then sends this request message through the Internet to your router.

4. Your router receives the request message and looks in its rules table for any rules covering the disposition of incoming port 80 traffic. Your port forwarding rule specifies that incoming port 80 traffic should be forwarded to local IP address 192.168.1.123. Therefore, your router modifies the destination information in the request message:

The destination address is replaced with 192.168.1.123.

Your router then sends this request message to your local network.

1. Your Web server at 192.168.1.123 receives the request and composes a return message with the requested Web page data. Your Web server then sends this reply message to your router.
2. Your router performs Network Address Translation (NAT) on the source IP address, and sends this request message through the Internet to the remote computer, which displays the Web page from www.example.com.

To configure port forwarding, you need to know which inbound ports the application needs. You usually can determine this information by contacting the publisher of the application or user groups or newsgroups.

How Port Forwarding Differs from Port Triggering

The following points summarize the differences between port forwarding and port triggering:

• Port triggering can be used by any computer on your network, although only one computer can use it at a time.
• Port forwarding is configured for a single computer on your network.
• Port triggering does not need to know the computer's IP address in advance. The IP address is captured automatically.
• Port forwarding requires that you specify the computer's IP address during configuration, and the IP address must never change.
• Port triggering requires specific outbound traffic to open the inbound ports, and the triggered ports are closed after a period of no activity.
• Port forwarding is always active and does not need to be triggered.

Configuring Port Forwarding to Local Servers

Using the port forwarding feature, you can allow certain types of incoming traffic to reach servers on your local network. For example, you might make a local Web server, FTP server, or game server visible and available to the Internet.

Use the Port Forwarding screen to configure the router to forward specific incoming protocols to computers on your local network. In addition to servers for specific applications, you can also specify a default DMZ server to which all other incoming protocols are forwarded. The DMZ server is configured in the WAN Setup screen, as discussed in “Setting Up a Default DMZ Server” on page 5-8.

Before starting, you need to determine which type of service, application, or game you will provide, and the local IP address of the computer that will provide the service. Be sure the computer's IP address never changes.

Tip: To ensure that your server computer always has the same IP address, use the reserved IP address feature of your WNR2200 router. See “Address Reservation” on page 5-4 for instructions on how to use reserved IP addresses.

To configure port forwarding to a local server:

1. Select Port Forwarding/Port Triggering under Advanced in the main menu.

Port Forwarding / Port Triggering Please select the service type. ○ Port Forwarding ○ Port Triggering Service Name Server IP Address FTP 192 168 1 Add = Server Name Start Port End Port Server IP Address Edit Service Delete Service Add Custom Service

Figure 5-6

1. Select the Port Forwarding radio button as the Service type.

2. From the Service Name list, select the service or game that you will host on your network. If the service does not appear in the list, see the following section, "Adding a Custom Service."

3. In the corresponding Server IP Address box, enter the last digit of the IP address of your local computer that will provide this service.
4. Click Add. The service appears in the list in the screen.

Adding a Custom Service

To define a service, game, or application that does not appear in the Service Name list, you must first determine which port number or range of numbers is used by the application. You can usually determine this information by contacting the publisher of the application or user groups or newsgroups. When you have the port number information, follow these steps:

1. Select Port Forwarding/Port Triggering under Advanced in the main menu.
2. Select the Port Forwarding radio button as the Service type.
3. Click Add Custom Service.

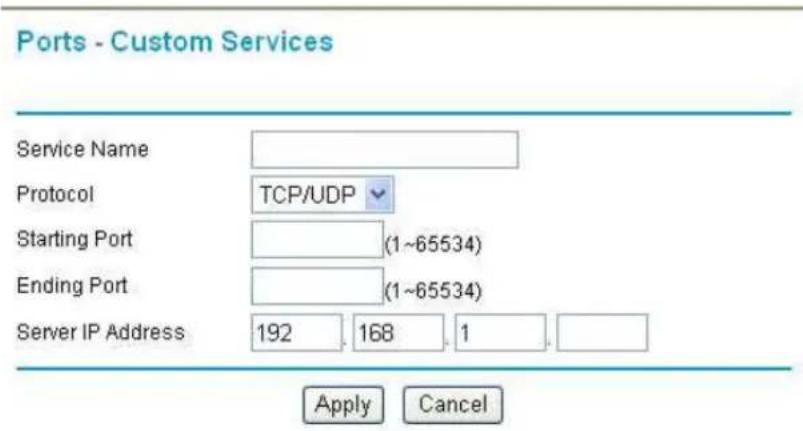

Ports - Custom Services Service Name Protocol TCP/UDP Starting Port (1~65534) Ending Port (1~65534) Server IP Address 192 168 1 . Apply Cancel

Figure 5-7

1. In the Service Name field, enter a descriptive name.
2. In the Protocol field, select the protocol. If you are unsure, select TCP/UDP.
3. In the Starting Port field, enter the beginning port number.

- If the application uses only a single port, enter the same port number in the Ending Port field.

- If the application uses a range of ports, enter the ending port number of the range in the Ending Port field.

1. In the Server IP Address field, enter the IP address of your local computer that will provide this service.
2. Click Apply. The service appears in the list in the Port Forwarding/Port Triggering screen.

Editing or Deleting a Port Forwarding Entry

To edit or delete a port forwarding entry:

1. In the table, select the button next to the service name.
2. Click Edit Service or Delete Service.

Application Example: Making a Local Web Server Public

If you host a Web server on your local network, you can use port forwarding to allow Web requests from anyone on the Internet to reach your Web server.

To make a local Web server public:

1. Assign your Web server either a fixed IP address or a dynamic IP address using DHCP address reservation, as explained in “Address Reservation” on page 5-4. In this example, your router will always give your Web server an IP address of 192.168.1.33.
2. In the Port Forwarding screen, configure the router to forward the HTTP service to the local address of your Web server at 192.168.1.33. HTTP (port 80) is the standard protocol for Web servers.
3. (Optional) Register a host name with a Dynamic DNS service, and configure your router to use the name as described in “Using a Dynamic DNS Service” on page 5-5. To access your Web server from the Internet, a remote user must know the IP address that has been assigned by your ISP. However, if you use a Dynamic DNS service, the remote user can reach your server by a user-friendly Internet name, such as mynetgear.dyndns.org.

Configuring Port Triggering

Port triggering is a dynamic extension of port forwarding that is useful in these cases:

• More than one local computer needs port forwarding for the same application (but not simultaneously).
• An application needs to open incoming ports that are different from the outgoing port.

When port triggering is enabled, the router monitors outbound traffic looking for a specified outbound “trigger” port. When the router detects outbound traffic on that port, it remembers the IP address of the local computer that sent the data. The router then temporarily opens the specified incoming port or ports, and forwards incoming traffic on the triggered ports to the triggering computer.

While port forwarding creates a static mapping of a port number or range to a single local computer, port triggering can dynamically open ports to any computer that needs them and can close the ports when they are no longer needed.

Note: If you use applications such as multiplayer gaming, peer-to-peer connections, real-time communications such as instant messaging, or remote assistance (a feature in Windows XP), you should also enable Universal Plug and Play (UPnP) according to the instructions in “Universal Plug and Play” on page 6-13.

To configure port triggering, you need to know which inbound ports the application needs. Also, you need to know the number of the outbound port that will trigger the opening of the inbound ports. You can usually determine this information by contacting the publisher of the application or user groups or newsgroups.

To set up port triggering:

1. Select Port Forwarding/Port Triggering under Advanced in the main menu. The Forwarding/Port Triggering screen displays.

2. Select the Port Triggering radio button. The port triggering information displays.

Port Forwarding / Port Triggering Please select the service type ○ Port Forwarding ● Port Triggering □ Disable Port Triggering Port Triggering Timeout (in minutes) 20 Port Triggering Portmap Table

Enable Service Name Service Type Inbound Connection Service User

○ 1 ✓ dialpad_1 TCP:51200 TCP/UDP:51200 ANY ○ 2 ✓ dialpad_2 TCP:51201 TCP/UDP:51201 ANY ○ 3 ✓ paltalk_1 TCP:2090 TCP/UDP:2090 ANY ○ 4 ✓ paltalk_2 TCP:2091 TCP/UDP:2091 ANY ○ 5 ✓ quicktime TCP:554 TCP/UDP:6970..6990 ANY ○ 6 ✓ staircraft TCP:6112 TCP/UDP:6112 ANY Add Service Edit Service Delete Service Apply Cancel

Figure 5-8

1. Clear the Disable Port Triggering check box.

Note: If the Disable Port Triggering check box is selected after you configure port triggering, port triggering is disabled. However, any port triggering configuration information you added to the router is retained even though it is not used.

1. In the Port Triggering Timeout field, enter a value up to 9999 minutes. This value controls the inactivity timer for the designated inbound ports. The inbound ports close when the inactivity time expires. This is required because the router cannot be sure when the application has terminated.

5. Click Add Service.

Port Triggering - Services Service Service Name Service User Any Service Type Triggering Port TCP (1~65535) Required Inbound Connection Connection Type TCP/UDP Starting Port (1~65535) Ending Port (1~65535) Apply Cancel

Figure 5-9

1. In the Service Name field, type a descriptive service name.
2. In the Service User field, select Any (the default) to allow this service to be used by any computer on the Internet. Otherwise, select Single address, and enter the IP address of one computer to restrict the service to a particular computer.
3. Select the service type, either TCP or UDP or both (TCP/UDP). If you are not sure, select TCP/UDP.
4. In the Triggering Port field, enter the number of the outbound traffic port that will cause the inbound ports to be opened.
5. Enter the inbound connection port information in the Connection Type, Starting Port, and Ending Port fields.
6. Click Apply. The service appears in the Port Triggering Portmap table.

Wireless Repeating (Also Called WDS)

The WNR2200 router can be used with a wireless access point (AP) to build large bridged wireless networks. Wireless repeating is a type of Wireless Distribution System (WDS).

Warning: If you use the wireless repeating function, your options for wireless security are limited to None or WEP. For more information about wireless security, see Chapter 2, “Safeguarding Your Network.”

The following figure shows a wireless repeating scenario:

Figure 5-10

To set up a wireless network using WDS, the following conditions must be met for both APs:

• Both APs must use the same SSID, wireless channel, and encryption mode (see “Manually Configuring Your Wireless Settings” on page 2-4 or “Using Push 'N' Connect (WPS) to Configure Your Wireless Network” on page 2-12).
• Both APs must be on the same LAN IP subnet. That is, all the AP LAN IP addresses are in the same network.
• All LAN devices (wired and wireless computers) must be configured to operate in the same LAN network address range as the APs.

Wireless Repeating Function

You can view or change wireless repeater settings for the wireless router. From the main menu of the browser interface, under Advanced, click Wireless Repeating Function to display the Wireless Repeating Function screen.

Wireless Repeating Function Enable Wireless Repeating Function Wireless MAC of this router : 30:46:9A:08:AA:2D Wireless Repeater Repeater IP Address 192 168 1 Disable Wireless Client Association Base Station MAC Address Wireless Base Station Disable Wireless Client Association Repeater MAC Address 1 Repeater MAC Address 2 Repeater MAC Address 3 Repeater MAC Address 4 Apply Cancel

Figure 5-11

The wireless router supports two modes of the wireless repeating function, and allows you to control wireless client association:

• Wireless Repeater. The wireless router sends all traffic from its local wireless or wired computers to a remote AP. To configure this mode, you must know the MAC address of the remote parent AP.
• Wireless Base Station. The wireless router acts as the parent AP, bridging traffic to and from the child repeater AP, as well as handling wireless and wired local computers. To configure this mode, you must know the MAC addresses of the child repeater AP.
• Disable Wireless Client Association. Usually this check box is cleared so that the router is an access point for wireless computers.

If this check box is selected, the router communicates wirelessly only with other APs whose MAC addresses are listed in this screen. The router still communicates with wire-connected LAN devices.

Setting Up the Base Station

The wireless repeating function works only in hub and spoke mode. The units cannot be daisy chained. You must know the wireless settings for both units. You must know the MAC address of the remote unit. First, set up the base station, and then set up the repeater. To set up the base station:

1. Set up both units with exactly the same wireless settings (SSID, mode, channel, and security). Note that the wireless security option must be set to None or WEP.
2. Log into the wireless router base unit, under the Advanced heading, select Wireless Repeating Function to display the Wireless Repeating Function screen.

Wireless Repeating Function Enable Wireless Repeating Function Wireless MAC of this router : 30:46:9A:08:AA:2D Wireless Repeater Repeater IP Address 192 168 1 Disable Wireless Client Association Base Station MAC Address Wireless Base Station Disable Wireless Client Association Repeater MAC Address 1 Repeater MAC Address 2 Repeater MAC Address 3 Repeater MAC Address 4 Apply Cancel

Figure 5-12

1. In the Wireless Repeating Function screen (depending on the frequency you want to use), select the Enable Wireless Repeating Function check box and the Wireless Base Station radio button.
2. Enter the MAC address for one or more repeater units.
3. Click Apply to save your changes.

Setting Up a Repeater Unit

Use a wired Ethernet connection to set up the repeater unit to avoid conflicts with the wireless connection to the base station.

Note: If you are using the WNR2200 base station with a non-NETGEAR wireless router as the repeater, you might need to change additional configuration settings. In particular, you should disable the DHCP server function on the wireless repeater AP.

To configure a WNR2200 router as a repeater unit:

1. Log in to the router that will be the repeater. Check the Wireless Settings screen, and verify that the wireless settings match the base unit exactly. The wireless security option must be set to WEP or None.
2. In the Wireless Repeating Function screen (depending on the frequency you want to use), select the Enable Wireless Repeating Function check box and the Wireless Repeater radio button.
3. Fill in the Repeater IP Address field. This IP address must be in the same subnet as the base station, but different from the LAN IP of the base station
4. Click Apply to save your changes.
5. Verify connectivity across the LANs.

A computer on any wireless or wired LAN segment of the wireless router should be able to connect to the Internet or share files and printers with any other wireless or wired computer or server connected to the other AP.

Chapter 6

Fine-Tuning Your Network

This chapter describes features to help you manage your N300 Wireless Router with USB WNR2200.

This chapter includes the following sections:

• “Assessing Your Speed Requirements” on page 6-2
• “Optimizing Your Network Bandwidth” on page 6-3
• “Optimizing Wireless Performance” on page 6-5
• “Changing the MTU Size” on page 6-6
• “Quality of Service (QoS)” on page 6-7

Common connection types and their speed and security considerations are:

- Broadband Internet. Your Internet connection speed is determined by your modem type, such as ADSL or cable modem, as well as the connection speed of the sites to which you connect, and general Internet traffic. ADSL and cable modem connections are asymmetrical, meaning they have a lower data rate to the Internet (upstream) than from the Internet (downstream). Keep in mind that when you connect to another site that also has an asymmetrical connection, the data rate between your sites is limited by each side's upstream data rate. A typical residential ADSL or cable modem connection provides a downstream throughput of about 1 to 3 megabits per second (Mbps). Newer technologies such as ADSL2+ and Fiber to the Home (FTTH) will increase the connection speed to tens of Mbps.

- Wireless. Your N300 Wireless Router with USB WNR2200 provides a wireless data throughput of up to 300 Mbps using technology called multiple input, multiple output (MIMO), in which multiple antennas transmit multiple streams of data. The use of multiple antennas also provides excellent range and coverage. With the introduction of the newer WPA and WPA2 encryption and authentication protocols, wireless security is extremely strong.

To get the best performance, use RangeMax adapters, such as the WNDA3100, for your computers. Although the RangeMax router is compatible with older 802.11b and 802.11g adapters, the use of these older wireless technologies in your network can result in lower throughput overall (typically less than 10 Mbps for 802.11b and less than 40 Mbps for 802.11g). In addition, many older wireless products do not support the latest security protocols, WPA and WPA2.

- Powerline. For connecting rooms or floors that are blocked by obstructions or are distant vertically, consider networking over your building's AC wiring. NETGEAR's Powerline HD family of products delivers up to 200 Mbps to any outlet, while the older-generation XE family of products delivers 14 Mbps or 85 Mbps. Data transmissions are encrypted for security, and you can configure an individual network password to prevent neighbors from connecting.

The Powerline HD family of products can coexist on the same network with older-generation XE family products or HomePlug 1.0 products, but they are not interoperable with these older products.

- Wired Ethernet. As gigabit-speed Ethernet ports (10/100/1000 Mbps) become common on newer computers, wired Ethernet remains a good choice for speed, economy, and security. Gigabit Ethernet can extend up to 100 meters with twisted-pair wiring of CAT-5e or better. A wired connection is not susceptible to interference, and eavesdropping would require a physical connection to your network.

Note: Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, can lower actual data throughput rate.

Assessing Your Speed Requirements

Because your Internet connection is likely to operate at a much lower speed than your local network, faster local networking technologies might not improve your Internet experience. However, many emerging home applications require high data rates. For example:

• Streaming HD video requires 10 to 30 Mbps per stream. Because latency and packet loss can disrupt your video, plan to provide at least twice the capacity you need.
• Streaming MP3 audio requires less than 1 Mbps per stream and does not strain most modern networks. Like video, however, streaming audio is also sensitive to latency and packet loss, so a congested network or a noisy link can cause problems.

- Backing up computers over the network has become popular due to the availability of inexpensive mass storage. Table 6-1 shows the time to transfer 1 gigabyte (GB) of data using various networking technologies.

Table 6-1. Theoretical Transfer Time for 1 Gigabyte

Network Connection Theoretical Raw Transfer Time
Gigabit wired Ethernet 8 seconds
RangeMax NEXT Wireless-N 26 seconds
Powerline HD 40 seconds
100 Mbps wired Ethernet 80 seconds
802.11n wireless 45 seconds
802.11g wireless 150 seconds
802.11b wireless 700 seconds
10 Mbps wired Ethernet 800 seconds
Cable modem (3 Mbps) 2700 seconds
Analog modem (56 kbps) 144,000 seconds (40 hours)

Optimizing Your Network Bandwidth

As your network grows, it might consist of several segments of different networking technologies, each providing different throughput. In planning your network, you should first consider which devices will have the heaviest traffic flow between them. Examples are:

• A media center in one room streaming high-definition video from a server in another room
• A storage device that is used for backing up your computers

Next, consider the throughput of your network devices. Where possible, make the heaviest-traffic connections using higher-speed technologies, with no lower-speed bottlenecks in the path.

Figure 6-1
Figure 6-1 shows a sample network using multiple networking technologies. In this network, the two PCs with Gigabit (1000 Mbps) Ethernet adapters have a gigabit connection through the GS605 switch to the storage server. This connection should allow for extremely fast backups or quick access to large files on the server. The PC connected through a pair of Powerline HD adapters is limited to the 200 Mbps speed of the Powerline HD connection. Although any of the links in this example would be sufficient for high-traffic applications such as streaming HD video, the use of older devices such as 10 Mbps Ethernet or 802.11b wireless would create a significant bottleneck.

Optimizing Wireless Performance

The speed and operating distance or range of your wireless connection can vary significantly based on the physical placement of the wireless router. You should choose a location for your router that will maximize the network speed.

Note: Failure to follow these guidelines can result in significant performance degradation or inability to wirelessly connect to the router. For complete range and performance specifications, click the link to the online document “Wireless Networking Basics” in Appendix B.

The following list describes how to optimize wireless router performance.

- Identify critical wireless links.

If your network has several wireless devices, decide which wireless devices need the highest data rate, and locate the router near them. Many wireless products have automatic data-rate fallback, which allows increased distances without loss of connectivity. This also means that devices that are farther away might be slower. Therefore, the most critical links in your network are those where the traffic is high and the distances are great. Optimize those first.

- Choose placement carefully.

For best results, place your router:

• Near the center of the area in which your computers will operate.
  – In an elevated location such as a high shelf where the wirelessly connected computers have line-of-sight access (even if through walls).
• Avoid obstacles to wireless signals.
• Keep wireless devices at least 2 feet from large metal fixtures such as file cabinets, refrigerators, pipes, metal ceilings, reinforced concrete, and metal partitions.
• Keep away from large amounts of water such as fish tanks and water coolers.

- Reduce interference.

• Avoid windows unless communicating between buildings.
• Place wireless devices away from various electromagnetic noise sources, especially those in the 2400–2500 MHz frequency band. Common noise-creating sources are:
  • Computers and fax machines (no closer than 1 foot)
• Copying machines, elevators, and cell phones (no closer than 6 feet)

- Microwave ovens (no closer than 10 feet)

- Choose your settings.

• Use a scanning utility to determine what other wireless networks are operating nearby, and choose an unused channel.
• Turn off SSID broadcast, and change the default SSID. Other nearby devices might automatically try to connect to your network several times a second, which can cause significant performance reduction.

- Set WPA2-PSK (AES) security to achieve the best wireless performance and the best security.

- Use WMM to improve the performance of voice and video traffic over the wireless link.

Changing the MTU Size

The Maximum Transmission Unit (MTU) is the largest data packet a network device transmits. When one network device communicates across the Internet with another, the data packets travel through many devices along the way. If any device in the data path has a lower MTU setting than the other devices, the data packets must be split or “fragmented” to accommodate the one with the smallest MTU.

The best MTU setting for NETGEAR equipment is often just the default value, and changing the value might fix one problem but cause another. Leave MTU unchanged unless one of these situations occurs:

- You have problems connecting to your ISP or other Internet service, and the technical support of either the ISP or NETGEAR recommends changing the MTU setting. These might require an MTU change:

• A secure website that won't open, or displays only part of a Web page
• Yahoo e-mail
  -MSN
  – America Online's DSL service

- You use VPN and have severe performance problems.

- You used a program to optimize MTU for performance reasons, and now you have connectivity or performance problems.

Note: An incorrect MTU setting can cause Internet communication problems such as the inability to access certain Web sites, frames within Web sites, secure login pages, or FTP or POP servers.

If you suspect an MTU problem, a common solution is to change the MTU to 1400. If you are willing to experiment, you can gradually reduce the MTU from the maximum value of 1500 until the problem goes away. Table 6-2 describes common MTU sizes and applications.

Table 6-2. Common MTU Sizes

MTU Application
1500 The largest	Ethernet packet size and the default value. This is the typical setting for non-PPPoE, non-VPN connections, and is the default value for NETGEAR routers, adapters, and switches.
1492 Used in PP	PoE environments.
1472 Maximum size to use for pinging. (Larger packets are fragmented.)
1468 Used in some DHCP environments.
1460 Usable by AOL if you don't have large e-mail attachments, for example.
1436 Used in PPTP environments or with VPN.
1400 Maximum size for AOL DSL.
576 Typical value to connect to dial-up ISPs.

To change the MTU size:

1. In the main menu, under Advanced, select WAN Setup.
2. In the MTU Size field, enter a new size between 64 and 1500.
3. Click Apply to save the new configuration.

Quality of Service (QoS)

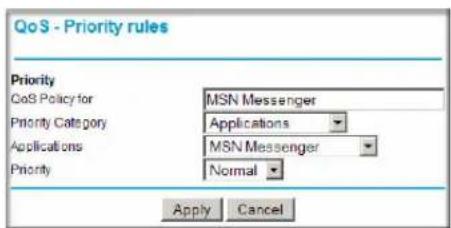

QoS is an advanced feature that can be used to prioritize some types of traffic ahead of others. The WNR2200 router can provide QoS prioritization over the wireless link and on the Internet connection. To configure QoS, use the QoS Setup screen.

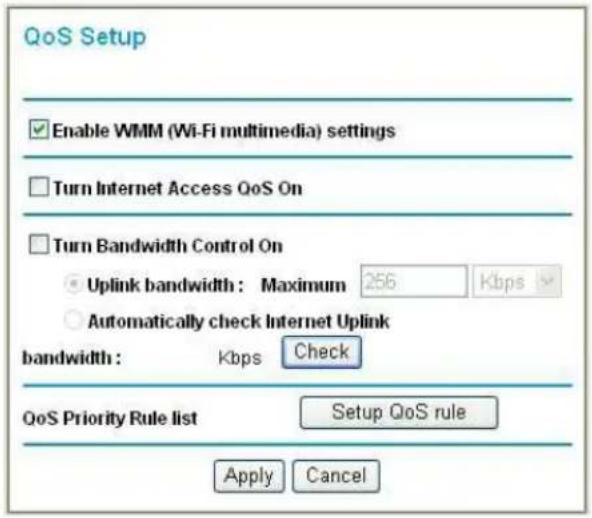

From the main menu, under Advanced, select QoS Setup. The QoS Setup screen displays:

QoS Setup Enable WMM (Wi-Fi multimedia) settings Turn Internet Access QoS On Turn Bandwidth Control On Uplink bandwidth: Maximum 256 Kbps Automatically check Internet Uplink bandwidth: Kbps Check QoS Priority Rule list Setup QoS rule Apply Cancel

Figure 6-2

Using WMM QoS for Wireless Multimedia Applications
