Product type	Cordless drill driver
Brand	Bosch
Model	GSR Mx2Drive Professional
Nominal voltage	10.8 V
Battery type	Lithium-Ion
No-load speed (1st gear)	0 – 400 rpm
No-load speed (2nd gear)	0 – 1,300 rpm
Max. torque (according to ISO 5393)	30 Nm
Max. drilling capacity in wood	25 mm
Max. drilling capacity in metal	10 mm
Max. screw diameter	8 mm
Tool holder	10 mm keyless chuck
Weight according to EPTA-Procedure 01:2014	1.1 kg
Main functions	Drilling, screwdriving, right/left rotation, variable speed, spindle lock
Work light	Integrated LED
Maintenance and cleaning	Clean ventilation slots with a dry brush; do not use abrasive products
Safety	Insulated handle, protection against unintentional restart, safety stop in case of jamming
Spare parts and repairability	Parts available through the Bosch network; repair by authorized professional recommended
Recommended charger	AL 1115 CV
Operating temperature	0 °C to +50 °C
Warranty	2-year manufacturer warranty (according to terms)

Frequently Asked Questions - GSR Mx2Drive Professional BOSCH

How to change the direction of rotation?

Use the rotation direction selector located above the trigger. Push it to the left for left rotation (unscrewing), to the right for right rotation (screwing and drilling). Never change direction while the tool is still running.

How to insert and remove the battery?

To insert the battery, align it with the compartment and push until it clicks. To remove it, press the side release buttons and pull the battery backwards. Always work with a fully charged battery for optimal power.

What are the essential safety precautions?

Always wear safety glasses and hearing protection. Hold the tool by the insulated gripping surfaces. Ensure the work area is clean and well lit. Do not work in explosive atmospheres.

How to clean the drill?

Clean the ventilation slots regularly with a dry brush or low-pressure compressed air. Never use water or harsh chemicals. Wipe the housing with a slightly damp cloth.

Which accessories are compatible?

Use drill bits and screwdriver bits with a 6.35 mm hex shank or 10 mm chuck. Bosch Professional accessories from the 10.8 V range are recommended. Consult the Bosch catalog for the full list.

How to select the speed?

The GSR Mx2Drive has two mechanical gears. Use first gear (0-400 rpm) for high-torque screwdriving and second gear (0-1300 rpm) for drilling. Select the speed via the rotary switch on top of the tool.

What to do in case of tool jamming?

Release the trigger immediately. Wait for the tool to stop completely, then remove the tool from the workpiece. Check if the bit or accessory is jammed. If jamming persists, have the tool checked by an authorized service center.

How to maintain the battery?

Charge the battery only with the Bosch AL 1115 CV charger. Do not expose it to moisture or excessive heat. Store it in a dry place between 0 °C and 50 °C. If the runtime decreases, replace the battery.

Where to find spare parts?

Spare parts are available on the website www.bosch-pt.com or from Bosch customer service at 0811360122. Always provide the 10-digit article number on the rating plate.

How to transport the drill safely?

Remove the battery before transport. If shipping the tool, ensure the battery contacts are protected and it is packed to prevent movement. Follow local regulations for transporting Lithium-Ion batteries.

USER MANUAL GSR Mx2Drive Professional BOSCH

OBJ HUCH-1208-005.book Page 1 Monday, June 20. 2016 1:38 PM

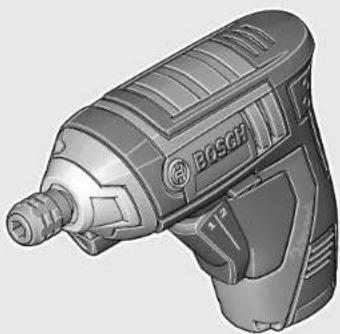

Illustration of a Bosch electric drill (no text or symbols visible)

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1609 92A 3A7 (2016.06) I/280

1 609 92A 3A7

GSR Mx2Drive

Professional

BOSCH

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

1 609 92A 3A7 | (20.6.16) Bosch Power Tools

▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
▶ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

14 | English

▶ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Drills and Screwdrivers

▶ Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory or fastener may contact hidden wiring. Cutting accessory and fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
▶ Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage.
▶ Switch off the power tool immediately when the tool insert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when: —the power tool is subject to overload or —it becomes wedged in the workpiece.
▶ Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
▶ Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Use the battery only in conjunction with your Bosch power tool. This measure alone protects the battery against dangerous overload.

Additional Safety and Working Instructions

Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health and cause allergic reactions, lead to respiratory infections and/or cancer. Materials containing asbestos may only be worked by specialists.
- Provide for good ventilation of the working place.
- It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the materials to be worked.
The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.
▶ Read the operating instructions of the battery charger.
▶ Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off.
▶ Hold the machine with a firm grip. High reaction torque can briefly occur when switching gears. A noise can appear when switching gears.
▶ To save energy, only switch the power tool on when using it.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

Symbol Meaning

GSR Mx2Drive : Cordless Drill Driver

Grey-marked area: Handle (insulated gripping surface)

Article number

Read all safety warnings and all instructions

Before any work on the machine itself, remove the battery

Bosch Power Tools 1 609 92A 3A7 | (20.6.16)

16 | English

Symbol Meaning

	Always wear ear protection
	Movement direction
	Reaction direction
	Right/left rotation
	Drilling and screwdriving
	Low speed
	High speed
	Switching On
	Switching Off
U	R	a	t	e
n0 1	N	o	-	l	o
n0 2	N	o	-	l	o
M Maximum torque according to ISO 5393
	Metal
	Wood
∅ Drilling diameter, max.
∅ Max. screw dia.
	Tool holder

d	v	o
a	d	s
a	d	s

1 609 92A 3A7 | (20.6.16) Bosch Power Tools

Symbol Meaning

	Weight according to EPTA-Procedure 01:2014
LwA	Sound power level
LpA	Sound pressure level
K	U	n	c	e
ah	Vibration total value
T1	Permitted ambient temperature during charging
T2	Permitted ambient temperature during operation* and storage * Limited performance at temperatures <0 °C
	Recommended batteries
	Recommended chargers

Delivery Scope

Cordless Drill/Driver.

Battery, application tools and other accessories shown or described are not part of the standard delivery scope.

A complete overview of accessories can be found in our accessories program.

Intended Use

The machine is intended for driving in and loosening screws as well as for drilling in wood and plastic.

The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination.

Technical Data

The technical data of the machine are listed in the table on page 270.

Noise/Vibration Information

The measured values of the machine are listed in the table on page 270.

Sound emission values determined according to EN 60745-2-1, EN 60745-2-2.

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745-2-1.

18 | English

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Mounting and Operation

Action Figure Page

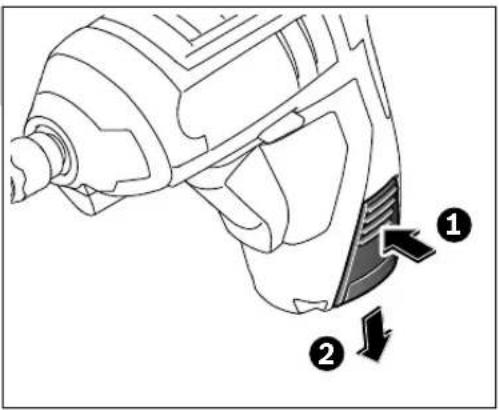

Removing the battery 1 271

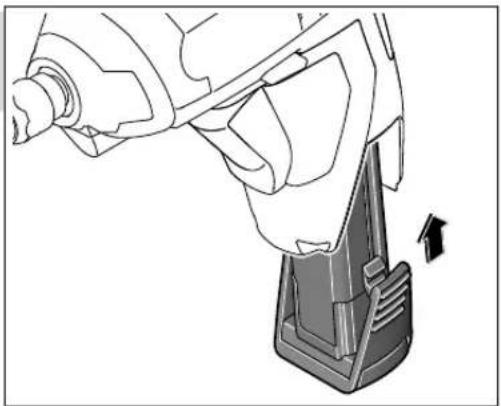

Inserting the battery 2 271

Mounting application tools 3 271

Reversing the rotational direction 4 272

Adjusting the Speed 5 273

Switching On and Off 6 273

Selecting Accessories - 274

Maintenance and Cleaning

▶ For safe and proper working, always keep the machine and ventilation slots clean.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

1 609 92A 3A7 | (20.6.16) Bosch Power Tools

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in

need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

20 | English

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

Please also observe possibly more detailed national regulations.

Disposal

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

1 609 92A 3A7 | (20.6.16) Bosch Power Tools

Français

Robert Bosch (France) S.A.S.

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Transport

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Transport

Zalecane akumulatory

Zalecane ładowarki

Zakres dostawy

Robert Bosch Sp. z o.o.

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Tel. service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

T₁ NCAA NCAA College of the United Kingdom

Line drawing of a handheld electric drill bit (no text or symbols)

رقم الصنف

Diagram of a hand tool with an arrow indicating downward motion (no text or symbols present)

2

Mechanical assembly diagram showing a hand turning a component into a base with an arrow indicating motion (no text or symbols)

3

Bosch Power Tools 1 609 92A 3A7 | (20.6.16)

272

4

Line drawing of a mechanical device with a hook and directional arrow (no text or symbols)

Diagram of a mechanical device with directional arrows indicating motion, showing a lever and screw base (no text or symbols)

1 609 92A 3A7 | (20.6.16) Bosch Power Tools

5

Technical illustration of a mechanical device with a tool and component, showing no text or symbols.

Diagram of a hand holding a device with a circular outline and number 1, no text or symbols present

Diagram of a hand holding a device with a dark object inside, labeled with number 2 (no text or symbols on the device itself)

Illustration of bicycles and two screwdrivers (no text or symbols)

6

Bosch Power Tools 1 609 92A 3A7 | (20.6.16)

OBJ_BUCH-1208-005.book Page 274 Monday, June 20, 2016 1:31 PM

274

GBA 3,6V... (Li-Ion)

Line drawing of a Bosch air purifier device (no text or symbols)

Executive Vice President

Head of Product Certification

Engineering

Jaw Bo

i.v. k=mc

Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017
