Product type	Microwave oven
Brand	AEG
Model	MC2660EA
External dimensions (W × H × D)	592 mm × 460 mm × 437 mm
Weight	Approx. 20 kg
Power supply	230 V, 50 Hz, single-phase, min. 10 A fuse
Microwave power	900 W (IEC 60705)
Capacity	26 litres
Frequency	2450 MHz
Turntable diameter	325 mm, glass
Interior lamp	25 W / 240-250 V
Power levels	5 levels: 900 W, 630 W, 450 W, 270 W, 90 W
Automatic programs	Auto cook (4 menus), Cook from frozen (3 menus), Auto defrost (5 menus)
Additional functions	Multi-step cooking (max 3 stages), Quick cook, Timer, 12/24 h clock
Child safety lock	Yes, activate by holding STOP button for 3 seconds
Included accessories	Turntable, drive support, 4 fixing screws
Care and cleaning	Clean exterior with mild soap and water; interior with a damp cloth; turntable and support washable; door and seal cleaned regularly. Do not use abrasive products.
Safety	Automatic stop when door opened, safety lock, overheat protection (reduces to 630 W after 40 min at 900 W)

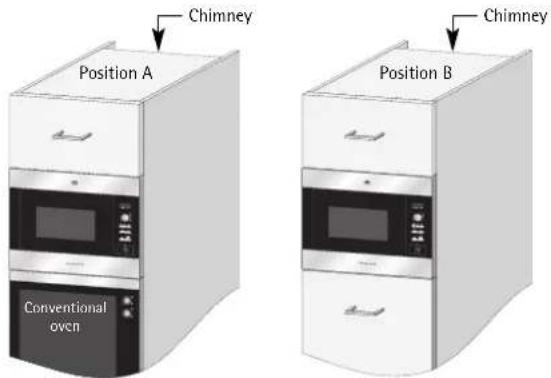

Installation	Built-in (positions A or B), requires a grounded outlet
Warranty	24 months (Belgium), after-sales service France and Belgium

Frequently Asked Questions - MC2660EA AEG

How do I set the clock on the AEG MC2660EA microwave oven?

To set the clock, hold down the MICROWAVE POWER LEVEL button for 3 seconds to select 12h or 24h mode. Turn the TIMER/WEIGHT/PORTION rotary knob to set the hours, press the button again to switch to minutes, then set the minutes. Press the button to confirm.

What types of containers can I use in this microwave?

Use only microwave-safe containers: heat-resistant glass, enameled ceramic, porcelain without metallic decoration, special microwave plastic, heat-resistant cardboard. Avoid metals, lead crystal, containers with gold or silver trim. Perform the water glass test if in doubt.

How do I use the automatic cooking and defrost programs?

Press the AUTO COOK 1 or 2, COOK FROM FROZEN, or AUTO DEFROST button until the desired menu number appears. Turn the rotary knob to enter the weight or quantity. Press START/QUICK to start. Follow the audible prompts to turn or stir the food.

How do I activate the child safety lock?

Hold the STOP button for 3 seconds. The display indicates the function is active. To deactivate, repeat the same action. When the lock is active, only the STOP button remains functional.

Why is the microwave not heating?

Check that the door is properly closed, the seals are clean, and the START/QUICK button has been pressed. Make sure the fuse has not blown and the appliance is plugged in. If the problem persists, contact after-sales service.

Can I use aluminum containers?

Yes, under conditions: the container must not exceed 4 cm in depth, be at least two-thirds full, not touch the oven walls (minimum distance 1 cm). Place it on an inverted ovenproof plate. Do not reuse the container.

How do I clean the interior of the oven?

Wipe up splashes after each use with a soft damp cloth or sponge. For stubborn stains, use soapy water, then rinse thoroughly. Do not use abrasive products or sprays. Clean the turntable and its support regularly.

Why is the turntable not turning?

Check that the drive support is correctly engaged, that the dish or food does not overhang the turntable, and that no object obstructs rotation under the turntable. If the problem persists, contact after-sales service.

What is the maximum power and how do I adjust it?

The maximum power is 900 W. To set a different level, turn the rotary knob to enter the cooking time, then press the MICROWAVE POWER LEVEL button repeatedly until the desired level appears (630 W, 450 W, 270 W, 90 W). Press START/QUICK.

What should I do if the display shows '68:88' after a power cut?

A power cut clears the time and any ongoing program. To reset the time, set the clock again as described in the manual. If a program was running, you must reprogram it.

USER MANUAL MC2660EA AEG

Operating instructions UK

PERFEKT IN FORM UND FUNKTION

AEG

Electrolux

Dear Customer,

Thank you for buying an AEG-Electrolux microwave oven and putting your trust in the AEG-Electrolux brand name.

Before using your AEG-Electrolux microwave oven for the first time, please read the instruction book thoroughly. This will enable you to take advantage of all the features that the appliance offers. It will also ensure trouble-free operation and minimize unnecessary service calls.

Important information concerning your safety or the operation of your appliance is noted by this symbol and/or mentions words such as «Warning», «Take care». Be sure to follow all instructions carefully.

Throughout the manual, this symbol guides you step by step when operating the appliance.

This symbol indicates further information concerning the use of the appliance.

The clover indicates energy-saving tips and hints for environmentally friendly use of your appliance.

In the event of malfunctioning, please follow the instructions given in the section «What to do if...»

UK

Contents

Important safety instructions 2 - 3

Oven & accessories ....4

Control panel 5

Before operation ....6

Setting the clock ....6

What are microwaves? 7

Suitable ovenware 7 - 8

Tips & advice 8-12

Microwave power levels ....13

Microwave cooking ....14

Other convenient functions 15 - 16

Auto cook, cook from frozen & auto defrost operation .....17 - 18

Auto cook, cook from frozen & auto defrost charts 19 - 22

Recipes for auto cook 22 - 23

Cooking charts....24 - 25

Recipes 25 - 29

Care & cleaning ....30

What to do if....30

Service & spare parts ....31

Guarantee conditions ....31

Specifications 32

Important information ....32

Installation 33 - 34

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Important safety instructions

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To avoid the danger of fire.

The microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fire.

The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency.

The AC power supply must be 230 V, 50 Hz, with a minimum 10 A distribution line fuse, or a minimum 10 A distribution circuit breaker.

It is recommended that a separate circuit serving only this appliance be provided.

Do not store or use the oven outdoors.

If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire.

Only use microwave-safe containers and utensils. See Page 7 - 8.

Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers.

Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.

Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings.

Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire.

Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire.

To make popcorn, only use special microwave popcorn makers.

Do not store food or any other items inside the oven.

Check the settings after you start the oven to ensure the oven is operating as desired.

See the corresponding hints in operation manual.

To avoid the possibility of injury

WARNING:

Do not operate the oven if it is damaged or malfunctioning. Check the following before use:

a) The door; make sure the door closes properly and ensure it is not misaligned or warped. b) The hinges and safety door latches; check to make sure they are not broken or loose. c) The door seals and sealing surfaces; ensure that they have not been damaged. d) Inside the oven cavity or on the door; make sure there are no dents. e) The power supply cord and plug; ensure that they are not damaged.

Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

Do not operate the oven with the door open or alter the door safety latches in any way.

Do not operate the oven if there is an object between the door seals and sealing surfaces.

Do not allow grease or dirt to build up on the door seals and adjacent parts. Follow the instructions for "Care and Cleaning" on page 30. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

To avoid the possibility of electric shock

Under no circumstances should you remove the outer cabinet.

Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately and call an authorised AEG-Electrolux service agent.

Do not immerse the power supply cord or plug in water or any other liquid.

Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven.

Do not attempt to replace the oven lamp yourself or allow anyone who is not authorised by an AEG-Electrolux service agent to do so. If the oven lamp fails, please consult your dealer or an authorised AEG-Electrolux service agent.

Important safety instructions

If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised AEG-Electrolux service agent.

To avoid the possibility of explosion and sudden boiling:

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide-mouthed container to allow bubbles to escape.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.

To prevent sudden eruption of boiling liquid and possible scalding:

1. Stir liquid prior to heating/reheating.
2. It is advisable to insert a glass rod or similar utensil into the liquid whilst reheating.
3. Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling.

Do not cook eggs in their shells, and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven.

Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

To avoid the possibility of burns

Use pot holders or oven gloves when removing food from the oven to prevent burns.

Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns.

To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly.

Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature.

Always stand back from the oven door when opening it to avoid burns from escaping steam and heat.

Slice stuffed baked foods after heating to release steam and avoid burns.

Keep children away from the door to prevent them burning themselves.

To avoid misuse by children

Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Do not lean or swing on the oven door. Do not play with the oven or use it as a toy.

Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot.

Other warnings

Never modify the oven in any way.

This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

To promote trouble-free use of your oven and avoid damage.

Never operate the oven when it is empty.

When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specified in the dishes instructions must not be exceeded.

Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven.

Only use the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable.

To prevent the turntable from breaking:

(a) Before cleaning the turntable with water, leave the turntable to cool. (b) Do not put hot foods or hot utensils on a cold turntable. (c) Do not put cold foods or cold utensils on a hot turntable.

Do not place anything on the outer cabinet during operation.

NOTE:

If you are unsure how to connect your oven, please consult an authorised, qualified electrician.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure.

Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

Oven & accessories

1. Front trim
2. Oven lamp
3. Control panel
4. Door opening button
5. Waveguide cover
6. Oven cavity
7. Seal packing
8. Door seals and sealing surfaces
9. Fixing points (4 points)
10. Ventilation openings
11. Outer cover
12. Rear cabinet
13. Power supply cord support clip
14. Power supply cord

ACCESSORIES:

Check to make sure the following accessories are provided:

(15) Turntable (16) Turntable support (17) 4 fixing screws (not shown). - Place the turntable support in the seal packing on the floor of the cavity. - Then place the turntable on the turntable support. - To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven.

NOTE: When you order accessories, please mention two items: part name and model name to your dealer or an authorised AEG-Electrolux service agent.

Control panel

1 Digital Display

2 Indicators

The appropriate indicator will flash or light up, just above each symbol according to the instruction. When an indicator is flashing, press the appropriate button (having the same symbol) or carry out the necessary operation.

Stir

Turn over

Weight

Portion

Microwave power level

Cooking in progress

3 TIMER/WEIGHT/PORTION knob

4 AUTO COOK 1 button Press to select one of the 2 automatic programmes. 5 AUTO COOK 2 button Press to select one of the 2 automatic programmes. 6 COOK FROM FROZEN button Press to select one of the 3 automatic programmes. 7 AUTO DEFROST button Press to select one of the 5 automatic programmes. 8 MICROWAVE POWER LEVEL button 9 START/QUICK button 10 STOP button 11 DOOR OPENING button

Before operation

Plug in the oven.

1. The oven display will flash:

1. Touch the STOP button the display will show:

To set the clock, see below.

Using the Stop button

Use the STOP button to:

1. Erase a mistake during programming.
2. Stop the oven temporarily during cooking.
3. Cancel a programme during cooking, touch twice.

Setting the clock

There are two setting modes: 12 hour clock and 24 hour clock.

1. To set the 12 hour clock, hold the MICROWAVE POWER LEVEL button down for 3 seconds. will appear in the display.
2. To set the 24 hour clock, press the MICROWAVE POWER LEVEL button once more after Step 1, in the example below will appear in the display.

To set the clock, follow the example below.

Example: To set the 24 hour clock to 23:35

x1 and hold for 3 secs.

1. Choose the clock function. (12 hour clock)

Choose the 24 hour clock.

1. Set the hours. Rotate the TIMER/WEIGHT/PORTION knob until the correct hour is displayed (23).
2. Press the MICROWAVE POWER LEVEL button to change from hours to minutes.

x1 and hold for 3 secs.

1. Set the minutes. Rotate the TIMER/WEIGHT/PORTION knob until the correct minute is displayed. (35).
2. Press the MICROWAVE POWER LEVEL button to start the clock.

Check the display.

NOTE:

1. You can rotate the TIMER/WEIGHT/PORTION knob clockwise or counter-clockwise.
2. Press the STOP button if you make a mistake during programming.
3. If the electrical power supply to your microwave oven is interrupted, the display will intermittently

show 88:88 after the power is reinstated. If this occurs during cooking, the programme will be erased. The time of day will also be erased.

1. When you want to reset the time of day, follow the above example again.

i What are microwaves?

What are microwaves?

Like radio and television waves, microwaves are electromagnetic waves.

Microwaves are produced by a magnetron inside the microwave oven, and these vibrate the molecules of water present in the food. The friction this causes produces heat, which ensures that the food is defrosted, heated, or cooked through.

The secret of the reduced cooking times is the fact that the microwaves penetrate the food from every direction. Energy is used to the full. In comparison, the energy from a conventional hob passes from the burner through the pan and so to the food. This method wastes a great deal of energy.

The characteristics of microwaves.

Microwaves penetrate all non-metal objects made of glass, china, earthenware, plastic, wood or paper. This is why the microwaves never make these materials hot. Dishes become hot only because the food inside them is hot.

The food absorbs the microwaves and is heated.

Microwaves cannot pass through objects made of metal and so they are deflected. For this reason metal objects are not normally suitable for microwave cookery. There are exceptions where you can actually make use of the fact that the microwaves cannot pass through metal. If you cover food with aluminium foil at specific points while it is defrosting or cooking, you can prevent those parts from getting too warm, too hot, or overcooked. Please check out the advice given in the guide.

i Suitable ovenware

Glass and ceramic glass

Heat-resistant glass utensils are very suitable. The

cooking process can be observed from all sides. They must not, however, contain any metal (e.g. lead crystal), nor have a metallic overlay (e.g. gold edge, cobalt blue finish).

Ceramics

Generally very suitable. Ceramics must be glazed, since with unglazed ceramics moisture can get into the ceramic. Moisture causes the material to heat up and may make it shatter. If you are not certain whether your utensil is suitable for the microwave, carry out the utensil suitability test.

Porcelain

Very suitable. Ensure that the porcelain does not have a gold or silver overlay and that it does not contain any metal.

Plastic & paper utensils

Heat resistant plastic utensils which are suitable for use in the microwave can be used to thaw, heat and cook food. Follow the manufacturer's recommendations.

Heat-resistant paper made for use in a microwave oven is also suitable. Follow the manufacturer's recommendations.

Kitchen paper

can be used to absorb any moisture which occurs in short heating methods, e.g. of bread or products in bread crumbs. Insert the paper between the food and the revolving plate. The surface of the food will stay crispy and dry. Covering greasy food with kitchen paper will catch splashes.

Microwave cling film

This, or heat-resistant film, is very suitable for covering or wrapping. Please follow the manufacturer's recommendations.

Roasting bags

Can be used in a microwave oven. Metal clips are not suitable for fastening them since the roasting bag foil might melt. Fasten the roasting bag with string and pierce it several times with a fork. Non heat-resistant food wraps are not recommended for use in a microwave oven.

Browning dish

A special microwave dish made from ceramic glass with a metal alloy base, which allows food to be browned. When using the browning dish a suitable insulator, e.g. a porcelain plate, must be placed between the turntable and the browning dish. Be careful to adhere exactly to the pre-heating time given in the manufacturer's instructions. Excessive pre-heating can damage the turntable and the turntable stand or can trigger the safety-device which will switch off the oven.

Suitable ovenware

Metal

Generally speaking, metal should not be used, since microwaves do not pass through metal and therefore

cannot reach the food. There are, however, exceptions: small strips of aluminium foil may be used to cover certain parts of the food, so that these do not thaw too quickly or begin to cook (e.g. chicken wings). Small metal skewers and aluminium containers (e.g. of ready-cooked meals) can be used. They must, however, be small in relation to the food, e.g. aluminium

containers must be at least 2/3 to 3/4 filled with food. It is recommended that you transfer the food into a dish suitable for use in the microwave.

When using aluminium containers or other metal utensils there must be a gap of approx. 2 cms between them and the walls of the cooking area, otherwise the walls could be damaged by possible arcing.

No utensil should have a metal overlay metal parts such as screws, bands or handles.

UTENSIL SUITABILITY TEST

If you are not sure whether your utensil is suitable for use in your microwave oven, carry out the following test: Place the utensil into the oven. Place a glass

container filled with 150 ml of water on or next to the utensil. Switch on the oven at 900 W power for 1 to 2 minutes. If the utensil stays cool or just warm to the touch, it is suitable. Do not use this test on a plastic utensil. It could melt.

Tips & advice

Before you start...

To make it as easy as possible to use the microwave oven, we have put together a few hints and tips for you. Only switch on the oven when the food is already inside.

Setting the cooking time

Defrosting, re-heating and cooking times are generally much shorter than in a conventional oven or hob. So you will need to consult this book for the recommended cooking times. It is better to set shorter rather than longer cooking times. Always test the food after the cooking time has elapsed. It is better to then continue cooking it for a little longer, than to have overcooked food.

Starting temperature

Defrosting, re-heating and cooking times depend on the temperature of the food when you start. For example, deep-frozen and refrigerated food will need longer than food that is at room temperature.

Standard storage temperatures of food are assumed for re-heating and cooking times (refrigerator temperature of 5°C, room temperature of approximately 20°C). For defrosting food a starting temperature of approximately -18°C is assumed.

Cook popcorn only in special microwave safe containers. Refer exactly to the manufacturer's instructions. Do not use a normal paper or glass container.

Do not cook eggs in their unbroken shells. Pressure builds up inside the shell and this may result in the egg exploding. Prick the yolk before you cook it.

Do not heat oil or fat for deep-frying inside the microwave oven. It is impossible to control the temperature of the oil and it may suddenly splash out of the pan.

Do not heat sealed containers such

as jars or tins. The pressure inside the container could cause the container to explode. (The exception is when you are making preserves).

All indicated cooking times

are guidelines only. Cooking times may vary depending on starting temperature, the weight and composition (water, fat content, etc) of the food.

Salt, herbs and spices

Food cooked in the microwave oven retains its taste better than with conventional cooking methods. Use salt sparingly and as a rule only add salt after the food has cooked. Salt binds liquids and dries out the surface of food. Herbs and spices can be used as normal.

Tips & advice

Testing the food

You can test whether food is cooked in the same way as conventional cookery.

• Using a food thermometer. After cooking or reheating all foods have a certain internal temperature. You can use a food thermometer to test whether the food is hot enough, or 'done'.
• Using a fork. Test fish with a fork. If the flesh is not transparent and comes off the bone easily, it is done. If it is overcooked, it will be brittle and dry.
• Wooden skewer. Test cakes and bread by sticking in a wooden skewer. If the skewer comes out clean and dry, the food is ready.

Working out cooking times using the food thermometer

After it has cooked, every drink or item of food has a certain internal temperature. When it is reached the cooking can be stopped, and the result will be good. You can test the internal temperature with a food thermometer. The temperature chart below gives most of the important temperatures.

CHART: USING A FOOD THERMOMETER TO DEFINE COOKING TIMES

Drink/food items Internal Internal	temperature at temperature after the end of 10-15 mins cooking time standing time
Heating drinks (coffee, water, tea, etc)	65-75°C
Heating milk	60-65°C
Heating soup	75-80°C
Heating stews	75-80°C
Poultry	80-85°C	85-90°C
Lamb
Rare	70°C	70-75°C
Well roasted	75-80°C	80-85°C
Roast beef
Rare	50-55°C	55-60°C
Medium done	60-65°C	65-70°C
Well done	75-80°C	80-85°C
Pork, veal	80-85°C	80-85°C

Adding water

Vegetables and other foods containing a lot of water can be cooked in their own juices or by adding just a small amount of water. This will retain many vitamins and minerals in the food.

Food with skin or peel

Pierce foods such as sausages, chickens, chicken legs, potatoes in their skins, tomatoes, egg yolk, etc with a wooden skewer. This allows the steam to escape and the food won't explode.

Fatty foods

Food 'marbled' with fat or with layers of fat cook faster than lean meat. You should therefore cover these parts with some aluminium foil, and place the food fatty side downward.

Blanching vegetables

Before they are frozen vegetables should be blanched. This is the best way of retaining the quality and flavour.

How to blanch vegetables:

Wash and chop the vegetable, place 250g of the vegetable in a bowl with 275ml of water, cover and heat for 3-5 minutes.

Plunge into cold water immediately after the blanching process to prevent further cooking, and then allow it to drain. Pack and freeze the vegetable in airtight containers.

Preserving fruit & vegetables

Preserving fruit and vegetables using the microwave is a quick and easy process. You can buy preserving jars, seals and preserving jar clamps specially designed for

microwave use. Precise instructions are provided by the manufacturers of these items.

Small & large quantities

Microwave cooking times depend directly upon the amount of food you want to defrost, re-heat or cook, i.e. small portions cook faster than big ones.

The rule of thumb is:

TWICE AS MUCH = ALMOST TWICE AS LONG

HALF AS MUCH = HALF AS LONG

Tips & advice

Tall containers, flat dishes

Both types of container have the same capacity but cooking times are longer for tall containers than for flat ones. Therefore it is preferable to use dishes that

are as flat as possible, with the largest possible flat surface. Only use tall containers for foods that are likely to boil over, e.g. noodles, rice, milk etc.

Round & oval dishes

Food cooks more evenly in round and oval dishes than in rectangular ones, because the microwave energy concentrates into the corners of rectangular dishes and the food there may get overcooked.

Covering the food

By covering the food as it cooks moisture is retained and cooking time is reduced. Use a lid, microwave film, or cover. Do not cover food that should have a crispy surface, such as roast meat or chicken. As a rule if

you would cover it in a conventional oven, cover it in the microwave. If you would cook it in a conventional oven without a cover, you can cook it without a cover in the microwave.

Irregular shaped food

Place the thicker, more compacted end of the food pointing towards the outside. Place vegetables (such as broccoli) with the stalks pointing outward.

Stirring

You need to stir the food because the microwaves heat the outer areas first. Stirring the food balances the temperature and the food heats evenly.

Arranging

Arrange individual portions (pudding moulds, cups or baked potatoes) in a circle on the turntable. Leave space between the portions for the microwave energy to penetrate from all sides.

Turning

Turn medium sized portions, such as burgers and steaks, once during cooking, to reduce cooking time. Large items such as roasts and chickens must be turned because they receive more microwave

energy on the uppermost side and could dry out if not turned.

Standing time

One of the most important rules of microwave cooking is standing time. Almost all foods that are defrosted, heated or cooked in a microwave oven require standing time. This may be fairly short or quite long. During this time the temperature is balanced and the liquids inside the food are evenly distributed.

Browning agents

After more than 15 minutes cooking time food acquires a brownness, although this is not comparable to the deep brownness and crispness obtained through conventional cooking. In order to obtain an appetising brown colour you can use browning agents. For the most part they simultaneously act as seasoning agents. In the following table you will find some suggestions for substances you can use as browning agents and some of the uses to which you might put them.

BROWNING AGENT DISH METHOD

Melted butter and dried paprika	Poultry	Coat the poultry with the butter/paprika mixture
Dried paprika	Oven baked dishes - Cheese toasties	Dust with paprika
Soya sauce	Meat and poultry	Coat with the sauce
Barbecue and Worcestershire sauce, Gravy	Roasts, Rissoles, Small roasted items	Coat with the sauce
Rendered down bacon fat or dried onions	Oven baked dishes, toasted items, soups, stews	Sprinkle pieces of bacon or dried onions on top
Cocoa, chocolate flakes, brown icing, honey and marmalade	Cakes and desserts	Sprinkle pieces on top of cakes & desserts or use to glaze

Heating

• Ready-prepared meals in aluminium containers should be removed from the aluminium container and heated on a plate or in a dish.
• Remove the lids from firmly closed containers.
• Food should be covered with microwave cling film, a plate, or a cover (obtainable from stores), so that the surface does not dry out. Drinks need not be covered.
• When boiling liquids such as water, coffee, tea, or milk, place a glass stirrer in the container.
• If possible, stir large quantities from time to time, to ensure that the temperature is evenly distributed.
• The times are for food at a room temperature of 20°C. The heating time for food stored in a refrigerator should be increased slightly.

Defrosting

Your microwave is ideal for defrosting. Thawing times are usually considerably shorter than in traditional methods. Here are a few tips. Take the frozen item out of its packaging and place on a plate for defrosting.

Boxes & containers

Boxes and containers suitable for microwaves are particularly good for defrosting and heating food, since they can withstand temperatures in a deep freeze (down to approx. -40°C) as well as being heat resistant (up to approx. 220°C). You can therefore use the same container to freeze, defrost, heat, and even cook the food, without having to transfer it.

Covering

Cover thin parts with small strips of aluminium foil

before defrosting. Thawed or warm parts should likewise be covered with aluminium strips during defrosting. This stops the thin parts becoming too hot while thicker parts are still frozen.

Correct setting

It is better to choose a setting which is too low rather than one which is too high. By doing so you will ensure that the food defrosts evenly. If the microwave setting is too high, the surface of the food will already have begun to cook while the inside is still frozen.

• After heating allow the food to stand for 1-2 minutes, so that the temperature inside the food can be evenly distributed (standing time). - The times given are guidelines which can be varied according to the initial temperature, weight, water content, fat content, or the result which you want to achieve.

Turning/stirring

Almost all foods have to be turned or stirred from time to time. As early as possible, separate parts which are stuck together and re-arrange them.

Small amounts

Thaw more quickly and evenly than large ones. We recommend that you defrost portions which are as small as possible. By doing so you will be able to prepare whole menus quickly and easily.

Foods requiring careful handling

Foods such as gateaux, cream, cheese and bread should only be partially defrosted and then left to defrost completely at room temperature. By doing so you will avoid the outer areas becoming too hot whilst the inside is still frozen.

Standing time

This is particularly important after defrosting food, as the defrosting process continues during this period. In the defrosting table you will find the standing times for various foods. Thick, dense foods require a longer standing time than thinner foods or foods of a porous nature. If the food has not defrosted sufficiently, you may continue defrosting it in the microwave or lengthen the standing time accordingly. At the end of the standing time you should process the food as soon as possible and not re-freeze it.

Cooking fresh vegetables

• When buying vegetables, try to ensure that, as far as possible, they are of similar size. This is particularly important when you want to cook the vegetables whole (e.g. boiled potatoes).
• Wash the vegetables before preparing them, clean them and only then weigh the required quantity for the recipe and chop them up.
• Season them as you would normally, but as a rule only add salt after cooking.
• Add about 5 tbsps of water for 500 g of vegetables. Vegetables which are high in fibre require a little more water. You will find information in the table (see page 25).
• Vegetables are usually cooked in a dish with a lid. Those with a high moisture content, e.g. onions or boiled potatoes, can be cooked in microwave cling film without adding water. • After half the cooking time has elapsed vegetables should be stirred or turned over. • After cooking allow the vegetables to stand for approx. 2 minutes, so that the temperature disperses evenly (standing time).
• The cooking times given are guidelines and depend upon the weight, initial temperature and condition of the type of vegetables in question. The fresher the vegetables, the shorter the cooking time.

Cooking meat, fish & poultry

• When buying food items, try to ensure that, as far as possible, they are of similar size. This will ensure that they are cooked properly.
• Before preparation, wash meat, fish and poultry thoroughly under cold running water and pat them dry with kitchen paper. Then continue as normal.
• Beef should be well hung and have little gristle.
• Even though the pieces may be of a similar size, cooking results may vary. This is due, amongst other things, to the kind of food, variations in the fat and moisture content as well as the temperature before cooking.
• After the food has been cooking for 15 minutes, it acquires a natural brownness, which may be enhanced by the use of a browning agent. If, in addition, you would like the surface to be crisp, you should either use the browning dish or sear the food on your cooker and finish cooking it in your microwave. By doing this, you will simultaneously obtain a brown base for making a sauce.
• Turn large pieces of meat, fish or poultry half way through the cooking time, so that they are cooked evenly from all sides.
• After cooking, cover roasts with aluminium foil and allow them to stand for approx. 10 minutes (standing time). During this period, the roast carries on cooking and the liquid is evenly distributed, so that when it is carved, a minimum amount of juice is lost.

Cooking & defrosting

Deep-frozen dishes can be defrosted and cooked at the same time in one process in your microwave. You will find some examples in the table. Do take note, however, of the general advice given on "heating" and "defrosting" food.

Please refer to the manufacturer's instructions on the packaging when preparing deep-frozen dishes. These usually contain precise cooking times and offer advice on preparation.

UK

Microwave power levels

Your oven has 5 power levels. To choose the power level for cooking, follow the advice given in the recipe section. Generally the following recommendations apply:

900 W used for fast cooking or reheating e.g. soup, casseroles, canned food, hot beverages, vegetables, fish, etc.

630 W used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes. At this reduced setting, the sauce will not boil over and food will cook evenly without overcooking at the sides.

450 W for dense foods which require a long cooking time when cooked conventionally, e.g. beef dishes. It is advisable to use this power setting to ensure the meat will be tender.

270 W (Defrost setting) to defrost, select this power setting to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.

90 W for gentle defrosting, e.g. cream gateaux or pastry.

W = WATT

To set the microwave power level:

1. Rotate the TIMER/WEIGHT/PORTION knob clockwise or counter-clockwise to select cooking time.
2. Press the MICROWAVE POWER LEVEL button until the desired power level appears on the display. (If the MICROWAVE POWER LEVEL button is touched once, 9.00 will be displayed. If you miss your desired level, continue pressing the MICROWAVE POWER LEVEL button until you reach the level again).
3. Press the START/QUICK button.

Microwave cooking

Your oven can be programmed for up to 90 minutes. (90.00) The input unit of cooking (defrosting) time varies from 10 seconds to five minutes. It depends on the total length of the cooking (defrosting) time as shown on the table.

Cooking time Increasing unit

0-5 minutes 10 seconds

5-10 minutes 30 seconds

10-30 minutes 1 minute

30-90 minutes 5 minutes

Example:

Suppose you want to heat soup for 2 minutes and 30 seconds on 630 W microwave power.

1. Enter desired cooking time by rotating the TIMER/WEIGHT/PORTION knob clockwise.
2. Choose desired power level by pressing MICROWAVE POWER LEVEL button twice.
3. Press START/QUICK

button once to begin cooking.

NOTE:

1. When the door is opened during the cooking process, the cooking time on the digital display stops automatically. The cooking time starts to count down again when the door is closed and the START/QUICK button is pressed.
2. If you wish to know the power level during cooking, press the MICROWAVE POWER LEVEL button. As long as your finger is touching the MICROWAVE POWER LEVEL button, the power level will be displayed.
3. You can rotate the TIMER/WEIGHT/PORTION knob clockwise or counter-clockwise. If you rotate the knob counter-clockwise, the cooking time will decrease from 90 minutes by degrees.

Other convenient functions

1. MULTIPLE SEQUENCE COOKING

A maximum of 3 sequences can be input, consisting of manual cooking time and mode.

Example:

To cook: 5 minutes on 900 W power (Stage 1) 16 minutes on 270 W power (Stage 2)

STAGE 1

1. Enter the desired cooking time by rotating TIMER/WEIGHT/PORTION knob.
2. Choose the desired power level by pressing the MICROWAVE POWER LEVEL button once.

STAGE 2

1. Enter desired time by rotating TIMER/WEIGHT/PORTION knob.
2. Choose the desired power level by pressing the MICROWAVE POWER LEVEL button four times.
3. Press the START/QUICK button once to begin cooking.

Check the display.

(The oven will begin to cook for 5 minutes and 900 W, and then for 16 minutes on 270 W).

Other convenient functions

2. QUICK START FUNCTION

The START/QUICK button allows you to operate the two following functions:

a. Direct start

You can directly start cooking on 900 W microwave power level for 30 seconds by pressing the START/QUICK button.

NOTE:

To avoid misuse by children, the START/QUICK button can only be used within 3 minutes after the preceding operation, i.e., closing the door, pressing the STOP button, or cooking completion.

b. Extend the cooking time

You can extend the cooking time in multiples of 30 seconds by pressing the START/QUICK button while the oven is in operation.

3. TO CHECK THE POWER LEVEL

To check the microwave power level during cooking, press the MICROWAVE POWER LEVEL button.

As long as your finger is touching the MICROWAVE POWER LEVEL button, the power level will be displayed.

The oven continues to count down although the display shows the power level.

4. SAFETY LOCK FUNCTION

TO SET THE SAFETY LOCK FUNCTION

1. Press and hold the STOP key for 3 seconds.

x1 for 3 seconds

TO CANCEL THE SAFETY LOCK FUNCTION

1. Press and hold the STOP key for 3 seconds.

x1 for 3 seconds

The display will show:

The display will show the time of day, if set.

NOTE: When Safety Lock is set you cannot input any buttons except the STOP button.

Auto cook, cook from frozen & auto defrost operation

AUTO COOK, COOK FROM FROZEN and AUTO DEFROST automatically work out the correct cooking mode and cooking time. You can choose from 4 AUTO COOK, 3 COOK FROM FROZEN and 5 AUTO DEFROST menus. What you need to know when using this automatic function:

For example:

1a. AUTO COOK 1: The AUTO COOK 1 button has two menus. Press the AUTO COOK 1 button once, the display will appear as shown.

1a.

1b. AUTO COOK 2: The AUTO COOK 2 button has two menus. Press the AUTO COOK 2 button once, the display will appear as shown.

1b.

1c. COOK FROM FROZEN: The COOK FROM FROZEN button has three menus. Press the COOK FROM FROZEN button once, the display will appear as shown.

1c.

1d. AUTO DEFROST: The AUTO DEFROST button has five menus. Press the AUTO DEFROST button once, the display will appear as shown.

1d.

The menu can be chosen by pressing the AUTO COOK 1, AUTO COOK 2, COOK FROM FROZEN or AUTO DEFROST button until the desired menu number is displayed. See pages 19 - 22 "AUTO COOK, COOK FROM FROZEN & AUTO DEFROST charts".

The menu will be changed automatically by holding down the AUTO COOK 1, AUTO COOK 2, COOK FROM FROZEN or AUTO DEFROST button.

1. The weight or quantity of the food can be input by rotating the TIMER/WEIGHT/PORTION knob until the desired weight/quantity is displayed.
2. Enter the weight of the food only. Do not include the weight of the container.
3. For food weighing more or less than weights/quantities given in the AUTO COOK, COOK FROM FROZEN & AUTO DEFROST charts, use manual operation. For best results, follow the cooking charts on pages 24 - 25.
4. To start cooking press START/QUICK button.

When action is required (e.g. to turn food over) the oven stops and the audible signals sound, remaining cooking time and any indicator will flash on the display. To continue cooking, press the START/QUICK button.

2.

The final temperature will vary according to the initial temperature. Check food is piping hot after cooking. If necessary, you can extend the cooking manually.

NOTE: If you use the START/QUICK function during the cooking/defrosting, the food may be overcooked.

Auto cook, cook from frozen & auto defrost operation

Example 1 for AUTO COOK 2:

To cook Fish Fillet with Sauce 1,5 kg (3 units) using Auto Cook 2 (A2-1).

1. Select the menu required by pressing the AUTO COOK 2 button once.
2. Enter the quantity by rotating the TIMER/WEIGHT/PORTION knob clockwise.
3. Press the START/QUICK button once.

x1

Check the display.

Example 2 for COOK FROM FROZEN:

To cook Frozen Gratin 0.6 kg using Cook From Frozen (FC-3).

1. Select the menu required by pressing the COOK FROM FROZEN button 3 times.
2. Enter the weight by rotating the TIMER/WEIGHT/PORTION knob clockwise.
3. Press the START/QUICK button once.

x1 Check the display.

中 → KU → △ START

Φ → Xg → △ START

中 与 互 △ START

UK

Auto cook, cook from frozen & auto defrost charts

BUTTON PROCEDUREBOK NO.		WEIGHT (Increasing Unit) / UTENSILS
x1	A1-1 CookChicken Pan with Vegetables	0,5 - 1,5 kg* (1-3)(initial temp Chicken 5°C)Gratin dish with microwave cling film	• See recipe for "Chicken Pan with Vegetables" on page 22.• Total weight of all ingredients.
x2	A1-2 CookMince and Onion	0,5 - 1,5 kg* (1-3)(initial temp Mince 5°C)Casserole dish with lid	• See recipe for "Mince & Onion" on page 22.• Total weight of all ingredients
x1	A2-1 CookFish fillet with sauce	0,5 - 1,5 kg* (1-3)(initial temp fish 5°C,sauce 20°C)Gratin dish & microwave cling film	• See recipe for "Fish Fillet with Sauce" on page 23.• Total weight of all ingredients
x2	A2-2 CookGratin	0,5 - 1,5 kg* (1-3)(initial temp 20°C)Gratin dish	• See recipe for "Gratin" on page 23.• Total weight of all ingredients

Auto cook, cook from frozen & auto defrost charts

BUTTON	COOK FROM FROZEN NO.	WEIGHT (Increasing Unit) / UTENSILS	PROCEDURE
x1	FC-1 CookFrozenVegetablese.g. Brussel sprouts, green beans, peas, mixed vegetables, broccoli	0,1 - 0,6 kg (100 g)(initial temp -18°C)Bowl & lidCasserole dish & microwave cling film or lid	Add 1tbsp water per 100 g. (For mushrooms no additional water is necessary).Cover with microwave cling film or a lid.When the oven stops and the audible signals sound, stir and re-cover.After cooking, let stand for approx. 1-2 minutes.NOTE: If frozen vegetables are compacted together, cook manually.
x2	FC-2 CookFrozen Ready MealsStirrable type e.g. Noodles, Bolognese, Chinese Menus.	0,3 - 1,0 kg* (100 g)(initial temp -18°C)Casserole dish & microwave cling film or lid* If the manufacturer instructs to add water, calculate the total amount for the programme with additional liquid.	Transfer meal to suitable microwave-proof dish.Add some liquid if recommended by the manufacturer.Cover with microwave cling film or lid.Cook without cover if the manufacturer instructs.When the audible signal sounds, stir and re-cover.After cooking, stir and let stand for approx. 1 - 2 minutes.
x3	FC-3 CookFrozen Gratin e.g. macaroni gratin, lasagne, etc.	0,2 - 0,6 kg (100 g)(initial temp -18°C)Shallow, oval gratin dish and microwave cling film or original container and microwave cling film	Remove the frozen gratin from the package. If the container is not suitable for microwave ovens, place in a gratin dish and cover with microwave cling film.If the container is suitable for microwave ovens, remove original paper cover and cover with microwave cling film.After cooking, let stand for approx. 5 minutes.

UK

i Auto cook, cook from frozen & auto defrost charts

BUTTON	AUTO DEFROST NO.	WEIGHT (Increasing Unit) / UTENSILS	PROCEDURE
x1	Ad-1 Defrost Steak and Chops	0,2 - 1,0 kg (100 g) (initial temp -18°C) (See note on page 22)	Place the food on a plate in the centre of the turntable.When the oven stops and the audible signals sound, turn the food over, rearrange and separate. Shield thin parts and warm spots with aluminium foil.After defrosting, wrap in aluminium foil for 10 - 15 minutes, until thoroughly defrosted.
x2	Ad-2 Defrost Minced Meat	0,2 - 1,0 kg (100 g) (initial temp -18°C) Microwave cling film (See note on page 22)	Cover the turntable with microwave cling film.Place the block of minced meat onto the turntable.When the oven stops and the audible signals sound, turn the food over. Remove the defrosted parts if possible.After defrosting, stand for 5 - 10 minutes, until thoroughly defrosted.
x3	Ad-3 Defrost Poultry	0,9 - 1,8 kg (100 g) (initial temp -18°C) (See note on page 22)	Place a plate upside down on the turntable and put the poultry breast side down on the plate.When the oven stops and the audible signal sounds, turnover and shield thin parts and warm spots with aluminium foil.After defrosting, cover with aluminium foil and stand for 15 - 30 minutes until thoroughly defrosted.Finally clean the poultry under running water.
x4	Ad-4 Defrost Cake	0,1 - 1,4 kg (100 g) (initial temp -18°C) Flat dish	Remove all packaging from the cake.Place on a flat dish in the middle of the turntable.After defrosting, cut the cake into similar sized pieces keeping space between each piece and let stand for 15 - 60 minutes until evenly defrosted.
x5	Ad-5 Defrost Bread	0,1 - 1,0 kg (100 g) (initial temp -18°C) Flat dish (Only sliced bread is recommended for this programme.)	Distribute on a flat dish in the centre of the turntable.When the audible signal sounds rearrange, and remove defrosted slices.After defrosting separate all slices and distribute on a large plate. Cover the bread with aluminium foil and let stand for 5 - 10 minutes until thoroughly defrosted.

Auto cook, cook from frozen & auto defrost charts

NOTE: Auto Defrost

1. Steaks and Chops should be frozen in one layer.
2. Minced meat should be frozen in a thin shape.
3. After turning over, shield the defrosted portions with small, flat pieces of aluminium foil.
4. Cakes topped and coated with cream are very sensitive to microwave energy. For the best result, if the cream begins to soften rapidly, it is best to remove it from the oven immediately and let it stand for 10-30 minutes at room temperature.
5. For Ad-1 and Ad-3, arrange the food in the oven as shown:

Recipes for auto cook

CHICKEN PAN WITH VEGETABLES (A1-1)

Spicy chicken fricassee

Ingredients

0,5 kg (1)	1,0 kg (2)	1,5 kg (3)
60 g 120 g 180 g long grain rice (parboiled)
1	1	1	sachet	saffron
25 g 50 g 75 g onion (sliced)
50 g 100 g 150 g red pepper (in strips)
50 g 100 g 150 g teek (in strips)
150 g 300 g 450 g fillet of chicken breast (cubed)
			pepper, paprika powder
10 g 20 g 30 g butter
150 ml 300 ml 450 ml meat stock

MINCE AND ONION (A1-2)

Ingredients

0,5 kg (1)	1,0 kg (2)	1,5 kg (3)
150 g 300 g 450 g		minced meat [ 1/2 beef, 1/2 pork]
50 g 100 g 150 g		onion (finely chopped)
1/2	1	1/2 egg
15 g 30 g 45 g white breadcrumbs
115 ml 230 ml 345 ml meat stock
20 g 40 g 60 g tomato purée
65 g 125 g 190 g potatoes (finely chopped)
65 g 125 g 190 g carrots (finely chopped)
1/2 tbsp 1	tbsp 1	1/2 tbsp	chopped parsley

Preparation

1. Mix the rice and saffron and place in the greased dish.
2. Mix the onions, red pepper, leek, and chicken. Season and place on the rice.
3. Put butter on top.
4. Pour the stock over and cover with microwave cling film, then cook on AUTO COOK (A1-1), "Chicken Pan with Vegetables".
5. After cooking, let stand for 5-10 minutes.

Preparation

1. Mix together the minced meat, onion, egg and the breadcrumbs. Season with salt and pepper. Place the meat dough into a casserole dish.
2. Mix the meat stock with the tomato purée.
3. Add the liquid, potatoes, carrots and parsley to the meat, mix it up well.
4. Cover and cook on AUTO COOK (A1-2), "Mince and Onion".
5. When the oven stops and the audible signals sound, stir and re-cover.
6. After cooking, stir and stand for approx. 5 minutes. Sprinkle with parsley and serve.

Recipes for auto cook

FISH FILLET WITH SAUCE (A2-1)

Fish fillet with piquant sauce

Ingredients

0,5 kg (1)	1,0 kg (2)	1,5 kg (3)
175 g 350 g 525 g canned tomatoes (drained)50 g 100 g 150 g corn5 g 10 g 15 g chilli sauce15 g 30 g 45 g onion (finely chopped)1 tsp 1-2 tsp 2-3 tsp red wine vinegar250 g 500 g 750 g fish fillet mustard, thyme, cayenne peppersalt

FISH FILLET WITH SAUCE (A2-1)

Fish fillet with curry sauce

Ingredients

0,5 kg (1)	1,0 kg (2)	1,5 kg (3)
250 g 500 g 750 g fish fillet salt50 g 100 g 150 g banana (sliced)200 g 400 g 600 g ready-made curry sauce

GRATIN (A2-2)

Spinach gratin

Ingredients

0,5 kg (1)	1,0 kg (2)	1,5 kg (3)
150 g 300 g 450 g leaf spinach ( defrosted, drained)15 g 30 g 45 g onion (finely chopped )salt, pepper, nutmeg150 g 300 g 450 g boiled potatoes (sliced)35 g 75 g 110 g cooked ham (diced)50 g 100 g 150 g crème fraîche1 2 3 eggs40 g 75 g 115 g grated cheese

GRATIN (A2-2)

Potato-courgette-gratin

Ingredients

0,5 kg (1)	1,0 kg (2)	1,5 kg (3)
200 g 400 g 600 g boiled potatoes (sliced)
115 g	230 g 345 g courgette (finely sliced)
75 g 150 g 225 g crème fraîche
1 2 3 eggs
1/2	1 2 clove of garlic (crushed)
40 g 80 g 120 g feta cheese (diced)
10 g 20 g 30 g sunflower kernel

Preparation

1. Mix ingredients for the sauce.
2. Place the fish fillet in a gratin dish with the thin ends toward the centre and sprinkle with salt.
3. Spread the sauce on the fish fillet.
4. Cover with microwave cling film and cook on AUTO COOK (A2-1), "Fish Fillet with Sauce".
5. After cooking, let stand for approx. 2 minutes.

Preparation

1. Place the fish fillet in a gratin dish with the thin ends toward the centre and sprinkle with salt.
2. Spread the banana and the ready-made curry sauce on the fish fillet.
3. Cover with microwave cling film and cook on AUTO COOK (A2-1), "Fish Fillet with Sauce".
4. After cooking, let stand for approx. 2 minutes.

Preparation

1. Mix together the leaf spinach with the onion and season with salt, pepper and nutmeg.
2. Grease the gratin dish. Place alternate layers of potato slices, diced ham and spinach in the dish. The top layer should be spinach.
3. Mix the eggs with crème fraîche, add salt and pepper and pour over the vegetables.
4. Cover the gratin with the grated cheese, sprinkle with paprika powder and cook on AUTO COOK (A2-2), "Gratin".
5. After cooking, let stand for 5-10 minutes.

Preparation

1. Grease the gratin dish and place alternate layers of potato slices and courgette in the dish.
2. Mix the eggs with crème fraîche, season with salt, pepper and garlic and pour over the vegetables.
3. Crumble the feta cheese and sprinkle over the gratin.
4. Finally sprinkle the gratin with sunflower kernel and paprika powder and cook on AUTO COOK (A2-2), "Gratin".
5. After cooking, let stand for 5-10 minutes.

Cooking charts

ABBREVIATIONS USED

tbsp = tablespoon	Cup = cupful	g = gram	ml = millilitre	min = minutes
tsp = teaspoon	kg = kilogram	l = litre	cm = centimetre

TABLE: HEATING FOOD AND DRINK

Food / Drink		Quantity -g/ml-	Power -Setting-	Time -Min-	Hints
Coffee, Milk, Water, Platters (Vegetables, meat and trimmings)	1 cup	150	900 W	approx.1	do not cover
	1 cup	150	900 W	approx.1	do not cover
	1 cup	150	900 W	approx. 2	do not cover, bring to the boil
	6 cups	900	900 W	8-10	do not cover, bring to the boil
	1 bowl	1000	900 W	9-11	do not cover, bring to the boil
		400	900 W	3-5	sprinkle some water onto the sauce, cover stir half way through the heating time
Stew / Soup	200	900 W	1-11/2	cover, stir after heating
Vegetables	200	900 W	2-3	if necessary add some water, cover
	500	900 W	3-5	stir half way through the heating time
Meat, Fish fillet*	200	900 W	3-4	thinly spread sauce over the top, cover
	200	900 W	3-5	cover
Cake, Baby food, Melting butter or margarine*	150	450 W	1/2-1	place on a cake stand
	190	450 W	1/2-1	remove the lid, after heating stir well and test the temperature
	50	900 W	1/2	cover
Melting chocolate	100	450 W	3-4	stir from time to time

* Refrigerator temperature

TABLE: DEFROSTING AND COOKING

Food Quantity Power Time Added water Hints Standing time
	-g- -Setting- -Min- -			tbsps- -Min-
Fish fillet 300 900 W 9-11 - cover 1-2
One plate meal	400	900 W	8-10	-	cover, stir after 6 minutes	2
Broccoli	300	900 W	6-8	3-5	cover, stir halfway through cooking time	2
Peas	300	900 W	6-8	3-5	cover, stir halfway through cooking time	2
Mixed vegetables	500	900 W	9-11	3-5	cover, stir halfway through cooking time	2

TABLE: DEFROSTING

Food	Quantity -g-	Power -Setting-	Time -Min-	Hints	Standing time -Min-
Roast	1500	90 W	55-60	Place on an upturned plate,	30 - 90
(pork, beef, veal, lamb)	1000	90 W	38-42	turn halfway through	30 - 90
	500	90 W	20-25		30 - 90
Goulash	500	270 W	8-9	Break up and stir halfway through	10 - 15
Sausages 8	600	270 W	6-8	Place alongside one another,	5 - 10
4	300	270 W	3-5	turn halfway through	5 - 10
Chicken legs	200	270 W	3-4	Turn halfway through	10 - 15
Fish fillet	400	270 W	5-7	Turn halfway through	5 - 10
Rolls, 2	80	270 W	1-11/2	Defrost only	-
Cakes, 1 piece	150	270 W	1-3	Place on a cake tray	5
Soft fruit: Strawberries	250	270 W	3-5	Position evenly next to each other, turn halfway through 5
Raspberries, Cherries, Plums

Times given in this chart are guidelines only and may vary according to the starting temperature of the frozen food, its composition, and its weight.

Cooking charts

TABLE: COOKING MEAT, FISH, POULTRY AND FRESH VEGETABLES Fish, Poultry Quantity Power Time Hints Standing time and Vegetables -g- -Setting- -Min- -Min-

Roasts 500 630 W 17-22 season to taste, place in a shallow flan dish 10
(pork, veal, lamb)	1000	630 W	34-38	turn over halfway through cooking time	10
	1500	630 W	53-58		10
Roast beef (medium)	1000	630 W	20-24	season to taste, place in a quiche dish,	10
	1500	630 W	27-31	turn over halfway through cooking time	10
Fish fillet	200	900 W	4-6	season to taste, place on a plate, cover	3
Chicken	1200	630 W	29-32	season to taste, place in a casserole dish, turn halfway through cooking time	3
Chicken legs	200	900 W	3-6	season to taste, place on a plate, cover	3
Broccoli	500	900 W	6-8	divide into florets, cover, stir occasionally during cooking	4-5 tbsp
Peas	500	900 W	6-8	cover, stir occasionally during cooking	4-5 tbsp
Onions	250	900 W	4-5	whole, cook in microwave cling film	-
Carrots	500	900 W	7-9	cut into rings, cover, stir occasionally during cooking	4-5 tbsp
Boiled potatoes (salted)	500	900 W	7-9	cut into large pieces of a similar size, add a little salt, cover, stir occasionally during cooking	150 ml

Recipes

All the recipes in this book are calculated on the basis of 4 servings - unless otherwise stated.

ADAPTING RECIPES FOR THE MICROWAVE OVEN

If you would like to adapt your favourite recipes for the microwave, you should take note of the following: Shorten cooking times by a third to a half. Follow the example of the recipes in this book.

Foods which have a high moisture content such as meat, fish, poultry, vegetables, fruit, stews and soups can be prepared in your microwave without any

Barley soup

Total cooking time approx. 27-34 minutes

Utensils: Bowl with lid (3 l capacity) Ingredients

2 tbsp butter or margarine (20 g)

1 onion (50 g), finely chopped

1-2 carrots (130 g), sliced

15 g celery, roughly chopped

1 leek (130 g), cut into rings

3 white cabbage leaves (100 g), in strips

200 g veal bones

50 g streaky bacon, cut into strips

50 g barley corn

700 ml meat stock

pepper

4 frankfurters (300 g)

Difficulty: Foods which have little moisture, such as platters of food, should have the surface moistened prior to heating or cooking.

The amount of liquid to be added to raw foods, which are to be braised, should be reduced to about two thirds of the quantity in the original recipe. If necessary, add more liquid during cooking.

The amount of fat to be added can be reduced considerably. A small amount of butter, margarine or oil is sufficient to flavour food. For this reason your microwave is excellent for preparing low-fat foods as part of a diet.

1. Place the butter and chopped onion into the bowl, cover and braise.

approx. 1-2 min. △ 900 W

1. Add the vegetables to the bowl. Add the bones, the streaky bacon and the barley, and fill the bowl with the meat stock. Season with pepper, cover and cook.
2. 9-11 min. △ 900 W
3. 17-21 min. △ 450 W
4. Chop the frankfurters into small pieces and heat with the rest of the soup for the last five minutes.
5. Allow to stand for about 5 minutes after it has cooked. Take the bones out just before you serve the soup.

Recipes

Roast chicken with stuffing

2 Portions

Total cooking time: approx. 36-40 minutes

Utensils: Bowl (2 l capacity)

Kitchen twine

Ingredients

1 chicken (1000 g)

salt

rubbed rosemary

rubbed marjoram

1 stale bread roll (white bread, 40 g) 1 bunch of parsley, chopped finely (10 g) pinch nutmeg 2 tbsps butter or margarine (20 g) 1 yolk of egg 3 tbsps butter or margarine (30g) 1 tbsp paprika pepper 1 tbsp butter or margarine to grease the dish

Spicy turkey fricassee

2 servings

Total cooking time: approx. 20-25 minutes

Utensils: Flat, oval dish with a lid (about 26 cm long)

Ingredients

1 cup of long grain rice, parboiled (120 g)

1 pack saffron (containing the whole stigma)

1 tsp butter or margarine to grease the dish

1 onion (50 g), sliced

1 red pepper (100 g), cut into strips

1 small leek (100 g), cut into strips

300 g turkey breast, diced

pepper

paprika pepper

2 tbsps butter or margarine (20 g) 2 cups meat stock (300 ml)

Zürich veal in cream

Total cooking time: approx. 9-14 minutes

Utensils: Dish with lid (2 l capacity)

Ingredients

600 g veal fillet

1 tbsp butter or margarine

1 onion (50 g), finely chopped

100 ml white wine

seasoned gravy browning, for approx.

1/2 l gravy

300 ml cream

1 tbsp parsley, chopped

1. Wash the chicken, dab dry with kitchen towel and season with salt, rosemary and marjoram.
2. To make the stuffing, soak the roll for about 10 minutes in cold water, then press the water out. Mix in the salt, parsley, nutmeg butter and egg yolk and stuff the chicken with the mixture. Tie up the opening with ties or butcher's twine.
3. Heat the butter (30 g).

approx. 1 min. 900 W

Stir the paprika pepper and the salt into the butter, and drizzle the mixture over the chicken.

1. Place the chicken in the greased bowl and cook without lid. Turn halfway through.

35-39 min. 630 W

Allow the chicken to stand for about 3 minutes after cooking.

1. Mix the rice with the saffron stigma and place in the greased dish. Mix in the onion slices, strips of pepper and leek and the diced turkey breast and season. Stack them on top of the rice. Dot with butter.
2. Pour the stock over the dish, cover and cook.
3. 4-6 min. 900 W
4. 16-19 min. 270 W

Allow the turkey fricassee to stand for about 5 minutes after cooking.

1. Cut the fillet into finger-width strips.
2. Grease the dish all over with the butter. Put the onion and the meat into the dish, cover and cook. Stir once during cooking.

6-9 min. 900 W

1. Add the white wine, gravy browning and cream, stir, cover and continue cooking. Stir occasionally.

3-5 min. 900 W

1. Test the veal, stir the mixture once more and allow to stand for approx. 5 minutes. Serve garnished with parsley.

Recipes

Stuffed ham

Total cooking time: approx. 16-20 minutes

Utensils: Bowl with lid (2 l capacity)

Flat oval soufflé dish (about 32 cm long)

Ingredients

150 g leaf spinach, with stalks removed

150 g fromage frais, 20 % fat content

50 g grated Emmental cheese

pepper

paprika

8 slices of cooked ham (400 g)

125 ml water

125 ml cream

2 tbsps flour (20 g)

2 tbsps butter or margarine (20 g)

1 tsp butter or margarine to grease the dish

Tip: You can buy ready-made béchamel sauce and use it for this recipe

1. Chop the spinach into small pieces, mix with the cheese and the fromage frais and season to taste.
2. Place a tablespoon of the filling on top of each slice of cooked ham, and roll up. Spear the ham with a wooden skewer to fasten it.
3. Make a béchamel sauce; to do this pour the liquid into the bowl, cover, and heat.

3-4 min. 900 W

Mix the flour and butter to make a roux, add to the liquid, and whisk with an egg whisk until dissolved. Cover, bring to the boil, and allow the thicken.

1-2 min. 900 W

Stir and taste.

1. Place the sauce into the greased dish, position the filled rolls of ham onto the sauce and cook with lid.

12-14 min. 630 W

Allow the rolls of ham to stand for about 5 minutes after cooking.

Sole fillets

Total cooking time: approx. 11-13 minutes

Utensils: Shallow, oval oven dish with lid (approx. 26 cm long)

Ingredients

400 g sole fillets

1 lemon, whole

2 tomatoes (150 g)

1 tsp butter or margarine for greasing

1 tbsp vegetable oil

1 tbsp parsley, chopped salt & pepper

4 tbsps white wine (30 ml)

2 tbsps butter or margarine (20 g)

1. Wash the sole fillets and pat them dry. Remove any bones.
2. Cut the lemon and the tomatoes into thin slices.
3. Grease the oven dish with butter. Place the fish fillets inside and drizzle the vegetables oil over them.
4. Sprinkle parsley over the fish, place the tomato slices on top and season. Place the lemon slices on top of the tomatoes and pour the white wine over them.
5. Place small pots of butter on top of the lemon, cover and cook. 11-13 min. 630 W After cooking allow the fish fillets to stand for approx. 2 minutes. Tip: This recipe can also be used for Haddock, Halibut, Mullet, Plaice or Cod.

Tagliatelle with cream and basil sauce

makes 2 servings

Total cooking time: approx. 16-22 minutes

Utensils: Bowl with lid (2 l capacity)

Round soufflé dish (approx. 20 cm diameter)

Ingredients

1 l water

1 tsp salt

200 g tagliatelle

1 clove of garlic

15-20 basil leaves

200 g crème fraîche

30 g grated Parmesan cheese

salt & pepper

1. Place the water and the salt into the bowl, cover and bring to the boil. 9-11 min. 900 W
2. Add the pasta, bring to the boil again, and then simmer.
3. 1-2 min. 900 W
4. 6-9 min. 270 W
5. Meanwhile rub the garlic cloves over the soufflé dish. Chop the basil leaves. Keep some aside for garnishing.
6. Drain the pasta well. Stir in the crème fraîche and sprinkle the basil over the pasta.
7. Add the parmesan cheese, salt and pepper, place into a soufflé dish and stir. Garnish the dish with basil and serve hot.

Recipes

Tessiner Risotto

Total cooking time: approx. 20-25 minutes

Utensils: Bowl with a lid (2 l capacity)

Ingredients

50 g streaky bacon

2 tbsps butter or margarine (20 g)

1 onion (50 g), finely chopped

200 g pudding rice (Arboris)

400 ml meat stock

70 g Sbrinz cheese (if you are unable to obtain this type of Swiss cheese, use Emmental instead)

pinch saffron

salt & pepper

Lasagne al forno

Total cooking time: approx. 18-25 minutes

Utensils: Bowl with lid (2 l capacity)

Shallow square soufflé mould with lid (approx. 20 x 20 x 6 cm)

Ingredients

300 g tinned tomatoes

50 g ham, finely cubed

1 onion (50 g), finely chopped

1 clove of garlic, crushed

250 g minced meat (beef)

2 tbsps mashed tomato (30 g)

salt & pepper, oregano, thyme, basil, nutmeg

50 g grated Parmesan cheese

1 tsp mixed chopped herbs

1 tsp olive oil

1 tsp vegetable oil to grease the mould

125 g lasagne verde

1 tbsp grated Parmesan cheese

1 tbsp butter or margarine

Semolina pudding with raspberry sauce

Total cooking time: approx. 15-20 minutes

Utensils: Bowl with lid (2 l capacity)

Ingredients

500 ml milk

40 g sugar

15 g chopped almonds

50 g semolina

1 egg yolk

1 tbsp water

1 egg white

250 g raspberries

50 ml water

40 g sugar

1. Cut the bacon into cubes. Spread the butter over the base of the bowl. Place the onions and bacon cubes, cover, and braise.

2-3 min. 900 W

1. Add the rice, fill with the meat stock, bring to the boil, and then simmer.
2. 3-5 min. 900 W
3. 15-17 min. 270 W

Allow the rice to stand for about 3-5 minutes after cooking.

1. Mix the cheese with the saffron and season to taste.

Tip: Braised chanterelle mushrooms, or button mushrooms and a mixed salad go very well with this dish.

1. Cut the tomatoes into slices, mix with the ham, onion cubes, garlic, minced meat and mashed tomato. Season and cook with the lid on.

5-8 min. 900 W

1. Mix the cream with the milk, Parmesan cheese, herbs, oil and spices.
2. Grease the soufflé mould and cover the bottom of the mould with about 1/3 of the pasta. Put half of the minced meat mixture on the pasta and pour on some sauce. Put an additional 1/3 of the pasta on top followed by another layer of the minced meat mixture and some sauce, finishing with the remaining pasta on top. Finally, cover the pasta with lots of sauce and sprinkle with Parmesan cheese. Place butter flakes on top and cook with the lid on.

13-17 min. 630 W

After cooking, let the lasagne stand for approximately 5-10 minutes.

1. Place the milk, sugar and almonds in the bowl, cover and heat.

3-5 min. 900 W

1. Add the semolina, stir, cover and cook.

10-12 min. 270 W

1. Beat the egg yolk with the water in a cup, and stir into the hot mixture. Beat the egg white until it is stiff, and fold it into the mixture. Pour the pudding mixture into ramekins or small dishes.
2. To make the sauce wash the raspberries, dab them dry carefully, and place them in a bowl with the water and sugar. Cover, and heat.

2-3 min. 900 W

1. Purée the raspberries and serve either hot or cold with the semolina pudding.

Recipes

Chocolate cake

Total cooking time: 15-21 minutes

Utensils: Round cake dish (diam. 21 cm, height 10 cm)

Ingredients

175 g butter or margarine

175 g sugar

3 eggs

175 g flour

1 tsp baking powder

2 tbsps cocoa (20 g)

50 ml milk

Pears in chocolate sauce

Total cooking time: approx. 8-13 minutes

Utensils: Bowl with lid (2 l capacity)

Bowl with lid (1 l capacity)

Ingredients

4 pears (600 g)

60 g sugar

1 pack vanilla sugar (10 g)

1. Beat the butter until frothy and slowly mix in the sugar. Add the eggs gradually, mixing well. Mix together the flour, baking powder and cocoa. Add milk and mix thoroughly.
2. Grease the pan. Pour in dough and cook.

8-10 min. 630 W

1. Use a wooden skewer to check that the cake is done.

Allow the cake to cool for 10 minutes in the dish.

1. Peel the pears whole.
2. Place the sugar, vanilla sugar, the pear liqueur and the water into the bowl, stir, cover and heat.

1-2 min. 900 W

1. Place the pears into the liquid, cover and cook.

5-8 min. 900 W

Take the pears out of the cooking liqueur, and place in a cold place.

1. Pour 50 ml of the cooking liqueur into the smaller bowl. Add the chopped chocolate and the crème fraîche, cover, and heat.

2-3 min. 900 W

1. Stir the sauce well. Pour the sauce over the pears, and serve.

Tip: Delicious when served with a ball of vanilla ice cream.

Cheesecake

makes 12 portions

Total cooking time: approx. 21-27 minutes

Utensils: Spring form pan (approx. 26 cm diameter)

Ingredients

300 g flour

1 tbsp cocoa

3 tsp baking powder (9 g)

150 g sugar

1 egg

150 g butter or margarine

1 tsp butter or margarine to grease the form

100 g butter or margarine to grease the pan

100 g sugar

1 pack vanilla sugar (10 g)

3 eggs

400 g fromage frais, 20% fat content

1 pack powdered vanilla pudding mix (40 g)

1. Mix the flour and cocoa with the baking flour. Add the sugar, egg and butter and use the kneading hook on the hand-held blender to knead.
2. Grease the pan, roll out 2/3 of the dough and place it in the pan. Lift the edges 2 cm to form a rim. Pre-bake the pastry.

6-8 min. 630 W

1. Whisk the butter until light and fluffy, add the sugar and eggs one at a time. Finally add the fromage frais and the powdered vanilla pudding mix.
2. Spread the filling over the pre-baked dough and add the remaining crumbling dough on the cake and bake.

15-19 min. 630 W

Care & cleaning

CAUTION: DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Oven exterior

The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Oven controls

Open the door before cleaning to de-activate the oven controls. Care should be taken when cleaning the oven control. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

What to do if...

... the microwave appliance is not working properly?

Check that

• the fuses in the fuse box are working,
• there has not been a power outage.
• If the fuses continue to blow, please contact a qualified electrician.

... the microwave mode is not working? Check that

• the door is properly closed,
• the door seals and their surfaces are clean,
• the START/QUICK-button has been pressed

... the turntable is not turning ?

Check that

• the turntable support is correctly connected to the drive,
• the ovenware does not extend beyond the turntable,
• food does not extend beyond the edge of the turntable preventing it from rotating.
• there is nothing in the well beneath the turntable.

NOTE: If you cook the food over the standard time with only 900 W, the power of the oven will lower automatically to avoid overheating. (The microwave power level will be reduced to 630 W).

After pausing for 75 seconds, 900 W power can be reset.

Cooking Mode	Standard time	Reduced Power
Microwave 900 W	40 minutes	Microwave 630 W

Oven Interior

1. For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover.
2. Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven.
3. Do not use spray type cleaners on the oven interior.

Turntable and turntable support

Remove the turntable and turntable support from the oven. Wash the turntable and turntable support in mild soapy water. Dry with a soft cloth. Both the turntable and the turntable support are dishwasher safe.

Door

To remove all trace of dirt, regularly clean both sides of the door, the door seals and sealing surfaces with a soft, damp cloth.

NOTE: A steam cleaner should not be used.

... the microwave will not switch off?

• Isolate the appliance from the fuse box.
• Contact an authorised AEG-Electrolux service agent.

... the interior light is not working ?

- Call an authorised AEG-Electrolux service agent. The interior light bulb can be exchanged only by an authorised AEG-Electrolux service agent.

... the food is taking longer to heat through and cook than before?

• Set a longer cooking time (double quantity = nearly double time) or
• If the food is colder than usual, rotate or turn it from time to time or
• set a higher power setting.

Service & spare parts

If you wish to purchase spare parts or require an engineer, contact your local authorised service agent.

The telephone number can be obtained from the operator.

Guarantee conditions

Standard guarantee conditions

We, AEG-Electrolux, undertake that if within 24 months of the date of the purchase this AEG-Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity or gas supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
• All service work under this guarantee must be undertaken by an authorised AEG-Electrolux service agent. Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights. • Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside your country of residence.
• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.
• Products of AEG-Electrolux manufacture which are not marketed by AEG-Electrolux.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country. Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis [phone]

Germany Nürnberg [phone]

Italy Pordenone [phone]

Sweden Stockholm [phone]

UK Slough [phone]

Specifications

AC Line Voltage: 230 V, 50 Hz, single phase

Distribution line fuse/circuit breaker: Minimum 10 A

AC Power required: Microwave: 1.3 kW

Output power: Microwave: 900 W (IEC 60705)

Microwave Frequency: 2450 MHz * (Group 2 / Class B)

Outside Dimensions: MC2660E: 592 mm (W) x 460 mm (H) x 437 mm (D)

MC2661E: 592 mm (W) x 388 mm (H) x 437 mm (D)

Cavity Dimensions: 342 mm (W) x 207 mm (H) x 368 mm (D) **

Oven Capacity: 26 litres **

Turntable: ø 325 mm, glass

Weight: approx. 20 kg

Oven lamp: 25 W/240 - 250 V

* This product fulfils the requirement of the European standard EN55011.

In conformity with this standard, this product is classified as group 2 class B equipment.

Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food.

Class B equipment means that the equipment is suitable to be used in domestic establishments.

** Internal capacity is calculated by measuring maximum width, depth and height.

Actual capacity for holding food is less.

This oven complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AS PART OF CONTINUOUS IMPROVEMENT

Important information

Ecologically responsible disposal of packaging materials and old appliances

Packaging materials

AEG-Electrolux microwave ovens require effective packaging to protect them during transportation. Only the minimum packaging necessary is used.

Packaging materials (e.g. foil or styrofoam) can place children at risk.

Danger of suffocation. Keep packaging material away from children.

All packaging materials used are environment friendly and can be recycled. The cardboard is made from recycled paper and the wooden parts are untreated. Plastic items are marked as follows:

«PE» polyethylene eg packaging film

«PS» polystyrene eg packaging (CFC-free)

«PP» polypropylene eg packaging straps

By using and re-using the packaging, raw materials are saved and waste volume is reduced.

Packaging should be taken to your nearest recycling centre.

Contact your local council for information.

Disposal of old appliances

Old appliances should be made safe before disposal by removing the plug, and cutting off and disposing of the power cable.

It should then be taken to the nearest recycling centre. Check with your local Council or

Environmental Health Office to see if there are facilities in your area for recycling the appliance.

UK

i Installation

INSTALLING THE APPLIANCE

1. Remove all packaging and check carefully for any signs of damage.
2. If fitting the microwave oven above a conventional oven (position A) then use the mylar sheet provided.

a. Cut the Mylar sheet to fit the internal width of the unit.

b. Peel back the protective cover on the tape and fix to the rear of the shelf

so that it covers the service gap. (See diagram).

1. Fit the appliance into the kitchen cupboard slowly, and without force, until the front frame of the oven seals against the front opening of the cupboard.
2. Ensure the appliance is stable and not leaning. Ensure that a 5mm gap is kept between the cupboard door above and the top of the frame (see diagram).
3. Fix the oven in position with the screws provided. The fixing points are located on the top and bottom corners of the oven (see diagram, item 9, on page 4).
4. It is important to ensure that the installation of this product conforms to the instructions in this operation manual and the conventional oven manufacturer's installation instructions.

The microwave can be fitted in position A or B:

POSITION	NICHE SIZE CHIMNEYW D H (min) Cupboard & Ceiling	Gap Between
A 560	× 550 × 450 50 50560 × 550 × 380 50 50
B 560	× 500 × 450 40 50560 × 500 × 380 40 50

Measurements in (mm)

i Installation

CONNECTING THE APPLIANCE TO THE POWER SUPPLY

• The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency.
• The socket should not be positioned behind the cupboard.
• The best position is above the cupboard, see (A). When not connecting the power supply cord to position (A) it should be removed from the support clip (see diagram, item 13, on page 4) and routed under the oven.
• Connect the appliance to a single phase 230 V/50 Hz alternating current via a correctly installed earth socket. The socket must be fused with a 10 A fuse.
• The power supply cord may only be replaced by an electrician.
• Before installing, tie a piece of string to the power supply cord to facilitate connection to point (A) when the appliance is being installed.
• When inserting the appliance into the high-sided cupboard, DO NOT crush the power supply cord.
• Do not immerse the power supply cord or plug in water or any other liquid.

ELECTRICAL CONNECTIONS

WARNING: THIS APPLIANCE MUST BE EARTHED The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, you must call your local authorised AEG-Electrolux service agent.

ACCESSORIES:

Press and hold for 3 seconds.

3 tsp baking powder (9 g)

150 g sugar

1 egg

ACCESSORIES:

10-30 minutes 1 minute

30-90 minutes 5 minutes

Example:

CHOPPED AND ONION (A1-2)

Ingredients

0,5 kg (1)	1,0 kg (2)	1,5 kg (3)
150 g 30	0 g 450 g	Viande Hachée ( 1/2 Boeuf, 1/2 Porc)
50 g 10	0 g 150 g	Oignon (haché menu)
1/2 l	1	1/2	Oeuf
15 g 30	g 45 g	Chapelure
			Sel et Poivre
115 ml	230 ml	345 ml Bouillion de Viande
20 g 40	g 60 g	Concentré de Tomates
65 g 12	5 g 190 g	Pommes de Terre (haché menu)
65 g 12	5 g 190 g	Carottes (haché menu)
1/2 tbsp	1 tbsp	1 1/2 tbsp	de Persil (haché)

Preparation

ELECTRICAL CONNECTIONS

ACCESSORIES:

6 keys COOKING FROZEN PRODUCTS

FISH FILLET WITH SAUCE (A2-1)

FISH FILLET WITH SAUCE (A2-1)

el = eetlepel	kp = kopje	g = gram	ml = milliliter	min. = minuten
tl = theelepel	kg = kilogram	l = liter	cm = centimeter

Veal in cream sauce

ACCESSORIES:

200 g of tagliatelle (noodles)

1 clove of garlic

From the Electrolux Group. The World's No.1 choice.

The Electrolux group is the world's largest producer of powered appliances for the kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.

© Electrolux plc 2005

TINS-A352URR3

Printed on recycled paper.

AEG-Electrolux - putting words into action

Printed on paper manufactured with

environmentally sound processes.

He who thinks ecologically acts accordingly ...
