PHILIPS www.philips.com/welcome Required steps ► Safe Language ► Provider ► Privacy drive software installation ► Expendio Monitor driver and software installation System requirements • PC mounting Windows 3, Vaya, XP, 2380, M • Go to view philips.com/teachers as downloaded the least version of monitor driver Philips SmartControl System supports and requirements: 1. System support Windows 3, Vaya, XP 2. Language support English, German, Spanish, French, Indian, Russian, Portuguese, Southeast Chinese 3. Phila Monitor Plug and Play support • Use as https://www.philips.com/other/other/other/index.html or download the least version of SmartControl software Quit Help Finish

Premier lancement – Wizard (Assistant)

SmartControl Lite PHILIPS Wizard You/I need to calibrate your display to get the most accurate color. We encourage you to use the simple tating process by selecting the Start Wizard button. The process involves a series of steps that will let you take your display and save the settings. 1. Choose the Start Wizard button. 2. Follow the steps outlined is the process. 3. Save your settings for future use. Start Wizard

SmartControl Lite PHILIPS Adjust Brightness Color Contrast Focus Options Position Resolution Brightness Interpreli adjust Brightness will result in a loss of detail in dkey image lines. Adjust the Brightness for the best possible picture quality. 1. Lower the Brightness to the minimum level. 2. Raise the Brightness to the desired level. 3. Adjust the Brightness as needed to achieve an equal separation of the stripes. Brightness 100% Delete Reset

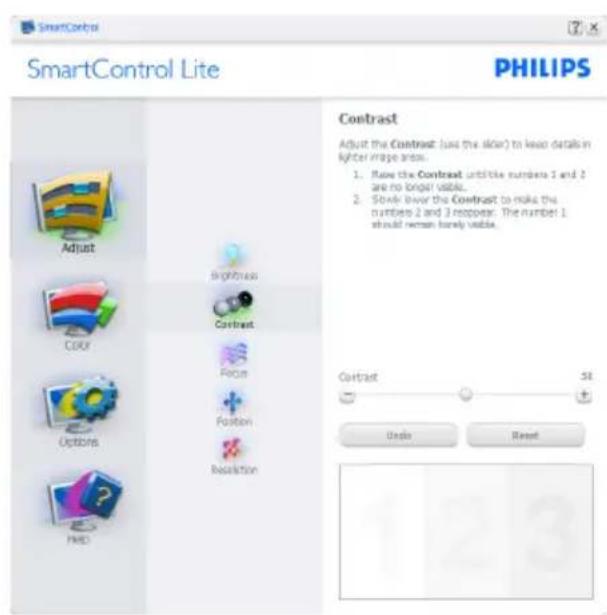

SmartControl Lite PHILIPS Adjust Brightness Contrast Color Focus Options Position Resolution Contrast Adjust the Contrast (use the slider) to keep details in lighter image areas. 1. Have the Contrast until the numbers 2 and 3 are no longer visible. 2. Slowly hover the Contrast to make the numbers 2 and 3 reappear. The number 1 will remain lonely visible. Contract 50 Undo Reset 1 2 3

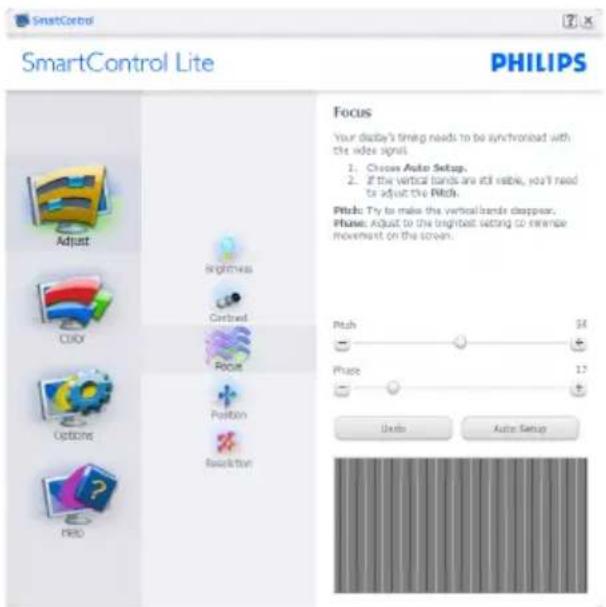

SmartControl Lite PHILIPS Focus Your display's timing needs to be synchronized with the video signals. 1. Choose Auto Setup. 2. If the virtual bands are still visible, you'll need to adjust the Pitch. Pitch: Try to make the virtual bands disappear. Phone: Adjust to the brightness setting to remove movement on the screen. Pitch 54 Phase 17 Units Auto Setup

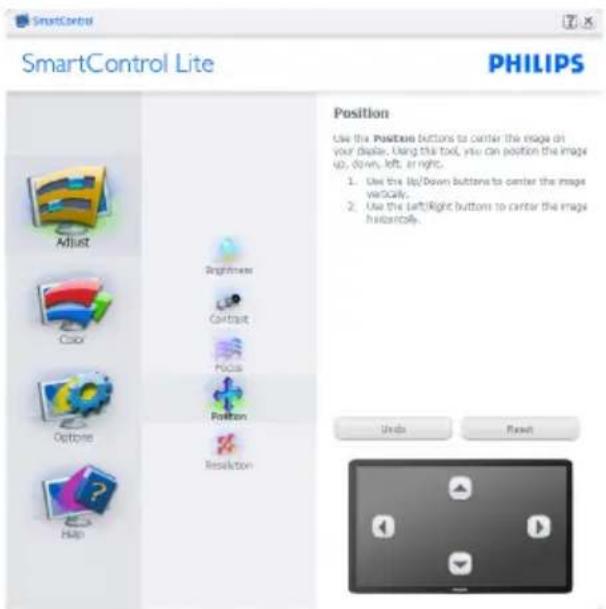

SmartControl Lite PHILIPS Adjust Brightness Contrast Focus Position Resolution Use the Position buttons to center the image on your display. Using this tool, you can position the image up, down, left, or right. 1. Use the Up/Down buttons to center the images visually. 2. Use the Left/Right buttons to center the image horizontally. Units Result

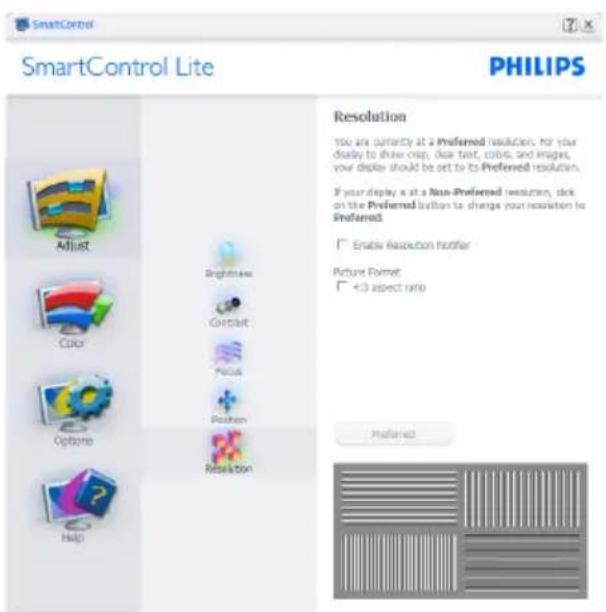

SmartControl Lite PHILIPS Adjust Brightness Contrast Focus Options Position Resolution Resolution If your display is at a Non-Preferred resolution, click on the Preferred button to change your resolution to Preferred. Enable Resolution No.104 Picture Format: +3 aspect ratio Previewed

Menu Couleur :

SmartControl Lite PHILIPS Black Level Interpreis adjusted Black Level will result in a box of detail in darker image areas. Adjust the Black Level for the best possible picture quality. 1. Adjust the black level of the Hsd, Green, and Blue using the older bars. Red 56 Green 56 Blue 38 Undo Reset

SmartControl Lite PHILIPS White Point White Point is the point at which visual combinations of red, green, and blue light at full intensity create white. The effects the overall color quality. For the most accurate colors click the Reset button then select the White Point. 1. Please select the White Point value for the best possible color quality. White Point: 6000K Undo Reset

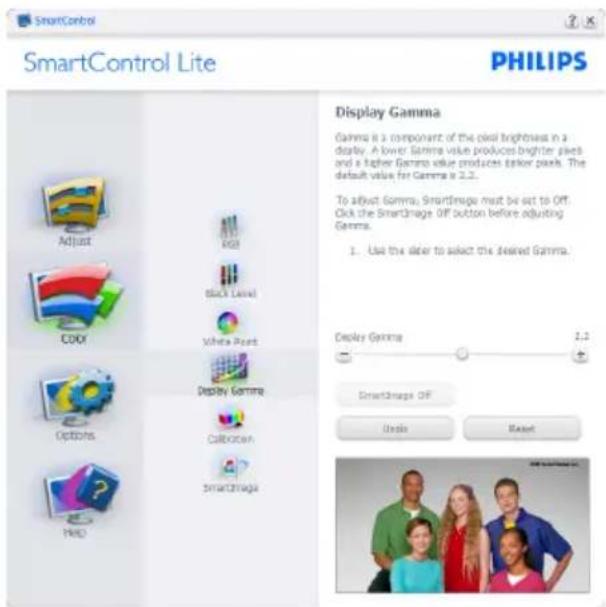

SmartControl Lite PHILIPS Display Gamma Gamma is a component of the pixel brightness in a display. A lower Gamma value produces brighter pixels and a higher Gamma value produces taller pixels. The default value for Gamma is 2.2. To adjust Gamma SmartImage must be set to Off. Click the SmartImage Off button before adjusting Gamma. 1. Use the slider to select the desired Gamma. Display Gamma 2.2 SmartImage OFF Undo Reset

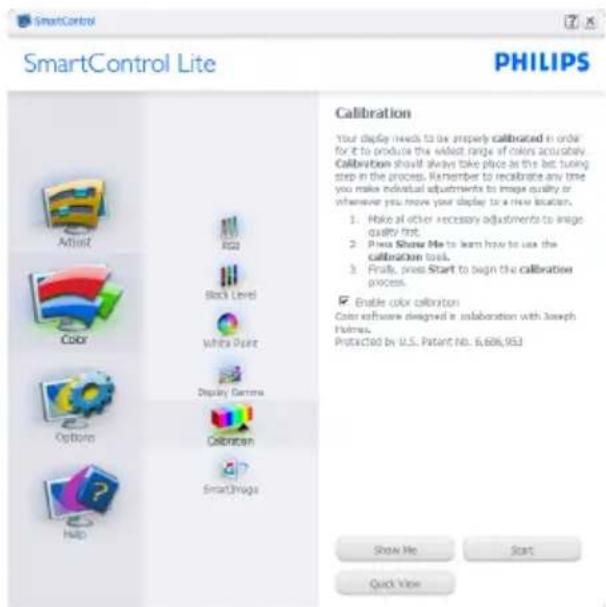

SmartControl Lite PHILIPS Calibration Your display needs to be properly calibrated in order for it to produce the simplest range of colors accurately. Calibration should always take place as the bit, turning step in the process. Remember to recalculate any time you make individual adjustments to image quality or whenever you move your display to a new location. 1. Make all other necessary adjustments to image quality first. 2. Press Show Me to learn how to use the calibration tool. 3. Final, press Start to begin the calibration process. ✓ Enable color calibration Color software designed in collaboration with Joseph Holmes. ProticeCfd by U.S. Patent No. 6,606,953 Show Me Start Quick View

Colorful circular diagram with a central square, displayed on a grid background (no text or symbols)

SmartControl Lite PHILIPS SmartImage SmartImage provides different brightness and contrast levels to accommodate today's wide range of computer applications. Choose the setting that a next comfortable or efficient when viewing your application. Alternatively, simplify decreases the one that best describes its type. Internet Gans Standard

SmartControl Lite PHILIPS Preferences You can use the following options to configure SmartControl. Enable menu when right-clicking on desktop Enable task tray menu Run at system startup Set Transparency: 0% 53% 100% Select languages: English Adjust Audio Auto PDFS Input Word Prints Multi-Members

SmartControl Lite PHILIPS Input Your display has two inputs (connecties on back of the display) so you can hook up two different devices at the same time. Use the Analog In and Digital In buttons to select which sources you'd like to view. You are currently viewing the analog in image. IMPORTANT! If you switch inputs SmartControl may lose the ability to control your monitor. In the case you may have to use the Input. Select button on the front of your monitor to switch back to the original input below SmartControl functionality can be noticed. Analog In Digital In

SmartControl Lite PHILIPS Audio Adjust the Volume of the integrated loudspeakers by using the slides. Turn off the integrated loudspeakers by shading the Mute checkbox. Plate Volume 104 Units

SmartControl Lite PHILIPS User Manual If you need help setting up or operating smartcontrol, click the Tech. Support Button... You'll have the option to fill out an Assistance Form. You can also choose to have information about your software automatically attached to the assistance form. You'll need to be online to use this feature. User Manual Tech. Support

SmartControl Lite PHILIPS Version SmartControl Version 0.40 EVALUATION itune plc R2009-12-17- 19C3-04 DDO/CI Communications: Yes - ATQ API Copyright © 1963-2009 Passport Displays, Inc. Adjust User Manual Update Display ID System ID Version COOL Options HMO
