Product type	Electric pepper and salt mill
Brand	TriStar
Model	PM-4005
Power supply	4 AA alkaline batteries (1.5 V, not included)
Main function	Grinding pepper and salt
Grind setting	Adjustable rotary knob: from fine to coarse
Lighting	Integrated LED light under the mill
Capacity	Compartment to fill with pepper or salt (capacity not specified)
Material	Plastic and steel
Usage	Domestic use only
Maintenance	Wipe with a dry cloth; do not immerse
Cleaning	Do not wash in dishwasher
Safety	Do not use by children or unsupervised persons
Warranty	24 months (parts and labor)
Included accessories	No additional accessories
Spare parts	Not available at retail; repair by authorized center
Recycling	Device recyclable according to WEEE directive
Compliance	CE directives (low voltage, EMC)

Frequently Asked Questions - PM-4005 TRISTAR

How to install batteries in the TriStar PM-4005 mill?

Turn the top part counterclockwise to remove the battery compartment. Insert 4 AA alkaline batteries respecting the polarities. Replace the compartment and screw the top part back clockwise.

How to adjust the grind fineness?

For a coarser grind, loosen the knob at the bottom of the mill by turning counterclockwise. For a finer grind, tighten the knob clockwise.

How to clean the mill?

Wipe the mill with a dry cloth. Do not put it in the dishwasher and do not immerse it in water. Avoid wetting the battery contacts.

What to do if the mill does not grind?

First check that the batteries are installed correctly and sufficiently charged. Make sure the adjustment knob is not too tight. Check that there is pepper or salt in the compartment. If the mechanism is blocked, tap the mill gently.

What type of batteries to use?

Use 4 AA alkaline batteries of 1.5 V. Do not mix used batteries with new ones. Replace all 4 batteries at the same time.

Can the mill grind salt?

Yes, it is suitable for pepper and salt. After filling with salt, always wipe the opening of the lower part to avoid corrosion on the copper contacts.

What to do if grinding is slow?

Replace the batteries with new ones. Weak batteries can slow down grinding.

Is there an integrated light?

Yes, the bottom of the mill is equipped with a convenient LED light that turns on when you grind.

How to change the batteries?

Turn the top part counterclockwise to access the battery compartment. Remove the used batteries and insert 4 new AA alkaline batteries respecting the polarities. Replace the compartment and screw back.

Is the device under warranty?

Yes, the TriStar PM-4005 has a 24-month warranty from the purchase date, covering manufacturing defects. Keep your receipt for any claim.

USER MANUAL PM-4005 TRISTAR

Two stainless steel industrial press shifters with granular contents, one emitting powder and the other holding a small container (no visible text or symbols)

eN Instruction manual
NI Gebruiksaanwijzing
FR Mode d'emploi
De Bedienungsanleitung
eS Manual de usuario
PT Manual de utilizador
PI Instrukcja obsługi
IT Manuale utente
sv Användare

PM-4005

***TRISTAR

Dear customer,

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

SaFeTy INSTRucTloNS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• The appliance must be placed on a stable, level surface.
• All repairs should be made by a competent qualified repair service(*).
• Make sure that the appliance is stored in a dry environment.

• It is absolutely necessary to keep this appliance clean at all times, because it comes into direct contact with food.

• This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

• The use of accessory that are not recommended by the manufacturer can cause injuries and will invalidate any warranty that you may have.
• Do not use this appliance near direct heat sources.
  * Competent qualified repair service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this repair service.

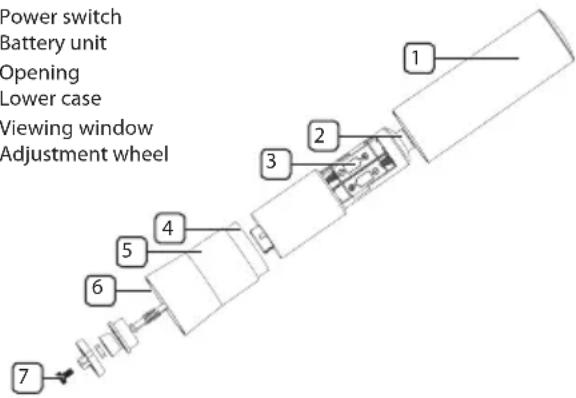

PaRTS DeScRIPTIoN

1. Upper case
2. Power switch
3. Battery unit
4. Opening
5. Lower case
6. Viewing window
7. Adjustment wheel

\*\*\* TRISTAR

Instruction manual

USE

- Twist the upper case of the mill in anti-clockwise direction and remove the battery unit from the lower case.

Mill locked

• Insert 4 AA alkaline batteries as indicated /+into the battery compartment.
• Fill the base compartment of the pepper mill with pepper or salt, using the opening on the base section.
• Attach the battery compartment back onto the lower case (make sure the small copper contacts will connect). Reconnect the upper case to the lower case in clockwise direction to lock the mill. The mill is now ready and safe to use.
• Press the power button on the top to start grinding.
• The mill is provided with a practical light at the bottom of the mill.

Adjusting your Grind

- For coarser grind, loosen the adjustment wheel at the bottom of the mill in anti-clockwise direction

Anti-clockwise for coarser grind

- For finer grind, tighten the adjustment wheel at the bottom of the mill in clockwise direction

Clockwise for finer grind

CARE AND CLEANING

• To avoid corrosion after filling with salt, always wipe around the opening of the lower case ensuring the two copper contacts are free from salt or pepper.

• Do not leave dead batteries in the mill.

• Replace all 4 batteries at the same time, avoid mixing old batteries with new ones.

• Wipe the mill clean with a dry cloth.
• Do not place the mill in the dishwater and do not immerse in water.
• Make sure the battery contacts will not get wet.

FalluReS

• Check if the batteries are installed correctly.
• Check if the adjustment wheel at the bottom is not adjusted to tight.
• Check if there is salt or pepper in the base compartment If the mill is not empty, tap mill gently to free up the grinding gear from any potential jam.
• If grinding is slow, replace the batteries.

GuaRaNTee

• Tristar is not liable for damages occurred through:
  o In case the appliance has fallen.
  o In case the appliance has been technically changed by the owner or another third party.
  o In case of improper use of the appliance.
  o In case of normal wear of the appliance.
• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE.

• Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.

• Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.

• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.
• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.
• When the appliance should be repaired, make sure that this will be performed by an authorized company.
• This appliance may not be amended or changed.
• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
• For questions or compliances please contact your retailer "point of purchase."
• This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).
• Only material or manufacturing defects are included in this warranty.
• If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This appliance is designed to come into contact with food and is designed in accordance with EC Directive89/109/EEC. This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.
