KP-6190 - Other household appliances TRISTAR - Free user manual and instructions

Brand	TriStar
Model	KP-6190
Category	Hob
Product type	Portable electric hot plate
Power supply	220-240 V ~ 50/60 Hz
Power	1500 W
Dimensions (approx.)	25 x 25 x 8 cm
Weight (approx.)	1.5 kg
Plate material	Metal with protective coating
Temperature setting	Rotary thermostat from 1 (low) to MAX (high)
Indicator light	Heating indicator (red)
Main functions	Cooking, reheating, keeping warm
Safety	Do not immerse, thermal protection, hot surface
Care and cleaning	Clean with a damp cloth after cooling; do not use abrasive detergents
Spare parts and repairability	Repairs by approved service center only; 24-month warranty
Warranty	24 months from date of purchase
General information	Household use only; place on a stable, heat-resistant surface

Frequently Asked Questions - KP-6190 TRISTAR

How to clean the hot plate?

Before cleaning, unplug the appliance and let it cool down completely. Clean with a damp cloth. Never use abrasive detergents or scouring powder. Never immerse the appliance in water.

Why is there smoke during first use?

The hot plate is supplied with a protective coating that burns off during first use. Turn the appliance to the maximum setting for 10 minutes to remove this coating. Some smoke may be emitted, this is normal.

What types of pots can I use?

Use pots with a flat bottom and a diameter suitable for the hot plate. Pots with a curved bottom or those that are too small will not heat effectively.

How to adjust the temperature?

Turn the thermostat knob clockwise. Position 1 corresponds to the lowest temperature and MAX to the highest. The red indicator light turns on during heating and off when the temperature is reached.

Can I leave the appliance unsupervised?

No, never use the appliance unattended. Unplug it after use and let it cool down before storing.

What to do if the appliance does not heat?

Check that the plug is properly inserted and the socket works. Make sure the thermostat is not set to 0. If the problem persists, contact an approved repair center.

Can I use an extension cord?

No, the use of an extension cord or timer device is prohibited for safety reasons.

How to avoid burning the table?

Always place a heat-resistant trivet between the hot plate and the table or tablecloth to prevent damage.

Is the appliance under warranty?

Yes, the appliance is warranted for 24 months from the date of purchase. The warranty covers manufacturing defects. Keep your receipt for any claims.

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Bring it to a recycling center for electrical and electronic equipment. The packaging is 100% recyclable.

USER MANUAL KP-6190 TRISTAR

Steaming stovetop with a large pot filled with carrots, placed on an electric stove (no text or symbols visible)

eN Instruction manual
NI Gebruiksaanwijzing
FR Mode d'emploi
De Bedienungsanleitung
eS Manual de usuario
PT Manual de utilizador
PI Instrukcja obsługi
IT Manuale utente
SV Bruksanvisning

KP-6190

*** TRISTAR

Dear customer,

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

SaFeTy INSTRucTloNS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• To protect children against the dangers of electrical appliances, please make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.
• This appliance is only to be used for household purposes and only for the purpose it is made for.

• The appliance must be placed on a stable, level surface.

• Do not use when the appliance is fallen, if there are any signs of damage or when it leaks.

• Do not touch hot surfaces. Use handles or knobs.
• Never use the device unsupervised.
• All repairs should be made by a competent qualified repair service(*).
• Make sure that the appliance is stored in a dry environment.
• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50/60Hz. The socket must be at least 16A or 10 A slow-protected.
• This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• Do not use this appliance outdoors.
• Do not wind the cord around the appliance and do not bend it.
• Allow the appliance to cool down before you clean or store it.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an authorized technician(*). Do not repair this appliance yourself.
• Do not use this appliance near direct heat sources.
• Unplug the appliance from the socket when you are not using it.
• Note: To avoid danger by accidental resetting the thermal protection, this appliance may not be powered through an external switching device, such as a timer, or connected to a circuit that regularly will be switched on or off.
• Using an extension cord or something similar is not allowed.

\*\*\* TRISTAR

Instruction manual

• Make sure that the cord is not hanging over the edge of the table or counter, does not touch any hot surfaces or is coming directly into contact with the hot parts of the appliance. Do not place the appliance underneath or close to curtains, window coverings etc.
  • Make sure the cord does not touch the hot parts of the appliance.
  • We advise to place a heat resistant coating between your table and the appliance (this way you don't get burns on your table or table cloth).
• Do not use this appliance in the bathroom or near a sink filled with water. If this appliance has fallen into the water do not under no circumstances directly grab this appliance, but first pull the plug from the socket.
  * Competent qualified repair service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this repair service.

PaRTS DeScRIPTIoN

1. Thermostat
2. Pilot light
3. Hot plate

BeFoRe The FIRST uSe

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Clean the plate with a damp cloth.
• Connect the power cable to the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50/60Hz)
• The heating plate is provided with a protective layer which for the first use should be removed. Switch the device and select the highest setting for 10 minutes. There may be created some smoke by the protection which now lit the heating plate. Then you can switch off the cooker or use it.

uSe

• Turn on the hot plate by turning the switch clockwise. The red control light lights up.
• You can select the desired temperature by turning the knob clockwise, 1 for the lowest temperature and 'MAX' for the highest level.
• If the temperature which belong to the set position is reached, the red control light turns off.
  • After the temperature dropped, the thermostat will turn the hot plate back on again.

cleaNINg

• Unplug, before cleaning, the plug from the socket and allow the plate to cool down completely.
• Do not use toxic and abrasive cleaners such as gasoline, scouring powder or solvent. A normal kitchen cleaner or detergent is sufficient.
• Never immerse the appliance in water or other liquid.
• Remove the cooking residues immediately.
• Beware! The plate is hot.

eNeRgy SaVINg TIPS

• Use only pans with a diameter equal to the hotplate.
• Use only pots and pans with a flat bottom
• If possible keep the lid on the pan while cooking
• Cook vegetables, potatoes, etc. with little water to shorten the cooking time.
• Use the correct temperatures for the different meals to prepare.

guaRaNTee

• Tristar is not liable for damages occurred through:
  o In case the appliance has fallen.
  o In case the appliance has been technically changed by the owner or another third party.
  o In case of improper use of the appliance.
  o In case of normal wear of the appliance.
• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE.
• Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.
• Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.
• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.
• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.
• When the appliance should be repaired, make sure that this will be performed by an authorized company.
  • This appliance may not be amended or changed.
• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
• For questions or compliances please contact your retailer "point of purchase."
• This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).

\*\*\* TRISTAR

Instruction manual

• Only material or manufacturing defects are included in this warranty.
• If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.
  • After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central

point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

Geachte klant,

aVaNT la PRemIÈRe uTIIISaTloN

VoR DeR eRSTeN INBeTRIeBNahme

aNTeS Del PRImeR uSo

PRzeD PleRwSzym uŻyclem

PRIma Del PRImo uTillzzo

FöRe FöRSTa aNVäNDNINg

Quality shouldn't be a luxury!

Black outdoor grill with a dome-shaped top and four star-shaped legs (no text or symbols visible)

BQ-2816

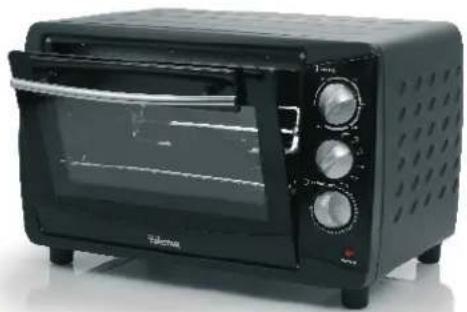

Black Yukon coffee oven with open lid and control knobs (no visible text or symbols)
