EN User manual

Contents

1 Important 4

Safety 4

Notice 5

2 Your CD Soundmachine 6

Introduction 6

What's in the box 6

Overview of the main unit 7

3 Get started 9

Install batteries 9

Connect AC power 9

4 Play 11

Play a CD 11

Play from USB 11

Listen to radio 11

5 Play options 12

Program play sequence 12

Select play modes 12

Select a track 13

Select an album 13

Find a passage within a track 13

6 Product information 14

Specifications 14

Supported MP3 disc formats 14

USB playability information 14

7 Troubleshooting 16

1 Important

Safety

① Read these instructions.
② Keep these instructions.
③ Heed all warnings.
④ Follow all instructions.
⑤ Do not use this apparatus near water.
⑥ Clean only with dry cloth.
⑦ Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
⑧ Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
⑨ Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
⑩ Only use attachments/accessories specified by the manufacturer.
⑪ Unplug this apparatus during lightning storms or when unused for long periods of time.
⑫ Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

⑬ Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit: Install all batteries correctly, + and - • as marked on the unit. Do not mix batteries (old and new • or carbon and alkaline, etc.). Remove batteries when the unit is • not used for a long time.

⑭ Apparatus shall not be exposed to dripping or splashing.

⑮ Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

⑯ Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Warning

Never remove the casing of this apparatus. • Never lubricate any part of this apparatus. • Never place this apparatus on other electrical equipment.

• Keep this apparatus away from direct sunlight, naked flames or heat.
• Never look into the laser beam inside this apparatus.
• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

Caution

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Notice

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Recycling

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste.

When you see the crossed-out wheel bin symbol with the chemical symbol 'Pb', it means that the batteries comply with the requirement set by the directive for lead:

Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

This apparatus includes this label:

CLASS 1 LASER PRODUCT

2 Your CD Soundmachine

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this unit, you can enjoy audio from discs, USB devices, or radio stations. You can also program the play sequence of tracks, and you can enhance the sound with the Dynamic Bass Boost feature.

What's in the box

Check and identify the contents of the package:

CD Soundmachine•

AC power cord•

Power adaptor•

User Manual•

Overview of the main unit

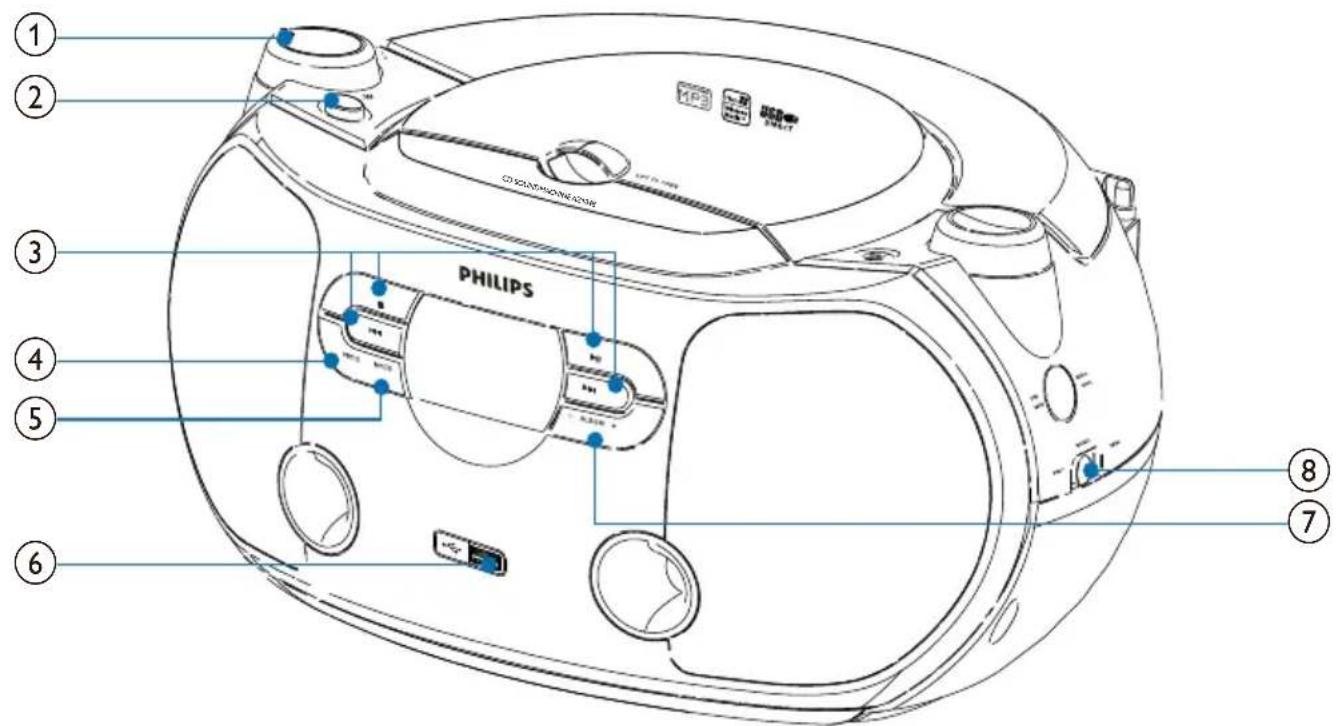

① ② ③ ④ ⑤ ⑥ PHILIPS ⑦ ⑧

① VOLUME

Adjust volume level.

② DBB

Turn the bass enhancement on/off.

③

Stop CD play. •

Erase a CD program.

Start or pause CD play.

/

Select the previous/next track.

Fast search backwards/forwards •

within the current track.

④ PROG

Program tracks and browse the program.

⑤ MODE

Select a play mode: REPEAT or • SHUFFLE.

⑥

- USB socket.

⑦ ALBUM +/-

Skip to the next/previous album in • an MP3-CD.

⑧ BAND

Select a wave band.

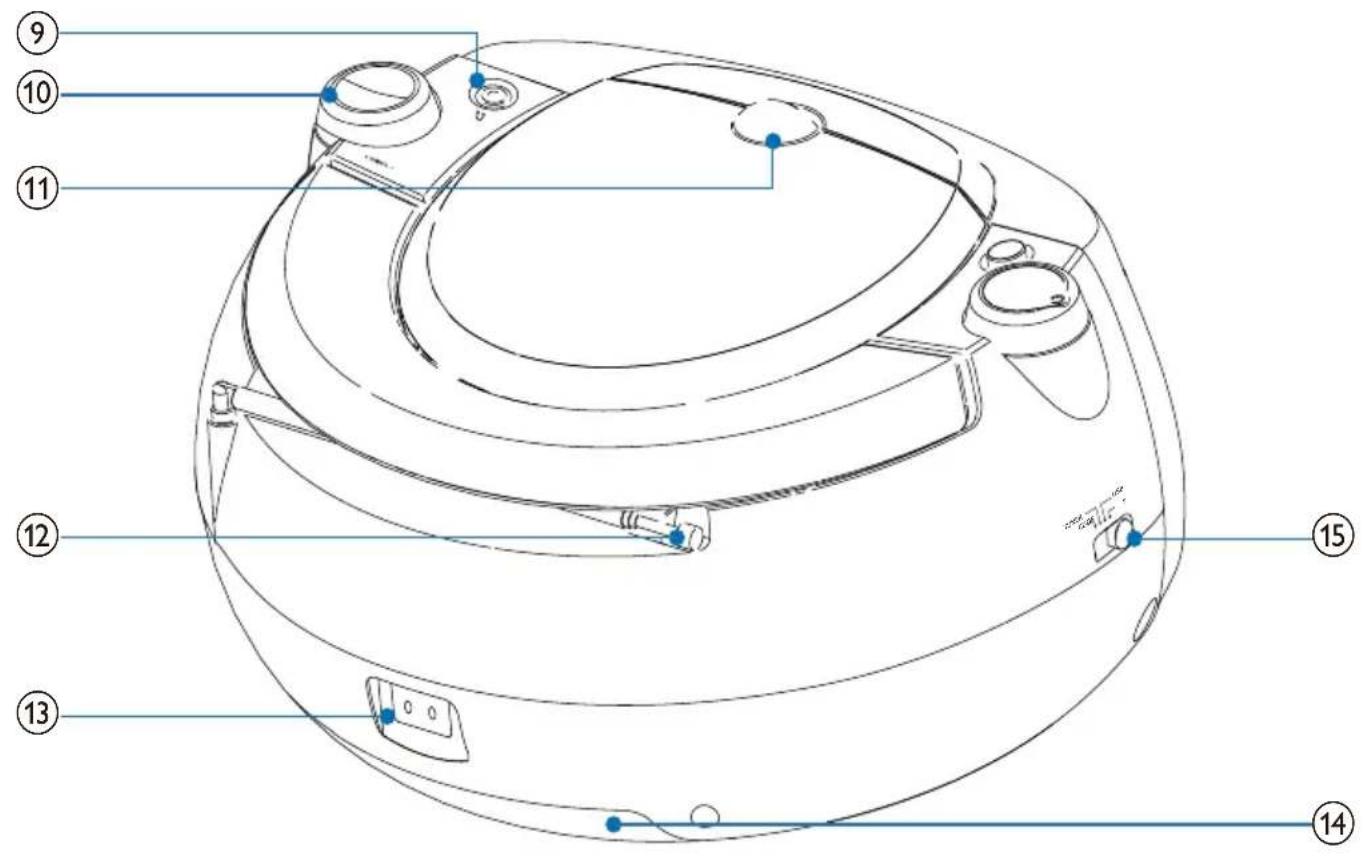

Technical diagram of a mechanical device with numbered parts labeled for identification.

⑨ Jack for headphone. •
⑩ TUNING +/- Tune to radio stations. •
⑪ LIFT TO OPEN Open/Close the CD compartment. •
⑫ Telescopic antenna Improve FM reception. •
⑬ AC MAINS\~ Socket for the power cord. •
⑭ Battery compartment
⑮ Source selector: CD, USB, TUNER, OFF Select CD, USB, radio, or MP3 • source. Switch to standby mode. •

3 Get started

Caution

Use the controls only as stated in this user • manual.

• Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of your player. The model number and serial number are on the bottom of your player. Write the numbers here: Model No. ____ Serial No. ____

Install batteries

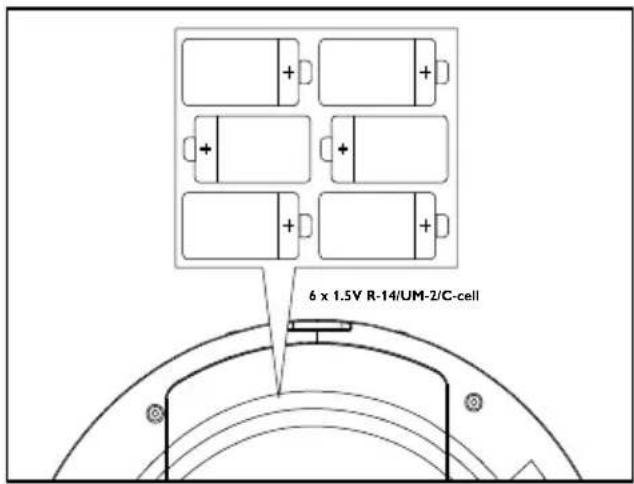

1 Open the battery compartment.

6 x 1.5V R-14/UM-2/C-cell

2 Insert 6 × 1.5V R14/UM-2/C-cell batteries with correct polarity (+/-) as indicated.

3 Close the battery compartment.

Tip

If you want to save battery life, use the supplied power cord.

Connect AC power

Warning

Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the product.

- Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the socket. Never pull the cord.

Note

Install the unit near the power supply socket and where the AC power plug can be easily reached.

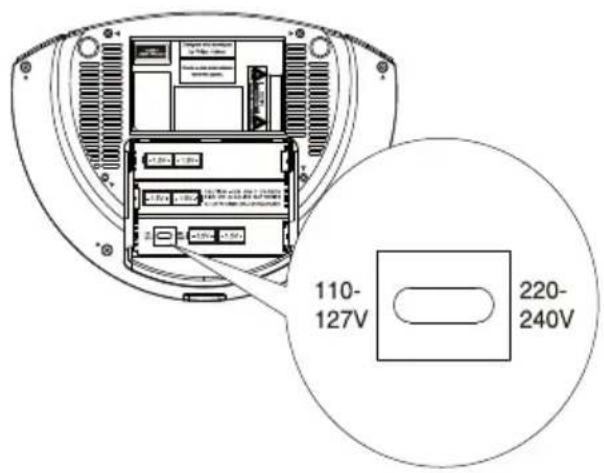

1 Switch the voltage selector at the bottom of the unit to the local power line voltage.

110- 127V 220- 240V

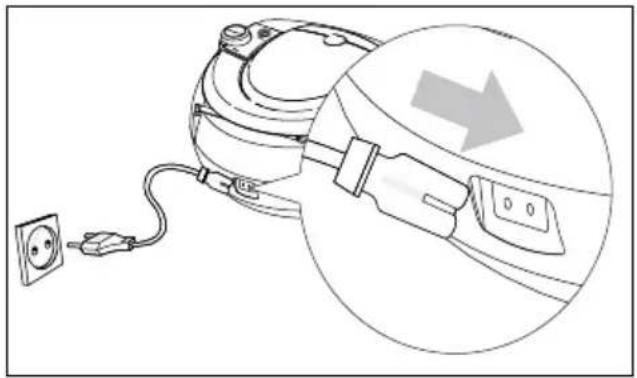

2 Connect the power cord to the AC MAINS\~ socket on the main unit and to the power supply socket.

Line drawing of a device with an attached power outlet and cable, showing a circular arrow indicating direction (no text or symbols)

Tip

To save energy: After use, set the source • selector to OFF. To turn off the CD Soundmachine, disconnect the plug from the power supply socket.

4 Play

Play a CD

Note

You cannot play CDs encoded with copyright protection technologies.

You can play commercially available audio CDs: CD-Recordables (CD-R)• CD-Rewritables (CD-RW)• MP3-CDs•

1 Push the source selector to CD.
2 Lift the lid of the CD compartment.
3 Insert a CD with the printed side facing up.
4 Close the CD lid gently. → The total number of tracks is displayed.

5 Press ▶ II to start play. → [▶] is displayed.

• To pause CD play, press ▶II.
• To resume CD play, press ▶II again.
• To stop CD play, press ■.

Play from USB

Note

- Ensure that the USB device contains playable audio contents for supported formats. (See "USB playability information")

1 Flip the USB socket cover.
2 Plug the USB device into the ✉ socket.
3 Push the source selector to USB.
4 Press ▶II to start play.
• To pause/resume play, press ▶II.
• To stop play, press ■.

To search within an audio file, press • and hold ◀◀◀/▶, then release to resume normal play.

Listen to radio

1 Switch the source selector to TUNER.
2 Switch BAND to FM or MW.
3 Turn TUNING +/- to find a station.

Tip

To improve FM reception, you can extend, • incline or turn the telescopic antenna for best reception. • To improve MW reception, turn the CD Soundmachine to face a different direction.

5 Play options

Program play sequence

You can store up to 30 tracks in the desired sequence.

For MP3 and WMA-discs:

1 In stop mode, press PROG to start to program play sequence.
→ [PROG] and [P01] are displayed.

PROG P01

2 Press ALBUM +/- to select an album.
3 Press ◀◀/▶▶ to select a track.
4 Press PROG to store the track. → [PROG] and [P02] are displayed.
5 Repeat steps 2 to 4 to select and store all tracks.

When all 30 tracks are stored, no → more tracks can be selected and the display shows [PROG] and [FUL].

For CDs,

1 In stop mode, press PROG to start to program play sequence.

→ [PROG] and [P01] are displayed.

PROG P01

2 Press ◀◀/▶▶ to select a track.
3 Press to store the track. → [PROG] and [P02] are displayed.

4 Repeat steps 2 to 4 to select and store all tracks.

When all 30 tracks are stored, no → more tracks can be selected and the display shows [PROG] and [FUL].

5 To play program, press .▶II

In stop mode, press • PROG repeatedly to browse stored tracks. To cancel program, press • ■ twice.

Tip

When program play stops, the CD • Soundmachine returns to normal play. To play program again, repeat steps 1 to 6.

Select play modes

Repeat play

You can repeat a track, an MP3 album, a disc, or a program.

• [ ➕] – plays the current track continuously
• [ Ⓧ ALL] – repeats the entire CD/program

1 During play, press MODE repeatedly until the display shows the repeat icon. Repeat one track.

036 MP3

Repeat a program.

PROG 00 1 MP3

To stop repeat play, press • repeatedly until the repeat icon is no longer displayed.

Shuffle play

You can play all tracks in random order.

1 During play, press MODE repeatedly until the display shows the shuffle icon.

036 MP3

• To stop shuffle play, press MODE again.

Select a track

1 During play, press /▶▶▶ select a track.

Select an album

For MP3-CDs only.

1 During play, press ALBUM +/- to select an album.

Find a passage within a track

1 During play, press and hold / ◀◀◀▶▶ The CD is played at high speed and ↩ with reduced volume.

2 Release ◀◀/▶▶ to resume normal play.

Tip

When search reaches the end of the last track, • the CD stops.

6 Product information

Note

- Product information is subject to change without prior notice.

Specifications

Disc

Laser Type Semiconductor
Disc Diameter	12cm/8cm
Support Disc	CD-DA, CD-R, CD-RW, MP3-CD, WMA-CD
Audio DAC	24Bits / 44.1kHz
Total Harmonic Distortion	<1%
Frequency Response	60Hz -16kHz
S/N Ratio	>62dBA

Tuner

Tuning Range	FM: 87.5 - 108MHz;MW: 530 - 1600kHz
Total Harmonic Distortion	<3%
Signal to Noise Ratio	>50 dB

Tape deck

Frequency response- Normal tape (type I)	125 - 8000Hz (8 dB)
Signal-to-noise ratio- Normal tape (type I)	40 dBA
Wow and flutter	<0.4% JIS

General

Dimensions (main unit)
(W × H × D) 320 × 275 × 175 mm
Weight (main unit) 1.7 kg
Power supply DC: 9V 1.5A
	AC: 110 - 127V/220- 240V, 50Hz/60Hz
Power consumption
- Active	<12 W
- Standby	0.7W
Power output 1W × 2 RMS
Operating	- 10 °C - +50 °C
temperature range	14 °F - 122 °F

Supported MP3 disc formats

ISO9660, Joliet•

Maximum title number: 512 (depending • on file name length)

Maximum album number: 255•

Supported sampling frequencies: 32 kHz, • 44.1kHz, 48 kHz

Supported Bit-rates: 32\~256 (kbps), •

variable bit rates

USB playability information

Compatible USB devices:

USB flash memory (USB 2.0 or USB1.1) • USB flash players (USB 2.0 or USB1.1) •

• memory cards (requires an additional card reader to work with this apparatus)

Supported formats:

• USB or memory file format FAT12, FAT16, FAT32 (sector size: 512 bytes)
• MP3 bit rate (data rate): 32-320 Kbps and variable bit rate
• WMA v9 or earlier
• Directory nesting up to a maximum of 8 levels
• Number of albums/ folders: maximum 99
• Number of tracks/titles: maximum 999

ID3 tag v2.0 or later•

File name in Unicode UTF8 (maximum •

length: 128 bytes)

Unsupported formats:

Empty albums: an empty album is an •

album that does not contain MP3/WMA

files, and is not be shown in the display.

Unsupported file formats are skipped. For •

example, Word documents (.doc) or MP3

files with extension .dlf are ignored and

not played.

AAC, WAV, PCM audio files•

DRM protected WMA files (.wav, .m4a, •

.m4p, .mp4, .aac)

WMA files in Lossless format•

7 Troubleshooting

Warning

Risk of electric shock. Never remove the casing of the player.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using the player, check the following points before requesting service. If the problem remains unsolved, register your player and get support at www.philips.com/welcome.

No power

• Ensure that the power cord is connected securely.
• Ensure that there is power at the power supply socket.
• Ensure that the batteries are installed correctly.

No sound

• Adjust the volume.
• Ensure that the track played is of a compatible format.

Display does not function properly./No reaction to operation of any of the controls.

1 Disconnect the AC power cord.
2 Connect the AC power cord after a few seconds.

Cannot play disc

• Ensure that the disc label is inserted with the printed side facing up.
• Wipe the disc with fibre cleaning cloth from the centre to the edge in a straight line.
• This disc may be defective. Play another disc.
• Ensure that the CD is a finalised CD/CD-R/CD-RW.
  • Ensure that the laser lens is clean.

Ensure that the CD is not encoded with copyright protection technologies.

The CD skips tracks

Ensure that the CD is not damaged or • dirty. Ensure that program/shuffle mode is • deactivated.

USB device not supported

The USB device is incompatible with the • apparatus. Try another one.

Poor radio reception

Increase the distance between the unit • and your TV or VCR. Fully extend the FM antenna. • Connect an outdoor FM antenna instead. •

PHILIPS
