USER MANUAL 010-9342 EATON

Power distribution solutions

Eaton ePDU Data Center Product Catalog

Switch 🤊N to Eaton.

Interior view of a server room with glowing blue lighting and vertical panels, no visible text or symbols on the main structure.

Table of contents

Product Line Overview 4

Choosing ePDU Technologies 5

ePDU Technologies....6

Understanding ePDU Technologies 7

ePDU Software Options 9

ePDU Units 10

Basic ePDUs 10

FlexPDUs and Hot Swap Maintenance Bypass....14

Monitored ePDUs....16

Advanced Monitored ePDUs....19

Switched ePDUs 20

Eaton Automatic Transfer Switches 22

Rack Power Module 24

ePDU Plugs and Receptacles 25

Power Cables and Accessories 26

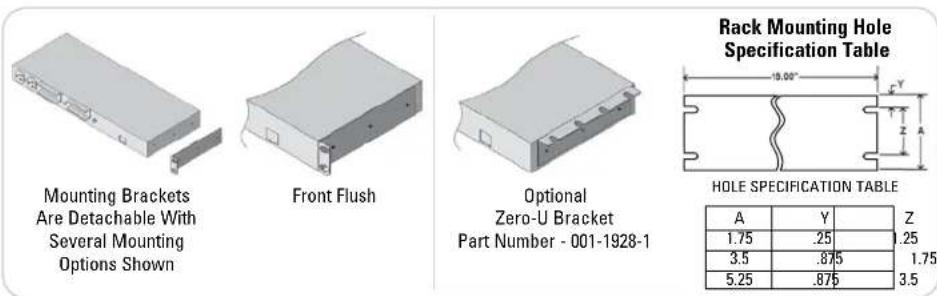

Space-saving Mounting Options....27

Broad product portfolio

Eaton offers the largest selection of rack mounted power distribution units available on the market, we call these Eaton ^® ePDUs ^® . Our complete suite of products is designed specifically to help you meet rapidly escalating requirements.

Top seller ePDUs

In this catalog you will find Eaton's top-selling ePDUs, units which we stock for high availability and quick turn around. These units tend to be the most popular and will provide solutions to key data center needs. For detailed technical specifications for all of our top-selling ePDUs, please visit eaton.com/epdu.

Build-to-order ePDUs

Eaton also has build-to-order units, which you can find in the Industrial Catalog and on eaton.com/epdu. Components of these units are stocked at the factory to provide competitive lead times for these products.

Custom ePDUs

It is important to note that Eaton also offers custom capabilities for rack power distribution. Our engineering expertise allows us to build any type of configuration for our customers should there not be a top seller or build-to-order unit available to meet the desired solution. These units have different lead times, pricing structure and warranty offerings.

If you are looking for a power distribution solution that you do not see in this catalog, please contact your reseller or refer to the Industrial Catalog which you can find on eaton.com/epdu.

High Density Power Solutions

Eaton offers a number of ePDUs that will meet your high power density needs. We offer both rack mount, and vertical mount three-phase models ranging from 50A, 60A to even 80A input capacities. These sophisticated units allow an entire rack of equipment to be powered from a single power cord input.

24/7 Reliability through circuit breakers

ePDUs use individual UL-rated branch circuit breakers that protect load segments (outlet groups), ensuring that an overloaded circuit does not affect other load segments, therefore increasing reliability. Typically, circuit breakers have flat rockers or are fully shrouded to prevent accidental on/off operation.

Rugged design for optimal performance and quick installation

Eaton ePDUs are designed to meet global safety standards. These units are engineered with rugged construction, have flexible mounting options, and multiple features ensuring the highest quality and customer satisfaction. Eaton engineers unique solutions for the most power intense environments.

Eaton ePDU Product Wizard makes it easy!

On eaton.com/epdu, Eaton's product wizard is a simple interface that allows you to search over 1,000 products for the perfect solution. You can explore features, benefits and learn basic fundamentals of ePDUs, as well as interact with live demos. This wizard allows you to filter ePDUs by:

• Input Plug
• Output Receptacle
• Power Rating
• Function

The live wizard will to walk you through power requirements and pick from specific ePDU inventories based on your choices. Making the right decisions from the start can make a difference in the dependability and efficiency of an infrastructure. If you need help or have questions with a selection you can use the live chat icon, or call one of the listed support numbers on our website.

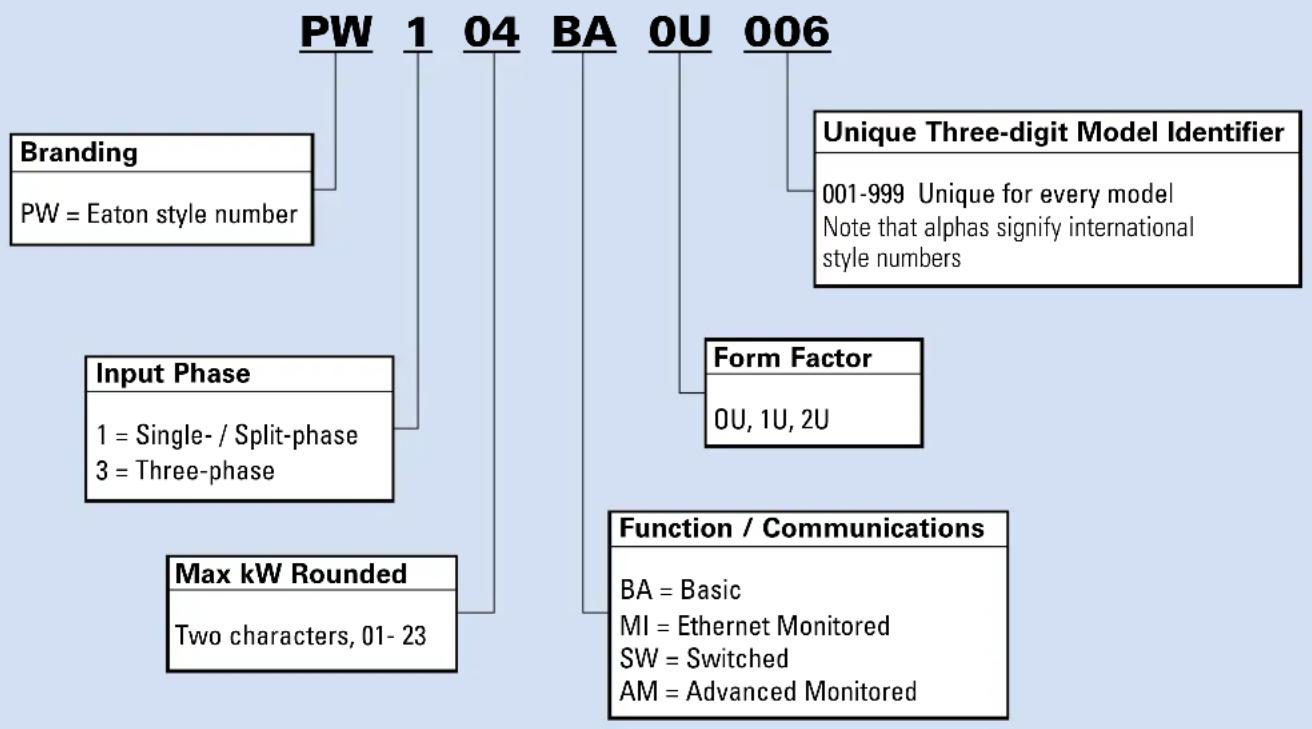

Eaton ePDU catalog numbering system

Eaton's smart style numbers help you understand our numbering system. Follow the example below to see what the letters and numbers mean within this ePDU catalog. Please note that this numbering scheme represents the majority of our part numbers, but not all.

ePDU technologies

Eaton's ePDU technologies satisfy the demand of every data center. Eaton ePDUs offer single and dual chassis, five technology options, the broadest power range in the market and the ability to manufacture custom ePDUs. They also offer an arrangement of outlets (number and type) for every region.

Eaton ePDUs are distinguished for their quality, dependability and versatility. All products are designed for a specific application with an emphasis on safety and reliability. The Eaton line includes an extensive range of vertical, zero 0U products, which do not occupy server space in racks, as well as 1U and 2U formats. Environmental monitoring options are also available.

Feature Basic (BA)			Monitored Network (MI)			Advanced Monitored (AM)	Switched (SW)	Automatic Transfer (AT)
Rugged Construction	✓	✓	✓	✓	✓
Horizontal Products	✓	✓	✓	✓
Vertical Products	✓	✓	✓	✓
Local Current Display				✓	✓	✓
Current Monitoring Type			Section Outlet Section
Voltage Monitoring							✓
Serial Interface							✓
Ethernet Interface				✓	✓	✓
Environmental Sensors				✓*	✓	✓

* Available on some models

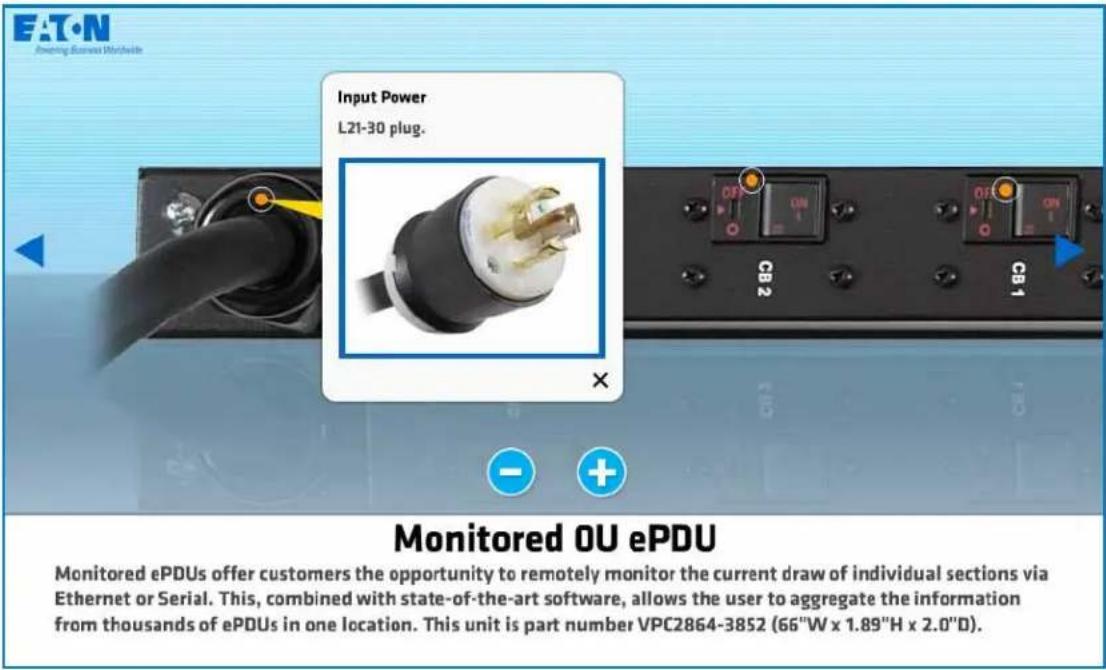

Interact with our ePDUs online!

Please visit eaton.com/epdu to interact with different ePDU technologies. These tools provide you with an in-depth look of the technology of the units, plugs, receptacles and much more!

E:\T\N Amering Business Marketplace Input Power L21-30 plug. CB 2 CB 1 Monitored OU ePDU Monitored ePDUs offer customers the opportunity to remotely monitor the current draw of individual sections via Ethernet or Serial. This, combined with state-of-the-art software, allows the user to aggregate the information from thousands of ePDUs in one location. This unit is part number VPC2864-3852 (66"W x 1.89"H x 2.0"D).

Close-up of a black electronic component with multiple connector pins (no visible text or symbols)

Basic (BA) - rugged construction and flexible mounting options (page 10)

Designed for reliable and cost effective power distribution, Basic ePDUs have the form factor and receptacle choices to meet the needs of the demanding data center architect. With power levels ranging from 1.4 kW all the way to 17 kW, Eaton has the right Basic ePDU for any application.

Close-up of a black electrical outlet with three connected components (no visible text or symbols)

FlexPDUs and Hot Swap Maintenance Bypass (page 14)

The Eaton FlexPDUs are designed to provide flexible output receptacle options from a single UPS. These products have a three-foot input cord, enabling them to be mounted in close proximity to the UPS.

Ideal for maintenance and UPS replacement, the Eaton HotSwap Maintenance Bypass facilitates hot-swappable UPS replacement without shutting down equipment connected to the UPS.

Front view of a device labeled 'EATN' with two connected ports and a blue control panel (no readable text or symbols beyond branding)

Monitored Network (MI) (page 16)

Eaton Monitored ePDUs provide remote monitoring of the current draw of individual sections via Ethernet or Serial communication. This capability, combined with state-of-the-art software allows you to aggregate the information from hundreds of ePDUs in one location. All Monitored ePDUs also include the Easy-Read digital LED ammeter for easy start-up and provisioning of servers.

Close-up of a black electronic device with ports and connectors (no readable text or symbols)

Advanced Monitored (AM) – Current Monitoring Per Outlet (page 19)

Designed for high-density, mission-critical server applications, the Advanced Monitored ePDUs provide maximum power for both standard and blade servers by allowing you to monitor at the outlet level. Employing multiple configurations, the Easy-Read digital ammeter and remote power management with clearly labeled circuits, these ePDUs ensure easy management and monitoring for current requirements and future expansion.

Close-up of a black electronic device with ports and a display (no visible text or symbols)

Switched (SW) – individual outlet switching and sequencing (page 20)

Designed for data centers needing remote site management, the Switched ePDUs provide remote power monitoring of both voltage and current. The current is also displayed on a local two-digit current meter. These units also monitor both temperature and humidity. The Switched ePDUs employ multiple configurations, available in 0U and 2U rack mount, and 42" or 66" vertical lengths. They also provide individual on/off/reboot control of up to 36 receptacles. The control interface is highly customizable with multiple functions and flexibility to send either SNMP traps or e-mail alerts.

Front view of a black electronic device with multiple power outlets and connectors (no visible text or symbols)

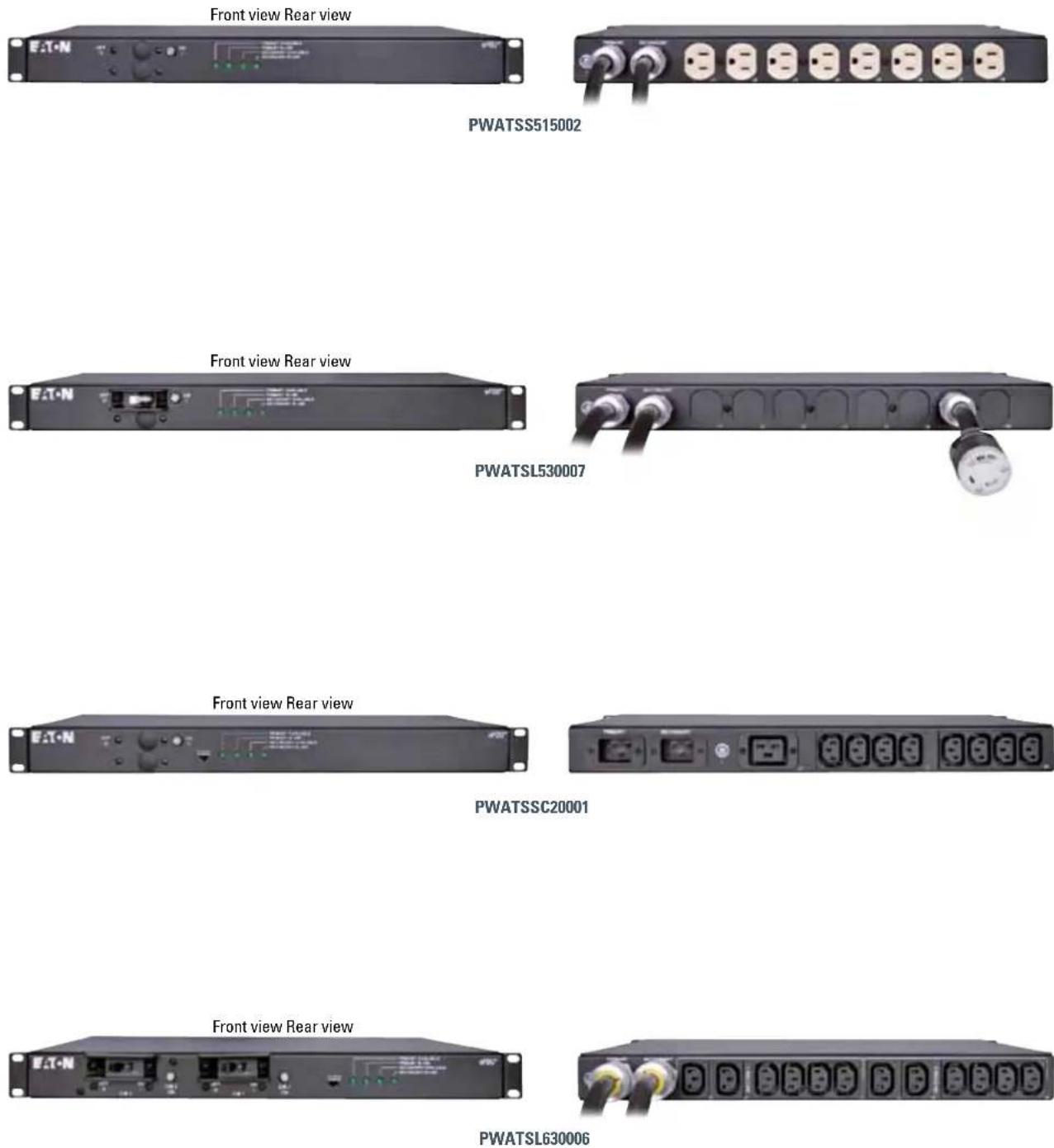

Eaton Automatic Transfer Switches (AT) (page 22)

Designed for switching non phase synchronized AC power sources, the automatic transfer switch ePDUs intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission critical applications.

Why monitor?

The unique monitoring function of Eaton ePDUs allows you to remotely monitor the current draw of individual outlets or sections over a network. This, combined with state-of-the-art software, allows the user to aggregate the information from hundreds of ePDUs in one location. All monitored ePDUs also include the Easy-Read digital LED ammeter for easy start-up and provisioning of servers. This feature allows remote monitoring of current for capacity planning and energy management.

Key features and benefits

• Access circuit-level and ePDU-level information worldwide
  • Get a global view across your ePDUs from any PC or server with Intelligent
  Power Manager software (you can learn more about Intelligent Power Manager on page 9)
• Receive warnings and alarms remotely

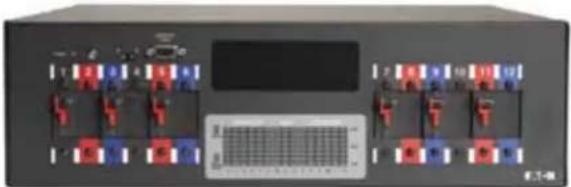

Advanced Monitoring

Screenshot of a software toolbar with icons and labels, likely representing a media player or interface.

Advanced monitoring allows you to monitor down to the individual outlet

Key features:

• High-density configurations reduce enclosure space requirement
- Fuse-less design significantly reduces reset time
- UL Listed (UL489) branch circuit breakers meet UL60950-1 edition requirements
- Easy-Read digital ammeter reduces local monitoring time (auto scroll capability)
• True RMS ammeter provides accurate power measurement
- Multi-purpose mounting improves installation flexibility
• Isolation hardware improves product grounding
• High-grade components increases product reliability and fault tolerance
• Clearly labeled circuits simplify load balancing

400 volt solution

Eaton 400V ePDUs limit energy loss through transformers by avoiding the 480-208 volt conversion. These units use European standard, three-phase 400 volt phase-to-phase – 230 volt phase to neutral - replacing 208 volt phase-to-phase in the US. Operating power supplies at 230 volt versus 208 volt typically increases power supply efficiency.

400V ePDUs also distribute almost twice the power on the same copper to achieve multiple reductions. Eaton offers a unique power distribution solution for 400 volt applications. These applications include

• Containerized data centers
• Customers looking for global standard
• Progressive data centers looking for cost reductions and efficiency gains

You can find 400V ePDUs featured in the Monitored and Switched sections of this catalog, as well as on eaton.com/epdu.

400V ePDU part numbers (for reference)

Monitored

• VPC2864-3861
• VPC2864-3862

Switched

• IPV70U1-EP1-09L
• IPV70U2-EP1-09L

ePDU software management

Eaton offers a number of software management tools for you based on the number of ePDUs you need to manage.

Software	Quantity Best Supported Type of Software Application Cost
Web Browser / E-mail 1-25		Included requires web browser	Data Closet Small Network Stand Alone	Included
SNMP 1-1000		Integrates to 3rd Party Software	Small to Large Enterprise	Low-High
IPM 1-200		Eaton software free to try	Small to Medium Enterprise	Low-Medium
PowerXpert 1-1000		Eaton enterprise solution	Facility or Large Enterprise	High

Web Browser / E-mail Alerts

Every network connected ePDU comes standard with built in web server and e-mail alert capability. This allows connection to any ePDU using a standard web browser to configure, monitor and control. If your network allows connection to an SMTP server, the ePDU can be configured to send e-mail alerts using a POP 3 e-mail account.

SNMP

Every network connected ePDU supports SNMP alerts and has a standard MIB available for integration into 3rd party software solutions. SNMP supports full monitoring and control with read/write capability for all major variables.

Intelligent Power Manager (IPM)

Ideal for monitoring and managing multiple power and environmental devices, Intelligent Power Manager software from Eaton delivers a global view across your network from any PC with an Internet browser, Microsoft's SCVMM ^™ or VMWare's vCenter ^™ dashboard. The software allows for one point monitoring of ePDU, UPS and environmental sensors. The software monitors alarms, logs current readings and environmental sensors on ePDU. The software features auto-discovery of connected devices and export to spreadsheet for report manipulation.

In the event of a power interruption, the software will also alert VMWare's vMotion™ or Microsoft's Live Migration™ to move your virtual machines to an available server for zero downtime. To learn more, please visit eaton.com/intelligentpower.

F.T.N Intelligent Power Manager Name: F.T.N Intelligent Power Manager System: Windows 10.0.2.2.1 Address: Windows 10.0.2.2.1 Network: Windows 10.0.2.2.1 Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management System Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management Systems Power Management System

PowerXpert

Ideal as a facility enterprise solution, PowerXpert supports the full offering of Eaton's electrical products and offers support for third party products. PowerXpert monitors alarms, logs current readings and environmental sensors on ePDU. There is a Web based dashboard view that allows you to drill down to a specific ePDU. Using the optional reporting package, customized power utilization reports can be generated.

PowerXpert also allows you to customize the conditions under which alarms are triggered and can run deployment validation tools during installation so all key setup requirements are automatically validated. To learn more, please visit eaton.com/pxs.

Basic ePDUs - 0U

Eaton Basic ePDUs are designed for reliable and cost-effective power distribution.

Catalog Number Style Number	Number Input Plug Breaker	Max kW Function				Cord (ft)	Orientation	Receptacles	Dimensions (H x W x D, in)
ePBZ98	ePBZ98 5-15P	15A 1.44 BA 6	0U (18) 5-15R 48 x 1.5 x	1.5
ePBZ89		C14	None	1.44	BA	6	0U	(16) C13	28 x 1.9 x 2.2
ePBZ97		ePBZ97 5-20P	(1) 20A	1.92 BA	6 0U (24) 5-20R 48 x 1.5 x	1.5
ePBZ96		ePBZ96	L5-20P	(1) 20A	1.92	BA	6	0U	(24) 5-20R
PW103BA0U257	V70BC2-N-SL-009	L5-30P	(2) 20A	2.88	BA	9	0U	(24) 5-20R	66 x 2.0 x 1.89
ePBZ93		ePBZ93	L6-20P	(1) 20A	3.33 BA	6 0U			(20) C13,(4) C19
PW103BA0U237	V70NB4-N-SL-009	L6-20P	None	3.33	BA	9	0U	(24) C13, (4) C19	66 x 2.0 x 1.89
ePBZ92	ePBZ92	L6-30P	(2) 20A	4.99 BA	6 0U			(20) C13,(4) C19	42 x 1.9 x 2.2
PW105BA0U239		V70BF5-N-SL-009	L6-30P	(2) 20A	4.99	BA	9	0U	(24) C13, (4) C19
PW105BA0U412	LPC1224-1P	L14-30P	(6) 15A	4.99	BA	6	0U	(12) 5-15R	10 x 7.75 x 3.0
PW306BA0U241	VPC2864-A2-3846	L21-20P	None	5.76	BA	9	0U	(30) 5-20R	66 x 2.0 x 1.89
PW306BA0U244	VPC2864-3850	L21-20P	None	5.76	BA	9	0U	(36) C13, (6) C19	66 x 2.0 x 1.89
PW306BA0U246		VPC2864-3856 L21-20P	None	5.76 BA 9 0U				(18) 5-20R,(6) L6-20R	66 x 2.0 x 1.89
PW309BA0U409	VPC3106-C2-15	L21-30P	(3) 20A	8.65	BA	9	0U	(24) 5-20R	70 x 2.0 x 3.8
PW314BA0U251	VPC2864-3858	CS8365P	(2) 20A(1) 30A	14.4 BA	9 0U			(24) C13, (4) C19,(2) L6-30R	66 x 2.0 x 1.89
PW314BA0U253		VPC2864-3853	CS8365P	(3) 20A	14.4	BA	9	0U	(30) C13, (6) C19

ePBZ89 ePBZ93 PW314BA0U253PW306BA0U246PW105BA0U239ePBZ97

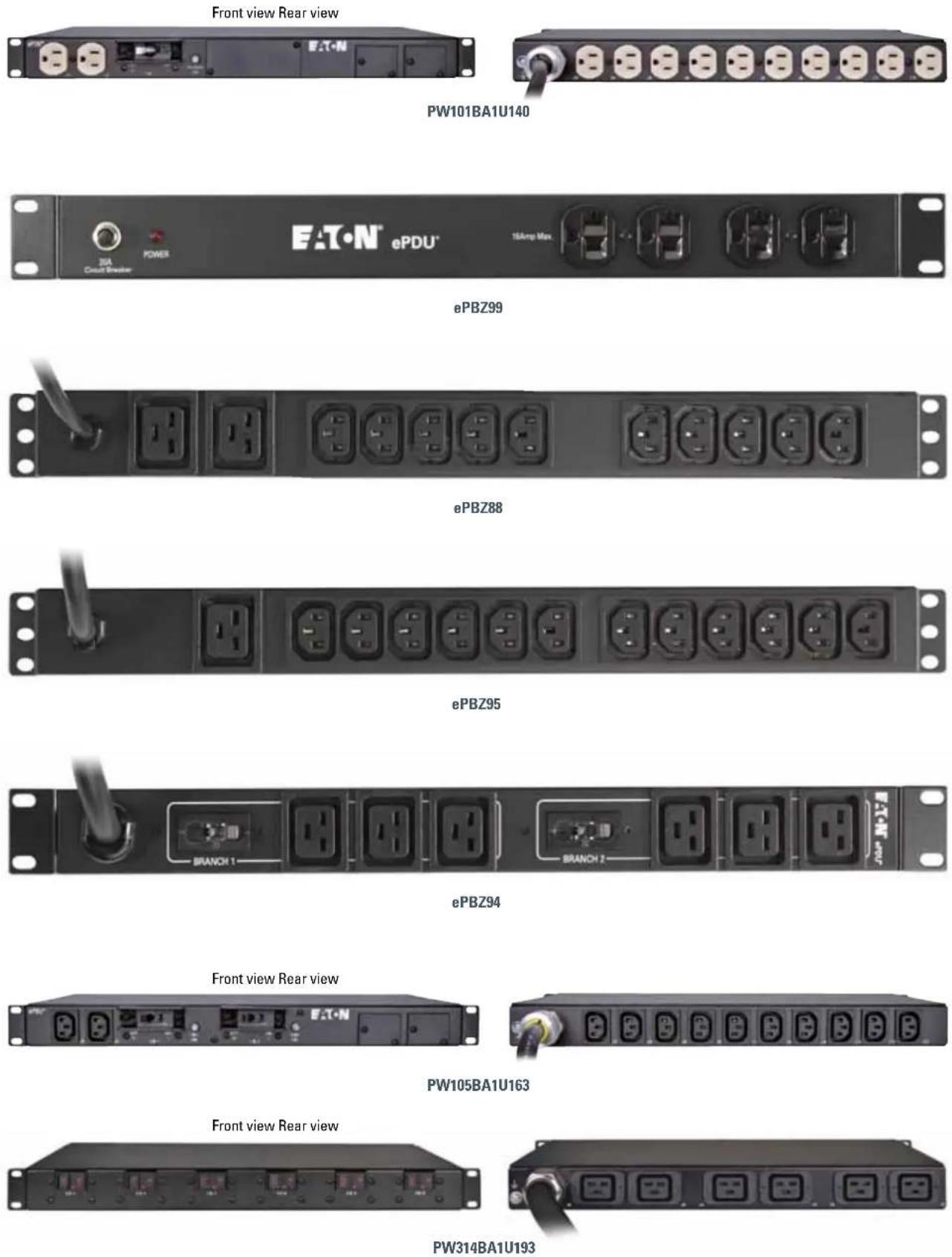

Basic ePDUs - 1U

Catalog Number Style Number	Number Input Plug Breaker	Max kW Function				Cord (ft)	Orientation	Receptacles	Dimensions (H x W x D, in)
PW101BA1U140	T982A1-N-SS-009 5-15P (1) 15A 1.44 BA 9 1U	(12) 5-15R	1.75 x 19 x 7
PW102BA1U158	T982A2-N-SS-009 5-20P (1) 20A 1.92 BA 9 1U	(12) 5-20R	1.75 x 19 x 7
ePBZ99	ePBZ99	L5-20P	(1) 20A	1.92	BA	6	1U	(12) 5-20R	1.75 x 19 x 2.4
PW102BA1U159	T982A2-N-SL-009	L5-20P	(1) 20A	1.92	BA	9	1U	(12) 5-20R	1.75 x 19 x 7
PW103BA1U190	T982C2-N-SL-009	L5-30P	(2) 20A	2.88	BA	9	1U	(12) 5-20R	1.75 x 19 x 7
ePBZ88	ePBZ88	C20	None	3.33	BA	6	1U	(10) C13, (2) C19	1.72 x 19 x 2.4
PW103BA1U405	TPC2104	C20	(1) 20A	3.33	BA	9	1U	(16) C13	1.75 x 19 x 7
ePBZ95	ePBZ95	L6-20P	None	3.33	BA	6	1U	(12) C13, (1) C19	1.72 x 19 x 2.4
PW103BA1U191	T982B3-N-SL-009	L6-20P	(1) 20A	3.33	BA	9	1U	(12) C13	1.75 x 19 x 7
ePBZ94	ePBZ94	L6-30P	(2) 20A	4.99	BA	6	1U	(6) C19	1.72 x 19 x 2.4
PW103BA1U406	TPC2105-1-107	L6-30P	(2) 15A	3.33	BA	9	1U	(16) C13	1.75 x 19 x 7
PW105BA1U163	T982F3-N-SL-009	L6-30P	(2) 15A	4.99	BA	9	1U	(12) C13	1.75 x 19 x 7
PW105BA1U192	T982F4-N-SL-009	L6-30P	(2) 15A	4.99	BA	9	1U	(8) C13, (4) C19	1.75 x 19 x 7
PW105BA1U404	T982G1-N-SL-009	L14-30P	(2) 15A	4.99	BA	9	1U	(12) 5-15R	1.75 x 19 x 7
PW314BA1U193	T17C19250-3-009 CS8365P (6)	20A 14.4 BA 9 1U			(6) C19	1.75 x 19 x 7

FlexPDUs

Eaton FlexPDUs increase power distribution from a single UPS.

• 3 foot cord allows easy connection close to UPS without cable clutter
• Mounting bracket attaches directly to UPS
• Mounting bracket allows for vertical, 1U or UPS attachment

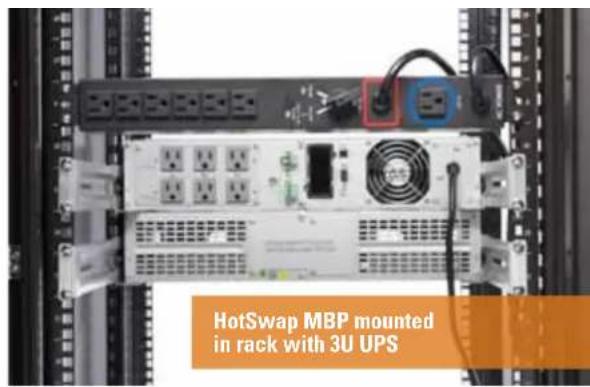

HotSwap MBP mounted in rack with 3U UPS

Catalog Number Style Number	Number Input Plug Breaker	Max kW Function			Cord (ft)	Orientation Receptacles		Dimensions (H x W x D, in)

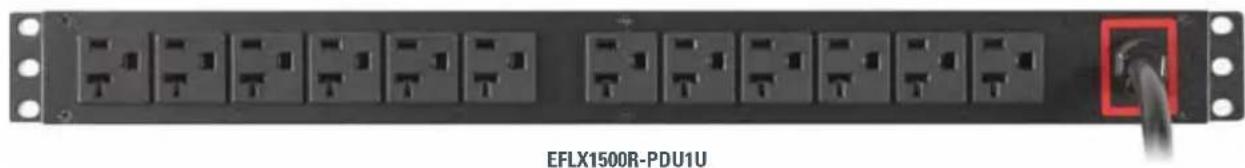

EFLX1500R-PDU1U	58015 5-15P None 1.44 BA 3	1U					(12) 5-15R, (1) C19	1.7 × 17.3 × 2.3
EFLX2000R-PDU1U	58020 5-20P None 1.92 BA 3	1U (12) 5-20R 1.7 x 17.3 x 2.3
EFLX2000R-PDU1UL	58021 5-20P None 1.92 BA 3	1U (5) L5-20R 2.0 x 17.3 x 3.0
EFLXI3000R-PDU1UIEC	68438	C20 Inlet	(2) 20A	3.33	BA	3	1U	(12) C13, (1) C19	1.7 × 17.3 × 2.3

Includes C19 to C14 and C19 to C20 jumper cables

Hot Swap Maintenance Bypass

Hot Swap MBPs enable easy UPS replacement without interruption to the connected load. Placing the HotSwap MBP in bypass mode provides utility power to equipment while the UPS is being serviced.

Catalog Number Style Number	Number Input Plug Breaker	Max kW Function				Cord (ft)	Orientation Receptacles		Dimensions (H x W x D, in)
EHBPL1500R-PDU1U	58115 5-15P	None 1.44 BA	2U	(6) 5-15F	2.1 x	17.3 x 3.8
EHBPL2000R-PDU1U	58120 5-20P	None 1.92 BA	2U	(6) 5-15F	2.1 x	17.3 x 3.8
EHBPL3000R-PDU1U	58130	L5-30P	(2) 20A	2.88	BA	3.3	2U	(5) 5-20R	2.1 x 17.3 x 3.8

Back view of a network equipment rack with power connectors, switches, and a fan (no visible text or symbols)

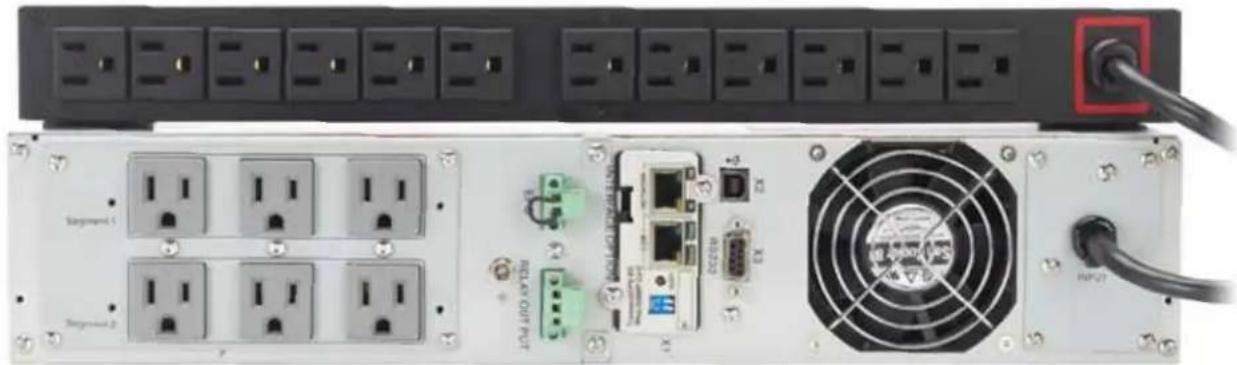

FlexPDU mounted with 2U UPS

Front panel of a network switch with multiple ports and a red button highlighting the port (no text or symbols on the main body)

Close-up of a black electrical outlet panel with multiple power plugs and a cable inserted (no visible text or symbols)

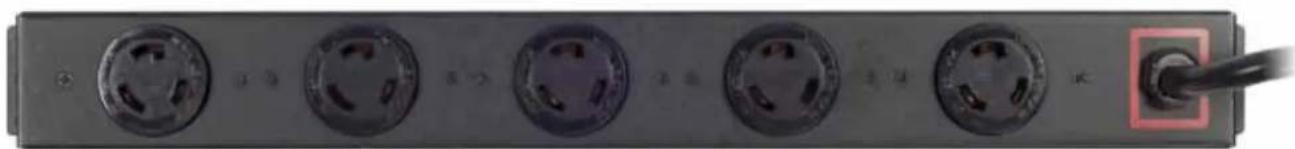

EFLX2000R-PDU1UL

Front view of a black industrial electrical connector panel with multiple ports and a highlighted terminal block (no text or symbols visible)

EFLXI3000R-PDU1UIEC

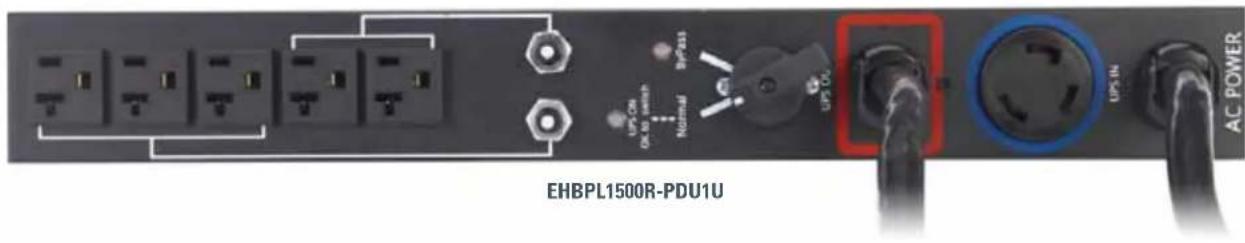

EHBPL1500R-PDU1U UPS ON ON TO HANPE NOMINAL UPS ON UPS IN AC POWER

Monitored ePDUs - 0U

Eaton Monitored ePDUs all users to remotely monitor the current draw of the unit and individual sections.

Catalog Number Style Number	Number Input Plug Breaker	Max kW	Function			Cord (ft)	Orientation	Receptacles	Dimensions (H x W x D, in)
PW101MI0U233	V70NA1-N-SS-109 5-	15P None 1.44	MI 9 0U (24) 5-15R 66	x 2.0 x 1.89
PW102MI0U234	V70NA2-N-SS-109 5-	20P None 1.92	MI 9 0U (24) 5-20R 66	x 2.0 x 1.89
PW102MI0U235	V70NA2-N-SL-109 L5-	20P None 1.92	MI 9 0U (24) 5-20R 66	x 2.0 x 1.89
PW103MI0U236	V70BC1-N-SL-109	L5-30P	(2) 15A	2.88	MI	9	OU	(24) 5-15R	66 x 2.0 x 1.89
PW103MI0U238	V70NB4-N-SL-109	L6-20P	None	3.33	MI	9	OU	(24) C13, (4) C19	66 x 2.0 x 1.89
PW105MI0U240	V70BF5-N-SL-109	L6-30P	(2) 20A	4.99	MI	9	OU	(24) C13, (4) C19	66 x 2.0 x 1.89
PW105MI0U255	V70BJ3-N-SL-109	L14-30P	(2) 20A	4.99	MI	9	OU	(24) C13, (4) C19, (4) 5-20R	66 x 2.0 x 1.89
PW306MI0U242	VPC2864-A2-3847	L21-20P	None	5.76	MI	9	OU	(30) 5-20R	66 x 2.0 x 1.89
PW306MI0U243	VPC2864-3848	L21-20P	None 5.76 MI 9 0U					(24) C13, (3) C19, (6) 5-20R	66 x 2.0 x 1.89
PW306MI0U408	VPC2864-A1 L21-20P	None 5.76 MI 9 0U	(30) 5-15R	66 x 2.0 x 1.89
PW306MI0U245	VPC2864-3851	L21-20P	None	5.76	MI	9	OU	(36) C13, (6) C19	66 x 2.0 x 1.89
PW306MI0U247	VPC2864-3857	L21-20P	None 5.76 MI 9 0U					(18) 5-20R, (6) L6-20R	66 x 2.0 x 1.89
PW306MI0U416	VPC2864-3436	L21-20P	None	5.76	MI	10	OU	(42) C13	66 x 2.0 x 1.89
PW309MI0U248	VPC2864-3849	L21-30P	(3) 20A	8.64	MI	9	OU	(24) C13, (3) C19, (6) 5-20R	66 x 2.0 x 1.89
PW309MI0U250	VPC2864-3726	L21-30P	(3) 15A	8.64	MI	9	OU	(36) C13	66 x 2.0 x 1.89
PW309MI0U256	VPC2864-3852	L21-30P	(3) 20A	8.64	MI	9	OU	(30) C13, (6) C19	66 x 2.0 x 1.89
PW314MI0U252	VPC2864-3859	CS8365P	(2) 20A (1) 30A	14.4 MI	9 0U			(24) C13, (4) C19, (2) L6-30R	66 x 2.0 x 1.89
PW314MI0U254	VPC2864-3854	CS8365P	(3) 20A	14.4	MI	9	OU	(30) C13, (6) C19	66 x 2.0 x 1.89
PW317MI0U222	VPC3690	IEC 60309 460P9W	(6) 20A	17.3 MI	7 0U			(12) C13, (12) C19	66 x 4.0 x 1.89
VPC2864-3861	VPC2864-3861	IEC309 516P6W	None 14	4 MI 9 0U	(30) C13, (6) C19	66 x 2 x 1.83
VPC2864-3862	VPC2864-3862	IEC309 532P6W	(3) 20A	14.4	MI	9	OU	(30) C13, (6) C19	66 x 2 x 1.83

These units have available temperature monitoring

Close-up of a black cable with a green circuit board connector (no visible text or symbols)

Optional Sensors

SENSOR - T1-10

(1) Temperature Sensor, 10' Cable

SENSOR - T2-10

(2) Temperature Sensor,

10' Cable each

Monitored ePDUs - 1U/2U

Catalog Number Style Number	Number Input Plug Breaker	Max kW	Function			Cord (ft)	Orientation Receptacles		Dimensions (H x W x D, in)
PW101MI1U221	T982A1-N-SS-109 5-15P (1) 15A 1.44 MI 9 1U (12) 5-15R 1.75 x 19 x 7
PW101MI1U403	T982A2-F-SS-109	5-20P	(1) 20A	1.92	MI	9	1U	(12) 5-20R	1.75 x 19 x 7
PW102MI1U160	T982A2-N-SL-109 L5-20P (1) 20A 1.92 MI 9 1U (12) 5-20R 1.75 x 19 x 7
PW103MI1U161	T982C2-N-SL-109	L5-30P	(2) 20A	2.88	MI	9	1U	(12) 5-20R	1.75 x 19 x 7
PW103MI1U162	T982B3-N-SL-109	L6-20P	(1) 20A	3.33	MI	9	1U	(12) C13	1.75 x 19 x 7
PW105MI1U164	T982F3-N-SL-109	L6-30P	(2) 15A	4.99	MI	9	1U	(12) C13	1.75 x 19 x 7
PW105MI1U165	T982F4-N-SL-109	L6-30P	(2) 15A	4.99	MI	9	1U	(8) C13, (4) C19	1.75 x 19 x 7
PW105MI2U402	PC3783	L6-30P	(2) 20A	4.99	MI	15	2U	(20) C13	3.44 x 19 x 7
PW317MI2U141	PC3623	IEC 60309 460P9W	(6) 20A	17.29	MI	10	2U	(12) C19	3.5 x 19 x 13.5

Close-up of a black cable with a green circuit board connector (no visible text or symbols)

Optional Sensors

SENSOR - T1-10

(1) Temperature Sensor, 10' Cable

SENSOR - T2-10

(2) Temperature Sensor, 10' Cable each

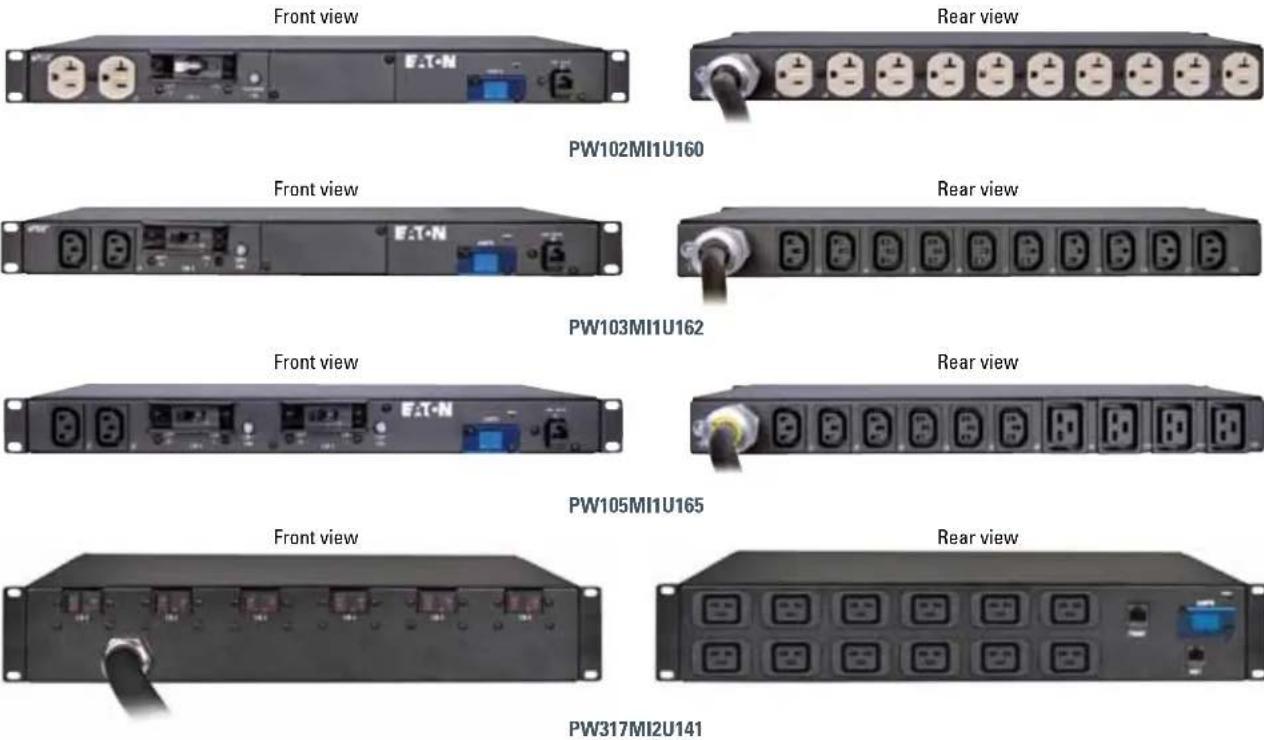

Front view EAT-N Rear view PW102MI1U160 Front view EAT-N Rear view PW103MI1U162 Front view EAT-N Rear view PW105MI1U165 Front view EAT-N Rear view PW317MI2U141

Advanced Monitored ePDUs

Eaton Advanced Monitored ePDU provides maximum power for both standard and blade server. Additionally this technology provides outlet level monitoring for capacity planning and energy management.

Catalog Number Style N	Number Input Plug Breaker Max kW Function					Cord (ft)	Orientation	Receptacles	Dimensions (H x W x D, in)
PW105AM0U411	VPC3695-3794 L6-30P (2) 20A 5.76 AM 9 0U			(14) C13, (2) C19 66 x 2.0 x 3.5
PW309AM0U410	VPC3695-3792	L21-30P	(3) 20A	8.65	AM	9	0U	(21) C13, (3) C19	66 x 2.0 x 3.5

Close-up of a black cable with a green circuit board connector (no visible text or symbols)

Optional Sensors

SENSOR - T1-10

(1) Temperature Sensor, 10' Cable

SENSOR - T2-10

(2) Temperature Sensor, 10' Cable each

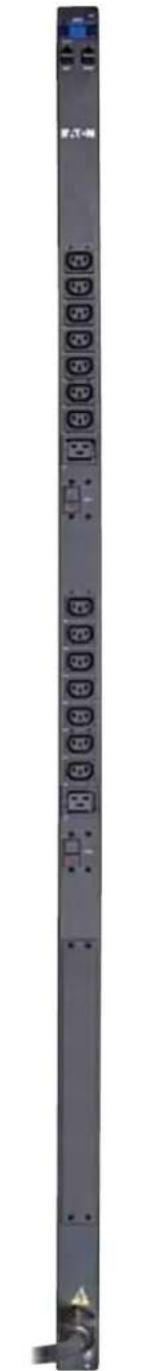

Vertical black server rack with multiple ports and indicator lights (no visible text or labels)

PW105AM0U411

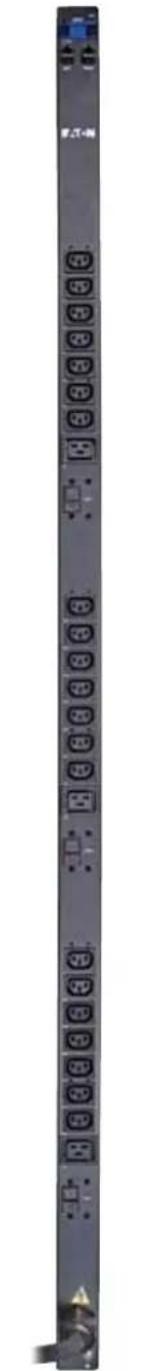

Vertical black electronic device with multiple ports and indicator lights (no visible text or symbols)

PW309AM0U410

eaton.com/epdu 1.800.356.5794

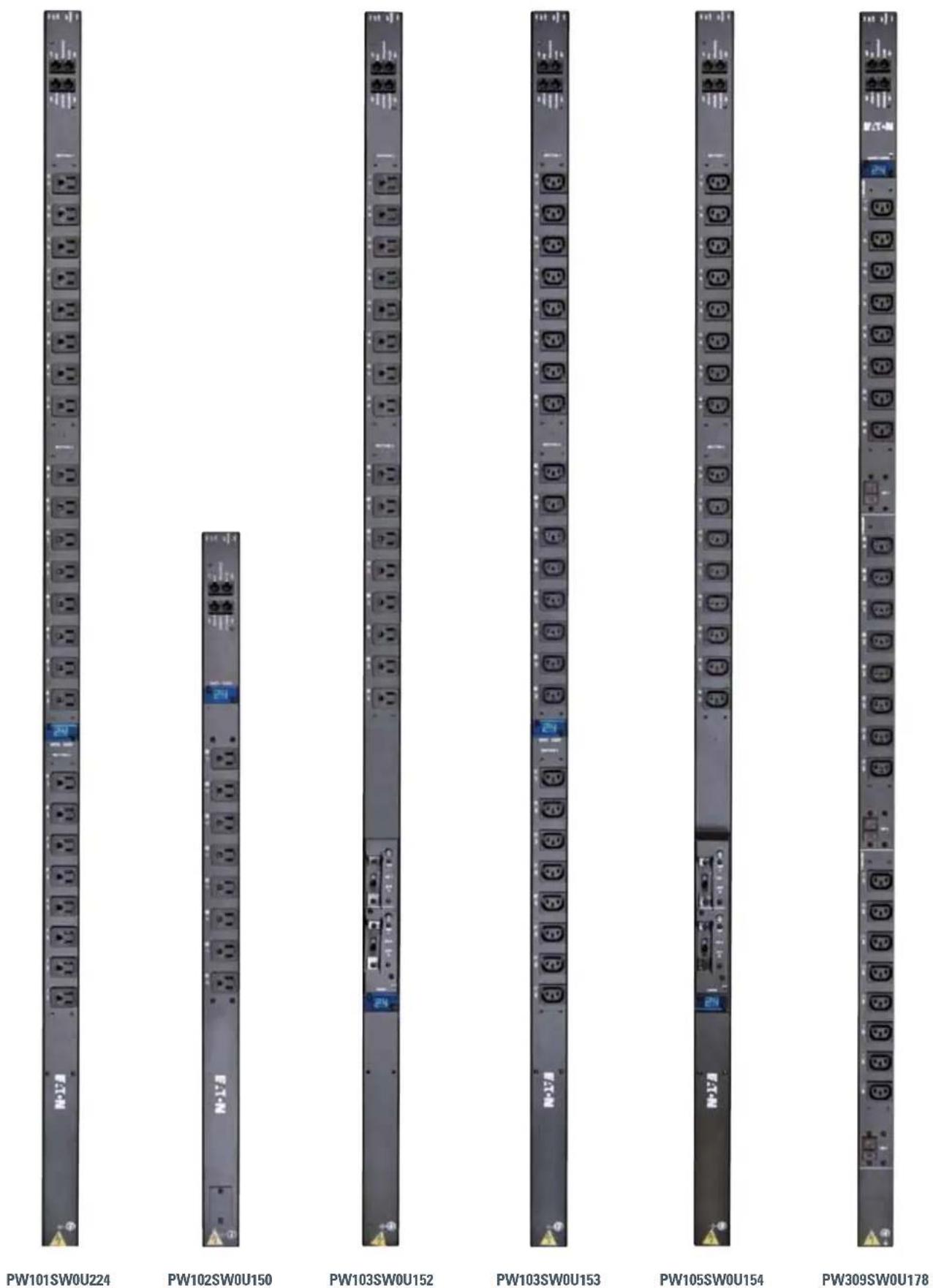

Switched ePDUs

Eaton switched ePDU provides remote power monitoring of both voltage and current and provides outlet level control for on/off/reboot.

Catalog Number Style Number Input Plug Breaker Max kW Function						Cord (ft)	Orientation Receptacles		Dimensions (H x W x D, in)
PW101SW0U224	IPV70A1-EP1-09S 5-15P None 1.44 SW		9 0U (16) 5-15R 66 x 2.0 x 1.89
PW102SW0U150	IPV42A2-EP1-09L L5-20P None 1.92 SW		9 0U (8) 5-15R 42 x 2.0 x 1.89
PW102SW0U151	IPV70A5-EP1-09L L5-20P None 1.92 SW		9 0U (24) 5-15R 66 x 2.0 x 1.89
PW103SW0U152	IPV70C5-EP1-09L L5-30P (2) 15A		2.88 SW 9 0U (16) 5-15R 66 x 2.0 x 1.89
PW103SW0U153	IPV70B2-EP1-10L	L6-20P	None	3.33	SW	10	0U	(24) C13	66 x 2.0 x 1.89
PW105SW0U154	IPV70F3-EP1-09L	L6-30P	(2) 15A	4.99	SW	9	0U	(16) C13	66 x 2.0 x 1.89
PW306SW0U155	IPV70K1-EP1-09L	L21-20P	None	5.76	SW	9	0U	(24) 5-15R	66 x 2.0 x 1.89
PW306SW0U156	IPV70M1-EP1-09L	L21-20P	None	5.76	SW	9	0U	(24) C13	66 x 2.0 x 1.89
PW309SW0U178	IPV70R1-EP1-09L	L21-30P	(3) 20A	8.64	SW	9	0U	(24) C13	66 x 2.0 x 3.5
PW317SW0U400	IPV70T2-EP1-12L	IEC 60309 460P9W	(6) 20A	17.29	SW	12 0U		(18) C13, (6) C19	66 x 2 x 4
PW317SW0U401	IPV70T1-EP1-12L	IEC 60309 460P9W	(6) 20A	17.29	SW	12 0U		(12) C13, (12) C19	66 x 2 x 4
IPV70U1-EP1-09L	IPV70U1-EP1-09L	IEC309 516P6W	None	14.4	SW	9	0U	(24) C13	66 x 2 x 1.83
IPV70U2-EP1-09L	IPV70U2-EP1-09L	IEC309 516P6W	None 14	4 SW 9 0U				(18) C13, (6) C19	70 x 2 x 4
PW103SW2U413*	IPC3401-NET	C20	(1) 20A	3.33	SW	0	1U	(8) C13	1.75 x 19 x 9.5
PW103SW2U414*	IPC3402-NET	C20	(1) 20A	3.33	SW	0	1U	(8) 5-15R	1.75 x 19 x 9.5
PW105SW2U415	IPC36F4N2USW15L	L6-30P (2) 20A	4.99	SW 9 2U				(20) C13, (4) C19	3.5 x 19 x 9.5
PW105SW2U223	IPC36F4N2USW09L	L6-30P (2) 20A	4.99	SW 9 2U				(20) C13, (4) C19	3.5 x 19 x 9.5

* Model does not have local or remote current or voltage monitoring, but features local on/off buttons in addition to remote switching.

Close-up of a black cable with a green circuit board connector (no visible text or symbols)

Optional Sensors

SENSOR - T1-10

(1) Temperature Sensor, 10' Cable

SENSOR - T2-10

(2) Temperature Sensor, 10' Cable each

SENSOR - T1H1-10

(1) Temperature and Humidity Sensor, 10' Cable

SENSOR - T2H1-10

(1) Temperature and Humidity Sensor, 10' Cable

(1) Temperature Sensor, 10' Cable

Eaton Automatic Transfer Switches

The Eaton eATS ePDUs automatically transfer power from the primary source to a secondary source.

Catalog Number Style Number Input Plug Breaker Max kW Function						Cord (ft)	Orientation Receptacles		Dimensions (H x W x D, in)
PWATSS515002		T2235-A1-NNB09S	(2) 5-15P	None	1.44	AT	9	1U	(8) 5-15R
PULSTS1400R-1U		66027	(2) 5-15P	None	1.44	AT	6	1U	(6) 5-15R
PWATSS520003		T2235-A2-NNB09S	(2) 5-20P	None	1.92	AT	9	1U	(8) 5-20R
PWATSL520004		T2235-A2-NNB09L	(2) L5-20P	None	1.92	AT	9	1U	(8) 5-20R
PWATSL530005		T2235-C2-CNB09L	(2) L5-30P	(1) 20A	2.88	AT	9	1U	(8) 5-20R
PWATSL530007		T2235-3369	(2) L5-30P	(1) 30A	2.88	AT	9	1U	(1) L5-30R
PWATSSC20001		T2235-AB-NNBC20	(2) C20	None	1.92	AT	NA	1U	(8) C13, (1) C19
PULSTS16AMPR-1U		66028	(2) C20	None	3.33	AT	6	1U	(6) C13, (1) C19
PWATSL630006		T2235-F3-CNB09L	(2) L6-30P	(2) 15A	4.99	AT	9	1U	(12) C13
PWATSL630008		T2235-3358	(2) L6-30P	None	4.99	AT	9	1U	(1) L6-30R

Rack Power Module

The Rack Power Module (RPM) delivers up to 36 kW (hard wire option required, BladeUPS connector limits to 12kW) of power to loads of various voltages, power cords and layouts. The 3U RPM can be deployed in the same rack with the UPS and IT equipment; there's no need for a dedicated infrastructure rack. The resulting architecture has fewer cables to manage, fewer distribution points to monitor and greater flexibility for IT personnel to make changes without an electrician. This unit is typically deployed with the Eaton BladeUPS units.

Features:

• Provides plug-and-play primary distribution of power from a three-phase input source to secondary power distribution devices
• Serves data center loads with various voltages, power cord configurations and layouts
• Distributes three-phase power to 12 poles, grouped into two sets of six poles, with choice of output receptacle types
• "Power Equalizer" LED display gives quick visual indication of each circuit's load, reducing possibility of overloads and breakers tripped off line
• Load information available from the front of the rack, no need to check individual power strips in the rear of the cabinet (hot isle)
• Branch circuit monitoring option allows easy load monitoring over the network
• Installs in only 3U of space in EIA 19" rack or enclosure (or wall mounted), all hardware included
• Enables customer installation and changes without the services of a licensed electrician

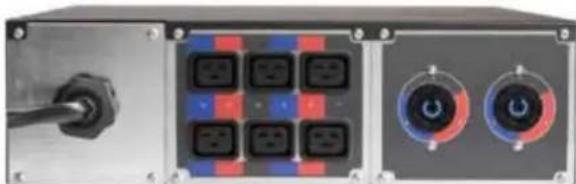

Front view of a server rack with multiple ports and indicator lights (no visible text or labels)

Close-up of a mechanical control panel with buttons and ports (no visible text or symbols)

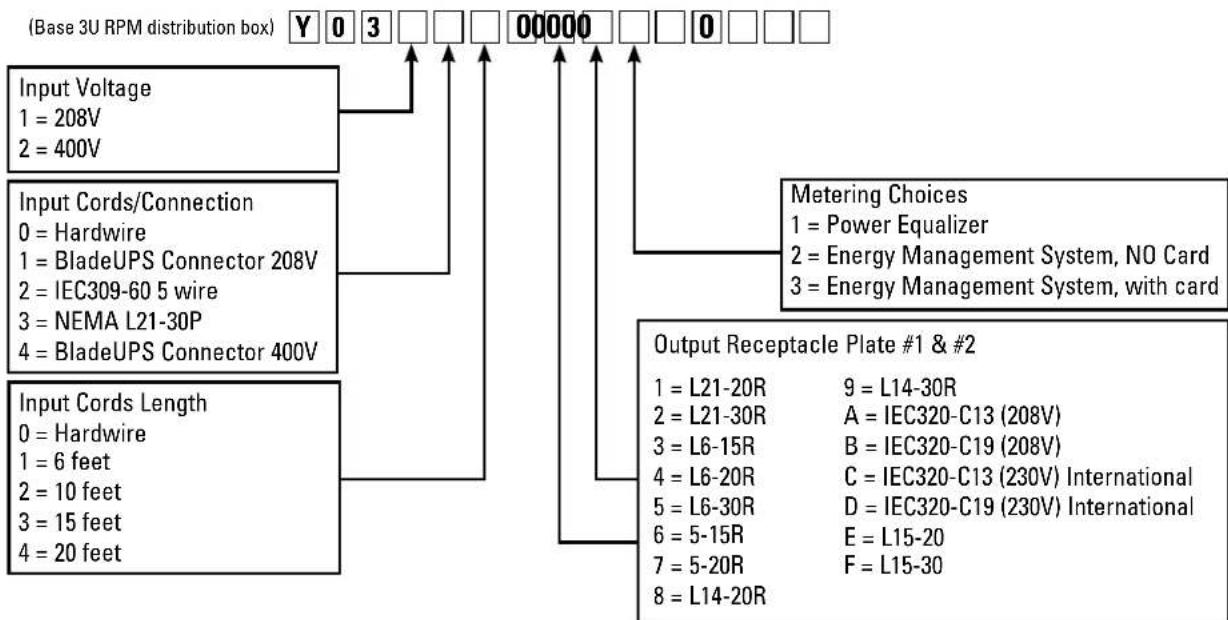

Rack Power Module (RPM) part number guide

ePDU plugs and receptacles

Standard NEMA Plugs

5-15R	5-15P		5-20R		5-20P
L5-20R	L5-20P	L5-30R	L5-30P
6-15R	6-15P	L6-20R	L6-20P
L6-30RL6-30PL14-30RL14-30P
IEC-320-C13 (female)		IEC-320-C14 (male)	IEC-320-C19 (female)	IEC-320-C20 (male)
IEC-309, 16A IEC-309, 32A

R indicates receptacle

P indicates plug

L indicates locking plug or receptacle

IEC 60309

30A

2P3W 250V

60A

2P3W 250V

30A

4P5W 30Y230/400V

60A

3P4W 30250V

60A

4P5W 30Y120/208V

60A

4P5W 30Y230/400V

50A,

2P3W

250V

50A,

3P4W

30250V

HBLCS8265C

HBLCS8365C

The IEC Advantage:

The IEC 60320 and IEC 60309 connectors described below are the most commonly specified. The IEC connector system is used throughout the world. By utilizing an Eaton ePDU with the IEC connectors, you can attach the correct cable assembly for British, Australian, Continental European, North American and many other cable/connector configurations. This allows you to purchase and inventory one ePDU for shipment anywhere in the world.

General ePDU Environmental Specifications

• Operating Temperature is 0 to 50^ C
  • Storage Temperature is -40 to 70°C
• Altitude Maximum 10,000 ft.
• Relative Humidity is 95% max non-condensing

Power cables and accessories

By turning to Eaton, you can enjoy one-stop shopping for a full range of power quality and power distribution needs, including power cables. The Eaton cable portfolio includes nearly two dozen choices in three product categories including adapters, jumpers and splitters.

All Eaton power cables are tested and certified for use with Eaton products, such as ePDUs, rack power modules (RPMs) and UPSs—proven to deliver the reliability and service life needed for the most rigorous data center applications.

Splitter Cables

CBL139 Splitter Cable
L14-30R to (2) L6-30R (4 ft/2 ft)

CBL143 Splitter Cable
L14-30R to (2) L5-30R (4 ft/2 ft)

CBL148 Splitter Cable
L14-20R to (2) L5-20R (4 ft/2 ft)

CBL149 Splitter Cable
L21-30R to (3) L5-30R (4 ft/2 ft/1 ft)

CBL150 Splitter Cable
L21-20R to (3) L5-20R (4 ft/2 ft/1 ft)

Adapter cables

010-0032:
C14 to NEMA 5-15R
125V, 15A
1 foot, 16 AWG/3-wire

010-9335:
NEMA 5-20P to C19
125V, 20A straight blade
8-foot, 12 AWG/3-wire

010-9337:
NEMA 6-20P to C19
250V, 20A straight blade
8-foot, 12 AWG/3-wire

010-9339:
NEMA L5-20P to C19
125V, 20A twist-lock
8-foot, 12 AWG/3-wire

010-9341:
NEMA L6-20P to C19
250V, 20A twist-lock
8-foot, 12 AWG/3-wire

010-9342:
C20 Male to C19
20A
8-foot, 12 AWG/3-wire

010-0034:
8-foot, 12 AWG/3-wire
C19 to bare wire
(Pig Tail)

Outlet Caps

035-0113:
C13 outlet cap

010-9334:
NEMA 5-15P to C19
125V, 15A straight blade
8-foot, 14 AWG/3-wire

010-9336:
NEMA 6-15P to C19
250V, 15A straight blade
8-foot, 14 AWG/3-wire

010-9338:
NEMA L5-15P to C19
125V, 15A twist-lock
8-foot, 14 AWG/3-wire

010-9340:
NEMA L6-15P C19 to
250V, 15A twist-lock
8-foot, 14 AWG/3-wire

Jumper Cables

010-0025: 8-foot
010-0027: 6-foot
010-0028: 4-foot
010-0029: 2-foot
C14 to C13

010-9365
C14 to C19, 8-foot

010-9369-03
C20 to C13, 3 feet
010-9369-06
C20 to C13, 6 feet

035-0119:
C19 outlet cap

Temperature & Humidity Sensors

Close-up of a black cable with a green circuit board connector attached (no visible text or symbols)

Optional Sensors
SENSOR - T1-10
(1) Temperature Sensor, 10' Cable
(2) Temperature Sensor, 10' Cable each
(1) Temperature and Humidity Sensor, 10' Cable
(1) Temperature and Humidity Sensor, 10' Cable
(1) Temperature Sensor, 10' Cable

SENSOR - T2-10

SENSOR - T1H1-10

SENSOR - T2H1-10

Space-saving mounting options

Installing your new ePDU is quick and easy. There are models that mount horizontally in minimal rack space (1U or 2U), or vertically in rack side pockets or rear channels—or on a wall or floor, saving traditional U space for IT equipment.

The units come with all mounting hardware included, ready to install. There's no need to purchase additional mounting hardware or accessories. Some units use a button-mount system and can be mounted in keyhole-type openings in popular racks, with no tools required.

Horizontal mounting

A	Y
1.75	.25
3.5	.875
5.25	.875

ePDU mounted horizontally in rack

Vertical mounting

Three identical 3D rendering of a rectangular electronic device with multiple ports and a mounting bracket (no text or symbols visible)

SUB-HRDWARE-017 - Standard mounting included, brackets come attached to units.

Close-up of a black electronic device with a small display and control panel (no visible text or symbols)

Tool-less Mounting

Diagram showing a server rack connected to a vertical panel with an arrow indicating assembly or connection (no text or symbols present)

Button mount with clip feet

Diagram showing a server rack connected to a vertical panel with a connector (no text or symbols visible)

Blind mount to rail with clip feet

Diagram of a mechanical or electrical component with two views: one showing a pipe fitting and the other showing a small electronic component (no text or symbols visible)

Bracket mount with clip feet
Mounting style for vertical Basic models with part numbers that start with EPBZ.

For a detailed mounting process, please refer to our mounting video on eaton.com/epdu

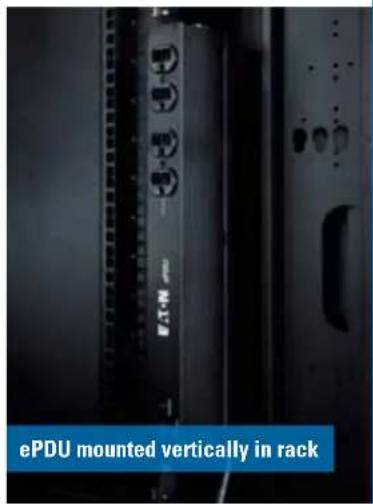

ePDU mounted vertically in rack

Benefits of vertical mounts

Eaton ePDUs can be mounted vertically, allowing you to save valuable space. You can mount them vertically in rack side pockets, rear channels – or on a wall, which allows you to save traditional U space for IT equipment.

UNITED STATES

8609 Six Forks Road

Raleigh, NC 27615 U.S.A.

Toll Free: 1.800.356.5794

eaton.com/epdu

Powering Business Worldwide

CANADA

Ontario: 416.798.0112

Toll Free: 1.800.461.9166

LATIN AMERICA

South Cone: 54.11.4124.4000

Brazil: 55.11.3616.8500

Andean & Caribbean:

1.949.452.9610

Mexico & Central America:

52.55.9000.5252

EUROPE/MIDDLE EAST/AFRICA

Denmark: 45.3686.7910

Finland: 358.94.52.661

France: 33.1.6012.7400

Germany: 49.0.7841.604.0

Sweden: 46.8.598.940.00

United Kingdom: 44.1753.608.700

ASIA PACIFIC

Australia: 61.2.9693.9366

New Zealand: 64.0.3.343.3314

China: 86.21.6361.5599

HK/Korea/Taiwan: 852.2745.6682

India: 91.11.4223.2300

Singapore/SEA: 65.6825.1668

Eaton, Powerware, and ePDU are

trade names, trademarks, and/or service

marks of Eaton Corporation of its subsidiaries and affiliates.

©2011 Eaton Corporation

All Rights Reserved

Printed in USA

EPDUCAT

March 2011
