1. Introduction

Key benefits 5

Features by models 8

Useful to know 11

About this user's guide 12

Safety information 13

Machine overview 19

Control panel overview 22

Turning on the machine 24

Installing the driver locally 25

Reinstalling the driver 28

2. Menu Overview and Basic Setup

Menu overview 30

Machine's basic settings 33

Media and tray 35

Basic printing 46

3. Maintenance

Ordering supplies and accessories 53

Available consumables 54

Available accessories 56

Available maintenance parts 57

Storing the toner cartridge 58

Redistributing toner 60

Replacing the toner cartridge 62

Replacing the imaging unit 65

Installing accessories 67

Monitoring the supplies life 71

Setting the toner/imaging unit low alert 72

Cleaning the machine 73

Tips for moving & storing your machine 77

4. Troubleshooting

Tips for avoiding paper jams 79

Clearing paper jams 80

Understanding the status LED 92

Understanding display messages 95

BASIC

5. Appendix

Specifications 101

Regulatory information 109

Copyright 119

Blue circular icon with a white printer symbol (no text or numbers)

1. Introduction

This chapter provides information you need to know before using the machine.

• Key benefits 5
- Features by models 8
- Useful to know 11
- About this user's guide 12
• Safety information 13
• Machine overview 19
• Control panel overview 22
• Turning on the machine 24
• Installing the driver locally 25
• Reinstalling the driver 28

Abstract icon of stacked documents with no text or symbols

Key benefits

Environmentally friendly

• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 49).
• To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 193).
• To save paper, you can print on both sides of the paper (double-sided printing) (see "Using advanced print features" on page 193).
  • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.
  • We recommend using recycled paper for saving energy.

Fast high resolution printing

• You can print with a resolution of up to 1,200 x 1,200 dpi effective output (1200 x 600 x 2 bit).
• Fast, on-demand printing.

- M332x series

• For single-side printing, 33 ppm (A4) or 35 ppm (Letter).
• M382x series
• For single-side printing, 38 ppm (A4) or 40 ppm (Letter).
• M402x series
• For single-side printing, 40 ppm (A4) or 42 ppm (Letter).

Key benefits

Convenience

• You can print on the go from your smartphone or computer using Google Cloud Print™ enabled apps (see "Google Cloud Print™" on page 173).
• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard (see "Easy Capture Manager" on page 212).
• Samsung Easy Printer Manager and Printing Status is a program that monitors and informs you of the machine's status and allows you to customize the machine's settings (see "Using Samsung Easy Printer Manager" on page 219 or "Using Samsung Printer Status" on page 222).
• Samusng AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily than when you use the ordinary program (see "Samsung AnyWeb Print" on page 213).
• Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows.
• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.

Wide range of functionality and application support

• Supports various paper sizes (see "Print media specifications" on page 103).
- Print watermark: You can customize your documents with words, such as "CONFIDENTIAL" (see "Using advanced print features" on page 193).
- Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 193).
- You can print in various operating systems (see "System requirements" on page 105).
- Your machine is equipped with a USB interface and/or a network interface.

Key benefits

Supports various wireless network setting method

• Using the WPS (Wi-Fi Protected Setup™) button

- You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router).

• Using the USB cable or a network cable

- You can connect and set various wireless network settings using a USB cable or a network cable.

• Using the Wi-Fi Direct

- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature.

See "Introducing wireless set up methods" on page 146.

Features by models

Some features and optional goods may not be available depending on model or country.

Operating System

Operating System	M332x series	M382x series	M402x series
Windows • • •
Mac • • •
Linux • • •
Unix • •		(M382xDN/M382xDW only)	•

(●: Included, Blank: Not available)

Features by models

Software

You can install the printer driver and software when you insert the software CD into your CD-ROM drive. For windows, select the printer driver and software in the Select Software to Install window.

Software		M332x series	M382x series	M402x series
SPL printer driver • • •
PCL printer driver • •			(M382xND/M382xDW only)	•
PS printer drivera		•	•(M382xND/M382xDW only)	•
XPS printer drivera		• • •
Samsung Easy Printer Manager Device Settings •		• •
Samsung Printer Status • • •
Direct Printing Utilitya		• • •
Samsung AnyWeb Printa		• • •
SyncThruTM Web Service • •			(M382xND/M382xDW only)	•
SyncThru Admin Web Service • •			(M382xND/M382xDW only)	•
Easy Eco Driver • • •
Easy Capture Manager • • •

a. Download the software from the Samsung website and install it: (http://www.samsung.com > find your product > Support or Downloads). Before installing, check whether your computer's OS support the software.
(●: Included, Blank: Not available)

Features by models

Variety feature

Features	M332x series	M382x series	M402x series
Hi-Speed USB 2.0 • • •
IEEE 1284B parallel connector^a	○ ○ ○
Network Interface Ethernet 10/100 Base TX wired LAN	• •	(M382xND/M382xDW only)
Network Interface Ethernet 10/100/1000 Base TX wired LAN			•
Network Interface 802.11b/g/n wireless LAN^b		•(M382xDW only)
Eco printing • • •
Duplex (2-sided) printing • • •
USB memory interface
Memory module		○(M382xND/M382xDW only)	○
Optional tray (Tray2)	○	○(M382xND/M382xDW only)	○
AirPrint • • •
Google Cloud Print^TM • • •

a. If you use the parallel port, you cannot use the USB cable.
b. Depending on your country, wireless LAN card may not be available. For some countries, only 802.11 b/g can be applied. Contact your local Samsung dealer or the retailer where you bought your machine.
(●: Included, ○: optional, Blank: Not available)

Useful to know

The machine does not print.

• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 47).
• Remove the driver and install it again (see "Installing the driver locally" on page 25).
• Select your machine as your default machine in your Windows (see "Setting your machine as a default machine" on page 192).

Where can I purchase accessories or supplies?

• Inquire at a Samsung distributor or your retailer.
• Visit www.samsung.com/supplies. Select your country/region to view product service information.

The status LED flashes or remains constantly on.

• Turn the product off and on again.
• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 92).

A paper jam has occurred.

• Open and close the door (see "Front view" on page 20).
• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 80).

Printouts are blurry.

• The toner level might be low or uneven. Shake the toner cartridge (see "Redistributing toner" on page 60).
• Try a different print resolution setting (see "Opening printing preferences" on page 47).
• Replace the toner cartridge (see "Replacing the toner cartridge" on page 62).

Where can I download the machine's driver?

- You can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.

About this user's guide

This user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.

• Read the safety information before using the machine.
• If you have a problem using the machine, refer to the troubleshooting chapter.
• Terms used in this user's guide are explained in the glossary chapter.
• All illustrations in this user's guide may differ from your machine depending on its options or model you purchased.
• The screenshots in this user's guide may differ from your machine depending on the machine's firmware/driver version.
• The procedures in this user's guide are mainly based on Windows 7.

Conventions

Some terms in this guide are used interchangeably, as below:

• Document is synonymous with original.
• Paper is synonymous with media, or print media.
  • Machine refers to printer or MFP.

General icons

Icon Text Description
	Caution	Gives users information to protect the machine from possible mechanical damage or malfunction.
[S87C]	Note	Provides additional information or detailed specification of the machine function and feature.

Safety information

These warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.

Important safety symbols

Explanation of all icons and signs used in this chapter

	Warning	Hazards or unsafe practices that may result in severe personal injury or death.
	Caution	Hazards or unsafe practices that may result in minor personal injury or property damage.
	Do not attempt.

Operating environment

Warning

	Do not use if the power cord is damaged or if the electrical outlet is not grounded.This could result in electric shock or fire.
	Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).This could result in electric shock or fire.
	• If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.• The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out.This could result in electric shock or fire.
	Do not bend, or place heavy objects on the power cord.Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire.
	Do not remove the plug by pulling on the cord; do not handle the plug with wet hands.This could result in electric shock or fire.

Safety information

Caution

	During an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet.This could result in electric shock or fire.
	Be careful, the paper output area is hot.Burns could occur.
	If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.
	If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.
	If the plug does not easily enter the electrical outlet, do not attempt to force it in.Call an electrician to change the electrical outlet, or this could result in electric shock.
	Do not allow pets to chew on the AC power, telephone or PC interface cords.This could result in electric shock or fire and/or injury to your pet.

Operating method

Caution

	Do not forcefully pull the paper out during printing.It can cause damage to the machine.
	Be careful not to put your hand between the machine and paper tray.You may get injured.
[DOCW]	Be care when replacing paper or removing jammed paper.New paper has sharp edges and can cause painful cuts.
	When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch.Burns can occur.
	When removing jammed paper, do not use tweezers or sharp metal objects.It can damage the machine.
[22W8]	Do not allow too many papers to stack up in the paper output tray.It can damage the machine.

Safety information

	Do not block or push objects into the ventilation opening.This could result in elevated component temperatures which can cause damage or fire.
	Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
	This machine's power reception device is the power cord.To switch off the power supply, remove the power cord from the electrical outlet.

Installation / Moving

Warning

Do not place the machine in an area with dust, humidity, or water leaks.

This could result in electric shock or fire.

Caution

Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.

If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to lift the device safety.

Then lift the machine:

• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.
- If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift with 2 people.
- If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or more people.

The machine could fall, causing injury or machine damage.

Choose a flat surface with enough space for ventilation to place the machine. Also consider the space required to open the cover and trays.

The place should be well-ventilated and be far from direct light, heat, and humidity.

When using the machine for a long period of time or printing a large number of pages in a non-ventilated space, it could pollute the air and be harmful to your health. Place the machine in a well-ventilated space or open a window to circulate the air periodically.

Safety information

	Do not place the machine on an unstable surface.The machine could fall, causing injury or machine damage.
	Use only No.26 AWGa or larger, telephone line cord, if necessary.Otherwise, it can cause damage to the machine.
	Make sure you plug the power cord into a grounded electrical outlet.Otherwise, this could result in electric shock or fire.
	Use the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110V machine, then the gauge should be 16 AWG or larger.Otherwise, it can cause damage to the machine, and could result in electric shock or fire.
	Do not put a cover over the machine or place it in an airtight location, such as a closet.If the machine is not well-ventilated, this could result in fire.
	Do not overload wall outlets and extension cords.This can diminish performance, and could result in electric shock or fire.
	The machine should be connected tothe power level which is specified on the label.If you are unsure and want to check the power level you are using, contact the electrical utility company.

a. AWG: American Wire Gauge

Maintenance / Checking

Caution

	Unplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine.This could result in electric shock or fire.
	When you are working inside the machine replacing supplies or cleaning the inside, do not operate the machine.You could get injured.
	Keep cleaning supplies away from children.Children could get hurt.
	Do not disassemble, repair or rebuild the machine by yourself.It can damage the machine. Call a certified technician when the machine needs repairing.

Safety information

	To clean and operate the machine, strictly follow the user's guide provided with the machine.Otherwise, you could damage the machine.
	Keep the power cable and the contact surface of the plug clean from dust or water.Otherwise, this could result in electric shock or fire.
	Do not remove any covers or guards that are fastened with screws.Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.The machine should only be repaired by a Samsung service technician.

Supply usage

Caution

Do not disassemble the toner cartridge. Toner dust can be dangerous if inhaled or ingested.

	Do not burn any of the supplies such as toner cartridge or fuser unit.This could cause an explosion or uncontrollable fire.
	When storing supplies such as toner cartridges, keep them away from children.Toner dust can be dangerous if inhaled or ingested.
[5cxc]	Using recycled supplies, such as toner, can cause damage to the machine.In case of damage due to the use of recycled supplies, a service fee will be charged.
[cw22]	For supplies that contain toner dust (toner cartridge, waste toner bottle, imaging unit, etc.) follow the instructions below.When disposing of the supplies, follow the instructions for disposal. Refer to the reseller for disposal instructions.Do not wash the supplies.For a waste toner bottle, do not reuse it after emptying the bottle.If you do not follow the instructions above, it may cause machine malfunction and environmental pollution. The warranty does not cover damages caused by a user's carelessness.
[xz05]	When toner gets on your clothing, do not use hot water to wash it.Hot water sets toner into fabric. Use cold water.

Safety information

When changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.Toner dust can be dangerous if inhaled or ingested.

Machine overview

Components

	Power cord Quick installation guide
Machine	Software CDa	Misc. accessoriesb

a. The software CD contains the print drivers, user's guide, and software applications.
b. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

Machine overview

Front view

• This illustration may differ from your machine depending on your model. There are various types of machine.
• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 8).

8 7 6 5 4 1 2 3

1	Control panel	5	Tray 2a	9	Paper width guides on a multi-purpose tray	13	Imaging unitc
2	Control board cover 6 Tray 1 10 Paper width guides on a manual feeder 14 Output support
3	Front cover	7	Multi-purpose (or manual feeder) tray	11	Toner cartridgeb
4	Paper level indicator	8	Output tray	12	Toner cartridgec

a. Optional. Not available for M382xD.
b. M3320/M3820/M4020 series only.
c. M3325/M3825/M4025 series only.

Machine overview

Rear view

• This illustration may differ from your machine depending on your model. There are various types of machine.
• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 8).

1 2 3 OUTPUT SV 4 5 6 7

1	Network port^a	4	Power-switch	7	Rear cover
2	U S B p o r t 5 P o	w	e r r e c e p t a c l e
3	5V output port for IEEE 1284B parallel connector^b	6	Duplex unit

a. Not available for M382xD.
b. To use the optional IEEE 1284B parallel connector, plug it to the USB port and the 5V output port.

Control panel overview

• This control panel may differ from your machine depending on its model. There are various types of control panels.
• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 8).

M332xND/M382xD

1 Eco 2 3 4 5 6

1

Toner LED

Shows the status of the toner (see "Understanding the status LED" on page 92).

2 Eco			Turn on the Eco mode to reduce toner consumption and paper usage (see "Eco printing" on page 49).
3	Info sheet		Prints a demo page and network configuration ^a page by pressing this button.
4 Cancel			Stops current operation.
5 Power			You can turn the power on and off with this button.Or wake up from the power save mode.
6	Status LED	<··>/⚠	Indicates the status of your machine (see "Understanding the status LED" on page 92).

a. M332xND only.

Control panel overview

M382xND/M382xDW/M402xND

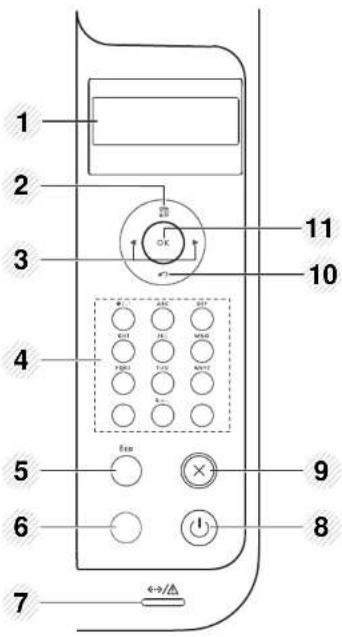

1 2 3 4 5 6 7 8 9 10 11 ←→/△

1

Display screen

Shows the current status and prompts during an operation.

2 Menu			Enters menu mode and scrolls through the available menus (see "Accessing the menu" on page 30).
3 Arrow			Navigates available values by moving to the next or previous options.
4	Numeric keypad Use the keypad to enter numbers and characters (see "Keypad letters and numbers" on page 191).
5 Eco			Turn on the Eco mode to reduce toner consumption and paper usage (see "Eco printing" on page 49).
6	Info sheet		Prints a demo page and network configuration ^a page by pressing this button.
	WPS ^b		Configures the wireless network connection easily without a computer (see "Using the WPS button" on page 148).
7	Status LED	<-->/△	Indicates the status of your machine (see "Understanding the status LED" on page 92).
8 Power			You can turn the power on and off with this button. Or wake up from the power save mode.
9 Cancel			Stops current operation.
10 Back			Sends you back to the upper menu level.
11 OK Confirms the selection on the screen.

a. M382xND/M402xND only.

b. M382xDW only.

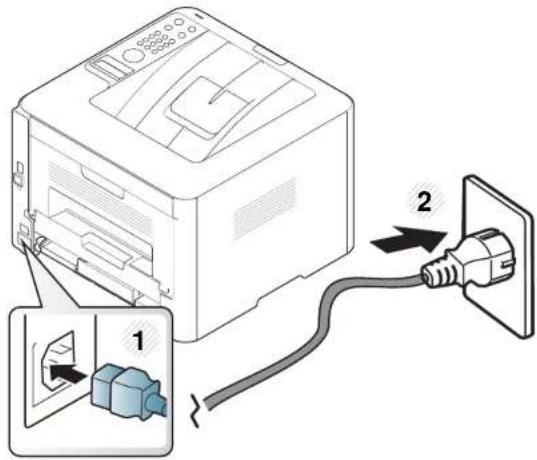

Turning on the machine

1 Connect the machine to the electricity supply first.

Diagram showing connection between a printer and a plug, with labeled parts 1 and 2 indicating components.

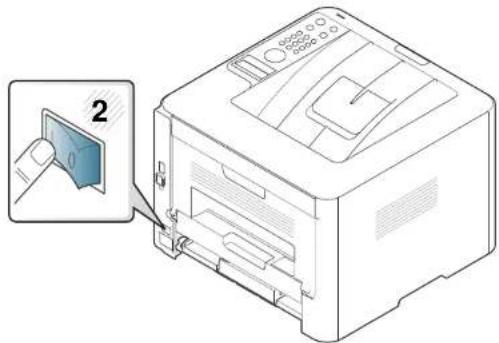

2 Turn the switch on.

Diagram of a printer with a close-up view showing a device labeled '2' pointing to its screen area.

If you want to turn the power off, press the ⏻ (Power/Wakeup) button.

Installing the driver locally

A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine's driver (see "Installing driver over the network" on page 133).

• If you are a Mac, Linux, or UNIX operating systems user, refer to the "Installation for Mac" on page 124, "Installation for Linux" on page 126, or "Installing the UNIX printer driver package" on page 139.
• The installation window in this User's Guide may differ depending on the machine and interface in use.
• Only use a USB cable no longer than 3 meters (118 inches).

Installing the driver locally

Windows

1 Make sure that the machine is connected to your computer and powered on.
2 Insert the supplied software CD into your CD-ROM drive.

If the installation window does not appear, click Start > All programs > Accessories > Run.

X:\Setup.exe replacing "X" with the letter, which represents your CD-ROM drive and click OK.

- For Windows 8,

If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing "X" with the letter that represents your CD-ROM drive and click OK.

If "Tap to choose what happens with this disc." pop-up window appears, click the window and select Run Setup.exe.

3 Read and check The software End User License Agreement and Using Enhanced Features and Participating in Printer Usage Information

Collection Program (optional). Then, click Next.

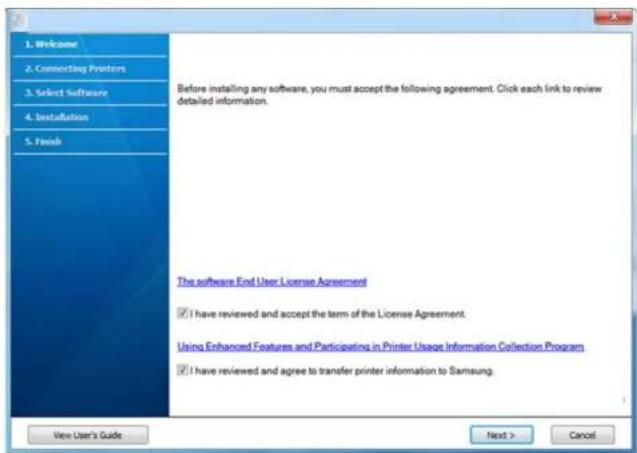

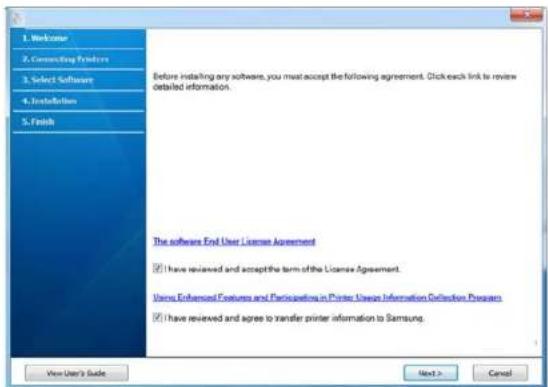

1. Welcome 2. Connecting Printers 3. Select Software 4. Installation 5. Finish Before installing any software, you must accept the following agreement. Click each link to review detailed information. The software End User License Agreement ✓ I have reviewed and accept the term of the License Agreement. Using Enhanced Features and Participating in Printer Usage Information Collection Program ✓ I have reviewed and agree to transfer printer information to Samsung. View User's Guide Next > Cancel

4 Follow the instructions in the installation window.

You can select the software applications in the Select Software to Install window.

Installing the driver locally

From the Windows 8 Start Screen

• Samsung Printer Experience app can only be used in the Start screen when V4 driver is installed. The V4 driver is automatically downloaded from the Windows Update if your computer is connected to the Internet. If not, you can manually download the V4 driver from Samsung website, www.samsung.com > find your product > Support or downloads.
• You can download Samsung Printer Experience app from the Windows Store. You need have a Microsoft account to use the Windows Store.

1 From Charms, select Search.
2 Click Store.
3 Search and click Samsung Printer Experience.
4 Click Install.

• If you install the driver using the supplied software CD, V4 driver is not installed. If you want to use the V4 driver in the Desktop screen, you can download from the Samsung website, www.samsung.com >find your product >Support or downloads.
• If you want to install Samsung's printer management tools, you need to install them using the supplied software CD.

1 Make sure that your computer is connected to the Internet and powered on.
2 Make sure that the machine is powered on.
3 Connect the computer and the machine with a USB cable. The driver is automatically installed from the Windows Update.

Reinstalling the driver

If the printer driver does not work properly, follow the steps below to reinstall the driver.

Windows

1 Make sure that the machine is connected to your computer and powered on.
2 From the Start menu, select Programs or All Programs > Samsung Printers > Uninstall Samsung Printer Software.

- For Windows 8,

1 From Charms, select Search > Apps.
2 Search and click Control Panel.
3 Click Programs and Features.
4 Right-click the driver you want to uninstall and select Uninstall.

3 Follow the instructions in the installation window.

4 Insert the software CD into your CD-ROM drive and install the driver again (see "Installing the driver locally" on page 25).

From the Windows 8 Start Screen

1 Make sure that the machine is connected to your computer and powered on.
2 Click on the Uninstall Samsung Printer Software tile in the Start screen.
3 Follow the instructions in the window.

- If you cannot find a Samsung Printer Software tile, unintstall from the desktop screen mode.

- If you want to uninstall Samsung's printer management tools, from the Start screen, right-click the app > Uninstall > right-click the program you want to delete > Uninstall and follow the instruction in the window.

Blue circular icon with a white printer symbol (no text or numbers)

2. Menu Overview and Basic Setup

This chapter provides information about the overall menu structure and the basic setup options.

• Menu overview 30
  • Machine's basic settings 33
  • Media and tray 35
• Basic printing 46

Menu overview

The control panel provides access to various menus to set up the machine or use the machine's functions.

• For models that do not have the display screen on the control panel, this feature is not applicable.
• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.
• Some menu names may differ from your machine depending on its options or the models.
• The menus are described in the Advanced Guide (see "Useful Setting Menus" on page 176).

Accessing the menu

1 Press * (Menu) button on the control panel.
2 Press the arrows until the needed menu item appears and press OK.
3 If the setting item has sub menus, repeat step 2.
4 Press OK to save the selection.
5 Press ☒ (Cancel) to return to the ready mode.

Menu overview

Information	Layout	Paper	Graphic	System Setup
Menu Map	Orientation	Copies	Resolution	Date \& Time^d	Auto Continue
Configuration	Portrait	MP Tray	Standard	Clock Mode^d	Auto Tray Swi.
Demo Page	Landscape	Paper Size	High Resol.	Language	Paper Substit.
Supplies Info.	Margin	Paper Type	Clear Text	Default Paper	Tray Protect.
Usage Counter	Common Margin	Tray	Off	A4	SkipBlankPages
Account^a	MP Tray	Paper Size	Minimum	Letter	Maintenance
PCL Font		Paper Type	Normal	Power Save	CLR Empty Msg.^e
PS Font	Emulation Mar.	Paper Source	Maximum	Wakeup Event	Supplies Life
EPSON Font	Duplex	Tray 1	Auto CR	Job Timeout	Image Mgr.
KSC5843 Font^b	Off	Tray 2^c		Altitude Adj.	TonerLow Alert
KSC5895 Font^b	Long Edge	MP Tray		Normal	ImgU.Low Alert^f
KSSM Font^b	Short Edge	Auto		High 1	RAM Disk
				High 2	Toner Save
				High 3	Eco Settings
				High 4	Auto Power Off

a. This is used only available when Job Accounting is enabled from the SyncThru™ Web Admin Service.
b. This option may not be available depending on your country.
c. This option only appears when an optional tray is installed.
d. M382xDWonly.
e. This option only appears when small amount of toner is left in the cartridge.
f. M3325/M3825/M4025 series only.

Menu overview

Emulation Network			Job Management ^a
Emulation Type	TCP/IP (IPv4)	Protocol Mgr.	Active Job
Setup	DHCP	HTTP	Secured Job
	BOOTP	WINS	Stored Job
	Static	SNMPv1/v2	Print
	TCP/IP (IPv6)	UPnP(SSDP)	Delete
	IPv6 Protocol	mDNS	Filing Policy
	DHCPv6 Config	SetIP	Change Name
	Ethernet	SLP	Overwrite
	Ethernet Port	Network Conf.
	Ethernet Speed	Clear Setting
	802.1x
	Wi-Fi ^b
	Wi-Fi On/Off
	Wi-Fi Settings
	WPS
	Wi-Fi Direct
	Wi-Fi Signal
	CLR Wi-Fi Set.

a. This option is available when the optional memory installed or RAM Disk is checked. b. M382xDW only.

Machine's basic settings

- For models that do not have the display screen on the control panel, set the machine's settings by using the Device Settings in Samsung Easy Printer Manager program

- For Windows and Mac users, you set from Samsung Easy Printer

Manager > 📋 (Switch to advanced mode) > Device Settings, see "Device Settings" on page 221.

After installation is complete, you may want to set the machine's default settings.

To change the machine's default settings, follow these steps:

It may be necessary to press OK to navigate to lower-level menus for some models.

1 Select ☐(Menu) button on the control panel.
2 Press System Setup.
3 Select the option you want, then press OK.

• Language: Change the language that is displayed on the control panel.
• Date & Time: You can set the time and date. They are printed on reports. If, however, they are not correct, you need to change it for the correct time being.

Enter the correct time and date using arrows or numeric keypad (see "Keypad letters and numbers" on page 191).

• Month = 01 to 12
• Day = 01 to 31
• Year = requires four digits
• Hour = 01 to 12
• Minute = 00 to 59

• Clock Mode: You can set your machine to display the current time using either a 12 hours or 24 hours format.
• Power Save: When you are not using the machine for a while, use this feature to save power.

• When you press the power button or start printing, the product will wake up from the power saving mode.
• When you press any button except power button, the machine wake up from the power save mode. Press ⚙️ (Menu) > System Setup > Wakeup Event > On on the control panel.

- Altitude Adj.: Print quality is affected by atmospheric pressure, which atmospheric pressure is determined by the height of the machine above sea level. Before you set the altitude value, determine the altitude where you are (see "Altitude adjustment" on page 190).

Machine's basic settings

4 Select the option you want, then press OK.
5 Press OK to save the selection.
6 Press ☒ (Cancel) to return to ready mode.

Refer to below links to set other settings useful for using the machine.

• See "Setting the paper size and type" on page 44.
• See "Keypad letters and numbers" on page 191.

Media and tray

This chapter provides information on how to load print media into your machine.

• Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Samsung's warranty or service agreements.
• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine.
  • Using inflammable print media can cause a fire.
• Use designated print media (see "Print media specifications" on page 103).
• Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine.

The use of inflammable media or foreign materials left in the printer may lead to overheating of the unit and, in rare cases may cause a fire.

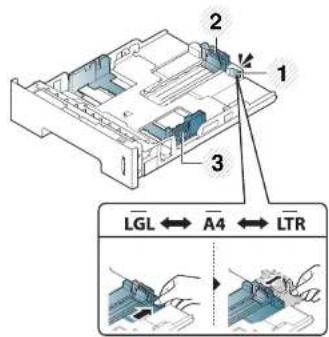

Tray overview

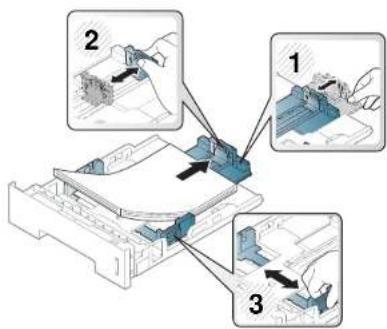

If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper.

To change the size, you need to adjust the paper guides.

2 1 3 LGL ← A4 ← LTR

1 Tray extension guide
2 Paper length guide
3 Paper width guide

Media and tray

The duplex unit is preset to Letter/LGL or A4 size, depending on your country. To change the paper size, adjust the guides as shown below.

Technical diagram showing a printer's internal structure before and after assembly, with labeled parts and directional arrows.

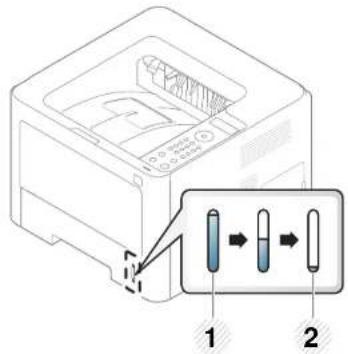

Paper quantity indicator shows the amount of paper in the tray.

Diagram of a printer with labeled parts and a zoomed-in section showing two tubes, likely illustrating a measurement or calibration process.

1 Full

2 Empty

Loading paper in the tray

Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).

Media and tray

Tray 1 / optional tray

1 Pull out the paper tray.

Illustration of a hand inserting a device into a computer oven (no text or symbols visible)

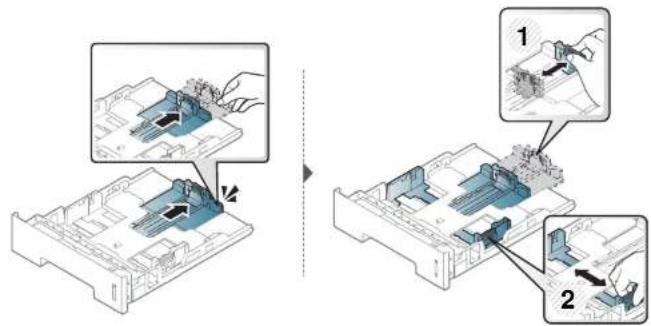

2 Squeeze and the paper width guide and paper length lever to locate them in the correct paper size slot marked at the bottom of the tray to adjust to the size (see "Tray overview" on page 35).

Diagram illustrating a mechanical assembly process with labeled steps 1 and 2 showing component positioning and assembly.

3 Flex or fan the edge of the paper stack to separate the pages before loading papers.

Three-step illustration showing a blue flexible object being folded, with no text or symbols present.

4 After inserting paper into the tray, squeeze the paper width guides and paper length guide.

Diagram illustrating three-step assembly or processing workflow with labeled steps 1, 2, and 3.

Media and tray

• Do not push the paper width guide too far causing the media to warp.
• If you do not adjust the paper width guide, it may cause paper jams.

- Do not use a paper with a leading-edge curl, it may cause a paper jam or the paper can be wrinkled.

5
Insert the tray back into the machine.

Illustration of a hand inserting a device into a computer case (no text or symbols visible)

When you print a document, set the paper type and size for the tray (see "Setting the paper size and type" on page 44).

Multi-purpose (or Manual feeder) tray

Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).

The Multi-purpose (or Manual feeder) tray can hold special sizes and types of print material, such as postcards, note cards, and envelopes (see "Print media specifications" on page 103).

Tips on using the Multi-purpose (or Manual feeder) tray

• Load only one type, size and weight of print media at a time in the Multi-purpose (or Manual feeder) tray.
• To prevent paper jams, do not add paper while printing when there is still paper in the Multi-purpose (or Manual feeder) tray. This also applies to other types of print media.
• Always load the specified print media only to avoid paper jams and print quality problems (see "Print media specifications" on page 103).
• Flatten any curl on postcards, envelopes, and labels before loading them into the Multi-purpose (or Manual feeder) tray.

Media and tray

1 Pull out the paper tray for manual feeding.

Or

Press the push-release of Multi-purpose (or Manual feeder) tray to open.

• M332xND/M382xD series

Diagram showing two views of a microwave oven with heat transfer arrows (no text or symbols)

• M382xND/M382xDW/M402xND series

Diagram showing two steps of printer operation: adding light to a screen and adding a tray with a blue tray, labeled 1 and 2.

2 Load the paper.

Two line drawings of a printer with internal components, shown from different angles (no text or symbols)

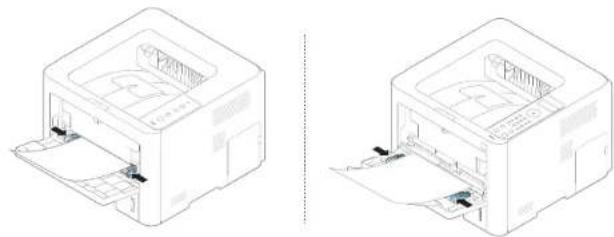

3 Squeeze the Multi-purpose (or Manual feeder) tray paper width guides and adjust them to the width of the paper. Do not force them too much, or the paper will bent resulting in a paper jam or skew.

Two technical line drawings of a printer with paper and print, showing internal components (no text or symbols)

- When printing the special media, you must follow the loading guideline (See "Printing on special media" on page 40).

- When papers overlap when printing using Multi-purpose (or Manual feeder) tray, open tray 1 and remove overlapping papers then try printing again.

Media and tray

4 When you print a document, set the paper type and size for the Multi-purpose (or Manual feeder) tray (see "Setting the paper size and type" on page 44).

Printing on special media

The table below shows the special media usable in tray.

The paper setting in the machine and driver should match to print without a paper mismatch error.

To change the paper setting set in the machine, from the Samsung Easy Printer Manager select 📁 (Switch to advanced mode) > Device Settings.

Or if your machine supports a display screen, you can set it using the Ⓞ (Menu) button on the control panel.

Then, set the paper type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 47).

- When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 103).

- Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).

To see for paper weights for each sheet, refer to "Print media specifications" on page 103.

Types Tray 1		Optional tray ^a	Multi-purpose (or manual feeder) tray
Plain ●	●		●
Thick ●	●		●
Thicker ●
Thin ●	●		●
Bond ●	●		●
Color ●
CardStock ●	●		●
Labels ●
Transparency			●
Envelope			●
Preprinted			●
Cotton			●
Recycled	●	●
Archive	●	●

a. This is feature is available when you install and optional tray (see "Variety feature" on page 10).

Media and tray

(●: Supported, Blank: Not supported)

Envelope

Printing successfully on envelopes depends upon the quality of the envelopes.

To print an envelope, place it as shown in the following figure.

Diagram of a printer with paper feeding into a slot (no text or symbols visible)

Diagram of a printer's internal structure showing paper feeding and printing (no text or labels)

- When selecting envelopes, consider the following factors:

- Weight: should not exceed 90 g/m ^2 otherwise; jams may occur.

• Construction: should lie flat with less than 6 mm curl and should not contain air.
• Condition: should not be wrinkled, nicked, nor damaged.
• Temperature: should resist the heat and pressure of the machine during operation.

• Use only well-constructed envelopes with sharp and well-creased folds.

- Do not use stamped envelopes.

• Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials.
• Do not use damaged or poorly made envelopes.
• Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope.

1 Acceptable
2 Unacceptable

• Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine's fusing temperature for 0.1 second about 170^ (338 °F). The extra flaps and strips might cause wrinkling, creasing, or jams, and may even damage the fuser.
• For the best print quality, position margins no closer than 15 mm from the edges of the envelope.
• Avoid printing over the area where the envelope's seams meet.

Media and tray

Transparency

To avoid damaging the machine, use only transparencies designed for use in laser printers.

Two technical diagrams showing printer printing process with paper handling (no text or symbols)

- Must withstand the machine's fusing temperature.

- Place them on a flat surface after removing them from the machine.

- Do not leave unused transparencies in the paper tray for long. Dust and dirt may accumulate on them, resulting in spotty printing.

• To avoid smudging caused by fingerprints, handle them carefully.

- To avoid fading, do not expose printed transparencies to prolonged sunlight.

- Ensure that transparencies are not wrinkled, curled, or have any torn edges.

- Do not use transparencies that separate from the backing sheet.

- To prevent transparencies from sticking to each other, do not let the printed sheets stack up as they are being printed out.

Labels

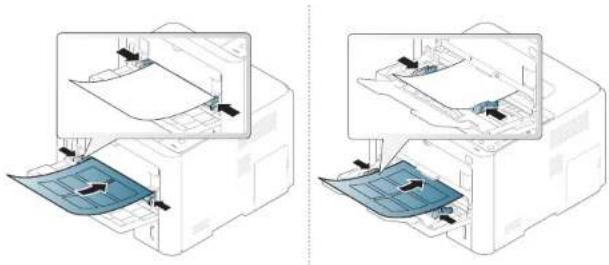

To avoid damaging the machine, use only labels designed for use in laser printers.

Two technical diagrams showing printer printing process with arrows indicating motion (no text or symbols)

- When selecting labels, consider the following factors:

• Adhesives: Should be stable at your machine's fusing temperature about 170°C (338°F).
• Arrangement: Only use labels with no exposed backing between them. Labels can peel off sheets that have spaces between the labels, causing serious jams.
• Curl: Must lie flat with no more than 13 mm of curl in any direction.
• Condition: Do not use labels with wrinkles, bubbles, or other indications of separation.

• Make sure that there is no exposed adhesive material between labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to machine components.

Media and tray

• Do not run a sheet of labels through the machine more than once. The adhesive backing is designed for only a single pass through the machine.
• Do not use labels that are separating from the backing sheet or are wrinkled, bubbled, or otherwise damaged.

Card stock/ Custom-sized paper

Two technical diagrams showing printer internal structure before and after assembly, with no visible text or symbols.

- In the software application, set the margins to at least 6.4 mm (0.25 inches) away from the edges of the material.

Preprinted paper

When loading preprinted paper, the printed side should be facing up with an uncurled edge at the front. If you experience problems with paper feeding, turn the paper around. Note that print quality is not guaranteed.

Illustration of a printer with a blue cover and mechanical components, no visible text or symbols

Diagram of a printer with paper and paper roll, showing internal components (no text or symbols)

• Must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the machine's fusing temperature for 0.1 second (about 170^ (338°F)).
• Preprinted paper ink must be non-flammable and should not adversely affect machine rollers.
• Before you load preprinted paper, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper, reducing print quality.

Media and tray

Glossy Photo

• Recommended media: Glossy paper (Letter) for this machine by HP Brochure Paper (Product: Q6611A) only.
• Recommended media: Glossy paper (A4) for this machine by HP Superior Paper 160 glossy (Product: Q6616A).

Setting the paper size and type

After loading paper in the paper tray, set the paper size and type using the control panel buttons.

The paper setting in the machine and driver should match to print without a paper mismatch error.

To change the paper setting set in the machine, from the Samsung Easy Printer Manager select 📋 (Switch to advanced mode) > Device Settings.

Or if your machine supports a display screen, you can set it using the ☐ (Menu) button on the control panel.

Then, set the paper type from the Printing preferences window > Paper tab > Paper Type (see "Opening printing preferences" on page 47).

It may be necessary to press OK to navigate to lower-level menus for some models.

1 Select ☐ (Menu) button on the control panel.
2 Press Paper and select the tray you want.
3 Press Paper Size or Paper Type.
4 Select the option you want.
5 Press OK to save the selection.
6 Press ☒(Cancel) to return to ready mode.

If you want to use special-sized paper such as billing paper, select the Paper tab > Size > Edit... and set Custom Paper Size Settings in the Printing Preferences (see "Opening printing preferences" on page 47).

Media and tray

Using the output support

The surface of the output tray may become hot if you print a large number of pages at once. Make sure that you do not touch the surface, and do not allow children near it.

The printed pages stack on the output support, and the output support will help the printed pages to align. Unfold the output support.

Line drawing of a printer with a paper airplane inside, showing internal components and control panel (no text or symbols)

• Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).
• If more than 50 pages (one-sided) of Legal paper is stacked in the output tray, paper can be mis-aligned or paper jams can occur. Do not let paper to stack up in the output tray.
• When printing on thick paper, paper may not properly align on the output support. Close the output support or turn the paper over in the tray before printing.

Basic printing

For special printing features, refer to the Advanced Guide (see "Using advanced print features" on page 193).

Printing

- If you are a Mac, Linux, or Unix operating systems user, refer to the Advanced Guide (see "Mac printing" on page 202, "Linux printing" on page 204, or "Unix printing" on page 206).

- For Winodws 8 user, see "Basic printing" on page 225.

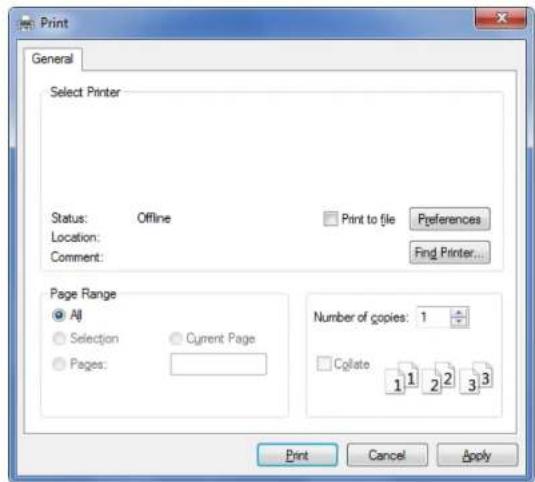

The following Printing Preferences window is for Notepad in Windows 7.

1 Open the document you want to print.

2 Select Print from the File menu.

3 Select your machine from the Select Printer list.

Print General Select Printer Status: Offline Print to file Preferences Location: Comment: Page Range All Selection Current Page Pages: Number of copies: 1 Cplate 1 1 2 3 3 Print Cancel Apply

4 The basic print settings including the number of copies and print range are selected within the Print window.

To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 47).

5 To start the print job, click OK or Print in the Print window.

Basic printing

Canceling a print job

If the print job is waiting in the print queue or print spooler, cancel the job as follows:

- You can access this window by simply double-clicking the machine icon

( ) in the Windows task bar.

- You can also cancel the current job by pressing ☒ (Cancel) on the control panel.

Opening printing preferences

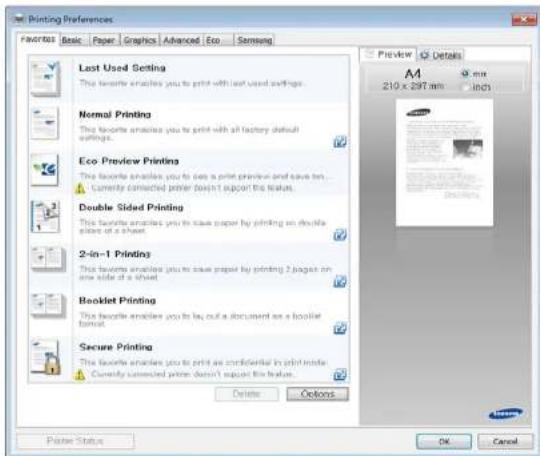

• The Printing Preferences window that appears in this user's guide may differ depending on the machine in use.
• When you select an option in Printing Preferences, you may see a warning mark or . An mark means you can select that certain option but it is not recommended, and an mark means you cannot select that option due to the machine's setting or environment.
• For Windows 8 user, see "Opening more settings" on page 226.

1 Open the document you want to print.
2 Select Print from the file menu. The Print window appears.
3 Select your machine from the Select Printer.
4 Click Properties or Preferences.

The screenshot may differ depending on model.

Last Using Settings This favorite enables you to print with last used settings. Normal Printing This favorite enables you to print with all factory default settings. Eco Preview Printing This favorite enables you to use a print preview and save fun... Currently connected printer doesn't support this feature. Double Sided Printing This favorite enables you to save paper by printing on double sides of a sheet. 2-in-1 Printing This favorite enables you to save paper by printing 2 pages on an side of a sheet. Booklet Printing This favorite enables you to buy out a document on a booklet format. Secure Printing This favorite enables you to print as conditional in print mode Currently connected printer doesn't support this feature. Delete Options Preview Details M 210 x 297 mm 0 mm inch Pulse Status OK Cancel

Basic printing

• You can apply Eco features to save paper and toner before printing (see "Easy Eco Driver" on page 214).
• You can check the machine's current status pressing the Printer Status button (see "Using Samsung Printer Status" on page 222).

Using a favorite setting

The Favorites option, which is visible on each preferences tab except for the Samsung tab, allows you to save the current preferences for future use.

To save a Favorites item, follow these steps:

1 Change the settings as needed on each tab.
2 Enter a name for the item in the Favorites input box.

Favorites test Orientation: - Landscape Layout Options: - Layout: Poster Printing, Post... Save

3 Click Save.

4 Enter name and description, and then select the desired icon.
5 Click OK. When you save Favorites, all current driver settings are saved.

To use a saved setting, select it in the Favorites tab. The machine is now set to print according to the settings you have selected.

To delete saved settings, select it in the Favorites tab and click Delete.

Using help

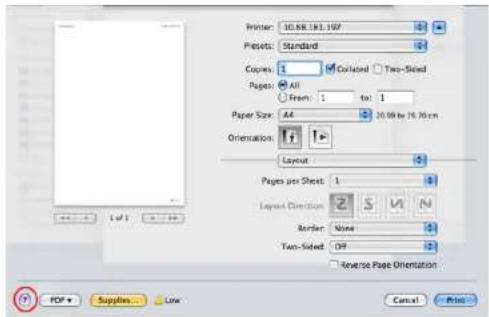

Click the option you want to know on the Printing Preferences window and press F1 on your keyboard.

Basic printing

Eco printing

The Eco function reduces toner consumption and paper usage. The Eco function allows you to save print resources and lead you to eco-friendly printing.

If you press the Eco button from the control panel, Eco mode is enabled. The default setting of Eco mode is double-sided printing (long edge), multiple pages per side (2-up), skip blank pages, and toner save. Some features may not be available depending on the model.

• Double-sided printing (long edge) feature is only available for duplex models (see "Variety feature" on page 10).
• Depending on the printer driver you use, Skip blank pages may not work properly. If Skip blank pages feature does not work properly, set the feature from the Easy Eco Driver (see "Easy Eco Driver" on page 214).

Setting Eco mode on the control panel

• For models that do not have the display screen on the control panel, this feature is not applicable.
• It may be necessary to press OK to navigate to lower-level menus for some models.

1 Select * (Menu) > System Setup > Eco Setup on the control panel.
2 Select the option you want and press OK.

- Default Mode: Select this to turn on or off the eco mode.

• Off: Set the eco mode off.
• On: Set the eco mode on.

If you set the eco mode on with a password from the SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco Settings) or Samsung Easy Printer Manager (Device Settings > Eco), the On force message appears. You have to enter the password to change the eco mode status.

- Change Temp.: Follow the settings from Syncthru™ Web Service or Samsung Easy Printer Manager. Before you select this item, you must set the eco function in SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco Settings) or Samsung Easy Printer Manager (Device Settings > Eco).

• Default Eco: The machine is set to Default Eco mode.
• Custom Eco: Change any necessary values.

3 Press OK to save the selection.

Basic printing

Setting eco mode on the driver

To take advantage of the advanced printing features, click Properties or Preferences from the Print window (see "Opening printing preferences" on page 47).

Open the Eco tab to set Eco mode. When you see the eco image ( ), that means the eco mode is currently enabled.

Eco options

• Printer Default: Follows the settings from the machine's control panel.
• None: Disables Eco mode.
- Eco Printing: Enables eco mode. Activate the various Eco items you want to use.
- Password: If the administrator fixed to enable the Eco mode, you have to enter the password to change the status.

Password button: You can set from SyncThru™ Web Service (Settings tab > Machine Settings > System > Eco Settings) or Samsung Easy Printer Manager (Device Settings > Eco), the password button is activated. To change the print settings, click on this button, enter the password or need to contact the administrator.

Result simulator

Result Simulator shows the results of reduced emission of carbon dioxide, used electricity, and the amount of saved paper in accordance with the settings you selected.

• The results are calculated on the basis that the total number of printed paper is one hundred without a blank page when the Eco mode is disabled.
• Refers to the calculation coefficient about CO2, energy, and paper from IEA, the index of Ministry of Internal Affairs and Communication of Japan and www.remanufacturing.org.uk. Each model has a different index.
• The power consumption in printing mode refers to the average printing power consumption of this machine.
• The actual amount displayed is only an estimate as the actual amount may differ depending on the operating system used, computing performance, application software, connection method, media type [thickness], media size, job complexity, etc.

Basic printing

Secure printing

• This feature is not supported for M332xND/M382xD.
• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.
• You might not be able to print a complex document using the RAM disk. Install an optional memory to print a complex document.

When you use a printing device in an office, school or other public place, you can protect your personal documents or confidential information by using the secure printing feature.

Starting secure printing from the SyncThru™ Web Service

1 Access a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address of your printer (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.
2 Click Login on the upper right of SyncThru™ Web Service website.
3 Settings > Machine Settings > System > Ram Disk.
4 Enable Ram Disk.

This features may not appear on the display depending on options or models. If so, it is not applicable to your machine.

Printing secure documents from the control panel

1 Select ☐ (Menu) > Job Management > Stored Job on the printer's control panel.
2 Select the document to print.
3 Enter the password that you set from the printer driver.
4 Print or delete the document.

Blue circular icon with a white printer symbol (no text or numbers)

3. Maintenance

This chapter provides information about purchasing supplies, accessories and maintenance parts available for your machine.

• Ordering supplies and accessories 53
  • Available consumables 54
  • Available accessories 56
  • Available maintenance parts 57
  • Storing the toner cartridge 58
  • Redistributing toner 60
  • Replacing the toner cartridge 62
• Replacing the imaging unit 65
  • Installing accessories 67
  • Monitoring the supplies life 71
• Setting the toner/imaging unit low alert 72
  • Cleaning the machine 73
  • Tips for moving & storing your machine 77

Ordering supplies and accessories

Available accessories may differ from country to country. Contact your sales representatives to obtain the list of available supplies, and maintenance parts (see "Available consumables" on page 54,"Available accessories" on page 56,"Available maintenance parts" on page 57).

To order Samsung-authorized supplies, accessories, and maintenance parts, contact your local Samsung dealer or the retailer where you purchased your machine. You can also visit www.samsung.com/supplies, and then select your country/region to obtain the contact information for service.

Available consumables

When supplies reach the end of their life spans, you can order the followings of consumables for your machine:

Type	Average yield ^a	Part name
Toner cartridge	Approx. 3,000 pages	M3320 M3820 M4020 series: MLT-D203S
		M3325 M3825 M4025 series: MLT-D204S
	Approx. 5,000 pages	M3320 M3820 M4020 series: MLT-D203L
		M3325 M3825 M4025 series: MLT-D204L
	Approx. 10,000 pages • M3820 M4020 series: MLT-D203E
			M3825 M4025 series: MLT-D204E
	Approx. 15,000 pages • M4020 series: MLT-D203U
			M4025 series: MLT-D204U
Imaging Unit	Approx. 30,000 pages(based on 3 average letter/A4 size pages for print job)	M3325 M3825 M4025 series: MLT-R204

a. Declared yield value in accordance with ISO/IEC 19752.

Depending on the options, percentage of image area and job mode used, the toner cartridge's lifespan may differ.

When purchasing new toner cartridges or other consumables, these must be purchased in the same country as the machine you are using. Otherwise, new toner cartridges or other consumables will be incompatible with your machine due to different configurations of toner cartridges and other consumables according to the specific country conditions.

Available consumables

Samsung does not recommend using non-genuine Samsung toner cartridge such as refilled or remanufactured toner. Samsung cannot guarantee non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine's warranty.

Available accessories

You can purchase and install accessories to enhance your machine's performance and capacity.

Some features and optional goods may not be available depending on models or countries (see "Features by models" on page 8).

Accessory Function Part name
Memory modulea	Extends your machine's memory capacity. ML-MEM370: 512 MB
Optional trayb	If you are experiencing frequent paper supply problems, you can attach an additional 520csheet tray.	• SL-SCF3800d• SL-SCF3805e
IEEE 1284B parallel Connectorf	Allows you to use various interface.[BCYY]When installing the printer driver with an IEEE1284B parallel connector, the machine might not be found and after installing the printer driver, only basic printing features are available.If you want to check the machine's status or set the settings, connect the machine to a computer with a USB cable or a network.If you use the IEEE 1284B parallel connector, you can not use the USB cable.	ML-PAR100

a. Not available for M332xND/382xD
b. Not available for M382xD
c. Plain paper 80 g/m ^2 (20 lb bond).
d. For M3320ND/M3820ND/M3820DW/M4020ND.
e. For M3325ND/M3825ND/M3825DW/M4025ND.
f. To use the optional IEEE 1284B parallel connector, plug it to the UBS port and the 5V output port.

Available maintenance parts

To purchase maintenance parts, contact the source where you bought the machine. Replacing maintenance parts can be performed only by an authorized service provider, dealer, or the retailer where you bought the machine. The warranty does not cover the replacement of any maintenance parts once it has reached its "Average yield".

Maintenance parts are replaced at specific intervals to avoid print quality and paper feed problems resulting from worn parts, see table below. The purpose of which is to maintain your machine in top working condition. The maintenance parts below should be replaced when the life span of each item has been met.

Parts	Average yield ^a
Tray 1 roller Approx. 90,000 pages
Tray 1 retard roller Approx. 60,000 pages
Tray 2 roller Approx. 200,000 pages
Tray 2 retard roller Approx. 100,000 pages
MP roller Approx. 100,000 pages
MP retard roller Approx. 80,000 pages
Transfer roller Approx. 100,000 pages
Fuser unit Approx. 90,000 pages

a. It will be affected by the operating system used, computing performance, application software, connecting method, media, media size and job complexity.

Storing the toner cartridge

Toner cartridges contain components that are sensitive to light, temperature and humidity. Samsung suggests users follow these recommendations to ensure optimal performance, highest quality, and longest life from your new Samsung toner cartridge.

Store this cartridge in the same environment in which the printer will be used. This should be in controlled temperature and humidity conditions. The toner cartridge should remain in its original and unopened package until installation – if original packaging is not available, cover the top opening of the cartridge with paper and store in a dark cabinet.

Opening the cartridge package prior to use dramatically shortens its useful shelf and operating life. Do not store on the floor. If the toner cartridge is removed from the printer, follow the instructions below to store the toner cartridge properly.

• Store the cartridge inside the protective bag from the original package.
• Store lying flat (not standing on end) with the same side facing up as if it were installed in the machine.

• Do not store consumables in any of the following conditions:

• Temperature greater than 40^ C ( 104^ F).

• Humidity range less than 20% or greater than 80%.
• An environment with extreme changes in humidity or temperature.
• Direct sunlight or room light.
• Dusty places.
• A car for a long period of time.
• An environment where corrosive gases are present.

- An environment with salty air.

Handling instructions

• Do not touch the surface of the photoconductive drum in the cartridge.
• Do not expose the cartridge to unnecessary vibrations or shock.
• Never manually rotate the drum, especially in the reverse direction; this can cause internal damage and toner spillage.

Toner cartridge usage

Samsung Electronics does not recommend or approve the use of non-Samsung brand toner cartridges in your printer including generic, store brand, refilled, or remanufactured toner cartridges.

Samsung's printer warranty does not cover damage to the machine caused by the use of a refilled, remanufactured, or non-Samsung brand toner cartridges.

Storing the toner cartridge

Estimated cartridge life

Estimated cartridge life (the life of the toner cartridge yield) depends on the amount of toner that print jobs require. The actual print yield may vary depending on the print density of the pages you print on, operating environment, percentage of image area, printing interval, media type and/or media size. For example, if you print a lot of graphics, the consumption of the toner is higher and you may need to change the cartridge more often.

Redistributing toner

When the toner cartridge is near the end of its life:

• White streaks or light printing occurs and/or density variation side to side.
  • The Status LED blinks red. The toner-related message saying that the toner is low may appear on the display.

If this happens, you can temporarily improve print quality by redistributing the remaining toner in the cartridge. In some cases, white streaks or light printing will still occur even after you have redistributed the toner. Replace the toner cartridge (see "Available consumables" on page 54).

Illustrations on this user's guide may differ from your machine depending on its options or models.

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.
- Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area.
- Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.
• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

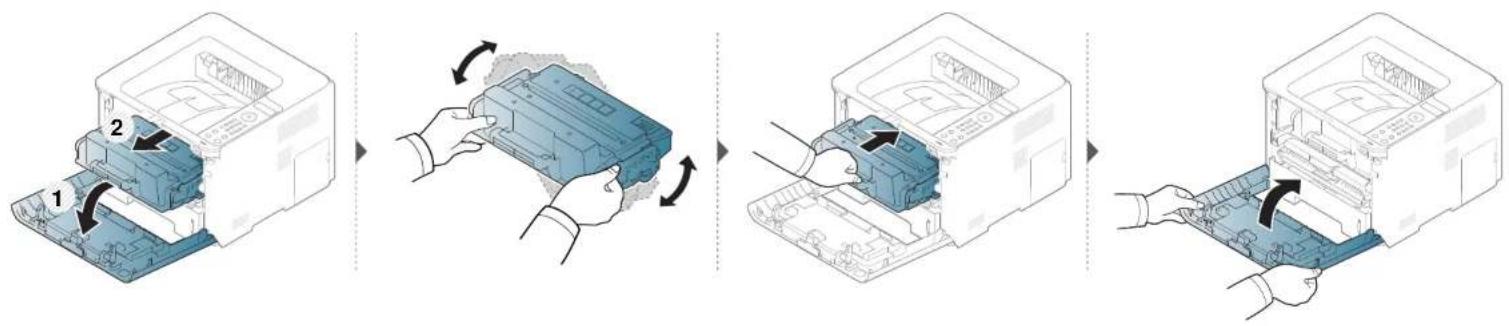

Redistributing toner

M3320/M3820/M4020 series

M3325/M3825/M4025 series

Replacing the toner cartridge

A toner cartridge has almost reached its estimated cartridge life:

• The status LED and the toner-related message on the display indicate when the toner cartridge should be replaced.

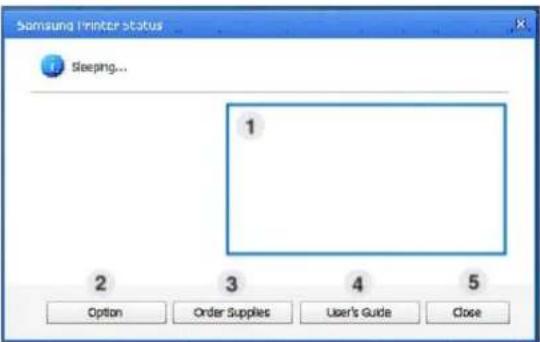

- The computer's Samsung Printing Status Program window appears on the computer telling you when the cartridge is empty (see "Using Samsung Printer Status" on page 222).

• Shake the toner cartridge thoroughly, it will increase the initial print quality.
• Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.
- Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area.
- Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.
• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

Toner cartridge

When a toner cartridge has reached the end of life, the machine will stop printing.

Replacing the toner cartridge

M3320 M3820 M4020 series

Replacing the toner cartridge

M3325 M3825 M4025 series

Replacing the imaging unit

When a imaging unit has reached the end of life, the machine will stop printing.

• Do not use sharp objects such as a knife or scissors to open the toner cartridge package. They might scratch the drum of the cartridge.
• If toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric.

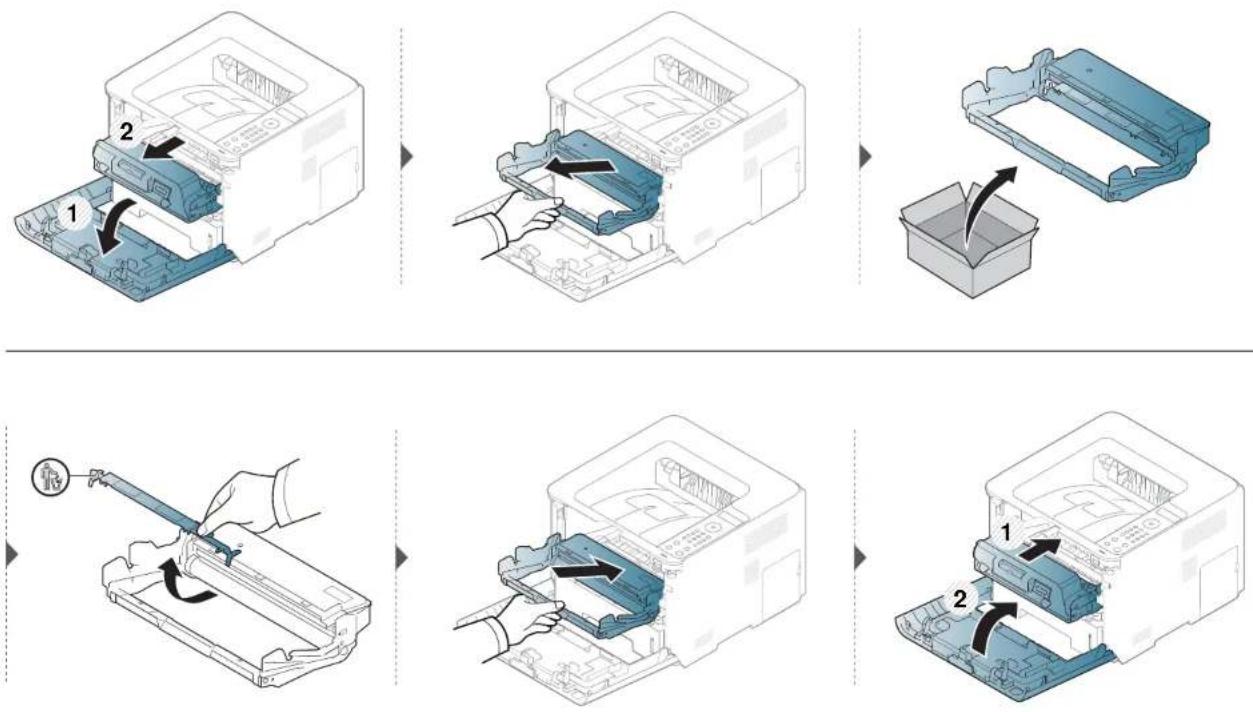

Replacing the imaging unit

Imaging unit

M3325/M3825/M4025 series

Installing accessories

Precautions

- Disconnect the power cord

Never remove the control board cover while the power is turned on.

To avoid the possibility of an electrical shock, always disconnect the power cord when installing or removing ANY internal or external accessories.

• Discharge static electricity

The control board and internal accessories (network interface card or memory module) are sensitive to static electricity. Before installing or removing any internal accessories, discharge static electricity from your body by touching something metal, such as the metal back plate on any device plugged into a grounded power source. If you walk around before finishing the installation, repeat this procedure to discharge any static electricity again.

When installing accessories, the battery inside the machine is a service component. Do not change it by yourself. There is a risk of an explosion if battery is replaced by an incorrect type. Dispose used batteries according to the instructions.

Setting Device Options

When you install the optional devices such as optional tray, memory, etc, this machine automatically detects and sets the optional devices. If you cannot use the optional devices you installed in this driver, you need to set the optional devices in Device Options.

1 Click the Windows Start menu.

• For Windows 8, from the Charms, select Search > Settings.

2 For Windows XP/2003, select Printers and Faxes.

- For Windows 2008/Vista, select Control Panel > Hardware and Sound > Printers.

- For Windows 7, select Control Panel > Hardware and Sound > Devices and Printers.

- For Windows 8, search for Devices and Printers.

- For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers.

3 Right-click your machine.

4 For Windows XP/2003/2008/Vista, press Properties.

For Windows 7, Windows 8, and Windows Server 2008 R2, from context menus, select the Printer properties.

Installing accessories

If Printer properties item has ▶ mark, you can select other printer drivers connected with selected printer.

Select Device Options.

The Properties window may differ depending on the driver or operating system you are using.

Select the appropriate option.

Some menus may not appear in the display depending on options or models. if so, it is not applicable to your machine.

• Tray Options: Select the optional tray you installed. You can select the tray.
• Storage Options: Select the optional memory you installed. If this feature is checked, you can select the Print Mode.
  • Printer Configuration: Select the printer language for the print job.

• Administrator Settings: You can select the Printer Status and EMF Spooling.

• Admin Job Accounting: Allows you to associate user and account identification information with each document you print.

• User permission: If you check this option, only users with user permission can start a print job.
• Group permission: If you check this option, only groups with group permission can start a print job.

If you want to encrypt job accounting password, check Job Accounting Password Encryption.

- Custom Paper Size Settings: You can specify custom paper size.

Click OK until you exit the Properties or Printer properties window.

Installing accessories

Upgrading a memory module

Your machine has a dual in-line memory module (DIMM). Use this memory module slot to install additional memory. We recommend the use of only genuine Samsung DIMM's. You may void your warranty if it is determined that your machine problem is being caused by third party DIMM's.

The order information is provided for optional accessories (see "Available accessories" on page 56).

• After installing the optional memory, you can use the advanced printing features, such as proofing a job and specifying of printing a secure print job in the printer properties window. You can control the active job queue and file policy in Job Management menu (see "Using optional device features" on page 208).
  • Not supported for M332xND/M3825D.

Installing accessories

Monitoring the supplies life

If you experience frequent paper jams or printing problems, check the number of pages the machine has printed or scanned. Replace the corresponding parts, if necessary.

• For models that do not support the display screen: In ready mode, press and hold (Cancel) button for about 6 seconds, then release. A supplied Information report prints out.
• It may be necessary to press OK to navigate to lower-level menus for some models.

1 Select (Menu) > System Setup > Maintenance > Supplies Life on the control panel.
2 Select the option you want and press OK.
3 Press ☒ (Cancel) to return to ready mode.

Setting the toner/imaging unit low alert

If the amount of toner in the cartridge is low, a message or LED informing the user to change the toner cartridge appears. You can set the option for whether or not this message or LED appears.

For models that do not support the display screen on the control panel, you can set the machine's settings by using the Device Settings in Samsung Easy Printer Manager program.

- For Windows and Mac users, you set from Samsung Easy Printer Manager > 📋 (Switch to advanced mode) > Device Settings, see "Device Settings" on page 221.

1 Select (Menu) > System Setup > Maintenance > TonerLow Alert or ImgU.Low Alert on the control panel.
2 Select the option you want.
3 Press OK to save the selection.

Cleaning the machine

If printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing condition and use your machine longer.

• Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the cabinet.
• If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum cleaner, toner blows in the air and might be harmful to you.

Cleaning the outside

Clean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.

Cleaning the machine

Cleaning the inside

During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks or smearing. Cleaning the inside of the machine clears and reduces these problems.

• To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary.

- Do not touch the green area of the toner cartridge. Use the handle on the cartridge to avoid touching this area.

- Use a dry lint free cloth when cleaning the inside of the machine, be careful not to damage the transfer roller or any other inside parts. Do not use solvents such as benzene or thinner. Printing quality problems can occur and cause damage to the machine.

- Use a dry lint-free cloth to clean the machine.

- Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine.

- Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).

Cleaning the machine

Cleaning the machine

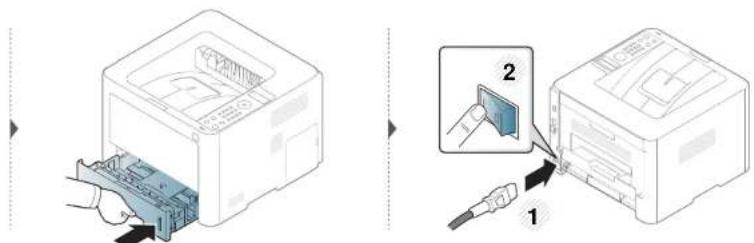

Cleaning the pickup roller

• Turn the machine off and unplug the power cord. Wait for the machine to cool down. If your machine has a power switch, turn the power switch off before cleaning the machine.
• Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).

Diagram illustrating the step-by-step installation of a microwave oven, showing component insertion and cleaning process.

Diagram showing printer setup with labeled parts, including a close-up of the printer's internal structure and cable connection.

Tips for moving & storing your machine

• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to the machine or reduce print quality.
• When moving the machine, make sure at least two people are holding the machine securely.

Blue circular icon with a white printer symbol (no text or numbers)

4. Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

• Tips for avoiding paper jams 79
- Clearing paper jams 80
• Understanding the status LED 92
• Understanding display messages 95

This chapter gives helpful information for what to do if you encounter an error. If your machine has a display screen, check the message on the display screen first to solve the error.

If you cannot find a solution to your problem in this chapter, refer to the Troubleshooting chapter in the Advanced Guide (see "Troubleshooting" on page 234).

If you cannot find a solution in the User's Guide or the problem persists, call for service.

Tips for avoiding paper jams

By selecting the correct medias, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:

• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 35).
• Do not remove paper from the tray while your machine is printing.
  • Flex, fan, and straighten paper before loading.
• Do not use creased, damp, or highly curled paper.
• Do not mix papers in a tray.
  • Use only recommended print media (see "Print media specifications" on page 103).

Clearing paper jams

To avoid tearing the paper, pull the jammed paper out slowly and gently.

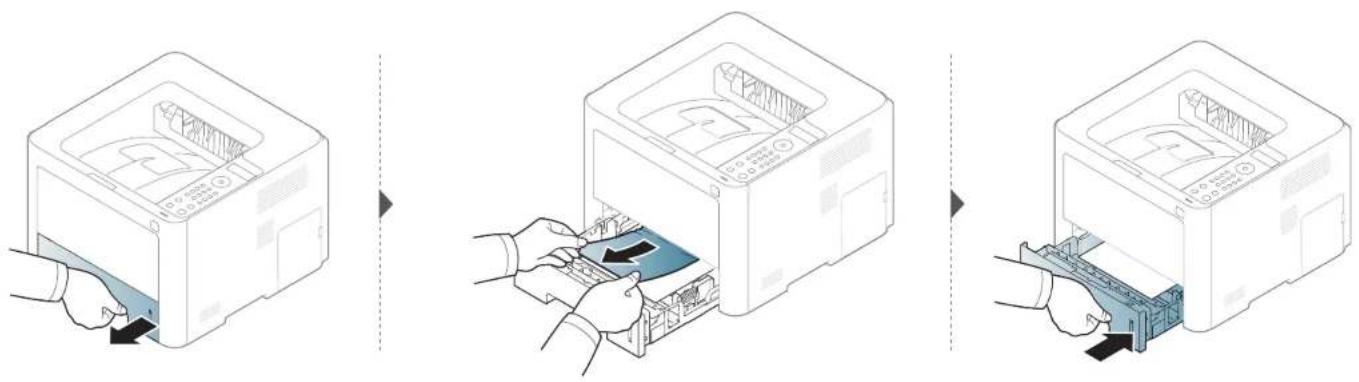

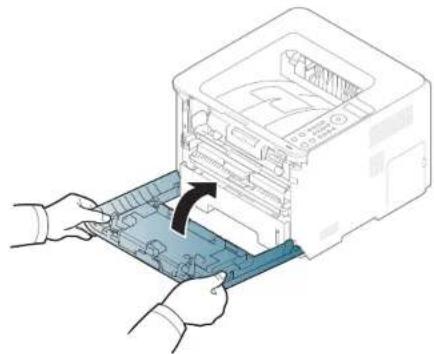

In tray 1

Illustrations on this user's guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).

Diagram showing three steps of a printer press operation: adding to a printer, adding internal components, and adding to a final printer.

Clearing paper jams

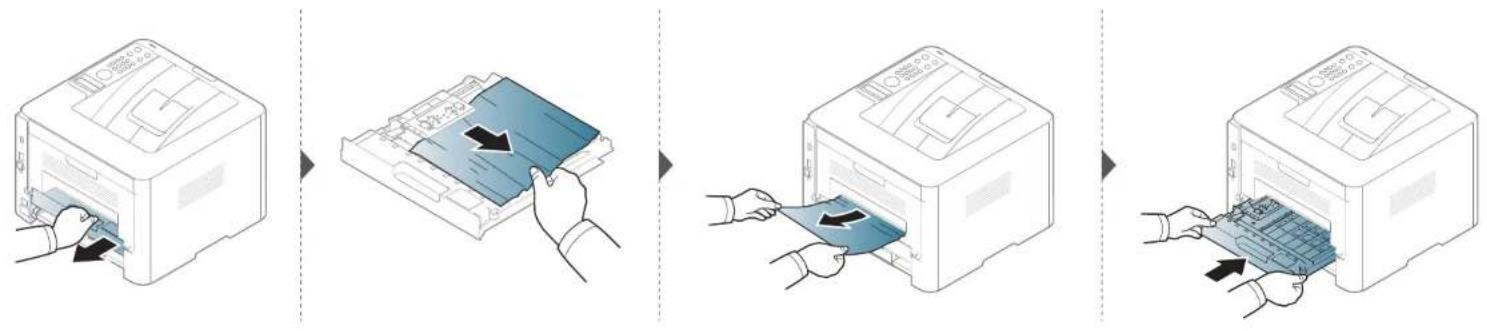

In optional tray

Clearing paper jams

If you do not see the paper in this area, stop and go to next step:

Illustration of a printer with a hand inserting a blue cover into the paper (no text or symbols visible)

Illustration of hands inserting a card into a printer (no text or symbols visible)

Illustration of a printer's internal structure with hands inserting into the page (no text or symbols visible)

1. Troubleshooting

Clearing paper jams

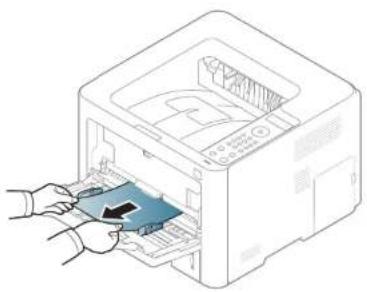

In the manual feeder/multi-purpose tray

M332xND/M382xD series

Illustration of a printer being inserted into a paper airplane, showing the printer's internal structure and the paper plane (no text or symbols present)

Clearing paper jams

M382xND/M382xDW/M402xND series

Illustration of hands inserting a card into a printer (no text or symbols visible)

Clearing paper jams

Inside the machine

The fuser area is hot. Take care when removing paper from the machine.

Clearing paper jams

M3320/M3820/M4020 series

Clearing paper jams

M3325/M3825/M4025 series

Diagram of a printer internal structure with labeled parts 1 and 2

Illustration of hands installing or adjusting a computer motherboard with an open chassis (no text or symbols visible)

Clearing paper jams

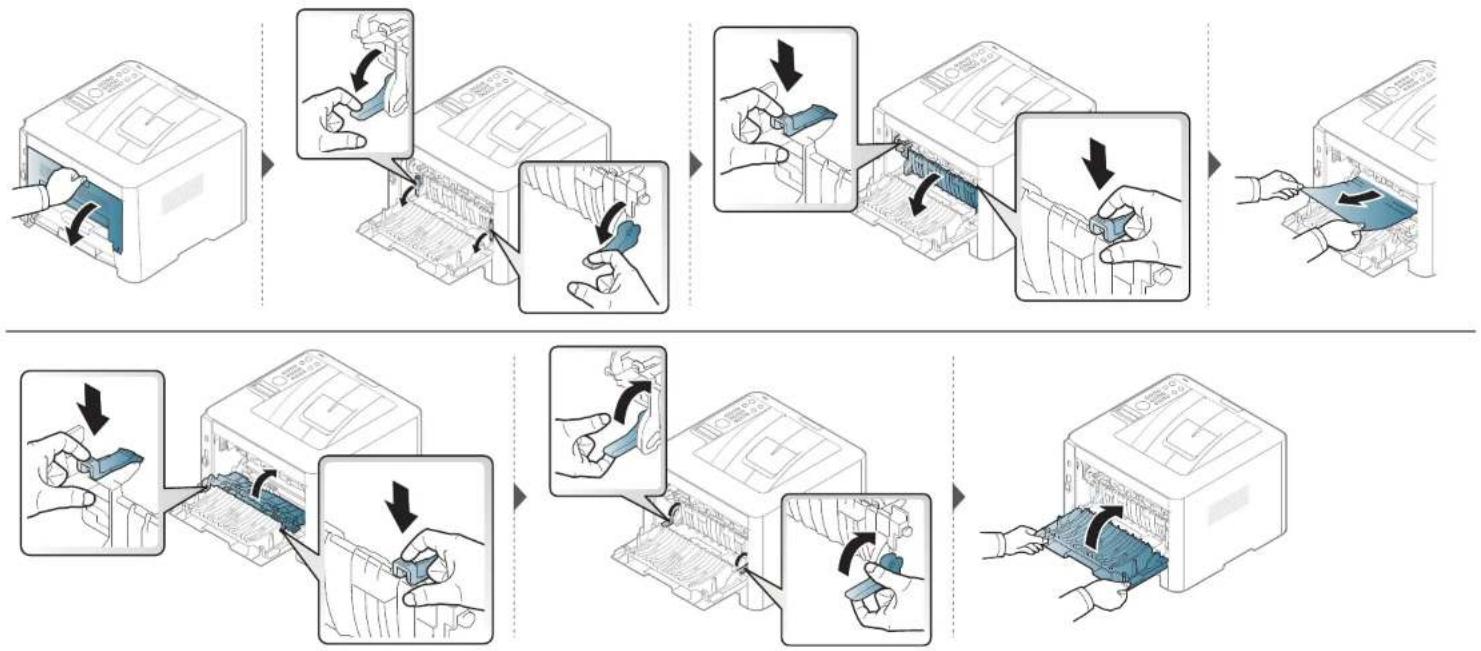

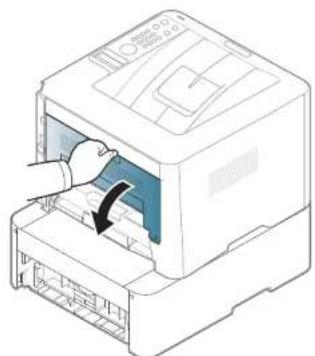

In exit area

The fuser area is hot. Take care when removing paper from the machine.

Illustration of hands inserting a card into a printer (no text or symbols visible)

Clearing paper jams

If you do not see the paper in this area, stop and go to next step:

Clearing paper jams

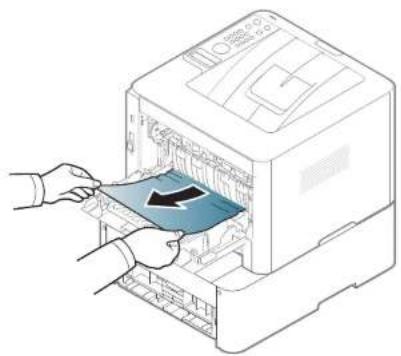

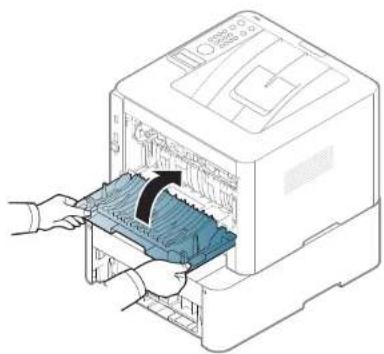

In the duplex unit area

Clearing paper jams

If you do not see the paper in this area, stop and go to next step:

    subgraph Before
        I["Start"] --> J["Close"] --> K["Close"] --> L["Close"] --> M["Close"] --> N["Close"] --> O["Close"] --> P["Close"] --> Q["Close"] --> R["Close"] --> S["Close"] --> T["Close"] --> U["Close"] --> V["Close"] --> W["Close"] --> X["Close"] --> Y["Close"] --> Z["Close"] --> AA["Close"] --> AB["Close"] --> AC["Close"] --> AD["Close"] --> AE["Close"] --> AF["Close"] --> AG["Close"] --> AH["Close"] --> AI["Close"] --> AJ["Close"] --> AK["Close"] --> AL["Close"] --> AM["Close"] --> AN["Close"] --> AO["Close"] --> AP["Close"] --> AQ["Close"] --> AR["Close"] --> AS["Close"] --> AT["Close"] --> AU["Close"] --> AV["Close"] --> AW["Close"] --> AX["Close"] --> AY["Close"] --> AZ["Close"] --> BA["Close"] --> BB["Close"] --> BC["Close"] --> BD["Close"] --> BE["Close"] --> BF["Close"] --> BG["Close"] --> BH["Close"] --> BI["Close"] --> BJ["Close"] --> BK["Close"] --> BL["Close"] --> BM["Close"] --> BN["Close"] --> BO["Close"] --> BP["Close"] --> BPB["Close"] --> BZ["Close"] --> BZB["Close"] --> BZB2
    end

    subgraph After
        I2["Start"] --> J2["Close"] --> K2["Close"] --> L2["Close"] --> M2["Close"] --> N2["Close"] --> B2["Close"] --> BR2["Close"] --> BR2B2["B2B2"]
    end

    style Before fill:#f9f,stroke:#333
    style After fill:#bbf,stroke:#333

Understanding the status LED

The color of the LED indicates the machine's current status.

• Some LEDs may not be available depending on model or country (see "Control panel overview" on page 22).
  • To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Understanding display messages" on page 95).
• You also can resolve the error with the guideline from the computers's Samsung Printing Status program window (see "Using Samsung Printer Status" on page 222).
• If the problem persists, call a service representative.

Understanding the status LED

LED Status Description
(«•»/⚠)Status	Off The machine is off-line.
	Green	Blinking	When the backlight blinks, the machine is receiving or printing data.
		On • The machine is on-line and can be used.
	Red	Blinking	A minor error has occurred and the machine is waiting for the error to be cleared. For models that supports display screen on the control panel, check the display message. When the problem is cleared, the machine resumes.Small amount of toner is left in the cartridge. The estimated cartridge life ^a of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 60). ^b
		On	A toner cartridge has almost reached its estimated cartridge life ^a , It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 62).The cover is opened. Close the cover.There is no paper in the tray when receiving or printing data. Load paper in the tray.The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 95).A paper jam has occurred (see "Clearing paper jams" on page 80).An imaging unit has almost reached it's estimated cartridge life ^c . It is recommended to replace the toner cartridge.
(ⓧ) W	Blue S	Blinking The machine is attempting to connect to a wireless network.
		On	The machine is connected to a wireless network (see "Wireless network setup" on page 145).
		Off The machine is disconnected from a wireless network.
(⓪) Power	Blue	On The machine is in power save mode.
		Off	The machine is in ready mode or machine's power is off.

Understanding the status LED

LED Status Description
Eco Green		On Eco mode is on (see "Eco printing" on page 49).
		Off Eco mode is off.

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19798. The number of pages may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.

b. Some LEDs may not be available depending on model or country (see "Control panel overview" on page 22).

c. When the imaging unit has reached its end of life, the machine will stop printing. In this case, you can choose to stop or continue printing from the SyncThru™ Web Service (Settings > Machine Settings > System > Setup > Supplies Management> Imaging Unit Stop) or Samsung Easy Printer Manager (Device Settings > System > Supplies Management > Imaging Unit Stop). Turning off this option and continuing to print may damage the device's system.

Understanding display messages

Messages appear on the control panel display to indicate the machine's status or errors. Refer to the tables below to understand the messages' and their meaning, and correct the problem, if necessary.

• You can resolve the error with the guideline from the computers's Printing Status program window (see "Using Samsung Printer Status" on page 222).
• If a message is not in the table, reboot the power and try the printing job again. If the problem persists, call a service representative.
• When you call for service, provide the service representative with the contents of display message.
• Some messages may not appear on the display depending on the options or models.
  • [error number] indicates the error number.
  • [tray type] indicates the tray number.
  • [media type] indicates the media type.
  • [media size] indicates the media size.

Paper Jam-related messages

Message Meaning Suggested solutions
Paper jam in exit area	Paper has jammed in the exit area.	Clear the jam (see "In exit area" on page 88).

Message Meaning Suggested solutions
Paper jam inside of duplex	Paper has jammed during duplex printing. This is applicable only to machines with this feature.	Clear the jam (see "In the duplex unit area" on page 90).
Paper jam inside machine	Paper has jammed in inside the machine.	Clear the jam (see "Inside the machine" on page 85).
Paper jam in tray1 Paper	has jammed in the tray.	Clear the jam (see "In tray 1" on page 80).
Paper jam in tray 2 Paper	has jammed in the optional tray.	Clear the jam (see "In optional tray" on page 81).
Paper jamin MP tray Paper	has jammed in the multi-purpose tray.	Clear the jam (see "In the manual feeder/ multi-purpose tray" on page 83).

Understanding display messages

Toner-related messages

Message Meaning Suggested solutions
Install toner A toner cartridge is not installed.		Reinstall the toner cartridge.
		A toner cartridge is not being detected
		Not removed protective film from toner.
Not Compatible Toner cartridge	The indicated toner cartridge is not suitable for your machine.	Install the corresponding toner cartridge with a Samsung-genuine cartridge (see "Replacing the toner cartridge" on page 62).
Prepare new cartridge	Small amount of toner is left in the indicated cartridge. The estimated cartridge life ^a of toner is close.	Prepare a new cartridge for a replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 60).

Message Meaning Suggested solutions
Replace new cartridge	A toner cartridge has reached its estimated cartridge lifea.	You can chooseStopor Continueas shown on the control panel. If you selectStop, the printer stops printing. If you selectContinue, the printer keeps printing but the printing quality cannot be guaranteed.Replace the toner cartridge for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the toner cartridge" on page 62).

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19798 (see "Available consumables" on page 54). The number of pages may be affected by operating environment, percentage of image area, printing interval, media, percentage of image area, and media size. Some amount of toner may remain in the cartridge even when replace new cartridge appears and the machine stops printing.

Samsung does not recommend using a non-genuine Samsung toner cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty.

Understanding display messages

Imaging unit-related messages

Message Meaning Suggested solutions
Not Installed Imaging unit	An imaging unit is not installed.	Reinstall the imaging unit.
	An imaging unit is not being detected	Reinstall the imaging unit two or three times to confirm it is seated properly. If the problem persists, contact the service representatives.
	Not remove protective film from toner.	Remove the protective film from the imaging unit.
Not compatible Imaging unit	The imaging unit is not suitable for your machine.	Install the corresponding cartridge with a Samsung-genuine cartridge (see "Replacing the imaging unit" on page 65).
Prepare new Image unit	Small amount of toner is left in the imaging unit. The estimated cartridge life of toner is close.	Prepare a new imaging unit for a replacement.

Message Meaning Suggested solutions
Replace newImage unit	An imaging unit has reached its estimated cartridge life.	You can chooseStopor Continueas shown on the control panel. If you selectStop, the printer stops printing. If you selectContinue, the printer keeps printing but the printing quality cannot be guaranteed.Replace the imaging unit for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the imaging unit" on page 65).If the machine stops printing, replace the imaging unit (see "Replacing the imaging unit" on page 65).

Samsung does not recommend using a non-genuine Samsung cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung cartridge's quality. Service or repair required as a result of using non-genuine Samsung cartridges will not be covered under the machine warranty.

Understanding display messages

Tray-related messages

Message Meaning Suggested solutions
Paper Emptyin [tray number]	There is no paper in the indicated tray.	Load paper in the tray (see "Loading paper in the tray" on page 36).

Network-related messages

Message Meaning Suggested solutions
Network Problem:IP Conflict	The IP address is used elsewhere.	Check the IP address or obtain a new IP address.
802.1xNetwork Error	Fail to authenticate. Check the network authentication protocol. If the problem persists, contact your network administrator.

Misc. messages

Message Meaning Suggested solutions
Door OpenClose it	The cover is not securely latched.	Close the cover until it locks into place.
Error [error number]Install toner	The toner cartridge is installed improperly, or the connector is polluted.	Reinstall the Samsung-genuine toner cartridge two or three times to confirm it is seated properly. If the problem persists, please call for service.
Error [error number]Turn off then on	The machine unit cannot be controlled.	Reboot the power and try the printing job again. If the problem persists, please call for service.
Error [error number]Call for service
Not proper room temp. Move set	The machine is in a room with improper room temperature.	Move the machine to a room with proper room temperature.

Understanding display messages

Message Meaning Suggested solutions
Output bin Full Remove paper	The output tray is full. Remove papers from the output tray, the machine resumes printing. If the problem persists, call for service.
Replace Fuser Soon	The life of the fuser unit will be expired soon.	Replace the fuser unit with a new one. If the problem persists, please call for service.
Replace new Fuser unit	The life of the fuser unit will be expired.
• Replace new Tray1 roller	The life of the tray pick-up roller will expired soon.	Replace the tray pick-up roller with a new one. If the problem persists, please call for service.
• Replace new Tray2 roller	The life of the tray pick-up roller will expired.

Blue circular icon with a white printer symbol (no text or numbers)

5. Appendix

This chapter provides product specifications and information concerning applicable regulations.

• Specifications 101
  • Regulatory information 109
  • Copyright 119

Abstract icon of overlapping document sheets with no text or symbols

Specifications

General specifications

The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information.

Items Description
Dimension Width x Length x Height 366 x 365.6 x 262.5 mm (14.4 x 14.39 x 10.33 inches)
Weight	Machine with consumables	M332xND/M382xD series: 9.86 kg (21.7 lbs)M382xND/M382xDW/M402xND series: 10.18 kg (22.4 lbs)
Noise Levela	Ready mode Less than 26 dB (A)
	Print mode	M332x series: Less than 55 dB (A)M382x/M402x series: Less than 57 dB (A)
Temperature Operation 10 to 30 °C (50 to 86 °F)
Humidity Operation 20 to 80% RH
Power ratingb	Storage (packed) 10 to 90% RH
	110 volt models AC 110 - 127 V
	220 volt models AC 220 - 240 V

Specifications

Items Description
Power consumption Average	age operating mode Less than 700 W
	Ready mode Less than 10 W
	Power save mode^c	Less than 1.1W (Wi-Fi Direct on: Less than 2.8 W^d )
	Power off mode^e	Less than 0.1 W
Wireless^f	Module SPW-B4319U

a. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.
b. See the rating label on the machine for the correct voltage (V), frequency (hertz) and of current (A) for your machine.
c. The power consumption of power save mode may be affected by machine's status, setting conditions, operating environment.
d. Wireless model only (see "Features by models" on page 8).
e. Power consumption can be completely avoided only when the power cable is not connected.
f. Wireless models only (see "Features by models" on page 8).

Specifications

Print media specifications

Type Size Dimensions			Print media weight/Capacity ^a
			Tray1 / Optional tray Multi-purpose tray		Manual feeder ^b c
Plain paper Letter	216 x 279 mm (8.5 x 11 inches)		70 to 85 g/m ^2 (19 to 24 lbs bond)	70 to 85 g/m ^2 (19 to 24 lbs bond)	70 to 85 g/m ^2 (19 to 24 lbs bond)
	Legal 216 x 356 mm (8.5 x 14 inches)
	US Folio 216 x 330 mm (8.5 x 13 inches)		·250 sheets of 80 g/m ^2 (20 lbs bond)	·50 sheets of 80 g/m ^2 (20 lbs bond)	·1 sheet of 80 g/m ^2 (20 lbs bond)
	A4 210 x 297 mm (8.26 x 11.69 inches)
	Oficio 216 x 343 mm (8.5 x 13.5 inches)
	JIS B5 182 x 257 mm (7.16 x 10.11 inches)
	ISO B5 176 x 250 mm (6.93 x 9.84 inches)
	Executive 184 x 267 mm (7.25 x 10.5 inches)
	A5 148 x 210 mm (5.82 x 8.26 inches)
	A6 105 x 148 mm (4.13 x 5.82 inches)		·150 sheets of 75 g/m ^2 (20 lbs bond)
Envelope	Envelope Monarch	98 x 191 mm (3.87 x 7.5 inches)	Not available in tray1/optional tray.	75 to 90 g/m ^2 (20 to 24 lbs bond)	75 to 90 g/m ^2 (20 to 24 lbs bond)
	Envelope No. 10	105 x 241 mm (4.12 x 9.5 inches)
	Envelope DL	110 x 220 mm (4.33 x 8.66 inches)
	Envelope C5	162 x 229 mm (6.37 x 9.01 inches)
	Envelope C6	114 x 162 mm (4.48 x 6.38 inches)
Thick paper Refer to the Plain paper section		Refer to the Plain paper section	86 to 105 g/m ^2 (23 to 28 lbs bond)	86 to 105 g/m ^2 (23 to 28 lbs bond)	86 to 105 g/m ^2 (23 to 28 lbs bond)
Thicker paper	Refer to the Plain paper section	Refer to the Plain paper section	Not available in tray1/optional tray.	164 to 220 g/m ^2 (44 to 58 lbs bond)	164 to 220 g/m ^2 (44 to 58 lbs bond)
Thin paper Refer to the Plain paper section		Refer to the Plain paper section	60 to 70 g/m ^2 (16 to 19 lbs bond)	60 to 70 g/m ^2 (16 to 19 lbs bond)	60 to 70 g/m ^2 (16 to 19 lbs bond)

Specifications

Type Size Dimensions			Print media weight/Capacity ^a
			Tray1 / Optional tray	Multi-purpose tray	Manual feeder ^b c
Transparency Letter, A4 Refer to the Plain paper section Not available in tray1/ optional tray.			138 to 146 g/m ^2 (36.81 to 38.91 lbs bond)	138 to 146 g/m ^2 (36.81 to 38.91 lbs bond)
Labels ^d	Letter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5	Refer to the Plain paper section Not available in tray1/ optional tray.	120 to 150 g/m ^2 (32 to 40 lbs bond)	120 to 150 g/m ^2 (32 to 40 lbs bond)
Card stock Letter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5		Refer to the Plain paper section	121 to 163 g/m ^2 (32 to 43 lbs bond)	121 to 163 g/m ^2 (32 to 43 lbs bond)	121 to 163 g/m ^2 (32 to 43 lbs bond)
Bond paper Refer to the Plain paper section		Refer to the Plain paper section	106 to 120 g/m ^2 (28 to 32 lbs bond)	106 to 120 g/m ^2 (28 to 32 lbs bond)	106 to 120 g/m ^2 (28 to 32 lbs bond)
Minimum size (custom) ^e , ^f		· Multi-purpose(or manual feeder) tray: 76 x 127 mm (2.99 x 5 inches)· Tray 1: 105 x 148.5 mm (4.13 x 5.85 inches)	60 to 163 g/m ^2 (16 to 43 lbs bond)Not available in optional tray.
Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)

a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions.
b. M332xND/M382xD series only.
c. 1 sheet for manual feeder.
d. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.
e. The paper types available in multi-purpose tray: Plan, Thick, Thicker, Thin, Cotton, Colored, Pre-printed, Recycled, Envelope, Transparency, Labels, Cardstock, Bond, Archive
f. The paper types available in tray 1: Plan, Thick, Thin, Recycled, Cardstock, Bond, Archive

Specifications

System requirements

Microsoft® Windows®

Operating system	Requirement (recommended)
	CPU RAM free HDD space
Windows® XP Intel	® Pentium® III 933 MHz (Pentium IV 1 GHz)	128 MB (256 MB) 1.5 GB
Windows Server® 2003 Intel	® Pentium® III 933 MHz (Pentium IV 1 GHz)	128 MB (512 MB) 1.25 GB to 2 GB
Windows Server® 2008 Intel	® Pentium® IV 1 GHz (Pentium IV 2 GHz)	512 MB (2 GB) 10 GB
Windows Vista®	Intel® Pentium® IV 3 GHz	512 MB (1 GB) 15 GB
Windows® 7 Intel	® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher	1 GB (2 GB) 16 GB
	• Support for DirectX ® 9 graphics with 128 MB memory (to enable the Aero theme). • D V D - R / W D r i v e
Windows Server® 2008 R2 Intel	® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster)	512 MB (2 GB) 10 GB
Windows® 8 Intel	® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher	1 GB (2 GB) 16 GB

• Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.
• Users who have administrator rights can install the software.
  • Windows Terminal Services is compatible with your machine.

Specifications

Mac

Operating system	Requirements (Recommended)
	CPU RAM Free HDD space
Mac OS X 10.5	• I n® processors• 867 MHz or faster Power PC G4/G5	512 MB (1 GB) 1 GB
Mac OS X 10.6	• I n® processors	1 GB (2 GB) 1 GB
Mac OS X 10.7 - 10.8	• I n® processors	2 GB 4 GB

Linux

Items Requirements
Operating system	Redhat® Enterprise Linux WS 4, 5, 6 (32/64 bit)Fedora 5 ~ 15 (32/64 bit)OpenSuSE® 10.2, 10.3, 11.0, 11.1, 11.2, 11.3, 11.4 (32/64 bit)Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit)Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04, 10.10, 11.04 (32/64 bit)SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)Debian 4.0, 5.0, 6.0 (32/64 bit)
CPU Pentium IV 2.4GHz (Intel CoreTM2)
RAM 512 MB (1 GB)

Specifications

Items Requirements
Free HDD space 1 GB (2 GB)

Unix

Items Requirements
Operating system	Sun Solaris 9, 10, 11 (x86, SPARC)HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium)IBM AIX 5.1, 5.2, 5.3, 5.4, 6.1, 7.1 (Power PC)
Free HDD space Up to 100 MB

Specifications

Network environment

Network and wireless models only (see "Features by models" on page 8).

You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine.

Items Specifications
Network interface · Ethernet 10/100/1000 Base-TX Wired Lan
	802.11b/g/n Wireless LAN
Network operating system	Wi n®dKP,Windows Server®2003, Windows Vista®, Windows®7, Windows®8, Windows Server®2008 R2V a r i o u s L i n u x O SMac OS X 10.5 -10.8U N I X O S
Network protocols · T C P /	IP v 4DHCP, BOOTPDNS, WINS, Bonjour, SLP, UPnPStandard TCP/IP Printing (RAW), LPR, IPP, WSD, AirPrint, Google Cloud PrintSNMPv 1/2/3, HTTP, IPSecTCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)
Wireless security	Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)Encryption: WEP64, WEP128, TKIP, AES

Regulatory information

This machine is designed for a normal work environment and certified with several regulatory statements.

Laser safety statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1:2007.

Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.

Warning

Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.

When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

CAUTION - CLASS 3B. INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM.

DANGER - INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.

Regulatory information

Ozone safety

This product's ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.

Power saver

This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.

When the printer does not receive data for an extended period of time, power consumption is automatically lowered.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

For more information on the ENERGY STAR program see http://www.energystar.gov

For ENERGY STAR certified models, the ENRGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified.

Recycling

Recycle or dispose of the packaging material for this product in an environmentally responsible manner.

China only

回收和再循环

Regulatory information

Correct disposal of this product (Waste electrical & electronic equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other s of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

(The United States of America only)

Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 0799

State of California Proposition 65 Warning (US Only)

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of chemicals known to the State of California to cause cancer or reproductive toxicity and requires businesses to warn of potential exposure to such chemicals.

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. This appliance can cause low-level exposure to the chemicals, which can be minimized by operating the appliance in a well ventilated area.

Radio frequency emissions

FCC information to the user

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

• Appendix

Regulatory information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or experienced radio TV technician for help.

Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment.

Canadian radio interference regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled "Digital Apparatus", ICES-003 of the Industry and Science Canada.

United States of America

Federal Communications Commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

Regulatory information

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your printer, is well below the RF exposure limits as set by the FCC.

This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

FCC Statement for Wireless LAN use:

While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1m W/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device cannot be colocated with another transmitter and transmitting antenna.

Russia only

AB57

Germany only

Regulatory information

Turkey only

• RoHS

This EEE is compliant with RoHS.

This telecommunication equipment conforms to NTC technical requirement.

Replacing the Fitted Plug (for UK Only)

Important

The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover.

Contact the people from you purchased the machine.

The 13 amp plug is the most widely used in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug.

If you cut off the moulded plug, get rid of it straight away.

You cannot rewire the plug and you may receive an electric shock if you plug it into a socket.

Important warning:

You must earth this machine.

The wires in the mains lead have the following color code:

• Green and Yellow: Earth
- Blue: Neutral
• Brown: Live

If the wires in the mains lead do not match the colors marked in your plug, do the following:

You must connect the green and yellow wire to the pin marked by the letter "E" or by the safety 'Earth symbol' or colored green and yellow or green.

You must connect the blue wire to the pin which is marked with the letter "N" or colored black.

Regulatory information

You must connect the brown wire to the pin which is marked with the letter "L" or colored red.

You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

Declaration of conformity (European countries)

Approvals and Certifications

Hereby, Samsung Electronics, declares that this [ProXpress M332xND, ProXpress M382xD, ProXpress M382xND, ProXpress M402xND] is in compliance with the essential requirements and other relevant provisions of Low Voltage Directive (2006/95/EC), EMC Directive (2004/108/EC).

Hereby, Samsung Electronics, declares that this [ProXpress M382xDW] is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC.

The declaration of conformity may be consulted at www.samsung.com, go to Support > Download center and enter your printer (MFP) name to browse the EuDoC.

January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment.

January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative.

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European single terminal connection to the analogue public switched telephone network (PSTN) in accordance with Directive 1999/5/EC. The product has been designed to work with the national PSTNs and compatible PBXs of the European countries:

In the event of problems, you should contact the Euro QA Lab of Samsung Electronics Co., Ltd. in the first instance.

The product has been tested against TBR21. To assist in the use and application of terminal equipment which complies with this standard, the European Telecommunication Standards Institute (ETSI) has issued an advisory document (EG 201 121) which contains notes and additional requirements to ensure network compatibility of TBR21 terminals. The product has been designed against, and is fully compliant with, all of the relevant advisory notes contained in this document.

Regulatory information

European radio approval information (for products fitted with EU-approved radio devices)

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

CE

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark is on the system label.

The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

European states qualified under wireless approvals:

EU countries

European states with restrictions on use:

EU

EEA/EFTA countries

No limitations at this time

Israel only

Regulatory compliance statements

Wireless guidance

Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

Regulatory information

The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use.

Regardless of the power levels, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operation in conjunction with any other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane. IEEE 802.11 (also known as wireless Ethernet) and Bluetooth communication devices are examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.

Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

Regulatory information

China only

产品中有毒有害物质或元素的名称及含量

部件名称	有毒有害物质或元素
	铅(Pb)	汞(Hg)	镉(Cd)	六价铬( Cr^6+ )	多溴联苯(PBB)	多溴联苯醚(PBDE)
塑料	O	O	O	O	O	O
金属(机箱)	X	O	O	O	O	O
印刷电路部件(PCA)	X	O	O	O	O	O
电缆/连接器	X	O	O	O	O	O
电源设备	X	O	O	O	O	O
电源线	X	O	O	O	O	O
机械部件	X	O	O	O	O	O
卡盒部件	X	O	O	O	O	O
定影部件	X	O	O	O	O	O
扫描仪部件-CCD(如果有)	X	X	O	O	O	O
扫描仪部件-其它(如果有)	X	O	O	O	O	O
印刷电路板部件(PBA)	X	O	O	O	O	O
墨粉	O	O	O	O	O	O
滚筒	O	O	O	O	O	O

© 2013 Samsung Electronics Co., Ltd. All rights reserved.

This user's guide is provided for information purposes only. All information included herein is subject to change without notice.

Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user's guide.

• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.
- Microsoft, Windows, Windows Vista, Windows 7, Windows 8 and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.
• Google, Picasa, Google Docs, Android and Gmail are either registered trademarks or trademarks of Google Inc.
• Google Cloud Print is a trademark of Google Inc.
- iPad, iPhone, iPod touch, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S and other countries. AirPrint and the AirPrint logo are trademarks of Apple Inc.
• All other brand or product names are trademarks of their respective companies or organizations.

Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.

REV.1.00

User's Guide

Samsung Printer ProXpress

M332x series

M382x series

M402x series

ADVANCED

This guide provides information about installation, advanced configuration, operation and troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

BASIC

This guide provides information concerning installation, basic operation and troubleshooting on windows.

ADVANCED

1. Software Installation

Installation for Mac 124

Reinstallation for Mac 125

Installation for Linux 126

Reinstallation for Linux 127

2. Using a Network-Connected

Useful network programs 129

Wired network setup 130

Installing driver over the network 133

IPv6 configuration 142

Wireless network setup 145

Samsung MobilePrint 170

AirPrint 171

Google Cloud Print™ 173

3. Useful Setting Menus

Before you begin reading a chapter 177

Information 178

Layout 179

Paper 180

Graphic 181

System Setup 182

Emulation 185

Network 186

Job Management 188

4. Special Features

Altitude adjustment 190

Entering various characters 191

Printing features 192

Using optional device features 208

5. Useful Management Tools

Accessing management tools 211

Easy Capture Manager 212

Samsung AnyWeb Print 213

Easy Eco Driver 214

Using SyncThru™ Web Service 215

ADVANCED

Using Samsung Easy Printer Manager 219

Using Samsung Printer Status 222

Using Samsung Printer Experience 224

Using the Linux Unified Driver Configurator 230

6. Troubleshooting

Paper feeding problems 235

Power and cable connecting problems 236

Printing problems 237

Printing quality problems 241

Operating system problems 249

Purple circular icon with a white printer symbol (no text or numbers)

1. Software Installation

This chapter provides instructions for installing essential and helpful software for use in an environment where the machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine's driver (see "Installing driver over the network" on page 133).

• Installation for Mac 124
• Reinstallation for Mac 125
• Installation for Linux 126
• Reinstallation for Linux 127

• If you are a Windows OS user, refer to the Basic Guide for installing the machine's driver (see "Installing the driver locally" on page 25).
• Only use a USB cable no longer then 3 meter (118 inches).

Installation for Mac

1 Make sure that the machine is connected to your computer and powered on.
2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Mac desktop.
• For Mac OS X 10.8, double-click the CD-ROM that appears on Finder.
4 Double-click the MAC_Installer folder > Installer OS X icon.
5 Click Continue.
6 Read the license agreement and click Continue.
7 Click Agree to agree to the license agreement.
8 Click Install. All components necessary for machine operations will be installed.

If you click Customize, you can choose individual components to install.

9 Enter the password and click OK.

10 Select Direct Connection using USB cable on the Printer Connection Type and click Continue.
11 Click Add Printer button to select your printer and add it to your printer list.

If your machine supports fax, click Add Fax button to select your fax and add it to your fax list

12 After the installation is finished, click Close.

Reinstallation for Mac

If the printer driver does not work properly, uninstall the driver and reinstall it.

1 Open the Applications folder > Samsung > Printer Software Uninstaller.
2 To uninstall printer software, click Continue.
3 Check the program you want to delete and click Uninstall.
4 Enter the password and click OK.
5 After the uninstallation is finished, click Close.

If a machine has already been added, delete it from the Print Setup Utility or Print & Fax.

Installation for Linux

You need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).

Installing the Unified Linux Driver

1 Make sure that the machine is connected to your computer and powered on.
2 When the Administrator Login window appears, type "root" in the Login field and enter the system password.

You must log in as a super user (root) to install the machine software. If you are not a super user, ask your system administrator.

3 From the Samsung website, download the Unified Linux Driver package to your computer.
4 Right-click the Unified Linux Driver package and extract the package.
5 Double click cdroot > autorun.
6 When the welcome screen appears, click Next.
7 When the installation is complete, click Finish.

The installation program added the Unified Driver Configurator desktop icon and the Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the on-screen help that is available through your system menu or from the driver package Windows applications, such as Unified Driver Configurator or Image Manager.

Reinstallation for Linux

If the printer driver does not work properly, uninstall the driver and reinstall it.

1 Make sure that the machine is connected to your computer and powered on.
2 When the Administrator Login window appears, type "root" in the Login field and enter the system password.

You must log in as a super user (root) to uninstall the printer driver. If you are not a super user, ask your system administrator.

3 Open the Terminal program. When the Terminal screen appears, type in the following.

[root@localhost root]#cd /opt/Samsung/mfp/uninstall/ [root@localhost uninstall]#./uninstall.sh

4 Click Next.
5 Click Finish.

Purple circular icon with a white printer symbol (no text or numbers)

2. Using a Network-Connected Machine

This chapter gives you step-by-step instructions for setting up a network connected machine and software.

• Useful network programs 129
  • Wired network setup 130
  • Installing driver over the network 133
  • IPv6 configuration 142
  • Wireless network setup 145
  • Samsung MobilePrint 170
  • AirPrint 171
  • Google Cloud Print™ 173

Supported optional devices and features may differ according to your model (see "Features by models" on page 8).

Useful network programs

There are several programs available to setup the network settings easily in a network environment. For the network administrator especially, managing several machines on the network is possible.

• Before using the programs below, set the IP address first.
• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 8).

SyncThru™ Web Service

The web server embedded on your network machine allows you to do the following tasks (see "Using SyncThru™ Web Service" on page 215).

• Check the supplies information and status.
• Customize machine settings.
• Set the email notification option. When you set this option, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's email automatically.
• Configure the network parameters necessary for the machine to connect to various network environments.

SyncThru™ Web Admin Service

Web-based machine management solution for network administrators.

SyncThru™ Web Admin Service provides you with an efficient way of managing network devices and lets you remotely monitor and troubleshoot network machines from any site with corporate internet access.
- Download this program from http://solution.samsungprinter.com.

SetIP wired network setup

This utility program allows you to select a network interface and manually configure the IP addresses for use with the TCP/IP protocol.

• See "IPv4 configuration using SetIP (Windows)" on page 130.
• See "IPv4 configuration using SetIP (Mac)" on page 131.
• See "IPv4 configuration using SetIP (Linux)" on page 132.

• The machine that does not support the network port, it will not be able to use this feature (see "Rear view" on page 21).
• TCP/IPv6 is not supported by this program.

Wired network setup

Printing a network configuration report

You can print Network Configuration Report from the machine's control panel that will show the current machine's network settings. This will help you to set up a network.

Illustration of a printer with an arrow pointing to a document (no text or symbols present)

• Accessing menus may differ from model to model (see "Accessing the menu" on page 30).

• It may be necessary to press OK to navigate to lower-level menus for some models.

• The machine has the display screen: Press the Ⓞ (Menu) button on the control panel and select Network > Network Conf.
  • The machine does not have the display screen: Press the

(Cancel)button for more than five seconds on the control panel.

Using this Network Configuration Report, you can find your machine's MAC address and IP address.

For example:

• MAC Address: 00:15:99:41:A2:78
• IP Address: 169.254.192.192

Setting IP address

• The machine that does not support the network interface, it will not be able to use this feature (see "Rear view" on page 21).
• TCP/IPv6 is not supported by this program.

First, you have to set up an IP address for network printing and managements. In most cases a new IP address will be automatically assigned by a DHCP (Dynamic Host Configuration Protocol) server located on the network.

IPv4 configuration using SetIP (Windows)

Before using the SetIP program, disable the computer firewall from Control Panel > Security Center > Windows Firewall.

Wired network setup

1 Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).
2 Follow the instructions in the installation window.
3 Connect your machine to the network with a network cable.
4 Turn on the machine.
5 From the Windows Start menu, select All Programs > Samsung Printers > SetIP > SetIP.
6 Click the icon in the SetIP window to open the TCP/IP configuration window.
7 Enter the machine's new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.

Find the machine's MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 130) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8.

8 Click Apply, and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.

IPv4 configuration using SetIP (Mac)

Before using the SetIP program, disable the computer firewall from System Preferences > Security > Firewall.

The following instructions may vary from your model.

1 Connect your machine to the network with a network cable.
2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Mac desktop. - For Mac OS X 10.8, Double-click the CD-ROM that appears on Finder.
4 Double-click the MAC_Installer folder > Installer OS X icon.
5 Click Continue.
6 Read the license agreement and click Continue.
7 Click Agree to agree to the license agreement.

Wired network setup

8 Click Install. All components necessary for machine operations will be installed.

If you click Customize, you can choose individual components to install.

9 Enter the password and click OK.

10 Select Network connection on the Printer Connection Type and click Set IP Address button.

11 Click the icon in the SetIP window to open the TCP/IP configuration window.

12 Enter the machine's new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.

Find the machine's MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 130) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8.

13 Click Apply, and then click OK. The machine will automatically print the Network Configuration Report. Confirm that all the settings are correct.

IPv4 configuration using SetIP (Linux)

Before using the SetIP program, disable the computer firewall from System Preferences or Administrator.

The following instructions may vary from your model or operating systems.

1 Open /opt/Samsung/mfp/share/utils/.

2 Double-click the SetIPApplet.html file.

3 Click to open the TCP/IP configuration window.

4 Enter the machine's new information into the configuration window. In a corporate intranet, you may need to have this information assigned by a network manager before proceeding.

Find the machine's MAC address from the Network Configuration Report (see "Printing a network configuration report" on page 130) and enter it without the colons. For example, 00:15:99:29:51:A8 becomes 0015992951A8.

5 The machine will automatically print the Network Configuration Report.

Installing driver over the network

• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 8).
• The machine that does not support the network interface, it will not be able to use this feature (see "Rear view" on page 21).
• You can install the printer driver and software when you insert the software CD into your CD-ROM drive.

For Windows, select the printer driver and software in the Select Software to Install window.

Installing driver over the network

Windows

1 Make sure that the machine is connected to the network and powered on. Also, your machine's IP address should have been set (see "Setting IP address" on page 130).

2 Insert the supplied software CD into your CD-ROM drive.

If the installation window does not appear, click Start > All programs > Accessories > Run.

X:\Setup.exe replacing "X" with the letter, which represents your CD-ROM drive and click OK.

- For Windows 8,

If the installation window does not appear, from Charms, select Search > Apps and search for Run. Type in X:\Setup.exe, replacing "X" with the letter that represents your CD-ROM drive and click OK.

If "Tap to choose what happens with this disc." pop-up window appears, click the window and select Run Setup.exe.

3 Read and accept The software End User License Agreement and

Using Enhanced Features and Participating in Printer Usage Information Collection Program (optional). Then, click Next.

1. Welcome 2. Convertible Features 3. Select Software 4. Installation 5. Finish Before installing my software, you must accept the following agreement. Click each link to review detailed information. The software End User License Agreement ✓ I have reviewed and accept the term of the License Agreement. Using Enhanced Features and Participating in Poster Shape Information Selection Programs ✓ I have reviewed and agree to transfer printer information to Samsung. View User's Guide Next > Cancel

4 Select Network connection on the Printer Connection Type screen.
5 If the Connected Device window appears, check that the machine is connected to your network. Then, click Next.

The firewall software might be blocking network communication. Before connecting the device to the network, disable the computer's firewall.

6 The searched machines will be shown on the screen. Select the one you wish to use and click OK.
7 Follow the instructions in the installation window.

Installing driver over the network

From the Windows 8 Start Screen

• Samsung Printer Experience app can only be used in the Start screen when V4 driver is installed. The V4 driver is automatically downloaded from the Windows Update if your computer is connected to the Internet. If not, you can manually download the V4 driver from Samsung website, www.samsung.com > find your product > Support or downloads.
• You can download Samsung Printer Experience app from the Windows Store. You need have a Microsoft account to use the Windows Store.

a From Charms, select Search.
b Click Store.
c Search and click Samsung Printer Experience.
d Click Install.

• If you install the driver using the supplied software CD, V4 driver is not installed. If you want to use the V4 driver in the Desktop screen, you can download from the Samsung website, www.samsung.com >find your product >Support or downloads.
• If you want to install Samsung's printer management tools, you need to install them using the supplied software CD.

1 Make sure that the machine is connected to the network and powered on. Also, your machine's IP address should have been set (see "Setting IP address" on page 130).
2 From Charms, select Settings > Change PC settings > Devices.

3 Click Add a device.
Discovered machines will be shown on the screen.
4 Click the model name or host name you wish to use.

You can print a Network Configuration Report from the machine's control panel that will show the current machine's host name (see "Printing a network configuration report" on page 161).

5 The driver is automatically installed from the Windows Update.

Silent installation Mode

Silent installation mode is an installation method that does not require any user intervention. Once you start the installation, the machine driver and software are automatically installed on you computer. You can start the silent installation by typing /s or /S in the command window.

Command-line Parameters

Following table shows commands that can be used in the command window.

Following command-line are effective and operated when command is used with /s or /S. But /h, /H or /? are exceptional commands that can be operated solely.

Installing driver over the network

Command-line Definition Description
/s or/S	Starts silent installation. Installs machine drivers without prompting any UIs or user intervention.
/p""or/P""	Specifies printer port.[DYSZ] Network Port will be created by use of Standard TCP/IP Port monitor. For local port, this port must exist on system before being specified by command.	Printer port name can be specified as IP address, hostname, USB local port name or IEEE1284 port name.For example:·/p"xxx.xxx.xxx.xxx" in where, "xxx.xxx.xxx.xxx" means IP address for network printer. / p"USB001",/P"LPT1:",/ p"hostname"
/a""or/A""	Specifies destination path for installation. The destination path should be a fully qualified path.	Since machine drivers should be installed on the OS specific location, this command applies to only application software.

Command-line Definition Description
/n""or/N""	Specifies printer name.Printer instance shall be created as specified printer name.	With this parameter, you can add printer instances as your wishes.
/nd or/ND	Commands not to set the installed driver as a default machine driver.	It indicates installed machine driver will not be the default machine driver on your system if there are one or more printer drivers installed.If there is no installed machine driver on your system, then this option won't be applied because Windows OS will set installed printer driver as a default machine driver.
/x or/x	Uses existing machine driver files to create printer instance if it is already installed.	This command provides a way to install a printer instance that uses installed printer driver files without installing an additional driver.

Installing driver over the network

Command-line Definition Description
/up"" or /UP""	Removes only specified printer instance and not the driver files.	This command provides a way to remove only specified printer instance from your system without effecting other printer drivers. It will not remove printer driver files from your system.
/d or /D	Uninstalls all device drivers and applications from your system.	This command will remove all installed device drivers and application software from your system.
/v"" or /V""	Shares installed machine and add other available platform drivers for Point & Print.	It will install all supported Windows OS platform's machine drivers to system and share it with specifiedfor point and print.
/o or /O	Opens Printers and Faxes folder after installation.	This command will open Printers and Faxes folder after the silent installation.
/h, /H or /? Shows Command-line Usage.

Mac

1 Make sure that the machine is connected to your network and powered on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Mac desktop. • For Mac OS X 10.8, double-click the CD-ROM that appears on Finder.

4 Double-click the MAC_Installer folder > Installer OS X icon.

5 Click Continue.

6 Read the license agreement and click Continue.

7 Click Agree to agree to the license agreement.

8 Click Install. All components necessary for machine operations will be installed. If you click Customize, you can choose individual components to install.

Installing driver over the network

9 Enter the password and click OK.
10 Select Network connection on the Printer Connection Type and click Continue.
11 Click Add Printer button to select your printer and add it to your printer list.
12 Click IP and select HP Jetdirect - Socket in Protocol.
13 Enter the machine's IP address in the Address input field.
14 Enter the queue name in the Queue input field. If you cannot determine the queue name for your machine server, try using the default queue first.
15 If Auto Select does not work properly, choose Select Printer Software and your machine name in Print Using.
16 Click Add.
17 After the installation is finished, click Close.

Linux

You need to download Linux software packages from the Samsung website to install the printer software (http://www.samsung.com > find your product > Support or Downloads).

Install the Linux driver and add network printer

1 Make sure that the machine is connected to your network and powered on. Also, your machine's IP address should have been set.
2 Download the Unified Linux Driver package from the Samsung website.
3 Extract the UnifiedLinuxDriver.tar.gz file and open the new directory.
4 Double-click the cdroot > autorun.
5 The Samsung installer window opens. Click Next.
6 The add printer wizard window opens. Click Next.
7 Select network printer and click Search button.
8 The machine's IP address and model name appears on list field.
9 Select your machine and click Next.
10 Input the printer description and Next.
11 After the machine is added, click Finish.
12 When installation is done, click Finish.

Installing driver over the network

Add a network printer

1 Double-click the Unified Driver Configurator.
2 Click Add Printer.
3 The Add printer wizard window opens. Click Next.
4 Select Network printer and click the Search button.
5 The printer's IP address and model name appears on list field.
6 Select your machine and click Next.
7 Enter the printer description and click Next.
8 After the machine is added, click Finish.

UNIX

• Make sure your machine supports the UNIX operating system before installing the UNIX printer driver (see "Operating System" on page 8).
• The commands are marked with "", when typing the commands, do not type "".
• Some features and optional goods may not be available depending on model or country (see "Operating System" on page 8).

To use the UNIX printer driver, you have to install the UNIX printer driver package first, then setup the printer. You can download the UNIX printer driver package from the Samsung website (http://www.samsung.com > find your product > Support or Downloads).

Installing the UNIX printer driver package

The installation procedure is common for all variants of UNIX OS mentioned.

1 From the Samsung website, download and unpack the UNIX Printer Driver package to your computer.
2 Acquire root privileges.
3 Copy the appropriate driver archive to the target UNIX computer.

$$ " \mathbf {s u} -" $$

See administration guide of your UNIX OS for details.

4 Unpack the UNIX printer driver package.

For example, on IBM AIX, use the following commands.

"gzip -d < enter the package name | tar xf -"

5 Go to the unpacked directory.

Installing driver over the network

6 Run the install script.

"./install -i"

install is the installer script file which is used to install or uninstall the UNIX Printer Driver package.

Use "chmod 755 install" command to give the permission to the installer script.

7 Execute the “./install -c” command to verify installation results.
8 Run "installprinter" from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window referring to the following procedures.

On some UNIX OS, for example on Solaris 10, just added printers may not be enabled and/or may not accept jobs. In this case run the following two commands on the root terminal:

"accept "

"enable "

Uninstalling the printer driver package

The utility should be used to delete the printer installed in the system.

a Run "uninstallprinter" command from the terminal. It will open the Uninstall Printer Wizard.

The installed printers are listed in the drop-down list.

b Select the printer to be deleted.
c Click Delete to delete the printer from the system.
d Execute the “./install -d” command to uninstall the whole package.
e To verify removal results, execute the ". /install -c" command.

To re-install it, use the command “./install -i” to reinstall the binaries.

Setting up the printer

To add the printer to your UNIX system, run 'installprinter' from the command line. This will bring up the Add Printer Wizard window. Setup the printer in this window according to the following steps:

1 Type the name of the printer.
2 Select the appropriate printer model from the model list.
3 Enter any description corresponding to the type of the printer in the Type field. This is optional.

Installing driver over the network

4 Specify any printer description in the Description field. This is optional.
5 Specify the printer location in the Location field.
6 Type the IP address or DNS name of the printer in the Device textbox for network-connected printers. On IBM AIX with jetdirect Queue type, only the DNS name is possible-numeric IP address is not allowed.
7 Queue type shows the connection as lpd or jetdirect in the corresponding list box. Additionally, usb type is available on Sun Solaris OS.
8 Select Copies to set the number of copies.
9 Check the Collate option to receive copies already sorted.
10 Check the Reverse Order option to receive copies in the reverse order.
11 Check the Make Default option to set this printer as default.
12 Click OK to add the printer.

IPv6 configuration

IPv6 is supported properly only in Windows Vista or higher.

• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 8 or "Menu overview" on page 30).
• If the IPv6 network seems to not be working, set all the network setting to the factory defaults and try again using Clear Setting.

The machine supports the following IPv6 addresses for network printing and managements.

• Link-local Address: Self-configured local IPv6 address (Address starts with FE80).
• Stateless Address: Automatically configured IPv6 address by a network router.
  • Stateful Address: IPv6 address configured by a DHCPv6 server.
• Manual Address: Manually configured IPv6 address by a user.

In the IPv6 network environment, follow the next procedure to use the IPv6 address.

From the control panel

Activating IPv6

• Accessing menus may differ from model to model (see "Accessing the menu" on page 30).
• It may be necessary to press OK to navigate to lower-level menus for some models.

1 Select ✪ (Menu) > Network > TCP/IP (IPv6) > IPv6 Protocol on the control panel.

2 Select On and press OK.
3 Turn the machine off and turn it on again.

When you install the printer driver, do not configure both IPv4 and IPv6. We recommend to configure either IPv4 or IPv6.

DHCPv6 address configuration

If you have a DHCPv6 server on your network, you can set one of the following options for default dynamic host configuration.

IPv6 configuration

• Accessing menus may differ from model to model (see "Accessing the menu" on page 30).
• It may be necessary to press OK to navigate to lower-level menus for some models.

1

Select *Menu > Network > TCP/IP (IPv6) > DHCPv6 Config on the control panel.

2

Press OK to select the required value you want.

• Router: Use DHCPv6 only when requested by a router.
  • Always Use: Always use DHCPv6 regardless of router request.
  • Never Use: Never use DHCPv6 regardless of router request.

From the SyncThru™ Web Service

Activating IPv6

1 Access a web browser, such as Internet Explorer, from Windows. Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.
2 If it's your first time logging into SyncThru™ Web Service you need to log-in as an administrator. Type in the below default ID and password. We recommend you to change the default password for security reasons.
• ID: admin
- Password: sec00000
3 When the SyncThru™ Web Service window opens, move the mouse cursor over the Settings of the top menu bar and then click Network Settings.
4 Click TCP/IPv6 on the left pane of the website.
5 Check the IPv6 Protocol check box to activate IPv6.
6 Click the Apply button.
7 Turn the machine off and turn it on again.

IPv6 configuration

• You can also set the DHCPv6.
  • To manually set the IPv6 address:

Check the Manual Address check box. Then, the Address/Prefix text box is activated. Enter the rest of the address (e.g., 3FFE:10:88:194::AAAA. "A" is the hexadecimal 0 through 9, A through F).

IPv6 address configuration

1 Start a web browser, such as Internet Explorer, that supports IPv6 addressing as a URL.
2 Select one of the IPv6 addresses (Link-local Address, Stateless Address, Stateful Address, Manual Address) from Network Configuration Report (see "Printing a network configuration report" on page 130).

• Link-local Address: Self-configured local IPv6 address (Address starts with FE80).
• Stateless Address: Automatically configured IPv6 address by a network router.
  • Stateful Address: IPv6 address configured by a DHCPv6 server.
  • Manual Address: Manually configured IPv6 address by a user.

3 Enter the IPv6 addresses (e.g.,: http://[FE80::215:99FF:FE66:7701]).

Address must be enclosed in '[]' brackets.

Wireless network setup

• Make sure your machine supports wireless networking. Wireless networking may not be available depending on the model (see "Features by models" on page 8).
• If the IPv6 network seems to not be working, set all the network settings to the factory defaults and try again using Clear Setting.

Getting started

Understanding your network type

Typically, you can only have one connection between your computer and the machine at a time.

Infrastructure mode

This is an environment generally used for homes and SOHOs (Small Office/Home Office). This mode uses an access point to communicate with the wireless machine.

Ad hoc mode

This mode does not use an access point. The wireless computer and wireless machine communicate directly.

Wireless network name and network password

Wireless networks require higher security, so when an access point is first set up, a network name (SSID), the type of security used, and a Network Password are created for the network. Ask your network administrator about this information before proceeding with the machine installation.

Wireless network setup

Introducing wireless set up methods

You can set wireless settings either from the machine or the computer. Choose the setting method from the below table.

Some wireless network installation types may not be available depending on the model or country.

Set up method Connecting method Description & Reference
With Access Point	From the computer	[508Z]	Windows user, see "Access point via USB cable (recommended)" on page 152.
			Mac user, see "Access point via USB cable (recommended)" on page 157.
			See "Using a network cable" on page 160.
	From the machine's control panel		See "Machines with a display screen" on page 149.
		[K803]	See "Using the menu button" on page 151.

Wireless network setup

Set up method Connecting method Description & Reference
Without Access Point	From the computer Windows user, see "Ad hoc via USB cable" on page 154.
			Mac user, see "Ad hoc via USB cable" on page 158.
	Wi-Fi Direct setup		See "Setting the Wi-Fi Direct for mobile printing" on page 163.
	Wi-Fi Direct

• If problems occur during wireless set up or driver installation, refer to the troubleshooting chapter (see "Troubleshooting for wireless network" on page 165).
• It is strongly recommended that you set the password on Access Points. If you do not set the password on Acess Points, they might be exposed to illegal access from unknown machine including PCs, smart phones and printers. Refer to the Access Point user guide for password settings.

Wireless network setup

Using the WPS button

If your machine and an access point (or wireless router) support Wi-Fi Protected Setup™ (WPS), you can easily configure the wireless network settings by pressing the ⏻WPS) button on the control panel without a computer.

• If you want to use the wireless network using the infrastructure mode, make sure that the network cable is disconnected from the machine. Using the WPS (PBC) button or entering the PIN from the computer to connect to the access point (or wireless router) varies depending on the access point (or wireless router) you are using. Refer to the user's guide of the access point (or wireless router) you are using.
• When using the WPS button to set the wireless network, security settings may change. To prevent this, lock the WPS option for the current wireless security settings. The option name may differ depending on the access point (or wireless router) you are using.

Items to prepare

• Check if the access point (or wireless router) supports Wi-Fi Protected Setup™ (WPS).
• Check if your machine supports Wi-Fi Protected Setup™ (WPS).
  • Networked computer (PIN mode only)

Choosing your type

There are two methods available to connect your machine to a wireless network using the (WPS) button on the control panel.

The Push Button Configuration (PBC) method allows you to connect your machine to a wireless network by pressing both the (WPS) button on the control panel of your machine and the WPS (PBC) button on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router) respectively.

The Personal Identification Number (PIN) method helps you connect your machine to a wireless network by entering the supplied PIN information on a Wi-Fi Protected Setup™ WPS-enabled access point (or wireless router).

Factory default in your machine is PBC mode, which is recommended for a typical wireless network environment.

You can change the WPS mode from the control panel * (Menu) > Network > Wi-Fi > WPS).

Wireless network setup

Machines with a display screen

Connecting in PBC mode

1 Select ✪ (Menu) > Network > Wi-Fi > WPS > ConnectViaPBC on the control panel.

Or press and hold the (WPS) button on the control panel for more than 2 seconds.

The machine starts waiting for up to two minutes until you press the WPS (PBC) button on the access point (or wireless router).

2 Press the WPS (PBC) button on the access point (or wireless router).

The messages are displayed on the display screen in the order below:

a Connecting: The machine is connecting to the access point (or wireless router).
b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.
c AP SSID: After completing the wireless network connection process, the AP's SSID information appears on the display.

3 Insert the supplied software CD into your CD-ROM drive, and follow the instructions in the window to set up the wireless network.

Connecting in PIN mode

1 Select * (Menu) > Network > Wi-Fi > WPS > ConnectViaPIN on the control panel.

Or press and hold the (WPS) button on the control panel for more than 2 seconds.

2 The eight-digit PIN appears on the display.

You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).

The messages are displayed on the display screen in the order below:

a Connecting: The machine is connecting to the wireless network.
b Connected: When the machine is successfully connected to the wireless network, the WPS LED light stays on.
c SSID Type: After completing the wireless network connection process, the AP's SSID information is displayed on the LCD display.

3 Insert the supplied software CD into your CD-ROM drive, and follow the instructions in the window to set up the wireless network.

Wireless network setup

Machines without a display screen

Connecting in PBC mode

1 Press and hold the (WPS) button on the control panel for about 2 - 4 seconds until the status LED blinks quickly.

The machine starts connecting to the wireless network. The LED blinks slowly for up to two minutes until you press the PBC button on the access point (or wireless router).

2 Press the WPS (PBC) button on the access point (or wireless router).

a The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router).
b When the machine is successfully connected to the wireless network, the WPS LED light stays on.

3 Insert the supplied software CD into your CD-ROM drive, and follow the instructions in the window to set up the wireless network.

Connecting in PIN mode

1 The network configuration report, including PIN, must be printed (see "Printing a network configuration report" on page 130).

In ready mode, press and hold the ☒ (Stop/Clear) button on the control panel for about 5 seconds. You can find your machine's PIN.

2 Press and hold the (WPS) button on the control panel for more than 4 seconds until the status LED stays on.

The machine starts connecting to the access point (or wireless router).

3 You need to enter the eight-digit PIN within two minutes on the computer that is connected to the access point (or wireless router).

The LED blinks slowly for up to two minutes until you enter the eight-digit PIN.

The WPS LED blinks in the order below:

a The light blinks fast on the WPS LED. The machine is connecting to the access point (or wireless router).
b When the machine is successfully connected to the wireless network, the WPS LED light stays on.

4 Insert the supplied software CD into your CD-ROM drive, and follow the instructions in the window to set up the wireless network.

Wireless network setup

Re-connecting to a network

When the wireless function is off, the machine automatically tries to re-connect to the access point (or wireless router) with the previously used wireless connection settings and address.

In the following cases, the machine automatically re-connects to the wireless network:

• The machine is turned off and on again.
- The access point (or wireless router) is turned off and on again.

Canceling the connection process

To cancel the wireless network connection when the machine is connecting to

the wireless network, press and release the ☒ (Stop/Clear) on the control panel. You need to wait 2 minutes to re-connect to the wireless network.

Disconnecting from a network

To disconnect the wireless network connection, press the ♂ (WPS) button on the control panel for more than two seconds.

• When the Wi-Fi network is in idle mode: The machine is immediately disconnected from the wireless network and the WPS LED turns off.
• When the Wi-Fi network is being used: While the machine waits until the current job is finished, the light blinks fast on the WPS LED. Then, the wireless network connection is automatically disconnected and the WPS LED turns off.

Using the menu button

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Features by models" on page 8).

Before starting, you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.

Wireless network setup

After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installing driver over the network" on page 133).

1

Select *☐ (Menu) > Network > Wi-Fi > Wi-Fi Settings on the control panel.

2

Press the OK to select the setup method you want.

• Search List (recommended): In this mode, the setup is automatic. The machine will display a list of available networks from which to choose. After a network is chosen then printer will prompt for the corresponding security key.
• Custom: In this mode, users can give or edit manually their own SSID, or choose the security option in detail.

Setup using Windows

Shortcut to the Samsung Easy Wireless Setup program without the CD: If you have installed the printer driver once, you can access the Samsung Easy Wireless Setup program without the CD (see "Accessing management tools" on page 211).

Access point via USB cable (recommended)

Items to prepare

• Access point
  • Network-connected computer
• Software CD that was provided with your machine
  • A machine installed with a wireless network interface
• USB cable

Creating the infrastructure network

1 Turn on your computer, access point, and machine.
2 Insert the supplied software CD into your CD-ROM drive.

Wireless network setup

3 Read and accept The software End User License Agreement and Using Enhanced Features and Participating in Printer Usage Information Collection Program (optional). Then, click Next.

1. Welcome 2. Connecting Provider 3. Select Software 4. Installation 5. Finish Before installing any software, you must accept the following agreement. Click each link to review detailed information. The software End User License Agreement ✓ I have reviewed and accept the term of the License Agreement. Using Enhanced Features and Participations in Printer Usage Information Collection Program ✓ I have reviewed and agree to transfer printer information to Samsung. View User's Guide Next > Cancel

4 Select Configure the wireless network connection using USB cable on the Printer Connection Type screen. Then, click Next.
5 After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you want to use and click Next.

If the wireless network is already set up, the Wireless Network Information window appears. Select I want to install software with the current settings. (Recommended). Then, click Next.

If you cannot find the network name you want to choose, or if you want to set the wireless configuration manually, click Advanced Setting.

• Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).
  • Operation Mode: Select Infrastructure.
  • Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on a WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase), which is manually configured on the access point and each of its clients.

• Encryption: Select the encryption (None, WEP64, WEP128, TKIP, AES, TKIP AES).
  • Network Password: Enter the encryption network password value.
• Confirm Network Password: Confirm the encryption network password value.
• WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.

The wireless network security window appears when the access point has security settings.

Enter the Network Password of the access point (or router).

Wireless network setup

6 When the network connection window appears, disconnect the network cable. Then, click Next. The network cable connection can interfere with searching for wireless devices.

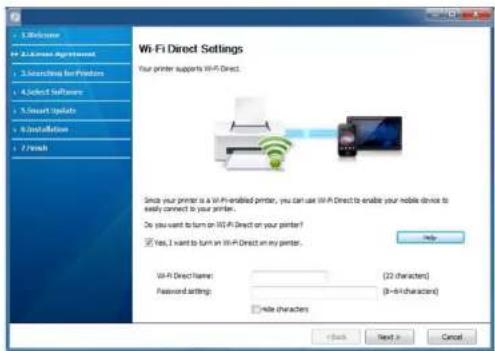

7 If your printer supports Wi-Fi Direct, the following screen screen appears. Click Next.

1. Welcome 2. AC/Connect Agreement 3. Selection for Printers 4. Select Software 5. Smart Update 6. Installation 7. Print Wi-Fi Direct Settings Your printer supports Wi-Fi Direct. Since your printer is a Wi-Fi-enabled printer, you can use Wi-Fi Direct to enable your mobile device to easily connect to your printer. Do you want to turn on Wi-Fi Direct on your printer? Yes, I want to turn on Wi-Fi Direct on my printer. HiFi Direct Name: Password setting: (22 characters) (8-9 character) Note characters Next > Cancel

• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager (see "Setting up Wi-Fi Direct" on page 164).
• Wi-Fi Direct Name: The default Wi-Fi Direct Name is the model name and the maximum length is 22 characters.
• Password setting is the numeric string, and the size is 8 \~ 64 characters.

8 When the wireless network set up is completed, disconnect the USB cable between the computer and machine. Click Next.
9 Select the components to be installed.
10 After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine as the default machine, and change the port name of each machine. Click Next.
11 If you want to register your machine with the Samusng web site and receive useful information, click On-line Registration. If not, click Finish.

Ad hoc via USB cable

If you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an ad-hoc wireless network by following the simple steps below.

Items to prepare

• Network-connected computer
- Software CD that was provided with your machine
- A machine installed with a wireless network interface
- USB cable

Wireless network setup

Creating the ad hoc network in Windows

1 Turn on your computer and the wireless network machine.
2 Insert the supplied software CD into your CD-ROM drive.
3 Read and accept The software End User License Agreement and Using Enhanced Features and Participating in Printer Usage Information Collection Program (optional). Then, click Next.

1. Welcome 2. Connecting Printers 3. Select Software 4. Installation 5. Finish Before installing any software, you must accept the following agreement. Click each link to review detailed information. The software End User License Agreement ✓ I have reviewed and accept the term of the License Agreement. Using Enhanced Features and Participating in Printer Usage Information Collection Program ✓ I have reviewed and agree to transfer printer information to Samsung. View User's Guide Next > Cancel

4 Select Configure the wireless network connection using USB cable on the Printer Connection Type screen.

5 After searching the wireless networks, a list of wireless networks your machine has searched appears. Click Advanced Setting.

• Enter the wireless Network Name: Enter the SSID name you want (SSID is case-sensitive).
  • Operation Mode: Select ad hoc.
  • Channel: Select the channel. (Auto Setting or 2412 MHz to 2467 MHz).
• Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

• Encryption: Select the encryption (None, WEP64, WEP128).
  • Network Password: Enter the encryption network password value.
• Confirm Network Password: Confirm the encryption network password value.
• WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.

The wireless network security window appears when the ad hoc network has security enabled.

Select Open System or Shared Key for the authentication and click Next.

- WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.

Wireless network setup

6 The window showing the wireless network setting appears. Check the settings and click Next.

Before entering the IP address for the machine, you must know the computer's network configuration information. If the computer's network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer's network configuration is set to Static, the wireless network setting should also be Static.

If your computer is set to DHCP and you want to use the Static wireless network setting, you must contact the network administrator to get the static IP address.

- For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. If it shows Static, click Change TCP/IP to change the assignment method to Receive IP address automatically (DHCP).

- For the Static method

If the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine.

For example,

If the computer's network information is as shown follows:

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0

Then, the machine's network information should be as below:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer's subnet mask.)

- Gateway: 169.254.133.1

7 The Wireless Network Setting Complete window appears. Click Next.
8 When the wireless network settings are completed, disconnect the USB cable between the computer and machine. Click Next.
9 Select the components to be installed.
10 After selecting the components, you can also change the machine name, set the machine to be shared on the network, set the machine as the default machine, and change the port name of each machine. Click Next.
11 If you want to register your machine with the Samusng web site and receive useful information, click On-line Registration. If not, click Finish.

Setup using Mac

Items to prepare

• Access point
  • Network-connected computer
• Software CD that was provided with your machine

Wireless network setup

• A machine installed with a wireless network interface
- USB cable

Access point via USB cable (recommended)

1 Check whether the USB cable is connected to the machine.
2 Turn on your computer, access point, and machine.
3 Insert the supplied software CD into your CD-ROM drive.
4 Double-click the CD-ROM icon that appears on your Mac desktop.
5 Double-click the MAC_Installer folder > Installer OS X icon.
6 Click Continue.
7 Read the license agreement and click Continue.
8 Click Agree to agree to the license agreement.
9 When the message that warns that all applications will close on your computer appears, click Continue.
10 Click Wireless Network Setting button on the User Options Pane.

11 After searching, the window shows the wireless network devices. Select the name (SSID) of the access point you want to use and click Next.

If the wireless network is already set up, the Wireless Network Information window appears. Select I want to install software with the current settings. (Recommended). Then, click Next.

When you set the wireless configuration manually, click Advanced Setting.

• Enter the wireless Network Name: Enter the SSID of the access point (SSID is case-sensitive).
  • Operation Mode: Select Infrastructure.
• Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the print server based on the WPA Pre-Shared Key. This uses a shared secret key (generally called Pre Shared Key pass phrase) that is manually configured on the access point and each of its clients.

• Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES, TKIP, AES)
  • Network Password: Enter the encryption network password value.
• Confirm Network Password: Confirm the encryption network password value.
• WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.

Wireless network setup

The wireless network security window appears when the access point has security enabled.

Enter the Network Password of the access point (or router).

12 If your printer supports Wi-Fi Direct, the following screen appears. Click Next.

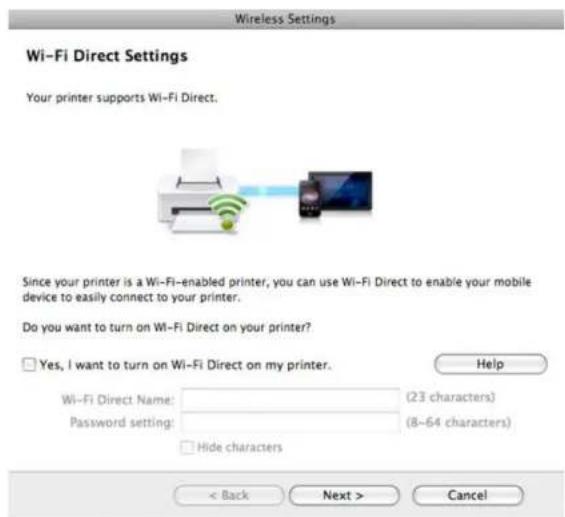

Wireless Settings Wi-Fi Direct Settings Your printer supports Wi-Fi Direct. Since your printer is a Wi-Fi-enabled printer, you can use Wi-Fi Direct to enable your mobile device to easily connect to your printer. Do you want to turn on Wi-Fi Direct on your printer? Yes, I want to turn on Wi-Fi Direct on my printer. Help Wi-Fi Direct Name: (23 characters) Password setting: (8~64 characters) Hide characters < Back Next > Cancel

• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager (see "Setting up Wi-Fi Direct" on page 164).
• Wi-Fi Direct Name: The default Wi-Fi Direct Name is the model name and the maximum length is 22 characters.
• Password setting is the numeric string, and the size is 8 \~ 64 characters.

13 When the wireless network settings are completed, disconnect the USB cable between the computer and machine.
14 Wireless network set up is completed. After the installation is finished, click Quit.
After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installation for Mac" on page 124).

Ad hoc via USB cable

If you do not have an access point (AP), you may still connect the machine wirelessly to your computer by setting up an ad hoc wireless network by following these simple directions.

Wireless network setup

Items to prepare

• Network-connected computer
- Software CD that was provided with your machine
- A machine installed with a wireless network interface
- USB cable

Creating the ad hoc network in Mac

1 Check whether the USB cable is connected to the machine.
2 Turn on your computer and the wireless network machine.
3 Insert the supplied software CD into your CD-ROM drive.
4 Double -click the CD-ROM icon that appears on your Mac desktop.
5 Double-click the MAC_Installer folder > Installer OS X icon.
6 Click Continue.
7 Read the license agreement and click Continue.
8 Click Agree to agree to the license agreement.
9 When the message that warns that all applications will close on your computer appears, click Continue.
10 Click Wireless Network Setting button on the User Options Pane.

11 After searching the wireless networks, a list of wireless networks your machine has searched appears. Click Advanced Setting.

• Enter the wireless Network Name: Enter the SSID name (SSID is case-sensitive).
  • Operation Mode: Select ad hoc.
  • Channel: Select the channel (Auto Setting or 2412 MHz to 2467 MHz).
• Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key can access the network.

• Encryption: Select the encryption (None, WEP64, WEP128).
  • Network Password: Enter the encryption network password value.
• Confirm Network Password: Confirm the encryption network password value.
• WEP Key Index: If you are using WEP Encryption, select the appropriate WEP Key Index.

The wireless network security window appears when the ad hoc network has security setting.

Select Open System or Shared Key for the authentication and click Next.

- WEP (Wired Equivalent Privacy) is a security protocol preventing unauthorized access to your wireless network. WEP encrypts the data portion of each packet exchanged on a wireless network using a 64-bit or 128-bit WEP encryption key.

Wireless network setup

12 The window showing the wireless network settings appears. Check the settings and click Next.

Before entering the IP address for the machine, you must know the computer's network configuration information. If the computer's network configuration is set to DHCP, the wireless network setting should also be DHCP. Likewise, if the computer's network configuration is set to Static, the wireless network setting should also be Static.

If your computer is set to DHCP and you want to use Static wireless network setting, you must contact the network administrator to get the static IP address.

- For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown in the Wireless Network Setting Confirm window. If it shows Static, click Change TCP/IP to change the assignment method to Receive IP address automatically (DHCP).

- For the Static method

If the IP address assignment method is Static, check if Static is shown in the Wireless Network Setting Confirm window. If it shows DHCP, click Change TCP/IP to enter the IP address and other network configuration values for the machine.

For example,

If the computer's network information is shown as follows:

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0

Then, the machine's network information should be as shown below:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer's subnet mask.)

- Gateway: 169.254.133.1

13 When the window that tells you that the network cable connection is confirmed appears, disconnect the network cable and click Next..

If the network cable is connected, it may have trouble finding the machine when configuring the wireless network.

14 The wireless network connects according to the network configuration.

15 Wireless network set up is completed. After installation is finished, click Quit.

After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installation for Mac" on page 124).

Using a network cable

Machines that do not support the network port will not be able to use this feature (see "Rear view" on page 21).

Wireless network setup

Your machine is a network compatible machine. To enable your machine to work with your network, you will need to perform some configuration procedures.

• After completing the wireless network connection, you need to install a machine driver to print from an application (see "Installing driver over the network" on page 133).
• See your network administrator, or the person that set up your wireless network, for information about your network configuration.

Items to prepare

• Access point
  • Network-connected computer
• Software CD that was provided with your machine
• A machine installed with a wireless network interface
• Network cable

Printing a network configuration report

You can identify the network settings of your machine by printing a network configuration report.

See "Printing a network configuration report" on page 130.

IP setting using SetIP Program (Windows)

This program is used to manually set the network IP address of your machine using its MAC address to communicate with the machine. The MAC address is the hardware serial number of the network interface and can be found in the Network Configuration Report.

See "Setting IP address" on page 130.

Configuring the machine's wireless network

Before starting you will need to know the network name (SSID) of your wireless network and the network key if it is encrypted. This information was set when the access point (or wireless router) was installed. If you do not know about your wireless environment, please ask the person who set up your network.

To configure wireless parameters, you can use SyncThru™ Web Service.

Using SyncThru™ Web Service

Before starting wireless parameter configuration, check the cable connection status.

Wireless network setup

1 Check whether or not the network cable is connected to the machine. If not, connect the machine with a standard network cable.
2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine's new IP address in the browser window.

For example,

http://192.168.1.133/

3 Click Login on the upper right of the SyncThru™ Web Service website.
4 Type in the ID and Password then click Login. We recommend you to change the default password for security reasons.

• ID: admin

- Password: sec00000

5 When the SyncThru™ Web Service window opens, click Network Settings.
6 Click Wireless > Wizard.

Wizard will help you setup the wireless network configuration. However, if you want to set the wireless network directly, select Custom.

7 Select the one Network Name(SSID) in the list.

• SSID: SSID (Service Set Identifier) is a name that identifies a wireless network, access points, and wireless devices attempting to connect to a specific wireless network must use the same SSID. The SSID is case sensitive.

• Operation Mode: Operation Mode refers to the type of wireless connections (see "Wireless network name and network password" on page 145).

• Ad-hoc: Allows wireless devices to communicate directly with each other in a peer-to-peer environment.

• Infrastructure: Allows wireless devices to communicate with each other through an access point.

If your network's Operation Mode is Infrastructure, select the SSID of the access point. If the Operation Mode is Ad-hoc, select the machine's SSID.

8 Click Next.

If the wireless security setting window appears, enter the registered password (network password) and click Next.

9 The confirmation window appears, please check your wireless setup. If the setup is right, click Apply.

Wireless network setup

Disconnect the network cable (standard or network). Your machine should then start communicating wirelessly with the network. In case of Ad-hoc mode, you can use a wireless LAN and wired LAN simultaneously.

Insert the supplied software CD into your CD-ROM drive, and follow the instructions in the window to set up the wireless network.

Turning the Wi-Fi network on/off

If your machine has a display, you can also turn on/off the Wi-Fi from the machine's control panel using the Network menu.

1 Check whether the network cable is connected to the machine. If not, connect the machine with a standard network cable.
2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine's new IP address in the browser window.

For example,

http://192.168.1.133/

Click Login on the upper right of the SyncThru™ Web Service website.

4 Type in the ID and Password, then click Login. We recommend you to change the default password for security reasons.

• ID: admin
- Password: sec00000

5 When the SyncThru™ Web Service window opens, click Network Settings.
6 Click Wireless > Custom.

You can also turn the Wi-Fi network on/off.

Setting the Wi-Fi Direct for mobile printing

Wi-Fi Direct is an easy-to-setup peer-to-peer connection method between the Wi-Fi Direct certified printer and a mobile device that provides a secure connection and better throughput than ad hoc mode.

With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while concurrently connecting to an access point. You can also use a wired network and a Wi-Fi Direct network simultaneously so multiple users can access and print documents both from Wi-Fi Direct and from a wired network.

Wireless network setup

• You cannot connect your mobile device to the internet through the printer's Wi-Fi Direct.
• The supported protocol list may differ from your model, Wi-Fi Direct networks do NOT support IPv6, network filtering, IPSec, WINS, and SLP services.
• The maximum number of devices that can be connected via Wi-Fi Direct is 3.

Setting up Wi-Fi Direct

You can enable Wi-Fi Direct feature by one of the following methods.

From the USB cable-connected computer(recommended)

After the driver installation is complete, Samsung Easy Printer Manager can be set and changes in the Wi-Fi Direct can be made.

Samsung Easy Printer Manager is Available for Windows and Mac OS users only.

- From the Start menu, select Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager > Device Settings > Network.

- Wi-Fi Direct On/Off: Select On to enable.

• Device Name: Enter the printer's name for searching for your printer on a wireless network. By default, the device name is the model name.
• IP Address: Enter the IP address of the printer. This IP address is used only for the local network and not for the infrastructure wired or wireless network. We recommend using the default local IP address (the default local IP address of the printer for Wi-Fi Direct is 192.168.3.1)
• Group Owner: Activate this option to assign the printer the Wi-Fi Direct group's owner. The Group Owner acts similar to a wireless access point. We recommend activating this option.
• Network Password: If your printer is a Group Owner, a Network Password is required for other mobile devices to connect to your printer. You can configure a network password yourself, or can remember the given Network Password that is randomly generated by default.

From the machine (Machines with a display screen)

Accessing menus may differ from model to model (see "Accessing the menu" on page 30).

• Select * (Menu) > Network > Wi-Fi > Wi-Fi Direct on the control panel.
• En a b l e Wi-Fi Direct.

Wireless network setup

From the network-connected computer

If your printer is using a network cable or a wireless access point, you can enable and configure Wi-Fi Direct from SyncThru™ Web Service.

- Access SyncThru™ Web Service, select Settings > Network Settings > Wireless > Wi-Fi Direct.

- Enable or disable Wi-Fi Direct and set other options.

- For Linux OS users,

- Print an IP network configuration report to check the output (see "Printing a network configuration report" on page 130).

- Access SyncThru Web Service, select Settings > Network Settings > Wireless > Wi-Fi Direct.

- Enable or disable Wi-Fi Direct.

Setting up the mobile device

- After setting up Wi-Fi Direct from the printer, refer to the user manual of the mobile device you are using to set its Wi-Fi Direct.

- After setting up Wi-Fi Direct, you need to download the mobile printing application (For example: Samsung Mobile printer) to print from your smartphone.

- When you have found the printer you want to connect to from your mobile device, select the printer and the printer's LED will blink. Press the WPS button on the printer and it will be connected to your mobile device.

- If your mobile device does not support Wi-Fi Direct, you need to enter the "Network Key" of a printer instead of pushing the WPS button.

Troubleshooting for wireless network

Problems during setup or driver installation

Printers Not Found

- Your machine may not be turned on. Turn on your computer and the machine.

- USB cable is not connected between your computer and machine. Connect the machine to your computer using the USB cable.

- The machine does not support wireless networking (see "Features by models" on page 8).

Wireless network setup

Connecting Failure - SSID Not Found

• The machine is unable to find the network name (SSID) you have selected or entered. Check the network name (SSID) on your access point and try connecting again.
• Your access point is not turned on. Turn on your access point.

Wireless network setup

Connecting Failure - Invalid Security

- Security is not configured correctly. Check the configured security on your access point and machine.

Connecting Failure - General Connection Error

- Your computer is not receiving a signal from your machine. Check the USB cable and your machine's power.

Connecting Failure - Connected Wired Network

- Your machine is connected with a wired network cable. Remove the wired network cable from your machine.

Connecting Failure - Assigning the IP address

- Cycle the power for the access point (or wireless router) and machine.

PC Connection Error

- The configured network address is unable to connect between your computer and machine.

- For a DHCP network environment

The machine receives the IP address automatically (DHCP) when computer is configured to DHCP.

If the printing job is not working in DHCP mode, the problem may be caused by the automatically changed IP address. Compare the IP address between

the product's IP address and the printer port's IP address.

How to compare:

1 Print the network information report of your printer, and then check the IP address (see "Printing a network configuration report" on page 130).
2 Check the printer port's IP address from your computer.

a Click the Windows Start menu.

• For Windows 8, from Charms, select Search > Settings.
  b For Windows XP/Server 2003, select Printer and Faxes.
• For Windows Server 2008/Vista, select Control Panel > Hardware and Sound > Printers.
• For Windows 7/8, select Control Panel > Devices and Printers.
• For Windows Server 2008 R2, select Control Panel > Hardware > Devices and Printers.

c Right-click your machine.

d For Windows XP/2003/2008/Vista, press Properties.

For Windows 7/8 and Windows Server 2008 R2, from context menus, select the Printer properties.

If Printer properties item has ▶ mark, you can select other printer drivers connected with selected printer.

e Click Port tab.
f Click Configure Port... button.
g Check if Printer Name or IP Address: is the IP address on the network configuration Sheet.

3 Change the printer port's IP address if it is different from the network information report's.

If you want to use the software installation CD to change the port IP, Connect to a network printer. Then reconnect the IP address.

Wireless network setup

- For a Static network environment

The machine uses the static address when the computer is configured to static address.

For example,

If the computer's network information is as shown below:

IP address: 169.254.133.42
- Subnet Mask: 255.255.0.0
Then the machine's network information should be as below:
IP address: 169.254.133.43
- Subnet Mask: 255.255.0.0 (Use the computer's subnet mask.)
- Gateway: 169.254.133.1

Other problems

If problems occur while using the machine on a network, check the following:

For information on the access point (or wireless router), refer to its own user's guide.

• You cannot enable wired and wireless networks at the same time.

• Your computer, access point (or wireless router), or machine may not be turned on.

• Check the wireless reception around the machine. If the router is far from the machine or there is an obstacle, you might have difficulty receiving the signal.

• Cycle the power for the access point (or wireless router), machine, and computer. Sometimes cycling the power can recover network communication.
• Check whether firewall software (V3 or Norton) is blocking the communication.

If the computer and the machine are connected on the same network and it cannot be found when searching, firewall software might be blocking the communication. Refer to the user's guide for the software to turn it off and try searching for the machine again.

- Check whether the machine's IP address is allocated correctly. You can check the IP address by printing the network configuration report.

• Check whether the access point (or wireless router) has a configured security (password). If it has a password, refer to the access point (or wireless router) administrator.
• Check the machine's IP address. Reinstall the machine driver and change the settings to connect to the machine on the network. Due to the characteristics of DHCP, the allocated IP address could change if the machine is not used for a long time or if the access point has been reset.

Register the product's MAC address when you configure the DHCP server on the access point (or wireless router). Then you can always use the IP address that is set with the MAC address. You can identify the MAC address of your machine by printing a network configuration report (see "Printing a network configuration report" on page 130).

Wireless network setup

• Check the wireless environment. You might not be able to connect to the network in the infrastructure environment where you need to type in a user's information before connecting to the access point (or wireless router).
• This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless communication types (e.g., Bluetooth) are not supported.
• When using the ad hoc mode, in operating systems such as Windows Vista, you might need to set the wireless connection setting every time you use the wireless machine.
• You cannot use infrastructure mode and ad hoc mode at the same time for Samsung wireless network machines.
• The machine is within the range of the wireless network.
• The machine is located away from obstacles that could block the wireless signal.
  Remove any large metal objects between the access point (or wireless router) and the machine.
  Make sure the machine and wireless access point (or wireless router) are not separated by poles, walls, or support columns containing metal or concrete.
• The machine is located away from other electronic devices that may interfere with the wireless signal.
  Many devices can interfere with the wireless signal, including a microwave oven and some Bluetooth devices.
• Whenever the configuration of your access point (or wireless router) changes, you must do the device's wireless network setup again.
  • The maximum number of device that can be connected via Wi-Fi Direct is 3.

• If Wi-Fi Direct is ON, this machine only supports IEEE 802.11 b/g.
- If the access point is set to work with the 802.11n standard only, it may not connect to your machine.

Samsung MobilePrint

What is Samsung MobilePrint?

Samsung MobilePrint is a free application that enables users to print photos, documents, and web pages directly from your smartphone or tablet. Samsung MobilePrint is not only compatible with your Android and iOS smart phones but also with your iPod Touch and tablet PC. It connects your mobile device to a network connected Samsung printer or to a wireless printer through a Wi-Fi access point. Installing a new driver or configuring network settings isn't necessary – just simply install the Samsung MobilePrint application, and it will automatically detect compatible Samsung printers. Besides printing photos, web pages, and PDFs, scanning is also supported. If you have a Samsung multifunction printer, scan any document into a JPG, PDF, or PNG format for quick and easy viewing on your mobile device.

Downloading Samsung MobilePrint

To download Samsung MobilePrint, go to the application store (Samsung Apps, Play Store, App Store) on your mobile device, and just search for "Samsung MobilePrint." You can also visit iTunes for Apple devices on your computer.

Supported Mobile OS

• Android OS 2.1 or higher
• iOS 4.0 or higher

Supported devices

- iOS 4.0 or higher: iPod Touch, iPhone, iPad

- Android 2.1 or higher: Galaxy S series, Galaxy Note series, Galaxy Tab series, Galaxy Camera series, and Android mobile device

AirPrint

Network model only (see "Features by models" on page 8).

AirPrint allows you to wirelessly print directly from an iPhone, iPad, and iPod touch running the latest version of iOS.

Setting up AirPrint

Bonjour(mDNS) and IPP protocols are required on your machine to use the AirPrint feature. You can enable the AirPrint feature by one of the following methods.

1 Check whether the machine is connected to the network.
2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter your machine's new IP address in the browser window.

For example,

http://192.168.1.133/

3 Click Login in the upper right of the SyncThru™ Web Service website.

4 Type in the ID and Password, then click Login. If it's your first time logging into SyncThru™ Web Service, type in the below default ID and password. We recommend you to change the default password for security reasons.

• ID: admin
- Password: sec00000

5 When the SyncThru™ Web Service window opens, click Settings > Network Settings.
6 Click AirPrint.

You can enable the AirPrint.

Printing via AirPrint

For example, the iPad manual provides these instructions:

1 Open your email, photo, web page, or document you want to print.
2 Touch the action icon
3 Select your printer driver name and option menu to set up.
4 Touch Print button. Print it out.

AirPrint

Cancelling print job: To cancel the printing job or view the print summary, click the print center icon ( ) in multitasking area. You can click cancel in the print center.

Google Cloud Print™

Google Cloud Print™ is a service that allows you to print to a printer using your smart phone, tablet, or any other web-connected devices. Just register your Google account with the printer, and you are ready to use the Google Cloud Print™ service. You can print your document or email with Chrome OS, Chrome browser, or a Gmail™/ Google Docs™ application on your mobile device, so you don't need to install the printer driver on the mobile device. Refer to the Google website (http://www.google.com/cloudprint/learn/ or http://support.google.com/cloudprint) for more information about Google Cloud Print™.

Registering your Google account to the printer

- Make sure the printer machine is turned on and connected to a wired or wireless network that has access to the Internet.

- You should create your

1 Open the Chrome browser.
2 Visit www.google.com.
3 Sign in to the Google website with your Gmail™ address.
4 Enter your printer's IP address in the address field and press the Enter key or click Go.

5 Click Login in the upper right corner of the SyncThru™ Web Service website.
6 If it's your first time logging into SyncThru™ Web Service you need to log-in as an administrator. Type in the below default ID and Password. We recommend you to change the default password for security reasons.
• ID: admin
- Password: sec00000

If the network environment is using a proxy server, you need to configure the proxy's IP and port number from Settings > Network Settings > Google Cloud Print > Proxy Setting. Contact your network service provider or network administrator for more information.

7 When the SyncThru™ Web Service window opens, click Settings > Network Settings > Google Cloud Print.

8 Enter your printer's name and description.
9 Click Register. The confirmation pop-up window appears.

If you set the browser to block pop-ups, the confirmation window will not appear. Allow the site to show pop-ups.

Google Cloud Print™

10 Click Finish printer registration.
11 Click Manage your printers.

Now your printer is registered with Google Cloud Print™ service.

Google Cloud Print™-ready devices will appear in the list.

Printing with Google Cloud Print™

The printing procedure varies depending on the application or the device you are using. You can see the application list that supports Google Cloud Print™ service.

Make sure the printer is turned on and connected to a wired or wireless network that has access to the Internet.

Printing from an application on mobile device

The following steps are an example of using the Google Docs™ app from Android mobile phone.

1 Install the Cloud Print application on your mobile device.

If you do not have the application, download it from the application store such as Android Market or App Store.

2 Access the Google Docs™ application from your mobile device.
3 Tap the option button of the document that you want to print.
4 Tap the send button.
5 Tap the Cloud Print button.
6 Set the printing options if you want.
7 Tap Click here to Print.

Printing from the Chrome browser

The following steps are an example of using the Chrome browser.

1 Run Chrome.
2 Open the document or email that you want to print.
3 Click the wrench icon in the browser's top right corner.
4 Click Print. A new tab for printing appears.

1. Using a Network-Connected Machine

Google Cloud Print™

5 Select Print with Google Cloud Print.
6 Click the Print button.

Purple circular icon with a white printer symbol (no text or numbers)

3. Useful Setting Menus

This chapter explains how to browse the current status of your machine, and the method of setting for advanced machine setup.

• Before you begin reading a chapter 177
• Information 178
- Layout 179
• Paper 180
- Graphic 181
- System Setup 182
- Emulation 185
• Network 186
• Job Management 188

Before you begin reading a chapter

This chapter explains all the features available for this series' models to help users easily understand the features.

You can check the features available for each model in the Basic Guide (see "Menu overview" on page 30).

The following are tips for using this chapter

• The control panel provides access to various menus to set up the machine or use the machine's functions. These menus can be accessed by pressing (Menu).
  • Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.
• For models that do not have the ☐ (Menu) on the control panel, this feature is not applicable (see "Control panel overview" on page 22).
  • Some menu names may differ from your machine depending on its options or the models.

Information

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 30).

To change the menu options:

- Press 📋 (Menu) > Information on the control panel.

Item Description
Menu Map	Prints the menu map which shows the layout and current settings of this machine.
Configuration Prints a report on the machine's overall configuration.
Demo Page	Prints the demo page to check whether your machine is printing properly or not.
Supplies Info. Prints supplies' information page.
Usage Counter	Prints a usage page. The usage page contains the total number of pages printed.
Account	This is only available when Job Accounting is enabled from the SyncThruTM Web Admin Service. You can print a report of printout counts for each user.
PCL Font Prints the PCL font list.
PS Font Prints the PS font list.
EPSON Font Prints the EPSON font list.

Item Description
KSC5843 Font ^a	Prints the KSC5843 font list.
KSC5895 Font ^a	Prints the KSC5895 font list.
KSSM Font ^a	Prints the KSSM font list.

a. This option may not be available depending on your country.

Layout

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 30).

To change the menu options:

- Press 📄 (Menu) > Layout on the control panel.

Item Description
Orientation	Selects the direction in which information is printed on a page.
	• Portrait
	• Landscape

Item Description
Margin	Common Margin: Sets the margin for each side of paper.MP Tray: Sets the paper margins in multi-purpose tray.Tray X: Sets the paper margins for the paper trays.Emulation Mar.: Sets the paper margins for emulation print page.
Duplex	To print on both sides of the paper, choose the binding edge.Off: Disables this option.Long EdgeShort Edge

Paper

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 30).

To change the menu options:

- Press 📋 (Menu) > Paper on the control panel.

Item Description
Copies Selects the number of copies.
MP Tray/ [Tray]	· Paper Size: Selects the default paper size.· Paper Type: Selects the paper type currently loaded in the tray.
Paper Source	Sets the default paper tray to use.[723T] Auto: You can set the machine to automatically change to the tray with the same sized paper when the tray in use is empty.

Graphic

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 30).

To change the menu options:

- Press (Menu) > Graphic on the control panel.

Item Description
Resolution	Specifies the number of dots printed per inch (dpi). The higher the setting, the sharper printed characters and graphics.
Clear Text Prints text darker than on a normal document.
Auto CR	Allows you to append the required carriage return to each line feed, which is useful for Unix or DOS users.

System Setup

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 30).

To change the menu options:

- Press 📄 (Menu) > System Setup on the control panel.

Item Description
Date & Time ^a	Sets the date and time.
Clock Mode ^a	Selects the format for displaying time between 12 hours and 24 hours.
Language	Sets the language of the text that appears on the control panel display.
Default Paper You can set the default paper size to use.
Power Save	Sets how long the machine waits before going to power save mode.When the machine does not receive data for an extended period of time, power consumption is automatically lowered.

Item Description
Wakeup Event	When this option is On, you can wake up the machine from the power saving mode with the following actions:Loading paper in a tray.Opening or closing the front cover.Pulling a tray out or pushing a tray in.
Job Timeout	When there is no input for a certain period of time, the machine cancels the current job. You can set the amount of time the machine will wait before canceling the job.
Altitude Adj.	Optimize print quality according to the machine's altitude ("Altitude adjustment" on page 190).
Auto Continue	Determine whether or not the machine continues printing when it detects the paper does not match the paper settings.0 Sec: This option allows you to continue printing when the paper size you have set is mismatched with the paper in the tray.30 Sec: If a paper mismatch occurs, an error message will display. The machine waits for about 30 second, then automatically clear the message and continue printing.Off: If a paper mismatch occurs, the machine waits until you insert the correct paper.

System Setup

Item Description
Auto Tray Swi.	Determine whether or not the machine continues printing when it detects the paper does not match. For example, if both tray 1 and tray 2 are filled with the same size paper, the machine automatically prints from tray 2 after the tray 1 runs out of paper. This option does not appear if you selectedAuto for Paper Source from printer driver.
Paper Substit.	Automatically substitutes the printer driver's paper size to prevent the paper mismatch between Letter and A4. For example, if you have A4 paper in the tray but you set the paper size to Letter in the printer driver, the machine prints on A4 paper and vice versa.
Tray Protect.	Decides to use or not use theAuto Tray Swi.feature. If you set tray 1 to on, for example, then tray 1 is excluded during tray switching.
SkipBlankPage	The printer detects the printing data from computer whether a page is empty or not. You can set to print or skip the blank page.

Item Description
Maintenance	• CLR Empty Msg.: This option appears only when toner cartridge is empty.• Supplies Life: Allows you to check how many pages are printed and how much toner is left in the cartridge.• Image Mgr.: Allows you to adjust the density.• TonerLow Alert: If toner in the cartridge has run out, a message informing the user to change the toner cartridge appears. You can set the option for this message to appear or not.•ImgU. Low Alertb: Allows you to set the alarm for when the imaging unit is low.[03HH]M3325/M3825/M4025 series only.• RAM Disk: Enables/disables RAM disk to manage jobs.
Toner Save	Activating this mode extends the life of your toner cartridge and reduces your cost per page beyond what one would experience in the normal mode, but it reduces print quality.

System Setup

Item Description
Eco Settings	Allows you to save print resources and enables eco-friendly printing (see "Eco printing" on page 49).Default Mode: Select whether to turn the Eco mode on or off.[1237] On Force: Sets the Eco mode on. If a user wants to turn the Eco mode off, the user needs to enter the password.Select Temp.: Selects the eco template set from the SyncThruTM Web Service.
Auto Power Off Turns power off automatically when the machine has been in power save mode for the length of time set in Auto Power Off >On >Timeout.[6772] To turn the machine on again, press the (Power) button on the control panel (make sure the main power switch is on).If you run the printer driver or Samsung Easy Printer Manager, the time automatically extends.While the machine is connected to the network or working on a print job, Auto Power Off feature doesn't work.

Emulation

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 30).

To change the menu options:

- Press 📋 (Menu) > Emulation on the control panel.

Item Description
Emulation Type	The machine language defines how the computer communicates with the machine.
Setup Sets the detailed settings for the selected emulation type.

Network

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 30).

To change the menu options:

- Press ☐ (Menu) > Network on the control panel.

You can also use this feature from the SyncThru™ Web Service. Open the Web browser from your networked computer and type the IP address of your machine. When SyncThru™ Web Service opens, click Settings > Network Settings (see "Using SyncThru™ Web Service" on page 215).

Option Description
TCP/IP (IPv4)	Selects the appropriate protocol and configure parameters to use the network environment (see "Setting IP address" on page 130).There are lots of parameters to be set. If you are not sure, leave as is, or consult the network administrator.
TCP/IP (IPv6)	Selects this option to use the network environment through IPv6 (see "IPv6 configuration" on page 142).

Option Description
Ethernet	Configure the ethernet port and network transmission speed.
	Turn the power off and on after you change this option.
802.1x	You can select the user authentication for network communication. For detailed information consult the network administrator.
Wi-Fi	Select this option to use the wireless network (see "Wireless network setup" on page 145).

Network

Option Description
Protocol Mgr.	You can activate or deactivate the following protocols.·HTTP: You can sets whether to use SyncThruTM Web Service or not.·WINS: You can configure the WINS server.WINS(Windows Internet Name Service) is used in the Windows operating system.·SNMP V1/V2: You have to enable this option to use SNMP V1/V2 protocol. Administrator's can use SNMP to monitor and manage machines on the network.·UPnP(SSDP): You have to enable this option to use UPnP(SSDP) protocol.·MDNS: You have to enable this option to use MDNS (Multicast Domain Name System) protocol.·SetIP: You have to enable this option to use SetIP protocol.·SLP: You can configure SLP (Service Location Protocol) settings. This protocol allows host applications to find services in a local area network without prior configuration.[42T0] Turn the power off and on after you change this option.
Network Conf.	This list shows information on your machine's network connection and configuration (see "Printing a network configuration report" on page 130).

Option Description
Clear Setting	Reverts the network settings to the default values.
	Turn the power off and on.

Job Management

• This feature is not supported for M382xD.
- Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine (see "Menu overview" on page 30).

To change the menu options:

- Press 📋 (Menu) > Job Management on the control panel.

Item Description
Active Job Shows the print job lists that are waiting to be printed.
Secured Job Shows the print job lists that are secured on the disk.
Stored Job Shows the print job lists that are stored on the disk.
Filing Policy	If the memory already has the same name when you entered a new file name, you can rename or overwrite it.

Purple circular icon with a printer symbol (no text or numbers)

4. Special Features

This chapter explains special printing features.

• Altitude adjustment 190
- Entering various characters 191
- Printing features 192
• Using optional device features 208

• The procedures in this chapter are mainly based on Windows 7.
- It may be necessary to press OK to navigate to lower-level menus for some models.

Altitude adjustment

Print quality is affected by atmospheric pressure, which is determined by the height of the machine above sea level. The following information will guide you on how to set your machine for the best print quality.

Before you set the altitude value, determine the altitude where you are.

You can set the altitude value from Device Settings in Samsung Easy Printer Manager program.

• For Windows and Mac users, you set from Samsung Easy Printer Manager

(Switch to advanced mode) > Device Settings, see "Device Settings" on page 221.

- If your machine is connected to the network, you can set the altitude via SyncThru™ Web Service (see "Using SyncThru™ Web Service" on page 215).

- You can also set the altitude in System Setup option on the machine's display (see "Machine's basic settings" on page 33).

Entering various characters

M382xND/M382xDW/M402xND only.

As you perform various tasks, you may need to enter names and numbers.

Entering alphanumeric characters

Press the button until the correct letter appears on the display. For example, to enter the letter O, press 6, labeled with MNO. Each time you press 6, the display shows a different letter, M, N, O, m, n, o and finally 6. To find the letter that you want to enter, see "Keypad letters and numbers" on page 191.

- You can enter a space by pressing 1 twice.

• To delete the last digit or character, press the arrow button.

Keypad letters and numbers

- Special character sets may differ from your machine depending on its options or the models.

• Some of the follow key values may not appear depending on the job you are doing.

Key Assigned numbers, letters, or characters
1	@ / . '1
2	A B C a b c 2
3	D E F d e f 3
4 G H l g h i 4
5	J K L j k l 5
6	M N O m n o 6
7	P Q R S p q r s 7
8	T U V t u v 8
9	W X Y Z w x y z 9
0	& + - ,0
**% ^ _ ~ ! # $ ( ) [(These symbols are available when you type for network authentication.)
# # = | ?": { } < > ;(These symbols are available when you type for network authentication.)

Printing features

• For basic printing features, refer to the Basic Guide (see "Basic printing" on page 46).
• This feature may not be available depending on model or optional goods (see "Features by models" on page 8).

Changing the default print settings

1 Click the Windows Start menu.
2 Select Control Panel > Devices and Printers.
3 Right-click on your machine.
4 Select Printing preferences.

If Printing preferences has a ▶, you can select other printer drivers connected to the selected printer.

5 Change the settings on each tab.
6 Click OK.

If you want to change the settings for each print job, change it in Printing Preferences.

Setting your machine as a default machine

1 Click the Windows Start menu.
2 Select Control Panel > Devices and Printers.
3 Select your machine.
4 Right-click your machine and select Set as Default Printer.

If Printing preferences has a ▶, you can select other printer drivers connected to the selected printer.

Printing features

Using advanced print features

• See "Features by models" on page 8.
- XPS printer driver: used to print XPS file format.

• The XPS printer driver can be installed only on Windows Vista OS or higher.
• Install optional memory when an XPS job does not print because the printer is out of memory.
• You can install the XPS printer driver when you insert the software CD into your CD-ROM drive. For windows, select the printer XPS driver in the Select Software to Install window.

Printing to a file (PRN)

You will sometimes need to save the print data as a file.

1 Check the Print to file box in the Print window.

Print General Select Printer Status: Ready Location: Comment: Print to file Preferences Find Printer... Page Range ● All ○ Selection ○ Current Page ○ Pages: Number of copies 1 □ Copyrate 1 1 2 2 3 3 Print Cancel Apply

2 Click Print.
3 Type in the destination path and the file name, and then click OK. For example, c:\Temp\file name.

If you type in only the file name, the file is automatically saved in My Documents, Documents and Settings, or Users. The saved folder may differ, depending on your operating system or the application you are using.

Printing features

Understanding special printer features

You can use advanced printing features when using your machine.

To take advantage of the printer features provided by your printer driver, click Properties or Preferences in the application's Print window to change the print settings. The machine name, that appears in the printer properties window may differ depending on the machine in use.

• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.
• Select the Help menu or press F1 on your keyboard and click on any option you want to know about (see "Using help" on page 48).

Item Description
Multiple Pages per Side	Selects the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages will be reduced in size and arranged in the order you specify. You can print up to 16 pages on one sheet.
Poster Printing	Prints a single-page document onto 4 (Poster 2x2), 9 (Poster 3x3), or 16 (Poster 4x4) sheets of paper, for the purpose of pasting the sheets together to form one poster-size document.Select the Poster Overlap value. Specify Poster Overlap in millimeters or inches by selecting the radio button on the upper right of Basic tab to make it easier to paste the sheets together.

Printing features

Item Description
Booklet Printing ^a	Prints your document on both sides of a sheet of paper and arranges the pages so that the paper can be folded in half after printing to produce a booklet.[4662]If you want to make a booklet, you need to print on Letter, Legal, A4, US Folio, or Oficio sized print media.The Booklet Printing option is not available for all paper sizes. Select the available paper Size option under the Paper tab to see what paper sizes are available.If you select an unavailable paper size, this option can be automatically canceled. Select only available paper (paper without mark)or ×
Double-sided Printing	Print on both sides of a sheet of paper (duplex). Before printing, decide how you want your document oriented.[5534]You can use this feature with Letter, Legal, A4, US Folio or Oficio sized paper

Printing features

Item Description
Double-sided Printing	Printer Default:If you select this option, this feature is determined by the settings you have selected on the control panel of the machine.None:Disables this feature.Long Edge:This option is the conventional layout used in bookbinding.Short Edge:This option is the conventional layout used in calendars.Reverse Double-Sided Printing:Check this option to reverse the print order when duplex printing.
Paper Options	Changes the size of a document to appear larger or smaller on the printed page by entering in a percentage by which to enlarge or decrease the document.
Watermark	The watermark option allows you to print text over an existing document. For example, you use it when you want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all pages of a document.

Printing features

Item Description
Watermark(Creating a watermark)	a To change the print settings from your software application, access Printing Preferences.b Click the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears.c Enter a text message in the Watermark Message box.You can enter up to 256 characters. The message displays in the preview window.
Watermark(Editing a watermark)	a To change the print settings from your software application, access Printing Preferences.b Click the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears.c Select the watermark you want to edit from the Current Watermarks list and change the watermark message and options.d Click Update to save the changes.e Click OK or Print until you exit the Print window.
Watermark(Deleting a watermark)	a To change the print settings from your software application, access Printing Preferences.b Click the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears.c Select the watermark you want to delete from the Current Watermarks list and click Delete.d Click OK or Print until you exit the Print window.
Overlay^a	This option is available only when you use the PCL/SPL printer driver (see "Software" on page 9).An overlay is text and/or images stored in the computer hard disk drive (HDD) as a special file format that can be printed on any document.Overlays are often used to take the place of letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing exactly the same information that is currently on your letterhead. To print a letter with your company's letterhead, you do not need to load preprinted letterhead paper in the machine: just print the letterhead overlay on your document.To use a page overlay, you must create a new page overlay containing your logo or image.
	The overlay document size must be the same as the document you print with the overlay. Do not create an overlay with a watermark.The resolution of the overlay document must be the same as that of the document you will print with the overlay.

Printing features

Item Description
Overlay^a (Creating a new page overlay)	a To save the document as an overlay, access Printing Preferences.b Click the Advanced tab, and select Edit from the Text drop-down list. Edit Overlay window appears.c In the Edit Overlay window, click Create.d In the Save As window, type a name up to eight characters in the File name box. Select the destination path, if necessary (The default is C:\Formover).e Click Save. The name appears on the Overlay List.f Click OK or Print until you exit the Print window.The file is not printed. Instead, it is stored on your computer hard disk drive.
Overlay^a (Using a page overlay)	a Click the Advanced tab.b Select the desired overlay from the Text drop-down list.c If the overlay file you want does not appear in the Text drop-down list, select Edit... from the list and click Load. Select the overlay file you want to use.If you have stored the overlay file you want to use in an external source, you can also load the file when you access the Open window.After you select the file, click Open. The file appears in the Overlay List box and is available for printing. Select the overlay from the Overlay List box.d If necessary, check Confirm Page Overlay When Printing box. If this box is checked, a message window appears each time you submit a document for printing, asking you to confirm printing an overlay on your document.If this box is not checked and an overlay has been selected, the overlay automatically prints with your document.e Click OK or Print until you exit the Print window.
Overlay^a (Deleting a page overlay)	a In the Printing Preferences window, click the Advanced tab.b Select Edit in the Text drop down list.c Select the overlay you want to delete from the Overlay List box.d Click Delete.e When a confirming message window appears, click Yes.f Click OK or Print until you exit the Print window. You can delete page overlays that you no longer use.

Printing features

Item Description
Print Modeb	This feature is available only if you have installed the optional memory or mass storage device (HDD) (see "Variety feature" on page 10).Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.To enable this feature, checkStorage Options(see "Setting Device Options" on page 67).Without installing the optional memory or mass storage device (HDD) in the machine, the RAM disk feature provides only 3 options: Normal, Proof, and Confidential.
	Print Mode:The default Print Modeis Normal, which is for printing without saving the printing file in the memory.Normal: This mode prints without storing your document in the optional memory.Proof: This mode is useful when you print more than one copy. You can print one copy first to check, then print the rest of the copies later.Confidential: This mode is used for printing confidential documents. You need to enter a password to print.Store: Select this setting to save a document in the optional memory or mass storage device (HDD) without printing.Store and Print: This mode is used when printing and storing document at the same time.Spool: This option can be useful when handling large amounts of data. If you select this setting, the printer spools the document into the optional memory or mass storage device (HDD) and then prints it from the optional memory or mass storage device (HDD) queue, decreasing the computer's work load.Print Schedule: Select this setting to print the document at a specified time.
	Job Name: This option is used when you need to find a stored file using the control panel.User ID: This option is used when you need to find a stored file using the control panel. The user name automatically appears as the user name that you use to log on Windows.Enter Password: If the Propertyof the document you selected is secured, you have to enter the password for the document. This option is used for loading a stored file usingthe control panel.Confirm Password: Re-enter the password to confirm it.

Printing features

Item Description
Job Accountingb	This option allows you to print with the given permission.User permission:If you check this option, only users with user permission can start a print job.Group permission:If you check this option, only groups with group permission can start a print job.
	[OKYB]Select the Help menu or press F1 on your keyboard and click on any option you want to know about (see "Using help" on page 48).Administrators can enable job accounting and configure permissions in the control panel or SyncThruTM Web Admin Service.

a. This option is not available when you use XPS driver.
b. Not supported for M382xD.

Printing features

Using Direct Printing Utility

• This feature is not supported for M382xD.
- Direct Printing Utility may not be available depending on model or optional goods (see "Software" on page 9).
• Available for Windows OS users only.

What is Direct Printing Utility?

Direct Printing Utility is a program that sends the PDF files directly to your machine to print without having to opening the file.

To install this program:

Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).

• You cannot print PDF files that are restricted. Deactivate the printing restriction feature and retry printing.

• You cannot print PDF files that are restricted by a password. Deactivate the password feature, and retry printing.

• Whether or not a PDF file can be printed using the Direct Printing Utility program depends on how the PDF file was created.

• The Direct Printing Utility program supports PDF version 1.7 and below. For higher versions, you must open the file to print it.

Printing

There are several ways you can print using the Direct Printing Utility.

1 From the Start menu select Programs or All Programs.
• For Windows 8, from Charms, select Search > Apps.
2 Find Samsung Printers > Direct Printing Utility.
3 Select your machine from the Select Printer drop-down list and click Browse.
4 Select the file you wish to print and click Open.

The file is added in the Select Files section.

5 Customize the machine settings for your needs.
6 Click Print. The selected PDF file is sent to the machine.

Printing features

Using the right-click menu

1 Right-click on the PDF file to print and select Direct Printing.
The Direct Printing Utility window appears with the PDF file is added.
2 Select the machine to use.
3 Customize the machine settings.
4 Click Print. The selected PDF file is sent to the machine.

Mac printing

Some features may not be available depending on models or options. It means that the features are not supported.

Printing a document

When you print with a Mac, you need to check the printer driver settings in each application you use. Follow the steps below to print from a Mac:

1 Open the document to print.
2 Open the File menu and click Page Setup (Document Setup in some applications).
3 Choose your paper size, orientation, scaling, other options, and make sure that your machine is selected. Click OK.
4 Open the File menu and click Print.
5 Choose the number of copies and indicate which pages to print.
6 Click Print.

Printing features

Changing printer settings

You can use advanced printing features when using your machine.

Open an application and select Print from the File menu. The machine name, which appears in the printer properties window, may differ depending on the machine in use. Except for the name, the composition of the printer properties window is similar to the following.

Printing multiple pages on one sheet

You can print more than one page on a single sheet of paper. This feature provides a cost-effective way to print draft copies.

1 Open an application, and select Print from the File menu.
2 Select Layout from the drop-down list under Orientation. In the Pages per Sheet drop-down list, select the number of pages you want to print on one sheet of paper.
3 Select the other options to use.
4 Click Print.

The machine prints the selected number of pages to print on one sheet of paper.

Printing on both sides of the paper

Some features may not be available depending on models or options. It means that the features are not supported (see "Variety feature" on page 10).

Before printing in the duplex mode, decide on which edge you will be binding your finished document. The binding options are, as follows:

• Long-Edge Binding: This option is the conventional layout used in book binding.
• Short-Edge Binding: This option is the type often used with calendars.

1 From your Mac application, select Print from the File menu.
2 Select Layout from the drop-down list under Orientation.
3 Select a binding orientation from the Two-Sided option.
4 Select the other options to use.
5 Click Print and the machine prints on both sides of the paper.

If you print more than 2 copies, the first copy and the second copy might print on the same sheet of paper. Avoid printing on both sides of paper when you are printing more than 1 copy.

Printing features

Using help

Click the question mark on the bottom-left corner of the window and click on the topic you want to know about. A pop-up window appears with information about that option's feature, which is provided from the driver.

Printer: 10.88 x 1x1.197 Presets: Standard Copies: 1 Collared Two-Sided Pages: All From: 1 to: 1 Paper Size: A4 20.99 by 26.30 cm Orientation: Layout Pages per Sheet: 1 Layout Direction: Barrier: None Two-Sided: OFF Reverse Page Orientation PDF + Supplies ... Low Cancel Print

Linux printing

Some features may not be available depending on models or options. It means that the features are not supported.

Printing from applications

There are a lot of Linux applications that allow you to print using Common UNIX Printing System (CUPS). You can print on your machine from any such application.

1 Open the document to print.
2 Open the File menu and click Page Setup (Print Setup for some applications).
3 Choose your paper size, orientation, and make sure that your machine is selected. Click Apply.
4 Open the File menu and click Print.
5 Select your machine to print.
6 Choose the number of copies and indicate which pages to print.
7 Change other printing options in each tab, if necessary.
8 Click Print.

Automatic duplex printing may not be available depending on models. You can alternatively use the lpr printing system or other applications for odd-even printing (see "Features by models" on page 8).

Printing features

Printing files

You can print text, image, pdf files on your machine using the standard

CUPS directly from the command line interface. The CUPS lp or lpr utility allows you to do that. You can print these files by using below command format.

"lp -d -o "

Please refer to lp or lpr man page on your system for more details.

Configuring Printer Properties

Using the Printer Properties window provided by the Printers configuration, you can change the various properties for your machine as a printer.

1 Open the Unified Driver Configurator.
If necessary, switch to Printers configuration.

2 Select your machine on the available printers list and click Properties.

3 The Printer Properties window appears.

The following five tabs display at the top of the window:

• General: Allows you to change the printer location and name. The name entered in this tab displays on the printer list in Printers configuration.
• Connection: Allows you to view or select another port. If you change the machine port from USB to parallel or vice versa while in use, you must re-configure the machine port in this tab.
• Driver: Allows you to view or select another machine driver. By clicking Options, you can set the default device options.
• Jobs: Shows the list of print jobs. Click Cancel job to cancel the selected job and select the Show completed jobs check box to see previous jobs on the job list.
• Classes: Shows the class that your machine is in. Click Add to Class to add your machine to a specific class or click Remove from Class to remove the machine from the selected class.

4 Click OK to apply the changes and close the Printer Properties window.

Printing features

Unix printing

Some features may not be available depending on models or options. It means that the features are not supported (see "Features by models" on page 8).

Proceeding the print job

After installing the printer, choose any of the image, text, or PS files to print.

1 Execute "printui " command.

For example, if you are printing "document1"

printui document1

This will open the UNIX Printer Driver Print Job Manager in which the user can select various print options.

2 Select a printer that has been already added.

3 Select the printing options from the window such as Page Selection.

4 Select how many copies are needed in Number of Copies.

To take advantage of the printer features provided by your printer driver, press Properties.

Press OK to start the print job.

Changing the machine settings

The UNIX printer driver Print Job Manager in which the user can select various print options in printer Properties.

The following hot keys may also be used: "H" for Help, "O" for OK, "A" for Apply, and "C" for Cancel.

General tab

• Paper Size: Set the paper size as A4, Letter, or other paper sizes, according to your requirements.
• Paper Type: Choose the type of the paper. Options available in the list box are Printer Default, Plain, and Thick.
• Paper Source: Select from which tray the paper is used. By default, it is Auto Selection.
  • Orientation: Select the direction in which information is printed on a page.
  • Duplex: Print on both sides of paper to save paper.

Printing features

Automatic duplex printing may not be available depending on models. You can alternatively use the lpr printing system or other applications for odd-even printing.

• Multiple pages: Print several pages on one side of the paper.
- Page Border: Choose any of the border styles (e.g., Single-line hairline, Double-line hairline)

Image tab

In this tab, you can change the brightness, resolution, or image position of your document.

Text tab

Set the character margin, line space, or the columns of the actual print output.

Margins tab

• Use Margins: Set the margins for the document. By default, margins are not enabled. The user can change the margin settings by changing the values in the respective fields. Set by default, these values depend on the page size selected.
  • Unit: Change the units to points, inches, or centimeters.

Printer-Specific Settings tab

Select various options in the JCL and General frames to customize various settings. These options are specific to the printer and depend on the PPD file.

Using optional device features

• This feature is not supported for M382xD.

- Some features may not be available depending depending on model or optional goods (see "Variety feature" on page 10).

From the printer driver

If you install the optional device, you can use advanced printing features, such as proofing a job and printing a private job in the Print window. Check the mass storage (HDD) or RAM disk option in Device Options, then you can select the various features from Print Mode (see "Setting Device Options" on page 67).

1

Open the document you want to print.

2

Select Print from the File menu. The Print window appears.

3

Select your printer driver from the Select Printer list.

Print General Select Printer Status Offline Print to Use Patterns Location: Final Printer Comment Page Range 单页 Selection Cigarette Page Page Number of pages 1 Delete 1 2 3 4 End Cancel Apply

4
Click Properties or Preferences.
5
Click the each tab then select Print Mode.
6
Select the option you want (see "Understanding special printer features" on page 194).

From the control panel

If your machine has optional mass storage device (HDD) or RAM disk, you can use these features from the ☐ (Menu) button> System Setup > Job Management.

Using optional device features

Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.

• Active Job: All of the print jobs waiting to be printed are listed in the active job queue in the order you sent them to the printer. You can delete a job from the queue before printing, or promote a job to print sooner.
• Secured Job: You can print or delete a secured job. Shows the list of secured jobs the user has set in the printer driver. You need to enter the user name and password set in the printer driver.
• Stored Job: You can print or delete a stored job.
• Filing Policy: You can choose the file policy for generating file name before you proceed with the job through optional memory. If the optional memory already has the same name when you entered a new file name, you can rename or overwrite it.

Purple circular icon with a white printer symbol (no text or numbers)

5. Useful Management Tools

This chapter introduces management tools provided to help you make full use of your machine.

• Accessing management tools 211
• Easy Capture Manager 212
  • Samsung AnyWeb Print 213
• Easy Eco Driver 214
  • Using SyncThru™ Web Service 215
  • Using Samsung Easy Printer Manager 219
  • Using Samsung Printer Status 222
  • Using Samsung Printer Experience 224
  • Using the Linux Unified Driver Configurator 230

Accessing management tools

Samsung provides a variety of management tools for Samsung printers.

1 Make sure that the machine is connected to your computer and powered on.
2 From the Start menu, select Programs or All Programs.
• For Windows 8, from the Charms, select Search > Apps.
3 Find Samsung Printers.
4 Under Samsung Printers, you can see installed management tools.
5 Click the management tool you want to use.

• After installing the driver, for some management tools, you can access them directly from the Start menu > Programs or All Programs.
- For Windows 8, after installing the driver, for some management tools, you can access them directly from the Start screen by clicking on the corresponding tile.

Easy Capture Manager

• This feature may not be available depending on model or optional goods (see "Software" on page 9).
  • Available for Windows OS users only (see "Software" on page 9).

Capture your screen and launch Easy Capture Manager by simply pressing the Print Screen key. Now you can easily print your captured screen as captured or edited.

Samsung AnyWeb Print

• This feature may not be available depending on model or optional goods (see "Software" on page 9).
  • Available for Windows and Mac OS users only (see "Software" on page 9).

This tool helps you screen-capture, preview, scrap, and print Windows Internet Explorer pages more easily, than when you use an ordinary program.

Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).

Easy Eco Driver

• This feature may not be available depending on model or optional goods (see "Software" on page 9).
  • Available for Windows OS users only (see "Software" on page 9).

With the Easy Eco Driver, you can apply Eco features to save paper and toner before printing. To use this application, Printer Properties > Basic tab > Start Easy Eco Driver before printing job checkbox should be checked.

Easy Eco Driver also allows you to do simple editing such as removing images and texts, changing fonts, and more. You can save frequently used settings as a preset.

How to use:

1 Open a document to print.
2 Print the document.

A preview window appears.

3 Select the options you want to apply to the document.

You can see the preview of the applied features.

4 Click Print.

Using SyncThru™ Web Service

• Internet Explorer 6.0 or higher is the minimum requirement for SyncThru™ Web Service.
• SyncThru™ Web Service explanation in this user's guide may differ from your machine depending on its options or models.
  • Network model only (see "Software" on page 9).

Accessing SyncThru™ Web Service

1 Access a web browser, such as Internet Explorer, from Windows.

Enter the machine IP address of your printer (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.

2 Your machine's embedded website opens.

Logging into SyncThru™ Web Service

Before configuring options in SyncThru™ Web Service, you need to log-in as an administrator. You can still use SyncThru™ Web Service without logging in but you won't have access to Settings tab and Security tab.

1 Click Login on the upper right of the SyncThru™ Web Service website.
2 Type in the ID and Password then click Login. Type in the below default ID and password. We recommend you to change the default password for security reasons.

• ID: admin

- Password: sec00000

SyncThru™ Web Service overview

Information

Settings

Security

Maintenance

Some tabs may not appear depending on your model.

Using SyncThru™ Web Service

Information tab

This tab gives you general information about your machine. You can check things, such as remaining amount of toner. You can also print reports, such as an error report.

• Active Alerts: Shows the alerts that have occurred in the machine and their severity.
- Supplies: Shows how many pages are printed and amount of toner left in the cartridge.
- Usage Counters: Shows the usage count by print types: simplex and duplex.
- Current Settings: Shows the machine's and network's information.
- Print information: Prints reports such as system related reports, e-mail address, and font reports.

Settings tab

This tab allows you to set configurations provided by your machine and network. You need to log-in as an administrator to view this tab.

• Machine Settings tab: Sets options provided by your machine.
- Network Settings tab: Shows options for the network environment. Sets options such as TCP/IP and network protocols.

Security tab

This tab allows you to set system and network security information. You need to log-in as an administrator to view this tab.

• System Security: Sets the system administrator's information and also enables or disables machine features.
  • Network Security: Sets settings for HTTPS, IPSec, IPv4/IPv6 filtering, 802.1x, and Authentication servers.
• User Access Control: Classifies users into several groups according to each user's role. Each user's authorization, authentication and accounting will be controlled by the group's role definition.

Maintenance tab

This tab allows you to maintain your machine by upgrading firmware and setting contact information for sending emails. You can also connect to Samsung website or download drivers by selecting the Link menu.

• Firmware Upgrade: Upgrade your machine's firmware.
• Contact Information: Shows the contact information.
• Link: Shows links to useful sites where you can download or check information.
• License Management: License management provides settings for or settings of installed applications and application license.

Using SyncThru™ Web Service

- Cloning: You can import or export (transfer) various settings (machine setting, network information, address book, etc.) between devices that have the Cloning feature in SyncThru™ Web Service.

E-mail notification setup

You can receive emails about your machine's status by setting this option. By setting information such as IP address, host name, e-mail address and SMTP server information, the machine status (toner cartridge shortage or machine error) will be sent to a certain person's e-mail automatically. This option may be used more frequently by a machine administrator.

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine.

1 Start a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.
2 Your machine's embedded website opens.
3 From the Settings tab, select Machine Settings > E-mail Notification.

If you have not configured outgoing server environment, go to Settings > Network Settings > Outgoing Mail Server(SMTP) to configure network environment before setting e-mail notification.

4 Select Enable check box to use the E-mail Notification.

5 Click Add button to add e-mail notification user.

Set the recipient name and e-mail address(es) with notification items you want to receive an alert for.

6 Click Apply.

If the firewall is activated, the e-mail may not be sent successfully. In that case, contact the a network administrator.

Setting the system administrator's information

This setting is necessary for using the e-mail notification option.

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine.

Using SyncThru™ Web Service

1 Start a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and press the Enter key or click Go.
2 Your machine's embedded website opens.
3 From the Security tab, select System Security > System Administrator
4 Enter the name of the administrator, phone number, location, and email address.
5 Click Apply.

Using Samsung Easy Printer Manager

• This feature may not be available depending on model or optional goods (see "Software" on page 9).
  • Available for Windows and Mac OS users only (see "Software" on page 9).
• For Windows, Internet Explorer 6.0 or higher is the minimum requirement for Samsung Easy Printer Manager.

Samsung Easy Printer Manager is an application that combines Samsung machine settings into one location. Samsung Easy Printer Manager combines device settings as well as printing environments, settings/actions and launching. All of these features provide a gateway to conveniently use your Samsung machine. Samsung Easy Printer Manager provides two different user interfaces for the user to choose from: the basic user interface and the advanced user interface. Switching between the two interfaces is easy: just click a button.

Understanding Samsung Easy Printer Manager

To open the program:

For Windows,

Select Start > Programs or All Programs > Samsung Printers > Samsung Easy Printer Manager > Samsung Easy Printer Manager.

For Mac,

Open the Applications folder > Samsung folder > Samsung Easy Printer Manager.

The Samsung Easy Printer Manager interface is comprised of various basic sections as described in the table that follows:

The screenshot may differ depending on the operating system you are using.

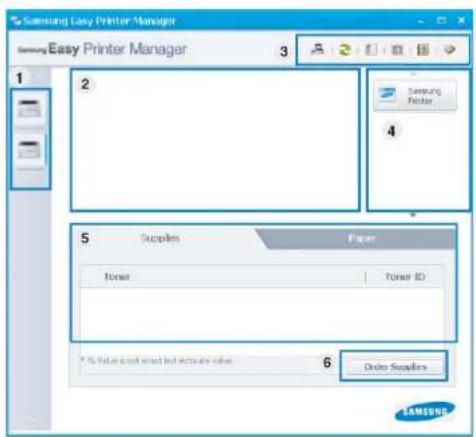

Samsung Easy Printer Manager Samsung Easy Printer Manager 1 2 3 4 5 Suppliers Paper Toner Toner ID * % Value is not fixed but active value 6 Order Suppliers SAMSUNG

1	Printer list The Printer List displays printers installed on your computer and network printers added by network discovery (Windows only).

Using Samsung Easy Printer Manager

2	Printer information	This area gives you general information about your machine. You can check information, such as the machine's model name, IP address (or Port name), and machine status. You can view the onlineUser's Guide.Troubleshooting button: This button opens theTroubleshooting Guidewhen an error occurs. You can directly open the necessary section in the user's guide.
3	Application information	Includes links for changing to the advanced settings(switching UI), refresh, preference setting, summary, help, and about. Thebutton is usedto change the user interface to theadvanced settings user interface(see "Advanced settings user interface overview" on page 220).

4	Quick links	DisplaysQuick linksto machine specific functions. This section also includes links to applications in the advanced settings.[054X] If you connect your machine to a network, the SyncThruTM Web Service icon is enabled.
5	Contents area Displays information about the selected machine, remaining toner level, and paper. The information will vary based on the machine selected. Some machines do not have this feature.
6	Order supplies	Click on the Order button from the supply ordering window. You can order replacement toner cartridge(s) from online.

Select the Help menu from the window and click on any option you want to know about.

Advanced settings user interface overview

The advanced user interface is intended to be used by the person responsible for managing the network and machines.

Using Samsung Easy Printer Manager

Some menus may not appear in the display depending on options or models. If so, it is not applicable to your machine.

Device Settings

You can configure various machine settings such as machine setup, paper, layout, emulation, network, and print information.

Alert Settings (Windows only)

This menu includes settings related to error alerting.

• Printer Alert: Provides settings related to when alerts will be received.
• Email Alert: Provides options relating to receiving alerts via email.
• Alert History: Provides a history of device and toner related alerts.

Job Accounting

Provides querying of quota information of the specified job accounting user. This quota information can be created and applied to devices by job accounting software such as SyncThru™ or CounThru™ admin software.

Using Samsung Printer Status

The Samsung Printer Status is a program that monitors and informs you of the machine status.

• The Samsung Printer Status window and its contents shown in this user's guide may differ depending on the machine or operating system in use.
• Check the operating system(s) that are compatible with your machine (see "Specifications" on page 101).
  • Available for Windows OS users only (see "Software" on page 9).

Samsung Printer Status overview

If an error occurs while operating, you can check the error from the Samsung Printer Status. Samsung Printer Status is installed automatically when you install the machine software.

You can also launch Samsung Printer Status manually. Go to the Printing Preferences, click the Basic tab > Printer Status button.

These icons appear on the Windows task bar:

Icon Mean Description
	Normal The machine is in ready mode and experiencing no errors or warnings.
	Warning The machine is in a state where an error might occur in the future. For example, it might be in toner low status, which may lead to toner empty status.
	Error The machine has at least one error.

Samsung Printer status Sleeping... 1 2 3 4 5 Option Order Supplies User's Guide Close

1	Toner Level You can view the level of toner remaining in each toner cartridge. The machine and the number of toner cartridge(s) shown in the above window may differ depending on the machine in use. Some machines do not have this feature.

Using Samsung Printer Status

2 Option You can set printing job alert related settings.
3	Order Supplies You can order replacement toner cartridge(s) from online.
4	User's Guide You can view the online User's Guide.
	This button opens the Troubleshooting Guide when an error occurs. You can directly open the troubleshooting section in the user's guide.
5 Close Close the window.

Using Samsung Printer Experience

Samsung Printer Experience is a Samsung application that combines Samsung machine settings and machine management into one location. You can set device settings, order supplies, open troubleshooting guides, visit Samsung's web site, and check connected machine information. This application will be automatically downloaded from the Windows Store if the machine is connected to a computer with an Internet connection.

Understanding the Samsung Printer Experience

To open the application,

From the Start screen, select the Samsung Printer Experience tile.

The Samsung Printer Experience interface comprises various useful features as described in the following table:

The screenshot may differ depending on the model you are using.

Samsung Printer Experience 1 Status First Location Serial Message 2 User Guide 3 Online Supplift 4 Wall Services 5 Printer Settings 6 Grave

1

Printer Information

This area gives you general information about your machine. You can check information, such as the machine's status, location, IP address, and remaining toner level.

Using Samsung Printer Experience

2	User Guide	You can view the online User's Guide. You need to be connected to the Internet to use this feature.
		This button opens the Troubleshooting Guide when an error occurs. You can directly open the troubleshooting section in the user's guide.
3	Order Supplies	Click on this button to order replacement toner cartridges online. You need to be connected to the Internet to use this feature.
4	Visit Samsung Links	to Samsung printer website. You need to be connected to the Internet to use this feature.
5	Printer Settings You can configure various machine settings such as machine setup, paper, layout, emulation, networking, and print information through SyncThruTM Web Service. Your machine needs to be connected to a network. This button will be disabled if your machine is connected via USB cable.
6	Device List & Latest Scanned Image	The scan list displays devices that supports Samsung Printer Experience. Under the device, you can see the latest scanned images. Your machine needs to be connected to a network to scan from here. This section is for the users with multi-functional printers.

Printing from Windows 8

This section explains common printing tasks from the Start screen.

Basic printing

1 Open the document to print.
2 From the Charms, select Devices.
3 Select your printer from the list

4 Select the printer settings, such as the number of copies and orientation.

Using Samsung Printer Experience

5

Click the Print button to start the print job.

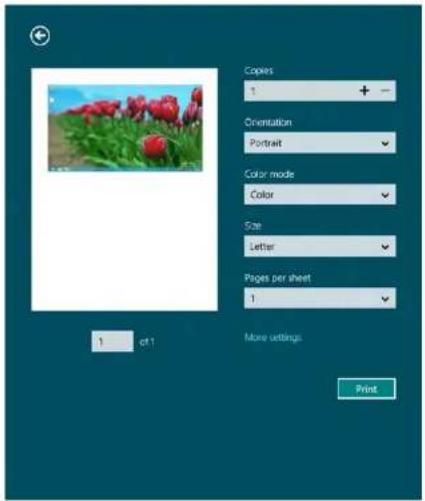

Copies 1 + - Orientation Portrait Color mode Color Size Letter Pages per sheet 1 of 1 More settings Print

Cancelling a print job

If the printing job is waiting in the print queue or print spooler, cancel the job as follows:

- You can access this window by simply double-clicking the machine icon

he Windows task bar.

- You can also cancel the current job by pressing ☒ (Stop/Clear) button on the control panel.

Opening more settings

The screen may appear somewhat different depending on the model or options.

You can set up more printing parameters.

1 Open the document you want to print.
2 From the Charms, select Devices.
3 Select your printer from the list
4 Click More settings.

Using Samsung Printer Experience

Basic tab

Samsung Printer Experience Basic Advanced Security About Number of Copies 1 Orientation Portrait Print Type Standard Printer Default

Basic

This option allows you to choose the basic printing settings such as copies, orientation, and document type.

Eco settings

This option allows you to choose multiple pages per side to save media.

Advanced tab

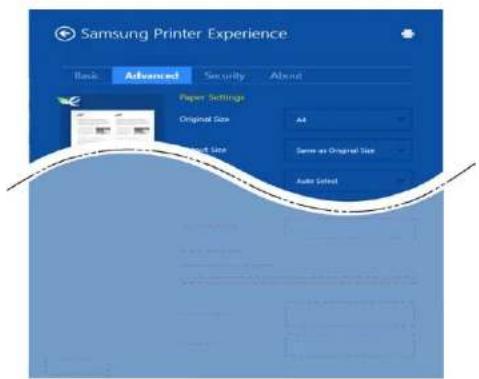

Samsung Printer Experience Basic Advanced Security About Paper Settings Original Size All Direct Size Same as Original Size Auto Selected

Paper settings

This option allows you to set the basic paper handling specifications.

Layout settings

This option allows you to set the various ways to layout your documents.

Using Samsung Printer Experience

Security tab

Some features may not be available depending on the model or options. If this tab is not shown or disabled, it means that this features are not supported.

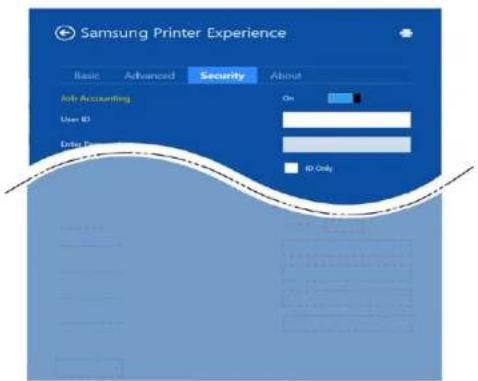

Samsung Printer Experience Basic Advanced Security About Job Accounting On User ID Edit User ID Only

Job Accounting

This option allows you to print with the given permission.

Confidential Printing

This option is used for printing confidential documents. You need to enter a password to print using it.

Scanning from Windows 8

This section is for the users with multi-functional printers.

Scanning with your machine lets you turn pictures and text into digital files that can be stored on your computer.

Scanning from Samsung Printer Experience

The most frequently used printing menus are displayed for quick scanning.

1 Place a single document face down on the document glass, or load the documents face up into the document feeder.
2 Click the Samsung Printer Experience tile on the Start screen.
3 Click Scan ( )
4 Set up the scanning parameters such as image type, document size, and resolution.
5 Click Prescan () to check the image.
6 Adjust the prescanned image with scanning operation functions such as rotate and mirror.

Using Samsung Printer Experience

7

Click Scan () and save the image.

• When you place the originals in the ADF (or DADF), Prescan (SOD) is not available.
• You can skip step 5, if the Prescan option is selected.

Using the Linux Unified Driver Configurator

The Unified Driver Configurator is a tool primarily intended for configuring machine devices. You need to install Unified Linux Driver to use Unified Driver Configurator (see "Installation for Linux" on page 126).

After the driver is installed on your Linux system, the Unified Driver Configurator icon will automatically be created on your desktop.

Opening Unified Driver Configurator

1 Double-click the Unified Driver Configurator on the desktop. You can also click the Startup Menu icon and select Samsung Unified Driver > Unified Driver Configurator.

2 Click each button on the left to switch to the corresponding configuration window.

Unified Driver Configurator Printers configuration Printers | Classes | Refresh Add Printer... Remove Printer Set as Default Stop Text... Properties... About Help Selected printer: Local printer(idle) Model: LRT: Exit

1 Printer Configuration
2 Port Configuration

Using the Linux Unified Driver Configurator

To use the on screen help, the Help or ? button from the window.

After changing the configurations, click Exit to close the Unified Driver Configurator.

Printers configuration

Printers configuration has the two tabs: Printers and Classes.

Printers tab

View the current system's printer configuration by clicking on the machine icon button on the left side of the Unified Driver Configurator window.

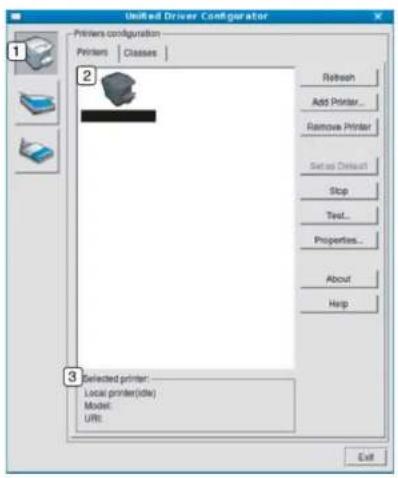

United Driver Configurator Printers configuration Printers Classes Refresh Add Printer... Remove Printer Set as Default Stop Text... Properties... About Help 1 2 3 Selected printer: Local printer(idie) Model: URL: Exit

1 Switches to Printers configuration.
2 Shows all of the installed machines.
3 Shows the status, model name, and URI of your machine.

Using the Linux Unified Driver Configurator

The printer control buttons are, as follows:

• Refresh: Renews the available machines list.
• Add Printer: Allows you to add a new machines.
• Remove Printer: Removes the selected machine.
• Set as Default: Sets the current selected machine as a default machine.
• Stop/Start: Stops/starts the machine.
• Test: Allows you to print a test page to ensure the machine is working properly.
  • Properties: Allows you to view and change the printer's properties.

Classes tab

The Classes tab shows a list of available machine classes.

United Driver Configurator Printers configuration Printers | Classes 1 Refresh Add Class... Remove Class Set as Default Stop Properties... About Help 2 Selected class: State: idle Printers in class: Exit

1 Shows all of the machine classes.

2

Shows the status of the class and the number of machines in the class.

• Refresh: Renews the classes list.
• Add Class: Allows you to add a new machine class.
• Remove Class: Removes the selected machine class.

Using the Linux Unified Driver Configurator

Ports configuration

In this window, you can view the list of available ports, check the status of each port and release a port that is stalled in a busy state when its owner has terminated the job for any reason.

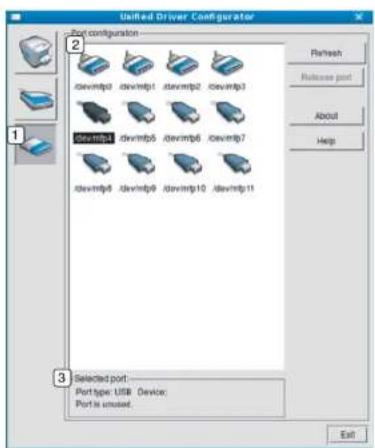

Unified Driver Configurator Port configuration devvmb0 devvmb1 devvmb2 devvmb3 devvmb4 devvmb5 devvmb6 devvmb7 devvmb8 devvmb9 devvmb10 devvmb11 1 2 3 Selected port: Port type: USB Device: Port is unused. Exit Refresh Release port About Help

1	Switches toPorts configuration.
2	Shows all of the available ports.
3	Shows the port type, device connected to the port, and status.

• Refresh: Renews the available ports list.

- Release port: Releases the selected port.

Purple circular icon with a white printer symbol (no text or numbers)

6. Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

• Paper feeding problems 235
• Power and cable connecting problems 236
• Printing problems 237
• Printing quality problems 241
• Operating system problems 249

For errors that occur during the wireless software installation and settings, refer to the troubleshooting section in the wireless setting chapter (see "Troubleshooting for wireless network" on page 165).

Paper feeding problems

Condition Suggested solutions
Paper jams during printing. Clear the paper jam.
Paper sticks together. · Check the maximum paper capacity of the tray. · Make sure that you are using the correct type of paper. · Remove paper from the tray and flex or fan the paper. · Humid conditions may cause some paper to stick together.
Multiple sheets of paper do not feed.	Different types of paper may be stacked in the tray. Load paper of only one type, size, and weight.
Paper does not feed into the machine.	· Remove any obstructions from inside the machine. · Paper has not been loaded correctly. Remove paper from the tray and reload it correctly. · There is too much paper in the tray. Remove excess paper from the tray. · The paper is too thick. Use only paper that meets the specifications required by the machine.
The paper keeps jamming.	· There is too much paper in the tray. Remove excess paper from the tray. If you are printing on special materials, use the manual feeding in tray. · An incorrect type of paper is being used. Use only paper that meets the specifications required by the machine. · There may be debris inside the machine. Open the front cover and remove any debris.
Envelopes skew or fail to feed correctly.	Ensure that the paper guides are against both sides of the envelopes.

Power and cable connecting problems

Condition Suggested solutions
The machine is not receiving power, or the connection cable between the computer and the machine is not connected properly.	Connect the machine to the electricity supply first. If the machine has a (Power) button on the control, press it.Disconnect the machine's cable and reconnect it.

Printing problems

Condition Possible cause Suggested solutions
The machine does not print.	The machine is not receiving power.	Connect the machine to the electricity supply first. If the machine has a (Power) button on the control, press it.
	The machine is not selected as the default machine.	Select your machine as your default machine in Windows.
	Check the machine for the following:• The cover is not closed. Close the cover.• Paper is jammed. Clear the paper jam (see "Clearing paper jams" on page 80).• No paper is loaded. Load paper (see "Loading paper in the tray" on page 36).• The toner cartridge is not installed. Install the toner cartridge (see "Replacing the toner cartridge" on page 62).• Make sure the protect cover and sheets are removed from the toner cartridge (see "Replacing the toner cartridge" on page 62).If a system error occurs, contact your service representative.
	The connection cable between the computer and the machine is not connected properly.	Disconnect the machine cable and reconnect it (see "Rear view" on page 21).
	The connection cable between the computer and the machine is defective.	If possible, attach the cable to another computer that is working properly and print a job.You can also try using a different machine cable.
	The port setting is incorrect.	Check the Windows printer settings to make sure that the print job is sent to the correct port. If the computer has more than one port, make sure that the machine is attached to the correct one.

Printing problems

Condition Possible	cause Suggested solutions
The machine does not print.	The machine may be configured incorrectly.	Check the Printing Preferences to ensure that all of the print settings are correct.
	The printer driver may be incorrectly installed.	Uninstall and reinstall the machine's driver.
	The machine is malfunctioning.	Check the display message on the control panel to see if the machine is indicating a system error. Contact a service representative.
	The document size is so big that the hard disk space of the computer is insufficient to access the print job.	Get more hard disk space and print the document again.
	The output tray is full.	Once the paper is removed from the output tray, the machine resumes printing.
The machine selects print materials from the wrong paper source.	The paper option that was selected in the Printing Preferences may be incorrect.	For many software applications, the paper source selection is found under the Paper tab within the Printing Preferences (see "Opening printing preferences" on page 47). Select the correct paper source. See the printer driver help screen (see "Using help" on page 48).
A print job is extremely slow.	The job may be very complex.	Reduce the complexity of the page or try adjusting the print quality settings.
Half the page is blank.	The page orientation setting may be incorrect.	Change the page orientation in your application (see "Opening printing preferences" on page 47). See the printer driver help screen (see "Using help" on page 48).
	The paper size and the paper size settings do not match.	Ensure that the paper size in the printer driver settings matches the paper in the tray. Or, ensure that the paper size in the printer driver settings matches the paper selection in the software application settings you use (see "Opening printing preferences" on page 47).
The machine prints, but the text is wrong, garbled, or incomplete.	The machine cable is loose or defective.	Disconnect the machine cable and reconnect. Try a print job that you have already printed successfully. If possible, attach the cable and the machine to another computer that you know works and try a print job. Finally, try a new machine cable.

Printing problems

Condition Possible	cause Suggested solutions
	The wrong printer driver was selected.	Check the application's printer selection menu to ensure that your machine is selected.
	The software application is malfunctioning. Try printing a job from another application.
	The operating system is malfunctioning.	Exit Windows and reboot the computer. Turn the machine off and back on again.
Pages print, but they are blank.	The toner cartridge is defective or out of toner. Redistribute the toner, if necessary.If necessary, replace the toner cartridge.See "Redistributing toner" on page 60.See "Replacing the toner cartridge" on page 62.
	The file may have blank pages.	Check the file to ensure that it does not contain blank pages.
	Some parts, such as the controller or the board, may be defective.	Contact a service representative.
The machine does not print PDF files correctly. Some parts of graphics, text, or illustrations are missing.	Incompatibility between the PDF file and the Acrobat products.	Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options.[2006] It will take longer to print when you print a PDF file as an image.
The print quality of photos is not good. Images are not clear.	The resolution of the photo is very low.	Reduce the photo size. If you increase the photo size in the software application, the resolution will be reduced.
Before printing, the machine emits vapor near the output tray.	Using damp/wet paper can cause vapor [white smoke] during printing.	This is not a problem. Just keep printing. If you are bothered by the smoke [vapor], then replace the paper with fresh paper from an unopened ream.

Printing problems

Condition Possible cause Suggested solutions
The machine does not print custom-sized paper, such as billing paper.	Paper size and paper size setting do not match.	Set the correct paper size in the Custom in Paper tab in Printing Preferences (see "Opening printing preferences" on page 47).
The printed billing paper is curled.	The paper type setting does not match.	Change the printer option and try again. Go to Printing Preferences, click Paper tab, and set type to Thin (see "Opening printing preferences" on page 47).

Printing quality problems

If the inside of the machine is dirty or paper has been loaded improperly, there might be a reduction in print quality. See the table below to clear the problem.

Condition Suggested solutions
Light or faded printAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc	If a vertical white streak or faded area appears on the page, the toner supply is low. Install a new toner cartridge (see "Replacing the toner cartridge" on page 62).The paper may not meet paper specifications; for example, the paper may be too moist or rough.If the entire page is light, the print resolution setting is too low or the toner save mode is on. Adjust the print resolution and turn the toner save mode off. See the help screen of the printer driver.A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 73).The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 73). If these steps do not correct the problem, contact a service representative.
The top half of the paper is printed lighter than the rest of the paperAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc	The toner might not adhere properly to this type of paper.Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled (see "Opening printing preferences" on page 47).

Printing quality problems

Condition Suggested solutions
Toner specks	The paper may not meet specifications; for example, the paper may be too moist or rough.The transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 73).The paper path may need cleaning. Contact a service representative (see "Cleaning the machine" on page 73).
Dropouts	If faded areas, generally rounded, occur randomly on the page:A single sheet of paper may be defective. Try reprinting the job.The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper.The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thick (see "Opening printing preferences" on page 47).If these steps do not correct the problem, contact a service representative.
White Spots If white spots appear on the page:	The paper is too rough and a lot of dirt from paper falls to the inner components within the machine, so the transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 73).The paper path may need cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 73).If these steps do not correct the problem, contact a service representative.

Printing quality problems

Condition Suggested solutions
Vertical lines If black vertical streaks appear on the page:
AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc	The surface (drum part) of the cartridge inside the machine has probably been scratched. Remove the cartridge and install a new one (see "Replacing the toner cartridge" on page 62, "Replacing the imaging unit" on page 65).If white vertical streaks appear on the page:The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 73). If these steps do not correct the problem, contact a service representative.
Black or color background	If the amount of background shading becomes unacceptable:Change to a lighter weight paper.Check the environmental conditions: very dry conditions or a high level of humidity (higher than 80% RH) can increase the amount of background shading.Remove the old toner cartridge and install a new one (see "Replacing the toner cartridge" on page 62).Thoroughly redistribute the toner (see "Redistributing toner" on page 60).
AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc	Clean the inside of the machine (see "Cleaning the machine" on page 73).Check the paper type and quality.Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 62).
Toner smear
AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc AaBbCc

Printing quality problems

Condition Suggested solutions
Vertical repetitive defects	If marks repeatedly appear on the printed side of the page at even intervals:The toner cartridge may be damaged. If you still have the same problem, remove the toner cartridge and, install a new one (see "Replacing the toner cartridge" on page 62).Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after a few more pages.The fusing assembly may be damaged. Contact a service representative.
Background scatter	Background scatter results from bits of toner randomly distributed on the printed page.The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that the paper does not absorb too much moisture.If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams on the reverse side. Printing on seams can cause problems.Or selectThickfrom thePrinting Preferenceswindow (see "Opening printing preferences" on page 47).If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application or inPrinting Preferences(see "Opening printing preferences" on page 47). Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.If you are using a new toner cartridge, redistribute the toner first (see "Redistributing toner" on page 60).
Toner particles are around bold characters or pictures	The toner might not adhere properly to this type of paper.Change the printer option and try again. Go toPrinting Preferences, click thePapertab, and set the paper type toRecycled(see "Opening printing preferences" on page 47).Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.

Printing quality problems

Condition Suggested solutions
Misformed characters	·If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try different paper.
Page skew · Ensure that the paper is loaded properly.AaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbC
Curl or wave · Ensure that the paper is loaded properly.AaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbCAaBbb

Printing quality problems

Condition Suggested solutions
Wrinkles or creases · Ensure that the paper is loaded properly.
	· Check the paper type and quality.· Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.
Back of printouts are dirty	· Check for leaking toner. Clean the inside of the machine (see "Cleaning the machine" on page 73).
Solid color or black pages	· The toner cartridge may not be installed properly. Remove the cartridge and reinsert it.· The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 62).· The machine may require repairing. Contact a service representative.

Printing quality problems

Condition Suggested solutions
Loose toner	Clean the inside of the machine (see "Cleaning the machine" on page 73).Check the paper type, thickness, and quality.Remove the toner cartridge and then, install a new one (see "Replacing the toner cartridge" on page 62).If the problem persists, the machine may require repair. Contact a service representative.
Character voids	Character voids are white areas within parts of characters that should be solid black:You may be printing on the wrong surface of the paper. Remove the paper and turn it around.The paper may not meet paper specifications.
Horizontal stripes If horizontally aligned black streaks or smears appear:AaBbCAaBbCAaBbCAaBbC	The toner cartridge may be installed improperly. Remove the cartridge and reinsert it.The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 62).If the problem persists, the machine may require repairing. Contact a service representative.

Printing quality problems

Condition Suggested solutions
Curl	If the printed paper is curled or paper does not feed into the machine:Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.Change the printer's paper option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thin (see "Opening printing preferences" on page 47).
An unknown image repetitively appears on a few sheetsLoose tonerLight print or contamination occurs	Your machine is probably being used at an altitude of 1,000 m (3,281 ft) or above.The high altitude may affect the print quality, such as loose toner or light imaging. Change the altitude setting for your machine (see "Altitude adjustment" on page 190).

Operating system problems

Common Windows problems

Condition Suggested solutions
"File in Use" message appears during installation.	Exit all software applications. Remove all software from the startup group, then restart Windows. Reinstall the printer driver.
"General Protection Fault", "Exception OE", "Spool 32", or "Illegal Operation" messages appear.	Close all other applications, reboot Windows and try printing again.
"Fail To Print", "A printer timeout error occurred" message appear.	These messages may appear during printing. Just keep waiting until the machine finishes printing. If the message appears in ready mode or after printing has completed, check the connection and/or whether an error has occurred.

Refer to the Microsoft Windows User's Guide that came with your computer for further information on Windows error messages.

Operating system problems

Common Mac problems

Condition Suggested solutions
The machine does not print PDF files correctly. Some parts of graphics, text, or illustrations are missing.	Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options.
	It will take longer to print when you print a PDF file as an image.
Some letters are not displayed normally during cover page printing.	Mac OS cannot create the font while printing the cover page. The English alphabet and numbers are displayed normally on the cover page.

Refer to the Mac User's Guide that came with your computer for further information on Mac error messages.

Operating system problems

Common Linux problems

condition Suggested solutions
The machine does not print.	Check if the printer driver is installed in your system. Open Unified Driver Configurator and switch to the Printers tab in Printers configuration window to look at the list of available machines. Make sure that your machine is displayed on the list. If not, open Add new printer wizard to set up your device.Check if the machine is started. Open Printers configuration and select your machine on the printers list. Look at the description in the Selected printer pane. If its status contains Stopped string, press the Start button. After that normal operation of the machine should be restored. The “stopped” status might be activated when some problems in printing occurred.Check if your application has special print option such as “-oraw”. If “-oraw” is specified in the command line parameter, then remove it to print properly. For Gimp front-end, select “print” -> “Setup printer” and edit command line parameter in the command item.
I encounter error “Cannot open port device file” when printing a document.	Avoid changing print job parameters (via LPR GUI, for example) while a print job is in progress. Known versions of CUPS (Common UNIX Printing System) server break the print job whenever print options are changed and then try to restart the job from the beginning. Since Unified Linux Driver locks the port while printing, the abrupt termination of the driver keeps the port locked and unavailable for subsequent print jobs. If this situation occurs, try to release the port by selecting Release port in Port configuration window.
When printing a document over the network in SuSE 9.2, the printer does not print.	The CUPS (Common UNIX Printing System) version distributed with SuSE Linux 9.2 (cups-1.1.21) has a problem with ipp (Internet Printing Protocol) printing. Use the socket printing instead of ipp or install later version of CUPS (Common UNIX Printing System) (cups-1.1.22 or higher).

Refer to the Linux User's Guide that came with your computer for further information on Linux error messages.

Operating system problems

Common PostScript problems

The following situations are PS language specific and may occur when several printer languages are used.

Problem Possible cause Solution
The PostScript file cannot be printed	The PostScript driver may not be installed correctly.	• Install the PostScript driver (see "Software Installation" on page 123).• Print a configuration page and verify that the PS version is available for printing.• If the problem persists, contact a service representative.
Limit Check Error report prints	The print job was too complex.	You might need to reduce the complexity of the page or install more memory.
A PostScript error page prints	The print job may not be PostScript.	Make sure that the print job is a PostScript job. Check to see whether the software application expected a setup or PostScript header file to be sent to the machine.
The optional tray is not selected in the driver	The printer driver has not been configured to recognize the optional tray.	Open the driver properties, select the Device Options tab, and set the tray option (see "Setting Device Options" on page 67).

Contact SAMSUNG worldwide

If you have any comments or questions regarding Samsung products, contact the Samsung customer care center.

Country/Region Customer Care Center WebSite
ANGOLA 91-726-7864	www.samsung.com
ARGENTINA 0800-333	3-3733 www.samsung.com
ARMENIA 0-800-05-555	www.samsung.com
AUSTRALIA 1300 362	603 www.samsung.com
AUSTRIA	0810-SAMSUNG (7267864, € 0.07/min)	www.samsung.com
AZERBAIJAN 088-55	55-555 www.samsung.com
BAHRAIN	8000-4726 www.samsung.com/ae	(English)www.samsung.com/ae_ar (Arabic)
BELARUS 810-800-500	55-500 www.samsung.com
BELGIUM	02-201-24-18 www.samsung.com/be(Dutch)www.samsung.com/be_fr (French)
BOLIVIA 800-10-7260	www.samsung.com
BOSNIA 051 133 1999	www.samsung.com

Country/Region Customer Care Center WebSite
BOTSWANA	0800-726-000	www.samsung.com
BRAZIL	0800-124-4214004-0000	www.samsung.com
BULGARIA	07001 33 11 , normal tariff	www.samsung.com
CAMEROON 7095- 0077 www.samsung.com
CANADA	1-800-SAMSUNG (726-7864)	www.samsung.com/ca(English)www.samsung.com/ca_fr(French)
CHILE	800-SAMSUNG (726-7864)From mobile [phone]	www.samsung.com/cl
CHINA	400-810-5858	www.samsung.com
COLOMBIA	01-8000112112Bogotá: 6001272	www.samsung.com/co
COSTA RICA	0-800-507-7267	www.samsung.com/latin (Spanish)www.samsung.com/latin_en (English)
CROATIA	062 SAMSUNG (062 726 786)	www.samsung.com
Cote D' Ivoire	8000 0077	www.samsung.com

Contact SAMSUNG worldwide

Country/Region	Customer Care Center	WebSite
CYPRUS	8009 4000 only from landline([phone] from mobileand land line	www.samsung.com
CZECH 800-SAMSUNG	(800-726786) www.samsung.com
DENMARK 70 70 19 70	www.samsung.com
DOMINICA	1-800-751-2676 www.samsung.com/	latin (Spanish)www.samsung.com/latin_en (English)
ECUADOR	1-800-10-7267 www.samsung.com/	latin (Spanish)www.samsung.com/latin_en (English)
EGYPT 08000-726786	www.samsung.com
EIRE 0818 717100 www.samsung.com
EL SALVADOR	800-6225 www.samsung.com/	latin (Spanish)www.samsung.com/latin_en (English)
ESTONIA 800-7267 www.samsung.com/ee
FINLAND 030-6227 515 www.samsung.com

Country/Region	Customer Care Center	WebSite
FRANCE	01 48 63 00 00	www.samsung.com/fr
GERMANY	0180 5 SAMSUNG bzw.0180 5 7267864* (*0,14 €/Min.aus dem dt. Festnetz, aus dem Mobilfunk max. 0,42 €/Min.)	www.samsung.com
GEORGIA	8-800-555-555 www.samsung.com
GHANA	0800-100770302-200077	www.samsung.com
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line	www.samsung.com
GUATEMALA	1-800-299-0013 www.samsung.com/	latin (Spanish)www.samsung.com/latin_en (English)
HONDURAS	800-27919267	www.samsung.com/latin (Spanish)www.samsung.com/latin_en (English)

Contact SAMSUNG worldwide

Country/Region	Customer Care Center	WebSite
HONG KONG	(852) 3698-4698 www.samsung.com/hk(Chinese)www.samsung.com/hk_en (English)
HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com
INDIA	1800 3000 82821800 266 8282	www.samsung.com/in
INDONESIA	0800-112-8888021-5699-7777	www.samsung.com/id
IRAN 021-8255 www.samsung.com
ITALIA 800-SAMSUNG (726-7864) www.samsung.com
JAMAICA 1-800-234-7267 www.samsung.com
JAPAN 0120-327-527	www.samsung.com
JORDAN	800-22273065777444	www.samsung.com/Levant (English)
KAZAKHSTAN 8-10-800-500-55-500 (GSM:7799) www.samsung.com
KENYA 0800 724 000	www.samsung.com

Country/Region	Customer Care Center	WebSite
KUWAIT	183-2255 (183-CALL)	www.samsung.com/ae(English)www.samsung.com/ae_ar (Arabic)
KYRGYZSTAN	00-800-500-55-500	www.samsung.com
LATVIA	8000-7267	www.samsung.com/lv
LITHUANIA	8-800-77777	www.samsung.com/lt
LUXEMBURG	261 03 710	www.samsung.com
MALAYSIA	1800-88-9999 www.samsung.com/my
MEXICO	01-800-SAMSUNG (726-7864)	www.samsung.com
MOLDOVA	0-800-614-40	www.samsung.com
MONGOLIA	[phone] www.samsung.com
MONTENEGRO	020 405 888	www.samsung.com
MOROCCO	080 100 2255	www.samsung.com
NAMIBIA	8197267864	www.samsung.com
NIGERIA	0800-726-7864	www.samsung.com
NETHERLANDS	0900-SAMSUNG (0900-7267864)(€ 0,10/min)	www.samsung.com
NEW ZEALAND	0800 SAMSUNG (0800 726 786)	www.samsung.com

Contact SAMSUNG worldwide

Country/Region Customer Care Center WebSite
NICARAGUA	00-1800-5077267 www.samsung.com/	latin (Spanish)www.samsung.com/latin_en (English)
NORWAY 815-56 480	www.samsung.com
OMAN	800-SAMSUNG (726-7864) www.samsung.com/ae(English)www.samsung.com/ae_ar (Arabic)
PANAMA	800-7267 www.samsung.com/	latin (Spanish)www.samsung.com/latin_en (English)
PARAGUAY 9800521	0001 www.samsung.com
PERU	0-800-777-08 (Only from landline)336-8686 (From HHP & landline)	www.samsung.com

Country/Region Customer Care Center WebSite
PHILIPPINES	1-800-10-SAMSUNG(726-7864) for PLDT1-800-3-SAMSUNG(726-7864) for Digitel1-800-8-SAMSUNG(726-7864) for Globe02-5805777	www.samsung.com/ph
POLAND	0 801-1SAMSUNG(172-678) * lub [phone] ***(całkowity koszt połączenia jak za 1 impuls według taryfy operatora)** (koszt połączenia według taryfy operatora)	www.samsung.com/pl
PORTUGAL 808 20-SAMSUNG (808 20 7267) www.samsung.com
PUERTO RICO 1-800-682-3180 www.samsung.com
QATAR	800-2255 (800-CALL) www.samsung.com/ae(English)www.samsung.com/ae_ar (Arabic)
ROMANIA	08008 SAMSUNG (08008 726 7864)TOLL FREE No.	www.samsung.com

Contact SAMSUNG worldwide

Country/Region	Customer Care Center	WebSite
RUSSIA 800-00-0077	www.samsung.com
SAUDI ARABIA	9200-21230 www.samsung.com/sa	(Arabic)
SENEGAL 8-800-555-55-55 www.samsung.com
SERBIA	[phone](old number still active 0700 7267864)	www.samsung.com
SINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com
SLOVAKIA 0800 - SAMSUNG(0800-726 786) www.samsung.com
SOUTH AFRICA 0860	SAMSUNG (726-7864) www.samsung.com
SPAIN 902-1-SAMSUNG(902 172 678) www.samsung.com
SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com
SWITZERLAND	0848-SAMSUNG (7267864, CHF 0.08/min)	www.samsung.com/chwww.samsung.com/ch_fr/
SYRIA	18252273	www.samsung.com/Levant (English)
TADJIKISTAN	8-10-800-500-55-500	www.samsung.com
TAIWAN	0800-329-9990266-026-066	www.samsung.com

Country/Region	Customer Care Center	WebSite
TANZANIA	0685 88 99 00	www.samsung.com
THAILAND	1800-29-323202-689-3232	www.samsung.com/th
TRINIDAD & TOBAGO	1-800-SAMSUNG (726-7864)	www.samsung.com
TURKEY	444 77 11	www.samsung.com
U.A.E	800-SAMSUNG (726-7864)	www.samsung.com
U.K	0330 SAMSUNG (726-7864) www.samsung.com
U.S.A	1-800-SAMSUNG (726-7864)	www.samsung.com
UGANDA	0800 300 300	www.samsung.com
UKRAINE	0-800-502-000	www.samsung.com/ua (Ukrainian)www.samsung.com/ua_ru (Russian)
URUGUAY	40543733	www.samsung.com
UZBEKISTAN	8-10-800-500-55-500	www.samsung.com
VENEZUELA	0-800-100-5303	www.samsung.com
VIETNAM	1 800 588 889	www.samsung.com
ZAMBIA	211350370	www.samsung.com

Glossary

The following glossary helps you get familiar with the product by understanding the terminologies commonly used with printing as well as mentioned in this user's guide.

802.11

802.11 is a set of standards for wireless local area network (WLAN) communication, developed by the IEEE LAN/MAN Standards Committee (IEEE 802).

802.11b/g/n

802.11b/g/n can share same hardware and use the 2.4 GHz band. 802.11b supports bandwidth up to 11 Mbps, 802.11n supports bandwidth up to 150 Mbps. 802.11b/g/n devices may occasionally suffer interference from microwave ovens, cordless telephones, and Bluetooth devices.

Access point

Access Point or Wireless Access Point (AP or WAP) is a device that connects wireless communication devices together on wireless local area networks (WLAN), and acts as a central transmitter and receiver of WLAN radio signals.

ADF

An Automatic Document Feeder (ADF) is a scanning unit that will automatically feed an original sheet of paper so that the machine can scan some amount of the paper at once.

AppleTalk

AppleTalk is a proprietary suite of protocols developed by Apple, Inc for computer networking. It was included in the original Mac (1984) and is now deprecated by Apple in favor of TCP/IP networking.

BIT Depth

A computer graphics term describing the number of bits used to represent the color of a single pixel in a bitmapped image. Higher color depth gives a broader range of distinct colors. As the number of bits increases, the number of possible colors becomes impractically large for a color map. 1-bit color is commonly called as monochrome or black and white.

BMP

A bitmapped graphics format used internally by the Microsoft Windows graphics subsystem (GDI), and used commonly as a simple graphics file format on that platform.

Glossary

BOOTP

Bootstrap Protocol. A network protocol used by a network client to obtain its IP address automatically. This is usually done in the bootstrap process of computers or operating systems running on them. The BOOTP servers assign the IP address from a pool of addresses to each client. BOOTP enables 'diskless workstation' computers to obtain an IP address prior to loading any advanced operating system.

CCD

Charge Coupled Device (CCD) is a hardware which enables the scan job. CCD Locking mechanism is also used to hold the CCD module to prevent any damage when you move the machine.

Collation

Collation is a process of printing a multiple-copy job in sets. When collation is selected, the device prints an entire set before printing additional copies.

Control Panel

A control panel is a flat, typically vertical, area where control or monitoring instruments are displayed. They are typically found in front of the machine.

Coverage

It is the printing term used for a toner usage measurement on printing. For example, 5% coverage means that an A4 sided paper has about 5% image or text on it. So, if the paper or original has complicated images or lots of text on it, the coverage will be higher and at the same time, a toner usage will be as much as the coverage.

CSV

Comma Separated Values (CSV). A type of file format, CSV is used to exchange data between disparate applications. The file format, as it is used in Microsoft Excel, has become a de facto standard throughout the industry, even among non-Microsoft platforms.

DADF

A Duplex Automatic Document Feeder (DADF) is a scanning unit that will automatically feed and turn over an original sheet of paper so that the machine can scan on both sides of the paper.

Default

The value or setting that is in effect when taking a printer out of its box state, reset, or initialized.

Glossary

DHCP

A Dynamic Host Configuration Protocol (DHCP) is a client-server networking protocol. A DHCP server provides configuration parameters specific to the DHCP client host requesting, generally, information required by the client host to participate on an IP network. DHCP also provides a mechanism for allocation of IP addresses to client hosts.

DIMM

Dual Inline Memory Module (DIMM), a small circuit board that holds memory. DIMM stores all the data within the machine like printing data, received fax data.

DLNA

The Digital Living Network Alliance (DLNA) is a standard that allows devices on a home network to share information with each other across the network.

DNS

The Domain Name Server (DNS) is a system that stores information associated with domain names in a distributed database on networks, such as the Internet.

Dot Matrix Printer

A dot matrix printer refers to a type of computer printer with a print head that runs back and forth on the page and prints by impact, striking an ink-soaked cloth ribbon against the paper, much like a typewriter.

DPI

Dots Per Inch (DPI) is a measurement of resolution that is used for scanning and printing. Generally, higher DPI results in a higher resolution, more visible detail in the image, and a larger file size.

DRPD

Distinctive Ring Pattern Detection. Distinctive Ring is a telephone company service which enables a user to use a single telephone line to answer several different telephone numbers.

Duplex

A mechanism that will automatically turn over a sheet of paper so that the machine can print (or scan) on both sides of the paper. A printer equipped with a Duplex Unit can print on both sides of paper during one print cycle.

Duty Cycle

Duty cycle is the page quantity which does not affect printer performance for a month. Generally the printer has the lifespan limitation such as pages per year. The lifespan means the average capacity of print-outs, usually within the warranty period. For example, if the duty cycle is 48,000 pages per month assuming 20 working days, a printer limits 2,400 pages a day.

Glossary

ECM

Error Correction Mode (ECM) is an optional transmission mode built into Class 1 fax machines or fax modems. It automatically detects and corrects errors in the fax transmission process that are sometimes caused by telephone line noise.

Emulation

Emulation is a technique of one machine obtaining the same results as another.

An emulator duplicates the functions of one system with a different system, so that the second system behaves like the first system. Emulation focuses on exact reproduction of external behavior, which is in contrast to simulation, which concerns an abstract model of the system being simulated, often considering its internal state.

Ethernet

Ethernet is a frame-based computer networking technology for local area networks (LANs). It defines wiring and signaling for the physical layer, and frame formats and protocols for the media access control (MAC)/data link layer of the OSI model. Ethernet is mostly standardized as IEEE 802.3. It has become the most widespread LAN technology in use during the 1990s to the present.

EtherTalk

A suite of protocols developed by Apple Computer for computer networking. It was included in the original Mac (1984) and is now deprecated by Apple in favor of TCP/IP networking.

FDI

Foreign Device Interface (FDI) is a card installed inside the machine to allow a third party device such as a coin operated device or a card reader. Those devices allow the pay-for-print service on your machine.

FTP

A File Transfer Protocol (FTP) is a commonly used protocol for exchanging files over any network that supports the TCP/IP protocol (such as the Internet or an intranet).

Fuser Unit

The part of a laser printer that fuses the toner onto the print media. It consists of a heat roller and a pressure roller. After toner is transferred onto the paper, the fuser unit applies heat and pressure to ensure that the toner stays on the paper permanently, which is why paper is warm when it comes out of a laser printer.

Glossary

Gateway

A connection between computer networks, or between a computer network and a telephone line. It is very popular, as it is a computer or a network that allows access to another computer or network.

Grayscale

A shade of gray that represent light and dark portions of an image when color images are converted to grayscale; colors are represented by various shades of gray.

Halftone

An image type that simulates grayscale by varying the number of dots. Highly colored areas consist of a large number of dots, while lighter areas consist of a smaller number of dots.

Mass storage device (HDD)

Mass storage device (HDD), commonly referred to as a hard drive or hard disk, is a non-volatile storage device which stores digitally-encoded data on rapidly rotating platters with magnetic surfaces.

IEEE

The Institute of Electrical and Electronics Engineers (IEEE) is an international non-profit, professional organization for the advancement of technology related to electricity.

IEEE 1284

The 1284 parallel port standard was developed by the Institute of Electrical and Electronics Engineers (IEEE). The term "1284-B" refers to a specific connector type on the end of the parallel cable that attaches to the peripheral (for example, a printer).

Intranet

A private network that uses Internet Protocols, network connectivity, and possibly the public telecommunication system to securely share part of an organization's information or operations with its employees. Sometimes the term refers only to the most visible service, the internal website.

IP address

An Internet Protocol (IP) address is a unique number that devices use in order to identify and communicate with each other on a network utilizing the Internet Protocol standard.

Glossary

IPM

The Images Per Minute (IPM) is a way of measuring the speed of a printer. An IPM rate indicates the number of single-sided sheets a printer can complete within one minute.

IPP

The Internet Printing Protocol (IPP) defines a standard protocol for printing as well as managing print jobs, media size, resolution, and so forth. IPP can be used locally or over the Internet to hundreds of printers, and also supports access control, authentication, and encryption, making it a much more capable and secure printing solution than older ones.

IPX/SPX

IPX/SPX stands for Internet Packet Exchange/Sequenced Packet Exchange. It is a networking protocol used by the Novell NetWare operating systems. IPX and SPX both provide connection services similar to TCP/IP, with the IPX protocol having similarities to IP, and SPX having similarities to TCP. IPX/SPX was primarily designed for local area networks (LANs), and is a very efficient protocol for this purpose (typically its performance exceeds that of TCP/IP on a LAN).

ISO

The International Organization for Standardization (ISO) is an international standard-setting body composed of representatives from national standards bodies. It produces world-wide industrial and commercial standards.

ITU-T

The International Telecommunication Union is an international organization established to standardize and regulate international radio and telecommunications. Its main tasks include standardization, allocation of the radio spectrum, and organizing interconnection arrangements between different countries to allow international phone calls. A -T out of ITU-T indicates telecommunication.

ITU-T No. 1 chart

Standardized test chart published by ITU-T for document facsimile transmissions.

JBIG

Joint Bi-level Image Experts Group (JBIG) is an image compression standard with no loss of accuracy or quality, which was designed for compression of binary images, particularly for faxes, but can also be used on other images.

JPEG

Joint Photographic Experts Group (JPEG) is a most commonly used standard method of lossy compression for photographic images. It is the format used for storing and transmitting photographs on the World Wide Web.

Glossary

LDAP

The Lightweight Directory Access Protocol (LDAP) is a networking protocol for querying and modifying directory services running over TCP/IP.

LED

A Light-Emitting Diode (LED) is a semiconductor device that indicates the status of a machine.

MAC address

Media Access Control (MAC) address is a unique identifier associated with a network adapter. MAC address is a unique 48-bit identifier usually written as 12 hexadecimal characters grouped in pairs (e.g., 00-00-0c-34-11-4e). This address is usually hard-coded into a Network Interface Card (NIC) by its manufacturer, and used as an aid for routers trying to locate machines on large networks.

MFP

Multi Function Peripheral (MFP) is an office machine that includes the following functionality in one physical body, so as to have a printer, a copier, a fax, a scanner and etc.

MH

Modified Huffman (MH) is a compression method for decreasing the amount of data that needs to be transmitted between the fax machines to transfer the image recommended by ITU-T T.4. MH is a codebook-based run-length encoding scheme optimized to efficiently compress white space. As most faxes consist mostly of white space, this minimizes the transmission time of most faxes.

MMR

Modified Modified READ (MMR) is a compression method recommended by ITU-T T.6.

Modem

A device that modulates a carrier signal to encode digital information, and also demodulates such a carrier signal to decode transmitted information.

MR

Modified Read (MR) is a compression method recommended by ITU-T T.4. MR encodes the first scanned line using MH. The next line is compared to the first, the differences determined, and then the differences are encoded and transmitted.

Glossary

NetWare

A network operating system developed by Novell, Inc. It initially used cooperative multitasking to run various services on a PC, and the network protocols were based on the archetypal Xerox XNS stack. Today NetWare supports TCP/IP as well as IPX/SPX.

OPC

Organic Photo Conductor (OPC) is a mechanism that makes a virtual image for print using a laser beam emitted from a laser printer, and it is usually green or rust colored and has a cylinder shape.

An imaging unit containing a drum slowly wears the drum surface by its usage in the printer, and it should be replaced appropriately since it gets worn from contact with the cartridge development brush, cleaning mechanism, and paper.

Originals

The first example of something, such as a document, photograph or text, etc, which is copied, reproduced or translated to produce others, but which is not itself copied or derived from something else.

OSI

Open Systems Interconnection (OSI) is a model developed by the International Organization for Standardization (ISO) for communications. OSI offers a standard, modular approach to network design that divides the required set of complex functions into manageable, self-contained, functional layers. The layers are, from top to bottom, Application, Presentation, Session, Transport, Network, Data Link and Physical.

PABX

A private automatic branch exchange (PABX) is an automatic telephone switching system within a private enterprise.

PCL

Printer Command Language (PCL) is a Page Description Language (PDL) developed by HP as a printer protocol and has become an industry standard. Originally developed for early inkjet printers, PCL has been released in varying levels for thermal, dot matrix printer, and laser printers.

PDF

Portable Document Format (PDF) is a proprietary file format developed by Adobe Systems for representing two dimensional documents in a device independent and resolution independent format.

Glossary

PostScript

PostScript (PS) is a page description language and programming language used primarily in the electronic and desktop publishing areas. - that is run in an interpreter to generate an image.

Printer Driver

A program used to send commands and transfer data from the computer to the printer.

Print Media

The media like paper, envelopes, labels, and transparencies which can be used in a printer, a scanner, a fax or, a copier.

PPM

Pages Per Minute (PPM) is a method of measurement for determining how fast a printer works, meaning the number of pages a printer can produce in one minute.

PRN file

An interface for a device driver, this allows software to interact with the device driver using standard input/output system calls, which simplifies many tasks.

Protocol

A convention or standard that controls or enables the connection, communication, and data transfer between two computing endpoints.

PS

See PostScript.

PSTN

The Public-Switched Telephone Network (PSTN) is the network of the world's public circuit-switched telephone networks which, on industrial premises, is usually routed through the switchboard.

RADIUS

Remote Authentication Dial In User Service (RADIUS) is a protocol for remote user authentication and accounting. RADIUS enables centralized management of authentication data such as usernames and passwords using an AAA (authentication, authorization, and accounting) concept to manage network access.

Resolution

The sharpness of an image, measured in Dots Per Inch (DPI). The higher the dpi, the greater the resolution.

Glossary

SMB

Server Message Block (SMB) is a network protocol mainly applied to share files, printers, serial ports, and miscellaneous communications between nodes on a network. It also provides an authenticated Inter-process communication mechanism.

SMTP

Simple Mail Transfer Protocol (SMTP) is the standard for e-mail transmissions across the Internet. SMTP is a relatively simple, text-based protocol, where one or more recipients of a message are specified, and then the message text is transferred. It is a client-server protocol, where the client transmits an email message to the server.

SSID

Service Set Identifier (SSID) is a name of a wireless local area network (WLAN). All wireless devices in a WLAN use the same SSID in order to communicate with each other. The SSIDs are case-sensitive and have a maximum length of 32 characters.

Subnet Mask

The subnet mask is used in conjunction with the network address to determine which part of the address is the network address and which part is the host address.

TCP/IP

The Transmission Control Protocol (TCP) and the Internet Protocol (IP); the set of communications protocols that implement the protocol stack on which the Internet and most commercial networks run.

TCR

Transmission Confirmation Report (TCR) provides details of each transmission such as job status, transmission result and number of pages sent. This report can be set to print after each job or only after failed transmissions.

TIFF

Tagged Image File Format (TIFF) is a variable-resolution bitmapped image format. TIFF describes image data that typically come from scanners. TIFF images make use of tags, keywords defining the characteristics of the image that is included in the file. This flexible and platform-independent format can be used for pictures that have been made by various image processing applications.

Toner Cartridge

A kind of bottle or container used in a machine like a printer which contains toner. Toner is a powder used in laser printers and photocopiers, which forms the text and images on the printed paper. Toner can be fused by by a combination of heat/pressure from the fuser, causing it to bind to the fibers in the paper.

Glossary

TWAIN

An industry standard for scanners and software. By using a TWAIN-compliant scanner with a TWAIN-compliant program, a scan can be initiated from within the program. It is an image capture API for Microsoft Windows and Apple Mac operating systems.

UNC Path

Uniform Naming Convention (UNC) is a standard way to access network shares in Window NT and other Microsoft products. The format of a UNC path is: \\\

URL

Uniform Resource Locator (URL) is the global address of documents and resources on the Internet. The first part of the address indicates what protocol to use, the second part specifies the IP address or the domain name where the resource is located.

USB

Universal Serial Bus (USB) is a standard that was developed by the USB Implementers Forum, Inc., to connect computers and peripherals. Unlike the parallel port, USB is designed to concurrently connect a single computer USB port to multiple peripherals.

Watermark

A watermark is a recognizable image or pattern in paper that appears lighter when viewed by transmitted light. Watermarks were first introduced in Bologna, Italy in 1282; they have been used by papermakers to identify their product, and also on postage stamps, currency, and other government documents to discourage counterfeiting.

WEP

Wired Equivalent Privacy (WEP) is a security protocol specified in IEEE 802.11 to provide the same level of security as that of a wired LAN. WEP provides security by encrypting data over radio so that it is protected as it is transmitted from one end point to another.

WIA

Windows Imaging Architecture (WIA) is an imaging architecture that is originally introduced in Windows Me and Windows XP. A scan can be initiated from within these operating systems by using a WIA-compliant scanner.

WPA

Wi-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi) computer networks, which was created to improve upon the security features of WEP.

Glossary

WPA-PSK

WPA-PSK (WPA Pre-Shared Key) is special mode of WPA for small business or home users. A shared key, or password, is configured in the wireless access point (WAP) and any wireless laptop or desktop devices. WPA-PSK generates a unique key for each session between a wireless client and the associated WAP for more advanced security.

WPS

The Wi-Fi Protected Setup (WPS) is a standard for establishing a wireless home network. If your wireless access point supports WPS, you can configure the wireless network connection easily without a computer.

XPS

XML Paper Specification (XPS) is a specification for a Page Description Language (PDL) and a new document format, which has benefits for portable document and electronic document, developed by Microsoft. It is an XML-based specification, based on a new print path and a vector-based device-independent document format.

Index

A

accessories

installing 67

ordering 56

AirPrint 171

AnyWeb Print 213

B

buttons

eco 22, 23

print screen 22, 23

wps 23

C

cleaning

inside 74

outside 73

pickup roller 76

cleaning a machine 73

control panel 22

convention 12

D

default settings

tray setting 44

device options 67

direct printing utility 201

driver installation

Unix 139

E

eco printing 49

entering character 191

error message 95

F

favorites settings, for printing 48

features 5

machine features 176

print media feature 103

G

general icons 12

general settings 182

glossary 258

google cloud printing 173

J

jam

clearing paper 80

tips for avoiding paper jams 79

L

layout 179

Linux

common Linux problems 251

driver installation for network connected 138

driver installation for USB cable connected 126

driver reinstallation for USB cable connected

127

printer properties 205

printing 204

system requirements 106

unifled driver configurator 230

using SetIP 132

loading

paper in multi-purpose (or manual feeder)

tray 38

paper in the tray1 36

paper in the tray1 / optional trays 37

Index

special media 40

M

Mac

common Mac problems 250

driver installation for network connected 137

driver installation for USB cable connected 124

driver reinstallation for USB cable connected 125

printing 202

system requirements 106

using SetIP 131

machine overview

front view 20

rear view 21

maintenance parts 57

memory

memory upgrading 69

memory/hard drive feature 208

menu

emulation 185

information 178

job management 188

menu map 178

menu overview 30

multi-purpose (or manual feeder) tray

loading 38

tips on using 38

using special media 40

N

network

driver installation

Linux 138

Mac 137

UNIX 139

Windows 134

general setup 186

installing environment 108

introducing network programs 129

IPv6 configuration 142

SetIP program 130, 131, 132, 161

wired network setup 130

wireless network setup 145

numeric keypad 23

n-up printing

Mac 203

0

optional tray 56

ordering 56

output support 45

overlay printing

create 198

delete 198

print 198

P

paper 180

Parallel

ordering 56

placing a machine

adjusting the altitude 190

postScript driver

troubleshooting 252

print

mobile OS 170

mobileprint 170

print media

card stock 43

envelope 41

glossy paper 44

Index

labels 42

output support 103

preprinted paper 43

setting the paper size 44

setting the paper type 44

special media 40

transparency 42

printer preferences

Linux 205

printer status

general information 222

printing

changing the default print settings 192

Linux 204

Mac 202

multiple pages on one sheet of paper

Mac 203

printing a document

Windows 46

printing on both sides of paper

Mac 203

printing to a file 193

setting as a default machine 192

special printer features 194

UNIX 206

using direct printing utility 201

printing a document

Linux 204

Mac 202

UNIX 206

printing feature 192

problem

operating system problems 249

problems

paper feeding problems 235

power problems 236

printing problems 237

printing quality problems 241

R

regulatory information 109

s

safety

information 13

symbols 13

samsung printer experience 224

Samsung Printer Status 222

secure printing 51

service contact numbers 253

SetIP program 130, 161

Special features 189

specifications 101

print media 103

status 22, 23

supplies

available supplies 54

estimated toner cartridge life 59

machine information 178

monitoring the supplies life 71

ordering 54

replacing toner cartridge 62

SyncThru Web Service

general information 215

SyncThru™ Web Service 215

T

toner cartridge

estimated life 59

handling instructions 58

non-Samsung and refilled 58

redistributing toner 60

Index

replacing the cartridge 62

storing 58

tray

adjusting the width and length 35

changing the tray size 35

loading paper in multi-purpose (or manual

feeder) tray 38

ordering an optional tray 56

ordering an parallel 56

setting the paper size and type 44

U

understanding the status LED 92

UNIX

driver installation for network connected 139

printing 206

Unix

system requirements 107

USB cable

driver installation 25, 28, 124, 126

driver reinstallation 125, 127

using help 48, 204

W

watermark

create 197

delete 197

edit 197

Windows

common Windows problems 249

driver installation for network connected 134

driver installation for USB cable connected 25, 28

system requirements 105

using SetIP 130, 161

wireless

ad hoc mode 145

Infrastructure mode 145

USB cable 152

WPS

disconnecting 149

disconnectiong

PBC mode 149

WPS (the machine does not have a display screen)

PBC 150

PIN 150

wireless network

network cable

160
