USER MANUAL ThinkPad T61 LENOVO

ThinkPad ^® T61, R61, and R61i (14.1-inch widescreen)

Hardware Maintenance Manual

ThinkPad ^® T61, R61, and R61i (14.1-inch widescreen)

Hardware Maintenance Manual

Note

Before using this information and the product it supports, be sure to read the general information under "Notices" on page 245

Fifth Edition (June 2008)

© Copyright Lenovo 2007, 2008. All rights reserved.

LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered pursuant a General Services Administration "GSA" contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

©2007,2008Lenovo

Contents

About this manual . . . . . . . . . . v

Safety information ..... 1

General safety . . . . . . . . . . . . . . . . 1

Electrical safety 2

Safety inspection guide. . . . . . . . . . . . . 3

Handling devices that are sensitive to electrostatic

discharge 4

Grounding requirements 5

Safety notices: multilingual translations ..... 5

Laser compliance statement . . . . . . . . . . 11

Important service information ..... 15

Strategy for replacing FRUs . . . . . . . . . . 15

Strategy for replacing a hard disk drive . . . . 16

Important notice for replacing a system board. . 16

How to use error message ..... 16

Strategy for replacing FRUs for CTO, CMV, and

GAV. 16

Product definition . . . . . . . . . . . . 16

FRU identification for CTO, CMV, and GAV products . . . . . . . . . . . . . . . . . 17

Important information about replacing RoHS

compliant FRUs . . . . . . . . . . . . . . 18

General checkout ..... 21

What to do first . . . . . . . . . . . . . . 22

Checkout guide . . . . . . . . . . . . . . 23

Diagnostics using PC-Doctor for DOS ..... 24

PC-Doctor for Windows . . . . . . . . . . 26

PC-Doctor for Rescue and Recovery ..... 26

Power system checkout . . . . . . . . . . 27

Checking the ac adapter . . . . . . . . . . 27

Checking operational charging . . . . . . . 28

Checking the battery pack . . . . . . . . . 28

Checking the backup battery ..... 29

Related service information. . . . . . 31

Restoring the factory contents by using Product

Recovery discs . . . . . . . . . . . . . . 31

Passwords. 32

Power-on password 32

Hard-disk password 32

Supervisor password . . . . . . . . . . . 32

How to remove the power-on password. . . . 33

How to remove the hard-disk password. . . . 33

Power management 34

Screen blank mode . . . . . . . . . . . 34

Standby mode 34

Hibernation mode . . . . . . . . . . . . 35

Symptom-to-FRU index ..... 36

Numeric error codes . . . . . . . . . . . 36

Error messages . . . . . . . . . . . . . . 41

Beep symptoms . . . . . . . . . . . . . 42

No-beep symptoms. . . . . . . . . . . . 42

LCD-related symptoms ..... 43

Intermittent problems . . . . . . . . . . . 43

Undetermined problems . . . . . . . . . . 44

ThinkPad T61, R61, and R61i (14.1-inch widescreen) 45

Specifications. 45

Status indicators. 49

FRU tests . . . . . . . . . . . . . . . . . 52

Fn key combinations . . . . . . . . . . . . . 54

FRU replacement notices . . . . . . . . . . . 57

Screw notices. . . . . . . . . . . . . . . 57

Retaining serial numbers . . . . . . . . . . 58

Removing and replacing a FRU. . . . . . . . . 60

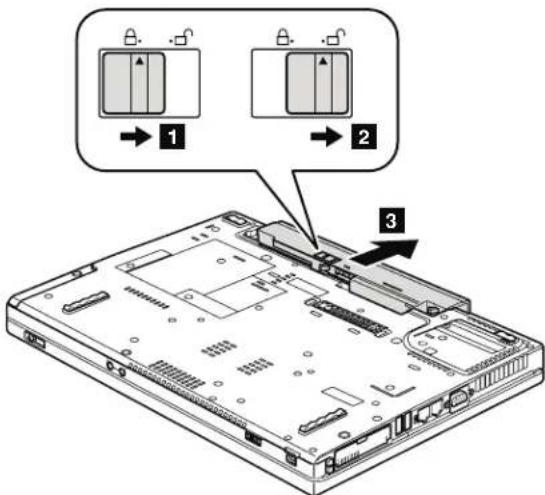

1010 Battery pack . . . . . . . . . . . . . 61

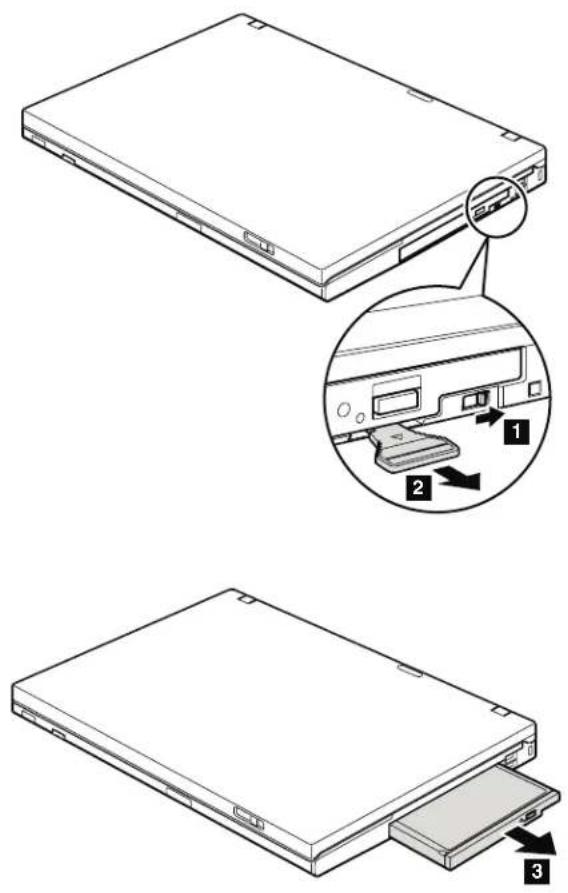

1020 Ultrabay Slim device or Ultrabay Enhanced device . . . . . . . . . . . . . . . . . . . 62

1030 Hard disk drive (HDD) cover, HDD, and HDD rubber rails or solid state drive (SSD) and storage converter . . . . . . . . . . . . . . 63

1040 Palm rest or palm rest with fingerprint reader . . . . . . . . . . . . . . . . . . . . . 65

1050 DIMM 68

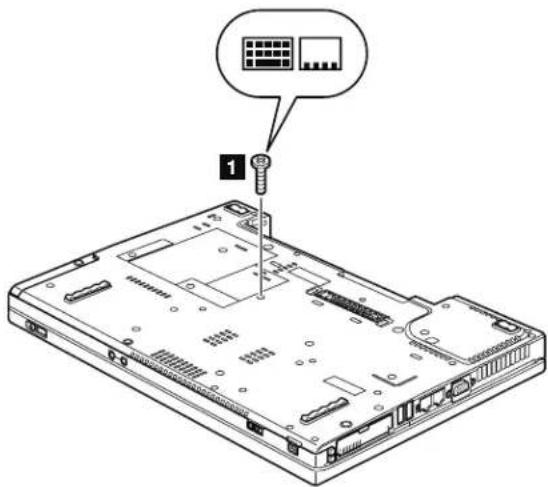

1060 Keyboard 69

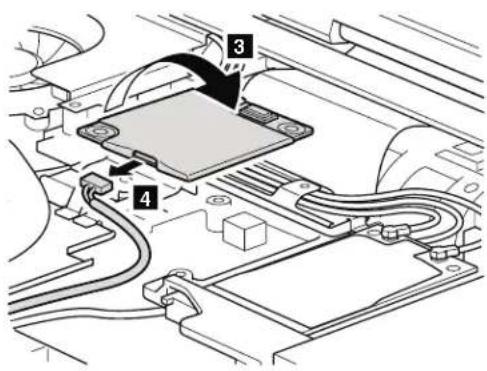

1070 Modem daughter card (MDC-1.5) . . . . 71

1080 PCI Express Mini Card for wireless LAN. . 73

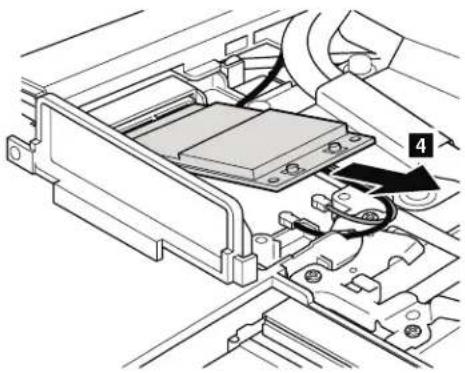

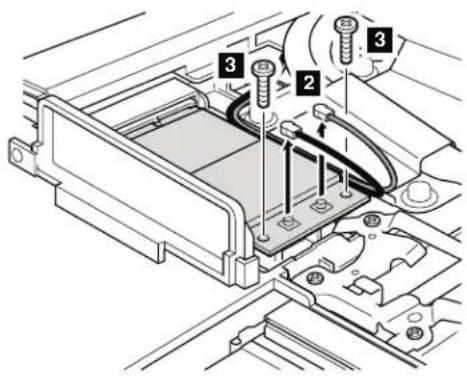

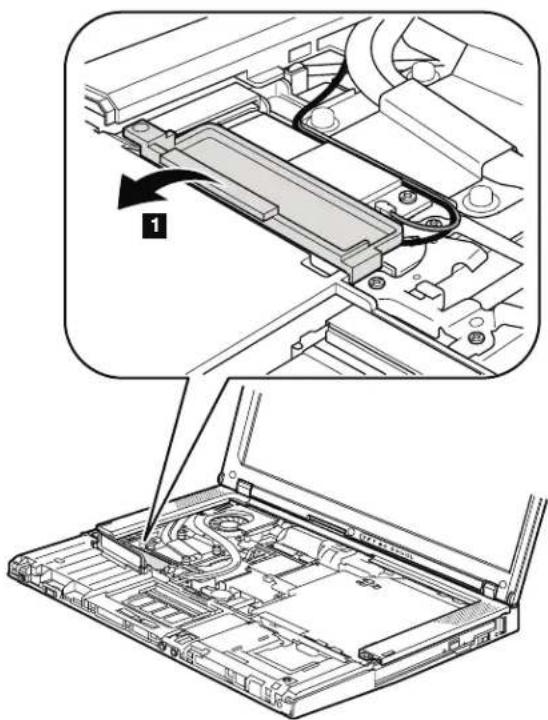

1090 PCI Express Mini Card for wireless WAN or Intel Turbo Memory Mini Card. . . . . . . 75

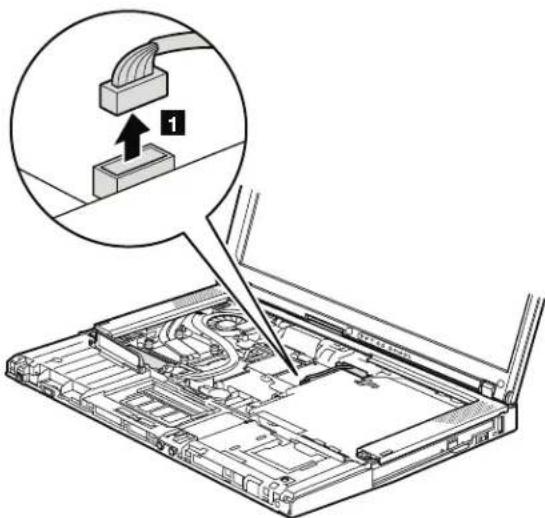

1100 SIM card slot . . . . . . . . . . . . 77

1110 Backup battery . . . . . . . . . . . . 79

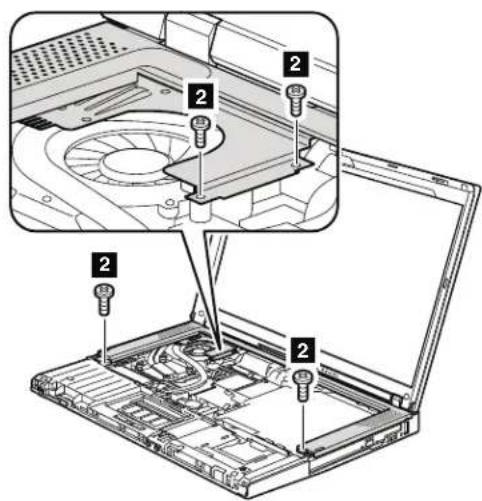

1120 Keyboard bezel ..... 80

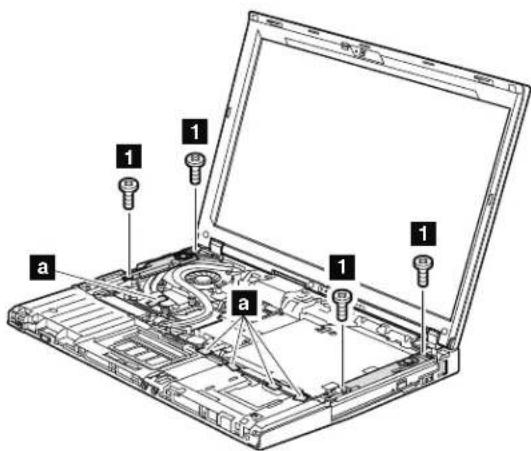

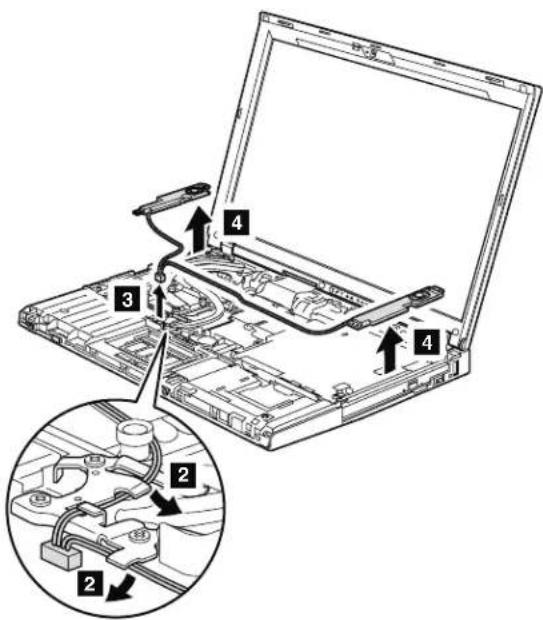

1130 Speaker assembly 82

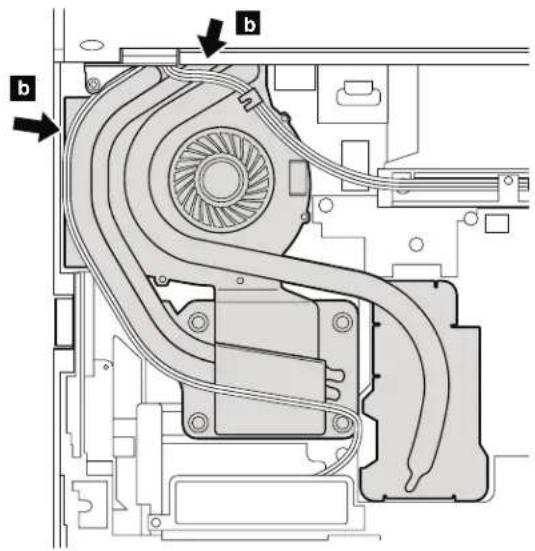

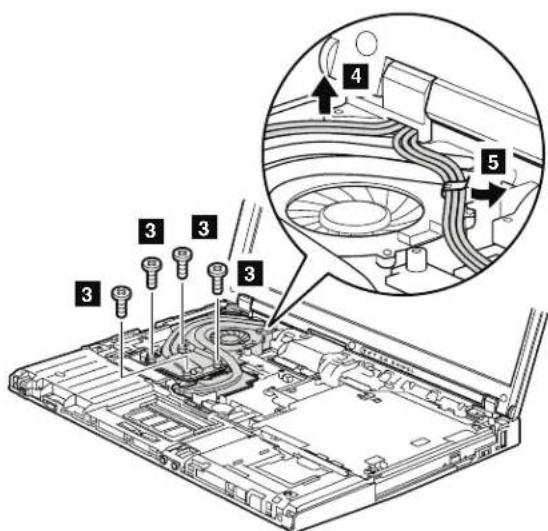

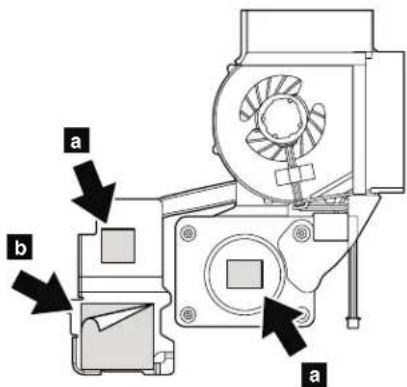

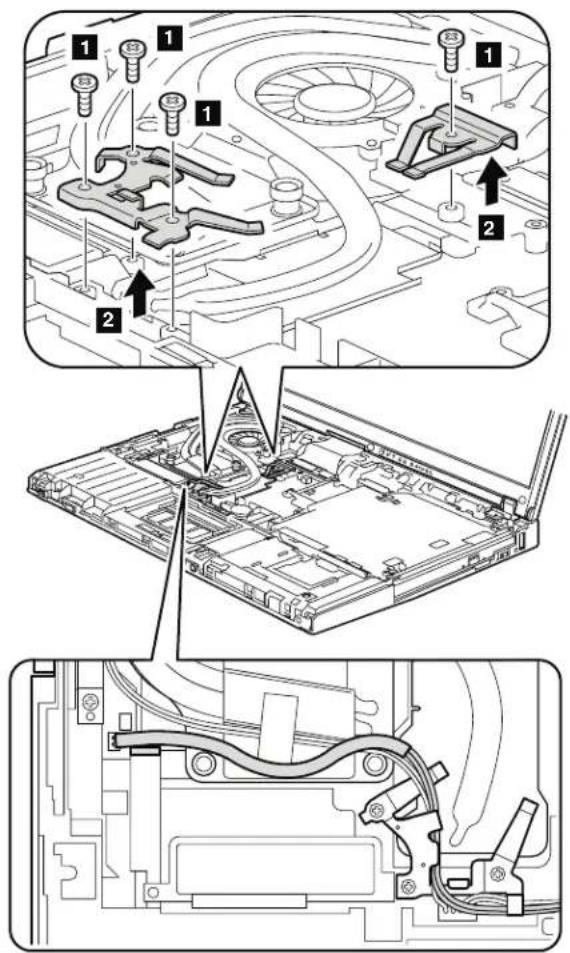

1140 Fan assembly . . . . . . . . . . . . 84

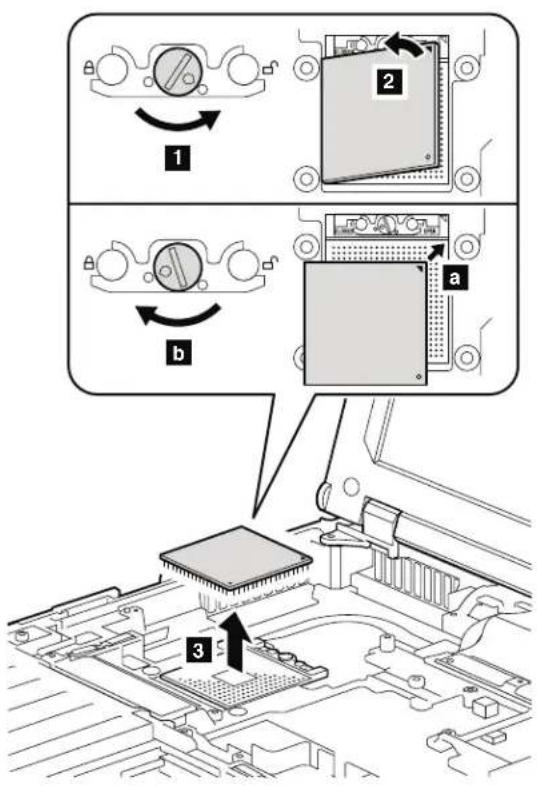

1150 CPU . . . . . . . . . . . . . . . . 89

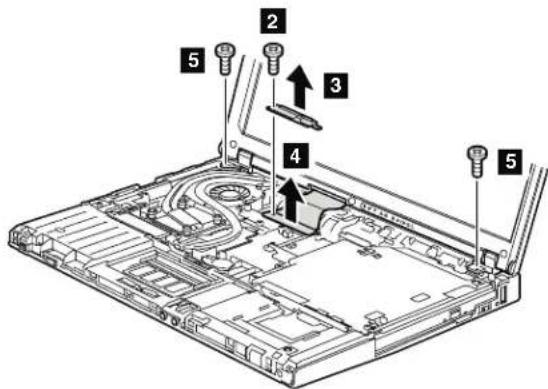

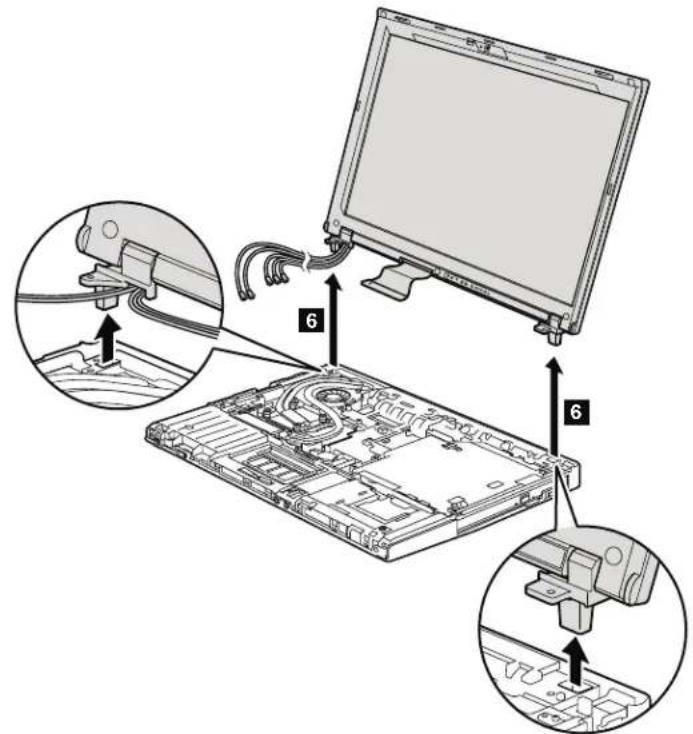

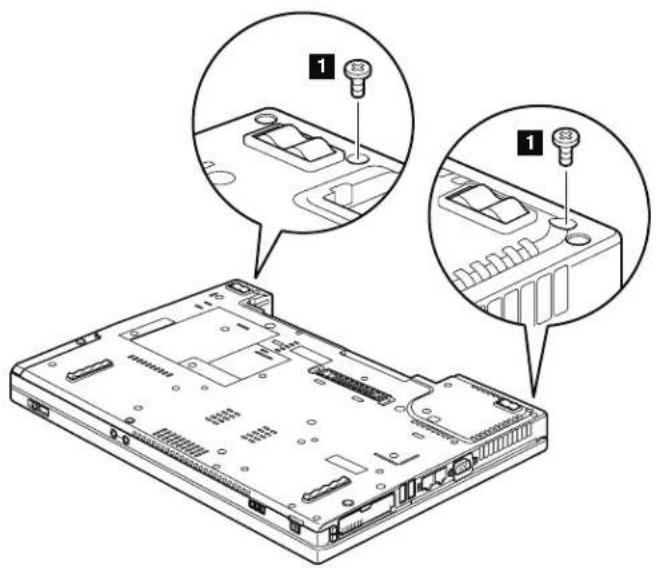

1160 LCD assembly. 90

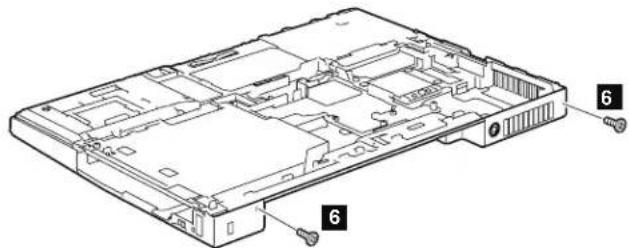

1170 Base cover, USB sub card with cable, and PC Card slots bezel assembly . . . . . . . 93

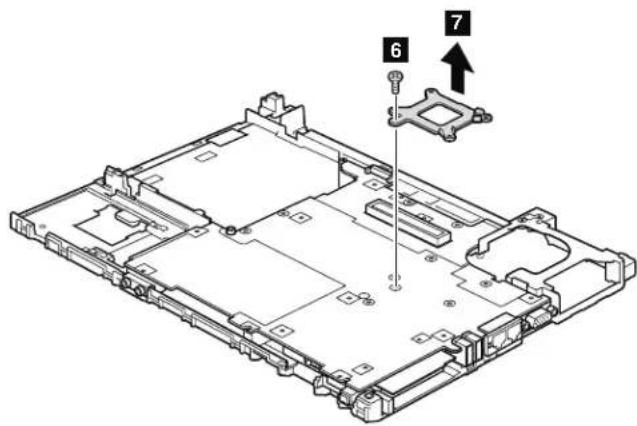

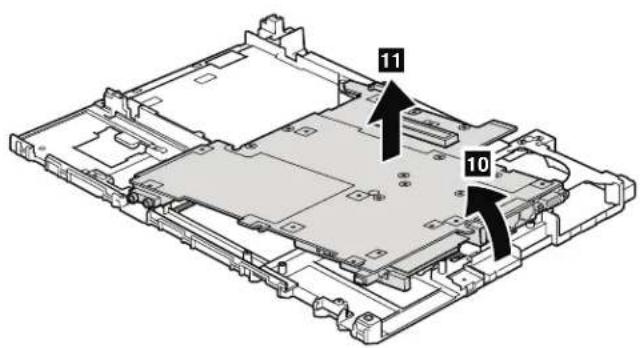

1180 Structure frame . . . . . . . . . . . 99

1190 System board, PC Card/Express Card slots assembly or PC Card/Smart Card slots assembly or PC Card/4-in-1 media reader slot assembly . . . . . . . . . . . . . . . . . . . 103

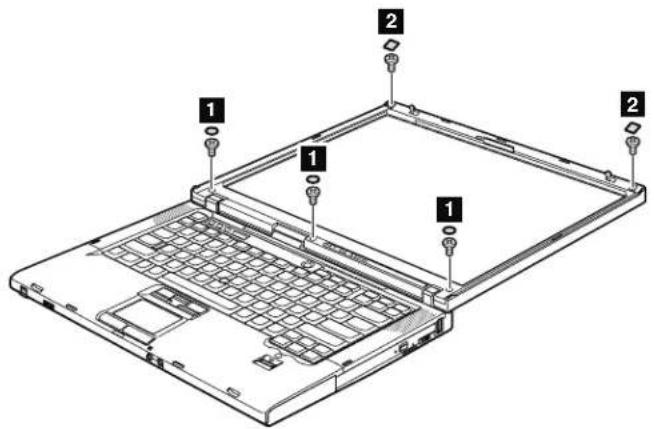

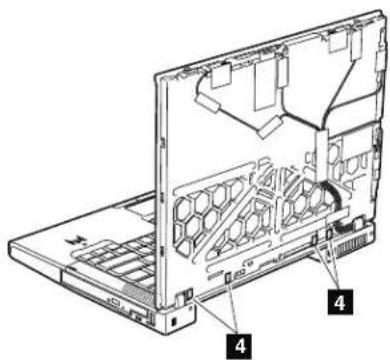

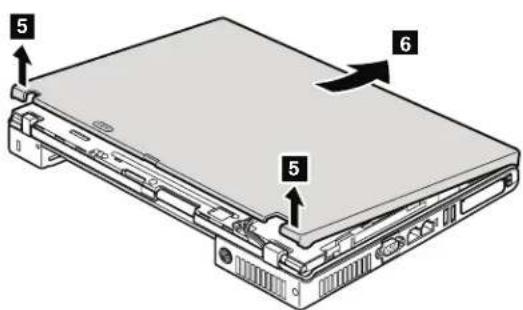

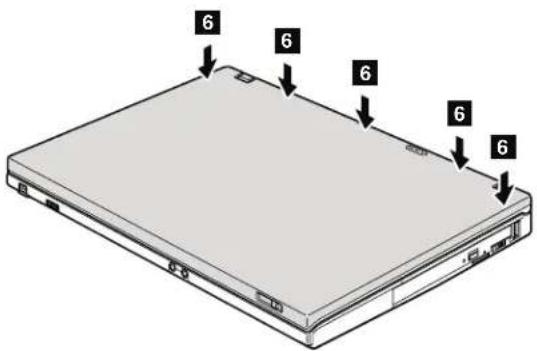

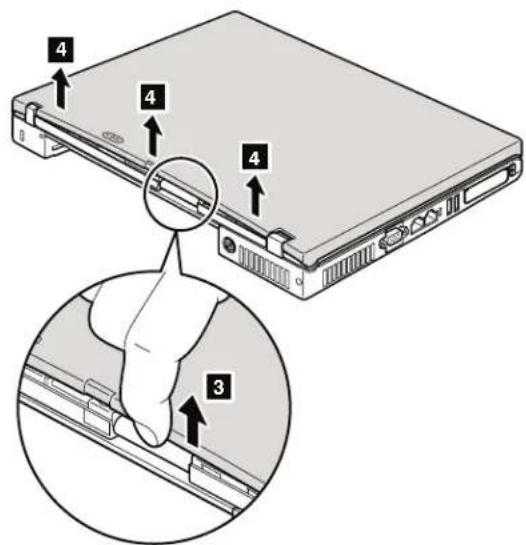

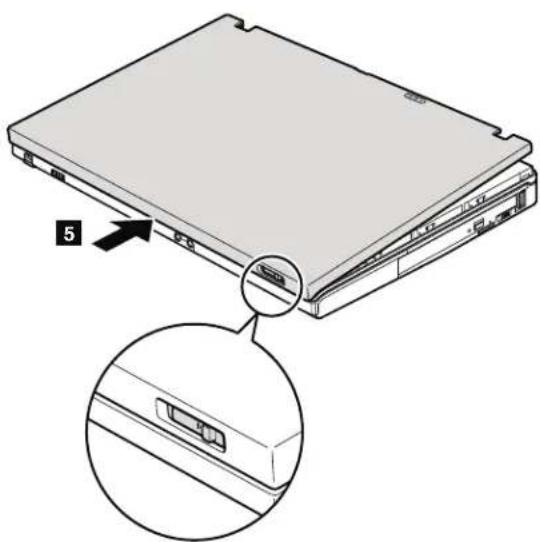

2010 LCD front bezel and LCD rear cover (LCD cover kit). 106

2020 Inverter card . . . . . . . . . . . 110

2030 Bluetooth daughter card (BDC-2) . . . . 111

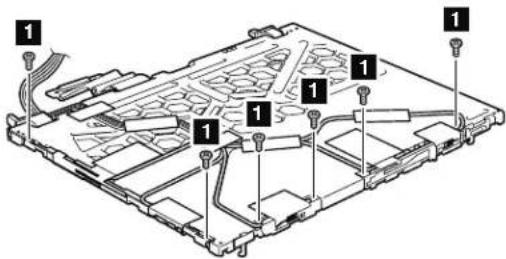

2040 Antenna assembly ..... 112

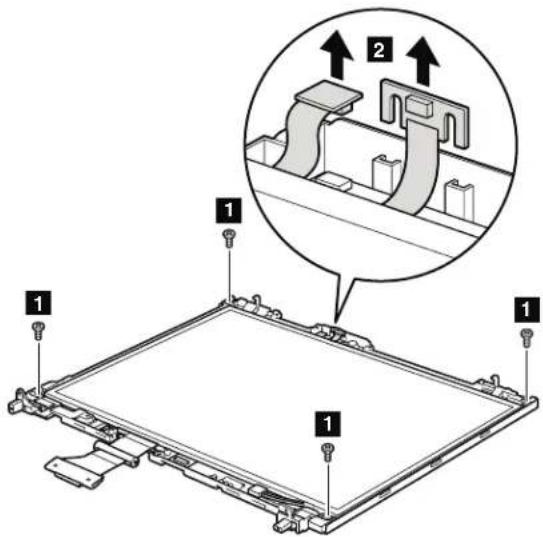

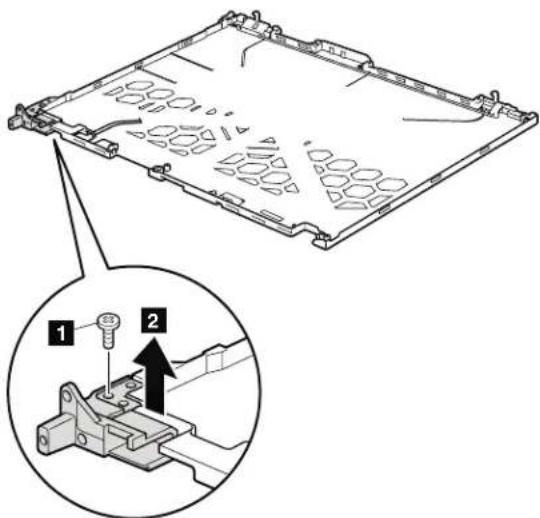

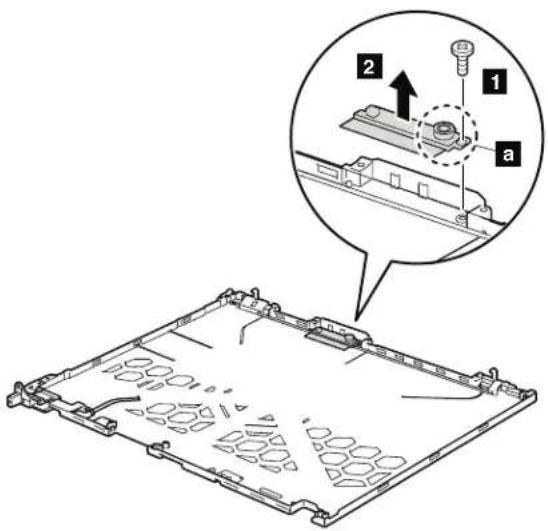

2050 LCD magnesium frame, hinge assembly, and integrated camera . . . . . . . . . 114

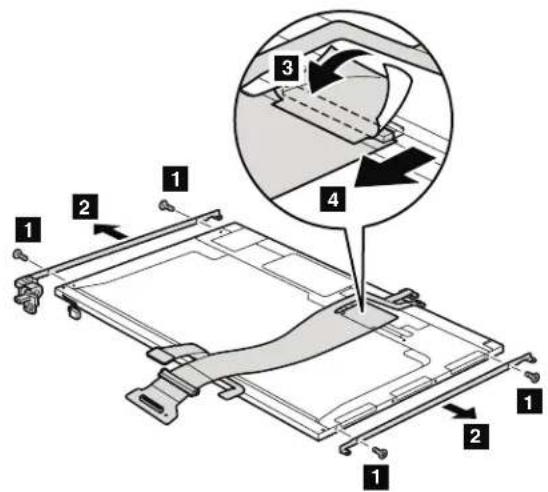

2060 LCD panel and LCD cable . . . . . . 117

Locations. 118

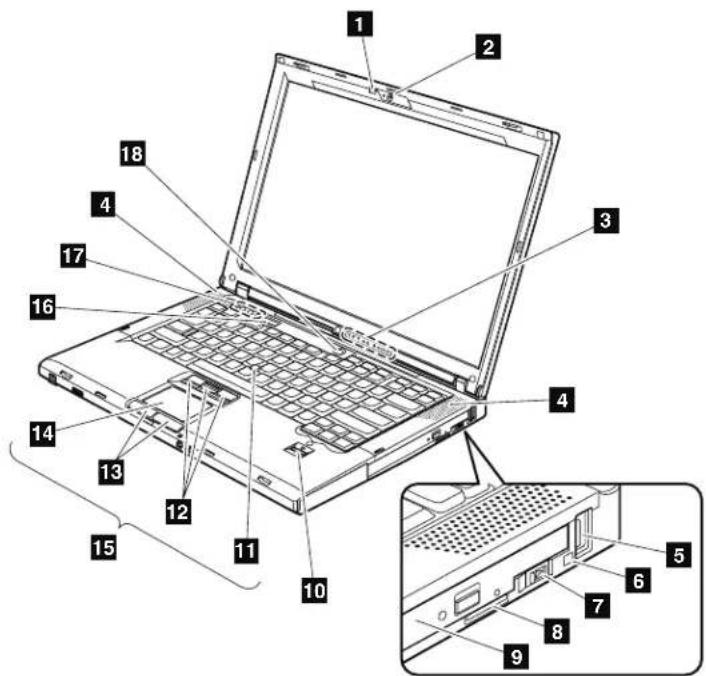

Front view . . . . . . . . . . . . . . 118

Rear view 119

Bottom view. 120

Parts list . . . . . . . . . . . . . . . . . 121

Overall 122

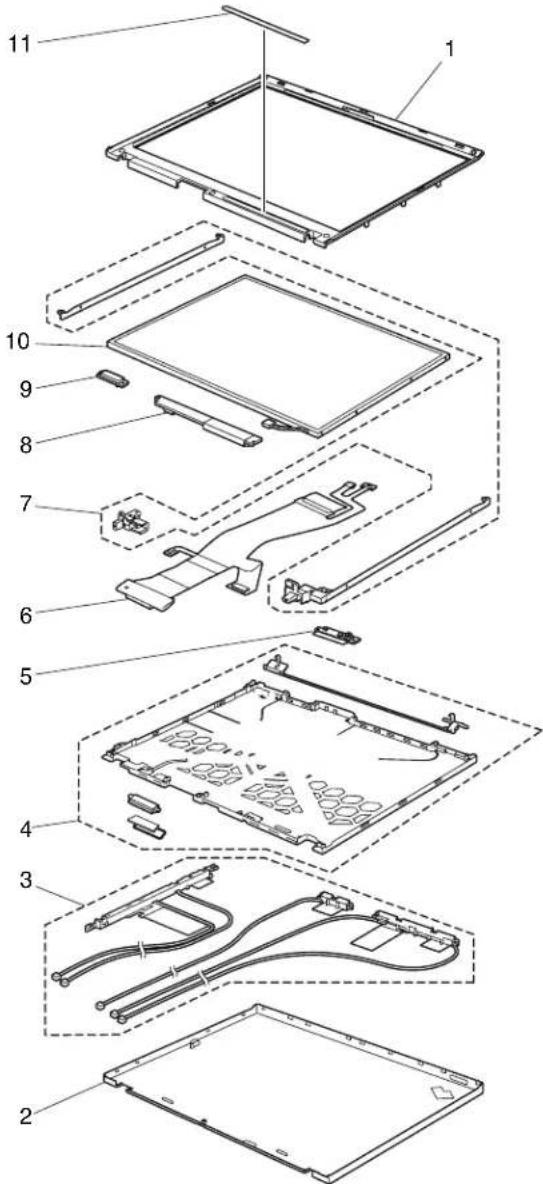

LCD FRUs . . . . . . . . . . . . . . 198

Keyboard. 218

Miscellaneous parts . . . . . . . . . . . 219

AC adapters. 220

Power cords. 222

Recovery discs . . . . . . . . . . . . . 223

Common service tools . . . . . . . . . 243

Notices . . . . . . . . . . . . . . . 245

Trademarks 246

Aboutthismanual

This manual contains service and reference information for the following ThinkPad ^® products.

ThinkPadT61

MT MT 1959, 6377, 6378, 6379, 6480, 6481, 7658, 7659, 7660, 7661, 7662, 7663, 7664, and 7665

ThinkPad R61 and R61i

MT MT 7732, 7733, 7734, 7735, 7736, 7737, 7738, 7742, 7743, 7744, 7751, 7753, 7754, and 7755

Use this manual along with the advanced diagnostic tests to troubleshoot problems.

The manual is divided into sections as follows:

• The common sections provide general information, guidelines, and safety information required in servicing computers.
• The product-specific section includes service, reference, and product-specific partsinformation.

Important:

This manual is intended only for trained servicers who are familiar with ThinkPad products. Use this manual along with the advanced diagnostic tests to troubleshoot problems effectively.

Before servicing a ThinkPad product, be sure to read all the information under "Safety information" on page 1 and "Important service information" on page 15.

Safetyinformation

This chapter presents following safety information that you need to be familiar with before you service a ThinkPad computer.

• "General safety"
  • "Electrical safety" on page 2
  • "Safety inspection guide" on page 3
• "Handling devices that are sensitive to electrostatic discharge" on page 4
  • "Grounding requirements" on page 5
  • "Safety notices: multilingual translations" on page 5
  • "Laser compliance statement" on page 11

Generalsafety

Follow these rules to ensure general safety:

• Observe good housekeeping in the area of the machines during and after maintenance.

• When lifting any heavy object:

• Make sure that you can stand safely without slipping.

• Distribute the weight of the object equally between your feet.
• Use a slow lifting force. Never move suddenly or twist when you attempt to lift.

• Lift by standing or by pushing up with your leg muscles; this action removes the strain from the muscles in your back. Do not attempt to lift any object that weighs more than 16 kg (35 lb) or that you think is too heavy for you.

• Do not perform any action that causes hazards to the customer, or that makes the equipment unsafe.

• Before you start the machine, make sure that other service representatives and the customer's personnel are not in a hazardous position.
• Place removed covers and other parts in a safe place, away from all personnel, while you are servicing the machine.
• Keep your toolcase away from walk areas so that other people will not trip over it.
• Do not wear loose clothing that can be trapped in the moving parts of a machine. Make sure that your sleeves are fastened or rolled up above your elbows. If your hair is long, fasten it.
• Insert the ends of your necktie or scarf inside clothing or fasten it with a nonconductive clip, about 8 centimeters (3 inches) from the end.
• Do not wear jewelry, chains, metal-frame eyeglasses, or metal fasteners for your clothing.

Attention: Metal objects are good electrical conductors.

• Wear safety glasses when you are hammering, drilling, soldering, cutting wire, attaching springs, using solvents, or working in any other conditions that might be hazardous to your eyes.
• After service, reinstall all safety shields, guards, labels, and ground wires. Replace any safety device that is worn or defective.
• Reinstall all covers correctly before returning the machine to the customer.

- Fan louvers on the machine help to prevent overheating of internal components. Do not obstruct fan louvers or cover them with labels or stickers.

Electricalsafety

Observe the following rules when working on electrical equipment.

Important:

Use only approved tools and test equipment. Some hand tools have handles covered with a soft material that does not insulate you when working with live electricalcurrents.

Many customers have, near their equipment, rubber floor mats that contain small conductive fibers to decrease electrostatic discharges. Do not use this type of mat to protect yourself from electrical shock.

• Find the room emergency power-off (EPO) switch, disconnecting switch, or electrical outlet. If an electrical accident occurs, you can then operate the switch or unplug the power cord quickly.
• Do not work alone under hazardous conditions or near equipment that has hazardous voltages.

• Disconnect all power before:

• Performing a mechanical inspection

• Working near power supplies

• Removing or installing main units

• Before you start to work on the machine, unplug the power cord. If you cannot unplug it, ask the customer to power-off the wall box that supplies power to the machine, and to lock the wall box in the off position.

• If you need to work on a machine that has exposed electrical circuits, observe the following precautions:

- Ensure that another person, familiar with the power-off controls, is near you.

Attention: Another person must be there to switch off the power, if necessary.

- Use only one hand when working with powered-on electrical equipment; keep the other hand in your pocket or behind your back.

Attention: An electrical shock can occur only when there is a complete circuit. By observing the above rule, you may prevent a current from passing through your body.

• When using testers, set the controls correctly and use the approved probe leads and accessories for that tester.
• Stand on suitable rubber mats (obtained locally, if necessary) to insulate you from grounds such as metal floor strips and machine frames.

Observe the special safety precautions when you work with very high voltages; Instructions for these precautions are in the safety sections of maintenance information. Use extreme care when measuring high voltages.

• Regularly inspect and maintain your electrical hand tools for safe operational condition.
• Do not use worn or broken tools and testers.

• Never assume that power has been disconnected from a circuit. First, check that it has been powered off.

• Always look carefully for possible hazards in your work area. Examples of these hazards are moist floors, nongrounded power extension cables, power surges, and missing safety grounds.

• Do not touch live electrical circuits with the reflective surface of a plastic dental mirror. The surface is conductive; such touching can cause personal injury and machinedamage.
• Do not service the following parts with the power on when they are removed from their normal operating places in a machine:
• Power supply units
  -Pumps
• Blowers and fans
  -Motorgenerators
  and similar units. (This practice ensures correct grounding of the units.)
  • If an electrical accident occurs:
• Use caution; do not become a victim yourself.
• Switch off power.
• Send another person to get medical aid.

Safetyinspectionguide

The purpose of this inspection guide is to assist you in identifying potentially unsafe conditions. As each machine was designed and built, required safety items were installed to protect users and service personnel from injury. This guide addresses only those items. You should use good judgment to identify potential safety hazards due to attachment of non-ThinkPad features or options not covered by this inspection guide.

If any unsafe conditions are present, you must determine how serious the apparent hazard could be and whether you can continue without first correcting the problem.

Consider these conditions and the safety hazards they present:

• Electrical hazards, especially primary power (primary voltage on the frame can cause serious or fatal electrical shock)
• Explosive hazards, such as a damaged CRT face or a bulging capacitor
• Mechanical hazards, such as loose or missing hardware

To determine whether there are any potentially unsafe conditions, use the following checklist at the beginning of every service task. Begin the checks with the power off, and the power cord disconnected.

Checklist:

1. Check exterior covers for damage (loose, broken, or sharp edges).
2. Power off the computer. Disconnect the power cord.
3. Check the power cord for:

a. A third-wire ground connector in good condition. Use a meter to measure third-wire ground continuity for 0.1 ohm or less between the external ground pin and the frame ground.

b. The power cord should be the type specified in the parts list.

c. Insulation must not be frayed or worn.

1. Check for cracked or bulging batteries.

2. Remove the cover.

3. Check for cracked or bulging batteries.

4. Remove the cover.

5. Check for any obvious non-ThinkPad alterations. Use good judgment as to the safety of any non-ThinkPad alterations.

6. Check inside the unit for any obvious unsafe conditions, such as metal filings, contamination, water or other liquids, or signs of fire or smoke damage.
7. Check for worn, frayed, or pinched cables.
8. Check that the power-supply cover fasteners (screws or rivets) have not been removedortamperedwith.

Handling devices that are sensitive to electrostatic discharge

Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to electrostatic discharge (ESD.) ESD damage can occur when there is a difference in charge between objects. Protect against ESD damage by equalizing the charge so that the machine, the part, the work mat, and the person handling the part are all at the same charge.

Notes:

1. Use product-specific ESD procedures when they exceed the requirements notedhere.
2. Make sure that the ESD protective devices you use have been certified (ISO 9000)asfullyeffective.

When handling ESD-sensitive parts:

• Keep the parts in protective packages until they are inserted into the product.
• Avoid contact with other people.
• Wear a grounded wrist strap against your skin to eliminate static on your body.
• Prevent the part from touching your clothing. Most clothing is insulative and retains a charge even when you are wearing a wrist strap.
• Use the black side of a grounded work mat to provide a static-free work surface. The mat is especially useful when handling ESD-sensitive devices.
• Select a grounding system, such as those listed below, to provide protection that meets the specific service requirement.

Note:

The use of a grounding system to guard against ESD damage is desirable but not necessary.

• Attach the ESD ground clip to any frame ground, ground braid, or green-wire ground.
• When working on a double-insulated or battery-operated system, use an ESD common ground or reference point. You can use coax or connector-outside shells on these systems.
• Use the round ground prong of the ac plug on ac-operated computers.

Groundingrequirements

Electrical grounding of the computer is required for operator safety and correct system function. Proper grounding of the electrical outlet can be verified by a certifiedelectrician.

Safety notices: multilingual translations

The safety notices in this section are provided in English, French, German, Hebrew, Italian, Japanese, and Spanish.

Safetynotice1

Before the computer is powered on after FRU replacement, make sure all screws, springs, and other small parts are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds. Metallic parts or metal flakes can cause electrical shorts.

Some standby batteries contain a small amount of nickel and cadmium. Do not disassemble a standby battery, recharge it, throw it into fire or water, or short-circuit it. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.

IN UNS NUN TSPUN, UTHN NUN 1965

The battery pack contains small amounts of nickel. Do not disassemble it, throw it into fire or water, or short-circuit it. Dispose of the battery pack as required by local ordinances or regulations. Use only the battery in the appropriate parts listing when replacing the battery pack. Use of an incorrect battery can result in ignition or explosion of the battery.

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

The lithium battery can cause a fire, an explosion, or a severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100^ C ( 212^ F), incinerate it, or expose its cell contents to water. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.

If the LCD breaks and the fluid from inside the LCD gets into your eyes or on your hands, immediately wash the affected areas with water for at least 15 minutes. Seek medical care if any symptoms from the fluid are present after washing.

To avoid shock, do not remove the plastic cover that protects the lower part of the invertercard.

Though the main batteries have low voltage, a shorted or grounded battery can produce enough current to burn personnel or combustible materials.

Before removing any FRU, power off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables.

Lasercompliancestatement

Some models of ThinkPad computer are equipped from the factory with an optical storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are also sold separately as options. If one of these drives is installed, it is certified in the U.S. to conform to the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J for Class 1 laser products. Elsewhere, the drive is certified to conform to the requirements of the International Electrotechnical Commission (IEC) 825 and CENELEC EN 60 825 for Class 1 laser products.

If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note the following:

CAUTION:

Use of controls or adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure.

Opening the CD-ROM drive, the DVD-ROM drive, or any other optical storage device could result in exposure to hazardous laser radiation. There are no serviceable parts inside those drives. Do not open.

A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may contain an embedded Class 3A or Class 3B laser diode. Note the following:

DANGER

Emits visible and invisible laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

This chapter presents following important service information:

• "Strategy for replacing FRUs"
- "Strategy for replacing a hard disk drive" on page 16
- "Important notice for replacing a system board" on page 16
- "How to use error message" on page 16

• "Strategy for replacing FRUs for CTO, CMV, and GAV" on page 16

- "Product definition" on page 16

- "FRU identification for CTO, CMV, and GAV products" on page 17

- "Important information about replacing RoHS compliant FRUs" on page 18

Important:

BIOS and device driver fixes are customer-installable. The BIOS and device drivers are posted on the customer support site http://www.lenovo.com/support

System Disassembly/Reassembly videos that show the FRU removals or replacementsfortheLenovo ^® authorized service technicians are available in the following support site: http://www.lenovoservicetraining.com/ion/

Advise customers to contact the Customer Support Center at 800-426-7378 if they need assistance in obtaining or installing any software fixes, drivers, and BIOS downloads.

Customers in Canada should call the Customer Support Center at 800-565-3344 for assistance or download information.

Strategy for replacing FRUs

Beforereplacingparts:

Make sure that all software fixes, drivers, and BIOS downloads are installed before replacing any FRUs listed in this manual.

After a system board is replaced, ensure that the latest BIOS is loaded to the system board before completing the service action.

To download software fixes, drivers, and BIOS, do as follows:

1. Go to http://www.lenovo.com/support
2. Enter the product number of the computer or press Auto-detect button on the screen.
3. Select Downloads and drivers.
4. Follow the directions on the screen and install the necessary software.

Use the following strategy to prevent unnecessary expense for replacing and servicingFRUs:

• If you are instructed to replace a FRU but the replacement does not correct the problem, reinstall the original FRU before you continue.
• Some computers have both a processor board and a system board. If you are instructed to replace either the processor board or the system board, and replacing one of them does not correct the problem, reinstall that board, and then replace the other one.
• If an adapter or a device consists of more than one FRU, any of the FRUs may be the cause of the error. Before replacing the adapter or device, remove the FRUs, one by one, to see if the symptoms change. Replace only the FRU that changed the symptoms.

Attention: The setup configuration on the computer you are servicing may have been customized. Running Automatic Configuration may alter the settings. Note the current configuration settings (using the View Configuration option); then, when service has been completed, verify that those settings remain in effect.

Strategy for replacing a hard disk drive

Always try to run a low-level format before replacing a hard disk drive. This will cause all customer data on the hard disk to be lost. Be sure that the customer has a current backup of the data before doing this task.

Attention: The drive startup sequence in the computer you are servicing may have been changed. Be extremely careful during write operations such as copying, saving, or formatting. If you select an incorrect drive, data or programs can be overwritten.

Important notice for replacing a system board

Some components mounted on a system board are very sensitive. Improper handling of a system board can cause damage to those components, and may cause a system malfunction.

Attention: When handling a system board:

• Do not drop a system board or apply any excessive force to it.
• Avoid rough handling of any kind.
• Avoid bending a system board and hard pushing to prevent cracking at each BGA (Ball Grid Array) chipset.

How to use error message

Use the error codes displayed on the screen to diagnose failures. If more than one error code is displayed, begin the diagnosis with the first error code. Whatever causes the first error code may also cause false error codes. If no error code is displayed, see whether the error symptom is listed in the Symptom-to-FRU Index for the computer you are servicing.

Strategy for replacing FRUs for CTO, CMV, and GAV

Productdefinition

Dynamic Configure To Order (CTO)

This provides the ability for a customer to configure an IBM ^® or a Lenovo solution from an eSite, and have this configuration sent to fulfillment, where it is built and shipped directly to the customer. The machine label, Product Entitlement

Warehouse (PEW), eSupport, and the HMM will load these products as the 4-digit MT and 3-digit model, where model = "CTO" (Example: 1829-CTO).

Custom Model Variant (CMV)

This is a unique configuration that has been negotiated between IBM or Lenovo and the customer. A unique 4-digit MT and 3-digit model is provided to the customer to place orders (Example: 1829-W15). A CMV is a special bid offering. Therefore, it is NOT generally announced.

• The MTM portion of the machine label is the 4-digit MT and 3-digit model, where model = "CTO" (Example: 1829-CTO). The PRODUCT ID portion of the machine label is the 4-digit MT and 3-digit CMV model (Example: 1829-W15).
• The PEW record is the 4-digit MT and 3-digit model, where model = "CTO" (Example:1829-CTO).
• eSupport will show both the CTO and CMV machine type models (Example: 1829-CTO and 1829-W15 will be found on the eSupport site.)
• The HMM will have the 4-digit MT and 3-digit CTO model only (Example: 1829-CTO). Again, CMVs are custom models and are not found in the HMM.

General Announce Variant (GAV)

This is a standard model (fixed configuration). GAVs are announced and offered to all customers. The MTM portion of the machine label is a 4-digit MT and 3-digit model, where model = a "fixed part number", not "CTO" (Example: 1829-F1U). Also, PEW, eSupport, and the HMM will list these products under the same fixed modelnumber.

FRU identification for CTO, CMV, and GAV products

There are three information resources to identify which FRUs are used to support CTO, CMV, and GAV products. These sources are PEW, eSupport, and the HMM.

UsingPEW

• PEW is the primary source for identifying FRU part numbers and FRU descriptions for the key commodities for CTO, CMV and GAV products at a MT - serial number level. An example of key commodities are hard disk drives, system boards, microprocessors, Liquid Crystal Displays (LCDs), and memory.
• Remember, all CTO and CMV products are loaded in PEW under the 4-digit MT and 3-digit model, where model = "CTO" (Example: 1829-CTO). GAVs are loaded in PEW under the 4-digit MT and 3-digit model, where model = a "fixed part number", not "CTO" (Example: 1829-F1U).
• PEW can be accessed at the following Web site: http://w3-01.ibm.com/pc/entitle/pg2/Service.wss/display/Home
  Customers can also access PEW via http://www-307.ibm.com/pc/support/site.wss/product.do?template=/warranty/warranty.vm&sitestyle=lenovo
  Select Warranty lookup. Input the MT and the Serial number and the list of key commodities will be returned in the PEW record under COMPONENT INFORMATION.
• Business Partners using Eclaim will access PEW when performing Entitlement Lookup. Business Partners will enter Loc ID, MT and Serial, and the key commodities will be returned in the Eclaim record under SYSTEM DETAILS.
• Authorized IBM Business Partners can access Eclaim at the following Web site: https://wca.eclaim.com

UsingeSupport

For Key Commodities (Examples - hard disk drive, system board, microprocessor, LCD, and memory)

• eSupport can be used to view the list of key commodities built in a particular machine serial (this is the same record found in PEW).
• eSupport can be accessed at the following Web site: http://www.lenovo.com/support
• To view the key commodities, click on PARTS INFORMATION, then PARTS LOOKUP. Type in the model type and serial number. The key commodities will be returned in the eSupport record under PARTS SHIPPED WITH YOUR SYSTEM.

For the Remaining FRUs (the complete list of FRUs at the MT Model level)

• eSupport can be used to view the complete list of FRUs for a machine type and model.
• To view the complete list of FRUs, type in the machine type and model (Example: 1829-CTO) under QUICK PATH. Under "View by Document Type" select PARTS INFORMATION. Under "Filter by Category" select SERVICE PARTS. Under "Parts Information by Date" select SYSTEM SERVICE PARTS. The list of service parts by description, with applicable machine type model and FRU will bedisplayed.

UsingtheHMM

For Key Commodities (Examples - hard disk drive, system board, microprocessor, LCD, and memory)

Use the HMM as a back-up to PEW and eSupport to view the complete list of FRUs at the MT Model level.

Important information about replacing RoHS compliant FRUs

RoHS, The Restriction of Hazardous Substances in Electrical and Electronic Equipment Directive (2002/95/EC) is a European Union legal requirement affecting the global electronics industry. RoHS requirements must be implemented on Lenovo products placed on the market after June 2006. Products on the market before June 2006 are not required to have RoHS compliant parts. If the original FRU parts are non compliant, replacement parts can also be non compliant. In all cases if the original FRU parts are RoHS compliant, the replacement part must also be RoHS compliant.

Note: RoHS and non-RoHS FRU part numbers with the same fit and function are identified with unique FRU part numbers.

Lenovo plans to transition to RoHS compliance well before the implementation date and expects its suppliers to be ready to support Lenovo's requirements and schedule in the EU. Products sold in 2005 and 2006, will contain some RoHS compliant FRUs. The following statement pertains to these products and any product Lenovo produces containing RoHS compliant FRUs.

RoHS compliant FRUs have unique FRU part numbers. Before or after the RoHS implementation date, failed RoHS compliant parts must always be replaced using RoHS compliant FRUs, so only the FRUs identified as compliant in the system HMM or direct substitutions for those FRUs may be used.

Products marketed before June 2006		Products marketed after June 2006
Currentororiginal part	Replacement FRU	Current or original part	ReplacementFRU
Non-RoHS	Can be Non-RoHS	Must be RoHS	Must be RoHS
Non-RoHS	Can be RoHS
Non-RoHS	Can sub to RoHS
RoHSMustbeRoHS

Note: A direct substitution is a part with a different FRU part number that is automatically shipped by the distribution center at the time of the order.

Generalcheckout

This chapter presents following information:

• "What to do first" on page 22
- "Checkout guide" on page 23
- "Diagnostics using PC-Doctor for DOS" on page 24
- "PC-Doctor for Windows" on page 26
- "PC-Doctor for Rescue and Recovery" on page 26
• "Power system checkout" on page 27

The descriptions in this chapter apply to any ThinkPad model that supports the PC-Doctor ^® for DOS diagnostics program. Some descriptions might not apply to your particularcomputer.

Before you go to the checkout guide, be sure to read the following important notes.

Importantnotes:

• Only certified trained personnel should service the computer.
• Before replacing any FRU, read the entire page on removing and replacing FRUs.
• When you replace FRUs, use new nylon-coated screws.
• Be extremely careful during such write operations as copying, saving, or formatting. Drives in the computer that you are servicing sequence might have been altered. If you select an incorrect drive, data or programs might be overwritten.
• Replace a FRU only with another FRU of the correct model. When you replace a FRU, make sure that the model of the machine and the FRU part number are correct by referring to the FRU parts list.
• A FRU should not be replaced because of a single, unreproducible failure. Single failures can occur for a variety of reasons that have nothing to do with a hardware defect, such as cosmic radiation, electrostatic discharge, or software errors. Consider replacing a FRU only when a problem recurs. If you suspect that a FRU is defective, clear the error log and run the test again. If the error does not recur, do not replace the FRU.
• Be careful not to replace a nondefective FRU.

What to do first

When you do return a FRU, you must include the following information in the parts exchange form or parts return form that you attach to it:

_ 1. Name and phone number of servicer
2. Date of service
3. Date on which the machine failed
_ 4. Date of purchase
_5. Failure symptoms, error codes appearing on the display, and beep symptoms
6. Procedure index and page number in which the failing FRU was detected
7. Failing FRU name and part number
8. Machine type, model number, and serial number
9. Customer's name and address

Note for warranty: During the warranty period, the customer may be responsible for repair costs if the computer damage was caused by misuse, accident, modification, unsuitable physical or operating environment, or improper maintenance by the customer.

Following is a list of some common items that are not covered under warranty and some symptoms that might indicate that the system was subjected to stress beyond normaluse.

Before checking problems with the computer, determine whether the damage is covered under the warranty by referring to the following list:

The following are not covered under warranty:

• LCD panel cracked from the application of excessive force or from being dropped
  • Scratched (cosmetic) parts
  • Distortion, deformation, or discoloration of the cosmetic parts
• Plastic parts, latches, pins, or connectors that have been cracked or broken by excessive force
  • Damage caused by liquid spilled into the system
• Damage caused by the improper insertion of a PC Card or the installation of an incompatiblecard
• Improper disc insertion or use of an optical drive
• Diskette drive damage caused by pressure on the diskette drive cover, foreign material in the drive, or the insertion of a diskette with multiple labels
  • Damaged or bent diskette eject button
• Fuses blown by attachment of a nonsupported device
  • Forgotten computer password (making the computer unusable)
• Sticky keys caused by spilling a liquid onto the keyboard
• Use of an incorrect ac adapter on laptop products

The following symptoms might indicate damage caused by nonwarranted activities:

• Missing parts might be a symptom of unauthorized service or modification.
• If the spindle of a hard disk drive becomes noisy, it may have been subjected to excessive force, ordropped.

Checkoutguide

Use the following procedures as a guide in identifying and correcting problems with the ThinkPad computer.

Note: The diagnostic tests are intended to test only ThinkPad products. The use of non-ThinkPad products, prototype cards, or modified options can lead to false indications of errors and invalid system responses.

1. Identify the failing symptoms in as much detail as possible.
2. Verify the symptoms. Try to re-create the failure by running the diagnostic test or by repeating the operation.

Diagnostics using PC-Doctor for DOS

The ThinkPad computer has a test program called PC-Doctor for DOS (hereafter called PC-Doctor.) You can detect errors by running the diagnostics test included in PC-Doctor. This section is an overview of the procedure. For details that depend on model-unique functions, refer to "ThinkPad T61, R61, and R61i (14.1-inch widescreen)" on page 45.

Note:

PC-Doctor for DOS is available at following Web site: http://www.lenovo.com/support

To create the PC-Doctor diagnostic diskette, follow the instruction on the Web site.

For some possible configurations of the computer, PC-Doctor might not run correctly. To avoid this problem, you need to initialize the computer setup by use of the BIOS Setup Utility before you run PC-Doctor.

To enter BIOS Setup Utility, do as follows:

1. Turn on the computer.
2. When the ThinkPad logo comes up, immediately press F1 to enter the BIOS SetupUtility.

Note: If a supervisor password has been set by the customer, BIOS Setup Utility menu appears after the password is entered. You can start the utility by pressing Enter instead of entering the supervisor password; however, you cannot change the parameters that are protected by the supervisor password.

On the BIOS Setup Utility screen, press F9, Enter, F10, and then Enter.

Note: When you initialize the computer configuration, some devices are disabled, such as the serial port. If you test one of these devices, you will need to enable it by using Configuration utility for DOS. The utility is available on the following Web site: http://www.lenovo.com/support

PC-Doctor cannot be used to test a device that is in the ThinkPad Advanced Dock, even if the computer supports the ThinkPad Advanced Dock. To test a USB device, connect it to the USB connector of the computer.

Testingthecomputer

To run the test, do as follows:

Note: In the following procedure, you can select an item not only with the arrow keys, but also with the TrackPoint ^® pointer. Instead of pressing Enter, click the left button.

1. Insert the PC-Doctor disk into the diskette drive; then power on the computer. If the computer cannot be powered on, go to "Power system checkout" on page 27, and check the power sources. If an error code appears, go to "Symptom-to-FRU index" on page 36.

On the first screen, select the model and press Enter. Follow the instructions on thescreen.

1. The main panel of PC-Doctor appears.

2. Select Diagnostics with the arrow keys, and press Enter.

A pull-down menu appears. (Its exact form depends on the model.)

Note: PC-Doctor menu does not mean the formal support device list. Some unsupported device names may appear in the PC-Doctor menu.

Diagnostics Interactive Tests Hardware Info Utility Quit F1=Help Run Normal Test Run Quick Test CPU/Coprocessor Systemboard Video Adapter Serial Ports Parallel Ports Fixed Disks Diskette Drives Other Devices Communication Wireless LAN Memory Test - Full Memory Test - Quick PC-DOCTOR 2.0 Copyright 2002 PC-Doctor, Inc. All Rights Reserved. Use the cursor keys and ESC to move in menus. Press ENTER to select.

The options on the test menu are as follows:

DiagnosticsInteractiveTests
Run Normal TestRun Quick TestCPU/CoprocessorSystemboardVideo AdapterSerial PortsParallel PortsFixed DisksDiskette DrivesOther DevicesThinkPad DevicesCommunicationWireless LANMemory Test – FullMemory Test – Quick	KeyboardVideoInternal SpeakerMouseDisketteSystem LoadCD-ROM/DVD TestIntel 11abgn Wireless Radio
Notes:In the Keyboard test in Interactive Tests, the Fn key should be held down for at least 2 seconds; otherwise, it cannot be sensed.Video Adapter test supports only the LCD display on the ThinkPad computer. If you have an external monitor attached to your computer, detach it before running PC-Doctor for DOS.To test Digital Signature Chip, the security chip must be set to Active.To test Serial Ports or Parallel Ports, the ThinkPad computer must be attached to the ThinkPad Advanced Dock or ThinkPad Advanced Mini Dock.

1. Run the applicable function test.

2. Follow the instructions on the screen. If there is a problem, PC-Doctor shows messages describing it.

3. To exit the test, select Quit — Exit Diag.

To cancel the test, press Esc.

Note: After running PC-Doctor, check the time and date on the system and reset them if they are incorrect.

Detecting system information with PC-Doctor

PC-Doctor can detect the following system information:

HardwareInfo

• System Configuration
  • Memory Contents
  • Physical Disk Drives
  • Logical Disk Drives
  • VGA Information
• IDE Drive Info
• PCI Information
• PNPISA Info
• SMBIOS Info
  • VESA LCD Info
• Hardware Events Log

Utility

• Run External Tests
  • Surface Scan Hard Disk
  • Benchmark System
• DOS Shell
  • Tech Support Form
• Battery Rundown
• View Test Log
• Print Log
• Save Log
  • Full Erase Hard Drive
• Quick Erase Hard Drive

PC-DoctorforWindows

This product is designed to help you troubleshoot and resolve problems related to your computer. Select one of the categories listed below to display symptoms and solutions:

• Check System Health
  • System and Device Tests
  • Lenovo Troubleshooting Center
• System Reports
• Updates and Support

PC-Doctor for Rescue and Recovery

In some models of ThinkPad computer, the Rescue and Recovery ^® workspace enables you to run the PC-Doctor program to test the hardware features of the computer.

To run the test, click "Run Diagnostics" on the Rescue and Recovery main screen.

Powersystemcheckout

To verify a symptom, do the following:

1. Turn off the computer.
2. Remove the battery pack.
3. Connect the ac adapter.
4. Check that power is supplied when you turn on the computer.
5. Turn off the computer.
6. Disconnect the ac adapter and install the charged battery pack.
7. Check that the battery pack supplies power when you turn on the computer.

If you suspect a power problem, see the appropriate one of the following power supplycheckouts:

• "Checking the ac adapter"
• "Checking operational charging" on page 28
• "Checking the battery pack" on page 28
• "Checking the backup battery" on page 29

Checking the ac adapter

You are here because the computer fails only when the ac adapter is used.

• If the power problem occurs only when the ThinkPad Essential Port Replicator is used, replace the port replicator.
• If the power-on indicator does not turn on, check the power cord of the ac adapter for correct continuity and installation.
• If the computer does not charge during operation, go to "Checking operational charging" on page 28

To check the ac adapter, do the following:

1. Unplug the ac adapter cable from the computer.
2. Measure the output voltage at the plug of the ac adapter cable. See the following figure:

Pin	Voltage (V dc)
1+20
20
3Ground

Note: Output voltage of pin no.2 of the ac adapter may different from the one youareservicing.

1. If the voltage is not correct, replace the ac adapter.

2. If the voltage is acceptable, do the following:

3. Replace the system board.

4. If the problem persists, go to "ThinkPad T61, R61, and R61i (14.1-inch widescreen)"onpage45.

Note: Noise from the ac adapter does not always indicate a defect.

Checkingoperationalcharging

To check whether the battery charges properly during operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

Perform operational charging. If the battery status indicator or icon does not turn on, remove the battery pack and let it return to room temperature. Reinstall the battery pack. If the charge indicator or icon still does not turn on, replace the batterypack.

If the charge indicator still does not turn on, replace the system board. Then reinstall the battery pack. If it is still not charged, go to the next section.

Checking the battery pack

Battery charging does not start until the Power Meter shows that less than 95% of the total power remains; under this condition the battery pack can charge to 100% of its capacity. This protects the battery pack from being overcharged or from having a shortened life.

To check your battery, move your cursor to the Power Meter icon in the icon tray of the Windows ^® taskbar and wait for a moment (but do not click), and the percentage of battery power remaining is displayed. To get detailed information about the battery, double-click the Power Meter icon.

Note: If the battery pack becomes hot, it may not be able to charge. Remove it from the computer and leave it at room temperature for a while. After it cools down, reinstall and recharge it.

To check the battery pack, do the following:

1. Power off the computer.
2. Remove the battery pack and measure the voltage between battery terminals 1 (+) and 7 (-). See the following figure:

1(+) 2(+) 3 4 5 6(-) 7(-)

Terminal	Voltage (V dc)
1	+ 0 to + 12.6
7Ground(-)

1. If the voltage is less than +11.0 V dc, the battery pack has been discharged.

Note: Recharging will take at least 3 hours, even if the indicator does not turn on.

If the voltage is still less than +11.0 V dc after recharging, replace the battery.

1. If the voltage is more than +11.0 V dc, measure the resistance between battery terminals 5 and 7. The resistance must be 4 to 30 KΩ.

If the resistance is not correct, replace the battery pack. If the resistance is correct, replace the system board.

Checking the backup battery

Dothefollowing:

1. Power off the computer, and unplug the ac adapter from it.
2. Turn the computer upside down.
3. Remove the battery pack (see "1010 Battery pack" on page 61).
4. Remove the backup battery (see "1110 Backup battery" on page 79).
5. Measure the voltage of the backup battery. See the following figure.

Wire	Voltage (V dc)
Red	+2.5 to +3.2
BlackGround

• If the voltage is correct, replace the system board.
• If the voltage is not correct, replace the backup battery.
• If the backup battery discharges quickly after replacement, replace the system board.

Relatedserviceinformation

This chapter presents following information:

• "Restoring the factory contents by using Product Recovery discs"
  • "Passwords" on page 32
  • "Power management" on page 34
  • "Symptom-to-FRU index" on page 36

ServiceWebsite:

When the latest maintenance diskette and the system program service diskette become available, they will be posted on http://www.lenovo.com/spm

Restoring the factory contents by using Product Recovery discs

When the hard disk drive (HDD) or solid state drive (SSD) is replaced because of a failure, no Product Recovery program is on the new drive. In this case, you must use the recovery discs for the computer. Order the recovery discs and the drive at the same time so that you can recover the new drive with the pre-installed software when they arrive. For information on which discs to order, see "Recovery discs" on page 223

To install the factory contents by using Product Recovery discs, do the following:

Note: Recovery takes several hours. The length of time depends on the method you use. If you use recovery discs, recovery takes at least five hours.

1. Insert the bootable Start Recovery Disc into the DVD drive.
2. Select your language and click Next.
3. Read the license. If you agree with the terms, select I accept these terms and conditions and then click Next.
4. Insert the Operating System Recovery Disc when prompted and click Yes to begin the operating system recovery process.
5. Insert the Product Recovery Disc when prompted and click OK.
6. If you have a Supplemental Recovery Disc, insert it when prompted and click Yes. If you do not have a Supplemental Recovery Disc, click No.

Note: Not all recovery disc sets come with a Supplemental Recovery Disc. If there is a Supplemental Recovery Disc, it will be clearly marked as such.

1. When all of the data has been copied from the last disc in the set, a message is displayed prompting you to restart the computer. Remove the disc and then clickYes.

Note: The remainder of the recovery process is fully automated and no action is required by you. The computer will restart into the Windows desktop several times and you might experience periods when no activity is apparent on the screen for several minutes at a time. This is normal.

1. When the recovery process is complete, the Welcome to Microsoft Windows screen is displayed. Follow the instructions on the screen to complete the Windowssetup.

Passwords

As many as three passwords may be needed for any ThinkPad computer: the power-on password (POP), the hard-disk password (HDP), and the supervisor password(SVP).

If any of these passwords has been set, a prompt for it appears on the screen whenever the computer is turned on. The computer does not start until the passwordisentered.

Exception: If only an SVP is installed, the password prompt does not appear when the operating system is booted.

Power-onpassword

A power-on password (POP) protects the system from being powered on by an unauthorized person. The password must be entered before an operating system can be booted. For how to remove the POP, see "How to remove the power-on password" on page 33

Hard-diskpassword

There are two hard-disk passwords (HDPs):

• User HDP—for the user
• Master HDP—for the system administrator, who can use it to get access to the hard disk even if the user has changed the user HDP

Note: There are two modes for the HDP: User only and Master + User. The Master + User mode requires two HDPs; the system administrator enters both in the same operation. The system administrator then provides the user HDP to the systemuser.

Attention: If the user HDP has been forgotten, check whether a master HDP has been set. If it has, it can be used for access to the hard disk drive. If no master HDP is available, neither Lenovo nor Lenovo authorized servicers provide any services to reset either the user or the master HDP, or to recover data from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

For how to remove the POP, see "How to remove the hard-disk password" or page33.

Supervisorpassword

A supervisor password (SVP) protects the system information stored in the BIOS Setup Utility. The user must enter the SVP in order to get access to the BIOS Setup Utility and change the system configuration.

Attention: If the SVP has been forgotten and cannot be made available to the servicer, there is no service procedure to reset the password. The system board must be replaced for a scheduled fee.

How to remove the power-on password

To remove a POP that you have forgotten, do the following:

(A) If no SVP has been set:

1. Turn off the computer.

2. Remove the battery pack.
   For how to remove the battery pack, see "1010 Battery pack" on page 61.

3. Remove the backup battery.
   For how to remove the backup battery, see "1110 Backup battery" on page 79.

4. Turn on the computer and wait until the POST ends.

After the POST ends, the password prompt does not appear. The POP has been removed.

1. Reinstall the backup battery and the battery pack.

(B) If an SVP has been set and is known by the servicer:

1. Turn on the computer.
2. When the ThinkPad logo comes up, immediately press F1 to enterBIOS Setup Utility.
   For models supporting the Passphrase function, press F1 while the POP icon is appearing on the screen; then enter the POP. For the other models, enter the POP.

Note: To check whether the ThinkPad computer supports the Passphrase function, enter the BIOS Setup Utility and go to Security --> Password. If the Using Passphrase item is displayed in the menu, this function is available on theThinkPadcomputer.

1. Select Security, using the cursor directional keys to move down the menu.

2. Select Password.

3. Select Power-On Password.

4. Type the current SVP in the Enter Current Password field. then leave the Enter New Password field blank, and press Enter twice.

5. In the Changes have been saved window, press Enter.

6. Press F10; then, in the Setup confirmation window, select Yes.

How to remove the hard-disk password

Attention: If User only mode is selected and the user HDP has been forgotten and cannot be made available to the servicer, neither Lenovo nor Lenovo authorized servicers provide any services to reset the user HDPs or to recover data from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

To remove a user HDP that has been forgotten, when the SVP and the master HDP are known, do the following:

1. Turn on the computer.
2. When the ThinkPad logo comes up, immediately press F1 to enterBIOS Setup Utility.
   For models supporting the Passphrase function, press F1 while HDP icon is appearing on the screen; then enter the master HDP. For the other models, enter the master HDP.

Note: To check whether the ThinkPad computer supports the Passphrase function, enter the BIOS Setup Utility and go to Security --> Password. If Using Passphrase item is displayed in the menu, this function is available on theThinkPadcomputer.

1. Select Security, using the cursor directional keys to move down the menu.
2. Select Password.
3. Select Hard-disk x password, where x is the letter of the hard disk drive. A pop-upwindowopens.
4. Select Master HDP.
5. Type the current master HDP in the Enter Current Password field. then leave the Enter New Password field blank, and press Enter twice.
6. Press F10.
7. Select Yes in the Setup Configuration window. Both user HDP and master HDP will have been removed.

Powermanagement

To reduce power consumption, the computer has three power management modes: screen blank, standby, and hibernation.

Screenblankmode

If the time set on the “Turn off monitor” timer in the operating system expires, the LCD backlight turns off.

To put the computer into screen blank mode, press the ThinkVantage ^® button and use the ThinkVantage Productivity Center.

To end screen blank mode and resume normal operation, press any key.

Standbymode

When the computer enters standby mode, the following events occur in addition to what occurs in screen blank mode:

• The LCD is powered off.
• The hard disk drive is powered off.
- The CPU stops.

To enter standby mode, press Fn+F4.

Note: If you are using the ACPI operating system, you can change the action of Fn+F4.

In certain circumstances, the computer goes into standby mode automatically:

• If a "suspend time" has been set on the timer, and the user does not do any operation with the keyboard, the TrackPoint, the hard disk, the parallel connector, or the diskette drive within that time.
• If the battery indicator blinks orange, indicating that the battery power is low. (Alternatively, if Hibernate when battery becomes low has been selected in the "Power Management Properties" window, the computer goes into hibernation mode.)

Note for the APM operating system: Even if you do not set the low-battery alarm, the charge indicator notifies you when the battery is low, and then the computer enters the power-saving mode automatically. This default low-battery behavior is independent of the operating system; so if you have set the low-battery alarm, the computer may not do what you specified. It chooses either your setting or the default setting, whichever is appropriate.

If you are using the ACPI operating system, only the low-battery alarm is available.

To cause the computer to return from standby mode and resume operation, do one of the following:

• Press the Fn key.
• Open the LCD cover.
• Turn on the power switch.

Also, in either of the following events, the computer automatically returns from standby mode and resumes operation:

• The ring indicator (RI) is signaled by a serial device or a PC Card device.
• The time set on the resume timer elapses.

Note: The computer does not accept any input immediately after it enters standby mode. Wait a few seconds before taking any action to reenter operation mode.

Hibernationmode

In hibernation mode, the following occurs:

• The system status, RAM, VRAM, and setup data are stored on the hard disk.
  • The system is powered off.

Note: If the computer enters the hibernation mode while it is docked to the ThinkPad Advanced Dock or ThinkPad Advanced Mini Dock, do not undock it before resuming normal operation. If you do undock it and then try to resume normal operation, you will get an error message, and you will have to restart the system.

To cause the computer to enter hibernation mode, do any of the following:

• Press the Fn+F12 keys.
• If you are using the APM operating system and have set the mode to Power switch mode [Hibernation], turn off the power switch.
• If you are using the ACPI operating system and have defined one of the following actions as the event that causes the system to go into hibernation mode, perform that action.

- Closing the lid.

- Pressing the power button.

-PressingFn+F4keys.

Also, the computer goes into hibernation mode automatically in either of the following conditions:

- If a "hibernation time" has been set on the timer, and if the user does not do any operation with the keyboard, the TrackPoint, the hard disk drive, the parallel connector, or the diskette drive within that time.

• If the timer conditions are satisfied in suspend mode.
• If you are using the APM operating system and have set the mode to Hibernate when battery becomes low, and the battery charge becomes critically low.

When the power is turned on, the computer returns from hibernation mode and resumes operation. The hibernation file in the boot record on the hard disk drive is read, and system status is restored from the hard disk drive.

Symptom-to-FRUindex

This section contains following information:

• "Numeric error codes"
  • "Error messages" on page 41
  • "Beep symptoms" on page 42
  • "No-beep symptoms" on page 42
  • "LCD-related symptoms" on page 43
• "Intermittent problems" on page 43
• "Undetermined problems" on page 44

The symptom-to-FRU index in this section lists symptoms and errors and their possible causes. The most likely cause is listed first, in boldface type.

Note: Do the FRU replacement or other actions in the sequence shown in the column headed "FRU or action, in sequence." If replacing a FRU does not solve the problem, put the original part back in the computer. Do not replace a nondefectiveFRU.

This index can also help you determine, during regular servicing, what FRUs are likely to need to be replaced next.

A numeric error is displayed for each error detected in POST or system operation. In the displays, n can be any number.

If no numeric code is displayed, check the narrative descriptions of symptoms. If the symptom is not described there, go to "Intermittent problems" on page 43.

Note:

For a device not supported by diagnostic codes in the ThinkPad computers, see the manual for that device.

Numericerrorcodes

Table 1. Numeric error codes

Symptom or error	FRU or action, in sequence
0175Bad CRC1, stop POST task—The EEPROM checksum is not correct.	Systemboard.
0176System Security—The system has been tamperedwith.	1. Run BIOS Setup Utility, and save the current setting by pressing F10.2. System board.
0177Bad SVP data, stop POST task—The checksum of the supervisor password in the EEPROM is not correct.	Systemboard.
0182Bad CRC2. Enter BIOS Setup and load Setup defaults.—The checksum of the CRS2 setting in the EEPROM is not correct.	1. Run BIOS Setup Utility. Press F9, and Enter to load the default setting. Then save the current setting by pressing F10.2. System board.
0185Bad startup sequence settings. Enter BIOS Setup and load Setup defaults.	1. Run BIOS Setup Utility. Press F9, and Enter to load the default setting. Then save the current setting by pressing F10.
0187EAIA data access error—The access to EEPROMMisfailed.	Systemboard.
0188Invalid RFID Serialization Information Area.	Systemboard.
0189Invalid RFID configuration information area—The EEPROM checksum is not correct.	Systemboard.
0190Criticalallow-batteryerror	1. Charge the battery pack.2. Battery pack.
0191System Security—Invalid Remote Change requested.	1. Run BIOS Setup Utility, and then save current setting by pressing F10.2. System board.
0192System Security—Embedded Security hardwaretamperdetected.	Systemboard.
0199System Security—Security password retry countexceeded.	1. Run BIOS Setup Utility, and then save the current setting by pressing F10.2. System board.
01C8Two or more modem devices are found.Remove all but one of them. Pressto continue.	1. Remove either a Mini-PCI Card or a modem daughter card. Otherwise, press Esc to ignore the warning message.2. System board.
01C9More than one Ethernet devices are found.Remove one of them. Pressto continue.	1. Remove the Ethernet device that you installed; or press Esc to ignore the warningmessage.2. System board.
01CAMore than one Wireless LAN devices are found. Remove one of them.	1. Remove the wireless LAN device that youinstalled.2. System board.
0200Hard disk error—The hard disk is not working.	1. Reseat the hard disk drive.2. Load Setup Defaults in BIOS Setup Utility.3. Hard disk drive.4. System board.
021xKeyboarderror.	Run interactive tests of the keyboard and the auxiliary input device.
0220Monitor type error—Monitor type does not match the one specified in CMOS.	Load Setup Defaults in BIOS Setup Utility.
0230Shadow RAM error—Shadow RAM fails at offsetnnnn.	Systemboard.
0231System RAM error—System RAM fails at offsetnnnn.	1.DIMM.2. System board.
0232Extended RAM error— Extended RAM fails atoffsetnnnn.	1.DIMM.2. System board.
0250System battery error—System battery is dead.	1. Charge the backup battery for more than 8 hours by connecting the ac adapter.2. Replace the backup battery and run BIOS Setup Utility to reset the time and date.
0251System CMOS checksum bad— Default configurationused.	1. Charge the backup battery for more than 8 hours by connecting the ac adapter.2. Replace the backup battery and run BIOS Setup Utility to reset the time and date.
0252Password checksum bad—The password is cleared.	Reset the password by running BIOS Setup Utility.
0260Systemtimererror.	1. Charge the backup battery for more than 8 hours by connecting the ac adapter.2. Replace the backup battery and run BIOS Setup Utility to reset the time and date.3. System board.
0270Real-timeclockerror.	1. Charge the backup battery for more than 8 hours by connecting the ac adapter.2. Replace the backup battery and run BIOS Setup Utility to reset the time and date.3. System board.
0271Date and time error—Neither the date nor the time is set in the computer.	Run BIOS Setup Utility to reset the time anddate.
0280Previous boot incomplete— Default configurationused.	1. Load “Setup Default” in BIOS Setup Utility.2.DIMM.3. System board.
02F0CPUID:xxFailed.	1.CPU.2. System board.
02F4EISACMOSnotwritable.	1. Load Setup Defaults in BIOS Setup Utility.2. Replace the backup battery.3. System board.
02F5DMAtestfailed.	1.DIMM.2. System board.
02F6SoftwareNMIfailed	1.DIMM.2. System board.
02F7Fail-safe timer NMI failed	1.DIMM.2. System board.
1802Unauthorized network card is plugged in—Turn off and remove the miniPCI networkcard.	1. Remove Mini PCI network card.2. System board.
1803Unauthorized daughter card is plugged in—Turn off and remove the daughter card.	1. Remove the daughter card that you installed.2. System board.
1804Unauthorized WAN card is plugged in—Power off and remove the WAN card.	1. Remove the WAN card that you installed.2. System board.
1805Unauthorized Wireless USB card is plugged in—Power off and remove the Wireless USB card.	1. Remove the Wireless USB card that you installed.2. System board.
1820More than one external fingerprint reader is attached. Power off and remove all but the reader that you set up within your main operatingsystem.	Remove all but the reader that you set up fortheauthentication.
1830Invalid memory configuration—Power off and install a memory module to Slot-0 or thelowerslot.	Install DIMM in Slot-0, but not in Slot-1.Note: For the construction of the DIMM slot, see "1050 DIMM" on page 68
2000Hard Drive Active Protection sensor diagnostics failed.Pressto continue.Pressto enter SETUP	1. Undock docking station or port replicator if it is attached to the ThinkPadcomputer.2. Place the ThinkPad computer on a horizontal surface. Do not apply any physical shock to the computer.3. Run Diagnostics --> ThinkPad Devices --> HDD Active Protection Test.
2010Warning: Your internal hard disk drive (HDD) may not function correctly on this system. Ensure that your HDD is supported on this system and that the latest HDD firmwareisinstalled.	Inform the following information to the customer:If in the primary bay the customer is using a non-IBM or non-Lenovo hard disk drive (HDD), or an old generation IBM HDD which is not supported by this system, with the risk in mind, the customer can still use it by pressing ESC. If in the primary drive bay the customer is using a supported IBM/Lenovo HDD with an old firmware, the customer needs to update its firmware to the latest. The latest version is available at http://www.lenovo.com/support
2100Initialization error on HDD0 (Main hard diskdrive)	1. Reseat the hard disk drive.2. Main hard disk drive.3. System board.
2102Initialization error on HDD1 (Ultrabay hard diskdrive)	1. Reseat the hard disk drive.2.UltrabayTM harddiskdrive.3. System board.
2110Read error on HDD0 (Main hard disk drive)	1. Reseat the hard disk drive.2. Main hard disk drive.3. System board.
2112Read error on HDD1 (Ultrabay hard disk drive)	1. Reseat the hard disk drive.2. Ultrabay hard disk drive.3. System board.

Errormessages

Table 2. Error messages

Symptom or error	FRU or action, in sequence
Device address conflict.	1. Load “Setup Defaults” in the BIOS SetupUtility.2. Backup battery.3. System board.
Allocation error for device.	1. Load “Setup Defaults” in the BIOS SetupUtility.2. Backup battery.3. System board.
Failing bits: nnnn.	1. DIMM.2. System board.
Invalid system configuration data.	1. DIMM.2. System board.
I/O device IRQ conflict.	1. Load “Setup Defaults” in the BIOS SetupUtility.2. Backup battery.3. System board.
Hibernation error.	1. Restore the system configuration to what it was before the computer entered hibernation mode.2. If memory size has been changed, re-create the hibernation file.
Fan error.	1. Fan.2. Thermal grease.3. System board.
Thermal sensing error.	System board.
Cannot boot from any device.	Check the status of device which you want tobootfrom.Devicenotfound.1. The device you want to boot from.2.Systemboard.DeviceError.1. The device you want to boot from.2.Systemboard.Novalidoperatingsystem.1. Check that the operating system has no failure and is installed correctly.2. Reinstall the operation system.Excluded from boot order.• Enter the BIOS Setup Utility and add the device in boot order.

Beepsymptoms

Table 3. Beep symptoms

Symptom or error	FRU or action, in sequence
One beep and a blank, unreadable, or flashingLCD.	1. Reseat the LCD connector.2. LCD assembly.3. External CRT.4. System board.
One long and two short beeps, and a blank orunreadableLCD.	1. System board.2. LCD assembly.3.DIMM.
Two short beeps with error codes.	POST error. See "Numeric error codes" or page36.
Two short beeps and a blank screen.	1. System board.2.DIMM.
Three short beeps, pause, three more short beeps, and one short beep.	1.DIMM.2. System board
One short beep, pause, three short beeps, pause, three more short beeps, and one short beep.
Only the cursor appears.	Reinstall the operating system.
Four cycles of four short beeps and a blank screen.	System board (security chip)
Five short beeps and a blank screen.	System board

No-beepsymptoms

Table 4. No-beep symptoms

Symptom or error	FRU or action, in sequence
No beep, power-on indicator on, LCD blank, andnoPOST.	1.Make sure that every connector is connected tightly and correctly.2.DIMM.3.System board.
No beep, power-on indicator on, and LCD blankduringPOST.	1.Reseat DIMM.2.System board.
The power-on password prompt appears.	A power-on password or a supervisor password is set. Type the password and pressEnter.
The hard-disk password prompt appears.	A hard-disk password is set. Type the password and press Enter.

LCD-relatedsymptoms

Important: The TFT LCD for the notebook computer contains many thin-film transistors (TFTs). The presence of a small number of dots that are missing, discolored, or always lighted is characteristic of TFT LCD technology, but excessive pixel problems can cause viewing concerns. The LCD should be replaced if the number of missing, discolored, or lighted dots in any background isasfollows:

Table 5. Minimum quantity of defective pixels required for LCD replacement on June 2006 or later manufactured ThinkPad

LCD resolution	Bright dots	Dark dots	Bright and dark dots
XGA, WXGA	5	6	6
WXGA+,SXGA+,WSXGA+	5810
UXGA,WUXGA,QXGA	51313

Notes:

• Lenovo will not provide replacement if the LCD is within specification as we cannot guarantee that any replacement LCD will have zero pixel defects.
• A bright dot means a pixel is always on (white or color.)
• A dark dot means a pixel is always off (black color.)
  • One pixel consists of R, G, B sub-pixels.

Table 6. LCD-related symptoms

Symptom or error	FRU or action, in sequence
No beep, power-on indicator on, and a blank LCD during POST.	Systemboard.
LCD backlight not working.LCD too dark.LCD brightness cannot be adjusted.LCD contrast cannot be adjusted.	Reseat the LCD connectors.LCD assembly.System board.
LCD screen unreadable vapor characters missing pixels.Screen abnormal.Wrong color displayed.	See important note for “LCD-related symptoms.”Reseat all LCD connectors.LCD assembly.System board.
Horizontal or vertical lines displayed on LCD.	LCDassembly.

Intermittentproblems

Intermittent system hang problems can be due to a variety of causes that have nothing to do with a hardware defect, such as cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a problem recurs.

When analyzing an intermittent problem, do the following:

1. Run the diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRUs.
3. If any error is detected, replace the FRU shown by the FRU code. Rerun the test to verify that no more errors exist.

Undeterminedproblems

If the diagnostic tests did not identify the adapter or device that has failed, if wrong devices are installed, or if the system simply is not operating, follow these procedures to isolate the failing FRU (do not isolate FRUs that have no defects).

Verify that all attached devices are supported by the computer.

Verify that the power supply being used at the time of the failure is operating correctly. (See "Power system checkout" on page 27)

1. Turn off the computer.
2. Visually check each FRU for damage. Replace any damaged FRU.

3. Remove or disconnect all of the following devices:
   a. Non-ThinkPad devices
   b. Devices attached to the docking station or the port replicator
   c. Printer, mouse, and other external devices
   d. Battery pack
   e. Hard disk drive
   f. External diskette drive or optical drive
   g.DIMM
   h. Optical disk or diskette in the internal drive
   i.PCCards

4. Turn on the computer.

5. Determine whether the problem has been solved.
6. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.
7. If the problem remains, replace the following FRUs one at a time (do not replace a nondefective FRU):

a. System board

b.LCDassembly

ThinkPad T61, R61, and R61i (14.1-inch widescreen)

This chapter presents following product-specific service references and product-specific parts information.

•"Specifications"
• "Status indicators" on page 49
• "FRU tests" on page 52
- "Fn key combinations" on page 54
• "FRU replacement notices" on page 57
- "Removing and replacing a FRU" on page 60
• "Locations" on page 118
• "Parts list" on page 121

Specifications

The following table lists the specifications of the ThinkPad T61, R61, and R61i (14.1-inchwidescreen):

Table7.Specifications

FeatureDescription
Processor•Intel	^® Core ^TM 2 Duo processor T5250 (1.5 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T5270 (1.4 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T5450 (1.66 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T5470 (1.6 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T5550 (1.83 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T5670 (1.8 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T5750 (2.0 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T5850 (2.16 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T5870 (2.0 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T7100 (1.8 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T7250 (2.0 GHz), 2-MB L2 cacheIntel Core 2 Duo processor T7300 (2.0 GHz), 4-MB L2 cacheIntel Core 2 Duo processor T7500 (2.2 GHz), 4-MB L2 cacheIntel Core 2 Duo processor T7700 (2.4 GHz), 4-MB L2 cacheIntel Core 2 Duo processor T7800 (2.6 GHz), 4-MB L2 cache(continued)
Processor(continued)	Intel Core 2 Duo processor T8100 (2.1 GHz), 3-MB L2 cacheIntel Core 2 Duo processor T8300 (2.4 GHz), 3-MB L2 cacheIntel Core 2 Duo processor T9300 (2.5 GHz), 6-MB L2 cacheIntel Core 2 Duo processor T9500 (2.6 GHz), 6-MB L2 cacheIntel® Pentium® Dual Core processor T2310 (1.46 GHz), 1-MBL2cacheIntel Pentium Dual Core processor T2330 (1.6 GHz), 1-MB L2cacheIntel Pentium Dual Core processor T2370 (1.73 GHz), 1-MBL2cacheIntel Pentium Dual Core processor T2390 (1.86 GHz), 1-MBL2cacheIntel Pentium Dual Core processor T2410 (2.0 GHz), 1-MB L2cacheIntel® Celeron® M processor 530 (1.73 GHz), 1-MB L2 cacheIntel Celeron M processor 540 (1.86 GHz), 1-MB L2 cacheIntel Celeron M processor 550 (2.0 GHz), 1-MB L2 cacheIntel Celeron M processor 560 (2.13 GHz), 1-MB L2 cacheIntel Celeron M processor 570 (2.26 GHz), 1-MB L2 cacheIntel Celeron Dual Core processor T1400 (1.73 GHz), 512-KBL2cacheIntel Celeron Dual Core processor T1500 (1.86 GHz), 512-KBL2cache
Bus architecture	667-MHz PSB667-MHz DDR2 SDRAM (PC2-5300)PCI busPCI Express busDMI
Graphic memory chip	Intel PM965/GM965 graphics
Display	15.4-inch, 16M colors, WXGA (1280 × 800 resolution) TFT colorLCD15.4-inch, 16M colors, WXGA+ (1440 × 900 resolution) TFT colorLCD
Standard memory	512-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 11-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 12-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1
Optional memory	256-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1512-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 11-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 12-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card × 1(maximumof4.0GB)Note: Due to the limitation of the current 32-bit PC architecture, actual usable memory size is limited to 3 GB even though the physical installable memory size is 4 GB in ThinkPad T61, R61, and R61i (14.1-inch widescreen) (14.1-inch widescreen) computers.
CMOS RAM	242 bytes
Hard disk drive	60 GB, 5400 rpm, 9.5 mm high, SATA interface80 GB, 5400 rpm, 9.5 mm high, SATA interface120 GB, 5400 rpm, 9.5 mm high, SATA interface160 GB, 5400 rpm, 9.5 mm high, SATA interface160 GB, 5400 rpm (FDE), 9.5 mm high, SATA interface250 GB, 5400 rpm, 9.5 mm high, SATA interface60 GB, 7200 rpm, 9.5 mm high, SATA interface100 GB, 7200 rpm, 9.5 mm high, SATA interface160 GB, 7200 rpm, 9.5 mm high, SATA interface200 GB, 7200 rpm (FDE), 9.5 mm high, SATA interfaceSupported hard disk drives depend on the model.
Ultrabay^TM Slimdevice(for T61notebooks)	DVD drive, 9.5 mm highDVD/CD-RW combo drive, 9.5 mm highDVD-RAM/RW drive, 9.5 mm high
UltrabayEnhanced^TM device (forR61notebooks)	DVD drive, 12.7 mm highDVD/CD-RW combo drive, 12.7 mm highDVD-RAM/RW drive, 12.7 mm highBlu-ray disc drive, 12.7 mm high
Fingerprint reader	Some models
I/O port	External monitor connectorStereo headphone jackMonaural microphone jackDocking connectorRJ11 connectorRJ45 connectorUniversal serial bus (USB) connector × 3 (compatible with USB 1.1 and 2.0)IEEE 1394 connector (for T61 notebooks)
Internal modem	56.6 Kbps
Audio	Built-in stereo speakersSoftware control volume
Ethernet (on the system board)	Gigabit Ethernet
PCI Express Mini Card	ThinkPad 11a/b/g Wireless LAN Mini PCI Express AdapterIntel PRO Wireless 3945ABG Mini-PCI Express AdapterThinkPad 11a/b/g/n Wireless LAN Mini-PCI Express AdapterSierra Wireless EV-DO Wireless WAN Mini PCI Express AdapterSierra Wireless MC8755 PCI Express MiniCardIntegrated Cingular HSDPA 3G Wireless Broadband NetworkAdapterThinkPad 11b/g Wireless LAN Mini-PCI Express Adapter IIIntel Wireless WiFi Link 4965AGNIntel Wireless WiFi Link 4965AGN (11n disabled)
PCCardandExpressCard/SmartCard slots	One PC Card/4-in-1 media reader slotOne ExpressCard slot and one PC Card (Type-II) slotOne PC Card (Type-II) slot and one Smart Card slot
Bluetooth wireless (some models)	ThinkPad Bluetooth with Enhanced Data Rate (BDC-2)
Modem	ThinkPad Modem (MDC-1.5, 56 kbps HDA)
Touch pad	UltraNav ^®
ThinkLight ^®	Yes
Battery	Li-ion battery (4 cells) 2.6 AhLi-ion battery (6 cells) 2.6 AhLi-ion battery (6 cells) 2.8 AhLi-ion battery (7 cells) 2.6 AhLi-ion battery (9 cells) 2.6 AhUltrabay Slim Li Polymer battery (3 cells) (for T61)
AC adapter	65-watt type90-watt type
Preinstalledoperating system	Windows XP ProfessionalWindowsVista ^® HomeBasicWindows Vista Home Premium (32 bit)Windows Vista Business (32 bit)Windows Vista Business (64 bit)Windows Vista Ultimate (32 bit)SUSE ^TM Linux ^® EnterpriseDesktop10

Statusindicators

The system status indicators show the status of the computer, as follows:

12 45 789 0 11 10 9 8

Table 8. Status indicators

IndicatorMeaning
1 Wirelessstatus	Green: The wireless feature (the IEEE 802.11 standard or IEEE 802.11n) is on, and the radio link is ready for use.Blinkinggreen:Data is being transmitted.
2 Bluetooth status	Green: Bluetooth wireless is operational. This indicator is on when Bluetooth wireless is on and not in suspend mode.
3 Wireless WAN status	Green: The wireless WAN is on, and the radio link is ready for use.Blinkinggreen:Data is being transmitted.
4 Numlock	Green: The numeric keypad on the keyboard is enabled. To enable or disable the keypad, press and hold the Shift key, and press the NumLk (ScrLk) key.
5 Capslock	Green: Caps Lock mode is enabled. To enable or disable Caps Lock mode, press the Caps Lock key.
6 Drive in use	Green: Data is being read from or written to the hard disk drive, the diskette drive, or the drive in the Ultrabay Slim device. When this indicator is on, do not put the computer into standby mode or turn off the computer.Note: Do not move the system while the green drive-in-use light is on. Sudden physical shock could cause drive errors.
7 Poweron	Green: The computer is on and ready to use. This indicator stays lit whenever the computer is on and is not in standbymode.
8 Batterystatus	Green: The battery is charged between 80% to 100% of the capacity, and being discharged between 0% to 80% of thecapacity.Blinkinggreen:The battery is charged between 20% to 80% of the capacity, and being charged.Orange:The battery is charged between 5% and 20% of the capacity, and being discharged.Blinkingorange(slow):The battery is charged between 5% to 20% of the capacity, and being charged.Blinkingorange(rapid):The battery is charged between 0% to 5% of the capacity.
9 power Standard	Green: The computer is connected to the ac power supply.
10 Standwystatus	Green: The computer is in standby mode.Blinkinggreen:The computer is entering standby mode or hibernation mode, or is resuming normal operation.
11 Ultrabay status	Green: An Ultrabay device is installed and in use.Blinkinggreen:An Ultrabay device is in the process of being detached.Turnoff:An Ultrabay device is ready to be attached or detached.Note: If you are using Windows 2000, the Ultrabay status indicator does not blink while an Ultrabay device is being detached. Instead, a message box pops up when the process is completed; then the indicator turns off.

FRUtests

The following table shows the test for each FRU.

Table 9. FRU tests

FRUApplicabletest
System board	1. Diagnostics --> CPU/Coprocessor2. Diagnostics --> Systemboard3. If the ThinkPad Advanced Dock, the ThinkPad Advanced Mini Dock or the ThinkPad Essential Port Replicator is attached to the ThinkPad computer, detach it. Place the computer on a horizontal surface, and run Diagnostics --> ThinkPad Devices --> HDD Active Protection Test.Note: Do not apply any physical shock to the computer while the test is running.
Power	Diagnostics --> ThinkPad Devices --> AC Adapter, Battery 1 (Battery2)
LCD unit	1. Diagnostics --> Video Adapter2. Interactive Tests --> Video
Modemdaughtercard (MDC-1.5)	1. Make sure the modem is set up correctly.2. Replace the modem jack and the modem card in turn, and run the following tests in Diagnostics --> Communication:a. Conexant Smart Modem Interruptb. Conexant Smart Modem Dialtone
Audio	Enter the BIOS Setup Utility and change Serial ATA (SATA) setting to Compatibility, and run Diagnostics --> Other Devices --> ConexantAudio
Speaker	Interactive Tests --> Internal SpeakerNote: Once Modem/Audio test is done, the no sound is heard this test. In this case, turn off and turn on the computer. Then, run thistestagain.
PC Card slot	Diagnostics --> Systemboard --> PCMCIA
ExpressCard slot	1. Insert a PCI-Express/USB Wrap card into the ExpressCard slot.2. Turn on the computer.3. Run Diagnostics --> ThinkPad Devices --> ExpressCard slot.
Keyboard	1. Diagnostics --> Systemboard --> Keyboard2. Interactive Tests --> Keyboard
Hard disk drive	Enter the BIOS Setup Utility and change Serial ATA (SATA) setting to Compatibility, and run Diagnostics --> Fixed Disks
	You can also diagnose the hard disk drive without starting up the operating system. To diagnose the hard disk drive from the BIOS Setup Utility, do as follows:1. Remove any diskette from the diskette drive, and then turn off thecomputer.2. Turn on the computer.3. While the message, “To interrupt normal startup, press the blue ThinkVangate button,” is displayed at the lower left of the screen, press F1 to enter the BIOS Setup Utility.4. Using cursor keys, select HDD diagnostic program. Press enter.5. Using cursor keys, select Main hard disk drive or Ultrabay hard disk drive.6. Press Enter to start the diagnostic program.
Diskette drive	1. Diagnostics --> Diskette Drives2. Interactive Tests --> Diskette
DVDdriveor DVD/CD-RWcombo drive	1. Diagnostics --> Other Devices--> Optical Drive2. Interactive Tests --> Optical Drive Test
Memory	1. If two DIMMs are installed, remove one of them and run Diagnostics --> Memory Test—Quick.2. If the problem does not recur, return the DIMM to its place, remove the other one, and run the test again.3. If the test does not detect the error, run Diagnostics --> MemoryTest—Full.
Fan	1. Turn on the computer and check the air turbulence at the louver near the PC Card slot.2. Run Diagnostics --> ThinkPad Devices --> Fan.
TrackPointorpointing device	If the TrackPoint does not work, check the configuration as specified in the BIOS Setup Utility. If the TrackPoint is disabled, select Automatic to enable it.After you use the TrackPoint, the pointer may drift on the screen for a short time. This drift can occur when a slight, steady pressure is applied to the TrackPoint pointer. This symptom is not a hardware problem. If the pointer stops after a short time, no service action is necessary.If enabling the TrackPoint does not correct the problem, continue withthefollowing:• Interactive Tests --> Mouse
Touch Pad	If the Touch Pad does not work, check the configuration as specified in the BIOS Setup Utility. If the Touch Pad is disabled, select Automatic to enable it. If enabling the Touch Pad does not correct the problem, continue with the following:• Interactive Tests --> Mouse

Fnkeycombinations

The following table shows the function of each combination of Fn with a function key.

Table 10. Fn key combinations

KeycombinationDescription
Fn+F1Reserved.
Fn+F2	Lock the computer.
Fn+F3	Select a power scheme that has been created by Power Manager. When you press this combination, a panel for selecting a power scheme appears.Notes:1. To use the Fn+F3 key combination, you must have the ThinkPad PM device driver installed on the computer.2. If you have logged on with an administrator user ID, and you press Fn+F3, the panel for selecting a power scheme appears. If you have logged on with another user ID, and you press Fn+F3, the panel doesnotappear.3. You cannot turn off the computer display by pressing Fn+F3.
Fn+F4	Put the computer in standby mode. To return to normal operation, press the Fn key only, without pressing a function key.Notes:1. To use the Fn+F4 key combination, you must have the ThinkPad PM device driver installed on the computer.2. This combination of keys also functions as a sleep button. If you want to use the combination to put the computer into hibernation mode or shut the computer down, change the settings in the Power Manager.
Fn+F5	Enable or disable the built-in wireless networking features and the Bluetooth features. If you press Fn+F5, a list of wireless features is displayed. You can quickly change the power state of each feature in thelist.Note:If you want to use Fn+F5 to enable the feature specified in IEEE standard 802.11, the following device drivers must be installed on the computerbeforehand:ThinkPad Power Management driverOnScreen Display UtilityWireless device drivers
Fn+F6Reserved.
Fn+F7	Apply a presentation scheme directly, with no need to start PresentationDirector.To disable this function and use the Fn+F7 key combination for switching a display output location, start Presentation Director, and changethesettings.
	Switch a display output locationExternal monitor (CRT display)Computer display and external monitor (LCD + CRT display)Computer display (LCD)Notes:1. This function is not supported if different desktop images are displayed on the computer display and the external monitor (the Extenddesktopfunction).2. This function does not work while a DVD movie or a video clip is playing.To enable this function, start Presentation Director, and change the Fn+F7settings.Note: Multiple users can log on to a single operating system by using different user IDs. Each user needs to change the settings.
Fn+F8	Change the settings of the UltraNav pointing device.
Fn+F9	Open the ThinkPad EasyEject Utility screen. Buttons for the following choicesaredisplayed:Eject ThinkPad PC from Dock: This button is displayed only if the ThinkPad computer has been attached to a ThinkPad Advanced Dock or a ThinkPad Advanced Mini Dock. The computer can be detached from the ThinkPad Advanced Dock or the ThinkPad Advanced Mini Dock.Eject ThinkPad PC from Mini Dock: This button is displayed only if the ThinkPad computer has been attached to a ThinkPad Essential Port Replicator and one or more USB devices have been connected to the ThinkPad Essential Port Replicator. You can stop and remove all the USB devices safely by clicking the button.Note: You cannot use this Utility to detach the computer from the ThinkPad Essential Port Replicator.Run EasyEject Actions: This button is used to select, stop, or remove external devices connected to the ThinkPad computer.Configure EasyEject Actions: Opens the ThinkPad EasyEject Utility mainwindow.Fn+F9 Settings: Configures the settings for the Fn+F9 function.
Fn+F10Reserved.
Fn+F11Reserved.
Fn+F12	Put the computer into hibernation mode. To return to normal operation, press the power button for less than four seconds.Note: To use Fn+F12 for hibernation, you must have the ThinkPad PM device driver installed on the computer.
Fn+PgUp	Turn the ThinkLight on or off.Note: This function is supported only on the ThinkPad computers that have the ThinkLight. The on or off status of the ThinkLight is shown on the screen for a few seconds when you press Fn+PgUp.
Fn+Home	The computer display becomes brighter.
Fn+End	The computer display becomes dimmer.
Fn+Spacebar	Enable the FullScreen Magnifier function.
Fn+PrtSc	Has the same function as the SysRq key.
Fn+ScrLk	Enable or disable the numeric keypad.
Fn+Pause	Has the same function as the Break key.
Fn+cursor keys	These key combinations work with Windows Media Player. Fn+down arrow key works for the Play or Pause button, Fn+up arrow key for the Stop button, Fn+right arrow key for the Next Track button, and Fn+left arrow key for the Previous Track button.

FRUreplacementnotices

This section contains notices related to removing and replacing parts. Read this section carefully before replacing any FRU.

Screwnotices

Loose screws can cause a reliability problem. In the ThinkPad computer, this problem is addressed with special nylon-coated screws that have the following characteristics:

• They maintain tight connections.
• They do not easily come loose, even with shock or vibration.
• They are harder to tighten.
• Each one should be used only once.

Do the following when you service this machine:

- Keep the screw kit (for the P/N, see "Miscellaneous parts" on page 219) in your toolbag.

• Always use new screws.

- Use a torque screwdriver if you have one.

Tightenscrewsasfollows:

- Plastic to plastic

Turn an additional 90 degrees after the screw head touches the surface of the plasticpart:

90 degrees more (Cross-section)

- Logic card to plastic

Turn an additional 180 degrees after the screw head touches the surface of the logiccard:

180 degrees more (Cross-section)

• Torque driver
  If you have a torque driver, refer to the "Torque" column for each step.
• Make sure that you use the correct screw. If you have a torque screwdriver, tighten all screws firmly to the torque shown in the table. Never use a screw that you removed. Use a new one. Make sure that all of the screws are tightened firmly.
• Ensure torque screw drivers are calibrated correctly following country specifications.

Retainingserialnumbers

This section includes the following descriptions:

• "Restoring the serial number of the system unit"
  • "Retaining the UUID"
• "Reading or writing the ECA information" on page 59

Restoring the serial number of the system unit

When the computer was manufactured, the EEPROM on the system board was loaded with the serial numbers of the system and all major components. These numbers need to remain the same throughout the life of the computer.

If you replace the system board, you must restore the serial number of the system unit to its original value.

Before replacing the system board, save the original serial number by doing the following:

1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and restartthecomputer.
2. From the main menu, select 1. Set System Identification.
3. Select 2. Read S/N data from EEPROM.

The serial number of each device in your computer is displayed; the serial number of the system unit is listed as follows:

• 20: Serial number

Write down that number.

Note: The serial number of the system unit is also written on the label attached to the bottom of the computer.

After you have replaced the system board, restore the serial number by doing the following:

1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later and restartthecomputer.
2. From the main menu, select 1. Set System Identification.
3. Select 1. Add S/N data from EEPROM.
   Follow the instructions on the screen.

If the MTM and Product ID numbers differ from each other on the rear label, use what is shown for the Product ID field. See example below:

MTM on rear label:

TTTT-CTOS/NSSSSSSS

Product ID on rear label:

TTTT-MMM (Use this number when setting Serial Number)

In the example, the Serial Number to be input is '1STTTTMMMSSSSSSS'.

RetainingtheUUID

The Universally Unique Identifier (UUID) is a 128-bit number uniquely assigned to your computer at production and stored in the EEPROM of your system board. The algorithm that generates the number is designed to provide unique IDs until the year A.D. 3400. No two computers in the world have the same number.

When you replace the system board, you must set the UUID on the new system boardasfollows:

1. Install the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and restartthecomputer.
2. From the main menu, select 4. Assign UUID.

A new UUID is created and written. If a valid UUID already exists, it is not overwritten.

Reading or writing the ECA information

Information on Engineering Change Announcements (ECA) are stored in the EEPROM of the system board. The electronic storage of this information simplifies the procedure to check if the ECA has been previously applied to a machine. The machine does not need to be disassembled to check for the ECA application.

To check what ECAs have been previously applied to the machine, use the ECA Information Read/Write function on the ThinkPad Hardware Maintenance Diskette Version 1.73 or later.

1. Insert the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and restartthecomputer.
2. From the main menu, select 6. Set ECA Information.
3. To read ECA information, select 2. Read ECA/rework number from EEPROM and follow the instruction.
4. To read box build date, select 5. Read box build date from EEPROM, and follow the instruction on the screen.

After an ECA has been applied to the machine, the EEPROM must be updated to reflect the ECA's application. Use the ThinkPad Hardware Maintenance Diskette Version 1.73 or later to update the EEPROM.

Note: Only the ECA number is stored in the EEPROM. The machine type of the ECA is assumed be the same as the machine type of the machine that had the ECA applied to it.

1. Insert the ThinkPad Hardware Maintenance Diskette Version 1.73 or later, and restartthecomputer.
2. From the main menu, select 6. Set ECA Information.
3. To write ECA information, select 1. Write ECA/rework number from EEPROM, and follow the instruction.
4. To write box build date, select 4. Write box build date from EEPROM, and follow the instruction on the screen.

If the system board is being replaced, try to read the ECA information from the old system board and transfer the information to the new system. If the system board is inoperable, this will not be possible.

Removing and replacing a FRU

This section presents directions and drawings for use in removing and replacing a FRU. Be sure to observe the following general rules:

1. Do not try to service any computer unless you have been trained and certified. An untrained person runs the risk of damaging parts.
2. Before replacing any FRU, review "FRU replacement notices" on page 57
3. Begin by removing any FRUs that have to be removed before the failing FRU. Any such FRUs are listed at the top of the page. Remove them in the order in which they are listed.
4. Follow the correct sequence in the steps for removing the FRU, as given in the drawings by the numbers in square callouts.
5. When turning a screw to replace a FRU, turn it in the direction as given by the arrow in the drawing.
6. When removing the FRU, move it in the direction as given by the arrow in the drawing.
7. To put the new FRU in place, reverse the removal procedure and follow any notes that pertain to replacement. For information about connecting and arranging internal cables, see "Locations" on page 118.
8. When replacing a FRU, use the correct screw as shown in the procedures.

DANGER

Before removing any FRU, turn off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnectingcables.

Attention: After replacing a FRU, do not turn on the computer until you have made sure that all screws, springs, and other small parts are in place and none are loose inside the computer. Verify this by shaking the computer gently and listening for rattling sounds. Metallic parts or metal flakes can cause electrical short circuits.

Attention: The system board is sensitive to, and can be damaged by, electrostatic discharge. Before touching it, establish personal grounding by touching a ground point with one hand or by using an electrostatic discharge (ESD) strap (P/N 6405959).

1010Batterypack

DANGER

Use only the battery specified in the parts list for your computer. Any other battery could ignite or explode.

Table 11. Removal steps of battery pack

Unlock the battery release lever 1. Holding the battery release lever in the unlocked position 2, remove the battery pack in the direction shown by arrow 3.

Diagram of a laptop chassis showing three labeled components with switches and connectors, including a zoomed-in view of the first two components.

When installing: Install the battery pack along the slide rails of the slot. Then make sure that the battery release lever is in the locked position.

1020 Ultrabay Slim device or Ultrabay Enhanced device

Note:

Ultrabay Slim does not accept any of the following devices:

•UltrabayPlus ^12 devices

•Ultrabay2000 ^TM devices

• Ultrabay Enhanced devices

Ultrabay Enhanced does not accept any of the following devices:

• Ultrabay Plus devices

• Ultrabay 2000 devices

• Ultrabay Slim devices

Table 12. Removal steps of ultrabay device

When you release the switch in step 1, the lever pops out. In step 2, pull the lever a little to release the device from the bay.

1030 Hard disk drive (HDD) cover, HDD, and HDD rubber rails or solid state drive (SSD) and storage converter

For access, remove this FRU:

- "1010 Battery pack" on page 61

Attention:

• Do not drop the hard disk drive or apply any physical shock to it. The hard disk drive is sensitive to physical shock. Improper handling can cause damage and permanent loss of data.
• Before removing the drive, have the user make a backup copy of all the information on it if possible.
• Never remove the drive while the system is operating or is in suspend mode.

Table 13. Removal steps of HDD cover, HDD, and HDD drive rubber rails or SSD and storageconverter

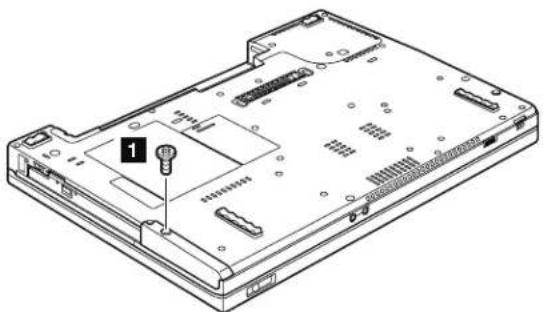

Technical line drawing of a computer chassis showing internal components and a labeled component (no text or symbols present)

Step	Screw (quantity)	Color	Torque
1	Hard disk drive screw, nylon-coated (1)	Black	0.306 Nm(3.0kgfcm)

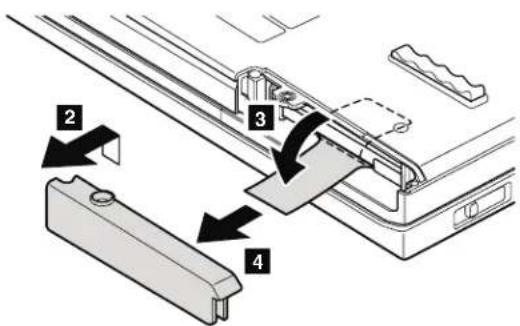

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

When installing: Make sure that the HDD connector or SSD connector is attached firmly.

Table 13. Removal steps of HDD cover, HDD, and HDD drive rubber rails or SSD and storageconverter(continued)

HDD and HDD rubber rails:

Exploded view diagram of an electronic device showing internal components and labeled parts (no text or symbols present)

When installing: The rubber rails on the hard disk drive must be attached to the replacement drive. Otherwise the drive cannot be installed properly.

SSD and storage converter:

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

1040 Palm rest or palm rest with fingerprint reader

For access, remove this FRU in order:

- "1010 Battery pack" on page 61

Note:

In models with the fingerprint reader, the sensor is attached to the palm rest FRU. If the fingerprint reader has any defects, you can replace it by the procedures given in this section, which are the same for a palm rest with or without a fingerprint reader.

Table 14. Removal steps of palm rest

Diagram of an electronic device showing labeled pins and components, with one component highlighted by a speech bubble.

ForT61

Step	Icon	Screw (quantity)	Color	Torque
1		M2 × 14 mm, flat-head, nylon-coated(4)	Black0.167N	Nm(1.7kgfcm)

ForR61

Step	Icon	Screw (quantity)	Color	Torque
1		M2 × 17 mm, flat-head, nylon-coated(4)	Black0.167N	Nm(1.7kgfcm)

Table 14. Removal steps of palm rest (continued)

Illustration of hands installing a laptop into a case, showing the device being inserted (no text or symbols present)

Diagram showing a laptop with a hand pressing a button labeled '3' and a close-up of the handle, indicating a step in operation.

Table 14. Removal steps of palm rest (continued)

When installing: When you attach the palm rest, do as follows:

1. Attach the touch pad connector firmly to the system board.

2. Press the left and right top edges of the palm rest to fit it into place.

Line drawing of a laptop computer with visible keyboard, drive, and ventilation slots (no text or labels)

1. Push the front side of the palm rest until it clicks into place.

Line drawing of a laptop with visible keyboard and ventilation slots, marked with black arrows indicating mounting points (no text or symbols present)

1. Close the LCD cover and turn the computer over. Then fasten the four screws to secure the palm rest.

1050DIMM

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
• "1040 Palm rest or palm rest with fingerprint reader" on page 65

Table 15. Removal steps of dimm

Note: If only one DIMM is used on the computer you are servicing, the card must be installed in SLOT-0 (a), but not in SLOT-1 (b).

Laptop screen diagram with labeled parts and directional arrows indicating assembly or operation

When installing: Insert the notched end of the DIMM into the socket. Press the DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly fixed in the slot and does not move easily.

1060Keyboard

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
• "1040 Palm rest or palm rest with fingerprint reader" on page 65

Table 16. Removal steps of keyboard

Diagram of a laptop chassis showing a screw inserted into the rear panel with labeled component 1

ForT61

Step	Icon	Screw (quantity)	Color	Torque
1		M2 × 14 mm, flat-head, nylon-coated(1)	Black0.167N	Nm(1.7kgfcm)

ForR61

Step	Icon	Screw (quantity)	Color	Torque
1		M2 × 17 mm, flat-head, nylon-coated(1)	Black0.167N	Nm(1.7kgfcm)

Table 16. Removal steps of keyboard (continued)

Lift the keyboard a little in the direction shown by arrow 2, and then detach the connector 3.

Laptop interior diagram with numbered components and directional arrows indicating assembly or movement

When installing: Make sure that the keyboard edges a are under the frame as shown in this figure.

Diagram of a laptop with labeled parts, showing internal structure and component insertion

1070 Modem daughter card (MDC-1.5)

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
• "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69

Table 17. Removal steps of modem daughter card

Technical diagram showing a mechanical assembly with numbered components and an exploded view of the internal structure.

Step	Screw (quantity)	Color	Torque
(wmc)	M2 × 3 mm, small-head, nylon-coated (2)	Silver	0.167 Nm(1.7kgfcm)

In step 2, remove the card by pulling the tab with your fingers in the direction shown by the arrow.

Table 17. Removal steps of modem daughter card (continued)

Turn the card over 3, and detach the modem connector 4.

Technical diagram showing a component with numbered parts labeled 3, 4, and an arrow indicating direction or flow.

When installing: Make sure that the modem connector and the connector on the underside of the card are attached firmly.

1080 PCI Express Mini Card for wireless LAN

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
• "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69

Table 18. Removal steps of PCI express mini card for wireless LAN

In step 1, unplug the jacks by using the removal tool antenna RF connector (P/N: 08K7159) or pick the connectors with your fingers and gently unplug them in direction of the arrow.

Note: Some models might have three antenna cables in step 1.

Technical diagram showing a device with labeled parts and a close-up of its internal structure, likely illustrating a hardware or system assembly.

Step	Screw (quantity)	Color	Torque
2	M2 × 9.5 mm, flat-head, nylon-coated (2)	Black	0.167 Nm(1.7kgfcm)

Table 18. Removal steps of PCI express mini card for wireless LAN (continued)

Technical diagram showing a component with labeled parts and an arrow indicating direction, likely illustrating a cable or wiring assembly.

Wheninstalling:

- In models with 802.11 a/b/g wireless LAN card, plug the gray cable into the jack labeled MAIN on the card, and the black cable into the jack labeled AUX. If the computer you are servicing has three cables, put the white cable in the cable bag in the card slot.

Technical line drawing of electrical wiring and components (no text or symbols)

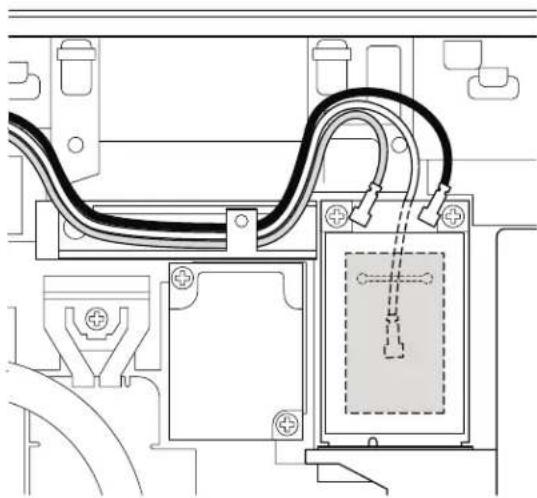

- In models with 802.11 a/b/g/n wireless LAN card, plug the gray cable (MAIN) into the jack labeled TR1, the white cable (3rd) into jack labeled R0, and the black cable (AUX) into jack labeled TR2 on the card.

1090 PCI Express Mini Card for wireless WAN or Intel Turbo MemoryMiniCard

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
• "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69

Table 19. Removal steps of PCI express mini card for wireless WAN or Intel Turbo Memory minicard

Technical diagram showing a device's internal structure with an arrow indicating component location, labeled '1'.

Table 19. Removal steps of PCI express mini card for wireless WAN or Intel Turbo Memory minicard(continued)

Note: Step 2 is only for the models with the PCI Express Mini Card for wireless WAN. For the models with the Intel Turbo Memory Mini Card, skip step 2.

In step 2, unplug the jacks by using the removal tool antenna RF connector (P/N: 08K7159) or pick the connectors with your fingers and gently unplug them in direction of the arrow.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or movement.

Step	Screw (quantity)	Color	Torque
3	M2 × 3 mm, small-head, nylon-coated (2)	Silver	0.167 Nm(1.7kgfcm)

When installing: In models with the PCI Express Mini Card for wireless WAN, plug the red cable into the jack labeled MAIN on the card, and the blue cable into the jack labeled AUX.

Mechanical assembly diagram showing a component with labeled parts and directional arrows (no text or symbols present)

1100 SIM card slot

For access, remove these FRUs, in order:

• "1010 Battery pack" on page 61
- "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69

Table 20. Removal steps of SIM card slot

Note: If the SIM card has been inserted in its slot, remove it before you start the servicing. After you finish the servicing, make sure that you insert the card back into the slot firmly.

Diagram showing a device with an attached cable or connector, labeled with number 1 and an arrow pointing to it.

Table 20. Removal steps of SIM card slot (continued)

Remove the SIM card from the battery pack slot in the direction of arrow 3 as shown in this figure.

Technical diagram of a computer rear panel with labeled components including ports, connectors, and ventilation slots

Step	Screw (quantity)	Color	Torque
2	M2 × 3.5 mm, flat-head, nylon-coated (1)	Black	0.167 Nm(1.7kgfcm)

When installing: Make sure the connector 2 is attached firmly.

1110 Backup battery

DANGER

Use only the battery specified in the parts list for your computer. Any other battery could ignite or explode.

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
- "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69

Table 21. Removal steps of backup battery

Technical diagram showing a cable installation with labeled components and a close-up of the internal structure.

When installing: Make sure that the battery connector is attached firmly.

1120Keyboardbezel

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
- "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69

Table 22. Removal steps of keyboard bezel

Technical diagram showing two views of a laptop chassis with screw fasteners inserted, labeled with '1' annotations.

ForT61

Step	Screw (quantity)	Color	Torque
1	M2 × 14 mm, flat-head, nylon-coated (2)	Black	0.167 Nm(1.7kgfcm)

ForR61

Step	Screw (quantity)	Color	Torque
1	M2 × 17 mm, bind-head, nylon-coated (2)	Black	0.167 Nm(1.7kgfcm)

Table 22. Removal steps of keyboard bezel (continued)

Laptop interior diagram showing labeled components with numbered parts, including a close-up view of the internal structure.

In step 2, release the wireless antenna cables from the cable guide.

Step	Screw (quantity)	Color	Torque
2	M2 × 3 mm, small-head, nylon-coated (4)	Silver	0.167 Nm(1.7kgfcm)

In step 3, detach the claws. Then remove the keyboard bezel in the direction shown by arrow 4.

Laptop interior diagram with numbered components and directional arrows indicating movement or assembly

When installing: Make sure that all the claws are attached firmly.

1130Speakerassembly

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
- "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69
• "1120 Keyboard bezel" on page 80

Table 23. Removal steps of speaker assembly

The speaker cables are secured with tapes (a).

Laptop interior diagram with labeled parts and numbered annotations

Step	Screw (quantity)	Color	Torque
1	M2 × 3 mm, small-head, nylon-coated (4)	Silver	0.167 Nm(1.7kgfcm)

Table 23. Removal steps of speaker assembly (continued)

In step 2, release the wireless antenna cables from the cable guide of the speakers.

Laptop interior diagram with numbered components and wiring annotations, showing internal wiring connections

When installing: Make sure that the speaker connector is attached firmly, and the cables are routed as in this figure.

Technical line drawing of an electronic device interior showing internal components and wiring (no text or symbols)

1140Fanassembly

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
- "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69
• "1120 Keyboard bezel" on page 80
• "1130 Speaker assembly" on page 82

Table 24. Removal steps of fan assembly

Technical diagram showing three views of a laptop's internal components with numbered labels and arrows indicating assembly or installation steps.

Step	Screw (quantity)	Color	Torque
1	M2 × 3 mm, small-head, nylon-coated (4)	Silver	0.167 Nm(1.7kgfcm)

Cable routing: After attaching the fan and the brackets, route the cables as shown in the figure.

Table 24. Removal steps of fan assembly (continued)

Attention: Do not handle the fan roughly. Improper handling of the fan can cause distortion or deformation and imperfect contact with components.

Laptop interior diagram with numbered components and a magnified view of internal wiring or ventilation system

Step	Screw (quantity)	Color	Torque
3	M2 × 9.5 mm, flat-head, nylon-coated (4)	Black	0.167 Nm(1.7kgfcm)

In step 5, release the wireless antenna cables from the cable guide of the fan assembly.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a cooling or cooling process.

Table 24. Removal steps of fan assembly (continued)

Wheninstalling:

- Before you attach the fan assembly to the computer, apply thermal grease, at an amount of 0.2 grams, on the part marked a as in the following figure. Either too much or too less application of grease can cause a thermal problem due to imperfect contact with a component. In some modes, you need to peel the thin film off from the rubber b.

- For T61 integrated graphics chip models:

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or movement.

- For T61 discrete graphics chip models:

a b a

Table 24. Removal steps of fan assembly (continued)

- For R61 integrated graphics chip models:

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or movement.

- For R61 discrete graphics chip models:

a b a

• Make sure that the fan connector is attached firmly.

Table 24. Removal steps of fan assembly (continued)

- When attaching the fan assembly to the frame, take care not to damage the heat sink (b) of the fan assembly.

Technical diagram of a mechanical device with labeled parts 'b' and directional arrows indicating flow or movement.

1150CPU

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
- "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69
• "1120 Keyboard bezel" on page 80
• "1130 Speaker assembly" on page 82
• "1140 Fan assembly" on page 84

Table 25. Removal steps of CPU

Attention: CPU is extremely sensitive. When you service the CPU, avoid any kind of rough handling.

Rotate the head of the screw in the direction shown by arrow 1 to release the lock; then remove the CPU.

Diagram showing three labeled steps (a, b, 1, 2) of a device's internal components with directional arrows indicating rotation or assembly.

When installing: Place the CPU on the CPU socket a, and then rotate the head of the screw in the direction shown by arrow b to secure the CPU.

1160LCDassembly

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
- "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69
• "1080 PCI Express Mini Card for wireless LAN" on page 73
- "1090 PCI Express Mini Card for wireless WAN or Intel Turbo Memory Mini Card" on page 75
- "1120 Keyboard bezel" on page 80

Table 26. Removal steps of LCD assembly

Technical diagram showing two views of a laptop chassis with labeled components and numbered callouts.

Step	Screw (quantity)	Color	Torque
1	M2.5 × 6.5 mm, flat-head, nylon-coated (2)	Black	0.392 Nm(4.0kgfcm)

Table 26. Removal steps of LCD assembly (continued)

Laptop interior diagram with numbered components and screwdriver placement indicator

Step	Screw (quantity)	Color	Torque
2	M2 × 3.5 mm, flat-head, nylon-coated (1)	Black	0.167 Nm(1.7kgfcm)
5	M2.5 × 6.5 mm, flat-head, nylon-coated (2)	Black	0.392 Nm(4.0kgfcm)

In step 4, strip off the tapes securing the antenna cables, and release the cables from the cable guides of the frame.

Table 26. Removal steps of LCD assembly (continued)

Diagram showing cable installation steps on a laptop chassis, with numbered annotations indicating cable connection and component placement.

Wheninstalling:

1. Route the antenna cables along the cable guides and secure them with the tapes. As you route the cables, make sure that they are not subjected to any tension. Tension could cause the cables to be damaged by the cable guides, or a wire to be broken.

2. Make sure that the LCD connector is attached firmly.

1170 Base cover, USB sub card with cable, and PC Card slots bezelassembly

For access, remove these FRUs, in order:

• "1010 Battery pack" on page 61
• "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69
• "1080 PCI Express Mini Card for wireless LAN" on page 73
- "1090 PCI Express Mini Card for wireless WAN or Intel Turbo Memory Mini Card" on page 75
• "1120 Keyboard bezel" on page 80
• "1160 LCD assembly" on page 90

Table 27. Removal steps of base cover, USB sub card with cable, and PC card slots bezel assembly

Labeled diagram of a computer chassis showing screw installation points on the rear panel

Step	Screw (quantity)	Color	Torque
1	M2 × 5 mm, flat-head, nylon-coated (7)	Black	0.167 Nm(1.7kgfcm)
2	M2 × 3.5 mm, flat-head, nylon-coated (2)	Black	0.167 Nm(1.7kgfcm)
3	For T61
	M2 × 14 mm, flat-head, nylon-coated (2)	Black	0.167 Nm(1.7kgfcm)
	ForR61
	M2 × 17 mm, flat-head, nylon-coated (2)	Black	0.167 Nm(1.7kgfcm)

Table 27. Removal steps of base cover, USB sub card with cable, and PC card slots bezel assembly(continued)

Technical diagram of a computer motherboard with labeled components and directional arrows indicating assembly or installation steps.

Step	Screw (quantity)	Color	Torque
4	M2 × 3 mm, flat-head, nylon-coated (1)	Silver	0.167 Nm(1.7kgfcm)

Note: Make sure that the thermal rubber for FET is firmly attached on the system board as shown in a. When replacing the rubber, you need to peel the thin film off from the bottom, and attach it to the system board.

Technical diagram of an electronic device casing with labeled components and screw indicators

Step	Screw (quantity)	Color	Torque
6	M2.5 × 4 mm, small-head, nylon-coated (2)	Black	0.392 Nm(4kgfcm)

Table 27. Removal steps of base cover, USB sub card with cable, and PC card slots bezel assembly(continued)

Attention: Before step 8, be sure that the Ultrabay Slim device eject lever has not popped out. It must be housed in its position as shown in the figure a.

Technical diagram of an electronic device showing labeled components and connections, including ports, connectors, and internal structures.

Note: When installing the base cover, make sure that the position of the wireless switch, and firmly fit into the frame b.

Table 27. Removal steps of base cover, USB sub card with cable, and PC card slots bezel assembly(continued)

Remove the USB sub card with cable and the security hole bracket as in this figure.

Technical diagram of an electronic device chassis with labeled components and connectors

Step	Screw (quantity)	Color	Torque
1	M2 × 3.5 mm, flat-head, nylon-coated (3)	Black	0.167 Nm(1.7kgfcm)

Table 27. Removal steps of base cover, USB sub card with cable, and PC card slots bezel assembly(continued)

Remove the PC Card/ExpressCard slots bezel assembly or PC Card/Smart Card slots bezel assembly or PC Card/4-in-1 media reader slots bezel assembly as in this figure.

Technical diagram showing assembly of a computer chassis with labeled parts and an exploded view of the internal structure.

Step	Screw (quantity)	Color	Torque
1	M2 × 3.5 mm, flat-head, nylon-coated (2)	Black	0.167 Nm(1.7kgfcm)

Applying labels to the base cover:

The new base cover FRU is shipped with a kit containing labels of several kinds. When you replace the base cover, you need to apply the following labels:

1 Product label
2 Homologationlabel

Following labels need to be peeled off from the old base cover, and need to be put on the new base cover.

3 Wireless LAN LMA label
4 SIM ICCID label
5 Windows license label (COA)
6 Wireless WAN LMA label
7 Japan recycle label (for LE model)
8 Israel label
9 SIRM label
10 China modem label
11 Wireless WAN IMEI label or wireless WAN ESN label

For some models, you also need to apply one or two FCC labels. Check the old base cover; if it has one or two FCC labels, find duplicates of them in the label kit and apply them to the new base cover.

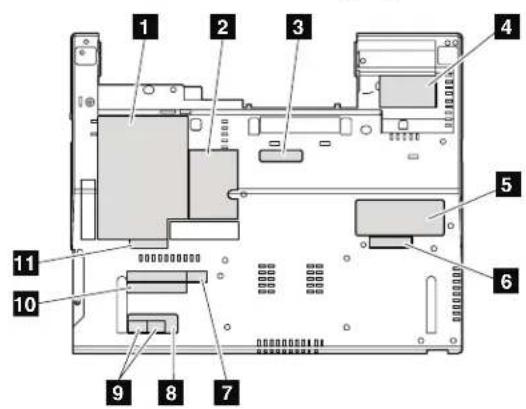

For the location of each label, refer the following figure:

Labeled diagram of a computer motherboard showing numbered components for identification

1180Structureframe

For access, remove these FRUs, in order:

• "1010 Battery pack" on page 61
• "1020 Ultrabay Slim device or Ultrabay Enhanced device" on page 62
- "1030 Hard disk drive (HDD) cover, HDD, and HDD rubber rails or solid state drive (SSD) and storage converter" on page 63
• "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69
• "1070 Modem daughter card (MDC-1.5)" on page 71
• "1080 PCI Express Mini Card for wireless LAN" on page 73
- "1090 PCI Express Mini Card for wireless WAN or Intel Turbo Memory Mini Card" on page 75
• "1120 Keyboard bezel" on page 80
• "1140 Fan assembly" on page 84
• "1160 LCD assembly" on page 90
- "1170 Base cover, USB sub card with cable, and PC Card slots bezel assembly"
onpage93

Table 28. Removal steps of structure frame

Technical line drawing of a laptop chassis showing internal components and mounting bracket (no text or symbols)

Step	Screw (quantity)	Color	Torque
1	M2 × 3 mm, flat-head, nylon-coated (1)	Silver	0.167 Nm(1.7kgfcm)

Table 28. Removal steps of structure frame (continued)

For the models with the IEEE 1394 connector, remove the IEEE 1394 connector bracket as shown in step 2a and 3a. For the other models, remove the IEEE 1394 connector cover as shown in step 2b and 3b in this figure.

Then, remove the ac power jack cable, and the modem cable.

Technical diagram showing exploded and assembled views of a laptop chassis with labeled components and cable connections

Step	Screw (quantity)	Color	Torque
2a or 2b	M2 × 3 mm, flat-head, nylon-coated (1)	Silver	0.167 Nm(1.7kgfcm)

When installing: Make sure the connectors are attached firmly, and that the cables are routed as in the figure above.

Table 28. Removal steps of structure frame (continued)

Remove the CPU support plate.

Technical diagram of a laptop chassis with numbered components and assembly steps

Step	Screw (quantity)	Color	Torque
6	M2 × 5 mm, flat-head, nylon-coated (1)	Black	0.167 Nm(1.7kgfcm)

Table 28. Removal steps of structure frame (continued)

a a 8 8 8 9 9

Step	Screw (quantity)	Color	Torque
8	M2 × 3.5 mm, flat-head, nylon-coated (2)	Black	0.167 Nm(1.7kgfcm)
9	M2 × 9.5 mm, flat-head, nylon-coated (2)	Black	0.167 Nm(1.7kgfcm)

When installing: When attaching the system board to the frame, adjust the placement with the small projection a. Then secure the system board with the screws.

Remove the system board and the PC Card/ExpressCard slots assembly from the structure frame together.

11 10

1190 System board, PC Card/Express Card slots assembly or PC Card/Smart Card slots assembly or PC Card/4-in-1 media readerslotassembly

Important notices for handling the system board:

When handling the system board, bear the following in mind.

- The system board has an accelerometer, which can be broken by applying several thousands of G-forces.

Note: Dropping a system board from a height of as little as 6 inches so that it falls flat on a hard bench can subject the accelerometer to as much as 6,000 G's ofshock.

- Be careful not to drop the system board on a bench top that has a hard surface, such as metal, wood, or composite.

- If a system board is dropped, you must test it, using PC-Doctor for DOS, to make sure that the HDD Active Protection still functions (see below).

Note: If the test shows that HDD Active Protection is not functioning, be sure to document the drop in any reject report, and replace the system board.

- Avoid rough handling of any kind.

- At every point in the process, be sure not to drop or stack the system board.

- If you put a system board down, be sure to put it only on a padded surface such as an ESD mat or conductive corrugated material.

After replacing the system board, run PC-Doctor for DOS to make sure that HDD Active Protection still functions. The procedure is as follows:

1. Place the computer on a horizontal surface.

2. Run Diagnostics --> ThinkPad Devices --> HDD Active Protection Test.

Attention: Do not apply physical shock to the computer while the test is running.

For access, remove these FRUs, in order:

• "1010 Battery pack" on page 61
- "1020 Ultrabay Slim device or Ultrabay Enhanced device" on page 62
- "1030 Hard disk drive (HDD) cover, HDD, and HDD rubber rails or solid state drive (SSD) and storage converter" on page 63
• "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69
• "1070 Modem daughter card (MDC-1.5)" on page 71
• "1080 PCI Express Mini Card for wireless LAN" on page 73
- "1090 PCI Express Mini Card for wireless WAN or Intel Turbo Memory Mini Card" on page 75
• "1100 SIM card slot" on page 77
• "1110 Backup battery" on page 79
• "1120 Keyboard bezel" on page 80
- "1140 Fan assembly" on page 84
• "1150 CPU" on page 89
- "1160 LCD assembly" on page 90
- "1170 Base cover, USB sub card with cable, and PC Card slots bezel assembly" or page93
• "1180 Structure frame" on page 99

Table 29. Removal steps of system board, PC Card/Express card slots assembly or PC Card/Smart card slots assembly or PC Card/4-in-1 media reader slot assembly

Following components soldered on the top side of the system board are extremely sensitive. When you service the system board, avoid any kind of roughhandling.

a CPU
b Video chip
c MCH (Memory Controller Hub)
d ICH (I/O Controller Hub)
e Accelerometer chip for the HDD Active Protection System™
f Security chip

a b c d f e

Table 29. Removal steps of system board, PC Card/Express card slots assembly or PC Card/Smart card slots assembly or PC Card/4-in-1 media reader slot assembly (continued)

Technical diagram of a computer chassis with numbered components, likely an Ethernet drive or memory card.

Step	Screw (quantity)	Color	Torque
[^C6H_2]	M2 × 3.5 mm, flat-head, nylon-coated (2)	Silver	0.167 Nm(1.7kgfcm)

Turn the system board over, and then disconnect the PC Card/ExpressCard slots assembly or PC Card/Smart Card slots assembly or PC Card/4-in1 media reader slot assembly a from the system board.

Technical diagram of an electronic device with labeled components and a numbered arrow indicating assembly or feature.

When installing: Make sure that the connector of the card slot assembly is attached to the system board firmly.

2010 LCD front bezel and LCD rear cover (LCD cover kit)

For access, remove this FRU:

• "1010 Battery pack" on page 61

Table 30. Removal steps of LCD front bezel and LCD rear cover (LCD cover kit)

Laptop chassis diagram with numbered components for identification

Step	Screw cap	Screw (quantity)	Color	Torque
1	○	M2.5 × 7 mm, bind-head, nylon-coated(3)	Black0.392N	Nm(4kgfcm)
2	□	M2.5 × 4 mm, bind-head, nylon-coated(2)	Black0.392N	Nm(4kgfcm)

Close the LCD cover. Detach the LCD rear cover a little as shown in step 3 of this figure, and detach the rear edge of the LCD rear cover 4.

Diagram showing a computer monitor with labeled ports and a magnified view of the handle interacting with a device.

Table 30. Removal steps of LCD front bezel and LCD rear cover (LCD cover kit) (continued)

Detach the left and right rear edges of the LCD rear cover 5 with using the plastic pick, and remove the cover in the direction of arrow 6 as shown in this figure.

5 6 5

Detach the latches on the top, left, and right edge of the LCD front bezel in the direction of arrow 7 as shown in this figure.

Diagram illustrating a device's internal structure and assembly, showing hand positioning and component disassembly steps.

Table 30. Removal steps of LCD front bezel and LCD rear cover (LCD cover kit) (continued) Detach the latches on the front edge of the LCD front bezel in the direction of arrow 8 as shown in this figure.

Note: The LCD front bezel is secured with a double-faced adhesive tape.

8 8 8 8 8

When installing: Attach the LCD cover kit as follows:

1. Place the LCD front bezel so that the LCD latch levers fit into the holes of the bezel 1. Then align the front edge of the bezel to the frame, and attach the latches 2.

Technical diagram showing three views of a mechanical assembly with numbered components and structural details.

Table 30. Removal steps of LCD front bezel and LCD rear cover (LCD cover kit) (continued)

1. Attach all the latches on the top, left, and right edges of the bezel.

Diagram of a rectangular electronic device with multiple 3-pin connectors, labeled with arrows pointing to each component.

1. Paste four pieces of double[hyphen]faced adhesive tape 4 to the frame.

Laptop chassis diagram showing internal components and mounting points (no text or labels)

1. Attach the LCD rear cover from the top end.

Diagram of a laptop with an inset close-up showing internal components (no text or symbols)

Table 30. Removal steps of LCD front bezel and LCD rear cover (LCD cover kit) (continued)

1. Attach the latches of the LCD rear cover firmly.

6 6 6 6 6

2020Invertercard

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
- "2010 LCD front bezel and LCD rear cover (LCD cover kit)" on page 106

Table 31. Removal steps of inverter card

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

When installing: Make sure that connectors 3 and 4 are attached firmly.

2030 Bluetooth daughter card (BDC-2)

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
• "2010 LCD front bezel and LCD rear cover (LCD cover kit)" on page 106

Table 32. Removal steps of Bluetooth daughter card

Technical diagram showing a mechanical assembly with labeled parts, including a magnified inset of a component with numbered callouts.

Step	Screw (quantity)	Color	Torque
	M2 × 2.8 mm, flat-head, nylon-coated (1)	Black	0.167 Nm(1.7kgfcm)

When installing: Make sure that connector is attached firmly.

2040Antennaassembly

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
- "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69
• "1080 PCI Express Mini Card for wireless LAN" on page 73
- "1090 PCI Express Mini Card for wireless WAN or Intel Turbo Memory Min Card" on page 75
- "1120 Keyboard bezel" on page 80
• "1160 LCD assembly" on page 90
- "2010 LCD front bezel and LCD rear cover (LCD cover kit)" on page 106
• "2020 Inverter card" on page 110
• "2030 Bluetooth daughter card (BDC-2)" on page 111

Table 33. Removal steps of antenna assembly

Note: The red cable is the wireless WAN antenna cable (MAIN). The blank cover of the wireless WAN does not have this cable.

Technical diagram of a computer motherboard with numbered components and connectors

Step	Screw (quantity)	Color	Torque
1	M2 × 4 mm, bind-head, nylon-coated (6)	Black	0.167 Nm(1.7kgfcm)

When installing: As you route the cables, make sure that they are not subjected to any tension. Tension could cause the cables to be damaged by the cable guides, or a wire to be broken.

Diagram of a computer motherboard with numbered components and directional arrows indicating assembly or movement.

Table 33. Removal steps of antenna assembly (continued)

Technical diagram showing a device with numbered components and an inset view of the component being inserted into a circuit board.

2050 LCD magnesium frame, hinge assembly, and integrated camera

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
- "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69
- "1080 PCI Express Mini Card for wireless LAN" on page 73
- "1090 PCI Express Mini Card for wireless WAN or Intel Turbo Memory Mini Card" on page 75
• "1120 Keyboard bezel" on page 80
• "1160 LCD assembly" on page 90
- "2010 LCD front bezel and LCD rear cover (LCD cover kit)" on page 106
• "2020 Inverter card" on page 110
• "2030 Bluetooth daughter card (BDC-2)" on page 111
• "2040 Antenna assembly" on page 112

Table 34. Removal steps of LCD magnesium frame, hinge assembly, and integrated camera

Technical diagram showing a mechanical assembly with labeled parts and an inset view of a bracket component.

Step	Screw (quantity)	Color	Torque
1	M2.5 × 4 mm, flat-head, nylon-coated (4)	Black	0.392 Nm(4.0kgfcm)

Table 34. Removal steps of LCD magnesium frame, hinge assembly, and integrated camera(continued)

Diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

Note: Attach the LCD panel so that the small hole on the right side of the panel fits into the small projection of the right hinge as shown in a.

Remove the hinge assembly.

Technical diagram showing a mechanical component with two labeled parts (1 and 2) and an inset view of a clamp mechanism.

Step	Screw (quantity)	Color	Torque
1	M2.5 × 4 mm, flat-head, nylon-coated (1)	Black	0.392 Nm(4.0kgfcm)

Table 34. Removal steps of LCD magnesium frame, hinge assembly, and integrated camera(continued)

Remove the hinge assembly.

Note: The part marked a is fragile and might be damaged by rough handling. When you remove the camera, do not hold that part to avoid the damage.

Technical diagram showing a mechanical assembly with labeled parts and an inset view of a component detail.

Step	Screw (quantity)	Color	Torque
1	M2 × 2.1 mm with washer, bind-head, nylon-coated(1)	Black0.167	Nm(1.7kgfcm)

2060 LCD panel and LCD cable

For access, remove these FRUs in order:

• "1010 Battery pack" on page 61
- "1040 Palm rest or palm rest with fingerprint reader" on page 65
• "1060 Keyboard" on page 69
• "1080 PCI Express Mini Card for wireless LAN" on page 73
- "1090 PCI Express Mini Card for wireless WAN or Intel Turbo Memory Min Card" on page 75
• "1120 Keyboard bezel" on page 80
• "1160 LCD assembly" on page 90
• "2010 LCD front bezel and LCD rear cover (LCD cover kit)" on page 106
• "2020 Inverter card" on page 110
• "2030 Bluetooth daughter card (BDC-2)" on page 111
• "2040 Antenna assembly" on page 112
- "2050 LCD magnesium frame, hinge assembly, and integrated camera" on page 114

Table 35. Removal steps of LCD panel and LCD cable

Technical diagram of a mechanical assembly with numbered components and an inset showing a folding or rolling process.

Step	Screw (quantity)	Color	Torque
4	M2 × 2.8 mm, flat-head, nylon-coated (4)	Silver	0.167 Nm(1.7kgfcm)

When installing: Make sure that the LCD cable is attached firmly.

Locations

Frontview

1 ThinkLight
2 Integrated camera (some models)
3 Statusindicators
Note: For the description of each indicator, see "Status indicators" on page 49
4 Stereo speakers
5 Universal serial bus (USB) connectors
6 Ultrabay Slim or Ultrabay Enhanced status indicator
7 Ultrabay Slim or Ultrabay Enhanced latch
8 Ultrabay Slim or Ultrabay Enhanced device eject lever
9 Ultrabay Slim or Ultrabay Enhanced
10 Fingerprint reader (for some models)
11 TrackPoint pointing stick
12 TrackPoint buttons
13 Touch pad buttons
14 Touch pad
15 UltraNav
16 ThinkVantage button
17 Volume control buttons
18 Powerswitch

Laptop diagram with numbered components and an inset view of the internal rack unit

Rearview

1 Statusindicators

Note: For the description of each indicator, see "Status indicators" on page 49

2 PC Card/ExpressCard or PC Card/Smart Card or PC Card/4-in-1 Card slotselectbuttons

3 PC Card/ExpressCard or PC Card/Smart Card or PC Card/4-in-1 Card slots

4 USB connectors

5 RJ-45 (Ethernet) connector

6 RJ-11 (modem) connector

7 External monitor connector

8 AC power connector

9 Security key hole

Labeled diagram of a computer drive chassis showing numbered components for identification

Bottomview

1 Battery pack
2 Battery pack latch
3 Docking connector
4 IEEE 1394 connector (some models)
5 Wireless radio switch
6 Stereo headphone jack
7 Microphone jack
8 LCD cover latch
9 Hard disk drive

Partslist

This section contains following lists of the service parts.

• "Overall" on page 122
• "LCD FRUs" on page 198
• "Keyboard" on page 218
• "Miscellaneous parts" on page 219
- "AC adapters" on page 220
• "Power cords" on page 222
• "Recovery discs" on page 223
• "Common service tools" on page 243

Notes:

• Each FRU is available for all types or models, unless specific types or models are specified.
- FRU with specific models listed and described as xxU (where U is an example of a country designator) should be used for all models ending in U.
- FRU with specific models listed and described as 3Dx (where 3D is an example of a unique configuration) should be used for all of these models, unless specific country or region designator is specified.
- A CRU (customer replaceable unit) is identified by a single asterisk (*) or two asterisks (**) in the CRU ID column. An N in the CRU ID column means the part is not a CRU. A single asterisk (*) means the part is an External CRU; two asterisks (**) means the part is an Internal CRU.

ThinkPad computers contain the following types of the external CRUs:

ExternalCRUs(pluggable)

These CRUs unplug from the computer. Examples of these types of CRUs include an ac adapter, an external keyboard, a mouse, a power cord, a port replicator, a USB device, and an external bay device adapter.

External CRUs with latches

These CRUs have a latch to help you to remove and replace the part. Examples of these types of CRUs include a battery pack, an Ultrabay device such as an optical drive, a hard disk drive, and an extended battery.

ThinkPad computers contain the following types of the internal CRUs:

Internal CRUs (located behind an access panel)

These CRUs are isolated parts within the computer that are concealed by an access panel that is typically secured by either one or two screws. Once the access panel is removed, only the specific CRU is visible. Examples of these types of CRUs include a memory card and a harddiskdrive.

Internal CRUs (located within the product itself)

These CRUs are accessible only by opening the outer case of the computer. Examples of these CRUs include the integrated keyboard parts beneath the integrated keyboard and parts beneath the palm rest.

- A RoHS compliant FRU is identified by an R. An N in the RoHS ID column means the part is not a RoHS compliant FRU.

• FRUs marked with OP are available as options.

Overall

Exploded view diagram of a computer with numbered parts for identification

Table 36. Parts list—Overall

No.	FRU	FRU no.	RoHS ID	CRU ID
a - d	See "Miscellaneous parts" on page 219.
1	LCD unit (see "LCD FRUs" on page 198)
2	Keyboard bezel assembly6378-CTO, 1Xx6379-CTO, 1Xx6480-CTO7658-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, X2x, X3x, X4x, X6x, X8x, X9x7659-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Qx, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Sx, 2Ux, 2Vx, 3Bx, XAx7660-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 18x, 1Ax, 1Bx, 1Dx7661-CTO, 11x, 12x, 13x, 14x, 1Nx, 1Px, 2Ax, 2Bx, 2Sx, XAx1959-CTO, 2Xx6377-CTO, 2Xx6481-CTO, 1Ax7662-CTO, 11x, 12x, 13x, 14x, 2Ax, 2Bx, X1x, X5x, X7x7663-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx. 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Yx, 1Vx, 1Wx, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Xx, 2Yx, 2Zx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Lx, 3Nx, 3Px, 3Rx, 3Sx7664-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, 21x7665-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 1Tx, 2Bx, 2Cx, 2Dx,2Ex,3Jx(continued)	42W2464RN
2(continued)		42W2464RN
Keyboardbezelassembly7732-CTO, 11x, 12x, 13x, 14x, 15x, 18x, 19x, 1Ax, 1Ex, 1Fx, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Kx, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Rx, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Yx, 8Zx, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, C1x, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CDx, CEx, CFx, CGx, CHx, CJx, CKx, CLx, CNx, CPx, CTx, CVx, X2x, X3x, X6x, X9x7733-CTO, 11x, 12x, 13x, 1Gx, 14x, 15x, 16x, 17x, 18x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Kx, 1Hx, 1Jx, 1Lx, 1Mx, 1Nx, 2Ax, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Yx, 2Xx, 3Bx,XAx7734-CTO, 11x, 12x, 13x, 14x, 15x7735-CTO, 11x, 12x, 13x, 14x, 1Bx, 1Cx, 1Dx, 1Ex, 1Gx, 1Hx, 1Jx, 2Ux, XAx7736-CTO, 1Xx7737-CTO, 1Xx7738-CTO, 11x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Ux,1Vx,21x,7742-CTO, 11x, 12x, 16x, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 4Lx, 4Mx, 7Mx, 7Nx, 9Gx, 9Hx, 9Jx, 9Kx, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, X1x, X7x7743-CTO, 11x, 12x, 13x, 1Gx, 14x, 15x, 17x, 18x, 19x, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx7744-CTO, 1Ax7751-CTO, 11x, 12x, 13x, 1Gx, 1Hx, 1Jx7753-CTO, 2Xx7754-CTO, 2Xx7755-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 1Bx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx
2	Keyboard bezel assembly•6378-CTO•6379-CTO• 6480-CTO, P1x, P2x, RSx• 7658-CTO, N4x, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx, NGx, NHx, NJx, NKx, NLx,RUx,RVx• 7659-CTO, 3Ax, N2x, N3x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, R8x, R9x, RAx, RBx, RCx, RDx, 2Tx, REx, RFx, RGx• 7660-CTO, NWx, P1x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RRx, RTx• 7661-CTO, P1x, P2x, P3x•1959-CTO•6377-CTO• 6481-CTO, NRx, NSx, NTx, NUx, NVx, RRx• 7662-CTO, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx,NRx,NTx• 7663-CTO, 3Kx, 3Mx, N1x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx, REx, RFx, RGx, RHx, RJx, RKx, RTx, RUx• 7664-CTO, P1x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, R8x, RLx, RMx, RNx, RWx, RYx• 7665-CTO, P1x, P2x, P3x• 7732-CTO, N4x, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, P1x• 7733-CTO, 3Ax, 3Cx, 3Dx, 3Fx, 3Gx, 3Ex, N1x, N5x, N6x, N7x, N8x, N9x, P1x, P2x, P3x, P4x, PAx, PBx• 7734-CTO, N3x•7735-CTO•7736-CTO•7737-CTO• 7738-CTO, 22x, 23x, P1x, P2x, P3x, P4x• 7742-CTO, NAx, NBx, NCx• 7743-CTO, 2Kx, 3Bx, N3x, N4x, N5x, N6x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x• 7744-CTO, P1x•7751-CTO•7753-CTO•7754-CTO• 7755-CTO, P1x, P2x, P3x, P4x, P5x	44C0506RN
3	Palm rest assembly without fingerprint reader, with IBM logo (T series)•6378-CTO•6379-CTO•1959-CTO•6377-CTO	42W2476R**
3	Palm rest assembly without fingerprint reader, with ThinkPad logo (T series)•6378-CTO•6379-CTO•6480-CTO• 7658-CTO, 19x, X9x• 7659-CTO, 1Kx, 1Lx, 1Nx, 1Px, 1Qx, 2Cx, 2Dx, 2Gx, 2Hx, 2Lx, 2Mx, 3Ax, N2x, P1x, P6x, XAx• 7660-CTO, 1Dx, P1x• 7661-CTO, 14x, 1Nx, 1Px, XAx•1959-CTO• 6377-CTO, 2Xx•6481-CTO•7662-CTO• 7663-CTO, 1Ax, 2Fx, 2Gx, 2Kx, 2Lx, 2Px, 3Gx• 7664-CTO, 1Px, 1Rx• 7665-CTO, 15x	42W3792R**
3	Palm rest assembly with fingerprint reader, with IBM logo(Tseries)•6378-CTO•6379-CTO•1959-CTO•6377-CTO	42W2470R**
3	Palm rest assembly with fingerprint reader, with ThinkPad logo (T series)6378-CTO, 1Xx6379-CTO, 1Xx6480-CTO, P1x, P2x, RSx7658-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, N4x, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx, NGx, NHx, NJx, NKx, NLx, RUx, RVx, X2x, X3x, X4x, X6x, X8x7659-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Mx, 2Ax, 2Bx, 2Ex, 2Fx, 2Jx, 2Kx, 2Nx, 2Px, 2Qx, 2Sx, 2Tx, 2Ux, 2Vx, 3Bx, N3x, P2x, P3x, P4x, P5x, P7x, P8x, P9x, R8x, R9x, RAx, RBx, RCx, RDx, REx, RFx, RGx7660-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 18x, 1Ax, 1Bx, NWx, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RRx, RTx7661-CTO, 11x, 12x, 13x, 2Ax, 2Bx, 2Sx, P1x, P2x, P3x1959-CTO, 2Xx6377-CTO6481-CTO, 1Ax, NRx, NSx, NTx, NUx, NVx, RRx7662-CTO, 11x, 12x, 13x, 14x, 2Ax, 2Bx, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx, NRx, NTx, X1x, X5x,X7x7663-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Vx, 1Wx, 1Yx, 2Bx, 2Cx, 2Dx, 2Ex, 2Hx, 2Jx, 2Mx, 2Nx, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Xx, 2Yx, 2Zx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Rx, 3Sx, N1x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx, REx, RFx, RGx, RHx, RJx, RKx, RTx, RUx7664-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Tx, 1Xx, 21x, P1x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, R8x, RLx, RMx, RNx,RWx,RYx7665-CTO, 11x, 12x, 13x, 14x, 16x, 1Tx, 2Bx, 2Cx, 2Dx, 2Ex, 3Jx, P1x, P2x, P3x	42W3791R**
3	Palm rest assembly without fingerprint reader LE, with IBM logo (R series)7736-CTO7737-CTO7753-CTO7754-CTO	42W2484R**
3	Palm rest assembly without fingerprint reader LE, with ThinkPad logo (R series)7732-CTO, 14x, 15x, 1Ax, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Gx, 2Hx, 2Jx, 4Ax, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Rx, 6Ax, 6Bx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Kx, 7Ax, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Yx, 8Zx, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, B6x, B7x, B8x, B9x, BAx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, C1x, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CDx, CEx, CFx, CGx, CHx, CJx, N6x, N8x, NCx7733-CTO, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 1Cx, 1Dx, 1Fx, 1Hx, 1Kx, 1Mx, 1Nx, 2Ax, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Xx, 2Yx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, N5x, N6x, N7x, N8x, N9x, P1x, P2x, PAx, XAx7734-CTO7735-CTO, 12x, 13x, 1Cx, 1Dx, 1Jx, XAx7738-CTO, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Hx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Ux, 21x, 22x, P1x, P2x7742-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 9Gx, 9Hx, 9Jx, 9Kx, B1x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BDx, BEx, BFx, BGx, BHx, BJx7743-CTO, 13x, 14x, 17x, 1Lx, 1Mx, 2Ax, 2Bx, 2Ex, 2Fx, 3Bx, N3x, P1x7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO, 12x, 13x, 14x, 15x, 16x, 17x, 1Bx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, P1x, P2x, P3x, P4x, P5x	42W3794R**
3	Palm rest assembly with fingerprint reader LE, with IBM logo (R series)7736-CTO, 1Xx7737-CTO, 1Xx7753-CTO, 2Xx7754-CTO, 2Xx	42W2480R**
3	Palm rest assembly with fingerprint reader LE, with ThinkPad logo (R series)7732-CTO, 11x, 12x, 13x, 18x, 19x, 1Ex, 1Fx, 2Fx, 2Kx, 2Lx, 2Mx, 4Bx, 4Cx, 4Px, 4Qx, 4Sx, 4Tx, 4Ux, 6Cx, 7Bx, 7Cx, 7Px, 7Rx, 8Ax, 8Bx, 8Cx, 8Dx, B1x, B2x, B3x, B4x, B5x, BBx, BKx, CKx, CLx, CNx, CPx, CTx, CVx, N4x, N5x, N7x, N9x, NAx, NBx, NDx, NEx, P1x, X2x, X3x, X6x, X9x7733-CTO, 11x, 1Ax, 1Bx, 1Ex, 1Gx, 1Jx, 1Lx, 2Lx, 2Ux, 3Fx, 3Gx, P3x, P4x, PBx7734-CTO, 11x, 12x, 13x, 14x, 15x, N3x7735-CTO, 11x, 14x, 1Bx, 1Ex, 1Gx, 1Hx, 2Ux7738-CTO, 11x, 1Gx, 1Jx, 1Kx, 1Lx, 1Vx, 23x, P3x, P4x7742-CTO, 11x, 12x, 16x, 21x, 4Lx, 4Mx, 7Mx, 7Nx, B2x, BBx, BCx, NAx, NBx, NCx, X1x, X7x7743-CTO, 11x, 12x, 15x, 18x, 19x, 1Gx, 1Hx, 1Jx, 1Kx, 2Cx, 2Dx, 2Gx, 2Hx, 2Jx, 2Kx, N4x, N5x, N6x, P2x, P3x, P4x, P5x, P6x, P7x, P8x7744-CTO, 1Ax, P1x7751-CTO, 11x, 12x, 13x, 1Gx, 1Hx, 1Jx7755-CTO, 11x	42W3793R**
4	SIM card slot6378-CTO6379-CTO6480-CTO7658-CTO, X8x7659-CTO, 2Lx, 2Vx, RAx, RDx7660-CTO, 15x, 16x, RPx, RTx7661-CTO1959-CTO6377-CTO6481-CTO7662-CTO, CTO, 12x, 14x, X5x7663-CTO, 19x, 2Px, 3Hx, 3Nx, P4x, PHx, RGx, RKx7664-CTO, 1Ax7665-CTO	42W2498RN
5	Speaker assembly	39T7483	R	N
6	Modem daughter card (MDC-1.5)	39T0495	R	**
7	ThinkPad 11b/g Wireless LAN Mini-PCI Express AdapterII•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO, 2Gx, 2Hx, 2Jx, 2Kx•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO, 2Kx, 2Lx, 2Mx, 2Nx, 2Rx•7664-CTO•7665-CTO•7732-CTO, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Gx, 2Hx, 2Jx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 6Gx, 6Hx,, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Yx, 8Zx, 9Ax, 9Bx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, C1x, C2x, C3x, C6x, C7x, C8x, C9x, CAx, CBx, CDx, CEx, CFx, CGx, CHx, CJx, CKx,CVx•7733-CTO, 14x, 15x, 1Fx, 2Ex, 2Mx, 2Nx, 2Px, 2Qx, N5x,N6x•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO, 1Hx, 1Mx, 1Nx, 21x, P1x, P2x•7742-CTO, 24x, 25x, 27x, 28x, 9Gx, 9Hx, 9Jx, B3x, B4x, B5x, B8x, B9x, BDx, BEx, BFx, BGx, BHx, BJx•7743-CTO, 14x, 2Ex, 2Fx, 2Gx, 2Hx, P1x, P2x, P3x, P4x,P5x•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	43Y6465R**
7	ThinkPad 11a/b/g Wireless LAN Mini PCI Express Adapter6378-CTO6379-CTO6480-CTO, P1x, P2x7658-CTO7659-CTO, 13x, 1Fx, 1Gx, 1Nx, 1Px, N2x, N3x, P6x, P7x, XAx7660-CTO7661-CTO, 1Nx, 1Px, P1x, XAx1959-CTO6377-CTO6481-CTO7662-CTO7663-CTO, 1Tx, N1x7664-CTO, P2x7665-CTO, 1Tx, P1x7732-CTO, 6Ax, 6Bx, 6Dx, 6Ex, 6Fx7733-CTO, 12x, 1Bx, 1Cx, 1Dx, 1Lx, 1Mx, 1Nx, 2Tx, P1x, P2x, PAx, PBx, XAx7734-CTO7735-CTO, 1Bx, 1Cx, 1Dx, 1Jx, XAx7736-CTO7737-CTO7738-CTO, 16x, 17x, 18x, 19x, 1Ax, 21x7742-CTO7743-CTO, 1Lx, 1Mx, N3x, N4x7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO
	xxB, xxC, xxF, xxG, xxH, xxL, xxM, xxP, xxQ, xxS, xxU,xxY	39T5578R**
	xxE, xxJ	39T5579	R	**
	xxV	39T5580	R	**
	xxA, xxT (802.11 b/g)	39T5581	R	**
	xxK	39T5582	R	**

Table 36. Parts list—Overall (continued)

No.	FRU	FRU no.	RoHS ID	CRU ID
7	Intel PRO Wireless 3945ABC Mini-PCI Express Adapter•6378-CTO• 6379-CTO, 1Xx• 6480-CTO, RSx• 7658-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 19x, NKx, RUx, X3x, X4x, X6x• 7659-CTO, 14x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Hx, 1Jx, 1Kx, 1Lx, 1Qx, 2Ax, 2Nx, 2Tx, 2Ux, 3Ax, P3x, P4x, REx, RGx• 7660-CTO, 12x, 13x, 14x, 15x, 16x, P1x, P2x, P3x, P4x, P3x, P4x• 7661-CTO, 13x, 14x, 2Ax• 1959-CTO, 2Xx• 6377-CTO, 2Xx• 6481-CTO, RRx• 7662-CTO, 11x, 12x, X7x• 7663-CTO, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Yx, 1Vx, 1Wx, 2Bx, 2Cx, 3Cx, 3Dx, 3Gx, 3Kx, 3Lx, 3Mx, 3Sx, PFx• 7664-CTO, 11x, 12x, 13x, 14x, 15x, 1Mx• 7665-CTO, 14x, 15x, 16x, 2Bx, 2Cx• 7732-CTO, 11x, 13x, 19x, 1Ax, 1Ex, 1Fx, 21x, 22x, 23x, 24x, 2Fx, 2Kx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Px, 4Qx, 4Sx, 4Tx, 4Ux, 6Kx, 7Ax, 7Bx, 7Cx, 7Px, 7Rx, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Lx, 8Mx, 8Nx, 9Cx, 9Dx, 9Ex, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, C4x, C5x, N4x, N5x, N6x, N7x, N8x, N9x, NAx, NCx, NDx, NEx,X3x,X6x• 7733-CTO, 11x, 17x, 18x, 1Ax, 1Ex, 1Gx, 1Kx, 1Hx, 1Jx, 1Lx, 2Ux, 2Yx, 2Xx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, N7x, N8x, N9x• 7734-CTO, 11x, 12x, 13x, 14x, 15x• 7735-CTO, 11x, 12x, 13x, 14x, 1Ex, 1Gx, 1Hx, 2Ux• 7736-CTO, 1Xx• 7737-CTO, 1Xx• 7738-CTO, 11x, 1Gx, 1Jx, 1Kx, 1Lx, 1Vx, 22x, 23x, P3x• 7742-CTO, 16x, 22x, 23x, 26x, 4Lx, 4Mx, 7Mx, 7Nx, 9Kx, 29x, B1x, B2x, B6x, B7x, BAx, BBx, BCx, NCx, X7x• 7743-CTO, 11x, 12x, 13x, 18x, 19x, 1Gx, 1Hx, 1Jx, 2Jx, 2Kx, 3Bx, P6x• 7744-CTO, 1Ax, P1x• 7751-CTO, 11x, 12x, 13x, 1Gx, 1Hx, 1Jx,• 7753-CTO, 2Xx• 7754-CTO, 2Xx• 7755-CTO, 12x, 13x, 14x, 15x, 16x
	xxA, xxB, xxF, xxH, xxL, xxM, xxP, xxQ, xxS, xxU, xxV,xxY	42T0853R**
	xxG	42T0855	R	**
	xxC, xxK	42T0857	R	**
	xxE, xxJ	42T0859	R	**
	xxT (802.11 b/g)	42T0861	R	**
No.	FRU	FRU no.	RoHS ID	CRU ID
7	Intel Wireless WiFi Link 4965AGN6378-CTO, 1Xx6379-CTO6480-CTO7658-CTO, 17x, 18x, N4x, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx, NGx, NHx, NJx, NLx, RVx, X2x, X8x, X9x7659-CTO, 15x, 16x, 1Dx, 2Lx, 2Qx, 2Vx, P2x, P5x, R8x, R9x, RAx, RBx, RCx, RDx, RFx7660-CTO, 11x, 18x, 1Ax, 1Bx, 1Dx, NWx, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RRx,RTx7661-CTO1959-CTO6377-CTO6481-CTO, NRx, NSx, NTx, NUx, NVx7662-CTO, 13x, 14x, 2Ax, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx, NTx, X1x, X5x7663-CTO, 14x, 15x, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 2Px, 2Xx, 2Yx, 3Bx, 3Ex, 3Hx, 3Nx, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PDx, PEx, PGx, PHx, PJx, REx, RFx, RGx, RHx, RJx, RKx, RTx, RUx7664-CTO, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Nx, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, 21x, P1x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, R8x, RLx, RMx, RNx, RWx, RYx7665-CTO7732-CTO, 12x, 14x, 15x, 18x, 4Rx, 6Cx, CLx, CNx, NBx, P1x, X2x, X9x7733-CTO, 13x, 16x, 2Jx, 3Gx, P4x7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO, 1Bx, 1Cx, 1Px, 1Rx, 1Sx, 1Tx, 1Ux, P4x7742-CTO, 11x, 12x, 21x, X1x, NAx, NBx7743-CTO, 15x, 17x, 1Kx, N5x, N6x, P7x, P8x7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO, 11x, 17x, 1Bx, 1Fx, 1Gx, 1Hx, P3x, P4x, P5x
	xxB, xxF, xxH, xxL, xxM, xxP, xxS, xxU, xxV, xxY	42T0865	R	**
	xxG	42T0867	R	**
	xxC	42T0869	R	**
	xxE, xxJ	42T0871	R	**
	xxK	42T0905	R	**
7	ThinkPad 11a/b/g/n Wireless LAN Mini-PCI Express Adapter•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO•7732-CTO•7733-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO
	xxA, xxB, xxC, xxF, xxG, xxH, xxL, xxM, xxQ, xxS, xxU	42T0825R**
	xxE, xxJ	42T0827	R	**
	xxV	42T0829	R	**
	xxT (802.11 b/g)	42T0941	R	**
7	Intel Wireless WiFi Link 4965AGN (11n disabled)•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO, 11x, 12x, 1Ex, 1Mx, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Mx, 2Px, 2Sx, 3Bx, P1x, P8x,P9x•7660-CTO•7661-CTO, 11x, 12x, 2Bx, 2Sx, P2x, P3x•1959-CTO•6377-CTO•6481-CTO, 1Ax•7662-CTO, 2Bx•7663-CTO, 11x, 12x, 13x, 16x, 17x, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Qx, 2Sx, 2Tx, 2Ux, 2Vx, 2Zx, 3Ax, 3Fx, 3Jx, 3Px, 3Rx, P1x, PAx, PBx, PCx•7664-CTO, 1Ex, P3x, P4x•7665-CTO, 11x, 12x, 13x, 2Dx, 2Ex, 3Jx, P2x, P3x•7732-CTO, 14x, 15x, 18x, CPx, CTx•7733-CTO, 2Ax, 2Dx, 2Fx, 2Gx, 2Kx, 2Lx, 2Rx, 2Sx•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO, 11x, 12x•7743-CTO, 2Ax, 2Bx, 2Cx, 2Dx•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO, 1Dx, 1Ex, P1x, P2x	42T0873R**
	xxA, xxB, xxF, xxH, xxL, xxM, xxP, xxQ, xxS, xxU, xxV,xxY	42T0875	R	**
	xxG	42T0877	R	**
	xxC, xxK	42T0879	R	**
8	Magnesium structure frame for T series	42W2488	R	N
	Magnesium structure frame for R series	42W2492	R	N
9	Backup battery	02K6572	R	**
10	Hard disk drive rubber rails	41V9756	R	*
11	SATA hard disk drive, 60 GB, 9.5 mm, 5,400 rpm•6378-CTO•6379-CTO•6480-CTO•7658-CTO, 13x, 14x•7659-CTO, 13x, 19x, 1Hx, 1Jx•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO, 11x, 12x•7663-CTO, 18x, 19x•7664-CTO•7665-CTO•7732-CTO, 13x, 4Ux•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO, 12x, 13x
	Fujitsu	39T2883	R	**
	HGST OP	42T1489	R	**
	Seagate	42T1303	R	**
11	SATA hard disk drive, 80 GB, 9.5 mm, 5,400 rpm6378-CTO6379-CTO6480-CTO, P1x, RSx7658-CTO, 11x, 12x, 15x, 16x, N7x, X2x, X4x, X9x7659-CTO, 11x, 12x, 17x, 18x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Qx, 2Ax, 2Bx, 2Ux, 2Vx, 3Ax, 3Bx, N2x, P3x, P4x, P6x7660-CTO, 11x, 13x, P1x, R5x7661-CTO, 11x, 12x, 14x, 1Nx, 1Px, 2Ax, 2Bx1959-CTO6377-CTO6481-CTO, NRx, NSx, NTx, NUx, NVx, RRx7662-CTO, X7x7663-CTO, 11x, 12x, 16x, 1Ax, 1Bx, 1Cx, 1Dx, 1Lx, 1Mx, 2Bx, 2Dx, 3Gx, 3Px, 3Rx, 3Sx,PFx7664-CTO7665-CTO, 11x, 12x, 2Bx, 2Dx7732-CTO, 11x, 14x, 15x, 19x, 2Cx, 4Gx, 4Hx, 4Px, 4Qx, 6Gx, 6Hx, 7Dx, 7Ex, 7Gx, 7Hx, 8Ex, 8Fx, 8Px, 8Tx, 9Cx, CKx, X2x, X9x,7733-CTO, 11x, 12x, 14x, 15x, 17x, 18x, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 2Ax, 2Dx, 2Ex, 2Jx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Yx, 2Xx, 3Ax, 3Bx, 3Cx, 3Ex, N8x, N9x, P3x, P4x, PAx7734-CTO7735-CTO, 11x, 12x, 13x, 1Cx, 1Dx, 1Ex, 1Gx, 1Hx, 1Jx, 2Ux7736-CTO, 1Xx7737-CTO, 1Xx7738-CTO, 16x, 17x, 18x, 1Ax, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Px, 1Vx, 21x, 22x, P3x7742-CTO, 16x, X7x7743-CTO, 11x, 13x, 14x, 18x, 19x, 1Gx, 1Hx, 1Jx, P6x7744-CTO7751-CTO, 11x, 12x, 1Gx, 1Hx, 1Jx7753-CTO7754-CTO7755-CTO, 14x, 15x
	Fujitsu OP	39T2785	R	**
	Fujitsu	39T2885	R	**
	HGST	42T1491	R	**
	Seagate	42T1305	R	**
	WD	42T1431	R	**
11	SATA hard disk drive, 120 GB, 9.5 mm, 5,400 rpm6378-CTO, 1Xx6379-CTO, 1Xx6480-CTO7658-CTO, N4x, N5x, N8x, N9x, NAx, NBx, RUx, X6x, X8x7659-CTO, 14x, 2Cx, 2Dx, 2Gx, 2Hx, 2Lx, 2Nx, 2Px, 2Sx, 2Tx, R8x, RAx, RBx, RDx, RFx,XAx7660-CTO, 12x, 14x, 18x, 1Ax, 1Bx, R2x, R4x7661-CTO, 13x, 2Sx, XAx1959-CTO, 2Xx6377-CTO, 2Xx6481-CTO7662-CTO, 13x, 14x, NJx, X5x7663-CTO, 13x, 14x, 17x, 1Ex, 1Fx, 1Kx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Wx, 2Cx, 2Ex, 2Sx, 2Tx, 3Cx, 3Fx, 3Jx, 3Lx, 3Mx, PAx7664-CTO, 12x, 13x, 15x, 16x, 18x, 19x, 1Tx, 1Xx, 1Yx, RMx7665-CTO, 13x, 14x, 15x, 1Tx, 2Cx, 2Ex, 3Jx7732-CTO, 12x, 18x, 1Ax, 1Ex, 1Fx, 21x, 22x, 23x, 24x, 25x, 26x, 28x, 29x, 2Ax, 2Bx, 2Dx, 2Ex, 2Fx, 2Kx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Jx, 4Kx, 4Nx, 4Rx, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Kx, 7Ax, 7Bx, 7Cx, 7Fx, 7Jx, 7Kx, 7Lx, 8Ax, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Qx, 8Rx, 8Sx, 8Ux, 8Vx, 8Wx, 8Yx, 8Zx, 9Ax, 9Dx, 9Ex, BFx, BHx, C6x,C9x,X6x7733-CTO, 13x, 16x, 1Ax, 1Bx, 1Hx, 1Mx, 1Nx, 2Fx, 2Gx, 2Kx, 2Mx, 2Nx, 3Dx, 3Fx, 3Gx, XAx, P1x, P2x, XAx7734-CTO, 11x, 12x, 13x, 15x7735-CTO, 14x, 1Bx, XAx7736-CTO7737-CTO7738-CTO, 11x, 19x, 1Bx, 1Gx, 1Nx, 1Rx, 1Sx, 1Ux, 23x, P4x7742-CTO, 11x, 12x, 24x, 27x, 28x, 4Lx, 4Mx, 7Mx, 7Nx, 9Gx, 9Hx, 9Jx, 9Kx, BAx7743-CTO, 12x, 15x, 2Ax, 2Bx, 2Ex, 2Fx, 2Jx, 2Kx, 3Bx, P7x7744-CTO, P1x7751-CTO, 13x7753-CTO, 2Xx7754-CTO, 2Xx7755-CTO, 11x, 16x, 17x, 1Dx, 1Hx, P1x	39T2889	R	**
	Fujitsu OP	42T1499	R	**
	Seagate	42T1307	R	**
	WD	42T1433	R	**
11	SATA hard disk drive, 160 GB, 9.5 mm, 5,400 rpm•6378-CTO•6379-CTO•6480-CTO, P2x•7658-CTO, 17x, 18x, NCx, NDx, NFx, NGx, NHx, NJx, NKx•7659-CTO, 15x, 16x, 2Mx, 2Qx, P1x, P5x, P7x, P8x, REx, RGx•7660-CTO, 15x, 16x, NWx, P2x, P3x, R6x, RPx, RRx, RTx•7661-CTO, P1x, P2x•1959-CTO•6377-CTO•6481-CTO, 1Ax, NRx, NSx, NUx•7662-CTO, 2Ax, 2Bx, NGx, NHx, NKx, NLx, NMx, NNx•7663-CTO, 1Gx, 1Hx, 1Vx, 1Yx, 2Ux, 2Vx, 2Zx, 3Ax, 3Dx, 3Hx, 3Kx, 3Nx, P1x, P2x, P5x, P6x, PBx, PGx•7664-CTO, 11x, 14x, 17x, 1Bx, 1Cx, 1Fx, 1Gx, 1Jx, 1Kx, 1Nx, 1Px, 1Rx, 21x, P1x, P2x, P3x, RLx, RNx, RWx, R5x, R6x, R7x•7665-CTO, 16x, P1x, P2x•7732-CTO, 27x, 2Gx, 2Hx, 2Jx, 4Sx, 4Tx, 7Px, 7Rx, 8Bx, 8Cx, 8Dx, 9Bx, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BCx, BDx, BEx, BGx, BJx, BKx, C1x, C2x, C3x, C4x, C5x, C7x, C8x, CAx, CBx, CDx, CEx, CFx, CGx, CHx, CJx, CLx, CNx, CPx, CTx, CVx, N4x, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, P1x•7733-CTO, 2Lx, N5x, N6x, N7x, PBx•7734-CTO, 14x, N3x•7735-CTO•7736-CTO•7737-CTO•7738-CTO, 1Cx, 1Tx, P1x, P2x•7742-CTO, 21x, 22x, 23x, 25x, 26x, 29x, B1x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BBx, BDx, BEx, BFx, BGx, BHx, BJx, NCx•7743-CTO, 17x, 1Lx, 1Mx, 2Cx, 2Dx, 2Gx, 2Hx, P1x, P2x, P3x, P4x, N3x, N5x, N6x•7744-CTO, 1Ax•7751-CTO•7753-CTO•7754-CTO•7755-CTO, 1Bx, 1Ex, 1Fx, 1Gx, P2x, P3x, P4x	42T1501	R	**
	HGST OP	42T1501	R	**
	Fujitsu OP	39T2899	R	**
	Seagate	42T1309	R	**
	WD	42T1435	R	**
11	SATA hard disk drive, 160 GB (FDE), 9.5 mm, 5,400 rpm•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO, X1x•7663-CTO, PHx•7664-CTO, 1Ex•7665-CTO•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7742-CTO, X1x•7743-CTO, P5x•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO
	Seagate	42T1311	R	**
	HGST	42T1473	R	**
11	SATA hard disk drive, 250 GB, 9.5 mm, 5,400 rpm6378-CTO6379-CTO6480-CTO7658-CTO7659-CTO, P9x7660-CTO, P4x7661-CTO, P3x1959-CTO6377-CTO6481-CTO, NTx, NVx7662-CTO, NRx, NTx7663-CTO, P3x, P4x, P8x, PCx, PDx, RTx7664-CTO, P4x, R3x, R4x7665-CTO, P3x7732-CTO, BBx7733-CTO7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO, B2x, BCx, NAX, NBx7743-CTO, P8x7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO, P5x
	HGST OP	42T1471	R	**
	Fujitsu OP	42T1481	R	**
	WD	42T1521	R	**
11	SATA hard disk drive, 60 GB, 9.5 mm, 7,200 rpm•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO
	HGST OP	42T1483	R	**
	Seagate	39T2795	R	**
11	SATA hard disk drive, 100 GB, 9.5 mm, 7,200 rpm6378-CTO6379-CTO6480-CTO7658-CTO, 19x, NLx, RVx, X3x7659-CTO, N3x7660-CTO7661-CTO1959-CTO6377-CTO6481-CTO7662-CTO7663-CTO, 15x, 1Jx, 2Fx, 2Gx, 2Kx, 2Lx, 2Px, 2Qx, 2Rx, N1x7664-CTO, 1Ax, 1Mx, R8x, RYx7665-CTO7732-CTO, X3x7733-CTO, PBx7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO7743-CTO, N4x7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO
	HGST OP	42T1485	R	**
	Seagate	39T2799	R	**
11	SATA hard disk drive, 160 GB , 9.5 mm, 7,200 rpm•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO, 2Ex, 2Fx, 2Jx, 2Kx, P2x, R9x, RCx•7660-CTO, 1Dx•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO, 2Hx, 2Jx, 2Mx, 2Nx, 2Yx, 3Ex, P7x, P9x, PEx, PJx, REx, RFx, RGx, RHx, RJx,RKx,RUx•7664-CTO, 1Lx, R1x, R2x•7665-CTO•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO, 1Kx•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO
	HGST OP	42T1461	R	**
	Fujitsu	42T1465	R	**
	Seagate	42T1439	R	**
11	SATA hard disk drive, 200 GB (FDE), 9.5 mm, 5,400 rpm,HGST OP6378-CTO6379-CTO6480-CTO7658-CTO7659-CTO7660-CTO7661-CTO1959-CTO6377-CTO6481-CTO7662-CTO7663-CTO, 3Bx7664-CTO, 1Dx7665-CTO7732-CTO7733-CTO7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO7743-CTO7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO	42T1463R**
12	SATA solid state drive, 64 GB, Samsung6378-CTO6379-CTO6480-CTO7658-CTO, N6x, NEx7659-CTO7660-CTO, R1x, R3x, R7x7661-CTO1959-CTO6377-CTO6481-CTO7662-CTO, NPx7663-CTO7664-CTO7665-CTO	42T1898R**
13	1.8-inch - 2.5-inch storage converter•6378-CTO•6379-CTO•6480-CTO•7658-CTO, N6x, NEx•7659-CTO•7660-CTO, R1x, R3x, R7x•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO, NPx•7663-CTO•7664-CTO•7665-CTO	42W7888R**
14	Battery pack, Li-ion (4 cell, 2.6 Ah)6378-CTO, 1Xx6379-CTO, 1Xx6480-CTO, P1x, RSx7658-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, N5x, N6x, NKx, NLx, RUx, RVx, X2x, X4x, X8x, X9x7659-CTO, 11x, 12x, 13x, 14x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Qx, 2Ax, 2Bx, 2Mx, 2Px, 2Vx, 3Bx, P3x, P4x, P6x7660-CTO, 11x, 12x, 13x, P1x, RRx7661-CTO, 11x, 12x, 13x, 14x, 2Ax, 2Bx1959-CTO, 2Xx6377-CTO, 2Xx6481-CTO7662-CTO, 11x, 12x, 13x, 14x7663-CTO, 12x, 14x, 15x, 16x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Vx, 1Wx, 1Yx, 2Bx, 2Dx, 2Sx, 2Tx, 2Ux, 2Zx, 3Ax, 3Bx, 3Gx, 3Hx, 3Rx, 3Sx, PAx, PBx, PCx7664-CTO, 12x, 13x, 18x, 19x, R3x, RMx7665-CTO, 12x, 14x, 15x, 2Bx, 2Dx7732-CTO, 11x, 12x, 13x, 14x, 15x, 19x, 1Ex, 1Fx, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 2Ax, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px, 4Qx, 4Rx, 4Sx, 4Tx, 4Ux, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Kx, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Rx, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Jx, 8Mx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Yx, 8Zx, P1x, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BEx, BFx, BGx, BHx, BJx, BKx, C1x, C2x, C3x, C4x, C5x, C6x, C7x, C8x, CBx, CDx, CEx, CFx, CHx, CJx, CKx, CLx, CNx, CPx, CTx, CVx, N4x, N5x, NBx, NCx, NDx, NEx, P1x, X2x, X9x7733-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 1Ax, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Lx, 1Mx, 1Nx, 2Ax, 2Dx, 2Ex, 2Ux, N5x, N6x, P2x, P3x, P4x7734-CTO, 11x, 12x, 13x, 14x, 15x, N3x7735-CTO, 11x, 12x, 13x, 14x, 1Dx, 1Ex, 1Gx, 1Hx, 1Jx, 2Ux7736-CTO, 1Xx7737-CTO, 1Xx7738-CTO, 11x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Gx, 1Hx, 1Jx, 1Kx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Ux, 21x, P1x, P2x, P3x, P4x7742-CTO, 11x, 16x, 21x, 22x, 23x, 26x, 27x, 28x, 29x, 4Lx, 4Mx, 7Mx, 7Nx, 9Gx, 9Hx, 9Jx, 9Kx, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx7743-CTO, 11x, 13x, 14x, 17x, 18x, 19x, 1Gx, 1Hx, 1Jx, 1Lx, 1Mx, N3x, P1x, P2x, P3x, P4x, P5x, P6x, P7x7744-CTO7751-CTO, 11x, 12x, 1Gx, 1Hx, 1Jx7753-CTO, 2Xx7754-CTO, 2Xx7755-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 1Bx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, P1x, P2x, P3x,P4x,P5x	42T4552	R	*
	LG
	Panasonic

Table 36. Parts list—Overall (continued)

No.	FRU	FRU no.	RoHS ID	CRU ID
14	Battery pack, Li-ion (6 cell, 2.6 Ah)•6378-CTO•6379-CTO• 6480-CTO, P2x• 7658-CTO, N4x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx, NGx, NHx, NJx,X3x,X6x• 7659-CTO, 15x, 16x, 1Nx, 1Px, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Nx, 2Qx, 2Sx, 2Tx, 2Ux, 3Ax, N2x, N3x, P1x, P2x, P5x, P7x, P8x, P9x, R8x, R9x, RAx, RBx, RCx, RDx, REx, RFx, RGx, XAx• 7660-CTO, 14x, 15x, 16x, 18x, 1Ax, 1Bx, 1Dx, NWx, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RTx• 7661-CTO, 1Nx, 1Px, 2Sx, P1x, P2x, P3x, XAx•1959-CTO•6377-CTO• 6481-CTO, 1Ax, NRx, NSx, NTx, NUx, NVx, RRx,• 7662-CTO, 2Ax, 2Bx, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx, NRx, NTx, X1x,X5x,X7x• 7663-CTO, 11x, 13x, 17x, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Tx, 2Cx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Xx, 2Yx, 3Cx, 3Dx, 3Ex, 3Fx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, N1x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PDx, PEx, PFx, PGx, PHx, PJx, REx, RFx, RGx, RHx, RJx, RKx, RTx, RUx• 7664-CTO, 11x, 14x, 15x, 16x, 17x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, 21x, P1x, P2x, P3x, P4x,, R1x, R2x, R4x, R5x, R6x, R7x, R8x, RLx, RNx, RWx, RYx• 7665-CTO, 11x, 13x, 16x, 1Tx, 2Cx, 2Ex, 2Jx, P1x, P2x, P3x• 7732-CTO, 18x, 1Ax, 29x, 2Bx, 8Hx, 8Kx, 8Lx, 8Nx, BDx,C9x, CAx, CGx, N6x, N7x, N8x, N9x, NAx, X3x, X6x• 7733-CTO, 1Bx, 1Cx, 1Hx, 1Kx, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Xx, 2Yx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, N7x, N8x, N9x, P1x, PAx, PBx, XAx•7734-CTO• 7735-CTO, 1Bx, 1Cx, XAx•7736-CTO•7737-CTO• 7738-CTO, 22x, 23x, 1Lx, 1Vx• 7742-CTO, 12x, 24x, 25x, NAx, NBx, NCx, X1x, X7x• 7743-CTO, 12x, 15x, 1Kx, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 3Bx, P8x, N4x, N5x, N6x• 7744-CTO, 1Ax, P1x• 7751-CTO, 13x•7753-CTO•7754-CTO•7755-CTO	42T5262	R	*
	Sanyo		42T5264	R	*

Table 36. Parts list—Overall (continued)

No.	FRU	FRU no.	RoHS ID	CRU ID
14	Battery pack, Li-ion (7 cell, 2.6 Ah), Sanyo•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	42T5229R*
14	Battery pack, Li-ion (9 cell, 2.6 Ah)•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO
	Sanyo	42T4530	R	*
	Panasonic	42T4532	R	*
15	USB sub card (Iida)	41W1491	R	N
	USB sub card (Foxconn)	42T0112	R	N
16	DVD drive, 9.5 mm•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7655-CTO
	HLDS (GDR-8087N-C2)	39T2683	R	*
	PCC (UJDA775DVD)	39T2681	R	*
16	DVD/CD-RW combo drive, 9.5 mm6378-CTO, 1Xx6379-CTO6480-CTO, P1x, RSx,7658-CTO, 11x, 12x, 13x, 14x, 16x, 19x, N7x, N8x, N9x, NHx, NJx, X2x, X3x, X4x, X8x,X9x7659-CTO, 11x, 12x, 13x, 14x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Qx, 2Ax, 2Bx, 2Ux, 2Vx, 3Ax, 3Bx, N2x, P3x, REx, RFx, RGx7660-CTO, 11x, 13x, 18x, 1Ax, 1Bx, P1x7661-CTO, 11x, 12x, 14x, 1Nx, 1Px, 2Ax, 2Bx, 2Sx1959-CTO6377-CTO, 2Xx6481-CTO7662-CTO, 11x, 12x, X7x7663-CTO, 11x, 12x, 16x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Wx, 2Bx, 2Dx, 2Sx, 2Tx, 3Gx, 3Jx, 3Px, 3Rx, 3Sx, PAx7664-CTO, 1Tx, 1Xx, 1Yx7665-CTO, 11x, 12x, 15x, 2Bx, 2Dx, 3Jx
	HLDS (GCC-4247N-C2)	39T2687	R	*
	PCC (UJDA775) OP	39T2685	R	*
16	DVD-RAM/RW drive, 9.5 mm6378-CTO6379-CTO, 1Xx6480-CTO, P2x7658-CTO, 15x, 17x, 18x, N4x, N5x, N6x, NAx, NBx, NCx, NDx, NEx, NFx, NGx, NKx, NLx, RUx, RVx, X6x7659-CTO, 15x, 16x, 17x, 18x, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Nx, 2Px, 2Qx, 2Tx, N3x, P1x, P2x, P4x, P5x, P6x, P7x, P8x, P9x, R8x, R9x, RAx, RBx, RCx, RDx, 2Tx, XAx7660-CTO, 12x, 14x, 15x, 16x, 1Dx, NWx, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RRx, RTx7661-CTO, 13x, P1x, P2x, P3x, XAx1959-CTO, 2Xx6377-CTO6481-CTO, 1Ax, NRx, NSx, NTx, NUx, NVx, RRx7662-CTO, 13x, 14x, 2Ax, 2Bx, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx, NRx, NTx,X1x,X5x7663-CTO, 13x, 14x, 15x, 17x, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Vx, 1Yx, 2Cx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Px, 2Qx, 2Rx, 2Ux, 2Vx, 2Yx, 2Zx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Hx, 3Kx, 3Lx, 3Mx, 3Nx, N1x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx, REx, RFx, RGx, RHx, RJx, RKx, RTx, RUx7664-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 21x, P1x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, R8x, RLx, RMx, RNx, RWx, RYx7665-CTO, 13x, 14x, 16x, 1Tx, 2Cx, 2Ex, P1x, P2x, P3x
	HLDS (GSA-U10N)	39T2829	R	*
	PCC (UJ-852)	39T2851	R	*
	Optiarc (AD-7910A)	42T2501	R	*
16	Travel cover, 9.5 mm•6378-CTO•6379-CTO•6480-CTO, xxE, xxJ•7658-CTO, xxE, xxJ•7659-CTO, xxE, xxJ•7660-CTO, xxE, xxJ•7661-CTO, xxE, xxJ•1959-CTO•6377-CTO•6481-CTO, xxE, xxJ•7662-CTO, xxE, xxJ•7663-CTO, xxE, xxJ•7664-CTO, xxE, xxJ•7665-CTO, xxE, xxJ	13N5108R*
16	DVD drive, 12.7 mm•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO
	HLDS (GDR-T10N)	39T2665	R	*
	PCC (UJDA770DVD)	39T2817	R	*
16	DVD/CD-RW combo drive, 12.7 mm•7732-CTO, 13x, 14x, 19x, 2Cx, 2Dx, 4Qx, 4Ux, 7Dx, 7Ex, 7Fx, 8Px, 8Qx, 8Rx, 8Tx, 8Ux, 8Vx, 9Cx, 9Ex, BFx, BGx, CHx, CKx, X2x, X3x, X9x•7733-CTO, 11x, 12x, 17x, 18x, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Lx, 2Ax, 2Dx, 2Ex, 2Tx, 2Ux, 2Xx, 2Yx, 3Ax, 3Bx, 3Cx, 3Ex, 3Fx, 3Gx, N8x, P3x, PAx•7734-CTO•7735-CTO, 11x, 12x, 13x, 1Cx, 1Dx, 1Ex, 1Gx, 1Hx, 1Jx, 2Ux•7736-CTO•7737-CTO•7738-CTO, 16x, 17x, 18x, 19x, 1Ax, 1Hx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 21x, 22x, P1x,P3x•7742-CTO, 27x, 28x, 9Gx, 9Kx, BAx, BEx, BGx, BHx, X7x•7743-CTO, 11x, 13x, 19x, 1Gx, 1Hx, 1Jx, P6x•7744-CTO•7751-CTO, 11x, 1Gx, 1Hx, 1Jx•7753-CTO•7754-CTO•7755-CTO, 12x, 13x, 14x, 15x, 16x, 1Dx, 1Fx, P1x
	HLDS (GCC-T10N)	39T2669	R	*
	PCC (UJDA770)	39T2667	R	*
16	DVD-RAM/RW drive, 12.7 mm7732-CTO, 11x, 12x, 15x, 18x, 1Ax, 1Ex, 1Fx, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Px, 4Rx, 4Sx, 4Tx, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Kx, 7Ax, 7Bx, 7Cx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Rx, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Sx, 8Wx, 8Yx, 8Zx, 9Ax, 9Bx, 9Dx, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BHx, BJx, BKx, C1x, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CDx, CEx, CFx, CGx, CJx, CLx, CNx, CPx, CTx, CVx, N4x, N5x, N6x, N7x, N8x, N9x, NAx, P1x, X6x7733-CTO, 13x, 14x, 15x, 16x, 1Ax, 1Bx, 1Hx, 1Jx, 1Kx, 1Mx, 1Nx, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 3Dx, N5x, N6x, N7x, N9x, NBx, NCx, NDx, NEx, P1x, P2x, P4x, PBx, XAx7734-CTO, 11x, 12x, 13x, 14x, 15x, N3x7735-CTO, 14x, 1Bx, XAx7736-CTO, 1Xx7737-CTO, 1Xx7738-CTO, 11x, 1Bx, 1Cx, 1Gx, 1Jx, 1Sx, 1Tx, 1Ux, 1Vx, 23x, P2x, P4x7742-CTO, 11x, 12x, 16x, 21x, 22x, 23x, 24x, 25x, 26x, 29x, 4Lx, 4Mx, 7Mx, 7Nx, 9Hx, 9Jx, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BBx, BCx, BDx, BFx, BJx, NBx,NCx,X1x7743-CTO, 12x, 14x, 15x, 17x, 18x, 1Lx, 1Mx, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 3Bx, N3x, N4x, N5x, N6x, P1x, P2x, P3x, P4x, P5x, P7x7744-CTO, 1Ax, P1x7751-CTO, 12x, 13x7753-CTO, 2Xx7754-CTO, 2Xx7755-CTO, 17x, 1Bx, 1Ex, 1Gx, 1Hx, P2x, P3x, P4x, P5x
	HLDS (GMA-4082N-Z)	39T2723	R	*
	PCC (UJ-850 LSI)	39T2721	R	*
16	Blu-ray disc drive, 12.7 mm7732-CTO7733-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO, NAx7743-CTO, 1Kx, P8x7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO, 11x	39T2853R*
16	Travel cover, 12.7 mm• 7732-CTO, xxE, xxJ• 7733-CTO, xxE, xxJ• 7735-CTO, xxE, xxJ•7736-CTO•7737-CTO• 7738-CTO, xxE, xxJ• 7742-CTO, xxE, xxJ• 7743-CTO, xxE, xxJ•7744-CTO• 7751-CTO, xxE, xxJ•7753-CTO•7754-CTO• 7755-CTO, xxE, xxJ	13N5354R*
17	Hard disk drive cover assembly	44C4810	R	**
18	Base cover assembly for 1959
	World-wide•1959-CTO	42X3860RN
	Taiwan•1959-CTO	42X3874RN
18	Base cover assembly for 6377
	World-wide•6377-CTO	42X3859RN
	Taiwan•6377-CTO	42X3873RN
18	Base cover assembly for 6378
	World-wide•6378-CTO	42X3852RN
	Taiwan•6378-CTO	42X3866RN
18	Base cover assembly for 6379
	World-wide•6379-CTO	42X3853RN
	Taiwan•6379-CTO	42X3867RN
18	Base cover assembly for 6480
	World-wide• 6480-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3854RN
	Taiwan• 6480-CTO, xxV	42X3868RN
18	Base cover assembly for 7658
	World-wide• 7658-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3848RN
	Taiwan• 7658-CTO, xxV	42X3862RN
18	Base cover assembly for 7659
	World-wide• 7659-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3849RN
	Taiwan• 7659-CTO, xxV	42X3863RN
18	Base cover assembly for 7660
	World-wide• 7660-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3850RN
	Taiwan• 7660-CTO, xxV	42X3864RN
18	Base cover assembly for 7661
	World-wide• 7661-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3851RN
	Taiwan• 7661-CTO, xxV	42X3865RN
18	Base cover assembly for 6481
	World-wide• 6481-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3861RN
	Taiwan• 6481-CTO, xxV	42X3875RN
18	Base cover assembly for 7662
	World-wide• 7662-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3855RN
	Taiwan• 7662-CTO, xxV	42X3869RN
18	Base cover assembly for 7663
	World-wide• 7663-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3856RN
	Taiwan• 7663-CTO, xxV	42X3870RN
18	Base cover assembly for 7664
	World-wide• 7664-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3857RN
	Taiwan• 7664-CTO, xxV	42X3871RN
18	Base cover assembly for 7665
	World-wide• 7665-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3858RN
	Taiwan• 7665-CTO, xxV	42X3872RN
18	Base cover assembly for 7732
	World-wide• 7732-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3876RN
	Taiwan• 7732-CTO, xxV	42X3890RN
18	Base cover assembly for 7733
	World-wide• 7733-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3877RN
	Taiwan• 7733-CTO, xxV	42X3891RN
18	Base cover assembly for 7734
	World-wide• 7734-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3878RN
	Taiwan• 7734-CTO, xxV	42X3892RN
18	Base cover assembly for 7735
	World-wide• 7735-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3879RN
	Taiwan• 7735-CTO, xxV	42X3893RN
18	Base cover assembly for 7736
	World-wide• 7736-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3880RN
	Taiwan• 7736-CTO, xxV	42X3894RN
18	Base cover assembly for 7737
	World-wide• 7737-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3881RN
	Taiwan• 7737-CTO, xxV	42X3895RN
18	Base cover assembly for 7738
	World-wide• 7738-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3882RN
	Taiwan• 7738-CTO, xxV	42X3896RN
18	Base cover assembly for 7742
	World-wide• 7742-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3883RN
	Taiwan• 7742-CTO, xxV	42X3897RN
18	Base cover assembly for 7743
	World-wide• 7743-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3884RN
	Taiwan• 7743-CTO, xxV	42X3898RN
18	Base cover assembly for 7744
	World-wide• 7744-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3885RN
	Taiwan• 7744-CTO, xxV	42X3899RN
18	Base cover assembly for 7751
	World-wide• 7751-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3886RN
	Taiwan• 7751-CTO, xxV	42X3900RN
18	Base cover assembly for 7753
	World-wide• 7753-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3887RN
	Taiwan• 7753-CTO, xxV	42X3901RN
18	Base cover assembly for 7754
	World-wide• 7754-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3888RN
	Taiwan• 7754-CTO, xxV	42X3902RN
18	Base cover assembly for 7755
	World-wide• 7755-CTO, xxA, xxB, xxC, xxE, xxF, xxG, xxH, xxJ, xxK, xxL, xxM, xxP, xxQ, xxS, xxT, xxU, xxY	42X3889RN
	Taiwan• 7755-CTO, xxV	42X3903RN
19	PC Card/4-in-1 media reader slots bezel assembly•6378-CTO•6379-CTO•6480-CTO• 7658-CTO, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx• 7659-CTO, 1Nx, 1Px, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Nx, 2Sx, N2x, N3x, R8x, R9x, RAx, RBx, RCx, RDx, XAx• 7660-CTO, 18x, 1Ax, 1Bx, R2x, R3x, R5x• 7661-CTO, 1Nx, 1Px, 2Sx, XAx•1959-CTO•6377-CTO•6481-CTO• 7662-CTO, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx,X1x,X7x• 7663-CTO, 1Hx, 1Tx, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Xx, 2Yx, 3Cx, 3Dx, 3Fx, 3Jx, N1x, PAx, PBx, PCx, PDx, PEx, PHx, REx, RFx, RGx, RHx, RJx, RKx, RTx• 7664-CTO, 11x, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, P1x, R1x, R2x,R3x,R4x• 7665-CTO, 16x, 1Tx, 3Jx• 7732-CTO, 11x, 12x, 14x, 1Ex, 1Fx, 25x, 26x, 27x, 28x, 2Ax, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 6Kx, 6Ax, 6Cx, 6Dx, 6Ex, 6Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 8Gx, 8Jx, 8Mx, 8Yx, 8Zx, 9Ax, 9Bx, BCx, BDx, BEx, C1x, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CDx, CEx, CFx, CGx, CHx, CJx, N4x, N5x, N8x, N9x, NAx, NBx, NDx, NEx, P1x• 7733-CTO, 13x, 14x, 15x, 16x, 17x, 1Bx, 1Cx, 1Dx, 1Fx, 1Mx, 1Nx, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, P2x, XAx•7734-CTO• 7735-CTO, 12x, 1Bx, 1Cx, 1Dx, 1Jx, XAx•7736-CTO•7737-CTO• 7738-CTO, 16x, 17x, 18x, 19x, 1Bx, 1Cx, 1Hx, 1Ux, 1Vx• 7742-CTO, 11x, 12x, 16x, 24x, 25x, 26x, 27x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BEx, BFx, BGx, BHx, BJx, NAx, NBx, X1x, X7x• 7743-CTO, 12x, 14x, 15x, 17x, 18x, 1Kx, 1Lx, 1Mx, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, P7x, P8x, N3x,N4x•7744-CTO• 7751-CTO, 12x, 13x• 7753-CTO, 2Xx• 7754-CTO, 2Xx• 7755-CTO, 11x, 14x, 15x, 16x, 17x, 1Bx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, P1x, P2x, P3x, P4x, P5x	42W2518RN
19	PC Card/ExpressCard slots bezel assembly•6378-CTO• 6379-CTO, 1Xx• 6480-CTO, P1x, P2x, RSx• 7658-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, N4x, NGx, NHx, NJx, NKx, NLx, RUx, RVx, X3x, X4x,X8x,X9x• 7659-CTO, 13x, 14x, 15x, 17x, 18x, 19x, 1Ax, 1Cx, 1Dx, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Qx, 2Mx, 2Px, 2Qx, 2Tx, 2Ux, 2Vx, 3Ax, P1x, P2x, P3x, P4x, P5x, P6x, P9x, REx,RGx• 7660-CTO, 11x, 14x, 15x, 16x, 1Dx, P1x, P3x, R4x, R6x, R7x, RPx, RRx, RTx• 7661-CTO, P3x• 1959-CTO, 2Xx•6377-CTO• 6481-CTO, 1Ax, NRx, NSx, NTx, NUx, NVx, RRx• 7662-CTO, 11x, 12x, 13x, 14x, 2Ax, 2Bx, NRx, NTx• 7663-CTO, 14x, 15x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Vx, 1Wx, 1Yx, 2Zx, 3Ax, 3Bx, 3Ex, 3Gx, 3Hx, 3Kx, 3Lx, 3Mx, 3Nx, 3Sx, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PFx, PGx, PJx• 7664-CTO, 12x, 14x, 15x, 16x, 17x, 18x, 19x, 21x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, P4x, RLx, RMx, RNx, RWx, RYx, R5x, R6x, R7x, R8x• 7665-CTO, 14x, P3x,• 7732-CTO, 13x, 15x, 18x, 1Ax, 21x, 22x, 23x, 24x, 29x, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Px, 4Qx, 4Ux, 6Bx, 6Gx, 6Hx, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Px, 7Rx, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Hx, 8Kx, 8Lx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 9Cx, 9Dx, 9Ex, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BFx, BGx, BHx, BJx, BKx, CKx, CLx, CNx, CPx, CTx, CVx, N6x, N7x, NCx, X3x, X9x• 7733-CTO, 18x, 1Ax, 1Hx, 1Jx, 1Kx, 1Lx, 2Ax, 2Xx, 2Yx, 2Ux, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, N5x, N6x, N7x, N8x, N9x, P1x, P3x, P4x, PAx, PBx• 7734-CTO, 11x, 12x, 13x, 14x, 15x, N3x• 7735-CTO, 13x, 14x, 1Hx, 2Ux• 7736-CTO, 1Xx• 7737-CTO, 1Xx• 7738-CTO, 11x, 1Ax, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 21x, 22x, 23x, P1x, P2x, P3x, P4x• 7742-CTO, 21x, 22x, 23x, 28x, 29x, 4Lx, 4Mx, 7Mx, 7Nx, 9Gx, 9Kx, B1x, B2x, BDx, NCx• 7743-CTO, 13x, 2Jx, 2Kx, 3Bx, N6x, P1x, P2x, P3x, P4x,P5x,P6x• 7744-CTO, 1Ax, P1x•7751-CTO•7753-CTO•7754-CTO• 7755-CTO, 12x	42W2510RN
19	PC Card/Smart Card slots bezel assembly6378-CTO, 1Xx6379-CTO6480-CTO7658-CTO, X2x, X6x7659-CTO, 11x, 12x, 16x, 1Bx, 1Ex, 1Mx, 2Ax, 2Bx, 3Bx, P7x, P8x, RFx7660-CTO, 12x, 13x, NWx, P2x, P4x, R1x7661-CTO, 11x, 12x, 13x, 14x, 2Ax, 2Bx, P1x, P2x1959-CTO6377-CTO, 2Xx6481-CTO7662-CTO, X5x7663-CTO, 11x, 12x, 13x, 16x, 17x, 1Ex, 2Bx, 2Cx, 2Dx, 2Ex, 3Px, 3Rx, RUx7664-CTO, 13x, P2x, P3x7665-CTO, 11x, 12x, 13x, 15x, 2Bx, 2Cx, 2Dx, 2Ex, P1x, P2x7732-CTO, 19x, X2x, X6x7733-CTO, 11x, 12x, 1Ex, 1Gx, 3Fx, 3Gx7734-CTO7735-CTO, 11x, 1Ex, 1Gx7736-CTO7737-CTO7738-CTO7742-CTO7743-CTO, 11x, 19x, 1Gx, 1Hx, 1Jx7734-CTO7751-CTO, 11x, 1Gx, 1Hx, 1Jx, N5x7753-CTO7754-CTO7755-CTO, 13x	42W2513RN
19	PC Card blank bezel•6378-CTO•6379-CTO•6480-CTO• 7658-CTO, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx• 7659-CTO, 1Nx, 1Px, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Nx, 2Sx, N2x, N3x, R8x, R9x, RAx, RBx, RCx, RDx, XAx• 7660-CTO, 18x, 1Ax, 1Bx, R2x, R3x, R5x• 7661-CTO, 1Nx, 1Px, 2Sx, XAx•1959-CTO•6377-CTO•6481-CTO• 7662-CTO, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx,X1x,X7x• 7663-CTO, 1Hx, 1Tx, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Xx, 2Yx, 3Cx, 3Dx, 3Fx, 3Jx, N1x, PAx, PBx, PCx, PDx, PEx, PHx, REx, RFx, RGx, RHx, RJx, RKx, RTx• 7664-CTO, 11x, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, P1x, R1x, R2x,R3x,R4x• 7665-CTO, 16x, 1Tx, 3Jx• 7732-CTO, 11x, 12x, 14x, 1Ex, 1Fx, 25x, 26x, 27x, 28x, 2Ax, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 6Kx, 6Ax, 6Cx, 6Dx, 6Ex, 6Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 8Gx, 8Jx, 8Mx, 8Yx, 8Zx, 9Ax, 9Bx, BCx, BDx, BEx, C1x, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CDx, CEx, CFx, CGx, CHx, CJx, N4x, N5x, N8x, N9x, NAx, NBx, NDx, NEx, P1x• 7733-CTO, 13x, 14x, 15x, 16x, 17x, 1Bx, 1Cx, 1Dx, 1Fx, 1Mx, 1Nx, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, P2x, XAx•7734-CTO• 7735-CTO, 12x, 1Bx, 1Cx, 1Dx, 1Jx, XAx•7736-CTO•7737-CTO• 7738-CTO, 16x, 17x, 18x, 19x, 1Bx, 1Cx, 1Hx, 1Ux, 1Vx• 7742-CTO, 11x, 12x, 16x, 24x, 25x, 26x, 27x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BEx, BFx, BGx, BHx, BJx, X1x, X7x• 7743-CTO, 12x, 14x, 15x, 17x, 18x, 1Kx, 1Lx, 1Mx, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, P7x, P8x, N3x,N4x•7744-CTO• 7751-CTO, 12x, 13x• 7753-CTO, 2Xx• 7754-CTO, 2Xx• 7755-CTO, 11x, 14x, 15x, 16x, 17x, 1Bx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, P1x, P2x, P3x, P4x, P5x	42W2834RN
20	512-MB DDR2-667 SDRAM SO-DIMM (PC2-5300) card6378-CTO, 1Xx6379-CTO, 1Xx6480-CTO, RSx7658-CTO, 11x, 12x, 13x, 14x, 15x, 16x, N7x7659-CTO, 11x, 13x, 14x, 17x, 18x, 19x, 1Ax, 1Cx, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Qx, 2Px, 3Bx, P3x, P4x7660-CTO, 11x, 12x, 13x7661-CTO, 11x, 13x, 14x1959-CTO, 2Xx6377-CTO, 2Xx6481-CTO7662-CTO, 11x, 12x7663-CTO, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Kx, 1Lx, 1Mx,1Nx,3Sx7664-CTO, 11x, 12x, 13x7665-CTO, 14x, 15x, 16x7732-CTO, 11x, 13x, 14x, 15x, 18x, 1Ex, 1Fx, 4Gx, 4Hx, 4Jx, 4Px, 4Qx, 6Dx, 6Ex, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 8Yx,9Ax7733-CTO, 12x, 14x, 15x, 16x, 17x, 18x, 1Dx, 1Fx, 1Kx, 2Ax,3Cx7734-CTO7735-CTO, 12x, 13x, 1Dx7736-CTO, 1Xx7737-CTO, 1Xx7738-CTO, 16x, 17x, 18x, 19x, 1Ax, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx7742-CTO, 11x, 16x7743-CTO, 13x, 14x, 15x, 18x7744-CTO7751-CTO, 12x7753-CTO7754-CTO7755-CTO, 12x, 13x, 14x, 15x, 17x	40Y8402R**
20	1-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card•6378-CTO•6379-CTO• 6480-CTO, P1x, P2x• 7658-CTO, 17x, 18x, 19x, N4x, N5x, N6x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx, NGx, NHx, NJx, NKx, NLx, RUx, RVx, X2x, X3x, X4x, X6x, X8x, X9x• 7659-CTO, 12x, 15x, 16x, 1Bx, 1Dx, 1Ex, 1Mx, 1Nx, 1Px, 2Ax, 2Bx, 2Cx, 2Dx, 2Gx, 2Hx, 2Lx, 2Mx, 2Nx, 2Sx, 2Tx, 2Ux, 2Vx, 3Ax, 3Mx, N2x, N3x, P1x, P2x, P5x, P6x, P7x, P8x, P9x, R8x, RAx, RBx, RDx, REx, RFx,RGx,XAx• 7660-CTO, 14x, 18x, 1Ax, 1Bx, 1Dx, NWx, P1x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RRx,RTx• 7661-CTO, 12x, 1Nx, 1Px, 2Ax, 2Bx, 2Sx, P1x, P2x, P3x,XAx•1959-CTO•6377-CTO• 6481-CTO, 1Ax, NRx, NSx, NUx, RRx• 7662-CTO, 13x, 14x, 2Ax, 2Bx, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx, NRx, NTx, X1x, X5x, X7x• 7663-CTO, 11x, 12x, 13x, 16x, 17x, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Px, 1Rx, 1Sx, 1Tx, 1Vx, 1Wx, 1Yx, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Kx, 2Lx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Xx, 2Yx, 2Zx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Mx, 3Lx, 3Px, 3Rx, N1x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PAx, PBx, PCx, PDx, PEx, PFx, PGx, REx, RGx, RHx, RKx, RTx, RUx• 7664-CTO, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, 21x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, R8x, RMx, RWx, RYx• 7665-CTO, 11x, 12x, 13x, 1Tx, 2Bx, 2Cx, 2Dx, 2Ex, P1x,P2x,P3x(continued)	40Y8403R**
20(continued)		40Y8403R**
	1-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card• 7732-CTO, 12x, 19x, 1Ax, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx,, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 6Ax, 6Bx, 6Cx, 6Fx, 6Gx, 6Hx, 6Kx, 7Ax, 7Bx, 7Cx, 7Kx, 7Lx, 7Px, 7Rx, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Zx, 9Bx, 9Cx, 9Dx, 9Ex, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, C1x, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CDx, CEx, CFx, CGx, CHx, CJx, CKx, CLx, CNx, CPx, CTx, CVx, P1x, N4x, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, X2x, X3x, X6x, X9x• 7733-CTO, 11x, 13x, 1Bx, 1Cx, 1Gx, 1Ax, 1Ex, 1Hx, 1Jx, 1Lx, 1Mx, 1Nx, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Xx, 2Yx, 3Ax, 3Bx, 3Dx, 3Fx, 3Gx, 3Ex, N5x, N6x, N7x, N8x, N9x, P1x, P2x, P3x, P4x, PAx, PBx, XAx• 7734-CTO, 11x, 12x, 13x, 14x, 15x, N3x• 7735-CTO, 11x, 14x, 1Bx, 1Cx, 1Ex, 1Gx, 1Hx, 1Jx, 2Ux,XAx•7736-CTO•7737-CTO• 7738-CTO, 11x, 1Bx, 1Cx, 1Gx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Ux, 1Vx, 21x, 22x, 23x, P1x, P2x, P3x, P4x• 7742-CTO, 12x, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 4Lx, 4Mx, 7Mx, 7Nx, 9Gx, 9Hx, 9Jx, 9Kx, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, NAx, NBx, NCx, X1x,X7x• 7743-CTO, 11x, 12x, 17x, 19x, 1Gx, 1Hx, 1Jx, 1Lx, 1Mx, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 3Bx, N3x, N5x, N6x, N4x, P1x, P2x, P3x, P4x, P5x,P6x• 7744-CTO, 1Ax, P1x• 7751-CTO, 11x, 1Gx, 13x, 1Hx, 1Jx•7753-CTO•7754-CTO• 7755-CTO, 16x, 1Bx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, P1x, P2x, P3x, P4x, P5x
20	2-GB DDR2-667 SDRAM SO-DIMM (PC2-5300) card•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO, 2Ex, 2Fx, 2Jx, 2Kx, 2Qx, R9x, RCx•7660-CTO, 15x, 16x•7661-CTO•1959-CTO•6377-CTO•6481-CTO, NTx, NVx•7662-CTO•7663-CTO, 14x, 15x, 2Hx, 2Jx, 2Mx, 2Nx, 3Kx, 3Nx, PHx, PJx, RFx, RJx•7664-CTO, 1Fx, 1Gx, P1x, RLx, RNx•7665-CTO•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO, 1Kx, P7x, P8x•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO, 11x	40Y8404R**
21	System board assembly, Intel GMA X3100 GM965 without 1394 for R series•7732-CTO, 13x, 15x, 18x, 19x, 1Ax, 4Px, 4Qx, 4Ux, X9x•7733-CTO, 11x, 18x, 1Ax, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 2Ux,2Yx,2Xx•7734-CTO, 13x,•7735-CTO, 11x, 13x, 14x, 1Gx, 1Hx, 2Ux•7736-CTO, 1Xx•7737-CTO, 1Xx•7738-CTO, 11x, 1Ax, 1Gx, 1Jx, 1Kx, 1Lx	42W7842RN
21	System board assembly, Intel GMA X3100 GM965 without 1394 for R series•7732-CTO, N6x, N7x•7733-CTO, P3x, N1x, N7x, N8x, N9x•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO, 23x, P3x, P4x	42W7868RN
21	System board assembly, Intel GMA X3100 GM965 with 1394 for T series6378-CTO, 1Xx6379-CTO, 1Xx6480-CTO7658-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, X2x, X3x, X4x, X6x, X8x, X9x7659-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Qx, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Sx, 2Ux, 2Vx, 3Ax, 3Bx, XAx7660-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 18x, 1Ax, 1Bx, 1Dx7661-CTO, 11x, 12x, 13x, 14x, 1Nx, 1Px, 2Ax, 2Bx, 2Sx, XAx	41W1487RN
21	System board assembly, Intel GMA X3100 GM965 with 1394 for T series6378-CTO6379-CTO6480-CTO, P1x, P2x, RSx7658-CTO, N4x, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx, NGx, NHx, NJx, NKx, NLx,RUx,RVx7659-CTO, 2Tx, N2x, N3x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, R8x, R9x, RAx, RBx, RCx, RDx, REx,RFx,RGx7660-CTO, NWx, P1x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RRx, RTx7661-CTO, P1x, P2x, P3x	42W7866RN
21	System board assembly, Intel GMA X3100 GM965 with 1394 for R series7732-CTO, 11x, 12x, 14x, 1Ex, 1Fx, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 6Ax, 6Bx, 6Cx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Kx, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Rx, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Yx, 8Zx, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, BKx, C1x, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CDx, CEx, CFx, CGx, CHx, CJx, CKx, CLx, CNx, CPx, CTx, CVx, X2x, X3x, X6x7733-CTO, 12x, 13x, 14x, 15x, 16x, 17x, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Mx, 1Nx, 2Ax, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 3Ax, 3Bx,XAx7734-CTO, 11x, 12x, 14x, 15x7735-CTO, 12x, 1Bx, 1Cx, 1Dx, 1Ex, 1Jx, XAx7736-CTO7737-CTO7738-CTO, 16x, 17x, 18x, 19x, 1Bx, 1Cx, 1Hx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Ux, 1Vx, 21x	42W7843RN
21	System board assembly, Intel GMA X3100 GM965 with 1394 for R series7732-CTO, P1x, N4x, N5x, N8x, N9x, NAx, NBx, NCx,NDx,NEx7733-CTO, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, N5x, N6x, P1x, P2x, P4x, PAx, PBx7734-CTO, N3x7735-CTO7736-CTO7737-CTO7738-CTO, 22x, P1x, P2x	42W7869RN
21	System board assembly, nVIDIA Quadro NVS 140M for Tseries1959-CTO, 2Xx6377-CTO, 2Xx6481-CTO, 1Ax7662-CTO, 11x, 12x, 13x, 14x, 2Ax, 2Bx, X1x, X5x, X7x7663-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Yx, 1Vx, 1Wx, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Xx, 2Yx, 2Zx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Lx, 3Mx, 3Nx, 3Px, 3Rx, 3Sx7664-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, 21x7665-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 1Tx, 2Bx, 2Cx, 2Dx,2Ex,3Jx	41W1489RN
21	System board assembly, nVIDIA Quadro NVS 140M for Tseries1959-CTO6377-CTO6481-CTO, NRx, NSx, NTx, NUx, NVx, RRx7662-CTO, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx,NRx,NTx7663-CTO, 3Kx, N1x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx, REx, RFx, RGx, RHx, RJx, RKx, RTx, RUx7664-CTO, P1x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, R8x, RLx, RMx, RNx, RWx, RYx7665-CTO, P1x, P2x, P3x1959-CTO6377-CTO6481-CTO, NRx, NSx, NTx, NUx, NVx, RRx7662-CTO, NGx, NHx, NJx, NKx, Nlx, NMx, NNx, NPx7663-CTO, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, N1x, PAx, PBx, PCx, PDx, PEx, PFx, PGx, PHx, PJx, REx, RFx, RGx, RHx, RJx, RKx, RTx7664-CTO, P1x, P2x, P3x, P4x, RLx, RMx, RNx, RWx, RYx7665-CTO, P1x, P2x, P3x	44C3933RN
21	System board assembly, nVIDIA Quadro NVS 140M for Rseries7742-CTO, 11x, 12x, 16x, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 4Lx, 4Mx, 7Mx, 7Nx, 9Gx, 9Hx, 9Jx, 9Kx, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx, X1x, X7x7743-CTO, 11x, 12x, 13x, 14x, 15x, 17x, 18x, 19x, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 3Bx7744-CTO, 1Ax7751-CTO, 11x, 12x, 13x, 1Gx, 1Hx, 1Jx7753-CTO, 2Xx7754-CTO, 2Xx7755-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 1Bx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx	42W7844RN
21	System board assembly, nVIDIA Quadro NVS 140M for Rseries7742-CTO, NAx, NBx, NCx7743-CTO, 2Kx, N3x, N4x, N5x, N6x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x7744-CTO, P1x7751-CTO7753-CTO7754-CTO7755-CTO, P1x, P2x, P3x, P4x, P5x	44C3934RN
22	CPU assembly, Intel Core 2 Duo processor T5250 (1.5 GHz)7732-CTO, 4Ax, 4Bx, 4Cx, 4Gx, 4Jx, 6Ax, 6Bx, 6Kx, 7Ax, 7Bx, 7Cx, 7Dx, 7Gx, 7Jx, 8Lx, 8Tx, 8Ux,7733-CTO7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO7743-CTO7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO	42W7838RN
22	CPU assembly, Intel Core 2 Duo processor T5270 (1.4 GHz)6378-CTO6379-CTO6480-CTO7658-CTO, 16x, 19x7659-CTO7660-CTO7661-CTO1959-CTO6377-CTO6481-CTO7662-CTO7663-CTO7664-CTO7665-CTO7732-CTO, 9Ax7733-CTO7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO, 9Jx7743-CTO7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO	42W7856RN
22	CPU assembly, Intel Core 2 Duo processor T5450 (1.66 GHz)7732-CTO, 26x, 27x, 2Ax, 2Bx, 2Fx, 2Gx, 4Hx, 4Kx, 6Cx, 7Ex, 7Fx, 7Hx, 7Kx, 7Px, 7Rx, 8Cx, 8Dx, 8Mx, 8Nx,8Vx,8Wx7733-CTO7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO, 25x, 26x, 4Lx, 4Mx, 7Mx, 7Nx, 9Gx7743-CTO7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO	42W7839RN
22	CPU assembly, Intel Core 2 Duo processor T5470 (1.6 GHz)•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO•7732-CTO, 4Nx, 6Dx, 6Ex, 6Fx, 7Lx, 9Bx, 9Cx, 9Dx, 9Ex•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO, 9Kx•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	42W7840RN
22	CPU assembly, Intel Core 2 Duo processor T5550 (1.83 GHz)•7732-CTO, 2Hx, 2Mx, B6x, B7x, B8x, BDx, C4x, C5x, C8x•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO, B2x•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	43N7302RN
22	CPU assembly, Intel Core 2 Duo processor T5670 (1.8 GHz)•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO, 18x, 1Dx•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO, 1Px, 1Tx, 21x•7665-CTO•7732-CTO,•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	43N7741RN
22	CPU assembly, Intel Core 2 Duo processor T5750 (2.0 GHz)•7732-CTO, 2Jx, B4x, B5x, BEx, CGx•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO, 21x, 22x, 23x, 29x, B6x, B7x, B9x, BBx, BGx•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	42W7864RN
22	CPU assembly, Intel Core 2 Duo processor T5850 (2.16 GHz)•7732-CTO,•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO, B1x, BCx, BHx, BJx•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	43N7740RN
22	CPU assembly, Intel Core 2 Duo processor T5870 (2.0 GHz)•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO, 1Ax, 1Bx•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO, 1Rx, 1Xx, 1Yx•7665-CTO•7732-CTO,•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	43N7739RN
22	CPU assembly, Intel Core 2 Duo processor T7100 (1.8 GHz)6378-CTO, 1Xx6379-CTO6480-CTO7658-CTO, 11x, 12x, 13x, 14x, 15x, X2x, X9x7659-CTO, 11x, 13x, 17x, 18x, 19x, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Qx, 3Bx7660-CTO, 11x, 13x7661-CTO, 11x, 14x1959-CTO6377-CTO6481-CTO7662-CTO, 11x, 12x7663-CTO, 11x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Lx, 1Mx, 3Gx,3Px7664-CTO7665-CTO, 11x7732-CTO, 11x, 14x, 15x, 19x, 1Ax, 1Ex, 1Fx, 4Px, 4Qx, X2x,X9x7733-CTO, 12x, 14x, 15x, 16x, 17x, 18x, 1Dx, 1Hx, 1Jx, 1Kx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 3Ax7734-CTO, 11x, 12x, 13x7735-CTO, 12x, 13x, 1Dx, 1Jx7736-CTO, 1Xx7737-CTO, 1Xx7738-CTO, 16x, 17x, 1Jx, 1Kx7742-CTO7743-CTO, 13x, 14x, 15x, 18x7744-CTO7751-CTO, 12x7753-CTO7754-CTO7755-CTO, 12x, 13x, 14x	42W7654RN
22	CPU assembly, Intel Core 2 Duo processor T7250 (2.0 GHz)•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO, 2Cx, 2Dx, 2Gx, 2Hx, 2Lx, 2Mx, 2Nx, 2Px•7660-CTO, 15x, 16x•7661-CTO•1959-CTO•6377-CTO•6481-CTO, 1Ax•7662-CTO, 2Ax, 2Bx•7663-CTO, 2Fx, 2Gx, 2Kx, 2Lx, 2Px, 2Sx, 2Zx, 3Cx, 3Dx•7664-CTO•7665-CTO•7732-CTO, 4Rx, 4Sx, 4Tx•7733-CTO, 1Mx, 1Nx, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Mx, 2Nx•7734-CTO, 14x, 15x•7735-CTO•7736-CTO•7737-CTO•7738-CTO, 1Px, 1Rx, 1Sx, 1Ux•7742-CTO•7743-CTO, 1Lx, 1Mx, 2Ax, 2Bx, 2Ex, 2Fx•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO, 1Dx, 1Ex, 1Hx	42W7847RN
22	CPU assembly, Intel Core 2 Duo processor T7300 (2.0 GHz)6378-CTO6379-CTO, 1Xx6480-CTO7658-CTO, X3x, X4x, X6x, X8x7659-CTO, 12x, 14x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Mx, 1Nx, 1Px, 2Ax, 2Bx, XAx7660-CTO, 12x, 14x7661-CTO, 12x, 13x, 1Nx, 1Px, 2Ax, 2Bx, XAx1959-CTO6377-CTO, 2Xx6481-CTO7662-CTO, 13x, 14x, X7x7663-CTO, 12x, 16x, 1Dx, 1Kx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Wx, 2Bx, 2Dx, 3Fx, 3Rx, 3Sx7664-CTO, 13x, 14x, 15x, 16x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx7665-CTO, 12x, 15x, 1Tx, 2Bx, 2Dx7732-CTO, 12x, 13x, 18x, 4Ux, X3x, X6x7733-CTO, 11x, 13x, 1Ax, 1Bx, 1Cx, 1Ex, 1Gx, XAx7734-CTO7735-CTO, 11x, 14x, 1Bx, 1Cx, 1Ex, 1Gx, XAx7736-CTO7737-CTO7738-CTO, 11x, 18x, 19x, 1Ax, 1Bx, 1Gx7742-CTO, 11x, 16x, X7x7743-CTO, 11x, 19x, 1Gx, 1Hx, 1Jx7744-CTO7751-CTO, 11x, 1Gx, 1Hx, 1Jx7753-CTO, 2Xx7754-CTO, 2Xx7755-CTO, 15x, 16x, 17x	42W7655RN
22	CPU assembly, Intel Core 2 Duo processor T7500 (2.2 GHz)6378-CTO6379-CTO6480-CTO7658-CTO, 17x, 18x7659-CTO, 15x, 16x, 2Ex, 2Fx, 2Jx, 2Kx, 2Sx, 2Ux, 2Vx, 3Ax7660-CTO7661-CTO, 2Sx1959-CTO, 2Xx6377-CTO6481-CTO7662-CTO, X5x7663-CTO, 13x, 14x, 17x, 1Ex, 1Fx, 1Gx, 1Vx, 1Yx, 2Cx, 2Ex, 2Hx, 2Jx, 2Mx, 2Nx, 2Qx, 2Rx, 2Tx, 2Ux, 3Ax, 3Hx, 3Jx, 3Lx, 3Mx7664-CTO, 12x, 1Fx, 1Gx, 1Jx, 1Kx, 1Mx, 1Nx7665-CTO, 13x, 14x, 2Cx, 2Ex, 3Jx7732-CTO7733-CTO, 2Kx, 2Lx, 3Bx7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO, 1Cx, 1Tx7742-CTO, 12x7743-CTO, 12x, 17x, 2Cx, 2Dx, 2Gx, 2Hx, 2Jx, 3Bx7744-CTO, 1Ax7751-CTO, 13x7753-CTO7754-CTO7755-CTO, 11x, 1Bx, 1Fx, 1Gx
	G-0 Step	42W7849	R	N
	E-0 Step	42W7656	R	N
22	CPU assembly, Intel Core 2 Duo processor T7700 (2.4 GHz)6378-CTO6379-CTO6480-CTO7658-CTO7659-CTO7660-CTO7661-CTO1959-CTO6377-CTO6481-CTO7662-CTO, X1x7663-CTO, 15x, 1Hx, 1Jx, 2Vx, 2Xx, 3Bx, 3Nx7664-CTO, 11x7665-CTO, 16x7732-CTO7733-CTO7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO, X1x7743-CTO, 1Kx7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO
	G-0 Step	42W7850	R	N
	E-0 Step	42W7657	R	N
22	CPU assembly, Intel Core 2 Duo processor T7800 (2.6 GHz)•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	42W7848RN
22	CPU assembly, Intel Core 2 Duo processor T8100 (2.1 GHz)6378-CTO6379-CTO6480-CTO, P1x, P2x, RSx7658-CTO, N7x, NBx, NFx, NKx, NLx, RUx, RVx7659-CTO, P1x, P2x, P3x, P6x, P7x, R8x, RAx, RBx, RDx7660-CTO, NWx, P1x, P2x, R1x, R2x, R3x, R5x, RPx, RRx,RTx7661-CTO, P1x1959-CTO6377-CTO6481-CTO, NRx, RRx7662-CTO, NJx, NTx7663-CTO, P1x, P5x, PAx, PFx, REx, RGx, RHx, RKx7664-CTO, P2x, R6x, R8x, RYx7665-CTO, P1x7732-CTO, N4x, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx7733-CTO, 3Cx, 3Dx, 3Ex, N5x, N6x, N7x, N8x, N9x, P1x,P2x,P3x7734-CTO, N3x7735-CTO7736-CTO7737-CTO7738-CTO, 22x, 23x, P1x, P2x, P3x7742-CTO7743-CTO, P1x, P2x, P6x, N3x7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO, P1x, P2x,	42W7881RN
22	CPU assembly, Intel Core 2 Duo processor T8100 (2.1 GHz)Screened•6378-CTO•6379-CTO• 6480-CTO, P1x, P2x, RSx• 7658-CTO, N7x, NBx, NFx, NKx, NLx, RUx, RVx• 7659-CTO, P1x, P2x, P3x, P6x, P7x, R8x, RAx, RBx, RDx• 7660-CTO, NWx, P1x, P2x, R1x, R2x, R3x, R5x, RPx, RRx,RTx• 7661-CTO, P1x•1959-CTO•6377-CTO• 6481-CTO, NRx, RRx• 7662-CTO, NJx, NTx• 7663-CTO, P1x, P5x, PAx, PFx, REx, RGx, RHx, RKx• 7664-CTO, P2x, R6x, R8x, RYx• 7665-CTO, P1x• 7732-CTO, N4x, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx• 7733-CTO, 3Cx, 3Dx, 3Ex, N5x, N6x, N7x, N8x, N9x, P1x,P2x,P3x• 7734-CTO, N3x•7735-CTO•7736-CTO•7737-CTO• 7738-CTO, 22x, 23x, P1x, P2x, P3x•7742-CTO• 7743-CTO, P1x, P2x, P6x, N3x•7744-CTO•7751-CTO•7753-CTO•7754-CTO• 7755-CTO, P1x, P2x,	42W7964RN
22	CPU assembly, Intel Core 2 Duo processor T8300 (2.4 GHz)6378-CTO6379-CTO6480-CTO7658-CTO, N4x, N5x, N6x, N8x, N9x, NAx, NCx, NDx, NEx, NGx, NHx, NJx7659-CTO, 2Tx, 3Ax, N2x, P4x, P5x, P8x, R9x, RCx, REx,RFx,RGx7660-CTO, P3x, P4x, R4x, R6x, R7x7661-CTO, P2x1959-CTO6377-CTO6481-CTO, NSx, NUx7662-CTO, NKx, NLx, NMx, NNx, NPx7663-CTO, P2x, P6x, P7x, PBx, PCx, PGx, PHx, RFx, RJx,RUx7664-CTO, P1x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R7x, RLx, RMx, RNx, RWx7665-CTO, P2x7732-CTO, P1x7733-CTO, 3Gx, P4x, PAx, PBx7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO, P4x7742-CTO, NAx, NBx, NCx7743-CTO, 2Kx, N5x, N6x, N4x, P3x, P4x, P7x7744-CTO, P1x7751-CTO7753-CTO7754-CTO7755-CTO, P3x, P4x	42W7880RN
22	CPU assembly, Intel Core 2 Duo processor T8300 (2.4 GHz)Screened•6378-CTO•6379-CTO•6480-CTO•7658-CTO, N4x, N5x, N6x, N8x, N9x, NAx, NCx, NDx, NEx, NGx, NHx, NJx•7659-CTO, 2Tx, 3Ax, N2x, P4x, P5x, P8x, R9x, RCx, REx,RFx,RGx•7660-CTO, P3x, P4x, R4x, R6x, R7x•7661-CTO, P2x•1959-CTO•6377-CTO•6481-CTO, NSx, NUx•7662-CTO, NKx, NLx, NMx, NNx, NPx•7663-CTO, P2x, P6x, P7x, PBx, PCx, PGx, PHx, RFx, RJx,RUx•7664-CTO, P1x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R7x, RLx, RMx, RNx, RWx•7665-CTO, P2x•7732-CTO, P1x•7733-CTO, 3Gx, P4x, PAx, PBx•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO, P4x•7742-CTO, NAx, NBx, NCx•7743-CTO, 2Kx, N5x, N6x, N4x, P3x, P4x, P7x•7744-CTO, P1x•7751-CTO•7753-CTO•7754-CTO•7755-CTO, P3x, P4x	42W7963RN
22	CPU assembly, Intel Core 2 Duo processor T9300 (2.5 GHz)•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO, N3x, P9x•7660-CTO•7661-CTO, P3x•1959-CTO•6377-CTO•6481-CTO, NTx, NVx•7662-CTO, NGx, NHx, NRx•7663-CTO, 3Kx, N1x, P3x, P8x, P9x, PDx, PJx•7664-CTO•7665-CTO, P3x•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO, P5x, P8x•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO, P5x	42W7879RN
22	CPU assembly, Intel Core 2 Duo processor T9300 (2.5 GHz)Screened•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO, N3x, P9x•7660-CTO•7661-CTO, P3x•1959-CTO•6377-CTO•6481-CTO, NTx, NVx•7662-CTO, NGx, NHx, NRx•7663-CTO, 3Kx, N1x, P3x, P8x, P9x, PDx, PJx•7664-CTO•7665-CTO, P3x•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO, P5x, P8x•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO, P5x	42W7962RN
22	CPU assembly, Intel Core 2 Duo processor T9500 (2.6 GHz)•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO, P4x, PEx, RTx•7664-CTO•7665-CTO•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	42W7878RN
22	CPU assembly, Intel Core 2 Duo processor T9500 (2.6 GHz)Screened•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO, P4x, PEx, RTx•7664-CTO•7665-CTO•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	42W7961RN
22	CPU assembly, Intel Pentium Dual Core Processor T2310(1.46GHz)•7732-CTO, 8Gx, 8Hx, 8Px, 8Qx, 8Yx, 8Zx•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO, 9Hx•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	43N7304RN
22	CPU assembly, Intel Pentium Dual Core Processor T2330(1.6GHz)7732-CTO, 25x, 28x, 29x, 2Cx, 2Dx, 6Gx, 6Hx, 8Ax, 8Bx, 8Ex, 8Fx, 8Jx, 8Kx, 8Rx, 8Sx7733-CTO7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO, 24x, 28x7743-CTO7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO	43N7303RN
22	CPU assembly, Intel Pentium Dual Core Processor T2370(1.73GHz)7732-CTO, 21x, 22x, 23x, 24x, 2Ex, 2Kx, 2Lx, BFx, BGx, C1x, C2x, C6x, C7x, C9x, CAx7733-CTO,7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO, 27x, B3x, B4x7743-CTO7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO	42W7865RN
22	CPU assembly, Intel Pentium Dual Core Processor T2390(1.86GHz)7732-CTO, B1x, B2x, B3x, B9x, BAx, BBx, BCx, BHx, BJx, BKx, C3x, CBx, CEx, CFx, CHx7733-CTO7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO, B5x, B8x, BAx7743-CTO7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO	43N7738RN
22	CPU assembly, Intel Pentium Dual Core Processor T2410(2.0GHz)• 7732-CTO, CDx, CJx, CLx, CNx, CPx, CTx•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO• 7742-CTO, BDx, BEx, BFx•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	42W8046RN
22	Intel Celeron M processor 530 (1.73 GHz)•7732-CTO• 7733-CTO, 2Ax, 2Xx, 2Yx•7734-CTO•7735-CTO•7736-CTO•7737-CTO• 7738-CTO, 1Mx	43N7301RN
22	Intel Celeron M processor 540 (1.86 GHz)•7732-CTO• 7733-CTO, 1Lx, 2Ux•7734-CTO• 7735-CTO, 1Hx, 2Ux•7736-CTO•7737-CTO• 7738-CTO, 1Hx, 1Lx, 1Nx, 1Vx	41R7621RN
22	Intel Celeron M processor 550 (2.0 GHz)•7732-CTO• 7733-CTO, 1Fx•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO	42W7841RN
22	Intel Celeron M processor 560 (2.13 GHz)•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO• 7738-CTO, 21x	42W7895RN
22	Intel Celeron M processor 570 (2.26 GHz)•7732-CTO•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO	43N7743RN
22	Intel Celeron Dual Core processor T1400 (1.73 GHz)•7732-CTO• 7733-CTO, 1Fx•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO	43N7742RN
22	Intel Celeron Dual Core processor T1500 (1.86 GHz)• 7732-CTO, CKx, CVx•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO	42W8047RN
23	PC Card/ExpressCard slot•6378-CTO• 6379-CTO, 1Xx• 6480-CTO, P1x, P2x, RSx• 7658-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 18x, 19x, N4x, NGx, NHx, NJx, NKx, NLx, RUx, RVx, X3x, X4x,X8x,X9x• 7659-CTO, 13x, 14x, 15x, 17x, 18x, 19x, 1Ax, 1Cx, 1Dx, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Qx, 2Mx, 2Px, 2Qx, 2Tx, 2Ux, 2Vx, 3Ax, P1x, P2x, P3x, P4x, P5x, P6x, P9x, REx,RGx• 7660-CTO, 11x, 14x, 15x, 16x, 1Dx, P1x, P3x, R4x, R6x, R7x, RPx, RRx, RTx• 7661-CTO, P3x• 1959-CTO, 2Xx•6377-CTO• 6481-CTO, 1Ax, NRx, NSx, NTx, NUx, NVx, RRx• 7662-CTO, 11x, 12x, 13x, 14x, 2Ax, 2Bx, NRx, NTx• 7663-CTO, 14x, 15x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Vx, 1Wx, 1Yx, 2Zx, 3Ax, 3Bx, 3Ex, 3Gx, 3Hx, 3Kx, 3Lx, 3Mx, 3Nx, 3Sx, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PFx, PGx, PJx• 7664-CTO, 12x, 14x, 15x, 16x, 17x, 18x, 19x, 21x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, P4x, R5x, R6x, R7x, R8x, RLx, RMx, RNx, RWx, RYx• 7665-CTO, 14x, P3x,• 7732-CTO, 13x, 15x, 18x, 1Ax, 21x, 22x, 23x, 24x, 29x, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Px, 4Qx, 4Ux, 6Bx, 6Gx, 6Hx, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Px, 7Rx, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Hx, 8Kx, 8Lx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 9Cx, 9Dx, 9Ex, B1x, B2x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BFx, BGx, BHx, BJx, BKx, CKx, CLx, CNx, CPx, CVx, N6x, N7x, NCx, X3x, X9x• 7733-CTO, 18x, 1Ax, 1Hx, 1Jx, 1Kx, 1Lx, 2Ax, 2Xx, 2Yx, 2Ux, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, N5x, N6x, N7x, N8x, N9x, P1x, P3x, P4x, PAx, PBx• 7734-CTO, 11x, 12x, 13x, 14x, 15x, N3x• 7735-CTO, 13x, 14x, 1Hx, 2Ux• 7736-CTO, 1Xx• 7737-CTO, 1Xx• 7738-CTO, 11x, 1Ax, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 21x, 22x, 23x, P1x, P2x, P3x, P4x• 7742-CTO, 21x, 22x, 23x, 28x, 29x, 4Lx, 4Mx, 7Mx, 7Nx, 9Gx, 9Kx, B1x, B2x, BDx, NCx• 7743-CTO, 13x, 2Jx, 2Kx, 3Bx, N6x, P1x, P2x, P3x, P4x,P5x,P6x• 7744-CTO, 1Ax, P1x•7751-CTO•7753-CTO•7754-CTO• 7755-CTO, 12x	42X3827RN
23	PC Card/Smart Card slot6378-CTO, 1Xx6379-CTO6480-CTO7658-CTO, X2x, X6x7659-CTO, 11x, 12x, 16x, 1Bx, 1Ex, 1Mx, 2Ax, 2Bx, 3Bx, P7x, P8x, RFx7660-CTO, 12x, 13x, NWx, P2x, P4x, R1x7661-CTO, 11x, 12x, 13x, 14x, 2Ax, 2Bx, P1x, P2x1959-CTO6377-CTO, 2Xx6481-CTO7662-CTO, X5x7663-CTO, 11x, 12x, 13x, 16x, 17x, 1Ex, 2Bx, 2Cx, 2Dx, 2Ex, 3Px, 3Rx, RUx7664-CTO, 13x, P2x, P3x7665-CTO, 11x, 12x, 13x, 15x, 2Bx, 2Cx, 2Dx, 2Ex, P1x, P2x7732-CTO, 19x, X2x, X6x7733-CTO, 11x, 12x, 1Ex, 1Gx, 3Fx, 3Gx7734-CTO7735-CTO, 11x, 1Ex, 1Gx7736-CTO7737-CTO7738-CTO7742-CTO7743-CTO, 11x, 19x, 1Gx, 1Hx, 1Jx7734-CTO7751-CTO, 11x, 1Gx, 1Hx, 1Jx, N5x7753-CTO7754-CTO7755-CTO, 13x	42X3829RN
23	PC Card/4-in-1 media reader slot•6378-CTO•6379-CTO•6480-CTO• 7658-CTO, N5x, N6x, N7x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx• 7659-CTO, 1Nx, 1Px, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Nx, 2Sx, N2x, N3x, R8x, R9x, RAx, RBx, RCx, RDx, XAx• 7660-CTO, 18x, 1Ax, 1Bx, R2x, R3x, R5x• 7661-CTO, 1Nx, 1Px, 2Sx, XAx•1959-CTO•6377-CTO•6481-CTO• 7662-CTO, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx,X1x,X7x• 7663-CTO, 1Hx, 1Tx, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Xx, 2Yx, 3Cx, 3Dx, 3Fx, 3Jx, N1x, PAx, PBx, PCx, PDx, PEx, PHx, REx, RFx, RGx, RHx, RJx, RKx, RTx• 7664-CTO, 11x, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, P1x, R1x, R2x,R3x,R4x• 7665-CTO, 16x, 1Tx, 3Jx• 7732-CTO, 11x, 12x, 14x, 1Ex, 1Fx, 25x, 26x, 27x, 28x, 2Ax, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 6Kx, 6Ax, 6Cx, 6Dx, 6Ex, 6Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 8Gx, 8Jx, 8Mx, 8Yx, 8Zx, 9Ax, 9Bx, BCx, BDx, BEx, C1x, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CDx, CEx, CFx, CGx, CHx, CJx, N4x, N5x, N8x, N9x, NAx, NBx, NDx, NEx, P1x• 7733-CTO, 13x, 14x, 15x, 16x, 17x, 1Bx, 1Cx, 1Dx, 1Fx, 1Mx, 1Nx, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, P2x, XAx•7734-CTO• 7735-CTO, 12x, 1Bx, 1Cx, 1Dx, 1Jx, XAx•7736-CTO•7737-CTO• 7738-CTO, 16x, 17x, 18x, 19x, 1Bx, 1Cx, 1Hx, 1Ux, 1Vx• 7742-CTO, 11x, 12x, 16x, 24x, 25x, 26x, 27x, B3x, B4x, B5x, B6x, B7x, B8x, B9x, BAx, BBx, BCx, BEx, BFx, BGx, BHx, BJx, NAx, NBx, X1x, X7x• 7743-CTO, 12x, 14x, 15x, 17x, 18x, 1Kx, 1Lx, 1Mx, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, P7x, P8x, N3x,N4x•7744-CTO• 7751-CTO, 12x, 13x• 7753-CTO, 2Xx• 7754-CTO, 2Xx• 7755-CTO, 11x, 14x, 15x, 16x, 17x, 1Bx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, P1x, P2x, P3x, P4x, P5x	42X3831RN
24	Sierra Wireless EV-DO Wireless WAN Mini PCI Express Adapter•6378-CTO•6379-CTO•6480-CTO•7658-CTO, X4x•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO, R7x, RWx•7665-CTO	42T0987R**
24	Sierra Wireless EV-DO Wireless WAN Mini PCI Express Adapter•6378-CTO•6379-CTO•6480-CTO•7658-CTO,•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO	42T0897R**
24	Sierra Wireless MC8775 PCI Express MiniCard•6378-CTO•6379-CTO•6480-CTO•7658-CTO, X8x•7659-CTO, 2Lx, 2Vx, RAx, RDx•7660-CTO, 15x, 16x, RPx, RTx•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO, 12x, 14x•7663-CTO, 19x, 2Px 3Hx, 3Nx, P4x, PHx, RGx, RKx•7664-CTO, 1Ax•7665-CTO	42T0931R**
24	Sierra Wireless MC8775 PCI Express MiniCard•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO, X5x•7663-CTO•7664-CTO•7665-CTO	42T0999R**
24	Sierra Wireless HSDPA module (MC8775)•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO	42T0901R**
24	Intel Turbo Memory 1GB•6378-CTO•6379-CTO•6480-CTO•7658-CTO, 17x, X3x•7659-CTO, 2Ex, 2Jx, 2Mx, 2Qx, P5x, P9x, R9x, RCx•7660-CTO•7661-CTO, P3x•1959-CTO•6377-CTO•6481-CTO, NSx, NTx, NUx, NVx•7662-CTO, NTx•7663-CTO, 16x, 2Fx, 2Hx, 2Kx, 2Mx, 2Qx, 2Rx, 2Zx, 3Ax, 3Ex, 3Sx, P1x, P2x, P3x, P5x, P6x, P7x, P8x, P9x, PBx, PCx, PDx, PEx, PGx, PJx, REx, RFx, RHx, RJx, RTx•7664-CTO, 16x, 17x, 1Jx, 1Lx, 1Nx, P4x, R4x•7665-CTO, P3x•7732-CTO, X3x, P1x•7733-CTO, P4x•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO•7743-CTO, 19x, 1Hx, 1Kx, P7x, P8x•7744-CTO•7751-CTO, 1Hx•7753-CTO•7754-CTO•7755-CTO	42T0907R**
25	Thermal device and fan (Integrated) UBS for T series•6378-CTO•6379-CTO•6480-all•7658-all•7659-all•7660-all•7661-all
	Toshiba	42W2460	R	N
	Furukawa	44C0825	R	N
25	Thermal device and fan (Discrete) UBS for T series•1959-CTO•6377-CTO•6481-all•7662-all•7663-all•7664-all•7665-all
	Toshiba	42W2462	R	N
	Furukawa	44C0557	R	N
25	Thermal device and fan (Integrated) UBE for R series•7732-all•7733-all•7734-all•7735-all•7736-CTO•7737-CTO•7738-all	42W2676RN
25	Thermal device and fan (Discrete) UBE for R series•7742-all•7743-all•7744-all•7751-all•7753-CTO•7754-CTO•7755-all	42W2678RN
26	Keyboard (see "Keyboard" on page 218)
27	TrackPoint stick caps	91P9642	R	*
—	Thermal grease	91P8835	R	N
—	Telephone cable, RoHS	91P6915	R	*
—	AC adapter (see "AC adapters" on page 220)

LCDFRUs

In ThinkPad T61, R61, and R61i (14.1-inch widescreen), there are following types of LCDs.

• "14.1-in. WXGA 1F1" on page 199
- "14.1-in. WXGA+ TFT" on page 210

Exploded view diagram of a device showing 11 numbered components with dashed outlines for assembly or maintenance.

14.1-in.WXGATFT
Table 37. Parts list—14.1-in. WXGA TFT

No.	FRU	FRU no.	RoHS ID	CRU ID
1	LCD bezel assembly with camera•6378-CTO•6379-CTO•6480-CTO•7658-CTO• 7659-CTO, 2Sx, N2x, N3x, P2x•7660-CTO• 7661-CTO, 2Sx•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO• 7732-CTO, 28x, 29x, 2Ax, 2Bx, 6Kx, 8Bx, 8Cx, 8Dx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, B2x, B3x, B6x, B7x, B8x, B9x, BAx, BCx, BDx, BEx, C6x, C7x, C8x, C9x,CAx,CFx•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO• 7742-CTO, 21x, 22x, 23x, 26x, 29x, B2x, B8x, B9x•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	42X5059RN
1	LCD bezel assembly without camera6378-CTO, 1Xx6379-CTO, 1Xx6480-CTO, P1x, P2x, RSx7658-CTO, 13x, 14x, 15x, 16x, 17x, 18x, 19x, N4x, N5x, N6x, N7x, RUx, RVx, NKx, NLx, X2x, X4x, X8x, X9x7659-CTO, 11x, 12x, 13x, 17x, 18x, 19x, 1Ax, 1Ex, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Qx, 2Ax, 2Bx, 2Cx, 2Dx, 2Gx, 2Hx, 2Lx, 2Mx, 2Nx, 2Px, 2Ux, 2Vx, 3Ax, 3Bx, P1x, P3x, P4x, P6x, P7x, P8x, R8x, RAx, RBx, RDx, 2Tx, REx, RFx, RGx7660-CTO, 11x, 13x, 15x, 16x, 18x, 1Ax, 1Bx, 1Dx, NWx, P1x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RRx, RTx7661-CTO, 11x, 12x, 14x, 1Nx, 1Px, 2Ax, 2Bx, P1x P2x1959-CTO, 2Xx6377-CTO, 2Xx6481-CTO, RRx7662-CTO, 14x7663-CTO, 18x, 1Bx, 1Cx, 1Dx, 1Kx, 1Mx, 1Nx, 1Px, 2Fx, 2Gx, 2Kx, 2Lx, 2Px, 2Sx, 2Tx, 2Vx, P1x, P2x, PAx, PBx, PFx, REx, RGx, RHx, RKx, RUx7664-CTO, 12x, 13x, 15x, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, 21x, 1Ax,P2x7665-CTO, 14x, 15x, P1x(continued)	42X5060RN
1	(continued)LCD bezel assembly without camera7732-CTO, 11x, 13x, 14x, 15x, 18x, 19x, 1Ax, 1Ex, 1Fx, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Rx, 8Ax, 8Ex, 8Fx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Yx, 8Zx, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, B1x, B4x, BBx, BFx, BGx, BHx, BJx, BKx, C1x, C2x, C3x, C4x, C5x, CBx, CDx, CEx, CGx, CHx, CJx, CKx, CLx, CPx, CVx, N4x, N5x, N6x, N7x, NBx, NCx, NDx, NEx, P1x, X2x, X9x7733-CTO, 11x, 12x, 14x, 15x, 17x, 18x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Kx, 1Hx, 1Jx, 1Lx, 1Mx, 1Nx, 2Ax, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Ux, 2Yx, 2Xx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Gx, N1x, N7x, N8x, P1x, P3x, PAx7734-CTO, 11x, 12x, 13x, 14x, 15x, N3x7735-CTO, 11x, 12x, 13x, 14x, 1Ex, 1Gx, 1Hx, 1Bx, 1Cx, 1Dx,1Jx,2Ux7736-CTO, 1Xx7737-CTO, 1Xx7738-CTO, 16x, 17x, 18x, 19x, 1Hx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Ux, 1Vx, 21x, 22x, 23x, P1x, P2x, P3x7742-CTO, 16x, 24x, 25x, 27x, 28x, 9Gx, 9Hx, 9Kx, B4x, B7x, BAx, BBx, BCx, BEx, BFx, BGx, BHx, BJx7743-CTO, 13x, 14x, 1Lx, 1Mx, 2Ax, 2Bx, 2Ex, 2Fx7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO, 13x, 14x, 15x, 16x, 12x, 1Dx, 1Ex, 1Hx, P1x, P2x	42X5060RN
2	LCD cover kit with IBM logo6378-CTO6379-CTO1959-CTO6377-CTO7736-CTO7737-CTO7753-CTO7754-CTO	42W2442RN
2	LCD cover kit with ThinkPad logo (T series)6480-all7658-all7659-all7660-all7661-all6481-all7662-all7663-all7664-all7665-all	42X3846RN
2	LCD cover kit with ThinkPad logo (R series)•7732-all•7733-all•7734-all•7735-all•7738-all•7742-all•7743-all•7744-all•7751-all•7755-all	42X3847RN
3	Wireless LAN antenna kit•6378-CTO•6379-CTO•6480-all•7658-all•7659-all•7660-all•7661-all•1959-CTO•6377-CTO•6481-all•7662-all•7663-all•7664-all•7665-all•7732-all•7733-all•7734-all•7735-all•7736-CTO•7737-CTO•7738-all•7742-all•7743-all•7744-all•7751-all•7753-CTO•7754-CTO•7755-all
	Nissei	93P4557	R	N
	Foxconn	93P4395	R	N
3	Wireless WAN antenna kit•6378-CTO•6379-CTO•6480-CTO•7658-CTO, X4x, X8x•7659-CTO, 2Lx, 2Vx, RAx, RDx•7660-CTO, 15x, 16x, RPx•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO, 14x•7663-CTO, 2Px, RGx, RKx•7664-CTO, 1Ax•7665-CTO	93P4558RN
4	LCD magnesium structure frame assembly	42W2501	R	N
5Integratedcamera•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO, 2Sx, N2x, N3x, P2x•7660-CTO•7661-CTO, 2Sx•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO•7732-CTO, 28x, 29x, 2Ax, 2Bx, 6Kx, 8Bx, 8Cx, 8Dx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, B2x, B3x, B6x, B7x, B8x, B9x, BAx, BCx, BDx, BEx, C6x, C7x, C8x, C9x,CAx,CFx•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO•7742-CTO, 21x, 22x, 23x, 26x, 29x, B2x, B8x, B9x•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	42T3106RN
6	LCD cable assembly with camera and Bluetooth•6378-CTO•6379-CTO•6480-CTO•7658-CTO• 7659-CTO, 2Sx, N2x, N3x, P2x•7660-CTO• 7661-CTO, 2Sx•1959-CTO•6377-CTO•6481-CTO•7662-CTO•7663-CTO•7664-CTO•7665-CTO• 7732-CTO, 28x, 29x, 2Ax, 2Bx, 6Kx, 8Bx, 8Cx, 8Dx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, B2x, B3x, B6x, B7x, B8x, B9x, BAx, BCx, BDx, BEx, C6x, C7x, C8x, C9x,CAx,CFx•7733-CTO•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO• 7742-CTO, 29x•7743-CTO•7744-CTO•7751-CTO•7753-CTO•7754-CTO•7755-CTO	93P4376RN
6	LCD cable assembly without camera, withBluetooth•6378-CTO•6379-CTO• 6480-CTO, P1x, P2x• 7658-CTO, 13x, 14x, 15x, 16x, 17x, 18x, 19x, N4x, N5x, N6x, N7x, NKx, NLx, RUx, RVx, X2x, X4x, X8x, X9x• 7659-CTO, 11x, 12x, 13x, 17x, 18x, 19x, 1Ax, 1Ex, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Px, 1Qx, 2Ax, 2Bx, 2Cx, 2Dx, 2Gx, 2Hx, 2Lx, 2Mx, 2Nx, 2Px, 2Tx, 2Ux, 2Vx, 3Ax, 3Bx, P1x, P3x, P4x, P6x, P7x, P8x, R8x, RAx, RBx, RDx, REx, RFx, RGx• 7660-CTO, 11x, 13x, 15x, 16x, 18x, 1Ax, 1Bx, 1Dx, NWx, P1x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RRx, RTx• 7661-CTO, 11x, 12x, 14x, 1Nx, 1Px, 2Ax, 2Bx, P1x, P2x• 1959-CTO, 2Xx• 6377-CTO, 2Xx• 6481-CTO, RRx• 7662-CTO, 14x• 7663-CTO, 18x, 1Bx, 1Cx, 1Dx, 1Kx, 1Mx, 1Nx, 1Px, 2Fx, 2Gx, 2Kx, 2Lx, 2Px, 2Sx, 2Tx, 2Vx, P1x, P2x, PAx, PBx, REx, PFx, RGx, RHx, RKx, RUx• 7664-CTO, 12x, 13x, 15x, 1Ax, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, 21x,P2x• 7665-CTO, 14x, 15x, P1x• 7732-CTO, 11x, 13x, 14x, 15x, 18x, 19x, 1Ax, 1Ex, 1Fx, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 8Ax, 8Ex, 8Fx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Yx, 8Zx, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, B1x, B4x, BBx, BFx, BGx, BHx, BJx, BKx, C1x, C2x, C3x, C4x, C5x, CBx, CDx, CEx, CGx, CHx, CJx, CKx, CLx, CPx, CVx, N4x, N5x, N6x, N7x, NBx, NCx, NDx, NEx, P1x, X2x, X9x• 7733-CTO, 11x, 12x, 14x, 17x, 1Gx, 15x, 18x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 2Ax, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Yx, 2Xx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Gx, N1x, N7x, N8x, P1x, P3x, PAx• 7734-CTO, 11x, 12x, 13x, 14x, 15x, N3x• 7735-CTO, 11x, 12x, 13x, 14x, 1Bx, 1Cx, 1Dx, 1Ex, 1Gx, 1Hx,1Jx,2Ux• 7736-CTO, 1Xx• 7737-CTO, 1Xx• 7738-CTO, 16x, 17x, 18x, 19x, 1Hx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Ux, 1Vx, 21x, 22x, 23x, P1x, P2x, P3x• 7742-CTO, 16x, 24x, 25x, 27x, 28x, 9Gx, 9Hx, 9Kx, B4x, B7x, BAx, BBx, BCx, BEx, BFx, BGx, BHx, BJx• 7743-CTO, 13x, 14x, 1Lx, 1Mx, 2Ax, 2Bx, 2Ex, 2Fx, N5x,P6x•7744-CTO•7751-CTO•7753-CTO•7754-CTO• 7755-CTO, 12x, 13x, 14x, 15x, 16x, 1Dx, 1Ex, 1Hx, P1x, P2x	93P4391RN
7	Hinges (Kato)	42W2451	R	N
	Hinges (Reell)	42W2673	R	N
8	Inverter card (Foxconn)	41W1478	R	N
	Inverter card (Sumida)	41W1479	R	N
9	Bluetooth daughter card (BDC-2)6378-CTO6379-CTO6480-CTO, P1x, P2x7658-CTO, 14x, 16x, 17x, 18x, N4x, N5x, N6x, NLx, RVx, X2x, X4x, X8x, X9x7659-CTO, 11x, 12x, 18x, 1Ax, 1Ex, 1Jx, 1Mx, 1Px, 2Ax, 2Bx, 2Cx, 2Dx, 2Gx, 2Hx, 2Lx, 2Mx, 2Px, 2Sx, 2Tx, 2Ux, 2Vx, 3Bx, N2x, N3x, P1x, P2x, P4x, P7x, P8x, R8x, RAx, RBx, RDx, REx, RFx, RGx7660-CTO, 15x, 16x, 1Bx, 1Dx, NWx, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RRx, RTx7661-CTO, 11x, 12x, 1Px, 2Ax, 2Bx, 2Sx, P1x, P2x1959-CTO, 2Xx6377-CTO6481-CTO, RRx7662-CTO, 14x7663-CTO, 18x, 1Mx, 1Nx, 1Px, 2Fx, 2Gx, 2Kx, 2Lx, 2Px, 2Tx, 2Vx, P1x, P2x, PAx, PBx, PFx, REx, RGx, RHx,RKx,RUx7664-CTO, 12x, 13x, 15x, 1Ax, 1Px, 1Rx, 1Yx, 21x, P2x,7665-CTO, 14x, P1x7732-CTO, 11x, 15x, 18x, 19x, 1Ax, 1Ex, 1Fx, 21x, 22x, 23x, 24x, 25x, 26x, 27x, 28x, 29x, 2Ax, 2Bx, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 6Dx, 6Ex, 6Fx, 6Gx, 6Hx, 6Kx, 7Ax, 7Bx, 7Cx, 7Dx, 7Ex, 7Fx, 7Gx, 7Hx, 7Jx, 7Kx, 7Lx, 7Px, 7Rx, 8Ax, 8Bx, 8Cx, 8Dx, 8Ex, 8Fx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Yx, 8Zx, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, B1x, B2x, B3x, B4x, B6x, B7x, B8x, B9x, BAx, BCx, BDx, BEx, C1x, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CDx, CEx, CFx, CGx, CKx, CLx, CPx, CVx, P1x, N4x, N5x, N6x, N7x, X2x, X9x7733-CTO, 11x, 15x, 18x, 1Ax, 1Ex, 1Fx, 1Gx, 1Kx, 1Hx, 1Jx, 1Lx, 1Mx, 1Nx, 2Ax, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Ux, 2Yx, 2Xx, 3Gx, N7x, N8x, P1x, P3x7734-CTO, 11x, 12x, 13x, 14x, N3x7735-CTO, 11x, 13x, 14x, 1Ex, 1Gx, 1Hx, 2Ux7736-CTO, 1Xx7737-CTO, 1Xx7738-CTO, 19x, 22x, 23x, 1Hx, 1Px, 1Rx, 1Sx, 1Tx, 1Ux, P1x, P2x, P3x7742-CTO, 16x, 24x, 25x, 27x, 28x, 29x, 9Gx, 9Hx, 9Kx, B4x, B7x, BAx, BBx, BCx, BEx7743-CTO, 14x, 1Lx, 1Mx, 2Ax, 2Bx, 2Ex, 2Fx, N5x, P6x7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO, 15x, 16x, 1Hx, P1x, P2x	39T0497RN

Table 37. Parts list—14.1-in. WXGA TFT (continued)

No.	FRU	FRU no.	RoHS ID	CRU ID
10	LCD panel, 14.1-in. WXGA6378-CTO, 1Xx6379-CTO, 1Xx6480-CTO, P1x, P2x, RSx7658-CTO, 13x, 14x, 15x, 16x, 17x, 18x, 19x, N4x, N5x, N6x, N7x, NKx, NLx, RUx, RVx, X2x, X4x, X8x, X9x7659-CTO, 11x, 12x, 13x, 17x, 18x, 19x, 1Ax, 1Ex, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 1Px, 1Qx, 2Ax, 2Bx, 2Cx, 2Dx, 2Gx, 2Hx, 2Lx, 2Mx, 2Nx, 2Px, 2Sx, 2Tx, 2Ux, 2Vx, 3Ax, 3Bx, N2x, N3x, P1x, P2x, P3x, P4x, P6x, P7x, P8x, R8x, RAx, RBx, RDx, REx, RFx,RGx7660-CTO, 11x, 13x, 15x, 16x, 18x, 1Ax, 1Bx, 1Dx, NWx, P1x, P2x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RRx, RTx7661-CTO, 11x, 12x, 14x, 1Nx, 1Px, 2Ax, 2Bx, 2Sx, P1x, P2x1959-CTO, 2Xx6377-CTO, 2Xx6481-CTO, RRx7662-CTO, 14x7663-CTO, 18x, 1Bx, 1Cx, 1Dx, 1Kx, 1Mx, 1Nx, 1Px, 2Fx, 2Gx, 2Kx, 2Lx, 2Px, 2Sx, 2Tx, 2Vx, P1x, P2x, PAx, PBx, PFx, REx, RGx, RHx, RKx, RUx7664-CTO, 12x, 13x, 15x, 1Ax, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, 21x, P2x7665-CTO, 14x, 15x, P1x7732-CTO, 11x, 13x, 14x, 15x, 18x, 19x, 1Ax, 1Ex, 1Fx, 22x, 25x, 26x, 27x, 2Cx, 2Dx, 2Fx, 2Fx, 2Gx, 2Hx, 2Jx, 2Lx, 2Mx, 4Ax, 4Bx, 4Cx, 4Gx, 4Hx, 4Jx, 4Kx, 4Nx, 4Rx, 4Sx, 4Tx, 4Ux, 6Dx, 6Ex, 6Fx, 8Ax, 8Ex, 8Fx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Yx, 8Zx, 9Ax, 9Bx, 9Cx, 9Dx, 9Ex, B1x, B4x, BBx, BFx, BGx, BHx, BJx, BKx, C1x, C2x, C3x, C4x, C5x, CBx, CDx, CEx, CGx, CHx, CJx, CKx, CLx, CPx, CVx, N4x, N5x, N6x, N7x, NBx, NCx, NDx, NEx, P1x, X2x, X9x7733-CTO, 11x, 12x, 14x, 15x, 17x, 18x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, 2Ax, 2Dx, 2Ex, 2Fx, 2Gx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Ux, 2Yx, 2Xx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Gx, N7x, N8x, P1x, P3x,PAx7734-CTO, 11x, 12x, 13x, 14x, 15x, N3x7735-CTO, 11x, 12x, 13x, 14x, 1Bx, 1Cx, 1Dx, 1Ex, 1Gx, 1Hx, 1Jx, 2Ux7736-CTO, 1Xx7737-CTO, 1Xx7738-CTO, 16x, 17x, 18x, 19x, 1Hx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, 1Tx, 1Ux, 1Vx, 21x, 22x, 23x, P1x, P2x, P3x7742-CTO, 16x, 24x, 25x, 27x, 28x, 9Gx, 9Hx, 9Kx, B4x, B7x, BAx, BBx, BCx, BEx, BFx, BGx, BHx, BJx7743-CTO, 13x, 14x, 1Lx, 1Mx, 2Ax, 2Bx, 2Ex, 2Fx, N5x, P6x7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO, 13x, 14x, 15x, 16x, 12x, 1Dx, 1Ex, 1Hx, P1x, P2x
	200nit, AUO	42T0339	R	N
	185nit, CMO	42T0492	R	N
	185nit, LG-Display	42T0341	R	N
	185nit, LG-Display	42T0425	R	N
	185nit, Samsung	13N7102	R	N
	185nit, Samsung	42T0410	R	N
	185nit, Samsung	42T0581	R	N
No.	FRU	FRU no.	RoHS ID	CRU ID
10	LCD panel, 14.1-in. WXGA glossy7732-CTO, 21x, 23x, 24x, 28x, 29x, 2Ax, 2Bx, 6Gx, 6Hx, 6Kx, 8Bx, 8Cx, 8Dx, 8Gx, 8Hx, 8Jx, 8Kx, 8Lx, 8Mx, 8Nx, B2x, B3x, B6x, B7x, B8x, B9x, BAx, BCx, BDx, BEx, C6x, C7x, C8x, C9x, CAx, CFx7733-CTO7734-CTO7735-CTO7736-CTO7737-CTO7738-CTO7742-CTO, 21x, 22x, 23x, 26x, 29x, B2x, B8x, B9x7743-CTO7744-CTO7751-CTO7753-CTO7754-CTO7755-CTO
	185nit, LG-Display	42T0470	R	N
	185nit, Samsung	42T0466	R	N
11	Clear plate kit (T series)	42W2450	R	N
	Clear plate kit (R series)	42X4616	R	N

14.1-in.WXGA+TFT
Table 38. Parts list—14.1-in. WXGA+ TFT

No.	FRU	FRU no.	RoHS ID	CRU ID
1	LCD bezel assembly with camera•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO• 7662-CTO, NTx• 7663-CTO, 3Jx, N1x, P5x, P6x, P7x, P8x, P9x, PCx, PDx,PEx,RTx• 7664-CTO, R4x• 7665-CTO, 3Jx• 7732-CTO, 12x, 2Kx, 6Ax, 6Bx, 6Cx, B5x, CNx, CTx, N8x, N9x, NAx, X6x• 7733-CTO, 13x, 16x, N5x, N6x, P2x, PBx• 7734-CTO, N4x•7735-CTO•7736-CTO•7737-CTO• 7738-CTO, 1Bx, 1Cx• 7742-CTO, 4Lx, 4Mx, 7Mx, 7Nx, 9Jx, B1x, B3x, B5x, B6x, BDx, NBx, X1x• 7743-CTO, 15x, 17x, 1Kx, N3x, N4x, P1x, P2x, P3x, P4x, P5x, P7x, P8x• 7744-CTO, 1Ax•7751-CTO•7753-CTO•7754-CTO• 7755-CTO, 11x, 17x, 1Bx, 1Fx, 1Gx, P3x, P4x, P5x	42X5059RN
1	LCD bezel assembly without camera•6378-CTO•6379-CTO•6480-CTO• 7658-CTO, 11x, 12x, X3x, X6x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx, NGx, NHx, NJx• 7659-CTO, 14x, 15x, 16x, 1Bx, 1Cx, 1Dx, 1Fx, 1Gx, 2Ex, 2Fx, 2Jx, 2Kx, 2Qx, P5x, P9x, R9x, RCx, XAx• 7660-CTO, 12x, 14x• 7661-CTO, 13x, P1x, XAx•1959-CTO•6377-CTO• 6481-CTO, 1Ax, NRx, NSx, NTx, NUx, NVx• 7662-CTO, 11x, 12x, 13x, 2Ax, 2Bx, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx, NRx, X1x, X5x, X7x• 7663-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 19x, 1Ax, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Lx, 1Rx, 1Sx, 1Tx, 1Yx, 1Vx, 1Wx, 2Bx, 2Cx, 2Dx, 2Ex, 2Hx, 2Jx, 2Mx, 2Nx, 2Qx, 2Rx, 2Ux, 2x,x, 2Yx, 2Zx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Rx, 3Sx, P3x, P4x, PGx, PHx, PJx, RFx, RJx• 7664-CTO, 11x, 14x, 16x, 17x, 18x, 19x, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, P1x, P3x, P4x, RLx, RMx, RNx, RWx, RYx, R1x, R2x, R3x, R5x, R6x, R7x,R8x• 7665-CTO, 11x, 12x, 13x, 16x, 1Tx, 2Bx, 2Cx, 2Dx, 2Ex, P2x,P3x• 7732-CTO, X3x, 4Px, 4Qx• 7733-CTO, 3Fx, N9x, P4x, XAx•7734-CTO• 7735-CTO, XAx•7736-CTO•7737-CTO• 7738-CTO, 11x, 1Ax, 1Gx, 1Jx, 1Kx, 1Lx, P4x• 7742-CTO, 11x, 12x, NAx, NCx, X7x• 7743-CTO, 11x, 12x, 18x, 19x, 1Gx, 1Hx, 1Jx, 2Cx, 2Dx, 2Gx, 2Hx, 2Jx, 2Kx, 3Bx, N6x• 7744-CTO, P1x• 7751-CTO, 11x, 12x, 13x, 1Gx, 1Hx, 1Jx• 7753-CTO, 2Xx• 7754-CTO, 2Xx•7755-CTO	42X5060RN
2	LCD cover kit with IBM logo•6378-CTO•6379-CTO•1959-CTO•6377-CTO•7736-CTO•7737-CTO•7753-CTO•7754-CTO	42W2442RN
2	LCD cover kit with ThinkPad logo (T series)•6480-all•7658-all•7659-all•7660-all•7661-all•6481all•7662-all•7663-all•7664-all•7665-all	42X3846RN
2	LCD cover kit with ThinkPad logo (R series)•7732-all•7733-all•7734-all•7735-all•7738-all•7742-all•7743-all•7744-all•7751-all•7755-all	42X3847RN
3	Wireless LAN antenna kit•6378-CTO•6379-CTO•6480-all•7658-all•7659-all•7660-all•7661-all•1959-CTO•6377-CTO•6481-all•7662-all•7663-all•7664-all•7665-all•7732-all•7733-all•7734-all•7735-all•7736-CTO•7737-CTO•7738-all•7742-all•7743-all•7744-all•7751-all•7753-CTO•7754-CTO•7755-all
	Nissei	93P4557	R	N
	Foxconn	93P4395	R	N
3	Wireless WAN antenna kit•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO, 12x, X5x•7663-CTO, 19x, 3Hx, 3Nx, 3Sx, P4x, PHx•7664-CTO, R7x, RWx•7665-CTO	93P4558RN
4	LCD magnesium structure frame assembly	42W2501	R	N
5Integratedcamera•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO, NTx•7663-CTO, 3Jx, N1x, P5x, P6x, P7x, P8x, P9x, PCx, PDx,PEx,RTx•7664-CTO, R4x•7665-CTO, 3Jx•7732-CTO, 12x, 2Kx, 6Ax, 6Bx, 6Cx, B5x, CNx, CTx, N8x, N9x, NAx, X6x•7733-CTO, 13x, 16x, N5x, N6x, P2x, PBx•7734-CTO, N4x•7735-CTO•7736-CTO•7737-CTO•7738-CTO, 1Bx, 1Cx•7742-CTO, 4Lx, 4Mx, 7Mx, 7Nx, 9Jx, B1x, B3x, B5x, B6x, BDx, NBx, X1x•7743-CTO, 15x, 17x, 1Kx, N3x, N4x, P1x, P2x, P3x, P4x, P5x, P7x, P8x•7744-CTO, 1Ax•7751-CTO•7753-CTO•7754-CTO•7755-CTO, 11x, 17x, 1Bx, 1Fx, 1Gx, P3x, P4x, P5x	42T3106RN
6	LCD cable assembly with camera andBluetooth•6378-CTO•6379-CTO•6480-CTO•7658-CTO•7659-CTO•7660-CTO•7661-CTO•1959-CTO•6377-CTO•6481-CTO•7662-CTO, NTx•7663-CTO, 3Jx, N1x, P5x, P6x, P7x, P8x, P9x, PCx, PDx,PEx,RTx•7664-CTO, R4x•7665-CTO, 3Jx•7732-CTO, 12x, 2Kx, 6Ax, 6Bx, 6Cx, CNx, CTx, N8x, N9x,NAx,X6x•7733-CTO, 13x, 16x, N5x, N6x, P2x, PBx•7734-CTO•7735-CTO•7736-CTO•7737-CTO•7738-CTO, 1Bx, 1Cx•7742-CTO, 4Lx, 4Mx, 7Mx, 7Nx, 9Jx, B1x, B3x, B5x, B6x, BDx, NBx, X1x•7743-CTO, 15x, 17x, 1Kx, N3x, N4x, P1x, P2x, P3x, P4x, P5x, P7x, P8x•7744-CTO, 1Ax•7751-CTO•7753-CTO•7754-CTO•7755-CTO, 11x, 17x, 1Bx, 1Fx, 1Gx, P3x, P4x, P5x	93P4376RN
6	LCD cable assembly without camera, withBluetooth•6378-CTO•6379-CTO•6480-CTO• 7658-CTO, X3x, X6x, N8x, N9x, NAx, NCx, NDx, NEx, NFx, NGx, NHx, NJx• 7659-CTO, 14x, 15x, 16x, 1Bx, 1Dx, 2Ex, 2Fx, 2Jx, 2Kx, 2Qx, P5x, P9x, R9x, RCx, XAx• 7660-CTO, 12x, 14x• 7661-CTO, 13x, P3x, XAx•1959-CTO•6377-CTO• 6481-CTO, 1Ax, NRx, NSx, NTx, NUx, NVx• 7662-CTO, 11x, 12x, 13x, 2Ax, 2Bx, NGx, NHx, NKx, NLx, NMx, NNx, NPx, NRx, X1x, X5x, X7x• 7663-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 19x, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Rx, 1Sx, 1Tx, 1Yx, 1Vx, 1Wx, 2Bx, 2Cx, 2Dx, 2Ex, 2Hx, 2Jx, 2Mx, 2Nx, 2Qx, 2Rx, 2Ux, 2Xx, 2Yx, 3Cx, 3Dx, 3Ex, 3Fx, 3Hx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Rx, 3Sx, P3x, P4x, PGx, PHx, PJx, RFx, RJx• 7664-CTO, 11x, 14x, 16x, 17x, 18x, 19x, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, P1x, P3x, P4x, RLx, RMx, RNx, RWx, RYx, R1x, R2x, R3x, R5x, R6x, R7x,R8x• 7665-CTO, 11x, 12x, 13x, 16x, 1Tx, 2Bx, 2Cx, 2Dx, 2Ex, P2x,P3x• 7732-CTO, X3x, 4Px, 4Qx• 7733-CTO, 3Fx, N9x, P4x, XAx•7734-CTO• 7735-CTO, XAx•7736-CTO•7737-CTO• 7738-CTO, 11x, 1Ax, 1Gx, 1Jx, 1Kx, 1Lx, P4x• 7742-CTO, 11x, 12x, NAx, NCx, X7x• 7743-CTO, 11x, 12x, 18x, 19x, 1Gx, 1Hx, 1Jx, 2Cx, 2Dx, 2Gx, 2Hx, 2Jx, 2Kx, 3Bx, N6x• 7744-CTO, P1x• 7751-CTO, 11x, 12x, 13x, 1Cx, 1Hx, 1Jx• 7753-CTO, 2Xx• 7754-CTO, 2Xx•7755-CTO	93P4391RN
7	Hinges (Kato)	42W2451	R	N
	Hinges (Reell)	42W2673	R	N
8	Inverter card (Foxconn)	41W1478	R	N
	Inverter card (Sumida)	41W1479	R	N
9	Bluetooth daughter card (BDC-2)6378-CTO6379-CTO6480-CTO7658-CTO, X3x, X6x, N8x, N9x, NAx, NCx, NDx, NEx, NFx, NGx, NHx, NJx7659-CTO, 14x, 15x, 16x, 1Bx, 1Dx, 2Ex, 2Fx, 2Jx, 2Kx, 2Qx, P5x, P9x, R9x, RCx, XAx7660-CTO, 12x, 14x7661-CTO, 13x, XAx, P3x1959-CTO, 2Xx6377-CTO6481-CTO, 1Ax, NRx, NSx, NTx, NUx, NVx7662-CTO, 11x, 12x, 13x, 2Ax, 2Bx, NGx, NHx, NKx, NLx, NMx, NNx, NPx, NRx, NTx, X1x, X5x, X7x7663-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 19x, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Rx, 1Sx, 1Tx, 1Yx, 1Vx, 1Wx, 2Bx, 2Cx, 2Dx, 2Ex, 2Hx, 2Jx, 2Mx, 2Nx, 2Qx, 2Rx, 2Ux, 2Xx, 2Yx, 3Cx, 3Dx, 3Ex, 3Fx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Rx, 3Sx, N1x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PCx, PDx, PEx, PGx, PHx, PJx, RFx, RJx,RTx7664-CTO, 11x, 14x, 16x, 17x, 18x, 19x, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, P1x, P3x, P4x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, R8x, RLx, RMx, RNx,RWx,RYx7665-CTO, 11x, 12x, 13x, 16x, 1Tx, 2Bx, 2Cx, 2Dx, 2Ex, 3Jx,P2x,P3x7732-CTO, 12x, 2Kx, 4Px, 4Qx, 6Ax, 6Bx, 6Cx, B5x, CNx, CTx, N8x, N9x, NAx, X3x, X6x7733-CTO, 13x, 16x, 3Fx, N5x, N6x, N9x, P2x, P4x, PBx,XAx7734-CTO7735-CTO, XAx7736-CTO7737-CTO7738-CTO, 11x, 1Ax, 1Bx, 1Cx, 1Gx, 1Jx, 1Kx, 1Lx, P4x7742-CTO, 11x, 12x, 4Lx, 4Mx, 7Mx, 7Nx, 9Jx, B1x, B3x, B5x, B6x, BDx, NAx, NBx, NCx, X1x, X7x7743-CTO, 11x, 12x, 15x, 17x, 18x, 19x, 1Gx, 1Hx, 1Jx, 1Kx, 2Cx, 2Dx, 2Gx, 2Jx, 2Kx, 3Bx, P1x, P2x, P3x, P4x, P5x, P7x, P8x, N3x, N4x, N6x7744-CTO, 1Ax, P1x7751-CTO, 11x, 12x, 13x, 1Gx, 1Hx, 1Jx, N2x7753-CTO, 2Xx7754-CTO, 2Xx7755-CTO, 11x, 17x, 1Bx, 1Fx, 1Gx, P3x, P4x, P5x	39T0497RN

Table 38. Parts list—14.1-in. WXGA+ TFT (continued)

No.	FRU	FRU no.	RoHS ID	CRU ID
10	LCD panel, 14.1-in. WXGA+6378-CTO6379-CTO6480-CTO7658-CTO, 11x, 12x, X3x, X6x, N8x, N9x, NAx, NBx, NCx, NDx, NEx, NFx, NGx, NHx,NJx7659-CTO, 14x, 15x, 16x, 1Bx, 1Cx, 1Dx, 1Fx, 1Gx, 2Ex, 2Fx, 2Jx, 2Kx, 2Qx, P5x, P9x, R9x, RCx, XAx7660-CTO, 12x, 14x7661-CTO, 13x, P3x, XAx1959-CTO6377-CTO6481-CTO, 1Ax, NRx, NSx, NTx, NUx, NVx7662-CTO, 11x, 12x, 13x, 2Ax, 2Bx, NGx, NHx, NJx, NKx, NLx, NMx, NNx, NPx, NRx, NTx, X1x, X5x, X7x7663-CTO, 11x, 12x, 13x, 14x, 15x, 16x, 17x, 19x, 1Ax, 1Ex, 1Fx, 1Gx, 1Hx, 1Jx, 1Lx, 1Rx, 1Sx, 1Tx, 1Yx, 1Vx, 1Wx, 2Bx, 2Cx, 2Dx, 2Ex, 2Hx, 2Jx, 2Mx, 2Nx, 2Qx, 2Rx, 2Ux, 2Xx, 2Yx, 2Zx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Kx, 3Lx, 3Mx, 3Nx, 3Px, 3Rx, 3Sx, N1x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PCx, PDx, PEx, PGx, PHx, PJx, RFx, RJx, RTx7664-CTO, 11x, 14x, 16x, 17x, 18x, 19x, 1Bx, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Jx, 1Kx, 1Lx, 1Mx, 1Nx, P1x, P3x, P4x, RLx, RMx, RNx, RWx, RYx, R1x, R2x, R3x, R4x, R5x, R6x,R7x,R8x7665-CTO, 11x, 12x, 13x, 16x, 1Tx, 2Bx, 2Cx, 2Dx, 2Ex, 3Jx, 3Px, 3Rx, P2x, P3x7732-CTO, 12x, 2Kx, 4Px, 4Qx, 6Ax, 6Bx, 6Cx, B5x, CNx, CTx, N8x, N9x, NAx, X3x,X6x7733-CTO, 13x, 16x, 3Fx, P2x, P4x, N5x, N6x, N9x, PBx, XAx7734-CTO7735-CTO, XAx7736-CTO7737-CTO7738-CTO, 11x, 1Ax, 1Bx, 1Cx, 1Gx, 1Jx, 1Kx, 1Lx, P4x7742-CTO, 11x, 12x, 4Lx, 4Mx, 7Mx, 7Nx, 9Jx, B1x, B3x, B5x, B6x, BDx, NAx, NBx, NCx,X1x,X7x7743-CTO, 11x, 12x, 15x, 17x, 18x, 19x, 1Gx, 1Hx, 1Jx, 1Kx, 2Cx, 2Dx, 2Gx, 2Hx, 2Jx, 2Kx, 3Bx, N3x, N4x, N6x, P1x, P2x, P3x, P4x, P5x, P7x, P8x7744-CTO, 1Ax, P1x7751-CTO, 11x, 12x, 13x, 1Gx, 1Hx, 1Jx7753-CTO, 2Xx7754-CTO, 2Xx7755-CTO, 11x, 17x, 1Bx, 1Fx, 1Gx, P3x, P4x, P5x
	220nit, LG-Display	42T0406	R	N
	200nit LG-Display	42T0427	R	N
	200nit LG-Display	42T0579	R	N
	200nit, CMO	42T0453	R	N
	200nit, Samsung	13N7108	R	N
	200nit, Samsung	42T0412	R	N
	200nit, Samsung	42T0583	R	N
11	Clear plate kit (T series)	42W2450	R	N
	Clear plate kit (R series)	42X4616	R	N

Keyboard

LanguageP/N	(ALPS)	P/N(Chicony)	P/N(NMB)	RoHS ID	CRU ID
Arabic	42T3212	42T3276	42T3146	R	**
Belgian	42T3213	42T3277	42T3147
Brazilian Portuguese	42T3240	42T3304	42T3174
Canadian French (058)	42T3211	42T3275	42T3145
Canadian French (Acnor)	42T3210	42T3274	42T3144
Czech	42T3214	42T3278	42T3148
Danish	42T3215	42T3279	42T3149
Dutch	42T3223	42T3287	42T3157
Finnish, Swedish	42T3230	42T3294	42T3164
French	42T3217	42T3281	42T3151
German	42T3218	42T3282	42T3152
Greek (U.S. English and Greek layout)	42T3219	42T3283	42T3153
Hebrew	42T3221	42T3285	42T3155
Hungarian	42T3220	42T3284	42T3154
Icelandic	—	—	42T3175
Italian	42T3222	42T3286	42T3156
Japanese	42T3235	42T3299	42T3169
Kazakhstan	42T4137	42T4134	42T4131
Korean	42T3239	42T3303	42T3173
Latin American Spanish	42T3238	42T3302	42T3172
Norwegian	42T3224	42T3288	42T3158
Polish	42T3225	42T3289	42T3159
Portuguese	42T3226	42T3290	42T3160
Russian	42T3227	42T3291	42T3161
Slovak	42T3228	42T3292	42T3162
Slovenian	42T3229	42T3293	42T3163
Spanish	42T3216	42T3280	42T3150
Swiss	42T3231	42T3295	42T3165
Thai	42T3237	42T3301	42T3171
Traditional Chinese	42T3236	42T3300	42T3170
Turkish	42T3232	42T3296	42T3166
U.K. English	42T3233	42T3297	42T3167
U.S. English	42T3209	42T3273	42T3143
U.S. English (International, with a Euro symbol)	42T323442	329842T3168

Miscellaneousparts

Table 39. Parts list—Miscellaneous parts

FRUP/NRoHS		ID	CRU ID
Screw kit (including nylon-coated screws):M2 × 2 mm with washer, camera (2)M2 × 2.7 mm (black), flat head (4)M2 × 2.8 mm (silver), flat head (6)M2 × 3 mm (silver), small head (20)M2 × 3.5 mm (gold), flat head (10)M2 × 4 mm (black), bind head (6)M2 × 5 mm (black), flat head (8)M2 × 9.5 mm (black), bind head (10)M2 × 14 mm (black), flat head (8)M2 × 17 mm (8)M2.5 Hex stud (2)M2.5 × 4 mm, flat head (12)M2.5 × 6.5 mm, flat head (8)HDD screw M3 × 2.8 (black), flat head (4)M3 × 3 mm (2)M3 × 4 mm security hex socket (2)Screw cap (circle), dia 7 mmScrew cap (cube)	44C4809RN
SealkitTape, cable fixTape, cable fix 10 × 20Tape, cable circleTape, antenna cable (large)Tape, LCD FPC	42W7417RN
Wireless WAN shield kitPlate - modem card for wireless WANShield sheet - LCD for wireless WANGasket for wireless WANShield - antenna cable for wireless WANEMI tape - touch pad (left) for wireless WANTape - cable fix	42X3845RN
Basemiscellaneousparts:Foot rubber, frontFoot rubber, rearInsulation sheet 1, system boardInsulation sheet 2, system boardSlide lock, ejectBracket, pull leverPull lever, ejectCoil spring, pull leverCoil spring, slide leverCover, springKnob, wireless switchLever, wireless switchLens, optical drive LEDInsulation, system board cushionPlate, hard disk drive	42W2421RN
Systemmiscellaneousparts:(a) LCD FPC bracket(b) DC in cable(c) Modem cable assembly, MDC-1.5(d) Bracket, CPU support(e) Retainer, IEEE 1394(f) Fan bracket, NB(g) Fan bracket, VGADummy cover, IEEE 1394Thermal rubberSIM/battery blank coverCable protection bagNote:Italicized letters in parentheses are references to the exploded view in "Overall" on page 122	42W2435RN
System board miscellaneous parts:Insulation sheet, dockingInsulation sheet, front louverInsulation sheet, PC Card slotInsulation sheet, front topInsulation sheet, bottom CPUInsulation sheet, keyboard connector (left)Insulation sheet, NBShield sheet, DC DCInsulation sheet, bottom louverInsulation sheet, video	42W2417RN

ACadapters

Table 40. Parts list—AC adapters

FRUP/NRoHS		ID	CRU ID
2-pin (90 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU)
ASTEC	42T5000	R	*
Delta	42T5277	R	*
Lite-On	93P5026	R	*
Sanken	92P1114	R	*
2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxY, xxU)
ASTEC	92P1214	R	*
Delta	42T5282	R	*
Lite-On	92P1159	R	*
3-pin (90 W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV)OP
ASTEC	92P1104	R	*
Delta	42T5275	R	*
Lite-On	92P1108	R	*
Sanken	92P1112	R	*
3-pin (65W, 20 V) adapter (models CTO, xxA, xxB, xxC, xxG, xxH, xxK, xxM, xxT, xxV)OP
ASTEC	92P1212	R	*
Delta	42T5283	R	*
Lite-On	92P1157	R	*

Powercords

A ThinkPad power cord for a specific country or region is usually available only in that country or region:

Table 41. Parts list—2-pin power cords

RegionP/N	(Longwell)	P/N(Volex)	RoHS ID	CRU ID
Argentina• models -CTO, xxY	42T5020	42T5105	R	*
Brazil• models -CTO, xxP	42T518042T	5183
Canada,U.S.• models -CTO, xxF, xxL, xxS, xxU	42T500842T	5093
Japan• models -Exx, Jxx	42T501442T	5099

Table 42. Parts list—3-pin power cords

RegionP/N	(Longwell)	P/N(Volex)	RoHS ID	CRU ID
Australia,New Zealand• models -CTO, xxG, xxM	42T5050	42T5135	R	*
Bangladesh, Sri Lanka, South Africa• models -CTO, xxG	42T505642T5141
Canada,U.S.• models -CTO, xxF, xxL, xxS, xxU	42T500442T5089
China (P.R.C.) (other than Hong Kong S.A.R.)• models -xxC	42T506542T5150
Denmark• models -CTO, xxG	42T504142T5126
Europeancountries• models -CTO, xxG	42T502942T5114
India• models -CTO, xxG	42T508342T5168
Israel• models -CTO, xxG	42T506242T5147
Italy• models -CTO, xxG	42T504742T5132
Korea• models -xxK	42T507742T5162
Switzerland• models -CTO, xxG	42T504442T5129
Taiwan• models -CTO, xxV	42T507142T5156
U.K., China (Hong Kong S.A.R.)• models -CTO, xxB, xxG, xxH	42T503542T5120

Recoverydiscs

Windows XP Professional CDs for T61, R61, and R61i (some models)

Windows XP Professional is preinstalled as the operating system in the following models:

•6378-CTO

•6379-CTO

•6480-CTO

• 7658-CTO, 12x, 16x, 18x, N7x, N9x, NAx, NFx, NGx, NHx, RUx, RVx

- 7659-CTO, 1Gx, 1Hx, 1Jx, 2Ax, 2Bx, 2Dx, 2Fx, 2Hx, 2Kx, RBx, RCx, RDx, REx, RGx

- 7660-CTO, 16x

• 7661-CTO, 2Ax, 2Bx

•1959-CTO

•6377-CTO

• 6481-CTO, NUx, NVx

• 7662-CTO, NGx, NMx

• 7663-CTO, 18x, 19x, 2Bx, 2Cx, 2Dx, 2Ex, 2Gx, 2Jx, 2Lx, 2Nx, RHx, RJx, RKx

• 7664-CTO, 19x, 1Cx, 1Gx, 1Kx, R2x, R6x, RMx, RNx, RWx, RYx

• 7665-CTO, 2Bx, 2Cx, 2Dx, 2Ex

- 7732-CTO, 1Fx, 4Bx, 4Px, 4Qx, 4Tx, 7Bx, 7Px, 7Rx, 8Ax, 8Cx, N5x, N7x, N9x, NDx

• 7733-CTO, 17x, 18x, 1Ax, 1Ex, 1Hx, 1Kx, 2Ax, 2Gx, 2Jx, 2Kx, 2Nx, 2Yx, N8x

• 7734-CTO, 12x, 13x, N3x

• 7735-CTO, 12x, 13x, 14x, 1Ex

•7736-CTO

•7737-CTO

• 7738-CTO, 1Jx, 1Kx, 23x

•7742-CTO

• 7743-CTO, 12x, 1Jx, 2Bx, 2Dx, 2Fx, 2Hx

•7744-CTO

• 7751-CTO, 13x, 1Jx

- 7753-CTO, 2Xx

- 7754-CTO, 2Xx

•7755-CTO

Table 43. Parts list—Windows XP Professional recovery CDs for T61, R61, and R61i (some models)

LanguageP/NRoHS		ID	CRU ID
Arabic	44Y2612	R	*
BrazilianPortuguese44Y2601
Czech44Y2608
Danish44Y2606
Dutch44Y2607
English44Y2596
English (modem-disabled)	44Y2600
Finnish44Y2609
French44Y2597
German44Y2598
Greek	44Y2616
Hebrew	44Y2610
Hungarian	44Y2615
Italian	44Y2602
Japanese	44Y2603
Korean	44Y2620
Norwegian	44Y2604
Polish44Y2611
Russian	44Y2613
Russian (English-enabled)	44Y2622
Simplified Chinese	44Y2617
Slovenian	44Y2621
Spanish	44Y2599
Swedish	44Y2605
Traditional Chinese	44Y2618
Traditional Chinese (Hong Kong S.A.R.)	44Y2619
Turkish	44Y2614

Windows XP Professional CDs for R61i (some models)

Windows XP Professional is preinstalled as the operating system in the following models:

• 7732-CTO, 2Fx, 2Kx, 2Lx, 2Mx
•7733-CTO
•7734-CTO
•7735-CTO
•7736-CTO
•7737-CTO
•7738-CTO
•7742-CTO
•7743-CTO
•7744-CTO
•7751-CTO
•7753-CTO
•7754-CTO
•7755-CTO

Table 44. Parts list—Windows XP Professional recovery CDs for R61i (some models)

LanguageP/NRoHS		ID	CRU ID
Arabic	44Y2938	R	*
BrazilianPortuguese44Y2927
Czech44Y2934
Danish44Y2932
Dutch44Y2933
English	44Y2922
English (modem-disabled)	44Y2926
Finnish	44Y2935
French	44Y2923
German	44Y2924
Greek	44Y2942
Hebrew	44Y2936
Hungarian	44Y2941
Italian	44Y2928
Korean	44Y2946
Norwegian	44Y2930
Polish44Y2937
Russian	44Y2939
Russian (English-enabled)	44Y2948
Simplified Chinese	44Y2943
Slovenian	44Y2947
Spanish	44Y2925
Swedish	44Y2931
Traditional Chinese	44Y2944
Traditional Chinese (Hong Kong S.A.R.)	44Y2945
Turkish	44Y2940

Windows Vista Home Basic (32 bit) DVDs for T61, R61, and R61i (somemodels)

Windows Vista Home Basic (32 bit) is preinstalled as the operating system in the following models:

•6378-CTO

•6379-CTO

•6480-CTO

•7658-CTO

•7659-CTO

- 7660-CTO, 12x, 13x

- 7661-CTO, 13x, 14x

•1959-CTO

•6377-CTO

•6481-CTO

•7662-CTO

•7663-CTO

•7664-CTO

•7665-CTO

• 7732-CTO, 4Gx, 4Jx, 7Dx, 7Ex, 7Fx, 7Gx, 7Jx,

• 7733-CTO, 12x, 1Dx, 1Fx, 1Nx, 2Qx, 2Sx, 2Tx, N5x

•7734-CTO

• 7735-CTO, 1Dx, 1Jx

•7736-CTO

•7737-CTO

• 7738-CTO, 16x, 18x, 21x, 1Hx, 1Mx, 1Nx, 1Px, 1Rx, 1Sx, P1x, P2x

•7742-CTO

•7743-CTO

•7744-CTO

•7751-CTO

•7753-CTO

•7754-CTO

• 7755-CTO, 12x, 13x, 14x, 15x, 1Dx, 1Ex, 1Fx, P1x, P2x, P3x

Table 45. Parts list—Windows Vista Home Basic (32 bit) DVDs for T61, R61, and R61i (somemodels)

LanguageP/NRoHS		ID	CRU ID
Brazilian Portuguese	46V0878	R	*
Czech46V0885
Danish46V0883
Dutch46V0884
English46V0872
English (modem-disabled)	46V0874
Finnish46V0886
French46V0875
German46V0876
Greek46V0891
Hebrew	46V0897
Hungarian	46V0890
Italian	46V0879
Japanese	46V0880
Korean	46V0895
Norwegian	46V0881
Polish46V0887
Russian	46V0888
Russian (English-enabled)	46V0873
Simplified Chinese	46V0892
Slovenian	46V0896
Spanish	46V0877
Swedish	46V0882
Traditional Chinese	46V0893
Traditional Chinese (Hong Kong S.A.R.)	46V0894
Turkish	46V0889

Windows Vista Home Basic (32 bit) DVDs for R61i (some models)

Windows Vista Home Basic (32 bit) is preinstalled as the operating system in the following models:

- 7732-CTO, 25x, 26x, 27x, 2Cx, 2Dx, 2Ex, 2Gx, 2Hx, 2Jx, 6Dx, 8Px, 8Qx, 8Rx, 8Sx, 8Tx, 8Ux, 8Vx, 8Wx, 8Yx, 9Ax, 9Cx, 9Dx, 9Ex, BFx, BGx, BHx, BJx, BKx, C1x, C4x, CBx, CDx, CGx, CHx, CJx

•7733-CTO

•7734-CTO

•7735-CTO

•7736-CTO

•7737-CTO

•7738-CTO

- 7742-CTO, 24x, 25x, 27x, 28x, 9Gx, 9Hx, 9Kx, B3x, B6x, BAx, BBx, BCx, BDx, BEx, BFx, BGx, BHx, BJx

•7743-CTO

•7744-CTO

•7751-CTO

•7753-CTO

•7754-CTO

•7755-CTO

Table 46. Parts list—Windows Vista Home Basic (32 bit) DVDs for R61i (some models)

LanguageP/NRoHS		ID	CRU ID
Brazilian Portuguese	46V0793	R	*
Czech46V0799
Danish46V0797
Dutch46V0798
English46V0787
English (modem-disabled)	46V0789
Finnish46V0800
French46V0790
German46V0791
Greek46V0805
Hebrew	46V0811
Hungarian	46V0804
Italian	46V0794
Korean	46V0809
Norwegian	46V0795
Polish46V0801
Russian	46V0802
Russian, English enabled	46V0788
Simplified Chinese	46V0806
Slovenian	46V0810
Spanish	46V0792
Swedish	46V0796
Traditional Chinese	46V0807
Traditional Chinese (Hong Kong S.A.R.)	46V0808
Turkish	46V0803

Windows Vista Home Premium (32 bit) DVDs for T61, R61, and R61i(somemodels)

Windows Vista Home Premium (32 bit) is preinstalled as the operating system in the following models:

• 6378-CTO, 1Xx
  •6379-CTO
• 6480-CTO, NRx
  • 7658-CTO, N4x, N5x, N6x, NBx, NCx

•7659-CTO

•7660-CTO

•7661-CTO

• 1959-CTO, 2Xx

- 6377-CTO, 2Xx

• 6481-CTO, 1Ax, NRx

• 7662-CTO, 2Ax, 2Bx, NJx, NKx, NTx

•7663-CTO

• 7664-CTO, 12x, 13x

• 7665-CTO, 14x, 15x

• 7732-CTO, 1Ax, 4Hx, 4Kx, 4Nx, 7Hx, 7Kx, 7Lx, N8x

• 7733-CTO, 13x, 15x, 16x

•7734-CTO

•7735-CTO

•7736-CTO

•7737-CTO

• 7738-CTO, 17x, 19x, 1Ax, 1Bx, 1Cx
• 7742-CTO, 4Lx, 7Mx
• 7743-CTO, 13x, 15x, 17x, 1Lx, P1x, P3x

•7744-CTO

•7751-CTO

•7753-CTO

•7754-CTO

• 7755-CTO, 16x, 17x, 1Bx, 1Gx, P4x, P5x

Table 47. Parts list—Windows Vista Home Premium (32 bit) DVDs for T61, R61, and R61i (somemodels)

LanguageP/NRoHS		ID	CRU ID
Brazilian Portuguese	46V0848	R	*
Czech46V0855
Danish46V0853
Dutch46V0854
English46V0842
English (modem-disabled)	46V0844
Finnish46V0856
French46V0845
German46V0846
Greek46V0861
Hebrew	46V0867
Hungarian	46V0860
Italian	46V0849
Japanese	46V0850
Korean	46V0865
Norwegian	46V0851
Polish46V0857
Portuguese	46V0869
Romanian	46V0868
Russian	46V0858
Russian (English-enabled)	46V0843
Serbian-Latin	46V0870
Simplified Chinese	46V0862
Slovak	46V0871
Slovenian	46V0866
Spanish	46V0847
Swedish	46V0852
Traditional Chinese	46V0863
Traditional Chinese (Hong Kong S.A.R.)	46V0864
Turkish	46V0859

Windows Vista Home Premium (32 bit) DVDs for R61i (some models)

Windows Vista Home Premium (32 bit) is preinstalled as the operating system in the following models:

- 7732-CTO, 21x, 23x, 24x, 28x, 2Ax, 6Ax, 6Cx, 6Fx, 6Gx, 6Kx, 8Fx, 8Gx, 8Jx, 8Mx, 9Bx, B3x, BCx, BEx, C3x, C6x, C7x, C8x, CNx, CTx

•7733-CTO

•7734-CTO

•7735-CTO

•7736-CTO

•7737-CTO

•7738-CTO

• 7742-CTO, 21x, 22x, 26x, 9Jx, B5x, B8x, B9x

•7743-CTO

•7744-CTO

•7751-CTO

•7753-CTO

•7754-CTO

•7755-CTO

Table 48. Parts list—Windows Vista Home Premium (32 bit) DVDs for R61i (some models)

LanguageP/NRoHS		ID	CRU ID
Brazilian Portuguese	46V0764	R	*
Czech46V0770
Danish46V0768
Dutch46V0769
English46V0758
English (modem-disabled)	46V0760
Finnish46V0771
French46V0761
German46V0762
Greek46V0776
Hebrew	46V0782
Hungarian	46V0775
Italian	46V0765
Korean	46V0780
Norwegian	46V0766
Polish46V0772
Portuguese	46V0784
Romanian	46V0783
Russian	46V0773
Russian (English-enabled)	46V0759
Serbian-Latin	46V0785
Simplified Chinese	46V0777
Slovak	46V0786
Slovenian	46V0781
Spanish	46V0763
Swedish	46V0767
Traditional Chinese	46V0778
Traditional Chinese (Hong Kong S.A.R.)	46V0779
Turkish	46V0774

Windows Vista Business (32 bit) DVDs for T61, R61, and R61i (somemodels)

Windows Vista Business (32 bit) is preinstalled as the operating system in the following models:

•6378-CTO

•6379-CTO

• 6480-CTO, P1x, P2x, RSx

- 7658-CTO, 13x, 14x, 15x, 17x, 19x, N8x, NDx, NEx, NJx, NKx, NLx, X2x, X4x, X8x,X9x

- 7659-CTO, 11x, 12x, 13x, 17x, 18x, 19x, 1Ax, 1Bx, 1Cx, 1Dx, 1Ex, 1Kx, 1Mx, 1Nx, 1Px, 1Qx, 2Cx, 2Ex, 2Gx, 2Jx, 2Mx, 2Nx, 2Px, 2Qx, 2Sx, 2Vx, 3Bx, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, R8x, R9x, RAx, RFx, N2x, N3x, XAx

- 7660-CTO, 14x, 15x, 18x, 1Ax, 1Bx, 1Dx, NWx, P1x, P2x, P3x, R1x, R2x, R3x, R4x, R5x, R6x, R7x, RPx, RRx, RTx

• 7661-CTO, 11x, 12x, 1Nx, 1Px, 2Sx, P1x, P2x, XAx

•1959-CTO

•6377-CTO

• 6481-CTO, NSx, NTx, RRx

• 7662-CTO, 11x, 12x, 14x, NHx, NLx, NRx, X7x

- 7663-CTO, 11x, 12x, 13x, 16x, 17x, 1Ax, 1Bx, 1Lx, 1Mx, 1Nx, 1Rx, 1Tx, 1Yx, 2Fx, 2Hx, 2Kx, 2Mx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Xx, 2Zx, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex, 3Fx, 3Gx, 3Hx, 3Jx, 3Nx, 3Px, 3Rx, 3Sx, N1x, P1x, P2x, P3x, P4x, P5x, P6x, P7x, P8x, P9x, PAx, PBx, PCx, PFx, PGx, PHx, PJx, REx, RFx, RGx, RUx

- 7664-CTO, 11x, 14x, 15x, 16x, 18x, 1Ax, 1Bx, 1Dx, 1Ex, 1Fx, 1Jx, 1Lx, 1Nx, 1Px, 1Rx, 1Tx, 1Xx, 1Yx, 21x, P1x, P2x, P3x, R1x, R3x, R4x, R5x, R7x, R8x, RLx

• 7665-CTO, 11x, 12x, 13x, 16x, 1Tx, 3Jx, P1x, P2x

- 7732-CTO, 11x, 12x, 13x, 14x, 15x, 18x, 1Ex, 4Ax, 4Cx, 4Rx, 4Sx, 4Ux, 7Ax, 7Cx, N4x, N6x, NAX, NBx, NEx, X2x, X9x

- 7733-CTO, 1Bx, 1Cx, 1Gx, 1Jx, 1Lx, 1Mx, 2Dx, 2Ex, 2Fx, 2Lx, 2Mx, 2Px, 2Rx, 2Ux, 2Xx, 3Fx, 3Gx, N1x, N6x, N7x, N9x, P1x, P2x, P3x, P4x, PAx, PBx, XAx

• 7734-CTO, 11x, 14x

• 7735-CTO, 1Bx, 1Cx, 1Gx, 1Hx, 2Ux, XAx

•7736-CTO

•7737-CTO

• 7738-CTO, 1Gx, 1Lx, 1Tx, 1Ux, 1Vx, P3x, P4x

• 7742-CTO, 16x, 4Mx, 7Nx, X7x, NAx, NBx

- 7743-CTO, 1Gx, 1Hx, 1Mx, 2Ax, 2Cx, 2Ex, 2Gx, P2x, P4x, P5x, P6x, P7x, P8x, N3x, N4x, N5x, N6x

• 7744-CTO, 1Ax

• 7751-CTO, 1Gx, 1Hx

•7753-CTO

•7754-CTO

•7755-CTO,1Hx

Table 49. Parts list—Windows Vista Business (32 bit) DVDs for T61, R61, and R61i (some models)

LanguageP/NRoHS		ID	CRU ID
Brazilian Portuguese	46V0818	R	*
Czech46V0825
Danish46V0823
Dutch46V0824
English46V0812
English (modem-disabled)	46V0814
Finnish46V0826
French46V0815
German46V0816
Greek46V0831
Hebrew	46V0841
Hungarian	46V0830
Italian	46V0819
Japanese	46V0820
Korean	46V0835
Norwegian	46V0821
Polish46V0827
Portuguese	46V0838
Romanian	46V0837
Russian	46V0828
Russian (English-enabled)	46V0813
Serbian-Latin	46V0839
Simplified Chinese	46V0832
Slovak	46V0840
Slovenian	46V0836
Spanish	46V0817
Swedish	46V0822
Traditional Chinese	46V0833
Traditional Chinese (Hong Kong S.A.R.)	46V0834
Turkish	46V0829

Windows Vista Business (32 bit) DVDs for R61i (some models)

Windows Vista Business (32 bit) is preinstalled as the operating system in the following models:

- 7732-CTO, 22x, 29x, 2Bx, 6Bx, 6Ex, 6Hx, 8Bx, 8Dx, 8Ex, 8Hx, 8Kx, 8Lx, 8Nx, 8Zx, B1x, B2x, B4x, B5x, B7x, BAx, BBx, BDx, C2x, C5x, C9x, CAx, CEx, CFx, CKx, CLx, CPx, CVx

•7733-CTO

•7734-CTO

•7735-CTO

•7736-CTO

•7737-CTO

•7738-CTO

• 7742-CTO, 23x, 29x, B1x, B2x, B4x, B7x

•7743-CTO

•7744-CTO

•7751-CTO

•7753-CTO

•7754-CTO

•7755-CTO

Table 50. Parts list—Windows Vista Business (32 bit) DVDs for R61i (some models)

LanguageP/NRoHS		ID	CRU ID
Brazilian Portuguese	46V0735 R	*
Czech46V0741
Danish46V0739
Dutch46V0740
English46V0729
English (modem-disabled)	46V0731
Finnish46V0742
French46V0732
German46V0733
Greek46V0747
Hebrew	46V0757
Hungarian	46V0746
Italian	46V0736
Korean	46V0751
Norwegian	46V0737
Polish46V0743
Portuguese	46V0754
Romanian	46V0753
Russian	46V0744
Russian, English enabled	46V0730
Serbian-Latin	46V0755
Simplified Chinese	46V0748
Slovak	46V0756
Slovenian	46V0752
Spanish	46V0734
Swedish	46V0738
Traditional Chinese	46V0749
Traditional Chinese (Hong Kong S.A.R.)	46V0750
Turkish	46V0745

Windows Vista Business (64 bit) DVDs

Windows Vista Business (64 bit) is preinstalled as the operating system in the following models:

•6378-CTO

•6379-CTO

•6480-CTO

• 7658-CTO, 11x, X3x, X6x

• 7659-CTO, 14x, 15x, 16x, 1Fx, 1Lx, P9x

• 7660-CTO, 11x, P4x

- 7661-CTO, P3x

•1959-CTO

•6377-CTO

•6481-CTO

• 7662-CTO, 13x, X5x

• 7663-CTO, 14x, 1Cx, 1Dx, 1Ex, 1Fx, 1Gx, 1Px, 1Sx, 1Vx, 1Wx

- 7664-CTO, P4x

- 7665-CTO, P3x

• 7732-CTO, 19x, X3x, X6x

• 7733-CTO, 11x, 14x

•7734-CTO

- 7735-CTO, 11x

• 7736-CTO, 1Xx

• 7737-CTO, 1Xx

- 7738-CTO, 11x

• 7742-CTO, 11x, 12x

• 7743-CTO, 11x, 14x, 18x, 19x

•7744-CTO

• 7751-CTO, 11x, 12x

•7753-CTO

•7754-CTO

•7755-CTO,11x

Table 51. Parts list—Windows Vista Business (64 bit) DVDs

LanguageP/NRoHS		ID	CRU ID
Brazilian Portuguese	46V0930	R	*
Czech46V0937
Danish46V0935
Dutch46V0936
English46V0924
English (modem-disabled)	46V0926
Finnish46V0938
French46V0927
German46V0928
Greek46V0943
Hebrew	46V0949
Hungarian	46V0942
Italian	46V0931
Japanese	46V0932
Korean	46V0947
Norwegian	46V0933
Polish46V0939
Russian	46V0940
Russian (English-enabled)	46V0925
Simplified Chinese	46V0944
Slovenian	46V0948
Spanish	46V0929
Swedish	46V0934
Traditional Chinese	46V0945
Traditional Chinese (Hong Kong S.A.R.)	46V0946
Turkish	46V0941

Windows Vista Ultimate (32 bit) DVDs

Windows Vista Ultimate (32 bit) is preinstalled as the operating system in the following models:

•6378-CTO

• 6379-CTO, 1Xx

•6480-CTO

•7658-CTO

•7659-CTO

•7660-CTO

•7661-CTO

•1959-CTO

•6377-CTO

•6481-CTO

• 7662-CTO, X1x, NNx, NPx

• 7663-CTO, 15x, 1Hx, 1Jx, 1Kx, 2Yx, PDx, PEx, RTx

- 7664-CTO, 17x

•7665-CTO

• 7732-CTO, P1x

•7733-CTO

•7734-CTO

•7735-CTO

•7736-CTO

•7737-CTO

•7738-CTO

- 7742-CTO, X1x

• 7743-CTO, 1Kx

•7744-CTO

•7751-CTO

•7753-CTO

•7754-CTO

•7755-CTO

Table 52. Parts list—Windows Vista Ultimate (32 bit) DVDs

LanguageP/NRoHS		ID	CRU ID
Brazilian Portuguese	46V0904	R	*
Czech46V0911
Danish46V0909
Dutch46V0910
English46V0898
English (modem-disabled)	46V0900
Finnish46V0912
French46V0901
German46V0902
Greek	46V0917
Hebrew	46V0923
Hungarian	46V0916
Italian	46V0905
Japanese	46V0906
Korean	46V0921
Norwegian	46V0907
Polish46V0913
Russian	46V0914
Russian (English-enabled)	46V0899
Simplified Chinese	46V0918
Slovenian	46V0922
Spanish	46V0903
Swedish	46V0908
Traditional Chinese	46V0919
Traditional Chinese (Hong Kong S.A.R.)	46V0920
Turkish	46V0915

SUSE Linux Enterprise Desktop 10 DVDs

SUSE Linux Enterprise Desktop 10 is preinstalled as the operating system in the following models:

•6378-CTO

•6379-CTO

•6480-CTO

•7658-CTO

• 7659-CTO, 2Tx, 2Ux, 3Ax

•7660-CTO

•7661-CTO

•1959-CTO

•6377-CTO

•6481-CTO

•7662-CTO

• 7663-CTO, 3Kx, 3Lx, 3Mx

• 7664-CTO, 1Mx

•7665-CTO

•7732-CTO

• 7733-CTO, 3Ax, 3Bx, 3Cx, 3Dx, 3Ex

- 7734-CTO, 15x

•7735-CTO

•7736-CTO

•7737-CTO

- 7738-CTO, 22x

• 7742-CTO, NCx

• 7743-CTO, 2Jx, 2Kx, 3Bx

- 7744-CTO, P1x

•7751-CTO

•7753-CTO

•7754-CTO

•7755-CTO

Table 53. Parts list—SUSE Linux Enterprise Desktop 10 DVDs

LanguageP/NRoHS		ID	CRU ID
English (one-year support)	44Y2623	R	*
English (three-year support)	44Y3386

Commonservicetools

Table 54. Parts list—Common service tools

ToolP/N
Screwdriverkit95F3598
1/4" drive spinner handle	1650840
1/4" Sq. to 1/4" hex torx adapter	93F2838
TR7-TR-10 tamper resistant torx bits	00P6967
Removal tool antenna RF connector	08K7159
USB 2.0 CD-RW/DVD-ROM combo drive II	40Y8687
USBcable40Y8704
USB floppy diskette drive for maintenance diskette	05K9283
USB floppy diskette drive tool kit	27L3452
Test card for integrated Smart Card	42W7820
ThinkPad Hardware Maintenance Diskette Version 1.73 or laterNote: Download the file from the following Web site: http://www.lenovo.com/spm	—

Notices

Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead. However, it is the user's responsibility to evaluate and verify the operation of any other product, program, orservice.

Lenovo may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:

Lenovo (United States), Inc.

1009 Think Place - Building One

Morrisville, NC27560

U.S.A.

Attention: Lenovo Director of Licensing

LENOVO GROUP LTD. PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.

The products described in this document are not intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. The information contained in this document does not affect or change Lenovo product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of Lenovo or third parties. All information contained in this document was obtained in specific environments and is presented as an illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk.

Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may

vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.

Trademarks

The following terms are trademarks of Lenovo in the United States, other countries or both:

ActiveProtectionSystem Lenovo RescueandRecovery ^® ThinkLight ^® ThinkPad ^® ThinkVantage ^® TrackPoint ^® Ultrabay Ultrabay2000 UltrabayEnhanced UltrabayPlus UltraNav ^®

The following terms are trademarks of the International Business Machines Corporation in the United States, other countries, or both:

IBM(usedunderlicense)

The following terms are trademarks of Microsoft Corporation in the United States, other countries, or both:

Windows ^® WindowsVista ^®

The following are trademarks of Intel Corporation or its subsidiaries in the United States, other countries, or both:

Intel ^® Intel ^® Celeron ^® Intel ^® Core ^TM 2Duo Intel ^® Pentium ^®

Other company, product, or service names may be the trademarks or service marks of others.

ThinkPad

PartNumber:42X3547_04

(1P) P/N:42X3547_04
