USER MANUAL C 130.1-6 X-TRA NILFISK

Warning sign with exclamation mark inside red triangle, commonly used for safety alerts

Nilfi sk C 120.3

Nilfi sk C 125.3

Nilfi sk C 130.1 X-TRA

Blue and black Kilfisk C120.3 water heater with attached hose and hose (no visible text or symbols on body)

Blue and black Kilfisk C120.5 water heater against a blue background (no text or symbols visible on the device body)

EN

User Manual

Index

1 Safety precautions and warnings ....3
2 Description ....5
3 Before you start using your pressure washer ....6
4 Operating your pressure washer ....7
5 Fields of Application and working methods .....9
6 After using your pressure washer ....11
7 Maintenance ....13
8 Trouble Shooting 15
9 Further information ....16
10 Main Technical Data 19
11 EC Declaration of Conformity....20

1 Safety Precautions and Warnings

Symbols used to mark instructions

Before starting up your high-pressure washer for the first time, this instruction

manual must be read through carefully. Save the instructions for later use.

Safety instructions marked with this symbol must be observed to pre-

vent danger to persons.

This symbol is used to mark safety instructions that must be observed to prevent

damage to the machine and its performance.

This symbol indicates tips and instructions

to simplify work and to ensure a safe operation.

Do not let children or people who have not read the instruction manual ope rate the machine.

This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.

Before starting up your machine please check it carefully for any defects. If you find any, do not start up your machine and contact your Nilfi sk distributor.

Especially check:

● The insulation of the electric cable should be faultless and without any cracks. If the electric cable is damaged, an authorized Nilfi sk distributor should replace it.

WARNING!

● High pressure jets can be dangerous. Never direct the water jet at persons, pets, live electrical equipment or the machine itself.
● Never try to clean clothes or footwear on yourself or other persons.
- Hold the spray lance firmly with both hands. The spray lance is affected by a thrust of up to 16.4 N during operation.

● The operator and anyone in the immediate vicinity of the site of cleaning should take action to protect themselves from being struck by debris dislodged during operation. Wear goggles and protection clothes during operation.
- This appliance has been designed for use with cleaning agents supplied or recommended by the manufacturer. The use of other cleaning agents or chemicals may adversely affect the safety of the appliance.
● To ensure the appliance safety only use original spare parts from the manufacturer or approved by the manufacturer.
● High pressure hoses, fittings

and couplings are important for the safety of the appli- ance. Only use hoses, fi ttings and couplings recommended by the manufacturer.

• Do not use the appliance if a supply cord or important parts of appliance are damaged, e.g. safety device, high pressure hose and trigger gun.
• Remove the plug from the socket outlet during cleaning or maintenance and when replacing parts or converting the machine to another function.
  ● Appropriate ear protection has to be used.
  ● Never use the machine in an environment where there could be a danger of explosion. If any doubt arises, please contact the local authorities.
• It is not allowed to clean asbestos- containing surfaces with high pressure.
• Do not spray fl ammable liquids.
  ● Always switch off the mains disconnecting switch when leaving the machine unattended.
• This high pressure washer must not be used at temperatures below 0°C.

WARNING!

Inadequate extension cables can be dangerous. If an extension cable is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accomplished by means of a cable reel which keeps the socket at least 60 mm above the ground. Cables on extension lead drums should always be completely unwound to prevent the cable from overheating.

Extension cables must comply with the below-mentioned requirements for length and cable dimensions.

1.0 mm ^2 max. 12.5 m

1.5 mm ^2 max. 20 m

2.5 mm ^4 max. 30 m

- If the electric cable is damaged, it must be replaced by the manufacturer or his service agent or similarly qualified person in order to avoid a hazard.

Mains power connection

The following should be observed when connecting the high pressure washer to the electric installation:

• Only connect the machine to an installation with earth connection.
• The electric installation shall be made by a certified electrician and comply with IEC 364.
• It is recommended that the electric supply to this appliance should include a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms.

Water connection

Connection to the public mains according to regulations.

Machine not suitable for connection to the potable water mains

This high pressure washer is only allowed to be connected with the drinking water mains, when an appropriate backfl ow preventer has been installed, Type BA according to EN 1717. The backfl ow preventer can be ordered under number 106411177. The length of the hose between the backfl ow preventer and the high pres-

sure washer must be at least 10 metres to absorb possible pressure peaks (min diameter 12 inch).

Operation by suction (for example from a rainwater vessel) is carried out without backflow preventer. Recommended suction set: 126411387.

As soon as water has fl own through the BA valve, this water is not considered to be drinking water any more.

IMPORTANT! Only use water without any impurities. If there is a risk of running sands in the inlet water (i.e. from your own well), an additional filter should be mounted.

Safety devices

Locking device on spray gun (7a) (see foldout at the end of this manual):

The spray gun features a locking device. When the pawl is activated, the spray gun cannot be ope rated.

Thermal sensor:

A thermal sensor protects the motor against overloading. The machine will restart after a few minutes when the thermal sensor has cooled.

Pressure safety device

An integrated hydraulic safety valve protects the system from excessive pressure.

2 Description

2.1 Application This high-pressure washer has

been developed for domestic use within:

- Car, motorbike, boat, caravan, trailer, patio/drive/fl agstones, woodwork, brickwork, barbecue, garden furniture, lawn mower

Section 5 describes the use of

the high-pressure washer for vaious cleaning jobs.

Only use the high-pressure washer for purposes described in this manual.

The safety precautions must be observed to prevent damage to the machine, the surface to be cleaned or severe personal injuries.

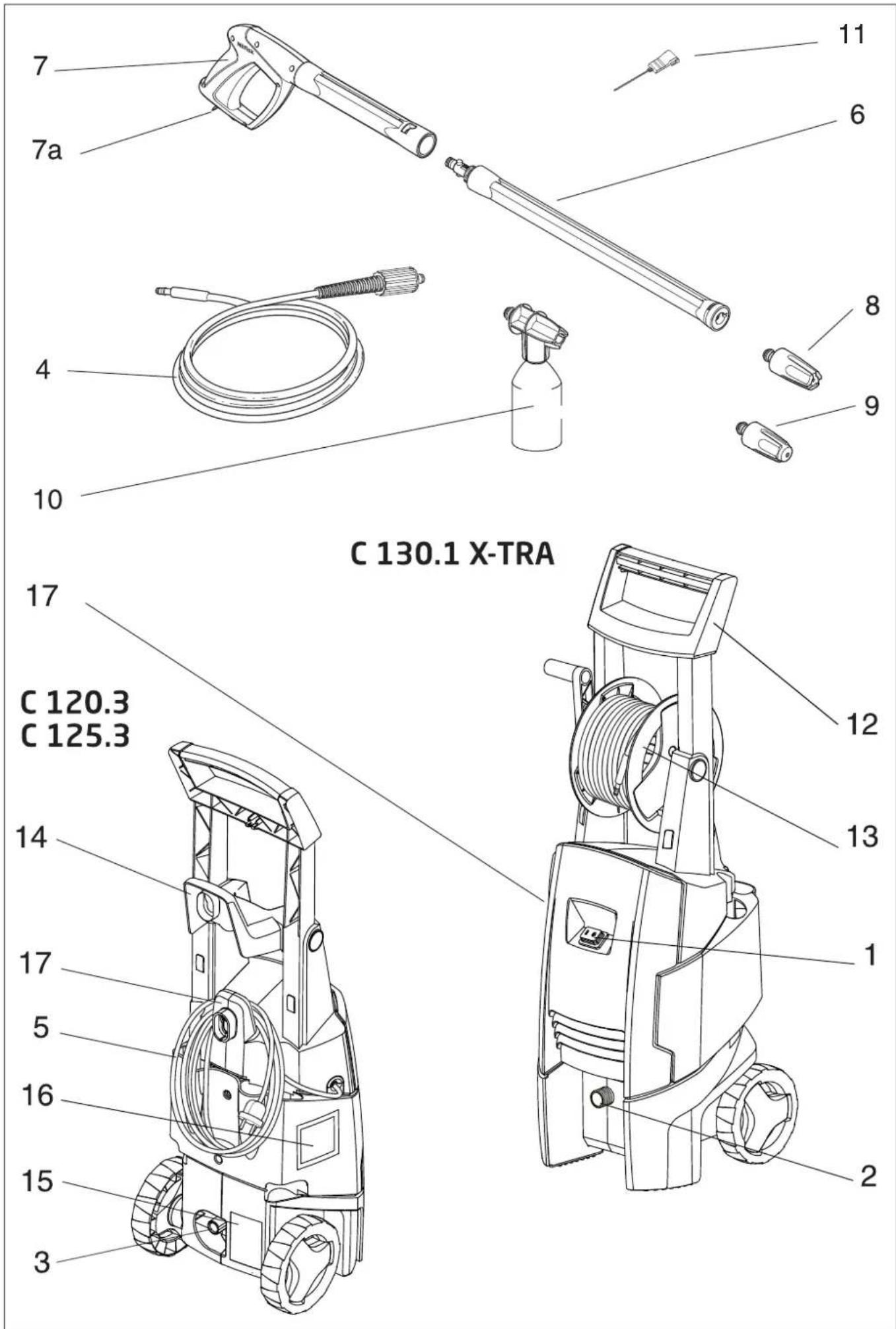

2.2 Operation elements and model survey

See illustration at the end of this manual.

1 Start/stop switch
2 Water inlet (with fi Iter)
3 High pressure connection
4 High pressure hose
5 Electric cable
6 Click & Clean spray lance
7 Spray gun with lock
8 Click & Clean Tornado® PR nozzle
9 Click & Clean Powerspeed® nozzle
10 Click & Clean foam sprayer
11 Nozzle cleaning tool
12 Trolley Handle
13 Hose reel (not standard)
14 Hose hook
15 Model tag
16 Warning sign
17 Cable hook

Specifications: See model tag (15) of machine.

We reserve the right to alter the specifications.

EN

3 Before you start using your pressure washer

3.1 Mounting of trolley handle and hose hook

Mechanical assembly diagram showing a bracket with mounting holes and a base mount (no text or labels)

1. Mount the trolley handle (12) on the machine.
2. Mount the hose hook (14) on the handle.

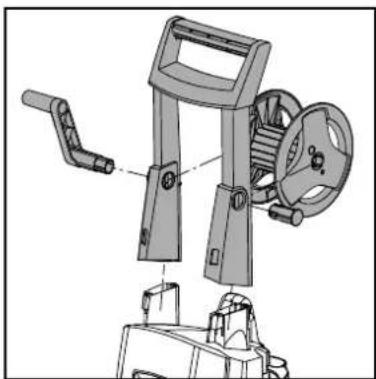

3.2 Mounting of trolley handle and hose reel (models with hose reel)

Mechanical assembly diagram showing a robotic arm and gear mechanism (no text or labels)

1. Mount the trolley handle (12) on the machine.
2. Mount the hose reel (13) on the handle

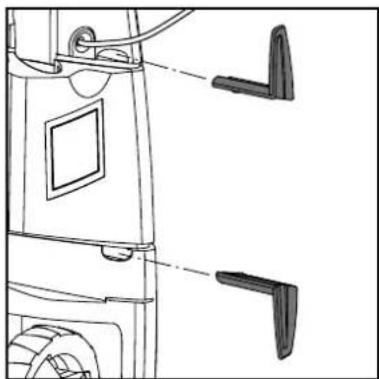

3.3 Mounting of cable book (C 130.1 X-TRA)

Technical line drawing of a mechanical assembly with no visible text or symbols

Click cable hooks (17) on to the machine.

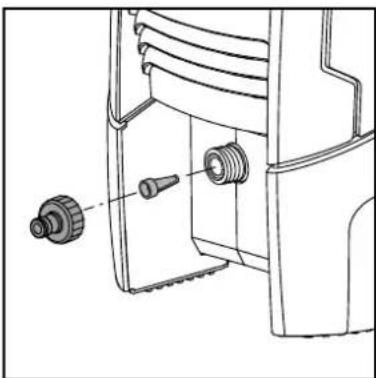

3.4 Mounting of quick coupling

Technical line drawing of a mechanical device with adjustment knobs and a spring-loaded component (no text or symbols)

1. Screw the quick coupling tight on to the water inlet (2).

Note: The inlet fi Iter must always be fi t-ted in the water inlet pipe to fi Iter out sand, lime stone d other impurities as

these will damage the pump valves.

Caution: Failure to fi t the fi lter will invalidate the guarantee.

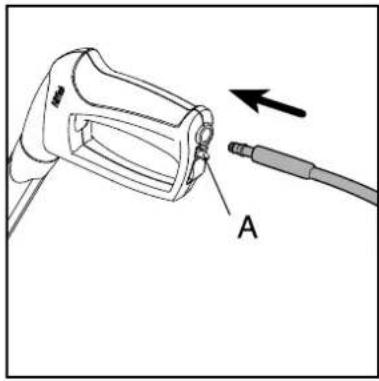

3.5 Mounting of high pressure hose

A

Attach the high pressure hose (4) to the spray gun (7).

Detach the high pressure hose by pressing the pawl (A).

4 Operating your pressure washer

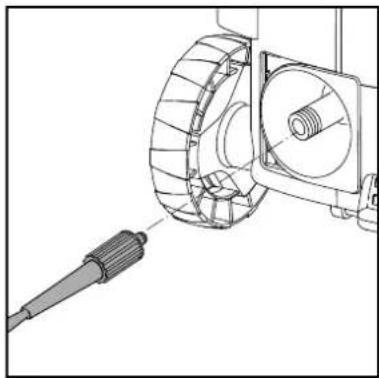

4.1 Connection of high pressure hose

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

1. Mount the high pressure hose on the outlet (3).

4.2 Mounting of spray lance and Click & Clean nozzles

1. Push the spray lance (6) into the spray gun (7) and screw it on.

Diagram of a spray gun with labeled parts and directional arrows indicating motion or movement

Note: The spray lance (6) has a built-in low

pressure nozzle that can be used for fl ushing away dirt. 2. Attach the nozzle.

Warning: When attaching the Click & Clean nozzles, the pawl on the side of the spray lance could come out again.

Note: The Tor- nado® PR nozzle and the foam

sprayer feature a swivel lock, which must be positioned in the hole in the Click & Clean spray lance.

Press the pawl to detach the Click & Clean nozzle.

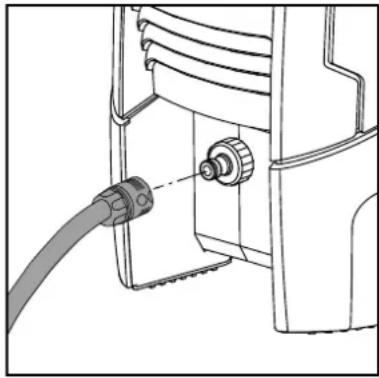

4.3 Water connection An ordinary 1/2" garden hose of min. 10 m and max. 25 m will be suitable.

Technical line drawing of a mechanical device with a cable inserted into a housing (no text or symbols)

NOTE: Connec- tion to the public mains according to regulations.

IMPORTANT! Only use water without any

impurities. If there is a risk of running sands in the inlet water (i.e. from your own well), an additional fi Iter should be mounted.

1. Let the water run through the water hose before connecting it to the machine to prevent sand and dirt from penetrating the machine.
   Note: Check that the filter is fitted in the water inlet pipe and that it is not clogged up.
2. Connect the water hose to the water supply by means of the quick connector (inlet water, max. pressure: 10 bar, max. temperature: 40°C).
3. Turn on the water.

4.4 Start and stop of the machine (when connected to a water supply)

The spray lance is affected by a thrust during operation - therefore always hold it firmly with both hands. IMPORTANT: Point the nozzle at the ground.

1. Check that the machine is in upright position.
   NOTE: Do not place the machine in high grass!
2. Release the trigger lock.
3. Activate the trigger of the spray gun and let the water run until all air has escaped from the water hose.
4. Turn the start/stop switch (1) to position "I".
5. Activate the trigger of the spray gun.

Always adjust the distance and thus the pressure of the nozzle to the surface, which is to be cleaned.

Do not cover the machine during operation.

Note: If the machine is left or not used for 5 min-

utes, it must be switched off on the start/stop switch "O" (1):

1. Turn the start/stop switch (1) to position "O".
2. Disconnect the electrical plug from the socket.
3. Shut off the water supply and activate the trigger to relieve the machine of pressure.
4. Lock the spray gun.

When releasing the trigger of the spray gun, the machine automatically stops. The machine will start again when you re-activate the spray gun.

4.5 Start the machine (when connected to open containers (suction mode))

The washer can take in water from a rain water tank as an example. The hose for the water supply must not be too long, approx. 5 m.

Make sure that the water tank is not placed on a lower level than the machine.

1. Place the other end of the water hose in the water tank. Use an external filter if the water contains impurities.
2. Turn the start/stop switch (1) to position"I".
3. Activate the trigger of the spray gun and let the water run, until the air has escaped from the water hose and the pump.
4. Mount spray lance and nozzle.

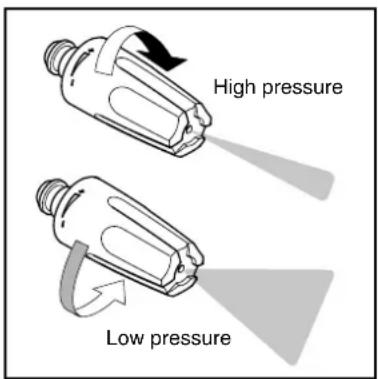

4.6 Pressure regulation on the TORNADO ^® PR-nozzle

High pressure Low pressure

The pressure can be regulated on the TORNADO ^® PR nozzle.

5 Fields of application and working methods

5.1 General Efficiient high pressure cleaning is achieved by following a few guide-

lines, combined with your own personal experience of specific cleaning tasks. Accessories and detergents, when correctly chosen, can increase the efficiency of your pressure washer. Here is some basic information about cleaning.

5.1.1 Detergent and foam

Foam or detergent should be applied onto dry surfaces so that the chemical product is in direct contact with the dirt. Detergents are applied from bottom to top, for example on a car bodywork, in order to avoid "super clean" areas, where the detergent collects in higher concentration and streams downwards. Let the detergent work for several minutes before rinsing but never let it dry on the surface being cleaned. Note: It is important that the detergents do not dry up. Otherwise the surfac that has to be cleaned can be da maged.

5.1.2 Mechanical effect

In order to break down tough layers of dirt, additional mechanical effect may be required. Special wash brushes offer this supplementary effect that cuts through dirt (especially by car washing).

5.2 Typical fi elds of application

Below you will find a description of a lot of cleaning tasks which can be solved by a pressure washer from Nilfi sk in association with accessories and detergents.

Task Accessories ‘Click & Clean’		Cleaning method
Car Car nozzle, auto brush, underchassis nozzle, Foam sprayer, Car Combi Cleaner		1. Apply Car Combi Cleaner with the foam sprayer. Always start from the bottom and work upwards. Let Car Combi Cleaner act for at least 5 min.2. Wash the car with the car nozzle, which has been optimized for quick and gentle cleaning of enamelled surfaces (the jet is wider and not so sharp). Start at the front of the car and work backwards to avoid water from penetrating by the door mouldings.3. Use the brush for removal of traffic film which is not removed by the nozzle. If the car is very dirty, apply Car Combi Cleaner again.4. Attach the undercarriage nozzle and clean undercarriage and wheel arches.5. Remove water from the surface of the car with the scraper on the car brush.Make surethat all grains of sand etc. have been removed before using the scraper. Wipe with a wash leather where the scraper cannot reach.
Rims, aluminium	Rim brush, auto nozzle, atomizer, Alu Cleaner	Apply Alu Cleaner with an automizer. Let it act for approx. 5 min. and wash with the rim brush. For steel rims, use Car Combi Cleaner. Use the foam sprayer and wash with rim brush.Be careful! The high pressure jet may damage the tyres.
Flagstones, concrete floors and other hard surfaces	Powerspeed® nozzle, Stone & Wood Cleaner, Patio Cleaner	Wash towards outlets or the like. On surfaces with moss or algae you may start by applying Stone & Wood Cleaner with the foam sprayer. Wash before the soap dries. Another more effective and quicker method is to use the Patio Cleaner. Thus you will also avoid splashes.
Garden furniture, wood	Wood Cleaner Garden brush	Apply Wood Cleaner and wash before the soap dries.NOTE:Use the garden brush to clean off the dirt.
Brickwork, Wood work	Powerspeed® nozzle, Stone & Wood Cleaner, Patio Cleaner	Same method as for fl agstones, butbe careful- bad joints and wood may be damaged by high pressure. You may choose only to use the Tornado® nozzle. Adjust the distance (pressure) to the quality of the joints and the wood. Patio Cleaner can also be used on vertical surfaces.
Gutter Underchassis spray lance		Wash the gutter with the nozzle. Always wash towards downpipes.Bewarenot to spray under the roofi ng.
Cleaning of drain pipes, outlets, down pipes etc.	Tube cleaner	Push the tube cleaner approx. 12 m (to mark) into a tube or drain and activate the trigger of the spray handle. The nozzle opening turning backwards will pull the cleaner through the tube. The nozzle will break down the „plug“ and fl ush the dirt backwards.
Rust, paint	Water/sandblasting equipment	Mount the water/sand blasting equipment and rust and paint is effi ciently and quickly removed. Beware not to damage the surface to be sandblasted.
Green-house	Tornado® PR nozzle brush, Stone & Wood Cleaner	Wash with high pressure and maybe a brush. You may use Stone & Wood Cleaner to remove moss and algae.
Garden tools, lawn mover	Tornado® PR nozzle, Powerspeed® nozzle, multiangle adaptor, Metal Cleaner	Rinse the worst dirt off with the nozzle. Apply Metal Cleaner with the foam sprayer and let it act for approx. 5 min. Wash with the nozzle. You may use the multiangle adaptor for hard to get at areas to avoid splashing.

6 After using your pressure washer

6.1 Storing the washer The machine should be stored in a frost-free room!

Pump, hose and accessories should always be emptied of water prior to storing as follows:

1. Stop the machine (turn the start/stop switch (1) to position"O") and detach water hose and accessory.

2. Restart the machine and activate the trigger. Let the machine run until no more water runs through the spray gun.

3. Stop the machine, unplug and wind up hose and cable.

4. Place spray handle, nozzles and other accessories in the holders of the machine.

Should the machine by mistake be frozen, it will be necessary to check it for damage.

NEVER START-UP A FROZEN MACHINE.

Frost damages are not covered by the guarantee!

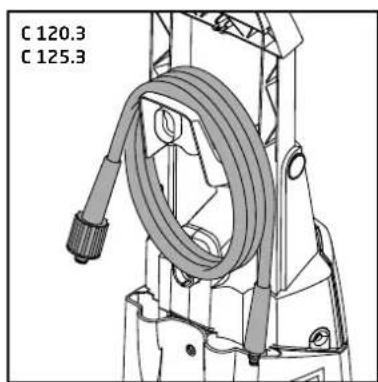

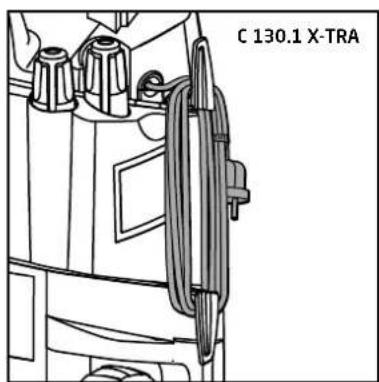

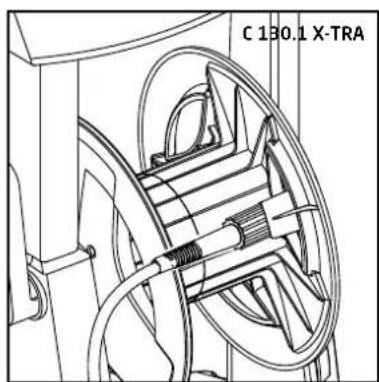

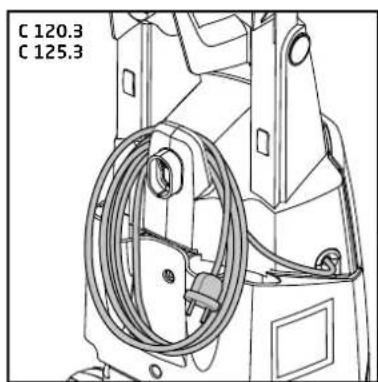

6.2 Winding up of electric cable and high pressure hose

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

C 130.1 X-TRA

To avoid accidents, the electric cable and the high pressure hose should always be winded carefully up.

Wind up the electric cable and the high pressure hose on the appropriate hooks. Built-in clip for good holding.

The high pressure washer comes in two models: A) with hook for storage of high pressure hose (14) - B) with a hose reel (13), where the hose is pushed into the reel and afterwards winded up.

Technical line drawing of a mechanical device with coiled cable and connectors (no text or symbols)

C 130.1 X-TRA

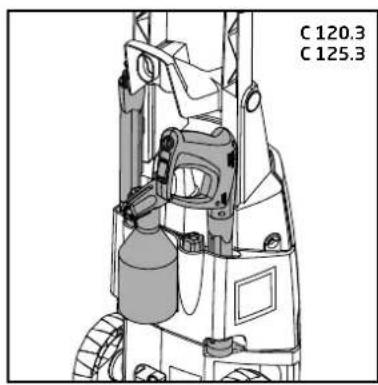

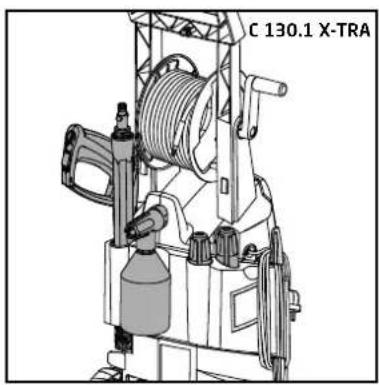

6.3 Storage of accessories

C 120.3 C 125.3

Technical line drawing of a mechanical device labeled C 130.1 X-TRA, showing internal components and no readable text or symbols.

The standard accessories (spray gun, spray lance, nozzles and foam sprayer) can be stored on the pressure washer.

The nozzle cleaning tool can also be stored on the product.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

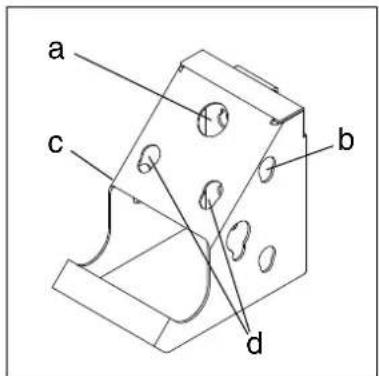

6.4 Wall storage

a c b d

Technical line drawing of a mechanical device with no visible text or symbols

The pressure washer can be stored on a wall on a special wall hook (not standard).

Only mount the wall hook on a sturdy wall. Adjust the length of the screws and size of rawl-plugs to the type of wall.

On the wall hook garden/rim brush (a) foam sprayer (b), Click & Clean brush (c) and Click & Clean nozzles (d) can be stored.

Note: For this product the wall hook can only be

used as storage.

Important: The bearing capacity of the wall hook is max. 30 kg.

7 Maintenance

WARNING! Always disconnect the electrical plug from the socket prior to maintenance or cleaning.

Line drawing of a faucet spraying water onto a cylindrical pipe (no text or symbols)

To ensure a long and problem free working life, please take the following advice:

● Wash out water hose, high pressure hose, spray lance and accessories before mounting.
- Clean the connectors of dust and sand.
● Make sure that no sand or dirt is blocking the movement of the pawl on the Click & Clean spray lance. Rinse according to requirement.
● Rinse the detergent spraying attachment after use.
- Clean the nozzles.

Any repair should always be made in an authorized workshop with original spare parts.

7.1 Cleaning of water inlet filter

Technical line drawing of a mechanical device with two threaded components and a separate housing (no text or symbols)

Clean the water inlet fi Iter regularly once a month or more frequently according to use. Carefully loosen the fi Iter with a screwdriver and clean it. Check that it is intact before re-mounting it.

The inlet fi lter must always be fi tted inside the water inlet pipe to fi lter out sand, limestone and other impurities, as they will damage the pump valves.

CAUTION: Failure to fi t the fi lter will invalidate the guarantee.

7.2 Cleaning of nozzle A clogging up in the nozzle

Line drawing of a nozzle with a connector and cable, no text or symbols present

causes a pump pressure which is too high. This is why cleaning is required immediately.

1. Stop the machine and disconnect the nozzle.
2. Clean the nozzle. IMPORTANT: The cleaning tool (11) should only be used when the nozzle is detached!
3. Flush the nozzle backwards with water.

7.3 Cleaning of machine vents

The machine should be kept clean so as to let cooling air pass freely through the machine vents.

7.4 Greasing of couplings

To ensure an easy connection and that o-rings do not dry up, the couplings should be greased regularly.

8 Trouble-shooting

To avoid unnecessary disappointments, you should check the following before contacting the Nilfi sk service organization:

Symptom	Cause	Recommended	action
Machine refuses to startDefective socket Try another socket.Fuse has blown Replace fuse. Switch off other machines.Defective extension cable Try without the extension cable.	Machine not plugged in Plug in machine.
Fluctuating pressurePump sucking air Check that hoses and connections are air-tight.
Valves dirty, worn out	Clean and replace or refer to local Nilfi sk or stuck	distributor
Pump seals worn out	Clean and replace or refer to local Nilfi sk distributor.
Motor busses	Low voltage or low temperature	Activate the trigger of the spray gun.
Machine stopsFuse has blown Replace fuse. Switch off other machines.Incorrect mains voltage Check that the mains voltage corresponds to specifi cation on the model tag.
Thermal sensor activated	Leave the washer for 5 minutes to cool down.
Nozzle partially blocked	Clean the nozzle (see section 7.2)
Fuse blows	Fuse too smallamp. consumption of the machine.You may try without the extension cable.	Change to an installation higher than the
Machine pulsatingInadequate supply of mains water	Air in inlet hose/pump regular working pressure resumes.	Allow machine to run with open trigger until
	Check that the water supply corresponds to specifi cations required (see model tag)NB! Avoid using long, thin hoses (min. 1/2")
Nozzle partially blockedWater fi liter blockedHose kinked	Clean the nozzle (see section 7.2)Clean the fi liter (see section 7.1)Straighten out hose.
Machine often starts and stops by itself	Pump/spray gun is leaking	Contact your nearest Nilfisk Service Centre.
Machine starts, but no water comes outNo water supplyWater fi liter blockedNozzle blocked	Pump/hoses or accessory frozenConnect inlet water.Clean the filter (see section 7.1)Clean the nozzle (see section 7.2)	Wait for pump/hoses or accessory to thaw.

In case problems other than the above occur, please contact your local Nilfisk distributor.

UK:

Customer Services at Penrith - 01768 868995

9 Further information

9.1 Recycling the washer Make the old cleaner unusable immediately.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

1. Unplug the cleaner and cut the electric cable.

Do not discard electrical appliances with household waste.

As specified in European Directive 2002/96/EC on old electrical and electronic appliances, used electrical goods must be collected separately and recycled ecologically.

Contact your local authorities or your nearest dealer for further information.

9.2 Warranty conditions Nilfi sk guarantees high pressure washers for domestic use for 2 years. If your high pressure washer or ac ces so ries are handed in for repair, a copy of the receipt must be enclosed. Guarantee repairs are being made on the following conditions:

• that defects are attributable to flaws or defects in materials or workmanship. (wear
  and tear as well as misuse are not covered by the gu a r-an tee).
  ● that the directions of this instruction manual have been thoroughly observed.
• that repair has not been carried out or attempted by other than Nilfi sk-trained service staff.
  ● that only original accessories have been applied.
  ● that the product has not been exposed to abuse such as knocks, bumps or frost.
  ● that only water without any impurities has been used.
• that the high pressure washer has not been used for rental nor used com mer cial ly in any other way.

Repairs under this guarantee include replacement of defective parts, exclusive of packing and postage/carriage. Besides, we refer to your national law of sale.

The machine should be forwarded to one of the service centres of the Nilfi sk organisation with description/spe ci fi cati on of the fault.

Repairs not covered by the guarantee conditions will be invoiced. (I.e. malfunctions due to Causes men ti o ned in section Troubleshooting Chart of the instruction manual).

9.3 Accessories

Only use original accessories.

Click & Clean Car nozzle		Special nozzle for enameled surfaces. Optimal distance: 30 - 50 cm.
Click & Clean Undershassis nozzle		90° angled special nozzle for undercarriage and wheel arches. Integrated guide shoes.
Click & Clean Multiangle adaptor		Adjusted in angles from 0° - 90° for better working posture and cleaning of hard to get at places as for instance barrels or the underside of the lawn mower. Fits all nozzles.
Click & Clean Brushes	KKHK]	For cars and other surfaces. Available in more shapes.
Extension hose		7 m extension hose increasing the working range.
Underchassis spray lance		Special spray lance for washing your car underneath.
Drain & Tube cleaner		15 m long tube cleaner for the cleaning of tubes and drains.
Water-sand-blasting equipment		For removal of paint and rust. Sand available from do-it-your-self shops.
Patio Plus		Equipment for quick cleaning of patio/drive/fl agstones.
Garden brush		Rotary brush for cleaning of wooden surfaces.
Rim brush		Rotary brush for cleaning of wheel rims.
Wall hook		For suspension of your high pressure washer on the wall.
Rotary brush		For cleaning vehicles and other surfaces.
Water suction kit		For removal of large amounts of water from e.g. garden pounds.

Detergents

Stone & Wood Cleaner	For fl agstones, brick- and woodwork. Suitable for moss and algae.
Plastic Cleaner	For plastic and synthetic materials such as garden furniture.
Metal Cleaner	For cleaning of metal such as garden tools.
Car Combi Cleaner	For cars etc. With rinsing wax.
Alu Cleaner	For surfaces of aluminium. Applied with an atomizer.
Oil & Grease Cleaner	For cleaning of grease and oil on motors for instance. Applied with an atomizer.
Wood Cleaner	For cleaning of wooden surfaces incl. of wooden garden furniture.

10 Main Technical Data

Type C 120.3 C 125.3 C 130.1
Electrical Specification
Rated voltage V 230 230 230
Rated frequency Hz 50 50 50
Rated power consumption kW 1,650 1,800 1,700
Current A 7.2 7.8 7.8
Protection class	Class I/Class II	Class II	Class II	Class I
Protection degree	IP xx	IPX5	IPX5	IPX5
Hydraulic specification
Rated pressure	MPa/bar	10/100	10.5/105	11.5/115
Max. pressure	MPa/bar	12/120	12.5/125	13/130
Rated water flow	l/min/l/h	5.8/350	5.8/350	6.3/380
Max. water flow	l/min/l/h	8.6/520	8.6/520	7.3/440
Max. water inlet pressure	Mpa/bar	1/10	1/10	1/10
Max. water inlet temperature	°C	40 40 40
Max. water inlet temp. suction mode	°C	20 20 20
Weight	kg	8.9	9	15.8
Hand-arm vibration according to ISO 5349-1:Standard nozzle	m/s2	< 2.5 ±1	< 2.5 ±1	< 2.5 ±1
Sound pressure level LpA in accordance with ISO 3744	dB(A) 78 ±3	78 ±3	66.4 ±3	±3
Guaranteed sound power level LWA in accordance with 2000/14/EC	dB(A) 92	92 84

11 EU Declaration of Conformity

CE EU Declaration of Conformity
Product: High Pressure Washer
Type: Nilfi sk C 120.3, C 125.3, C 130.1	and accessory variants of above-mentioned types
Description: 230 V 1~, 50 Hz - IP X5
The design of the unit corre sponds to the following pertinent regulations:	EC Machine Directive 2006/42/ECEC Low-voltage Directive 2006/95/ECEC EMC Directive 2004/108/EC
Applied harmonised standards: EN 60335-2-79
Applied national standards and technical specifications:	IEC 60335-2-79
Name and address of the person authorised to compile the technical fi le:	Anton SørensenGeneral Manager, Technical Operations EAPCNilfi sk-Advance A/SSognevej 25DK-2605 Brøndby
Identity and signature of the person empowered to draw up the declaration on behalf of the manufacturer:	Anton SørensenGeneral Manager, Technical Operations EAPCNilfi sk-Advance A/SSognevej 25DK-2605 Brøndby
Place and date of the declaration Hadsund	October 1, 2011

Web: http://www.nilfi_sk.com

HEAD QUARTER

DENMARK

Nilfi sk-Advance Group

Sognevej 25

DK-2605 Brøndby

Tel.: [phone]

E-mail: kundeservice.dk@nilfi sk.com

SALES COMPANIES

AUSTRIA

Riverside Business Park

Boulevard Internationale 55

Bruxelles 1070

Tel.: [phone]

Web: http://www.nilfi sk.be

CHILE

Nilfi sk-Advance de Chile

San Alfonso 1462

Santiago

Tel.:[phone]

E-mail: Pablo.Noriega@nilfi sk.com

CHINA

Nilfi sk-Advance Cleaning Equipment (Shanghai) Ltd.

No. 4189 Yindu Road

Xinzhuang Industrial Park

Shanghai 201108

Tel: [phone]

E-mail: info.sha-cn@nilfi sk.com

Web: http://www.nilfi sk.cn

CZECH REPUBLIC

Nilfi sk-Advance s.r.o

VGP Park Horní Pocernice

Budova H2, Do Certous 1

Praha 190 00

Tel.: [phone]

31-39 Wo Tong Tsui Street

Kvai Chung, NT

Tel.: [phone]

HUNGARY

Nilfi sk-Advance Kereskedelmi Kft.

H-2310 Szigetszentmilós

Pramukh Plaza, "B" Wing, 4th floor

Unit No. 403

Cardinal Gracious Road

Chakala, Andheri (East)

Mumbai - 400 099

Tel.: [phone]

IRELAND

Nilfi sk-Advance

1 Stokes Place

St. Stephen's Green

Dublin 2

Tel.: [phone]

ITALY

Nilfi sk-Advance SpA

Millenium Logistic Park

Sintra Business Park

Zona Industrial Da Abrunheira

Edifi cio 1, 1° A

P2710-089 Sintra

Tel.: [phone]

Web: http://www.nilfi_sk.pt

RUSSIA

Нилфиск-Эдванс

127015 Москва

WAP South Africa (Pty) Ltd

12 Newton Street

1620 Spartan, Kempton Park

Tel.: [phone]

E-mail: [e-mail]

SPAIN

Nilfi sk-Advance S.A.

Torre D'Ara

Taiwan Branch (H.K.)

No. 5, Wan Fang Road

Taipei

Tel.: [phone]

Web: http://www.nilfi_sk-advance.com.tw

THAILAND

Nilfi sk-Advance Co. Ltd.

89 Soi Chokechai-Ruammitr

Viphavadee-Rangsit Road

Ladyao, Jatuchak, Bangkok 10900

Tel.: [phone]

TURKEY

Nilfi sk-Advance A.S.

Serifali Mh. Bayraktar Bulv.

Sehit Sk. No: 7

Ümraniye

Istanbul

Tel.: [phone]

E-mail: info.tr@nilfi sk-advance.com

Web: http://www.nilfi.sk.com.tr

UNITED KINGDOM

Nilfi sk (A Division of Nilfi sk-Advance Ltd.)

Bowerbank Way

Gilwilly Industrial Estate, Penrith

Cumbria CA11 9BQ

Tel: [phone]

Web: http://www.nilfi_sk.co.uk

UNITED ARAB EMIRATES

Nilfi sk-Advance Middle East Branch

SAIF-Zone

P.O. Box 122298

Sharjah

Tel.: [phone]

VIETNAM

Nilfi sk-Advance Representative Office

No. 51 Doc Ngu Str

Ba Dinh Dist.

Hanoi

Tel.: [phone]

E-mail: nilfi [e-mail]
