USER MANUAL BDL4230ET PHILIPS

Smartphone displaying a global screen with app icons, no visible text or symbols on the screen or background.

www.philips.com/welcome

EN User manual

Cleaning and troubleshooting

SAFETY AND TROUBLESHOOTING INFORMATION

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards and/or mechanical hazards.

Read and follow these instructions when connecting and using your display:

Operation:

• Keep the display out of direct sunlight and away from stoves or any other heat sources.
• Remove any object that could fall into ventilation holes or prevent proper cooling of the display's electronics.
• Do not block the ventilation holes on the cabinet.
• When positioning the display, make sure the power plug and outlet are easily accessible.
• When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation.
• Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center.
• Do not subject the display to severe vibration or high impact conditions during operation.
• Do not knock or drop the display during operation or transportation.

Maintenance:

• To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift by placing your hand or fingers on the LCD panel.
• Unplug the display if you are not going to use it for an extensive period of time.
• Unplug the display if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use organic solvent, such as, alcohol, or ammonia-based liquids to clean your display.
• To avoid the risk of shock or permanent damage to the set, do not expose the display to dust, rain, water or an excessively moist environment.
• If your display becomes wet, wipe it with dry cloth as soon as possible.
• If a foreign substance or water gets in your display, turn the power off immediately and disconnect the power cord. Then remove the foreign substance or water, and send the unit to the maintenance center.
• Do not store or use the display in locations exposed to heat, direct sunlight or extreme cold.
• In order to maintain the best performance of your display and ensure a longer lifetime, we strongly recommend using the unit in a location that falls within the following temperature and humidity ranges.
• Temperature: 0 \~ 40°C 32-104°F
• Humidity: 20-80% RH

IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content. Uninterrupted display of still or static images over an extended period may cause “burn in”, also known as “after-imaging” or “ghost imaging”, on your screen. This is a well-known phenomenon in LCD panel technology. In most cases, the “burned in” or “after-imaging” or “ghost imaging” will disappear gradually over a period of time after the power has been switched off.

WARNING: Severe "burn-in" or "after-image" or "ghost image" symptoms will not disappear and cannot be repaired. This is also not covered under the terms of your warranty.

Service:

• The casing cover should be opened only by qualified service personnel.
• If there is any need for repair or integration, please contact your local service center.
• Do not leave your display under direct sunlight.

If your display does not operate normally, having followed the instructions set out in this document, please contact a technician or your local service center.

Read and follow these instructions when connecting and using your display:

Black triangular warning symbol with exclamation mark (no text or numbers)

• Unplug the display if you are not going to use it for an extensive period of time.
• Unplug the display if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids.
• Consult a service technician if the display does not operate normally after having followed the instructions in this manual.
• The casing cover should be opened only by qualified service personnel.
• Keep the display out of direct sunlight and away from stoves or any other heat sources.
• Remove any object that could fall into the vents or prevent proper cooling of the display's electronics.
• Do not block the ventilation holes on the cabinet.
• Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture.
• When turning off the display by detaching the power cable or DC power cord, wait for 6 seconds before re-attaching the power cable or DC power cord for normal operation.
• To avoid the risk of shock or permanent damage to the set, do not expose the display to rain or excessive moisture.
• When positioning the display, make sure the power plug and outlet are easily accessible.
• IMPORTANT: Always activate a screen saver program during your application. If a still image in high contrast remains on the screen for an extended period of time, it may leave an “after-image” or “ghost image” on the front of the screen. This is a well-known phenomenon that is caused by the shortcomings inherent in the LCD technology. In most cases the afterimage will disappear gradually over a period of time after the power has been switched off. Be aware that the after-image symptoms cannot be repaired and are not covered under warranty.

REGULATORY INFORMATION

CE DECLARATION OF CONFORMITY

MMD declares under our responsibility that the product is in conformity with the following standards

• EN60950-1:2006+AII:2009 (Safety requirement of Information Technology Equipment)
• EN55022:2006+A1:2007 (Radio Disturbance requirement of Information Technology Equipment)
• EN55024:1998+A1:2001+A2:2003 (Immunity requirement of Information Technology Equipment)
• EN61000-3-2:2006 (Limits for Harmonic Current Emission)
• EN61000-3-3:1995+A1:2001+A2:2005 (Limitation of Voltage Fluctuation and Flicker)
- EN55013:2001+A1:2003 +A2:2006 (Limits and Methods of Measurement of Radio Disturbance Characteristics of Broadcast Receivers and Associated Equipment)
• EN55020:2007 (Electromagnetic Immunity of Broadcast Receivers and Associated Equipment)

following provisions of directives applicable

• 2006/95/EC (Low Voltage Directive)

• 2004/108/EC (EMC Directive)

- 93/68/EEC (Amendment of EMC and Low Voltage Directive) and is produced by a manufacturing organization on ISO9000 level.

FEDERAL COMMUNICATIONS COMMISSION (FCC) NOTICE (U.S. Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the users' authority to operate the equipment.

Use only RF shielded cable that was supplied with the display when connecting this unit to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.

THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.

FCC DECLARATION OF CONFORMITY

Trade Name: Philips

Declaration of Conformity for Products Marked with FCC Logo, United States Only: This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

POLISH CENTER FOR TESTING AND CERTIFICATION NOTICE

The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computers, monitors, printers and so on) should have the same power supply source.

The phasing conductor of the room's electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 Amperes (A).

To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible.

A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/E-06251.

I. MMD manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.
2. One of MMD's leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.
3. MMD is committed to developing, producing and marketing products that cause no adverse health effects.
4. MMD confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.
5. MMD plays an active role in the development of international EMF and safety standards, enabling MMD to anticipate further developments in standardization for early integration in its products.

INFORMATION FOR UK ONLY

(A) (B)

WARNING - THIS APPLIANCE MUST BE EARTHED.

Important:

This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:

I. Remove fuse cover and fuse.
2. Fit new fuse which should be a BS 1362 5A, A.S.T.A. or BSI approved type.
3. Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place.

If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.

Note: Any severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere.

Diagram of a battery pack with colored wires and connectors (no text or symbols)

How to connect a plug

The wires in the mains lead are colored in accordance with the following code:

BLUE - "NEUTRAL" ("N")

BROWN - "LIVE" ("L")

GREEN & YELLOW - "EARTH" ("E")

1. The GREEN AND YELLOW wire must be connected to the terminal in the plug which is marked with the letter "E" or by the Earth symbol or coloured GREEN or GREEN AND YELLOW.
2. The BLUE wire must be connected to the terminal which is marked with the letter "N" or coloured BLACK.
3. The BROWN wire must be connected to the terminal which marked with the letter "L" or coloured RED.

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the three wires.

Your display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

Please find out about the local regulations on how to dispose of your old display from your local Philips dealer.

(For customers in Canada and U.S.A.)

This product may contain lead and/or mercury. Dispose of in accordance to local state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative)

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT-WEEE

Attention users in the European Union: private households

This marking on the product or on its packaging illustrates, under European Directive 2002/96/EG governing used electrical and electronic appliances, that this product may not be disposed of with normal household waste. You are responsible for the disposal of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such electrical and electronic waste, contact your local government office or the waste disposal organization that serves your household area.

Attention users in United States:

Like all LCD products, this set contains a lamp with Mercury. Please dispose of according to all Local, State and Federal Laws. For the disposal or recycling information, contact: www.mygreenelectronics.com or www.eiae.org.

END OF LIFE DIRECTIVES - RECYCLING

Your display contains several materials that can be recycled.

Like all LCD products, this set contains a lamp with Mercury, please dispose of according to all local State and Federal laws.

ENERGY STAR

As an ENERGY STAR® Partner, MMD has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

TABLE OF CONTENTS

I. UNPACKING AND INSTALLATION

I.I. UNPACKING
I.2. PACKAGE CONTENTS
1.3. INSTALLATION NOTES
I.4. MOUNTING THE DISPLAY

2. PARTS AND FUNCTIONS

2.1. FRONT VIEW
2.2. REAR VIEW

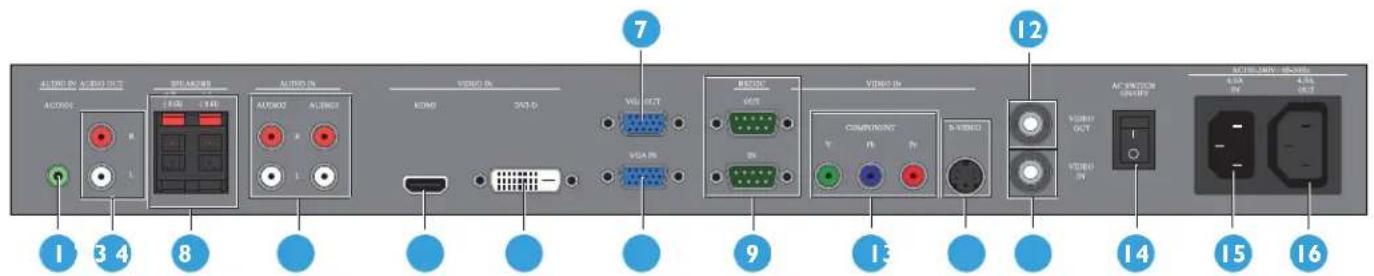

2.3. INPUT/OUTPUT TERMINALS
2.4. REMOTE CONTROL

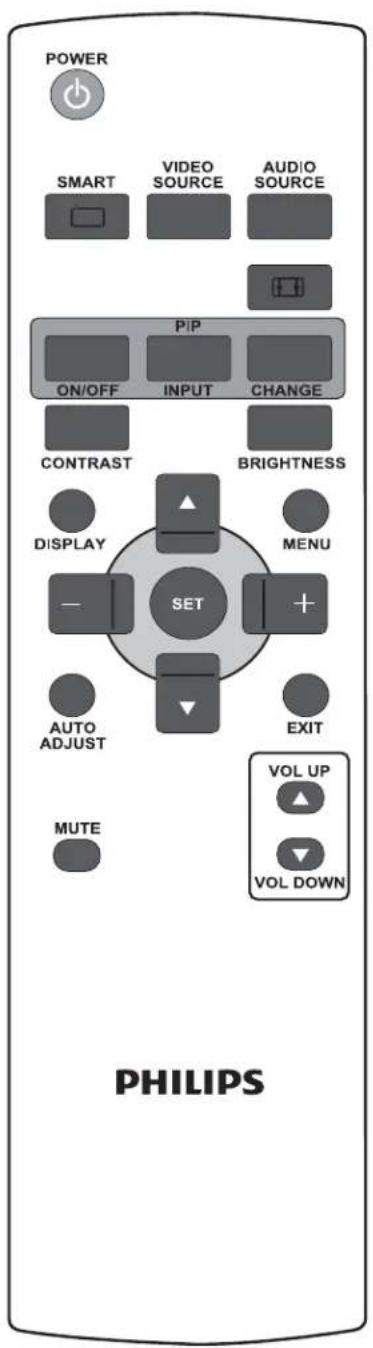

2.4.1. GENERAL FUNCTIONS
2.4.2. INSERTING THE BATTERIES IN THE REMOTE CONTROL

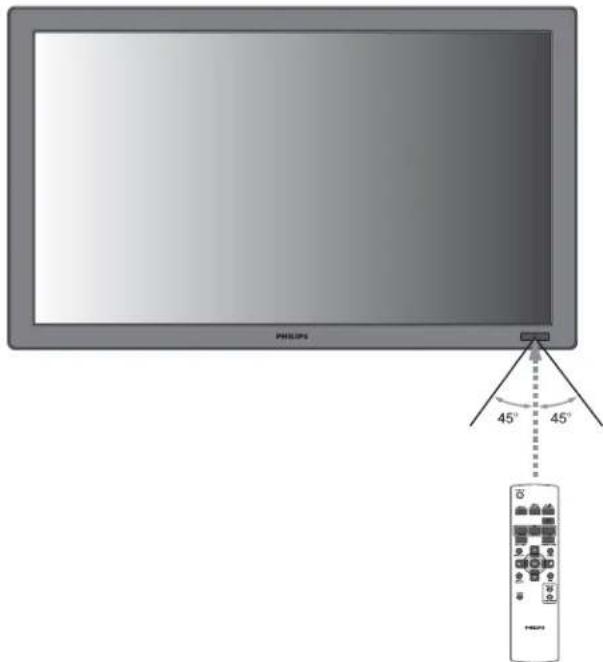

2.4.3. OPERATING RANGE OF THE REMOTE CONTROL

3. CONNECTIONS TO EXTERNAL EQUIPMENT

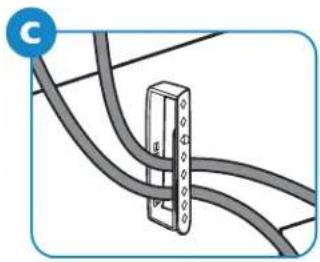

3.1. USING THE CABLE RETAINER
3.2. CONNECTING EXTERNAL EQUIPMENT (DVD/VCR/VCD)

3.2.1. USING COMPONENT VIDEO INPUT

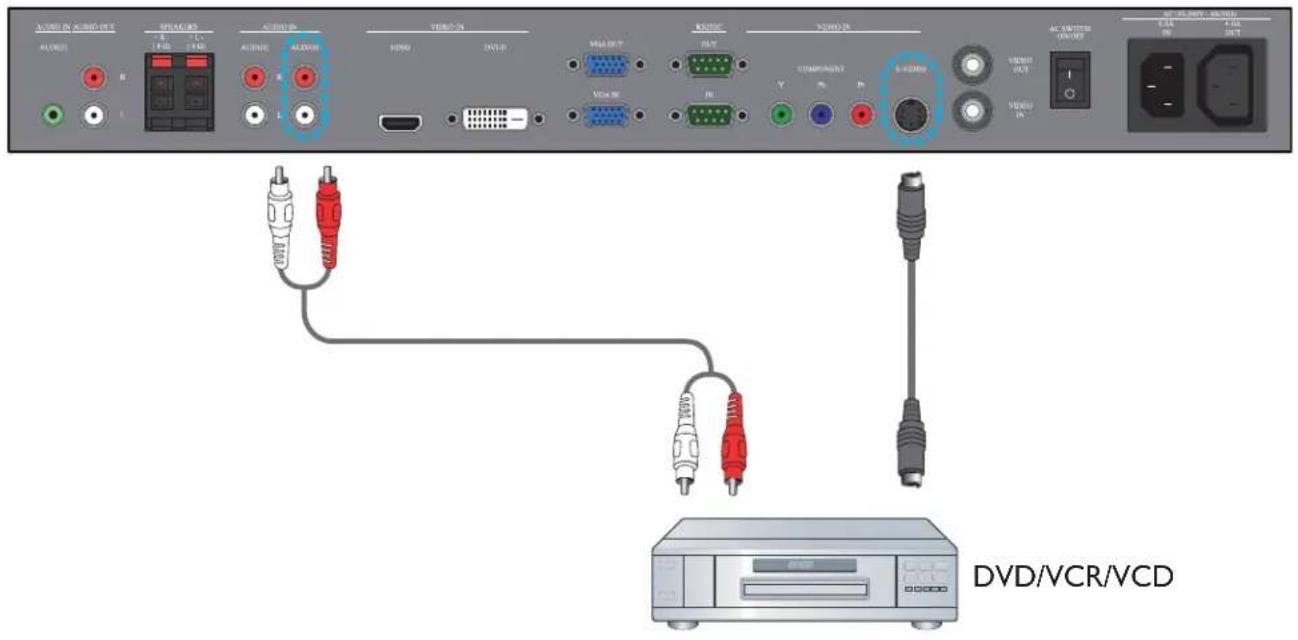

3.2.2. USING S-VIDEO INPUT
3.2.3. USING VIDEO INPUT

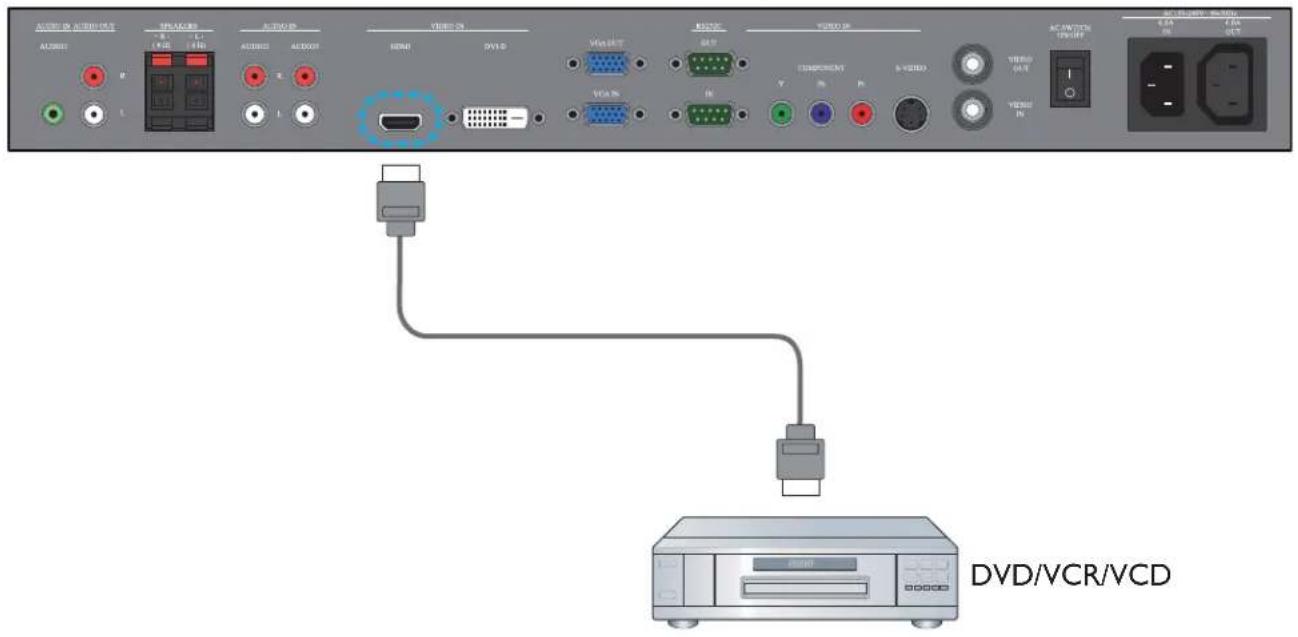

3.2.4. USING HDMI INPUT

3.3. CONNECTING A PC

3.3.1. USING VGA INPUT
3.3.2. USING DVI INPUT
3.3.3. USING HDMI INPUT

3.4. EXTERNAL AUDIO CONNECTION

3.4.1. CONNECTING EXTERNAL SPEAKERS

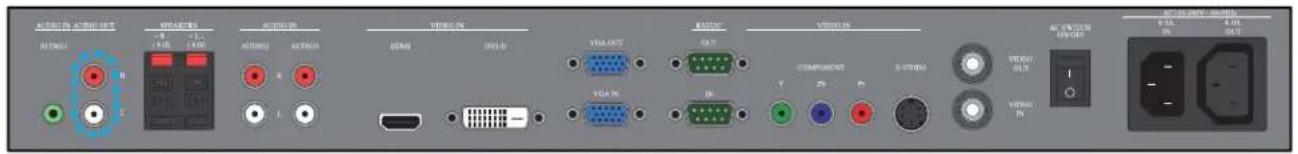

3.4.2. CONNECTING EXTERNAL AUDIO DEVICE

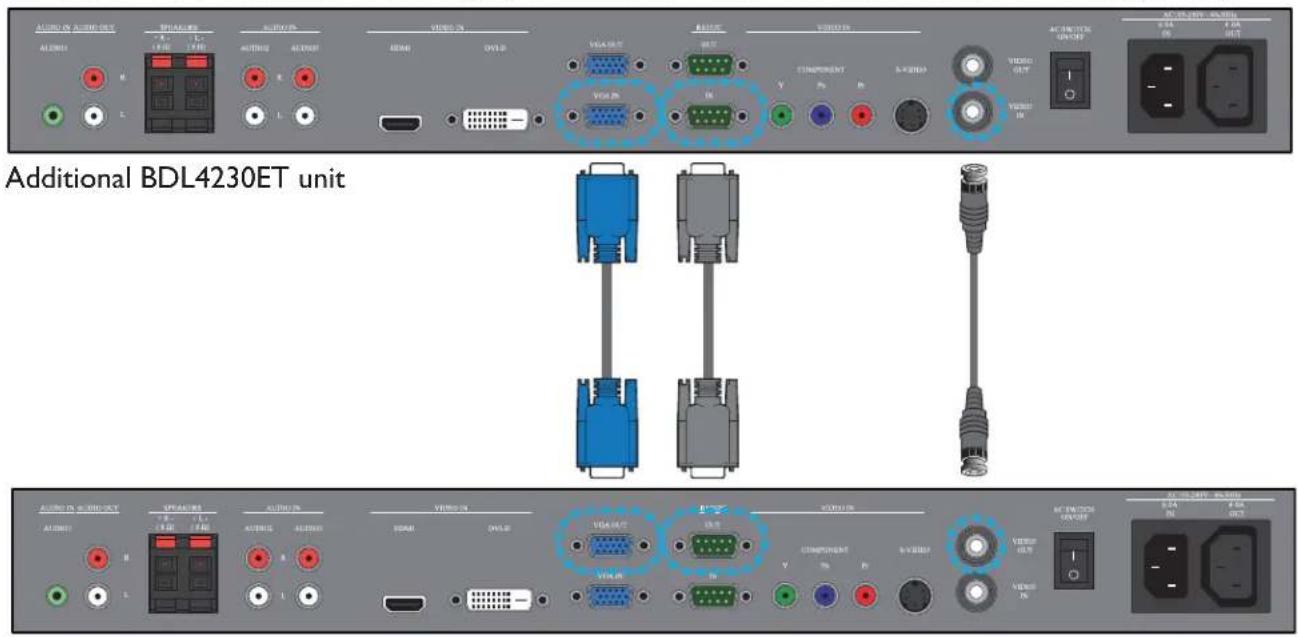

3.5. CONNECTING ANOTHER BDL4230ET DISPLAY

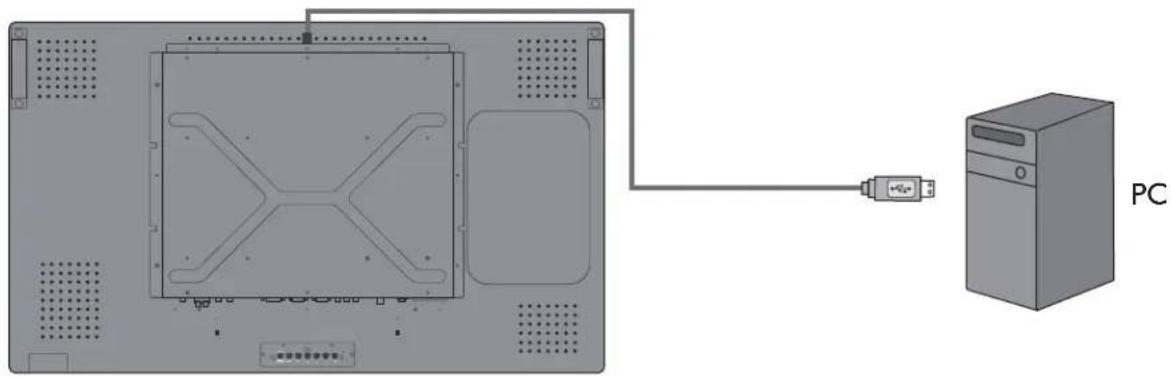

3.6. CONNECTING THE TOUCH MODULE

7. PIXEL DEFECT POLICY

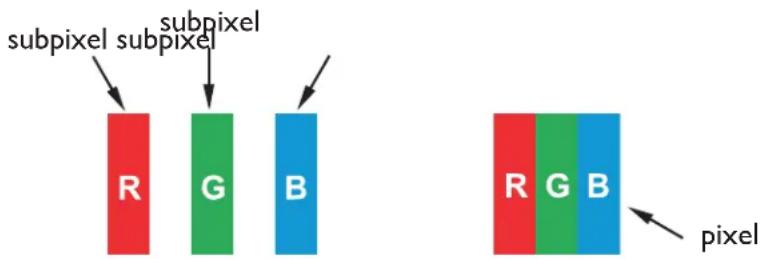

7.1. PIXELS AND SUB-PIXELS
7.2. TYPES OF PIXEL DEFECTS + DOT DEFINITION
7.3. BRIGHT DOT DEFECTS
7.4. DARK DOT DEFECTS
7.5. PROXIMITY OF PIXEL DEFECTS
7.6. PIXEL DEFECT TOLERANCES

8. CLEANING AND TROUBLESHOOTING

8.1. CLEANING
8.2. TROUBLESHOOTING

9. TECHNICAL SPECIFICATIONS

2011 © Koninklijke Philips Electronics N.V. All rights reserved.

Philips and the Philips Shield Emblem are registered trade marks of Koninklijke Philips Electronics N.V. and are used under license from Koninklijke Philips Electronics N.V.

Specifications are subject to change without notice.

I. UNPACKING AND INSTALLATION

I.I. UNPACKING

• This product is packed in a carton, together with the standard accessories.
• Any other optional accessories will be packed separately.
• Due to the size and weight of this display it is recommended for two people to move it.
• The protective glass and glass substrate are installed on the front of the product. Since glass can be both broken and scratched easily, the product should be handled with care. Never place the product with the glass faced down unless with proper protection and padding.

Verify that you received the following items with your package content:

|

2

3

4

5

6

7

I. LCD display
2. Remote control with batteries
3. CD-ROM (EDFU and SICP)
4. Quick Start Guide
5. Cable retainer (x 3)
6. Power cords
7. VGA cable

• For regions not covered by our standard power plugs, apply a power cord that conforms to the AC voltage of the power socket and has been approved by and complies with the safety regulations of the particular country.
• The package box and material can be saved for any event where the unit needs to be shipped to another location.
• External speakers and table stands are offered as optional extras, and are not included with your display.

I.3. INSTALLATION NOTES

• Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is required, please consult your service agent.
• The product should be installed on a flat surface to avoid tipping. Maintain a distance of at least 6cm between the back of the product and the wall for proper ventilation. Avoid installing the product in a kitchen, bathroom or any other place with high humidity so as not to shorten the service life of the electronic components.
• Do not place this product on the floor and keep away from children.
• The product can normally operate only under 4000m in altitude. In installations at altitudes above 4000m, some abnormalities may be experienced.

I.4. MOUNTING THE DISPLAY

Wall mounting holes

400x200mm 200x200mm

Notes:

- M6 (10mm) screws (with a length 10-15mm longer than the thickness of the mounting bracket) are needed for wall mounting (not included). Tighten the screws securely (recommended torque: 470 - 635N·cm)

- The mounting interface should comply with the UL1678 standard in North America. The mounting means should be strong enough to bear the weight of the display (approx. 28 kg (61.7 lb) without stands).

Abstract geometric design with overlapping diamond shapes and a black X mark, enclosed in a square frame (no text or symbols)

Warning: Not for use in portrait mode. Warranty will be void if installed in any orientation other than landscape.

2. PARTS AND FUNCTIONS

2.1. FRONT VIEW

Front view of a Philips tablet device with a small button labeled 'I' pointing to the screen (no text or symbols on the device itself)

I. Remote control sensor, ambient light sensor and power indicator

• Receives command signals from the remote control.
  • Detects the ambient lighting conditions around the display.
• Indicates the operating status of the unit:
• lights green when the display is turned on
• lights red when the display is in standby mode
• blinks green when remote control signal is received
• blinks red when the display enters DPMS mode
• off when the main power of the display is turned off

2.2. REAR VIEW

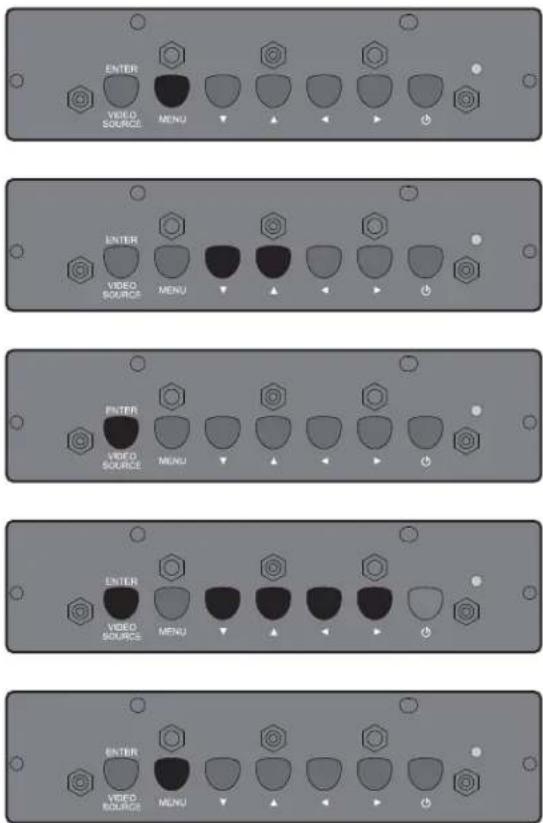

9 8 7 100 mm 100 mm Dent depth: 6mm 35 mm 280 mm 200 mm 210.4 mm ENTER VIDEO SOURCE MENU 1 42 6

I. ENTER/VIDEO SOURCE button

• Use this button to select the input source.
• When the On Screen Display menu is active, this is also used as the SET button.

2. MENU button

• Use this button to engage the On Screen Display menu.
• When the On Screen Display menu is active, use this button to return to the previous menu.

3. ▲/▼ button

• When the On Screen Display menu is active, use these as the UP/DOWN menu buttons.
• Press and hold the ▲ and ▼ buttons simultaneously for 3 seconds to lock or unlock all buttons.

4. ◀ / ▶ button

- When the On Screen Display menu is active, use these as the PLUS/MINUS menu buttons.

5. POWER button

Use this button to turn the display on or into standby mode.

6. Power indicator

Indicates the operating status of the unit:

• lights green when the display is turned on
• lights red when the display is in standby mode
• blinks red when the display enters DPMS mode
• off when the main power of the display is turned off

7. Smart Insert installation holes

Location for the Smart Insert (for integration of a small form factor PC) and M4 screws. (Maximum load: 2kg)

8. Cable retainer installation holes

Install the cable retainer using these holes.

9. Carrying handle

Use these handles when lifting or moving your display.

2.3. INPUT/OUTPUT TERMINALS

Top-down view of a computer monitor chassis with visible circuitry and ventilation grilles (no text or symbols)

ALTRIO IN AUDIO OUT AUDIO 1 3 4 8 AUDIO IN AUDIO AUDIO VIDEO IN AUDIO DATA-D VIDEO OUT VIDEO IN VIDEO IN COMPONENT V I P R T S-VIDEO VIDEO OUT VIDEO IN AC-VENTION 6.5A IN 4.5A OUT 12 14 15 16

I. AUDIO IN (AUDIO I)

Connects to the audio output of a computer.

2. AUDIO OUT R/L

Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack.

3. SPEAKERS R/L

Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack to external speakers.

4. AUDIO IN (AUDIO2/AUDIO3)

Connects to the audio output of an AV device.

5. VIDEO IN (HDMI)

Connects to the HDMI output of an AV device or to the DVI-D output of a PC. (Using a DVI-HDMI cable)

6. VIDEO IN (DVI-D)

Connects to the DVI-D output of a PC or to the HDMI output of an AV device (Using a DVI-HDMI cable).

7. VGA OUT

Outputs the VGA signal from the VGA IN jack.

8. VGA IN

Connects to the VGA output of a computer.

9. RS232C (OUT/IN)

RS232C network connection input/output for the use of loop through function.

10. VIDEO IN (COMPONENT)

Component video input (YPbPr) for connecting to the component output of an AV device.

II. VIDEO IN (S-VIDEO)

S-Video input for connecting to the S-Video output of an AV device.

12. VIDEO OUT

Connects to the video input of an AV device or another BDL4230ET unit.

13. VIDEO IN

Connects to the video output of an AV device or another BDL4230ET unit.

14. Main power switch

Press to switch the main power on/off.

15. AC IN (6.0 A)

Connects the supplied power cord to the wall outlet.

16. AC OUT (4.0 A)

Can be used to power an external media device.

17. Touch module

Connects to the USB port of a computer.

2.4. REMOTE CONTROL

2.4.1. GENERAL FUNCTIONS

POWER SMART VIDEO SOURCE AUDIO SOURCE P/P ON/OFF INPUT CHANGE CONTRAST BRIGHTNESS DISPLAY MENU - SET + AUTO ADJUST EXIT MUTE VOL UP VOL DOWN PHILIPS

POWER

POWER button

Press to switch on the display from standby mode. Press again to turn it to standby mode.

SMART

SMART button

To select smart picture mode from:

• HIGHBRIGHT: for moving images such as Video
• STANDARD: for images (factory setting)
• sRGB: for text based images
• CINEMA: for movies.

- CUSTOM: create your own picture settings. This mode is automatically selected after you change the settings in the PICTURE menu.

VIDEO SOURCE button

To activate the video source selection menu. Press repeatedly to select the video input source from HDMI, DVI-D, VGA, COMPONENT, S-VIDEO, and VIDEO.

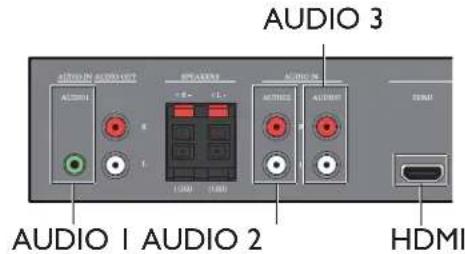

AUDIO SOURCE button

To activate the audio source selection menu. Press repeatedly to select the video input source from HDMI, AUDIO 1, AUDIO 2, and AUDIO 3.

Picture format button

To switch screen aspect ratio between FULL, NORMAL, DYNAMIC, CUSTOM, REAL, and 21:9.

Note: This button cannot function when TOUCH FEATURE is turned on.

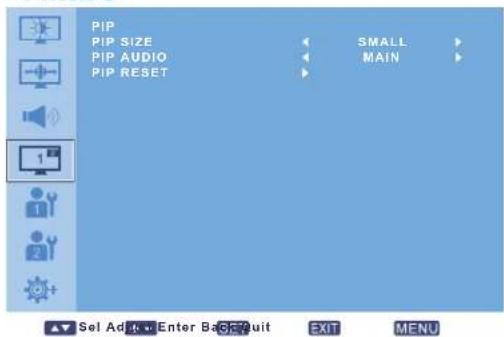

PIP (Picture In Picture) buttons

• ON/OFF button: To turn PIP mode ON/OFF.
• INPUT button: To select the input signal for the sub-picture.
- CHANGE button: To toggle between the main picture and sub picture.
Notes:
- "PIP" mode does not work if the screen size is set to "CUSTOM", "DYNAMIC", "REAL" or "21:9".
- The PIP buttons cannot function when TOUCH FEATURE is turned on.

CONTRAST button

CONTRAST

Press to open the CONTRAST OSD selection, and then press the PLUS or MINUS button to adjust the value.

POWER SMART VIDEO SOURCE AUDIO SOURCE P/P ON/OFF INPUT CHANGE CONTRAST BRIGHTNESS DISPLAY MENU - SET + AUTO ADJUST EXIT MUTE VOL UP VOL DOWN PHILIPS

BRIGHTNESS button

Press to open the BRIGHTNESS OSD selection, and then press the PLUS or MINUS button to adjust the value.

DISPLAY button

To turn on/off the setting information displayed on the upper right corner of the screen.

MENU button

MENU To turn the OSD menu on/off.

UP button

• To move the highlight bar up to adjust the selected item when OSD menu is on.
- To move the sub-picture up in "PIP" mode.

DOWN button

• To move the highlight bar down to adjust the selected item when OSD menu is on.
• To move the sub-picture down in "PIP" mode.

PLUS button

• To increase the adjustment with OSD menu.
- To move the sub-picture right in "PIP" mode.

MINUS button

• To decrease the adjustment with OSD menu.
- To move the sub-picture left in "PIP" mode.

SET button

To activate the changed settings inside OSD menu.

AUTO ADJUST button

AUTO ADJUST

Note: For VGA input only.

To execute the AUTO ADJUST function.

EXIT button

To turn to the previous OSD menu.

MUTE

MUTE button

To turn the mute function on/off.

VOL UP

VOL UP button

To increase the audio output level.

VOL DOWN button

To decrease the audio output level.

Three gray 3D-rendered objects with internal cutouts, no text or symbols visible

2.4.2. INSERTING THE BATTERIES IN THE REMOTE CONTROL

1. Remove the cover on the rear of the remote control.
2. Insert two AAA size 1.5V batteries ensuring that the “+” and “-” ends of the batteries are correctly aligned.
3. Replace the cover.

Note: Do not mix battery types, e.g. alkaline and manganese.

2.4.3. OPERATING RANGE OF THE REMOTE CONTROL

When pressing a remote control button, point the top of the remote control towards the remote control sensor.

Use the remote control within a distance of about 10m/32ft from the display's remote control sensor and within a horizontal and vertical angle of 45 degrees.

PHILIPS 45° 45° PHILIPS

Note: The remote control may not function properly if the remote control sensor on the display is under direct sunlight, in a location with strong illumination, or if there is an obstacle in the path of signal transmission.

3. CONNECTIONS TO EXTERNAL EQUIPMENT

3.1. USING THE CABLE RETAINER

Diagram of a door with an arrow indicating direction, no text or symbols present

Diagram of a cable clamp securing wires, showing no text or symbols

Diagram of a cable or wire connection with a rectangular connector and connecting wires (no text or symbols)

3.2. CONNECTING EXTERNAL EQUIPMENT (DVD/VCR/VCD)

3.2.1. USING COMPONENT VIDEO INPUT

I. Connect the green-colored (labeled as "Y") jack of the device to the green-colored "Y" jack of the display.
2. Connect the blue-colored (labeled as "Pb") jack of the device to the blue-colored "Pb" jack of the display.
3. Connect the red-colored (labeled as "Pr") jack of the device to the red-colored "Pr" jack of the display.
4. Connect the red (R) and white (L) audio jacks of the device to the AUDIO IN (AUDIO2 or AUDIO3) jacks of the display.

AUDIO IN AUDIO OUT AUDIO1 M L WOMERS AUDIO2 AUDIO3 AUDIO4 AUDIO5 AUDIO6 AUDIO7 AUDIO8 AUDIO9 AUDIO10 AUDIO11 AUDIO12 AUDIO13 AUDIO14 AUDIO15 AUDIO16 AUDIO17 AUDIO18 AUDIO19 AUDIO20 AUDIO21 AUDIO22 AUDIO23 AUDIO24 AUDIO25 AUDIO26 AUDIO27 AUDIO28 AUDIO29 AUDIO30 AUDIO31 AUDIO32 AUDIO33 AUDIO34 AUDIO35 AUDIO36 AUDIO37 AUDIO38 AUDIO39 AUDIO40 AUDIO41 AUDIO42 AUDIO43 AUDIO44 AUDIO45 AUDIO46 AUDIO47 AUDIO48 AUDIO49 AUDIO50 AUDIO51 AUDIO52 AUDIO53 AUDIO54 AUDIO55 AUDIO56 AUDIO57 AUDIO58 AUDIO59 AUDIO60 AUDIO61 AUDIO62 AUDIO63 AUDIO64 AUDIO65 AUDIO66 AUDIO67 AUDIO68 AUDIO69 AUDIO70 AUDIO71 AUDIO72 AUDIO73 AUDIO74 AUDIO75 AUDIO76 AUDIO77 AUDIO78 AUDIO79 AUDIO80 AUDIO81 AUDIO82 AUDIO83 AUDIO84 AUDIO85 AUDIO86 AUDIO87 AUDIO88 AUDIO89 AUDIO90 AUDIO91 AUDIO92 AUDIO93 AUDIO94 AUDIO95 AUDIO96 AUDIO97 AUDIO98 AUDIO99 AUDIO100 AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/AC/ VGAOUT VGAIN VGAISN VGAISGK VGAISH1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1S1C VGAOUT 0.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

3.2.2. USING S-VIDEO INPUT

I. Connect the S-Video connector of the external device to the S-VIDEO input of the display.
2. Connect the red (R) and white (L) audio jacks of the device to the AUDIO IN (AUDIO2 or AUDIO3) jacks of the display.

AUDIO/ACR/DVD AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO DVO/VCR/VCD

3.2.3. USING VIDEO INPUT

I. Connect the Video connector of the external device to the VIDEO IN input of the display.
2. Connect the red (R) and white (L) audio jacks of the device to the AUDIO IN (AUDIO2 or AUDIO3) jacks of the display.

AUDIO IN AUDIO OUT AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN AUDIO IN

3.2.4. USING HDMI INPUT

Connect the HDMI connector of the external device to the HDMI input of the display.

I. Connect the 15-pin VGA connector of the PC to the VGA IN connector of the display.
2. Connect the audio cable to the AUDIO IN (AUDIO1) input of the display.

AC/DC ON AC/VAN AC/DC ON AC/DC ON AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VAN AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/VV AC/V VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC/VEN AC / 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

3.3.2. USING DVI INPUT

I. Connect the DVI-D connector of the PC to the DVI-D connector of the display.
2. Connect the audio cable to the AUDIO IN (AUDIO I) input of the display.

AUDIO ON ACCESS AUDIO ON VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME

3.3.3. USING HDMI INPUT

I. Connect the DVI-D connector of the PC to the HDMI connector of the display using a DVI-HDMI cable.
2. Connect the audio cable to the AUDIO IN (AUDIO I) input of the display.

AC/ON/O AC/DVD/DC AC/DVD M L BRASURS +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22 +23 +24 +25 +26 +27 +28 +29 +30 +31 +32 +33 +34 +35 +36 +37 +38 +39 +40 +41 +42 +43 +44 +45 +46 +47 +48 +49 +50 +51 +52 +53 +54 +55 +56 +57 +58 +59 +60 +61 +62 +63 +64 +65 +66 +67 +68 +69 +70 +71 +72 +73 +74 +75 +76 +77 +78 +79 +80 +81 +82 +83 +84 +85 +86 +87 +88 +89 +90 +91 +92 +93 +94 +95 +96 +97 +98 +99 PC

3.4. EXTERNAL AUDIO CONNECTION

3.4.1. CONNECTING EXTERNAL SPEAKERS

I. Connect the speaker wires to the external speaker (SPEAKERS) output of the display.
2. Turn on the unit.

Note: Make sure your display is turned off before connecting the speaker wires.

Simple diagram of two speakers connected to a top line, no text or symbols present

External speaker

3.4.2. CONNECTING EXTERNAL AUDIO DEVICE

Connect the red (R) and white (L) audio jacks of the external audio device to the AUDIO OUT R/L jacks of the display.

AC/DC/DCV - AC/DC AC/DC1 AC/DC2 SPREADS -8 (4x40) +1.5 (4x30) ACTOOS AC/DC1 VOLUME VOLUME VOLUME COMPONENT VOLUME VOLUME AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV AC/DC/DCV A 1.5 A 4.0 B IN IN IN IN

Pure electrical circuit lines without any symbols

External audio device

3.5. CONNECTING ANOTHER BDL4230ET DISPLAY

You can interconnect multiple BDL4230ET units to create a daisy-chain configuration for applications such as a video wall. However, if you will be actively using the touch screen application, we do not recommend video wall mounting.

Note: The number of displays that can be used in a daisy-chain configuration will depend on the resolution of the input signal being used.

• Connect the VGA OUT connector of the display to the VGA IN connector of additional BDL4230ET unit.
• Connect the RS232C OUT connector of the display to the RS232C IN connector of additional BDL4230ET unit.
• Connect the VIDEO OUT connector of the display to the VIDEO IN connector of additional BDL4230ET unit.
• Connect the AC OUT connector of the display to the AC IN connector of an external media player only.

Connect the USB cable on the display to a PC.

The touch module supports easy Plug-and-Play operations. There is no need to install additional drivers on the PC.

Diagram showing a computer monitor with X-shaped panel and PC connected via cable to a tower (no text or symbols)

You can use the optical touch screen to control your operating system. The touch screen can emulate basic mouse functions and supports multi-touch functions for Windows 7*. The following table shows a list of gestures you can use on the touch screen.

Note: Ensure that you have installed the USB cable on the display to a PC.

*Multi-touch functions are only supported by Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions. For Windows XP, Windows Vista and Windows 7 - Starter and Home Basic versions, multi-touch is not supported.

OS functions Gesture actions
For Windows XP, Windows Vista and Windows 7
Click	Tap the screen once.
Double-click	Tap the screen twice.
Right-click	1. Press on the target.2. Hold and wait for a blue ring to appear.3. Release your finger.
Drag	Drag one finger left or right.
For Windows Vista and Windows 7
Selection	Drag one finger left or right.
Pan up / Pan down / Back / Forward	Quickly drag your finger (Flick) in a desired direction.

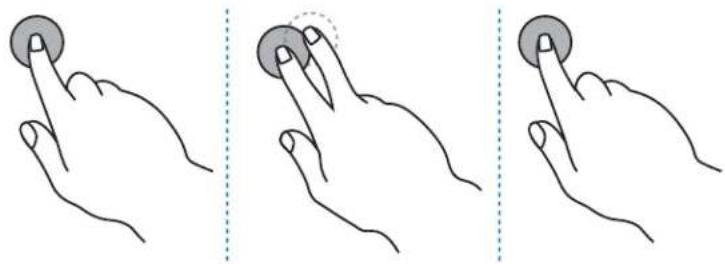

Multi-touch functionsFor Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions
Right-click	1. Press on the target.2. Tap the screen with another finger.3. Release the second finger.

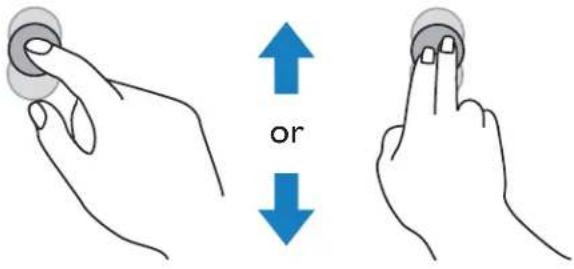

Scrolling	Drag one or two fingers up or down.
Zoom	Move two fingers apart or toward each other.
Supported by specific applications	• Move two fingers in opposing directions.• Use one finger to pivot around another.
Supported by specific applications	Tap two fingers simultaneously.The target should be the midpoint between the fingers.
For Windows XP, Windows Vista and Windows 7
Wakeup from Windows sleep mode (S3)	Press and hold for 4 seconds.

• The function described in this section only applies to Windows 7 - Home Premium, Professional, Enterprise and Ultimate versions.
- Ensure that you have installed the USB cable on the display to a PC.

You can calibrate the touch screen to use it more efficiently.

To adjust calibration:

I. In Windows, tap the Start button and then Control Panel. In the search box, type Tablet PC Settings and tap Tablet PC Settings from the result list.
2. On the Display tab, under Display Options, tap Calibrate. If you are prompted for an administrator password or confirmation, type the password or provide confirmation.
3. Follow the instructions on the screen and tap Yes to save your calibration settings.

4.2. IMPORTANT INSTRUCTIONS FOR USING THE TOUCH SCREEN

• You can calibrate the touch screen using the Windows 7 calibration routine.
• Do not bend the retro-reflective bars. The touch screen cannot function normally if the bars are bent.
• Keep the touch screen out of direct sunlight or spotlights.
• Avoid displaying still images to prevent image retention.
• Regularly clean the retro-reflective bars with a clean, soft cloth. A dusty environment may adversely affect the performance of your touch screen. Clean the retro-reflective bars as illustrated below. Do not clean the touch sensors on the top of the screen.

Diagram illustrating a door or panel assembly with red X marks indicating specific components, showing directional arrows and dashed lines.

Note: Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

5. OSD MENU

An overall view of the On-Screen Display (OSD) structure is shown below. This can be used as a reference for further adjusting your display.

5.1. NAVIGATING THE OSD MENU

5.1.1. NAVIGATING THE OSD MENU USING THE REMOTE CONTROL

I. Press the MENU button on the remote control to display the OSD menu.

1. Press the UP/DOWN button to choose the item you want to adjust.

2. Press the PLUS/SET button to enter the submenu.

3. In the submenu, press the UP/DOWN button to toggle between items, or press PLUS/MINUS button to adjust settings. If there is a submenu, press the SET button to enter it.

4. Press the EXIT button on the remote control to return to the previous menu, or press the MENU button to exit the OSD menu.

5.1.2. NAVIGATING THE OSD MENU USING THE DISPLAY'S CONTROL BUTTONS

I. Press the MENU button to display the OSD menu.

1. Press the ▲/▼ button to choose the item you want to adjust.

2. Press the ENTER/VIDEO SOURCE button to enter the submenu.

3. In the submenu, press the ▲/▼ button to toggle between items, or press ◀/▶ button to adjust settings. If there is a submenu, press the ENTER/VIDEO SOURCE button to enter it.

4. Press the MENU button on the remote control to return to the previous menu, or press the MENU button repeatedly to exit the OSD menu.

5.2. OSD MENU OVERVIEW

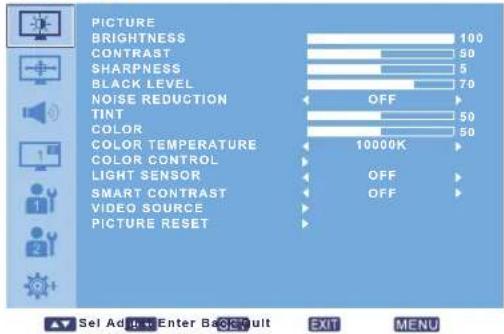

5.2.1. PICTURE MENU

PHILIPS

PICTURE BRIGHTNESS 100 CONTRAST 90 SHARPNESS 5 BLACK LEVEL 70 NOISE REDUCTION OFF TINT 50 COLOR 50 COLOR TEMPERATURE 10000K COLOR CONTROL LIGHT SENSOR OFF SMART CONTRAST OFF VIDEO SOURCE PICTURE RESET ▲ Sel Ad & w Enter Backsult EXIT MENU

BRIGHTNESS

Note: This function is not available when SMART CONTRAST, LIGHT SENSOR or BRIGHTNESS under PANEL SAVING is turned on. Disable these functions to make BRIGHTNESS accessible from the OSD menu.

Adjust the overall image brightness by changing the intensity of the LCD panel's backlight.

Use the PLUS/MINUS button to adjust.

CONTRAST

Adjust to sharpen the picture quality. The black portions of the picture become richer and the whites become brighter.

Use the PLUS/MINUS button to adjust.

SHARPNESS

Adjust to improve detail.

Use the PLUS/MINUS button to adjust.

BLACK LEVEL

Adjust to change the image brightness.

Use the PLUS/MINUS button to adjust.

NOISE REDUCTION

Note: For VIDEO, S-VIDEO, COMPONENT and HDMI inputs with interlaced video only.

Adjust to remove the noise in the image. You can select a suitable noise reduction level.

Use the PLUS/MINUS button to make selection.

TINT

Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI inputs with YUV color space only. (YUV is a color space typically used as part of a color image pipeline.)

Adjust to change the color tint of the image.

Use the PLUS/MINUS button to adjust. Press the PLUS button and the flesh tone color turns slightly green. Press the MINUS button and the flesh tone color turns slightly purple.

COLOR

Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI inputs with YUV color space only. (YUV is a color space typically used as part of a color image pipeline.)

Adjusts to increase or decrease the intensity of colors in the image.

Press the PLUS button to increase color intensity, or press the MINUS button to decrease it.

COLOR TEMPERATURE

Select a color temperature for the image. The image has a reddish tint with a lower color temperature, whilst a higher color temperature gives off a more bluish tint.

Use the PLUS/MINUS button to make selection.

COLOR CONTROL

Note: This function is only available when COLOR TEMPERATURE is set to USER.

With this function you can adjust the color tones of the image precisely by changing the R (Red), G (Green) and B (Blue) settings independently.

Press the SET/PLUS button to open the submenu. Press the UP/DOWN button to select R, G or B, and press the PLUS/MINUS button to adjust.

LIGHT SENSOR

Note: This function is not available when SMART CONTRAST or BRIGHTNESS under PANEL SAVING is turned on. Disable these functions to make LIGHT SENSOR accessible from the OSD menu.

Choose to enable or disable the ambient light sensor. Once enabled, the image brightness will adjust automatically as the ambient lighting conditions change.

Use the PLUS/MINUS button to make selection.

SMART CONTRAST

Note: This function is not available when LIGHT SENSOR or BRIGHTNESS under PANEL SAVING is turned on. Disable these functions to make SMART CONTRAST accessible from the OSD menu.

When turned on, this function helps enhance image contrast when displaying dark scenes.

Use the PLUS/MINUS button to make selection.

VIDEO SOURCE

Select a video input source.

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between

• HDMI • DVI-D
• VGA • COMPONENT
• S-VIDEO • VIDEO

PICTURE RESET

Reset all settings in the PICTURE menu.

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make selection. Select YES and press the SET button to restore settings to factory preset values. Press the EXIT button to cancel and return to the previous menu.

5.2.2. SCREEN MENU

PHILIPS

SCREEN H POSITION V POSITION CLOCK CLOCK PHASE ZOOM MODE CUSTOM ZOOM SCREEN RESET 50 50 16 14 FULL Sel Adi: Enter Back/Quit EXIT MENU

H POSITION

Notes:

• For VGA input only.
• This function is not available when TOUCH FEATURE is turned on. Disable TOUCH FEATURE to make this function accessible from the OSD menu.

Adjust the horizontal placement of the picture.

Press the PLUS button to move the image to the right, or press the MINUS button to move the image to the left.

V POSITION

Notes:

• For VGA input only.
• This function is not available when TOUCH FEATURE is turned on. Disable TOUCH FEATURE to make this function accessible from the OSD menu.

Adjust the vertical placement of the picture.

Press the PLUS button to move the image up, or press the MINUS button to move the image down.

CLOCK

Notes:

• For VGA input only.
• This function is not available when TOUCH FEATURE is turned on. Disable TOUCH FEATURE to make this function accessible from the OSD menu.

Adjust the width of the image.

Press the PLUS button to expand the width of the image, or press the MINUS button to shrink it.

CLOCK PHASE

Notes:

• For VGA input only.
• This function is not available when TOUCH FEATURE is turned on. Disable TOUCH FEATURE to make this function accessible from the OSD menu.

Adjust to improve the focus, clarity and stability of the image.

Use the PLUS/MINUS button to adjust.

ZOOM MODE

Note: ZOOM MODE will be set to FULL and disabled when TOUCH FEATURE is turned on. Disable TOUCH FEATURE to make this function accessible from the OSD menu.

The pictures you receive may be transmitted in 16:9 format (widescreen) or 4:3 format (conventional screen). 16:9 pictures sometimes have a black band at the top and bottom of the screen (letterbox format). This function allows you to optimize the picture display on screen. The following zoom modes are available:

- FULL - This mode restores the correct proportions of pictures transmitted in 16:9 using the full screen display.

- NORMAL - The picture is reproduced in 4:3 format and a black band is displayed on either side of the picture.

- DYNAMIC - Fill the entire screen by stretching 4:3 pictures non-proportionally.

• CUSTOM - Choose to apply the custom zoom settings in the CUSTOM ZOOM submenu. Note: This mode does not support deinterlacing. The screen may flicker when displaying interlaced video.
• REAL - This mode displays the image pixel-by-pixel on screen without scaling the original image size.
• 21:9 - The picture is enlarged to 16:9 format. This mode is recommended when displaying pictures that have black bands at the top and bottom (letterbox format).

Note: This mode does not support deinterlacing. The screen may flicker when displaying interlaced video.

CUSTOM ZOOM

Note: This item is only available when ZOOM MODE is set to CUSTOM and when TOUCH FEATURE is turned off. You can use this function to further customize the zoom settings to suit the image you want to display.

Press the SET/PLUS button to open the submenu. Use the UP/DOWN button to toggle between the following items, and use the PLUS/MINUS button to adjust.

- ZOOM - Expands the horizontal and vertical sizes of the image simultaneously.

- HZOOM - Expands the horizontal size of the image only.

- VZOOM - Expands the vertical size of the image only.

- H POSITION - Moves the horizontal position of the image left or right.

- V POSITION - Moves the vertical position of the image up or down.

SCREEN RESET

Reset all settings in the SCREEN menu.

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make selection. Select YES and press the SET button to restore settings to factory preset values. Press the EXIT button to cancel and return to the previous menu.

5.2.3. AUDIO MENU

PHILIPS

AUDIO VOLUME MUTE AUDIO SOURCE SPEAKER AUDIO RESET OFF INTERNAL 1 2 30 Set Adjust Enter Back/Quit EXIT MENU

VOLUME

Adjust to increase or decrease the audio output level.

Use the PLUS/MINUS button to adjust.

MUTE

To turn the mute function on/off.

Use the PLUS/MINUS button to make selection.

AUDIO SOURCE

To select the audio input source according to the source connected to the audio input and HDMI sockets on the display.

AUDIO 3 AUDIO 1 AUDIO 2 HDMI

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between

• AUDIO 1 • AUDIO 2
• AUDIO 3 • HDMI

SPEAKER

Set the display to play audio using the built-in (internal) speaker, external speakers or external audio devices (if connected).

Use the PLUS/MINUS button to toggle between

• INTERNAL • EXTERNAL
• LINE-OUT

AUDIO RESET

Reset all settings in the AUDIO menu.

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make selection. Select YES and press the SET button to restore settings to factory preset values. Press the EXIT button to cancel and return to the previous menu.

5.2.4. PIP MENU

Notes:

• For COMPONENT, VGA, DVI-D and HDMI inputs only.
• For FULL and NORMAL zoom modes only.
• The PIP function is turned off by default. Press the PIP ON/OFF button on the remote control to turn on PIP and make it accessible from the OSD menu.
• When TOUCH FEATURE is turned on, the PIP function will be disabled. Items under the PIP menu will also become unavailable.

PHILIPS

PIP PIP SIZE SMALL PIP AUDIO MAIN PIP RESET 1 1 2 Set Adapt to Enter Back/Quit EXIT MENU

PIP SIZE

Select the size of the sub picture in the PIP (Picture-in-Picture) mode.

Use the PLUS/MINUS button to toggle between

• LARGE • MIDDLE
• SMALL

PIP AUDIO

Select the audio source in the PIP (Picture-in-Picture) mode.

Use the PLUS/MINUS button to toggle between

• MAIN - Select audio from the main picture
- PIP - Select audio from the sub picture.

PIP RESET

Reset all settings in the PIP menu.

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make selection. Select YES and press the SET button to restore settings to factory preset values. Press the EXIT button to cancel and return to the previous menu.

Notes:

- The PIP function is only available under certain signal source combinations as shown in the table below.

		Main picture signal source
		VIDEO S-	VIDEO COMPONENT VGA DVI-D		HDMI
Subpicturesignalsource	VIDEO	X	X	X	X	X	X
	S-VIDEO	X	X	X	X	X	X
	COMPONENT	X	X	X	X	O	O
	VGA	X	X	X	X	O	O
	DVI-D	X	X	O	O	X	X
	HDMI	X	X	O	O	X	X

(○PIP function available, : XP function unavailable)

- The availability of the PIP function will also depend on the resolution of the input signal being used.

Set the display to reduce the power automatically.

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between

- RGB - Select ON to let the display enter DPMS (Display Power Management Signaling) mode when no signal can be detected from the HDMI, DVI-D, and VGA inputs after three successive cycles. Use the PLUS/MINUS button to make selection.

- VIDEO - Select ON to let the display enter power saving mode when no signal is detected from the VIDEO, S-VIDEO, and COMPONENT inputs after three successive cycles. Use the PLUS/MINUS button to make your selection.

LANGUAGE

Select the language for the OSD menu.

Use the PLUS/MINUS button to select a language.

PANEL SAVING

Choose to enable the panel saving functions to reduce the risk of the "image persistence". Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between

- BRIGHTNESS - Select ON and the brightness of the image will be reduced to an appropriate level, and the BRIGHTNESS setting in the PICTURE menu will become unavailable. Use the PLUS/MINUS button to make selection.

- PIXEL SHIFT - Select the time interval for the display to slightly expand the image size and shift the position of pixels in four directions (up, down, left, and right). Use the PLUS/MINUS button to make selection (OFF or 10-900 seconds from current time). This helps to alleviate the issues of ghost imaging.

Note: PIXEL SHIFT will be set to 360 seconds when TOUCH FEATURE is turned on.

IMPORTANT: It is not recommended to keep a single static image displayed on your unit for long periods of time. This can cause image sticking, or ghost images, which will decrease the quality of your images. In some instances, ghost image damage can be permanent. To avoid such issues, we strongly recommend one of the following actions:

• Change the picture periodically
- Enable PIXEL SHIFT (See PIXEL SHIFT under Section 5.2.5.CONFIGURATION I MENU)
• Use a screen saver with changing images

COLOR SYSTEM

Note: For VIDEO and S-VIDEO inputs only.

Select the color system depending on the input video format.

Use the PLUS/MINUS button to toggle between

• AUTO • PAL 4.4 3
• PAL 3.58 • SECAM
• NTSC 4.43 • NTSC 3.58

CONFIGURATION RESET

Reset all settings in the CONFIGURATION I menu.

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make selection. Select YES and press the SET button to restore settings to factory preset values. Press the EXIT button to cancel and return to the previous menu.

FACTORY RESET

Reset all settings in the PICTURE, SCREEN, AUDIO, PIP, CONFIGURATION I,

CONFIGURATION 2, and ADVANCED OPTION menus. Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make selection. Select YES and press the SET button to restore settings to factory preset values. Press the EXIT button to cancel and return to the previous menu.

5.2.6. CONFIGURATION 2 MENU

PHILIPS

CONFIGURATION 2 OSD TURN OFF OSD MODE INFORMATION OSD SLEEP TIMER OSD H POSITION OSD V POSITION MONITOR INFORMATION TOUCH FEATURE LANDSCAPE OFF OFF 50 50 ON Select Edit Enter Back/Exit Exit MENU

OSD TURN OFF

Set the period of time the OSD menu stays on the screen (from 5 to 120 seconds) Use the PLUS/MINUS button to adjust.

OSD MODE

Select the orientation of the OSD according to the orientation the display is installed. Use the PLUS/MINUS button to toggle between

• PORTRAIT • LANDSCAPE

INFORMATION OSD

Set the period of time the information OSD stays on the screen. The information OSD will display when input signal is changed.

Use the PLUS/MINUS button to adjust. The information OSD will not appear when OFF is selected. If 0 is selected, the information OSD will remain on the screen.

SLEEP TIMER

Set the display to turn itself off to standby mode within a user-specified amount of time. (OFF-24 hours from current time)

Use the PLUS/MINUS button to adjust.

Note: When the SLEEP TIMER is activated, SCHEDULE settings will be disabled.

OSD H POSITION

Adjust the horizontal position of the OSD menu. Use the PLUS/MINUS button to adjust.

OSD V POSITION

Adjust the vertical position of the OSD menu. Use the PLUS/MINUS button to adjust.

MONITOR INFORMATION

Shows the information about your display, including model name, serial number, operating hours and software version.

Press the SET button to view the information. Press the EXIT button to return to the previous menu.

TOUCH FEATURE

Note: For VGA, DVI-D and HDMI inputs only. When turned on, ZOOM MODE will be set to FULL to optimize touch performance. Use the PLUS/MINUS button to adjust.

5.2.7. ADVANCED OPTION MENU

PHILIPS

• For VGA input only.
• INPUT RESOLUTION will be set to AUTO and disabled when TOUCH FEATURE is turned on.

Set the resolution of the VGA input. This is only required when the display is unable to detect the VGA input resolution correctly.

Use the PLUS/MINUS button to toggle between

• AUTO

• 1024×768

- 1280x768

• 1360x768 • 1366x768

This feature offers deeper blacks for an even better image quality. Select a suitable black level expansion setting to reveal more details in the dark parts of an image.

Use the PLUS/MINUS button to toggle between

- OFF·LOW

• MIDDLE • HIGH

GAMMA SELECTION

Gamma is what controls the overall brightness of an image. Images which are not corrected properly can appear too white or too dark, so controlling the gamma properly can have a huge influence on the overall picture quality of your display.

Select a display gamma value to best suit the image and optimize image brightness and contrast.

Use the PLUS/MINUS button to toggle between

· 2.2 · 2.4

• NATIVE

SCAN MODE

Notes:

• For VIDEO, S-VIDEO, COMPONENT, and HDMI (video mode) inputs only.
  • SCAN MODE will be set to UNDERSCAN and disabled when TOUCH FEATURE is turned on.

Change the display area of the image.

Use the PLUS/MINUS button to toggle between

• OVERSCAN - Displays about 95% of the original size of the image. The rest of the areas surrounding the image will be cut off.

- UNDERSCAN - Displays the image in its original size.

SCAN CONVERSION

Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI (video mode) inputs only.

Choose to enable or disable the IP (Interlace to Progressive) conversion function.

Use the PLUS/MINUS button to toggle between

- PROGRESSIVE - Enable the IP conversion function (recommended). Once enabled, the interlace input signal will be converted to progressive format for better display quality.

- INTERLACE: Disable the IP function. This mode is suitable for displaying motion pictures, but increases the chance of image retention.

FILM MODE

Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI (video mode) inputs only.

Choose to turn on or off the film mode frame conversion function.

Use the PLUS/MINUS button to toggle between

- AUTO - Enable the film mode frame conversion function for movies and motion pictures. The display converts a 24 frames-per-second (24 fps) input signal format to DVD video signal format. Once this function is enabled, it is recommended that you set the SCAN CONVERSION function to PROGRESSIVE.

- OFF - Disable the film mode frame conversion function. This mode is suitable for TV broadcasting and VCR signals.

IR CONTROL

Select the operation mode of the remote control when multiple BDL4230ET units are connected via RS232C cables.

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between

• NORMAL - All units can be operated normally by the remote control.

- PRIMARY - Designate this display as the primary unit for remote control operation. Only this display will be operated by the remote control.

- SECONDARY - Designate this display as the secondary unit. It can not be operated by the remote control, and will only receive the control signal from the primary unit via the RS232C connection.

- LOCK - Lock the remote control function of this display. To unlock, press and hold the DISPLAY button on the remote control for 5 seconds.

KEYBOARD CONTROL

Choose to enable or disable the function of the keyboard (control buttons) on the display.

Use the PLUS/MINUS button to toggle between

- LOCK - Disable the keyboard.

- UNLOCK - Enable the keyboard.

TILING

Notes:

• For VGA input only.
• This function is not available when PIP is turned on. Disable PIP to make TILING accessible from the OSD menu.
• When TOUCH FEATURE is turned on, the TILING function will be disabled. Items under the TILING menu will also become unavailable.

With this function you can create a single large screen matrix (display wall) that consists of up to 25 BDL4230ET displays (5 units on the vertical side and 5 units on the horizontal side). This requires you to connect each BDL4230ET unit in a daisy-chain configuration.

Example:

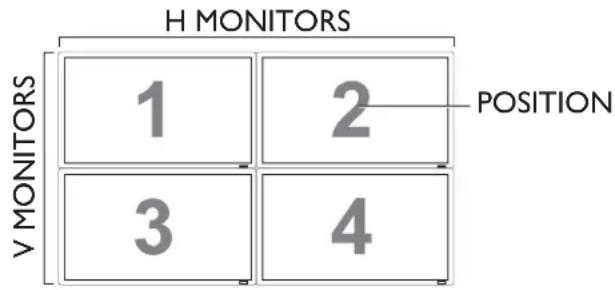

2 x 2 screen matrix (4 displays)

H MONITORS = 2

V MONITORS = 2

H MONITORS 1 2 POSITION V MONITORS 3 4

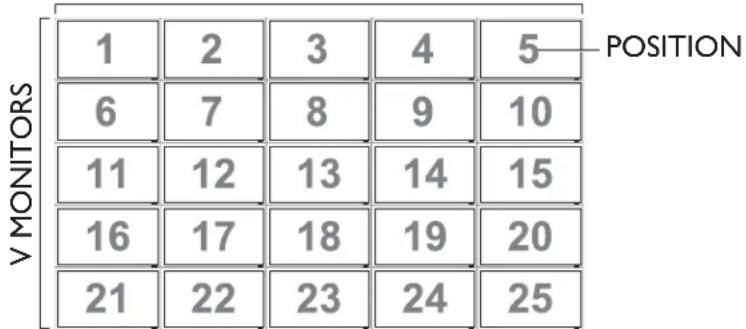

5 x 5 screen matrix (25 displays)

H MONITORS = 5

V MONITORS = 5

H MONITORS

• H MONITORS - Select the number of displays on the horizontal side.
• V MONITORS - Select the number of displays on the vertical side.
• POSITION - Select the position of this display in the screen matrix. Position is defined by the total number of displays in the video wall counting from the top, left hand display and counting horizontally. The number is then continued on the next row down, and the procedure is continued until the final display is reached. See examples above for further explanation.
• FRAME COMP - Choose to turn frame compensation on or off. If turned on, the display will adjust the image to compensate for the width of the bezels in order to accurately display the image.

FRAME COMP - OFF FRAME COMP - ON

PHILIPS PHILIPS

PHILIPS

- ENABLE: Choose to enable or disable the TILING function. If enabled, the display will apply the settings in H MONITORS, V MONITORS, POSITION, and FRAME COMP.

Note: PIP function is disabled when TILING is enabled.

HEAT STATUS

This function allows you to check the thermal status of the display at any time. The accuracy of the temperature indicated is 5 degrees Celsius.

Press the SET button to view the heat status. Press the EXIT button to return to the previous menu.

DATE AND TIME

Adjusts current date and time for the display's internal clock.

Press the PLUS button to open the submenu. Press the UP/DOWN button to toggle between the YEAR, MONTH, DAY, HOUR, MINUTE, and DAYLIGHT SAVING TIME settings, and then press the PLUS/MINUS button to adjust.

SCHEDULE

Note: We recommend setting up current date and time in DATE AND TIME before using the SCHEDULE function. This function allows you to program up to seven different scheduled time intervals for the display. You can select the time the unit turns on and turns off, the days in a week it is activated, and which input source the display will use for each scheduled activation period.

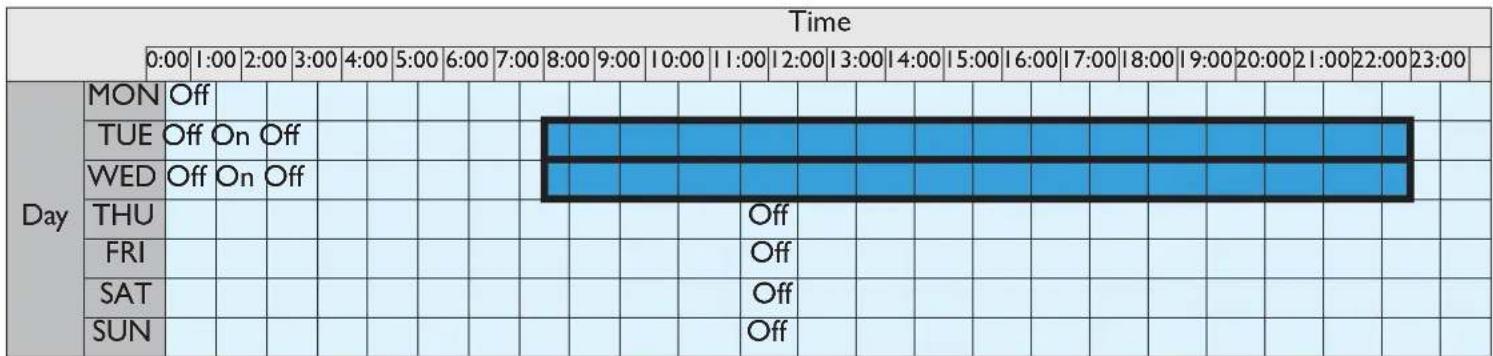

For example, if you wish to turn the display on automatically at 7:30 AM and off at 10:30 PM on Tuesdays and Wednesdays and display the signal from the HDMI input:

Perform the following steps:

I. With the SCHEDULE item highlighted in the ADVANCED OPTION menu, press the SET button to open the submenu.

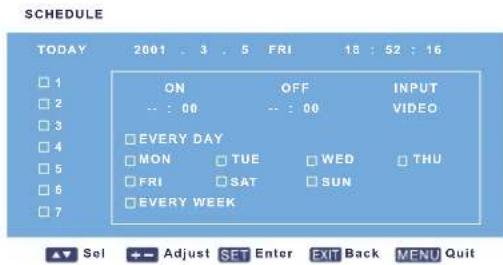

SCHEDULE TODAY 2001 . 3 . 5 FRI . 18 : 52 : 16 □ 1 ON OFF INPUT □ 2 .. : 00 -- : 00 VIDEO □ 3 □ 4 □ EVERY DAY □ MON □ TUE □ WED □ THU □ 5 □ FRI □ SAT □ SUN □ 6 □ 7 □ EVERY WEEK ▲ Sel +— Adjust SET Enter EXIT Back MENU Quit

1. Press the UP/DOWN button to select schedule item #1 (☐ 1), and then press the PLUS button. A check mark will appear in the box indicating that the schedule item has been selected.
2. With the ON item highlighted, press the SET button and then press the UP/DOWN button to set the power on hour to "07".
3. Press the PLUS button to move to the minute slot. Press the UP/DOWN button to set the power on minute to "30", then press the EXIT button.
4. Press the PLUS button to highlight the OFF item. Press the SET button, and then press the UP/DOWN button to set the power off hour to "22".
5. Press the PLUS button to move to the minute slot. Press the UP/DOWN button to set the power off minute to "30", then press the EXIT button.
6. Press the PLUS button to highlight the INPUT item, and then press the UP/DOWN button to select HDMI.
7. Press the PLUS button to select □ TUE and then press the SET button. A check mark will appear in the box indicating that it has been selected.
8. Press the PLUS button to select □ WED and then press the SET button. A check mark will appear in the box indicating that it has been selected.
9. Now you have completed the schedule settings. The on-screen display should look like the illustration below:

SCHEDULE TODAY 2001 . 3 . 5 FRI 18 : 52 : 16 ON OFF INPUT 07 : 30 22 : 30 HDMI EVERY DAY MON TUE WED THU FRI SAT SUN EVERY WEEK ▲ Sel +— Adjust SET Enter EXIT Back MENU Quit

II. Press the EXIT button and the menu will close and the schedule settings will take effect.

To set up more schedule items, repeat the steps above except that a different schedule item should be selected (schedule item #2 (☐) through #7 (☑) in step 2.

Notes:

• Seven scheduling options are available so that you can choose between different video input modes for different schedules during the week. For example, VGA input on a Monday, HDMI on Tuesday to Friday, S-VIDEO for weekends.
• If you do not want to use a power on time, select "--" for the power on hour slot, and "00" for the minute slot. The display will only turn off at the time you set.
• If you do not want to use a power off time, select "--" for the power off hour slot, and "00" for the minute slot. The display will only turn on at the time you set.
• If no input source is selected, the default input source (VIDEO) will be used.
• If EVERY DAY is selected, the display will turn on everyday regardless of other day settings (e.g MON, TUE, WED..., etc.).
• Should schedule periods overlap, the power on time has priority over power off time. For example, if schedule item #1 sets the display to power on at 10:00 AM and off at 5:00 PM, and schedule item #2 sets the display to power on at 4:00 PM and off at 9:00 PM on the same day, then the display will power on at 10:00 AM and off at 9:00 PM.
• If there are multiple schedule items programmed for the same time period, then the highest numbered schedule item has priority. For example, if schedule items #1 and #2 both set the display to power on at 7:00 AM and off at 5:00 PM, then only schedule item #1 will take effect.

MONITOR ID

Set the ID number for controlling the unit via the RS232C connection. Each display must have a unique ID number when multiple BDL4230ET units are connected.

See table under "TILING" for more information. Use the PLUS/MINUS button to select an ID.

DDC/CI

Choose to turn ON or OFF the DDC/CI communication function. Select ON for normal use.

Use the PLUS/MINUS button to make selection.

SMART POWER

Set the display to reduce the power consumption automatically. Setting to HIGH will bring the most power savings.

Use the PLUS/MINUS button to toggle between

• OFF • MEDIUM
• HIGH

AUTO SIGNAL DETECTION

Select to let the unit detect and display available signal source automatically.

• ON - Set the unit to display the image automatically once a signal is connected.
• OFF - Once a signal is connected, it can only be selected manually.

Use the PLUS/MINUS button to make selection.

ADVANCED OPTION RESET

Reset all settings in the ADVANCED OPTION menu.

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make selection. Select YES and press the SET button to restore settings to factory preset values. Press the EXIT button to cancel and return to the previous menu.

6. INPUT MODE

VGA Resolution

Standard Resolution	Active Resolution		Refresh Rate P	Pixel Rate Aspect	Ratio Stand for	Mode
	H Pixels V Lines
VGA 640	480		60 Hz 25.175 MHz		4:3 Video	Graphic Array72 Hz 31.5 M
			75 Hz 31.5 MHz
WVGA 720	400 70 Hz 33	75 MHz 16:9				Wide Video Graphic Array
SVGA	800 600		60 Hz	40 MHz	4:3	Super VGA
			75 Hz 49.5 MHz
XGA	1024	768	60 Hz	65 MHz	4:3	Extended Graphic Array
			75 Hz 78.75 MHz
WXGA	1280	768	60 Hz	79.5 MHz	5:3	Wide XGA
WXGA	1280	800	60 Hz	79.5 MHz	16:10	Wide XGA
SXGA	1280	960	60 Hz	108 MHz	4:3	Super XGA
SXGA	1280	1024	60 Hz	108 MHz	5:4	Super XGA
WXGA	1360	768	60 Hz	85.5 MHz	16:9	Wide XGA
WXGA	1366	768	60 Hz	85.5 MHz	16:9	Wide XGA
UXGA	1600	1200	60 Hz	162 MHz	4:3	Ultra XGA
HD1080	1920	1080	60 Hz	148.5 MHz	16:9	HD1080

SDTV Resolution

Standard Resolution	Active Resolution		Refresh Rate P	Pixel Rate Aspect	Ratio Stand for	Mode
	H Pixels V	Lines
480i	720 480		29.97 Hz	13.5 MHz	4:3	Modified NTSC Standard
480p			59.94 Hz 27 MHz
576i	720 480		25 Hz 13.5 MHz		4:3 Modified PAL Standard
576p			50 Hz	27 MHz

HDTV Resolution

Standard Resolution	Active Resolution		Refresh Rate P	Pixel Rate Aspect	Ratio Stand for	Mode
	H Pixels V	Lines
720p	1280	720	50 Hz	74.25 MHz 16:9	Normally DVB Mode
			60 Hz
1080i	1920	1080	25 Hz	74.25 MHz 16:9	Normally ATSC Mode
			30 Hz
1080p 1920	1080		50 Hz	148.5 MHz	16:9	Normally ATSC Mode
			60 Hz

- PC text quality is optimum in HD 1080 mode (1920 x 1080, 60Hz).

- Your PC monitor may appear differently depending on the manufacturer (and your particular version of Windows). Check your PC instruction book for information about connecting your PC to a display.

• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5KHz (horizontal). In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected). If this happens, press the INPUT button to enter the video mode. Also, make sure that the PC is connected.
• If horizontal synchronous signals seem irregular in RGB mode, check PC power saving mode or cable connections.
• The display settings table complies with IBM/VESA standards, and based on analog input.

7. PIXEL DEFECT POLICY

We strive to deliver the highest quality products and use some of the industry's most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any LCD display with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions.

This notice explains the different types of pixel defects and defines the acceptable defect level for the BDL4230ET LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused.

Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those.

7.1. PIXELS AND SUB-PIXELS

A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and blue. Many pixels together form an image. When all sub-pixels of a pixel are lit, the three colored sub-pixels together appear as a single white pixel. When all are dark, the three colored sub-pixels together appear as a single black pixel. Other combinations of lit and dark sub-pixels appear as single pixels of other colors.

subpixel subpixel R G B pixel

7.2. TYPES OF PIXEL DEFECTS + DOT DEFINITION

Pixel and sub-pixel defects appear on the screen in different ways. There are three categories of pixel defects and several types of sub-pixel defects within each category.

Dot definition = What is a defective "Dot"? :

One or more defective, adjacent sub-pixel is defined as one "dot". The number of defective sub-pixels is not relevant to define a defective dot. This means that a defective dot can consist of one, two or three defective sub-pixels which can be dark or lit.

R G B

One dot = One Pixel; consists of three sub-pixels of Red; Green and Blue

7.3. BRIGHT DOT DEFECTS

Bright dot defects appear as pixels or sub-pixels that are always lit or "on". These are the examples of bright dot defects:

One lit red, green or blue sub-pixel	Two adjacent lit sub-pixels:- Red + Blue = Purple- Red + Green = Yellow- Green + Blue = Cyan (Light Blue)	Three adjacent lit sub-pixels (one white dot)

7.4. DARK DOT DEFECTS

Black dot defects appear as pixels or sub-pixels that are always dark or "off". These are the examples of black dot defects:

One dark dot	Two adjacent dark dots = 1 pair of dark dots	Two dark dots, specifications define the minimum distance between dark dots

7.5. PROXIMITY OF PIXEL DEFECTS

Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about:

• Allowed amount of adjacent dark dots = (adjacent dark dots = 1 pair of dark dots)
  • Minimum distance between dark dots
  • Total no. of all defective dots

7.6. PIXEL DEFECT TOLERANCES

In order to qualify for repair due to pixel defects during the warranty period, a PDP/TFT panel in a Philips LCD display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table.

BRIGHT DOT EFFECT ACCEPTABLE LEVEL
MODEL BDL4230ET
I lit sub pixel I
BLACK DOT EFFECT ACCEPTABLE LEVEL
I dark sub pixel 8
TOTAL DOT DEFECTS OF ALL TYPES 9

Note: * 1 or 2 adjacent sub pixel defects = 1 dot defect

8. CLEANING AND TROUBLESHOOTING

8.1. CLEANING

Caution When Using the Display

• Do not place your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of the air being expelled through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself.
• Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock.
• Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure.

Front Panel Cleaning Instructions

• The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth.
• If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution. Wring the cloth to remove excess liquid. Wipe the surface of the display to remove dirt. Then use a dry cloth of the same type to dry.
• Do not scratch or hit the surface of the panel with fingers or hard objects of any kind.
• Do not use volatile substances such as sprays, solvents and thinners.

Cabinet Cleaning Instructions

• If the cabinet becomes dirty, wipe with a soft, dry cloth.
• If the cabinet is extremely dirty, soak a lint-free cloth in a mild detergent solution. Wring the cloth to remove as much moisture as possible. Wipe the cabinet. Use another dry cloth to wipe over until the surface is dry.
• Do not allow any water or detergent to come into contact with the surface of the display. If water or moisture gets inside the unit, operating problems, or electrical and shock hazards may result.
• Do not scratch or hit the cabinet with fingers or hard objects of any kind.
• Do not use volatile substances such as sprays, solvents and thinners on the cabinet.
• Do not place anything made from rubber or PVC near the cabinet for any extended periods of time.

8.2. TROUBLESHOOTING

Symptom Possible	Cause Remedy
No picture is displayed 1. The power cord is disconnected.2. The main power switch on the back of the display is not switched on.3. The selected input has no connection.4. The display is in standby mode with VGA.Interference displayed on the screen or audible noise is heardColor is abnormal The signal cable is not connected properly. Make sure that the signal cable is attached firmly to the back of the display.Picture is distorted with abnormal patterns1. The signal cable is not connected properly.2. The input signal is beyond the capabilities of the display.Display image doesn't fill up the full size of the screenThe zoom mode is not correctly set.Can hear sound, but no pictureCan see picture but no sound is heardSome picture elements do not light upAfter-Images can still be seen on the screen after the display is powered off.(Examples of still pictures include logos, video games, computer images, and images displayed in 4:3 normal mode)	1. The main power switch on the back of the display is not switched on.3. The selected input has no connection.4. The display is in standby mode with VGA.Caused by surrounding electrical appliances, traffic or fluorescent lights.	1. Plug in the power cord.2. Make sure the power switch is switched on.3. Connect a signal connection to the display.Move the display to another location to see if the interference is reduced.

9. TECHNICAL SPECIFICATIONS

Display

Item Specifications
Screen Size (Active Area) 42” (107 cm) LCD
Aspect Ratio 16:9
Number of Pixels 1920 (H) x 1080 (V)
Pixel Pitch 0.4845 (H) x 0.4845 (V) [mm]
Displayable Colors 1.06B colors
Brightness 500 cd/m	^2
Smart Contrast 5000:I
Contrast Ratio (Typical) 1500:I
Viewing Angle 178 degrees

In/Out Terminals

Item Specifications
Speaker Output Internal	Speaker	12W (L) + 12W (R) [RMS]/8ΩI Way I Speaker System82 dB/W/M/160 Hz ~ 13 KHz
Audio Output RCA Jack x I	0.5V [rms]	(Normal)/ 2 Channel (L+R)
Audio Input	RCA Jack x 2	0.5V [rms] (Normal)/ 2 Channel (L+R)
RS232C	D-Sub Jack x 2 (9 pin)	TXD + RXD (I:I)
HDMI Input	HDMI Jack x I (Type A)	Digital RGB: TMDS (Video + Audio)MAX: Video - 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)Audio - 48 KHz/ 2 Channel (L+R)
DVI-D Input	DVI-D Jack x I	Digital RGB: TMDS (Video)
RGB Input	D-Sub Jack x I (15 pin)	Analog RGB: 0.7V [p-p] (75Ω), H/CS/V: TTL (2.2kΩ), SOG: IV [p-p] (75Ω)MAX: 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)
	3.5mm Mini-jack x I	Audio: 0.5V [rms] (Normal)/2 Channel (L+R)
RGB Output	D-Sub Jack x I (15 pin)	Analog RGB: 0.7V [p-p] (75Ω), H/CS/V: TTL (2.2kΩ), SOG: IV [p-p] (75Ω)MAX: 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)
Component Input	RCA Jack x I	Y: IV [p-p] (75Ω), Pb: 0.7V [p-p] (75Ω), Pr: 0.7V [p-p] (75Ω)MAX: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
S-Video Input	Mini DIN Jack x I (4 pin)	Y: IV [p-p] (75Ω), C: 0.286V [p-p] (75Ω) [NTSC]Y: IV [p-p] (75Ω), C: 0.300V [p-p] (75Ω) [PAL/SECAM]
Video Input	BNC Jack x I	Video: IV [p-p] (75Ω) [NTSC/PAL/SECAM]
Video Output	BNC Jack x I	Video: IV [p-p] (75Ω) [NTSC/PAL/SECAM]

General

Item Specifications
Power Supply	AC 100V ~ 240V, 50/60 Hz
Power Consumption (Max)	230W
Dimension [W x H x D mm]
With Stand	992 x 631 x 405 mm
Without Stand	992 x 585 x 128 mm
Weight
With Stand	30 Kg
Without Stand	28 Kg

Environmental Condition

Item Specifications
Temperature	Operational Storage	0 ~ 40°C-20 ~ 60°C
Humidity	Operational Storage	20 ~ 80% RH (No condensation)5 ~ 95% RH (No condensation)
Pressure	Operational Storage / Shipment	800 ~ 1100 hPa (Altitude: 0 ~ 4,000 m)700 ~ 1100 hPa (Altitude: 0 ~ 15,000 m)

Internal Speaker

Item Specifications
Type I Way I Speaker
Input 12 W (RMS)
Impedance	8Ω
Output Sound Pressure 82 dB/W/M
Frequency Response 160 Hz ~ 13 KHz

Optical Touch Screen

Item Specifications
Technology Optical
Resolution (Points Area Function) 32767 x 32767
Capability 2 simultaneous touches
Accuracy	±3mm over 95% of touchable area
Glass Tempered glass
Interface USB 1.1
Supported OS	Windows XP, Windows Vista and Windows 7

PHILIPS

2011 © Koninklijke Philips Electronics N.V. All rights reserved.

Philips and the Philips Shield Emblem are registered trade marks of Koninklijke Philips Electronics N.V. and are used under license from Koninklijke Philips Electronics N.V.

Specifications are subject to change without notice.
