USER MANUAL NP-L50W NEC

• DLP and BrilliantColor are trademarks of Texas Instruments.
• IBM is a trademark or registered trademark of International Business Machines Corporation.
  • Macintosh, iPod, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries.
• Microsoft, Windows, Windows Vista, and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• Adobe, Adobe PDF, Adobe Reader, and Acrobat are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
• MicroSaver is a registered trademark of Kensington Computer Products Group, a division of ACCO Brands.
• HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

• Blu-ray is a trademark of Blu-ray Disc Association
• SDHC, SD, microSD and microSDHC logo is a trademark of SD-3C, LLC.
  • Linux is a registered trademark of Linus Torvalds in the U.S. and other countries.
• Other product and company names mentioned in this user's manual may be the trademarks or registered trademarks of their respective holders.
  • GPL/LGPL Software Licenses

The product includes software licensed under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), and others.

For more information on each software, see "readme.pdf" inside the "about GPL&LGPL" folder on the supplied CD-ROM.

NOTES

(1) The contents of this user's manual may not be reprinted in part or whole without permission.
(2) The contents of this user's manual are subject to change without notice.
(3) Great care has been taken in the preparation of this user's manual; however, should you notice any questionable points, errors or omissions, please contact us.
(4) Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.

Safety Cautions

Precautions

Please read this manual carefully before using your NEC L50W projector and keep the manual handy for future reference.

CAUTION

To turn off main power, be sure to remove the plug from power outlet.

The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.

THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided.

The information should be read carefully to avoid problems.

WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT'S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS CAN BE FULLY INSERTED.

DOC Compliance Notice (for Canada only)

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Machine Noise Information Regulation - 3. GPSGV,

The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779.

Disposing of your used product

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product.

After collecting the used products, they are reused and recycled in a proper way. This effort will help us reduce the wastes as well as the negative impact to the human health and the environment at the minimum level. The mark on the electrical and electronic products only applies to the current European Union Member States.

WARNING TO CALIFORNIA RESIDENTS:

Handling the cables supplied with this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.

RF Interference (for USA only)

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

For UK only: In UK, a BS approved power cord with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

- Do not place the projector in the following conditions:

• on an unstable cart, stand, or table.
• near water, baths, or damp rooms.
• in direct sunlight, near heaters, or heat radiating appliances.
• in a dusty, smoky or steamy environment.
• on a sheet of paper or cloth, rugs or carpets.

- Do not mount the projector on the ceiling or wall. The projector is not designed for that purpose.

WARNING

• Do not use any other object than the projector's sliding lens cover to cover the lens while the projector is on. Doing so can cause the object to get extremely hot, and possibly resulting in a fire or damage due to the heat emitted from the light output.
• Do not place any objects, which are easily affected by heat, in front of the projector lens. Doing so could lead to the object melting from the heat that is emitted from the light output.

No!

Fire and Shock Precautions

- Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 4 inches (10cm) of space between your projector and a wall.

- Do not try to touch the ventilation outlet as it can become heated while the projector is turned on and immediately after the projector is turned off.

- Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified service personnel.

- Do not place any objects on top of the projector.

- Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.

- The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power supply fits this requirement before attempting to use your projector.

- Do not look into the lens while the projector is on. Serious damage to your eyes could result.

- Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as a fire or injury to the eyes.

- Do not block the light path between the light source and the lens with any objects. Doing so could cause the object to catch on fire.

- Handle the power cord carefully. A damaged or frayed power cord can cause electric shock or fire.

- Do not use any power cord other than the one supplied.

- Do not bend or tug the power cord excessively.

- Do not place the power cord under the projector, or any heavy object.

- Do not cover the power cord with other soft materials such as rugs.

- Do not heat the power cord.

- Do not handle the power plug with wet hands.

- Turn off the projector, unplug the power cord and have the projector serviced by a qualified service personnel under the following conditions:

- When the power cord or plug is damaged or frayed.

- If liquid has been spilled into the projector, or if it has been exposed to rain or water.

- If the projector does not operate normally when you follow the instructions described in this user's manual.

- If the projector has been dropped or the cabinet has been damaged.

- If the projector exhibits a distinct change in performance, indicating a need for service.

- Disconnect the power cord and any other cables before carrying the projector.

- Turn off the projector and unplug the power cord if the projector is not to be used for an extended period of time.

- Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside the soft case could be damaged.

Remote Control Precautions

• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not short, heat, or take apart battery.
• Do not throw battery into fire.
• If you will not be using the remote control for a long time, remove the battery.
• Dispose of used battery according to your local regulations.
• Do not place the battery upside down.

NOTE:

* Keep the coin cell battery out of reach of children so as not to allow them to swallow the cell battery.

About High Altitude mode

• Set [Fan Mode] to [High] when using the projector at altitudes approximately 2500 feet/760 meters or higher.
• Using the projector at altitudes approximately 2500 feet/760 meters or higher without setting to [High] can cause the projector to overheat and the projector could shut down. If this happens, wait a couple minutes and turn on the projector.

About Copyright of original projected pictures:

Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such as a coffee shop or hotel and employing compression or expansion of the screen image with the following functions may raise concern about the infringement of copyrights which are protected by copyright law. [Aspect Ratio], [Keystone], [D-ZOOM] feature and other similar features.

Table of Contents

Table of Contents....1

Usage Notice ......2

Precautions 2

Introduction 4

Product Features ....4

Package Overview ....5

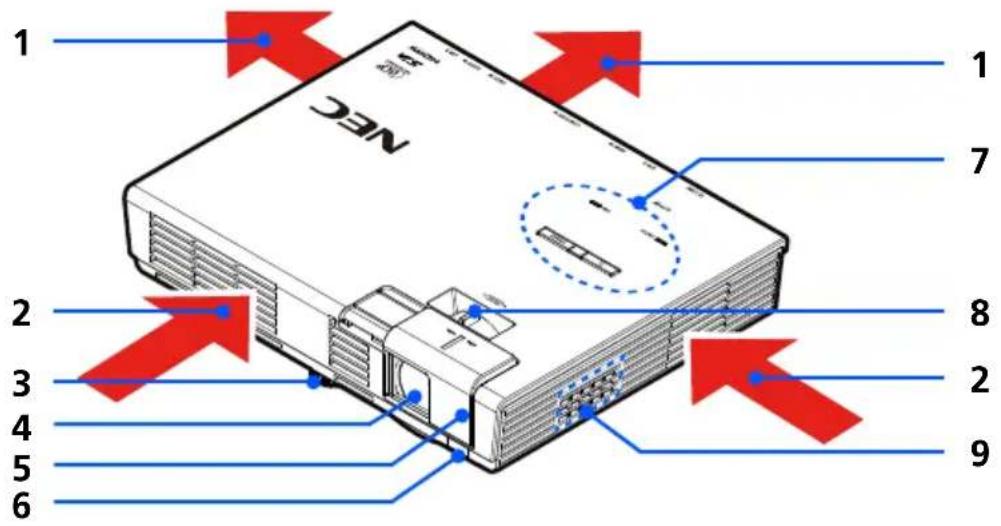

Product Overview 6

Projector 6

Connection Ports 7

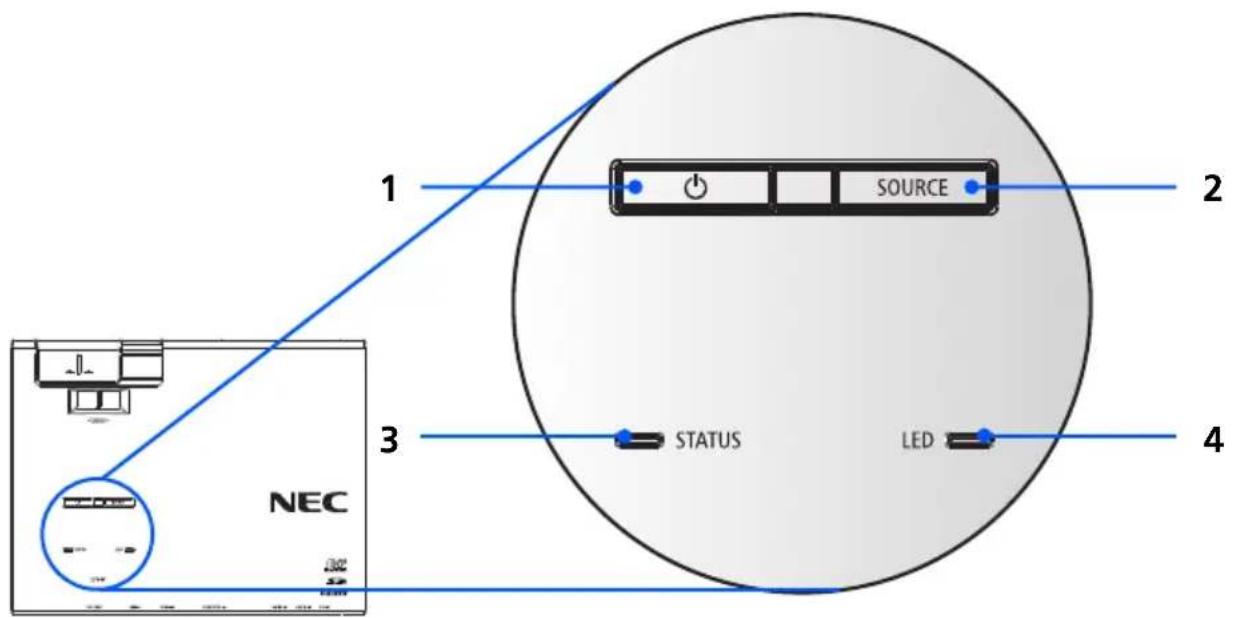

Control Panel.... 8

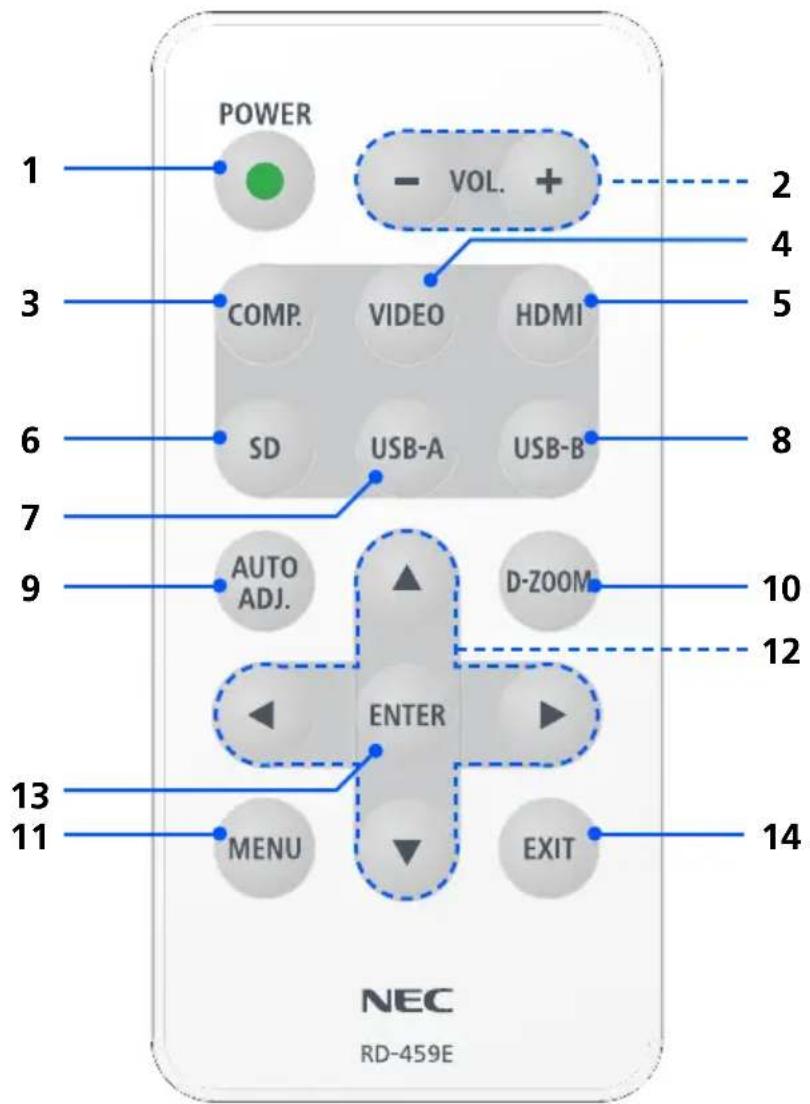

Remote Control 9

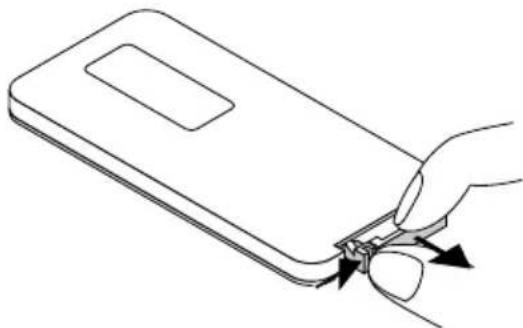

Battery Installation 11

Installation 12

Connecting the Projector ....12

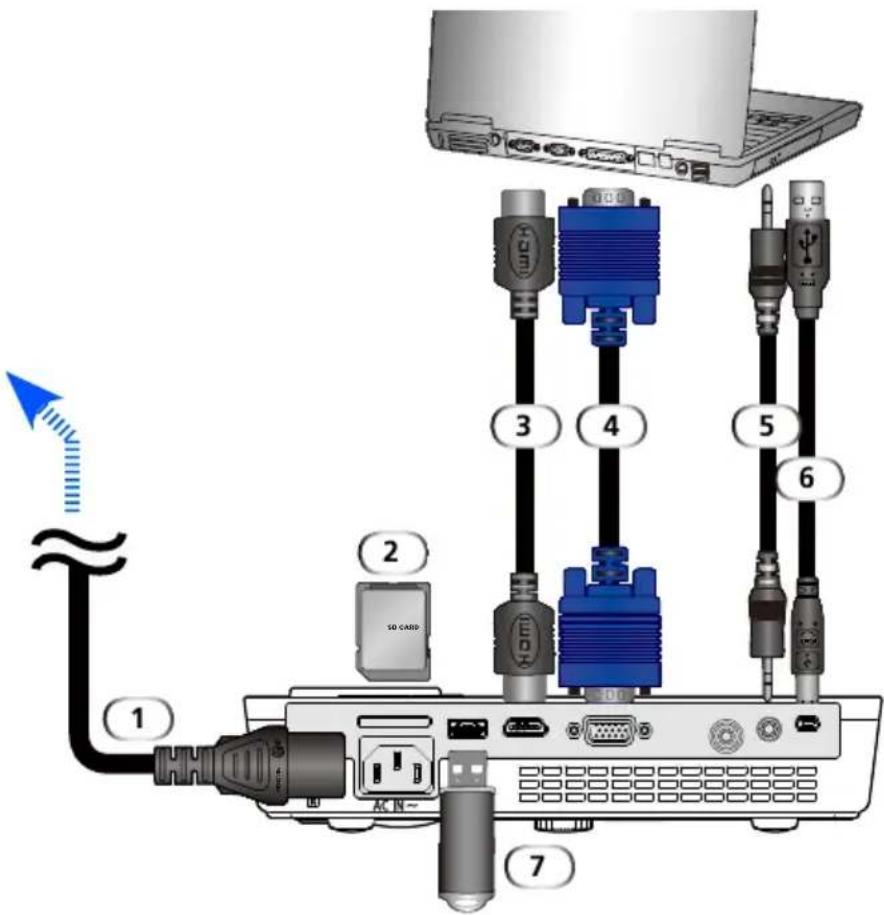

Connect to Computer/Notebook 12

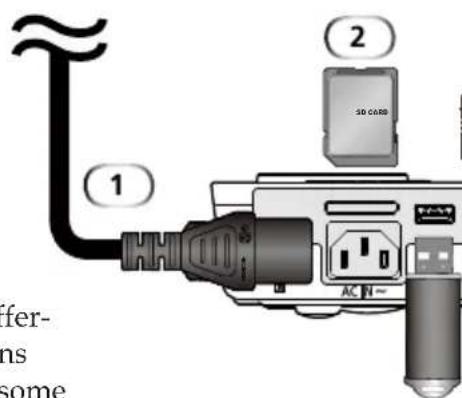

Connect to Video Sources 13

Powering On/Off the Projector .....14

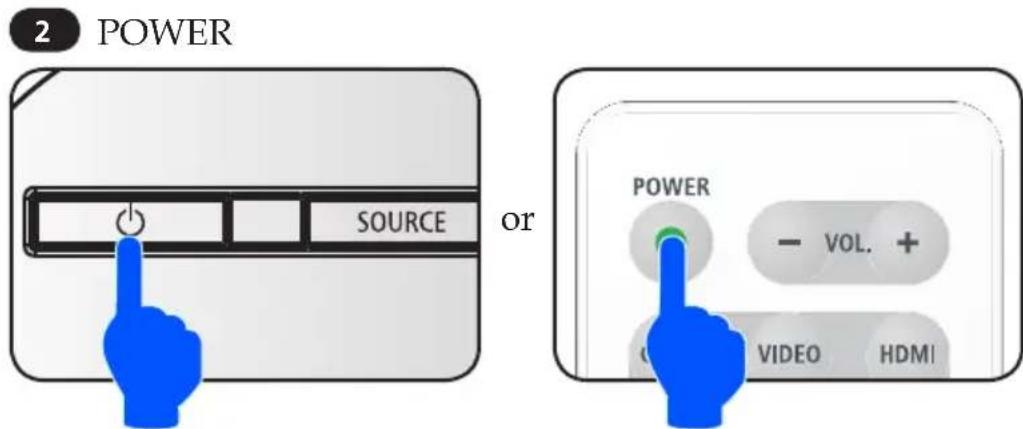

Powering On the Projector 14

Powering Off the Projector 15

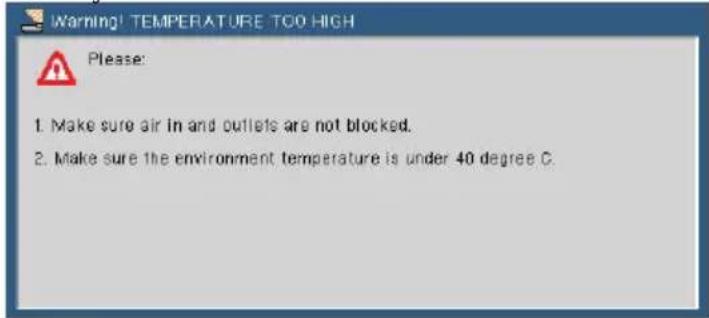

Warning Indicator 16

Adjusting the Projected Image .....17

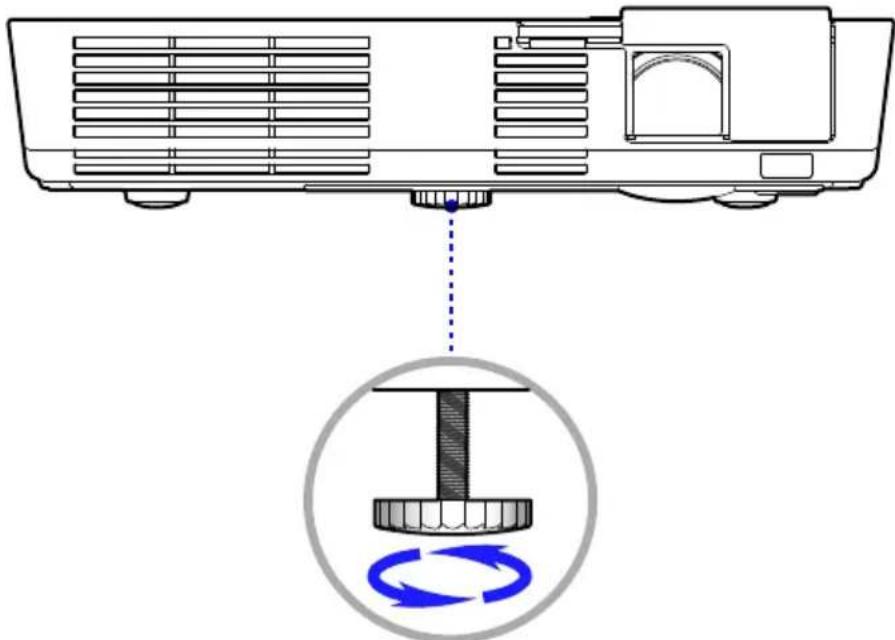

Adjusting the Height of Projector Image 17

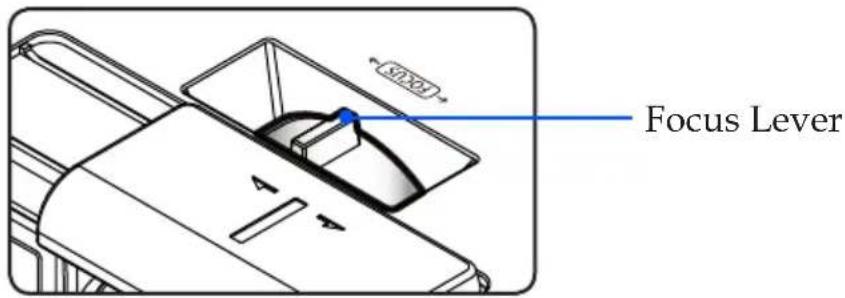

Adjusting the Projector Focus 18

Adjusting Projection Image Size...... 18

User Controls....19

On Screen Display 19

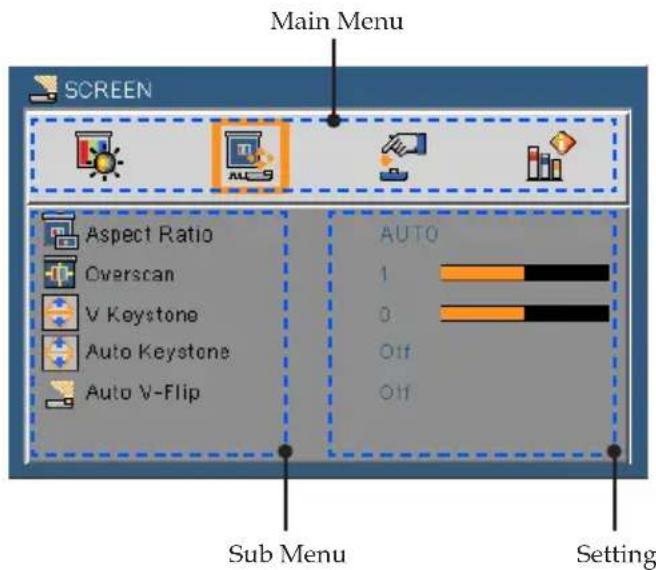

How to operate 19

Menu Tree 20

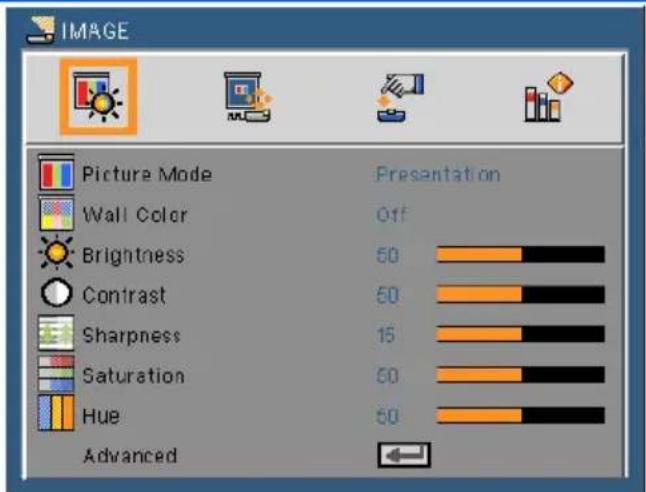

IMAGE 22

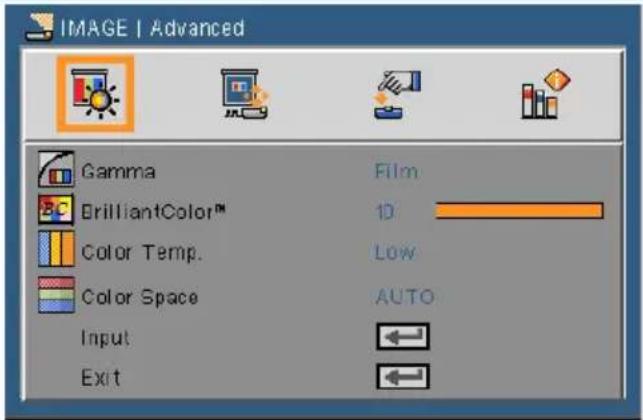

IMAGE | Advanced 24

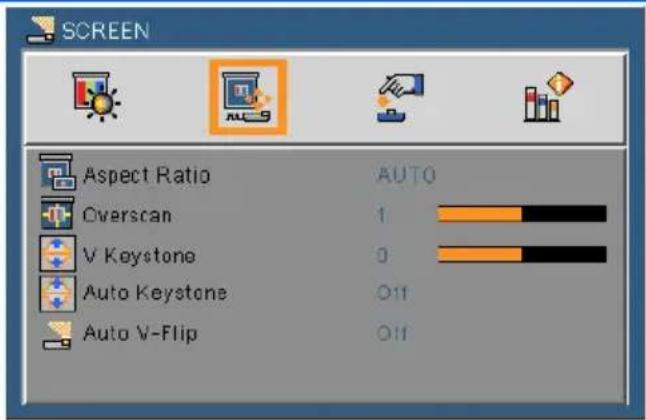

SCREEN 26

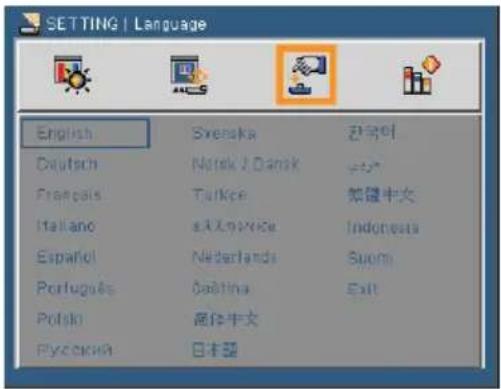

SETTING 27

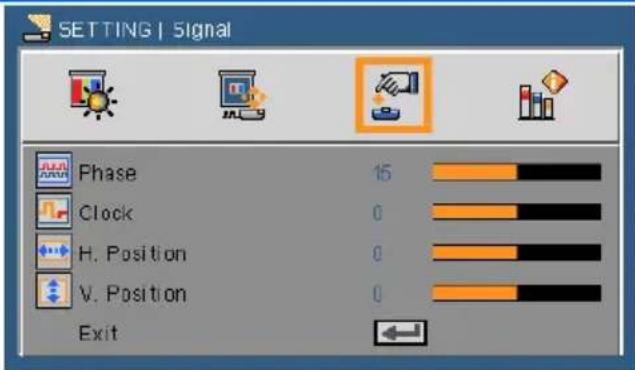

SETTING | Signal (RGB) 29

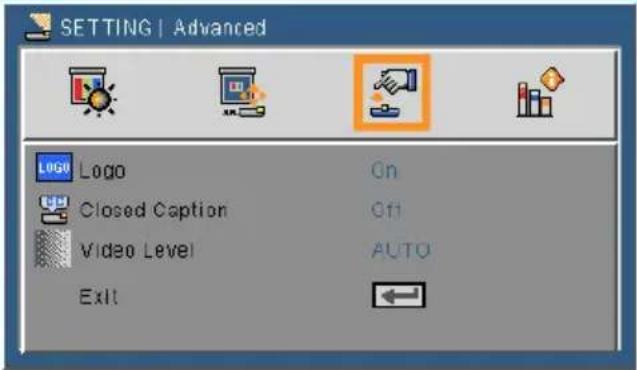

SETTING | Advanced 30

OPTIONS 31

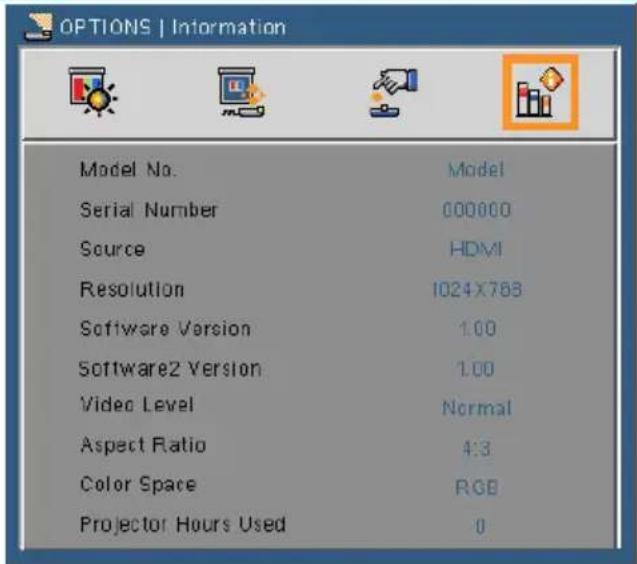

OPTIONS | Information 33

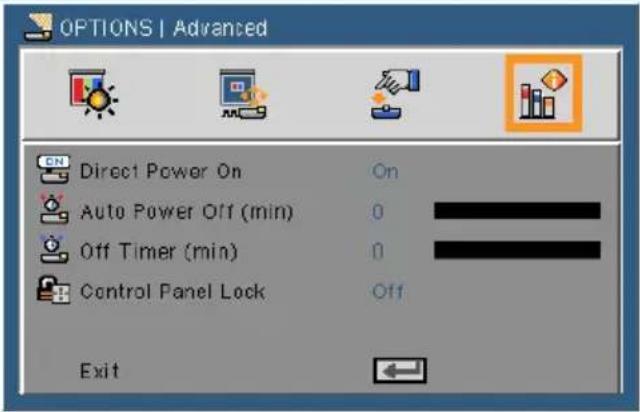

OPTIONS | Advanced 34

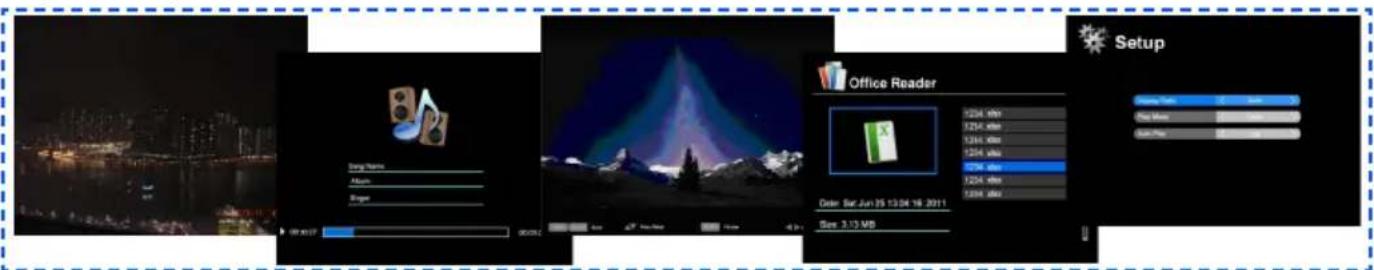

Using Multimedia ....35

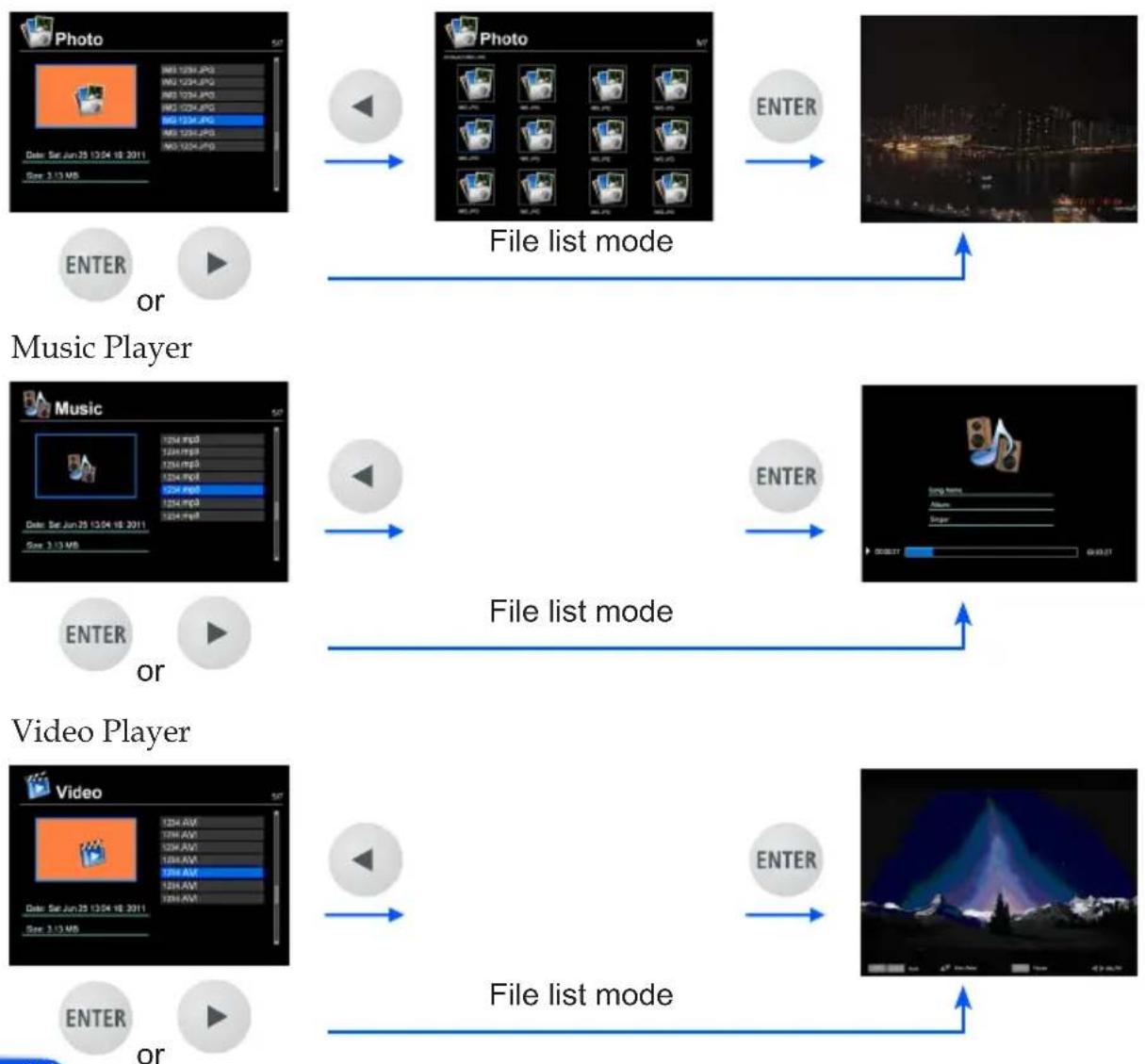

How to operate 36

Multimedia Menu Tree 37

Supported Formats 38

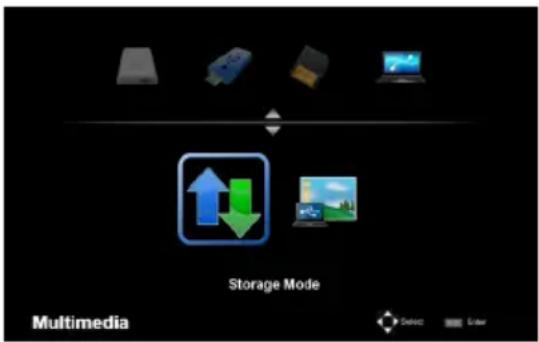

Using the Projector as a Storage

Device 39

Projecting Your Computer's Screen

Image from the Projector via the USB

Cable (USB Display) 40

Appendices 41

Troubleshooting 41

Specifications 45

Compatibility Modes ....47

Analog RGB 47

Component 47

HDMI 48

Composite Video 48

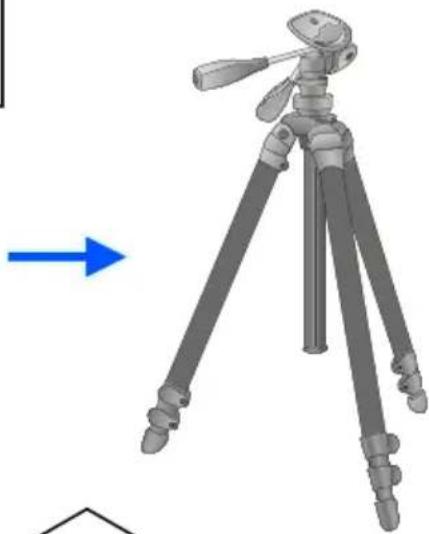

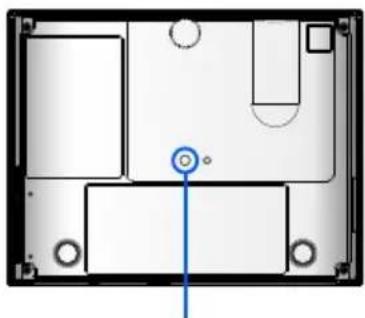

Tripod Stand Installation 49

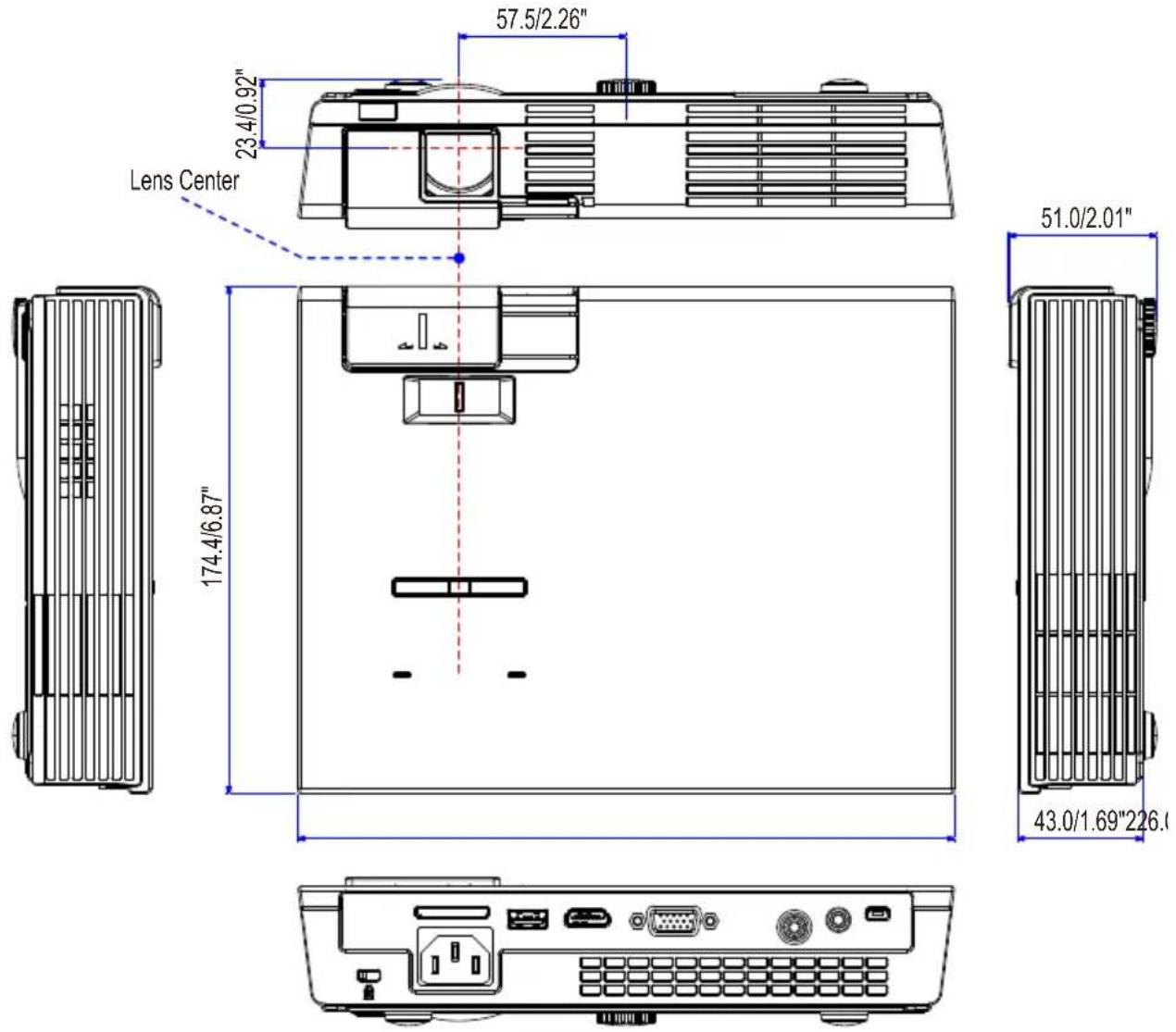

Cabinet Dimensions ....50

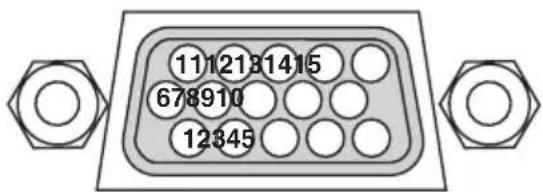

Pin Assignments of D-Sub

COMPUTER Input Connector ....51

Troubleshooting Check List......52

TCO Certification 54

TravelCare Guide ....54

Usage Notice

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

■ Warning- Turn on the projector first and then the signal sources.

High gain type screens are not optimal for use with this projector. The lower the screen gain (i.e., screen gain on the order of 1), the better the appearance of the projected image.

Usage Notice

Do:

■ Turn off the product before cleaning.
■ Use a soft cloth moistened with mild detergent to clean the cabinet.
- Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
If the lens is soiled, use a commercially available cleaning cloth for lens.

Do not:

■ Use abrasive cleaners, waxes or solvents to clean the unit.
■ Use under the following conditions:

- Extremely heat, cold or humidity.

- In areas susceptible to excessive dust and dirt.

- In direct sunlight.

- Apply excessively strong pressure against the lens.

Product Features

This product is a WXGA single chip 0.45" DLP ^TM projector.

Features you'll enjoy:

■ Light and small LED projector

The projector uses LED as a light source instead of lamp.

■ Display popular wide screen

High resolution display - 1,039,680 pixels (similar to WXGA)

■ Quick start (4 seconds), Quick Power Off (0.5 second), Direct Power Off

4 seconds after turning on the power, the projector is ready to display PC or video images.

The projector can be put away immediately after the projector is powered down. No cool down period is required after the projector is turned off from the remote control or cabinet control panel.

The projector has a feature called "Direct Power Off". This feature allows the projector to be turned off (even when projecting an image) by disconnecting the AC power supply.

To turn off the AC power supply when the projector is powered on, use a power strip equipped with a switch and a breaker.

■ 0.5W in standby condition with energy saving technology

The projector consumes only 0.5W in standby mode.

■ Eco Mode

This feature will save electricity cost when "Eco Mode" is set to "On" in the Options menu.

■ HDMI input port provides digital signal

The HDMI input provides HDCP compatible digital signals. The HDMI input also supports audio signal.

■ 2W built-in speaker for an integrated audio solution

Monaural 2 watt speaker provides volume need for large rooms.

■ USB Display

Using a commercially available USB cable (compatible with USB 2.0 specifications) to connect the computer with the projector allows you to send your computer screen image to the projector without the need of a traditional computer cable (VGA)

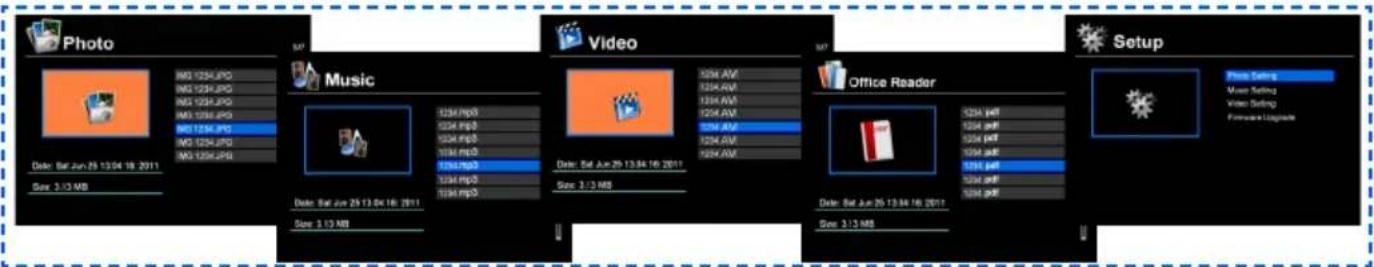

■ Multimedia

This allows you to view photo, music, video, or Office Reader supported file (Adobe PDF or Microsoft Word/Excel/PowerPoint) stored in SD card or USB memory device.

This also allows you to use part of the memory inside the projector as your storage device.

■ Auto Power On and Auto Power Off features

The Auto Power On, Auto Power Off, and Off Timer features eliminate the need to always use the POWER button on the remote control or projector cabinet.

■ Wall Color Correction

Built-in Wall Color correction presets provide for adaptive color correction when projecting onto non-white screen material.

Introduction

Please save the original box and packing materials if you ever need to ship your projector.

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.

Isometric line drawing of a NEC device with labeled ports and internal components (no text or symbols beyond branding)

Projector

A188 + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 10V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 3V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V + 2.5V

Remote Control (P/N:79TC5091) Battery (CR2025)

Simple gray rounded rectangle shape with no text or symbols

Inner Case (P/N: 79TC5011)

US (P/N:79TC5021) EU (P/N:79TC5031)

Line drawing of a multi-core cable with connectors (no text or symbols)

USB Cable (P/N: 79TC5071)

Line drawings of two types of electrical connectors: a U-shaped cable with plug connectors and a coiled cable with terminal connectors (no text or symbols)

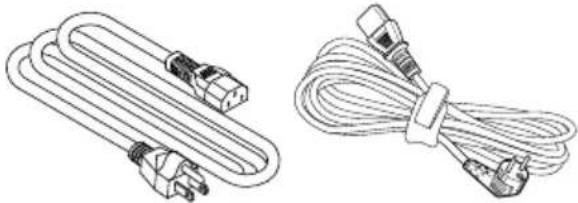

Power Cord x1 Computer Cable (VGA)

Line drawing of a U-shaped cable with two connectors (no text or symbols)

(P/N:79TC5061)

Due to the difference in applications for each country, some regions may have different accessories.

Cleaning Cloth (For cleaning the cabinet only)

(P/N: 79TC5081)

Documentation:

□ NEC Projector CD-ROM
(P/N: 7N951672)

☐ Quick Setup Guide (P/N: 7N8N2201)

☐ Important Information (For North America: 7N8N2181) (For Other countries than North America: 7N8N2181 and 7N8N2191)

For North America:

□ Registration Card

□ Limited Warranty

For Europe:

□ Guarantee Policy

For customers in Europe: You will find our current valid Guarantee Policy on our Web Site: www.nec-display-solutions.com

Introduction

Product Overview

Projector

1 2 3 4 5 6 7 8 9 10 NEC

1. Ventilation (outlet)
2. Ventilation (inlet)
3. Tilt Adjusting Foot
4. Lens
5. Lens Cover
6. Remote Sensor
7. Control Panel
8. Focus Lever
9. Speaker

Connection Ports

SD CARD USB-A HDMI IN COMPUTER IN VIDEO IN AUDIO IN USB-B 123456 7 AC IN~ 8 9 10

We do not warrant that the projector supports all SD cards and all USB devices in the market.

Mobile phones or iPod cannot be connected to the USB-A port.

1. SD CARD Slot

Used for Multimedia.

Note:

Supported SD card types are:

- SD card up to 2 GB

- SDHC card up to 32 GB

(Mini/Micro SD and Mini/Micro SDHC cards require an adapter.)

1. USB-A Port

Connect a commercially available USB device. Used for Multimedia.

1. HDMI IN Connector
2. COMPUTER IN Connector
3. VIDEO IN Connector
4. AUDIO IN Connector
5. USB-B Port

Used for Multimedia and USB Display.

1. Kensington ^TM Lock Port (This security slot supports the MicroSaver ^® Security System)
2. AC IN
3. Ventilation (outlet)

Introduction

Control Panel

1 SOURCE 2 3 STATUS LED 4 NEC

1 POWER and indicator	Press the “☐” button to turn on the projector. Refer to the “Power On/Off the Projector” section on pages 14-15.
2 SOURCE Press “SOURCE” to select an input signal.
3 STATUS indi-cator	Indicate the projector's tempera-ture status and Control Panel Lock is enabled. Refer to the Status Indicator on page 44.
4 LED indicator Indicate the projector's light source (LED) status. Refer to the LED Indicator on page 44.

Remote Control

Before using the remote control for the first time, remove the transparent insulation tape. See page 11 for battery installation.

CRK25 3.6%

POWER - VOL. + 2 3 COMP. VIDEO HDMI 6 SD USB-A USB-B 7 9 AUTO ADJ. D-ZOOM 10 12 ENTER 13 MENU EXIT 11 NEC RD-459E

1 POWER Refer to the “Power On/Off the Projector” section on pages 14-15

2 VOL. +/- Increase/decrease speaker volume.

3 COMP. Press “COMP.” to choose COMPUTER IN connector.

4 VIDEO Press “VIDEO” to choose the VIDEO IN connector.

5 HDMI Press “HDMI” to choose the HDMI IN connector.

Introduction

6 SD Press “SD” to choose the SDCARD slot. Multimedia willstart.
7 USB-A Press “USB-A” to choose theUSB-A port. Multimedia willstart.
8 USB-B Press “USB-B” to choose theUSB-B port. (USB Display)
9 AUTO ADJ. Optimizing a computer imageautomatically.
10 D-ZOOM Zoom in/out the projected im-age.
11 MENU Press “MENU” to launch theOnscreen display (OSD), back tothe top level of OSD for the OSDmain menu operation
12	FourDirectionalSelect Buttons	Use ▲ or ▼ or ▶ to selectitems or make adjustments toyour selection.
13 ENTER Confirm your section of items insub menu operation.
14 EXIT Exit the settings.

Battery Installation

1. Press firmly and slide the battery cover off.

Line drawing of a rectangular electronic device with a slot and side port (no text or symbols)

Line drawing of a hand inserting a small object into a device (no text or symbols)

The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of the remote sensor on the projector cabinet.

The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls on the sensor. Weak battery will also prevent the remote control from properly operating the projector.

Keep the coin cell battery out of reach of children so as not to allow them to swallow the cell battery.

1. Remove the old Lithium coin cell and install new one (CR2025). Ensure that the side with a “+” is facing up.

Crosses 3-2

1. Put the cover back.

Line drawing of a device casing with a partially open lid and an arrow pointing to it, no text or symbols present.

Remote Control Precautions

• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not place the battery upside down.

CAUTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to your local regulations.

Installation

Connecting the Projector

Connect to Computer/Notebook

Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.

To the wall outlet

Diagram showing connections between a laptop, an audio jack, and a CD/DVD drive with labeled components.

Note:

When Viewing a DVI Digital Signal

• Use a DVI-to-HDMI cable compliant with DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revision 1.0 standard. The cable should be within 197^ / 5m long.
• Turn off the projector and the PC before connecting the DVI-to-HDMI cable.
• To project a DVI digital signal: Connect the cables, turn the projector on, then select the HDMI input. Finally, turn on your PC.
  Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen, restart your PC.
• Some graphics cards have both analog RGB (15-pin D-Sub) and DVI (or DFP) outputs. Use of the 15-pin D-Sub connector may result in no picture being displayed from the digital output of the graphics card.
• Do not disconnect the DVI-to-HDMI cable while the projector is running. If the signal cable

1....Power cord (supplied)
2. SD Card
3......HDMI cable
4. Computer cable (VGA) (supplied)
5. Audio in cable
6....USB cable (supplied)
7. USB memory device

Connect to Video Sources

Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.

To the wall outlet

Due to the difference in applications for each country, some regions may have different accessories.

DVD Player, Blu-ray Player, Set-top Box, HDTV receiver

Front view of a computer monitor unit with an external CD and indicator panel (no visible text or labels)

Video Output

1 2 SD CORD AC N~ Afer- ns some

Close-up of a network device with connected cables and connectors (no visible text or symbols)

8

1....Power cord (supplied)
2. SD Card
3......HDMI cable
4. SCART/VGA adaptor
5. Computer cable (VGA) (supplied)
6....Audio in cable
7. Composite video cable
8.... USB memory device

Powering On/Off the Projector

Powering On the Projector

When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select the menu languages. Select your language. Refer to Language on page 27.

1. Slide the lens cover. ①
2. Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red.
3. Turn on the projector by pressing "POWER" on the remote control or on the control panel. ② The Power indicator will flash blue. The startup screen (NEC logo) will display and the Power indicator will turn steady blue.
4. Turn on your source (computer, notebook, video player, etc.) The projector will detect your source automatically.

If you connect multiple sources at the same time, use the "SOURCE" button on the control panel or use "COMP.", "VIDEO", "HDMI", "SD", "USB-A", "USB-B" on the remote control to switch inputs.

✿Turn on the projector first and then the signal sources.

1 Lens Cover

2 POWER SOURCE or POWER - VOL. + VIDEO HDMI

Powering Off the Projector

In some cases the POWER indicator can stay light for a certain period of time after the power cord is unplugged.

This is not a fault. Press the POWER button again with the power cord unplugged and the indicator light will go off.

1. Press the "POWER" button on the remote control or the ⏻ button on the control panel to turn off the projector, you will see a message as below on the on-screen display.

Power Off? Press power key again.

1. Press the "POWER" button again to confirm. When the light turns red, the projector has entered standby mode.

2. Disconnect the power cord from the electrical outlet and the projector.

3. Do not turn on the projector immediately following a power off procedure.

After Use

When storing the projector in the supplied soft case, insert the projector with the top cabinet facing upward.

The remote control can be stored in the inner pocket inside the soft case.

Two technical diagrams showing a device with an arrow pointing to the internal structure and a red prohibition symbol (no text or labels present)

Lens cover

Installation

Warning Indicator

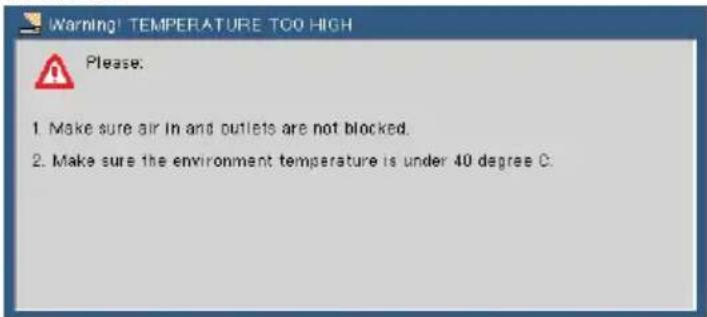

When the "STATUS" indicator flashes red in two cycles, it indicates the projector has overheated. The projector will automatically shut itself down.

Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degree C.

When the "STATUS" indicator flashes red in four cycles and the message below displays on-screen, it indicates the fan failed. Stop using the projector and disconnect the power cord from the electrical outlet, then contact your local dealer or our service center.

Warning! FAN LOCKED The projector will switch off automatically.

Adjusting the Projected Image

Adjusting the Height of Projector Image

The projector is equipped with an adjustable foot to raise and lower the image to fill the screen.

Rotate the tilt adjustable foot counter clockwise to raise the projector or clockwise to lower it.

Diagram of a projector with a rotating button and blue circular motion indicator (no text or symbols)

Tilt adjusting foot

Adjusting the Projector Focus

To focus the image, rotate the focus lever until the image is clear.

L50W series: The projector will focus at distances from 20.5" to 118.1"/52 to 300 cm.

Focus Lever

Adjusting Projection Image Size

L50W series: Projection Image Size from 17" to 100" (0.438 to 2.540 meters).

Screen (Diagonal)	17" (43.8cm)	30" (76.7cm)	50" (126.4cm)	66" (168.5cm)	80" (203.2cm)	100" (254.0cm)
Screen Size(Width x Height)	14.6" x 9.1"37.1 x 23.2cm	25.6" x 16.0"65.0 x 40.6cm	42.2" x 26.4"107.1 x 67.0cm	56.2" x 35.2"142.9 x 89.3cm	67.8" x 42.4"172.3 x 107.7cm	84.4" x 52.7"214.3 x 134.0cm
D (cm/inch)	1.2/0.47" 2.0	/0.79" 3.3/1.3" 4.5/1.78" 5.4/2.13"	6.7/2.64"
Distance	1.7' (0.52m)	3.0' (0.91m)	4.9' (1.5m)	6.6' (2.0m)	7.9' (2.4m)	9.8' (3.0m)

On Screen Display

The Projector has a multilingual On Screen Display (OSD) that allows you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

When "Advanced", "Signal", or "Information" is selected for the sub menu, you cannot select any item in the main menu.

How to operate

1. To open the OSD, press the MENU button on the Remote Control.

2. When OSD is displayed, use the ◀▶ buttons to select any item in the main menu. While making a selection on a particular page, press the ▼ button to enter sub menu.

3. Use the ▲▼ buttons to select the desired item in the sub menu and adjust the settings by using the ◀or ▶button.

4. If the setting has icon, you could press the ENTER button to enter another sub menu. Press the MENU button to close the sub menu after adjustment.

5. After adjusting the settings, press the MENU button to go back to the main menu.

6. To exit, press the MENU button again. The OSD will be closed and the projector will automatically save the new settings.

If no button operation is made for 30 seconds, the OSD will be closed automatically.

Main Menu SCREEN Aspect Ratio Overscan V Keystone Auto Keystone Auto V-Flip AUTO 1 0 Off Off Sub Menu Setting

Menu Tree

Main Menu Sub Menu Settings
IMAGE	Picture Mode	Presentation / High-Bright / Video / Movie / sRGB / Blackboard / AdobeRGB / User
	Wall Color	Off / Red / Green / Blue / Cyan / Magenta / Yellow
	Brightness 0~100
	Contrast 0~100
	Sharpness 0~31
	Saturation 0~100
	Hue 0~100
	Advanced Gamma Film / Video / Graphics / PC / Blackboard
	BrilliantColorTM	0~10
	Color Temp. Low / Medium / High
	Color Space AUTO / RGB / YUV
	Input	HDMI / Computer / Video / Multimedia / Exit
	Exit
SCREEN	Aspect Ratio AUTO / 4:3 / 16:9 / Fill
	Overscan	0~3
	V Keystone -40 ~40
	Auto Keystone Off / On
	Auto V-Flip Off / On
SETTING	Language	English / Deutsch / Français / Italiano / Español / Português / Polski / Русский / Svenska / Norsk / Türkçe / Nederlands / ελληνικά / Čeština / عرب / 繁體中文 / 筒体中文 / 日本語 / 壬국呵 / Indonesia / Suomi
	Image Flip
	Menu Location
	Signal Phase 0~31
		Clock -5~5
		H. Position -10~10
		V. Position -10~10
		Exit
	Mute	Off / On
	Volume	#1 0~20
	Advanced Logo	Off / On
		Closed Caption Off / CC1 / CC2 / CC3 / CC4
		Video Level AUTO / Normal / Enhance
		Exit

Main Menu Sub Menu Settings

OPTIONS	Input Search Off / On
	Fan Mode AUTO / High Speed
	Eco Mode Off / On
	Information Hide Off / On
	Background Color Black / Blue
	Information Model Name
		Serial Number
		Source
		Resolution
		Software Version
		Software2 Version
		Video Level
		Aspect Ratio
		Color Space
		Projector Hours Used
		Exit
	Advanced Direct Power On Off / On
		Auto Power Off (min.) 0~180
		Off Timer (min.) 0~995
		Control Panel Lock Off / On
		Exit
	Reset No / Yes

Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using.

1) 10 at factory default


IMAGE Picture Mode Wall Color Brightness Contrast Sharpness Saturation Hue Advanced Presentation Off 50 50 15 50 50 Advanced

Picture Mode

There are many factory presets optimized for various types of images. Use the ◀ or ▶ button to select the item.

LAB Adobe RGB sRGB CMYK

Presentation: For computer or notebook.
▶ High-Bright: Maximum brightness from PC input.
Video: This mode is recommended for typical TV program viewing.
▶ Movie: For home theater.
sRGB: Standardized accurate color.
Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).
User: Memorize user's settings.
- AdobeRGB: AdobeRGB is an RGB color space developed by Adobe Systems. AdobeRGB is a wider gamut color space than sRGB. It is suitable for printing photos.

Wall Color

Use this function to choose a proper color according to the wall. It will compensate the color deviation due to the wall color to show the correct image tone.

Brightness

Adjust the brightness of the image.

Press the ◀ button to darken image.
Press the button to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

Press the ◀ button to decrease the contrast.
Press the button to increase the contrast.

“Sharpness”, “Saturation” and “Hue” functions are only supported under Video mode.

Sharpness

Adjust the sharpness of the image.

Press the ◀ button to decrease the sharpness.
Press the button to increase the sharpness.

Saturation

Adjust a video image from black and white to fully saturated color.

Press the button to decrease the amount of saturation in the image.
Press the button to increase the amount of saturation in the image.

Hue

Adjust the color balance of red and green.

Press the ◀ button to increase the amount of green in the image.
Press the button to increase the amount of red in the image.

Advanced

Refer to next page.

IMAGE | Advanced

IMAGE | Advanced Gamma BrilliantColor™ Color Temp. Color Space Input Exit Film ID Low AUTO

Gamma

This allows you to choose a gamma table that has been fine-tuned to bring out the best image quality for the input.

▶ Film: for home theater.
▶ Video: for video or TV source.
▶ Graphics: for image source.
PC: for PC or computer source.
Blackboard: This mode should be selected to achieve optimum color settings when projecting onto a blackboard (green).

BrilliantColor™

This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors. The range is from "0" to "10". If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Color Temp.

Adjust the color temperature. At higher temperature, the screen looks colder; at lower temperature, the screen looks warmer.

Color Space

Select an appropriate color matrix type from AUTO, RGB or YUV.

User Controls

Input

Use this option to enable / disable input sources. Press ← to enter the sub menu and select which sources you require. Press the EN-TER button to finalize the selection. The projector will not search for inputs that are not selected.

IMAGE | Advanced | Input HDMI Computer Video Multimedia Exit

Exit

Press to return to the previous menu.

SCREEN

SCREEN Aspect Ratio AUTO Overscan 1 V Keystone 0 Auto Keystone Off Auto V-Flip Off

Aspect Ratio

Use this function to choose your desired aspect ratio.

4:3: This format is for 4 × 3 input sources.
16:9: This format is for 16×9 input sources, like HDTV and DVD enhanced for Wide screen TV.
▶ Fill: for Fullscreen.
▶ AUTO: Automatically selects the appropriate display format.

Overscan

Overscan function removes the noise in a video image. Overscan the image to remove video encoding noise on the edge of video source.

V Keystone

Press the ◀ or ▶ button to adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.

Auto Keystone

Automatically adjusts vertical image distortion.

Auto V-Flip

Automatically flip vertical image.

Two geometric shapes with pink outlines and a blue arrow pointing to a larger shape (no text or symbols)

User Controls

SETTING

SETTING Language Image Flip Menu Location Signal Mute Volume Advanced English Off 15

The rear projection is to be used with a translucent screen.

Language

Choose the multilingual OSD menu. Press the ▶ or ▶ button into the sub menu and then use the ▶ or ▶ button to select your preferred language. Press ▶ to finalize the selection.

SETTING | Language English Svresaka 韓국아 Deutsch Nansk i Danak yutu Français Turkçe 韓國中文 Italiano siukwijkede Indonesia Español Netherlands Suomi Portuguese ðaðina Exit Polyo 高体中文 Русский 日本語

Image Filp

Standard: Normal screen.
▶ Flip: Horizontally flip the image.
▶ V Flip: Vertically flip the image.
H+V Flip: Flip the image by horizontal and vertical.

User Controls

Standard V Flip
H Flip H+V Flip

Menu Location

Choose the menu location on the display screen.

Signal

Refer to next page.

Mute

Choose "On" to turn mute on.
Choose "Off" to turn mute off.

Volume

Press the ◀ button to decrease the volume.
Press the button to increase the volume.

Advanced

Refer to page 30.

SETTING | Signal (RGB)

"Signal" is only supported in Analog VGA (RGB) signal.

SETTING | Signal Phase 16 Clock 0 H. Position 0 V. Position 0 Exit ←

Phase

Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.

Clock

Change the display data frequency to match the frequency of your computer's graphic card. Use this function only if the image appears to flicker vertically.

H. Position

Press the ◀ button to move the image left.
Press the button to move the image right.

V. Position

Press the ◀ button to move the image down.
Press the button to move the image up.

Exit

Press ◀ to return to the previous menu.

SETTING | Advanced

SETTING | Advanced LOGO On Closed Caption Off Video Level AUTO Exit

Logo

Use this function to display the startup screen (NEC logo).

On: Displays the NEC logo.
▶ Off: No logo is displayed.

Closed Caption

Use this function to enable close caption and activate the closed caption menu. Select an appropriate closed captions option: Off, CC1, CC2, CC3 and CC4.

Video Level

Select "AUTO" to automatically detect video level. If automatic detection may not work well, select "Normal" to disable the "Enhance" feature of your HDMI equipment or select "Enhance" to improve image contrast and increase detail in the dark areas.

Exit

Press ↕ to return to the previous menu.

"Video Level" is only supported under HDMI source.

User Controls

OPTIONS

OPTIONS Input Search Off Fan Mode AUTO Eco Mode Off Information Hide Off Background Color Blue Information Advanced Reset

Input Search

On: The projector will search for other signals if the current input signal is lost.
▶ Off: The projector will only search current input connection.

Fan Mode

AUTO: The built-in fans automatically run at a variable speed according to the internal temperature.
High Speed: The built-in fans run at high speed.

The built-in fans run at a high speed. Select this option when using the projector at altitudes approximately 2500 feet/760 meters or higher.

Eco Mode

On: Dim the projector light source which will lower power consumption and extend the light source life.
Off: Normal mode.

Information Hide

On: Choose "On" to hide the info message.
Off: Choose "Off" to show the "searching" message.

Background Color

Use this feature to display a "Black" or "Blue" screen when no signal is available.

User Controls

Information

Refer to next page.

Advanced

Refer to page 34.

Reset

Choose "Yes" to return the display parameters on all menus to the factory default settings.

OPTIONS | Information

OPTIONS | Information Model No. Model Serial Number 000000 Source HDMI Resolution 1024X763 Software Version 1.00 Software2 Version 1.00 Video Level Normal Aspect Ratio 4:3 Color Space RGB Projector Hours Used 0

Information

To display the projector information for source, resolution, and software version on the screen.

"Video Level", "Aspect Ratio", and "Color Space" are only supported under HDMI source.

OPTIONS | Advanced

OPTIONS | Advanced Direct Power On Auto Power Off (min) Off Timer (min) Control Panel Lock Exit On 0 0 Off

Direct Power On

Choose "On" to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the ⏻ buton on the projector control panel or the POWER ON button on the remote control.

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Off Timer (min)

Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes).

Control Panel Lock

When the keypad lock function is "On", the control panel will be locked however, the projector can be operated by the remote control. By selecting "Off", you will be able to reuse the control panel. Press and hold the SOURCE button on the projector cabinet for about 10 seconds to turn off "Control Panel Lock".

User Controls

Using Multimedia

Multimedia is an interactive PC-less presentation solution. It equipped several mode (Photo, Video, Music, Office Reader, and Setting) with user-friendly user interface.

To display the main menu of the Multimedia, press the USB-A, USB-B or SD button on the remote control or press the SOURCE button.

Layer1: Main Menu

Multimedia Photo Select Enter

Layer2: Sub Menu

    subgraph Photo
        A1["Image: 1254.fPG"]
        A2["Image: 1254.fPG"]
        A3["Image: 1254.fPG"]
        A4["Image: 1254.fPG"]
        A5["Image: 1254.fPG"]
        A6["Image: 1254.fPG"]
        A7["Image: 1254.fPG"]
    end

    subgraph Music
        B1["Image: 1254.fPG"]
        B2["Image: 1254.fPG"]
        B3["Image: 1254.fPG"]
        B4["Image: 1254.fPG"]
        B5["Image: 1254.fPG"]
        B6["Image: 1254.fPG"]
        B7["Image: 1254.fPG"]
    end

    subgraph Video
        C1["Image: 1254.fPG"]
        C2["Image: 1254.fPG"]
        C3["Image: 1254.fPG"]
        C4["Image: 1254.fPG"]
        C5["Image: 1254.fPG"]
        C6["Image: 1254.fPG"]
        C7["Image: 1254.fPG"]
    end

    subgraph Office Reader
        D1["Image: 1254.fPG"]
        D2["Image: 1254.fPG"]
        D3["Image: 1254.fPG"]
        D4["Image: 1254.fPG"]
        D5["Image: 1254.fPG"]
        D6["Image: 1254.fPG"]
        D7["Image: 1254.fPG"]
    end

    subgraph Setup
        E1["Image: Video Setting"]
        E2["Image: Video Setting"]
        E3["Image: Video Setting"]
        E4["Image: Video Setting"]
        E5["Image: Video Setting"]
        E6["Image: Video Setting"]
    end

    A --> B --> C --> D --> E
    B --> C --> D --> E

Layer3: Setting

Options Play Music Play Play Setup Date: Sat Jun 25 13:04 16:2011 Size: 3/13 MB

Photo	Min:64x64, Max: Over 4000x4000
Music	File size: Max. 2GB
Video	File size: Max. 2GB
OfficeReader	Support Word/Excel/PowerPoint/Adobe PDF playback
Settings	Photo/Music/Video/Office Reader settings

User Controls

How to operate

1. To open the OSD, press the MENU button on the Remote Control.

2. When OSD is displayed, use the ◀▶ buttons to select any item in the main menu. While making a selection on a particular page, press the ENTER button to enter sub menu.

3. Use the ▲▼ buttons to select the desired item in the sub menu and adjust the settings by using the ◀ or ▶ button.

4. After adjusting the settings, press the EXIT button to go back to the main menu.

5. To exit, press the MENU button again. The OSD will be closed and the projector will automatically save the new settings.

Photo Viewer

User Controls

Office Reader


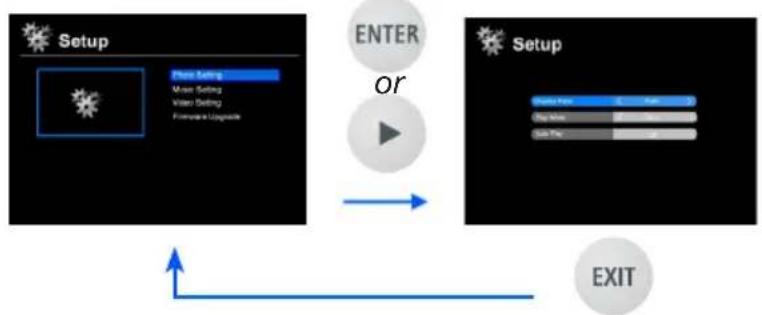

Setup

Multimedia Menu Tree

Level 1 Level	2 Level 3 Level 4
Settings	Photo Setup Display Ratio Auto/Full
		Slideshow Duration	5 sec./15 sec./30 sec./1 min./5 min./15 min.
		Slideshow Repeat On/Off
		Slideshow Effect	Random/Snake/Partition/Erase/Blinds/Lines/GridCross/Cross/Spiral/Rect/Off
	Music Setup Play Mode Once/Repeat Once/Repeat/Random
		Show Spectrum On/Off
		Auto Play On/Off
	Video Setup Display Ratio Auto/Original Size
		Play Mode Once/Repeat Once/Repeat/Random
		Auto Play On/Off
	Firmware Upgrade Yes/No

To upgrade the firmware, visit at: http://www.nec-display.com/dl/en/index.html

To check the version of your projector, from the menu, select [Options] -> [Information] -> [Software2

Version].

Supported Formats

■ Supported graphic formats:
JPG, BMP
JPG file supports JPEG Baseline and progressive JPEG.
BMP file supports full color only.
- Some files supported by the above requirements may not be displayed
■ Supported audio formats:
WAV, MP3, WMA
WAV supports PCM and AD-PCM.
- Some files supported by the above requirements may not be played.
■ Supported video formats:
AVI, MOV, MPG, MP4, WMV, MKV
Motion JPEG, MPEG2, MPEG4 (H.264, AAC), and Windows Media Video (VC-1) are supported.
- Some files supported by the above requirements may not be played.
■ Supported formats for Office Reader:
- Microsoft Word
97/2000/XP/2003/2007
- Microsoft Excel
97/2000/XP/2003/2007
• Microsoft PowerPoint
97/2000/XP/2003/2007
• PDF
1.0/1.1/1.2/1.3/1.4/1.5/1.6/1.7

Using the Projector as a Storage Device

Important:

• Use the projector's storage area as a temporary storage.
  Back up your data on your computer's hard disk drive before using the projector as a storage device. We will not be liable for any data loss or damage that could result from using the projector.
  If your data is not to be used for a long period time, delete them from the projector's storage area.

- We will not be liable for any data loss or damage that could result from the projector's failure or any cause, and we will not be liable for your loss of business arising from the data loss or damage.

Our service includes hardware only (not including data recovery).

Multimedia Storage Mode

You can use part of the memory inside the projector as your storage device.

This memory area can be used for saving and loading your photos, audio, video, and Office Reader files.

1. Turn on the projector.
2. Display the Multimedia and select USB-B (Connect PC) source.
3. Use the supplied USB cable to connect the USB-B port of the projector and the USB port (A type) of your computer.
4. Select "Storage Mode" and then press "Enter".

When you see a message as left, the drive has been added to your computer. This allows you to read and write files to the drive of the projector.

1. Double clicks the drive of the projector on the Windows "My Computer" on your computer.

You can access the drive of the projector to read or write files.

Note:

• Wait at least 5 seconds after disconnecting a USB memory device before reconnecting it and vice versa. The computer may not identify the USB memory device if it is repeatedly connected and disconnected in rapid intervals.
• To disconnect the USB cable from the projector, first click the USB icon on the Windows taskbar on your computer.
• Do not disconnect the power cord during data writing.
• Files in the drive of the projector will not be affected even when "Reset" is done from the menu.
• Data of up to 1GB can be stored in the drive of the projector.

Projecting Your Computer's Screen Image from the Projector via the USB Cable (USB Display)

Using the supplied USB cable (or a commercially available USB cable compatible with USB 2.0 specifications) to connect the computer with the projector allows you to send your computer screen image to the projector for displaying. Power On/Off and source selection of the projector can be done from your computer without connecting a computer cable (VGA).

Note:

• To make USB DISPLAY available on Windows XP, the Windows user account must have "Administrator" privilege.
• USB Display will not work in standby condition.

Multimedia DoUSB

1. Turn on the projector.
2. Display the Multimedia and select USB-B (Connect PC) source.
3. Use the supplied USB cable to connect the USB-B port of the projector and the USB port (A type) of your computer.
4. Select "DoUSB" and then press "Enter".

When you see a message as left; Wait at least 10 seconds. This allows you to project your computer's screen image.

Troubleshooting

If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center.

Problem: No image appears on screen

Ensure all the cables and power connections are correctly and securely connected as described in the "Installation" section.
▶ Ensure the pins of connectors are not crooked or broken.
Make sure the projector is switched on.

Problem: Partial, scrolling or incorrectly displayed image

Press "AUTO ADJ." on the remote control.
▶ If you are using a PC:

For Windows 95, 98, 2000, XP, Windows 7:

1. From the "My Computer" icon, open the "Control Panel" folder, and double click the "Display" icon.
2. Select the "Settings" tab
3. Click on the "Advanced Properties".

For Windows Vista:

1. From the "My Computer" icon, open the "Control Panel" folder, and double click the "Appearance and Personalization"
2. Select "Personalization"
3. Click "Adjust screen resolution" to display "Display Settings". Click on the "Advanced Settings".

If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.

1. Verify the resolution setting is less than or equal to 1280 × 1024 resolution.

2. Select the "Change" under the "Monitor" tab.

3. Click on "Show all devices". Next, select "Standard monitor types" under the SP box; choose the resolution mode you need under the "Models" box.

▶ If you are using a Notebook:

1. First, follow the steps above to adjust resolution of the computer.

2. Press the toggle output settings. example: [Fn]+[F4]

Compaq => [Fn]+[F4] Hewlett Dell => [Fn]+[F8] Packard => [Fn]+[F4] Gateway => [Fn]+[F4] NEC => [Fn]+[F3] IBM => [Fn]+[F7] Toshiba => [Fn]+[F5]

Macintosh Apple: System Preference-->Display-->Arrangement-->Mirror display

If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.

Problem: The screen of the Notebook or PowerBook computer is not displaying a presentation

If you are using a Notebook PC:

Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's documentation for detailed information.

Problem: Image is unstable or flickering

Adjust the "Phase" to correct it. Refer to the "SETTING" section for more information.
Change the monitor color setting from your computer.

Problem: Image has vertical flickering bar

▶ Use "Clock" to make an adjustment.
▶ Check and reconfigure the display mode of your graphic card to make it compatible with the product.

Appendices

Problem: Image is out of focus

Adjust the Focus Lever on the projector lens.
Make sure the projection screen is between the required distance 20.5" to 118.1"/52 to 300 mm from the projector (refer to page 18).

Problem: The image is stretched when displaying 16:9 DVD

The projector automatically detects 16:9 DVD and adjusts the aspect ratio by digitizing to full screen with 4:3 default setting.

If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:

Please select 4:3 aspect ratio type on your DVD player if you are playing a 16:9 DVD.
If you can't select 4:3 aspect ratio type on your DVD player, please select 4:3 aspect ratio in the on screen menu.

Problem: Image is reversed

Select "SETTING-->Image Flip" from the OSD and adjust the projection direction.

Problem: Message Reminders

Over temperature - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it may be used.

Warning! TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degree C.

Fan failed - the system fan is not working.

Warning! FAN LOCKED The projector will switch off automatically.

Appendices

Problem: Indicator lighting message

Power Indicator

Indicator Condition Projector Condition Note
Off The main power is off --
Blinking lightBlue0.5 sec	On,	0.5 sec Off	The projector is getting ready to turn on. Wait for a moment.
		2.5 sec On,0.5 sec Off	Off Timer is enabled. --
Steady lightBlueThe projector is turned on. --
			Red The projector is in standby. --

Status Indicator

Indicator Condition Projector Condition Note
Off Normal --
Blinking light Red 1 cycle	0.5 sec	On, 0.5 sec Off)	light source error	Light source fails to light. Wait for a moment.
		2 cycle (0.5 sec On, 0.5 sec Off)	Temperature error	The projector is overheated. Move the projector to a cooler location.
		4 cycle (0.5 sec On, 0.5 sec Off)	Fan error	Fans will not work correctly. Contact your dealer.
Steady light	Red		Control Panel Lock is enabled.	To disable Control Panel Lock, see page 34.

LED Indicator

Indicator Condition Projector Condition Note
Off Normal --
Blinking light	Red		LED light source fails to light.	Try to turn on the projector again. If the problem still remains unsolved, contact your dealer.

Appendices

Specifications

Optical
Projection System Single	DLP® chip (0.45", aspect ratio 16:10)
Resolution *1	1,039,680 pixels (similar to WXGA)
Lens Fixed lens, manual focus
Light Output *2 *3	500 lumens
Contrast Ratio *3(full white:full black)	2500:1
Image Size (Diagonal) 17	to 100 inches / 0.432 to 2.540 m
Projection Distance(mini. - max.)	20.5 to 118.1 inches / 52 to 300 mm
*1 Effective pixels are more than 99.99%.*2 This is the light output value (lumens) when [Picture Mode] is set to [High-Bright] in the menu. If any other mode is selected as [Picture Mode], the light output value may drop slightly.*3 Compliance with ISO21118-200

Electrical
Inputs 1 x RGB/Component (D-Sub 15P), 1 x HDMI (19P) HDCP supported *4, 1 x SD Slot, 1 x Video (RCA), 1 x USB Type-A, 1 x USB mini-B, 1 x Stereo Mini Audio
Service Port 1 x mini-B USB (for service purpose /shared with USB Display)
Color Reproduction 16.7 million colors simultaneously, Full color
Compatible Signals *5	Analog: VGA/SVGA/XGA/WXGA/Quad-VGA/SXGA/SXGA+/WSXGA+/480i/480p/576i/576p/720p/1080i/1080pHDMI: VGA/SVGA/XGA/WXGA/Quad-VGA/SXGA/SXGA+/WSXGA+/480p/576p/720p/1080i/1080p
Horizontal Resolution 540	TV lines: NTSC/NTSC4.43/PAL/PAL-M/PAL-N/PAL60300 TV lines: SECAM
Scan Rate Horizontal: 30kHz to 100kHzVertical: 50 Hz to 85 Hz
Built-in Speaker 2W (monaural)
Power Requirement 100 - 240V AC, 50/60 Hz
Input Current 100 - 240V AC, 50-60Hz, 1.3-0.5A
Power Consumption Eco Mode: Off110W +/-25%@ 110V AC(100-130V) / 105W +/-25%@ 220V AC(200-240V)Eco Mode: On75W +/-25%@ 110V AC(100-130V) / 70W +/-25%@ 220V AC(200-240V)Standby: <0.5W (100-130V)/ <0.5W (200-240V)

Appendices

Electrical

*4 HDMP (Deep Color) with HDCPWhat is HDCP/HDCP technology?HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP) is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI).If you are unable to view material via the HDMI input, this does not necessarily mean the projector is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).*5 An image with any resolution will be displayed with scaling technology.

Mechanical
Dimensions 8.89" (W) × 1.69" (H) × 6.87" (D) /225.8 mm (W) × 43 mm (H) × 174.4 mm (D)
Weight 2.7 lb / 1.2 kg
Environmental Considerations	Operational Temperatures: 41° to 95°F (5° to 35°C),20% to 80% humidity (non-condensing)Storage Temperatures: -4° to 140°F (-20° to 60°C),20% to 80% humidity (non-condensing)
Regulations UL/C-UL Approved	Approved (UL 60950-1, CSA 60950-1)Meets DOC Canada Class B requirementsMeets FCC Class B requirementsMeets AS/NZS CISPR.22 Class BMeets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3)Meets Low Voltage Directive (EN60950-1, TÜV GS Approved)CE

Compatibility Modes
Analog RGB

Signal Resolution (dots)		Aspect Ratio	Refresh Rate (Hz)
VGA 640x480 4:3 60/72	75/85
SVGA 800x600 4:3 56/60	72/75/85
XGA 1024x768 4:3 60/70	75/85
XGA+ 1152x864 4:3 70	75/85
HD 1280x720 16:9 60
WXGA	1280x768 15:9 60/75/85
	1280x800 16:10 60
	1366x768 16:9 60
Quad-VGA 1280x960 4:3 60/75
SXGA 1280x1024 5:4 60	72/75
SXGA+ 1400x1050 4:3	60
WXGA+ 1440x900 16:10	60
WXGA++	1680x1050 16:10 60
	1920x1080 16:9 60
MAC 13" 640x480 4:3 60/67
MAC	800x600 4:3 60
MAC 19" 1024x768 4:3	60/75
MAC 21" 1152x870 4:3	75
MAC	1280x960 4:3 75

Component

Signal Resolution (dots)		Aspect Ratio	Refresh Rate (Hz)
HDTV(1080i)	1920x1080 16:9 50/60
HDTV(1080p)	1920x1080 16:9 60
HDTV(720p) 1280x720	16:9 50/60
SDTV(480p) 720x480 4:3/16:9	60
SDTV(576p) 720x576 4:3/16:9	50
SDTV(480i)	720x480 4:3/16:9	60
SDTV(576i)	720x576 4:3/16:9	50

Appendices

HDMI

Signal Resolution (dots)		Aspect Ratio	Refresh Rate (Hz)
VGA 640x480 4:3 60/72/75/85
SVGA 800x600 4:3 56/60/72/75/85
XGA 1024x768 4:3 60/70/75/85
XGA+ 1152x864 4:3 70/75/85
HDTV(1080p) 1920x1080 16:9 50/60
HDTV(1080i) 1920x1080 16:9 50/60
HDTV(720p)	1280x720 16:9 50/60
SDTV(480p)	720x480 4:3/16:9	60
SDTV(576p)	720x576 4:3/16:9	50
WXGA	1280x768 15:9 60/75/85
	1280x800 16:10	60
	1366x768 16:9 60
Quad-VGA	1280x960 4:3 60/75
SXGA 1280x1024 5:4 60/72/75
SXGA+	1400x1050 4:3 60
WXGA+	1440x900 16:10	60
WXGA++	1680x1050 16:10	60
	1920x1080 16:9 60

Composite Video

Signal Aspect	Ratio	Refresh Rate (Hz)
NTSC 4:3 60
PAL 4:3 50
PAL60 4:3 60
SECAM 4:3 50

TIP:

• An image with any resolution will be displayed with scaling technology.
• Sync on Green and Composite sync signals are not supported.
• Signals other than those specified in the table above may not be displayed correctly. If this should happen, change the refresh rate or resolution on your PC. Refer to Display Properties help section of your PC for procedures.

Tripod Stand Installation

1. You can install this projector using a camera tripod.
2. The tripod specifications:

Type: 1/4"-20UNC

CAUTION:

- Do not use on an unstable surface. Doing so may cause the tripod to fall over, resulting in damage.

- Refer to the user's manual packaged with your tripod.

- Use a tripod with 1.2 kg or over of maximum load.

- Spread the legs wide open and evenly when mounting or installing the projector.

- Do not extend the feet when using the elevator tripod.

CAUTION:

This screw hole is not used for ceiling mount. Do not use this screw hole to attach a ceiling mount kit.

Top-down schematic of a computer monitor with no visible text or symbols

Connect to the tripod

Camera Tripod

3D model of a tripod with adjustable legs and a handle, shown with an arrow pointing to it (no text or symbols present)

3D rendering of a tripod-mounted projector with three legs and a base, shown in isometric view (no text or symbols visible)

Appendices

Cabinet Dimensions

Unit: mm/inch

57.5/2.26" 23.4/0.92" Lens Center 174.4/6.87" 51.0/2.01" 43.0/1.69"226.0

Pin Assignments of D-Sub COMPUTER Input Connector

Mini D-Sub 15 Pin Connector

1112181415 678910 12345

Signal Level

Video signal : 0.7Vp-p (Analog)

Sync signal : TTL level

Pin No.	RGB Signal (Analog) YCbCr Signal
1 Red	Cr
2 Green Y
3 Blue	Cb
4 Ground
5 Ground
6 Red	Ground Cr Ground
7 Green Gro Y Ground
8 Blue	Ground Cb Ground
9 No	Connection
10 Sync	Signal Ground
11 No	Connection
12 Bi-directional DATA (SDA)
13 Horizontal Sync
14 Vertical Sync
15 Data Clock

Troubleshooting Check List

Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by referring to the “Troubleshooting” section in your user’s manual. This checklist below will help us solve your problem more efficiently.

* Print the following pages.

Frequency of occurrence □ always □ sometimes (How often?____) □ other (____)

Power

No power (POWER indicator does not light blue).

Power cable's plug is fully inserted into the wall outlet.

No power even though you press and hold the POWER button for a minimum of 1 second.

Shut down during operation.

Power cable's plug is fully inserted into the wall outlet.

Power Management is turned off (only models with the Power Management function).

Video and Audio

No image is displayed from your PC or video equipment to the projector.

Still no image even though you connect the projector to the PC first, then start the PC.

Enabling your notebook PC's signal output to the projector.

- A combination of function keys will enable/disable the external display. Usually, the combination of the "Fn" key along with one of the 12 function keys turns the external display on or off.

No image (blue background).

Still no image even though you press the AUTO ADJ. button.

Still no image even though you carry out [RESET] in the projector's menu.

Signal cable's plug is fully inserted into the input connector □ A message appears on the screen.

The source connected to the projector is active and available.

Still no image even though you adjust the brightness and/or the contrast.

Input source's resolution and frequency are supported by the projector.

Image is too dark.

Remains unchanged even though you adjust the brightness and/or the contrast.

Image is distorted.

Image appears to be trapezoidal (unchanged even though you carry out the [KEYSTONE] adjustment).

Parts of the image are lost.

Still unchanged even though you press the AUTO ADJ. button.

Still unchanged even though you carry out [RESET] in the projector's menu.

Image is shifted in the vertical or horizontal direction.

Horizontal and vertical positions are correctly adjusted on a computer signal.

Input source's resolution and frequency are supported by the projector.

Some pixels are lost.

Image is flickering.

Still unchanged even though you press the AUTO ADJ. button.

Still unchanged even though you carry out [RESET] in the projector's menu.

Image shows flickering or color drift on a computer signal.

Image appears blurry or out of focus.

Still unchanged even though you checked the signal's resolution on PC and changed it to projector's native resolution.

Still unchanged even though you adjusted the focus.

No sound.

Audio cable is correctly connected to the audio input of the projector.

Still unchanged even though you adjusted the volume level.

Other

Remote control does not work.

No obstacles between the sensor of the projector and the remote control.

Projector is placed near a fluorescent light that can disturb the infrared remote controls.

Batteries are new and are not reversed in installation

Buttons on the projector cabinet do not work.

[CONTROL PANEL LOCK] is not turned on in the menu.

Still unchanged even though you press and hold the SOURCE button on the cabinet for minimum of 10 seconds.

In the space below please describe your problem in detail.

Information on application and environment where your projector is used

Projector

Model number:

Serial No.:

Date of purchase:

Information on input signal:

Horizontal synch frequency [ ] kHz

Vertical synch frequency [ ] Hz

Synch polarity H (+) (-) □ □ V (+) (-) □ □

Synch type Separate Composite Sync on Green

STATUS Indicator:

Steady light/Flashing light [ ] cycles

Remote control model number:

Signal cable

NEC standard or other manufacturer's cable?

Model number: Length: inch/m

Distribution amplifier

Model number:

Switcher

Model number:

Adapter

Model number:

Installation environment

Screen size: inch

Screen type: White matte Beads Polarization Wide angle High contrast

Throw distance: feet/inch/m

Orientation: Desktop Other □

Power outlet connection:

☐ Connected directly to wall outlet
☐ Connected to power cord extender or other (the number of connected equipment____)
☐ Connected to a power cord reel or other (the number of connected equipment____)

Computer

Manufacturer:

Model number:

Notebook PC □ / Desktop □

Native resolution:

Refresh rate:

Video adapter:

Other:

Video equipment

VCR, DVD player, Video camera, Video game or other

Manufacturer:

Model number:

TravelCare Guide

TravelCare - a service for international travelers

This product is eligible for “TravelCare”, NEC’s unique international warranty and repair service.

For more information on TravelCare service, visit our website (in English only).

http://www.nec-display.com/dl/en/pj_support/travel_care.html

NEC
