USER MANUAL NP500WS NEC

Two white NEC projector units shown from front and side, with no visible text or symbols on the devices themselves.

The projector's model name indicated on the projector's label is NP600, NP500, NP400, NP300, NP500W, NP600S, NP500WS, NP600G, NP500G, NP400G, NP300G, NP500WG, NP600SG, and NP500WSG respectively.

All the models are referred to as NP600, NP500, NP400, NP300, NP500W, NP600S, and NP500WS throughout the user's manual except some of the specification pages.

• IBM is a trademark or registered trademark of International Business Machines Corporation.
• Macintosh, Mac OS X and PowerBook are trademarks of Apple Inc. registered in the U.S. and other countries.
- Microsoft, Windows, Windows Vista, Internet Explorer, and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
- MicroSaver is a registered trademark of Kensington Computer Products Group, a division of ACCO Brands.
- Other product and company names mentioned in this user's manual may be the trademarks or registered trademarks of their respective holders.

NOTES

(1) The contents of this user's manual may not be reprinted in part or whole without permission.
(2) The contents of this user's manual are subject to change without notice.
(3) Great care has been taken in the preparation of this user's manual; however, should you notice any questionable points, errors or omissions, please contact us.
(4) Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.

Safety Cautions

Precautions

Please read this manual carefully before using your NEC NP600, NP500, NP400, NP300, NP500W, NP600S, and NP500WS projector and keep the manual handy for future reference.

CAUTION

To turn off main power, be sure to remove the plug from power outlet.

The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.

THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided.

The information should be read carefully to avoid problems.

WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT'S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS CAN BE FULLY INSERTED.

DOC Compliance Notice (for Canada only)

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Machine Noise Information Regulation - 3. GPSGV,

The highest sound pressure level is less than 70 dB (A) in accordance with EN ISO 7779.

CAUTION

Avoid displaying stationary images for a prolonged period of time.

Doing so can result in these images being temporarily sustained on the surface of the LCD panel.

If this should happen, continue to use your projector. The static background from previous images will disappear.

Disposing of your used product

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes projectors and their electrical accessories or lamps. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product.

After collecting the used products, they are reused and recycled in a proper way. This effort will help us reduce the wastes as well as the negative impact such as mercury contained in a lamp to the human health and the environment at the minimum level.

The mark on the electrical and electronic products only applies to the current European Union Member States.

WARNING TO CALIFORNIA RESIDENTS:

Handling the cables supplied with this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.

RF Interference (for USA only)

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

For UK only: In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

- Do not place the projector in the following conditions:

• on an unstable cart, stand, or table.
• near water, baths, or damp rooms.
• in direct sunlight, near heaters, or heat radiating appliances.
• in a dusty, smoky or steamy environment.
• on a sheet of paper or cloth, rugs or carpets.

- If you wish to have the projector installed on the ceiling:

• Do not attempt to install the projector yourself.
• The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.
• In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes.
• Please consult your dealer for more information.

WARNING

• Do not cover the lens with the lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap due to the heat emitted from the light output.
• Do not place any objects, which are easily affected by heat, in front of the projector lens. Doing so could lead to the object melting from the heat that is emitted from the light output.

Place the projector in a horizontal position

The tilt angle of the projector should not exceed 10 degrees, nor should the projector be installed in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically.

Fire and Shock Precautions

• Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 4 inches (10cm) of space between your projector and a wall.
• Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while the projector is turned on and immediately after the projector is turned off.

• Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified service personnel.
• Do not place any objects on top of the projector.
• Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.
• The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz (NP600/NP500/NP400/NP300/NP500W/NP600S/NP500WS) or 200-240V AC 50/60 Hz (NP600G/NP500G/NP400G/NP300G/NP500WG/NP600SG/NP500WSG). Ensure that your power supply fits this requirement before attempting to use your projector.
• Do not look into the lens while the projector is on. Serious damage to your eyes could result.

• Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.
• Do not place any objects, which are easily affected by heat, in front of a projector exhaust vent.

Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the exhaust.

- Handle the power cable carefully. A damaged or frayed power cable can cause electric shock or fire.

• Do not use any power cables than the supplied one.
• Do not bend or tug the power cable excessively.
• Do not place the power cable under the projector, or any heavy object.
• Do not cover the power cable with other soft materials such as rugs.
• Do not heat the power cable.
• Do not handle the power plug with wet hands.

- Turn off the projector, unplug the power cable and have the projector serviced by a qualified service personnel under the following conditions:

• When the power cable or plug is damaged or frayed.
• If liquid has been spilled into the projector, or if it has been exposed to rain or water.
• If the projector does not operate normally when you follow the instructions described in this user's manual.
• If the projector has been dropped or the cabinet has been damaged.
• If the projector exhibits a distinct change in performance, indicating a need for service.

- Disconnect the power cable and any other cables before carrying the projector.

- Turn off the projector and unplug the power cable before cleaning the cabinet or replacing the lamp.

- Turn off the projector and unplug the power cable if the projector is not to be used for an extended period of time.

- When using a LAN cable:

For safety, do not connect to the connector for peripheral device wiring that might have excessive voltage.

CAUTION

• Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector.
• Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside the soft case could be damaged.
• Select [HIGH] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select [SETUP] - [OPTIONS(1)] → [FAN MODE] → [HIGH].)
• Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while the projector is turned on and immediately after the projector is turned off.
• Do not turn off the AC power for 60 seconds after the lamp is turned on and while the POWER indicator is blink ing green. Doing so could cause premature lamp failure.

Remote Control Precautions

• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not heat, take apart, or throw batteries into fire.
• If you will not be using the remote control for a long time, remove the batteries.
• Ensure that you have the batteries' polarity (+/-) aligned correctly.
• Do not use new and old batteries together, or use different types of batteries together.
• Dispose of used batteries according to your local regulations.

Lamp Replacement

• To replace the lamp, follow all instructions provided on page 79.
• Be sure to replace the lamp when the message [THE LAMP HAS REACHED THE END OF ITS USABLE LIFE. PLEASE REPLACE THE LAMP.] appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury.

If this happens, contact your dealer for lamp replacement.

A Lamp Characteristic

The projector has a high-pressure mercury lamp as a light source.

A lamp has a characteristic that its brightness gradually decreases with age. Also repeatedly turning the lamp on and off will increase the possibility of its lower brightness.

CAUTION:

When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass fragments could fall if the lamp has been burned out.

About High Altitude mode

• Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 5500 feet/1600 meters or higher.
  Using the projector at altitudes approximately 5500 feet/1600 meters or higher without setting to [HIGH ALTITUDE] can cause the projector to overheat and the protector could shut down. If this happens, wait a couple minutes and turn on the projector.
• Using the projector at altitudes less than approximately 5500 feet/1600 meters and setting to [HIGH ALTITUDE] can cause the lamp to overcool, causing the image to flicker. Switch [FAN MODE] to [AUTO].
• Using the projector at altitudes approximately 5500 feet/1600 meters or higher can shorten the life of optical components such as the lamp.

About Copyright of original projected pictures:

Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such as a coffee shop or hotel and employing compression or expansion of the screen image with the following functions may raise concern about the infringement of copyrights which are protected by copyright law.

[ASPECT RATIO], [KEYSTONE], Magnifying feature and other similar features.

Important Information......i

1. Introduction......1

① What's in the Box? .... 1
2 Introduction to the Projector .... 2 Congratulations on Your Purchase of the Projector .... 2 Features you'll enjoy: .... 2 About this user's manual .... 3
3 Part Names of the Projector .... 5 Front/Top.... 5 Rear .... 6 Top Features .... 7 Terminal Panel Features .... 8
4 Part Names of the Remote Control .... 9 Battery Installation .... 10 Remote Control Precautions.... 10 Operating Range for Wireless Remote Control.... 10

2. Installation and Connections....11

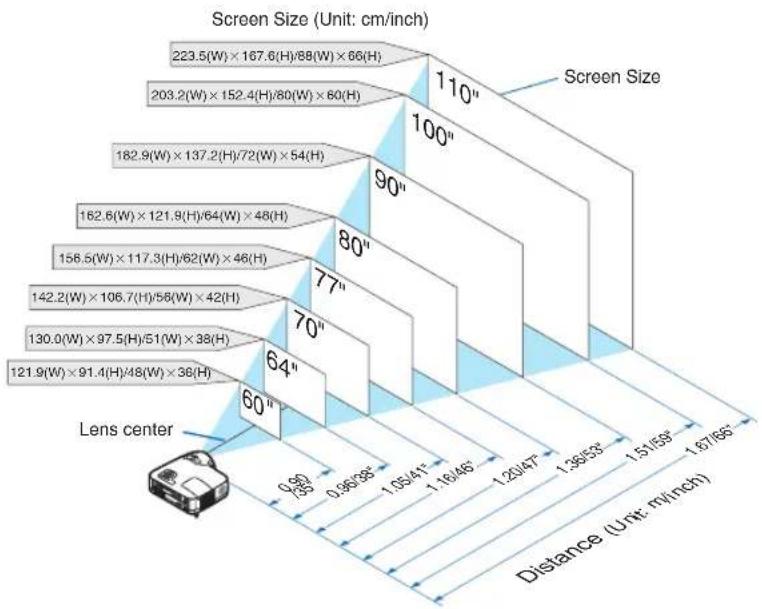

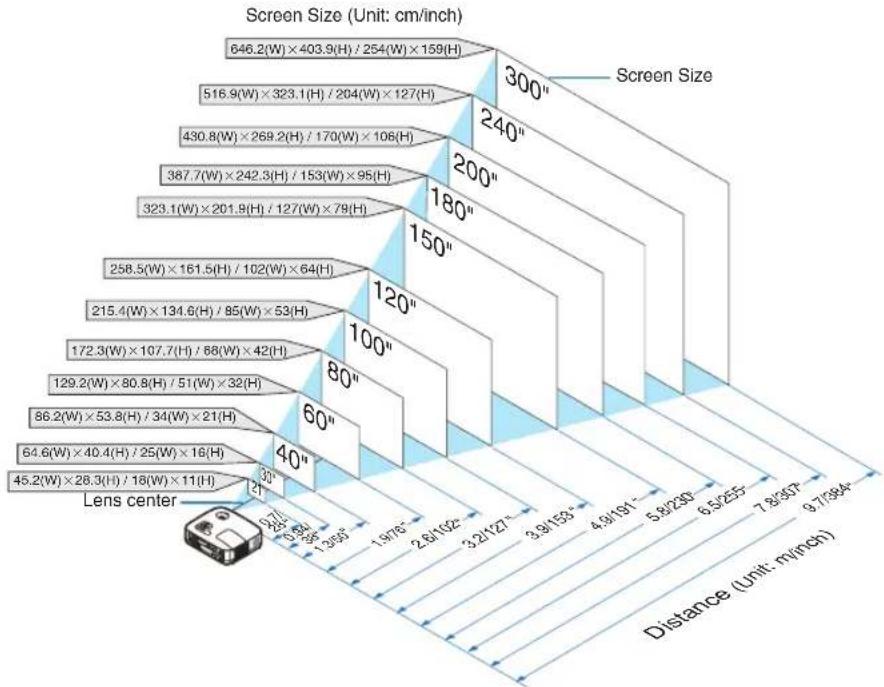

① Setting Up the Screen and the Projector.... 11 Selecting a Location.... 11 Throw Distance and Screen Size.... 15
2 Making Connections.... 17 Enabling the computer's external display.... 17 Connecting Your PC or Macintosh Computer.... 17 When Viewing a DVI Digital Signal .... 19 Using Two Analog COMPUTER Inputs Simultaneously .... 20 Connecting an External Monitor .... 21 Connecting Your DVD Player with Component Output .... 22 Connecting Your VCR.... 23 Connecting to a Network.... 24 Connecting the Supplied Power Cable .... 25

3. Projecting an Image (Basic Operation) 26

① Turning on the Projector .... 26 Note on Startup screen (Menu Language Select screen) .... 28
② Selecting a Source .... 29 Selecting the computer or video source.... 29

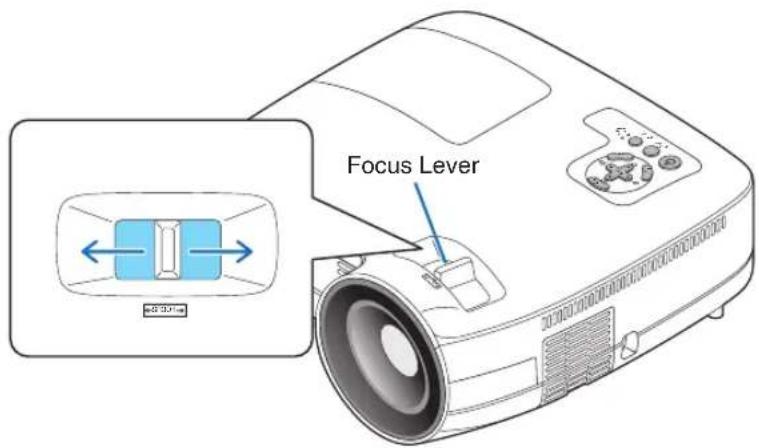

3 Adjusting the Picture Size and Position.... 30 Adjust the Tilt Foot.... 31 Zoom.... 32 Focus.... 33
4 Correcting Keystone Distortion.... 34 Correcting Keystone Distortion.... 34 Adjusting with buttons on the cabinet.... 34 Adjusting with the Remote Control.... 35 Adjusting with the Auto Keystone Function.... 36

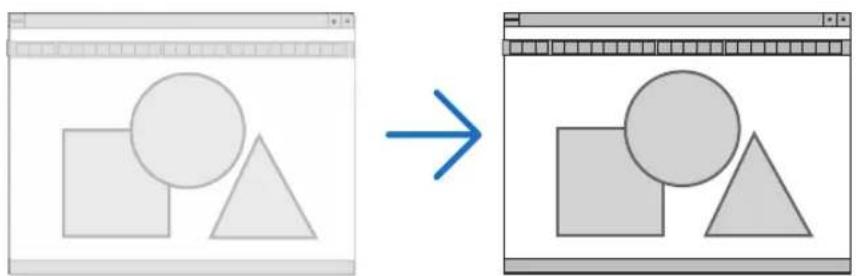

⑤ Optimizing Computer Signal Automatically .... 37 Adjusting the Image Using Auto Adjust.... 37

⑥ Turning Up or Down Volume 37
⑦ Turning off the Projector 38
⑧ After Use.... 39

4. Convenient Features.... 40

① Turning off the Image and Sound 40
2 Freezing a Picture 40
③ Enlarging a Picture 40
④ Changing Lamp Mode 41

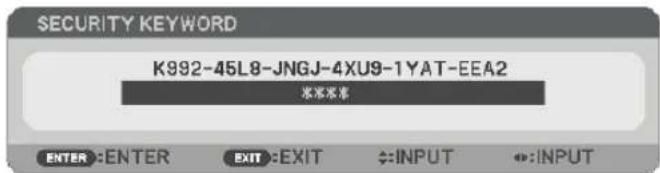

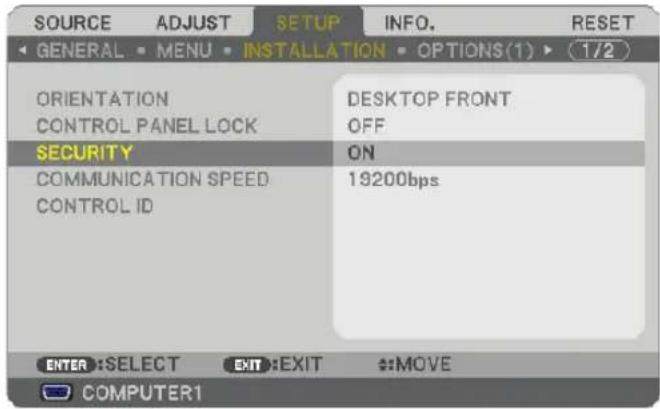

5 Preventing the Unauthorized Use of the Projector [SECURITY] 42
⑥ Using the Optional Remote Mouse Receiver (NP01MR) 45
⑦ Network Setting by Using an HTTP Browser 47
⑧ Using the VGA Signal Cable to Operate the Projector (Virtual Remote) 50

5. Using On-Screen Menu.... 51

① Using the Menus.... 51
② Menu Elements.... 52
③ List of Menu Items 53

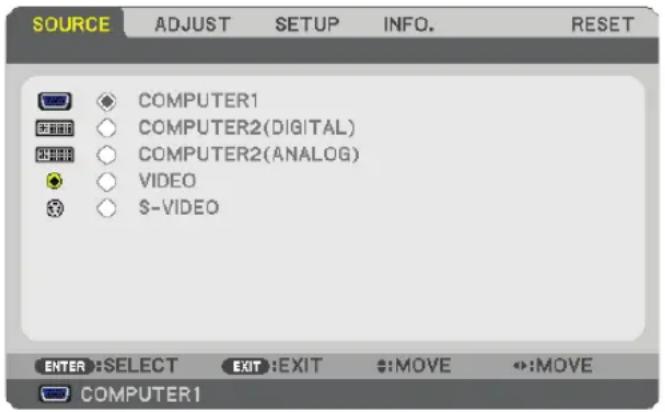

④ Menu Descriptions & Functions [SOURCE] 55

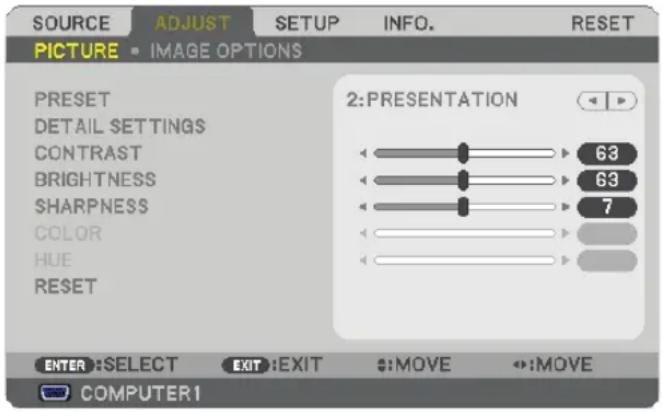

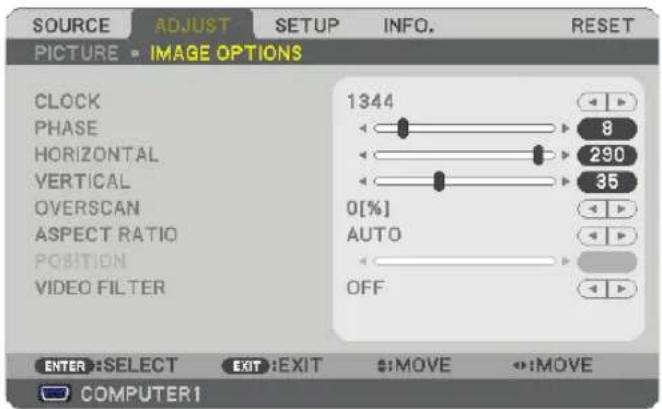

⑤ Menu Descriptions & Functions [ADJUST].... 56

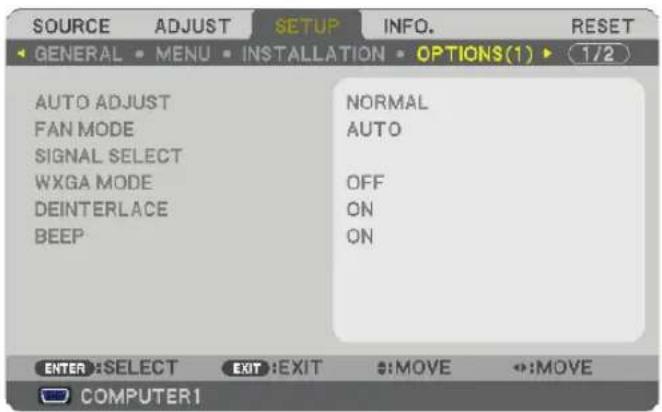

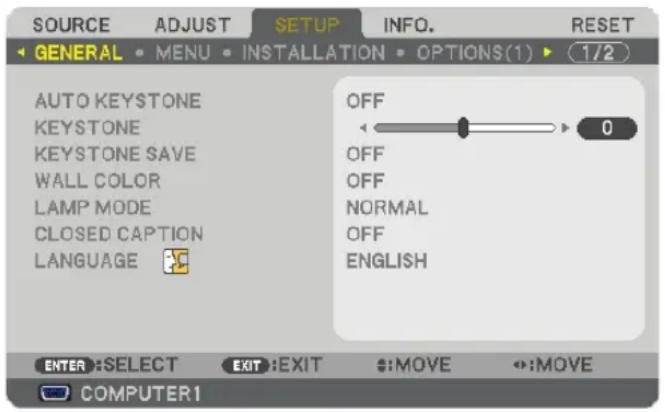

⑥ Menu Descriptions & Functions [SETUP].... 63

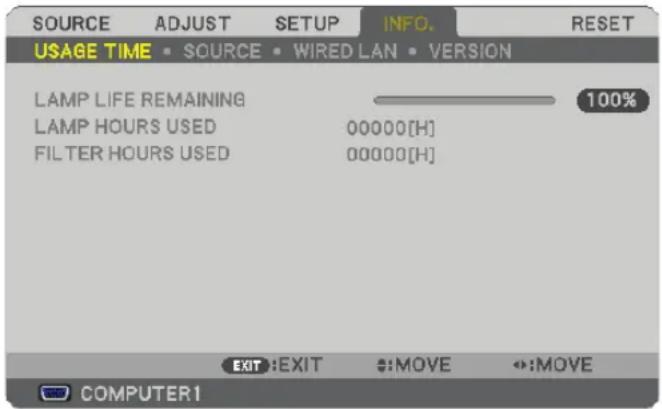

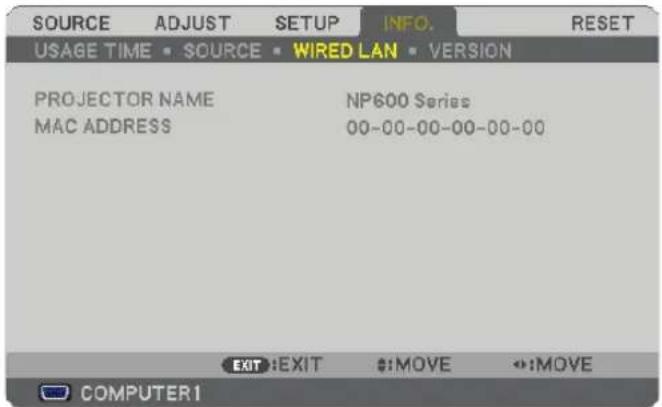

⑦ Menu Descriptions & Functions [INFO.] 73
⑧ Menu Descriptions & Functions [RESET].... 75

6. Maintenance 76

① Cleaning or Replacing the Filters 76
② Cleaning the Cabinet and the Lens 78
③ Replacing the Lamp....79

7. Appendix......82

① Troubleshooting .... 82 Indicator Messages .... 82
② Specifications 85
③ Cabinet Dimensions 89
4 Pin Assignments of D-Sub COMPUTER Input Connector .... 91 Mini D-Sub 15 Pin Connector .... 91
⑤ Compatible Input Signal List.... 92
6 PC Control Codes and Cable Connection....93 PC Control Codes....93 Cable Connection....93 PC Control Connector (D-SUB 9P)....93
⑦ Troubleshooting Check List.... 94
⑧ TravelCare Guide....96

1. Introduction

① What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your projector.

NP600/NP500/NP400/ NP300/NP500W
NP600S/NP500WS NP600/NP500/NP400/ NP300/NP500W
The NP600S and the NP500WS do not come with a soft case.

Power cable (US: 7N080229) (EU: 7N080015)

Line drawing of a coiled electrical plug with connectors (no text or symbols)

VGA signal cable (7N520052)

Remote control (7N900731)

Batteries (AAA×2)

Two overlapping gray rectangular sheets with no text or symbols, labeled 'Quick' and '(7N25)' at the bottom (no other text or symbols)

Quick Setup Guide (7N8P9291) Important Information (7N8P9301)

CD-ROM User's manual (7N951301)
For North America only Registration card Limited warranty
For customers in Europe: You will find our current valid Guarantee Policy on our Web Site: www.nec-display-solutions.com

DVI to VGA adapter (7N960234)

Unless otherwise described in the user's manual, the drawings for the projector cabinet show examples of the NP600.

② Introduction to the Projector

This section introduces you to your new projector and describes the features and controls.

Congratulations on Your Purchase of the Projector

This projector is one of the very best projectors available today. The projector enables you to project precise images up to 300 inches (110 inches on NP600S; 104 inches on NP500WS) across (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, DVD player, or document camera.

You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can be permanently mounted on a ceiling ^*1 . The remote control can be used wirelessly.

*1 Do not attempt to mount the projector on a ceiling yourself.

The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.

In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Please consult your dealer for more information.

Features you'll enjoy:

- Quick start & Direct Power Off

Eight seconds after turning on the power, the projector is ready to display PC or video images.

The projector has a feature called "Direct Power Off". This feature allows the projector to be turned off (even when projecting an image) using a power strip equipped with a switch and a breaker.

• AUTO POWER ON and AUTO POWER OFF features

The AUTO POWER ON(AC), AUTO POWER ON(COMP1), AUTO POWER OFF, and OFF TIMER features eliminate the need to always use the POWER button on the remote control or projector cabinet.

- Short throw distances (NP600S/NP500WS)

Short focal lenses provide for a larger image using a shorter throw distance when compared to a typical projector lens.

• Virtual Remote function

The Virtual Remote function allows power On/Off and source selection of the projector from your PC by using the supplied VGA signal cable. The utility software “Virtual Remote Tool” exclusively for the projector is required to be downloaded from our website.

- The optional remote control (NP02RC) allows you to assign a CONTROL ID to the projector

Multiple projectors can be operated separately and independently with the same single remote control by assigning an ID number to each projector.

- A variety of input ports and a comprehensive array of system control interfaces

This projector supports input signals on the following ports: DVI-I connector (DVI-I 29 Pin) with HDCP compatible, 15pin D-Sub, composite and S-video.

- Integrated RJ-45 connector for wired networking capability

An RJ-45 connector is equipped as standard feature.

- 7W built-in speaker for an integrated audio solution

Powerful 7 watt speaker provides volume need for large rooms.

• Auto vertical keystone correction

Auto Keystone feature allows the projector to detect its tilt and correct vertical distortion automatically.

• LCD projector with high resolution and high brightness

High resolution display - up to UXGA compatible, XGA (NP600/NP500/NP400/NP300/NP600S)/WXGA (NP500W/NP500WS) native resolution.

- Six picture preset modes for user adjustable picture and color settings

Each picture preset mode can be customized and memorized according to your preference.

- Preventing unauthorized use of the projector

Enhanced smart security settings for keyword protection, cabinet control panel lock, security slot, and security chain opening to help prevent unauthorized access, adjustments and theft deterrence.

- PC Control Port

You can control the projector with a PC or control system using the PC Control port.

- 3W in standby condition with energy saving technology

Selecting [POWER-SAVING] for [STANDBY MODE] from the menu can put the projector in power-saving mode that consume less power than the normal standby condition.

- Optional remote mouse receiver

You can use the supplied wireless remote control and the optional remote mouse receiver to operate your PC mouse from across the room. The optional remote mouse receiver (NP01MR) supports almost any PC using a USB connection.

About this user's manual

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll find an overview. If the section doesn't apply, you can skip it.

Comparative Table of Main Features

The main features vary depending on the model as follows.

	Standard Models				Wide Panel Model	Short-Throw Model	Wide Panel & Short-Throw Model
	NP600 NP500 NP400 NP300 NP500W NP600S NP500WS
Native Aspect Ratio(→ page 85, 87)	Standard Wide Standard Wide
Native Resolution (dots x lines*1)(→ page 85, 87)	XGA (1024 x 768)				WXGA(1280 x 800)	XGA(1024 x 768)	WXGA(1280 x 800)
Screen Size(→ page 85, 87)	21"-300" 60"-110" 57"-104"
Throw Distance(→ page 85, 87)	29-444 inches/0.7-11.3 m				28-419 inches/0.7-10.6 m	35"-66"/0.9 m-1.7 m	36"-66"/0.9 m-1.7 m
Light output*2*3 in NORMAL mode(→ page 85, 87)	3500 lumens	3000 lumens	2600 lumens	2200 lumens	3000 lumens 2600 lumens	3000 lumens 2100 lumens
Zoom(→ page 32)	Using the manual zoom lever					Using the [DIGITAL ZOOM] function from the menu
Focus(→ page 33)	Using the manual focus ring Using the manual focus lever
Lamp Replacement Time (average)(→ page 73)	3000 (H) in NORMAL /4000 (H) in ECO

For further details on the specifications, see page 85.

*1 Effective pixels are more than 99.99%.

*2 This is the light output value (lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PRESET] mode, the light output value may drop slightly.

*3 Compliance with ISO21118-2005

TIP: The model name is located on the cabinet.

Model name

③ Part Names of the Projector

Front/Top

NP600/NP500/NP400/NP300/NP500W

Zoom Lever (→ page 32) Focus Ring (→ page 33) Remote sensor (→ page 10) Lens Lens Cap Controls (→ page 7) Security chain opening Attach an anti-theft device. The security chain opening accepts security wires or chains up to 0.18 inch/4.6 mm in diameter. Built-in Security Slot (R)* Ventilation (inlet) / Filter Cover (→ page 76) Adjustable Tilt Foot Lever (→ page 31) Adjustable Tilt Foot (→ page 31)

* This security slot supports the MicroSaver ® Security System.

NP600S/NP500WS

Focus Lever (→ page 33) Remote sensor (→ page 10) Lens Lens Cap Controls (→ page 7) Security chain opening Attach an anti-theft device. The security chain opening accepts se- curity wires or chains up to 0.18 inch/ 4.6 mm in diameter. Built-in Security Slot ( R* ) Ventilation (inlet) / Filter Cover (→ page 76)

* This security slot supports the MicroSaver ® Security System.

Adjustable Tilt Foot Lever (→ page 31) Adjustable Tilt Foot (→ page 31)

Rear

Lamp Cover (→ page 80) Monaural Speaker (7W) Ventilation (outlet) Heated air is exhausted from here. Vacation (inlet) / Filter Cover (→ page 76) Terminal Panel (→ page 8) Spacer (black rubber) To fine-adjust the height of the rear foot, remove the spacer and rotate the rear foot to the desired height. Rear Foot (→ page 31) AC Input Connect the supplied power cable's two-pin plug here, and plug the other end into an active wall outlet. (→ page 25)

Main Power Switch
When you plug the supplied power cable into an active wall outlet and turn on the Main Power, the POWER indicator turns orange and the projector is in standby mode.
(→ page 26, 38)

Top Features

MENU 7 8 SELECT 9 ENTER EXIT 10 4 LAMP STATUS 3 AUTO ADJ. SOURCE 1256

1. ⏻ (POWER) Button (→page 27, 38)
2. POWER Indicator (→page 26, 38, 82)
3. STATUS Indicator ( page 82)
4. LAMP Indicator (→page 79, 82)
5. SOURCE Button (→page 29)
6. AUTO ADJ. Button (→page 37)
7. MENU Button (→page 51)
8. SELECT ▲▼◀▶ / Volume Buttons ◀▶ / Keystone Buttons ▲▼ (→page 34, 37)
9. ENTER Button (→page 51)
10. EXIT Button ( page 51)

Terminal Panel Features

6 3321 9 10 8 7 5 4 AUCO IN COMPUTER 2 CWP IN COMPUTER 1 IN AUDIO IN MUNITOR OUT (COMP 1) AUDIO OUT PC CONTROL LAN

1. COMPUTER 1 IN/ Component Input Connector (Mini D-Sub 15 Pin) (→page 17, 20, 22)
2. COMPUTER 2 (DVI-I) IN Connector (29 Pin) (HDCP compatible) ( page 19, 20)
3. AUDIO IN Mini Jack (Stereo Mini) (→page 17, 19, 22)
4. AUDIO OUT Mini Jack (Stereo Mini) (→page 21)
5. MONITOR OUT (COMP 1) Connector (Mini D-Sub 15 Pin) (→page 21)
6. S-VIDEO IN Connector (Mini DIN 4 Pin) (→page 23)
7. VIDEO IN Connector (RCA) (→page 23)
8. AUDIO Input Jacks L/R (RCA) (→page 23)
9. PC CONTROL [PC CONTROL] Port (D-Sub 9 Pin) (→page 93)

Use this port to connect a PC or control system. This enables you to control the projector using serial communication protocol. If you are writing your own program, typical PC control codes are on page 93.

1. LAN Port (RJ-45) (→page 24)

④ Part Names of the Remote Control

1 OFF ON POWER MAGNIFY PROGEMUTE UP DOWN 2 3 4 6 5 7 MENU 8 9 ENTER EXIT 10 L-CLICK R-CLICK MOUSE 12 VIDEO COMPUTER AUTO ADJ. 16 S-VIDEO LAMP MODE 15 2 14 VOLUME ASPECT HELP 18 19 21 17 FREEZEPICTURE 22 20

1. Infrared Transmitter ( page 10)
2. POWER ON Button (→ page 27)
3. POWER OFF Button (→ page 38)
4. MAGNIFY (+)(−) Button (→ page 40)
5. PIC-MUTE Button (→ page 40)
6. PAGE UP/DOWN Button* (→ page 45, 46)
7. MENU Button (→ page 51)
8. SELECT ▲▼◀▶ Button (→ page 51)
9. ENTER Button ( page 51)
10. EXIT Button ( page 51)

11. MOUSE L-CLICK Button* (→ page 45, 46)

12. MOUSE R-CLICK Button* (→ page 45, 46)

13. VIDEO Button (→ page 29)
14. S-VIDEO Button (→ page 29)
15. COMPUTER 1/2 Button (→ page 29)
16. AUTO ADJ. Button (→ page 37)
17. VOLUME (+)(−) Button (→ page 37)
18. LAMP MODE Button ( page 41)
19. ASPECT Button (→ page 60)
20. PICTURE Button (→ page 56, 57)
21. HELP Button (→ page 73)
22. FREEZE Button (→ page 40)

Battery Installation

1 Press firmly and slide the battery cover off.

2 Install new batteries (AAA). Ensure that you have the batteries' polarity (+/-) aligned correctly.

3 Slip the cover back over the batteries until it snaps into place. Do not mix different types of batteries or new and old batteries.

Isometric line drawing of a mobile phone casing with a button and arrow indicating action (no text or symbols)

Technical line drawing of a remote control device with internal components (no text or symbols)

Isometric line drawing of a remote control casing with internal components (no text or symbols)

Remote Control Precautions

• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not heat, take apart, or throw batteries into fire.
• If you will not be using the remote control for a long time, remove the batteries.
• Ensure that you have the batteries' polarity (+/-) aligned correctly.
• Do not use new and old batteries together, or use different types of batteries together.
• Dispose of used batteries according to your local regulations.

Operating Range for Wireless Remote Control

Remote control 7m/22feet 30° 30°

Remote sensor on projector cabinet

Remote control 30° 30° 7m/22feet

• The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of the remote sensor on the projector cabinet.
• The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls on the sensor. Weak batteries will also prevent the remote control from properly operating the projector.

2. Installation and Connections

This section describes how to set up your projector and how to connect video and audio sources. Your projector is simple to set up and use. But before you get started, you must first:

Illustration showing a presentation with a projector, a screen displaying bar charts, and three labeled diagrams illustrating cable or cable connection methods.

1 Set up a screen and the projector.
② Connect your computer or video equipment to the projector.
(→ page 17, 19, 20, 21, 22, 23, 24)
3 Connect the supplied power cable. (→ page 25)

NOTE: Ensure that the power cable and any other cables are disconnected before moving the projector. When moving the projector or when it is not in use, cover the lens with the lens cap.

To the wall outlet.

① Setting Up the Screen and the Projector

Selecting a Location

NOTE: Throw distances vary depending on the model.

[NP600/NP500/NP400/NP300]

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 21" (0.53 m) measured diagonally when the projector is roughly 30 inches (0.8 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 407 inches (10.3 m) from the wall or screen.

TIP:

• The distances are indicated by intermediate values between tele and wide. Use as a rule of thumb.
• The Zoom lever adjusts the image size by up to +/-10%.
• For more details on throw distance, see page 15.

[NP500W]

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 21" (0.53 m) measured diagonally when the projector is roughly 28 inches (0.7 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 384 inches (9.7 m) from the wall or screen.

TIP:

• The distances are indicated by intermediate values between tele and wide. Use as a rule of thumb.
• The Zoom lever adjusts the image size by up to +/-10%.
• For more details on throw distance, see page 15.

[NP600S]

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 60" (1.52m) measured diagonally when the projector is roughly 35 inches (0.9 m) from the wall or screen. The largest the image can be is 110" (2.8 m) when the projector is about 66 inches (1.7 m) from the wall or screen.

TIP:

• Digital Zoom can result in a blurry image due to the electronic zoom.
- The Digital Zoom function adjusts the image size by up to -20%. (→ page 32)
- For more details on throw distance, see page 16.

[NP500WS]

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 57" (1.45m) measured diagonally when the projector is roughly 36 inches (0.9 m) from the wall or screen. The largest the image can be is 104" (2.6m) when the projector is about 66 inches (1.7 m) from the wall or screen.

TIP:

• Digital Zoom can result in a blurry image due to the electronic zoom.
- The Digital Zoom function adjusts the image size by up to -20%. (→ page 32)
- For more details on throw distance, see page 16.

Throw Distance and Screen Size

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.

Distance Chart [NP600/NP500/NP400/NP300/NP500W]

C Screen center α Lens center B D Screen bottom

B = Vertical distance between lens center and screen center

C = Throw distance

D = Vertical distance between lens center and screen bottom (top of screen for ceiling application)

α = Throw angle

NOTE: The values in the tables are design values and may vary.

[NP600/NP500/NP400/NP300]

Screen Size						B		C					D		α
Diagonal Width Height wide tele				wide tele
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	-	inch	mm	inch	mm	degree	-	degree
21	533	17	427	13	320	4	110	-	-	-	30	753	-2	-50	-	-	8.3
25	635	20	508	15	381	5	131	29	746	-	36	903	-2	-60	10.0	-	8.3
30	762	24	610	18	457	6	157	36	903	-	43	1092	-3	-71	9.9	-	8.2
40	1016	32	813	24	610	8	210	48	1217	-	58	1469	-4	-95	9.8	-	8.1
60	1524	48	1219	36	914	12	314	73	1845	-	88	2223	-6	-143	9.7	-	8.0
72	1829	58	1463	43	1097	15	377	87	2221	-	105	2675	-7	-171	9.6	-	8.0
80	2032	64	1626	48	1219	17	419	97	2473	-	117	2977	-8	-191	9.6	-	8.0
84	2134	67	1707	50	1280	17	440	102	2598	-	123	3128	-8	-200	9.6	-	8.0
90	2286	72	1829	54	1372	19	471	110	2787	-	132	3354	-8	-214	9.6	-	8.0
100	2540	80	2032	60	1524	21	524	122	3101	-	147	3731	-9	-238	9.6	-	8.0
120	3048	96	2438	72	1829	25	629	147	3729	-	177	4485	-11	-286	9.6	-	8.0
150	3810	120	3048	90	2286	31	786	184	4671	-	221	5616	-14	-357	9.5	-	8.0
180	4572	144	3658	108	2743	37	943	221	5613	-	266	6747	-17	-429	9.5	-	8.0
200	5080	160	4064	120	3048	41	1048	246	6241	-	295	7501	-19	-476	9.5	-	8.0
210	5334	168	4267	126	3200	43	1100	258	6555	-	310	7878	-20	-500	9.5	-	7.9
240	6096	192	4877	144	3658	50	1257	295	7497	-	355	9009	-23	-572	9.5	-	7.9
270	6858	216	5486	162	4115	56	1414	332	8439	-	399	10140	-25	-643	9.5	-	7.9
300	7620	240	6096	180	4572	62	1572	369	9381	-	444	11271	-28	-714	9.5	-	7.9

[NP500W]

Screen Size						B		C					D		α
Diagonal Width Height wide tele				wide tele
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	-	inch	mm	inch	mm	degree	-	degree
21	533	18	452	11	283	4	99	-	-	-	28	712	-2	-42	-	-	7.9
25	635	21	538	13	337	5	118	28	703	-	34	854	-2	-50	9.5	-	7.9
30	762	25	646	16	404	6	141	34	851	-	41	1032	-2	-61	9.4	-	7.8
40	1016	34	862	21	538	7	188	45	1146	-	55	1389	-3	-81	9.3	-	7.7
60	1524	51	1292	32	808	11	283	68	1737	-	83	2101	-5	-121	9.2	-	7.7
72	1829	61	1551	38	969	13	339	82	2092	-	100	2528	-6	-145	9.2	-	7.6
80	2032	68	1723	42	1077	15	377	92	2328	-	111	2813	-6	-162	9.2	-	7.6
84	2134	71	1809	45	1131	16	396	96	2446	-	116	2955	-7	-170	9.2	-	7.6
90	2286	76	1939	48	1212	17	424	103	2624	-	125	3169	-7	-182	9.2	-	7.6
100	2540	85	2154	53	1346	19	471	115	2919	-	139	3525	-8	-202	9.2	-	7.6
120	3048	102	2585	64	1615	22	565	138	3510	-	167	4237	-10	-242	9.2	-	7.6
150	3810	127	3231	79	2019	28	707	173	4396	-	209	5305	-12	-303	9.1	-	7.6
180	4572	153	3877	95	2423	33	848	208	5283	-	251	6374	-14	-363	9.1	-	7.6
200	5080	170	4308	106	2692	37	942	231	5874	-	279	7086	-16	-404	9.1	-	7.6
210	5334	178	4523	111	2827	39	989	243	6169	-	293	7442	-17	-424	9.1	-	7.6
240	6096	204	5169	127	3231	45	1131	278	7056	-	335	8510	-19	-485	9.1	-	7.6
270	6858	229	5816	143	3635	50	1272	313	7942	-	377	9578	-21	-545	9.1	-	7.6
300	7620	254	6462	159	4039	56	1414	348	8829	-	419	10646	-24	-606	9.1	-	7.6

Distance Chart [NP600S/NP500WS]

C Screen center α Lens center B D Screen bottom

B = Vertical distance between lens center and screen center
C = Throw distance
D = Vertical distance between lens center and screen bottom (top of screen for ceiling application)
α = Throw angle

NOTE: The values in the tables are design values and may vary.

[NP600S]

Screen Size								B		C		D		α
Diagonal Width		Height	wide	wide
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	degree
60	1524	48	1219	36	914	20	505	35	895	2	48	29.4
64	1626	51	1300	38	975	21	538	38	956	2	51	29.4
70	1778	56	1422	42	1067	23	589	41	1049	2	56	29.3
77	1956	62	1565	46	1173	26	648	46	1156	2	61	29.3
80	2032	64	1626	48	1219	27	673	47	1203	3	64	29.2
90	2286	72	1829	54	1372	30	757	53	1357	3	71	29.2
100	2540	80	2032	60	1524	33	841	59	1511	3	79	29.1
110	2794	88	2235	66	1676	36	926	66	1665	3	87	29.1

[NP500WS]

Screen Size									B		C		D
Diagonal Width Height wide wide
inch mm inch mm inch mm inch mm inch mm degree
57 1448 48 1228 30 767 20 508					36 902	5 125	29.4
60 1524 51 1292 32 808 21 535					37 951	5 131	29.4
70 1778 59 1508 37 942 25 624					44 1114	6 153	29.3
80 2032 68 1723 42 1077 28 713					50 1277	7 175	29.2
87 2210 74 1874 46 1171 31 776					55 1392	7 190	29.1
90 2286 76 1939 48 1212 32 808					57 1441	8 197	29.1
100 2540 85 2154 53 1346 35 892					63 1604	9 219	29.1
104 2642 88 2240 55 1400 37 928					66 1669	9 228	29.1

WARNING

* Installing your projector on the ceiling must be done by a qualified technician. Contact your NEC dealer for more information.
* Do not attempt to install the projector yourself.
- Only use your projector on a solid, level surface. If the projector falls to the ground, you can be injured and the projector severely damaged.
- Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 41°F (5°C) and 104°F (40°C) (Eco mode selected automatically at 95°F to 104°F/35°C to 40°C).
- Do not expose the projector to moisture, dust, or smoke. This will harm the screen image.
- Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the vents on the side or the front of the projector.

Reflecting the Image

Using a mirror to reflect your projector's image enables you to enjoy a much larger image when a smaller space is required. Contact your NEC dealer if you need a mirror system. If you're using a mirror system and your image is inverted, use the MENU and SELECT buttons on your projector cabinet or your remote control to correct the orientation. (→ page 66)

② Making Connections

NOTE: When using with a notebook PC, be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC.

In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up.

* If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management software.

Enabling the computer's external display

Displaying an image on the notebook PC's screen does not necessarily mean it outputs a signal to the projector.

When using a PC compatible laptop, a combination of function keys will enable/disable the external display.

Usually, the combination of the 'Fn' key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.

Connecting Your PC or Macintosh Computer

NOTE: Signals supported by Plug & Play (DDC2)

Model	INPUT
	COMPUTER 1 IN COMPUTER 2 IN
	analog analog digital
NP600/NP500/NP400 /NP300/NP600S Yes No Yes
NP500W/NP500WS Yes Yes Yes

COMPUTER 1 IN AUDIO IN VGA signal cable (supplied) To mini D-Sub 15-pin connector on the projector. It is recommended that you use a commercially available distribution amplifier if connecting a signal cable longer than the cable supplied. Audio cable (not supplied) NOTE: For older Macintosh, used pin adapter (not supplied) to connect port.

IBM VGA or Compatibles (Notebook type) or Macintosh (Notebook type)
NOTE: For older Macintosh, use a commercially available pin adapter (not supplied) to connect to your Mac's video port.

- Select the source name for its appropriate input connector after turning on the projector.

Input connector	SOURCE button on the projector cabinet	Button on the remote control
COMPUTER 1 IN COMPUTER 1)
COMPUTER 2(DVI-I)IN	COMPUTER 2(DIGITAL)orCOMPUTER 2(ANALOG)	(COMPUTER 2)↓ (Toggle)(COMPUTER 2)

NOTE: The projector is not compatible with video decoded outputs of the NEC ISS-6020 switcher.

NOTE: An image may not be displayed correctly when a Video or S-Video source is played back via a commercially available scan converter.

This is because the projector will process a video signal as a computer signal at the default setting. In that case, do the following.

* When an image is displayed with the lower and upper black portion of the screen or a dark image is not displayed correctly: Project an image to fill the screen and then press the AUTO ADJ. button on the remote control or the projector cabinet.

When Viewing a DVI Digital Signal

To project a DVI digital signal, be sure to connect the PC and the projector using a DVI cable (not supplied) before turning on your PC or projector. Turn on the projector first and select Computer 2 (Digital) from the source menu before turning on your PC.

Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen, restart your PC.

Do not disconnect the DVI cable while the projector is running. If the signal cable has been disconnected and then re-connected, an image may not be correctly displayed. Should this happen, restart your PC.

NOTE:

• Use a DVI cable or the one compliant with the DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revision 1.0 standard. The DVI cable should be within 5 m (196") long. Both single and dual types of DVI cable can be used.
• The DVI (DIGITAL) connector accepts VGA (640x480), SVGA (800x600), 1152x864, XGA (1024x768), WXGA (1280x800 @ up to 60Hz), and SXGA (1280x1024 @ up to 60Hz).

IBM PC or Compatibles (Desktop type) or Macintosh (Desktop type) Audio cable (not supplied) DVI cable (not supplied) AUDIO IN COMPUTER 2 (DVI-I) IN

Using Two Analog COMPUTER Inputs Simultaneously

If you need to use two analog COMPUTER inputs simultaneously, connect a VGA signal cable as shown below.

COMPUTER 2 (DVI-I) IN COMPUTER 1 IN IBM PC or Compatibles (Desktop type) or Macintosh (Desktop type) DVI to VGA adapter (supplied) VGA signal cable (not supplied) VGA signal cable (supplied) IBM PC or Compatibles (Notebook type) or Macintosh (Notebook type)

NOTE: When the DVI to VGA adapter is not to be used for an extended period of time, remove it from the projector. Failure to do so may cause damage to the connector of the projector.

Connecting an External Monitor

AUDIO OUT MONITOR OUT (COMP 1) VGA signal cable (not supplied) VGA signal cable (sup- plied) AUDIO IN

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the computer analog image you're projecting.

NOTE:

• Daisy chain connection is not possible.
- When audio equipment is connected, the projector speaker is disabled.

Connecting Your DVD Player with Component Output

A component signal will be automatically displayed. If not, from the menu, select [SETUP] → [OPTIONS(1)] → [SIGNAL SELECT] → [COMPUTER1], and then place a check mark in the Component radio button.

- Select the source name for its appropriate input connector after turning on the projector.

Input connector	SOURCE button on the projector cabinet	Button on the remote control
COMPUTER 1 IN COMPUTER(COMPUTER 1)

NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.

Connecting Your VCR

- Select the source name for its appropriate input connector after turning on the projector.

Input connector	SOURCE button on the projector cabinet	Button on the remote control
VIDEO IN	VIDEO	(VIDEO)
S-VIDEO IN	S-VIDEO	(S-VIDEO)

NOTE: The AUDIO IN L and R jacks (RCA) are shared between the Video and S-Video inputs.

NOTE: Refer to your VCR owner's manual for more information about your equipment's video output requirements.

NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via a scan converter.

Connecting to a Network

The projector comes standard with a LAN port (RJ-45) which provides a LAN connection using a LAN cable. Using a LAN cable allows you to specify the Network Settings and the Alert Mail Settings for the projector over a LAN. To use a LAN connection, you are required to assign an IP address to the projector on the [PROJECTOR NETWORK SETTINGS] screen of the web browser on your computer. For setting, see page 47, 48, 49.

Example of LAN connection

Example of wired LAN connection

Connecting the Supplied Power Cable

Connect the supplied power cable to the projector.

First connect the supplied power cable's two-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cable in the wall outlet.

To wall outlet ← 120V 670/700 4800 052 136/132

Make sure that the prongs are fully inserted into both the AC IN and the wall outlet.

CAUTION:

Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while the projector is turned on and immediately after the projector is turned off.

3. Projecting an Image (Basic Operation)

This section describes how to turn on the projector and to project a picture onto the screen.

① Turning on the Projector

NOTE:

• The projector has two power switches: a main power switch and a (POWER) button (POWER ON and OFF on the remote control).
• When plugging in or unplugging the supplied power cable, make sure that the main power switch is pushed to the off (○) position. Failure to do so may cause damage to the projector.

1. Remove the lens cap

- Do not remove the lens cap by pulling on the string. Doing so can cause mechanical damage to the part around the lens.

Line drawing of a projector with a hand inserting a component (no text or symbols)

Line drawing of a projector with a hand inserting a circular component (no text or symbols)

2. To turn on the main power to the projector, press the Main Power switch to the on position (1).

The POWER indicator will light orange. See the Power Indicator section.(→ page 82)

Diagram of an electronic projector with labeled buttons and a control panel, showing power, status, and I/O ports.

3. Press the Ⓕ(POWER) button on the projector cabinet or the POWER ON button on the remote control for 1 second.

The POWER indicator will turn to green and the projector will become ready to use.

TIP:

• When the STATUS indicator lights orange, it means that the [CONTROL PANEL LOCK] is turned on. (→ page 67)
• When the message "Projector is locked! Enter your password." is displayed, it means that the [SECURITY] is turned on. (→ page 42)

After you turn on your projector, ensure that the computer or video source is turned on and that your lens cap is removed.

NOTE: When no signal is available, the NEC logo, blue (default), or black screen will be displayed. When the projector displays the NEC logo, a blue or black screen, the projector will automatically switch to the ECO mode.

The projector will return to the NORMAL mode once a signal is connected.

LAMP STATUS AUTO ADJ SOURCE ON ON MACHINE INPUTS OFF OFF

Standby Blinking Power On

14WP STATUS AUTO ADJSOURCE Steady orange light Blinking green light Steady green light

(→ page 82)

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one of the 21 menu languages.

To select a menu language, follow these steps:

1. Use the SELECT ▲, ▼, ◀ or ▶ button to select one of the 21 languages from the menu.

PLEASE SELECT A MENU LANGUAGE. ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL SVENSKA 日本語 DANSK PORTUGUÊS ČEŠTINA MAGYAR POLSKI NEDERLANDS SUOMI NORSK TÜRKÇE РУССКИЙ ЕЛАННИКА 中文 한국어 ENTER :EXIT EXIT :EXIT SELECT SELECT

2. Press the ENTER button to execute the selection.

After this has been done, you can proceed to the menu operation.

If you want, you can select the menu language later.

(→ [LANGUAGE] on page 53 and 65)

OFF ON START KEY PUBUTE UP DOWN OPEN EXIT

OFF CHANGE ORDER UP START OPEN EXIT EXIT

NOTE: Immediately after turning on the projector, screen flicker may occur. This is normal. Wait 3 to 5 minutes until the lamp lighting is stabilized.

NOTE: If you turn on the projector immediately after the lamp is turned off or when the temperature is high, the fans run without displaying an image for some time and then the projector will display the image.

CAUTION:

The projector cannot be turned off for 60 seconds after the lamp is turned on and while the POWER indicator is blinking green. Doing so could cause premature lamp failure.

When the [LAMP MODE] is set to [ECO], the LAMP indicator will light green.

If one of the following things happens, the projector will not turn on.

• If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this condition the projector will not turn on to protect the internal system. If this happens, wait for the projector's internal components to cool down.
• When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp.
• If the lamp fails to light, and if the STATUS indicator flashes on and off in a cycle of six times, wait a full minute and then turn on the power.

NOTE: Turning the Main Power Switch Off then Back On

Allow a minimum of 1 second between turning off the main power switch and turning it back on again.

The same will be applied when a power strip equipped with a switch and a breaker is used.

Failing to do so could result in no power to the projector. (There will be no stand-by LED)

Should this happen, unplug the power cable and plug it in again. Turn on the main power switch.

② Selecting a Source

Selecting the computer or video source

NOTE: Turn on the computer or video source equipment connected to the projector.

Selecting from Source List

Press and quickly release the SOURCE button on the projector cabinet to display the Source list. Each time the SOURCE button is pressed, the input source will change as follows: "COMPUTER1", "COMPUTER2(DIGITAL/ANALOG)", "VIDEO", "S-VIDEO", To display the selected source, allow 1 second to elapse.

Detecting the Signal Automatically

Press and hold the SOURCE button for a minimum of 2 seconds, the projector will search for the next available input source. Each time you press and hold the SOURCE button for a minimum of 2 seconds, the input source will change as follows:

COMPUTER1 → COMPUTER2(DIGITAL) → COMPUTER2(ANALOG) → VIDEO → S-VIDEO → COMPUTER1 → ...

TIP: If no input signal is present, the input will be skipped.

Using the Remote Control

Press any one of the COMPUTER 1/2, VIDEO, and S-VIDEO buttons.

TIP: The COMPUTER 2 button on the remote control toggles the Computer 2 source between [COMPUTER2(DIGITAL)] and [COMPUTER2(ANALOG)].

Selecting Default Source

You can set a source as the default source so that it will be displayed each time the projector is turned on.

1. Press the MENU button.
   The menu will be displayed.
2. Press the SELECT ▶ button twice to select [SETUP] and press the SELECT ▼ button or the ENTER button to select [GENERAL].
3. Press the SELECT ▶ button three times to select [OPTIONS(2)].
4. Press the SELECT ▼ button six times to select [DEFAULT SOURCE SELECT] and press the ENTER button.

The [DEFAULT SOURCE SELECT] screen will be displayed.

(→ page 72)

1. Select a source as the default source, and press the ENTER but ton.
2. Press the EXIT button a few times to close the menu.
3. Restart the projector.

The source you selected in step 5 will be projected.

TIP: When the projector is in Standby mode, applying a computer signal from a computer connected to the COMPUTER 1 IN input will power on the projector and simultaneously project the computer's image.

([AUTO POWER ON(COMP1)] → page 72)
        F["Power Icon"]
        G["LAMP Icon"]
        H["STATUS Icon"]
    end

SOURCE COMPUTER1 COMPUTER2(DIGITAL) COMPUTER2(ANALOG) VIDEO S-VIDEO ENTER EXIT

SOURCE ADJUST RETURN INFO. RESET • OPTION:1 OFF TIMER STANDBY MODE AUTO POWER ON(AC) AUTO POWER ON(COMP1) AUTO POWER OFF DEFAULT SOURCE SELECT OFF NORMAL OFF OFF LAST ENTER:SELECT OUT:EXIT #MOVE COMPUTER1

DEFAULT SOURCE SELECT LAST AUTO COMPUTER1 COMPUTER2(DIGITAL) COMPUTER2(ANALOG) VIDEO S-VIDEO

③ Adjusting the Picture Size and Position

Use the adjustable tilt foot, the zoom function or the focus ring to adjust the picture size and position. In this chapter drawings and cables are omitted for clarity.

Adjusting the throw angle (the height of an image) [Tilt foot] ( page 31)

Diagram showing a projector with an arrow pointing to its screen (no text or symbols present)

Adjusting the left and right tilt of an image [Rear foot] ( page 31)

Diagram showing a projector with an arrow indicating direction, no text or symbols present

Finely adjusting the size of an image [Zoom function] ( page 32)

ABC

Adjusting the focus [Focus ring] ( page 33)

ABC

Adjusting the keystone correction [KEYSTONE]* (→ page 34)

* Keystone correction can be also performed automatically. (→ page 36)

Adjust the Tilt Foot

1. Lift the front edge of the projector.

CAUTION:

Do not try to touch the ventilation outlet during Tilt Foot adjustment as it can become heated while the projector is turned on and during its cool down period after it is turned off.

1. Push up and hold the Adjustable Tilt Foot Lever on the front of the projector to extend the adjustable tilt foot.
2. Lower the front of the projector to the desired height.
3. Release the Adjustable Tilt Foot Lever to lock the Adjustable tilt foot.

The tilt foot can be extended up to 1.8 inch/45 mm.

There is approximately 10 degrees (up) of adjustment for the front of the projector.

Rotate the rear foot to the desired height in order to square the image on the projection surface.

CAUTION:

- Do not use the tilt-foot for purposes other than originally intended. Misuses such as using the tilt foot to carry or hang (from the wall or ceiling) the projector can cause damage to the projector.

Adjusting the left and right tilt of an image [Rear foot]

1. Remove the spacer (black rubber) from the rear foot.

Keep the spacer for future use.

1. Rotate the rear foot.

The rear foot can be extended up to 0.4 inch/10 mm. Rotating the rear foot allows the projector to be placed horizontally.

NOTE:

• Do not extend the rear foot beyond its height limit (0.4 inch/10 mm). Doing so may cause the rear foot to come out of the projector.
  • After using the projector, attach the spacer to the rear foot.

Diagram showing a projector module with labeled parts: up/down rotation and a small screen preview.

Adjustable Tilt Foot Lever Adjustable Tilt Foot

Adjustable Tilt Foot Lever

Diagram of a projector with labeled parts showing front, side, and top views with numbered arrows indicating components.

Rear foot Spacer (black rubber)

Zoom

[NP600/NP500/NP400/NP300/NP500W]

Use the ZOOM lever to adjust the image size on the screen.

Zoom Lever

[NP600S/NP500WS]

The image size can be adjusted electronically from the menu. To do so, follow the steps below.

1. Press the MENU button.

The menu will be displayed.

2. Press the SELECT ▶ button to select [SETUP] and press the ENTER button.

The [GENERAL] tab will be highlighted.

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 DIGITAL ZOOM AUTO KEYSTONE KEYSTONE KEYSTONE SAVE WALL COLOR LAMP MODE CLOSED CAPTION LANGUAGE 100 OFF 0 OFF OFF NORMAL OFF ENGLISH ENTER: SELECT EXIT: EXIT MOVE MOVE COMPUTER1

3. Press the SELECT ▼ button.

The [DIGITAL ZOOM] will be highlighted.

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 DIGITAL ZOOM AUTO KEYSTONE KEYSTONE KEYSTONE SAVE WALL COLOR LAMP MODE CLOSED CAPTION LANGUAGE 95 OFF 0 OFF OFF NORMAL OFF ENGLISH ENTER :SELECT EXIT :EXIT :MOVE :ADJUST COMPUTER1

1. Use the SELECT ◀ or ▶ button to adjust the image size.
2. After completing adjustment, press the EXIT button three times.

The menu will be closed.

Focus

[NP600/NP500/NP400/NP300/NP500W]

Use the FOCUS ring to obtain the best focus.

Focus Ring

[NP600S/NP500WS]

Use the FOCUS lever to obtain the best focus.

Focus Lever 20.3 Vrms

④ Correcting Keystone Distortion

Correcting Keystone Distortion

If the screen is tilted vertically, keystone distortion becomes large. Proceed with the following steps to correct keystone distortion

NOTE:

• The Keystone correction can cause an image to be slightly blurred because the correction is made electronically.
• The Keystone correction range can be made narrower, depending on a signal or its aspect ratio selection.

Adjusting with buttons on the cabinet

1. Press the SELECT ▲ or ▼ button with no menus displayed

The keystone bar will be displayed.

KEYSTONE 0 ENTER :EXIT EXIT :EXIT ←:ADJUST

SYNCU SHIFT OFF PREF R EAST LAMP STATUS AUTO ADJ.SOURCE

2. Use the SELECT ▲ or ▼ to correct the keystone distortion.

The keystone bar will be closed after a period of time.

3. Press the ENTER button.

The keystone bar will be closed.

NOTE: When the menu is displayed, the above operation is not available. When the menu is displayed, press the MENU button to close the menu and start the Keystone correction.

From the menu, select [SETUP] → [GENERAL] → [KEYSTONE]. The changes can be saved with [KEYSTONE SAVE]. (→page 36, 63)

Adjusting with the Remote Control

1. Press the MENU button.

The menu will be displayed.

1. Press the SELECT ▶ button to select [SETUP] and press the ENTER button.

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 AUTO KEystone KEYSTONE KEYSTONE SAVE WALL COLOR LAMP MODE CLOSED CAPTION LANGUAGE OFF OFF OFF NORMAL OFF ENGLISH ENTER :SELECT EXIT :EXIT :MOVE :MOVE COMPUTER1

The [GENERAL] screen will be displayed.

1. Press the SELECT ▼ button to select [KEYSTONE].

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 AUTO KEYSTONE OFF KEYSTONE OFF 0 KEYSTONE SAVE OFF WALL COLOR OFF LAMP MODE NORMAL CLOSED CAPTION OFF LANGUAGE ENGLISH ENTER :SELECT EXIT :EXIT :MOVE :ADJUST COMPUTER1

4. Press the SELECT ◀ or ▶ button.

Adjust so that the image is rectangular.

Two square frames with dashed outlines, one rotated right (no text or symbols)

5. Press the MENU button.

The menu will be closed.

NOTE: The Keystone correction can cause an image to be slightly blurred because the correction is made electronically.

TIP: The changes can be saved with [KEYSTONE SAVE]. (→page 36, 63)

Adjusting with the Auto Keystone Function

The Auto Keystone correction feature will correct the vertical distortion of a projected image on the screen. No special operation required. Just put the projector on a flat surface.

TIP: Even when the menu setting for [AUTO KEYSTONE] is turned on, [KEYSTONE] can be adjusted manually.

To turn on [AUTO KEYSTONE], proceed the following steps.

1. Press the MENU button

The menu will be displayed.

1. Press the SELECT ▶ button to select [SETUP] and press the ENTER button.

The [GENERAL] screen will be highlighted.

1. Press the SELECT ▼ button.

The [AUTO KEYSTONE] will be highlighted.

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 AUTO KEYSTONE OFF 0 KEYSTONE OFF KEYSTONE SAVE OFF WALL COLOR OFF LAMP MODE NORMAL CLOSED CAPTION OFF LANGUAGE ENGLISH ENTER: SELECT EXIT: EXIT MOVE COMPUTER1

1. Press the ENTER button to display the [AUTO KEYSTONE] screen.
2. Press the SELECT ▲ or ▼ button to select [ON] and press the ENTER button.
3. Press the MENU button.

The menu will be closed.

NOTE:

- The maximum range of vertical keystone correction is +/-30 degrees on the NP600/NP500/NP400/NP300/NP500W and +/-20 degrees on the NP600S/NP500WS.

The maximum range of keystone correction may be lower depending on the signal or aspect ratio selection.

The range of keystone correction is not the maximum tilt angle of projector.

• The Auto Keystone correction will take effect in 2 seconds after changing the projection angle during projection.
• The left and right (horizontal) keystone correction is not available.

Place the projector so that the lens surface is parallel to the screen.

The rear feet of the projector can be adjusted to level the projector.

- Using keystone correction can cause the image to be slightly blurred because the correction is made electronically.

TIP: If you have one of the following conditions, the projector's Auto Keystone may not be performed correctly.

• The screen is tilted
  • The room temperature is too high or too low
  • The optical zoom is maximized or minimized

⑤ Optimizing Computer Signal Automatically

Adjusting the Image Using Auto Adjust

Optimizing a computer image automatically.

Press the AUTO ADJ. button to optimize a computer image automatically.

This adjustment may be necessary when you connect your computer for the first time.

NOTE:

Some signals may take time to display or may not be displayed correctly.

• The Auto Adjust function does not work for component, video, and DVI digital signals.
• If the Auto Adjust operation cannot optimize the computer signal, try to adjust [HORIZONTAL], [VERTICAL], [CLOCK], and [PHASE] manually. (→page 58, 59)

⑥ Turning Up or Down Volume

Sound level from the speaker can be adjusted.

TIP: When no menus appear, the SELECT ◀ and ▶ buttons on the projector cabinet work as a volume control.

MENU SELECT EXIT SOLUTION AUTO ADJ LAMP STATUS

⑦ Turning off the Projector

To turn off the projector:

1. First, press the ⓄPOWER) button on the projector cabinet or the POWER OFF button on the remote control. The [POWER OFF / ARE YOU SURE?] message will appear.

POWER OFF ARE YOU SURE ? YES NO

MENI SELECT NEXT EXIT LAMP STATUS AUTO ADJISOURCE

OFF ON MAY RMB24.17E P COM50 (2, 41) AUTO 1 X

1. Secondly, press the ENTER button or press the ⏻ (POWER) or the POWER OFF button again.

The power indicator will glow orange. After the projector turns off, the cooling fans keep operating for 30 seconds (Cool-down time).

Immediately after turning on the projector and displaying an image, you cannot turn off the projector for 60 seconds.

Power On Fan running Standby

Blinking orange light Steady orange light

1. Finally, turn off the Main Power switch. The power indicator will go out.

NOTE: Do not turn off the main power within 10 seconds of making adjustment or setting changes and closing the menu. Doing so can cause loss of adjustments and settings.

Illustration of a projector with a hand pressing a button labeled 'I' (no text or symbols on the device itself)

CAUTION:

Parts of the projector will become heated during operation. Use caution when picking up the projector immediately after it has been operating.

CAUTION:

The projector cannot be turned off for 60 seconds after the lamp is turned on and while the POWER indicator is blinking green. Doing so could cause premature lamp failure.

⑧ After Use

Preparation: Make sure that the projector is turned off.

1. Put the projector and accessories in the supplied soft case.

2. Unplug the power cable.

3. Disconnect any other cables.
4. Retract adjustable tilt foot if extended.
5. Cover the lens with the lens cap.

Place the projector in the soft case with the lens facing upward as shown below. This is to prevent the lens from damage.

NOTE: The NP600S and the NP500WS do not come with a soft case.

Insert the projector with the lens facing upward

NOTE: When placing the projector in the soft case, retract the tilt foot and the rear feet. Failure to do so may case damage to the projector.

CAUTION:

Use caution when putting the projector in the soft case immediately after the projector has been operating. The projector cabinet is hot.

4. Convenient Features

① Turning off the Image and Sound

Press the PIC-MUTE button to turn off the image and sound for a short period of time. Press again to restore the image and sound.

NOTE:

• Even though the image is turned off, the menu still remains on the screen.
- Sound from the AUDIO OUT jack (Stereo mini) can be turned off.

② Freezing a Picture

Press the FREEZE button to freeze a picture. Press again to resume motion.

NOTE: The image is frozen but the original video is still playing back.

③ Enlarging a Picture

You can enlarge the picture up to four times.

NOTE: The maximum magnification may be less than four times depending on the signal.

To do so:

1. Press the MAGNIFY (+) button to magnify the picture.

To move the magnified image, use the SELECT ▲,▼,◀ or ▶button.

Isometric illustration of a two-story building with a gabled roof and windows (no text or symbols)

↓

Isometric line drawing of a two-story building facade with balconies and a door (no text or symbols)

OK 关闭 MODIFY COMPLETE UP - OPEN START + - 1/30 + EDIT

OFF ON MAX 400 MAX 400 P CA N ENTER 200

ON + - MOUNT/INCOME ON + - NET + - BITB EX

2. Press the SELECT ▲▼◀▶ button.

The area of the magnified image will be moved

Isometric diagram of a two-story house with directional arrows indicating orientation (no text or symbols)

3. Press the MAGNIFY (-) button.

Each time the MAGNIFY (-) button is pressed, the image is reduced.

NOTE:

• The image will be enlarged or reduced at the center of the screen.
• Displaying the menu will cancel the current magnification.

OFF ON MAGON 1+PMG-0.011 + - IP 100% 100% OK OK

④ Changing Lamp Mode

This feature enables you to select two brightness modes of the lamp:

Normal and Eco modes. The lamp life can be extended by using the Eco mode.

Lamp Mode	Description	Status of LAMP indicator
NORMAL	This is the default setting (100% Brightness).	Off LAMP STATUS
ECO	Select this mode to increase the lamp life (approx. 70% Brightness on NP600/NP500W/NP600S/ NP500WS and approx. 80% Brightness on NP500/NP400/NP300).	Steady Green light

To change to the [ECO] mode, do the following:

1. Press the LAMP MODE button on the remote control to display [LAMP MODE] screen.
2. Use the SELECT ▲ or ▼ button to select [ECO] mode.
3. Press the ENTER button.

To change from [ECO] to [NORMAL], Go back to Step 2 and select [NORMAL]. Repeat Step 3.

NOTE:

• The LAMP MODE can be changed by using the menu.
  Select [SETUP] → [GENERAL] → [LAMP MODE].
• The lamp life remaining and lamp hours used can be checked in [USAGE TIME]. Select [INFO.] →[USAGE TIME].
• The projector is always in [NORMAL] for one minute after the lamp is turned on and while the POWER indicator is blinking green. The lamp condition will not be affected even when [LAMP MODE] is changed.
• After a lapse of 3 minutes from when the projector displays a blue, black or logo screen, [LAMP MODE] will automatically switch to [ECO]. The projector will return to the [NORMAL] once a signal is accepted.
• If the projector is overheated in [NORMAL] mode, there may be a case where the [LAMP MODE] automatically changes to [ECO] mode to protect the projector. When the projector is in [ECO] mode, the picture brightness decreases. When the projector comes back to normal temperature, the [LAMP MODE] returns to [NORMAL] mode.

Thermometer symbol [ ] indicates the lamp mode is automatically set to [ECO] mode because the internal temperature is too high.

⑤ Preventing the Unauthorized Use of the Projector [SECURITY]

A keyword can be set for your projector using the Menu to avoid operation by an unauthorized user. When a keyword is set, turning on the projector will display the Keyword input screen. Unless the correct keyword is entered, the projector cannot project an image.

- The [SECURITY] setting cannot be cancelled by using the [RESET] of the menu.

To enable the Security function:

1. Press the MENU button.

The menu will be displayed.

1. Press the SELECT▶ button twice to select [SETUP] and press the SELECT ▼ button or the ENTER button to select [GENERAL].
2. Press the SELECT▶ button to select [INSTALLATION].
3. Press the SELECT▼ button three times to select [SECURITY] and press the ENTER button.

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 ORIENTATION CONTROL PANEL LOCK DESKTOP FRONT OFF SECURITY OFF COMMUNICATION SPEED CONTROL ID 19200bps ENTER:SELECT EXIT:EXIT MOVE COMPUTER1

The OFF/ON menu will be displayed.

1. Press the SELECT▼ button to select [ON] and press the ENTER button.

SECURITY OFF ON ENTER EXIT

The [SECURITY KEYWORD] screen will be displayed.

1. Type in a combination of the four SELECT ▲▼◀▶ buttons and press the ENTER button.

NOTE: A keyword must be 4 to 10 digits in length.

The [CONFIRM KEYWORD] screen will be displayed.

1. Type in the same combination of SELECT ▲▼◀▶ buttons and press the ENTER button.

CONFIRM KEYWORD 索索索索 ENTER :ENTER EXIT :EXIT ↔:INPUT ↔:INPUT

The confirmation screen will be displayed.

1. Select [YES] and press the ENTER button.

SECURITY FUNCTION WILL BE ENABLED. ARE YOU SURE ? YES NO

The SECURITY function has been enabled.

To turn on the projector when [SECURITY] is enabled:

1. Press and hold the POWER button for about 1 second.

The projector will be turned on and display a message to the effect that the projector is locked.

1. Press the MENU button.

SECURITY KEYWORD K992-45L8-JNGJ-4XU9-1YAT-EEA2 ENTER :ENTER EXIT :EXIT ::INPUT ::INPUT

1. Type in the correct keyword and press the ENTER button. The projector will display an image.

SECURITY KEYWORD K992-45L8-JNGJ-4XU9-1YAT-EEA2 添加搜索 ENTER :ENTER EXIT :EXIT ←:INPUT ←:INPUT

NOTE: The security disable mode is maintained until the main power is turned off or unplugging the power cable.

To disable the SECURITY function:

1. Press the MENU button.

The menu will be displayed.

2. Select [SETUP] → [INSTALLATION] → [SECURITY] and press the ENTER button.

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) (1/2) ORIENTATION CONTROL PANEL LOCK DESKTOP FRONT OFF SECURITY ON COMMUNICATION SPEED CONTROL ID 19200bps ENTER :SELECT EXIT :EXIT #MOVE COMPUTER1

The OFF/ON menu will be displayed.

3. Select [OFF] and press the ENTER button.

SECURITY OFF ON ENTER EXIT

The KEYWORD CONFIRMATION screen will be displayed.

SECURITY KEYWORD K992-45L8-JNGJ-4XU9-1YAT-EEA2 ***** ENTER :ENTER EXIT :EXIT ↔:INPUT ↔:INPUT

4. Type in your keyword and press the ENTER button.

When the correct keyword is entered, the SECURITY function will be disabled.

NOTE: If you forget your keyword, contact your dealer. Your dealer will provide you with your keyword in exchange for your request code. Your request code is displayed in the Keyword Confirmation screen. In this example [K992-45L8-JNGJ-4XU9-1YAT-EEA2] is a request code.

⑥ Using the Optional Remote Mouse Receiver (NP01MR)

The optional remote mouse receiver enables you to operate your computer's mouse functions from the remote control. It is a great convenience for clicking through your computer-generated presentations.

Connecting the remote mouse receiver to your computer

If you wish to use the remote mouse function, connect the mouse receiver and computer.

The mouse receiver can be connected directly to the computer's USB port (type A).

NOTE: Depending on the type of connection or OS installed on your computer, you may have to restart your computer or change your computer settings.

Remote mouse receiver Computer To USB port of PC or Macintosh

When operating a computer via the remote mouse receiver

7m/22 feet 30° 30° Remote sensor on the remote mouse receiver

When connecting using the USB terminal

For PC, the mouse receiver can only be used with a Windows 98/Me/XP*, Windows 2000, Windows Vista, or Mac OS X 10.0.0 or later operating system.

* NOTE: In SP1 or older version of Windows XP, if the mouse cursor will not move correctly, do the following:

Clear the Enhance pointer precision check box underneath the mouse speed slider in the Mouse Properties dialog box [Pointer Options tab].

NOTE: Wait at least 5 seconds after disconnecting the mouse receiver before reconnecting it and vice versa. The computer may not identify the mouse receiver if it is repeatedly connected and disconnected in rapid intervals.

Operating your computer's mouse from the remote control

You can operate your computer's mouse from the remote control.

PAGE UP/DOWN Button: scrolls the viewing area of the window or to move to the previous or next slide in PowerPoint on your computer.

SELECT▲▼◀▶ Buttons: moves the mouse cursor on your computer.

MOUSE L-CLICK Button: works as the mouse left button.

MOUSE R-CLICK Button: works as the mouse right button.

NOTE:

• When you operate the computer using the SELECT ▲▼◀ or ▶ button with the menu displayed, both the menu and the mouse pointer will be affected. Close the menu and perform the mouse operation.
• The PAGE UP and DOWN buttons do not work with PowerPoint for Macintosh.

About Drag Mode:

By pressing the MOUSE L-CLICK or R-CLICK button for 2 or 3 seconds then releasing, the drag mode is set and the drag operation can be performed simply by pressing the SELECT ▲▼◀▶ button. To drop the item, press the MOUSE L-CLICK (or R-CLICK) button. To cancel it, press the MOUSE R-CLICK (or L-CLICK) button.

TIP: You can change the Pointer speed on the Mouse Properties dialog box on the Windows. For more information, see the user documentation or online help supplied with your computer.

⑦ Network Setting by Using an HTTP Browser

Overview

Connecting the projector to a network allows the Alert Mail setting ( page 49) and the projector control from a computer via the network.

To perform the projector control from a web browser, you must have an exclusive application installed on your computer.

The IP address and subnet mask of the projector can be set on the Network Setting screen of the web browser by using an HTTP server function. Please be sure to use "Microsoft Internet Explorer 6.0" or a higher version for the web browser. (This device uses "JavaScript" and "Cookies" and the browser should be set to accept these functions. The setting method will vary depending on the version of browser. Please refer to the help files and the other information provided in your software.)

Access is gained to the HTTP server function by starting the Web browser on the computer via the network connected to the projector and enter the following URL.

- Network Setting

http:///index.html

- Alert Mail Setting

http:///lanconfig.html

TIP:

- The default IP address is "192.168.0.10".

- The exclusive application can be downloaded from our website.

NOTE:

• If the PROJECTOR NETWORK SETTINGS screen does not appear in the web browser, press the Ctrl+F5 keys to refresh your web browser (or clear the cache).
• The display's or button's response can be slowed down or operation may not be accepted depending the settings of your network. Should this happen, consult your network administrator.

The projector may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a moment and repeat. If you still can't get any response, turn off and back on the projector.

Preparation Before Use

Connect the projector to a commercially available LAN cable before engaging in browser operations. ( page 24) Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the setting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set will not be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be reflected in operation. It is recommended that a proxy server not be used unless it is unavoidable.

Handling of the Address for Operation via a Browser

Regarding the actual address that is entered for the address or entered to the URL column when operation of the projector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of the projector has been registered to the domain name server by a network administrator, or the host name corresponding to the IP address of the projector has been set in the "HOSTS" file of the computer being used.

Example 1: When the host name of the projector has been set to “pj.nec.co.jp”, access is gained to the network setting by specifying

http://pj.nec.co.jp/index.html

for the address or the entry column of the URL.

Example 2: When the IP address of the projector is “192.168.73.1”, access is gained to the mail alert settings by specifying

http://192.168.73.1/index.html

for the address or the entry column of the URL.

Network Settings

http:// /index.html

PROJECTOR NETWORK SETTINGS

ITEM	CURRENT VALUE	NEW VALUE
PHYSICAL ADDRESS
MAC ADDRESS	(0,10-1),F8,AJ,2F	CANNOT BE MODIFIED
IP NETWORK
DHCP	DISABLE	○ ENABLE ⊕ DISABLE
IP ADDRESS	192 168 0.10	192 . 168 . 0 . 10
SUBNET MASK	255 255 255.0	255 . 255 . 255 . 0
DEFAULT GATEWAY	192 168 0.1	192 . 168 . 0 . 1
DNS(PRIMARY)	0.0 0.0	0 . 0 . 0 . 0
DNS(SECONDARY)	0.0 0.0	0 . 0 . 0 . 0

FIRMWARE VERSION: 1.00 / MODEL : NP600_Series

UPDATE

Copyright (C) NEC Display Solutions, Ltd. 2008. All rights reserved.

DHCP....Enabling this option automatically assigns an IP address to the projector from your DHCP server. Disabling this option allows you to register the IP address or subnet mask number obtained from your network administrator.

NOTE:

The IP address of the projector is required to change the network setting.

The IP address will not be displayed on the projector's menu.

Consult your network administrator for the IP address when [ENABLE] is selected for DHCP.

IP ADDRESS......Set your IP address of the network connected to the projector when [DISABLE] is selected for DHCP.

SUBNET MASK......Set your subnet mask number of the network connected to the projector when [DISABLE] is selected for DHCP.

DEFAULT GATEWAY......Set your default gateway of the network connected to the projector when [DISABLE] is selected for DHCP.

DNS (PRIMARY) ......Set your primary DNS settings of the network connected to the projector.

DNS (SECONDARY) ......Set your secondary DNS settings of the network connected to the projector.

UPDATE ....Reflect your settings.

NOTE: Close the browser after clicking [UPDATE]. The projector will automatically update your settings.

TIP: Selecting [NETWORK SETTINGS] for [RESET] from the projector's menu allows you to return the following items to the factory default.

* [DNS(PRIMARY)] and [DNS(SECONDARY)] will remain unchanged.

Alert Mail Setting

http:///lanconfig.html

PROJECTOR NETWORK SETTINGS

ITEM VALUE DOMAIN HOST NAME DOMAIN NAME MAIL ALERT MAIL ENABLE DISABLE SENDER'S ADDRESS SMTP SERVER NAME RECIPIENT'S ADDRESS 1 RECIPIENT'S ADDRESS 2 RECIPIENT'S ADDRESS 3 APPLY TEST MAIL STATUS EXECUTE Copyright (C) NEC Display Solutions, Ltd. 2008. All rights reserved.

This option notifies your computer of an error message via e-mail when using wired LAN. An error message notification will be sent when the projector lamp has reached the end of its usable life or an error occurs in the projector.

HOST NAME ...... Type in the hostname of the network connected to the projector. Up to 60 alphanumeric characters can be used. If the host name is unknown, type in a string of characters representing the projector. Example: Projector 1

DOMAIN NAME ...... Type in the domain name of the network connected to the projector. Up to 60 alphanumeric characters can be used. If the domain name is unknown, type in the right side of @ in the sender's address. Example: nec. com

ALERT MAIL ...... Checking [ENABLE] will turn on the Alert Mail feature. Checking [DISABLE] will turn off the Alert Mail feature.

SENDER'S ADDRESS ...... Type in the senders address. Up to 60 alphanumeric and symbols characters can be used.

SMTP SERVER NAME...... Type in the SMTP server name to be connected to the projector. Up to 60 alphanumeric characters can be used.

RECIPIENT'S ADDRESS 1 to 3 .... Type in your recipient's address. Up to 60 alphanumeric and symbols characters can be used.

APPLY ...... Click this button to reflect the above settings

EXECUTE ...... Click this button to send a test mail to check if your settings are correct.

STATUS ...... A reply to a test mail will be displayed.

NOTE:

• If you execute a test, you may not receive an Alert mail. Should this happen, check if the network settings are correct.
• If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient's Address is correct

TIP: The Alert Mail settings will not be affected even when [RESET] is done from the menu.

⑧ Using the VGA Signal Cable to Operate the Projector (Virtual Remote)

Overview

The projector supports DDC/CI (Display Data Channel Command Interface) that is a standard interface for bidirectional communication between display/projector and computer.

The optional utility software "Virtual Remote Tool" designed exclusively for our projector is required to use DDC/CI.

Check with our website.

http://www.nec-display.com/dl/en/index.html

NOTE: Use the supplied VGA signal cable to connect the COMPUTER 1 IN connector directly with the monitor output connector of the computer to use Virtual Remote Tool. Using a switcher, scan converter or other cables than the supplied VGA signal cable may cause failure in signal communication.

5. Using On-Screen Menu

① Using the Menus

NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected.

1. Press the MENU button on the remote control or the projector cabinet to display the menu.

SOURCE ADJUST SETUP INFO. RESET PICTURE • IMAGE OPTIONS PRESET DETAIL SETTINGS CONTRAST BRIGHTNESS SHARPNESS COLOR HUE RESET 2: PRESENTATION 63 63 7 ENTER :SELECT EXIT :EXIT MOVE :MOVE COMPUTER1

NOTE: The commands such as ENTER, EXIT, ▲▼, ◀◀ in the bottom show available buttons for your operation.

1. Press the SELECT ◀▶ buttons on the remote control or the projector cabinet to display the submenu.
2. Press the ENTER button on the remote control or the projector cabinet to highlight the top item or the first tab.
3. Use the SELECT ▲▼ buttons on the remote control or the projector cabinet to select the item you want to adjust or set.

You can use the SELECT ◀▶ buttons on the remote control or the projector cabinet to select the tab you want.

1. Press the ENTER button on the remote control or the projector cabinet to display the submenu window.
2. Adjust the level or turn the selected item on or off by using the SELECT ▲▼◀▶ buttons on the remote control or the projector cabinet.

Changes are stored until adjusted again.

1. Repeat steps 2-6 to adjust an additional item, or press the EXIT button on the remote control or the projector cabinet to quit the menu display.

NOTE: When a menu or message is displayed, several lines of information may be lost, depending on the signal or settings.

1. Press the MENU button to close the menu.

To return to the previous menu, press the EXIT button.

② Menu Elements

Tab Slide bar SOURCE ADJUST SETUP INFO. RESET PICTURE IMAGE OPTIONS PRESET DETAIL SETTINGS CONTRAST BRIGHTNESS SHARPNESS COLOR HUE RESET 2: PRESENTATION Solid triangle Available buttons Source ENTER: SELECT EXIT: EXIT :MOVE :MOVE COMPUTER1

Highlight SOURCE ADJUST SETUP NFO. RESET COMPUTER1 COMPUTER2(DIGITAL) COMPUTER2(ANALOG) VIDEO S-VIDEO ENTER:SELECT EXIT:EXIT :MOVE :MOVE COMPUTER1 8:00 High Altitude symbol Thermometer symbol Key Lock symbol Off Timer remaining time

Radio button WALL COLOR OFF WHITEBOARD BLACKBOARD BLACKBOARD (GRAY) LIGHT YELLOW LIGHT GREEN LIGHT BLUE SKY BLUE LIGHT ROSE PINK ENTER EXIT

Menu windows or dialog boxes typically have the following elements:

Highlight .....Indicates the selected menu or item.

Solid triangle .....Indicates further choices are available. A highlighted triangle indicates the item is active.

Tab......Indicates a group of features in a dialog box. Selecting on any tab brings its page to the front.

Radio button ....Use this round button to select an option in a dialog box.

Source ....Indicates the currently selected source.

Off Timer remaining time ....Indicates the remaining countdown time when the [OFF TIMER] is preset.

Slide bar .....Indicates settings or the direction of adjustment.

Key Lock symbol ......Indicates the [CONTROL PANEL LOCK] is enabled.

Thermometer symbol ...... Indicates the lamp mode is forcibly set to [ECO] mode because the internal temperature is too high.

High Altitude symbol ......Indicates the [FAN MODE] is set to [HIGH ALTITUDE] mode.

③ List of Menu Items

Some menu items are not available depending on the input source.

Menu Item Default Options
SOURCE	COMPUTER1 *
	COMPUTER2(DIGITAL) *
	COMPUTER2(ANALOG) *
	VIDEO *
	S-VIDEO *
ADJUST	PICTURE	PRESET * 1-6
		DETAIL SETTINGS	GENERAL
			REFERENCE *		HIGH-BRIGHT, PRESENTATION, VIDEO, MOVIE, GRAPHIC, sRGB
			GAMMA CORRECTION		DYNAMIC, NATURAL, BLACK DETAIL
			COLOR TEMPERATURE	* 5000, 65	500, 7800, 8500, 9300, 10500
			WHITE BALANCE
			CONTRAST R 0
			CONTRAST G 0
			CONTRAST B 0
			BRIGHTNESS R	0
			BRIGHTNESS G	0
			BRIGHTNESS B	0
		CONTRAST
		BRIGHTNESS
		SHARPNESS
		COLOR
		HUE
		RESET
	IMAGE OPTIONS	CLOCK *
		PHASE		*
		HORIZONTAL		*
		VERTICAL		*
		OVERSCAN		* 0[%], 5[%], 10[%]
		ASPECT RATIO		*	NP600/NP500/NP400/NP300/NP600S:AUTO, 4:3, 16:9, 15:9, 16:10, WIDE ZOOM, NATIVE
				*	NP500W/NP500WS: AUTO, 4:3, 16:9, 15:9, 16:10, LETTERBOX, NATIVE
		POSITION		0	(Not available on NP500W/NP500WS)
		VIDEO FILTER		* OFF, LESS, MORE
SETUP	GENERAL	DIGITAL ZOOM (NP600S/ NP500WS)		100	80-100
		AUTO KEYSTONE		OFF	OFF, ON
		KEYSTONE		0
		KEYSTONE SAVE		OFF	OFF, ON
		WALL COLOR		OFF	OFF, WHITEBOARD, BLACKBOARD, BLACKBOARD (GRAY), LIGHT YELLOW, LIGHT GREEN, LIGHT BLUE, SKY BLUE, LIGHT ROSE, PINK
		LAMP MODE		NORMAL	NORMAL, ECO
		CLOSED CAPTION		OFF	OFF, CAPTION1, CAPTION2, CAPTION3, CAPTION4, TEXT1, TEXT2, TEXT3, TEXT4
		LANGUAGE		ENGLISH	ENGLISH, DEUTSCH, FRANÇAIS, ITALIANO, ESPAÑOL, SVENSKA, 日本語
					DANSK, PORTUGUÊS, ČESTINA, MAGYAR, POLSKI, NEDERLANDS, SUOMI
					NORSK, TÜRKÇE, РУССКИЙ, عربية, Еллнівка, 中文, 한국어
	MENU	COLOR SELECT		COLOR	COLOR, MONOCHROME
		DISPLAY TIME		AUTO 45 SEC	MANUAL, AUTO 5 SEC, AUTO 15 SEC, AUTO 45 SEC
		BACKGROUND		BLUE	BLUE, BLACK, LOGO
		FILTER MESSAGE		500[H]	OFF, 100[H], 200[H], 500[H], 1000[H]
		ID DISPLAY		ON	OFF, ON

* The asterisk (*) indicates that the default setting varies depending on the signal.

SETUP	INSTALLATION	ORIENTATION		DESKTOP FRONT	DESKTOP FRONT, CEILING REAR, DESKTOP REAR, CEILING FRONT
		CONTROL PANEL LOCK OFF OFF, ON
		SECURITY OFF OFF, ON
		COMMUNICATION SPEED 19200bps 4800bps, 9600bps, 19200bps
		CONTROL ID	CONTROL ID NUMBER	1 1-254
			CONTROL ID OFF OFF, ON
	OPTIONS(1)	AUTO ADJUST NORMAL OFF, NORMAL, FINE
		FAN MODE AUTO AUTO, HIGH, HIGH ALTITUDE
		SIGNAL SELECT	COMPUTER1	RGB/COMPONENT	RGB/COMPONENT, RGB, COMPONENT
			COMPUTER2 (ANALOG)	RGB/COMPONENT	RGB/COMPONENT, RGB, COMPONENT
			VIDEO AUTO		AUTO, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM
			S-VIDEO AUTO		AUTO, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM
		WXGA MODE		NP600/NP500/NP400/NP300/NP600S: OFF NP500W/NP500WS: ON	OFF, ON
		DEINTERLACE		ON	OFF, ON
		BEEP		ON	OFF, ON
	OPTIONS(2)	OFF TIMER		OFF OFF, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00
		STANDBY MODE		NORMAL NORMAL, POWER-SAVING
		AUTO POWER ON(AC)		OFF OFF, ON
		AUTO POWER ON(COMP1)		OFF OFF, ON
		AUTO POWER OFF		OFF OFF, 0:05, 0:10, 0:20, 0:30
		DEFAULT SOURCE SELECT		LAST	LAST, AUTO, COMPUTER1, COMPUTER2(DIGITAL), COMPUTER2(ANALOG), VIDEO, S-VIDEO
INFO.	USAGE TIME	LAMP LIFE REMAINING
		LAMP HOURS USED
		FILTER HOURS USED
	SOURCE	SOURCE INDEX
		HORIZONTAL FREQUENCY
		VERTICAL FREQUENCY
		SIGNAL TYPE
		VIDEO TYPE
		SYNC TYPE
		SYNC POLARITY
		SCAN TYPE
	WIRED LAN	PROJECTOR NAME
		MAC ADDRESS
	VERSION	PRODUCT
		SERIAL NUMBER
		FIRMWARE
		DATA
		CONTROL ID (when [CONTROL ID] is set)
RESET	CURRENT SIGNAL
	ALL DATA
	NETWORK SETTINGS
	CLEAR LAMP HOURS
	CLEAR FILTER HOURS

④ Menu Descriptions & Functions [SOURCE]

SOURCE ADJUST SETUP INFO. RESET COMPUTER1 COMPUTER2(DIGITAL) COMPUTER2(ANALOG) VIDEO $-VIDEO ENTER: SELECT EXIT: EXIT :MOVE :MOVE COMPUTER1

COMPUTER1

Selects the computer connected to your COMPUTER 1 IN input connector.

NOTE:

- When the component input signal is connected to the COMPUTER 1 IN connector, select [COMPUTER1].

- The projector will determine if the input signal is RGB or component signal.

COMPUTER2 (DIGITAL & ANALOG)

Selects the computer connected to your COMPUTER 2 IN (DVI-I) connector.

VIDEO

Selects what is connected to your VIDEO input-VCR, DVD player or document camera.

S-VIDEO

Selects what is connected to your S-VIDEO input-VCR or DVD player.

NOTE: A frame may freeze for a brief period of time when a video is played back in fast-forward or fast-rewind with a Video or S-Video source.

⑤ Menu Descriptions & Functions [ADJUST]

[PICTURE]

SOURCE ADJUST SETUP INFO. RESET PICTURE • IMAGE OPTIONS PRESET DETAIL SETTINGS CONTRAST BRIGHTNESS SHARPNESS COLOR HUE RESET 2: PRESENTATION 63 63 7 ENTER : SELECT EXIT : EXIT : MOVE : MOVE COMPUTER1

[PRESET]

This function allows you to select optimized settings for your projected image.

You can adjust neutral tint for yellow, cyan or magenta.

There are six factory presets optimized for various types of images. You can also use [DETAIL SETTINGS] to set user adjustable settings to customize each gamma or color.

Your settings can be stored in [PRESET 1] to [PRESET 6].

HIGH-BRIGHT ...... Recommended for use in a brightly lit room.

PRESENTATION ..... Recommended for making a presentation using a PowerPoint file.

VIDEO ...... Recommended for typical TV program viewing.

MOVIE ...... Recommended for movies.

GRAPHIC ...... Recommended for graphics.

sRGB ...... Standard color values

[DETAIL SETTINGS]

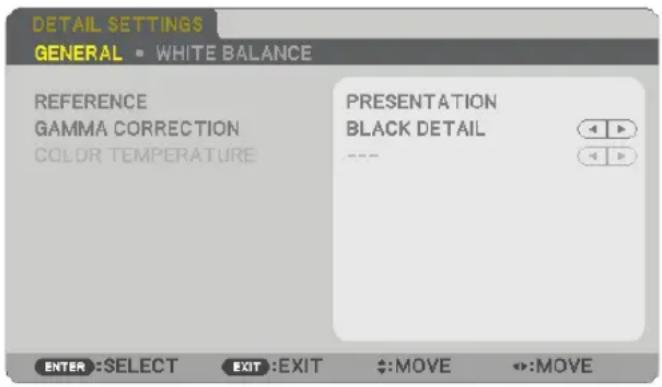

DETAIL SETTINGS GENERAL • WHITE BALANCE REFERENCE GAMMA CORRECTION COLOR TEMPERATURE PRESENTATION BLACK DETAIL ---- ENTER :SELECT EXIT :EXIT ←:MOVE ←:MOVE

[GENERAL]

Storing Your Customized Settings [REFERENCE]

This function allows you to store your customized settings in [PRESET 1] to [PRESET 6].

First, select a base preset mode from [REFERENCE], then set [GAMMA CORRECTION] and [COLOR TEMPERATURE].

HIGH-BRIGHT ...... Recommended for use in a brightly lit room.

PRESENTATION ..... Recommended for making a presentation using a PowerPoint file.

VIDEO ...... Recommended for typical TV program viewing.

MOVIE ...... Recommended for movies.

GRAPHIC ...... Recommended for graphics.

sRGB ...... Standard color values.

Selecting Gamma Correction Mode [GAMMA CORRECTION]

Each mode is recommended for:

DYNAMIC ...... Creates a high-contrast picture.

NATURAL ...... Natural reproduction of the picture.

BLACK DETAIL ..... Emphasizes detail in dark areas of the picture.

Adjusting Color Temperature [COLOR TEMPERATURE]

This option allows you to select the color temperature of your choice.

NOTE: When [PRESENTATION] or [HIGH-BRIGHT] is selected in [REFERENCE], this function is not available.

Adjusting White Balance [WHITE BALANCE]

This allows you to adjust the white balance. Contrast for each color (RGB) to adjust the white level of the screen; Brightness for each color (RGB) is used to adjust the black level of the screen.

[CONTRAST]

Adjusts the intensity of the image according to the incoming signal.

[BRIGHTNESS]

Adjusts the brightness level or the back raster intensity.

[SHARPNESS]

Controls the detail of the image.

[COLOR]

Increases or decreases the color saturation level.

[HUE]

Varies the color level from +/- green to +/-blue. The red level is used as reference.

Input signal CONTRAST BRIGHTNESS SHARPNESS COLOR HUE
Computer (RGB DIGITAL) Yes Yes No No
Computer (RGB ANALOG)	Yes Yes Yes No No
Component	Yes Yes Yes Yes*		Yes*
Video, S-Video	Yes Yes Yes Yes Yes

Yes=Adjustable, No=Not adjustable, Yes* = depending on the signal

[RESET]

The settings and adjustments for [PICTURE] will be returned to the factory settings with the exception of the following; Preset numbers and [REFERENCE] within the [PRESET] screen.

The settings and adjustments under [DETAIL SETTINGS] within the [PRESET] screen that are not currently selected will not be reset.

[IMAGE OPTIONS]

SOURCE ADJUST SETUP INFO. RESET PICTURE • IMAGE OPTIONS CLOCK 1344 PHASE 8 HORIZONTAL 290 VERTICAL 35 OVERSCAN 0[%] ASPECT RATIO AUTO POSITION OFF VIDEO FILTER ENTER: SELECT EXIT: EXIT :MOVE :MOVE COMPUTER1

Adjusting Clock and Phase [CLOCK/PHASE]

This allows you to manually adjust CLOCK and PHASE.

Two-step diagram showing transformation from a blank canvas to a 3D geometric shapes (circle, triangle, rectangle) with no text or symbols.

CLOCK..... Use this item to fine tune the computer image or to remove any vertical banding that might appear. This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This adjustment may be necessary when you connect your computer for the first time.

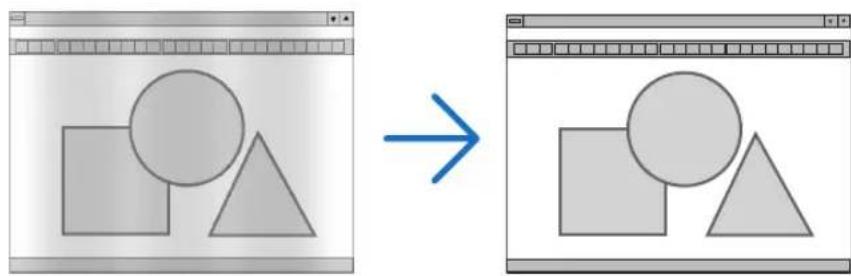

Two-step diagram showing a circle and triangle shapes before and after transformation, with no text or symbols present.

PHASE.... Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) Use [PHASE] only after the [CLOCK] is complete.

Adjusting Horizontal/Vertical Position [HORIZONTAL/VERTICAL]

Adjusts the image location horizontally and vertically.

• An image can be distorted during the adjustment of [CLOCK] and [PHASE]. This is not malfunction.
• The adjustments for [CLOCK], [PHASE], [HORIZONTAL], and [VERTICAL] will be stored in memory for the current signal. The next time you project the signal with the same resolution, horizontal and vertical frequency, its adjustments will be called up and applied.

To delete adjustments stored in memory, from the menu, you select [RESET] → [CURRENT SIGNAL] or [ALL DATA] and reset the adjustments.

Selecting Overscan Percentage [OVERSCAN]

Select overscan percentage (0%, 5% and 10%) for signal.

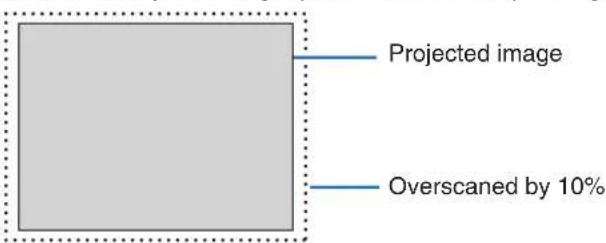

Projected image Overscaned by 10%

NOTE:

• The [0[%]] cannot be selected when VIDEO and S-VIDEO signals are used.
  • [OVERSCAN] is not available when [NATIVE] is selected for [ASPECT RATIO].

Selecting Aspect Ratio [ASPECT RATIO]

The term “aspect ratio” refers to the ratio of width to height of a projected image.

The projector automatically determines the incoming signal and displays it in its appropriate aspect ratio.

- This table shows typical resolutions and aspect ratios that most computers support.

Resolution Aspect Ratio
VGA 640 x 480 4:3
SVGA 800 x 600 4:3
XGA 1024 x 768 4:3
WXGA 1280 x 768 15:9
WXGA 1280 x 800 16:10
WXGA+ 1440 x 900 16:10
SXGA 1280 x 1024 5:4
SXGA+ 1400 x 1050 4:3
UXGA 1600 x 1200 4:3

Options	Function
AUTO	The projector will automatically determine the incoming signal and display it in its aspect ratio. (→next page)The projector may erroneously determine the aspect ratio depending on its signal. If this occurs, select the appropriate aspect ratio from the following.
4:3	The image is displayed in 4:3 aspect ratio.
16:9	The image is displayed in 16:9 aspect ratio.
15:9	The image is displayed in 15:9 aspect ratio.
16:10	The image is displayed in 16:10 aspect ratio.
WIDE ZOOM(NP600/NP500/NP400/NP300/NP600S)	The image is stretched left and right.Parts of the displayed image are cropped at the left and right edges and therefore not visible.
LETTERBOX(NP500W/NP500WS)	The image of a letterbox signal is stretched equally in the horizontal and vertical directions to fit the screen. Parts of the displayed image are cropped at the top and bottom edges and therefore not visible.
NATIVE	The projector displays the current image in its true resolution when the incoming computer signal has a lower resolution than the projector's native resolution.[Example 1]When the incoming signal with the resolution of 800 x 600 is displayed on the NP600/NP500/NP400/NP300/NP600S:[Example 2]When the incoming signal with the resolution of 800 x 600 is displayed on the NP500W/NP500WS:NOTE:When a non-computer signal is displayed, the [NATIVE] is not available.When a signal with a higher resolution than the projector's native resolution is displayed, [NA-TIVE] is not available.

Sample image when the appropriate aspect ratio is automatically determined

NP600/NP500/NP400/NP300/NP600S

[Computer signal]

Aspect ratio of incoming signal 4:3 5:4 16:9 15:9 16:10
Sample image when the appropriate aspect ratio is automatically determined

[Video signal]

Aspect ratio of incoming signal 4:3 Letterbox Squeeze
Sample image when the aspect ratio is automatically determined			NOTE: To display a squeezed signal properly, select [16:9] or [WIDE ZOOM].

NP500W/NP500WS

[Computer signal]

Aspect ratio of incoming signal 4:3 5:4 16:9 15:9 16:10
Sample image when the appropriate aspect ratio is automatically determined

[Video signal]

Aspect ratio of incoming signal 4:3 Letterbox Squeeze
Sample image when the aspect ratio is automatically determined		NOTE: To display a letterbox signal properly, select [LETTERBOX].		NOTE: To display a squeezed signal properly, select [16:9].

TIP:

• Image position can be adjusted vertically using [POSITION] when the [16:9], [15:9], or [16:10] aspect ratios are selected. (→ next page)
• The term “letterbox” refers to a more landscape-oriented image when compared to a 4:3 image, which is the standard aspect ratio for a vide source.
  The letterbox signal has aspect ratios with the vista size "1.85:1" or cinema scope size "2.35:1" for movie film.
• The term "squeeze" refers to the compressed image of which aspect ratio is converted from 16:9 to 4:3.

Adjusting the Vertical Position of Image [POSITION] (not available on NP500W/NP500WS)

(only when [16:9], [15:9], or [16:10] is selected for [ASPECT RATIO])

When [16:9], [15:9], or [16:10] is selected in [ASPECT RATIO], the image is displayed with black borders on the top and bottom.

You can adjust the vertical position from the top to the bottom of the black area.

Two identical diagrams showing a square plate with circular holes and a rectangular block with circles, connected by an arrow (no text or symbols)

Selecting Video Filter Level [VIDEO FILTER] (not available for Digital RGB, Video and S-Video)

Select one of the three levels for reducing video noise: [OFF], [LESS] or [MORE].

OFF ...... The low-pass filter is turned off.

LESS ...... The low-pass filter is applied partially.

MORE ...... The low-pass filter is applied fully.

NOTE:

- Selecting [OFF] will give best image quality by way of higher bandwidth. Selecting [LESS] will soften the image and selecting [MORE] will soften the image more.

⑥ Menu Descriptions & Functions [SETUP]

[GENERAL]

[NP600/NP500/NP400/NP300/NP500W] [NP600S/NP500WS]

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 AUTO KEYSTONE KEYSTONE KEYSTONE SAVE WALL COLOR LAMP MODE CLOSED CAPTION LANGUAGE OFF OFF OFF NORMAL OFF ENGLISH ENTER: SELECT EXIT: EXIT :MOVE :MOVE COMPUTER1

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 DIGITAL ZOOM AUTO KEYSTONE KEYSTONE KEYSTONE SAVE WALL COLOR LAMP MODE CLOSED CAPTION LANGUAGE 100 OFF 0 OFF OFF NORMAL OFF ENGLISH ENTER :SELECT EXIT :EXIT :MOVE :MOVE COMPUTER1

Using Digital Zoom [DIGITAL ZOOM] (NP600S/NP500WS)

This feature allows you to electronically fine adjust the image size on the screen.

Use ◀ or ▶ button to large or reduce the projected image.

TIP:

To adjust the projected image size roughly, move the projector away or closer to the screen. ( page 30). To fine adjust the zoom, use the [DIGITAL ZOOM] function.

Enabling Auto Keystone [AUTO KEYSTONE]

This feature allows the projector to detect its tilt and correct vertical distortion automatically.

To turn on the AUTO KEYSTONE feature, select [ON]. To adjust the KEYSTONE feature manually, select [OFF].

Correcting Vertical Keystone Distortion Manually [KEYSTONE]

You can correct vertical distortion manually. ( page 34)

TIP: When this option is highlighted, pressing the ENTER button will display its slide bar for adjustment.

Saving Vertical Keystone Correction [KEYSTONE SAVE]

This option enables you to save your current keystone settings.

OFF.... Does not save current keystone correction settings. It will return your keystone correction settings to "zero".

ON .... Saves current keystone correction settings

Saving your change once affects all sources. The changes are saved when the projector is turned off.

NOTE: When [AUTO KEYSTONE] is set to [ON], [KEYSTONE SAVE] is not available. Next time you turn on the power, the AUTO KEYSTONE function will work and the data stored with [KEYSTONE SAVE] will be invalid.

Using the Wall Color Correction [WALL COLOR]

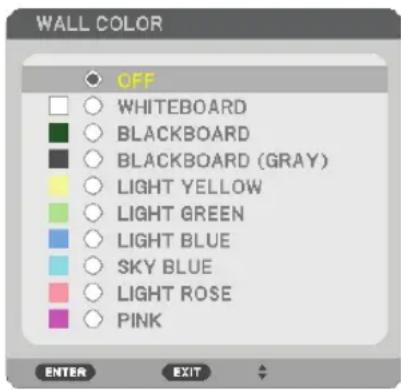

WALL COLOR OFF WHITEBOARD BLACKBOARD BLACKBOARD (GRAY) LIGHT YELLOW LIGHT GREEN LIGHT BLUE SKY BLUE LIGHT ROSE PINK ENTER EXIT

This function allows for quick adaptive color correction in applications where the screen material is not white.

NOTE: Selecting [WHITEBOARD] reduces lamp brightness.

Setting Lamp Mode to Normal or Eco [LAMP MODE]

This feature enables you to select two brightness modes of the lamp: NORMAL and ECO modes. The lamp life can be extended by using the ECO mode. Selecting ECO mode decreases fan noise when compared to NORMAL mode.

Lamp Mode Description Status of LAMP indicator
NORMAL	This is the Default setting (100% Brightness).	Off
ECO	Select this mode to increase the lamp life (approx. 70% Brightness on NP600/NP500W/NP600S/NP500WS and approx. 80% Brightness on NP500/NP400/NP300).	Steady Green light

NOTE:

• The [LAMP LIFE REMAINING] and [LAMP HOURS USED] can be checked in [USAGE TIME]. Select [INFO.] → [USAGE TIME]. (→ page 73)
• The projector is always in [NORMAL] for one minute after the lamp is turned on and while the POWER indicator is blinking green. The lamp condition will not be affected even when [LAMP MODE] is changed.
• If there is no signal for about one minute, the projector will display a blue, black or logo background (depending on setting) and go into [ECO].

The projector will return to the [NORMAL] mode once a signal is accepted.

- If the projector becomes overheated in [NORMAL] mode because of use in a high-temperature room, there may be a case where the [LAMP MODE] automatically changes to [ECO] mode to protect the projector. This mode is called “forced ECO mode”. When the projector is in [ECO] mode, the picture brightness decreases. The LAMP indicator’s steady light indicates the projector is in [ECO] mode. When the projector comes back to normal temperature, the [LAMP MODE] returns to [NORMAL] mode.

Thermometer symbol [ ] indicates the [LAMP MODE] is automatically set to [ECO] mode because the internal temperature is too high.

Setting Closed Caption [CLOSED CAPTION]

This option sets several closed caption modes that allow text to be superimposed on the projected image of Video or S-Video.

OFF ...... This exits the closed caption mode.

CAPTION 1-4 ...... Text is superimposed.

TEXT 1-4 ...... Text is displayed.

NOTE:

- The closed caption is not available under the following conditions:

- when messages or menus are displayed.

- when an image is magnified, frozen, or muted.

- Doing the following may cause portions of superimposed text or closed caption to be truncated.

If this occurs, try to change correction amount or selection to place the superimposed text or closed caption within the screen.

- Using the [DIGITAL ZOOM] or [KEYSTONE] function to correct the image excessively

- Selecting [16:10] or [16:9] from [ASPECT RATIO]

- Using the [POSITION] (not available on NP500W/NP500WS)

Selecting Menu Language [LANGUAGE]

You can choose one of 21 languages for on-screen instructions.

NOTE: Your setting will not be affected even when [RESET] is done from the menu.

[MENU]

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 COLOR SELECT DISPLAY TIME BACKGROUND FILTER MESSAGE ID DISPLAY COLOR AUTO 45 SEC BLUE 500[H] ON ENTER :SELECT EXIT :EXIT :MOVE :MOVE COMPUTER1

Selecting Menu Color [COLOR SELECT]

You can choose between two options for menu color: COLOR and MONOCHROME.

Selecting Menu Display Time [DISPLAY TIME]

This option allows you to select how long the projector waits after the last touch of a button to turn off the menu. The preset choices are [MANUAL], [AUTO 5 SEC], [AUTO 15 SEC], and [AUTO 45 SEC]. The [AUTO 45 SEC] is the factory preset.

Selecting a Color or Logo for Background [BACKGROUND]

Use this feature to display a blue/black screen or logo when no signal is available. The default background is [BLUE].

NOTE: Your setting will not be affected even when [RESET] is done from the menu.

Selecting Interval Time for Filter Message [FILTER MESSAGE]

This option allows you to select the time preference between displaying the message for cleaning the filters. Clean the filter when you get the message "PLEASE CLEAN FILTER." (→page 76)

Five options are available: OFF, 100[H], 200[H], 500[H], 1000[H]

The default setting is 500[H].

NOTE: Your setting will not be affected even when [RESET] is done from the menu.

Turning ON/OFF Control ID [ID DISPLAY]

(Available only when the optional remote control NP02RC is used)

ID DISPLAY ...... This option turns on or off the ID number which is displayed when the ID SET button on the remote control is pressed.

[INSTALLATION]

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 ORIENTATION CONTROL PANEL LOCK SECURITY COMMUNICATION SPEED CONTROL ID DESKTOP FRONT OFF OFF 19200bps ENTER:SELECT EXIT:EXIT :MOVE :MOVE COMPUTER1

Selecting Projector Orientation [ORIENTATION]

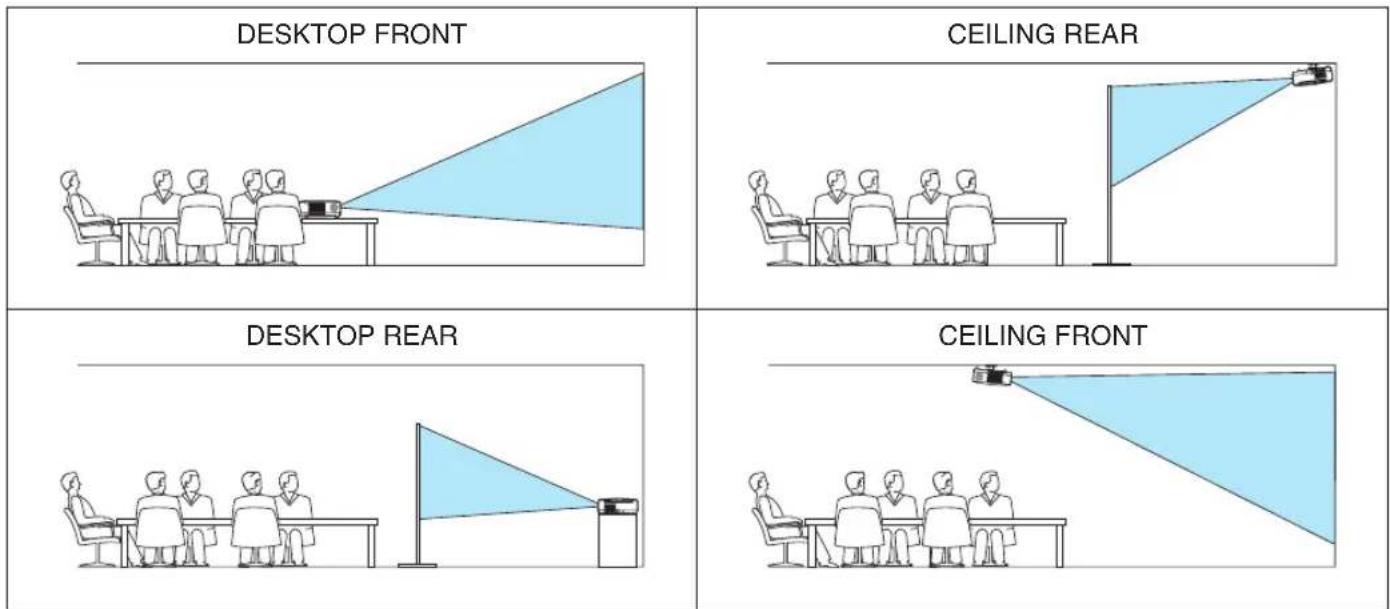

This reorients your image for your type of projection. The options are: desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection.

DESKTOP FRONT CEILING REAR DESKTOP REAR CEILING FRONT

Disabling the Cabinet Buttons [CONTROL PANEL LOCK]

This option turns on or off the CONTROL PANEL LOCK function.

NOTE:

• This CONTROL PANEL LOCK does not affect the remote control functions.
• When the control panel is locked, pressing and holding the EXIT button on the projector cabinet for about 10 seconds will change the setting to [OFF].

TIP: When the [CONTROL PANEL LOCK] is turned on, a key lock icon [ ] will be displayed at the bottom right of the menu.

Enabling Security [SECURITY]

This feature turns on or off the SECURITY function.

Unless the correct keyword is entered, the projector cannot project an image. (→ page 42)

NOTE: Your setting will not be affected even when [RESET] is done from the menu.

Selecting Communication Speed [COMMUNICATION SPEED]

This feature sets the baud rate of the PC Control port (D-Sub 9P). It supports data rates from 4800 to 19200 bps. The default is 19200 bps. Select the appropriate baud rate for your equipment to be connected (depending on the equipment, a lower baud rate may be recommended for long cable runs).

NOTE: Your selected communication speed will not be affected even when [RESET] is done from the menu.

Setting ID to the Projector [CONTROL ID]

(Available only when the optional remote control NP02RC is used)

You can operate multiple projectors separately and independently with the single remote control that has the CONTROL ID function. If you assign the same ID to all the projectors, you can conveniently operate all the projectors together using the single remote control. To do so, you have to assign an ID number to each projector.

CONTROL ID NUMBER .....Select a number from 1 to 254 you wish to assign to your projector.

CONTROL ID......Select [OFF] to turn off the CONTROL ID setting and select [ON] to turn on the CONTROL ID setting.

ID DISPLAY ....This option turns on or off the ID number which is displayed when the ID SET button on the remote control is pressed.

NOTE:

• Selecting [ON] for [CONTROL ID] will make the remote control supplied with the projector inoperable. The buttons on the projector cabinet can be used. Neither can you operate the projector by using the optional remote control NP01RC that does not have the CONTROL ID function.
• Your setting will not be affected even when [RESET] is done from the menu.
• Pressing and holding the ENTER button on the projector cabinet for 10 seconds will display the menu for canceling the Control ID.

Assigning or Changing the Control ID

1. Turn on the projector.

2. Press the ID SET button on the remote control (NP02RC).

The CONTROL ID screen will be displayed.

CONTROL ID (ACTIVE) CONTROL ID NUMBER 1 ENTER :EXIT EXIT :EXIT

ALASK + - - - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - >

If the projector can be operated with the current remote control ID, the [ACTIVE] will be displayed. If the projector cannot be operated with the current remote control ID, the [INACTIVE] will be displayed. To operate the inactive projector, assign the control ID used for the projector by using the following procedure (Step 3).

3. Press one of numeric keypad buttons while pressing and holding the ID SET button on the remote control (NP02RC).

Example:

To assign "3", press the "3" button on the remote control.

No ID means that all the projectors can be operated together with a single remote control. To set "No ID", enter "000" or press the CLEAR button.

TIP: The range of IDs is from 1 to 254.

4. Release the ID SET button.

The updated CONTROL ID screen will be displayed.

NOTE: The IDs can be cleared in a few days after the batteries are run down or removed.

1 2 3 4 5 6 7 8 9 0 C:50 + - - - - V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 V:100 MIEC

[OPTIONS(1)]

SOURCE ADJUST SETUP INFO. RESET GENERAL MENU INSTALLATION OPTIONS(1) 1/2 AUTO ADJUST FAN MODE SIGNAL SELECT WXGA MODE DEINTERLACE BEEP NORMAL AUTO OFF ON ON ENTER:SELECT EXIT:EXIT :MOVE :MOVE COMPUTER1

Setting Auto Adjust [AUTO ADJUST]

This feature sets the Auto Adjust mode so that the computer signal can be automatically or manually adjusted for noise and stability. You can automatically make adjustment in two ways: [NORMAL] and [FINE].

OFF.... The computer signal will not be automatically adjusted. You can manually optimize the computer signal.

NORMAL...... Default setting. The computer signal will be automatically adjusted. Normally select this option.

FINE......Select this option if fine adjustment is needed. It takes more time to switch to the source than when [NORMAL]is selected.

Selecting Fan Mode [FAN MODE]

This option allows you to select three modes for fan speed: Auto mode, High speed mode, and High Altitude mode.

AUTO .... The built-in fans automatically run at a variable speed according to the internal temperature.

HIGH .... The built-in fans run at high speed.

HIGH ALTITUDE..... The built-in fans run at a high speed. Select this option when using the projector at altitudes approximately 5500 feet/1600 meters or higher.

When you wish to cool down the temperature inside the projector quickly, select [HIGH].

NOTE:

• It is recommended that you select High speed mode if you use the projector non-stop for consecutive days.
• Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 5500 feet/1600 meters or higher.
• Using the projector at altitudes approximately 5500 feet/1600 meters or higher without setting to [HIGH ALTITUDE] can cause the projector to overheat and the protector could shut down. If this happens, wait a couple minutes and turn on the projector.
• Using the projector at altitudes less than approximately 5500 feet/1600 meters and setting to [HIGH ALTITUDE] can cause the lamp to overcool, causing the image to flicker. Switch [FAN MODE] to [AUTO].
• Using the projector at altitudes approximately 5500 feet/1600 meters or higher can shorten the life of optical components such as the lamp.
• Your setting will not be affected even when [RESET] is done from the menu.

Selecting Signal Format [SIGNAL SELECT]

[COMPUTER1], [COMPUTER2(ANALOG)]

Allows you to choose [COMPUTER1], or [COMPUTER2(ANALOG)] for an RGB source such as a computer, or [COMPONENT] for a component video source such as a DVD player. Normally select [RGB/COMPONENT] and the projector automatically detects a component signal. However there may be some component signals that the projector is unable to detect. If this is the case, select [COMPONENT].

[VIDEO & S-VIDEO System Select]

This feature enables you to select composite video standards automatically or manually.

Normally select [AUTO] and the projector will automatically detect the video standard.

In the case where the projector has difficulty detecting the video standard, select the appropriate video standard from the menu.

This must be done for VIDEO and S-VIDEO respectively.

Enabling or Disabling WXGA Mode [WXGA MODE]

Selecting [ON] will give priority to a WXGA (1280 x 768) signal in recognizing an input signal.

When [WXGA MODE] is set to [ON], an XGA (1024 x 768) signal may not be recognized on NP600, NP500, NP400, NP300, or NP600S. In this case, select [OFF].

Enabling the deinterlace [DEINTERLACE]

Turns on or off the deinterlace function for a telecine signal.

OFF ...... Select this option if there is any jitter or artifacts in video.

ON ...... Default standard setting.

NOTE: This feature is not available for RGB, 480p, 576p and HDTV signals.

Enabling Key Sound and Error Sound [BEEP]

This feature turns on or off the button sound or alarm when the following operations are performed.

• Displaying the main menu
• Switching sources
• Resetting data by using [RESET]
• Pressing POWER ON or POWER OFF button

[OPTIONS(2)]

SOURCE ADJUST SETUP INFO. RESET OPTIONS(2) OFF TIMER STANDBY MODE AUTO POWER ON(AC) AUTO POWER ON(COMP1) AUTO POWER OFF DEFAULT SOURCE SELECT OFF NORMAL OFF OFF OFF LAST ENTER:SELECT EXIT:EXIT :MOVE :MOVE COMPUTER1

Using Off Timer [OFF TIMER]

1. Select your desired time between 30 minutes and 16 hours: OFF, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00.
2. Press the ENTER button on the remote control.
3. The remaining time starts counting down.
4. The projector will turn off after the countdown is complete.

NOTE:

• To cancel the preset time, set [OFF] for the preset time or turn off the power.
• When the remaining time reaches 3 minutes before the projector is turned off, the [THE PROJECTOR WILL TURN OFF WITHIN 3 MINUTES] message will be displayed on the bottom of the screen.

Selecting Power-saving in [STANDBY MODE]

The projector has two standby modes: [NORMAL] and [POWER-SAVING].

The POWER-SAVING mode is the mode that allows you to put the projector in the power-saving condition which consumes less power than the NORMAL mode. The projector is preset for NORMAL mode at the factory.

NORMAL ...... Power indicator: Orange light/STATUS indicator: Green light

POWER-SAVING .... Power indicator: Orange light/STATUS indicator: Off

The following connectors, buttons or functions will not work during this mode.

• PC CONTROL port, MONITOR OUT connector, and AUDIO OUT connector
• LAN, Mail Alert, AUTO POWER ON(COMP1) functions
• Buttons other than POWER button on the cabinet
• Buttons other than POWER ON button on the remote control
• Virtual Remote function

NOTE: Your setting will not be affected even when [RESET] is done from the menu.

Enabling Auto Power On [AUTO POWER ON(AC)]

Turns the projector on automatically when the power cable is inserted into an active power outlet. This eliminates the need to always use the POWER button on the remote control or projector cabinet.

Turning On the Projector By Applying Computer Signal [AUTO POWER ON(COMP1)]

When the projector is in Standby mode, applying a computer signal from a computer connected to the COMPUTER1 IN input will power on the projector and simultaneously project the computer's image.

This functionality eliminates the need to always use the POWER button on the remote control or the projector cabinet to power on the projector.

To use this function, first connect a computer to the projector and the projector to an active AC input.

NOTE:

• Disconnecting a computer signal from the computer will not power off the projector. We recommend using this function in combination of the AUTO POWER OFF function.
• This function will not be available under the following conditions:
• when a component signal is applied to the COMPUTER1 IN connector
• when a Sync on Green RGB signal or composite sync signal is applied
• when [POWER-SAVING] is selected for [STANDBY MODE]

- To enable the AUTO POWER ON (COMP1) after turning off the projector, wait 3 minutes and input a computer signal. If a computer signal is still present when the projector is turned off, the AUTO POWER ON (COMP1) will not work and the projector remains in standby mode.

Enabling Power Management [AUTO POWER OFF]

When this option is selected you can enable the projector to automatically turn off (at the selected time: 5min., 10min., 20min., 30min.) if there is no signal received by any input or if no operation is performed.

Selecting Default Source [DEFAULT SOURCE SELECT]

You can set the projector to default to any one of its inputs each time the projector is turned on.

LAST......Sets the projector to default to the previous or last active input each time the projector is turned on.

AUTO......Searches for an active source in order of COMPUTER1 → COMPUTER 2(DIGITAL) → COMPUTER2 (ANALOG) → VIDEO → S-VIDEO → COMPUTER1 and displays the first found source.

COMPUTER1 ......Displays the computer signal from the COMPUTER 1 IN connector every time the projector is turned on.

COMPUTER2(DIGITAL) ......Displays the DVI digital from the COMPUTER 2 IN connector every time the projector is turned on.

COMPUTER2(ANALOG) ......Displays the computer signal from the COMPUTER 2 IN connector every time the projector is turned on.

VIDEO ......Displays the Video source from the VIDEO IN connector every time the projector is turned on.

S-VIDEO ......Displays the Video source from the S-VIDEO IN connector every time the projector is turned on.

⑦ Menu Descriptions & Functions [INFO.]

Displays the status of the current signal and lamp usage. This item has four pages. The information included is as follows:

TIP: Pressing the HELP button on the remote control will show the [INFO.] menu items.

[USAGE TIME]

SOURCE ADJUST SETUP INFO. RESET USAGE TIME • SOURCE • WIRED LAN • VERSION LAMP LIFE REMAINING LAMP HOURS USED FILTER HOURS USED 100% 00000[H] 00000[H] EXIT:EXIT :MOVE :MOVE COMPUTER1

[LAMP LIFE REMAINING] (%)*

[LAMP HOURS USED] (H)

[FILTER HOURS USED] (H)

* The progress indicator shows the percentage of remaining bulb life.

The value informs you of the amount of lamp usage. When the remaining lamp time reaches 0, the LAMP LIFE REMAINING bar indicator changes from 0% to 100 Hours and starts counting down.

If the remaining lamp time reaches 0 hours, the projector will not turn on regardless of whether the LAMP MODE is set to NORMAL or ECO.

- The message to the effect that the lamp or the filters should be replaced will be displayed for one minute when the projector is turned on and when the POWER button on the projector or the remote control is pressed.

To dismiss this message, press any button on the projector or the remote control.

Lamp life(H)		Replacement lamp
NORMAL ECO
3000 4000		NP07LP

[SOURCE]

SOURCE ADJUST SETUP INFO. RESET USAGE TIME • SOURCE • WIRED LAN • VERSION SOURCE INDEX 108 HORIZONTAL FREQUENCY 48[kHz] VERTICAL FREQUENCY 60[Hz] SIGNAL TYPE RGB VIDEO TYPE --- SYNC TYPE SEPARATE SYNC SYNC POLARITY H:( - ) V:( - ) SCAN TYPE NON-INTERLACE EXIT:EXIT #:MOVE #:MOVE COMPUTER1

[SOURCE INDEX]

[HORIZONTAL FREQUENCY] [VERTICAL FREQUENCY]

[SIGNAL TYPE] [VIDEO TYPE]

[SYNC TYPE] [SYNC POLARITY]

[SCAN TYPE]

[WIRED LAN]

SOURCE ADJUST SETUP INFO. RESET USAGE TIME • SOURCE • WIRED LAN • VERSION PROJECTOR NAME NP600 Series MAC ADDRESS 00-00-00-00-00-00 EXIT:EXIT $:MOVE ↔:MOVE COMPUTER1

[PROJECTOR NAME]

[MAC ADDRESS]

[VERSION]

SOURCE ADJUST SETUP INFO. RESET USAGE TIME • SOURCE • WIRED LAN • VERSION PRODUCT SERIAL NUMBER FIRMWARE 1.00 DATA 1.00 EXIT:EXIT #:MOVE #:MOVE COMPUTER1

[PRODUCT]

[SERIAL NUMBER]

[FIRMWARE] Version

[DATA] Version

[CONTROL ID] (when [CONTROL ID] is set)

⑧ Menu Descriptions & Functions [RESET]

SOURCE ADJUST SETUP INFO. RESET CURRENT SIGNAL ALL DATA NETWORK SETTINGS CLEAR LAMP HOURS CLEAR FILTER HOURS ENTER: SELECT EXIT: EXIT : : MOVE : : MOVE COMPUTER1

Returning to Factory Default [RESET]

The RESET feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except the following:

[CURRENT SIGNAL]

Resets the adjustments for the current signal to the factory preset levels.

The items that can be reset are: [PRESET], [CONTRAST], [BRIGHTNESS], [COLOR], [HUE], [SHARPNESS], [ASPECT RATIO], [HORIZONTAL], [VERTICAL], [CLOCK], [PHASE], [VIDEO FILTER], and [OVERSCAN].

[ALL DATA]

Reset all the adjustments and settings for all the signals to the factory preset.

All items can be reset EXCEPT [LANGUAGE], [BACKGROUND], [FILTER MESSAGE], [SECURITY], [COMMUNICATION SPEED], [CONTROL ID], [STANDBY MODE], [FAN MODE], [LAMP LIFE REMAINING], [LAMP HOURS USED], [FILTER HOURS USED], and [NETWORK SETTINGS].

To reset the lamp usage time, see "Clearing Lamp Hour Meter [CLEAR LAMP HOURS]" below.

Clearing Networking Settings [NETWORK SETTINGS]

Returns DHCP, IP ADDRESS, SUBNET MASK, and [GATEWAY] to the default settings.

Clearing Lamp Hour Meter [CLEAR LAMP HOURS]

Resets the lamp clock back to zero. Selecting this option displays submenu for a confirmation. Select [YES] and press the ENTER button.

NOTE: Elapsed time of the lamp use will not be affected even when [RESET] is done from the menu.

NOTE: The projector will turn off and go into standby mode when you continue to use the projector for another 100 hours after the lamp has reached the end of its life. In this condition you cannot clear the lamp hour meter on the menu. If this happens, press the HELP button on the remote control for 10 seconds to reset the lamp clock back to zero. Do this only after replacing the lamp.

Clearing the Filter Usage Hours [CLEAR FILTER HOURS]

Resets the filter usage back to zero. Selecting this option displays submenu for a confirmation. Select [YES] and press the ENTER button.

NOTE: Elapsed time of the filter use will not be affected even when [RESET] is done from the menu.

6. Maintenance

This section describes the simple maintenance procedures you should follow to clean the filters and replace the lamp.

① Cleaning or Replacing the Filters

The air-filter sponge keeps dust and dirt from getting inside the projector and should be frequently cleaned. If the filter is dirty or clogged, your projector may overheat.

NOTE: The message for filter cleaning will be displayed for one minute after the projector is turned on or off.

To cancel the message, press any button on the projector cabinet or the remote control.

CAUTION

• Turn off the projector, turn off the main power switch and unplug the projector before replacing the filters.
• Only clean the outside of the filter cover with a vacuum cleaner.
• Do not attempt to operate the projector without the filter cover.

To clean the air-filter:

Vacuum the filter-through the filter cover.

Line drawing of a portable electronic device with ports and cables (no text or symbols)

To replace the filter (sponge):

1. Remove the filter cover (2 locations) by pushing up on the catch of the cover until you feel it detach.

Line drawing of a projector with ports and a hand inserting a cable (no text or symbols)

2. Replace two filters.

(1) Gently peel off the filter (sponge) and clean the filter cover.
(2) Attach the new filter to the filter cover.

3D diagram of a mechanical component with a cylindrical lid and internal compartments, showing no text or symbols.

3. Reinstall the new filter cover (2 locations).

- Insert the filter cover until you feel click.

Line drawing of a projector with ports and connectors, showing internal components and a hand inserting a plug into the base (no text or symbols)

4. Clear the filter hours used.

To reset the filter usage time, from the menu, select [RESET] → [CLEAR FILTER HOURS]. (→page 75 for resetting the filter usage time.)

NOTE: Do not wash the filter with soap and water. Soap and water will damage the filter membrane. Before replacing the filter, remove dust and dirt from the projector cabinet. Keep out dust and dirt during filter replacement.

NOTE: When you replace the lamp, it is also wise to replace the filter. The filter comes in the same package with your replacement lamp.

② Cleaning the Cabinet and the Lens

1. Turn off the projector before cleaning.
2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

Vacuum the ventilation inlet of the cabinet.

Note on Cleaning the Lens (NP600/NP500/NP400/NP300/NP500W)

Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

Line drawing of a projector with a hand inserting a button to the front panel (no text or symbols)

Note on Cleaning the Lens (NP600S/NP500WS)

Line drawing of a projector with a handle inserted into it, showing internal components and wiring (no text or symbols)

The NP600S and NP500WS have a plastic lens. Use a commercially available plastic lens cleaner.

NOTE:

• Do not scratch or mar the lens surface as a plastic lens is easily scratched.
• Never use alcohol or glass lens cleaner as doing so will cause damage to the lens surface.

③ Replacing the Lamp

When the lamp reaches the end of its life, the LAMP indicator in the cabinet will blink red. Even though the lamp may still be working, replace the lamp to maintain the optimal projector performance. After replacing the lamp, be sure to clear the lamp hour meter. ( page 75)

CAUTION

• DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off, wait 30 seconds, turn off the main power switch and then disconnect the power cable. Allow at least one hour for the lamp to cool before handling.
• DO NOT REMOVE ANY SCREWS except one lamp cover screw and two lamp housing screws. You could receive an electric shock.
• Do not break the glass on the lamp housing.
  Keep finger prints off the glass surface on the lamp housing. Leaving finger prints on the glass surface might cause an unwanted shadow and poor picture quality.
• The projector will turn off and go into standby mode when you continue to use the projector for another 100 hours after the lamp has reached the end of its life. If this happens, be sure to replace the lamp. If you continue to use the lamp after the lamp reaches the end of its life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.

*NOTE: This message will be displayed under the following conditions:

• for one minute after the projector has been powered on
- when the ⏻ (POWER) button on the projector cabinet or the POWER OFF button on the remote control is pressed

To turn off the message, press any button on the projector cabinet or the remote control.

To replace the lamp:

Optional lamp and tools needed for replacement:

- Replacement lamp NP07LP

1. Remove the lamp cover.

(1) Loosen the lamp cover screw
- The lamp cover screw is not removable.
(2) Push and slide the lamp cover off.

Line drawing of an electronic projector with a cable inserted, showing internal components and ports (no text or symbols)

Line drawing of a projector module with ports and ventilation slots (no text or symbols)

2. Remove the lamp housing.

(1) Loosen the two screws securing the lamp housing until the phillips screwdriver goes into a freewheeling condition.
- The two screws are not removable.
- There is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.
(2) Remove the lamp housing by holding it.

Interlock

CAUTION:

Make sure that the lamp housing is cool enough to before removing it.

Illustration of a projector with a hand inserting a component into the case (no text or symbols visible)

3. Install a new lamp housing.

(1) Insert a new lamp housing until the lamp housing is plugged into the socket.

CAUTION

Do not use a lamp other than the NEC replacement lamp NP07LP.

Order this from your NEC dealer.

(2) Push the top center of the lamp housing to secure it.

(3) Secure it in place with the two screws.

- Be sure to tighten the screws.

Line drawing of a projector with a hand inserting a component into the case (no text or symbols visible)

Line drawing of an electronic projector with internal components and a rotating button (no text or symbols)

4. Reattach the lamp cover.

(1) Slide the lamp cover back until it snaps into place.

(2) Tighten the screw to secure the lamp cover.

- Be sure to tighten the screw.

Line drawing of a projector module with ports and an arrow pointing to the front panel (no text or symbols present)

Line drawing of a projector with a screwdriver inserted, showing ports and casing (no text or symbols)

1. Connect the supplied power cable, turn on the Main Power switch and turn on the projector.
2. Finally, select the menu→[RESET]→[CLEAR LAMP HOURS] to reset the lamp usage hours.

7. Appendix

① Troubleshooting

This section helps you resolve problems you may encounter while setting up or using the projector.

Indicator Messages

Power Indicator

Indicator Condition Projector Condition Note
Off The main power is off				-
Blinking light Green	en 0.5 sec On,	0.5 sec Off	The projector is getting ready to turn on. Wait for a moment.
		2.5 sec On,0.5 sec Off	Off Timer is enabled.	-
	Orange 0.5 sec On,	0.5 sec Off	The projector is cooling down. Wait for a moment.
Steady light Green	The projector is turned on.			-
	Orange The projector is in Standby.			-

Status Indicator

Indicator Condition Projector Condition Note
Off			Normal or Standby ([POWER-SAVING] for [STANDBY MODE])	-
Blinking light Red	1 cycle (0.5 sec On,	2.5 sec Off)	Lamp cover error or lamp housing error	Replace the lamp cover or lamp housing correctly.
		2 cycle (0.5 sec On, 0.5 sec Off)	Temperature error	The projector is overheated. Move the projector to a cooler location.
		3 cycle (0.5 sec On, 0.5 sec Off)	Power error	Power unit is not working properly. Contact your dealer.
		4 cycle (0.5 sec On, 0.5 sec Off)	Fan error	Fans will not work correctly.
		6 cycle (0.5 sec On, 0.5 sec Off)	Lamp error	Lamp fails to light. Wait a full minute and then turn on again.
	Green Re-firing the lamp (The projector is cooling down.)			The projector is re-firing. Wait for a moment.
Steady light	Green		Standby ([NORMAL] for [STANDBY MODE])	-
	Orange		Cabinet button is locked	You have pressed cabinet button when Cabinet Button is locked.

Lamp Indicator

Indicator Condition Projector Condition Note
Off Normal			—
Blinking light	Red	Lamp has reached its end of life. Lamp replacement message will be displayed.	Replace the lamp.
Steady light Red	Lamp has been used beyond its limit. The projector will not turn on until the lamp is replaced.		Replace the lamp.
	Green Lamp mode is set to Eco mode		—

Over-Temperature Protection

If the temperature inside the projector rises too high, the over-temperature protector will automatically turn off the lamp with the STATUS indicator blinking (2-cycle On and Off.)

Should this happen, do the following:

• Unplug the power cable after the cooling fans stop.
• Move the projector to a cooler location if the room where you are presenting is particularly too warm.
• Clean the ventilation holes if they are clogged with dust.
• Wait about 60 minutes until the inside of the projector becomes cool enough.

Common Problems & Solutions ( “Power/Status/Lamp Indicator” on page 82.)

Problem Check These Items
Does not turn on or shut down	Check that the power cable is plugged in and that the power button on the projector cabinet or the remote control is on. (→ pages 25 and 38)Ensure that the lamp cover is installed correctly. (→ page 81)Check to see if the projector has overheated. If there is insufficient ventilation around the projector or if the room where you are presenting is particularly warm, move the projector to a cooler location.Check to see if the lamp usage exceeds 3100 hours (up to 4100 hours : Eco mode). If so, replace the lamp. After replacing the lamp, reset the lamp hours used. (→ page 75)The lamp may fail to light. Wait a full minute and then turn on the power again.Set [FAN MODE] to [HIGH ALTITUDE] when using the projector at altitudes approximately 5500 feet/1600 meters or higher. Using the projector at altitudes approximately 5500 feet/1600 meters or higher without setting to [HIGH ALTITUDE] can cause the projector to overheat and the projector could shut down. If this happens, wait a couple minutes and turn on the projector. (→ page 69)Also when the lamp is turned off, the projector internal temperature is hot. If the power is turned on before the projector has cooled down, the fan will run a short time before the lamp will turn on.
Will turn off	Ensure that the [OFF TIMER] or [AUTO POWER OFF] is off. (→ page 71, 72)
No picture	Use the COMPUTER1, the COMPUTER2, the VIDEO or the S-VIDEO button on the remote control to select your source (Computer, Video or S-Video). (→ page 29) If there is still no picture, press the button again.Ensure your cables are connected properly.Use menus to adjust the brightness and contrast. (→ page 57)Remove the lens cap.Reset the settings or adjustments to factory preset levels using the [RESET] in the Menu. (→ page 75)Enter your registered keyword if the Security function is enabled. (→ page 42)Be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC.In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up.* If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management software.See also thenext page.
Picture suddenly becomes dark	Check if the projector is in the Forced ECO mode because of too high ambient temperature. If this is the case, lower the internal temperature of the projector by selecting [HIGH] for [FAN MODE]. (→ page 69)
Color tone or hue is unusual	Check if an appropriate color is selected in [WALL COLOR]. If so, select an appropriate option. (→ page 64)Adjust [HUE] in [PICTURE]. (→ page 57)
Image isn't square to the screen	Reposition the projector to improve its angle to the screen. (→ page 30)Use the Keystone correction function to correct the trapezoid distortion. (→ page 34)
Picture is blurred	Adjust the focus. (→ page 33)Reposition the projector to improve its angle to the screen. (→ page 30)Ensure that the distance between the projector and screen is within the adjustment range of the lens.(→ page 15)Condensation may form on the lens if the projector is cold, brought into a warm place and is then turned on. Should this happen, let the projector stand until there is no condensation on the lens.
Flicker appears on screen	Set [FAN MODE] to other than [HIGH ALTITUDE] mode when using the projector at altitudes approximately 5500 feet/1600 meters or lower. Using the projector at altitudes less than approximately 5500 feet/1600 meters and setting to [HIGH ALTITUDE] can cause the lamp to overcool, causing the image to flicker. Switch [FAN MODE] to [AUTO]. (→ page 69)
Image is scrolling vertically, horizontally or both	Use the COMPUTER1, the COMPUTER2, the VIDEO or the S-VIDEO button on the remote control to select your source (Computer, Video or S-Video). (→ page 29)Adjust the computer image manually with the Horizontal/Vertical in the [IMAGE OPTIONS]. (→ page 59)
Remote control does not work	Install new batteries.(→ page 10)Make sure there are no obstacles between you and the projector.Stand within 22 feet (7 m) of the projector. (→ page 10)
Indicator is lit or blinking	See the POWER/STATUS/LAMP Indicator. (→ page 82)
Cross color in RGB mode	Press the AUTO ADJ. button on the projector cabinet or the remote control. (→ page 37)Adjust the computer image manually with [CLOCK]/[PHASE] in [IMAGE OPTIONS] in the menu. (→ page 58)

For more information contact your dealer.

If there is no picture, or the picture is not displayed correctly.

- Power on process for the projector and the PC.

Be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the power to the notebook PC.

In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up.

NOTE: You can check the horizontal frequency of the current signal in the projector's menu under Information. If it reads "0kHz", this means there is no signal being output from the computer. (→ page 74 or go to next step)

- Enabling the computer's external display.

Displaying an image on the notebook PC's screen does not necessarily mean it outputs a signal to the projector. When using a PC compatible laptop, a combination of function keys will enable/disable the external display. Usually, the combination of the 'Fn' key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.

• Non-standard signal output from the computer

If the output signal from a notebook PC is not an industry standard, the projected image may not be displayed correctly. Should this happen, deactivate the notebook PC's LCD screen when the projector display is in use. Each notebook PC has a different way of deactivate/reactivate the local LCD screens as described in the previous step. Refer to your computer's documentation for detailed information.

• Image displayed is incorrect when using a Macintosh

When using a Macintosh with the projector, set the DIPswitch of the Mac adapter (not supplied with the projector) according to your resolution. After setting, restart your Macintosh for the changes to take affect.

For setting display modes other than those supported by your Macintosh and the projector, changing the DIP switch on a Mac adapter may bounce an image slightly or may display nothing. Should this happen, set the DIP switch to the 13" fixed mode and then restart your Macintosh. After that, restore the DIP switches to a displayable mode and then restart the Macintosh again.

NOTE: A Video Adapter cable manufactured by Apple Computer is needed for a PowerBook which does not have a mini D-Sub 15-pin connector.

- Mirroring on a PowerBook

* When using the projector with a Macintosh PowerBook, output may not be set to 1024 x 768 unless “mirroring” is off on your PowerBook. Refer to owner’s manual supplied with your Macintosh computer for mirroring.

- Folders or icons are hidden on the Macintosh screen

Folders or icons may not be seen on the screen. Should this happen, select [View] → [Arrange] from the Apple menu and arrange icons.

② Specifications

This section provides technical information about projector's performance.

Model Number NP600/NP500/NP400/NP300/NP500W

Optical	NP600/NP500/NP400/NP300 NP500W
LCD Panel NP600/NP500	0.63 inch LCD with Micro Lens Array (Aspect Ratio 4:3)NP400/NP300: 0.63 inch LCD (Aspect Ratio 4:3)	0.59 inch LCD with Micro Lens Array (Aspect Ratio 16:10)
Resolution 1024 × 768 pixels*		1280 × 800 pixels*1
Lens Manual zoom and focus
Lamp NP600: 230W AC	(168W in ECO Mode)NP500/NP400/NP300: 210W AC (168W ECO Mode)	230W AC (168W in ECO Mode)
Light Output*2*3	NP600: 3500 lumens (approx. 70% in ECO Mode)NP500: 3000 lumens (approx. 80% in ECO Mode)NP400: 2600 lumens (approx. 80% in ECO Mode)NP300: 2200 lumens (approx. 80% in ECO Mode)	3000 lumens (approx. 70% in ECO Mode)
Contrast Ratio*3(full white: full black)	500:1
Image Size (Diagonal) 21	-300 inches/ 0.53 m-7.6 m
Projection Distance 29-4	44 inches/0.7-11.3 m 28-419 inches/0.7-10.6 m
Projection Angle Tele: 7.9°-8.3°/Wide: 9.5°-10.0° Tele: 7.6°-7.9°/Wide: 9.1°-9.5°

*1 Effective pixels are more than 99.99%.
*2 This is the light output value (lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PRESET] mode, the light output value may drop slightly.
*3 Compliance with ISO21118-2005

Electrical

Inputs	1 RGB/Component (D-Sub 15 P), 1 RGB (Digital/Analog, DVI-I 29 P, HDCP*4 supported), 1 S-Video (DIN 4 P), 1 Video (RCA), 1 (L/R) RCA Audio, 2 Stereo Mini Audio
Outputs	1 RGB (D-Sub 15P), 1 Stereo Mini Audio
PC Control	1 PC Control Port (D-Sub 9P)
Wired LAN Port	RJ-45
External Control	RS232, IR, Wired LAN
Color Reproduction 16.7	million colors simultaneously, Full color
Compatible Signals*5	Analog: VGA/SVGA/XGA/WXGA/WXGA+/SXGA/SXGA+/UXGA480i/480p/576i/576p/720p/1080iDigital: VGA/SVGA/XGA/WXGA/SXGA
Video Bandwidth	RGB: 80 MHz (Max.)
Horizontal Resolution	540 TV lines: NTSC/NTSC4.43/PAL/PAL-M/PAL-N/PAL60300 TV lines: SECAM
Scan Rate	Horizontal: 15 kHz to 100 kHz (RGB: 24 kHz or over)Vertical: 50 Hz to 120 Hz
Sync Compatibility	Separate Sync / Composite Sync / Sync on G
Built-in Speaker	7W (monaural)

*4 What is HDCP/HDCP technology?

HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP) is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI). If you are unable to view material via the DVI input, this does not necessarily mean the projector is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).

*5 An image with higher or lower resolution than the projector's native resolution (NP600/NP500/NP400/NP300: 1024 × 768 / NP500W: 1280 × 800) will be displayed with Advanced AccuBlend.

Power Requirement NP600/NP500/NP400/NP300: 100–240V AC, 50/60HzNP600G/NP500G/NP400G/NP300G: 200–240V AC, 50/60Hz	NP500W: 100–240V AC, 50/60HzNP500WG: 200–240V AC, 50/60Hz
Input Current NP600: 3.8–1.5ANP500/NP400/NP300: 3.5–1.4ANP600G: 1.8ANP500G/NP400G/NP300G: 1.6A	NP500W: 3.8–1.5ANP500WG: 1.8A
Power Consumption NP600: 325W in Lamp NORMAL ModeNP500/NP400/NP300: 295W in Lamp NORMAL ModeNP600/NP500/NP400/NP300: 240W in Lamp ECO Mode/11W in STANDBY Mode/3W in POWER-SAVING Mode	325W in Lamp NORMAL Mode/: 240W in Lamp ECO Mode/11W in STANDBY Mode/3W in POWER SAVING Mode

Mechanical

Installation Orientation:	Desktop/Front, Desktop/Rear, Ceiling/Front, Ceiling/Rear
Dimensions	12.1" (W) × 3.7" (H) × 10.3" (D) /308 mm (W) × 93.5 mm (H) × 262 mm (D)(not including protrusions)
Weight 6.57 lbs / 2.98 kg
Environmental Considerations	Operational Temperatures : 41° to 104°F (5° to 40°C),(ECO mode selected automatically at 95°F to 104°F/35°C to 40°C)20% to 80% humidity (non-condensing)Storage Temperatures : 14° to 122°F (-10° to 50°C),20% to 80% humidity (non-condensing)
Regulations UL/C-UL Approved	(UL 60950-1, CSA 60950-1)Meets DOC Canada Class B requirementsMeets FCC Class B requirementsMeets AS/NZS CISPR.22 Class BMeets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3)Meets Low Voltage Directive (EN60950-1, TÜV GS Approved)CE

Model Number NP600S/NP500WS

Optical	NP600S NP500WS
LCD Panel 0.63 inch LCD	with Micro Lens Array(Aspect Ratio 4:3)	0.59 inch LCD with Micro Lens Array(Aspect Ratio 16:10)
Resolution 1024 × 768 pixels*	1	1280 × 800 pixels*1
Lens Fixed zoom and manual focus
	Digital Zoom Ratio= 1.2F2.3 f= 9.7 mm
Lamp 230W AC (170W in ECO Mode)
Light Output*2*3	2600 lumens (approx. 70% in ECO Mode) 2100 lumens (approx. 70% in ECO Mode)
Contrast Ratio*3(full white: full black)	600:1
Image Size (Diagonal) 60"–110"/ 1.52 m–2.79 m 57"-104"/1.45 m–2.64 m
Projection Distance 35"-66"/ 0.9 m–1.7 m 36"-66"/ 0.9 m–1.7 m
Projection Angle 29.1°–29.4°

*1 Effective pixels are more than 99.99%.
*2 This is the light output value (lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PRESET] mode, the light output value may drop slightly.
*3 Compliance with ISO21118-2005

Electrical

Inputs	1 RGB/Component (D-Sub 15 P), 1 RGB (Digital/Analog, DVI-I 29 P, HDCP*4 supported),1 S-Video (DIN 4 P), 1 Video (RCA), 1 (L/R) RCA Audio, 2 Stereo Mini Audio
Outputs	1 RGB (D-Sub 15P), 1 Stereo Mini Audio
PC Control	1 PC Control Port (D-Sub 9P)
Wired LAN Port	RJ-45
External Control	RS232, IR, Wired LAN
Color Reproduction 16.7	million colors simultaneously, Full color
Compatible Signals*5	Analog: VGA/SVGA/XGA/WXGA/WXGA+/SXGA/SXGA+/UXGA480i/480p/576i/576p/720p/1080iDigital: VGA/SVGA/XGA/WXGA/SXGA
Video Bandwidth	RGB: 80 MHz (Max.)
Horizontal Resolution	540 TV lines: NTSC/NTSC4.43/PAL/PAL-M/PAL-N/PAL60300 TV lines: SECAM
Scan Rate	Horizontal: 15 kHz to 100 kHz (RGB: 24 kHz or over)Vertical: 50 Hz to 120 Hz
Sync Compatibility	Separate Sync / Composite Sync / Sync on G
Built-in Speaker	7W (monaural)
Power Requirement	NP600S: 100–240V AC, 50/60HzNP600SG: 200–240V AC, 50/60Hz	NP500WS: 100–240V AC, 50/60HzNP500WSG: 200–240V AC, 50/60Hz
Input Current	NP600S: 3.8–1.5ANP600SG: 1.8A	NP500WS: 3.8–1.5ANP500WSG: 1.8A
Power Consumption	325W in Lamp NORMAL Mode/240W in Lamp ECO Mode/11W in STANDBY Mode/3W in POWER-SAVING Mode

*4 What is HDCP/HDCP technology?
HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP) is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI). If you are unable to view material via the DVI input, this does not necessarily mean the projector is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).
*5 An image with higher or lower resolution than the projector's native resolution (NP600S: 1024 × 768 / NP500WS: 1280 × 800) will be displayed with Advanced AccuBlend.

Mechanical

Installation Orientation D	Desktop/Front, Desktop/Rear, Ceiling/Front, Ceiling/Rear
Dimensions	12.1"(W) × 5.4"(H) × 11.9"(D)/308 mm(W) × 136 mm(H) × 301 mm(D)(not including protrusions)
Weight 7.28 lbs/3.3kg
Environmental Considerations	Operational Temperatures: 41° to 104°F (5° to 40°C),(ECO mode selected automatically at 95°F to 104°F/35°C to 40°C)20% to 80% humidity (non-condensing)Storage Temperatures: 14° to 122°F (-10° to 50°C),20% to 80% humidity (non-condensing)
Regulations UL/C-UL Approved	(UL 60950-1, CSA 60950-1)Meets DOC Canada Class B requirementsMeets FCC Class B requirementsMeets AS/NZS CISPR.22 Class BMeets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3)Meets Low Voltage Directive (EN60950-1, TÜV GS Approved)CE

For additional information visit:

US : http://www.necdisplay.com/

Europe : http://www.nec-display-solutions.com/

Global : http://www.nec-display.com/global/index.html

For information on our optional accessories, visit our website or see our brochure.

The specifications are subject to change without notice.

③ Cabinet Dimensions

NP600/NP500/NP400/NP300/NP500W

308 (12.1") 78 (3.1") 76 (3.0") 108.5 (4.3") 55.3 (2.2") Lens center Lens center 263 (10.4)

Unit: mm (inch)

NP600S/NP500WS

301.5 (11.9") Lens center 308 (12.1") 78 (3.1") 76 (3") Lens center 143.2 (5.6") 75.5 (3")

Unit: mm (inch)

④ Pin Assignments of D-Sub COMPUTER Input Connector Mini D-Sub 15 Pin Connector

11 2 3 4 5 6 9 7 8 10 5 4 2 3

Signal Level

Video signal : 0.7Vp-p (Analog)

Sync signal : TTL level

Pin No.	RGB Signal (Analog) YCbCr	Signal
1 Red	Cr
2 Green or Sync on Green Y
3 Blue	Cb
4 Ground
5 Ground
6 Red Ground	Cr Ground
7 Green Ground	Y Ground
8 Blue Ground	Cb Ground
9 No Connection
10	Sync Signal Ground
11	No Connection
12	Bi-directional DATA (SDA)
13	Horizontal Sync or Composite Sync
14	Vertical Sync
15	Data Clock

⑤ Compatible Input Signal List

Horizontal: 15KHz to 100KHz (RGB: 24KHz or over)

Vertical: 50Hz to 120Hz

Signal		Resolution(Dots)		Frequency H.(kHz)	Refresh Rate(Hz)
VIDEO NT	SC - * 15.7 59.9
	PAL - * 15.6 50.0
	PAL60 - * 15.7 60.0
	SECAM - * 15.6 50.0
IBM 640		×	480 31.5	59.9
		640 ×	480 31.5	60.0
		640 ×	480 37.9	72.8
		640 ×	480 37.5	75.0
		640 ×	480 39.4	75.0
		640 ×	480 43.3	85.0
		800 ×	600 35.2	56.3
		800 ×	600 37.9	60.3
		800 ×	600 48.1	72.2
		800 ×	600 46.9	75.0
		800 ×	600 53.7	85.1
		1024 ×	768 48.4	60.0
		1024 ×	768 56.5	70.1
		1024 ×	768 60.0	75.0
		1024 ×	768 68.7	85.0
		1152 ×	864 54.4	60.1
		1152 ×	864 64.0	70.0
		1152 ×	864 67.5	75.0
		1152 ×	864 * 77	5 85.1
		1280 ×	768 47.8	59.9
		1280 ×	800 49.7	59.8
		1280 ×	960 60.0	60.0
		1280 ×	960 * 75	0 75.0
		1280 ×	960 * 85	9 85.0
		1280 ×	1024 64.0	60.0
		1280 ×	1024 * 80	0 75.0
		1280 ×	1024 * 91	2 85.0
		1400 ×	1050 64.7	60.0
		1400 ×	1050 * 65	3 60.0
		1440 ×	900 * 55	9 59.9
		1600 ×	1200 * 75	0 60.0
		1600 ×	1200 * 81	3 65.0
		1600 ×	1200 * 87	5 70.0
		1600 ×	1200 * 93	8 75.0
Apple Macintosh® 640		×	480 35.0	66.7
		832 ×	624 49.7	74.6
		1024 ×	768 60.2	74.9
		1152 ×	870 68.7	75.1
		1280 ×	1024 64.3	60.4
		1280 ×	1024 * 69	9 65.2
		1280 ×	1024 * 78	4 73.7
HDTV (1080i/60)		1920 ×	1080 33.8	60.0
		(1080i/50)	1920 ×	1080 28.1	50.0
			1280 ×	720 45.0	60.0
SDTV	480p	720 ×	480 31.5	59.9
DVD	YCbCr	720 ×	480 15.7	59.9
		720 ×	576 15.6	50.0
	Progressive	720 ×	480 * 31	5 59.9
		720 ×	576 31.3	50.0

NOTE:

- Images above flagged with “*” are not supported by digital signal.

- An image with higher or lower resolution than the projector's native resolution (NP600/NP500/NP400/NP300/NP600S: 1024 x 768 / NP500W/NP500WS: 1280 x 800) will be displayed with Advanced AccuBlend.

- Some composite sync signals may not be displayed correctly.

Signals other than those specified in the table above may not be displayed correctly. If this should happen, change the refresh rate or resolution on your PC. Refer to Display Properties help section of your PC for procedures.

⑥ PC Control Codes and Cable Connection

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER 1 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT COMPUTER 2 (Digital) 02H 03H 00H 00H 02H 01H 1AH 22H

INPUT SELECT COMPUTER 2 (Analog) 02H 03H 00H 00H 02H 01H 02H 0AH

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

NOTE: Contact your local dealer for a full list of the PC Control Codes if needed.

Cable Connection

Communication Protocol

Baud rate 19200 bps

Data length 8 bits

Parity ......No parity

Stop bit .....One bit

X on/off None

Communications procedure ......Full duplex

NOTE: Depending on the equipment, a lower baud rate may be recommended for long cable runs.

PC Control Connector (D-SUB 9P)

To TxD of PC To RxD of PC To GND of PC 1 2 3 4 5 6 7 8 9 To RTS of PC To CTS of PC

NOTE 1: Pins 1, 4, 6 and 9 are no used.
NOTE 2: Jumper "Request to Send" and "Clear to Send" together on both ends of the cable to simplify cable connection.
NOTE 3: For long cable runs it is recommended to set communication speed within projector menus to 9600 bps.

⑦ Troubleshooting Check List

Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by referring to the “Troubleshooting” section in your user’s manual. This checklist below will help us solve your problem more efficiently.

* Print this page and the next page for your check.

Frequency of occurrence □ always □ sometimes (How often?____) □ other (____)

Power

No power (POWER indicator does not light green) See also "Status Indicator (STATUS)". Power cable's plug is fully inserted into the wall outlet. Main power switch is pressed to the ON position. Lamp cover is installed correctly . Lamp Hours Used (lamp operation hours) was cleared after lamp replacement. No power even though you press and hold the POWER button for 1 second.

□ Shut down during operation.

Power cable's plug is fully inserted into the wall outlet. Lamp cover is installed correctly . [AUTO POWER OFF] is turned off (only models with the [AUTO POWER OFF] function). [OFF TIMER] is turned off (only models with the [OFF TIMER] function).

Video and Audio

No image is displayed from your PC or video equipment to the projector. Still no image even though you connect the projector to the PC first, then start the PC. Enabling your notebook PC's signal output to the projector. • A combination of function keys will enable/disable the external display. Usually, the combination of the "Fn" key along with one of the 12 function keys turns the external display on or off. No image (blue or black background, no display). Still no image even though you press the AUTO ADJUST button. Still no image even though you carry out [RESET] in the projector's menu. Signal cable's plug is fully inserted into the input connector A message appears on the screen. ( _________ ) The source connected to the projector is active and available. Still no image even though you adjust the brightness and/or the contrast. Input source's resolution and frequency are supported by the projector.

Parts of the image are lost. Still unchanged even though you press the AUTO ADJUST button. Still unchanged even though you carry out [RESET] in the projector's menu. Image is shifted in the vertical or horizontal direction. Horizontal and vertical positions are correctly adjusted on a computer signal. Input source's resolution and frequency are supported by the projector. Some pixels are lost.

Image is flickering. Still unchanged even though you press the AUTO ADJUST button. Still unchanged even though you carry out [RESET] in the projector's menu. Image shows flickering or color drift on a computer signal. Still unchanged even though you change [FAN MODE] from [HIGH ALTITUDE] to [AUTO].

Image is too dark. Remains unchanged even though you adjust the brightness and/or the contrast. Image is distorted. Image appears to be trapezoidal (unchanged even though you carry out the [KEYSTONE] adjustment).

Image appears blurry or out of focus. Still unchanged even though you checked the signal's resolution on PC and changed it to projector's native resolution. Still unchanged even though you adjusted the focus. No sound. Audio cable is correctly connected to the audio input of the projector. Still unchanged even though you adjusted the volume level. AUDIO OUT is connected to your audio equipment (only models with the AUDIO OUT connector).

Other

Remote control does not work. No obstacles between the sensor of the projector and the remote control. Projector is placed near a fluorescent light that can disturb the infrared remote controls. Batteries are new and are not reversed in installation.

Buttons on the projector cabinet do not work (only models with the [CONTROL PANEL LOCK] function) [CONTROL PANEL LOCK] is not turned on or is disabled in the menu. Still unchanged even though you press and hold the EXIT button for a minimum of 10 seconds.

In the space below please describe your problem in detail.

Information on application and environment where your projector is used

Projector

Model number:

Serial No.:

Date of purchase:

Lamp operating time (hours):

Lamp Mode:

□ Normal

□ Eco

Information on input signal:

Horizontal synch frequency [ ] kHz

Vertical synch frequency [ ] Hz

Synch polarity H

□ (+) □ (-)

V □ (+) □ (-)

Synch type

□ Separate

□ Composite

□ Sync on Green

STATUS Indicator:

Steady light

□ Orange

□ Green

Flashing light [ ] cycles

Remote control model number:

Signal cable

NEC standard or other manufacturer's cable?

Model number:

Length:

inch/m

Distribution amplifier

Model number:

Switcher

Model number:

Adapter

Model number:

Installation environment

Screen size: inch

Screen type: □ White matte □ Beads □ Polarization

□ Wide angle □ High contrast

Throw distance: feet/inch/m

Orientation: □ Ceiling mount □ Desktop

Power outlet connection:

☐ Connected directly to wall outlet

☐ Connected to power cord extender or other (the number of connected equipment____)

☐ Connected to a power cord reel or other (the number of connected equipment____)

Computer

Manufacturer:

Model number:

Notebook PC □ / Desktop □

Native resolution:

Refresh rate:

Video adapter:

Other:

Video equipment

VCR, DVD player, Video camera, Video game or other

Manufacturer:

Model number:

⑧ TravelCare Guide

TravelCare - a service for international travelers

This product is eligible for "TravelCare", NEC's unique international warranty.

Please note that TravelCare coverage differs in part from coverage under the warranty included with the product.

Services offered with TravelCare

This warranty allows customers to receive service on their product at the NEC and NEC-designated service stations in the countries listed herein when temporarily traveling internationally for business or pleasure.

For details on services offered by the different service stations, please refer to the "List of TravelCare Outlets" below.

1 Repair services

The product will be repaired and delivered within 10 business days, not including shipping time.

During the term of warranty, the cost of maintenance parts, labor costs for repairs and shipping costs within the service station's coverage area are covered by the warranty.

2 Replacement product rental service

If the customer desires, he or she can rent a replacement product while the original product is being repaired.

Fee: US\$200 for 12 days

This fee must be paid at the local service station in cash or credit card.

The US\$200 rental fee is non-refundable even if the customer rents it less than 12 days before returning.

The replacement product will be delivered within 3 business days.

If the customer did not return the replacement product within 12 days, the customer will be charged the price of the unit.

If the customer returned the replacement product in a faulty or damaged condition, the repair cost will be charged to the customer.

Note that this service is not offered in all countries and regions. Please refer to the "List of TravelCare Outlets".

In addition, this replacement product rental service is not offered after the product's warranty has expired.

Term of warranty

1

a. Upon presentation of the warranty or receipt received upon purchase:

Valid for the term indicated on the warranty or the normal term of warranty for the country of purchase.

b. When only the product is brought in:

Valid for a period of within 14 months of the date of manufacture indicated by the serial number attached to the product.

2 When a product whose term of warranty is expired is brought in:

Repairs will be offered for a fee. In this case the customer is not eligible for the replacement product rental service.

3 In the following cases, repairs may be charged, even if the product's warranty is still in effect:

1) If the term of warranty, model name, serial number and name of the store of purchase are not indicated on the warranty or have been altered.

2) Problems or damage caused by dropping or shocks during shipment or movement by the customer or by improper handling by the customers.

3) Problems or damage caused by improper usage or unwarrantable alterations or repairs by the customer.

4) Problems or damage caused by fire, salt damage, gas damage, earthquakes, lightning damage, storm or flood damage or other natural disasters or such external factors as dust, cigarette smoke, abnormal voltage, etc.

5) Problems or damage caused by use in hot or humid places, in vehicles, boats or ships, etc.

6) Problems or damage caused by expendable supplies or devices connected to the product other than those designated by NEC.

7) Problems caused by natural consumption, wear or deterioration of parts under normal usage conditions.

8) Problems or damage to lamps and other expendable supplies, included parts or optional parts.

9) Other conditions stipulated in the warranty included with the product also apply.

NOTE: The product can be used overseas with voltages indicated in the rating label on the product by using a power cable suited for the standards and power source voltage of the country in which the product is being used.

List of TravelCare Outlets

This list applies as of July 1, 2008.

For the most up-to-date information, please refer to the websites of the service stations in the various countries on the List of TravelCare Outlets or to the NEC website at http://www.nec-display.com/global/index.html

In Europe

NEC Europe Ltd. / European Technical Centre

Address: Unit G, Stafford Park 12, Telford TF3 3BJ, U.K.

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

WEB Address: http://www.neceur.com

(Regions Covered)

EU: Austria*, Belgium*, Bulgaria*, Czech Republic*, Cyprus*, Denmark*, Estonia*, Finland*, France*, Germany*, Greece*, Hungary*, Ireland*, Italy*, Latvia*, Lithuania*, Luxembourg*, Malta*, The Netherlands*, Poland*, Portugal*, Romania*, Slovakia*, Slovenia*, Spain*, Sweden* and the United Kingdom*

EEA: Norway*, Iceland and Liechtenstein

In North America

NEC Display Solutions of America, Inc.

Address: 500 Park Boulevard, Suite 1100 Itasca, Illinois

60143, U.S.A.

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

WEB Address: http://www.necdisplay.com/

(Regions Covered)

U.S.A. *, Canada*

In Oceania

NEC Australia Pty., Ltd.

Address:

New South Wales;

Sydney

184 Milperra Road, Reversby NSW 2212

Telephone 131 632

Newcastle

120 Parry Street Newcastle West NSW 2302

Telephone 131 632

Victoria;

Melbourne

Unit 1/6 Garden Road, Clayton VIC 3168

Telephone 131 632

Queensland;

Brisbane

Unit 4/305 Montague Road West End QLD 4101

Telephone 131 632

Southport

Shop1 48 Ferry Road Southport QLD 4215

Telephone 131 632

South Australia;

Adelaide

84A Richmond Road, Keswick SA 5035

Telephone 131 632

Western Australia;

Perth

45 Sarich Court Osborne Park WA 6017

Telephone 131 632

WEB Address: http://www.nec.com.au

(Regions Covered)

Australia*, New Zealand

In Asia and Middle East

NEC Display Solutions, Ltd

Address: 686-1, Nishioi, Oi-Machi, Ashigarakami-Gun, Kanagawa 258-0017, Japan

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

WEB Address: http://www.nec-pj.com

(Regions Covered)

Japan*

NEC Solutions (China) Co., Ltd.

Address: Rm 1903, Shining Building, 35 Xueyuan Rd, Haidian District Beijing 100083, P.R.C.

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

[e-mail]

WEB Address: http://www.necsl.com.cn

(Regions Covered)

China

NEC Hong Kong Ltd.

Address: 25/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

[e-mail]

WEB Address: http://www.nec.com.hk

(Regions Covered)

Hong Kong

NEC Taiwan Ltd.

Address: 7F, No.167, SEC.2, Nan King East Road, Taipei, Taiwan, R.O.C.

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

WEB Address: http://www.nec.com.tw

(Regions Covered)

Taiwan

NEC Asia Pte.Ltd.

Address: 401 Commonwealth Drive, #07-02, Haw Par Technocentre, Singapore 149598

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

WEB Address: http://www.nec.com.sg/home.php

(Regions Covered)

Singapore

NEC Corporation of Malaysia Sdn. Bhd.

Address: 33rd Floor, Menara TA One, 22, Jalan P. Ramlee, 50250 Kuala Lumpur, Malaysia

Telephone: [phone] (ISDN)

Fax Line: [phone]

Email Address: [e-mail]

WEB Address: http://www.necarecenter.com

(Regions Covered)

Malaysia

Hyosung ITX Co., Ltd

Address: 1st Fl., Ire B/D. #2, 4Ga, Yangpyeng-Dong, Youngdeungpo-Gu, Seoul, Korea 150-967

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

(Regions Covered)

South Korea

Lenso Communication Co., Ltd.

Address: 292 Lenso House 4, 1st Floor, Srinakarin Road, Huamark, Bangkapi, Bangkok 10240, Thailand

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

WEB Address: http://www.lensocom.com/

(Regions Covered)

Thailand

ABBA Electronics L.L.C.

Address: Tariq Bin Ziyad Road, P.O.Box 327, Dubai, United Arab Emirates

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

(Regions Covered)

United Arab Emirates

Samir Photographic Supplies

Address: P.O.Box 599, Jeddah 21421, Saudi Arabia

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

Riyadh

Address: P.O.Box 5519, Riyadh 11432, Saudi Arabia

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

Alkhobar

Address: P.O.Box 238, Alkhobar 31952, Saudi Arabia

Telephone: [phone]

Fax Line: [phone]

Email Address: [e-mail]

(Regions Covered)

Saudi Arabia

NOTE: In countries designated with an asterisk(*), replacement product rental service are offered.

Date: / / ,

P-1/，

TO: NEC or NEC's Authorized Service Station:

FM:

(Company & Name with signature)

Dear Sir (s),

I would like to apply your TravelCare Service Program based on attached registration and qualification sheet and agree with your following conditions, and also the Service fee will be charged to my credit card account, if I don't return the Loan units within the specified period. I also confirm following information is correct. Regards.

Application Sheet for TravelCare Service Program

Country, product purchased :
User's Company Name :
User's Company Address : Phone No., Fax No. :
User's Name :
User's Address :
Phone No., Fax No. :
Local Contact office :
Local Contact office Address :
Phone No., Fax No. :
User's Model Name :
Date of Purchase :
Serial No. on cabinet :
Problem of units per User :
Required Service : (1) Repair and Return (2) Loan unit
Requested period of Loan unit :
Payment method : (1) Credit Card (2) Travelers Cheque (3) Cash
In Case of Credit Card : Card No. w/Valid Date :

Condition of your TravelCare Service Program

Enduser is requested to understand following condition of TravelCare Service Program and complete the necessary information on the application sheet.

1. Service Options:

There are 3 types of [Service] available. Enduser has to understand following condition and is required to fill in the Application Sheet.

1) Repair and Return:

The 'Faulty unit' is sent or collected from the customer. It is repaired and returned within 10 days to the customer, excluding transport time.

There may have a case, repair and return can't be done by NEC Authorized Service Station, because of shortage of spare parts due to same model is not sold in the territory.

2) Repair and Return with Loan: (This service is limited to some Service Stations)

This service is offered to the Enduser, who cannot wait until their unit is repaired.

The customer can borrow a unit for US\$200 up to 12 days. Customer then sends in inoperable unit to nearest NEC Authorized Service Station for service. In order to prevent collection problem, Enduser is required to fill in Application Sheet.

Enduser needs to confirm the availability of the Service to NEC Authorized Service Stations.

3) Loan Only:

For this service, NEC Authorized Service Station supplies the customer with a loan unit for US\$200 up to 12 days. Customer keeps the inoperable unit and when customer returns home, customer arranges to have the projector serviced in the home country.

2. Warranty Exclusions:

This program does not apply if the Projector's serial number has been defaced, modified or removed.

If, in the judgement of NEC Authorized Service Station or its agent the defects or failures result from any cause other than fair wear and tear or NEC neglect, or fault including the following without limitation:

1) Accidents, transportation, neglect, misuse, abuse, water, dust, smoke or default of or by the Customer its employees or agents or any third party;
2) Failure or fluctuation of electrical power, electrical circuitry, air conditioning, humidity control or other environmental conditions such as use it in smoking area;
3) Any fault in the attachments or associated products or components (whether or not supplied by NEC or its agents which do not form part of the Product covered by this warranty);
4) Any act of God, fire, flood, war, act of violence or any similar occurrence;
5) Any attempt by any person other than any person authorized by NEC to adjust, modify, repair, install or service the product.
6) Any Cross-border charges such as, duty, insurance, tax etc.

3. Charges for Warranty Exclusions and Out of Warranty Case:

In case faulty unit is under warranty exclusions case or under Out of Warranty period, NEC Authorized Service Station will Inform estimation of actual service cost to the Enduser with reason.

4. Dead on Arrival (DOA):

Enduser must take this issue up with their original supplier in the country of purchase.

NEC Authorized Service Station will repair the DOA unit as a Warranty repair, but will not exchange DOA unit with new units.

5. Loan Service Charges and Conditions:

Upon acceptance of this NEC Projector, Customer agrees to assume liability for this loan unit.

The current cost of use of this loan unit is US\$200 for 12 calendar days.

If Customer does not return the unit within the 12 calendar days, Customer will be charged the next highest cost up to and including the full list price to Credit Cards, which price will be informed by NEC Authorized Service Stations. Please see the attached listing of contacts for each country to arrange for pickup of the loan unit.

If you return to their country of origin with the loan unit, you will be charged additional freight to return the unit to the loaning country.

Thank you for your understanding of this program.

NEC
