USER MANUAL GT780DXR MSI

Table of Content 1-2

Regulations Information.... 1-5

FCC-B Radio Frequency Interference Statement 1-5

FCC Conditions 1-6

CE Conformity 1-6

Safety Instructions.... 1-7

Safety Guideline for Using Lithium Battery 1-11

WEEE Statement 1-15

Optical Device Drive Notice 1-22

Trademarks 1-22

Reversion History 1-22

Introductions

Manual Map 2-2

Unpacking....2-3

Specification....2-4

Product Overview 2-9

Top-Open View 2-9

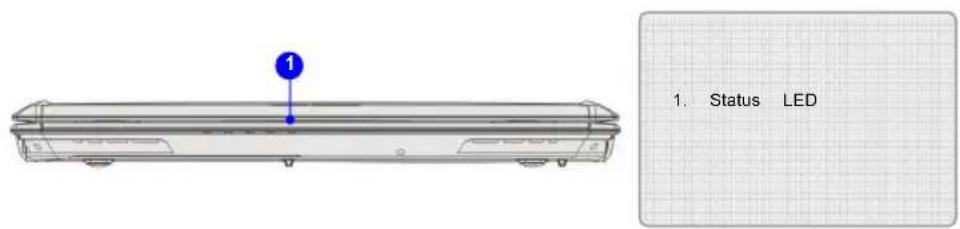

Front Side View 2-15

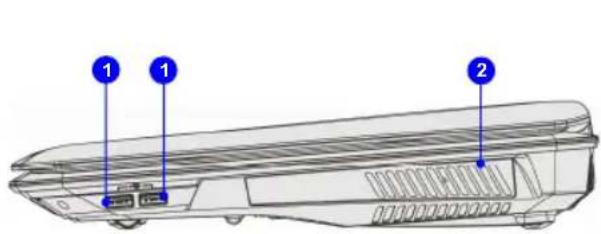

Right Side View 2-17

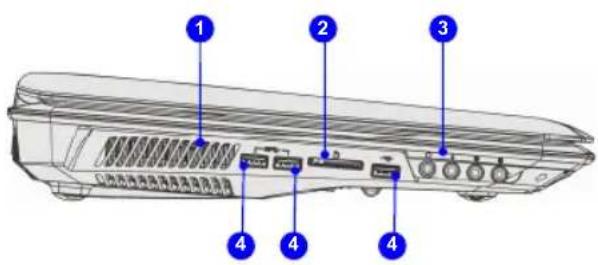

Left Side View....2-18

Rear Side View 2-21

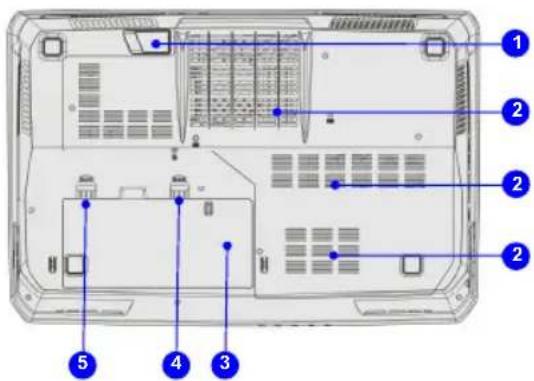

Bottom Side View 2-23

Getting Started

Power Management 3-2

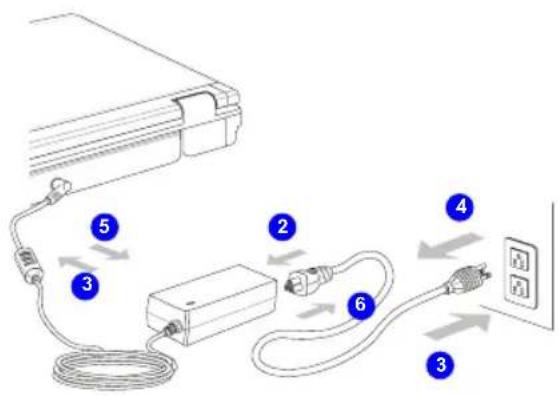

Connecting the AC Power 3-2

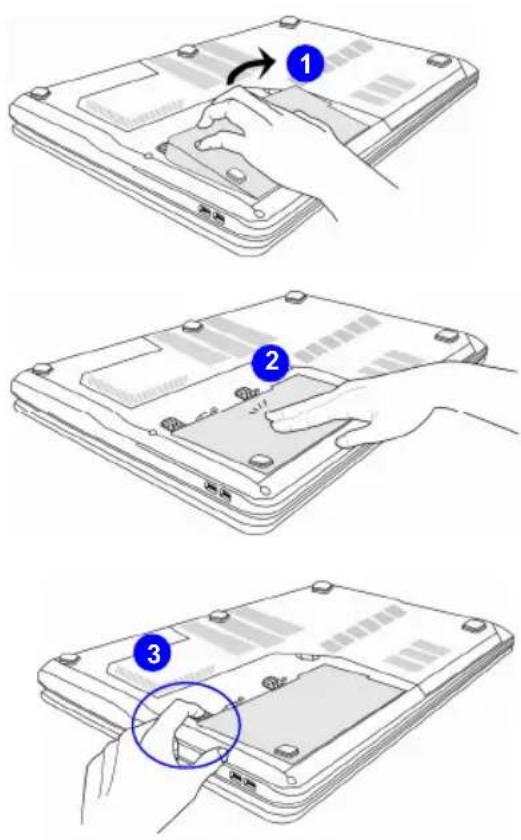

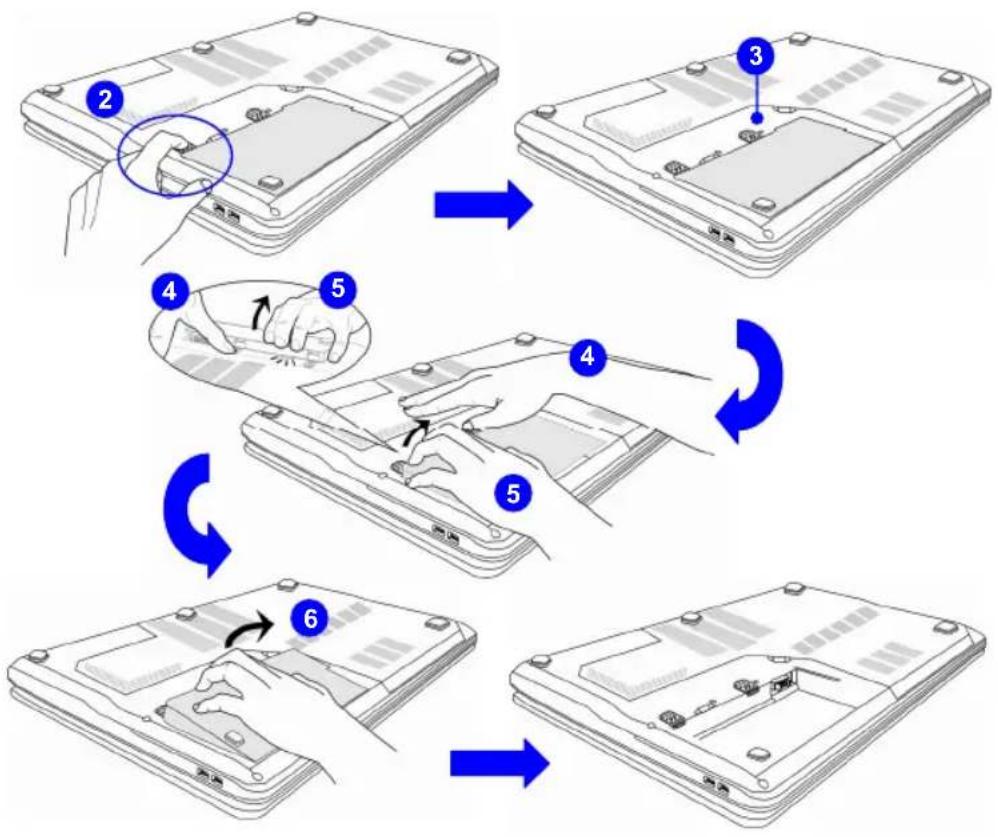

Using the Battery Power 3-4

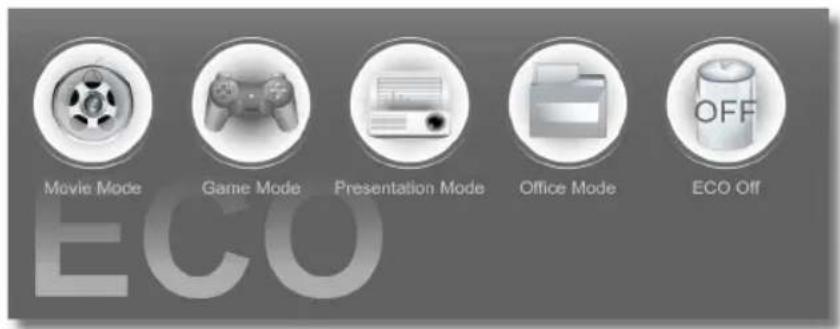

ECO Engine -- Power Saving Function.... 3-10

TurboBattery+ Function 3-13

Power Management in Windows OS 3-16

Energy Saving Tips.... 3-18

Basic Operations 3-19

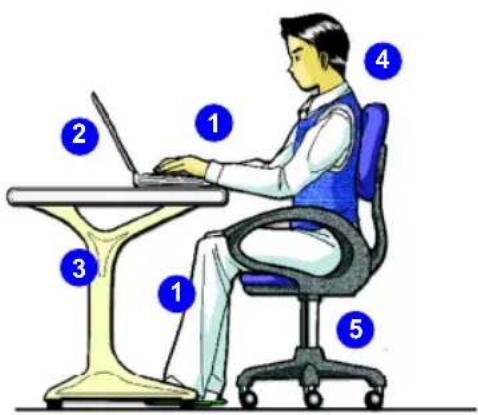

Safety and Comfort Tips 3-19

Having a Good Work Habit....3-19

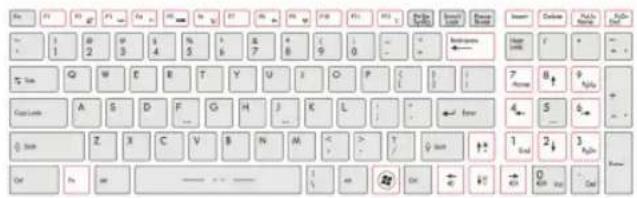

Knowing the Keyboard 3-21

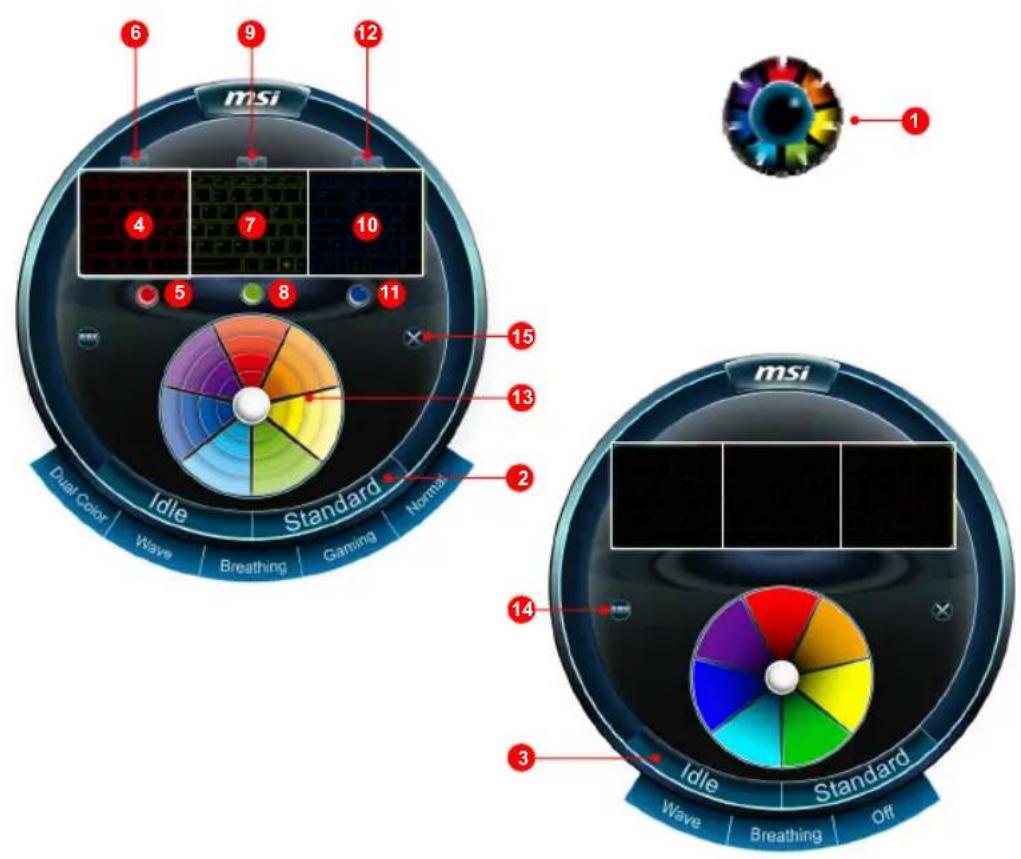

Using Keyboard LED Manager (KLM) 3-28

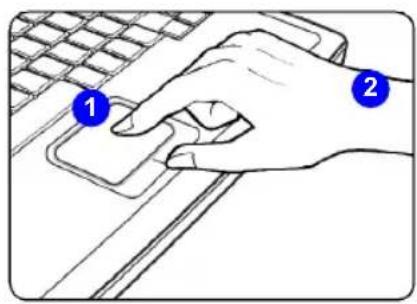

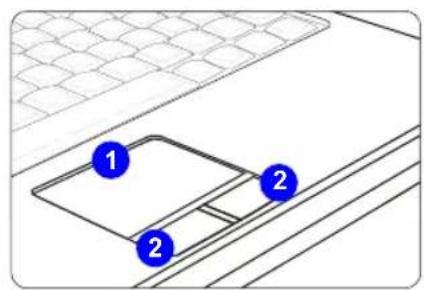

Knowing the Touchpad 3-33

Knowing the Smart Pad....3-36

About Hard Disk Drive 3-39

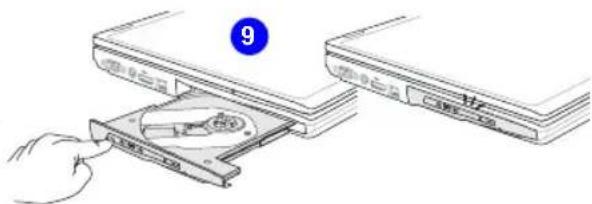

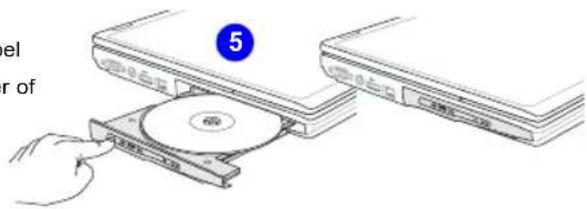

Using the Optical Storage Device.... 3-40

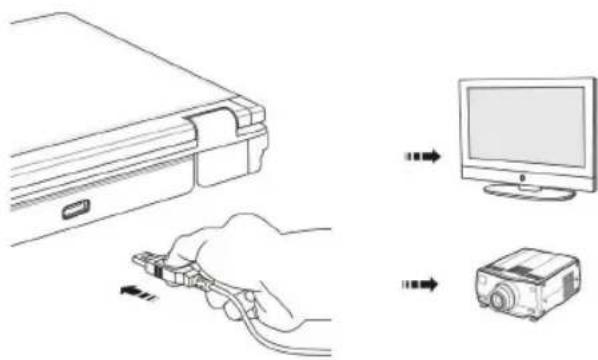

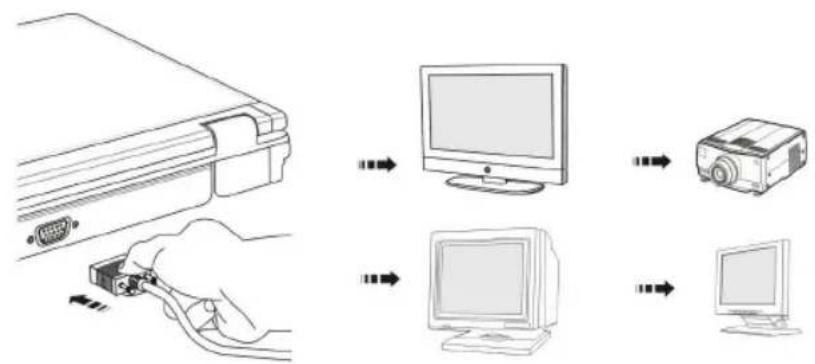

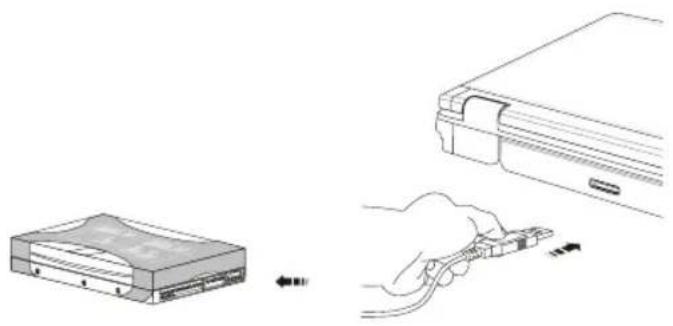

Connecting the External Devices.... 3-43

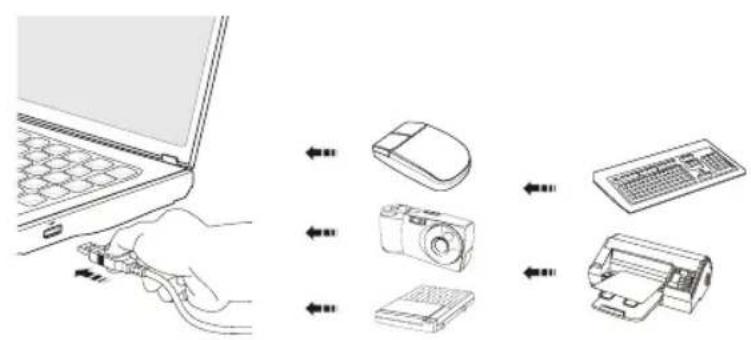

Connecting the Peripheral Devices.... 3-43

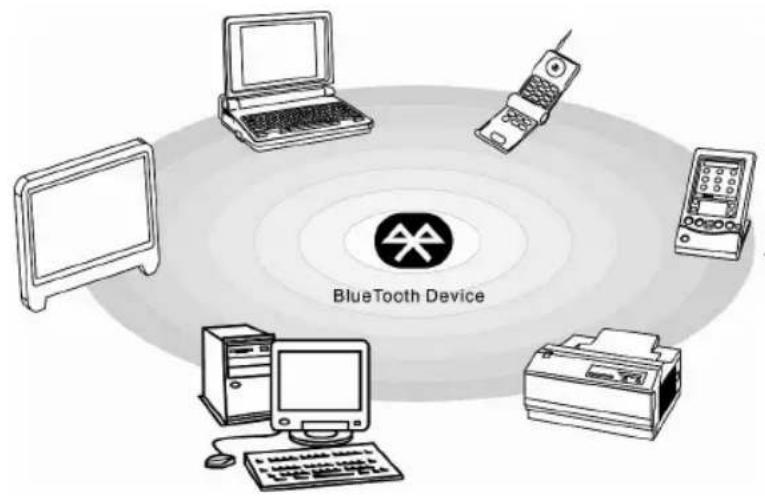

Connecting the Communication Devices 3-47

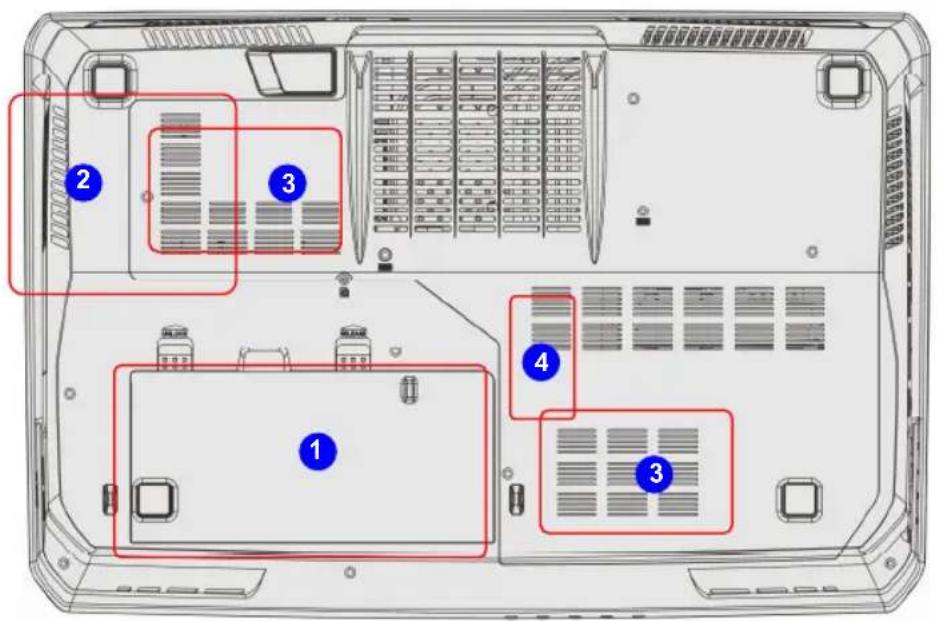

Components Replacement and Upgrade 3-50

BIOS Setup

About BIOS Setup.... 4-2

When to Use BIOS Setup 4-2

How to Run BIOS Setup.... 4-2

Control Keys 4-3

BIOS Setup Menu 4-4

Main menu 4-5

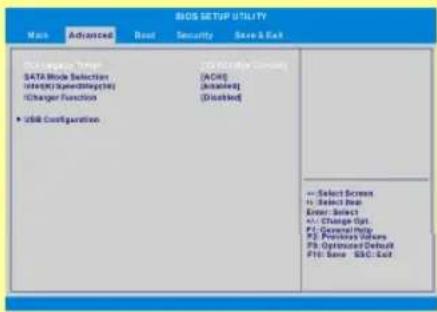

Advanced menu....4-7

Boot menu 4-9

Security menu 4-10

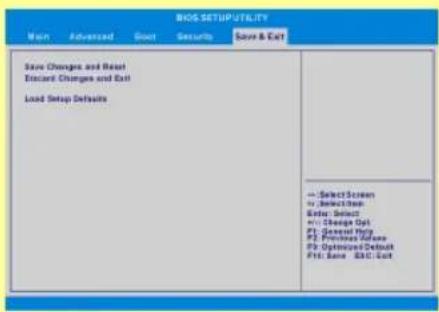

Save & Exit menu 4-12

Regulations Information

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and radiates radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio TV technician for help.

NOTE

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

- Shield interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

■ This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.

CE Conformity

This device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

Safety Instructions

Read the safety instructions carefully and thoroughly.

All cautions and warnings on the equipment or user's manual should be noted.

Keep the User's Guide that comes with the package for future reference.

Keep this equipment away from humidity and high temperature.

Lay this equipment on a stable surface before setting it up.

The openings on the enclosure are used for air convection and to prevent the equipment from overheating. Do not cover the openings.

Do not leave the equipment in an unconditioned environment with a storage temperature above 60^ C ( 140^ F) or below 0^ C ( 32^ F), which may damage the equipment.

Make sure the power voltage is within safety range and has been adjusted properly to the value of 100\~240V before connecting the equipment to the power outlet.
- Always unplug the AC power cord before installing any add-on card or module to the equipment.
- Always disconnect the AC power cord or uninstall the battery pack or switch off the wall socket if the equipment would be left unused for a certain time to achieve zero energy consumption.

Never pour liquid into the opening that could damage the equipment or cause an electrical shock.

Place the power cord in a way that people are unlikely to step on it. Do not place anything on top of the power cord.

Always keep the strong magnetic or electrical objects away from the equipment.

When installing the coaxial cable to the TV Tuner, it is necessary to ensure that the metal shield is reliable connected to protective earthing system of the building.

Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.

To prevent explosion caused by improper battery replacement, use the same or equivalent type of battery recommended by the manufacturer only.
◆ Always keep the battery in a safe place.

If any of the following situations arises, get the equipment checked by a service personnel:

• The power cord or plug is damaged.
• Liquid has penetrated into the equipment.
• The equipment has been exposed to moisture.
• The equipment has not worked well or you can not get it work according to User's Manual.
• The equipment was dropped and damaged.
• The equipment has obvious signs of breakage.

Green Product Features

• Reduced energy consumption during use and stand-by
• Limited use of substances harmful to the environment and health
• Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
• Extended product lifetime through easy upgrades
• Reduced solid waste production through take-back policy

Environmental Policy

• The product has been designed to enable proper reuse of parts and recycling and should not be thrown away
• Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.

廢電池請回收

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

Safety Guideline for Using Lithium Battery

(English) CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions.

(English) Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life.

CAUTION: This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT.” To use this model properly, read the instruction manual carefully and keep this manual for your future reference. In case of any trouble with this model, please contact your nearest “AUTHORIZED service station.” To prevent direct exposure to the laser beam, do not try to disassemble the enclosure.

Trademarks

• All trademarks are the properties of their respective owners.
• SRS Premium Sound, SRS and the symbol are trademarks of SRS Labs ,Inc.
• THX and THX TruStudio Pro are trademarks of THX Ltd. which may be registered in some jurisdictions. All rights reserved.

Revision History

Version	Revision	History	Date
1.0	First	Released	03,	2011
1.1		06,	2011

CHAPTER 2

Introductions

Congratulations on becoming an user of this notebook, the finely designed notebook. This brand-new exquisite notebook will give you a delightful and professional experience in using notebook. We are proud to tell our users that this notebook is thoroughly tested and certified by our reputation for unsurpassed dependability and customer satisfaction

Manual Map

This User's Manual provides instructions and illustrations on how to operate this notebook. It is recommended to read this manual carefully before using this notebook.

Chapter 1, Preface, gives users the basic safety information and caution that is interrelated to using this notebook. It is recommended to read these information or caution when using this notebook for the first time.

Chapter 2, Introductions, includes the descriptions of all the accessories of this notebook. It is recommended to check out that if you have all the accessories included when you open the packing box. If any of these accessories is damaged or missing, please contact the vendor where you purchased this notebook. Also, this chapter provides the specification of this notebook, and introduces the function buttons, quick launch buttons, connectors, LEDs and externals of this notebook.

Chapter 3, Getting Started, gives the basic operation instructions on using keyboard, touchpad, hard disk drive, and optical storage drive. Beside, the steps of installing and uninstalling the battery; and the procedures of connecting the various external devices, communication devices, and so on, are also provided to help users getting familiar with this notebook.

Chapter 4, BIOS Setup, provides information on BIOS Setup program and allows you to configure the system for optimum use.

Unpacking

First, unpack the shipping carton and check all items carefully. If any item contained is damaged or missing, please contact your local dealer immediately. Also, keep the box and packing materials in case you need to ship the unit in the future. The package should contain the following items:

Notebook

Quick Start Manual

High-capacity Li-ion battery

AC/DC adapter and AC power cord

Carry bag (optional)

All-in-one application disk, containing the full version of user's manual, drivers, utilities, and optional recovery function, etc..

Specification

Physical Characteristic

Dimension 428 (W) x 288 (D) x 55 (H) mm Weight 3.9\~4.2 kg (with 9-cell battery)

CPU

Socket Socket rPGA989

Supported Processor Intel

Process

^® Huron River Sandy Bridge (Quad-core/ Dual-core)

32nm

L3 Cache up to 8MB (based on CPU)

Special Notification

The actual processor preinstalled in the notebook depends on the model you purchased. Please contact the local dealer for detailed information.

Core Chips

North Bridge Intel

South Bridge Intel

Special Notification

^® Huron River Sandy Bridge

® Cougar Point HM67

The actual core chip(s) preinstalled in the notebook depends on the model you purchased. Please contact the local dealer for detailed information.

Memory

Technology DDR3 1600 MHz (for Quad-core only)

DDR3 1066/ 1333 MHz (for Quad-core/ Dual-core)

Memory DDR3 SO-DIMM X 4 slots

4096 / 2048 / 1024MB

Maximum 16 GB (4 GB DDR3 SO-DIMM x 4)

Power

AC/DC Adapter 120W, 19V

Input: 100\~240V, Output: 6.3A 19V

(for GeForce GT555M)

AC/DC Adapter 150W, 19.5V

Input: 100\~240V, Output: 7.7A 19.5V

(for GeForce GTX560M/ GTX570M)

Battery Type 9-cell

RTC Battery Yes

Special Notification

The actual battery pack that comes with the package may vary without notice. Please contact the local dealer for detailed information.

Storage (Items listed here may vary without notice)

HDD form factor 2.5" HDD

Optical Drive Device Super Multi / Blu-ray (optional)

Special Notification

The actual HDD and ODD preinstalled in the notebook depends on the model you purchased, and may vary without notice.

I/O Port

Monitor (VGA) 15 pin D-Sub x 1

USB x 2 (version 3.0)

x 3 (version 2.0)

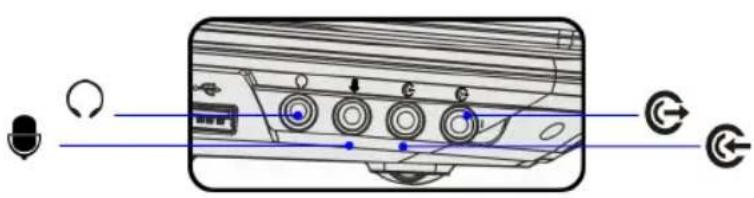

Mic-in x 1

Line-in x 1

Headphone-out x 1 (SPDIF-Out supported)

E-SATA x 1

Side-Out x 1

RJ45 x 1

HDMI x 1

Card Reader x 1 (SDXC/MMC/MS/XD)

The supported memory cards may vary without notice.

Communication Port (Items listed here may vary without notice)

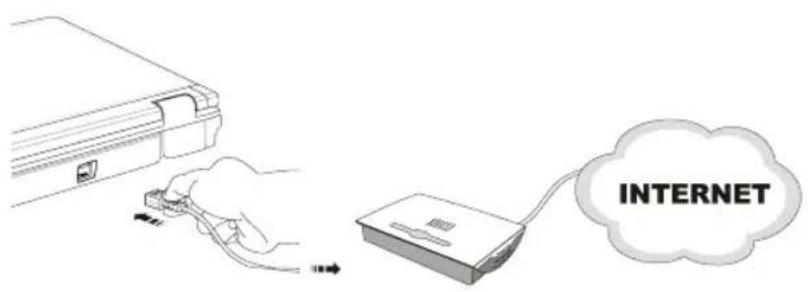

LAN	10/100/1000	Ethernet

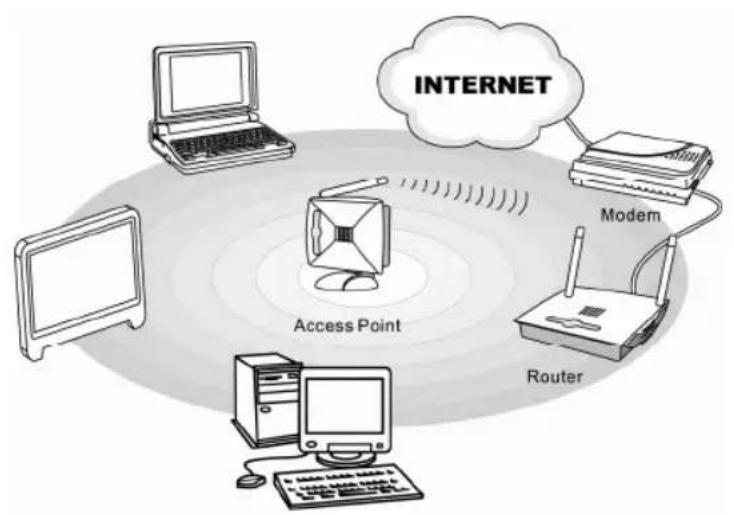

Wireless LAN Optionally supported
Bluetooth	Optionally	supported

Display

LCD Type 17.3" 16:9 LED

Full HD Glare/ Anti-Glare LED

Brightness controlled by K/B hot-keys

Video

Graphics (optional) NVIDIA GeForce GTX570M

NVIDIA GeForce GTX560M

NVIDIA GeForce GT555M

SGRAM (optional) GDDR5, 3.0GB/ 1.5GB for GeForce GTX570M

GDDR5, 1.5GB for GeForce GTX560M

GDDR5, 1GB for GeForce GT555M

LCD Resolution 1920 x 1080

CRT output Supported

HDMI output Supported

Dual View Function Supported

External display devices will be auto detected when connected.

Special Notification

The actual graphics chipset preinstalled in the notebook depends on the model you purchased, and may vary without notice.

WebCam

HD CMOS Camera Supported

Audio

Sound Controller Realtek

® ALC892-GR

Internal Speaker x 2

Internal Subwoofer x 1

Internal Microphone x 1

Sound Volume Adjust by K/B hot-key & SW

Software & BIOS

USB Flash Boot Yes, USB floppy boot up DOS only

BIOS Fast Boot Support --- Yes

Others

Compliance

WHQL

Kensington Lock Hole x 1

Product Overview

This section provides the description of basic aspects of the notebook. It will help you to know more about the appearance of this notebook before using it. Please be aware that the notebook shown in this section may vary from the actual one that users purchased.

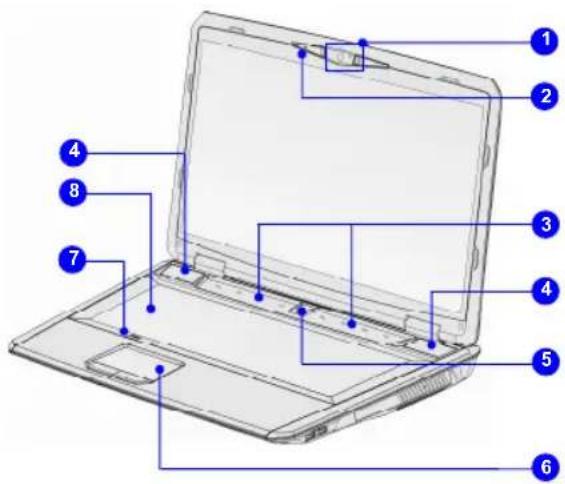

Top-open View

The figure of top-open view and description shown below will lead you to browse the main operating area of your notebook.

Laptop diagram with numbered anatomical labels pointing to key components

1. Webcam
2. Internal microphone
3. Quick Launch Sensors
4. Stereo Speakers
5. Power Button / Power LED
6. Touchpad
7. Touchpad Switch
8. Keyboard/

Quick Launch [Fn] Buttons

1. Webcam

This built-in Webcam can be used for picture taking, video recoding or conferencing, and any other interactive applications.

2. Internal Microphone

This is the built-in microphone and its function is the same with microphone.

3. Quick Launch Sensors

Press the quick launch sensors to activate the specific applications or tools. The following Quick Launch Sensors will only be functional in the Operating System with the S-Bar application installed. Find the S-Bar application in the all-in-one disk that comes with the package for easy and convenient operation. It is strongly recommended to install the S-Bar application.

• Touch this sensor to eject the disc tray of the optical device drive.
• Please Note: The ODD Eject sensor is functional under pure DOS system. However, in an Operating System without the S-Bar application installed, the Eject sensor will not be functional. In such a case, users can right-click the ODD in "My Computer" and select "Eject" to eject the ODD tray.

Display Off

• Touch this sensor to switch the display off instantly to economize the power consumption.
• Hit any key at the keyboard to switch on the display.

Bluetooth

WLAN (WiFi)

Keyboard LED Backlit Switch

Cooler Boost

Cinema Pro

- Touch this sensor repeatedly to turn the Bluetooth function on or off recurrently.

- Touch this sensor repeatedly to turn the WLAN function on or off recurrently.

- Touch this sensor repeatedly to switch ON or OFF the colorful flash keyboard LEDs which are mounted beneath the keyboard.

♦ Refer to chapter 3 of this manual for further information.

- Touch this sensor to increase the fan speed to cool down the overall temperature of the notebook.

- Touch this sensor repeatedly to turn this function on or off recurrently.

- Touch this sensor to activate the Cinema Pro function which enhances the playback quality from your display device and sound system. Touch this sensor again to turn this function off.

P1

Turbo Drive Engine (TDE) Switch (optional)

- When AC power is connected, touch this sensor to activate the TDE function. With this function activated, it will bring advanced calculating speed to enhance the system performance.

P1

KLM settings (optional)

- Touch this sensor to bring up the setting interface of Keyboard LED Manager application (KLM). - Refer to chapter 3 of this manual for further information.

4. Stereo Speakers

Give high quality sound blaster with stereo system and Hi-Fi function supported.

5. Power Button / Power LED

Power Button

• Press the power button to turn the notebook power ON and OFF.
• Press the power button to awake the notebook from the sleep state.

Power/ Power Saving function LED

• Glowing white when the notebook power is turned on.
  ♦ LED goes off when this function is turned off.

6. Touchpad

This is the pointing device of the notebook.

7. Touchpad Switch

Press this button to enable or disable the touchpad function. The touchpad indicator, if equipped, glows when the touchpad function is disabled.

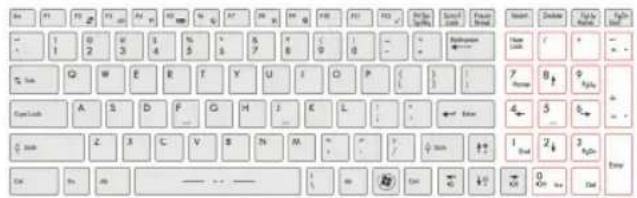

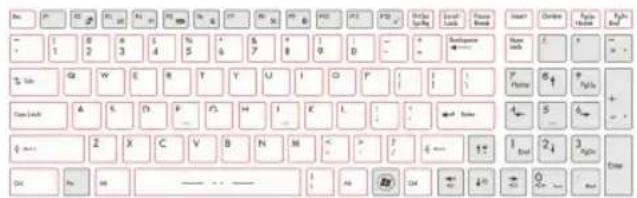

8. Keyboard

The built-in keyboard provides all the functions of a full-sized keyboard.

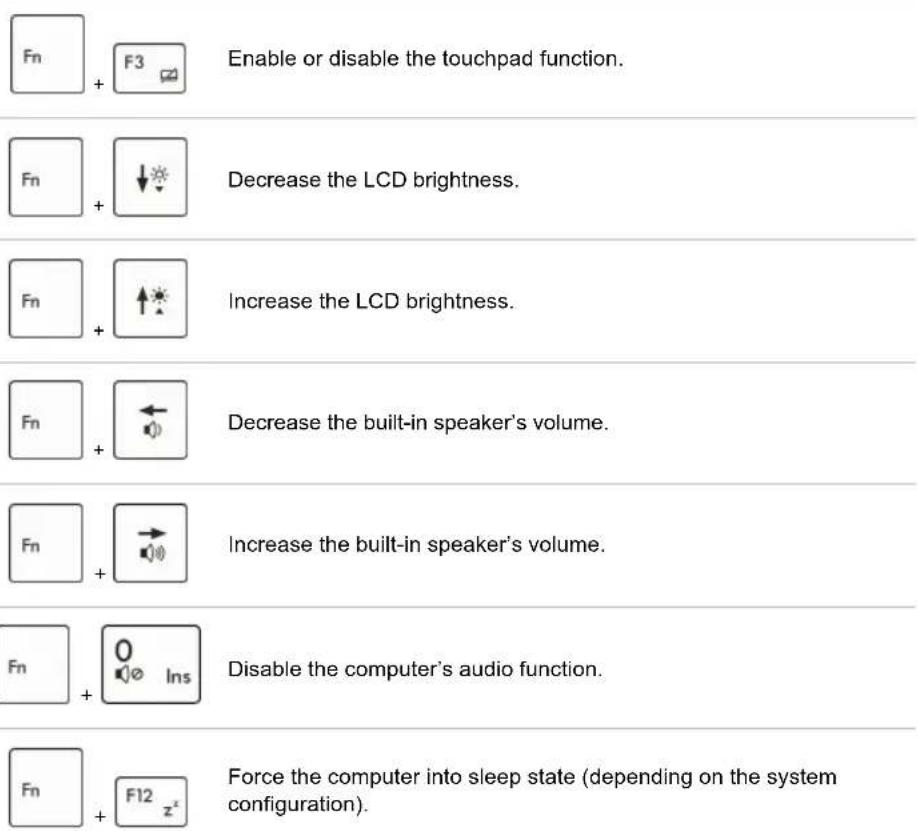

Quick Launch [Fn] Buttons

Use the [Fn] buttons on the keyboard to activate the specific applications or tools.

With the help of these quick launch buttons, users will be able to do work more efficiently.

User Defined or
Windows Search (optional)

• Press and hold the Fn button, and then press the F4 button to launch the User Defined application.
• Or, press and hold the Fn button, and then press the F4 button to launch the Windows Search function.

ECO Engine
(Power Saving)

• Press and hold the Fn button, and then press the F5 button repeatedly to switch among various power saving modes provided by ECO Engine, or to turn this function off recurrently.
• Refer to chapter 3 of this manual for further information.

Webcam

- Press and hold the Fn button, and then press the F6 button to turn the Webcam function on. Press again to turn it off.

WLAN (WiFi)
- Press and hold the Fn button, and then press the F8 button repeatedly to turn the Wireless LAN (WiFi) function on or off recurrently.

Bluetooth (optional)

- Press and hold the Fn button, and then press the F9 button to turn the Bluetooth function on. Press again to turn it off. - This function button will not be available when the Bluetooth function is not supported.

Front Side View

1. Status LED

1. Status LED

Hard Disk/ Optical Drive Device In-use

Blinking amber when the system is accessing the hard disk drive or the optical drive device.

Sleep State

• Blinking amber when the system is in Sleep state.
• LED goes out when the system is turned off.

Battery Status

♦ Glowing amber when the battery is being charged.
- Blinking amber if the battery fails and it is recommended to replace a new battery.

	Consult the local dealer for purchasing an equivalent type of battery recommended by the manufacturer.Battery LED goes out when it is fully charged or when the AC/DC adapter is disconnected.
Bluetooth	BluetoothBluetooth LED indicator glows amber when Bluetooth function is enabled.Warning: For flight safety consideration, make sure this LED indicator goes out when you are in flight.Note: The Bluetooth Function may be optional supported depending on the model users purchased.Contact the local distributor for further information if necessary.
WLAN(WiFi)	Wireless LAN (WiFi)This LED indicator glows amber when Wireless LAN (WiFi) function is enabled.LED indicator goes out when this function is disabled.Note: Functions listed here may be optional supported depending on the model users purchased.Warning: For flight safety consideration, make sure this LED indicator goes out when you are in flight.Contact the local distributor for further information if necessary.

WLAN(WiFi)

Right Side View

Technical diagram of a device rear panel with labeled ports and connectors

1. USB Ports 2. Optical Drive Device

1. USB 2.0/3.0 Ports (Optional)

The USB 2.0 port allows you to connect USB-interface peripheral devices, such as the mouse, keyboard, modem, portable hard disk module, printer and more.

USB 3.0, the SuperSpeed USB, delivers the higher interface speeds for connecting various devices, such as storage devices, hard drives, or video cameras, and offers more advantages over high-speed data transferring.

2. Optical Drive Device

This notebook is equipped with an optical drive device. The actual device preinstalled in the notebook depends on the model you purchased.

Left Side View

Diagram of a device rear panel with numbered labels pointing to ports and components

1. Ventilator
2. Card Reader
3. Audio Port Connectors
4. USB Ports

1. Ventilator

The ventilator is designed to cool the system. DO NOT block the ventilator for air circulation.

2. Card Reader

The built-in card reader may support various types of memory card, such as MMC (Multi-Media Card), XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High Capacity), SDXC(SD eXtended Capacity), MS (Memory Stick) or MS Pro (Memory Stick Pro) cards. Contact the local dealer for further and correct information and be noted that the supported memory cards may vary without notice.

3. Audio Port Connectors

Make high quality sound blaster with stereo system and Hi-Fi function supported.

Diagram of a device rear panel with labeled ports and indicator lights (no text or symbols)

Headphone out/ SPDIF-out

• Used for speakers or headphones. The S/PDIF connector is also provided for digital audio transmission to external speakers through an optical fiber cable.
• Connect the Front speakers here.

Microphone

• Used for an external microphone.
- Connect the Center and Subwoofer speakers here.

Line In

• Used for an external audio device.
• Connect the Rear speakers here.

Line Out

• A connector for speakers.
• Connect the Surround speakers here.

4. USB 2.0/3.0 Ports (Optional)

The USB 2.0 port allows you to connect USB-interface peripheral devices, such as the mouse, keyboard, modem, portable hard disk module, printer and more.

USB 3.0, the SuperSpeed USB, delivers the higher interface speeds for connecting various devices, such as storage devices, hard drives, or video cameras, and offers more advantages over high-speed data transferring.

Rear Side View

Diagram of a computer rear panel with labeled ports and connectors

1.	Kensington Lock
2.	RJ-45 Connector
3.	E-SATA Connector
4.	Power Connector
5.	VGA Port
6.	HDMI Connector

1. Kensington Lock

This notebook provides a Kensington Lock hole, which allows users to secure the notebook in place with a key or some mechanical PIN device and attached through a rubberised metal cable. The end of the cable has a small loop which allows the whole cable to be looped around a permanent object, such as a heavy table or other similar equipment, thus securing the notebook in place.

2. RJ-45 Connector

The 10/100/1000 Ethernet connector is used to connect a LAN cable for network connection.

3. E-SATA (External Serial ATA) (optional)

The E-SATA Connector allows you to connect an external Serial ATA hard disk device. Users can now utilize shielded cable outside the notebook to take advantage of the benefits the SATA interface brings to storage.

4. Power Connector

To connect the AC/DC adapter and supply power for the notebook.

5. VGA Port

The 15-pin-D-sub VGA port allows you to connect an external monitor or other standard VGA-compatible device (such as a projector) for a great view of the computer display.

6. HDMI Connector

HDMI (High Definition Multimedia Interface) is a new interface standard for PCs, displays and consumer electronics devices that supports standard, enhanced and high-definition video, plus multi-channel digital audio on a single cable.

Bottom Side View

Laptop interior diagram with numbered component labels pointing to internal compartments

1.	Stereo	Speaker
2.	Venilator
3.	Battery	Pack
4.	Battery	Release Button
5.	Battery	Lock/Unlock Button

1. Stereo Speakers

Give high quality sound blaster with stereo system and Hi-Fi function supported.

2. Ventilator

The ventilator is designed to cool the system. DO NOT block the ventilator for air circulation.

3. Battery Pack

This notebook will be powered by the battery pack when the AC/DC adapter is disconnected.

4. Battery Release Button

It is a bounce-back device as a preparation for releasing the battery pack. Slide it with one hand and pull the battery pack carefully with the other.

5. Battery Lock/Unlock Button

Battery cannot be moved when the button is positioned on lock status. Once the button is slid to unlock position, the battery is removable.

CHAPTER 3

Getting Started

Power Management

Connecting the AC power

It is strongly recommended to connect the AC/DC adapter to the notebook and use the AC power while using this notebook for the first time. When the AC power is connected, recharging the battery will start immediately.

Note that the AC/DC adapter included in the package is approved for your notebook; using other adapter model may damage either the notebook or other devices attached to it.

Do not cover the AC/DC adapter since it may produce a certain heat while in use. Always be aware of heat coming from the AC/DC adapter in use.

Connecting the AC Power

1. Unpack the package to find the AC/DC adapter and power cord.
2. Attach the power cord to the connector of the AC/DC adapter.
3. Plug the DC end of the adapter to the notebook, and the male end of the power cord to the electrical outlet.

Disconnecting the AC Power

When you disconnect the AC/DC adapter, you should:

1. Unplug the power cord from the electrical outlet first.
2. Unplug the connector from the notebook.
3. Disconnect the power cord and the connector of AC/DC adapter.
4. When unplugging the power cord, always hold the connector part of the cord. Never pull the cord directly!

Diagram showing cable connection to electronic device with numbered components and directional arrows indicating wiring or signal flow.

Using the Battery Power

This notebook is equipped with a high-capacity Li-ion battery pack. The rechargeable Li-ion battery pack is an internal power source of the notebook.

Be aware of that this battery pack may be damaged if users try to disassemble the battery pack on their own. Also, note that the limited warranty to the battery pack may also lose its efficacy when this battery pack is disassembled not by an authorized machinist.

To prevent explosion caused by improper battery replacement, use the same or equivalent type of battery recommended by the manufacturer only.

Always keep the battery which is not in use in a safe place.

Please follow your local laws and regulations to recycle the unused battery pack.

Installing the Battery Pack

To insert the battery pack, following the steps below:

1. Align and place the battery to the battery tray with correct orientation.

2. Press down the battery pack to fasten the battery pack in the battery tray.

3. Press the lock/unlock button to the Lock position to make sure the battery pack is securely fastened.

Releasing the Battery Pack

It is always recommended to have another battery pack in reserve for enough power supply. Please contact your local dealer to purchase a battery pack that is compliant to your notebook.

To remove the battery pack, following the steps below:

1. Make sure the notebook is turned off, and the AC power is disconnected.
2. Press the lock/unlock button to the unlocked position.
3. Locate the battery release button on the bottom side.
4. Push and hold the release button to the battery releasing direction as shown on the bottom side.
5. Dig the edge of battery pack out of the battery tray with your finger tip. Be careful with your finger while trying to take out the battery pack.
6. And then pull the battery pack out.

Battery Safety Tips

Replacing or handling the battery incorrectly may present a risk of fire or explosion, which could cause serious injury.

• Only replace the main battery pack with the same or equivalent type of battery.
  Do not disassemble, short-circuit or incinerate batteries or store them to temperatures above +60°C (+140°F).
• Do not temper with batteries. Keep away from the reach of children.
• Do not use rusty or damaged batteries.
• Dispose of batteries according to local regulations. Check with your local solid waste officials for details about recycling options or for proper disposal in your area.

Conserving Battery Power

Efficient battery power is critical to maintain a normal operation. If the battery power is not managed well, the saved data and customized settings may be lost.

To optimize battery life and avoid a sudden power loss, read the tips below:

♦ Suspend system operation if the system will be idle for a while or shorten the suspend timer's time period.
- Turn off the system if you won't be using it for a period of time.
◆ Disable unnecessary settings or remove idle peripherals.
- Connect an AC/DC adapter to the system whenever possible.

Charging the Battery Pack

The battery pack can be recharged while it is installed in the notebook. Please pay attention to the following tips before recharging the battery:

If a charged battery pack is not available, save your work and close all running programs and shut down the system or Save-to-Disk.
♦ Plug in an external AC/DC adapter.
- You can use the system, suspend system operation or shut down and turn off the system without interrupting the charging process.
The battery pack uses Lithium-ion battery cells that have no “memory effect.” It is unnecessary to discharge the battery before recharging. However, to optimize the life of battery, we suggest that consuming the battery power completely once a month is necessary.
- If you do not use the notebook for a long time, it is suggested to remove the battery pack from your notebook. This may be helpful to extend your battery life.
- The actual charging time will be determined by the applications in use.

ECO Engine -- Power Saving Function (Optionally Supported)

ECO Engine, the outstanding and unique power saving function, provides various power saving modes – Movie mode, Game mode, Presentation mode, and Office mode, to extend the battery running time while performing different tasks with this notebook.

Note that the ECO Engine will only be functional in the Operating System with the S-Bar application installed. Find the S-Bar application in the all-in-one disk that comes with the package for easy and convenient operation. It is strongly recommended to install the S-Bar application.

Movie Mode Game Mode Presentation Mode Office Mode ECO Off

Movie Mode	Select this mode while playing multimedia applications
Game Mode	Select this mode while performing game applications.
Presentation Mode	Select this mode while performing presentation applications.
Office Mode	Select this mode while dealing with office documentation tasks.
ECO Off	Selected to disable ECO Engine.

To select the ECO Engine mode, please:

1. Find the icon on the display, and then point the icon with the mouse cursor to unfold the tool bar of the system control manager.
2. Move the mouse cursor to point the icon (Config Fn), and then left click the mouse on it.
3. Move the mouse cursor to point the icon (ECO Engine), and then left click the mouse on it.

1. Move the mouse cursor to point the desired ECO mode, and then left click the mouse on the selected icon.
2. To learn which ECO mode is selected presently, read the icon on behalf of each mode appearing on the display when selected.
3. To switch to a different ECO mode, follow the steps above again.
4. Users may also switch among the different modes of the ECO Engine, or to turn it off recurrently by pressing the Quick Launch button [Fn] key and [F5] key equipped on the keyboard at the same time repeatedly.

TurboBattery+ Function (Optionally Supported)

In addition to ECO Engine function, this notebook also provides a battery power management function, which named TurboBattery+, for users to manage the battery power status on their own.

With the TurboBattery+ Setting menu, users will be able to enable or disable the particular devices preinstalled, such as Wireless LAN, or Webcam, etc., to maximize the battery running time or process the better system performance.

Note that the TurboBattery+ function will only be functional in the Operating System with the S-Bar application installed.

Activating the TurboBattery+ Function

While the AC power is disconnected, follow the instructions below to activate the TurboBattery+ Function:

1. Find the icon on the display, and then point the icon with the mouse cursor to unfold the tool bar of the system control manager.
2. Move the mouse cursor to point the icon (programs), and then left click the mouse on it.

TurboBattery+

OFF

ON

1. Move the mouse cursor to point the it to activate the TurboBattery+ Fun

icon (TurboBattery+), and then left click the mouse on

1. Users may also press the TurboBattery+ Quick Launch Button, if equipped on the notebook, to activate the TurboBattery+ function promptly and directly without going through the above steps.

2. When the TurboBattery+ Function is activated, the display will be turned into monochrome. Read the icon on the tool bar of the system control manager to learn the function status.

Using TurboBattery+ Setting menu

This TurboBattery+ Function provides a setting menu for users to decide that which devices preinstalled in the notebook should be switched off manually, such as Bluetooth, Wireless LAN, or Webcam, etc., when these devices are not going to be used temporarily to achieve the demand of power saving. To proceed the setting, follow the instructions below:

1. Find the icon on the display, and then point the icon with the mouse cursor to unfold the tool bar of the system control manager.
2. Move the mouse cursor to point the icon (programs), and then left click the mouse on it.

3. Move the mouse cursor to point the 🤨 icon, and then left click the mouse on it to bring up the TurboBattery+ Setting menu.

4. To disable the devices in the setting menu when the TurboBattery+ Function is activated, move the mouse cursor to point the particular device and then left click the mouse on it.

5. Be aware of that the devices which are set to be disabled will only take effect when the TurboBattery+ Function is activated.

TurboBattery - Setting Bluetooth Webcam ODD Please click the device if not using OK Cancel

Note that if ODD is selected to be disabled when the TurboBattery+ Function is activated later, make sure that there is no disc left in the ODD tray, otherwise, the selection of disabling the ODD won't become effective.

To resume the function of the optical device drive, please do the following instructions and wait for the ODD to be resumed.

(1) simply press the Eject button of the optical device drive;
(2) press the ODD Eject Quick Launch button above the keyboard;
(3) disable the TurboBattery+ Function.

Power Management in Windows OS

Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to standby/hibernate mode after a period of user inactivity.

Follow the instructions below to adjust the power management settings in Windows OS:

1. Power Options in Windows OS allow you to control the power management features of your display, hard drive, and battery. Go to the Start menu and click on the Control Panel. Click on the System and Security.
2. Then click on the Power Options.
3. Then select a power plan that meets your personal needs
4. The Shut Down Computer menu will present the options to Sleep (S3/S4), Shut Down (S5), or Restart your computer.
5. The computer should be able to wake up from power saving mode in response to a command from the power button.

1

System and Security Review your computer's status Back up your computer Find and fix problems

2

Power Options Require a password when the computer wakes | Change what the power buttons do Change when the computer sleeps

3

Select a power plan Power plans can help you maximize your computer's performance or conserve energy. Make a plan active by selecting it, or choose a plan and customize it by changing its power settings. Tell me more about power plans

Preferred plans

Balanced (recommended)

Change plan settings

Automatically balances performance with energy consumption on capable hardware.

Power saver

Change plan settings

Saves energy by reducing your computer's performance where possible.

Show additional plans

4

Shut down

Switch User

Log Off

Lock

Restart

Sleep

Hibemate

Energy Saving Tips

• Activate the ECO power saving function to manage the computer's energy consumption.
• Turn off the monitor after a period of user inactivity.
  ◆ Utilize the Fn and F12 sleep mode keys to turn into power saving mode.
• Tune the settings in Power Options under Windows OS to optimize the computer's power management.
• Always disconnect the AC power cord or uninstall the battery pack or switch off the wall socket if the computer would be left unused for a certain time to achieve zero energy consumption.

Basic Operations

If you are a beginner to the notebook, please read the following instructions to assure your own safety, and make yourself comfortable during the operations.

Safety and Comfort Tips

The notebook is a portable platform that allows you to work anywhere. However, choosing a good workspace is important if you have to work with your notebook for a long period of time.

• Your work area should have enough illumination.
• Choose the proper desk and chair and adjust their height to fit your posture when operating.
  When sitting on the chair, adjust the chair's back (if available) to support your back comfortably.
  Place you feet flat and naturally on the floor, so that your knees and elbows have the proper position (about 90-degree) when operating.
• Put your hands on the desk naturally to support your wrists.
• Adjust the angle/position of the LCD panel to have an optimal view.
• Avoid using your notebook in the space where may cause you discomfort (such as on the bed).

• The notebook is an electrical device, please treat it with great care to avoid personal injury

• Keep your hands and feet with optimal comfort.

• Adjust the angle and position of LCD panel.
• Adjust the desk's height.
• Sit straight and keep a good posture.
• Adjust the chair's height.

Illustration of a person working at a desk with numbered positions for task or task purposes.

Having a Good Work Habit

Have a good work habit is important if you have to work with your notebook for long periods of time; otherwise, it may cause discomfort or injury to you. Please keep the following tips in mind when operating.

• Change your posture frequently.
  ♦ Stretch and exercise you body regularly.
• Remember to take a break after working for a period of time.

Knowing the Keyboard

This notebook provides a full-functioned keyboard. This keyboard can be divided into four categories: Typewriter keys, Cursor keys, Numeric keys and Function keys.

Screenshot of a standard keyboard interface with alphanumeric keys and control buttons

Typewriter keys

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Numeric keys

F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 F19 F20 F21 F22 F23 F24 F25 F26 F27 F28 F29 F30 F31 F32 F33 F34 F35 F36 F37 F38 F39 F40 F41 F42 F43 F44 F45 F46 F47 F48 F49 F50 F51 F52 F53 F54 F55 F56 F57 F58 F59 F60 F61 F62 F63 F64 F65 F66 F67 F68 F69 F70 F71 F72 F73 F74 F75 F76 F77 F78 F79 F80 F81 F82 F83 F84 F85 F86 F87 F88 F89 F90 F91 F92 F93 F94 F95 F96 F97 F98 F99 F10 G11 G12 G13 G14 G15 G16 G17 G18 G19 G20 G21 G22 G23 G24 G25 G26 G27 G28 G29 G30 G31 G32 G33 G34 G35 G36 G37 G38 G39 G40 G41 G42 G43 G44 G45 G46 G47 G48 G49 G50 G51 G52 G53 G54 G55 G56 G57 G58 G59 G60 G61 G62 G63 G64 G65 G66 G67 G68 G69 G70 G71 G72 G73 G74 G75 G76 G77 G78 G79 G80 G81 G82 G83 G84 G85 G86 G87 G88 G89 G90 G91 G92 G93 G94 G95 G96 G97 G98 G99 F10 G11 G12 G13 G14 G15 G16 G17 G18 G19 G20 G21 G22 G23 G24 G25 G26 G27 G28 G29 G30 G31 G32 G33 G34 G35 G36 G37 G38 G39 G40 G41G42G43G44G45G46G47G48G49G50G51G52G53G54G55G56G57G58G59G60G61G62G63G64G65G66G67G68G69G70G71G72G73G74G75G76G77G78G79G80G81G82G83G84G85G86G87G88G89G90G91G92G93G94G95G96G97G98G99 F10 G11 G12 G13 G14 G15 G16 G17 G18 G19 G20 G21 G22 G23 G24 G25 G26 G27 G28 G29 G30 G31 G32 G33 G34 G35 G36 G37 G38 G39 G40 F10 G11 G12 G13 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F10 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1

Cursor keys / Function keys

Typewriter Keys

In addition to providing the major function of the keyboard, these typewrite keys also provide several keys for special purposes, such as [Ctrl,] [Alt,] and [Esc] key.

When the lock keys are pressed, the corresponding LEDs will light up to indicate their status:

■ Num Lock: Press this key to toggle the Num Lock on and off. When this function is activated, you can use the numeric keys that are embedded in the typewriter keys.
■ Caps Lock: Press this key to toggle the Caps Lock on and off. When this function is activated, the letters you type are kept in uppercase.
■ Scroll Lock: Press this key to toggle the Scroll Lock on and off. This function is defined by individual programs, and is usually used under DOS.

Numeric Keys

Find the numeric keys among the keyboard, and activate the Num Lock function to use these numeric keys to enter numbers and calculations.

Cursor Keys

The four cursor (arrow) keys and [Home], [PgUp], [PgDn], [End] keys are used to control the cursor movement.

Move the cursor left for one space.

Move the cursor right for one space.

Move the cursor up for one line.

Move the cursor down for one line.

Move to the previous page.

Move to the next page.

Move to the beginning of the line (or document).

Move to the end of the line (or document).

The Backspace key, [Ins] and [Del] keys at upper right corner are use for editing purpose.

This key is used to switch the typing mode between "insert" and "overtype" modes.

Press this key to delete one character to the right of the cursor and move the following text left for one space.

Press this key to delete one character to the left of the cursor and move the following text left for one space.

Function Keys

■ Windows Keys

You can find the Windows Logo key ( ) on the keyboard, which are used to perform Windows-specific functions. For more information, please refer to your Windows manual or online help.

■ [Fn] Key

Switch the display output mode between the LCD, external monitor and both.

Enable or disable the touchpad function.

Decrease the LCD brightness.

Increase the LCD brightness.

Decrease the built-in speaker's volume.

Increase the built-in speaker's volume.

Disable the computer's audio function.

Force the computer into sleep state (depending on the system configuration).

■ Quick Launch [Fn] Buttons

Use the [Fn] buttons on the keyboard to activate the specific applications or tools.

With the help of these quick launch buttons, users will be able to do work more efficiently.

User Defined or Windows Search (optional)

• Press and hold the Fn button, and then press the F4 button to launch the User Defined application.
• Or, press and hold the Fn button, and then press the F4 button to launch the Windows Search function.

ECO Engine (Power Saving)
- Press and hold the Fn button, and then press the F5 button repeatedly to switch among various power saving modes provided by ECO Engine, or to turn this function off recurrently.

Webcam

- Press and hold the Fn button, and then press the F6 button to turn the Webcam function on. Press again to turn it off.

WLAN (WiFi)

- Press and hold the Fn button, and then press the F8 button repeatedly to turn the Wireless LAN (WiFi) function on or off recurrently.

Bluetooth (optional)

• Press and hold the Fn button, and then press the F9 button to turn the Bluetooth function on. Press again to turn it off.
• This function button will not be available when the Bluetooth function is not supported.

Using Keyboard LED Manager (KLM)

The notebook is equipped with colorful flash keyboard LEDs, which are mounted beneath the keyboard, to give more entertaining effects while using it. Users are allowed to set the color variation of the LEDs via the Keyboard LED Manager (KLM) application.

Be noted that the keyboard LEDs can only be controlled by the Keyboard LED Manager application. If KLM is not installed, please find it in the all-in-one disk that comes with the package for easy and convenient installation.

1. KLM Launching icon
2. LED Section – B
3. Standard: Dual Color/ Wave/ Breathing/ 8. LED Color – B
   Gaming/ Normal 9. LED Switch – B
4. Idle: Wave/ Breathing/ OFF 10. LED Section – C
5. LED Section – A
6. LED Color – C
7. LED Color - A 12. LED Switch - C
8. LED Switch - A 13. Color Wheel
9. Lock Keyboard
10. Close

■ Launching the Keyboard LED Manager

Once the application of KLM is installed successfully, the KLM Launching icon will appear in the Programs and the Tool Bar on the lower-right side of screen. Click on this icon to launch the application of Keyboard LED Manager and to bring up the interface of KLM.

■ Selecting the LED Flashing Mode in Standard status

Select a desired LED Flashing Mode in Standard status. The selection will take effect while the system is working.

- Click on [Standard], and then select a desired LED flashing mode from Dual Color, Wave, Breathing, Gaming, and Normal.

■ Selecting the LED Flashing Mode in Idle status

Select a desired LED Flashing Mode in Idle status. The selection will take effect while the system is in Sleep mode.

- Click on [Idle], and then select a desired LED flashing mode from Wave, Breathing, and OFF.

■ Deciding the illuminated color of LEDs

The flashing LEDs which are mounted beneath the keyboard are divided into three sections. Users are allowed to decide the illuminated color of LEDs for each section.

• First, select a flashing mode for Standard status or Idle status (refer to the previous step.)
• Click on the LED section A/ B/ C with your mouse,
• Select a desired color from the Color Wheel by clicking on it,
• Each LED section can be turned off individually. To do so, simply click on the LED Switch A/ B/ C to have the LED section A/ B/ C remained unlit temporary, until this switch is clicked again.

■ Adjusting the brightness level of LEDs

When Gaming mode and Normal mode is selected, the brightness level of LEDs is adjustable.

• Select the Gaming mode or Normal mode in Standard status,
• Use the following buttons to adjust the brightness level of the LEDs

Decrease the brightness level of LEDs

Increase the brightness level of LEDs

■ Grouping the three LED sections

The three LED sections also can be grouped into one main section. Once the three LED sections are grouped, there is only one color, when illuminated, can be selected.

• Click on the [Lock Keyboard] to have the three LED sections grouped into one main section.
• Select a desired illuminated color from the Color Wheel by clicking on it.
• To turn off the LED light, simply click on the LED Switch. To turn the LED light on, click the LED Switch again.

■ Closing the interface of KLM

To close the interface of KLM, simply click on the icon of [Close].

Knowing the Touchpad

The touchpad integrated in your notebook is a pointing device that is compatible with standard mouse, allowing you to control the notebook by pointing the location of the cursor on the screen and making selection with its two buttons.

1. Cursor Movement Area

This pressure-sensitive area of the touchpad, allows you to place your finger on and control the cursor on the screen by moving one of your finger.

2. Right / Left Buttons

Acts as the mouse's right/ left button.

Diagram showing a grid-patterned structure with numbered blue circles highlighting specific components or areas.

Using the Touchpad

Read the following description to learn how to use the touchpad:

■ Configuring the Touchpad

You can customize the pointing device to meet your personal needs. For example, if you are a left-handed user, you may want to swap the functions of the two buttons. In addition, you can change the size, shape, moving speed and other advanced features of the cursor on the screen. To configure the touchpad, you can use the standard Microsoft or IBM PS/2 driver in your Windows operating system. The Mouse Properties in Control Panel allows you to change the configuration.

■ Positioning and Moving

Place your finger on the touchpad (usually using the forefinger), and the rectangular pad will act as a miniature duplicate of your display. When you move your fingertip across the pad, the cursor on the screen will move simultaneously to the same direction. When your finger reaches the edge of the pad, lift your finger and place it on a proper location of the touchpad to continue the movement.

■ Point and Click

When you have moved and placed the cursor over an icon, a menu item or a command that you want to execute, simply tap slightly on the touchpad or press the left button to select. This procedure, called as point and click is the basics of operating your notebook. Unlike the traditional pointing device such as the mouse, the whole touchpad can act as a left button, so

that your each tap on the touchpad is equivalent to pressing the left button. Tapping twice more rapidly on the touchpad is to execute a double-click.

■ Drag and Drop

You can move files or objects in your notebook by using drag-and-drop. To do so, place the cursor on the desired item and slightly tap twice on the touchpad, and then keep your fingertip in contact with the touchpad on the second tap. Now, you can drag the selected item to the desired location by moving your finger on the touchpad, and then lift your finger from the touchpad to drop the item into place. Alternately, you can press and hold the left button when you select an item, and then move your finger to the desired location; finally, release the left button to finish the drag-and-drop operation.

1. Move the cursor by sliding your fingertip.
2. Put your wrist on the desk comfortably.

Illustration of a hand typing on a keyboard with two blue circular markers labeled 1 and 2 (no text or symbols beyond labels)

Knowing the Smart Pad

The Smart Pad integrated in your notebook allows users to perform various actions with multi-finger taps and gestures while operating the notebook, and is capable to detect the changes of the multi-finger movement performed by users precisely. This significant Smart Pad will surely bring users not only an efficient but also an enjoyable experience of using the notebook.

Brief Usages to the Smart Pad

For the further information on how to use the Smart Pad function specifically, please refer to the instructions of Smart Pad by double clicking the Smart Pad icon (☐) on the lower right side of the screen.

Gestures	Actions	Functions
	♦ Tapping the touchpad once with one finger.	♦ Single clicking the Left button of the mouse.
	♦ Double tapping the touchpad with one finger.	♦ Double clicking the Left button of the mouse.
	♦ Touch the touchpad with single finger and move around your finger on the touchpad.	♦ Cursor moving.
	♦ Move the cursor to a particular object with single finger.♦ Select the object by tap the touchpad once♦ Double tapping the selected object with single finger, and remain your finger on the touchpad.♦ Move your finger to drag the selected object	♦ Dragging an object.
	♦ Touch the touchpad with two fingers and remain the fingers on the touchpad.♦ Move the two fingers on the touchpad vertically.	♦ Scrolling a page vertically.
	♦ Touch the touchpad with two fingers and remain both fingers on the touchpad.♦ Move the two fingers on the touchpad horizontally.	♦ Scrolling a page horizontally.
	♦ Touch the touchpad with two fingers and remain both fingers on the touchpad.♦ Move two fingers to close each other to Zoom Out the screen.♦ Move two fingers away each other to Zoom In the screen.	♦ Zoom In/ Out the screen.

About Hard Disk Drive

Your notebook is equipped with a 2.5-inch hard disk drive. The hard disk drive is a storage device with much higher speed and larger capacity than other storage devices, such as the floppy disk drive and optical storage device. Therefore, it is usually used to install the operating system and software applications.

To avoid unexpected data loss in your system, please backup your critical files regularly.

Do not turn off the notebook when the hard disk In-use LED is on.

Do not remove or install the hard disk drive when the notebook is turned on. The replacement of hard disk drive should be done by an authorized retailer or service representative.

Using the Optical Storage Device

Your notebook is equipped with an optical storage device. The actual device preinstalled in your notebook depends on the model you purchased.

■ DVD Super Multi: Works as a multi-functional DVD Dual Drive and a DVD RAM Drive. It is capable to write CD-R, CD-RW, DVD-R/DVD-RW, or DVD+R/DVD+RW formats, and so on.
■ Blu-ray: It is a high-capacity optical disc that holds the high-definition video (HD) on a single-sided disk. Blu-ray supports the more advanced H.264 and VC-1 video encoding algorithms (codecs) as well as MPEG-2, which is used for DVD. It also supports the highest HDTV resolution.

Inserting the Disk

The following instructions describe the general procedure when operating the optical storage device:

1. Confirm that the notebook is turned on.

2. Touch the EJECT quick launch sensor and the disk tray will slide out partially.

Please Note: The ODD Eject sensor is functional under pure DOS system. However, in an Operating System without the S-Bar application installed, the Eject sensor will not be functional. In such a case, users can right-click the ODD in "My Computer" and select "Eject" to eject the ODD tray.

1. Gently pull the tray out until fully extended.

2. Place your disk in the tray with its label facing up. Slightly press the center of the disk to secure it into place.

3. Push the tray back into the drive.

Illustration of a hand inserting a CD into a drive slot (no text or symbols visible)

Illustration of a hand holding a device with a blue circular marker labeled '4' (no text or symbols on the device itself)

el or of 5

Removing the Disk

Follow the instructions below to remove the disk that is placed in the optical storage device:

1. Touch the EJECT quick launch sensor and the disk tray will slide out partially.

Illustration of a hand inserting a CD into a CD inside a file holder (no text or symbols visible)

1. Gently pull the tray out until fully extended.

Illustration of a hand holding a device with a numbered circle highlighting the number 8 (no text or symbols on the device itself)

1. Hold the disk by its edge with your fingers and lift it up from the tray.

Diagram showing a hand inserting a CD into a folder, with a numbered label (9) pointing to the folder's structure.

1. Push the tray back into the drive.

Connecting the External Devices

The I/O (input/output) ports on the notebook allow you to connect peripheral devices. All devices listed here are for reference only.

Connecting the Peripheral Devices

Connecting the USB devices

This notebook provides USB ports for connecting various USB devices, such as mouse, keyboard, digital camera, webcam, printer, and external optical storage device, etc.. To connect these devices, install the drivers for each device first if necessary, and then connect the device to the notebook. This notebook is capable to auto detect the USB devices installed, and if there is no detection of the devices, please manually enable the USB devices by going to Start Menu / Control Panel / Add Hardware to add the new device.

Diagram illustrating the process of inserting a laptop into various devices including a mouse, camera, and printer.

Connecting the External Display Devices

This notebook provides a VGA port for connecting a larger display with higher resolution. The 15-pin D-Sub VGA port allows users to connect an external monitor or other standard VGA-compatible device (such as a projector) for a great view of the notebook display.

HDMI (High Definition Multimedia Interface) is a new interface standard for PCs, displays and consumer electronics devices that supports standard, enhanced and high-definition video, plus multi-channel digital audio on a single cable.

Diagram illustrating the process of inserting a device into a monitor and finally adding a projector, with Chinese labels.

Once the display is connected to the notebook, power on the notebook and the external display should respond by default. If not, you can switch the display mode by pressing [Fn]+[F2]. Alternately, you can change the display mode by configuring the settings in Display Properties of Windows operating system.

Connecting the External SATA Hard Disk device

The E-SATA Connector allows you to connect an external Serial ATA hard disk device. Users can now utilize shielded cable outside the notebook to take advantage of the benefits the SATA interface brings to storage.

The E-SATA standard interface supports "plug-and-play" technology, so that you can connect and remove the E-SATA devices without turning off the notebook.

To connect the E-SATA hard disk device, simply connect the cable of the device to the E-SATA Connector of your notebook.

Diagram showing a device being processed from a computer to a cable, with no visible text or symbols.

Connecting the Communication Devices

Using the LAN

The RJ-45 connector of the notebook allows you to connect the LAN (local area network) devices, such as a hub, switch and gateway, to build a network connection.

For more instructions or detailed steps on connecting to the LAN, please ask your MIS staff or network manager for help.

INTERNET

Using Wireless LAN Connection (optional)

This notebook is equipped with wireless LAN module which allows users to perform fast data transmission with the standard IEEE 802.11 for wireless LAN. This gives users the mobility to move around within a broad coverage area and still be connected to the network.

By using the 64-bit/128-bit Wired Equivalent Privacy (WEP) encryption technology and Wi-Fi Protected Access feature, the optional built-in wireless LAN is capable to achieve a more efficient and a more secure solution to the wireless communication.

For more instructions or detailed steps on connecting to the Wireless LAN, please ask your MIS staff or network manager for help.

Using Bluetooth Connection (optional)

This notebook is equipped with Bluetooth module which allows to users to connect various Bluetooth-enabled devices to the notebook. Bluetooth provides a way to connect and exchange information between devices such as mobile phones, personal computers, printers, GPS receivers, PDAs, digital cameras, and video game consoles through a secure, globally unlicensed Industrial, Scientific and Medical (ISM) 2.4 GHz short-range radio frequency bandwidth.

For more instructions or detailed steps on using the Bluetooth function, please ask your MIS staff or network manager for help.

BlueTooth Device

Components Replacement and Upgrade

Please be noticed that the memory, hard disk drive, wireless LAN / Bluetooth module and battery pack preinstalled in the product users purchased may be upgradable or replaceable by user's request depending on the models users purchased.

Laptop rear panel diagram with numbered annotations indicating internal components and storage areas

Illustration of stacked documents with a blue circular badge labeled '1' (no text or symbols on the document itself)

This notebook is equipped with a high-capacity Li-ion battery pack, and the battery pack is replaceable by users.

To replace the battery pack, please refer to the section of Using Battery power for details.

Illustration of a computer setup with a CD, mouse, and monitor (no text or symbols)

This notebook is equipped with an optical drive device, and this device may be upgradable and replaceable by the authorized dealer or service center.

Illustration of a hard disk device with a blue circular badge labeled '3' (no text or symbols on the diagram itself)

This notebook is equipped with a hard disk drive, and this storage device may be upgradable and replaceable by the authorized dealer or service center.

Icon showing two stylized buildings inside a rounded square frame, with a blue number 4 in the top-left corner (no text or symbols on buildings)

Additional memory module may be installed, by the authorized dealer or service center, to increase the performance of this notebook, depending on the specification limitation.

To learn more about upgrade limitation, please refer to the specification in the User's Manual provided. For any further information about the product users purchased, please contact the local dealer.

Do not attempt to upgrade or replace any component of the product, if you are not an authorized dealer or service center, since it may cause the warranty void. It is strongly recommended to contact the authorized dealer or service center for any upgrade or replace service.

CHAPTER 4

BIOS Setup

About BIOS Setup

When to Use BIOS Setup?

You may need to run the BIOS Setup when:

An error message appears on the screen during the system booting up and is requested to run SETUP.
- You want to change the default settings for customized features.
- You want to reload the default BIOS settings.

How to Run BIOS Setup?

To run the BIOS Setup Utility, turn on the notebook and press the [Del] key during the POST procedure.

If the message disappears before you respond and you still wish to enter Setup, either restart the system by turning it OFF and ON, or simultaneously pressing [Ctrl]+[Alt]+[Delete] keys to restart.

Be noted that the screen snaps and setting options in this chapter are for your references only. The actual setting screens and options on your Notebook may be different because of BIOS update.

Control Keys

You can use only the keyboard to control the cursor in the BIOS Setup Utility.

Press left arrow to select one menu title.

Press right arrow to select one menu title.

Press up arrow to select one item under the menu title.

Press down arrow to select one item under the menu title.

Increase the setting value or make changes.

Decrease the setting value or make changes.

1) Open the selected item to change setting options.
2) Bring up a sub-menu when available.

In some items, press this key to change setting field.

Bring up help screen providing the information of control keys.

1) Exit the BIOS Setup Utility.
2) Return to the previous screen in a sub-menu.

BIOS Setup Menu

Once you enter the BIOS Setup Utility, the Main Menu will appear on the screen. Select the tags to enter the other menus.

BIOG SETUP UTILITY Main Advanced Bout Security Save & Call Screening Name Model Name System Status System Time [10:00:01] DATA Information Data Information Project Level Administrator Select Screen Select Item Enter Select Change Init Green/Red Post-Optimized Default FIE Base - SIC Cost

Main Menu

Show system overview information about BIOS version, CPU features, memory size and setting of system time and date.

Advanced Menu

Adjust the advanced settings, such as power consumption, USB/ PCI devices, of the notebook in order to achieve a better performance.

Boot Menu

Set up boot type and boot sequence.

Security Menu

Install or clear the password settings for administrator and user.

Save & Exit Menu

Save or discard the changes before leaving the BIOS Setup Menu.

The BIOS items and

figures shown here are

for reference only.

Main Menu

- System Date

This item allows you to set the system date. The date format is [day:month:date:year].

BIOS SETUP UTILITY Name Advanced Break Security Save & Call Marketing Status Model Name System Type Auto/Auto System Time [10:00:03] DATA Information System Information Access Level Administration System ->Select Software ->Select Item Enter Event ->Change Dpt. P1: General Help P2: Previous Values P3: Optimized Default P4: Save - EKC Exit

Day	Day of the week, from Sun to Sat, which is determined by BIOS (read-only).
Month	The month from 01 (January) to 12 (December).
Date	The date from 01 to 31.
Year	The year can be adjusted by users.

- System Time

This item allows you to set the system time. The system clock will go on no matter you shut down the PC or get into sleep mode. The time format is [hour:minute:second].

- SATA Information

These items display the types of the SATA devices installed in the notebook. Press [Enter] to bring up a window showing the detailed information of the device, including the device name, vendor, LBA mode, PIO mode and more.

- System Information

This item provides the information about the firmware, processor, and system memory.

Advanced Menu

- PCI Latency Timer

This item controls how long each PCI device can hold the bus before another takes over. When set to higher values, every PCI device can conduct transactions for a longer time and thus improve the effective PCI bandwidth.

For better PCI performance, you should set the item to higher values.

Setting options: 32, 64, 96, 128, 160, 192, 224, and 248.

BIOS SETUP UTILITY Main Advanced Reset Security Save & Back SATA Mode Selection INTERS/Spending(16) iCharger Function USB Configuration C:\Configuration\Current\A(OH) (Ambare) (Disabled) =Select Screen +Select Web Enter Select +Change Opt P1 General Help P2 Personal Software P3 Optimized Default P4 Base BIOS End

♦ SATA Mode Selection

This item allows you to choose SATA device working in IDE mode or AHCI mode.

Intel(R) SpeedStep(tm)

This item allows you to enable or disable Intel SpeedStep technology. When set to Disabled, the system always operates in a conserve power mode. If you want optimize the processor, set this item to Enabled, so that the processor's speed will be controlled by the use of your operating system and applications. Setting options: Enabled and Disabled.

- iCharger Function

This notebook supports the iCharger function. When "iCharger" is set to Enabled, it will automatically detect if there is an iPad or iPhone connected to the notebook.

- USB Configuration

Select this item to enter the sub-menu:

-- Legacy USB Support

Selecting Enabled allows users to use USB devices, such as mouse, keyboard, or portable disk, in DOS system; or allows users to boot the system by USB device. Setting options: Enabled, Disabled and Auto.

Boot Menu

- Boot Configuration

Configure settings during system boot.

- Bootup NumLock State

This setting is to set the Num Lock State when the system is powered on. Setting to On will turn on the Num Lock key when the system is powered on. Setting to Off will allow the users to use the arrow keys on the numeric keypad.

- Quiet Boot

This setting is to show POST message during POST process, if not, then it will show OEM logo.

- Boot Option Priorities

These items showing the sequence of boot devices where BIOS attempts to load the disk operating system.

Security Menu

- Administrator Password

When this item is selected, a message box shall appear on the screen as below:

Enter New Password

Type a maximum of twenty-digit password and press [Enter]. The password entered now will replace any previously set password from CMOS memory. You may also press [ESC] to abandon new password setting.

Select User Password to give or to abandon password setting.

Note that Administrator Password field allows users to enter and change the settings of the BIOS SETUP UTILITY, while User Password field only allows users to enter the BIOS SETUP UTILITY.

The Password Check item is used to specify the type of BIOS password protection that is implemented. Settings are described below:

Setup

The password is required only when users try to access to BIOS SETUP UTILITY.

Always

The password is required every time when the Notebook is powered on or when users try to access to BIOS SETUP UTILITY.

To clear the setting of Administrator Password or User Password, please press [Enter] under Administrator Password or User Password field when the password setting pop-up dialogue appears. Please note that when the Administrator Password is cleared, the User Password will be cleared at the same time. A confirmation dialogue will pop up asking for re-confirmation to disable the password setting. Once the password is disabled, users can enter BIOS Setup menu without entering password when the system is rebooted.

Save & Exit Menu

- Save Changes and Reset

Save the changes you have made and reset the utility.

- Discard Changes and Exit

Exit the utility without saving the changes you have made..

- Load Setup Defaults

Select this item to load the default settings.

BIO5 SETUP UTILITY Main Advanced Good Security Save & Exit Save Changes and Reset Entard Changes and Exit Load Setup Defaults →:Select Screen →:Select Then Exit: Select →:Change Opt P1: General Help P2: Previous Update P3: Optimized Default P4: Same ABC Out
