USER MANUAL Sabertooth 990FX R2.0 ASUS

Copyright © 2013 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Offer to Provide Source Code of Certain Software

This product contains copyrighted software that is licensed under the General Public License ("GPL"), under the Lesser General Public License Version ("LGPL") and/or other Free Open Source Software Licenses. Such software in this product is distributed without any warranty to the extent permitted by the applicable law. Copies of these licenses are included in this product.

Where the applicable license entitles you to the source code of such software and/or other additional data, you may obtain it for a period of three years after our last shipment of the product, either

(1) for free by downloading it from http://support.asus.com/download

or

(2) for the cost of reproduction and shipment, which is dependent on the preferred carrier and the location where you want to have it shipped to, by sending a request to:

ASUSTeK Computer Inc.

Legal Compliance Dept.

15 Li Te Rd.,

Beitou, Taipei 112

Taiwan

In your request please provide the name, model number and version, as stated in the About Box of the product for which you wish to obtain the corresponding source code and your contact details so that we can coordinate the terms and cost of shipment with you.

The source code will be distributed WITHOUT ANY WARRANTY and licensed under the same license as the corresponding binary/object code.

This offer is valid to anyone in receipt of this information.

ASUSTeK is eager to duly provide complete source code as required under various Free Open Source Software licenses. If however you encounter any problems in obtaining the full corresponding source code we would be much obliged if you give us a notification to the email address [e-mail], stating the product and describing the problem (please DO NOT send large attachments such as source code archives, etc. to this email address).

Contents

Safety information......vii

About this guide......viii

SABERTOOTH 990FX R2.0 specifications summary ...... x

Package contents......xiii

Installation tools and components ..... xiv

Chapter 1: Product introduction

1.1 Special features....1-1

1.1.1 Product highlights....1-1
1.1.2 "Ultimate COOL!" Thermal Solution 1-2
1.1.3 "TUF ENGINE!" Power Design.... 1-2
1.1.4 "Safe & Stable!" Guardian Angel 1-3
1.1.5 ASUS EZ DIY 1-3
1.1.6 Other special features 1-4

1.2 Motherboard overview 1-5

1.2.1 Before you proceed 1-5
1.2.2 Motherboard layout 1-6
1.2.3 Central Processing Unit (CPU) 1-8
1.2.4 System memory 1-9
1.2.5 Expansion slots 1-22
1.2.6 Onboard buttons 1-24
1.2.7 Jumpers 1-26
1.2.8 Onboard LEDs 1-27
1.2.9 Internal connectors....1-28

Chapter 2: Basic Installation

2.1 Building your PC system....2-1

2.1.1 Motherboard installation 2-1
2.1.2 CPU installation....2-4
2.1.3 CPU heatsink and fan assembly installation 2-5
2.1.4 DIMM installation.... 2-7
2.1.5 ATX Power connection 2-8
2.1.6 SATA device connection 2-9
2.1.7 Front I/O Connector 2-10
2.1.8 Expansion Card installation.... 2-11

2.2 BIOS update utility 2-12

2.3 Motherboard rear and audio connections 2-13

2.3.1 Rear I/O connection 2-13
2.3.2 Audio I/O connections 2-15

2.4 Starting up for the first time....2-17

2.5 Turning off the computer 2-18

Chapter 3: BIOS setup

3.1 Knowing BIOS 3-1

3.2 BIOS setup program 3-2

3.2.1 EZ Mode....3-3
3.2.2 Advanced Mode 3-4

3.3 Main menu 3-6

3.4 Ai Tweaker menu 3-8

3.5 Advanced menu 3-17

3.5.1 CPU Configuration 3-18
3.5.2 North Bridge Configuration.... 3-19
3.5.3 South Bridge Configuration 3-20
3.5.4 SATA Configuration 3-21
3.5.5 USB Configuration 3-22
3.5.6 CPU Core On/Off Function 3-23
3.5.7 Onboard Devices Configuration 3-24
3.5.8 APM 3-26
3.5.9 Network Stack 3-27

3.6 Monitor menu 3-28

3.7 Boot menu 3-31

3.8 Tools menu 3-33

3.8.1 ASUS EZ Flash 2 Utility 3-33
3.8.2 ASUS SPD Information 3-34
3.8.3 ASUS O.C. Profile....3-35

3.9 Exit menu 3-36

3.10 Updating BIOS 3-37

3.10.1 ASUS Update 3-37
3.10.2 ASUS EZ Flash 2 3-40
3.10.3 ASUS BIOS Updater 3-41

Chapter 4: Software support

4.1 Installing an operating system 4-1

4.2 Support DVD information 4-1

4.2.1 Running the support DVD 4-1
4.2.2 Obtaining the software manuals.... 4-2

4.3 Software information 4-3

4.3.1 Al Suite II....4-3
4.3.2 ASUS TUF Thermal Radar 4-4
4.3.3 Remote GO! 4-8
4.3.4 TurboV EVO 4-19
4.3.5 DIGI+ Power Control 4-22
4.3.6 Sensor Recorder 4-25
4.3.7 Ai Charger+ 4-27
4.3.8 USB 3.0 Boost....4-28
4.3.9 USB BIOS Flashback Wizard.... 4-29
4.3.10 Network iControl.... 4-31
4.3.11 ASUS Update 4-36
4.3.12 MyLogo2 4-37
4.3.13 Audio configurations.... 4-38

Chapter 5: RAID support

5.1 RAID configurations 5-1

5.1.1 RAID definitions 5-1
5.1.2 Installing Serial ATA hard disks 5-2
5.1.3 Setting the RAID item in BIOS 5-2
5.1.4 AMD ^® Option ROM Utility 5-3

5.2 Creating a RAID driver disk....5-7

5.2.1 Creating a RAID driver disk without entering the OS 5-7
5.2.2 Creating a RAID driver disk in Windows ^® 5-7
5.2.3 Installing the RAID driver during Windows ® OS installation ...... 5-8
5.2.4 Using a USB floppy disk drive 5-9

Chapter 6: Multiple GPU support

6.1 AMD ® CrossFireX™ technology 6-1

6.1.1 Requirements 6-1
6.1.2 Before you begin 6-1
6.1.3 Installing two CrossFireX™ graphics cards 6-2
6.1.4 Installing the device drivers 6-4
6.1.5 Enabling the AMD ^ CrossFireX ^TM technology 6-4

6.2 NVIDIA ^ SLI ^TM technology 6-6

6.2.1 Requirements 6-6
6.2.2 Installing two SLI-ready graphics cards 6-6

6.2.3 Installing the device drivers 6-7
6.2.4 Enabling the NVIDIA ^ SLI ^TM technology 6-8

Appendices

Notices ...... A-1

ASUS contact information ...... A-4

Safety information

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
- When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
- Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
- Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
- Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
- If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.
• Place the product on a stable surface.
  • If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

This user guide contains the information you need when installing and configuring the motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports. It includes description of the switches, jumpers, and connectors on the motherboard.

• Chapter 2: Basic Installation

This chapter lists the hardware setup procedures that you have to perform when installing system components.

• Chapter 3: BIOS setup

This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

• Chapter 4: Software support

This chapter describes the contents of the support DVD that comes with the motherboard package and the software.

• Chapter 5: RAID support

This chapter describes the RAID configurations.

• Chapter 6: Multiple GPU technology support

This chapter describes how to install and configure multiple AMD ^® CrossFireX ^™ and NVIDIA ^® SLI ^™ graphics cards.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.

1. Optional documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to complete a task.

CAUTION: Information to prevent damage to the components when trying to complete a task

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

Keys enclosed in the less-than and greater-than sign

means that you must press the enclosed key.

Example: means that you must press the Enter or Return key.

+ + If you must press two or more keys simultaneously, the key names are linked with a plus sign (+).

SABERTOOTH 990FX R2.0 specifications summary

CPU AMD	® Socket AM3+ for AMD® FX series CPU up to 8-core compatible with AMD® Socket AM3 for AMD® PhenomTM II / Athlon IITM / SempronTM 100 series processorsSupports AMD® 140W CPUAMD® Cool ‘n’ Quiet TechnologySupports 32nm CPU
Chipset AMD	® 990FX / SB950 Chipset
System Bus Up to 5.2 GT/s HyperTransportTM 3.0
Memory 4 x DIMM, max. 32GB, DDR3 1866 / 1600 / 1333 / 1066 MHz, ECC, non-ECC, un-buffered memoryDual channel memory architecture* Refer to www.asus.com for Memory QVL (Qualified Vendors List) of AM3+ / AM3 CPU for details.** Due to OS limitation, when installing a total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.*** Due to CPU specifications, AMD 100 Series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
Expansion slots 3 x PCI Express 2.0 x16 slots (Dual at x16/x16, triple at x16/x8/x8 mode)*1 x PCI Express 2.0 x16 slot [black] (supports x4 mode)1 x PCI Express 2.0 x1 slot1 x PCI slot* When running dual graphics cards, ensure to insert the card in the first and third PCI Express X16 slot to get the best performance.
Multi-GPU support Supports NVIDIA® QUAD-GPU SLITM TechnologySupports AMD® QUAD-GPU CrossFireXTM Technology
LAN Realtek	® 8111F Gigabit LAN controller
Storage	AMD® SB950 Chipset- 6 x SATA 6.0 Gb/s ports with RAID 0, 1, 5 and 10 supportASMedia® SATA 6Gb/s controllers- 2 x SATA 6Gb/s ports- 2 x eSATA 6Gb/s ports [red]
Audio	Realtek® ALC892 8-channel high definition audio CODEC- Absolute Pitch 192khz/24bit True BD Lossless Sound- BD audio layer content protection- Supports jack-detection, multi-streaming and front panel jack-retasking- Optical S/PDIF out ports at back I/O- ASUS noise filter

(continued on the next page)

SABERTOOTH 990FX R2.0 specifications summary

USB	3 x ASMedia® USB 3.0 controllers- 2 x USB 3.0 ports at mid-board for front panel support- 4 x USB 3.0 ports at back panel [blue]AMD® SB950 Chipset- 12 x USB 2.0 ports (4 ports at mid-board, 8 ports at back panel)
Exclusive TUF features	“Ultimate COOL” Thermal Solution-TUF CeraMIX heatsink coating technology-TUF Thermal radarTUF ENGINE! Digital Power Design- 8+2 Digital phase power design-TUF Components (alloy choke, Cap & MOSFET certified by military standard)- ASUS DIGI+ Power Control utility-Efficient Switching Power (E.S.P.) designSafe & Stable! Guardian Angel- ESD Guards-MemOK!Anti Surge
Other special features Front panel USB 3.0 supportRemote GO!USB 3.0 BoostNetwork iControlASUS UEFI BIOS EZ ModeUSB BIOS FlashbackAI Suite IIASUS Q-ConnectorASUS Q-ShieldASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)ASUS Q-SlotASUS Q-DIMMASUS O.C. ProfileAi Charger+ASUS EZ Flash 2ASUS MyLogo2Multi-language BIOS

(continued on the next page)

SABERTOOTH 990FX R2.0 specifications summary

Back Panel I/O ports 1 x PS/2	keyboard/mouse combo port
	1 x Optical S/PDIF Output port
	2 x eSATA 6Gb/s ports [red]
	1 x USB BIOS Flashback button
	1 x LAN (RJ-45) port
	4 x USB 3.0/2.0 ports [blue]
	8 x USB 2.0/1.1 ports
	6 x Audio jacks for 8-channel Audio I/O ports
Internal I/O connectors 1 x USB 3.0/2.0 connector (supports additional 2 19-pin USB 3.0/2.0 ports [moss green])
BIOS features 64 Mb Flash ROM, UEFI BIOS, PnP, SLP2.1, DMI 2.0, WfM 2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen function, F3 Shortcut function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support DVD contents Drivers
Form factor ATX form factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Specifications are subject to change without notice.

Package contents

Check your motherboard package for the following items.

ASUS SABERTOOTH 990FX R2.0 motherboard	User manual Support DVD
4 x Serial ATA 6.0 Gb/s cables 1 x	ASUS SLITM bridge connector 1 x TUF	Certification card
1 x ASUS Q-Shield 1 x 2-in-1	ASUS Q-Connector kit 1 x TUF	Five-year warranty manual

• If any of the above items is damaged or missing, contact your retailer.
• The illustrated items above are for reference only. Actual product specifications may vary with different models.

Installation tools and components

1 bag of screws Philips (cross) screwdriver
PC chassis Power supply unit
AMD AM3+ CPU AMD AM3+ compatible CPU Fan
DDR3 DIMM	SATA hard disk drive
SATA optical disc drive (optional) Graphics card (optional)

The tools and components in the table above are not included in the motherboard package.

Product introduction

1.1 Special features

1.1.1 Product highlights

The Ultimate Force

The TUF series delivers a tough image with its unique design, and high-quality and military-standard components. The TUF series pursues pre-eminent stability, all-around compatibility, and extreme durability.

FX™/Phenom™ II/Athlon™ II/ Sempron™ 100 Series Processors (AM3+ / AM3 CPU)

This motherboard supports AMD ^® Socket AM3+ multi-core processors with up to 8-core native CPU cores, and AMD ^® CPUs in the new 32nm manufacturing process. It provides better overclocking capabilities with less power consumption. It features AMD Turbo CORE Technology 2.0 to accelerate data transfer rate up to 5200MT/s rate via HyperTransport ^™ 3.0 based system bus.

AMD® 990FX Chipset

AMD 990FX Chipset is designed to support up to 5.2GT/s HyperTransport™ 3.0 (HT 3.0) interface speed and dual PCI Express™ 2.0 x16 graphics. It is optimized with AMD AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities.

PCI Express® 2.0

This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth that enhances system performance.

QUAD-GPU SLI and QUAD-GPU CrossFireX™ Support

This motherboard supports multi-GPU configurations of both SLI ^™ and CrossFireX. This motherboard features the AMD ^® 990FX/SB950 platform, optimizing PCIe allocation in multiple GPU setups.

Dual-Channel 1866 MHz Support

The motherboard supports the dual-channel DDR3 memory that features data transfer rates of 1866 MHz to boost the system's performance, and to meet the higher bandwidth requirements of 3D graphics, multimedia, and Internet applications.

Complete USB 3.0 Solution

This motherboard offers you the strategic USB 3.0 accessibility for both the front and rear panels, allowing you to experience the convenience of the latest plug and play connectivity solution at speed up to ten times faster than USB 2.0.

1.1.2 "Ultimate COOL!" Thermal Solution

TUF CeraM!X - Heatsink Coating Technology

This feature offers better cooling solution for an overall improvement in system stability. Its innovative ceramics actively conducts heat away from the system, and replaces traditional anti-oxidant for better heat dissipation.

DO NOT uninstall the heatsink module by yourself. Doing so may bend the tubing and affect the heat dissipation performance.

TUF Thermal Radar

The TUF Thermal Radar monitors the temperature of the motherboard's critical parts and automatically adjusts fan speeds in real time to ensure that the system remains stable and does not overheat. It consists of multiple sensors for various components, allowing you to monitor each area, while increasing options for fan control housed inside the chassis. The Thermal Radar calculates ideal fan speeds based on different parameters that you have selected for each component, keeping your system cool and more stable.

1.1.3 "TUF ENGINE!" Power Design

DIGI+ Power Control

DIGI+ Power Control includes multiple digital voltage controllers, allowing ultra-precise modulation and tuning of both CPU and DRAM. This innovative and industry-leading ASUS technology provides accurate voltage tuning for better efficiency, stability, and performance.

Efficient Switching Power (E.S.P.) Design

E.S.P., an ASUS exclusive feature, is designed for key components such as CPU, memory, graphics cards, LAN, and USB 3.0 to help improve system efficiency and reduce heat generation.

TUF Components (Choke, Cap. & MOSFET; certified by military-standard)

This motherboard provides rugged performance even in the most challenging conditions with its robust TUF chokes, solid capacitors, and MOSFETs, which are certified through a third-party, military-grade testing. TUF Chokes or Alloy Choke is made up of a compound of various metals instead of the standard iron, which supports up to 40A rated current, 25% higher than the standard chokes. The TUF Chokes are packaged in a single piece, eliminating the emission of vibration noise, delivering superb characteristics, and durability under extreme conditions.

1.1.4 "Safe & Stable!" Guardian Angel

ESD Guards

ESD (Electrostatic Discharge) Guards provides protection against electrostatic discharges, which can damage the motherboard's components. The ASUS exclusive Anti-Static chip and circuit design, and the I/O shield provide four times better protection and ensure the motherboard's lifespan.

MemOK!

MemOK!, the remarkable memory rescue tool, allows you to simply press a button to patch memory issues, ensure memory boot compatibility, determine fail-safe settings, and dramatically improve the system's bootup.

1.1.5 ASUS EZ DIY

ASUS UEFI BIOS (EZ Mode)

ASUS UEFI BIOS, a UEFI compliant architecture, offers the first mouse-controlled intuitive graphical BIOS interface that goes beyond the traditional keyboard-only BIOS controls, providing you with more flexibility, convenience, and easy to navigate EFI BIOS than the traditional BIOS versions. It offers you with dual selectable modes and native support for hard drives larger than 2.2 TB.

ASUS UEFI BIOS includes the following new features:

• F12 BIOS snapshot hotkey
• F3 Shortcut for most accessed information
• ASUS DRAM SPD (Serial Presence Detect) information detecting faulty DIMMs, and helping with difficult POST situations.

DirectKey

DirectKey allows you to conveniently go into the BIOS setup with the press of a button. With this feature, you can enter the BIOS anytime without having to press the key during POST. It also allows you to shut down or turn on your computer and directly enter the BIOS during boot-up.

Remote GO!

Remote GO! links PCs, tablets, smartphones, and TVs wirelessly together through an existing LAN cable and route setup. It provides a seamless environment for a futuristic connected lifestyle with three useful functions:

• DLNA Media Hub: Enjoy HD video, music and photos stored in your PC, streaming to your DLNA devices via Wi-Fi. You can even use your tablet to control your PC to play multimedia contents.
• Remote Desktop: Operate and control your PC in real time from a smartphone or tablet for complete comfort and convenience.
• File Transfer: Send and share files between your PC and smart devices* with only a right click on the mouse.
  * iPad/iPhone can send files, but cannot receive file transfers from PC.

USB BIOS Flashback

USB BIOS F lashback offers a hassle-free updating solution for your ultimate convenience. Install a USB storage device containing the BIOS file, press the BIOS Flashback button for about three seconds, and the UEFI BIOS is automatically updated even without entering the existing BIOS or operating system. It also allows you to regularly check for UEFI BIOS updates, and download the latest BIOS automatically.

USB 3.0 Boost

ASUS USB 3.0 Boost technology, which supports UASP (USB Attached SCSI Protocol), automatically accelerates the data transfer speed of a USB 3.0 device up to 170% faster than the standard USB 3.0 transfer speed.

Network iControl

Network iControl is an intuitive one-step network control center that makes it easier for you to manage your bandwidth and allows you to set, monitor, and schedule the bandwidth priorities for your network programs. It allows you to automatically connect to a PPPoE network for a more convenient online experience.

ASUS EZ-Flash 2

ASUS EZ Flash 2 is a user-friendly utility that allows you to update the BIOS without using a bootable floppy disk or an OS-based utility.

O.C. Profile

This motherboard features the ASUS O.C. Profile that allows you to store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving you the freedom to share and distribute your favorite overclocking settings.

1.1.6 Other special features

8 Channel Audio Codec

The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality Absolute Pitch 192kHz/24bit audio output, true BD lossless sound, jack-sensing feature, retasking functions and multi-streaming technology.

S/PDIF-out on Back I/O port

This motherboard provides a convenient connectivity to external home theater audio systems via optical S/PDIF-out (Sony-Philips Digital Interface) jacks. It allows the system to transfer digital audio without converting to analog format and keeps the best signal quality.

ErP Ready

The motherboard is European Union's Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirement in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.

1.2 Motherboard overview

1.2.1 Before you proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.
• Hold components by the edges to avoid touching the ICs on them.
• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.
• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

1.2.2 Motherboard layout

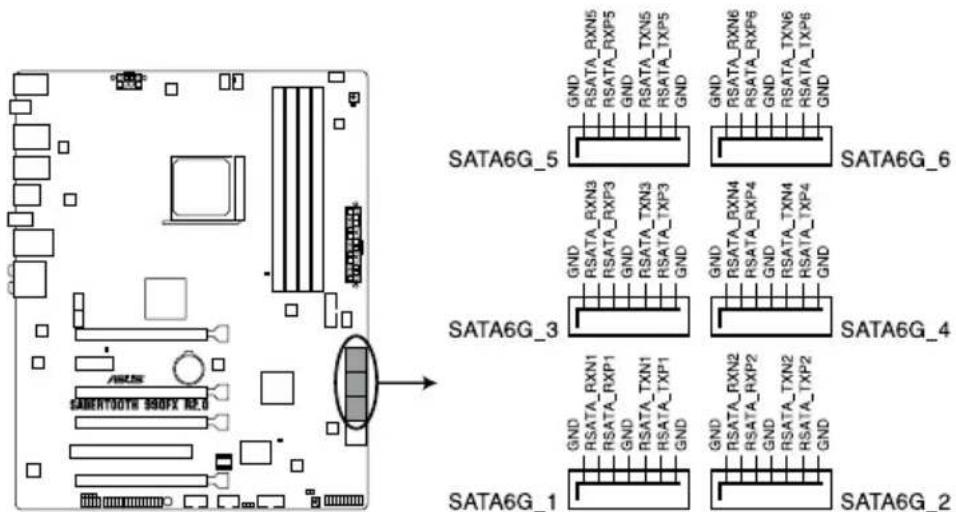

KB_USB78 SPDIFO ESATA4G_USB3_12 ASM 1061 USB3-5 USB3_34 ASM 1042 BIOS_FLBK LAN1_USB12 AUDIO CHA_FAN2 CHA_FAN4 AMD® 990FX PCIEX16_1 VGA_LED PCIEX1_1 ASUS® SABERTOOTH 990FX R2.0 PCIEX16_2 PCIEX16_3 PCI11 ALC B82 PCIEX16_4 SPDF_OUT AAFP TB_HEADER TPM SID_PWR USB1314 CPU_FAN CPU_OPT SOCKET AM3+ CPU_LED DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module) CHA_FANS MemOK DRAM_LED CHGk EAT2WWR ASM 1042 USB3_56 CHA_FAN1 AMD® SB950 LED Unit Call CMOS Power BOOT_DEVICE_LED Super I/O TPU DRCT DirectKey PANEL 17 16 15 14 13 12 11 10

Refer to 1.2.9 Internal connectors and 2.3.1 Rear I/O connection for more information about rear panel connectors and internal connectors.

Layout contents

Connectors/Jumpers/Slots Page

1. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V) 1-33
2. AM3+ CPU socket 1-8
3. CPU, chassis, and optional fan connectors (4-pin CPU_FAN, 4-pin CPU_OPT, 4-pin CHA_FAN1-4)	1-31
4. DDR3 DIMM slots 1-9
5. MemOK! button 1-22
6. USB 3.0 connector (20-1 pin USB3_56) 1-27
7. AMD ® Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_1-6 [brown]) 1-26

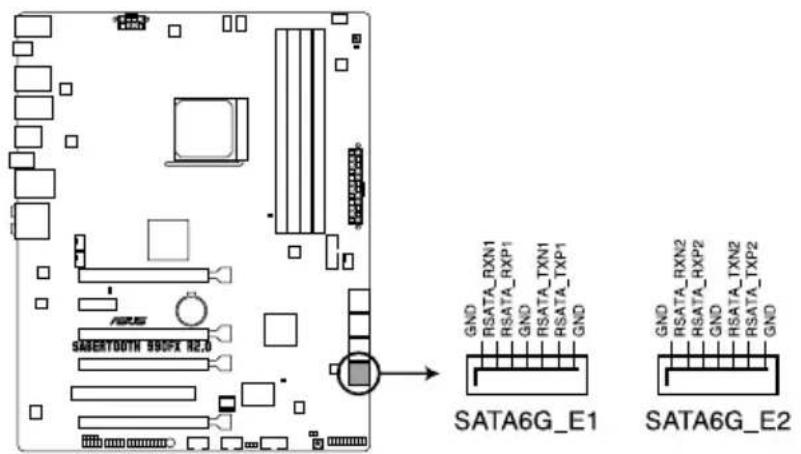

8. ASmedia ® Serial ATA 6.0 Gb/s connectors (7-pin SATA6G_E12 [gray])	1-27
9. Direct connector (2-pin DRCT) 1-35
10. System panel connector (20-8 pin PANEL) 1-34
11. DirectKey button 1-23
12. Serial port connector (10-1 pin COM1)	1-30
13. Clear RTC RAM (3-pin CLRTC)	1-24
14. USB 2.0 connectors (10-1 pin USB1314, USB1112)	1-29
15. Standby power LED	1-25
16. TPM connector (20-1 pin TPM)	1-35
17. Front panel audio connector (10-1 pin AAFP)	1-32
18. Digital audio connector (4-1 pin SPDIF_OUT)	1-28

1.2.3 Central Processing Unit (CPU)

The motherboard comes with an AM3+ socket designed for AMD ^ FX Series CPU up to 8-core, also compatible with AMD ^ socket AM3 for AMD ^ Phenom ^TM II/Athlon ^TM II/ Sempron ^TM 100 Series Processors.

ASUS SABERTOOTH 990FX R2.0 AMD

SABERTOOTH 990FX R2.0 CPU AM3+

Ensure that all power cables are unplugged before installing the CPU.

The AM3+ socket has a different pinout design. Ensure that you use a CPU designed for the AM3+/AM3 socket. The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU!

1.2.4 System memory

The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules (DIMM) slots.

A DDR3 module is notched differently from a DDR or DDR2 module. DO NOT install a DDR or DDR2 memory module to the DDR3 slot.

DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2 SABERTOOTH 990FX A2.0

SABERTOOTH 990FX R2.0 240-pin DDR3 DIMM socket

Recommended memory configurations

DIMM_A2 DIMM_A2 DIMM_B2 DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2

Memory configurations

You may install 1GB, 2GB, 4GB, 8GB, and 16GB ECC, non-ECC and unbuffered DDR3 DIMMs into the DIMM sockets.

• Memory module with memory frequency higher than 2133 MHz and its corresponding timing or the loaded DRAM OC Profile is not the JEDEC memory standard. The stability and compatibility of these memory modules depend on the CPU's capabilities and other installed devices.
• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.
  • Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with the retailer to get the correct memory modules.
• Due to the memory address limitation on 32-bit Windows OS, when you install 4GB or more memory on the motherboard, the actual usable memory for the OS can be about 3GB or less. For effective use of memory, we recommend that you do any of the following:

a) Use a maximum of 3GB system memory if you are using a 32-bit Windows OS.
b) Install a 64-bit Windows OS when you want to install 4GB or more on the motherboard.
c) For more details, refer to the Microsoft ^ support site at http://support.microsoft.com/kb/929605/en-us.

- This motherboard does not support DIMMs made up of 512Mb (64MB) chips or less (Memory chip capacity counts in Megabit, 8 Megabit/Mb = 1 Megabyte/MB).

• The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. To operate at the vendor-marked or at a higher frequency, refer to section 3.4 Ai Tweaker menu for manual memory frequency adjustment.
• For system stability, use a more efficient memory cooling system to support a full memory load (4 DIMMs) or overclocking condition.

SABERTOOTH 990FX R2.0 Motherboard Qualified Vendors Lists (QVL)

DDR3 2400 MHz capability

Vendors Part No. Size SS/			DS	Chip Brand	Chip NO.	Timing Voltage DIMM socket support (Optional)
							1 2 4
G.SKILL F3-19200CL10Q-32GBZHD(XMP) 32GB		(4x8GB)	DS -- 10-12-			12-31	1.65 ••
G.SKILL F3-19200CL11Q-16GBZHD(XMP) 16GB		(4x4GB)	DS -- 11-11-11-31		1.65 ••
G.SKILL F3-19200CL11Q-16GBZHD(XMP) 16GB		(4x4GB)	DS -- 11-11-11-31		1.65 ••
G.SKILL F3-19200CL9Q-16GBZMD(XMP) 16GB		(4x4GB)	DS -- 9-11-11-31		1.65 •
GEIL GOC316GB2400C11QC(XMP) 16GB		(4x4GB)	DS -- 11-11-11-30		1.65 •
Transcend	TX2400KLU-4GK (381850)(XMP)	2GB	DS	-	-	-	1.65
Transcend	TX2400KLU-4GK(374243)(XMP)	2GB	DS	-	-	-	1.65

DDR3 2200 MHz capability

Vendors	Part No.	Size SS/DS	Chip Brand	Chip NO.	Timing	Voltage DIMM socket support (Optional)
						1 2 4
G.SKILL	F3-17600CL7D-4GBFLS(XMP)	4G(2x2G)	DS	-	-	7-10-10-28	1.65	• • •
GEIL	GET34GB2200C9DC(XMP)	4GB(2x2GB)	DS	-	-	9-10-9-28	1.65	• • •
KINGMAX FLKE85F-B8KJAA-FEIS(XMP)	4GB(2x2GB)	4GB(2x2GB)	DS	Kingmax	N/A	-	-	• •

DDR3 2133 MHz capability

Vendors Part No. Size SS/		DS	Chip Brand Chip NO.	Timing Voltage DIMM socket support (Optional)
					1 2 4
CORSAIR CMT4GX3M2A2133C9 (XMP)		4GB(2x2GB)	DS -- 9-10-	9-24	1.65···
CORSAIR CMT4GX3M2B2133C9 (Ver7.1)(XMP)		4GB(2x2GB)	DS -- 9-9-9-	24	1.5···
CORSAIR CMT4GX3M2B2133C9 (XMP)		4GB(2x2GB)	DS -- 9-10-	9-27	1.5···
G.SKILL	F3-17000CL11Q2-64GBZLD(XMP)	64GB(8x8GB)	DS -- 11-11-	11-30	1.5···
G.SKILL	F3-17000CL9Q-16GBZH(XMP)	16GB(4x4GB)	DS -- 9-11-	10-28	1.65···
G.SKILL	F3-17066CL9D-8GBP ID(XMP)	8GB(2x4GB)	DS -- 9-9-9-	24	1.65···
G.SKILL	F3-17066CL9Q-16GBT DD(XMP)	16GB(4x4GB)	DS -- 9-9-9-	24	1.65···
KINGSTON	KHX2133C11D3K4/16 GX(XMP)	16GB(4x4GB)	DS -- 11-12-	11-30	1.65···
KINGSTON	KHX2133C11D3T1K2/16GX(XMP)	16GB(2x8GB)	DS -- 9-9-9-	24	1.6···
OCZ	OCZ3XTEP2133C9LV4GK	2GB	DS -- 7-7-7-	20	1.65···
Patriot	PVV34G2133C9K (XMP)	4GB(2x2GB)	DS -- 9-11-	9-27	1.66···
Patriot	PXD38G2133C11K (XMP)	8GB(2x4GB)	DS -- 9-9-9-	24	1.65···
Team	TXD34096M2133HC9 N-L(XMP)	4GB	DS SAMSUNG K4B2G 0846D	9-9-9-24	1.65···

DDR3 2000 MHz capability

Vendors Part No. Size SS/		DS	Chip Brand	Chip NO. Timing Voltage DIMM socket support (Optional)
						1 2 4
A-DATA AX3U2000GB2G9B (XMP)		2GB DS -- 9-11-			9-27	1.55~1.75···
A-DATA AX3U2000GC4G9B (XMP)		4GB DS -- 9-11-			9-27	1.55~1.75···
AEXEA AXA3ES2G2000LG 28V(XMP)		2GB DS ---	1.65	···
AEXEA AXA3ES4GK2000L G28V(XMP)		4GB (2x2GB)	DS ---	1.65	···
Apacer	78.AAGD5.9KD(XMP)	6GB (3x2GB)	DS -- 9-9-9-		27	-
Asint	SLA302G08-ML2HB (XMP)	4GB DS Hynix H5TQ2G8		3BFRH9C	9-9-9-27	-
CORSAIR CMT6GX3M3A2000 C8(XMP)		6GB (3x2GB)	DS -- 8-9-8-		24	1.65
CORSAIR CMZ4GX3M2A2000C 10(Ver 5.12)(XMP)		4GB (2x2GB)	SS -- 10-10-		10-27	1.5
G.SKILL	F3-16000CL9D-4GB RH(XMP)	4GB (2x2GB)	DS -- 9-9-9-		24	1.65
G.SKILL	F3-16000CL9D-4GB TD(XMP)	4GB (2x2GB)	DS -- 9-9-9-		24	1.65
Patriot PX7312G2000ELK (XMP)		12GB (3x4GB)	DS -- 9-11-		9-27	1.65
Team	TXD32048M2000C9 (XMP)	2GB DS Team	T3D128	8RT-20	9-9-9-24	1.5
Team	TXD32048M2000C9 -L(XMP)	2GB DS Team	T3D128	8LT-20	9-9-9-24	1.5
Team	TXD32048M2000C9 -L(XMP)	2GB DS Team	T3D128	8RT-20	9-9-9-24	1.6

DDR3 1866 MHz capability

Vendors Part No. Size SS/		DS	Chip Brand	Chip NO. Timing Voltage DIMM socket			support (Optional)
							1 2 4
A-DATA AX3U1866GC4G9B(XMP)		4GB DS -- 9-11-9-27 1.55~					1.75	•
CORSAIR CMD16GX3M4A1866 C9(Ver4.13)(XMP)		16GB(4x4GB)	DS -- 9-10-9-27 1.5		••	•
CORSAIR CMD8GX3M2A1866C9(Ver4.13)(XMP)		8GB(2x4GB)	DS ---	1.5	••
CORSAIR CMT32GX3M4X1866C9(Ver3.23)(XMP)		32GB(4x8GB)	DS -- 9-10-9-27 1.5		••
CORSAIR CMZ16GX3M4X1866C9R(Ver8.16)(XMP)		16GB(4x4GB)	DS -- 9-10-9-27	1.5	••	•
CORSAIR CMZ8GX3M2A1866C9(XMP)		8GB(2x4GB)	DS -- 9-10-9-27 1.5		••	•
Crucial	BLE4G3D1869DE1XT0.16FMD(XMP)	4GB DS -- 9-9-9-27 1.5		••	•
G.SKILL F3-14900CL10Q2-64GBZLD(XMP)		64GB(8x8GB)	DS -- 10-11-		10-30	1.5	••
G.SKILL F3-14900CL9Q-16GBXL(XMP)		16GB(4x4GB)	DS -- 9-10-9-28 1.5		••
G.SKILL F3-14900CL9Q-16GBZL(XMP)		16GB(4x4GB)	DS -- 9-10-9-28 1.5		••
Kingston	KHX1866C9D3K2/8GX(XMP)	8GB(2x4GB)	DS ---	1.65	••	•
Patriot	PXD38G1866ELK(XMP) 8GB(2x4GB)		DS -- 9-11-9-27	1.65	••	•
Patriot	PXD38G1866ELK(XMP) 8GB(2x4GB)		DS -- 9-11-9-27	1.65	••	•
Team	TXD34096M1866HC9K-L(XMP)	4GB DS Hynix	H5TC2G8	3BFRH9A	9-11-9-27	1.65	•	•

DDR3 1800 MHz capability

Vendors	Part No.	Size	SS/DS	Chip Brand	Chip NO.	Timing Voltage DIMM socket support (Optional)
							1 2	4
G.SKILL F3-14400CL9D-4GBRL(XMP)		4GB(2x2GB)	DS	-	-	9-9-9-24	1.6	•	•

DDR3 1600 MHz capability

Vendors Part No. Size SS/			DS	Chip Brand	Chip NO. Timing Voltage DIMM socket			support(Optional)1 2 4
A-DATA AM2U16BC2P1 2GB SS A-DATA 3CCD-					1509A	---
A-DATA AM2U16BC4P2 4GB DS A-DATA 3CCD-					1509A	---
A-DATA AX3U1600GC4G9(XMP) 4GB DS --- 1.55~							1.75	...
A-DATA AX3U1600PC4G8(XMP)	4GB DS --- 8-8-8-24		1.55~				1.75	...
AEXEA	AXA3PS4GK1600S18V(XMP)	4GB(2x2GB)	DS --- 1.65	...
AMD	AP38G1608U2K(XMP) 8GB(2x4GB)		DS --- 9-9-9-28	1.65	...
Asint	SLA302G08-EGG1C(XMP)	4GB DS Asint	302G08-	GG1C	9-9-9-27	---
Asint	SLA302G08-EGJ1C(XMP)	4GB DS Asint	302G08-	GJ1C	9-9-9-27	---
Asint	SLA302G08-EGN1C	4GB	DS	ASint	302G08-GN1C	---
Asint	SLB304G08-EGN1B	8GB	DS	ASint	304G08-GN1B	---
Asint	SLZ302G08-EGN1C	2GB	SS	ASint	302G08-GN1C	---
Asint	SLZ3128M8-EGJ1D(XMP)	2GB DS Asint	3128M8-	GJ1D	---
ATP	AQ12M64B8BKK0S	4GB	DS	SAMSUNG	K4B2G08460	-NO	...
CORSAIR	CMG4GX3M2A1600C6 4GB(2x2GB)		DS --- 6-6-6-18	1.65	...
CORSAIR	CML16GX3M4X1600C8(Ver 2.12)(XMP)	16GB(4x4GB)	DS --- Heat-Sink			Package	1.5	...
CORSAIR	CMP6GX3M3A1600C8(XMP)	6GB(3x2GB)	DS --- 8-8-8-24	1.65	...
CORSAIR	CMP6GX3M3A1600C8(XMP)	6GB(3x2GB)	DS --- 8-8-8-24	1.65	...
CORSAIR	CMX6GX3M3C1600C7(XMP)	6GB(3x2GB)	DS --- 7-8-7-20	1.65	...
CORSAIR	CMZ16GX3M4A1600C9(XMP)	16GB(4x4GB)	DS --- 9-9-9-24	1.5	...
CORSAIR	CMZ8GX3M2A1600C8(XMP)	8GB(2x4GB)	DS --- 8-8-8-24	1.5	...
CORSAIR	CMZ8GX3M2A1600C9(XMP)	8GB(2x4GB)	DS --- 9-9-9-24	1.5	...
CORSAIR	CMZ8GX3M4X1600C9(Ver 2.12)(XMP)	8GB(4x2GB)	SS --- 9-9-9-24	1.5	...
CORSAIR	HX3X12G1600C9(XMP)	12GB(6x2GB)	DS --- 9-9-9-24	1.6	...
Crucial	BL12864BN1608.8FF(XMP)	2GB(2x1GB)	SS --- 8-8-8-24	1.65	...

(continued on the next page)

DDR3 1600 MHz capability

Vendors Part No. Size SS/		DS	Chip Brand	Chip NO. Timing Voltage DIMM socket			support (Optional)1 2 4
Crucial BLT4G3D1608DT1TX0.16FM(XMP)		4GB DS - - 8-8-8-24 1.5···
EK Memory EKM324L28BP8-I16(XMP)		4GB(2x2GB)	DS - - 9 -	···
EK Memory EKM324L28BP8-I16(XMP)		4GB(2x2GB)	DS - - 9 -	···
Elixir	M2X2G64CB88G7N-DG (XMP)	2GB SS	Elixir N2CB2G80GN-DG	9-9-9-28	-		···
Elixir	M2X4G64CB8HG5N-DG (XMP)	4GB DS Elixir	N2CB2G80GN-DG	9-9-9-28	-		···
G.SKILL F3-12800CL7D-8GBRH (XMP)		8GB(2x4GB)	DS - - 7-8-7-24 1.6···
G.SKILL F3-12800CL7Q-16GBXH (XMP)		16GB(4x4GB)	DS - - 7-8-7-24 1.6···
G.SKILL F3-12800CL8D-8GBECO (XMP)		8GB(2x4GB)	DS - - 8-8-8-24 1.35···
G.SKILL F3-12800CL9D-8GBRL (XMP)		8GB(2x4GB)	DS - - 9-9-9-24 1.5···
G.SKILL F3-12800CL9D-8GBSR2 (XMP)		8GB(2x4GB)	DS - - 9-9-9-24 1.25···
G.SKILL F3-12800CL9Q-16GBXL (XMP)		16GB(4x4GB)	DS - - 9-9-9-24 1.5···
G.Skill F3-12800CL9Q-16GBZL (XMP)		16GB(4x4GB)	DS - - 9-9-9-24 1.5···
GEIL	GET316GB1600C9QC(XMP)	16GB(4x4GB)	DS - - 9-9-9-28 1.6···
GEIL	GUP34GB1600C7DC(XMP)	4GB(2x2GB)	DS - - 7-7-7-24 1.6···
GoodRam	GR1600D364L9/2G	2GB DS Good	Ram	GF1008KC-JN	-	-	···
KINGMAX	FLGE85F-C8KL9A(XMP)	2GB SS	KING MAX	N/A	9-9-9-28 -		···
KINGMAX	FLGF65F-C8KL9A(XMP)	4GB DS KING	MAX	N/A	9-9-9-28 -		···
KINGSTON KHX1600C9D3K2/4GX(XMP)		4GB(2x2GB)	DS - -	1.65	···
KINGSTON KHX1600C9D3K3/12GX(XMP)		12GB(3x4GB)	DS - -	1.65	···
KINGSTON KHX1600C9D3K3/6GX(XMP)		6GB(3x2GB)	DS - - 9 1.65	···	·
KINGSTON KHX1600C9D3K3/6GX(XMP)		6GB(3x2GB)	DS - - 9 1.65	···	·
Kingston	KHX1600C9D3K4/16GX(XMP)	16GB(4x4GB)	DS		9-9-9-24 1.65		···
KINGSTON KHX1600C9D3K6/24GX(XMP)		24GB(6x4GB)	DS - - 9 1.65	···
Kingston	KHX1600C9D3K8/32GX(XMP)	32GB(8x4GB)	DS - - 9-9-9-27 1.65		···

(continued on the next page)

DDR3 1600 MHz capability

Vendors Part No. Size SS/			DS	Chip Brand	Chip NO. Timing Voltage DIMM socket			support(Optional)1 2 4
KINGSTON KHX1600C9D3LK2/4GX (XMP)		4GB(2x2GB)	DS --- 1.35···
Kingston KHX1600C9D3LK2/8GX (XMP)		8GB(2x4GB)	DS --- 9-9-9-24 1.35···
KINGSTON KHX1600C9D3P1K2/8G		8GB(2x4GB)	DS --- 9	1.5	···
KINGSTON KHX1600C9D3T1BK3/12GX(XMP)		12GB(3x4GB)	DS --- 9	1.65···
KINGSTON KHX1600C9D3T1K3/6G X(XMP)		6GB(3x2GB)	DS --- 9	1.65···
KINGSTON KHX1600C9D3X2K2/4G X(XMP)		4GB(2x2GB)	DS --- 9	1.65···
KINGTIGER	KTG2G1600PG3(XMP)	2GB	DS	-	-	-	-	···
Mushkin	996805(XMP)	4GB(2x2GB)	DS --- 6-8-6-24 1.65···
Mushkin	998805(XMP)	6GB(3x2GB)	DS --- 6-8-6-24 1.65···
OCZ	OCZ3BE1600C8LV4GK	4GB(2x2GB)	DS --- 8-8-8	1.65···
Patriot	AE32G1609U1-U	2GB	SS	AMD	23EY4587MB6H	-1.5	···
Patriot	AE34G1609U2-U	4GB	DS	AMD	23EY4587MB6H	-1.5	···
Patriot	PGD316G1600ELK(XMP)	16GB(2x8GB)	DS --- 1.65···
Patriot	PGD38G1600ELK(XMP)	8GB(2x4GB)	DS --- 9-9-9-24 1.65···
Patriot	PGS34G1600LLKA	4GB(2x2GB)	DS --- 7-7-7-20 1.7	···
Patriot	PGS34G1600LLKA2 4GB	(2x2GB)	DS --- 8-8-8-24 1.7	···
Patriot	PVV38G1600LLK(XMP)	8GB(2x4GB)	DS --- 8-9-8-24 1.65···
Patriot	PX7312G1600LLK(XMP)	12GB(3x4GB)	DS --- 8-9-8-24 1.65···
SanMax	SMD-4G68HP-16KZ	4GB	DS	Hynix	H5TQ2G83BFRPBC	-1.5	···
SanMax	SMD-4G68NG-16KK	4GB	DS	ELPIDA	J2108BDBG-GN-F	--	···
SiliconPower	SP002GBLTU160V02(XMP)	2GB	SS S-POWER	20YT5NG 9-11-		11-28	1.5	···
SiliconPower	SP004GBLTU160V02(XMP)	4GB	DS	S-POWER	20YT5NG	9-9-9-24	1.5	···
Team	TED34096M1600HC11	4GB	DS	Team	T3D2568ET-16	--	···
Team	TXD31024M1600C8-D(XMP)	1GB	SS Team	T3D1288RT-16		8-8-8-24 1.65···
Team	TXD32048M1600C7-L(XMP)	2GB	DS Team	T3D1288LT-16		7-7-7-24 1.65···

(continued on the next page)

DDR3 1600 MHz capability

Vendors Part No. Size SS/		DS	Chip Brand	Chip NO. Timing Voltage DIMM socket			support(Optional)
							1 2 4
Team TXD32048M1600HC8-D (XMP)		2GB DS Team T3D1288R		T-16	8-8-8-24 1.65···
Team TXD34096M1600HC9-D (XMP)		4GB DS Hynix H5TC2G83		BFRH9A	9-9-9-24 1.5···
Transcend JM1600KLN-8GK 8GB		(2x4GB)	DS Transcend	TK483PC W3	-	-	···
Transcend	TS256MLK64V6N	2GB	SS	Transcend	K4B2G084 6C	-	-
Transcend	TS512MLK64V6N	4GB	DS	MICRON	D9PFJ	-	-
Transcend TS512MLK64V6N		4GB DS Transcend	K4B2G084	6C	-	-	···

DDR3 1333 MHz capability

Vendors	Part No.	Size SS/DS Chip		Brand	Chip NO.	Timing Voltage		DIMM socket support (Optional)
								1 2	4
A-DATA	AD63I1B0823EV	2GB	SS	A-DATA	3CCA-1509 A	-	-	···
A-DATA	AD63I1C1624EV	4GB	DS	A-DATA	3CCA-1509 A	-	-	···
A-DATA	AXDU1333GC2G9(XMP)	2GB	SS	-	-	9-9-9-24	1.25~1.35	···
A-DATA	SU3U1333W8G9(XMP)	8GB	DS	ELPIDA	J4208BASE-DJ-F	-	-	···
Apacer	78.A1GC6.9L1	2GB	DS	Apacer	AM5D5808FEQSBG	9 -	···
Apacer	78.B1GDE.9L10C	4GB	DS	Apacer	AM5D5908CEHSBG	9 -	···
CORSAIR	CMX8GX3M2A1333C9(XMP)	8GB(2x4GB)	DS	-	-	9-9-9-24	1.5	•	•
CORSAIR	TW3X4G1333C9A	4GB(2x2GB)	DS	-	-	9-9-9-24	1.5	•	•
G.SKILL F3-10600CL9D-4G BNT		4GB(2x2GB)	DS	G.SKILL	D3 128M8CE9 2GB	9-9-9-24	1.5	···
G.SKILL F3-10666CL9D-8G BRL		8GB(2x4GB)	DS	-	-	9-9-9-24	1.5	•	•
G.SKILL F3-10666CL9D-8G BXL		8GB(2x4GB)	DS	-	-	9-9-9-24	1.5	•	•
GEIL GB34GB1333C7DC	4GB	(2x2GB)	DS	GEIL GL1L128M88BA15FW		7-7-7-24	1.5	···
GEIL GET316GB1333C9QC		16GB(4x4GB)	DS	-	-	9-9-9-24	1.5	•	•
GEIL GG34GB1333C9DC	4GB	(2x2GB)	DS	GEIL GL1L128M88BA115FW		9-9-9-24	1.3	···
GEIL GG34GB1333C9DC	4GB	(2x2GB)	DS	GEIL GL1L128M88BA15B		9-9-9-24	1.3	···

(continued on the next page)

DDR3 1333 MHz capability

Vendors Part No. Size SS/			DS	Chip Brand	Chip NO. Timing Voltage DIMM socket			support(Optional)1 2 4
GEIL GVP34GB1333C9DC		4GB(2x2GB)	DS - - 9-9-9-24 1.5···
GEIL GVP38GB1333C7QC		8GB(4x2GB)	DS - - 7-7-7-24 1.5···
GEIL GVP38GB1333C9DC		8GB(2x4GB)	DS - - 9-9-9-24 1.5···
Hynix HMT125U6TFR8A- H9		2GB	DS	Hynix	H5TC1G83TFR	-	-	•	•	•
KINGMAX	FLFE85F-B8KL9	2GB	DS	KINGMAX	KFB8FNLXL-BNF-15A	-	-	···
KINGMAX	FLFE85F-C8KL9	2GB	SS	KINGMAX	KFC8FNLBF-GXX-12A	-	-	···
KINGMAX	FLFE85F-C8KL9	2GB	SS	KINGMAX	KFC8FNLXF-DXX-15A	-	-	···
KINGMAX	FLFE85F-C8KM9	2GB	SS	Kingmax	KFC8FNMXF-BXX-15A	-	-	···
KINGMAX	FLFF65F-C8KL9	4GB	DS	KINGMAX	KFC8FNLBF-GXX-12A	-	-	···
KINGMAX	FLFF65F-C8KL9	4GB	DS	KINGMAX	KFC8FNLXF-DXX-15A	-	-	···
KINGMAX	FLFF65F-C8KM9	4GB DS Kingmax KFC8FNMXF-BXX-15A				-	-	···
KINGSTON	KVR1333D3E9S/4G	4GB DS Elpida	J2108ECSE-DJ-F			9 1.5 ·	·	·
KINGSTON	KVR1333D3N9/2G	2GB DS Kingston D1288JPNDPLD9U				9 1.5 ·	·	·
KINGSTON	KVR1333D3N9H/8G	8GB DS ELPIDA	J4208EASE-DJ-F			9-9-9-24 1.5 ·	·	·
KINGSTON	KVR1333D3N9K2/4G	4GB(2x2GB)	DS KINGSTON D1288JEMFPGD9U			-	1.5 ·	·	·
KINGSTON	KVR1333D3S8N9/2G	2GB	SS	Micron	IFD77 D9LGK	-	1.5	·	·	·
MICRON	MT16KTF51264AZ-1G6M1	4GB	DS	MICRON	D9PFJ	-	-	·	·	·
MICRON	MT8JTF25664AZ-1G4M1	2GB	SS	MICRON	D9PFJ	-	-	·	·	·
MICRON	MT8KTF25664AZ-1G6M1	2GB	SS	MICRON	D9PFJ	-	-	·	·	·
OCZ	OCZ3G1333LV4GK 4GB(2x2GB)	DS - - 9-9-9	1.65	·	·
OCZ	OCZ3G1333LV8GK 8GB(2x4GB)	DS	-	-		9-9-9	1.65	·	·	·
OCZ	OCZ3G1333LV8GK 8GB(2x4GB)	DS - - 9-9-9	1.65	·	·

(continued on the next page)

DDR3 1333 MHz capability

Vendors Part No. Size SS/		DS	Chip Brand	Chip NO. Timing Voltage DIMM socket				support(Optional)1 2 4
OCZ OCZ3RPR1333C9LV8GK		8GB(2x4GB)	DS -- 9-9-9 1.65 ••
SAMSUNG M378B1G73AH0-CH9		8GB DS SAMSUNG K4B4G0846A		-HCH9	----
SAMSUNG M378B5273CH0-CH9		4GB DS SAMSUNG K4B2G0846C K4B2G			0846C	---	•
SAMSUNG M378B5673FH0-CH9		2GB DS SAMSUNG K4B1G0846F		----
Transcend	JM1333KLN-2G	2GB	SS	Transcend	TK483PCW3	-	-		•	•
Transcend	JM1333KLN-2G(582670)	2GB	SS	Micron	ICD77 C9LGK	-	-			•
Transcend	JM1333KLN-4G	4GB	DS	Transcend	TK483PCW3	-	-	•	•	•
Transcend	JM1333KLN-4G (583782 )	4GB DS Transcend		TK483PCW3	9	---
Transcend	TS256MLK64V3N(585541 )	2GB	SS	Micron	ICD77 D9LGK	9	-	•	•	•
Transcend	TS256MLK64V3N(566577)	2GB SS	Hynix	H5TQ2G83BFR	9	---	•
Transcend	TS256MLK64V3N(574206)	2GB	SS	Micron	D9LGK	9	-	•	•	•
Transcend	TS256MLK64V3NL	2GB	SS	Hynix	H5TQ2G83CFRH9C	--			•
Transcend	TS512MLK64V3N(574831)	4GB	DS	Micron	D9LGK	9	-			•

Side(s): SS - Single-sided DS - Double-sided DIMM support:

(1) Supports one (1) module inserted into any slot as Single-channel memory configuration. We suggest that you install the module into A2 slot.
(2) Supports two (2) modules inserted into either the blue slots or the black slots as one pair of Dual-channel memory configuration. We suggest that you install the modules into slots A2 and B2 for better compatibility.
(4) Supports four (4) modules inserted into both the blue and black slots as two pairs of Dual-channel memory configuration.

• ASUS exclusively provides hyper DIMM support function.
• Hyper DIMM support is subject to the physical characteristics of individual CPUs. Load the X.M.P. or D.O.C.P. settings in the BIOS for the hyper DIMM support.
• Visit the ASUS website for the latest QVL.

1.2.5 Expansion slots

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

PCEX16_1 PCEX1_1 ASUS SABERTOOTH 990FX R2.0 PCEX16_3 PCB PCEX16_4

Slot No. Slot Description

1 PCIe 2.0	x16_1 slot (single at x16, dual at x16/x16, triple at x16/x8/x8 mode)
2 PCIe 2.0	x1_1 slot
3 PCIe 2.0	x16_2 slot
4 PCIe 2.0	x16_3 slot
5 PCI slot
6 PCIe 2.0	x16_4 slot
VGA configuration	PCI Express operating mode
	PCIe 2.0_x16_1	PCIe 2.0_x16_2	PCIe 2.0x16_3	PCIe 2.0x16_4
Single VGA/ PCIe card	x16 (Recommend for single VGA)	x4	N/A	x8
Dual VGA/PCIe card	x16	x4	x16	x1
3-way SLI	x16	x4	x8	x8

• In single VGA card mode, use the PCIe 2.0 x16_1 slot (beige) for a PCI Express x16 graphics card to get better performance.
• In CrossFireX™ or SLI™ mode, use the PCIe 3.0 x16_1 and PCIe 3.0 x16_3 slots for PCI Express x16 graphics cards to get better performance.
• In 3-way SLI mode, use the PCIe 3.0 x16_1/PCIe 3.0 x16_3/PCIe 3.0 x16_4 slots for PCI Express x16 graphic cards to get better performance.
• We recommend that you provide sufficient power when running CrossFireX™ or SLI™ mode.
• Connect a chassis fan to the motherboard connector labeled CHA_FAN1/2 when using multiple graphics cards for better thermal environment.

IRQ assignments for this motherboard

A B C D E F G H
PCIe x16_1 shared - - - - - -
PCIe x16_2 shared - - - - - -
PCIe x16_3 shared - - - - - -
PCIe x16_4 - - - - shared - - -
PCIe x1_1 - - - - shared - - -
ASM eSATA - - - - shared - - -
ASM SATA [Gray] - - - - shared -
ASM USB3_12 - - - - - shared -
ASM 1042 (Front)	- - - - - - shared
ASM USB3_3	shared - - - - - -
Realtek 8111F (LAN) - - - - shared - -
Onchip SATA [Brown] - - - shared - - -
Onchip Audio	shared - - - - - -
Onchip USB2_1-5	- shared - - - - -
Onchip USB2_6-8	- - - - - shared - -
Onchip USB2_11-14	- - - - - shared

1.2.6 Onboard buttons

Onboard buttons allow you to fine-tune performance when working on a bare or open-case system. This is ideal for overclockers and gamers who continually change settings to enhance system performance.

1. MemOK! button

Installing DIMMs that are not compatible with the motherboard may cause system boot failure, and the DRAM_LED near the MemOK! switch lights continuously. Press and hold the MemOK! button until the DRAM_LED starts blinking to begin automatic memory compatibility tuning for successful boot.

MemOK! R2.0 SABERTOOTH 950FX R2.0

SABERTOOTH 990FX R2.0 MemOK! button

• Refer to section 1.2.8 Onboard LEDs for the exact location of the DRAM_LED.
• The DRAM_LED also lights up when the DIMM is not properly installed. Turn off the system and reinstall the DIMM before using the MemOK! function.
  • The MemOK! switch does not function under Windows™ OS environment.
• During the tuning process, the system loads and tests failsafe memory settings. It takes about 30 seconds for the system to test one set of failsafe settings. If the test fails, the system reboots and test the next set of failsafe settings. The blinking speed of the DRAM_LED increases, indicating different test processes.
• Due to memory tuning requirement, the system automatically reboots when each timing set is tested. If the installed DIMMs still fail to boot after the whole tuning process, the DRAM_LED lights continuously. Replace the DIMMs with ones recommended in the Memory QVL (Qualified Vendors Lists) in this user manual or on the ASUS website at www.asus.com.
• If you turn off the computer and replace DIMMs during the tuning process, the system continues memory tuning after turning on the computer. To stop memory tuning, turn off the computer and unplug the power cord for about 5–10 seconds.
• If your system fails to boot up due to BIOS overclocking, press the MemOK! switch to boot and load the BIOS default settings. A message will appear during POST reminding you that the BIOS has been restored to its default settings.
  • We recommend that you download and update to the latest BIOS version from the ASUS website at www.asus.com after using the MemOK! function.

2. DirectKey button

This feature allows your system to go to the BIOS Setup program with the press of a button. With DirectKey, you can enter the BIOS anytime without having to press the key during POST. It also allows you to turn on or turn off your system and conveniently enter the BIOS during boot-up.

SABERTOOTH 990FX R2.0 DirectKey

SABERTOOTH 990FX R2.0 DirectKey button

Ensure to save your data before using the DirectKey button.

• When the system is on and you press the DirectKey button, your system will shut down. Press the DirectKey button again or the Power-on button to reboot and enter the BIOS directly.
• Turn off your system using the power-on button to allow your system to go through POST (without entering the BIOS) when you reboot your system.
• Refer to section 3.7 Boot Menu for details about setting the DirectKey default function.

1.2.7 Jumpers

1. Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

ASUS SABERTOOTH 590FX R2.0 CLRTC 1 2 Normal (Default) 2 3 Clear RTC

SABERTOOTH 990FX R2.0 Clear RTC RAM

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.
2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5-10 seconds, then move the cap back to pins 1-2.
3. Plug the power cord and turn ON the computer.
4. Hold down the key during the boot process and enter BIOS setup to re-enter data.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

• If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After the CMOS clearance, reinstall the battery.
• You do not need to clear the RTC when the system hangs due to overclocking. For system failure due to overclocking, use the C.P.R. (CPU Parameter Recall) feature. Shut down and reboot the system so the BIOS can automatically reset parameter settings to default values.
• Due to the chipset behavior, AC power off is required to enable C.P.R. function. You must turn off and on the power supply or unplug and plug the power cord before rebooting the system.

1.2.8 Onboard LEDs

1. POST State LEDs

The POST State LEDs provide the status of these key components during POST (Power-On-Self Test): CPU, memory modules, VGA card, and hard disk drives. If an error is found, the critical component's LED stays lit up until the problem is solved.

DRAM_LED CPU_LED VGA_LED BOOT_DEVICE_LED SABERTOOTH 950FX R2.0

SABERTOOTH 990FX R2.0 CPU/ DRAM/ BOOT_DEVICE/ VGA LED

2. Standby Power LED

The motherboard comes with a standby power LED. The green LED lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you should shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED.

SB_PWR ON Standy Power OFF Powered Off

SABERTOOTH 990FX R2.0 Onboard LED

1.2.9 Internal connectors

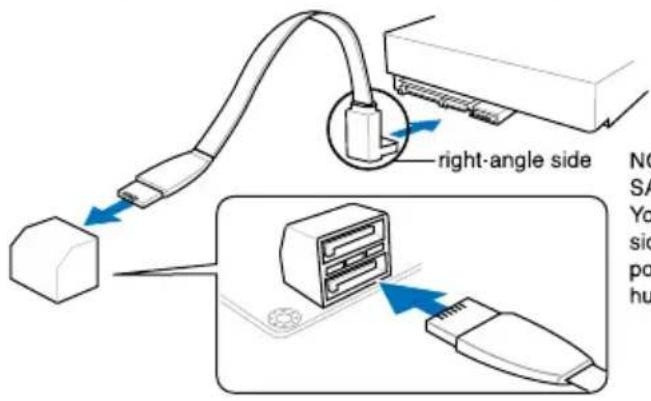

1. AMD ^ Serial ATA 6.0 Gb/s connectors (7-pin SATA6G\_1-6 [brown])

These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables.

If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 10 configuration through the onboard AMD® SB950 chipset.

SABERT00TH 990FX R2.0 SATA6G_1 SATA6G_2 SATA6G_3 SATA6G_4 SATA6G_5 SATA6G_6 GND RSATA_RXN5 RSATA_RXP5 GND RSATA_TXN5 RSATA_TXP5 GND GND RSATA_RXN6 RSATA_RXP6 GND GND RSATA_TXN6 RSATA_TXP6 GND GND RSATA_RXN3 RSATA_RXP3 GND RSATA_TXN3 RSATA_TXP3 GND GND RSATA_RXN4 RSATA_RXP4 GND GND RSATA_TXN4 RSATA_TXP4 GND GND RSATA_RXN1 RSATA_RXP1 GND RSATA_TXN1 RSATA_TXP1 GND GND RSATA_RXN2 RSATA_RXP2 GND GND RSATA_TXN2 RSATA_TXP2 GND

SABERTOOTH 990FX R2.0 AMD® Serial ATA 6.0 Gb/s connectors

right-angle side NO SA You sid po hu

NOTE: Connect the right-angle side of SATA signal cable to SATA device. You may also connect the right-angle side of SATA cable to the onboard SATA port to avoid mechanical conflict with huge graphics cards.

• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial ATA RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID Mode]. Refer to section 3.5.4 SATA Configuration for details.
• Before creating a RAID set, refer to section 5.1 RAID configurations or the manual bundled in the motherboard support DVD.
• When creating a RAID set, set the SATA_5-6 connectors to [IDE Mode] to ensure that the system recognizes your ODD device.
• When using NCQ, set the SATA Mode in the BIOS to [AHCI Mode]. Refer to section 3.5.4 SATA Configuration for details.
• You must install WindowsYou XP Systematic Pack 8 or later versions before using Serial ATA hard disk drives. The Serial ATA RAID feature is available only if you are using Windows XP SP3 or later versions.

2. ASMedia ^ Serial ATA 6.0 Gb/s connectors (7-pin SATA6G\_E1-2 [gray])

These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables.

SABERTOOTH 99CFX R2.0 GND RSATA_RXN1 RSATA_RXP1 GND RSATA_TXN1 RSATA_TXP1 GND SATA6G_E1 GND RSATA_RXN2 RSATA_RXP2 GND RSATA_TXN2 RSATA_TXP2 GND SATA6G_E2

SABERTOOTH 990FX R2.0 ASMedia® SATA 6.0 Gb/s connectors

3. USB 3.0 connector (20-1 pin USB3\_56)

This connector is for the additional USB 3.0 ports, and complies with the USB 3.0 specification that supports up to 480 MBps connection speed. If the USB 3.0 front panel cable is available from your system chassis, with this USB 3.0 connector, you can have a front panel USB 3.0 solution.

USB3_56 Pin 1 Vbus IntA_P1_SSRX- IntA_P1_SSRX+ GND GND IntA_P1_SSTX- IntA_P1_SSTX+ GND GND IntA_P1_D- IntA_P1_D+ ID Vbus IntA_P2_SSRX- IntA_P2_SSRX+ GND GND SABENTOOTH 380FX 92.0 INTA_P2_SSTX- IntA_P2_SSTX+ GND GND IntA_P2_D- IntA_P2_D+

SABERTOOTH 990FX R2.0 USB3.0 connector

4. Digital audio connector (4-1 pin SPDIF\_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect the S/PDIF Out module cable to this connector, then install the module to a slot opening at the back of the system chassis.

SPDIF_OUT +5V SPDIFOUT GND

SABERTOOTH 990FX R2.0 Digital audio connector

The S/PDIF module is purchased separately.

5. USB 2.0 connectors (10-1 pin USB1314, USB1112)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specification that supports up to 48 MBps connection speed.

SABERTOOTH 990FX R2.0 USB2.0 connectors USB1314 USB1112 PIN 1 USB+5V USB P13- USB P13+ GND NC USB+5V USB P13- USB P13+ GND PIN 1 USB+5V USB P11- USB P11+ GND NC USB+5V USB P12- USB P12+ GND

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

You can connect the front panel USB cable to the ASUS Q-Connector (USB, blue) first, and then install the Q-Connector (USB) to the USB connector onboard if your chassis supports front panel USB ports.

The USB 2.0 module is purchased separately.

6. Serial port connector (10-1 pin COM1)

This connector is for a serial (COM) port. Connect the serial port module cable to this connector, then install the module to a slot opening at the back of the system chassis.

SABERTOOTH 990FX R2.0 port (COM1) connector COM1 PIN 1

The COM module is purchased separately.

7. CPU and chassis fan connectors

(4-pin CPU\_FAN, 4-pin CPU\_OPT, 4-pin CHA\_FAN1-4)

Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

SABERTOOTH 990FX R2.0 Fan connectors A CHA_FAN3 B CPU_OPT +5V CHA FAN IN CHA FAN PWR GND C CPU_FAN D CHA_FAN2 E CHA_FAN1 F CHA_FAN4 SABERTOOTH 990FX R2.0 Fan connectors

DO NOT forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors!

• The CPU_FAN connector supports the CPU fan of maximum 1A (12 W) fan power.
- If you install two VGA cards, we recommend that you plug the rear chassis fan cable to the motherboard connector labeled CHA_FAN1 or CHA_FAN2 for better thermal environment.

8. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC\~97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.

AAFP GND PRESENCE# SENSE1_RETUR SENSE2_RETUR PIN1 PORT1L PORT1R PORT2R SENSE_SEND PORT2L PIN 1 AGND NC NC NC Line out_R Line out_L HD-audio-compliant pin definition Legacy AC'97 compliant definition

SABERTOOTH 990FX R2.0 Analog front panel connector

• We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high-definition audio capability.
- If you want to connect a high-definition or an AC'97 front panel audio module to this connector, set the Front Panel Type item in the BIOS setup to [HD] or [AC97].

9. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V)

These connectors are for ATX power supply plugs. The power supply plugs are designed to fit these connectors in only one orientation. Find the proper orientation and push down firmly until the connectors completely fit.

SABERTOOTH 990FX R2.0 ATX power connectors

• For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12 V Specification 2.0 (or later version) and provides a minimum power of 350 W.
  • DO NOT forget to connect the 4-pin/8-pin EATX12 V power plug. Otherwise, the system will not boot.
  • We recommend that you use a PSU with a higher power output when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.
• If you want to use two or more high-end PCI Express x16 cards, use a PSU with 1000W power or above to ensure the system stability.
• If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support.asus.com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

10. System panel connector (20-8 pin PANEL)

This connector supports several chassis-mounted functions.

SABERTOOTH 990FX R2.0 System panel connector PANEL PIN 1 PLED+ PLED- PLED- IDE_LED+ IDE_LED- PWR Ground +5V Ground Speaker Ground Ground SPEAKER IDE_LED PWRSW RESET

• System power LED (2-pin PLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

- Hard disk drive activity LED (2-pin IDE_LED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable to this connector. The IDE LED lights up or flashes when data is read from or written to the HDD.

- System warning speaker (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

- ATX power button/soft-off button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the BIOS settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF.

- Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

11. TPM connector (20-1 pin TPM)

This connector supports a Trusted Platform Module (TPM) system, which securely store keys, digital certificates, passwords and data. A TPM system also helps enhance network security, protect digital identities, and ensures platform integrity.

TPM PWRDWN GND +3VSB NC LAD0 +3V LAD3# PCIRST# FRAME PCICLK NC CLKRUN SERIRQ NC GND LAD1 LAD2 NC GND PN 1

SABERTOOTH 990FX R2.0 TPM connector

12. Direct Connector (2-pin DRCT)

This connector is for the chassis-mounted button that supports the DirectKey function. Connect the button cable that supports DirectKey, from the chassis to this connector on the motherboard.

DRCT DRCT GND PIN 1 SABERTOOTH 550FX A2.0

SABERTOOTH 990FX R2.0 DRCT connector

Ensure that your chassis comes with the button cable that supports the DirectX key feature. Refer to the technical documentation that came with the chassis for details.

Basic Installation

2

2.1 Building your PC system

2.1.1 Motherboard installation

The diagrams in this section are for reference only. The motherboard layout may vary with models, but the installation steps are the same for all models.

1. Install the ASUS Q-Shield to the chassis rear I/O panel.

Diagram of a computer tower with an internal control panel and fan, showing blue directional arrows indicating movement or flow (no text or symbols present)

1. Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to the chassis' rear I/O panel.

Diagram of a computer motherboard showing CPU socket, heatsink, and drive slots (no text or labels)

1. Place nine screws into the holes indicated by circles to secure the motherboard to the chassis.

Technical line drawing of a computer motherboard with CPU socket and screwdriver (no text or symbols)

ASUS SABERTOOTH 990FX R2.0

DO NOT overtighten the screws! Doing so can damage the motherboard.

2.1.2 CPU installation

The AMD AM3+ socket is compatible with AMD AM3+ and AM3 processors. Ensure you use a CPU designed for the AM3+ socket. The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU!

2.1.3 CPU heatsink and fan assembly installation

Line drawing of a mechanical assembly with a tool inserted into a component, no text or symbols present

Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan if necessary.

To install the CPU heatsink and fan assembly

Technical diagram showing a computer cooling system with fan and heatsink components, highlighting a blue downward arrow indicating cooling process.

Technical illustration of a computer CPU with cooling fan and heatsink (no text or symbols)

Technical line drawing of a computer CPU with cooling fan and heatsink (no text or symbols)

Technical illustration of a computer cooling unit with fan and heatsink (no text or symbols)

5 CPU_FAN

2.1.4 DIMM installation

To remove a DIMM

Diagram of a computer RAM module with two labeled arrows (A and B) indicating directional flow or movement, no text or symbols present.

2.1.5 ATX Power connection

Diagram showing two stages of a connector assembly: top-down view with cable routing and bottom-down view with grid layout (no text or symbols)

2 OR OR

Diagram of a connector with three wires inserted into a socket, showing a blue arrow indicating the insertion point (no text or symbols present)

2.1.6 SATA device connection

1 OR

Diagram showing cable connection to a device with labeled components and blue arrows indicating direction of connection

OR

2.1.7 Front I/O Connector

To install ASUS Q-Connector

IDE_LED+ IDE_LED- POWER SW RESET SW IDE_LED+ PWR Ground Reset Ground

To install USB 2.0 connector To install front panel audio connector

USB 2.0

AAFP

To install USB 3.0 connector

USB 3.0

2.1.8 Expansion Card installation

To install PCIe x16 cards

Technical diagram of a computer monitor internal structure with no visible text or symbols

To install PCIe x1 cards

Diagram of a computer monitor with labeled ports and directional arrows indicating motion (no text or symbols present)

2.2 BIOS update utility

USB BIOS Flashback

USB BIOS Flashback allows you to easily update the BIOS without entering the existing BIOS or operating system. Simply insert a USB storage device to the USB port, press the USB BIOS Flashback button for three seconds, and the BIOS is updated automatically.

To use USB BIOS Flashback:

1. Place the bundled support DVD to the optical drive and install the USB BIOS Flashback Wizard. Follow the onscreen instructions to complete the installation.

You can also download the BIOS from ASUS official website www.asus.com. Rename the file as ST990R20.CAP, and save it in the root directory of a USB storage device.

1. Insert the USB storage device to the USB Flashback port.
2. Launch the USB BIOS Flashback Wizard to automatically download the latest BIOS version.
3. Press the BIOS Flashback button for three seconds until a flashing light appears, which indicates that the BIOS Flashback function is enabled.
4. Wait until the light goes out, indicating that the BIOS updating process is completed.

USB BIOS Flashback button USB BIOS Flashback port

For more BIOS update utilities in BIOS setup, refer to the section 3.10 Updating BIOS.

• Do not unplug portable disk, power system, or press the CLR_CMOS button while BIOS update is ongoing, otherwise update will be interrupted. In case of interruption, please follow the steps again.
• If the light flashes for five seconds and turns into a solid light, this means that the BIOS Flashback is not operating properly. This may be caused by improper installation of the USB storage device and filename/file format error. If this scenario happens, please restart the system to turn off the light.
• Updating BIOS may have risks. If the BIOS program is damaged during the process and results to the system's failure to boot up, please contact your local ASUS Service Center.

2.3 Motherboard rear and audio connections

2.3.1 Rear I/O connection

Rear panel connectors

1. PS/2 Combo port 7. USB 2.0 ports 3, 4, 5, and 6

2. USB 3.0 ports 1 and 2 8. USB 3.0 ports 3 and 4

3. LAN (RJ-45) port* 9. USB BIOS Flashback button

4. USB 2.0 ports 7 and 8 10. USB 2.0 ports 1 and 2

5. Optical S/PDIF Out port 11. Audio I/O ports**

6. External SATA ports

* and **: Refer to the tables on the next page for LAN port LEDs, and audio port definitions.

• DO NOT insert a different connector to the external SATA port.
• DO NOT connect a keyboard/mouse to any USB 3.0 port when installing Windows® operating system.
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under Windows® OS environment and after the USB 3.0 driver installation.
• USB 3.0 devices can only be used as data storage only.
  • We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and better performance for your USB 3.0 devices.
• If you want to use the hot-plug function of the external SATA ports, you have to set the ASM1061 Storage Controller item in the BIOS setting to [Enabled] and install the ASM1061 Controller Driver from the motherboard support DVD. Refer to section 3.5.6 Onboard Devices Configuration for details.

* LAN ports LED indications

Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection

ACT/LINK LED SPEED LED LAN port

** Audio 2, 4, 6, or 8-channel configuration

Port Headset2-channel		4-channel	6-channel 8-channel
Light Blue Line In		Line In Line In	Line In
Lime	Line Out	Front Speaker Out	Front Speaker Out	Front Speaker Out
Pink	Mic In	Mic In	Mic In	Mic In
Orange	-	-	Center/Subwoofer	Center/Subwoofer
Black	-	Rear Speaker Out	Rear Speaker Out	Rear Speaker Out
Gray	-	-	-	Side Speaker Out

2.3.2 Audio I/O connections

Audio I/O ports

orange light blue black lime gray pink

Connect to Headphone and Mic

Illustration of a microphone connected to a multi-pin display unit (no text or symbols)

Connect to Stereo Speakers

Connect to 2.1 channel Speakers

Connect to 4.1 channel Speakers

Connect to 5.1 channel Speakers

Connect to 7.1 channel Speakers

When the DTS UltraPC II function is enabled, ensure to connect the rear speaker to the gray port.

2.4 Starting up for the first time

1. After making all the connections, replace the system case cover.
2. Ensure that all switches are off.
3. Connect the power cord to the power connector at the back of the system chassis.
4. Connect the power cord to a power outlet that is equipped with a surge protector.
5. Turn on the devices in the following order:

a. Monitor
b. External SCSI devices (starting with the last device on the chain)
c. System power

1. After applying power, the system power LED on the system front panel case lights up. For systems with ATX power supplies, the system LED lights up when you press the ATX power button. If your monitor complies with the "green" standards or if it has a "power standby" feature, the monitor LED may light up or change from orange to green after the system LED turns on.

The system then runs the power-on self tests (POST). While the tests are running, the BIOS beeps (refer to the BIOS beep codes table) or additional messages appear on the screen. If you do not see anything within 30 seconds from the time you turned on the power, the system may have failed a power-on test. Check the jumper settings and connections or call your retailer for assistance.

BIOS Beep Description
One short beep VGA detected	Quick boot set to disabledNo keyboard detected
One continuous beep followed by two short beeps then a pause (repeated)	No memory detected
One continuous beep followed by three short beeps	No VGA detected
One continuous beep followed by four short beeps	Hardware component failure

1. At power on, hold down the key to enter the BIOS Setup. Follow the instructions in Chapter 3.

2.5 Turning off the computer

While the system is ON, press the power button for less than four seconds to put the system on sleep mode or soft-off mode, depending on the BIOS setting. Press the power switch for more than four seconds to let the system enter the soft-off mode regardless of the BIOS setting.

BIOS setup

3.1 Knowing BIOS

The new ASUS UEFI BIOS is a Unified Extensible Interface that complies with UEFI architecture, offering a user-friendly interface that goes beyond the traditional keyboard-only BIOS controls to enable a more flexible and convenient mouse input. You can easily navigate the new UEFI BIOS with the same smoothness as your operating system. The term “BIOS” in this user manual refers to “UEFI BIOS” unless otherwise specified.

BIOS (Basic Input and Output System) stores system hardware settings such as storage device configuration, overclocking settings, advanced power management, and boot device configuration that are needed for system startup in the motherboard CMOS. In normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. DO NOT change the default BIOS settings except in the following circumstances:

• An error message appears on the screen during the system bootup and requests you to run the BIOS Setup.
• You have installed a new system component that requires further BIOS settings or update.

Inappropriate BIOS settings may result to instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.

3.2 BIOS setup program

Use the BIOS Setup to update the BIOS or configure its parameters. The BIOS screen include navigation keys and brief onscreen help to guide you in using the BIOS Setup program.

Entering BIOS at startup

To enter BIOS Setup at startup:

- Press during the Power-On Self Test (POST). If you do not press , POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

- Press + + simultaneously.

- Press the reset button on the system chassis.

- Press the power button to turn the system off then back on. Do this option only if you failed to enter BIOS Setup using the first two options.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.
• Ensure that a USB mouse is connected to your motherboard if you want to use the mouse to control the BIOS setup program.
• If the system becomes unstable after changing any BIOS setting, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey . See section 3.9 Exit Menu for details.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value. See section 1.2.6 Onboard buttons and switches for information on how to erase the RTC RAM via the Clear CMOS button.
  • The BIOS setup program does not support the bluetooth devices.

BIOS menu screen

The BIOS Setup program can be used under two modes: EZ Mode and Advanced Mode. You can change modes from the Exit menu or from the Exit/Advanced Mode screen.

3.2.1 EZ Mode

By default, the EZ Mode screen appears when you enter the BIOS setup program. The EZ Mode provides you an overview of the basic system information, and allows you to select the display language, system performance mode and boot device priority. To access the Advanced Mode, click Exit/Advanced Mode, then select Advanced Mode or press hot key for the advanced BIOS settings.

The default screen for entering the BIOS setup program can be changed. Refer to the Setup Mode item in section 3.7 Boot menu for details.

Displays the CPU/motherboard temperature, CPU/5V/3.3V/12V voltage output, CPU/chassis/ power fan speed Monday [03/25/2012] Temperature Voltage Fan Speed SABERTOOTH 990FX R2.0 BIOS Version : 0202 Build Date : 05/08/2012 CPU Type : AMD Phenom(tm) II X4 965 Processor Speed : 3400 MHz Total Memory : 2048 MB (DDR3 1333MHz) Exit/Advanced Mode Exits the BIOS setup program without saving the changes, saves the changes and resets the system, or enters the Advanced Mode System Performance Quiet Performance Energy Saving Normal Boot Priority Use the mouse to drag or keyboard to navigate to decide the boot priority. Shortcut (F3) Advanced Mode (F7) Displays the Advanced mode menus Power Saving mode Loads optimized default settings ASUS Optimal mode Selects the advanced mode functions Displays the system properties of the selected mode on the right hand side Selects the boot device priority Boot Menu (F8) Default (F5)

• The boot device options vary depending on the devices you installed to the system.
• TheThe Boot Menu (F8) button is available only when the boot device is installed to the system.

3.2.2 Advanced Mode

The Advanced Mode provides advanced options for experienced end-users to configure the BIOS settings. The figure below shows an example of the Advanced Mode. Refer to the following sections for the detailed configurations.

To access the Advanced Mode, click Exit, then select Advanced Mode or press F7 hotkey.

Back button Menu items Menu bar Configuration fields General help ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool Back Advanced Onboard Devices Configuration > ASM1061 Storage Controller (Rear) Enabled ASM1061 Storage OPROM Enabled ASM1061 Storage Controller (Front) Enabled ASM1061 Storage OPROM EnabledEnabled Asmedia USB 3.0 Controller (USB3_12) ASM101 Storage OPROM Enabled Asmedia USB 3.0 Controller (Disabled) Enabled Asmedia USB 3.0 Controller (Enabled) Enabled Asmedia USB 3.0 Battery Charging Support Disabled Realtek LAN Controller Enabled Realtek PXE OPROM Disabled S3 Video Repost Disabled > Serial Port Configuration > SB HD Azalla Configuration Enabled/Disabled ASM1061 Storage OPROM →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortcut F5: Optimized Defaults: F10: Save ESC: Exit F12: Print Screen Submenu item Pop-up window Scroll bar Navigation keys Version 2.00.1208. Copyright (C) 2012 American Megatrends, Inc.

Menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system configuration
Ai Tweaker For changing the overclocking settings
Advanced For changing the advanced system settings
Monitor	For displaying the system temperature, power status, and changing the fan settings.
Boot For changing the system boot configuration
Tool For configuring options for special functions
Exit For selecting the exit options and loading default settings

Menu items

The highlighted item on the menu bar displays the specific items for that menu. For example, selecting Main shows the Main menu items.

The other items (Ai Tweaker, Advanced, Monitor, Boot, Tool, and Exit) on the menu bar have their respective menu items.

Back button

This button appears when entering a submenu. Press or use the USB mouse to click this button to return to the previous menu screen.

Submenu items

A greater than sign (>) before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press .

Pop-up window

Select a menu item and press to display a pop-up window with the configuration options for that item.

Scroll bar

A scroll bar appears on the right side of a menu screen when there are items that do not fit on the screen. Press the Up/Down arrow keys or / keys to display the other items on the screen.

Navigation keys

At the bottom right corner of the menu screen are the navigation keys for the BIOS setup program. Use the navigation keys to select items in the menu and change the settings.

General help

At the top right corner of the menu screen is a brief description of the selected item. Use key to capture the BIOS screen and save it to the removable storage device.

Configuration fields

These fields show the values for the menu items. If an item is user-configurable, you can change the value of the field opposite the item. You cannot select an item that is not user-configurable.

A configurable field is highlighted when selected. To change the value of a field, select it and press to display a list of options.

3.3 Main menu

The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup program. The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings.

ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool BIOS Version 0211 x64 Build Date 5/30/2012 CPU Information AMD(R) Phenom(TM) II X4 965 Processor Memory Information Total Memory 2048 MB (DDR3 1333MHz) EC Version MBECI-0006 System Language English System Date [Fri 03/12/2012] System Time [16:46:15] Access Level Administrator > Security

Security

The Security menu items allow you to change the system security settings.

ASUS UEFI BIOS Utility - Advanced Mode Main AI Tweaker Advanced Monitor Boot Tool Back Main Security > Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights Administrator Password Not Installed User Password Not Installed Administrator Password User Password To clear the administrator password, key in the current password in the Enter Current Password box, and then press when prompted to create/confirm the password.

• If you have forgotten your BIOS password, erase the CMOS Real Time Clock (RTC) RAM to clear the BIOS password. See section 1.2.6 Onboard buttons for information on how to erase the RTC RAM via the Clear CMOS button.
• The Administrator or User Password items on top of the screen show the default [Not Installed]. After you set a password, these items show [Installed].

Administrator Password

If you have set an administrator password, we recommend that you enter the administrator password for accessing the system. Otherwise, you might be able to see or change only selected fields in the BIOS setup program.

To set an administrator password:

1. Select the Administrator Password item and press .
2. From the Create New Password box, key in a password, then press .
3. Confirm the password when prompted.

To change an administrator password:

1. Select the Administrator Password item and press .
2. From the Enter Current Password box, key in the current password, then press .

3. From the Create New Password box, key in a new password, then press .

4. Confirm the password when prompted.

To clear the administrator password, follow the same steps as in changing an administrator password, but press when prompted to create/confirm the password. After you clear the password, the Administrator Password item on top of the screen shows Not Installed.

User Password

If you have set a user password, you must enter the user password for accessing the system. The User Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a user password:

1. Select the User Password item and press .
2. From the Create New Password box, key in a password, then press .
3. Confirm the password when prompted.

To change a user password:

1. Select the User Password item and press .
2. From the Enter Current Password box, key in the current password, then press .
3. From the Create New Password box, key in a new password, then press .
4. Confirm the password when prompted.

To clear the user password, follow the same steps as in changing a user password, but press when prompted to create/confirm the password. After you clear the password, the User Password item on top of the screen shows Not Installed.

3.4 Ai Tweaker menu

The Ai Tweaker menu items allow you to configure overclocking-related items.

Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect field values can cause the system to malfunction.

The configuration options for this section vary depending on the CPU and DIMM model you installed on the motherboard.

Scroll down to display other BIOS items.

ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool Current CPU Speed : 3400MHz Target CPU Speed : 3200MHz Current Memory Frequency : 1333MHz Current NB Frequency : 2000MHz Current HT Link Speed : 2000MHz Ai Overclock Tunor Auto CPU Ratio Auto Memory Frequency Auto CPU/NB Frequency Auto HT Link Speed Auto CPU Spread Spectrum Auto PCIe Spread Spectrum Auto EPU Power Saving Mode Disabled > OC Tuner > DRAM Timing Control [D.O.C.P.] When DOCP is enabled CPU Bus frequency, CPU ratio and memory parameters will be auto optimized. ->: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortcut F5: Optimized Defaults F10: Save ESC: Exit F12: Print Screen Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.

Ai Overclock Tuner [Auto]

Allows you to select the CPU overclocking options to achieve the desired CPU internal frequency. Select any of these preset overclocking configuration options:

[Auto] Loads the optimal settings for the system.

[Manual] Allows you to individually set overclocking parameters.

[D.O.C.P.] Allows you to select a DRAM voltage.

The following item appears only when you set the Ai Overclocking Tuner to [Manual].

CPU Bus Frequency [Auto]

Allows you to set the CPU and VGA frequency. Use the <+> and <-> keys to adjust the PCIE frequency. You can also key in the desired value using the numeric keypad. The values range from 100 to 600.

PCIE Frequency [Auto]

Allows you to set the PCI Express frequency. Use the <+> and <-> keys to adjust the PCIE frequency. You can also key in the desired value using the numeric keypad. The values range from 100 to 600.

CPU Ratio [Auto]

Allows you to manually adjust the maximum non-CPB CPU ratio. Use <+> and <-> keys to adjust the value. The valid value ranges vary according to your CPU model.

Memory Frequency [Auto]

Allows you to set the memory operating frequency.

Configuration options: [DDR3-800MHz] [DDR3-1066MHz] [DDR3-1333MHz] [DDR3-1600MHz]

Selecting a very high memory frequency may cause the system to become unstable! If this happens, revert to the default setting.

CPU/NB Frequency [Auto]

Allows you to set the ratio between NB clock and the CPU Bus frequency.

Configuration options: [Auto] [1400MHz] [1600MHz] [1800MHz] [2000MHz] [2200MHz] [2400MHz] [2600MHz] [2800MHz] [3000MHz] [3200MHz]

HT Link Speed [Auto]

Allows you to set the HyperTransport link speed.

Configuration options: [Auto] [800MHz] [1000MHz] [1200MHz] [1400MHz] [1600MHz] [1800MHz] [2000MHz]

CPU Spread Spectrum [Auto]

[Auto] Automatic configuration.

[Disabled] Enhances the BCLK overclocking ability.

[Enabled] Sets to [Enabled] for EMI control.

PCIe Spread Spectrum [Auto]

[Auto] Automatic configuration.

[Disabled] Enhances the PCIE overclocking ability

[Enabled] Sets to [Enabled] for EMI control.

EPU Power Saving Mode [Disabled]

Allows you to enable or disable the EPU power saving function.

Configuration options: [Disabled] [Enabled]

The following item appears only when you set the EPU Power Saving Mode items to [Enabled].

EPU Setting

Configuration options: [Auto] [Light Power Saving Mode] [Medium Power Saving Mode] [Max Power Saving Mode]

OC Tuner [CANCEL]

OC Tuner automatically overclocks the frequency and voltage of CPU and DRAM for enhancing the system performance. Configuration options: [OK] [Cancel]

DRAM Timing Control

The sub-items in this menu allow you to set the DRAM timing control features. Use the <+> and <-> keys to adjust the value. To restore the default setting, type [auto] using the keyboard and press the key.

Changing the values in this menu may cause the system to become unstable! If this happens, revert to the default settings.

Primary Timings

DRAM CAS# Latency [Auto]

Configuration options: [Auto] [4] - [12]

DRAM RAS# to CAS# Delay [Auto]

Configuration options: [Auto] [5] - [12]

DRAM RAS# PRE Time [Auto]

Configuration options: [Auto] [5] - [12]

DRAM RAS# ACT Time [Auto]

Configuration options: [Auto] [15] - [30]

DRAM READ to PRE Time [Auto]

Configuration options: [Auto] [4] - [7]

DRAM RAS# to RAS# Delay [Auto]

Configuration options: [Auto] [4] - [7]

DRAM WRITE to READ Delay [Auto]

Configuration options: [Auto] [4] - [7]

DRAM CAS# Write Latency [Auto]

Configuration options: [Auto] [5] - [12]

DRAM WRITE Recovery Time [Auto]

Configuration options: [Auto] [5] [6] [7] [8] [10] [12]

DRAM REF Cycle Time [Auto]

Configuration options: [Auto] [90ns] [110ns] [160ns] [300ns] [350ns]

DRAM Row Cycle Time [Auto]

Configuration options: [Auto] [11] - [42]

DRAM READ to WRITE Delay [Auto]

Configuration options: [Auto] [3] - [17]

DRAM WRITE to READ Delay (DD) [Auto]

Configuration options: [Auto] [2] - [10]

DRAM WRITE to WRITE Timing [Auto]

Configuration options: [Auto] [2] - [10]

DRAM READ to READ Timing [Auto]

Configuration options: [Auto] [2] - [10]

DRAM Refresh Rate [Auto]

Configuration options: [Auto] [Every 7.8ms] [Every 3.9ms]

DRAM COMMAND Rate [Auto]

Configuration options: [Auto] [1T] [2T]

DRAM Driving Control

Allows you to set the primary, secondary, and tertiary memory timings.

DCT0 Information

CKE drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

CS/ODT drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

ADDR/CMD drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

MEMCLK drive strength [Auto]

Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]

Data drive strength [Auto]

Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]

Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]

Processor ODT [Auto]

Configuration options: [Auto] [240 ohms +/- 20%] [120 ohms +/- 20%] [60 ohms +/- 20%]

DCT1 Information

CKE drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

CS/ODT drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

ADDR/CMD drive strength [Auto]

Configuration options: [Auto] [1x] [1.25x] [1.5x] [2x]

MEMCLK drive strength [Auto]

Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]

Data drive strength [Auto]

Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]

Configuration options: [Auto] [0.75x] [1x] [1.25x] [1.5x]

Processor ODT [Auto]

Configuration options: [Auto] [240 ohms +/- 20%] [120 ohms +/- 20%] [60 ohms +/- 20%]

DIGI+ Power Control

CPU Load-Line Calibration [Auto]

Load-line is defined by AMD VRM specification and affects CPU voltage. The CPU working voltage will decrease proportionally to CPU loading. Higher value gets a higher voltage and better overclocking performance, but increases the CPU and VRM thermal conditions. This item allows you to adjust the voltage range from the following percentages to boost the system performance: 0% (Regular), 25% (Medium), 50% (High), 75% (Ultra High) and 100% (Extreme).

Configuration options: [Auto] [Regular] [Medium] [High] [Ultra High] [Extreme]

The actual performance boost may vary depending on your CPU specification.

CPU/NB Load Line Calibration [Auto]

Allows you to select the CPU/NB Load-Line mode.

Configuration options: [Auto] [Regular] [High] [Extreme]

CPU Current Capability [Auto]

This item provides wider total power range for overclocking. A higher value brings a wider total power range and extends the overclocking frequency range simultaneously.

Configuration options: [Auto] [100%] [110%] [120%] [130%] [140%]

DO NOT remove the thermal module while changing the DIGI+ Power related parameters. The thermal conditions should be monitored.

CPU/NB Current Capability [Auto]

This item provides wider total power range for overclocking. A higher value brings a wider total power range and extends the overclocking frequency range simultaneously.

Configuration options: [Auto] [100%] [110%] [120%] [130%]

CPU Power Phase Control [Standard]

Allows you to increase phase number under heavy system loading to get more transient and better thermal performance. Reduce the phase number under light system loading to increase VRM efficiency

[Standard] Proceeds phase control depending on the CPU loading.

[Optimized] Loads the ASUS optimized phase tuning profile.

[Extreme] Proceeds the full phase mode.

[Manual Adjustment] Allows manual adjustment.

DO NOT remove the thermal module when switching to Extreme and Manual Mode. The thermal conditions should be monitored.

Manual Adjustment [Fast]

This item appears only when you set the CPU Power Phase Control item to [Manual Adjustment].

Configuration options: [Ultra Fast] [Fast] [Medium] [Regular]

CPU Voltage Frequency [Auto]

Frequency switching affects the VRM transient response, and the thermal component. Higher frequency gets quicker transient response.

Configuration options: [Auto] [Manual]

DO NOT remove the thermal module when switching to Manual Mode. The thermal conditions should be monitored.

VRM Spread Spectrum [Disabled]

This item appears only when you set the CPU Voltage Frequency item to [Auto] and allows you to enable the spread spectrum to enhance system stability.

CPU Power Duty Control [T.Probe]

DIGI + VRM Duty Control adjusts the current and thermal conditions of every component's phase.

[T. Probe] Select to maintain the VRM thermal balance.

[Extreme] Select to maintain the current VRM balance.

CPU Power Response Control [Auto]

The DIGI+ VRM controller provides a faster and precise power response rate for the CPU. Apply a higher value for an extreme overclocking.

Configuration options: [Auto] [Regular] [Medium] [Fast] [Ultra Fast]

The actual performance boost may vary depending on your CPU configuration.

CPU/NB Power Response Control [Auto]

The DIGI+ VRM controller provides a faster, and precise power response rate for the CPU and North Bridge. Apply a higher value for an extreme overclocking.

Configuration options: [Auto] [Regular] [Medium] [Fast] [Ultra Fast]

CPU Power Thermal Control [130]

A higher temperature brings a wider CPU power thermal range and extends the overclocking tolerance to enlarge the O.C. potential. Use the <+> and <-> keys to adjust the value. The values range from 130 to 151.

DO NOT remove the thermal module. The thermal conditions should be monitored.

DRAM Current Capability [100%]

A higher value brings a wider total power range, and extends the overclocking range simultaneously. Configuration options: [100%] [110%] [120%] [130%]

DRAM Voltage Frequency [300KHZ]

Allows you to adjust the DRAM switching frequency. Assign a fixed high DRAM frequency to increase the O.C. range, or a low DRAM frequency for a better system stability.

Configuration options: [300KHZ] [350KHZ] [400KHZ] [450KHZ] [500KHZ]

DRAM Power Phase Control [Optimized]

[Optimized] Allows you to set the ASUS optimized phase tuning profile.

[Extreme] Allows you to set the full phase mode.

CPU & NB Voltage [Offset Mode]

[Manual Mode] Allows you to set a fixed CPU voltage.

[Offset Mode] Allows you to set the Offset voltage.

CPU Manual Voltage [Auto]

This item appears only when you set the CPU & NB Voltage item to [Manual Mode] and allows you to set a fixed CPU voltage. The values range depends on your CPU.

CPU/NB Manual Voltage [Auto]

This item appears only when you set the CPU & NB Voltage item to [Manual Mode] and allows you to set a fixed CPU/NB voltage. The values range depends on your CPU.

Setting a high voltage may damage the CPU permanently, and setting a low voltage may make the system unstable. Refer to the CPU documentation before setting the CPU voltage.

Offset Mode Sign [+]

This item appears only when you set the CPU Voltage item to [Offset Mode].

[+] To offset the voltage by a positive value.

[-] To offset the voltage by a negative value.

CPU Offset Voltage [Auto]

This item appears only when you set the CPU Voltage item to [Offset Mode] and allows you to set the CPU offset voltage. Use the <+> and <-> keys to adjust the value. The values range from 0.006250V to 0.700000V with a 0.006250V interval.

CPU/NB Offset Mode Sign [+]

[+] To offset the voltage by a positive value.

[-] To offset the voltage by a negative value.

CPU/NB Offset Voltage [Auto]

This item appears only when you set the CPU & NB Voltage item to [Offset Mode] and allows you to set the CPU/NB Offset voltage. The values range from 0.00625V to 0.70000V with a 0.00625V interval.

CPU VDDA Voltage [Auto]

Allows you to set the CPU VDDA voltage. The values range from 2.20000V to 2.80000V with a 0.00625V interval.

DRAM Voltage [Auto]

Allows you to set the DRAM voltage. The values range from 0.86V to 2.135V with a 0.005V interval.

NB Voltage [Auto]

Allows you to set the Northbridge voltage. The values range from 1.10000V to 1.25V with a 0.00625V interval.

NB HT Voltage [Auto]

Allows you to set the HyperTransport voltage. The values range from 1.2V to 1.4V with a 0.00625V interval.

NB 1.8V Voltage [Auto]

Allows you to set the Northbridge 1.8 voltage. The values range from 1.80V to 2.80V with a 0.005V interval.

SB Voltage [Auto]

Allows you to set the Southbridge voltage. The values range from 1.10V to 1.80V with a 0.005V interval.

VDD PCIE [Auto]

Allows you to set the VDD PCIE voltage. The values range from 1.10V to 2.20V with a 0.005V interval.

VDDR [Auto]

Allows you to set the memory's voltage. The values range from 1.20V to 1.80V with a 0.005V interval.

3.5 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Be cautious when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction.

ASUS UEFI BIOS Utility - Advanced Mode Main AI Tweaker Advanced Monitor Boot Tool CPU Configuration > North Bridge > South Bridge > SATA Configuration > USB Configuration > CPU Core On/Off Function > Onboard Devices Configuration > APM > Network Stack CPU Configuration Parameters →←: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortcut F5: Optimized Defaults F10: Savo ESC: Exit F12: Print Screen Version 2.00.1208. Copyright (C) 2012 American Megatrends, Inc.

3.5.1 CPU Configuration

The items in this menu show the CPU-related information that the BIOS automatically detects.

The items in this menu may vary based on the CPU installed.

ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool Back Advanced\ CPU Configuration > CPU Configuration Socket0: AMD Phenom (tm) II X4 965 Processor Quad Core Running @ 3715 MHz 1400 mV Max Speed: 3400 MHz Intended Speed: 3400 MHz Microcode Patch Level: 10000c6 ---- Cache per Core ---- L1 Instruction Cache: 64 KB/2-way L1 Data Cache: 64 KB/2-way L2 Cache: 512 KB/16-way Total L3 Cache per Socket: 6 MB/48-way Cool 'n' Qulet Enabled C1E Enabled SVM Enabled Enabled/Disabled the generation of ACPI PPC, PSS, and PCT objects.

Cool'n'Quiet [Disabled]

[Enabled] Enables the AMD Cool'n'Quiet function.

[Disabled] Disables the function.

C1E [Disabled]

[Enabled] Enables the system to utilize the AMD specific ACPI states to save power consumption.

[Disabled] Disables the function.

SVM [Enabled]

[Enabled] Enables the AMD virtualization in CPU. This secure virtual mode will let you run multiple operating systems on the same physical hardware by decoupling the operating system and physical hardware with the hypervisor layer.

[Disabled] Disables the function.

3.5.2 North Bridge Configuration

ASUS UEFI BIOS Utility - Advanced Mode Main AI Tweaker Advanced Monitor Boot Tool Back Advanced\ North Bridge > North Bridge Configuration IOMMU Disabled > Memory Configuration Initiate Graphic Adapter PEG/PCI Starting Address: 0 KB Ending Address: 2097152 KB DIMM0: Not Present DIMM1: size=2048 MB, speed=1066 MHz DIMM2: Not Present DIMM3: Not Present Enabled/Disabled IOMMU

IOMMU [Disabled]

Allows you to enable or disable the input/output memory management unit (IOMMU)

Configuration options: [Enabled] [Disabled]

When the IOMMU is set to [Enabled], the following item appears:

IOMMU Mode [Disabled]

Allows you to set the IOMMU Mode that supports LINUX-based systems to convert

32bit I/O to 64-bit memory-mapped I/O.

Configuration options: [Disabled] [64MB]

Memory Configuration

Bank Interleaving [Auto]

Allows you to enable Memory Bank Interleaving function.

Configuration options: [Auto] [Disabled]

Channel Interleaving [Auto]

Allows you to enable Memory Channel Interleaving function.

Configuration options: [Auto] [Disabled]

ECC Mode [Enabled]

Allows you to enable or disable the Error Correcting Code (ECC) Mode.

Configuration options: [Enabled] [Disabled]

Power Down Enable [Disabled]

Allows you to enable or disable DDR power down mode.

Configuration options: [Enabled] [Disabled]

Memory Hole Remapping [Enabled]

Allows you to enable or disable Memory Hole Remapping function.

Configuration options: [Enabled] [Disabled]

DCT Unganged Mode [Enabled]

Allows you to select unganged DRAM mode (64-bit width).

[Enabled]: Ganged mode.

[Disabled]: Unganged mose.

Initiate Graphic Adapter [PEG/PCI]

Allows you to set which graphics controller to use as the primary boot device.

Configuration options: [PCI/PEG] [PEG/PCI]

3.5.3 South Bridge Configuration

ASUS UEFI BIOS Utility - Advanced Mode Main AI Tweaker Advanced Monitor Boot Tool Back Advanced\ South Bridge > HPET Enabled HPET TIMER

HPET [Enabled]

Allows you to enable or disable the High Precision Event Timer (HPET).

Configuration options: [Enabled] [Disabled]

3.5.4 SATA Configuration

While entering Setup, the BIOS automatically detects the presence of SATA devices. The SATA Port items show Not Present if no SATA device is installed to the corresponding SATA port.

ASUS UEFI BIOS Utility - Advanced Mode Main AI Tweaker Advanced Monitor Boot Tool Back Advanced\ SATA Configuration > SATA Configuration SATA 6G_1 Not Present SATA 6G_2 Not Present SATA 6G_3 Not Present SATA 6G_4 Not Present SATA 6G_5 Not Present SATA 6G_6 Not Present > SB SATA Configuration (1) IDE Mode. (2) AHCI Mode. (3) RAID Mode.

SB SATA Configuration

This item allows you to set the SATA configuration.

OnChip SATA Channel [Enabled]

Allows you to enable or disable the Serial ATA channel.

Configuration options: [Enabled] [Disabled]

The following items appear only when you set the OnChip SATA Channel to [Enabled].

SATA Port1 - Port 4 [AHCI]

Allows you to set the SATA configuration.

[IDE] Set to [IDE] when you want to use the Serial ATA hard disk drives as Parallel ATA physical storage devices.

[RAID] Set to [RAID] when you want to create a RAID configuration from the SATA hard disk drives.

[AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI (Advanced Host Controller Interface). The AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to internally optimize the order of commands.

SATA Port 5 - Port 6 [AHCI]

Allows you to set the SATA configuration.

[IDE] Set to [IDE] when you want to use the Serial ATA hard disk drives as Parallel ATA physical storage devices.

[AHCI] Set to [AHCI] when you want the SATA hard disk drives to use the AHCI (Advanced Host Controller Interface). The AHCI allows the onboard storage driver to enable advanced Serial ATA features that increases storage performance on random workloads by allowing the drive to internally optimize the order of commands.

You can only set SATA Port5-Port6 to [IDE] if Port1-Port4 is set to [IDE].

S.M.A.R.T. Status Check [Enabled]

S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. When read/write of your hard disk errors occur, this feature allows the hard disk to report warning messages during the POST.

Configuration options: [Disabled] [Enabled]

SATA ESP on PORT1-6 [Disabled]

Allows you to set SATA port on PORT1-6 to external SATA port.

Configuration options: [Disabled] [Enabled]

3.5.5 USB Configuration

The items in this menu allow you to change the USB-related features.

ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool Back Advanced\ USB Configuration > USB Configuration USB Devices: 1 Keyboard, 1 Mouse, 2 Hubs Legacy USB Support Enabled Legacy USB3.0 Support Enabled EHCI Hand-off Disabled > SB USB Configuratin Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

The USB Devices item shows the auto-detected values. If no USB device is detected, the item shows None.

Legacy USB Support [Enabled]

[Enabled] Enables the support for USB devices on legacy operating systems (OS).

[Disabled] The USB devices can be used only for the BIOS setup program.

[Auto] Allows the system to detect the presence of USB devices at startup. If detected, the USB controller legacy mode is enabled. If no USB device is detected, the legacy USB support is disabled.

Legacy USB3.0 Support [Enabled]

[Enabled] Enables the support for USB 3.0 devices on legacy operating systems (OS).

[Disabled] Disables the function.

EHCI Hand-off [Disabled]

[Enabled] Enables the support for operating systems without an EHCI hand-off feature.

[Disabled] Disables the function.

SB USB Configuration

OHCI HC (Bus 0 Dev 18 Fn 0) [Enabled]

Allows you to enable or disable OHCI USB1.1 controller (Bus 0 Dev 18 Fn 0).

Configuration options: [Disabled] [Enabled]

OHCI HC (Bus 0 Dev 19 Fn 0) [Enabled]

Allows you to enable or disable OHCI USB1.1 controller (Bus 0 Dev 19 Fn 0).

Configuration options: [Disabled] [Enabled]

OHCI HC (Bus 0 Dev 22 Fn 0) [Enabled]

Allows you to enable or disable OHCI USB1.1 controller (Bus 0 Dev 22 Fn 0).

Configuration options: [Disabled] [Enabled]

OHCI HC (Bus 0 Dev 20 Fn 5) [Enabled]

Allows you to enable or disable OHCI USB1.1 controller (Bus 0 Dev 22 Fn 0).

Configuration options: [Disabled] [Enabled]

USB PORT 0-14 [Enabled]

Allows you to enable or disable the USB ports.

Configuration options: [Enabled] [Disabled]

3.5.6 CPU Core On/Off Function

ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool Back Advanced\ CPU Core On/Off Function > CPU Core Activation Auto Let User turn off core except core 1, user can turn of 2nd, 3rd, 4th, 5th, etc core manually

CPU Core Activation [Auto]

Allows you to automatically or manually activate the CPU cores.

Configuration options: [Auto] [Manual]

The following items appear only when you set the CPU Core Activation to [Manual].

2nd Core - 4th Core [Enabled]

Allows you to enable or disable the core's activation.

Configuration options: [Enabled] [Disabled]

3.5.7 Onboard Devices Configuration

Scroll down to view the other BIOS items.

ASUS UEFI BIOS Utility - Advanced Mode Main AI Tweaker Advanced Monitor Boot Tool Back Advanced Onboard Devices Configuration > ASM1061 Storage Controller (Rear) Enabled ASM1061 Storage OPROM Enabled ASM1061 Storage Controller (Front) Enabled ASM1061 Storage OPROM EnabledEnabled Asmedia USB 3.0 Controller (USB3_12) Enabled Asmedia USB 3.0 Controller (USB3_34) Enabled Asmedia USB 3.0 Controller (Front) Enabled Asmedia USB 3.0 Battery Charging Support Disabled Realtek LAN Controller Enabled Realtek PXE OPROM Disabled S3 Video Repost Disabled > Serial Port Configuration > SB HD Azalia Configuration Enabled/Disabled ASM1061 Storage OPROM →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortcut F5: Optimized Defaults F10: Save ESC: Exit F12: Print Screen Version 2.00.1208. Copyright (C) 2012 American Megatrends, Inc.

ASM1061 Storage Controller (Rear) [Enabled]

Allows you to select the ASM1061 storage controller operating mode.

[Disabled] Disables the ASM1061 storage controller.

[Enabled] Enables the ASM1061 storage controller.

ASM1061 Storage OPROM [Enabled]

This item appears only when you set the previous item to [Enabled] and allows you to enable or disable the OptionRom of the ASM1061 storage controller.

Configuration options: [Enabled] [Disabled]

ASM1061 Storage Controller (Front) [Enabled]

Allows you to select the ASM1061 storage controller operating mode.

[Disabled] Disables the ASM1061 storage controller.

[Enabled] Enables the ASM1061 storage controller.

ASM1061 Storage OPROM [Enabled]

This item appears only when you set the previous item to [Enabled] and allows you to enable or disable the OptionRom of the ASM1061 storage controller.

Configuration options: [Enabled] [Disabled]

ASmedia USB 3.0 Controller USB3\_12/USB3\_34/Front [Enabled]

[Enabled] Enables the ASmedia USB 3.0 controller.

[Disabled] Disables the ASmedia ^® USB 3.0 controller.

ASmedia USB 3.0 Battery Charging Support [Disabled]

[Enabled] Enables Asmedia USB 3.0 fast battery charging support for USB 3.0 devices complying with the BC 1.1 regulation.

[Disabled] Disables battery charging support.

Realtek LAN Controller [Enabled]

[Enabled] Enables the Realtek ^® LAN controller.

[Disabled] Disables the Realtek ^® LAN controller.

Realtek PXE OPROM [Disabled]

This item appears only when you set the previous item to [Enabled] and allows you to enable or disable the PXE OptionRom of the Realtek LAN controller.

Configuration options: [Enabled] [Disabled]

S3 Video Repost [Disabled]

This item allows you to enable or disable S3 state to resume video.

Configuration options: [Enabled] [Disabled]

Serial Port Configuration

The sub-items in this menu allow you to set the serial port configuration.

This item only functions if there is a serial port (COM1) connector on the motherboard.

Serial Port [Enabled]

Allows you to enable or disable the serial port (COM).

Configuration options: [Enabled] [Disabled]

Change Settings [IO=3F8h; IRQ=4]

Allows you to select the Serial Port base address.

Configuration options: [IO=3F8h; IRQ=4] [IO=2F8h; IRQ=3] [IO=3E8h; IRQ=4]

[IO=2E8h; IRQ=3]

SB HD Azalia Configuration

The sub-items in this menu allow you to set the SB HD Azalia configuration.

HD Audio Azalia Device [Enabled]

[Enabled] Enables the HD Audio Device.

[Disabled] Disables the controller.

The following two items appear only when you set the HD Azalia Audio Device item to [Enabled].

Azalia Front Panel [HD]

Allows you to set the front panel audio connector (AAFP) mode to legacy AC'97 or high-definition audio depending on the audio standard that the front panel audio module supports.

[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC'97

[HD] Sets the front panel audio connector (AAFP) mode to high definition audio.

SPDIF Out Type [SPDIF]

[SPDIF] Sets to [SPDIF] for SPDIF audio output.

[HDMI] Sets to [HDMI] for HDMI audio output.

3.5.8 APM

ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool Back Advanced\ APM > ErP Ready Disabled Restore AC Power Loss Power Off Power On By PS/2 Device Disabled Power On By PME Device Disabled Power On By Ring Disabled Power On By RTC Disabled Allow BIOS to switch off some power at S5 to get the system ready for ErP requirement. When set to Enabled, all other PME options will be switched off.

ErP Ready [Disabled]

This item allows user to switch off some power at S5 to get the system ready for ErP requirement. When set to [Enabled], all other PME options will be switched off.

Configuration options: [Disabled] [Enabled]

Restore AC Power Loss [Power Off]

[Power On] The system goes into on state after an AC power loss.

[Power Off] The system goes into off state after an AC power loss.

[Last State] The system goes into either off or on state, whatever the system state was before the AC power loss.

Power On By PS/2 Device [Disabled]

[Disabled] Disables the PS/2 device to generate a wake-on-LAN feature of the Realtek LAN device.

[Enabled] Enables the PS/2 device to generate a wake-on-LAN feature of the Realtek LAN device.

Power On By PME Device [Disabled]

[Disabled] Disables the PME device to generate a wake-on-LAN feature of the Realtek LAN device.

[Enabled] Enables the PME device to generate a wake-on-LAN feature of the Realtek LAN device.

Power On By Ring [Disabled]

[Disabled] Disables Wake-On-Ring from generating a wake event.

[Enabled] Enables Wake-On-Ring to generate a wake event.

Power On By RTC [Disabled]

[Disabled] Disables RTC to generate a wake event.

[Enabled] When set to [Enabled], the items RTC Alarm Date (Days) and Hour/Minute/Second will become user-configurable with set values.

3.5.9 Network Stack

ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool Back Advanced Network Stack > Network Stack Disabled Link Enable/Disable the network stack (PXE and UEFI)

Network Stack [Disabled]

This item allows user to disable or enable the UEFI network stack.

Configuration options: [Disabled] [Enabled]

The following item appears only when you set the Network Stack to [Enabled].

Ipv4/Ipv6 PXE Support [Enabled]

Allows you to enable or disable the lpv4/lpv6 PXE boot option. Configuration options: [Disabled Link] [Enabled]

3.6 Monitor menu

The Monitor menu displays the system temperature/power status, and allows you to change the fan settings.

Scroll down to display the other BIOS items.

CPU Temperature +73°C / +163°F+73°C / +163°F MB Temperature +31°C / +87°F VCORE Voltage +1.452 V 3.3V Voltage +3.312 V 5V Voltage +5.080 V 12V Voltage +12.192 V VDDA2.5V Voltage +2.520 V CPU Fan Speed 4192 RPM CPU OPT Fan Speed N/A Chassis Fan 1 Speed N/A Chassis Fan 2 Speed N/A Chassis Fan 3 Speed N/A Chassis Fan 4 Speed N/A CPU Q-Fan Control Enabled << : Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortcut F5: Optimized Defaults F10: Save ESC: Exit F12: Print Screen Version 2.00.1208. Copyright (C) 2012 American Megatrends, Inc.

CPU Temperature / MB Temperature [xxx°C/xxx°F]

The onboard hardware monitor automatically detects and displays the CPU and motherboard temperatures. Select Ignore if you do not wish to display the detected temperatures.

VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage, VDDA2.5V Voltage

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators. Select Ignore if you do not want to detect this item.

CPU Fan Speed [xxxx RPM] or [Ignore] / [N/A], CPU OPT Fan Speed [xxxx RPM] or [Ignore] / [N/A], Chassis Fan 1/4 Speed [xxxx RPM] or [Ignore] / [N/A]

The onboard hardware monitor automatically detects and displays the CPU, chassis, and power fan speed in rotations per minute (RPM). If the fan is not connected to the motherboard, the field shows N/A. Select [Ignore] if you do not wish to display the detected speed.

CPU Q-Fan Control [Enabled]

[Disabled] Disables the CPU Q-Fan control feature.

[Enabled] Enables the CPU Q-Fan control feature.

CPU Fan Speed Low Limit [600 RPM]

This item appears only when you enable the CPU Q-Fan Control feature and allows you to disable or set the CPU fan warning speed.

Configuration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

CPU Fan Profile [Standard]

This item appears only when you enable the CPU Q-Fan Control feature and allows you to set the appropriate performance level of the CPU fan.

[Standard] Sets to [Standard] to make the CPU fan automatically adjust depending on the CPU temperature.

[Silent] Sets to [Silent] to minimize the fan speed for quiet CPU fan operation.

[Turbo] Sets to [Turbo] to achieve maximum CPU fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

The following four items appear only when you set CPU Fan Profile to [Manual].

CPU Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the CPU temperature.

The values range from 40^ C to 90^ C.

CPU Lower Temperature [40]

Displays the lower limit of the CPU temperature.

CPU Fan Max. Duty Cycle(%) [60]

Use the <+> and <-> keys to adjust the maximum CPU fan duty cycle. The values range from 20% to 100%. When the CPU temperature reaches the upper limit, the CPU fan will operate at the maximum duty cycle.

CPU Fan Min. Duty Cycle(%) [60]

Use the <+> and <-> keys to adjust the minimum CPU fan duty cycle. The values range from 0% to 100%. When the CPU temperature is under 40°C, the CPU fan will operate at the minimum duty cycle.

Chassis Q-Fan Control 1-3 [Disabled]

[Disabled] Disables the Chassis Q-Fan control feature.

[Enabled] Enables the Chassis Q-Fan control feature.

Chassis Fan Speed Low Limit 1/4 [600 RPM]

This item appears only when you enable the Chassis Q-Fan Control feature and allows you to disable or set the chassis fan warning speed.

Configuration options: [Ignore] [200 RPM] [300 RPM] [400 RPM] [500 RPM] [600 RPM]

Chassis Fan 1/4 Profile [Standard]

This item appears only when you enable the Chassis Q-Fan Control feature and allows you to set the appropriate performance level of the chassis fan.

[Standard] Sets to [Standard] to make the chassis fan automatically adjust depending on the chassis temperature.

[Silent] Sets to [Silent] to minimize the fan speed for quiet chassis fan operation.

[Turbo] Sets to [Turbo] to achieve maximum chassis fan speed.

[Manual] Sets to [Manual] to assign detailed fan speed control parameters.

The following four items appear only when you set Chassis Fan Profile to [Manual].

Chassis Upper Temperature [70]

Use the <+> and <-> keys to adjust the upper limit of the CPU temperature. The values range from 40°C to 90°C.

Chassis Lower Temperature [40]

Displays the lower limit of the chassis temperature.

Chassis Fan Max. Duty Cycle(%) [60]

Use the <+> and <-> keys to adjust the maximum chassis fan duty cycle. The values range from 20% to 100%. When the chassis temperature reaches the upper limit, the chassis fan will operate at the maximum duty cycle.

CPU Fan Min. Duty Cycle(%) [60]

Use the <+> and <-> keys to adjust the minimum chassis fan duty cycle. The values range from 0% to 100%. When the chassis temperature is under 40°C, the chassis fan will operate at the minimum duty cycle.

3.7 Boot menu

The Boot menu items allow you to change the system boot options.

ASUS UEFI BIOS Utility - Advanced Mode Main AI Tweaker Advanced Monitor Boot Tool Boot Configuration Bootup NumLock State On Full Screen Logo Enabled Wait for 'F1' If Error Enabled DirectKey Enabled GO to BIOS.. Option ROM Messages Force BIOS INT19 Trap Response Immediate Setup Mode EZ Mode Boot Option Priorities Boot Override Select the keyboard NumLock state ->: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt.

Bootup NumLock State [On]

[On] Sets the power-on state of the NumLock to [On].

[Off] Sets the power-on state of the NumLock to [Off].

Full Screen Logo [Enabled]

[Enabled] Enables the full screen logo display feature.

[Disabled] Disables the full screen logo display feature.

Set this item to [Enabled] to use the ASUS MyLogo 2 ^™ feature.

Wait For 'F1' If Error [Enabled]

[Disabled] Disables the function.

[Enabled] The system waits for the key to be pressed when error occurs.

DirectKey Enabled [Go to BIOS Setup]

[Go to BIOS Setup] Enables the DirectKey function and allows you to go to the BIOS setup when you press the DirectKey button.

[Disable] Disables the DirectKey function. When set to [Disable], the DirectKey button will only allow you to turn on or shut down your computer without going into the BIOS setup.

When set to [Go to BIOS Setup] and the computer is on, the system will shut down when you press the DirectKey button. Press the DirectKey button again or the power button to reboot and go directly into the BIOS setup.

Option ROM Messages [Force BIOS]

[Force BIOS] The third-party ROM messages will be forced to display during the boot sequence.

[Keep Current] The third-party ROM messages will be displayed only if the third-party manufacturer had set the add-on device to do so.

INT19 Trap Response [Immediate]

[Immediate] Executes the Interrupt trap response for the OPROM boot disk function immediately.

[Postoned] Executes the Interrupt trap response for the OPROM boot disk function during legacy boot.

Setup Mode [EZ Mode]

[Advanced Mode] Sets Advanced Mode as the default screen for entering the BIOS setup program.

[EZ Mode] Sets EZ Mode as the default screen for entering the BIOS setup program.

Boot Option Priorities

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system.

• To access Windows OS in Safe Mode, do any of the following:

• Press when ASUS Logo appears.

• Press after POST.

- To select the boot device during system startup, press when ASUS Logo appears.

Boot Override

These items displays the available devices. The number of device items that appears on the screen depends on the number of devices installed in the system. Click an item to start booting from the selected device.

3.8 Tools menu

The Tools menu items allow you to configure options for special functions. Select an item then press to display the submenu.

ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool > ASUS EZ Flash 2 Utility > ASUS SPD Information > ASUS O.C. Profile Be used to update BIOS

3.8.1 ASUS EZ Flash 2 Utility

Allows you to run ASUS EZ Flash 2. When you press , a confirmation message appears. Use the left/right arrow key to select between [Yes] or [No], then press to confirm your choice.

For more details, refer to section 3.10.2 ASUS EZ Flash 2 utility.

3.8.2 ASUS SPD Information

Allows you to view the DRAM SPD information.

ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool Back Tool\ ASUS SPD Information > DIMM Slot # Slot 2 Manufacturer Kingston Module Size 2048 MBytes Maximum Bandwidth 1333 Mhz Part Number 9905403-048.A00LF Serial Number 65cc6ec8 Product Week/Year 05/2012 SPD Ext JEDEC ID JEDEC Frequency(Mhz) 1333 Voltage (V) 1.500 CAS# Lantency (tCL) 9 RAS# to CAS# (tRCD) 9 RAS# Precharge(tRP) 9 IRAS 24 tRC 33 tWR 10 tRRD 4 tRFC 74 tWTR 5 tRTP 5 tFAW 20 DIMM Slot number →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Shortcut F5: Optimized Defaults F10: Save ESC: Exit F12: Print Screen Version 2.00.1208. Copyright (C) 2012 American Megatrends, Inc.

3.8.3 ASUS O.C. Profile

This item allows you to store or load multiple BIOS settings.

ASUS UEFI BIOS Utility - Advanced Mode Main Ai Tweaker Advanced Monitor Boot Tool Back Tool\ ASUS O.C. Profile > O.C. Profile Configuration Setup Profile 1 Status : Not Installed Setup Profile 2 Status : Not Installed Setup Profile 3 Status : Not Installed Setup Profile 4 Status : Not Installed Setup Profile 5 Status : Not Installed Setup Profile 6 Status : Not Installed Setup Profile 7 Status : Not Installed Setup Profile 8 Status : Not Installed Add Your CMOS Profile Label Save to Profile 1 Add Your CMOS Profile Load from Profile 1 Save BIOS settings to Profile

The Setup Profile Status items show Not Installed if no profile is created.

Save to Profile

Allows you to save the current BIOS settings to the BIOS Flash, and create a profile. Key in a profile number from one to eight, press , and then select Yes.

Load from Profile

Allows you to load the previous BIOS settings saved in the BIOS Flash. Key in the profile number that saved your BIOS settings, press , and then select Yes.

• DO NOT shut down or reset the system while updating the BIOS to prevent the system boot failure!
  • We recommend that you update the BIOS file only coming from the same memory/CPU configuration and BIOS version.

3.9 Exit menu

The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items. You can access the EZ Mode from the Exit menu.

Exit Load Optimized Defaults Save Changes & Reset Discard Changes & Exit ASUS EZ Mode Launch EFI Shell from filesystem device

Load Optimized Defaults

This option allows you to load the default values for each of the parameters on the Setup menus. When you select this option or if you press , a confirmation window appears. Select Yes to load the default values.

Save Changes & Reset

Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved. When you select this option or if you press , a confirmation window appears. Select Yes to save changes and exit.

Discard Changes & Exit

This option allows you to exit the Setup program without saving your changes. When you select this option or if you press , a confirmation window appears. Select Yes to discard changes and exit.

ASUS EZ Mode

This option allows you to enter the EZ Mode screen.

Launch EFI Shell from filesystem device

This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of the available filesystem devices.

3.10 Updating BIOS

The ASUS website publishes the latest BIOS versions to provide enhancements on system stability, compatibility, or performance. However, BIOS updating is potentially risky. If there is no problem using the current version of BIOS, DO NOT manually update the BIOS. Inappropriate BIOS updating may result in the system's failure to boot. Carefully follow the instructions of this chapter to update your BIOS if necessary.

Visit the ASUS website (www.asus.com) to download the latest BIOS file for this motherboard.

The following utilities allow you to manage and update the motherboard BIOS setup program.

1. ASUS Update: Updates the BIOS in Windows ^ environment.

2. ASUS EZ Flash 2: Updates the BIOS using a USB flash drive.

3. ASUS BIOS Updater: Updates and back ups the BIOS in DOS environment using the motherboard support DVD and a USB flash disk drive.

Save a copy of the original motherboard BIOS file to a USB flash disk in case you need to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update or BIOS Updater utilities.

3.10.1 ASUS Update

The ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows ^® environment.

• ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).
• This utility is available in the support DVD that comes with the motherboard package.

Launching ASUS Update

To launch ASUS Update, click Update > ASUS Update on the AI Suite II main menu bar.

Quit all Windows® applications before you update the BIOS using this utility.

Updating the BIOS through the Internet

To update the BIOS through the Internet:

1. From the ASUS Update screen, select Update BIOS from Internet, and then click Next.

ASUS Update From On you want to update your iOS/XP Update BIOS from Internet Download BIOS from Internet Update BIOS from file BIDS Information Current BIOS Modal Radius GABERTOOTH 100%X AG-3 Version 0287 Reliance Date 05/18/24/27 Next 9 seconds ASCII Type Registrar Update System Information Settings

1. Select the ASUS FTP site nearest you to avoid network traffic.

If you want to enable the BIOS downgrade and auto backup functions, tick Enable BIOS downgrade and Automatically backup my current BIOS.

ASUS Update Update BIOS free Internet Server: 9g sea.com/ce Enable BIOS downgradable Back Finish BIDS Information Current BIOS Model license: SMARTSTOPSY BIOS 42.6 Version: 0307 Hardware Date: 05/08/2012 Remote 001 Total Monitor Update System Information Settings

1. Select the BIOS version that you want to download. Click Next.

ASUS Update Update iOS's less internet ASUS Version [0211] 05/30/2012 What's now in this version: L. OISA 0211 EIDS Information Current EIDS Named Names SABRATOCNT PXXX 4.2.6 W/SEC 0207 Release Date 04/18/2012 Back Microsoft OS Test Revise Update System Information Settings

Updating the BIOS through a BIOS file

To update the BIOS through a BIOS file:

1. From the ASUS Update screen, select Update BIOS from file, and then click Next.

ASUS Update How do you want to update your iOS? Update BIOS from Internet Download BIOS from Internet Update BIOS from file BIOS Information Current BIOS Model Name: SMARTWORKS BIOS R1.0 Microsoft 0215 Release Date: 05/07/2012 Back Options Information Settings Available GUI Read Monitor Update No change Information

1. Locate the BIOS file and click Next.

ASUS Update Update source: free file Selected MSX File E:\MSCI00023.CSP Browse Back Next Current MSX Model version 04/09/2016 / MSX FLL Version 0307 Release Date 05/18/2012 Selected MSX5 Model Name 04/09/2016 / MSX FLL Version 0313 Release Date 05/30/2012 External CSP Text Header Update Systematic Information Settings

1. You can decide whether to change the BIOS boot logo. Click Yes if you want to change the boot logo or No to continue.

ASUS Update Find result. System needs to reboot for changes to data effect. Do you want to reboot? No Yes Current BIOS Model Name: CLASSIFIED BY: IEEE 80.0.0 Version: 0311 Release Date: 05/06/2012 Favorite GO Next Monitor Update System and Information Settings

1. Follow the onscreen instructions to complete the update process.

• The screenshots in this section are for reference only. The actual BIOS information vary by models.
  • Refer to the software manual in the support DVD or visit the ASUS website at www.asus.com for detailed software configuration.

3.10.2 ASUS EZ Flash 2

ASUS EZ Flash 2 allows you to update the BIOS without having to use a bootable floppy disk or an OS-based utility.

Before you start using this utility, download the latest BIOS from the ASUS website at www.asus.com.

To update the BIOS using EZ Flash 2:

1. Insert the USB flash disk that contains the latest BIOS file to the USB port.
2. Enter the Advanced Mode of the BIOS setup program. Go to the Tool menu to select ASUS EZ Flash Utility and press to enable it.

ASUSTek EZ Flash BIOS ROM Utility V00.75 Flash Info MODEL: SABERTOOTH 990FX R2.0 VER: 0202 DATE: 03/12/2012 fs0:\ Drive Folder Info fs0: 03/15/12 10:23p 4194304 ST990R20.CAPST990R20.CAP fs1:\ File Infor MODEL: VER: DATE: Help Info [Enter] Select or Load [Tab] Switch [Up/Down/PageUp/PageDown/Home/End] Move [Esc] Exit [F2] Backup

1. Press to switch to the Drive field.
2. Press the Up/Down arrow keys to find the USB flash disk that contains the latest BIOS, and then press .
3. Press to switch to the Folder Info field.
4. Press the Up/Down arrow keys to find the BIOS file, and then press to perform the BIOS update process. Reboot the system when the update process is done.

• This function can support devices such as a USB flash disk with FAT 32/16 format and single partition only.
  • DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu. See section 3.9 Exit Menu for details.

3.10.3 ASUS BIOS Updater

The ASUS BIOS Updater allows you to update the BIOS in DOS environment. This utility also allows you to copy the current BIOS file that you can use as a backup when the BIOS fails or gets corrupted during the updating process.

The succeeding utility screens are for reference only. The actual utility screen displays may not be same as shown.

Before updating BIOS

1. Prepare the motherboard support DVD and a USB flash drive in FAT32/16 format and single partition.
2. Download the latest BIOS file and BIOS Updater from the ASUS website at http://support.asus.com and save them on the USB flash drive.

• NTFS is not supported under DOS environment. Do not save the BIOS file and BIOS Updater to a hard disk drive or USB flash drive in NTFS format.

• Do not save the BIOS file to a floppy disk due to low disk capacity.

• Turn off the computer and disconnect all SATA hard disk drives (optional).

Booting the system in DOS environment

1. Insert the USB flash drive with the latest BIOS file and BIOS Updater to the USB port.
2. Boot your computer. When the ASUS Logo appears, press to show the BIOS Boot Device Select Menu. Insert the support DVD into the optical drive and select the optical drive as the boot device.

Please select boot device: SATA:XXXXXXXXXXXXXX USBXXXXXXXXXXXXXX UEFI:XXXXXXXXXXXXXX Enter Setup ↑ and ↓ to move selection ENTER to select boot device ESC to boot using defaults

1. When the Make Disk menu appears, select the FreeDOS command prompt item by pressing the item number.

2. At the FreeDOS prompt, type d: and press to switch the disk from Drive C (optical drive) to Drive D (USB flash drive).

Welcome to FreeDOS (http://www.freedos.org)!
C:\>d:
D:\>

Updating the BIOS file

To update the BIOS file using BIOS Updater:

1. At the FreeDOS prompt, type bupdater /pc /g and press .

D:\>bupdater /pc /g

1. The BIOS Updater screen appears as below.

ASUSTek BIOS Updater for DOS V1.30 [2012/12/22] FLASH TYPE: MX1C 25L1065A Current ROM BOARD: SABERTOOTH 990FX R2.0 VER: 0204 DATE: 05/30/2012 Update ROM BOARD: UNKNOWN VER: UNKNOWN DATE: UNKNOWN PATH: A:\ A: ST990R20.CAP 2097152 2012-05-30 17:30:48 Note [Enter] Select or Load [Tab] Switch [V] Drive Info [Up/Down/Home/End] Move [B] Backup [Esc] Exit

1. Press to switch between screen fields and use the keys to select the BIOS file and press . BIOS Updater checks the selected BIOS file and prompts you to confirm BIOS update.

Are you sure to update BIOS? Yes No

1. Select Yes and press . When BIOS update is done, press to exit BIOS Updater. Restart your computer.

DO NOT shut down or reset the system while updating the BIOS to prevent system boot failure!

• For BIOS Updater version 1.04 or later, the utility automatically exits to the DOS prompt after updating BIOS.
• Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit BIOS menu. See Chapter 3 of your motherboard user manual for details.
• Ensure to connect all SATA hard disk drives after updating the BIOS file if you have disconnected them.

Software support

4.1 Installing an operating system

• This motherboard supports Windows® XP/ 64-bit XP/ 7 / 64-bit 7 operating systems (OS).
• Motherboard settings and hardware options vary. Use the setup procedures presented in this chapter for reference only. Refer to your OS documentation for detailed information.
• Ensure that you install the Windows® XP Service Pack 3 or later versions before installing the drivers for better compatibility and system stability.

4.2 Support DVD information

The contents of the support DVD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

4.2.1 Running the support DVD

Place the support DVD into the optical drive. The DVD automatically displays the Drivers menu if Autorun is enabled in your computer. Click each menu tab and select the items you want to install.

The Drivers menu shows the available device drivers if the system detects installed devices. Install the necessary drivers to use the devices. The Make Disk menu contains items to create the RAID/AHCI driver disk. The Manual menu contains the list of supplementary user manuals. Click an item to open the folder of the user manual. The Utilities menu shows the applications and other software that the motherboard supports. Click an item to install ASUS InstAll Google Chrome Browser Google Toolbar Norton Internet Security Solution AMD Chipset Driver Realtek Audio Driver Asmedia SATA Controller Driver Realtek LAN Driver Asmedia USB 3.0 Driver APRP Utility MB Please select items to install Click the Contact tab to display the ASUS contact information. Click an icon to display DVD/ motherboard information

If Autorun is NOT enabled in your computer, browse the contents of the support DVD to locate the file ASSETUP.EXE from the BIN folder. Double-click ASSETUP.EXE to run the DVD.

4.2.2 Obtaining the software manuals

The software manuals are included in the support DVD. Follow the instructions below to get the necessary software manuals.

The software manual files are in Portable Document Format (PDF). Install the Adobe® Acrobat® Reader from the Utilities menu before opening the files.

1. Click Manual tab. Click ASUS Motherboard Utility Guide from the manual list on the left.

Home ASUS Motherboard Installation Guide ASUS Motherboard Utility Guide Norton Internet Security User Guide Disk Unlocker User's Manual Realtek HD Audio User's Manual ASUS WebStorage User's Manual

1. The Manual folder of the support DVD appears. Double-click the folder of your selected software.

ASRS_Utility File and Folder Tasks Make a new folder Publish this folder to the help Share this folder Other Places Manual My Documents SharedDocuments My Computer My Network Places Details ASRS_Update PCrusbell PassGen1

1. Some software manuals are provided in different languages. Double-click the language to show the software manual.

FanXpert File Edit Draw Framework Tools Help Back Search Favorites G:\ST_USB\Manual\ACST_UBR\Foolpark Role and Folder Tasks Make a new folder Publish this folder to the Web Share this folder English German Simplified_Chinese French Japanese Traditional_Chinese Other Files ACST_UBRs My Documents Shared Documents My Computer My Network Files Details

The screenshots in this section are for reference only. The actual software manuals containing in the support DVD vary by models.

4.3 Software information

Most of the applications in the support DVD have wizards that will conveniently guide you through the installation. View the online help or readme file that came with the software application for more information.

4.3.1 Al Suite II

AI Suite II is an all-in-one interface that integrates several ASUS utilities and allows users to launch and operate these utilities simultaneously.

Installing AI Suite II

To install AI Suite II on your computer:

1. Place the support DVD to the optical drive. The Drivers installation tab appears if your computer has enabled the Autorun feature.

2. Click Utilities tab > Al Suite II.

3. Follow the onscreen instructions to complete the installation.

Using AI Suite II

AI Suite II automatically starts when you enter the Windows® operating system (OS). The AI Suite II icon appears in the Windows® notification area. Click the icon to open the AI Suite II main menu bar.

Click each button to select and launch a utility, to monitor the system, to update the motherboard BIOS, to display the system information, and to customize the settings of AI Suite II.

Shortcut to Thermal Radar Click to monitor sensors or CPU frequency Remote GO! Thermal Radar Tool Monitor Update System Information Settings Shortcut to Remote GO! Click to customize the interface settings Click to show the system information Click to update the motherboard BIOS Click to select a utility

• The applications in the Tool menu vary with models.
• The screeshots of AI Suite II in this user manual are for reference only. The actual screenshots vary with models.
• Refer to the software manual in the support DVD or visit the ASUS website at www.asus.com for detailed software configuration.

4.3.2 ASUS TUF Thermal Radar

TUF Thermal Radar monitors the critical components in real-time and automatically adjusts fan speeds for system stability. Its interface provides you with sensors for various components, allowing you to monitor the components individually. It automatically adjusts fan speeds based on your selected or customized fan profile for each component, keeping the system stable and cool.

Launching Thermal Radar

To launch Thermal Radar, click Thermal Radar on the AI Suite II main menu bar.

The software screen captures in this manual are for reference only.

Using the Thermal Radar main screen

To use the Thermal Radar:

1. Click any thermal sensor on the sensor map to get the detailed information.
2. On the right pane of the Thermal Radar main screen, click Temperature, Fan or Voltage to see the real-time system thermal, fan and voltage information.

ASUS Thermal Radar 1.01.24 SABERTOOTH 930FX B2.0 System thermal sensor map Function list Temperature CPU temperature 55 °C MB temperature 38 °C VCDRE-1 51 °C VCDRE-2 43 °C NB HT 40 °C DRAM 42 °C USB3.0-1 41 °C USB3.0-2 40 °C PCIE-1 41 °C PCIE-2 35 °C Fan Voltage System thermal, fan and voltage information

Configuring system fan settings

TUF Thermal Radar's preset fan profiles automatically adjusts the fan speeds based on the ambient temperature and the system's load. It also allows you to customize the fan speeds to achieve a quiet and cool environment for the system.

Loading the preset fan profiles

To load the preset fan profiles:

1. Click or from the function list on the bottom of the Thermal Radar main screen.

2. Click the fan that you want to assign a preset fan profile to.

Thermal Rotor 0.01-24 CAMERTORTS REFID 82.0 CPU Fan Fan CPU Fan Device Set 1 CPU_Bio-1 CPU_Bio-2 CPU_Bio-3 CPU_Bio-4 Voltage Temperature

1. Read the introduction and notice of the selected fan. Click Setting.

Thermal Radio L01.24 LANDTORTH 0007 E2.0 CPU Bus To obtain better charging instruments, or devices (including CPU) for required. OK Voltage Voltage Temperature

1. Select a fan profile in the Profile Name dropdown list and click Apply. Click the CPU or CHA icon to configure the system fans.

ASUS Thermal Radar L11.24 Fan Direction: CNC hit Profile Denver Standard Clearing Smoother Brand Color Temperature 100% Temperature CNC Temperature 57 °C Min temperature 30 °C VCCR-1 53 °C VCCR-2 49 °C HD / IT 41 °C DRAM 48 °C VDDI 6:1 48 °C VDDI 6:2 41 °C PCR-1 43 °C PCR-2 36 °C FND FHL Enable Apply Check

Configuring user-customizable fan settings

You can customize the fan speed to meet different computing and environment needs.

To customize the fan speed:

1. Select User in the Profile Name dropdown list.
2. Drag the control points on the fan speed curve to set the fan speed percentage.
3. Click Apply.

Thermal Radar L01.24 Bar Name: GPS CPS Analog Name: CPS Temperature 57 °C MΩ 60 °C VCCB-1 50 °C VCCB-2 49 °C AG-1T 48 °C DRAM 48 °C USB-1 48 °C USB-2 48 °C PDC-1 48 °C PDC-2 48 °C A/PG A/PG Control Apply Finish

You can also assign the specific component that Thermal Radar will monitor and dynamically adjust the fan speeds in real-time when the temperature reaches a certain degree.

To customize the fan speed with advanced options:

1. Select User in the Profile Name dropdown list.
2. Drag the paper clip icon to a component listed on the right pane that you want to monitor. You can assign up to three components to monitor.

ASUS Thermal Radar Fan Name: CTR Net Credit Marker CVR CPU temperature: 57 °C MFB temperature: 51 °C VDDME-1: 54 °C VDDME-2: 45 °C N1-PF: 40 °C CRAM: 43 °C USB: 61 °C LSRC: 62 °C PCB: 48 °C PCB-2: 36 °C Temperature CPU temperature: 57 °C MB temperature: 51 °C VDDME-1: 54 °C VDDME-2: 45 °C N1-PF: 40 °C CRAM: 43 °C USB: 61 °C LSRC: 62 °C PCB: 48 °C PCB-2: 36 °C

1. Adjust the slider of each selected component for a 100% combination and click Apply.

For example, you assign 60% to motherboard, 20% to VCORE, and 20% to VCCSA and click Apply, Thermal Radar calculates the overall temperature of the monitored components to automatically set the required fan speed.

1. If you are not sure how to choose the proper components to monitor and the percentage to adjust, click Auto and have Thermal Radar do the recommended settings for you. Click Apply for the setting to take effect.

ASUS Thermal Radar 3.01.21 Fan Name: CFP Rate Profile Teams: Bait CPU temperature CPU temperature RTI temperature VCCMS-1 VCCMS-2 FB+10 DRAAM USB3.9.1 USB3.9.2 FAT5-1 FAT5-2 ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU ACPU

Configuring Chassis Fan 4 settings

Allows you to set a profile to your CHA_FAN4.

To select the CHA_FAN4 setting:

1. Click .

1. Click the setting that you want to apply for the CHA_FAN4.
2. If you select User setting, adjust the slider to set the RPM percentage.
3. Click Apply to save and apply the changes or click Undo to cancel the fan settings made.

ASUS Thermal Radar 1.01.24 SABERTUOTH 990FX R2.0 Fan Setting Disable Standard Silent Turbo User 10% CPU fan 3026 rpm Chassis fan 1 rpm CHA_FAN1 rpm CHA_FAN2 rpm CHA_FAN3 rpm CHA_FAN4 rpm Click to select the CHA_FAN4 setting Adjust the slider to set RPM percentage of the User fan setting Click to save and apply the changes made Undo Apply Voltage Temperature

Click to undo the changes made

4.3.3 Remote GO!

Connect your computer to a wireless network and use Remote GO! to wirelessly stream media files to DLNA devices. It allows you to remotely control and access your computer using your mobile device, and easily transfer files between your computer and mobile device.

• Remote GO! is supported only on Windows ^® 7.
• All devices using the Remote GO! functions must be in the same network.

Using Remote GO!

To launch Remote GO!, click Tool > Remote GO! on the AI Suite II menu bar.

Allows you to set a password Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Applicatlon help Android iOS Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO! Remote GO!

Remote GO! functions

• DLNA Media Hub: Provides support to the latest DLNA standard, and allows you to stream media files to a DLNA-supported device.
• Remote Desktop: Allows you to view your computer's desktop and remotely operate your computer in real-time from your mobile device.
• File Transfer: Allows you to transfer files between your computer and mobile device.

Launch Wi-Fi GO! Remote on your mobile device to use Wi-Fi GO! Remote control functions. For more details, refer to next section Wi-Fi GO! Remote.

Wi-Fi GO! Remote

Install the Wi-Fi GO! Remote application on your mobile device to use Remote GO!'s remote control functions.

- Wi-Fi GO! Remote supports iOS 4.0/Android 2.3 mobile devices or later versions.

- For iOS devices, download the Wi-Fi GO! Remote from iTunes store. For Android devices, download the Wi-Fi GO! Remote from Google Play Store or from ASUS support DVD.

Launching Wi-Fi GO! Remote

1. Turn on your mobile device's wireless connection. Ensure that your mobile device is within the same network as your computer.

2. On your mobile device, tap and tap Enter on the Wi-Fi GO! Remote page.

WiFi GDI Remote WiFi GDI Remote provides you with a new system-experienced mobile app/UX myouthew and home desktop/moving environment. Get start the WiFi connection now. Enter

1. Tap the computer you want to connect to your mobile device.

192.106/8.112) - 19 PC (OffLine) (192.106/1.102) PS/P47 (OffLine)

Wi-Fi GO! Remote menu

Wi-Fi SOF Remote DLNA Media Hub Remote Desktop File Transfer

The Wi-Fi GO! Remote's user interface shown above is for reference only and may vary with the mobile device's operating system.

Below are the supported screen resolution of your mobile devices:

Screen type Low Density (120, ldpi)		Medium Density (160, mdpi)	High Density (240, hdpi)	Extra high density (320, xhdpi)
Small screen	QVGA(240 x 320)		480 x 640
Normal screen	WQVGA400(240 x 400)	HVGA(320 x 480)	WVGA800(480 x 800)	640 x 960
	WQVGA432(240 x 432)		WVGA854(480 x 854)600 x 1024
Large screen	WVGA800(480 x 800)	WVGA800(480 x 800)
	WVGA854(480 x 854)	WVGA854(480 x 854)
		600 x 1024
Extra large screen	1024 x 600	WXGA(1280 x 800)	1536 x 1152	2048 x 1536
		1024 x 768	1920 x 1152	2560 x 1536
		1280 x 768	1920 x 1200	2560 x 1600

DLNA Media Hub

DLNA Media Hub allows you to stream your multimedia files to your DLNA-supported device and remotely control playback using your mobile device or your computer.

Click to select media file type Tick to select source location Click to refresh media files Media files pane Click to go back to main menu Remote GO! DLNA Media Hub Music Video Photo Library Playlist Default Library Klimbs Maid with the Fluxen Hair Sleep Away 0:00:00 0:00:00 0:00:00 Remote GO! DLNA Media Hub provides support to the latest DLNA standard and shows you to share media files wirelessly anything, anywhere. Displays the target receiver's name and the media file currently playing Target Receiver : New Playing : Click to edit the playlist Click to select receiver

Using the DLNA Media Hub

1. From the main screen, click DLNA Media Hub.

2. Click to select a device as your receiver.

3. When using your DLNA display (such as DLNA TV) as the receiver, ensure that DLNA function is enabled.

4. When using another computer as the receiver, launch Windows Media Player, click Stream > Allow remote control of my Player to remotely control media playback.

Stream Create playlist Search Allow Internet access to home media... Allow remote control of my Player... Automatically allow devices to play my media... More streaming options...

- When using the computer as sender and receiver, launch Windows Media Player, click Stream > Allow remote control of my Player and Automatically allow devices to play my media.

Stream Create playlist Search Allow Internet access to home media... Allow remote control of my Player... Automatically allow devices to play my media... More streaming options...

• Only computers under Windows

^10 7 support the DLNA Media Hub function.

- Keep the Windows Media Player open. Ensure that your media file formats supported on Windows Media Player and DLNA playback devices.

1. Click any of the tabs to select your preferred media file type.

To play music:

1. Click Music tab.

2. Tick Library to view or play files.

Tick Playlist and select an existing playlist from the dropdown list.

1. Click a music file, and click .

Remote GO! DLNA Media Help Music Video Photo Library Playlist Default Default 1.23 Maid with the Flareer Hall Stop Away Reserve GO! DLNA Media Help DLNA Media Help provides support to the Select DLNA standard and shows you in share media files exclusively / anything, any other. Target Receiver : New Playing :

To edit the library:

1. Tick Library.

2. Click to add or delete music files.

3. Click Add and locate the file from the directory. To delete, tick the selected file and click Delete.

4. Click OK.

Remote GOI VMware Home DLNA Media Hub Music Video Phone Library Platelet Default Library Business Host with the Fission Eye Sleep Anchor Add Delete Remote GOI DelInit Media Hub DLNA Media Hub provides import to the Host DLNA domain and other users to share media. This environment's application is available. Target Receiver New Playing 1

To edit the music playlist:

1. Tick Playlist.

2. Click .

3. Tick to select or deselect the music file and click Save Profile.

4. Select the profile name and click Save. To add as a new playlist, key in your profile name and click Save.

5. To delete playlist, select the profile and click

Remote GOI To not Media Web Music Video Photo Library Stylet Default Playbox calabics Had with the Flanch Web Sleep Flash Card Tools Remote GOI DANA Moving Web to find media web provides support to the latest DANA standard and allows you to share media file website/ applics, downloads. Target Receiver New Playing

To play a video file:

1. Click Video tab.
2. Tick Library to view the video files from your local computer. Tick Playlist to view the video files saved in your profile.
3. Click the video file you want to watch, and click

Change the resolution from the Quality dropdown list.

Remote GO OLISA Pro-SD Hub Music Video Playoff Playoff Playoff Playoff 720x459 720x576 OK/SCAN OFF OLISA Media Hub ON/OFF Media Hub (Shower: Input to the Web: OLISA dashed and allowed jobs to share media files exclusively myling, anywhere Target Received New (Playing)

To edit the video library:

1. Tick Library.
2. Click to add or delete video files.
3. Click Add and locate the file from the directory. To delete, tick the selected file and click Delete.
4. Click OK.

Remote GO CLNA Media Hub Video Playoff Library Playoff Default LCNA Quality Landscape 720x400 PAMR in HD 720x376 Quality 720x400 OK/OK/OK Remove GO CLNA Media Hub CLNA Media Hub promotes support to the latest CLNA standard and allows you to allow media files automatically, playing, or replace. Forward Receiver New Playoff /

To edit the video playlist:

1. Tick Playlist.
2. Click .
3. Tick to select or deselect the video file and click Save Profile.
4. Select the profile name and click Save. To add as a new playlist, key in your profile name and click Save.
5. To delete playlist, select the profile and click

Remote GO! OLSA Media Hub Video Playset Default Playset Quality LoadUpsets 332x264 Width in HD 732*483 Random GO! OLSA Media Hub OLSA Media Hub provides support to the local OLSA stores and will also play to share media files exclusively on a platform. Options: Target Receiver New Running:

To view images:

1. Click Photo tab.
2. Tick Library to view the image files from your local computer. Tick Playlist to view the image files saved in your profile.

An image slideshow plays when pressing ▶

Remote (GO) DLRA Media Hub Myers Video Photo Library Playlist Default Library Companhisms Desert Private games playfish Knows Light effects Remote Go! DLRA Media Hub provides support to the latest DLRA standard and always you in share this from necessary and some applications. Target Receiver: Now Playing:

To edit the image library:

1. Tick Library.
2. Click to add or delete image files.
3. Click Add and locate the file from the directory. To delete, tick the selected file and click Delete.
4. Click OK.

Remote GO! DLNA Media Hub Music Video Photo Libraries Playfast Search Users Chryosetheneus Desert Hedringbase Jahthruy Koula Lighterose Pangent Tubon Add Delete Remote GO! DLNA Media Hub DLNA Media Hub is used to install your first version DLNA, which also includes other user by inserting media files sequentially. Additionally, anyone is. Target Receiver Now Planning...

To edit the image playlist:

1. Tick Playlist.
2. Click .
3. Tick to select or deselect the image file and click Save Profile.
4. Select the profile name and click Save. To add as a new playlist, key in your profile name and click Save.
5. To delete playlist, select the profile and click

VMware Files Remote GOT DLNA Media Hub File Value Photo Library Plakid Default Plakid ChinoDiffusure Desert Mechanpose Jahyash Kastia Lightwave 12.00 KB 0.00 KB Remode GO* DLNA Media Hub DLNA Media Hub provides without to the other DLNA weeding and allows you to share this file exclusively and use any elsewhere. Target Receiver New Flanking

Using the DLNA Media Hub via Wi-Fi GO! Remote

You can access the DLNA Media Hub on your mobile device via Wi-Fi GO! Remote.

1. Tap DLNA Media Hub.
2. Select and tap the receiver name.

1. The mobile device shows the information of the DLNA Media Hub function. Tap Enter to proceed to the Remote GO! function.

2. Tap Music, Video or Photo, to play.

Your mobile device's WI-FI GO! Remote interface may vary with the mobile device's operating system.

Remote Desktop

Remote Desktop allows you to view your computer's desktop and remotely operate your computer in real-time from your mobile device.

Using the Remote Desktop

1. From the main screen, click Remote Desktop.
2. Click Setting.

Remote CCI Remote Desktop Remote Desktop setting space provides three different viewing modes. " Operation in Smart Device " To use the function, please tap the Remote Desktop icon in your smart devices. Remote CCI Remote Desktop allow you to use your reader's desktop and recently open your computer in real time from your mobile server. Auto Devices Mobile Devices My Computer Setting

1. Select a suitable codec Auto, Speed optimization, or Image optimization for your mobile device.
2. Click Apply.

Remote GO! Remote Desktop Click to select a video codec Auto Speed optimization Image optimization Remote GO! Remote Desktop Remote Desktop allows you to view your computer's desktop and remotely operate your computer in real-time from your mobile device. Application help Click to go back to previous screen

Using the Remote Desktop via Wi-Fi GO! Remote

When the Remote Desktop is enabled, the mobile device shows the contents of your desktop.

Remote 3.0 Remote 2.0 Remote 0.0 Remote 0.0: This provides you and it allows to be recommended to use the best cloud environment and have cloud computing environment. Let your WiFi device needs, and part the WiFi connection time. Remote 3.0 Remote 0.0 Remote 0.0: This provides you and it allows to be recommended to use the best cloud environment and have cloud computing environment. Let your WiFi device needs, and part the WiFi connection time. Remote 0.0 Remote 0.0: This provides you and it allows to be recommended to use the best cloud environment and have cloud computing environment. Let your WiFi device needs, and part the WiFi connection time.

The Wi-Fi GO! Remote's user interface shown above is for reference only and may vary with the mobile device's operating system.

File Transfer

Allows you to transfer files wirelessly between your computer and mobile device.

Before using File Transfer, ensure that your computer is connected to your mobile device. For more details, refer to the section Wi-Fi GO! Remote.

Remote GO! File Transfer Mobile Device to Desktop With Wi-Fi GO! Remote installed on the network mobile device, if it can be transferred to your preferred destination path or your computer. Desktop to Mobile Device Right click the file in your computer and select the network mobile device that you want to transfer the file to. The file will be displayed in below path. Remote GO! File Transfer File transfer provides you with the server wireless file Transfer/ solution between your computer and mobile device. Application help Destination path for the files transferred from mobile device to desktop C:\Users\DOC103\Max0647_NT541 Path : Remote GO! Browse Click to go back to main menu Click to select a destination path for your file transfer

• Android mobile devices can send and receive files.
- iOS mobile devices can only send files.

Using File Transfer

1. Right-click the file and click Send to > [Device name].
2. After the transfer is complete, click OK.

Using File Transfer via Wi-Fi GO! Remote

1. On your mobile device, tap File Transfer.
2. Tap Enable to receive files from PC.
3. Tap Enter to send files to PC.

VM-6 USB Transfer V-File Transfer File Transfer allows you to transfer files exclusively between your computer and mobile devices. 1. Ensure to enable to be able to receive files from PC before using this function. 2. Use to choose file and transfer it to PC.

Tap to select the file's source location Tap to select files for transfer Wi-Fi GOI Remote LIFe Transfer Jmt's load/Remote GOI Wi-Fi GOI Remote Camera Remote GOI Ink Send Select All Clear All Tap to send selected files Tap to select all files Tap to clear all files

The Wi-Fi GO! Remote's user interface shown above is for reference only and may vary with the mobile device's operating system.

Securing your computer for Wi-Fi GO! Remote functions

Remote GO! Settings allows you to create a password for your computer.

To create a password:

1. Click in the main menu.
2. Tick Use Password and key in your password.
3. Click Apply.

Tick to enable password Key in your password Click to go back to main menu Click to apply settings made

• When you launch the Wi-Fi GO! Remote, the application prompts you to key in the computer's password.
• Your password must contain 6-12 letters or numbers.

4.3.4 TurboV EVO

ASUS TurboV EVO includes TurboV that allows you to manually adjust the CPU frequency and related voltages that offers automatic and easy overclocking and system boost performance.

To launch TurboV EVO, click Tool > TurboV EVO on the AI Suite II main menu bar..

Refer to the software manual in the support DVD or visit the ASUS website at www.asus.com for detailed software configuration.

TurboV

TurboV allows you to overclock the BCLK frequency, CPU voltage, IMC voltage, and DRAM Bus voltage in Windows® environment and in real-time without exiting and rebooting the OS.

Refer to the CPU documentation before adjusting CPU voltage settings. Setting a high voltage may damage the CPU permanently, and setting a low voltage may lead to an unstable system.

For system stability, all changes made in TurboV will not be saved to BIOS settings and will not be kept on the next system boot. Use the Save Profile function to save your customized overclocking settings and manually load the profile after Windows starts.

TurboV EVO Load profile Target values Current values Click to show settings Advanced Mode CPU Ratio I 17.0 3400 MHz II 17.0 3400 MHz III 17.0 3400 MHz IV 17.0 3400 MHz Save Profile CPU CPU Frequency 3411.6 MHz 200.7 x 17.0 Core 0 CPU Usage 1% 0% 1% 6% Save the current settings as a new profile Voltage Adjustment bars Undoes all the changes Applies all the changes immediately Click to restore all startup settings Default Settings Undo Apply Remote GO! Tool Monitor Update System Information Settings

Using the Advanced Mode

Click the Advanced Mode tab to adjust the advanced voltage settings.

TurboV EVO Profile Save Profile CPU Bus Freq 200 200 (MHz) CPU Voltage 1.40000 1.40000 (V) CPUMB Voltage 1.60000 1.50000 (V) DRAM Voltage 1.650 1.650 (V) Advanced Mode CPU Ratio Voltage Adjustment bars Target values VDD PCIE Voltage 1.100 1.100 VDDR Voltage 1.200 1.200 NB Voltage 1.30000 1.30000 VDDA Voltage 2.50000 2.50000 NB HT Voltage 2.80000 2.80025 SB Voltage 3.100 3.100 Current values Click to restore all startup settings Undoes all the changes Applies all the changes immediately DS Default Settings Undo Apply Remote GOI Tool Monitor Update System Information Settings

CPU Ratio

Allows you to manually adjust the CPU ratio.

The first time you use CPU Ratio, go to AI Tweaker > CPU Power Management in BIOS and set the Turbo Ratio item to [Maximum Turbo Ratio setting in OS].

1. Click CPU Ratio tab.
2. Drag the adjustment bars upwards or downwards to the desired value.
3. Click Apply to save the changes made.

TurboE EVO Profile Save Profile CPU Bus Pres 200 200 (MHz) CPU Voltage 1.40000 1.40000 (V) CPU/NE Voltage 1.05000 1.05000 (V) DRAM Voltage 1.650 1.650 (V) CPU Frequency 3411.6 MHz 200.7 x 17.8 Core 0 CPU Usage 1% 0% 1% 6% CPU Ratio Advanced Mode CPU Ratio Adjustment bars I 17.0 II 17.0 III 17.0 IV 3400 MHz 3400 MHz 3400 MHz 3400 MHz Click to restore all start-up settings Undoes all the changes Apply all the changes immediately Remote GO! Tool Monitor Update System Information Settings

• Set the CPU Ratio Setting item in BIOS to [Auto] before using the CPU Ratio function in TurboV. Refer to the BIOS chapter of your motherboard user manual for details.
• The CPU Ratio bars show the status of the CPU cores, which vary with your CPU model.

4.3.5 DIGI+ Power Control

ASUS DIGI+ Power Control allows you to adjust VRM voltage and frequency modulation to enhance reliability and stability. It also provides the highest power efficiency, generating less heat to prolong the component lifespan and minimize power loss.

To launch DIGI+ Power Control, click Tool > DIGI+ Power Control on the AI Suite II main menu bar.

Select CPU Power or DRAM Power to adjust the power control settings.

CPU Power

DIGI+ Power Control CPU Load Line Calibration Regular CPU Current Capability 110% CPU Voltage Frequency Auto Squared Spectrum VRBI Found Frequency Made CPU/ARB Load Line Calibration Extreme CPU/ARB Current Capability 100% CPU Power Phase Control Standard Optimized Extreme Manual Adjustment CPU Load Line Calibration Stamps for compression of the voltage drop when the CPU is lowering. It allows you to adjust the voltage settings and control the system temperatures. Power Saving Performance Application help The actual temperatures may vary depending on your CPU applications. Do not remove the electrical module. The chemical conditions should be monitored. Apply Undo Applies all the changes Undoes all the changes Click to proceed to next page

1 CPU Load-line Calibration

It allows you to adjust the voltage settings and control the system temperature. Higher load-line calibration could get higher voltage and good overclocking performance but increases the CPU and VRM thermal conditions.

2 CPU Current Capability

CPU Current Capability provides wider total power range for overclocking. A higher value setting gets higher VRM power consumption delivery.

3 CPU Voltage Frequency

Switching frequency affects the VRM transient response and thermal components. Higher frequency gets quicker transient response.

4 CPU Power Phase Control

Increase phase number under heavy system loading to get more transient and better thermal performance. Reduce phase number under light system loading to increase VRM efficiency.

5 CPU/NB Load-line Calibration

Set to a higher value for system performance, or to a lower value for better thermal solution.

6 CPU/NB Current Capability

Setting CPU/NB Current Capability to a higher value increases the overclocking frequency range of the DRAM Controller.

DIG1+ Power Control CPU Power Response Control Regular CPU URB Power Response Control Regular CPU Power Thermal Control 130°C CPU Power Duty Control T Probe Thermal C Probe Current CPU Power Response Control The v8K controller provides a faster and prime power response rate for CPU. Apply a higher value for an extreme overblocking. Application help Applies all the changes Undoes all the changes Click to proceed to previous page

7 CPU Power Response Control

Provides a faster and precise power response rate for your CPU. Apply a higher value for extreme overclocking.

8 CPU Power Thermal Control

A higher temperature brings a wider CPU power thermal range and extends the overclocking performance to enlarge O.C potential.

9 CPU Power Duty Control

Balances the load on the power phases based on the current system load or phase bank temperature.

10 CPU/NB Power Response Control

The CPU/NB controller provides a faster and precise power response rate for CPU&DRAM. Apply a higher value for an extreme overclocking.

• The actual performance boost may vary depending on your CPU specification.
• DO NOT remove the thermal module. The thermal conditions should be monitored.

Refer to the software manual in the support DVD or visit the ASUS website at www.asus.com for detailed software configuration.

DRAM Power

DRAM Current Capability 100% DRAM Voltage Frequency 300% DRAM Power Phase Control Optimized Extreme DRAM Current Capacitator a higher value brings a wider total power range and extends the overclocking frequency range simultaneously. Application help Applies all the changes Undoes all the changes

1 DRAM Current Capability

A higher value brings a wider total power range and extends the overclocking frequency range simultaneously.

2 DRAM Voltage Frequency

Allows you to adjust the DRAM switching frequency for system stability or to increase the overclocking range.

3 DRAM Power Phase Control

Set Manual Adjustment to faster phase response to increase system performance or to slower phase response to increase DRAM power efficiency.

• The actual performance boost may vary depending on your CPU and DRAM specification.
• DO NOT remove the thermal module. The thermal conditions should be monitored.

4.3.6 Sensor Recorder

Sensor Recorder monitors the changes in the system voltage, temperature, and fan speed on a timeline. The History Record function allows you to designate specific time spans on record to keep track of the three system statuses for certain purposes.

Launching Sensor Recorder

To launch Sensor Recorder, click Tool > Sensor Recorder on the AI Suite II main menu bar.

Using Sensor Recorder

Click Voltage/ Temperature/ Fan Speed tabs for the status you want to monitor. Colored lines will automatically appear on the diagram to indicate the immediate changes in the system status.

Sensor Recorder Voltage Temperature Res. Speed Value Record Allows you to monitor the changes in the system voltage. Vccr +12V +5V +0.3V 0V 26 18 16 14 12 10 8 6 4 2 17:00-00 12:00-20 13:00-20 15:00-30 14:00-00 14:30-30 ( Time ) X : P : 100% Y : P : 100% Sensor Yvccr 1,300 V +12V 11,000 V +5V 5,040 V +9.3V 5,300 V CPU 38.9 °C Mastercard 43.9 °C VCORR 80.9 °C VOCBA 86.9 °C VITCU 26.9 °C RCH 36.9 °C DVAM AB 30.9 °C DRAM CD 51.9 °C Normal Rate Post Monitor Update Sensor Information Settings

Using History Record

1. Click History Record tab and adjust the settings on the left for Record Interval and Record Duration according to need.
2. Click Start Recording to start measuring and recording each sensor.
3. To stop recording, click Recording again.
4. To track the recorded contents, set Type/ Date/ Select display items to display the history details.

Sensor Sensor Recorder Voltage Temperature Flow Speed Memory Record Allows you to record the changes in the system ✓ Voltage +12V N/A V +3V N/A V +3.2V N/A V Type Voltage Date 9/24/2013 Record interval 20 seconds Record duration 6 hours Start recording 1250/00 1300/00 1400/00 1450/00 1400/00 (%) 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13 -14 -15 -16 -17 -18 -19 -20 -21 -22 -23 -24 -25 -26 -27 -28 -29 -30 -31 -32 -33 -34 -35 -36 -37 -38 -39 -40 -41 -42 -43 -44 -45 -46 -47 -48 -49 -50 -51 -52 -53 -54 -55 -56 -57 -58 -59 -60 -61 -62 -63 -64 -65 -66 -67 -68 -69 -70 -71 -72 -73 -74 -75 -76 -77 -78 -79 -80 -81 -82 -83 -84 -85 -86 -87 -88 -89 -90 -91 -92 -93 -94 -95 -96 -97 -98 -99 -100

Click Monitor > Sensor on the AI Suite II main menu bar and the system status will appear on the right panel.

4.3.7 Ai Charger+

This utility allows you to fast-charge your portable BC 1.1* mobile devices on your computer's USB port three times faster than the standard USB devices**.

- * Check your manufacturer if your USB device is a Battery Charging Specification 1.1 (B.C.) compliant or compatible device.

- ** Actual charging speeds may vary depending on the charging rate and specifications of your USB device.

- To ensure normal charging function, disconnect and reconnect your USB device every time you enable or disable Ai Charger+.

THE ULTIMATE iPhone AI Charger+ Welcome to a new level in USB 3.0 fast-charging experience with the ASUS AI Charger+, a new and improved version of the unique and fast-charging software AI Charger*. With AI Charger+, you can now charge BC 1.1** standard mobile devices 3X*** faster than before aside from conveniently charging your iPhone, iPod, or iPad using it's easy and user-friendly interface. *ASUS AI Charger is a unique and fast-charging software that supports the iPhone, iPod, and iPad. **Contact the manufacturer of your USB mobile device to check if it supports the BC 1.1 function. ***Actual charging time may vary depending on the type, speed, and specifications of the USB device attached. 3X Speed Enable Disable Apply Thermal Radar Tool Monitor Update

4.3.8 USB 3.0 Boost

ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) and automatically increases a USB 3.0 device's transfer speed up to 170% .

Launching USB 3.0 Boost

To launch USB 3.0 Boost, click Tool > USB 3.0 Boost on the AI Suite II main menu bar.

Configuring USB 3.0 Boost

1. Connect a USB 3.0 device to the USB 3.0 port.

USB 3.0 Boost automatically detects the property of the USB 3.0 device and switches to Turbo mode or UASP mode (if UASP is supported by the USB 3.0 device).

1. You can manually switch the USB 3.0 mode back to Normal mode at any time.

USB 3.0 Boost A-DATA S SD ... HTS54802 DM... OCZ ENYO US... Model: A-DATA S SD SCSI Disk Device Size: Total: 59.62 GB , Free: 17.24 GB Volume: USB Disk 1 - ( E : ) Normal Instruction USB 3.0 Boost speeds up the transfer rate for USB storage devices automatically. Turbo Turbo mode automatically speeds up the transfer rate. UASP UASP is the latest USD protocol that speeds up data throughput and reduces data transfer time. USB 3.0 Boost automatically detects if your USB storage device supports UASP and provides the best transfer credit for your USB Thermal Radar Tool Monitor Update System Information Settings

• Refer to the software manual in the support DVD or visit the ASUS website at www.asus.com for detailed software configuration.
• Use the USB 3.0 devices for high performance. The data transfer speed varies with USB devices.

4.3.9 USB BIOS Flashback Wizard

USB BIOS Flashback allows you to easily update the BIOS without entering the BIOS or operating system. Just connect the USB storage device containing the BIOS file to the USB port, press the BIOS Flashback button, and the BIOS is updated automatically.

USB BIOS Flashback This utility allows you to check and save the latest BIOS version to a USB storage device. With AURU USB BIOS Flashback hardware features, the system BIOS could be conveniently updated without loading or even powering up the system. Try it and schedule your download now! File Name: ST990R20LGP Download Setting: Schedule(days): 30 (Recommended) Don't confirm an again if I have already downloaded the latest version Do not set the download schedule Check for New BIOS Update Current BIOS Model Name: SABERTOOTH 99OFX R2.0 Version: 0207 Release Date: 05/18/2012 Sets the schedule for BIOS Update download Click to check for an update BIOS firmware available for download Apply Cancel Cancels all the changes Applies all the changes

Scheduling the latest BIOS download

1. In the Download Setting field, tick Schedule (days) and select the number of days for your download schedule.
2. Click Apply to save the BIOS download schedule. Click Cancel to cancel the changes made.

Downloading the updated BIOS

Before you start downloading, ensure that you have installed the USB storage device to your computer's USB port.

1. Click Check for New BIOS Update to check for the latest BIOS version.

Wait for the system to check the latest BIOS firmware.

USB BIOS Flashback Current BIOS Version: 0207 Release Date: 05/10/2012 Checking for the latest BIOS firmware. Please wait ... OK

1. From the Save to dropdown list, select the USB storage device that you want to save the BIOS file to, then click Download.

USB BIOS Flashback Current BIOS Version: 0207 Release Date: 05/18/2012 File name: ST990R20.CAP Save to: E. (USB 2.0 Flash Disk USB D... New BIOS Version: 0211 Release Date: 05/30/2012 OK

1. When the download process is completed, click OK to exit.

USB BIOS Flashbox This utility allows you to check and save the latest DOS version to a USB storage device, WNT-AUG UDD/003 Flashback Hardware Features, the system ESDS used to automatically restore without cooling or cooling power up the system. The Linux installed software is also available to the OS. File Name: CT Download Soft Scripts Get out Done Current BIOS Version: 6711 Reference Date: 45/06/28/12 Download Complete ? OK Apply Cancel BOS information Current BIOS Provider Name: SHEET002B+990F-42.6 Version: 0211 Database Status: C:\367\3162 SendTo USB

4.3.10 Network iControl

ASUS Network iControl is an intuitive one-stop network control center that makes it easier for you to manage your network bandwidth and allows you to set, monitor, and schedule the bandwidth priorities for your network programs. It also allows you to automatically connect to a PPPoE for a more convenient online experience.

To launch Network iControl, click Tool > Network iControl from AI Suite II main menu bar.

• Ensure to install the LAN drivers before using this function.
• Network iControl is only supported under Windows 7 and can only support the onboard LAN.

Using EZ Start

EZ Start allows you to quickly activate Network iControl, and set the highest bandwidth priority for your top currently running program.

To use EZ Start:

1. Click EZ Start tab.
2. Click ON/OFF to enable/disable Network iControl.

• By default, Network iControl is set to ON.
• When switched off, the Quick Connection, EZ Profile, and Info are disabled.

• You may monitor the bandwidth priority from your desktop's taskbar.

• Tick Set current network program as the highest priority to enable User Profile.

• Select a profile and click Apply.

You may also apply your personal profile in EZ Start.

Select ON to activate Network iControl EZ Start Quick Connection E2 Profile.Info Turn ON Network iControl for a smoother on-line experience! ON DFF Network iControl User Profile : Auto Set current network program as the highest priority Apply Network iControl Settings Total Bandwidth (KBps) 1 0.00 1 0.00 Profile Name: Auto New 1 0.00 1 0.00 StarWindServiceAE 1 0.00 1 0.00 WMPNetworkSvc 1 0.00 1 0.00 Displays the current network programs bandwidth Click to apply the settings made

Click to set the current network program as the highest priority
Click to select a profile

Using Quick Connection

Configuring the PPPoE connection settings

Before enabling the Network iControl's Quick Connection functions, you must configure the PPPoE connection settings

To configure the PPPoE settings:

1. Right-click in the taskbar, and select Open Network and Sharing Center.

Troubleshoot problems Open Network and Sharing Center 1/20/2012

1. Right-click the PPPoE Connection, and select Properties.

Network and Internet > Network Connections > Search Network Connections Organize Start this connection Rename this connection Delete this connection abcdefghijklmnopqrstuvwxyz Disconnected WAN Minport (PPPOE) Broadband Connection Disconnected WAN Minport (PPPOL) Local Area Connection 2 Network Connect Status Set as Default Connection Create Copy Create Shortcut Delete Rename Properties

1. Click the Options tab, and deselect Prompt for name and password, certificate, etc. Click OK to complete the auto PPPoE connection settings.

Broadband Connection Properties General Options Security Networking Sharing During options ✓ Display progress while connecting ✓ Prompt for name and password, certificate, etc. □ Include Windows logon domain Restarting options Radial attempts: 3 Time between radial attempts: 1 minute Idle type before hanging up: never Idig threshold: ✓ Radial if line is dropped PPP Settings... OK Cancel

• You only need to configure the PPPoE connection settings once.
• Obtain the necessary information about your PPPoE connection from your network provider.

Configuring the Quick Connection

To configure the auto-PPPoE connection:

1. Click the Quick Connection tab.
2. Tick Automatically connect online anytime option, then select the connection name in the Connection Name dropdown box.
3. Click Apply to enable the PPPoE automatic network connection.

You can also enable the No Delay TCP function to help improve the network performance.

Click to select Connection Name EZ Start Quick Connection EZ Profile Info PPPoE(Auto Connection) Connection Name Broadband ✓ Automatically connect online anytime Select "Options" and uncheck "Prompt for name and password, certificate, etc. for auto PPPoE connection". Apply No Delay TCP ON OK Network setting Network iControl Settings Total Bandwidth (KBps) ↓ 0.00 ↑ 0.00 Profile Name: Auto New ↓ 0.00 ↑ 0.00 StarWindServiceAE ↓ 0.00 ↑ 0.00 WPPoE(GS) ↓ 0.00 ↑ 0.00 Tick to set the auto PPPoE connection Click to apply settings Click ON to improve network performance

Using EZ Profile

To use the EZ Profile:

EZ Profile allows you to load, edit, and save your own network program priority profile.

1. Click EZ Profile tab. The programs are shown in the network program column.
2. Select the network program, and click to create your profile.
3. Click to save the changes and/or rename your profile.
4. Click , or to set the program priority as High, Normal, or Low.

Click to select a network profile Click to save, or rename your profile settings Click to set program as High/Normal/ Low priority Pre-schedule your network priorities to avoid network congestions Select a program, and click to edit your network profile Network iControl E2 Start Quick Connection EZ Profile Info Profile: Profile 1 Priority High Normal Low Schedule chrome.exe firefox.exe 00 : 00 ~ 00 : 00 00 : 00 ~ 16 : 00 Network program(s) Sort by: A-Z Gaming Streaming Browser chrome.exe firefox.exe ioxplore.exe Network iControl Settings Total Bandwidth (KBps) 0.00 0.00 Profile Name: Profile 1 Now 0.00 0.00 ioxplore.exe 0.00 0.00 VMAuthdService 0.00 0.00 WIFI GO! Server.exe 0.00 0.00 WMPNetworkSvc 0.00 0.00 Information pane of currently running programs

4.3.11 ASUS Update

ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows® environment.

Launching ASUS Update

To launch ASUS Update, click Update> ASUS Update on the AI Suite II main menu bar.

Using ASUS Update

ASUS Update How do you want to update your BIOS? Update BIOS from Internet Download BIOS from Internet Update BIOS from file Save BIOS to file BIOS Information Current BIOS Model Name: SABERSOOTH 277 Version: 0216 Release Date: 11/25/2011 Next Therms Kuolar Tool Vendor Update System Information Settings

Select any of these options to update the BIOS:

- Update BIOS from Internet

Allows you to download the latest BIOS version from the ASUS website at www.asus.com and follow the onscreen instructions to update the BIOS.

- Download BIOS from Internet

Download the latest BIOS version from the ASUS website at www.asus.com and save it for later use.

- Update BIOS from file

Use the BIOS file that you had downloaded and saved to update the system BIOS.

- Save BIOS to file

Save the BIOS to another file or a USB storage device for later use.

Updating the BIOS poses some risks such as system instability or failure to boot. Before updating the BIOS, ensure that you back up the original BIOS file.

4.3.12 MyLogo2

MyLogo2 allows you to customize the boot logo, which is the image that appears on the screen during the Power On Self Tests (POST).

Launching ASUS Update

To launch MyLogo2, click Update > MyLogo on the AI Suite II main menu bar.

Using MyLogo

What do you want to update? Change the BIOS boot logo of my motherboard. Change the boot logo of a downloaded BIOS file and update this BIOS to my motherboard. Change the boot logo of a downloaded BIOS file (But do not update this BIOS to my motherboard.) Next Thermal Radar Tool Monitor Update

Select the option that you want to use to update your boot logo, click Next and follow the instructions below.

Change the boot logo of a downloaded BIOS file and update (or do not update) this BIOS to the motherboard

1. From the BIOS file field, click Browse to locate the BIOS file.
2. From the Picture File field, click Browse the image for your boot logo, then click Next.

MyLogo Select the BIOS file and picture file. BIOS File Current BIOS Picture File E:\pic2011\201104 ND trip\20110419 Chicago\2011C Browse Picture preview CIT/CAS Back Next Thermal Radar Tool Monitor Update

1. Do any of the following:

2. Click Auto Tune to adjust the image size or the image resolution.

3. Click Booting Preview to preview the boot image.

4. Click Next.

MyLogo Preview and resolution adjustment. E:\pic2011\201104.ND trip\20110419 Chicago\20110419CH01.JPG Booking Preview CHICAGO Resolution 50% Auto Tunes Back Next Thermal Radar Tool Monitor Update

1. Click Flash to update the boot logo.

2. When prompted, click Yes to reboot the system. You will see the new boot logo the next time you start up the system.

Ensure to enable the Full Screen Logo in BIOS to use this feature.

4.3.13 Audio configurations

The Realtek® audio CODEC provides 8-channel audio capability to deliver the ultimate audio experience on your computer. The software provides Jack-Sensing function, S/PDIF Out support, and interrupt capability. The CODEC also includes the Realtek® proprietary UAJ® (Universal Audio Jack) technology for all audio ports, eliminating cable connection errors, and giving users plug and play convenience.

Follow the installation wizard to install the Realtek® Audio Driver from the support DVD that came with the motherboard package.

If the Realtek ^® audio software is correctly installed, you will find the Realtek ^® HD Audio Manager icon on the taskbar. Double-click on the icon to display the Realtek HD Audio Manager.

Realtek® HD Audio Manager

A. Realtek HD Audio Manager for Windows

® 7™ / Vista™

Configuration option tabs (vary with the audio devices connected) Advanced settings High Definition Audio Digital Output Digital Output(Optical) Speakers Digital Input Main Volume L R Set Default Device Set default device button Speaker Configuration Selected Effects Room Connections Default Format Sever Pipe Bathroom Shore Room Audience Arena Environment None Reset Loadiness Liquidation Kanette Pop Live Club Rock Audio Video Cancelator Focal Fear Digital Analog and digital connector status

B. Realtek HD Audio Manager for Windows

® XP

ASUS Configuration options Sound Effect Mixer Audio I/O Microphone 30 Audio Demo Environment Auditioners Reset Karaoke Control settings window Equalizer Pop Live Club Rock Pop Information button

• Refer to the software manual in the support DVD or visit the ASUS website at www.asus.com for detailed software configuration.
  • To play Blu-Ray disc, make sure to use an HDCP compliant monitor.

RAID support

5.1 RAID configurations

The motherboard comes with the AMD® SB950 chipset that allows you to configure Serial ATA hard disk drives as RAID sets. The motherboard supports the following RAID configurations: RAID 0, RAID 1, RAID 10 and RAID 5.

• You must install Windows ^ XP Service Pack 3 or later versions before using Serial ATA hard disk drives. The Serial ATA RAID feature is available only if you are using Windows ^ XP SP3 or later versions.
• Due to WindowsDue XPWVistawlimitation, a RAID array with the total capacity over 2TB cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk only.
• If you want to install a Windows® operating system to a hard disk drive included in a RAID set, you have to create a RAID driver disk and load the RAID driver during OS installation. Refer to section 5.2 Creating a RAID driver disk for details.

5.1.1 RAID definitions

RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks. Two hard disks perform the same work as a single drive but at a sustained data transfer rate, double that of a single disk alone, thus improving data access and storage. Use of two new identical hard disk drives is required for this setup.

RAID 1 (Data mirroring) copies and maintains an identical image of data from one drive to a second drive. If one drive fails, the disk array management software directs all applications to the surviving drive as it contains a complete copy of the data in the other drive. This RAID configuration provides data protection and increases fault tolerance to the entire system. Use two new drives or use an existing drive and a new drive for this setup. The new drive must be of the same size or larger than the existing drive.

RAID 5 stripes both data and parity information across three or more hard disk drives. Among the advantages of RAID 5 configuration include better HDD performance, fault tolerance, and higher storage capacity. The RAID 5 configuration is best suited for transaction processing, relational database applications, enterprise resource planning, and other business systems. Use a minimum of three identical hard disk drives for this setup.

RAID 10 is data striping and data mirroring combined without parity (redundancy data) having to be calculated and written. With the RAID 10 configuration you get all the benefits of both RAID 0 and RAID 1 configurations. Use four new hard disk drives or use an existing drive and three new drives for this setup.

5.1.2 Installing Serial ATA hard disks

The motherboard supports Serial ATA hard disk drives. For optimal performance, install identical drives of the same model and capacity when creating a disk array.

To install the SATA hard disks for a RAID configuration:

1. Install the SATA hard disks into the drive bays.
2. Connect the SATA signal cables.
3. Connect a SATA power cable to the power connector on each drive.

5.1.3 Setting the RAID item in BIOS

You must enable the RAID function in the BIOS Setup before creating RAID sets using SATA HDDs. To do this:

1. Enter the BIOS Setup during POST.
2. Go to the Advanced menu > SATA Configuration, and then press .
3. Set the SATA Mode item to [RAID Mode].
4. Save your changes, and then exit the BIOS Setup.

Refer to Chapter 3 for details on entering and navigating through the BIOS Setup

Due to chipset limitation, when SATA ports are set to RAID mode, all SATA ports run at RAID mode together.

5.1.4 AMD ^® Option ROM Utility

To enter the AMD® Option ROM utility:

1. Turn on the system.
2. During POST, press + to display the utility main menu.

[ Main Menu ] View Drive Assignments ....[ 1 ] LD View / LD Define Menu ....[ 2 ] Delete LD Menu ....[ 3 ] Controller Configuration ....[ 4 ] [ Keys Available ] Press 1..4 to Select Option [ESC] Exit

The Main Menu allows you to select an operation to perform. The Main Menu options include:

• View Drive Assignments: shows the status of the hard disk drives.
- LD View / LD Define Menu: displays the existing RAID set information / creates a RAID 0, RAID 1, RAID 5 or RAID 10 configuration.
- Delete LD Menu: deletes a selected RAID set and partition.
• Controller Configuration: shows the system resources configuration.

Press <1>, <2>, <3>, or <4> to enter the option you need; press to exit the utility.

The RAID BIOS setup screens shown in this section are for reference only and may not exactly match the items on your screen.

To create a RAID volume using more than four hard disk drives, ensure that the SATA connectors 5/6 are set to [RAID] mode.

Creating a RAID volume

To create a RAID volume:

1. In the Main Menu, press <2> to enter the LD View / LD Define Menu function.
2. Press <Ctrl>+<C> , and the following screen appears.

[ LD Define Menu ] LD No LD Name RAID Mode Drv LD 1 Logical Drive 1 RAID 0 2 Strip Block 64 KB Fast Init ON Gigabyte Boundary ON Cache Mode WriteThru [ Drives Assignments ] Port:ID Drive Model Capabilities Capacity(GB) Assignment 01:00 xxxxxxxxxxx xxxxxxxx xxxxxxx Y 02:00 xxxxxxxxxxx xxxxxxxx xxxxxxx Y 03:00 xxxxxxxxxxx xxxxxxxx xxxxxxx N 04:00 xxxxxxxxxxx xxxxxxxx xxxxxxx N [ Keys Available ] [↑] Up [↓] Down [PaUp/PaDn] Switch page [Space] Change Option [Ctrl-Y] Save [ESC] Exit

1. Move to the RAID Mode item and press to select a RAID mode to create.
2. Move to the Assignment item by using the down arrow key and set Y to select the hard disk drives you want to include in the RAID set.
3. Press + to save the setting.
4. The utility prompts the following message. Press + to input the LD name.

Please press Ctrl-Y key to input the LD Name or press any key to exit. If you do not input any LD name, the default LD name will be used.

1. Eenter an LD name, and then press any key to continue.

1. Press + to erase the MBR, or you may press any key to abort the settings.

Past Initialization Option has been selected. It will erase the MBR data of the disks,

1. Press + to enter the screen to modify the array capacity, or press any key to use the maximum capacity.

Deleting a RAID configuration

Take caution when deleting a RAID volume. You will lose all data on the hard disk drives when you delete a RAID volume.

To delete a RAID volume:

1. In the Main Menu, press <3> to enter the Delete LD function.
2. Select the RAID item you want to delete and press or + .

[ Delete LD Menu ] LD No RAID Mode Drv Capacity(GB) Status LD 1 RAID 0 2 xxxxxx Functional [ Keys Available ] [^] Up [↓] Down [PaUp/PaDn] Switch page [Del/Alt+D] Delete LD

1. The utility prompts the following messages:

Press Ctrl-Y to delete the data in the disk! or press any other key to abort...

Press + to delete the RAID volume.

Displaying a RAID set information

To display a RAID set information:

1. In the Main Menu, press <2> to enter the LD View / LD Define Menu function.
2. Select a RAID item and press to display its information.

[ View LD Definition Menu ] LD No LD Name RAID Mode Drv Capacity(GB) LD 1 xxxxx RAID 0 2 157.99 Strip Block 64 KB Cache Mode WriteThru [ Drives Assignments ] Port:ID Drive Model Capabilities Capacity(GB) 01:00 xxxxxxxxx xxxxxxxx xxxxxxxx 02:00 xxxxxxxxxx xxxxxxxx xxxxxxxx Any Key To Continue......

5.2 Creating a RAID driver disk

A floppy disk with the RAID driver is required when installing a Windows ^® operating system on a hard disk drive that is included in a RAID set.

• The motherboard does not provide a floppy drive connector. You have to use a USB floppy disk drive when creating a SATA RAID driver disk.
• WindowsWindows may not recognize the USB floppy disk drive due to Windows® XP limitation. To work around this OS limitation, refer to section 5.2.4 Using a USB floppy disk drive.

5.2.1 Creating a RAID driver disk without entering the OS

To create a RAID driver disk without entering the OS:

1. Boot your computer.
2. Press during POST to enter the BIOS setup utility.
3. Set the optical drive as the primary boot device.
4. Insert the support DVD into the optical drive.
5. Save changes and exit BIOS.
6. When the Make Disk menu appears, press <1> to create a RAID driver disk.
7. Insert a formatted floppy disk into the USB floppy disk drive, then press .
8. Follow the succeeding screen instructions to complete the process.

5.2.2 Creating a RAID driver disk in Windows ®

To create a RAID driver disk in Windows®:

1. Start Windows ^® .
2. Plug the USB floppy disk drive and insert a floppy disk.
3. Place the motherboard support DVD into the optical drive.
4. Go to the Make Disk menu, and then click Intel AHCI/RAID Driver Disk to create a RAID driver disk.
5. Select USB floppy disk drive as the destination disk.
6. Follow the succeeding screen instructions to complete the process.

Write-protect the floppy disk to avoid a computer virus infection.

5.2.3 Installing the RAID driver during Windows ^® OS installation

To install the RAID driver in Windows® XP:

1. During the OS installation, the system prompts you to press the key to install third-party SCSI or RAID driver.
2. Press , and then insert the floppy disk with RAID driver into the USB floppy disk drive.
3. When prompted to select the SCSI adapter to install, select the RAID driver for the corresponding OS version.
4. Follow the succeeding screen instructions to complete the installation.

To install the RAID driver for Windows ^® 7 or later OS:

1. During the OS installation, click Load Driver to allow you to select the installation media containing the RAID driver.
2. Insert the USB flash drive with RAID driver into the USB port or the support DVD into the optical drive, and then click Browse.
3. Click the name of the device you've inserted, go to Drivers > RAID, and then select the RAID driver for the corresponding OS version. Click OK.
4. Follow the succeeding screen instructions to complete the installation.

Before loading the RAID driver from a USB flash drive, you have to use another computer to copy the RAID driver from the support DVD to the USB flash drive.

5.2.4 Using a USB floppy disk drive

Due to OS limitation, Windows® XP may not recognize the USB floppy disk drive when you install the RAID driver from a floppy disk during the OS installation.

To solve this issue, add the USB floppy disk drive's Vendor ID (VID) and Product ID (PID) to the floppy disk containing the RAID driver. Refer to the steps below:

1. Using another computer, plug the USB floppy disk drive, and insert the floppy disk containing the RAID driver.

2. Right-click My Computer on the Windows® desktop or start menu, and then select Manage from the pop-up window.

Open Explore Share... Manage Map Network Drive... Disconnect Network Drives... Create Shortout Delete Rename Properties

or

Open Explore Smart... Manage Map Network Drive... Emconnect Network Drive... Show-on Desktop Instance Properties All Programs Log OP Last On Computer start

1. Select Device Manager. From the Universal Serial Bus controllers, right-click xxxxxx USB Floppy, and then select Properties from the pop-up window.

The name of the USB floppy disk drive varies with different vendors.

Computer Management File Action View Windows Help Computer Management (Local) System Tools Event Viewers Shared Holders Local Users and Groups Performance Settings and Alerts Device Manager Storage Removable Storage Disk Defragmenter Disk Management Services and Applications Other devices Ports (COM/PLC) Processors Sound, video and game controllers System devices Universal Serial Bus controllers Properties Standard Unit Uninstall Standard Unit Scan for hardware changes Standard Unit Properties Standard Unit Uninstall Standard Unit Scan for hardware changes Standard Unit Properties Standard Unit Uninstall Standard Unit Scan for hardware changes

1. Click Details tab. The Vendor ID (VID) and Product ID (PID) are displayed.

Mitsumi USB Floppy Properties General Driver Details Mitsumi USB Floppy Device Instance Id USB MID_03E E PID_6901Y6X35EDA8E7&0X2

1. Browse the contents of the RAID driver disk to locate the file txtsetup.oem.

2. Double-click the file. A window appears, allowing you to select the program for opening the oem file.

Windows cannot open this file: File: btsetup.com To open this file, Windows needs to know what program created it. Windows can go online to lock it up automatically, or you can manually select from a list of programs on your computer. What do you want to do? ○ Use the Web service to find the appropriate program ● Select the program from a list OK Cancel

1. Use Notepad to open the file.

Open With Choose the program you want to use to open this file: File: txtsetup.com Programs Recommended Programs: Nobepad Other Programs: Adobe Reader 8.1 Internet Explorer Fairt Windows Media Player Windows Picture and Fax Viewer WordPad Type a description that you want to use for this kind of file: Always use the selected program to open this kind of file Browse... If the program you want is not in the list or on your computer, you can look for the appropriate program on the Web. OK Cancel

1. Find the [HardwareIds.scsi.iaAHCI_DesktopWorkstationServer] and [HardwareIds.scsi.iaStor_DesktopWorkstationServer] sections in the txtsetup.oem file.
2. Type the following line to the bottom of the two sections:

id = "USB\VID_xxxx&PID_xxxx", "usbstor"

[HardwareIds.scsi.iaAHCI
DesktopWorkstationServerT
id="PCI\VEN 8086&DEV 1C02&CC 0106","iaStor"
id="USB\VID_03EE&PID_6901","usbstor"

[HardwareIds.scsi.iaStor
DesktopWorkstationServerT
id="PCI\VEN 8086&DEV 2822&CC 0104","iaStor"
id="USB\VID_03EE&PID_6901","usbstor"

Add the same line to both sections.

The VID and PID vary with different vendors.

1. Save and exit the file.

Multiple GPU support

6.1 AMD ^® CrossFireX ^TM technology

The motherboard supports the AMD® CrossFireX™ technology that allows you to install multi-graphics processing units (GPU) graphics cards. Follow the installation procedures in this section.

6.1.1 Requirements

• In Dual CrossFireX mode, you should have two identical CrossFireX-ready graphics cards or one CrossFireX-ready dual-GPU graphics card that are AMD® certified.
• Ensure that your graphics card driver supports the AMD CrossFireX technology. Download the latest driver from the AMD website (www.amd.com).
• Ensure that your power supply unit (PSU) can provide at least the minimum power required by your system. See Chapter 1 for details.

• We recommend that you install additional chassis fans for better thermal environment.
• Visit the AMD Game website (http://game.amd.com) for the latest certified graphics card and the supported 3D application list.

6.1.2 Before you begin

For AMD CrossFireX to work properly, you have to uninstall all existing graphics card drivers before installing AMD CrossFireX graphics cards to your system.

To uninstall existing graphics card drivers:

1. Close all current applications.
2. For Windows XP, go to Control Panel > Add/Remove Programs.
   For Windows 7, go to Control Panel > Programs and Features.
3. Select your current graphics card driver/s.
4. For Windows XP, select Add/Remove.
   For Windows 7, select Uninstall.
5. Turn off your computer.

6.1.3 Installing two CrossFireX™ graphics cards

The following pictures are for reference only. The graphics cards and the motherboard layout may vary with models, but the installation steps remain the same.

1. Prepare two CrossFireX-ready graphics cards.
2. Insert the two graphics card into the PCIEX16 slots. If your motherboard has more than two PCIEX16 slots, refer to Chapter 1 in this user manual for the locations of the PCIEX16 slots recommended for multi-graphics card installation.
3. Ensure that the cards are properly seated on the slots.
4. Align and firmly insert the CrossFireX bridge connector to the goldfingers on each graphics card. Ensure that the connector is firmly in place.

Technical line drawing of a computer motherboard with a fan component and a blue arrow indicating a downward motion (no text or symbols present)

insert the CrossFireX vector to the goldfingers on s card. Ensure that the firmly in place. CrossFireX bridge (bundled with graphics cards) Goldfingers

1. Connect two independent auxiliary power sources from the power supply to the two graphics cards separately.
2. Connect a VGA or a DVI cable to the graphics card.

Technical line drawing of two connected electrical connectors with coiled wires (no text or symbols)

6.1.4 Installing the device drivers

Refer to the documentation that came with your graphics card package to install the device drivers.

Ensure that your PCI Express graphics card driver supports the AMD® CrossFireX™ technology. Download the latest driver from the AMD website (www.amd.com).

6.1.5 Enabling the AMD ^ CrossFireX ^TM technology

After installing your graphics cards and the device drivers, enable the CrossFireX™ feature through the AMD Catalyst™ Control Center in Windows environment.

Launching the AMD Catalyst Control Center

To launch the AMD Catalyst Control Center:

1. Right-click on the Windows ^ desktop and select Catalyst Control Center.

2. Click Catalyst Control Center to configure the displays and settings of your AMD graphic cards.

Catalyst Control Center View Sort by Refresh Paste Paste shortcut Undo Rename Ctrl+Z New Screen resolution Gadgets

Generic Non-Rel Monitor and AMD Radeon HD 7900 Series Pro Adapter Monitor Troubleshoot Color Management Catalyst Control Center Catalyst™ Control Center This Catalyst Control Center is used to configure displays and settings for all your AMD GPUs. Catalyst Control Center To open the Catalyst Control Center, click on this button: Catalyst Control Center OK Cancel Apply

Enabling Dual CrossFireX technology

1. In the Catalyst Control Center window, click Performance > AMD CrossFireX ™
2. Select Enable CrossFireX ™
3. Select a GPU combination from the drop-down list.
4. Click Apply to save and activate the GPU settings made.

RADEON GRAPHICS AMD Catalyst Control Center Preferences Search Pinned Presets Desktop Management Common Display Tasks My VGA Displays Video Gaming Performance AMD CrossFireXTM AMD OverDrive Audio Information AMD CrossFireXTM AMD CrossFireXTM enables multiple graphics processors to work together for improved graphics quality and performance. Choose to enable AMD CrossFireX for added graphics performance. Enable AMD CrossFireX Disable AMD CrossFireX Your system has more than two graphics processors that are capable of AMD CrossFireX. Select the GPU combination that you want to use. 4 GPUs (19.24 0.29) 4 GPUs (19.24 0.29) 3 GPUs (19.24 0) 2 GPUs (19.24) 3 4 Discard Apply

6.2 NVIDIA ^® SLI ^TM technology

The motherboard supports the NVIDIA® SLI™ (Scalable Link Interface) technology that allows you to install multi-graphics processing units (GPU) graphics cards. Follow the installation procedures in this section.

6.2.1 Requirements

• In SLI mode, you should have two identical SLI-ready graphics cards that are NVIDIA® certified.
• Ensure that your graphics card driver supports the NVIDIA SLI technology. Download the latest driver from the NVIDIA website at www.nvidia.com.
• Ensure that your power supply unit (PSU) can provide at least the minimum power required by your system.

• We recommend that you install additional chassis fans for better thermal environment.
- Visit the NVIDIA zone website (http://www.nzone.com) for the latest certified graphics card and supported 3D application list.

6.2.2 Installing two SLI-ready graphics cards

The following pictures are for reference only. The graphics cards and the motherboard layout may vary with models, but the installation steps remain the same.

1. Prepare two SLI-ready graphics cards.
2. Insert the two graphics card into the PCIEX16 slots. If your motherboard has more than two PCIEX16 slots, refer to Chapter 2 in this user manual for the locations of the PCIEX16 slots recommended for multi-graphics card installation.
3. Ensure that the cards are properly seated on the slots.

Line drawing of a computer motherboard with a monitor and CPU socket, showing a blue arrow indicating compression or disassembly (no text or symbols present)

1. Align and firmly insert the SLI bridge connector to the goldfingers on each graphics card. Ensure that the connector is firmly in place.
2. Connect two independent auxiliary power sources from the power supply to the two graphics cards separately.
3. Connect a VGA or a DVI cable to the graphics card.

Connect a VGA or a DVI cable to the graphics card. SLI bridge Goldfingers

6.2.3 Installing the device drivers

Refer to the documentation that came with your graphics card package to install the device drivers.

Ensure that your PCI Express graphics card driver supports the NVIDIA ^® SLI ^™ technology. Download the latest driver from the NVIDIA website (www.nvidia.com).

6.2.4 Enabling the NVIDIA ^ SLI ^TM technology

After installing your graphics cards and the device drivers, enable the SLI feature in NVIDIA® Control Panel under the Windows® 7 operating system.

Launching the NVIDIA Control Panel

You can launch the NVIDIA Control Panel by the following two methods.

A. Right click on the empty space of the Windows ^ desktop and select NVIDIA Control Panel.

The NVIDIA Control Panel window appears (See Step B3).

View Sort by Refresh Paste Paste shortcut NVIDIA Control Panel New Screen resolution Gadgets Personalize

B1. If you cannot see the NVIDIA Control Panel item in step (A), select Screen Resolution.

View Sort by Refresh Paste Paste shortcut Undo Rename Ctrl+Z New Screen resolution Gadgets Personalize

B2. From the Screen Resolution window, click Advanced settings.

Display > Screen Resolution Change the appearance of your display Display: 1 - General Your-All Monitor Resolution: 1200 - 360 Orientation: Sendage Advanced options What text outlines how to begin to create What display options should be installed? OK Cancel Apply

B3. The NVIDIA Control Panel window appears.

Configure SLI, Surround, PhysX SLI configuration

instance 30 performance

user: https://www.sci.org/ Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: www.sci.org Copyright: PhysX PhysX - Software (VDS) (R) Copyright: Copyright: Copyright:

Enabling SLI settings

From the NVIDIA Control Panel window, select Configure SLI, Surround, PhysX. In the Quad-SLI enabled, click Maximize 3D Performance SLI to set the display for viewing SLI rendered content. When done, click Apply.

Configure SL1, Surround, PhysX SL1 configuration & configuration to perform SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server 2.0 performance SQL Server-SPS 2003-0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0 SQL Server 2.0

Appendices

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
- This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

IC: Canadian Compliance Statement

Complies with the Canadian ICES-003 Class B specifications. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations.

This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

VCCI: Japan Compliance Statement

VCCI Class B Statement

情報処理装置等電波障害自主規制について

KC: Korea Warning Statement

B급 기기 (가정용 방송통신기자재)

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

ASUS contact information

ASUSTeK COMPUTER INC.

Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259

Telephone [phone]

Fax [phone]

E-mail [e-mail]

Online support support.asus.com

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA

Telephone [phone]

Fax [phone]

Web site usa.asus.com

Technical Support

Telephone [phone]

Support fax [phone]

Online support support.asus.com

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, D-40880 Ratingen, Germany

Fax [phone]

Web site www.asus.de

Online support support.asus.com

* EUR 0.14/minute from a German fixed landline; EUR 0.42/minute from a mobile phone.

EC Declaration of Conformity

We, the undersigned,

Manufacturer:	ASUSTeK COMPUTER INC.
Address, City:	4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN
Country:	TAIWAN
Authorized representative in Europe:	ASUS COMPUTER GmbH
Address, City:	HARKORT STR. 21-23, 40880 RATINGEN
Country:	GERMANY

declare the following apparatus.

Product name :	Motherboard
Model name :	SABERTOOTH 990FX R2.0

conform with the essential requirements of the following directives:

2004/108/EC-EMC Directive

EN 55022:2010	EN 55024:2010
EN 61000-3-2:2006+A2:2009	EN 61000-3-3:2008
EN 55013:2001+A1:2003+A2:2006	EN 55020:2007+A11:2011

□1999/5/EC-R &TTE Directive

EN 300 328 V1.7.1(2006-10)EN 300 440-1 V1.6.1(2010-08)EN 300 440-2 V1.4.1(2010-08)EN 301 511 V9.0.2(2003-03)EN 301 908-1 V5.2.1(2011-05)EN 301 908-2 V5.2.1(2011-07)EN 301 893 V1.6.1(2011-11)EN 302 544-2 V1.1.1(2009-01)EN 302 623 V1.1.1(2009-01)EN 300 330-1 V1.7.1(2010-02)EN 300 330-2 V1.5.1(2010-02)EN 50365:2001EN 62479:2010

EN 301 489-1 V1.9.2(2011-09)EN 301 489-3 V1.4.1(2002-08)EN 301 489-4 V1.4.1(2009-05)EN 301 489-7 V1.3.1(2005-11)EN 301 489-9 V1.4.1(2007-11)EN 301 489-17 V2.1.1(2009-05)EN 301 489-24 V1.5.1(2010-09)EN 302 326-2 V1.2.2(2007-06)EN 302 326-3 V1.3.1(2007-09)EN 301 357-2 V1.4.1(2008-11)EN 50385:2002EN 62311:2008

2006/95/EC-LVD Directive

EN 60950-1 / A11:2009EN 60950-1 / A12:2011

EN 60065:2002 / A2:2010EN 60065:2002 / A12:2011

2009/125/EC-ErP Directive

☐ Regulation (EC) No. 1275/2008☐ Regulation (EC) No. 642/2009

☐ Regulation (EC) No. 278/2009

Ver. 121001

(EC conformity marking)

Position: CEO

Name: Jerry Shen

(五)

Signature :

Declaration Date: Jan. 04, 2013 Year to begin affixing CE marking:2013

Ver. 120601

Jun. 18, 2012

Signature :

Date :

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2. 1077(a)

Responsible Party Name: Asus Computer International

Address: 800 Corporate Way, Fremont, CA 94539.

Phone/Fax No: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number : SABERTOOTH 990FX R2.0

Conforms to the following specifications:

☒ FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: Steve Chang / President

Appendices
