USER MANUAL TL-SC3230N TP-LINK

Wireless N Megapixel Surveillance Camera

White TP LINK remote control camera on a stand, no visible text or symbols on the device body

COPYRIGHT & TRADEMARKS

Specifications are subject to change without notice. TP-LINK ^® is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2012 TP-LINK TECHNOLOGIES CO., LTD.

All rights reserved.

http://www.tp-link.com

FCC STATEMENT

FC

This equipment has been tested and found to comply with the limits for a Class B digital camera, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/ TV technician for help.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

This camera complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This camera may not cause harmful interference.
2) This camera must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This camera and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

"To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."

CE Mark Warning

CE1588

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

This camera has been designed to operate with the antennas listed below, and having a maximum gain of 3 dBi. Antennas not included in this list or having a gain greater than 3 dBi are strictly prohibited for use with this camera. The required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication."

Canadian Compliance Statement

This camera complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This camera may not cause interference, and
(2) This camera must accept any interference, including interference that may cause undesired operation of the camera.

Industry Canada Statement

Complies with the Canadian ICES-003 Class B specifications.

This camera complies with RSS 210 of Industry Canada. This Class B camera meets all the requirements of the Canadian interference-causing equipment regulations.

Korea Warning Statements

• When product has power button, the power button is one of the way to shut off the product; when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.
• Don't disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us.
• Avoid water and wet locations.

This product can be used in the following countries:

AT	BG	BY	CA	CZ	DE	DK	EE
ES	FI	FR	GB	GR	HU	IE
LT	LV	MT	NL	NO	PL	PT	RO
RU	SE	SK	TR	UA

IT

DECLARATION OF CONFORMITY

For the following equipment:

Product Description: Wireless N Megapixel Surveillance Camera

Model No.: TL-SC3230N

Trademark: TP-LINK

We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:

Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC, Directives 2011/65/EU

The above product is in conformity with the following standards or other normative documents

ETSI EN 300 328 V1.7.1: 2006

ETSI EN 301 489-1 V1.9.2:2011& ETSI EN 301 489-17 V2.1.1:2009

EN 55022:2010

EN 55024:2010

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-3:2008

EN 60950-1:2006+A11 : 2009+A1:2010+A12:2011

EN 62311:2008

The product carries the CE Mark:

CE1588

Person responsible for marking this declaration:

jink

Yang Hongliang

Product Manager of International Business

Date of issue: 2012

TP-LINK TECHNOLOGIES CO., LTD.

Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park, Shennan Rd, Nanshan, Shenzhen, China

Contents

Package Contents.... 1

Chapter 1 Overview....2

1.1 Introduction ...... 2
1.2 Features 2
1.3 Minimum System Requirements.... 3

Chapter 2 Physical Description....4

2.1 Front View 4
2.2 Bottom View 5

Chapter 3 Hardware Installation....6

Chapter 4 Preparation 8

4.1 Search and Set up by IP Search 8
4.1.1 Search....8
4.1.2 View 9
4.1.3 LAN 9
4.1.4 Wireless....11

4.2 UPnP of Windows® XP, Vista or 7....13

4.3 Install the camera behind a NAT Router.... 14

4.4 Access the camera from the Internet Explorer for the first time.... 15

4.5 Logging in as a User 16

4.6 Logging in as an Administrator 16

Chapter 5 Operating the Camera.... 17

5.1 Monitor Image Section 17
5.2 Video Profile 17
5.3 Streaming Protocol.... 17
5.4 Language 17
5.5 Full Screen 18
5.6 Digital Zoom 18
5.7 2-Way Audio 18
5.8 Record....19
5.9 Snapshot 20
5.10 About....21

Chapter 6 Administering the Camera 22

6.1 Network: Configure Network settings 22
6.1.1 Network....23
6.1.2 Wireless 24
6.1.3 HTTPS 27
6.1.4 DDNS service 27
6.1.5 PPPoE 29
6.1.6 Streaming.... 30
6.1.7 UPnP 30
6.1.8 Bonjour....31
6.1.9 ONVIF 32
6.1.10 IP Filter 33
6.1.11 IP Notification.... 34

6.2 Camera: Adjust camera parameters.... 36

6.2.1 Picture 36

6.2.2 Privacy Mask 37

6.3 System: Configure and maintain system 38

6.3.1 System 38
6.3.2 Date & Time 39
6.3.3 Maintenance 40

6.4 Video: Configure profile.... 41

6.4.1 Common 42
6.4.2 Video Profile 43
6.4.3 ROI 44

6.5 Audio: Audio parameters 45

6.6 User: Manage user name, password and login privilege 45
6.7 E-Mail: Set up E-Mail configuration 46
6.8 Object detection: Set up Object detection 47
6.9 Storage: Status and configuration of SD card.... 48

6.9.1 SD Card 49
6.9.2 SAMBA Server 49

6.10 Continuous Recording.... 50
6.11 Recording List: Files list inside the SD Card/samba server.... 51
6.12 Event Server: Set up FTP/TCP/HTTP/SAMBA server configuration ... 53

6.12.1 FTP Server....53
6.12.2 TCP Server 54
6.12.3 HTTP Server 54

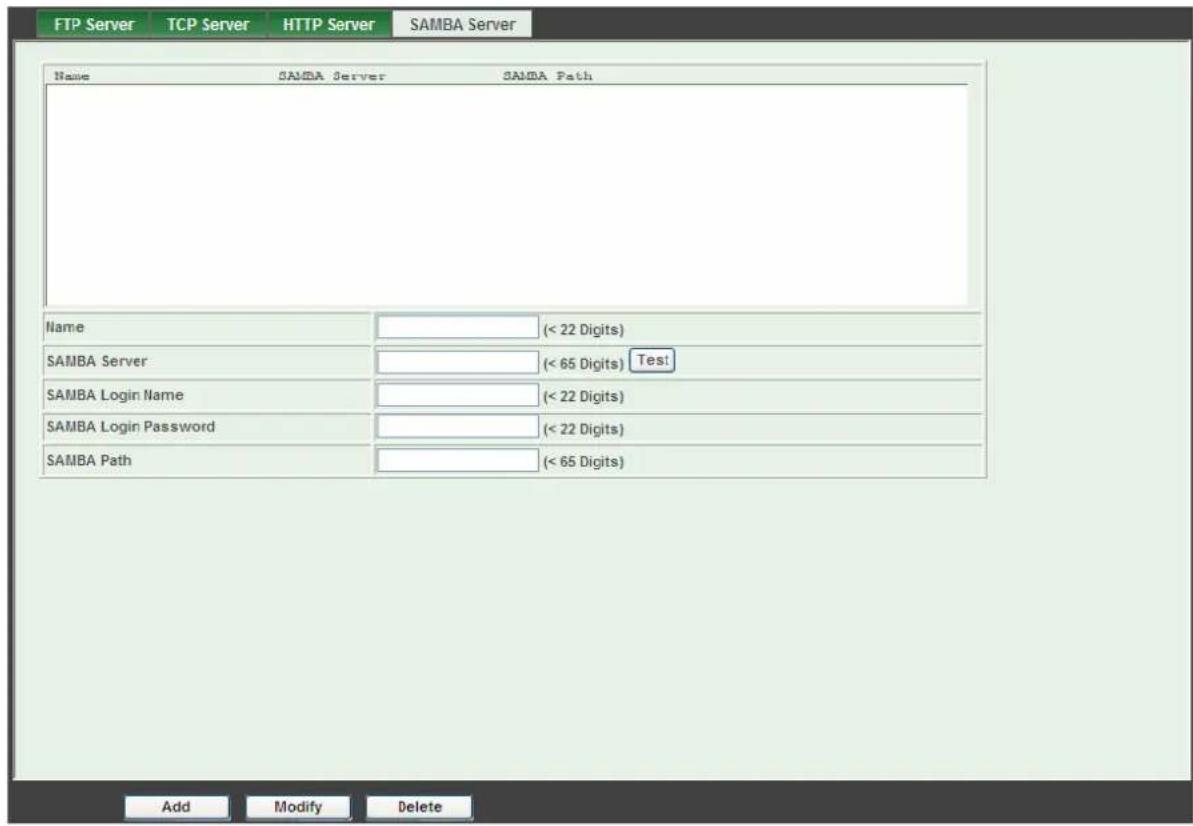

6.12.4 SAMBA Server 55

6.13 Event Schedule: Configure the event schedule.... 56

6.13.1 Setting....56
6.13.2 Record 60

Appendix A: Troubleshooting & FAQ.... 62
Appendix B: PING IP Address 67
Appendix C: Bandwidth Estimation 68
Appendix D: Specifications 69
Appendix E: Configure Port Forwarding Manually.... 71
Appendix F: DDNS Application 74
Appendix G: Power Line Frequency 81
Appendix H: 3GPP 82
Appendix I: Enable UPnP of Windows XP 83

Package Contents

The following items should be found in your package:

TL-SC3230N Wireless N Megapixel Surveillance Camera
Power Adapter
➢ Camera Stand with screws
➢ Detachable WLAN antenna
RJ45 Cable

Quick Installation Guide
➢ Resource CD, including:

• This User Guide
  • Other helpful information

Note:

Make sure that the package contains the above items. If any of the listed items is damaged or missing, please contact your distributor. Using a power adapter with a different voltage than the one included with the camera will cause damage and void the warranty for this product.

Chapter 1 Overview

The user guide explains how to operate this camera from a computer. The user should read this manual completely and carefully before operating the camera.

1.1 Introduction

This camera is an inexpensive and fully scalable surveillance camera. Because the cameras can be plugged into your existing local area network (LAN), you will potentially save thousands of dollars from unnecessary cabling.

The camera is accessible via the LAN or Internet connection. Connect your camera directly to a local area network or xDSL modem, and with Microsoft® Internet Explorer you get instant, on-demand video streams. Within minutes you can set up the camera to capture a video sequence to a PC. The live video can be uploaded to a website for the world to see.

1.2 Features

• ONVIF compliant
  ● Easy installation with setup wizard (IP Search)
  ● UPnP device discovery and NAT router transversal for easy installation
  ● Dynamic IP Service to search your IP camera from Internet easily
  ● H.264, MPEG4 and JPEG triple compression simultaneously
  ● 1.3 Mega-pixel resolution
  ● 1.3 Mega-pixel or 720P mode selectable
  ● 8-profile encoder simultaneously
• UDP / TCP / HTTP / HTTPS protocols selectable
• IEEE 802.11n wireless LAN
  ● WEP/WPA/WPA2-PSK wireless security
  ● 3GPP for 3G mobile remote application
• Smartphone accessible
• Digital zoom
  ● Built-in microphone
• Audio line out
• Two-way audio
• Micro SD slot
  ● Intelligent motion detection up to 10 zones
  ● Voice alerting while event triggered
• Privacy masks
  ● 3D de-noise to improve picture quality at low lux.
  ● Image transmission using an FTP or e-mail for event
• DDNS and PPPoE
  ● Multi-channel control software for surveillance application
• On-line firmware upgrade

1.3 Minimum System Requirements

FPS (QVGA)	~120	120~360	360~540	540~960	960~
CPU	Intel P4 2.4GHz	Intel P4 3.2GHz	Intel Pentium D 950 3.4GHz	Intel core 2 Duo E8600 3.3GHz	Intel core i7 2600K 3.8GHz or above
RAM 512	MB 512MB	1GB 2GB	8GB or above
Display 10	24x768 resolution or aboveSupport DirectX 9.0c or aboveIntel 945G or Intel 965G or above
OS	Windows XP, Win 7 (32bits or 64bits)
Hard disk	60GB
Ethernet	100Mbps 1Gbps
Chipset Intel	945 or Intel 965 or above

Since the Windows system occupies certain resources, it is suggested to get higher grade computer hardware to reserve more processing power when more cameras are added into the surveillance network.

$$ \mathrm{QVGA} = 3 2 0 \times 2 4 0 \text { pixel } $$

CIF ≡ QVGA, D1 ≡ VGA at mapping table below.

Image resolution mapping table
Resolution	Compared with QVGA
QQVGA	QQVGA = QVGA / 4
VGA	VGA = QVGA x 4
SXGA	SXGA = QVGA x 16
FULL HD	FHD = QVGA X 24

To reach the Max. camera count, it is required to adjust the video resolution/FPS settings on each channel to make the Surveillance Manager PC able to run/decode/record the video stream.

● Microsoft Internet Explorer 6.0 or later
● Microsoft Media Player 11.0 or later (to playback recorded file)
● VGA Monitor resolution 1280 x 1024 or higher
● Pentium-4 3.6 GHz or higher
● Memory Size: 1GB or more

Chapter 2 Physical Description

2.1 Front View

Antenna Lens & focus ring Microphone Micro SD Card Slot

Antenna: The user can attach the included antenna to antenna connector (SMA type) or use another high-gain antenna to get higher performance. This camera has a SMA type antenna.

Lens & focus ring: The user could use this ring to adjust focus manually.

Microphone: The camera has a built-in internal microphone. This microphone is hidden in the pinhole located on the front panel.

Micro SD Card Slot: The user can insert a micro SD card into this slot for event recording.

2.2 Bottom View

Power/Wireless LED LAN LED DC Power Jack Audio Output Jack LAN Port Factory Default Reset

Audio Output Jack: Audio-out Jack allows this camera to output audio or alerting sound.

DC Power Jack: The input power is 12VDC. Supply the power to the camera with the power adapter included in package. Otherwise, the improper power adapter may damage the unit and result in danger.

Factory Default Reset: This button is hidden in the pinhole. This button is used to restore the all factory default settings. Sometimes restarting the camera will make the system back to a normal state. If the system still got problems after restart, the user can restore the factory default settings and install it again. To restore the camera, please follow the steps below:

1. Make sure the camera is ready first. Insert the paper clip or other tool and press and hold the button down continuously.
2. Hold it for at least 5 seconds and release the tool while the camera is operating. Then the camera has been restored to default settings and reboot again.

Note:

Restoring the factory default setting will lose all previous settings included IP address forever. The user needs to run the IP Search program to search the camera and configure it to let the camera work properly again.

LAN Port: The LAN port is a RJ45 connector for connections to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate the transmission speed of the network automatically. Please use Category 5 cable to connect the camera to a 100Mbps Fast Ethernet network switch or hub.

LAN LED (green color): This LED will be flashing while network accessing via Ethernet.

Power / Wireless LED (orange color): This LED is used to indicate whether the camera is ready or not. In addition, this LED will be flashing when the camera is connected to a wireless network (WLAN model only).

Chapter 3 Hardware Installation

Follow the steps below to mount your camera.

1. Attach the camera with the included stand

2. Place the camera on the table or fix it onto ceiling or wall

Use three screws to fix the camera onto the ceiling or wall. You could also put the camera on the table directly.

Fix it by Screws

3. Plug an Ethernet cable into the camera

Connect an Ethernet cable to the LAN port located on the camera's bottom and attach it to the network.

Ethernet Cable

4. Connect the external power supply to camera

Connect the attached power adapter to the DC power jack of the camera. Note: Use the power adapter, 12VDC, included in the package and connect it to wall outlet for AC power.

Power Cable

Once you have installed the camera well and powered it on, the Power LED (orange) will turn on later. Once the Power LED turned on, it means the system is booting up successfully. Furthermore, if you have a proper network connection, and access to the camera, the LAN LED (green) will flash green under wired mode.

Chapter 4 Preparation

4.1 Search and Set up by IP Search

When you installed the camera on a LAN environment, you have two easy ways to search your cameras by IP Search or UPnP™ discovery. Here is the way to execute IP Search to discover camera's IP address and set up related parameter in a camera.

4.1.1 Search

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.25 Device Title IP Address Port MAC TL-SC3230N 192.168.1.103 80 00-0E-AE-A2-61-90 SEARCH Camera: VIEW-model: TL-SC3230N Network: Wired DHCP: OFF WiFi: Enabled Connection: Not Connected User Name: admin Password: ****** LAN WIRELESS EXIT No Signal

When launch the IP Search, a searching window will pop up. IP Search is starting to search cameras on the LAN. The existed cameras will be listed as below.

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.25 Device Title IP Address Port MAC TL-SC3230N 192.168.1.103 80 00-0E-AE-A2-61-90 SEARCH Camera: VIEW-model Name: TL-SC3230N Network: Wired DHCP: OFF WiFi: Enabled Connection: Not Connected User Name: admin Password: ****** LAN WIRELESS EXIT No Signal

4.1.2 View

If IP Search finds network cameras, View button will be available. Please select the camera you want to view and click the View button. Then you could see the video from camera directly. Furthermore, you could double click the left button of mouse to link to the network camera by browser.

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.25 Device Title IP Address Port MAC TL-SC3230N 192.168.1.103 80 00-0E-AE-A2-61-90 SEARCH Camera: VIEW-model Name: TL-SC3230N Network: Wired DHCP: OFF WiFi: Enabled Connection: Not Connected User Name: admin Password: WIRELESS

4.1.3 LAN

In case you want to change the IP related parameters of wired interface, please select the camera you want to configure and click the LAN button. Relative settings will be carried out as below.

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.25 Device Title IP Address Port MAC TL-SC3230N 192.168.1.103 80 00-0E-AE-A2-61-90 SEARCH VIEW LAN WIRELESS EXIT LAN: Network: Static IP DHCP IP IP Address: 192 .168 . 1 .103 Subnet Mask: 255 .255 .255 . 0 Gateway: 192 .168 . 1 . 31 DNS1: 192 .168 . 1 . 31 DNS2: 0 . 0 . 0 . 0 << >> User Name: admin Password:

You could modify the relative settings of the selected camera. Click “<<” button to quit the LAN setting procedure and click “>>” button to move to next page as below.

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.25 Device Title IP Address Port MAC TL-SC3230N 192.168.1.103 80 00-0E-AE-A2-61-90 User: Change Password << Submit SEARCH VIEW LAN WIRELESS EXIT User Name: admin Password:

If you do not want to change username and/or password, just click "Submit" button to perform your setting accordingly. Click "<<" button to go back to the previous page.

If you like to change username and/or password of the camera, just click the check button. Then, the related fields will show up as below.

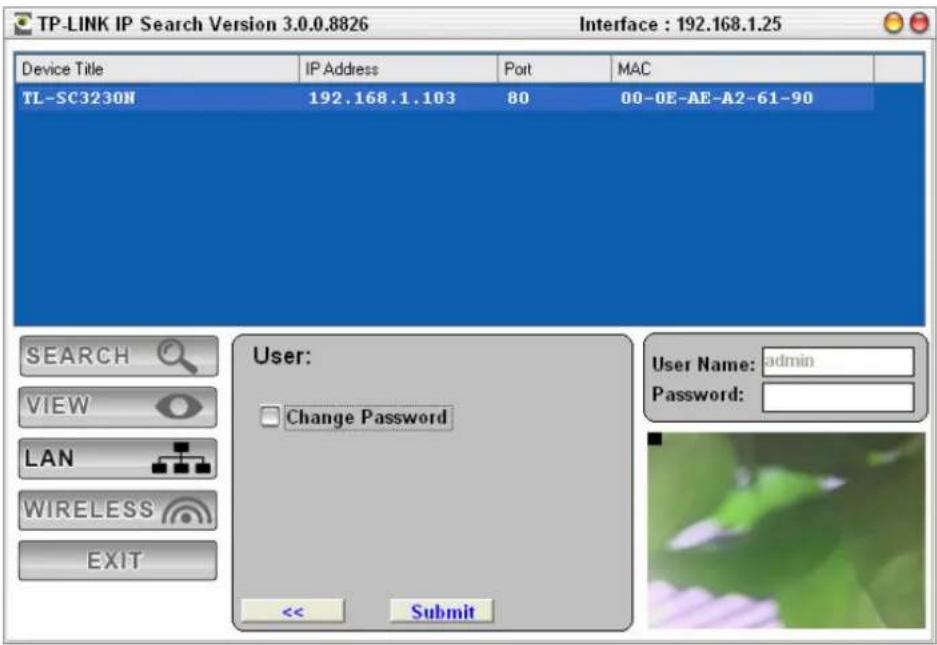

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.102 Device Title IP Address Port MAC TL-SC3230N 192.168.1.103 80 00-0E-AE-A2-61-90 User: ✓ Change Password User Name: admin New Password: Confirm Password: << Submit User Name: admin Password: ****

After keying in new username and password, click "Submit" button to perform your setting accordingly. Click "<<" button to go back to the previous page.

4.1.4 Wireless

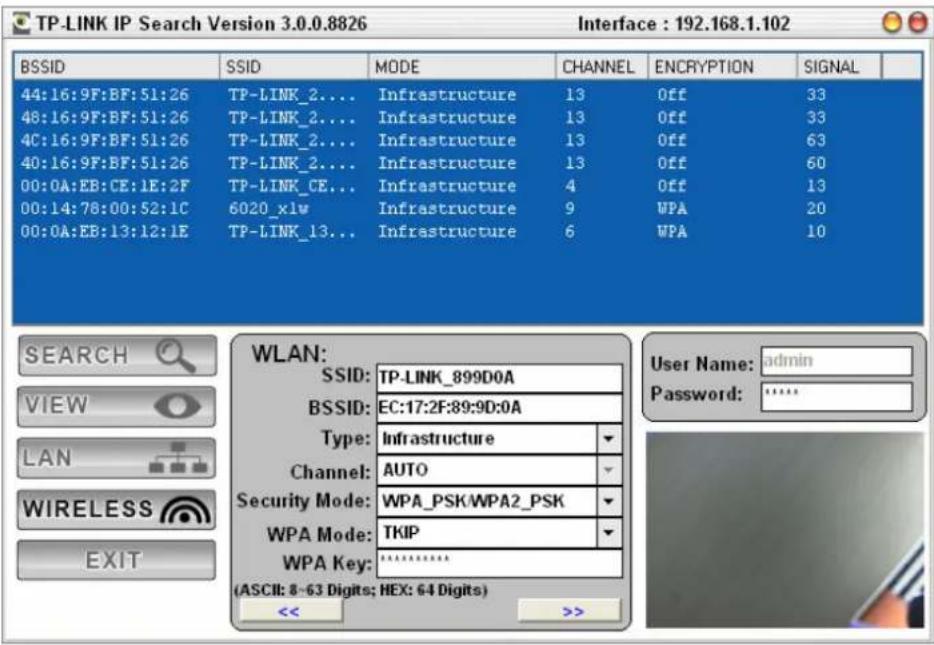

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.102 BSSID SSID MODE CHANNEL ENCRYPTION SIGNAL 44:16:9F:BF:51:26 TP-LINK_2.... Infrastructure 13 Off 33 48:16:9F:BF:51:26 TP-LINK_2.... Infrastructure 13 Off 33 4C:16:9F:BF:51:26 TP-LINK_2.... Infrastructure 13 Off 63 40:16:9F:BF:51:26 TP-LINK_2.... Infrastructure 13 Off 60 00:0A:EB:CE:1E:2F TP-LINK_CE... Infrastructure 4 Off 13 00:14:78:00:52:1C 6020_xlw Infrastructure 9 WPA 20 00:0A:EB:13:12:1E TP-LINK_13... Infrastructure 6 WPA 10 SEARCH VIEW LAN WIRELESS EXIT WLAN: SSID: TP-LINK_899D0A BSSID: EC:17:2F:89:9D:0A Type: Infrastructure Channel: AUTO Security Mode: WPA_PSK/WPA2_PSK WPA Mode: TKIP WPA Key:****** (ASCII: 8-63 Digits; HEX: 64 Digits) << >>

In case you want to change the IP related parameters of wireless interface, please select the camera you want to configure and click the WIRELESS button. Relative settings will be carried out as above.

Click SSID to select your wireless AP or router and key in WEP or WPA key.

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.102 BSSID SSID MODE CHANNEL ENCRYPTION SIGNAL 44:16:9F:BF:51:26 TP-LINK_2.... Infrastructure 13 Off 33 48:16:9F:BF:51:26 TP-LINK_2.... Infrastructure 13 Off 33 4C:16:9F:BF:51:26 TP-LINK_2.... Infrastructure 13 Off 63 40:16:9F:BF:51:26 TP-LINK_2.... Infrastructure 13 Off 60 00:0A:EB:CE:1E:2F TP-LINK_CE... Infrastructure 4 Off 13 00:14:78:00:52:1C 6020_xlw Infrastructure 9 MPA 20 00:0A:EB:13:12:1E TP-LINK_13... Infrastructure 6 MPA 10 WLAN: SSID: TP-LINK_CE1E2F BSSID: 00:0A:EB:CE:1E:2F Type: Infrastructure Channel: AUTO Security Mode: None << >> User Name: admin Password:**** WIRELESS EXIT

Click >> to go to next step:

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.102 BSSID SSID MODE CHANNEL ENCRYPTION SIGNAL 01-14797875136 TP-LINK_2.... Infrastructure: 13 REF 63 01-14797875136 TP-LINK_2.... Infrastructure: 12 REF 63 01-14797875136 TP-LINK_2.... Infrastructure: 13 REF 63 01-14797875136 TP-LINK_2.... Infrastructure: 15 REF 63 01-14797875136 TP-LINK_2.... Infrastructure: 4 REF 63 01-14797875136 TP-LINK_2.... Infrastructure: 9 FFA 20 01-14797875136 TP-LINK_2.... Infrastructure: 6 FFA 10 WLAN: Network: ○ Static IP ● DHCP IP IP Address: 192.168 . 1 .104 Subnet Mask: 255.255.255 . 0 Gateway: 192.168 . 1 .25 Interface Mode: ○ Wired only ● Auto << Submit User Name: admin Password: ****

Confirm the wireless setting and then submit the settings.

VLAN Setting SSID: TP-LINK_CE1E2F Type: Infrastructure Channel: AUTO Security Mode: None Authentication: Open System WEP Default Key: 1 WEP Key : WPA KEY: 1234567890 DHCP: ON IP Address: Subnet Mask: Gateway: Cancel OK

Click OK to confirm these parameters, then IP Search will start to configure this camera with specified information.

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.102 BSSID SSID MODE CHANNEL ENCRYPTION SIGNAL IP Address: IP-LINK_... Inferc Nambruze 13 Off 53 IP Address: IP-LINK_... Inferc Nambruze 13 Off 53 IP Address: IP-LINK_... Inferc Nambruze 13 Off 53 IP Address: IP-LINK_... Inferc Nambruze 13 Off 53 IP Address: IP-LINK_... Inferc Nambruze 13 Communication... 24% SEARCH VIEW LAN WIRELESS EXIT WLAN: Network: ○ Static IP ● DHCP IP IP Address: 192.168.1 .104 Subnet Mask: 255.255.255.0 Gateway: 192.168.1 .25 Interface Mode: ○ Wired only ● Auto << Submit User Name: admin Password: ****** No Signal

Once this step is finished, IP Search will prompt you to unplug the Ethernet cable to activate wireless access. Then IP Search will prompt you to test wireless setting or finish wireless procedure as below.

TP-LINK IP Search Version 3.0.0.8826 Interface : 192.168.1.102 BSSID SSID MODE CHANNEL ENCRYPTION SIGNAL WLAN: MAC: 74:2F:68:92:27:0E TEST Finish SEARCH VIEW LAN WIRELESS EXIT User Name: admin Password: ****** No Signal

4.2 UPnP of Windows® XP, Vista or 7

UPnP™ is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This camera is an UPnP enabled camera. If the operating system, Windows XP, Vista or 7, of your PC is UPnP enabled, the camera will be very easy to be found.

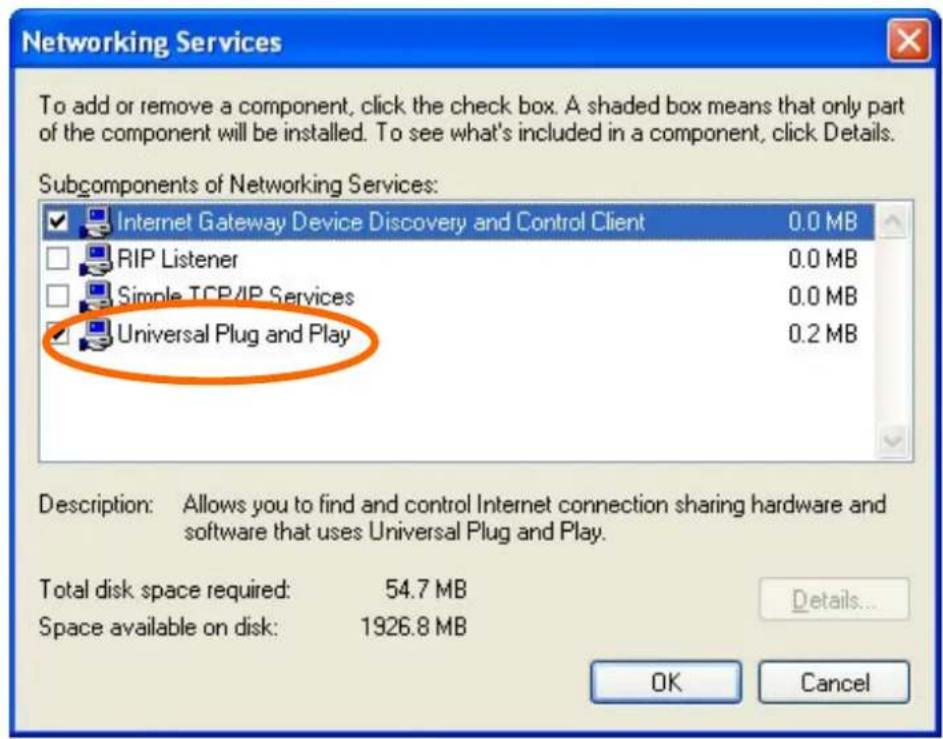

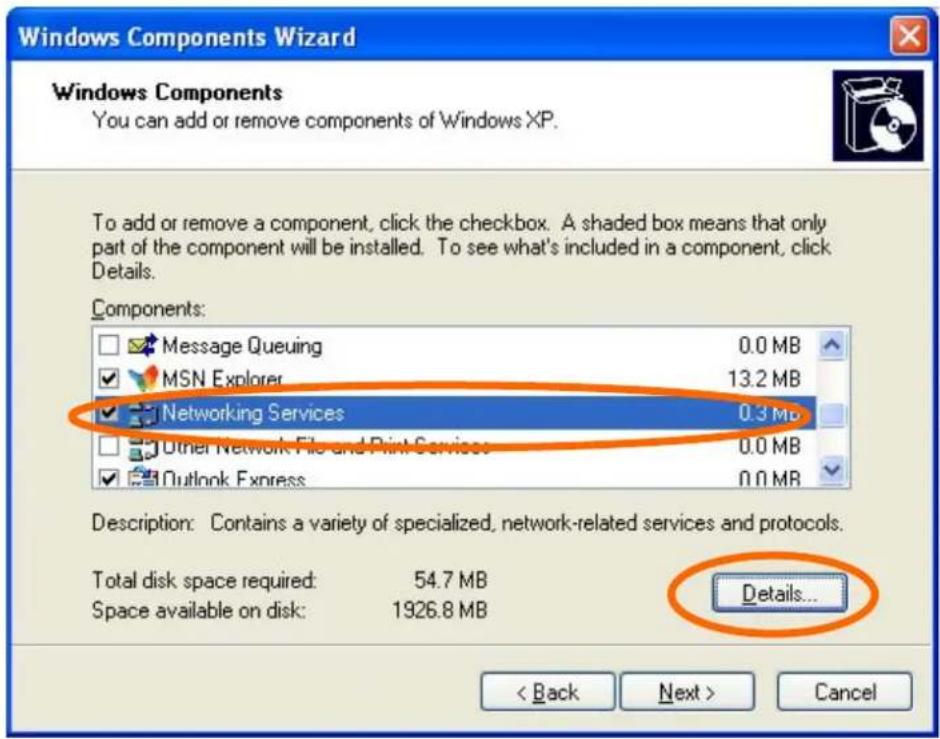

Please refer to Appendix I to enable UPnP settings only if your operating system of PC is running Windows XP.

Note:

Windows 2000 does not support UPnP feature.

To discover your camera, go to your Desktop and click My Network Places.

My Network Places File Edit View Favorites Tools Help Back Search Folders Address My Network Places Network Tasks Add a network, place View network connections Set up a home or small office network Set up a wireless network for a home or small office View workgroup computers Show icons for networked UPnP devices Local Network TL-SC3230N - 000EAEA26190 Other Places Desktop My Computer My Documents Shared Documents Printers and Faces Details

Click the targeted camera. Then Internet Explorer will connect to this camera automatically.

4.3 Install the camera behind a NAT Router

Once installed, the camera is accessible on your LAN. To access the camera from the Internet you must configure your broadband router to allow incoming data traffic to the camera. If the camera is installed on the LAN with a router, then it may get a dynamic IP address from the DHCP server. However, if the camera wants to be accessed from the WAN, its IP address needs to be set up as fixed IP, also the port forwarding or Virtual Server function of router needs to be set up.

However, if your NAT router supports UPnP feature, it can be very easy to achieve NAT traversal automatically. To do this, enable the NAT-traversal feature, which will attempt to automatically configure the router to allow access to the camera.

Installing the camera with an UPnP router on your network is an easy 3-step procedure:

Step1: Enable UPnP option of your NAT router

Step2: Enable UPnP NAT traversal option of the camera (default)

Step1: Enable UPnP option of your NAT router

To use UPnP IGD function (NAT traversal), you need to make sure the UPnP function is enabled in your router. Most new home routers should support this function. This feature is not enabled by default in all routers. Please check user's manual of your NAT router for detail.

Step2: Enable UPnP NAT traversal option of the camera

Refer to Setting → Network → UPnP page for detail NAT traversal setting. Note that this option is enabled by default.

4.4 Access the camera from the Internet Explorer for the first time

1. Start the web browser on the computer and type the IP address of the camera you want to monitor as below:

Address http://192.168.0.100/ Go Links >>

1. The Login Window of the camera is prompted. Type in your login name and password under "User name" and "Password" textbox. For the first time use (default value), input the User Name: admin and Password: admin. Click OK button to start the main menu.

Connect to 192.168.0.100 Camera Server User name: Password: Remember my password OK Cancel

1. According to your browser's security setting, the IE Web Page may prompt the "Security Warning" window. If so, select "Yes" to install and run the ActiveX control into your PC. Otherwise, the system will load the ActiveX silently.
2. After the ActiveX control was installed and run, the first image will be displayed.

TP-LINK® The Reliable Choice Video Profile PROFILE3 H264 / 640X480 Streaming TCP Language English Setting Max viewers : 20 Current viewers : 1

4.5 Logging in as a User

If you log in the camera as an ordinary user, "Setting" function will not be accessible.

4.6 Logging in as an Administrator

If you log in the camera as an Administrator, you can perform all the settings provided by the camera.

Chapter 5 Operating the Camera

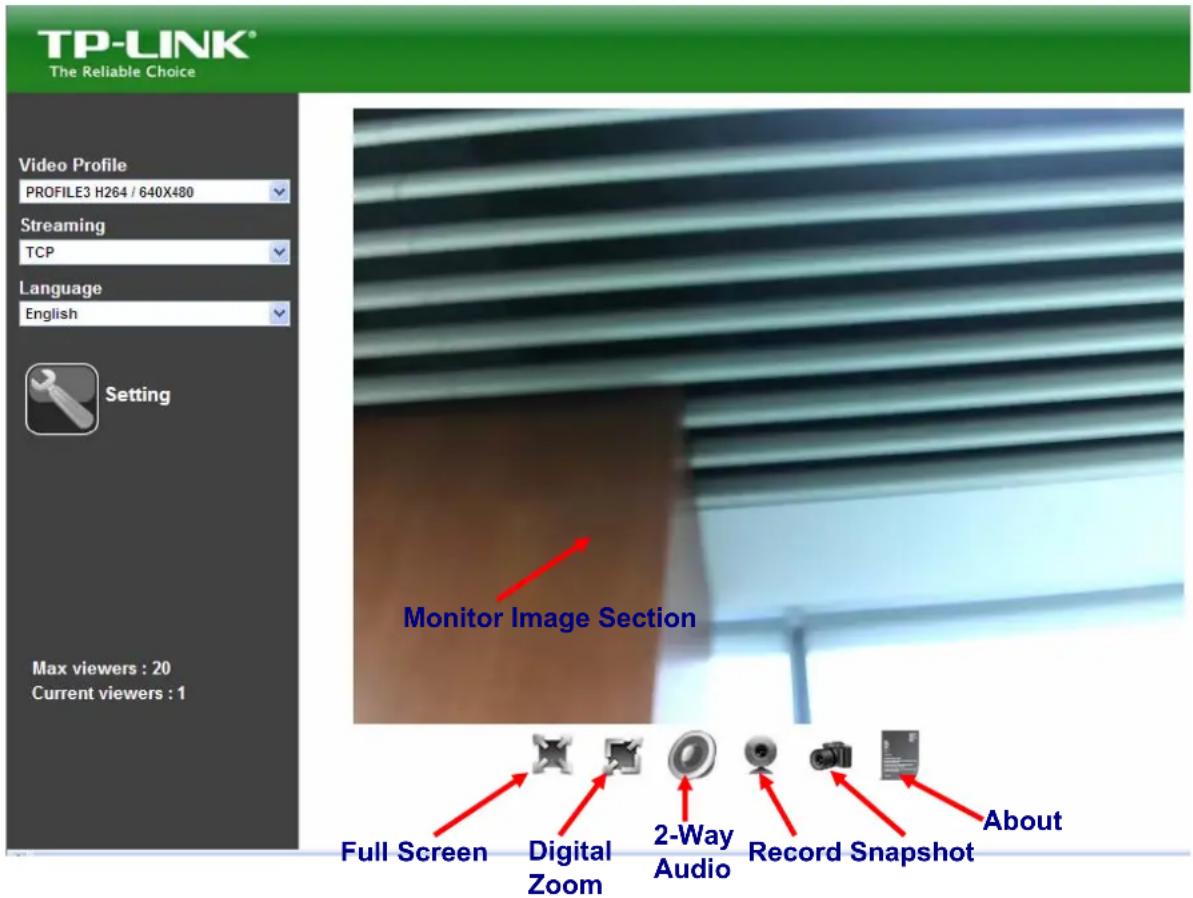

Start-up screen will be shown as follow no matter you log into the camera as an ordinary user or as an administrator.

TP-LINK® The Reliable Choice Video Profile PROFILE3 H264 / 640X480 Streaming TCP Language English Setting Max viewers : 20 Current viewers : 1 Monitor Image Section Full Screen Digital Zoom 2-Way Audio Record Snapshot About

5.1 Monitor Image Section

The image shot by the camera is shown here. The date and time are displayed at the top of the window.

5.2 Video Profile

The camera supports multi-profile function for H.264, MEPG4 and JPEG simultaneously. The user can choose the proper and/or preferred profile which is listed here.

5.3 Streaming Protocol

The user can select proper streaming protocol according to networking environment.

5.4 Language

The camera could provide multiple languages to meet customer's requirement.

5.5 Full Screen

Enlarge video to full screen display.

: Enlarge video to full screen display. Press "ESC" key to return to the original screen display.

5.6 Digital Zoom

Click to activate this function as above. The user can scroll the mouth over the video to adjust zoom ratio and position.

Potted plant with green leaves against a blue background, no visible text or symbols

Close-up of a green plant stem against a blue background, no visible text or symbols

5.7 2-Way Audio

The camera supports 2-way audio function. Select the icon and you will see the and the control bar. The user can choose to enable or disable this function by toggling the icon below and scroll the control bar to adjust the audio volume.

: Enable audio uploading function.

50

: Scroll the control bar to adjust the audio volume.

5.8 Record

Potted Sahlia plant with green leaves and striped green leaves, placed on a wall with camera equipment nearby (no text or symbols visible)

Record

C:\Documents and Settings\chines Browse

Click the icon to activate this function. Press to start recording. The video file is saved as ASF format into your local PC. While you want to stop it, press Stop to stop recording. Select Browser and the pop-up window will display. Select the save path and file name prefix, and select OK to continue.

After stopping recording, list the files. This file is named as Video_yyyymmddhhmmss.avi.

The ASF files can be displayed by the standard Windows Media Player, but it needs the DixectX 9.0 or later version to be installed.

5.9 Snapshot

Two potted plants with green leaves and a spiral-patterned trunk, placed on a wooden table against a blue wall (no text or symbols visible)

Snapshot

C:\Documents and Settings\chines Browse

Click the icon to activate this function. Press to take a picture. The image file is saved as JPEG format into your local PC. Select Browser and the pop-up window will display. Select the save path and file name prefix, and select OK to continue.

If you like to retrieve the saved image, select the file to display the saved image by using any one of graph editing tools.

5.10 About

About TP-LINK IPCamera Control, Version 6.1.0.125 Build Time:Jun 21 2012 17:53:50 OK

Click the

icon to show this ActiveX information.

Chapter 6 Administering the Camera

This function is only available for the user logged into camera as administrator.

Click on each menu name to display its setting page

Live View Network Camera System Video Audio User E-Mail Object Detection Storage Continuous Recording Recording List Event Server Event Schedule

Item Action
Network	Configure Network settings such as DHCP, DDNS, 3GPP, PPPoE and UPnP
Camera Adjust camera parameters, position, and set camera tour
System	Configure system information, date & time, maintenance, and view system log file.
Video Configure bit rate and frame rate of video profiles
Audio Configure audio parameters
User Set up user name, password and login privilege
E-Mail Set up E-Mail configuration
Object Detection Set up Object detection
Storage Status and configuration of SD card
Recording List Files list inside the SD Card
Event Server Set up FTP/TCP/HTTP server for event
Event Schedule Configure the schedule while event triggered

6.1 Network: Configure Network settings

Use this menu to configure the network to connect the camera and the clients.

6.1.1 Network

This section provides the menu for connecting the camera through Ethernet cable.

Network Wireless HTTPS DDINS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification MAC Address 00:0E:AE:A2:61:90 Obtain IP address automatically (DHCP) IP Address 192.168.1.103 Test Subnet Mask 255.255.255.0 Gateway 192.168.1.25 Obtain DNS from DHCP Primary DNS 172.31.1.1 Secondary DNS 172.31.1.2 HTTP Port 80 (1 ~ 65535) Test OK Cancel

MAC address: Displays the Ethernet MAC address of the camera. Note that the user can not modify it.
Obtain IP address automatically (DHCP): DHCP: Stands for Dynamic Host Configuration Protocol. Enable this checkbox when a DHCP server is installed on the network to issue IP address assignment. With this setting, the IP address is assigned automatically. If this camera can not get an IP address within limited tries, the camera will assign a default IP address, 192.168.0.100, by itself as the default IP address.
IP address, Subnet mask, and Gateway: If you do not select Obtain an IP address automatically, then you need to enter these network parameters manually.
Obtain DNS from DHCP: Enable this checkbox when a DHCP server is installed on the network and provide DNS service.
Primary DNS and Secondary DNS: If you do not select Obtain DNS from DHCP, then you need to enter these parameters manually.
HTTP Port: The camera supports two HTTP ports. The first one is default port 80 and this port is fixed. This port is very useful for Intranet usage. The second HTTP port is changeable. Users could assign the second port number of http protocol, and the WAN users should follow the port number to login. If the http port is not assigned as 80, users have to add the port number in back of IP address. For example: http://192.168.0.100:8080. Therefore, the

user can access the camera by either http://xx.xx.xx.xx/, or http://xx.xx.xx.xx:xxxx/. If multiple cameras are installed on the LAN and also required to be accessed from the WAN, then the HTTP Port can be assigned as the virtual server port mapping to support multiple cameras.

Click OK to save and enable the setting.

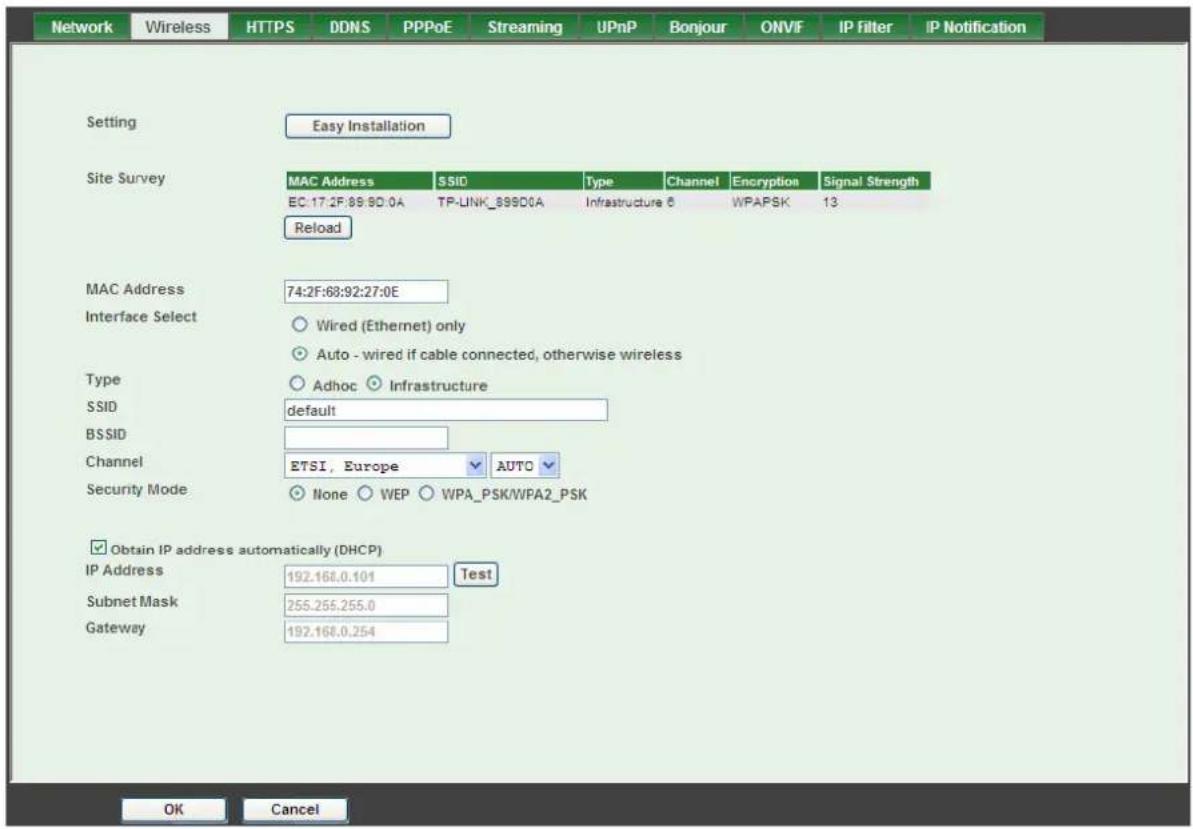

6.1.2 Wireless

If your camera is a wireless model, you could assign the related parameters into wireless setting. Using a wired connection ensures greater secrecy while making these settings. These settings should be always made in the camera first and secondly in the wireless access point. This ensures that the camera is always accessible when making changes. Note that this function is only available for the model with WLAN capability.

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification Setting Easy Installation Site Survey MAC Address SSID Type Channel Encryption Signal Strength EC:17:2F:89:80:0A TP-LINK_89S00A Infrastructure 6 WPAPSK 13 Reload MAC Address 74:2F:68:92:27:0E Interface Select Wired (Ethernet) only Auto - wired if cable connected, otherwise wireless Type Adhoc Infrastructure SSID default BSSID Channel ETSI, Europe AUTO Security Mode None WEP WPA_PSK/WPA2_PSK Obtain IP address automatically (DHCP) IP Address 192.168.0.101 Test Subnet Mask 255.255.255.0 Gateway 192.168.0.254 OK Cancel

Setting (Easy Installation): Provides a 2-step procedure to configure wireless setting:

Step 1: Select SSID of wireless router or access point (AP).

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification Step 1. Please click the table to choose the SSID! Site Survey MAC Address SSID type Channel Encryption Signal Strength EC:17.2F 89.90.0A TP-LINK_89900A Infrastructure 6 WAPASK 13 Reload SSID TP-LINK_89900A Back Go Step 2 OK Cancel

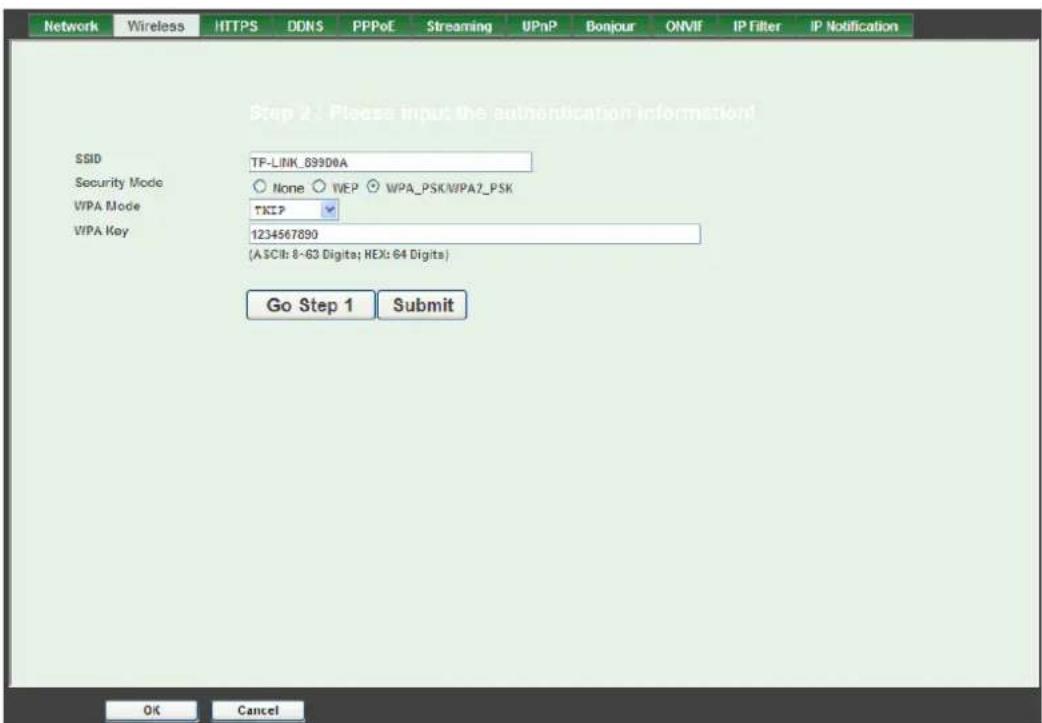

Step 2: Key in security key of WEP or WPA. Then click "Submit" button to activate wireless setting.

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification SSID TF-LINK_89900A Security Mode None WEP WPA_PSK/WPA2_PSK VIPA Mode TXIP VIPA Key 1234567890 (ASCII: 8-63 Digits; HEX: 64 Digits) Go Step 1 Submit OK Cancel

If the user wants to configure wireless settings manually, please follow the steps as below:

MAC address: Displays the Ethernet MAC address of the WLAN card. Note that the user can not change it.
Site survey: Click the "Refresh" button. It will refresh information window which list the result

of a network scan. Access points with a disabled SSID Broadcast will not appear unless the camera is associated with it. The following information is provided:

Interface Select: "Wired (Ethernet) only" or "Auto – wired if cable is connected, otherwise wireless": Choose wired or wireless mode. However, note that wired is priority.
Type: To select one of WLAN modes from Infrastructure or Ad-Hoc mode.
SSID: This is the name of the wireless network the camera is configured for. The field accepts up to 32 alphanumeric characters. The name must be exactly the same as that used in the wireless access point, or the connection will not be established. Leaving this field blank means the camera will attempt to access the nearest open network.
Channel: Chooses the wireless channel in use currently.

Security mode: Shows which type of security the network uses. The camera supports three security methods: None, WEP, WPA_PSK/WPA2_PSK.

WEP settings:

• Authentication: Select "Open or Shared Key System Authentication", depending on the method used by your access point. Not all access points have this option, in which case they probably use "Open System", which is sometimes known as SSID Authentication.
• WEP Mode: The access point being used determines which key type is available. The following options are available:

- ASCII - In this method the string must be exactly 5 characters for 64-bit WEP and 13 characters for 128-bit WEP.

- HEX - In this method the string must be exactly 10 hexadecimal (0-9, A-F) characters for 64-bit WEP and 26 hexadecimal characters for 128-bit WEP.

- Web Key 1\~4: Key value of WEP.

WPA settings:

- WPA Key: Key value of WPA. The camera uses a pre-shared key (PSK) for key management. The pre-shared key can be entered either as Manual hex, as 64 hexadecimal characters, or as a Passphrase, using 8 to 63 ASCII characters.

Obtain IP address automatically (DHCP): Enable this checkbox when a DHCP server is installed on the network to issue IP address assignment. With this setting, the IP address is assigned automatically.
IP address, Subnet mask, and Gateway: If you do not select Obtain an IP address automatically, then you need to enter these network parameters manually.

Select OK to save and enable the setting.

Note:

To enable WLAN function, the user must set these related parameters correctly at first. Then power off the camera and remove Ethernet cable from camera. Power on the camera again and WLAN mode will be available accordingly.

6.1.3 HTTPS

HTTPS: Stands for Hypertext Transfer Protocol Secure

HTTPS is a combination of the Hypertext Transfer Protocol with the SSL/TLS protocol to provide encrypted communication and secure identification of a network web server. HTTPS connections are often used for sensitive transactions in corporate information systems. The main idea of HTTPS is to create a secure channel over an insecure network. This ensures reasonable protection from eavesdroppers and man-in-the-middle attacks, provided that adequate cipher suites are used and that the server certificate is verified and trusted.

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification HTTPS Disable Enable Port 443 (1 ~ 65535) Test OK Cancel

HTTPS: To enable or disable the HTTPS service here. Note that the HTTPS function of this camera is not only encrypted the web content but also audio/video data. If the HTTPS is enabled, there is further option for "HTTP&HTTPS" or "HTTPS only". In case, the "HTTPS only" is enabled, all packets from the camera will go through HTTPS only and HTTP service is no longer available.
Port: Choose the HTTPS port. The default value is 443.

6.1.4 DDNS service

DDNS: Stands for Dynamic Domain Name Server

Your Internet Service Provider (ISP) provides you at least one IP address which you use to connect to the Internet. The address you get may be static, meaning it never changes, or dynamic, meaning it's likely to change periodically. Just how often it changes, depends on your ISP. A dynamic IP address complicates remote access since you may not know what your current

WAN IP address is when you want to access your camera over the Internet. One of the possible solutions to the dynamic IP address problem comes in the form of a dynamic DNS service.

A dynamic DNS service is unique because it provides a means of updating your IP address so that your listing will remain current when your IP address changes. There are several excellent DDNS services available on the Internet. One such service you can use is www.DynDNS.org. You'll need to register with the service and set up the domain name of your choice to begin using it. Please refer to the home page of the service for detailed instructions or refer to Appendix G for more information.

If your camera is connected to xDSL directly, you might need this feature. However, if your camera is behind a NAT router, you will not need to enable this feature because your NAT router should take care of this job. As to xDSL environment, most of the users will use dynamic IP addresses. If users want to set up a web or a FTP server, then the Dynamic Domain Name Server is necessary.

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification DDNS Disable Enable Server Name dyndns.org DDNS Host (1 ~ 30 Digits) User Name (< 22 Digits) Password (< 22 Digits) Internet Status ---- OK Cancel

DDNS: To enable or disable the DDNS service here.
Server name: Choose one of the built-in DDNS servers.
DDNS Host: The domain name is applied of this camera.
User name: The user name is used to log into DDNS.
➢ Password: The password is used to log into DDNS.

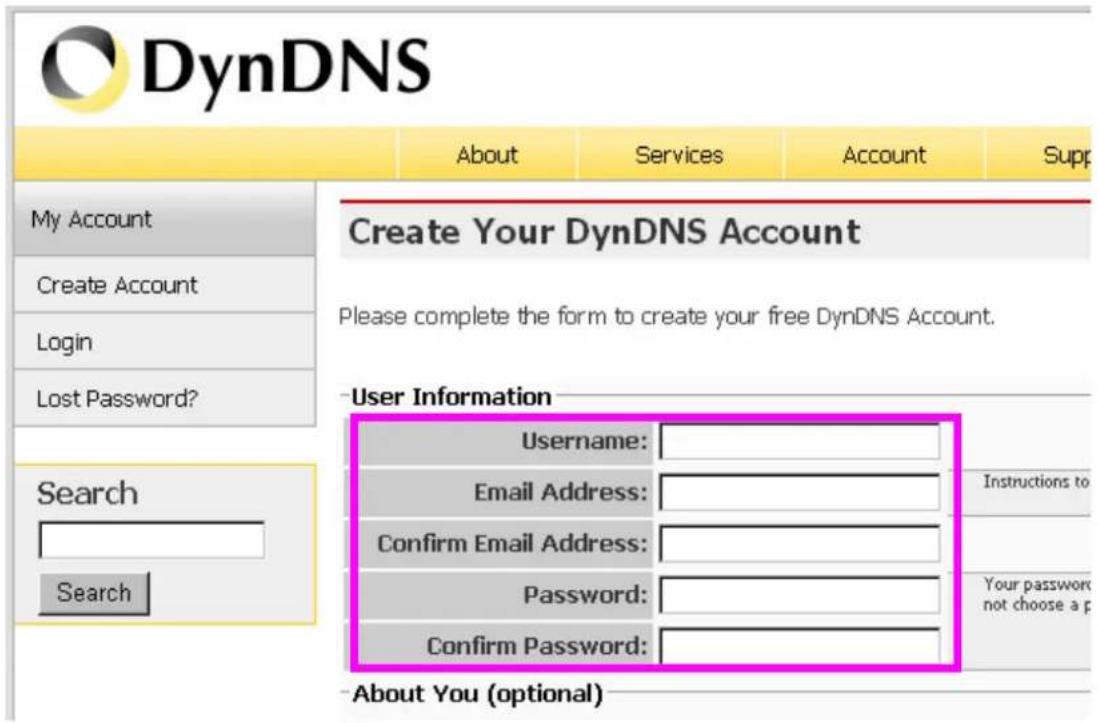

Please refer to Appendix for more detailed information.

6.1.5 PPPoE

PPPoE: Stands for Point to Point Protocol over Ethernet

A standard builds on Ethernet and Point-to-Point network protocol. It allows your camera with xDSL or cable connects with broadband network directly, then your camera can dial up and get a dynamic IP address. For more PPPoE and Internet configuration, please consult your dealer or ISP.

The camera can directly connect to the xDSL, however, it should be set up on a LAN environment to program the PPPoE information first, and then connect to the xDSL modem. Power on again, then the camera will dial on to the ISP connect to the WAN through the xDSL modem.

The procedures are

• Connect to a LAN by DHCP or Fixed IP
• Access the camera, and enter Setting → Network → PPPoE as below

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification PPPoE Disable Enable User Name (< 65 Digits) Password (< 65 Digits) IP Address (readonly) Subnet Mask (readonly) Gateway (readonly) Status (readonly) OK Cancel

• PPPoE: To enable or disable the PPPoE service here.
  User name: Type the user name for the PPPoE service which is provided by the ISP.
  ➢ Password: Type the password for the PPPoE service which is provided by the ISP.
  IP address, Subnet mask, and Gateway (read only): Shows the IP information got from PPPoE server site.
  ➢ Status: Shows the Status of PPPoE connection.

6.1.6 Streaming

RTSP is a streaming control protocol, and a starting point for negotiating transports such as RTP, multicast and Unicast, and for negotiating codecs. RTSP can be considered a "remote control" for controlling the media stream delivered by a media server. RTSP servers typically use RTP as the protocol for the actual transport of audio/video data.

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification RT SP Port 554 (554 ~ 65535) Test RTP Port 50000 ~ 50999 (1024 ~ 65535) OK Cancel

RTSP Port: Choose the RTSP port. The RTSP protocol allows a connecting client to start a video stream. Enter the RTSP port number to use. The default value is 554.

RTP Port: Specify the range of transmission port number of video stream. The default range is 50000 to 50999. The user can specify a number between 1024 and 65535.

6.1.7 UPnP

UPnP is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals. This camera is an UPnP enabled camera. If your operating system is UPnP enabled, the camera will automatically be detected and a new icon will be added to "My Network Places." If you do not want to use the UPnP functionality, it can be disabled.

In addition, this camera also provides UPnP IGD function for NAT traversal easily. Use NAT traversal when your camera is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router. With NAT traversal properly configured, all HTTP traffic to an external HTTP port in the NAT router will be forwarded to the camera.

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification UPnP Disable Enable Friendly Name TL-SC3230N - 000EAEA26190 (readonly) UPnP NAT Traversal Disable Enable Port Range 32768 ~ 65535 (1 ~ 65535) External IP Address http://169.254.113.1:32768 (readonly) OK Cancel

UPnP: To enable or disable the UPnP service here.
Friendly Name: To show the friendly name of this camera here.
UPnP NAT Traversal: When enabled, the camera will attempt to configure port mapping in a NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the NAT router first.
Port Range: The port range will open in NAT router.
External IP address: Show the IP address and port for WAN access through Internet. If NAT traversal is configured successfully, the user can use this IP address and port to access this camera. The external IP address is not shown in case NAT traversal function is failed.

6.1.8 Bonjour

Bonjour, also known as zero-configuration networking, enables automatic discovery of computers, cameras, and services on IP networks. Bonjour uses industry standard IP protocols to allow cameras to automatically discover each other without the need to enter IP addresses or configure DNS servers. Specifically, Bonjour enables automatic IP address assignment without a DHCP server, name to address translation without a DNS server, and service discovery without a directory server. Bonjour is an open protocol which Apple has submitted to the IETF as part of the ongoing standards-creation process.

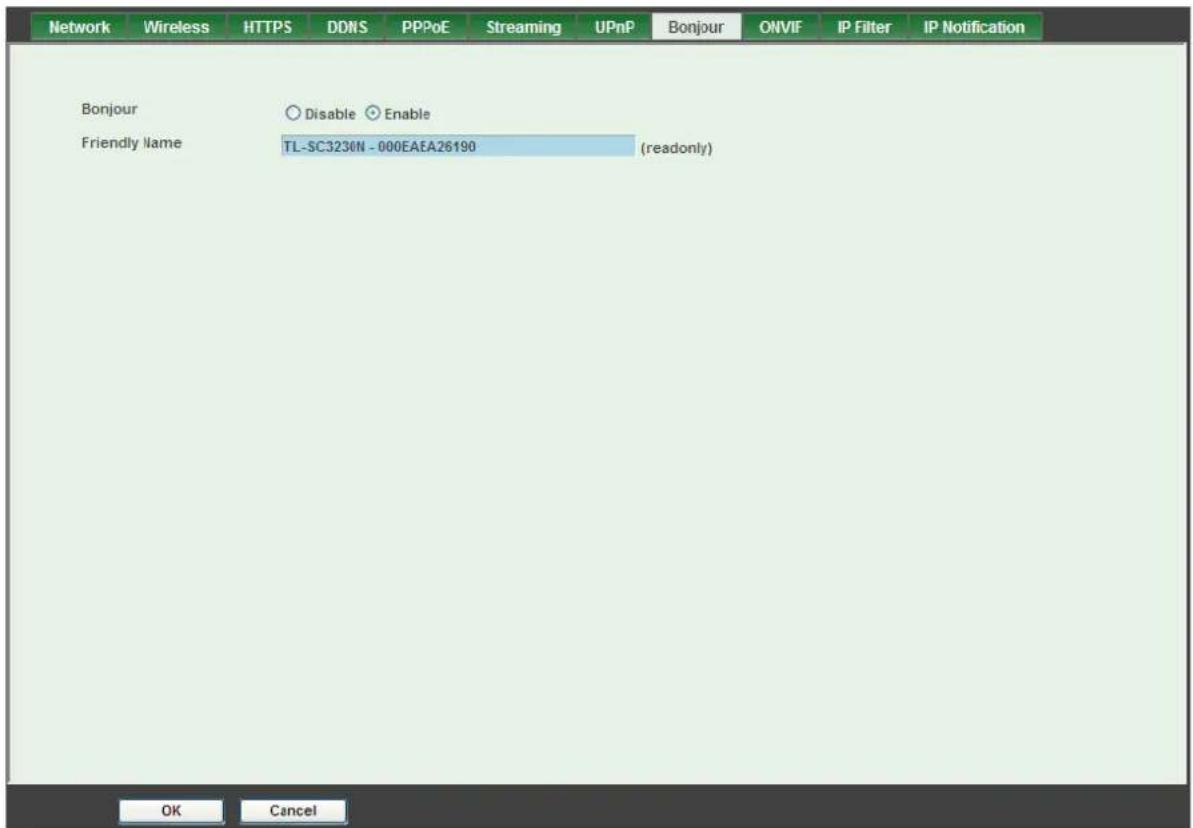

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification Bonjour Disable Enable Friendly Name TL-SC3230N - 000EAEA26190 (readonly) OK Cancel

➢ Bonjour: To enable or disable the Bonjour service here.
Friendly Name: To show the friendly name of this camera here.

6.1.9 ONVIF

ONVIF is a global and open industry forum with the goal to facilitate the development and use of a global open standard for the interface of physical IP-based security products. Or in other words, create a standard for how IP products within video surveillance and other physical security areas can communicate with each other.

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification ONVIF Disable Enable V1.0 V1.01/V1.02/V2.0/V2.1.1 OK Cancel

ONVIF: To enable or disable the ONVIF interface here.
Version: Currently, the V1.0 or V1.01/V1.02/V2.0/V2.1.1 is available.

6.1.10 IP Filter

You can enter different users' IP addresses which are allowed or denied to enter by the camera.

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVIF IP Filter IP Notification IP Filter Disable Enable IP Filter Policy Deny Allow Save Filter IP List Filter IP Add Delete DeleteAll

IP Filter: To enable or disable the IP filter function here.
IP Filter Policy: Choose the filter policy where is denying or allowing.

6.1.11 IP Notification

In case the IP address is changed, system is able to send out an email to alert someone if the function is enabled.

Network Wireless HTTPS DDNS PPPoE Streaming UPnP Bonjour ONVF IP Filter IP Notification SMTP Notification(email) Disable Enable Send To (< 129 Digits) Subject IP notification (< 65 Digits) TCP Notification Disable Enable TCP Server (< 65 Digits) TCP Port (1 ~ 65535) Message (< 65 Digits) HTTP Notification Disable Enable URL http:// (< 61 Digits) HTTP Login Name (< 22 Digits) HTTP Login Password (< 22 Digits) Proxy Address (< 129 Digits) Proxy Port (1 ~ 65535) Proxy Login Name (< 22 Digits) Proxy Login Password (< 22 Digits) Customer parameters (< 65 Digits) Message (< 65 Digits) OK Cancel

SMTP Notification (e-mail): If this function is enabled, the "Send to" and "Subject" fields need to be filled.
Send To: Type the receiver's e-mail address. This address is used for mail reply.
Subject: Type the subject/title of the E-mail.
TCP Notification: If this function is enabled, the "TCP Server", "TCP Port", and "Message" fields need to be filled.
TCP Server: Type the server name or the IP address of the TCP server.
TCP Port: Set port number of TCP server.
Message: The message will be sent to FTP server.
HTTP Notification: If this function is enabled, the fields below need to be filled.
URL: Type the server name or the IP address of the HTTP server.
HTTP Login name: Type the user name for the HTTP server.
HTTP Login Password: Type the password for the HTTP server.
Proxy Address: Type the server name or the IP address of the HTTP Proxy.
Proxy Port: Set port number of Proxy.
Proxy Login name: Type the user name for the HTTP Proxy.

Proxy Login Password: Type the password for the HTTP Proxy.
Custom parameter: The user can set specific parameters to HTTP server.
Message: The message will be sent to HTTP server.

6.2 Camera: Adjust camera parameters

Use this menu to set the functions of the camera parameters of the camera.

6.2.1 Picture

Picture Privacy Mask Rotation Normal White Balance Auto Exposure Control Auto Exposure Maximum Exposure Time 1/30 S Power Frequency 50Hz 60Hz Exposure Value 50 (0 ~ 100) Color Level 50 (0 ~ 100) Brightness 50 (0 ~ 100) Contrast 50 (0 ~ 100) Sharpness 50 (0 ~ 100) 3D De-Noise Off Default Settings Default Settings OK Cancel

Rotation: Turn the "Mirror" and "Vertical Flip" On or OFF. The image will be overturned as below.

Normal Mirror Image æpsml Vertical Flip Mirror + Vertical Flip æpsml æpsml

White Balance: Auto: will adjust the white balance automatically. Hold: will hold the white balance.
Exposure Control: Auto: will adjust the internal gain automatically. Hold: will hold the internal gain.
➢ Maximum Exposure Time: Set the Maximum Exposure Time. However, the real exposure time may be shorter in good light condition.
Power Frequency: Frequency of power line: 50 or 60Hz.
Color Level: Large value indicates the image will be colorful.
Brightness: Large value will brighten camera.
Contrast: Large value will contrast camera heavily.
Sharpness: Large value indicates the image will be sharpened.
3D De-Noise: 3D De-Noise can remove or lower unwanted noise and preserve fine details and edges.
Default Settings: Restore to factory image settings.

6.2.2 Privacy Mask

Use this page to specify privacy mask window 1 to window 8 and set the name and gray level for selected window.

Picture Privacy Mask Add Delete Name Level 0 (Black) Save

➢ Add and Delete: To add or delete the privacy mask windows, the user can specify up to 8

windows to mask the video captured by this camera. By dragging mouse on the image, you can change the position and size of the selected window accordingly.

Name: Name of the specified privacy window.
Level: To define the gray level of mask block. The smaller value, the darker.

6.3 System: Configure and maintain system

Use this menu to perform the principal settings of the camera.

6.3.1 System

System Date & Time Maintenance Device Title TL_SC3230N (0 - 30 Digits) Software Version 6.E.2.8927 Network LED Enable Disable Power LED (Wireless LED) Enable Disable Log Reload Nov 8 20:15:05 TL-SC3230N syslog.info syslogd started: BusyBox v1.13.4 Nov 8 20:15:05 TL-SC3230N user.notice kernel: klogd started: BusyBox v1.13.4 (2012-07-03): Nov 8 20:15:05 TL-SC3230N user.notice kernel: Linux version 2.6.28 ([e-mail] Nov 8 20:15:05 TL-SC3230N user.warn kernel: CPU: FA626TE [66056261] revision 1 (ARMv5TE), Nov 8 20:15:05 TL-SC3230N user.warn kernel: CPU: VIPT aliasing data cache, VIPT aliasing : Nov 8 20:15:05 TL-SC3230N user.warn kernel: Machine: Faraday GM8126 Nov 8 20:15:05 TL-SC3230N user.warn kernel: Warning: bad configuration page, trying to con Nov 8 20:15:05 TL-SC3230N user.warn kernel: Memory policy: ECC disabled, Data cache write Nov 8 20:15:05 TL-SC3230N user.debug kernel: On node 0 totalpages: 32768 Nov 8 20:15:05 TL-SC3230N user.debug kernel: free_area_init_node: node 0, pgdat c0cf6f2c, Nov 8 20:15:05 TL-SC3230N user.debug kernel: Normal zone: 256 pages used for memmap Nov 8 20:15:05 TL-SC3230N user.debug kernel: Normal zone: 0 pages reserved OK Cancel

Camera Title: You can enter the name of this unit here. It's very useful to identify the specific camera from multiple units. The information will be shown on IP Search once the camera is found.
Software Version: This information shows the software version of the camera.
Network (LAN) LED: To turn on or off LAN LED.
Power LED (Wireless LED): To turn on or off the Power LED (wireless LED if WLAN model).
Log: The user can check the system log information of the camera, including the Main Info, Appended Info, Operator IP, and so on ...
➢ Reload: Click this button; the user can refresh the log information of the camera.

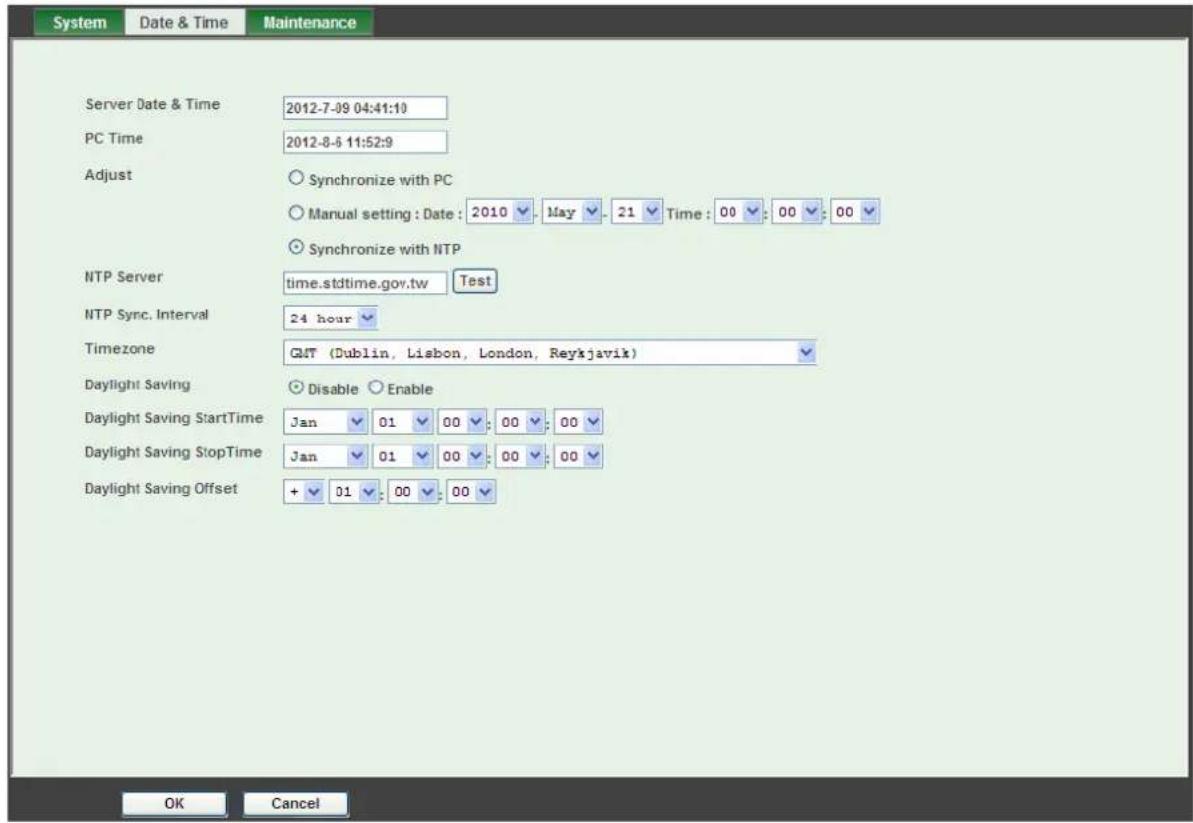

6.3.2 Date & Time

You can set up the camera or make it synchronized with PC or remote NTP server. Also, you may select your time zone in order to synchronize time locally.

System Date & Time Maintenance Server Date & Time 2012-7-09 04:41:10 PC Time 2012-8-6 11:52:9 Adjust ○ Synchronize with PC ○ Manual setting : Date : 2010 ▼ May ▼ 21 ▼ Time : 00 ▼ 00 ▼ 00 ▼ ○ Synchronize with NTP NTP Server time.stdtime.gov.tw Test NTP Sync. Interval 24 hour ▼ Timezone GMT (Dublin, Lisbon, London, Reykjavik) ▼ Daylight Saving ○ Disable ○ Enable Daylight Saving StartTime Jan ▼ 01 ▼ 00 ▼ 00 ▼ 00 ▼ Daylight Saving StopTime Jan ▼ 01 ▼ 00 ▼ 00 ▼ 00 ▼ Daylight Saving Offset + ▼ 01 ▼ 00 ▼ 00 ▼ OK Cancel

Server Date & Time: Displays the date and time of the camera.
PC Time: Displays the date and time of the connected PC.
Adjust:

- Synchronize with PC:

Click this option to enable time synchronization with PC time.

- Manual setting:

Click this option to set time and date manually.

- Synchronize with NTP:

Click this option if you want to synchronize the camera's date and time with those of time server called NTP server (Network Time Protocol).

NTP Server: Type the host name or IP address or domain name of the NTP server.
NTP Sync. Interval: Select an interval between 1 and 24 hours at which you want to adjust the camera's time referring to NTP server
Time zone: Set the time difference from Greenwich Mean Time in the area where the camera is installed.
Daylight Saving: Disable or enable the daylight saving adjustment.

6.3.3 Maintenance

System Date & Time Maintenance Default Settings (Including Network Setting) Factory Default Settings Default Settings (Excluding Network Setting) Default Settings Backup Setting Backup Setting Restore Setting 测底... Restore Setting Reset Firmware Upgrade 测底... Firmware Upgrade Reset System Restart Restart

Hard Factory Default (Include the network setting): Recall the camera hard factory default settings. Note that click this button will reset all camera's parameters to the factory settings (including the IP address).
➢ Factory Default (Except the network setting): The unit is restarted and most current settings are reset to factory default values. This action will not reset the network setting.
Backup Setting: To take a backup of all of the parameters, click this button. If necessary, it will then be possible to return to the previous settings, if settings are changed and there is unexpected behavior.
Restore Setting: Click the "Browse" button to locate the saved backup file and then click the "Restore Setting" button. The settings will be restored to the previous configuration.
Firmware Upgrade: The camera supports new firmware upgrade (the software that controls the operation in the camera). Please contact your dealer for the latest version if necessary.

Download the latest firmware file from our website or your dealer. Unzip this firmware file to binary file and store it into your PC. Follow the steps as below carefully:

1. Close all other application programs which are not necessary for firmware update.
2. Make sure that only you access this camera while firmware updating.
3. Disable all event trigger and/or schedule trigger functions first.

4. In this web page, click "Browse" button. Select the Firmware binary file.

5. Once the firmware file was selected, click "Firmware Upgrade" button.

6. The upgrade progress information will be displayed. Once the uploading process completed, the camera will reboot the system automatically.
7. Please wait for timer countdown, and then you can use IP Search to search the camera again.

Note:

The download firmware procedure cannot be interrupted. If the power and/or network connection are broken during the download procedure, it will cause serious damage to the camera.

You are strongly suggested not to upgrade firmware via Wireless LAN due to high error rate possibly and don't allow any other clients to access this unit during updating procedure.

Be aware that you shall not turn off the power during updating the firmware and wait for finish message.

Furthermore, the firmware upgrade procedure is always risky and do not try to upgrade new firmware if it's not necessary.

System Restart: The camera is restarted without changing any of the network settings. It means the IP address of the camera will not change after firmware upgrade.

6.4 Video: Configure profile

This device provides 2 modes of video profile. The first one is 1.3 Mega mode which supports video resolution up to 1.3 Mega-pixel. Maximum frame rate of this mode is up to 30fps. The second one is 720p mode which supports video resolution up to 1280x720 but frame rate can be up to 30fps. User only can select either 1.3 Mega or 720p mode to operate the camera. Switching 1.3 Mega and 720p mode, the device will take time to re-configure system.

6.4.1 Common

Common Video Profile ROI Video Profile 720p Mode 1.3 MEGA Mode Text Overlay Setting Font Color 797979 Set Color Default Color Background Color 101010 Set Color Default Color Transparency 0 (opacity) Include Date Predefined YYYY-1&M-DD Own %Y-%m-%d (0 ~ 12 Digits) Include Time Predefined 24h Own %H:%M:%S (0 ~ 12 Digits) Include Text General Text (0 ~ 20 Digits) OK Cancel

Text Overlay Setting: There are some important information can be embedded into image, including date, time, and/or text. The user also can change the font color, background color, or transparency.

6.4.2 Video Profile

Common Video Profile ROI Name Video Type Resolution Rate Control Quality Bitrate Max Frame Rate GOP Control ROI Multicast Profile1 h264 1280x1024 EVBR 90 - 30 30 no Profile2 mjpeg 1280x1024 VER 90 - 6 1 no Profile3 h264 640x480 EVBR 90 - 30 30 no Profile4 mjpeg 640x480 VER 90 - 6 1 no Profile5 h264 320x240 EVBR 90 - 30 30 no Profile6 mjpeg 320x240 VER 90 - 30 1 no Profile7 h264 160x120 EVBR 90 - 30 30 no Profile8 mjpeg 160x120 VER 90 - 30 1 no Name Profile1 Video Type h264 Resolution 1280x1024 ROI Yes Ilo Rate Control EVBR Quality 90 Max Bitrate 4000 K bps 384 - 6000 Max Frame Rate 30 GOP Control 30 Multicast Enable Disable Multicast Video IP Address 239.198.97.181 Port 0 (0 means auto, 1024 ~ 65534) Multicast Audio IP Address 239.198.97.181 Port 0 (0 means auto, 1024 ~ 65534) Time to live 1 (1 ~ 255) Always Enable Multicast Enable Disable OK Cancel

Name: To assign a name to the selected profile.
Video Type: Video codec of the selected profile.
➢ Resolution: Shows the resolution of the selected profile.
➢ ROI: Assign the selected profile as a ROI stream or not. (Only available for the profiles with max resolution)
Rate Control: Defines the rate control method of this profile. There are four options: Constant Bit Rate (CBR), Variable Bit Rate (VBR), Enhanced Constant Bit Rate (ECBR), and Enhanced Variable Bit Rate (EVBR).

• For CBR, the video bit rate is between low to high bandwidth based on different resolutions. The user can set the desired bit rate to match the limitation of bandwidth.
• For VBR, the user should choose the quality level to set the video quality rather than bit rate. The quality level is between 1 and 100. The higher value can reach the better quality but of course will consume higher bandwidth.
• For ECBR, the video bitrate is based on normal CBR mode. However, the target bitrate can be increased to max target bitrate while lots of motion in video. The max target bitrate will keep a pre-defined time period and then back to normal CBR bitrate.
• For EVBR, the video bitrate is based on normal VBR mode. However, the bitrate can be limited to the max bitrate while lots of motion in video.

Max Frame Rate: Defines the targeted frame rate of this profile. For example, set the frame rate to 30 fps, then the image will be updated for 30 frames per second as possible. The user needs to set reasonable max frame rate versus video quality under the limited bandwidth.
GOP Control: Defines the Intra/Inter-frame (I/P) ratio of this profile. For example, set the GOP to 30, then the video stream will have one Intra-frame every 30 frames.

6.4.3 ROI

ROI means Region of Interest. Use this page to specify location of ROI windows. Only the maximum resolution profiles can be defined as ROI.

Common Video Profile ROI Save

6.5 Audio: Audio parameters

Setting Audio Disable Enable Audio Type g726 Audio Mode Simplex Full duplex Input Gain 80 Output Gain 80 OK Cancel

➢ Audio: To enable or disable audio function
➢ Audio Type: To select audio codec
➢ Audio Mode: To select Simplex or Full duplex (2-way audio) mode
Input Gain: To adjust gain of input audio
Output Gain: To adjust gain of output audio

6.6 User: Manage user name, password and login privilege

Use this menu to add, update, or remove the usernames and passwords of the Administrator and viewer.

Setting Viewer Login ○ Anonymous ○ Only users in database Save User Name Access Right admin administrator User List User Name (1 ~ 20 Digits) Password (0 ~ 20 Digits) Verify Password (0 ~ 20 Digits) Access Right ○ Administrator ○ Viewer Add Modify Delete

Viewer login: Select "Anonymous" to allow all users to view the video as long as they are connected. Otherwise, only users in database can view the video after login.
Access Right: Administrator can access every function in this camera. However, viewers only can view the video and access limited function.
Add, Modify, and Delete of Users account: Manage the user's account of viewer user.

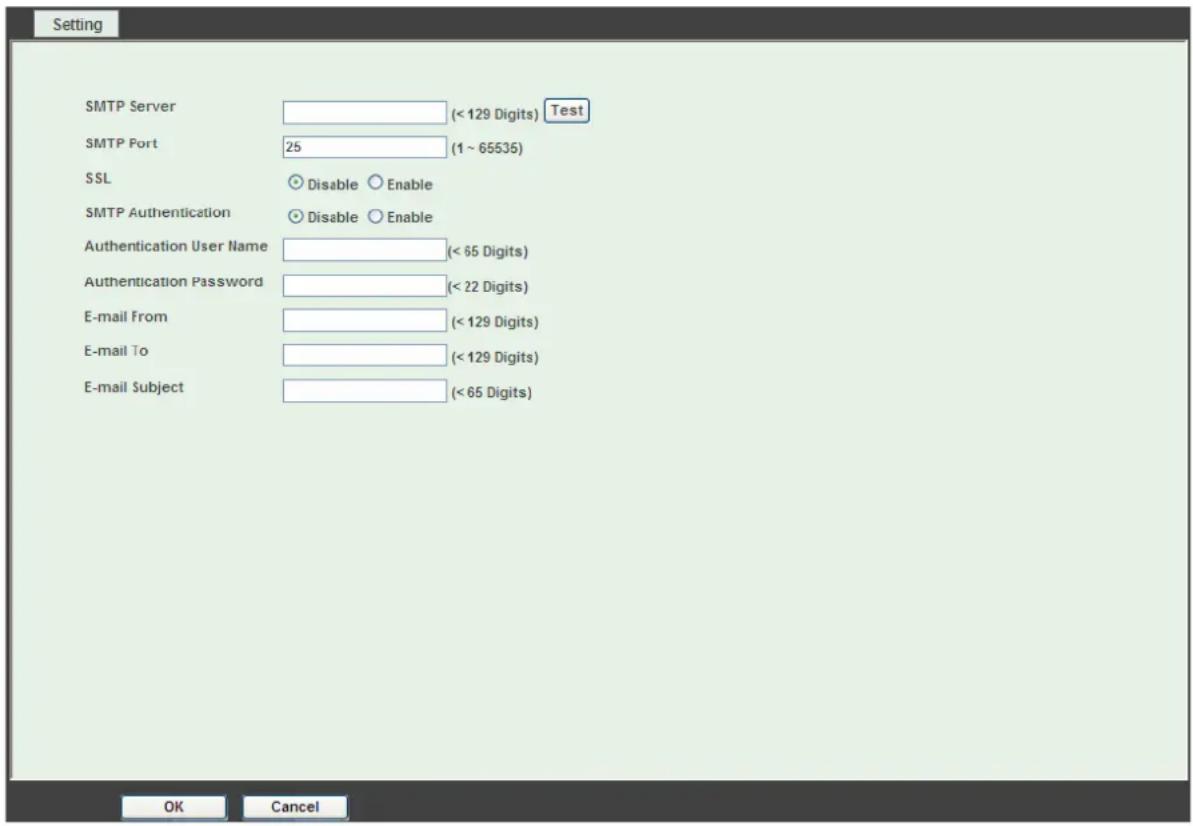

6.7 E-Mail: Set up E-Mail configuration

The user may set up SMTP mail parameters for further operation of Event Schedule. That's, if users want to send the alarm message out, it will need to configure parameters here first and also add at least one event schedule to enable event triggering.

Setting SMTP Server (< 129 Digits) Test SMTP Port 25 (1 ~ 65535) SSL Disable Enable SMTP Authentication Disable Enable Authentication User Name (< 65 Digits) Authentication Password (< 22 Digits) E-mail From (< 129 Digits) E-mail To (< 129 Digits) E-mail Subject (< 65 Digits) OK Cancel

SMTP Server: Type the SMTP server name or the IP address of the SMTP server.
Test: Send a test mail to mail server to check this account is available or not.
SMTP Port: Set port number of SMTP service.
SSL: Enable SSL function or not.
SMTP Authentication: Select the authentication required when you send an e-mail. Disable: if no authentication is required when an e-mail is sent. Enable: if authentication is required when an e-mail is sent.
Authentication User name: Type the user name for the SMTP server if Authentication is enabled.
Authentication Password: Type the password for the SMTP server if Authentication is enabled.
E-mail From: Type the sender's E-mail address. This address is used for reply e-mails.
E-mail To: Type the receiver's e-mail address.
E-mail Subject: Type the subject/title of the e-mail.

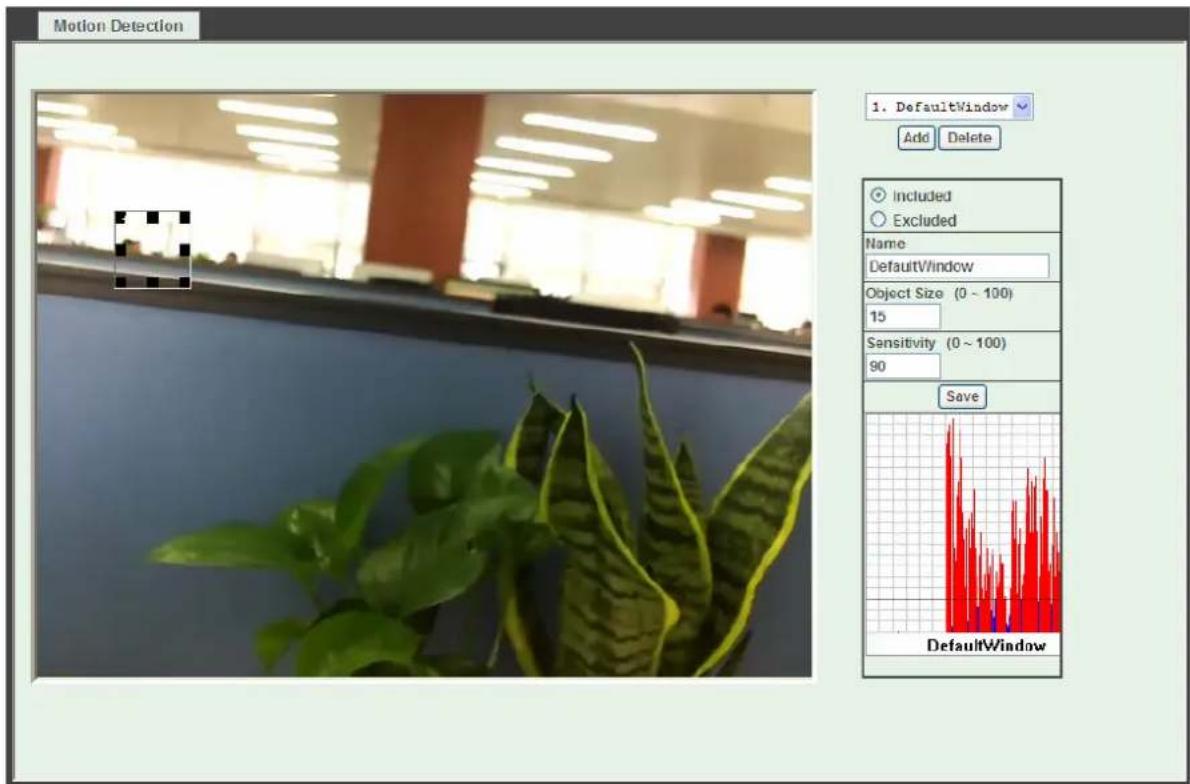

6.8 Object detection: Set up Object detection

Use this menu to specify motion detection window 1 to window 10 and set the conditions for detection while observing a captured image.

Motion Detection 1. DefaultWindow Add Delete Included Excluded Name DefaultWindow Object Size (0 ~ 100) 15 Sensitivity (0 ~ 100) 90 Save DefaultWindow

Add and Del: To add or delete the motion windows. The user can specify up to 10 Included and/or Excluded windows to monitor the video captured by this camera. By dragging mouse on the image, you can change the position and size of the selected motion window accordingly.
Included or Excluded Window: These windows can be specified as Included or Excluded type. Included windows target specific areas within the whole video image. Excluded windows define areas within an Include window that should be ignored (areas outside Include windows are automatically ignored)
Name: Name of the specified motion window.
Object Size: Defines the object size of motion detection. The smaller size will be easier to trigger event.
Sensitivity: Defines the sensitivity value of motion detection. The higher value, the more sensitivity.

6.9 Storage: Status and configuration of SD card

This page shows the status of attached SD card. You may set up related parameters to manage the attached SD card also the video recording storage on the samba server.

6.9.1 SD Card

SD Card SAMBA Server Disk ID SD_DISK Mount Unmount Status Free space 0% - 0KB Reload Format Total size 0 KB Status No SD card inserted Full Yes Readonly No Enable automatic disk cleanup Remove recordings older than: 7 day(s) Remove oldest recordings when disk is: 95 % full Lock disk OK Cancel

➢ Enable automatic disk cleanup: Delete old recorded files while the conditions are reached as below.
Remove recordings order than: Delete old files by days.
Remove oldest recordings when disk is: Delete old files by left capacity.

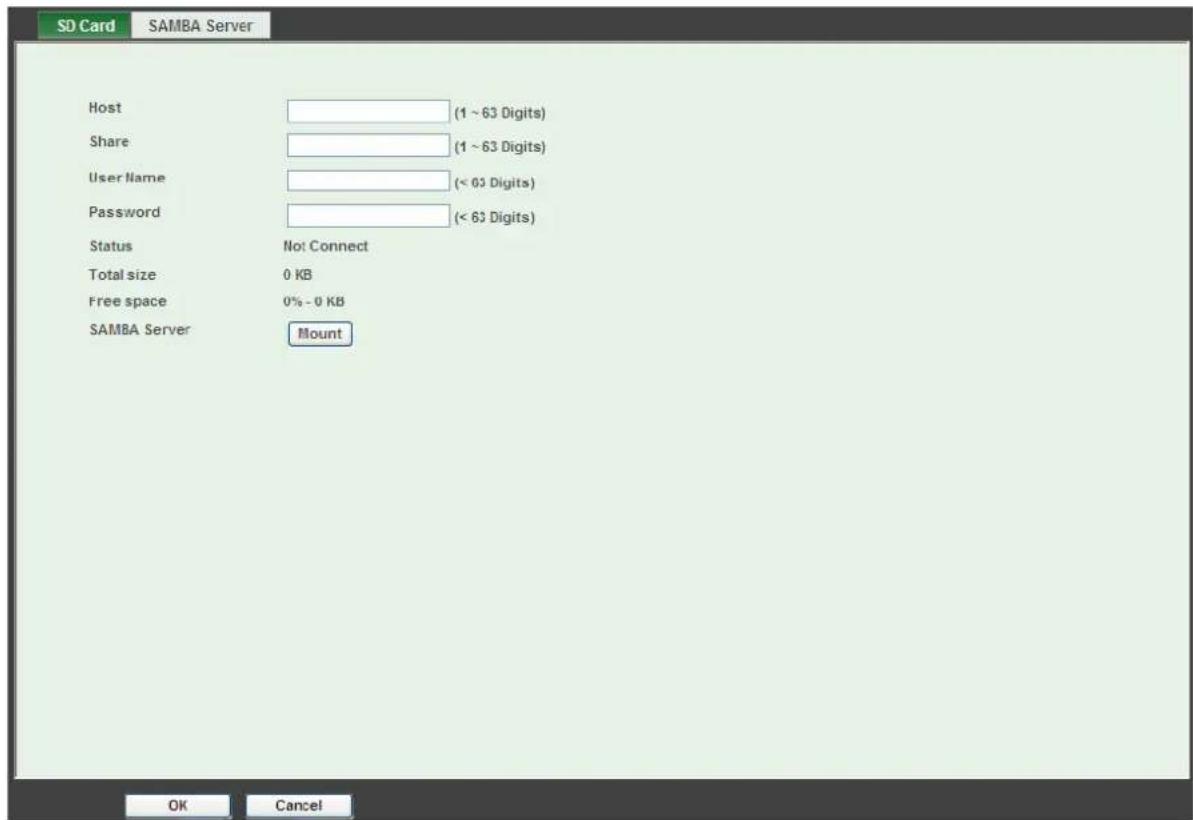

6.9.2 SAMBA Server

The camera can send video stream to specified SAMBA server.

SD Card SAMBA Server Host (1 ~ 63 Digits) Share (1 ~ 63 Digits) User Name (< 63 Digits) Password (< 63 Digits) Status Not Connect Total size 0 KB Free space 0% - 0 KB SAMBA Server Mount OK Cancel

SAMBA Host: Type the IP address of the SAMBA server.
Share: Type the video storage destination on the SAMBA server.
SAMBA username: Type the user name to login the SAMBA server.
SAMBA Login Password: Type the password to login the SAMBA server.

6.10 Continuous Recording

The camera provides continuous video recording feature to store camera video clip to SD card or samba server in local network. The page shows the status of attached SD card. You may set up related parameters to manage the attached SD card also the video recording storage on the samba server.

Note:

1) Max. 5 minutes of video can be recorded to SD card or samba server.
2) There are various factors affecting the recording results, such as network congestion, SD card writing performance, hardware resource limitation...etc.; NO guarantee will be given to "seamless recording" in the recorded video clips.

Continuous Recording Continuous Recording ○ Disable ○ Enable Record File Type Profile1 h264 / 1200x1024 Disk ○ SD Card ○ SAMBA Server Path TP-LINK-000EAEA26190 ( For example: Folder1/Folder2/Folder3 ) (1 ~ 63 Digits) Restart (Restarting will delete the current recording.) Oldest recordings will be removed if the disk is 90% full and free space is smaller than 1GB. OK Cancel

➢ Disable / Enable: Enable or disable the continuous recording feature in camera.
Record File Type: Select video profile to be used in video recording. Please note that max. 5 minutes of video can be recorded.
Disk: Select SD card or SAMBA server as recording destination.
Path: Type the password to login the SAMBA server.

Restart: If the Restart button is pressed, the current recording tasks will be terminated, and start a new recording session.

6.11 Recording List: Files list inside the SD Card/samba server

This page shows the files list information. The user may play or delete the selected file.

Recording List Continuous Recording List Date File Trigger by Size Reload Recover Play Remove

This page shows the event triggered or scheduled recorded video files list in SD card or on the samba server. The user may play or delete the selected file.

Recording List Continuous Recording List Disk: SAMBA Server Path: TP-LINK-000EAEA26190 Date File Trigger by Size Reload Recover Play Remove OK Cancel

6.12 Event Server: Set up FTP/TCP/HTTP/SAMBA server configuration

6.12.1 FTP Server

You may set up FTP parameters for further operation of Event Schedule. That's, if users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.

FTP Server TCP Server HTTP Server SAMBA Server Name FTP Server FTP Port FTP Path Name (< 22 Digits) FTP Server (< 65 Digits) Test FTP Login Name (< 22 Digits) FTP Login Password (< 22 Digits) FTP Port 21 (1 ~ 65535) FTP Path (< 65 Digits) FTP Passive Mode Disable Enable Add Modify Delete

Name: The user can specify multiple FTP paths as wish. Therefore, the user needs to specify a name for each FTP setting.
FTP Server: Type the server name or the IP address of the FTP server.
Test: Check the FTP server whether this account is available or not.
FTP Login name: Type the user name for the FTP server.
FTP Login Password: Type the password for the FTP server.
FTP Port: Set port number of FTP service.
FTP Path: Set working directory path of FTP server.
FTP Passive Mode: Select passive or active mode connecting to FTP server.

6.12.2 TCP Server

In addition to send video file to FTP server, the camera also can send event message to specified TCP server.

FTP Server TCP Server HTTP Server SAMBA Server Name TCP Server TCP Port Name (< 22 Digits) TCP Server (< 65 Digits) Test TCP Port (1 ~ 65535) Add Modify Delete

Name: The user can specify multiple TCP servers as wish. Therefore, the user needs to specify a name for each TCP server setting.
TCP Server: Type the server name or the IP address of the TCP server.
TCP Port: Set port number of TCP server.

6.12.3 HTTP Server

The camera also can send event message to specified HTTP server.

FTP Server TCP Server HTTP Server SAMBA Server Name HTTP Server Proxy Address Name (< 22 Digits) URL http:// (< 129 Digits) Test HTTP Login Name (< 22 Digits) HTTP Login Password (< 22 Digits) Proxy Address (< 129 Digits) Proxy Login Name (< 22 Digits) Proxy Login Password (< 22 Digits) Proxy Port (1 ~ 65535) Add Modify Delete

Name: The user can specify multiple HTTP servers as wish. Therefore, the user needs to specify a name for each HTTP server setting.
URL: Type the server name or the IP address of the HTTP server.
Test: Check the HTTP server whether it is available or not.
HTTP Login name: Type the user name for the HTTP server.
HTTP Login Password: Type the password for the HTTP server.
Proxy Address: Type the server name or the IP address of the HTTP Proxy.
Proxy Login name: Type the user name for the HTTP Proxy.
Proxy Login Password: Type the password for the HTTP Proxy.
Proxy Port: Set port number of Proxy.

6.12.4 SAMBA Server

The camera also can send video stream to specified SAMBA server.

FTP Server TCP Server HTTP Server SAMBA Server Name SAMBA Server SAMBA Path Name (< 22 Digits) SAMBA Server (< 65 Digits) Test! SAMBA Login Name (< 22 Digits) SAMBA Login Password (< 22 Digits) SAMBA Path (< 65 Digits) Add Modify Delete

Name: The user can specify multiple HTTP servers as wish. Therefore, the user needs to specify a name for each HTTP server setting.
SAMBA Server: Type the server name or the IP address of the SAMBA server.
Test: Check the SAMBA server whether this account is available or not.
SAMBA Login name: Type the user name for the SAMBA server.
SAMBA Login Password: Type the password for the SAMBA server.
SAMBA Path: Set working directory path of SAMBA server.

6.13 Event Schedule: Configure the event schedule

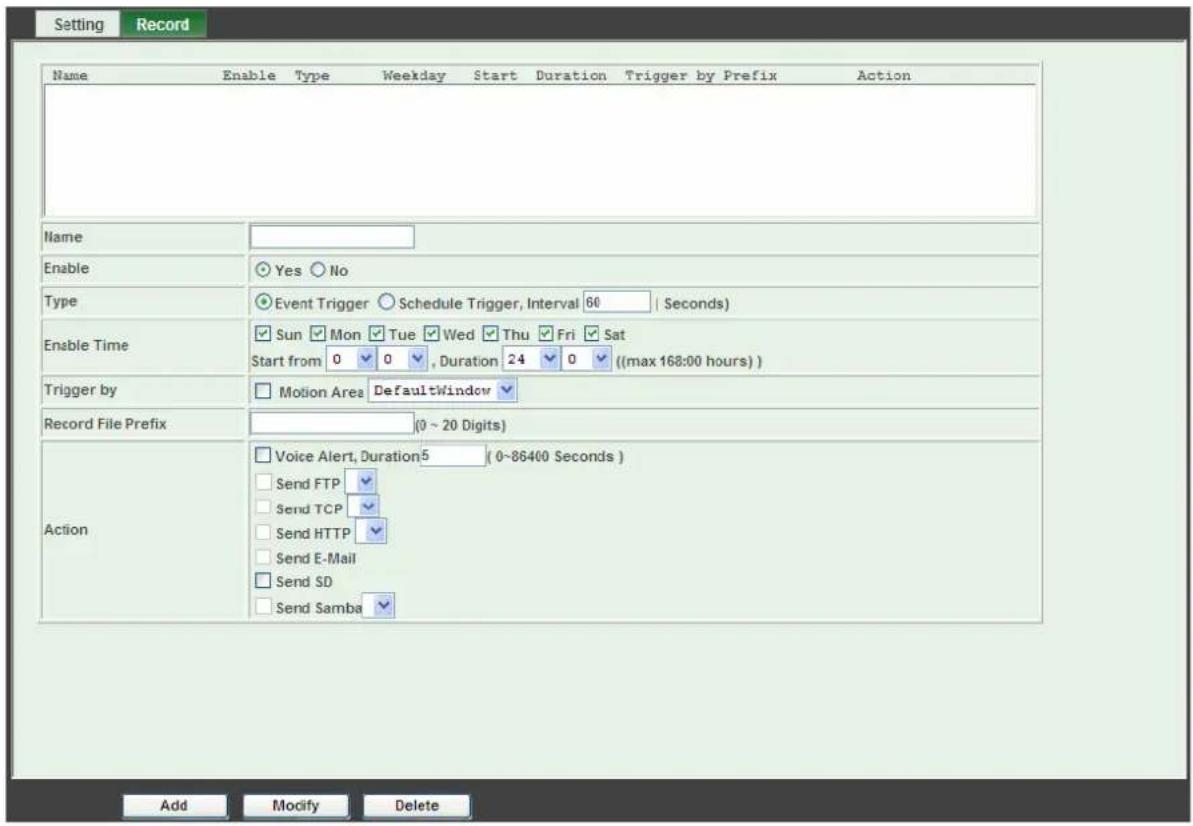

6.13.1 Setting

This menu is used to specify the schedule of Event or Schedule Trigger and activate the some actions provided by this camera. Where the Schedule Trigger will be activated by user-define interval without event happened.

Setting Record Name Enable Type Weekday Start Duration Trigger by Prefix Action Name Enable Yes No Type Event Trigger Schedule Trigger, Interval 60 (Seconds) Enable Time Sun Mon Tue Wed Thu Fri Sat Start from 0 0 , Duration 24 0 ((max 168:00 hours)) Trigger by Motion Area DefaultWindow Record File Prefix (0 ~ 20 Digits) Action Voice Alert, Duration 5 ( 0~86400 Seconds ) Send FTP Send TCP Send HTTP Send E-Mail Send SD Send Samba Add Modify Delete

Name: Name of the Event or Schedule.
➢ Enable: Enable or disable this Event or Schedule.
Type: Event trigger or Schedule trigger.
➢ Enable Time: Define the feasible time slot.
Trigger by: Select the triggered sources.
Action: Define the actions once event triggered.

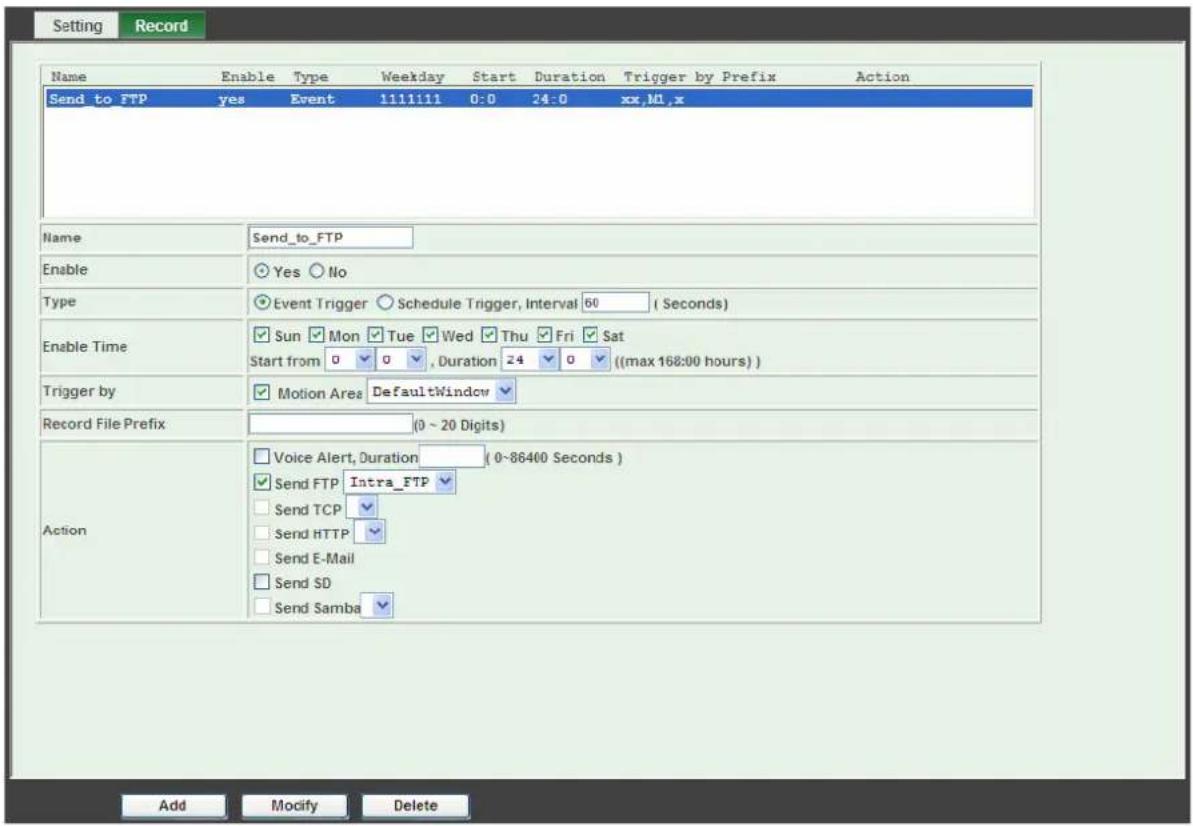

Example 1:

Send file to FTP server by motion triggered always:

1. Select event trigger
2. Enable time: start from 00:00 to 24:00 every day
3. Trigger by: Motion Area (Added in Object Detection page)
4. Action : Send FTP (Add in Event Server -> FTP Server page)

Setting Record Name Enable Type Weekday Start Duration Trigger by Prefix Action Send to FTP yes Event 1111111 0:0 24:0 xx,MI,x Name Send_to_FTP Enable Yes No Type Event Trigger Schedule Trigger, Interval 50 (Seconds) Enable Time Sun Mon Tue Wed Thu Fri Sat Start from 0 0 , Duration 24 0 ((max 168:00 hours)) Trigger by Motion Area DefaultWindow Record File Prefix (0 ~ 20 Digits) Action Voice Alert, Duration ( 0~86400 Seconds ) Send FTP Intra_FTP Send TCP Send HTTP Send E-Mail Send SD Send Samba Add Modify Delete

Example 2:

Send file to E-Mail server by motion triggered from Friday 18:00 to Saturday 06:00

1. Select event trigger.
2. Enable time: start from Friday 18:00 and keep work in 12 hours, so it will stop on Saturday 06:00.

3. Trigger by : Motion Area (Added in Object Detection page)

4. Action : Send e-mail (Add in E-Mail page)

1) To email address: You need to input the receiver email address.
2) Subject: You could specify the email subject.
3) Message: You could specify the email content.

Setting Record Name Enable Type Weekday Start Duration Trigger by Prefix Action Send to Email yes Schedule 0000011 18:0 6:0 xx,M1,x VOICE Name Send_to_Email Enable Yes No Type Event Trigger Schedule Trigger, Interval 600 (Seconds) Enable Time Sun Mon Tue Wed Thu Fri Sat Start from 18 0 , Duration 6 0 ((max 168:00 hours)) Trigger by Motion Area DefaultWindow Record File Prefix (0 ~ 20 Digits) Action Voice Alert, Duration 10 0~86400 Seconds ) Send FTP Intra_FTP Send TCP Send HTTP Send E-Mail To email address Subject Message Attached file Send SD Send Samba Add Modify Delete

Example 3:

Enable Voice Alert every 10-minute during 18:00 to 24:00 from Monday to Friday.

1. Type: Select schedule trigger and interval is 10-minute.
2. Enable time: Select Monday to Friday, and set start time from 18:00 and keep work in 6 hours.
3. Trigger by: You do not need to choose it, because this will be triggered every 10 minute
4. Action : Voice Alert

Setting Record Name Enable Type Weekday Start Duration Trigger by Prefix Action Trigger Voice Alert yes Schedule 0111110 18:0 6:0 xx,M1,x VOICE Name Triger_Voice_Alert Enable Yes No Type Event Trigger Schedule Trigger, Interval 500 (Seconds) Enable Time Sun Mon Tue Wed Thu Fri Sat Start from 18 0 , Duration 6 0 ((max 168:00 hours)) Trigger by Motion Area DefaultWindow Record File Prefix (0 ~ 20 Digits) Action Voice Alert, Duration10 ( 0~86400 Seconds ) Send FTP Intra_FTP Send TCP Send HTTP Send E-Mail Send SD Send Samba Add Modify Delete

6.13.2 Record

The user can choose the type of record file for event or schedule application.

Setting Record Record File Type Profile1 h264 / 1280x1024 Record File Prefix (0 ~ 20 Digits) Pre Trigger Duration 5 (0 ~ 20 Seconds) Best Effort Duration 30 (1 ~ 60 Seconds) Max File Size 1024 (256 ~ 3072 Bytes) OK Cancel

Record File Type: Choose a profile to record.
Record File Prefix: Define the prefix of recorded filename.
JPEG Picture Numbers: Define the picture numbers of JPEG to be sent out. (by mode)
Pre-Trigger Duration: Define the maximum duration of pre-alarm.
Best Effort Duration: Define the best effort duration of post-alarm.
Max File Size: Define the maximum buffer size of record file.

Appendix A: Troubleshooting & FAQ

Question Answer	or Resolution
Features
The video and audio codec is adopted in the camera.	The camera utilizes H.264, MPEG4 and JPEG triple compression to provide high quality images. H.264 and MPEG4 are standards for video compression and JPEG is a standard for image compression.The audio codec is defined as AMR for 3GPP and G.711/G.726 for RTSP streaming.
The maximum number of users accessing the camera simultaneously.	The maximum number of users is limited to 20. However, it also depends on the total bandwidth accessed to this camera from clients. The maximum data throughput of the camera is around 20~25Mbps for UDP mode and 10Mbps for HTTP mode. Therefore, the actual number of connected clients varies by streaming mode, settings of resolution, codec type, frame rate and bandwidth. Obviously, the performance of the each connected client will slow down when many users are logged on.
The camera can be used outdoors or not.	The camera is not weatherproof. It needs to be equipped with a weatherproof case for outdoors using. However, equipped with a weatherproof case might disable the audio function of the camera.
Install this camera
Status LED does not light up.	Check and confirm that the DC power adaptor, included in package, is used. Secure the power connector and re-power it on again.If the problem is not solved, the camera might be faulty. Contact your dealer for further help.
The network cabling is required for the camera.	The camera uses Category 5 UTP cable allowing 10 and/or 100 Base-T networking.
The camera will be installed and work if a firewall exists on the network.	If a firewall exists on the network, port 80 is open for ordinary data communication. The HTTP port and RTSP port need to be opened on the firewall or NAT router.
The username and password for the first time or after factory default reset	Username isadminand password isadmin.Note that it's all case sensitive.
Forgot the username and password	Follow the steps below.Restore the factory default setting by pressing and holding down more than 5 seconds on the camera.Reconfigure the camera.
Forgot the IP address of the camera.	Check IP address of camera by using the IP Search program or by UPnP discovery.
IP Search program cannot find the camera.	Re-power the camera if the program cannot find the unit within 1 minute.Do not connect camera over a router. IP Search program cannot detect camera over a router.If IP address is not assigned to the PC which running IP Search program, then IP Search program cannot find camera. Make sure that IP address is assigned to the PC properly.Antivirus software on the PC might interfere with the setup program. Disable the firewall of the antivirus software during setting up this camera.Check the firewall setting of your PC or Notebook.
Internet Explorer does not seem to work well with the camera	Make sure that your Internet Explorer is version 6.0 or later. If you are experiencing problems, try upgrading to the latest version of Microsoft's Internet Explorer from the Microsoft webpage.
IP Search program fails to save the network parameters.	Network may have trouble. Confirm the parameters and connections of the camera.
UPnP NAT Traversal
Cannot work with NAT router	Maybe NAT router does not support UPnP function. Please check user's manual of router and turn on UPnP function.Maybe UPnP function of NAT router is not compatible to the IP camera. Please contact your dealer to get the approval routers list.
Some IP cameras are working but others are failed	Maybe too many IP cameras have been installed on the LAN, and then NAT router is out of resource to support more cameras. You could turn off and on NAT router to clear out of date information inside router.
Access this camera
Cannot access the login page and other web pages of the camera from Internet Explorer	Maybe the IP Address of the camera is already being used by another camera or computer. To confirm this possible problem, disconnect the camera from the network first, and then run the PING utility to check it out.May be due to the network cable. Try correcting your network cable and configuration. Test the network interface by connecting a local computer to the camera via a crossover cable.Make sure the Internet connection and setting is ok.Make sure enter the IP address of Internet Explorer is correct. If the camera has a dynamic address, it may have changed since you last checked it.Network congestion may prevent the web page appearing quickly. Wait for a while.The IP address and Subnet Mask of the PC and camera must be in the same class of the private IP address on the LAN.Make sure the http port used by the camera, default=80, is forward to the camera's private IP address.The port number assigned in your camera might not be available via Internet. Check your ISP for available port.The proxy server may prevent you from connecting directly to the camera, set up not to use the proxy server.Confirm that Default Gateway address is correct.The router needs Port Forwarding feature. Refer to your router's manual for details.Packet Filtering of the router may prohibit access from an external network. Refer to your router's manual for details.Access the camera from the Internet with the global IP address of the router and port number of camera.Some routers reject the global IP address to access the camera on the same LAN. Access with the private IP address and correct port number of camera.When you use DDNS, you need to set Default Gateway and DNS server address.If it's not working after above procedure, reset camera to default setting and installed it again.If the problem is not solved, the camera might be faulty. Contact your dealer for further help.
Image or video does not appear in the main page.	The first time the PC connects to camera, a pop-upSecurity Warning windowwill appear to download ActiveX Controls. When using Windows XP, or Vista, log on with an appropriate account that is authorized to install applications.Network congestion may prevent the Image screen from appearing quickly. You may choose lower resolution to reduce the required bandwidth.
Check the camera's ActiveX is installed on your computer	Go to C:\Windows\Downloaded Program Files and check to see if there is an entry for the file "IPCamera Control". The status column should show "Installed". If the file is not listed, make sure your Security Settings in Internet Explorer are configured properly and then try reloading the camera's home page. Most likely, the ActiveX control did not download and install correctly. Check your Internet Explorer security settings and then close and restart Internet Explorer. Try to browse and log in again.
Internet Explorer displays the following message: "Your current security settings prohibit downloading ActiveX controls".	Set up the IE security settings or configure the individual settings to allow downloading and scripting of ActiveX controls.
The camera work locally but not externally.	Might be caused from the firewall protection. Check the Internet firewall with your system or network administrator. The firewall may need to have some settings changed in order for the camera to be accessible outside your LAN.Make sure that the camera isn't conflicting with any other web server running on your LAN.Check the configuration of the router settings allow the camera to be accessed outside your local LAN.Check the bandwidth of Internet connection. If the Internet bandwidth is lower than target bit rate, the video streaming will not work correctly.
The unreadable characters are displayed.	Use the operating system of the selected language. Set the Encoding or the Character Set of the selected language on the Internet Explorer.
Frame rate is slower than the setting.	The traffic of the network and the object of the image affect the frame rate. The network congestion causes frame rate slower than the setting.Check the bandwidth of Internet connection. If the Internet bandwidth is lower than target bit rate, the video streaming will not work correctly.Ethernet switching hub can smooth the frame rate.
Blank screen or very slow video when audio is enabled.	Your connection to the camera does not have enough bandwidth to support a higher frame rate for the streamed image size. Try reducing the video streaming size to 160x120 or 320x240 and/or disabling audio.Audio will consume 32 kbps. Disable audio to improve video. Your Internet connection may not have enough bandwidth to support streaming audio from the camera.
Image Transfer on e-mail or FTP does not work.	Default Gateway and DNS server address should be set up correctly.If FTP does not work properly, ask your ISP or network administrator about the transferring mode of FTP server.
Pan/Tilt does not work. (including Click to Center and Preset Positioning)	Click Refresh on the Internet Explorer when the communication stops with the camera. The image will refresh.Other clients may be operating Pan/Tilt.Pan/Tilt operation has reached the end of corner.
Pan/Tilt does not work smoothly.	There may be a slight delay when you are using the Pan/Tilt feature in conjunction with streaming audio and video. If you find that there is a significant delay while panning or tilting the camera, try disabling the audio streaming and/or reducing the video streaming size.
Video quality of the camera
The focus on the camera is bad.	The lens is dirty or dust is attached. Fingerprints, dust, stain, etc. on the lens can degrade the image quality.
The color of the image is poor or strange.	Adjust White Balance.To insure the images you are viewing are the best they can be, set the Display property setting (color quality) to 16bit at least and 24 bit or higher if possible within your computer.The configuration on the camera image display is incorrect. You need to adjust the image related parameters such as brightness, contrast, hue and sharpness properly.
Image flickers.	Wrong power line frequency makes images flicker. Make sure the 50 or 60Hz format of your camera.If the object is dark, the image will flicker. Make the conditionaround the camera brighter.
Noisy images occur.	The video images might be noisy if the camera is located in a very low light environment. Make the condition around the camera brighter or turn the White-light LED on.
Miscellaneous
Cannot play the recorded ASF file	Have installed Microsoft®’s DirectX 9.0 or later and use the Windows Media Player 11.0 or later to play the AVI filed recorded by the camera.

Appendix B: PING IP Address

The PING (stands for Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It's also a very useful tool to confirm the camera installed or if the IP address conflicts with any other cameras over the network.

If you want to make sure the IP address of the camera, utilize the PING command as follows:

• Launch a Command Prompt.
• Type ping x.x.x.x, where x.x.x.x is the IP address of the camera. For example, ping 192.168.1.103

The replies, as illustrated below, will provide an explanation to the problem.

C:\WINDOWS\system32\cmd.exe Microsoft Windows XP [Version 5.1.2600] (C) Copyright 1985-2001 Microsoft Corp. C:\Documents and Settings\chinese\simplified>>ping 192.168.1.103 Pinging 192.168.1.103 with 32 bytes of data: Reply from 192.168.1.103: bytes=32 time<1ms TTL=64 Reply from 192.168.1.103: bytes=32 time=1ms TTL=64 Reply from 192.168.1.103: bytes=32 time<1ms TTL=64 Reply from 192.168.1.103: bytes=32 time=2ms TTL=64 Ping statistics for 192.168.1.103: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 0ms, Maximum = 2ms, Average = 0ms C:\Documents and Settings\chinese\simplified>

If you want to detect any other cameras conflicts with the IP address of camera, also can utilize the PING command but you must disconnect the camera from the network first.

Appendix C: Bandwidth Estimation

The frame rate of video transmitted from the camera depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements form your camera.

The required bandwidth depends on content of video source. The slow motion video will produce smaller bit rate generally and fast motion will produce higher bit rate vice versa. Actual results generated by the camera may be varying.

Image Resolution	Average range of data sizes for JPEG mode	Average bit rate for MPEG4 mode	Average bit rate for H.264 mode
160 x 120 (QQVGA)	3 ~ 6k byte per frame	64kbps~256kbps @ 30fps	25kbps~512kbps @ 30fps
320 x 240 (QVGA)	8 ~ 20k byte per frame	NA	128kbps~2048kbps @ 30fps
640 x 480 (VGA)	20 ~ 50K byte per frame	NA	384kbps~4096kbps @ 30fps
1280x720 (720p)	100 ~ 200K byte per frame	NA	1,024kbps~8,000kbps @ 30fps

Note:

Audio streaming also takes bandwidth around 32kbps. Some xDSL/Cable modem upload speeds could not even reach up to 128 kbps. Thus, you may not be able to receive good quality video while also streaming audio on a 128 kbps or lower connection. Even though the upload speed is more than 128kbps, for optimal video performance, disabling audio streaming will get better video performance.

Appendix D: Specifications

Camera LAN WLAN
Image Camera 1.3 Mega-pixel image sensor
Effective Pixels 1280 x	1024 pixels
Sensitivity 1.0V/lux-sec
Lens 4.3mm
IP Module
Video
Video Encoder	H.264, MPEG4 and Motion JPEG simultaneously (Tri-encoders)
Video Profile 8 profiles simultaneously (including 3GPP profile)
Frame Rate Up to 30fps for all resolutions
Image Setting	AE, AWB3D noise reductionColor, brightness, sharpness, contrastMirror/FlipPrivacy MasksText, time and date overlay
Streaming Simultaneously multi-profile streamingStreaming over UDP, TCP, or HTTPM-JPEG streaming over HTTP (server push)Supports 3GPP mobile surveillance (MPEG4)Controllable frame rate and bandwidthConstant and variable bit rate (H.264)ROI
Audio
Audio Encoder RTSP: G.711 64kbps, G.726 32kbps3GPP: AMR
Audio Streaming	One-way or two-way
Microphone	Built-in microphone
Audio Output	Adjustable audio output gain
Network
Supported Protocols	IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS,DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE,3GPP, Samba, ICMP
Security	Password protection, IP address filtering, HTTPS encrypted datatransmission, user access log
Users	20 simultaneous unicast users
Ethernet	10/100M auto negotiation
Wireless	X	11n
System Integration
Application Programming Interface	ONVIFOpen API for software integrationSDK
Alarm Triggers	Intelligent video motion detection
Motion Detection	10-zone video motion detection with included or excluded options
Alarm Events	File upload via FTP, SAMBA, SD card or emailNotification via email, HTTP, and TCPAudio alerting output
Video Buffer	Pre- and post- alarm buffering
General
RAM	128MB
ROM	16MB
Power Supply 12V DC	external power adapter
Power Consumption 2W	3W
Connectors	RJ-45 10BaseT/100BaseTXDC power jackAudio outFactory default resetMicro SD card (Max 32GB, Class 6)
Indication LED Green and orange LEDs
Operating Temperature	0°C to 40°C (32°F to 104°F)
Operating Humidity 20% ~ 80% (non-condensing)
Dimension HxWxD:74.5 x 52.6 x 35..0 (mm)
Viewing System
OS Windows® XP, Vista, 7
Browser IE 6.0 or later,	Firefox 2.0 or later, Safari
Cell Phone With 3GPP player
Video Player VLC, Quick Time, Real Player, Core Player
Software
Search & Installation IP Search
Bundled NVR Program	Surveillance Manager 64CH

Appendix E: Configure Port Forwarding Manually

The camera can be used with a router. If the camera wants to be accessed from the WAN, its IP address needs to be set up as fixed IP address, also the port forwarding or Virtual Server function of router needs to be set up. This camera supports UPnP traversal function. Therefore, the user could use this feature to configure port forwarding of NAT router first. However, if the user needs to configure port forwarding manually, please follow the steps as below:

Manually installing the camera with a router on your network is an easy 3-step procedure as following:

(1) Assign a local/fixed IP address to your camera
(2) Access the Router with Your Web browser
(3) Open/Configure Virtual Server Ports of Your Router
(1) Assign a local/fixed IP address to your camera

The camera must be assigned a local and fixed IP Address that allows it to be recognized by the router. Manually set up the camera with a fixed IP address, for example, 192.168.0.100.

(2) Access the Router with Your Web browser

The following steps generally apply to any router that you have on your network. The TP-LINK TL-WR841ND is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router's Quick Installation Guide.

If you have cable or DSL service, you will most likely have a dynamically assigned WAN IP Address. 'Dynamic' means that your router's WAN IP address can change from time to time depending on your ISP. A dynamic WAN IP Address identifies your router on the public network and allows it to access the Internet. To find out what your router's WAN IP Address is, go to the Status screen on your router and locate the WAN information for your router. As shown on the following page the WAN IP Address will be listed. This will be the address that you will need to type in your web browser to view your camera over the Internet.

Status
Firmware Version:	3.13.16 Build 120405 Rel.65615n
Hardware Version:	WR841N v8 00000000
LAN
MAC Address:	00-0A-EB-13-09-19
IP Address:	192.168.0.1
Subnet Mask:	255.255.255.0
Wireless
Wireless Radio:	Enable
Name (SSID):	TP-LINK_130919
Mode:	11bgn mixed
Channel Width:	Automatic
Channel:	Auto (Current channel 1)
Max Tx Rate:	300Mbps
MAC Address:	00-0A-EB-13-09-19
WDS Status:	Disable
WAN MAC Address: 00-0A-EB-13-09-1A IP Address: 0.0.0.0 Subnet Mask: 0.0.0.0 Default Gateway: 0.0.0.0 DNS Server: 0.0.0.0, 0.0.0.0 Online Time: 0 day(s) 00:00:00 Connecting...
Traffic Statistics Received Sent Bytes: 0 4,527 Packets: 0 60
System Up Time: 0 days 00:06:25 Refresh

Your WAN IP Address will be listed here.

Note: Because a dynamic WAN IP can change from time to time depending on your ISP, you may want to obtain a Static IP address from your ISP. A Static IP address is a fixed IP address that will not change over time and will be more convenient for you to use to access your camera from a remote location. If you could not get a Static IP address from your ISP or DDNS is a solution alternatively.

(3) Open/set Virtual Server Ports to enable remote image viewing

The firewall security features built into the router and most routers prevent users from accessing

the video from the camera over the Internet. The router connects to the Internet over a series of numbered ports. The ports normally used by the camera are blocked from access over the Internet. Therefore, these ports need to be made accessible over the Internet. This is accomplished using the Virtual Server function on the router. The Virtual Server ports used by the camera must be opened through the router for remote access to your camera. Virtual Server is accessed by clicking on Forwarding→Virtual Server.

Follow these steps to configure your router's Virtual Server settings.

To set up a virtual server entry:

1. Click the Add New... button, the next screen will pop-up.
2. Select the service port you want to use from the Common Service Port list. If the Common Service Port list does not have the service that you want to use, type the service port number or service port range (e.g., 80) in the Service Port box.
3. Type your camera's local IP address (e.g., 192.168.0.198) in the IP Address box.
4. Select the All protocol.
5. Select the Enable to enable the virtual server.
6. Click the Save button.

Add or Modify a Virtual Server Entry Service Port: (XX-XX or XX) Internal Port: (XX, Only valid for single Service Port or leave it blank) IP Address: Protocol: All Status: Enabled Common Service Port: --Select One-- Save Back

Important: Some ISPs block access to port 80. Be sure to check with your ISP so that you can open the appropriate ports accordingly. If your ISP does not pass traffic on port 80, you will need to change the port the camera uses from 80 to something else, such as 8080. Not all routers are the same, so refer to your user manual for specific instructions on how to open ports.

Virtual Servers ID Service Port Internal Port IP Address Protocol Status Modify 1 80 192.168.0.198 ALL Enabled Modify Delete Add New... Enable All Disable All Delete All Previous Next

Then the camera can be accessed from WAN by the router's WAN IP Address.

By now, you have finished your entire PC configuration for this camera.

Appendix F: DDNS Application

1. Preface

If you have a Cable modem or xDSL, this is a great way to host your own camera or other TCP/IP Service. Get your own domain like www.yourname.com, www.yourname.com.tw etc. (Note: This domain must be registered with Internic via registration authorities such as Network Solutions, DirectNIC, Register.com etc). Your domain name's dynamic IP address is automatically tracked by a DDNS server.

Host your own camera and much more no matter what your computer's IP address may be and even if you have dialup, DSL or cable modem internet connection where your computer's IP address changes all the time!! DDNS service supports all top level domain names including but not limited to .com, .net, .org, .to, .uk etc.

2. Ethernet Network Environment

Normally, DDNS service is only necessary for the users that could only obtain dynamic IP addresses. As to the users that could obtain the static valid IP address, they do not usually have to apply the DDNS service. Before we decide if DDNS is necessary for the users, we have to check what kind of Ethernet network environment we have to install our Networked camera on.

(1) Environment of Fixed Valid IP Network

If users could obtain valid IP addresses, they could save the effort to apply DDNS service. Because the IP address in this environment is fixed, users could input the IP address or domain name of demo site directly in the IE browser.

(2) Environment of Dynamic IP Network

If users is under an environment of dynamic IP network (Dial-up xDSL), they have to apply a domain name in advance. Then apply DDNS service. Finally set up the necessary information of DDNS and PPPoE of the camera in order to let the outside administrator be able to access through internet.

3. Application Steps—DDNS & Domain Name

(1) Visit the following web site: http://www.dyndns.org/
(2) Click "Account"

http://www.dyndns.com/ DynDNS User: About Services Account Suppl A NEW WINDOW TO YOUR WORLD All-new DynDNS Updater for Windows, now available Learn more...

(3) After the columns show up at the left side, click "Create Account".

DynDNS About Services My Account Create Account Login Lost Password? Login Account Login Username: Search Search

(4) Fill the application agreement and necessary information.

a) Username
b) E-mail address and confirmation
c) Password and confirmation

d) Submit all the input information and finish creating an account

DynDNS About Services Account Supp My Account Create Account Login Lost Password? Create Your DynDNS Account Please complete the form to create your free DynDNS Account. User Information Username: Email Address: Confirm Email Address: Password: Confirm Password: Search Search Instructions to Your password not choose a p -About You (optional)

-Terms of Service

Please read the acceptable use policy (AUP) and accept it prior to creating your account. Also acknowledge that you may only have one (1) free account, and that creation of multiple free accounts will result in the deletion of all of your accounts.

Policy Last Modified: February 6, 2006 1. ACKNOWLEDGMENT AND ACCEPTANCE OF TERMS OF SERVICE All services provided by Dynamic Network Services, Inc. ("DynDNS") are provided to you (the "Member") under the Terms and Conditions set forth in this Acceptable Use Policy ("AUP") and any other operating rules and policies set forth by DynDNS. The AUP comprises the entire agreement between the Member and DynDNS and supersedes all prior agreements between the parties regarding the subject matter contained herein. BY COMPLETING THE REGISTRATION PROCESS AND CLICKING THE "Accept" BUTTON, YOU ARE INDICATING YOUR AGREEMENT TO BE BOUND BY ALL OF THE TERMS AND CONDITIONS OF THE AUP. 2. DESCRIPTION OF SERVICE I agree to the AUP: I will only create one (1) free account: Click these two options

Next Step

After you click "Create Account", we will create your account and send you an e-mail to the address you provided. Please follow the instructions in that e-mail to confirm your account. You will need to confirm your account within 48 hours or we will automatically delete your account. (This helps prevent unwanted robots on our systems)

(5) Check your e-mail mailbox. There will be an e-mail with a title "Your DynDNS Account Information". Click the hyperlink address to confirm the DDNS service that you just applied.

Then DDNS you applied activated.

Your DynDNS Account 'kkkkk' has been created. You need to visit the confirmation address below within 48 hours to complete the account creation process: Click to confirm

https://www.dyndns.com/account/confirm/oDDGDYN75qTJk_ICGba6vQ

Our basic service offerings are free, but they are supported by our paid services. See http://www.dyndns.com/services/ for a full listing of all of our available services.

If you did not sign up for this account, this will be the only communication you will receive. All non-confirmed accounts are automatically deleted after 48 hours, and no addresses are kept on file. We apologize for any inconvenience this correspondence may have caused, and we assure you that it was only sent at the request of someone visiting our site requesting an account.

Sincerely, The DynDNS Team

DynDNS® User: Pass: Lost Password? - Create Account About Services Account Support News My Account Create Account Login Lost Password? Account Confirmed The account ikkxkk has been confirmed. You can now login and start using your account. Be informed of new services, changes to services, and important system maintenance/status notifications by subscribing to our Once there, you may subscribe to the Announce list by checking the appropriate box and clicking the "Save Settings" button.

(6) Enter the web page http://www.dyndns.org/ again. Input your username and password that you just applied to login administration interface of DDNS server.

Input your account DynDNS User: Pass: Login Lost Password? - Create Account About Services Account Support News A NEW WINDOW TO YOUR WORLD All-new DynDNS Updater for Windows, now available Learn more... New to DynDNS? Take a tour and see what we do DNS Services DNS for static and dynamic IP address MailHop Services Ensure reliable email delivery Search

(7) If the correct username and password are input, you can see the following picture at the

top-right of the login page.

(8) Click the "Services".

DynDNS Logged In User ivankk My Services - My Cart - Log Out About Services Account Support News My Account My Services Account Settings Billing My Cart

Items

Account Summary for ivankk My Services View, modify, purchase, and delete your services. My Zones Billing Update your billing information, complete a purchase, and view invoices. View Shopping Cart Account Settings Update your email address, set preferences, and delete your account. Change Email Address

(9) Click the "Dynamic DNS".

DynDNS

Logged In User: ivankk

My Services - My Cat - Leg Out

About Services Account Support News Services DNS Services Domain Registration SSL Certificates MailHop Services Network Monitoring URL Forwarding Pricing My Cart Items Search Search Services We offer you superior domain name services (DNS), high quality domain management, world-class e-mail services, web redirection, and network monitoring. All of our services include free technical support by e-mail or phone where you speak to a highly trained engineer rather than a call center reading a script off of a screen. Why DnsDNS - why you should choose us Technology Overview - a peak behind the curtain DNS Services Dynamic DNS A free DNS service for those with dynamic IP addresses. Custom DNS Our dynamic and static DNS management tool for your own domain. Recursive DNS Ensure DNS resolution for your DNS queries. Secondary DNS Add reliability to your own nameservers.

(10) Click the "Get Started".

Dynamic DNS

Dynamic DNS (DDNS) allows you to create a hostname that points to your dynamic IP or static IP address or URL. We also provide an update mechanism which makes the hostname work with your dynamic IP address. We continue to offer this service free to the Internet community as we have done so for nearly 10 years.

Get Started Manage Hosts

Capabilities and Features

• Get five (5) hostnames in 88 available domains for free.
- Create wildcard CNAME *.yourhost.dyndns.org for yourhost.dyndns.org.
- Forward web requests or mark host offline for maintenance or downtime.
- Configure MX records for flexible mail routing.
- Update host using ddns update clients for a wide variety of platforms.
- Modify DNS TTL values for fast propagation or reliable static IP caching.
- Deliver your DNS records to 5 DNS servers in 5 tier-1 datacenters around the globe.
• Query volume up to 648,000 queries/month

Screenshot

Our free industry-leading e-mail support is ready to help you setup your dynamic or static DNS so you can host a website, remotely connect to your machine, and run a mail server. We also offer other premium features with our Account Upgrade service.

(11) We could create a domain name without any charge at this step. First, we input the host name. (Pink No.1) Then we pick a domain that is easy to remember. (Pink No.2) The 3 ^d step is to click "Offline Hostname" from Service Type. (Pink No.3) Finally, click the "Create Host" to submit the domain name information and finish DDNS application. (Pink No.4)

Add New Hostname

↑ Host Services

Note: You currently don't have Account Upgrades in your account. You cannot use some of our Host Service features. Please consider buying Account upgrade that make this form full-functional and will add several other features. Learn More...

1 → Hostname: lamtk dyndns.org ← 2 Wildcard: Yes, alias "*.hostname.domain" to same settings. Service Type: Host with IP address WebHop Redirect Offline Hostname 3 → ? IP Address: Use auto detected IP address 118.168.38.166. TTL value is 60 seconds. Edit TTL. Please enter valid IP address (optional for Offline hostnames). Mail Routing: Yes, let me configure Email routing. 4 Create Host

4. Set up the DDNS and PPPoE of Camera

At last, users have to enter the web page of camera and set up the necessary information of DDNS and PPPoE after the application of DDNS service. Please check the user manual to

access the DDNS and PPPoE pages. After saving the modification, restart the camera. Then the external users could browse the Networked camera by the input of their domain name.

Appendix G: Power Line Frequency

Country Voltage Frequency		Comments
Argentina	220V	50 Hz	*Neutral and line wires are reversed from that used in Australia and elsewhere.
Australia	230V*	50 Hz	*Outlets typically controlled by adjacent switch.Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.
Austria	230V	50 Hz
Brazil	110/220V*	60 Hz	*127V found in states of Bahia, Paran?(including Curitiba), Rio de Janeiro, S Paulo and Minas Gerais (though 220V may be found in some hotels). Other areas are 220V only, with the exception of Fortaleza (240V).
Canada	120V	60 Hz
China, People's Republic of	220V 50 Hz
Finland	230V	50 Hz
France	230V	50 Hz
Germany	230V	50 Hz
Hong Kong	220V*	50 Hz
India	230V	50 Hz
Italy	230V	50 Hz
Japan	100V	50/60 Hz*	*Eastern Japan 50 Hz (Tokyo, Kawasaki, Sapporo, Yokohoma, and Sendai); Western Japan 60 Hz (Osaka, Kyoto, Nagoya, Hiroshima)
Malaysia	240V	50 Hz
Netherlands	230V	50 Hz
Portugal	230V	50 Hz
Spain	230V	50 Hz
Sweden	230V	50 Hz
Switzerland	230V	50 Hz
Taiwan	110V V	60 Hz
Thailand	220V	50 Hz
United Kingdom	230V*	50 Hz	*Outlets typically controlled by adjacent switch.Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.
United States of America	120V 60 Hz

Appendix H: 3GPP

To use the 3GPP function, in addition to previous section, you might need more information or configuration to make this function work. Please note that to use the 3GPP function, it strongly recommends to install the camera with a public and fixed IP address without any firewall protection.

RTSP Port:

Port 554 is the default for RTSP service. However, sometimes, some service providers change this port number for some reasons. If so, the user needs to change this port accordingly.

Dialing procedure:

1. Choose a verified player (PacketVideo or Realplayer currently)
2. Use the following URL to access: rtsp://host/mpeg4/media.3gp

Where host is the host name or IP address of the camera.

Compatible 3G mobile phone:

Please contact your dealer to get the approved list of compatible 3G phone.

Appendix I: Enable UPnP of Windows XP

Use the following steps to enable UPnP settings only if your operating system of PC is running Windows XP.

Set Program Access and Defaults Windows Catalog Windows Update Programs Documents Settings Search Help and Support Run... Log Off PMalan... Turn Off Computer... Control Panel Network Connections Printers and Faxes Taskbar and Start Menu start

Go to Start > Settings.

Click Control Panel

Control Panel File Edit View Favorites Tools Help Back Search Folders Address Control Panel Control Panel Switch to Category View See Also Windows Update Help and Support Accessibility Options Add Hardwife Add or Remove Programs Administrative Tools Date and Time Display Folder Options Fonts Game Controllers Internet Options Keyboard Mouse Network Connections Phone and Modern ... Power Options Printers and Faxes Regional and Language ... Scanners and Cameras Scheduled Tasks Sounds and Audio Devices Speech System Taskbar and Start Menu User Accounts

Click Add or Remove Programs

Add or Remove Programs Currently installed programs: Sort by: Name DameWare NT Utilities Size 15.72MB Click here for support information. Used occasionally Last Used On 11/10/2003 To change this program or remove it from your computer, click Change or Remove. Change Remove Internet Explorer Q828750 IP surveillance Size 3.30MB Outlook Express Update Q330994 Windows Media Player Hotfix [See wml828026 for more information] Size 0.13MB Windows XP Hotfix - KB821557 Windows XP Hotfix - KB823182 Windows XP Hotfix - KB823559 Windows XP Hotfix - KB824105 Windows XP Hotfix - KB824141 Windows XP Hotfix - KB824146 Windows XP Hotfix - KB825119 Windows XP Hotfix - KB828035 Windows XP Hotfix (SP2) [See Q329048 for more information] Windows XP Hotfix (SP2) [See Q329115 for more information] Windows XP Hotfix (SP2) [See Q329090 for more information]

Click Add/Remove Windows Components

The following screen will appear:

Windows Components Wizard Windows Components You can add or remove components of Windows XP. To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: Message Queuing 0.0 MB MSN Explorer 13.2 MB Networking Services 0.3 Mb Other Network File and Print Services 0.0 MB Outlook Express 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required: 54.7 MB Space available on disk: 1926.8 MB Details... < Back Next > Cancel

Select Networking Services

Click Details

Networking Services To add or remove a component, click the check box. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Subcomponents of Networking Services: Internet Gateway Device Discovery and Control Client 0.0 MB RIP Listener 0.0 MB Simple TCP/IP Services 0.0 MB Universal Plug and Play 0.2 MB Description: Allows you to find and control Internet connection sharing hardware and software that uses Universal Plug and Play. Total disk space required: 54.7 MB Space available on disk: 1926.8 MB Details... OK Cancel

Select Universal Plug and Play

Click OK

Windows Components Wizard Windows Components You can add or remove components of Windows XP. To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: Message Queuing 0.0 MB MSN Explorer 13.2 MB Networking Services 0.3 MB Other Network File and Print Services 0.0 MB Outlook Express 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required: 54.7 MB Space available on disk: 1926.8 MB Details... < Back Next > Cancel

Click Next

Windows Components Wizard Configuring Components Setup is making the configuration changes you requested. Please wait while Setup configures the components. This may take several minutes, depending on the components selected. Status: Completing configuration of Internet Information Services (IIS)... < Back Next >

Please wait while Setting up configures the components.

Windows Components Wizard Completing the Windows Components Wizard You have successfully completed the Windows Components Wizard. To close this wizard, click Finish. < Back Finish

Click Finish
