SPIS.TREŚCI

INSTRUKCJE DOTYCZĄCE BEZPIECZNEGO DZIAŁANIA OKAPU .... 4

Pure technical line drawing of a door panel with no text or symbols

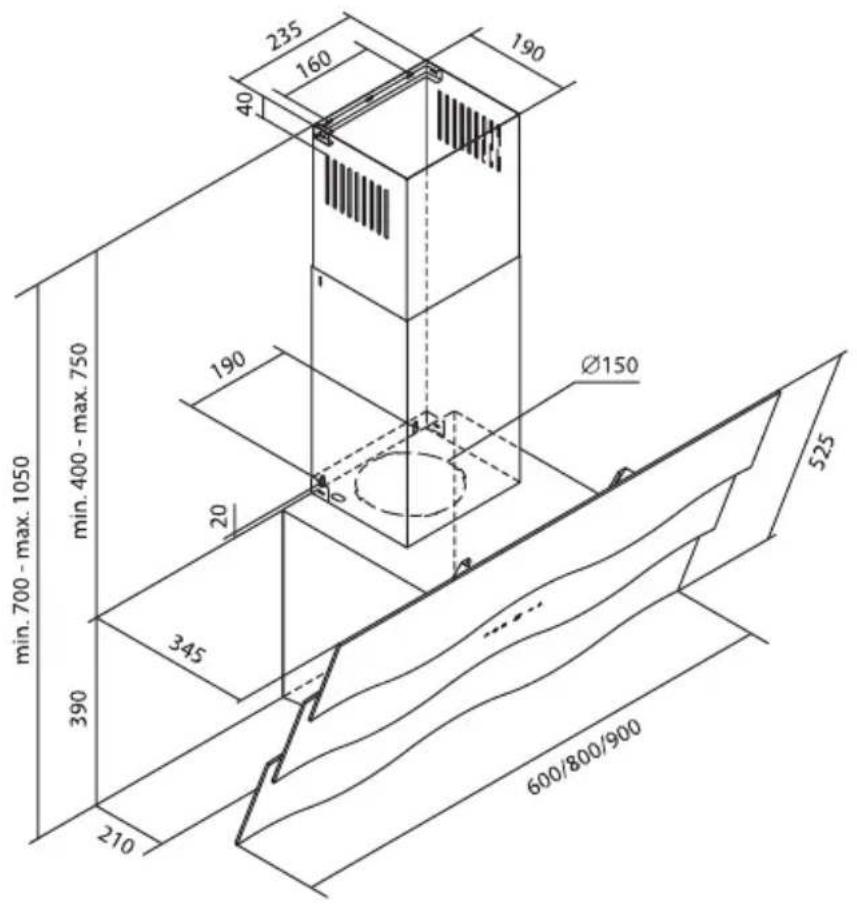

235 160 190 40 min. 700 - max. 1050 min. 400 - max. 750 190 Ø150 20 345 390 210 600/800/900 525

OKAP OK-6

FALA

Szerokość 600 mm

waga netto - 11,65 kg

waga brutto.-.14,95.kg

Szerokość 800 mm

waga netto - 12,15 kg

waga brutto.-.16,65.kg

Szerokość 900 mm

waga netto - 14,50 kg

waga brutto.-.17,40.kg

OKAP OK-6 FINEZJA

Szerokość 600 mm

waga netto - 10,70 kg

waga brutto - 14,80 kg

Szerokość 800 mm.

waga netto - 11,95 kg

waga.brutto.-16,15.kg

Szerokość 900 mm

waga netto - 14,45 kg

waga brutto -18,85 kg

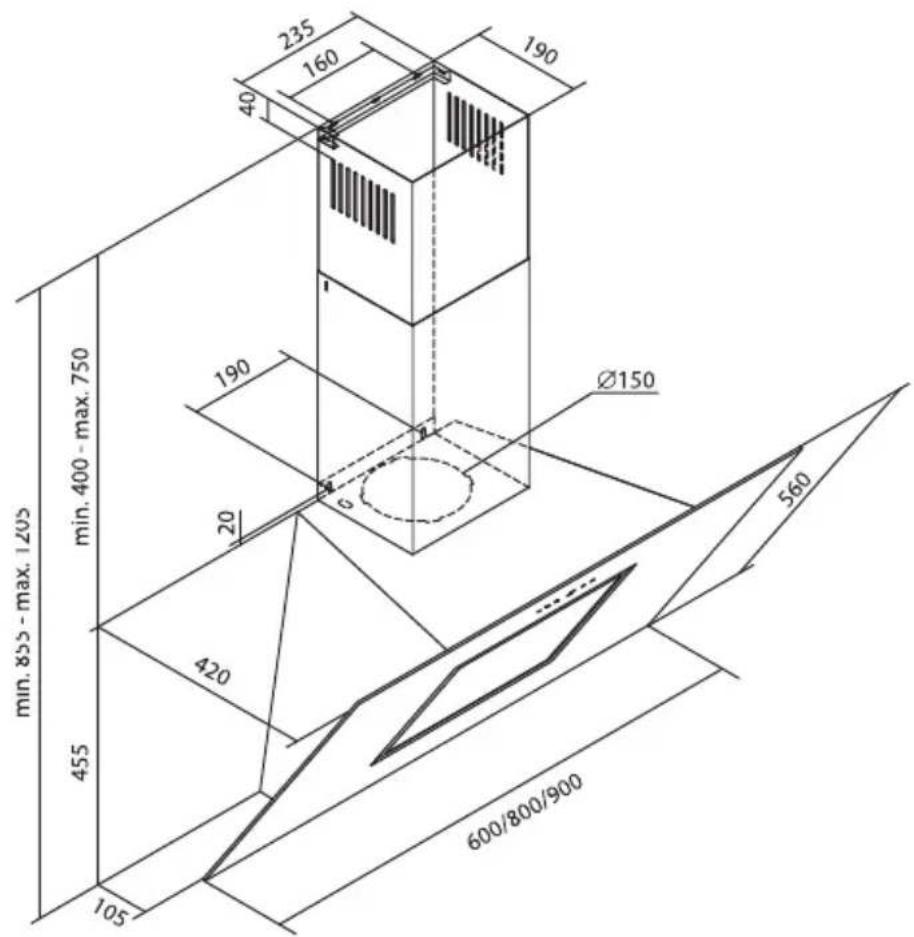

235 160 40 190 min. 400 - max. 750 20 Ø150 455 420 560 600/800/900 105 min. 855 - max. 1205

260 160 40 220 400-750 Ø150 845-1195 350 445 10 540 16 900

OKAP. OK-6 VISIONE
