GVW910XL - Dishwasher Pelgrim - Free user manual and instructions

Product Type	Dishwasher
Brand	Pelgrim
Model	GVW910XL
Energy Class	A+++
Annual Energy Consumption	234 kWh
Water Consumption per Cycle	Approx. 10 L
Capacity	14 place settings
Noise Level	44 dB
Dimensions (H x W x D)	81.5 x 59.8 x 57.5 cm
Weight	45 kg
Number of Programs	6
Programs	Eco, Auto, Intensive, Glass, Quick, Rinse
Drying Performance	A
Control Type	Electronic with LED display
Safety Features	Child lock, Leak protection
Maintenance	Self-cleaning filter, descaling indicator
Repairability Index	8.0 / 10
Voltage / Frequency	220-240 V ~ 50 Hz

Frequently Asked Questions - GVW910XL Pelgrim

How can I reset my Pelgrim GVW910XL dishwasher?

To reset, press and hold the Start button for 3 seconds until the display shows a blinking zero. Then turn the program selector to the Reset position and press Start again. Wait for the machine to drain and reset.

What should I do if the dishwasher doesn't start?

First, check that the door is fully closed and latched. Ensure the water supply is turned on and the power plug is connected. Verify that the program selector is not stuck between positions. If the issue persists, check the filter for blockages.

How do I clean the filter?

Remove the lower rack, then twist the cylindrical filter counterclockwise and lift it out. Rinse it under running water using a soft brush. Reassemble the parts securely. Clean the filter at least once a month to maintain optimal performance.

Can I use regular dish soap instead of dishwasher detergent?

No, regular dish soap creates excessive foam and can damage the dishwasher. Always use a dishwasher-specific detergent (powder, gel, or tabs). Do not use liquid hand soap.

Why is there water left in the bottom of the dishwasher after a cycle?

A small amount of water is normal in the sump area to keep the seals moist. If there is more than 1 cm, check for a clogged drain hose or filter. Also ensure the drain pump is not obstructed.

How should I load cutlery in the basket?

Place forks and spoons with handles down for safety, and knives with blades facing up to avoid injury. Mix types to prevent nesting. Use the cutlery basket provided and do not overload.

What does error code E15 mean?

Error E15 indicates a water leak detected in the base tray. Unplug the appliance, turn off the water supply, and tilt the machine carefully to drain water from the tray. After drying the tray, reset the appliance.

How do I install the dishwasher?

Installation should be done by a qualified technician. The appliance must be leveled using the adjustable feet, connected to a cold water supply with a pressure of 0.04-1.0 MPa, and the drain hose must be securely attached to the sink drain or standpipe.

How often should I descale the dishwasher?

Descaling is recommended every 3-6 months depending on water hardness. Use a commercial descaling agent and run an empty eco program. Alternatively, run a cycle with a cup of white vinegar placed on the top rack.

Where can I find the model number of my Pelgrim dishwasher?

The model number is printed on the rating label, which is located on the right side of the door or on the top edge of the door when opened. It starts with 'GVW' followed by digits.

USER MANUAL GVW910XL Pelgrim

European Union flag with twelve yellow stars on a blue background (no text or symbols)

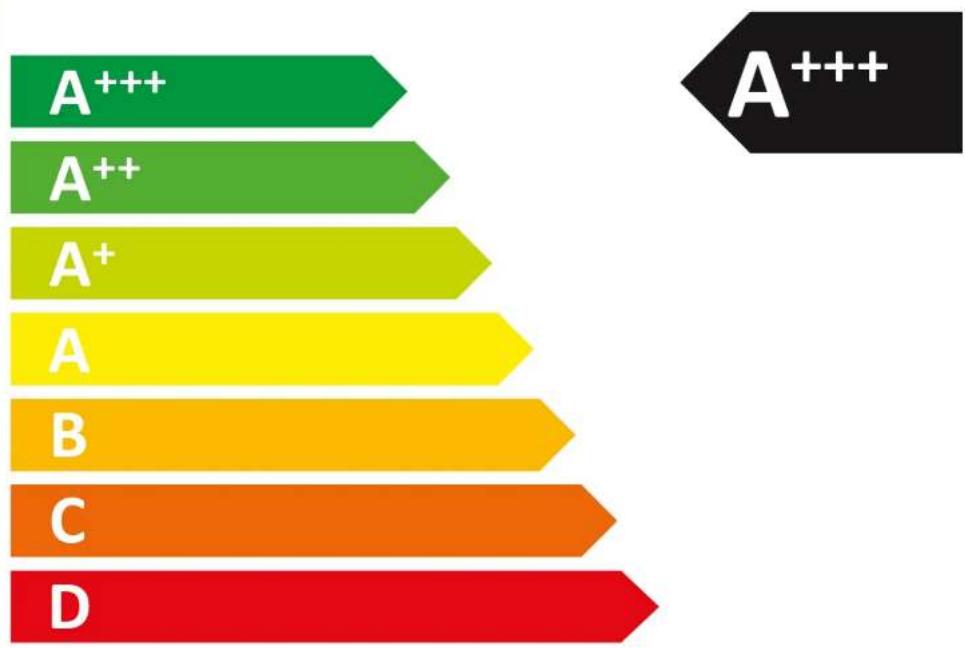

ENERG

енергия · ενεργεια

GVW910XL

| Pelgrim ||

ENERGIA · ЕНЕРГИЯ · ЕНЕРГЕІА ENERGIJA · ENERGY · ENERGIE ENERGI

234 kWh/annum
