USER MANUAL Encore Profile Mini WW American DJ

Black industrial lamp with adjustable frame and central light source (no visible text or symbols)

User Manual

©2023 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies.

ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning installation and/or programming.

Date	Document Version	Software Version	DMX Channels Notes
01/06/2023 1	.0 1.00 2 / 3 /	6 channels	Initial Release.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the environment. Please turn off all electrical products when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power when not in use. Thank you!

TABLE OF CONTENTS

Introduction 4
Limited Warranty (USA Only) 5
Warranty Registration | Features 6
Safety Guidelines 7
Overview 8
Installation 9
Accessory Installation 13
Gobo 15
Operation 17
Remote Device Management (RDM) 18
Control Panel 19
System Menu 20
DMX Setup 22
DMX Traits 24
Dim Modes 27
Daisy Chain Power Linking | Cleaning & Maintenance	28

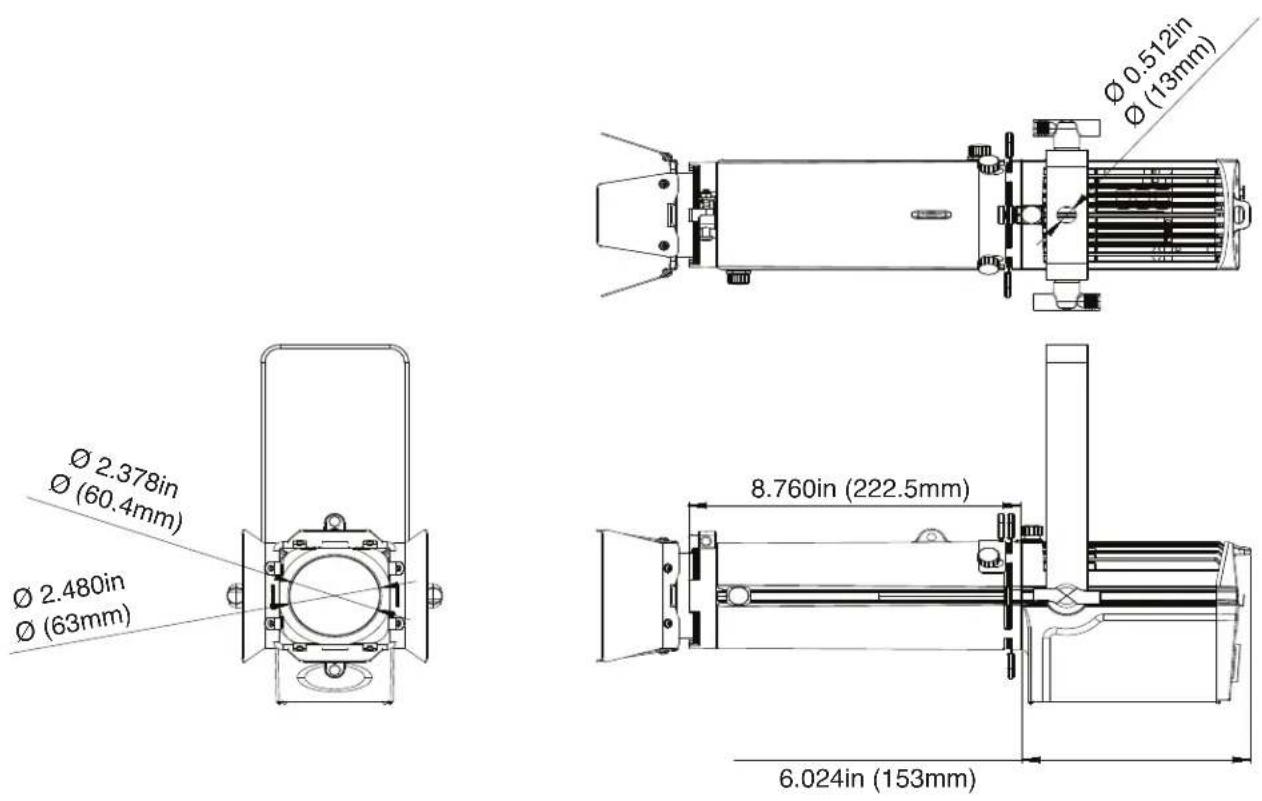

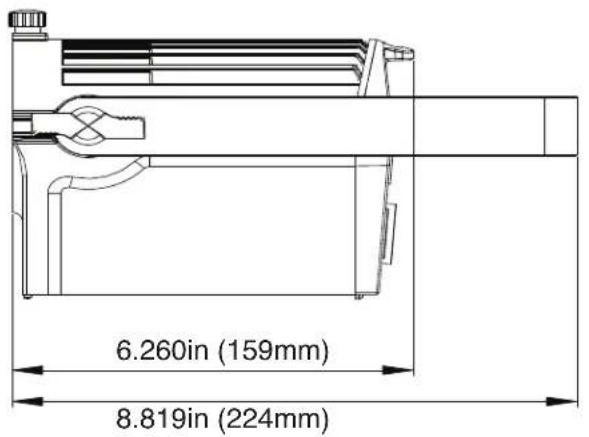

Dimensional Drawing	29
Specifications	32
Error Codes | Accessory Information	33

INTRODUCTION

Unpacking: Thank you for purchasing the Encore Profile Mini WW by ADJ Products, LLC. Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact. In the event that damage has been found or parts are missing, please contact our toll free customer support number for further instructions. Do not return this unit to your dealer without first contacting customer support.

Introduction: The ADJ Encore Profile Mini WW is a DMX intelligent, feature-packaged ellipsoidal. To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. These instructions contain important safety information regarding the use and maintenance of this unit. Please keep this manual with the unit for future reference.

Customer Support: Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions.

Parts: To purchase parts online visit:

http://parts.adj.com (US)

http://www.adjparts.eu (EU)

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

Voice: 800-322-6337 | Fax: [phone] | [e-mail]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

Voice: [phone] | Fax: [phone] | [e-mail]

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA. 90040

323-582-2650 | Fax [phone] | www.adj.com | [e-mail]

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands

[phone] | Fax [phone]

www.americandj.eu | [e-mail]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000

[phone]

CAUTION! To reduce risk of shock or fire, do not expose this unit to rain or moisture! This unit is intended only for use in dry, indoor applications.

CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, as doing so will void your manufacturer's warranty. In the unlikely event your unit may require service, please contact ADJ Products, LLC.

Do not discard the shipping cartoon in the trash. Please recycle when ever possible.

LIMITED WARRANTY (USA ONLY)

A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner's responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending the product back—please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All shipping charges must be prepaid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package and packaging material. No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall incur no liability whatsoever for loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is modified in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because it was not properly maintained as set forth in the product instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning, or periodic check-up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied warranties made by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above. And all warranties, whether expressed or implied, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above. The consumer's and/or dealer's sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall ADJ Product, LLC be liable for any loss and/or damage, direct and/or consequential arising out of the use of, and/or inability to use this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC products, and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

MANUFACTURER'S LIMITED WARRANTY PERIODS:

• Non-LED Lighting Products = 1-Year (365 Days) (Including Special Effect Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands, Power/Data Distribution, etc. excluding LED and lamps)
• Laser Products = 1-Year (365 Days) (excluding laser diodes which have a 6-Month Limited Warranty)
• LED Products = 2-Year (730 Days) (excluding batteries which have a 180 Day Limited Warranty)
• NOTE: 2-Year (730 Days) Limited Warranty ONLY applies to product purchased within the United States. StarTec Series = 1-Year (365 Days) (excluding batteries which have a 180 Day Limited Warranty)
  • ADJ DMX Controllers = 2 Year (730 Days)
  • American Audio Products = 1 Year (365 Days)

WARRANTY REGISTRATION

This fixture carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the problem as well as the R.A. number must also be written down on a piece of paper included in the shipping carton. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. You may obtain an R.A. number by contacting our customer support team on our customer support number. All packages returned to the service department not displaying an R.A. number on the outside of the package will be returned to the shipper.

FEATURES

The ADJ Encore Profile Mini WW is a feature-packed ellipsoidal that is ideal for applications where space is at a premium. It features a 40W warm white (3000K) LED light engine, which offers an output of 900 Lumens and a phenomenally high CRI of >98. For maximum versatility, it can be used with a choice of two manual zoom lens options and is supplied with a holder for “E” size GOBOs. This small, but perfectly formed, luminaire is suitable for a wide range of applications, including small theatres, bar stages, museums, theme park attractions and window displays.

INCLUDED ITEMS

- Power Cable (x1)

SAFETY GUIDELINES

THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION PRINTED IN THIS MANUAL. ONLY QUALIFIED AND/OR CERTIFIED PERSONNEL SHOULD PERFORM INSTALLATION OF THIS FIXTURE AND ONLY THE ORIGINAL RIGGING PARTS INCLUDED WITH THIS FIXTURE SHOULD BE USED FOR INSTALLATION. ANY MODIFICATIONS TO THE FIXTURE AND/OR THE INCLUDED MOUNTING HARDWARE WILL VOID THE ORIGINAL MANUFACTURER'S WARRANTY AND INCREASE THE RISK OF DAMAGE AND/OR PERSONAL INJURY. ONLY CERTIFIED PERSONNEL SHOULD PERFORM INSTALLATION OF THIS FIXTURE.

• PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
- THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.
- DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER'S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER'S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
• DO NOT PLUG FIXTURE INTO A DIMMER PACK!
- NEVER OPEN THIS FIXTURE WHILE IN USE!
- UNPLUG POWER BEFORE SERVICING FIXTURE!
- NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT!
- KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!
- NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
• RETINA INJURY RISK - MAY INDUCE BLINDNESS!
• SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
• MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS)
- AMBIENT TEMPERATURE RANGE IS 14°F TO 113°F (-10°C TO 45°C). DO NOT OPERATE THE DEVICE WHEN AMBIENT TEMPERATURE FALLS OUTSIDE OF THIS RANGE.
• MINIMUM DISTANCE TO FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5 METER).
- DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 60 minutes for the fixture to cool down before serving.
- DO NOT shake fixture, and avoid brute force when installing and/or operating fixture.
- DO NOT operate fixture if the power cord is frayed, crimped, damaged and/or if any of the power cord connectors are damaged and do not insert into the fixture securely with ease. NEVER force a power cord connector into the fixture. If the power cord or any of its connectors are damaged, replace it immediately with a new one of the same power rating.
- DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked. Allow approx. 6" (15cm) between fixture and other devices or a wall for proper cooling.
- When installing fixture in a suspended environment, always use mounting hardware that is no less than M10 x 25 mm, and always install fixture with an appropriately rated safety cable.
- Always disconnect fixture from main power source before performing any type of service and/or cleaning procedure.
- Only handle the power cord by the plug end. Never pull out the plug by tugging the wire portion of the cord.
- During the initial operation of this fixture, a light smoke or smell may emit from the interior of the fixture. This is a normal process and is caused by excess paint in the interior of the casing burning off from the heat associated with the lamp and will decrease gradually over time.
- Consistent operational breaks will ensure fixture will function properly for many years.
- ONLY Use original packaging and materials to transport the fixture in for service.

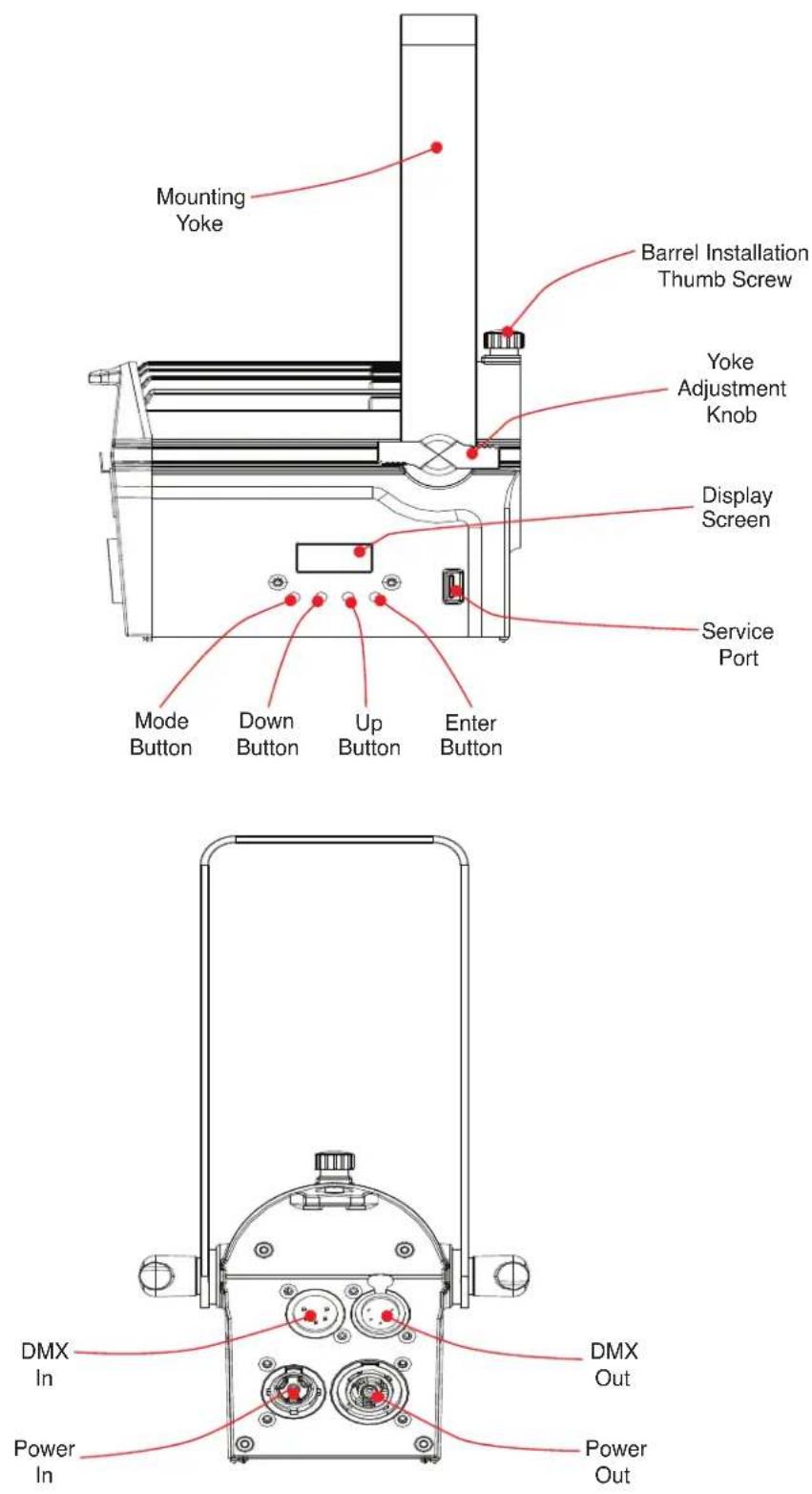

OVERVIEW

INSTALLATION

FLAMMABLE MATERIAL WARNING

Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics.

ELECTRICAL CONNECTIONS

A qualified electrician should be used for all electrical connections and/or installations.

USE CAUTION WHEN POWER LINKING FIXTURES OF OTHER MODEL TYPES, AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE. CHECK SILK SCREEN FOR MAX AMPS.

MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS). MINIMUM DISTANCE OF INFLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5 METER)

DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!

• Fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.
• Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or placing the fixture(s) on any surface, a professional equipment installer MUST be consulted to determine if the metal truss/structure or surface is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and accessories.
• Ambient operating temperature range is 14^ to 113^ (- 10^ to 45^ ). Do not use operate the fixture when ambient temperature falls outside of this range!
• Fixture(s) should be installed in areas outside walking paths, seating areas, or areas were unauthorized personnel might reach the fixture by hand.
• NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Overhead fixture installation must always be secured with a secondary safety attachment, such as an appropriately rated safety cable.
• Allow approximately 60 minutes for the fixture to cool down before servicing.

RIGGING

Overhead rigging requires extensive experience, including calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture, among other skills. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.

INSTALLATION

CLAMP INSTALLATION

This fixture features a mounting point on the yoke for the attachment of a mounting clamp. There is also a safety cable loop located on the rear of the fixture above the DMX ports (see the illustration below). When mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure an appropriately rated clamp (not included) to the yoke, and attach a separate SAFETY CABLE of the appropriate weight rating to the safety cable loop. If the barrel and/or barndoor accessories are attached, each accessory must also be secured using its own appropriately rated safety cable, securely and independently looped around the fixture's mounting yoke as shown in the illustration below. Please refer to the Accessory Installation section of this manual for detailed information regarding the installation process for these accessories.

MOUNTING CLAMP BARREL SAFETY CABLE LOOP BARNDOOR SAFETY CABLE LOOP FIXTURE SAFETY CABLE LOOP SAFETY CABLES FOR ACCESSORIES LOOPED AROUND YOKE

SAFETY CABLE:

ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT FALL IF THE CLAMP FAILS. WHEN BARREL AND/OR BARNDOORS ARE INSTALLED, EACH ACCESSORY MUST ALSO BE FITTED WITH ITS OWN SEPARATE SAFETY CABLE.

INSTALLATION

STAND MOUNTING

This unit can also be installed atop a tripod stand. Simply insert the threaded bolt on the top of the tripod stand through the hole in the mounting yoke. Tighten the nut onto the threaded bolt to secure the mounted device in place.

Technical line drawing of a tripod-mounted surveying instrument with a top view showing its mounting bracket and a red arrow indicating force direction (no text or symbols present)

CAUTION!

MAKE SURE THAT THE TRIPOD LEGS AND ALL TELE-SCOPING ELEMENTS OF THE TRIPOD STAND ARE LOCKED IN PLACE BEFORE INSTALLING THE DEVICE ATOP THE STAND!

POSITION THE TRIPOD STAND AND MOUNTED DEVICE ONLY ON FLAT, STABLE SURFACES! DEPLOY TRIPOD LEGS FULLY IN ORDER TO MAXIMIZE STABILITY!

INSTALLATION

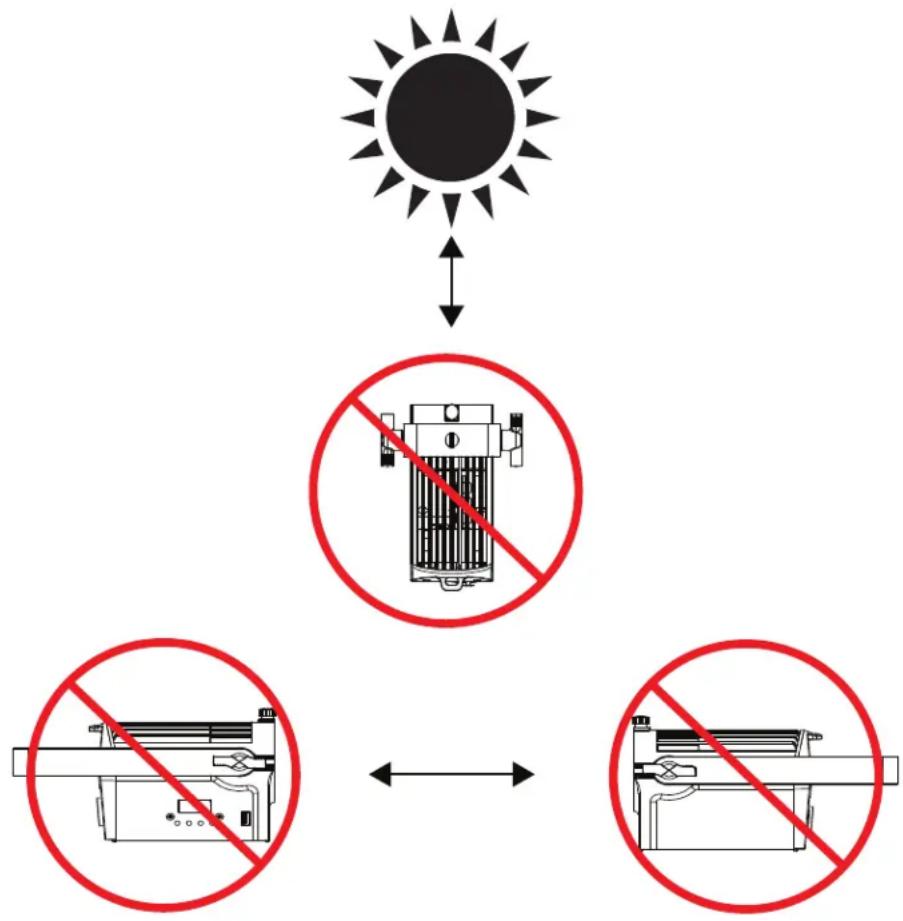

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS

External sources of light beams from direct sunlight, lighting moving head fixtures, and lasers which are focused directly towards the exterior housing and/or penetrate the front lens opening of ADJ lighting fixtures can cause severe internal damage including burning of optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost filters, irises, shutters, motors, belts, wiring, discharge lamps, and LEDs.

This issue is not unique to ADJ lighting fixtures; it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of any potential damage if followed. Contact ADJ Service for more details.

DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM DIRECT SUNLIGHT, OTHER LIGHTING MOVING HEAD FIXTURES, AND LASERS DURING UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

ACCESSORY INSTALLATION

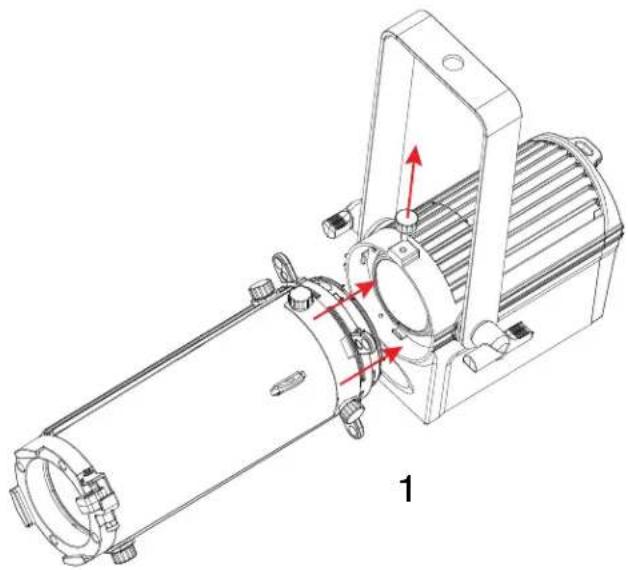

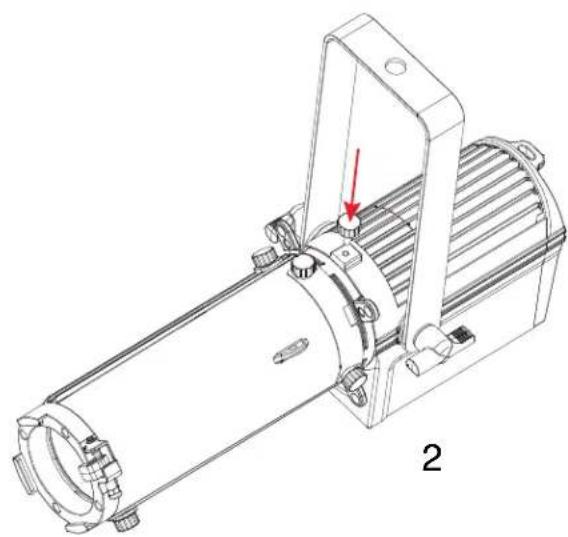

BARREL

To install the barrel, remove the thumbscrew located at the top of the fixture's lens frame, then insert the back end of the barrel (the side closest to the gobo holder) into the lens frame, making sure that the hole on the barrel is aligned with the thumbscrew hole on the lens frame (Fig. 1). Then insert and tighten the thumbscrew to secure the barrel in place (Fig. 2). Please note that the barrel requires its own separate safety cable when installed in a suspended setting.

Technical line drawing of a mechanical device with red directional arrows indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical device with a red arrow indicating a specific component (no text or symbols present)

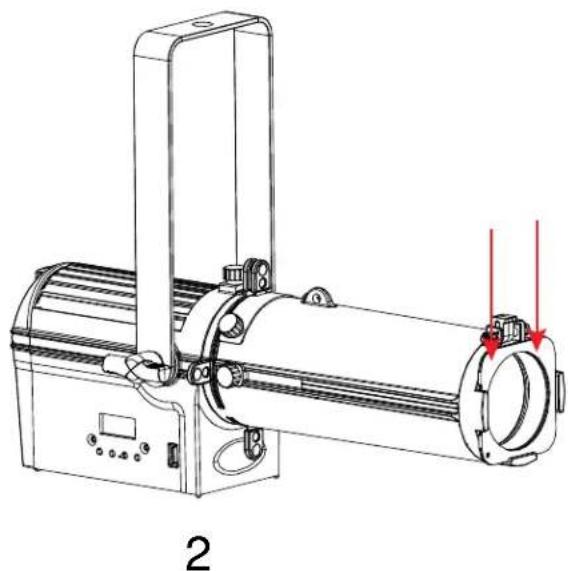

GEL FRAME

To install the gel frame, press the release on the retainer clip at the end of the barrel, and flip the clip open (Fig. 1). Slide the gel frame into the slot at the end of the barrel (Fig. 2), then close the retainer slip to secure it in place.

Technical line drawing of a mechanical device with a rotating shaft and housing (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

ACCESSORY INSTALLATION

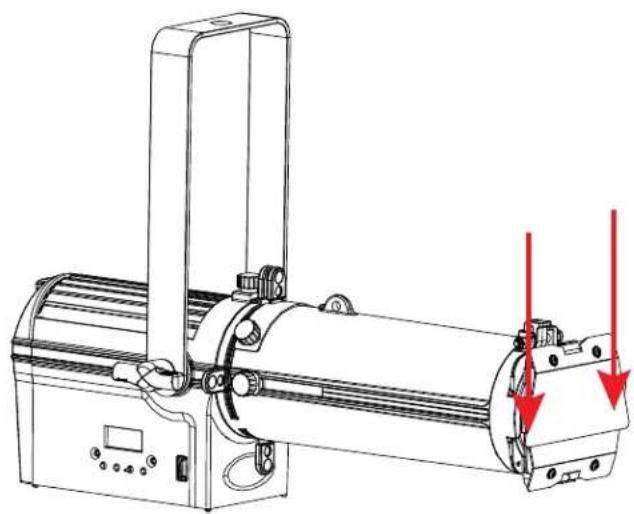

BARNDOORS

To install the barndoors, press the release on the retainer clip at the end of the barrel, and flip the clip open (Fig. 1). Slide the barndoors into the slot at the end of the barrel (Fig. 2). If the gel frame has already been installed, then the barndoors should be installed over the gel frame (the gel frame should be closer to the frame of the barrel). Close the retainer slip to secure the barndoors in place.

Please note that the barndoors require their own separate safety cable when installed in a suspended setting.

Technical line drawing of a mechanical device with a cylindrical component and a vertical support (no text or symbols)

1

Technical line drawing of a mechanical device with red arrows indicating motion or force directions (no text or symbols present)

2

GOBO

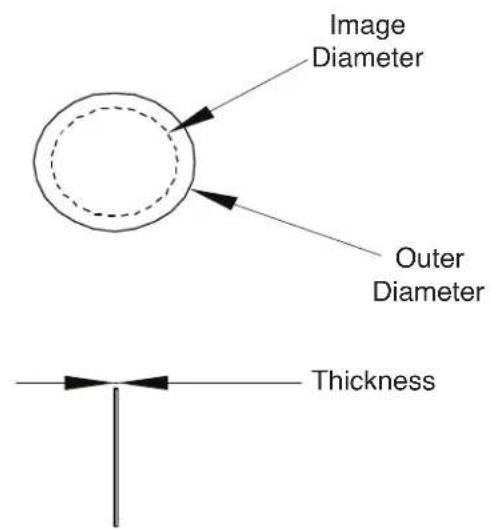

GOBO DIMENSIONS

Gobo Type	Outer Diameter	Image Diameter	Thickness
Metal	1.772 in (45mm)	1.220 in (31mm)	0.008 in (0.2mm)
Glass	1.555 in (39.5mm)	1.220 in (31mm)	0.039 in (1mm)

Image Diameter Outer Diameter Thickness

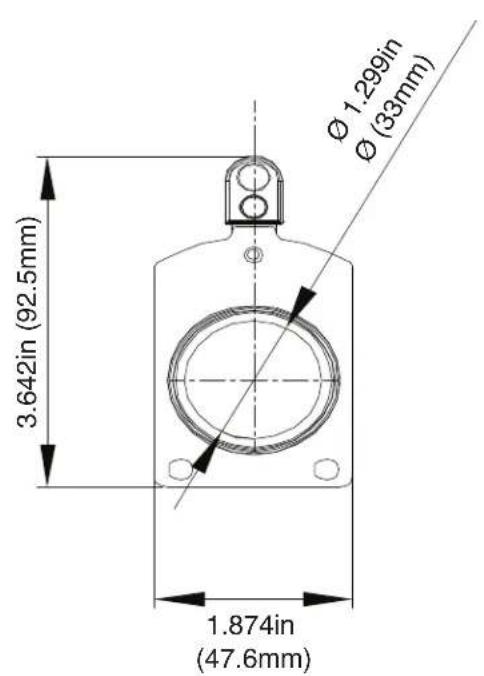

GOBO HOLDER DIMENSIONS

Ø 1.299in Ø (33mm) 3.642in (92.5mm) 1.874in (47.6mm)

1.630in (41.4mm) 1.520in (38.6mm) 0.063in (1.6mm)

Please note that gobo holder is compatible with "E" size gobos.

GOBO

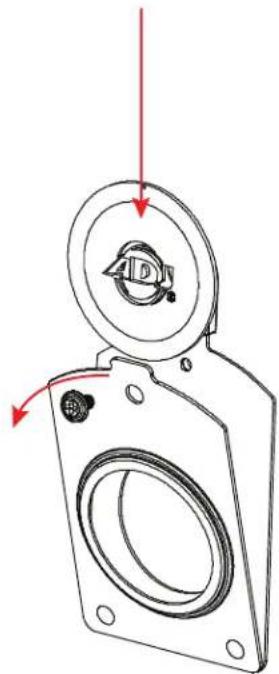

INSTALLATION

Remove the screw from the gobo holder, and open up the two halves of the gobo holder (Fig. 1). Please note that the half of the gobo holder with the raised surface is the front, while the half with the flat surface and the handle is the back. Insert the gobo, making sure that the front face of the gobo is facing the front of the gobo holder, then re-insert and tighten the screw to close the gobo holder. Next, locate the plate on the barrel near the safety cable loop that is held in place with two knobs. Loosen that knobs and slide the plate forward to expose the gobo slot (Fig. 2). Insert the gobo holder into the gobo slot, making sure that the front of the gobo holder is facing towards the front of the barrel. Slide the plate back into place and tighten the knobs to secure the gobo holder in place.

Mechanical component diagram showing a rotating assembly with red arrows indicating motion (no text or symbols)

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

OPERATION

ZOOM FUNCTION

The zoom function on this fixture is adjusted manually using a sliding knob located on the side of the barrel, as shown in the illustration below. Push the sliding knob towards the front of the barrel to zoom out, or backwards to zoom in.

Zoom Knob

REMOTE DEVICE MANAGEMENT (RDM)

NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the fixtures to be modified and monitored remotely. This protocol is ideal for instances in which a unit is installed in a location that is not easily accessible.

With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled controller to send out a signal to devices on the wire, as well as allowing the fixture to respond (known as a GET command). The controller can then use its SET command to modify settings that would typically have to be changed or viewed directly via the unit's display screen, including the DMX Address, DMX Channel Mode, and Temperature Sensors.

FIXTURE RDM INFORMATION:

RDM Code	Device ID Model	ID Personality IDs
0x1900 32	000-FFFF 32

Please be aware that not all RDM devices support all RDM features, and therefore it is important to check beforehand to ensure that the equipment that you are considering includes all of the features that you require.

The following parameters are accessible in RDM on this device:

[0x0011] Proxied Device Count [0x0405]	Device Power Cycles
[0x0200] Sensor Definition [0x0600] Pan Invert
[0x0201] Sensor Value [0x0601] Tilt Invert
[0x0080] Device Model Description [0x0602] Pan Tilt Swap
[0x0081] Manufacturer Label [0x0500] Display Invert
[0x0082] Device Label [0x0501] Display Level
[0x00E0] DMX Personality [0x1010] Power State
[0x00E1] DMX Personality Description [0x1031] Preset Playback
[0x0400] Device Hours	[0x0122] Default Slot Value
[0x0015] Comms Status	[0x00B0] Language
[0x0031] Status ID Description	[0x00A0] Language Capabilities
[0x0032] Clear Status ID	[0x00C2] Boot Software Version Label
[0x0401] Lamp Hours	[0x00C1] Boot Software Version ID
[0x0402] Lamp Strikes	[0x0070] Product Detail ID List
[0x0403] Lamp State	[0x0030] Status Messages
[0x0404] Lamp On Mode	[0x0603] Realtime Clock

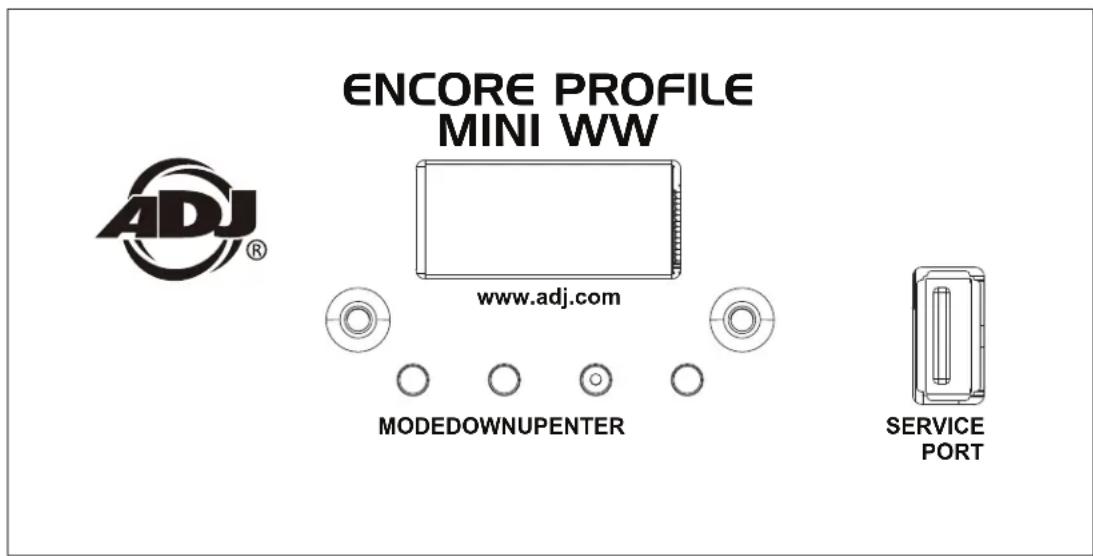

CONTROL PANEL

The fixture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. (See image below)

• MODE: Cycles through the main menu options and/or return to previous menu without making changes.
• DOWN/UP: Scroll through options in the selected menu.
• ENTER: Select highlighted option and/or confirm selection.

ENCORE PROFILE MINI WW www.adj.com MODEDOWNUPENTER SERVICE PORT

AUTO LOCK

As configured from the factory, the unit will automatically lock the display screen controls after 2 minutes of inactivity. The inactivity period before the controls automatically lock can be adjusted in the System Menu by navigating to PERSONALITY > DISPLAY > AUTO LOCK. To unlock the display screen controls, simply press and hold the Mode button until the controls unlock.

SOFTWARE PORT / SOFTWARE UPDATES

Please contact ADJ customer support for the latest software and updating instructions.

SYSTEM MENU

DMX SETTINGS	DMX Address	001 - 511		Set DMX address of the unit.
	DMX Channel Mode	2Ch		Select DMX channel mode
		3Ch
		6Ch
	No DMX	Hold		If DMX signal is lost, unit holds last settings
		Blackout		If DMX signal is lost, unit takes all channels to 0
		Manual		If DMX signal is lost, unit defaults to pre-selected manual mode
PERSONALITY	Dim Modes	Standard
		Stage
		TV
		Architectural
		Theatre
		Stage 2
		Dim Speed 0.0s ~ 10s
	Dim Curves	Square
		Linear
		Square Inverse
		S-Curve
	PWM Freq	900~1500Hz, 2500Hz, 4000Hz, 5000Hz, 6000Hz, 10KHz, 15KHz, 20KHz, 25KHz		Default = 1200Hz
	Display	Screen Display Off, 1min - 9min		Screen goes to sleep after pre-set period of inactivity
		Auto Lock Off - 10min		Screen controls lock after pre-set period of inactivity, default = 2min
		Flip Display Yes / No		Invert display orientation
	Service	USB Update On / Off		Select whether to power up service port in preparation for software updates
		Factory Restore Yes / No		Restore unit to factory default settings
CONTINUED ON NEXT PAGE

SYSTEM MENU

MANUAL	Dimmer 000 - 255			Manual control
	Strobe 000 - 255
INFORMATION	Life Time Power On Time xxxxxx Hours Total lifetime run hours
	Last Run Time	Power On Tim Able Res	xxxxxx Hours	Run hours since last reset
		Power On Time Reset	Passcode = 038	Reset Power On Tim Able Res hours
	Total Lamp Hours	xxxxxx Hours Lamp on hours
	Fixture Temp	Current xxx F / xxx C		Current fixture temperature
		Max Resettable xxx F / xxx C		Max fixture temperature since last reset
		Last Max Temp Reset	Passcode = 038	Reset Max Resettable temperature
	Software Version	Vx.xx

DMX SETUP

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA "IN" and DATA "OUT" XLR terminals located on all DMX fixtures (most controllers only have a DATA "OUT" terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible when using several DMX fixtures. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation): This fixture can be controlled via DMX-512 protocol, and features multiple DMX channel modes. Your unit and your DMX controller require 5-pin XLR connectors for data input and data output. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made with a male XLR connector at one end and a female XLR connector on the other. Also remember that DMX cable must be daisy chained and cannot be split.

Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior.

A DMX512 terminator reduces signal errors, avoiding most signal reflection interference. Connect PIN 2 (DMX-) and PIN 3 (DMX+) of the last fixture in series with a 120 Ohm, 1/4W Resistor to terminate the DMX512.

DMX SETUP

DMX ADDRESSING

All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. The assignment of this starting DMX address is achieved by setting the correct DMX address on the digital control display on the fixture.

You can set the same starting address for all fixtures or a group of fixtures, or set different addresses for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react in the same way. In this case, please note that changing the settings of one channel will affect all the fixtures simultaneously.

If you set each fixture to a different DMX address, each unit will start to "listen" to the channel number you have set, based on the quantity of DMX channels of each fixture. That means changing the settings of one channel will only affect the selected fixture.

As an example, when operating this device in 2 channel mode, you should set the starting DMX address of the first unit to 1, the second unit to 3 (1 + 2), the third unit to 5 (1 + 2 + 2), and so on. (See the chart below for more details.)

Channel Mode Unit 1 Address Unit 2	Address Unit 3 Address Unit 4 Address
2 Channels 1 3 5 7
3 Channels 1 4 7 10
6 Channels 1 7 13 19

DMX TRAITS

CHANNEL			DMX VALUE	FUNCTION
2CH 3CH 6CH
1 1 1 000 -	255 D	Dimmer Intensity, 0% to 100%
2 2 2 000 -	255 Dimmer Fine
	3	3		Shutter
			000 - 031 Shutter Closed (LEDs Off)
			032 - 063 Shutter Open (LEDs On)
			064 - 095 Strobe Effect, slow to fast
			096 - 127 Shutter Open (LEDs On)
			128 - 159 Pulse Effect in Sequences
			160 - 191 Shutter Open (LEDs On)
			192 - 223 Random Strobe Effect, slow to fast
			224 - 255 Shutter Open (LEDs On)
		4		Dim Modes
			000 - 020 Default to unit setting
			021 - 040 Standard
			041 - 060 Stage
			061 - 080 TV
			081 - 100 Architectural
			101 - 120 Theatre
			121 - 140 Stage 2
				Dimming Speed
			141 0.1s
			142 0.2s
			143 0.3s
			144 0.4s
			145 0.5s
			146 0.6s
			147 0.7s
			148 0.8s
			149 0.9s
			150 1.0s
			151 1.5s
			152 2.0s
			153 3.0s
			154 4.0s
			155 5.0s
			156 6.0s
			157 7.0s
			158 8.0s
			159 9.0s
			160 10.0s
			161 - 255 Default to unit setting
CONTINUED ON NEXT PAGE

DMX TRAITS

CHANNEL			DMX VALUE	FUNCTION
2CH 3CH 6CH
		5		Dim Curves
			000 - 020 Square
			021 - 040 Linear
			041 - 060 Inv. Squa
			061 - 080 S. Curve
			081 - 255 No function
		6		LED Refresh Rates
			000 - 010 Default Refresh Rate (1200 Hz)
			011 900 Hz
			012 910 Hz
			013 920 Hz
			014 930 Hz
			015 940 Hz
			016 950 Hz
			017 960 Hz
			018 970 Hz
			019 980 Hz
			020 990 Hz
			021 1000 Hz
			022 1010 Hz
			023 1020 Hz
			024 1030 Hz
			025 1040 Hz
			026 1050 Hz
			027 1060 Hz
			028 1070 Hz
			029 1080 Hz
			030 1090 Hz
			031 1100 Hz
			032 1110 Hz
			033 1120 Hz
			034 1130 Hz
			035 1140 Hz
			036 1150 Hz
			037 1160 Hz
			038 1170 Hz
			039 1180 Hz
			040 1190 Hz
			041 1210 Hz
			042 1220 Hz
			043 1230 Hz
CONTINUED ON NEXT PAGE

DMX TRAITS

CHANNEL			DMX VALUE	FUNCTION
2CH 3	CH 6	CH
		6		LED Refresh Rates (continued)
			044 1240	Hz
			045 1250	Hz
			046 1260	Hz
			047 1270	Hz
			048 1280	Hz
			049 1290	Hz
			050 1300	Hz
			051 1310	Hz
			052 1320	Hz
			053 1330	Hz
			054 1340	Hz
			055 1350	Hz
			056 1360	Hz
			057 1370	Hz
			058 1380	Hz
			059 1390	Hz
			060 1400	Hz
			061 1410	Hz
			062 1420	Hz
			063 1430	Hz
			064 1440	Hz
			065 1450	Hz
			066 1460	Hz
			067 1470	Hz
			068 1480	Hz
			069 1490	Hz
			070 1500	Hz
			071 2500	Hz
			072 4000	Hz
			073 5000	Hz
			074 6000	Hz
			075 10 K	Hz
			076 15 K	Hz
			077 20 K	Hz
			078 25 K	Hz
			079 - 255 No	Function

DIM MODES

Dimming Curve Ramp Effect	0 sec Fade Time		1 sec Fade Time
	255		255
	0		0
	Rise Time (ms)	Down Time (ms)	Rise Time (ms)	Down Time (ms)
Standard (default)	0	0	0	0
Stage	780	1100	1540	1660
TV	1180	1520	1860	1940
Architectural	1380	1730	2040	2120
Theatre	1580	1940	2230	2280
Stage 2	0	1100	0	1660

DAISY CHAIN POWER LINKING

These units have the capability to be daisy chained together via the power in/out ports. The maximum number of units that can be linked together in this manner is as follows:

• 25 units maximum when running on 120V power.
- 53 units maximum when running on 230V power.

DO NOT EXCEED THE NUMBER OF UNITS LISTED ABOVE.

DO NOT MIX MAKE AND MODEL TYPES WHEN DAISY CHAINING! All units that are connected in this manner must be of the same make and model type.

CLEANING AND MAINTENANCE

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

CLEANING

Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky, or particularly dirty environments can cause greater accumulation of dirt on the fixture's optics. Clean the external lens surface periodically with a soft cloth to avoid dirt/debris accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

Please refer to the following points during routine inspections:

• A detailed electrical check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out during normal operation, resulting in damage or injury as larger parts could fall.
• Check for any deformations on the housing, color lenses, rigging hardware, and rigging points (ceiling, suspension, trussing). Deformations in the housing could allow for dust or liquids to enter into the fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously injure a person(s).
  • Electric power supply cables must not show any damage, material fatigue, or sediments.
• NEVER remove the ground prong from the power cable.

DIMENSIONAL DRAWINGS

FIXTURE ONLY

6.260in (159mm) 8.819in (224mm)

5.394in +0.118 -0 (137mm)^(+3) -0

Ø 3.071in Ø (78mm) 5.669in (144mm) 10.866in (276mm)

DIMENSIONAL DRAWINGS

15-30 LENS INSTALLED

DIMENSIONAL DRAWINGS

25-50 LENS INSTALLED

SPECIFICATIONS

SOURCE

• 40W Warm White LED Engine
• 50,000 Hour Average LED Life*
- *LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• >98CRI 900 Total Lumens
• 3000K Color Temperature

EFFECTS

• Electronic Strobe and Dimming
• Variable Dimming Curves and Dimming Modes

GOBOS

• Supports "E" Size Gobo's
• Metal Gobo Dimensions: Outer Diameter 45mm, Image Diameter 31mm
• Glass Gobo Dimensions: Outer Diameter 39.5mm, Image Diameter 31mm
• Gobo Holder is included
• Gobo's are sold separately

CONTROL / CONNECTIONS

• (3) DMX Channel Modes (2 / 3 / 6)
- Adjustable Refresh Rates (900-1500, 25,000 Hz)
• 4 Button Control Panel
- OLED Menu Display
- Locking 5pin XLR Connector In/Out
• IP65 Locking Power In/Out
• With Wired Digital Communication Network
• RDM (Remote Device Management)
- USB Service Port

SIZE / WEIGHT

• Length: 6.03" (153mm) (NO LENS)
• Width: 5.67" (144mm)
• Vertical Height: 10.75" (273mm)
• Weight: 4.0 lbs. (1.8 kg)

ELECTRICAL / THERMAL

• Convection Cooled
  • AC 100-240V - 50/60Hz
  • 45.6W Max Power Consumption @ 120V
  • 45.7W Max Power Consumption @ 230V
  • Power Linking: 25pcs Max @120V / 53pcs Max @230V
  • Minimum and Maximum Ambient Temperatures: 14° to 113°F (-10° to 45°C)

APPROVALS / RATINGS

• CE I cETLus (Pending) I IP20

Specifications and manual are subject to improvement without prior written notice.

ERROR CODES

CODE DESCRIPTION
LED Temp LED	D Temperature Error

ACCESSORY INFORMATION

SKU NUMBER DESCRIPTION

EP Mini Lens 1530 15- to 30-degree Manual Zoom Lens

EP Mini Lens 2550 25- to 50-degree Manual Zoom Lens

SIP064 1.64-ft IP65 male to female twist lock power link cable

SIP113 3-ft IP65 male to female twist lock power link cable

SIP126 5-ft IP65 male to female twist lock power link cable

SIP139 10-ft IP65 male to female twist lock power link cable

SIP152 16-ft IP65 male to female twist lock power link cable

SIP165 25-ft IP65 male to female twist lock power link cable

SIP178 50-ft IP65 male to female twist lock power link cable

SIP191 100-ft IP65 male to female twist lock power link cable
