USER MANUAL CI15 Phase Technology

OWNER'S MANUAL: CI15

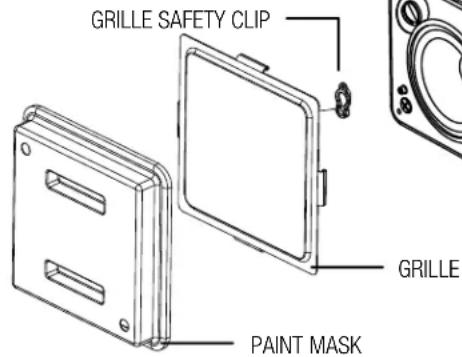

[BOX CONTENTS]

• 1 SPEAKER
• 1 GRILLE
- 1 PAINT MASK
• 1 HOLE TEMPLATE
• 1 EUROBLOCK CONNECTOR

PRE-CONSTRUCTION BRACKET (SOLD SEPARATELY)

SPEEDWING™ MOUNTING ARMS

GRILLE SAFETY CLIP GRILLE PAINT MASK

Technical line drawing of a mechanical device with mounting holes and a central fan (no text or symbols)

(No text)

EUROBLOCK

CONNECTOR

Thank you for choosing Phase Technology ^® speakers. We know there are a wide variety of choices available today, and we sincerely appreciate your purchase of our product. Phase Technology speakers are built to exacting standards and will provide many years of listening enjoyment.

Our speakers are the result of over five decades of designing and manufacturing. We hold many key patents in loudspeaker technology including the soft-dome tweeter. Our mission, our passion is to constantly advance the art and science of accurate audio reproduction. Our dedication insures your new speakers will accurately reproduce all the impact, detail and delicacy of today's digital technology.

Regardless of application, serious audiophile listening or home theater, we recommend that you take the time to read this manual thoroughly before connecting speakers to your amplifier or receiver. In the highly unlikely event that you should experience a problem with set-up or operation, please contact one of our authorized dealers for assistance, or contact us directly.

Phase Technology Corporation

8005 W. 110th St., Suite 208

Overland Park, KS 66210

855.663.5600 (Domestic)

+1.913.663.5600 (International)

913.663.3200 (Fax)

SAFETY

INSTRUCTIONS

GETTING STARTED AND PRECAUTIONARY NOTES 3

INSTALLATION IN A SHEETROCK CEILING 3

INSTALLATION USING AN OPTIONAL BRACKET 4

CARING FOR YOUR SPEAKERS 4

MAINTENANCE AND SERVICE 4

TROUBLESHOOTING

WARRANTY

SPECIFICATIONS

4

5

[SAFETY INSTRUCTIONS]

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of un-insulated “dangerous voltage: within the product's enclosure that may be off sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and other instructions should be followed.
5. Water and Moisture - The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.
6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.

PORTABLE CART WARNING

1. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
2. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet

that may impede the flow of air through the ventilation openings.

1. Heat - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances that produce heat.
2. Power Source - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
3. Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed up or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
4. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.
5. Nonuse Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
6. Object and Liquid Entry - Care should be taken so that neither objects fall nor liquids spill into the inside of the appliance.
7. Damage Requiring Service - The application should be serviced by qualified service personnel when:

a. the power supply cord or the plug has been damaged,
b. objects have fallen onto or liquid has been spilled into the appliance,
c. the appliance has been exposed to rain,
d. the appliance does not appear to operate normally or exhibits a marked change in performance, or
e. the appliance has been dropped or the cabinet damaged.

1. Servicing - The user should not attempt to service the appliance beyond those means described in the operating instructions. All other servicing should be referred to qualified service personnel.
2. Grounding or Polarization - Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.

APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR USAGE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT, INSERT FULLY.

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRESE ET POUSSER JUSQU AU FOND.

[GETTING STARTED AND PRECAUTIONARY NOTES]

For proper connection and therefore full enjoyment of your new Phase Technology speakers, we encourage you to read this owners' manual thoroughly, even if you are very familiar with installing speakers.

Speaker placement is very subjective. Placement follows the guidelines for the developers of in-ceiling speakers, yet is also guided by personal preferences. The proper spacing, location and adjustment of in-wall speakers are critical for complete enjoyment of your new speakers. This manual covers these topics thoroughly.

When deciding upon a location, consider the following:

Make certain your speaker wires can be run to or are accessible from these locations. Make certain the wall or ceiling material is sturdy enough to support the weight and vibration of the speakers. It is recommended that our pre-construction rough-in bracket assemblies be used whenever possible in new construction (not included; AC-CI15-PCB). Make certain the area behind the speaker is free of obstacles such as wallstuds, electrical wiring, pipes, etc. Each speaker should be positioned properly, relative to the listening area for good coverage. Audio performance and room-to-room isolation will be improved if there is some fiberglass insulation placed loosely behind the speaker.

[CI15 INSTALLATION IN A SHEETROCK CEILING]

Abstract line drawing of a house-shaped structure surrounded by geometric shapes (no text or symbols)

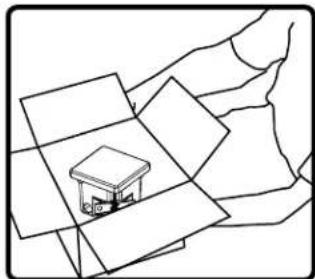

1. Unpack speaker. Leave paint mask in place until after speaker is installed or painting is complete.

Line drawing of a hand holding a small device near a wall-mounted panel (no text or symbols)

1. Use hole template to mark cutout on sheetrock. Use RotoZip or other tool to cut hole. Hole size: 4" (102 mm) H x 4" (102mm) W.

Technical line drawing of a mechanical component with mounting base and wiring (no text or symbols)

1. Connect Euroblock to speaker wires and connect to speakers.

Mechanical assembly diagram showing a clamp mechanism with no visible text or symbols

1. If required, attach seismic restraint system to hole in clamping arm, then to reinforced structure (saftey cable not included)

Illustration of a hand using a tool to lift a wall-mounted device (no text or symbols visible)

1. Insert speaker into mounting hole with paint mask in place. Tighten both screws on the baffle face to actuate the mounting wings. Firmly secure both screws. DO NOT OVERTIGHTEN.

Technical line drawing of a mechanical component with mounting flanges and internal cavity (no text or symbols)

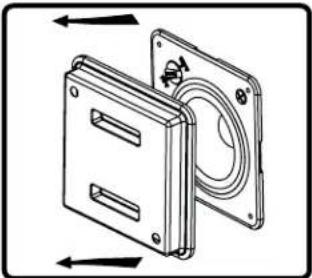

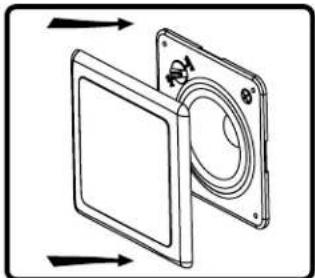

1. Remove paint mask unless painting is required. In that case, follow steps 7-10 when painting is complete.

Diagram of a device's front panel with circular components and directional arrows indicating rotation (no text or symbols)

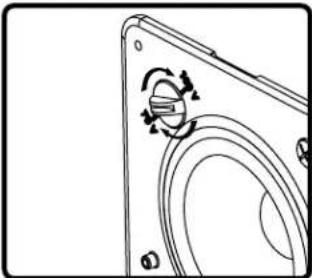

1. Adjust tap switch to proper setting. Switch is preset to 8 Ohm mode.

1. 2.

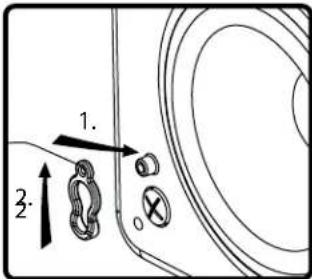

1. Attach grille safety clip by placing the large end of the clip over snap-fit post (1), then sliding clip until small end snaps into place around post (2).

Diagram of a mechanical component with two plates and a central circular feature, shown with directional arrows (no text or symbols)

1. Align tabs on snap-fit grille with slots in baffle. Gently press grille into place.

Simple line drawing of a square frame with rounded corners (no text or symbols)

1. DONE!

[CI15 INSTALLATION USING OPTIONAL PRE-CONSTRUCTION BRACKET]

Simple line drawing of a rectangular object with a diamond-shaped cutout and dotted lines indicating hidden edges (no text or symbols)

1. Nail or screw bracket to joists.

Simple 3D rectangular block diagram with no text or symbols

1. Finish installing ceiling.

Line drawing of a hand holding a camera lens inside a cube (no text or symbols)

1. Use RotoZip or other tool to cut hole. Hole dimensions are 4" H x 4" W.

Simple line drawing of a house with a roof, surrounded by geometric shapes (no text or symbols)

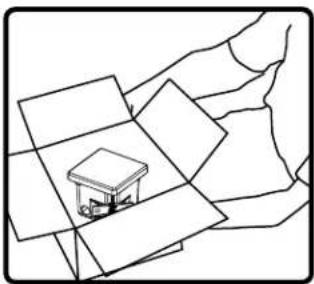

1. Unpack speaker. Leave paint mask in place until after speaker is installed or painting is complete.

Technical line drawing of a mechanical component with mounting base and wiring (no text or symbols)

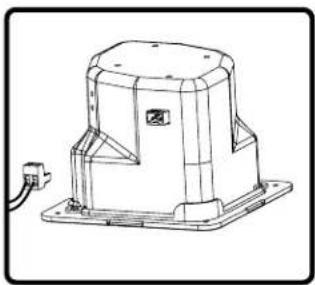

1. Connect Euroblock to speaker wires and connect to speakers.

Mechanical assembly diagram showing a clamp mechanism with no visible text or symbols

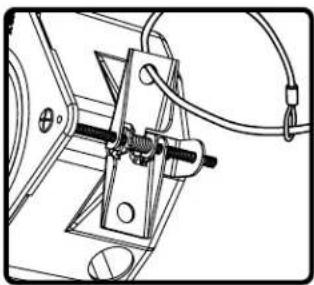

1. If required, attach seismic restraint system to hole in clamping arm, then to reinforced structure (saftey cable not included)

Illustration of a hand using a power tool to apply or install a rectangular panel (no text or symbols visible)

1. Insert speaker into mounting hole with paint mask in place. Tighten both screws on the baffle face to actuate the mounting wings. Firmly secure both screws. DO NOT OVERTIGHTEN.

Technical line drawing of a mechanical housing component with mounting holes and internal components (no text or symbols)

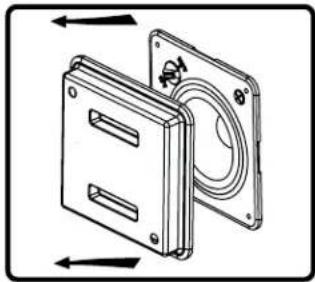

1. Remove paint mask unless painting is required. In that case, follow steps 9-12 when painting is complete.

Diagram of a mechanical component with curved and rotational arrows indicating motion (no text or symbols)

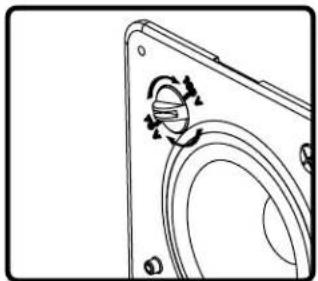

1. Adjust tap switch to proper setting. Switch is preset to 8 Ohm mode.

1. 2.

1. Attach grille safety clip by placing the large end of the clip over snap-fit post (1), then sliding clip until small end snaps into place around post (2).

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

1. Align tabs on snap-fit grille with slots in baffle. Gently press grille into place.

Simple line drawing of a square frame with rounded corners (no text or symbols)

1. DONE!

[CARING FOR YOUR PHASE TECHNOLOGY SPEAKER]

All Phase Technology speakers are finished with a high degree of craftsmanship in either hand polished paint or vinyl laminates. We recommend using a lint-free rag with a small amount of glass cleaner to maintain the long-lasting beauty of the finish. Avoid products containing silicones, oils, oil derivatives, or solvents. Enclosures finished in vinyl laminates may be cleaned with a damp cloth as necessary.

[MAINTENANCE AND SERVICE]

Because of Phase Technology's uncompromising quality control programs, it's unlikely that your speakers will ever need service if connected and used as outlined in this Owners' Manual. In the unlikely event that a problem does occur, please contact your Phase Technology dealer. Your dealer has the necessary factory-authorized parts and trained technicians to quickly restore your speaker to its original performance specifications.

[TROUBLESHOOTING]

NO SOUND

1. Verify that all components are plugged in and turned on.

2. Check all speaker wires and cables for loose connections.

3. Check to see if you have selected the proper source on your amplifier.

VOICES DO NOT APPEAR TO COME FROM BETWEEN THE SPEAKERS / BASS RESPONSE IS WEAK

1. Verify that all speaker connections from the amplifier to the speakers are running PLUS+ to PLUS+ and MINUS- to MINUS-.
2. Check to see if there are any furnishings or plants that may be blocking the output of a speaker.

SOUND, BUT NO BASS (MOST LIKELY IN SYSTEMS WITH A SUBWOOFER)

1. Verify that the subwoofer is plugged into an AC outlet and power is turned on.
2. Check that the speaker wire / cable going from the amplifier/receiver to the subwoofer is securely fastened.
3. Check the volume control of the subwoofer.
4. Refer to your amplifier/receiver manual to make sure you have adjusted its bass output properly.

MUDDY OR BOOMY BASS

1. Check the volume control for the subwoofer. Excess volume can cause speakers to sound distorted and unnatural.
2. Try adjusting the crossover control on the subwoofer or the subwoofer setup on your receiver to a slightly lower frequency.
3. If the subwoofer or full size speaker is close to a corner, side or back wall, try moving it away from the wall.
4. Bookshelf speakers placed in a semi-enclosed space or cabinet can artificially emphasize bass output. Reduce the bass control on your amplifier or move the speakers to the front of the cabinet. Alternatively, reposition the speakers to a more open location.

DISTORTED SOUND FROM THE SPEAKERS

1. This problem is usually caused by setting the volume control too high. Reduce the amplifier/receiver volume to a lower level.
2. If noise and distortion are audible at higher volume levels, your amplifier may not be powerful enough. Consider upgrading to a unit with higher power.

NOTE: Remember, even though your Phase Technology speakers can handle considerable power levels, ANY speaker if used improperly can be damaged. Consult your Phase Technology dealer for assistance in choosing a new amplifier or receiver.

[WARRANTY]

LIMITED WARRANTY: Phase Technology warrants its loudspeakers to be free from defects in material and workmanship for a period of ten (10) years for speaker product, limited lifetime for CI speakers, and three (3) years for the electronic components to the original purchaser. Purchase must be made from an authorized Phase Technology dealer.

This warranty does not cover service or parts to repair damage caused by misuse, abuse, damage while in transit, alterations, unauthorized repairs, failure to follow instructions, fire, flood or any other cause beyond the reasonable control of Phase Technology. Defects in speaker cabinets or grilles must be brought to the attention of your dealer immediately after purchase. This warranty will be void if the products' serial number has been altered or removed.

Should your Phase Technology product require service, please call the MSE Audio customer service department for a return authorization. All merchandise returned to Phase Technology without prior authorization will be refused. For your return authorization number, please call 855.663.5600 or email sales@

[SPECIFICATIONS]

CI15

Description: 3" Compact, Full-Range In-Wall w/ Integrated Metal Backcan & Bypassable 25/70.7/100 Volt Transformer

Nominal Impedance: 8Ω

Sensitivity: 85.5 dB

Frequency Response: 115 Hz - 22 kHz

Recommended Power: 5 - 60 Watts

Tweeter(s): N/A

Midrange: N/A

Woofer(s): 3" Polypropylene w/ NBR Surround

Inputs: Hardwire Lead

Grille: White ABS/ Aluminum (paintable)

Dimensions: 5" H x 5" W x 4.125" D

Cutout Dimensions: 4.35" H x 4.35" W

Weight: 3.1 lbs

Included Accessories: Tile Bridge, Conduit Connector, Paint Mask, Wire Nuts

Optional Accessories: Pre-Construction Bracket (AC-CI15-PCB)
