| Product Type | In-Ceiling Speaker |
| Woofer Size | 6.5 inches |
| Tweeter Size | 1 inch |
| Impedance | 8 ohms |
| Sensitivity | 88 dB (2.83V/1m) |
| Frequency Response | 50 Hz - 20 kHz |
| Power Handling (RMS) | 100 watts |
| Cutout Diameter | 7.9 inches |
| Mounting Depth | 3.5 inches |
| Overall Diameter | 9.2 inches |
| Weight | 4.5 lbs |
| Grille Material | Magnetic steel, paintable |
| Recommended Amplifier Power | 20-120 watts per channel |
| Installation Type | New construction or retrofit |
| Safety Features | UL 2043 rated for plenum spaces |
| Maintenance | Clean with dry cloth; no solvents |
| Compatibility | Works with standard wire gauges 12-18 AWG |
| Warranty | 5 years limited |
Frequently Asked Questions - CI6.1X Phase Technology
What is the recommended amplifier power for the CI6.1X?
The recommended amplifier power is between 20 and 120 watts per channel at 8 ohms. Exceeding this may damage the speaker.
Can I paint the grille?
Yes, the grille is paintable. Use a thin coat of spray paint designed for metal to avoid clogging the perforations.
What tools are needed for installation?
You will need a drywall saw, measuring tape, speaker wire, wire strippers, and a screwdriver. For new construction, you may need additional framing material.
What is the cutout diameter required?
The required cutout diameter is 7.9 inches (200 mm). Ensure a minimum clearance behind the speaker for mounting depth.
Is the CI6.1X suitable for outdoor use?
No, the CI6.1X is designed for indoor use only. Outdoor exposure can cause corrosion and damage to the speaker components.
How do I clean the speaker grille?
Use a soft, dry cloth to gently remove dust. For stubborn dirt, slightly dampen the cloth with water. Do not use any chemical cleaners or abrasive materials.
Does the speaker come with a protective back box?
No, the CI6.1X is an open-back design. For applications requiring a sealed enclosure, you can purchase an optional back box separately.
What wire gauge should I use?
For runs up to 50 feet, use 16 AWG wire. For longer runs, use 14 AWG to minimize signal loss.

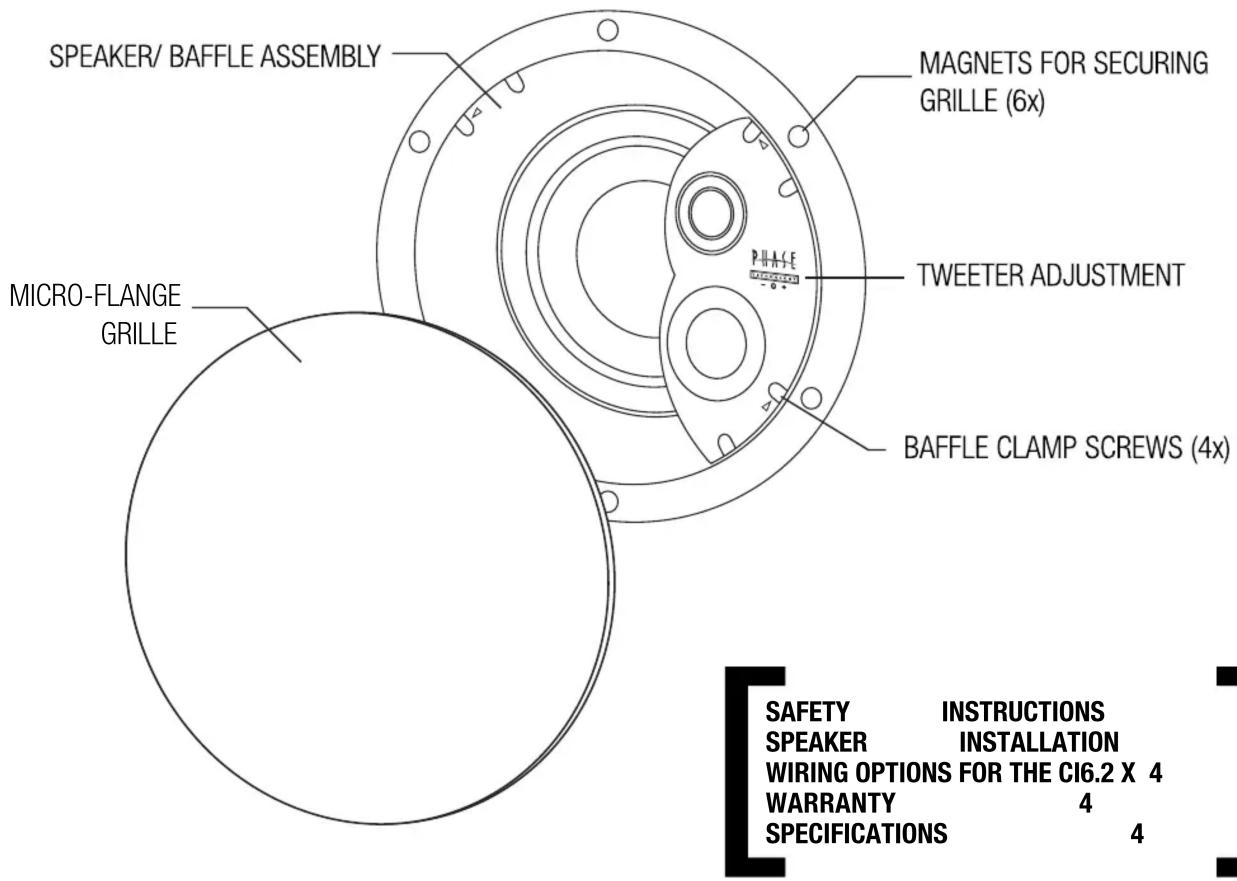

Can the tweeter swivel?
Yes, the tweeter is mounted on a pivoting ball joint, allowing you to direct high frequencies toward the listening area for optimal imaging.
What is the warranty period?
The Phase Technology CI6.1X comes with a 5-year limited warranty against defects in materials and workmanship. Keep your original receipt.
