USER MANUAL IRBh 5120 Plus LIEBHERR

Abstract graphic with three gray blocks: a padlock, a snowflake with asterisks, and a power button symbol (no text or labels)

Solid dark blue background with no visible text, symbols, or patterns.

User Guide

Quality, Design and Innovation

QR code with speech bubble and mobile phone icon containing 'i' symbol

home.liebherr.com/fridge-manuals

Abstract gray-scale icons including a bell, wireless signal symbol, and Wi-Fi signal (no text or labels)

LIEBHERR

Contents

1 Appliance at a glance.... 3

1.1 Scope of delivery.... 3

1.2 Overview of the appliance and equipment...... 3

1.3 SmartDevice.... 3

1.4 Appliance range of use.... 4

1.5 Conformity....4

2 General safety instructions.... 4

3 Putting into operation....6

3.1 Switching on appliance....6

3.2 Inserting the components....6

4 Foods management....6

4.1 Storing food....6

4.2 Storage times....7

5 Saving energy....7

6 Controls....7

6.1 Controls and displays....7

6.1.1 Status display....8

6.1.2 Navigation....8

6.1.3 Operating structure....8

6.1.4 Display symbols....8

6.2 Control concept.... 8

6.2.1 Activating/deactivating the function......8

6.2.2 Selecting function value....9

6.2.3 Activating/deactivating settings....9

6.2.4 Selecting the setting value....9

6.2.5 Go to the Customer menu....9

6.3 Functions.... 10

Turn off appliance....10

B 5 °C B5 D1 Sun Camera Neural Neural Neural G

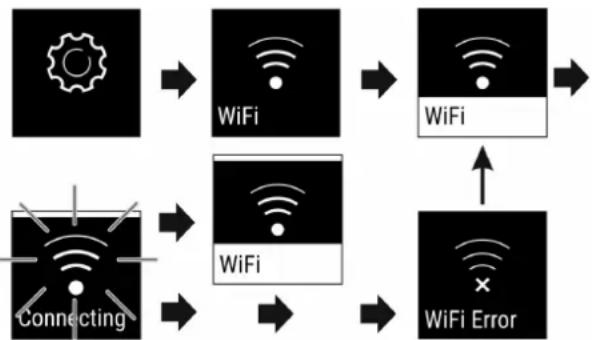

WiFi....10

Temperature....10

BioFresh B-Value.... 11

D-Value....11

SuperCool.... 11

PartyMode....11

HolidayMode....11

SabbathMode.... 11

E-Saver....12

CleaningMode.... 12

Display brightness....12

Door alarm....12

Entry lock....12

Info....13

Reminder....13

Reset....13

6.4 Fault messages.... 13

6.4.1Warnings.... 13

6.4.2 DemoMode....13

7 Features.... 13

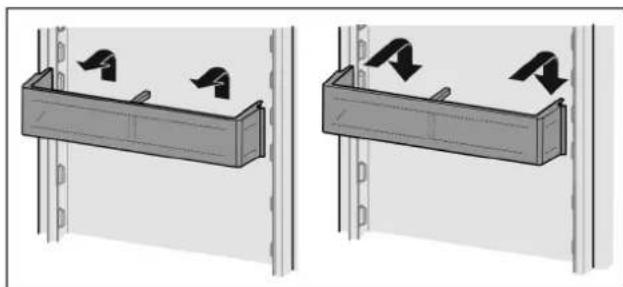

7.1 Door rack.... 13

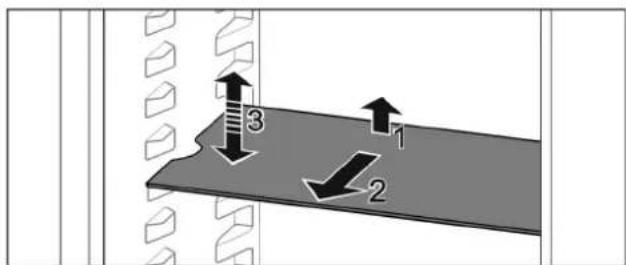

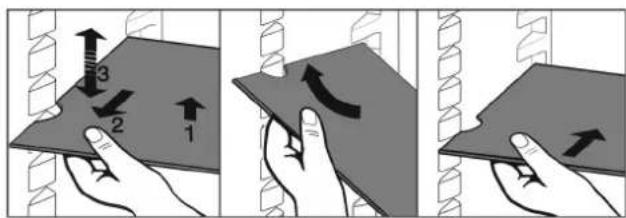

7.2 Shelves.... 14

7.3 Dividing shelf 14

7.4 Space for baking tray.... 14

7.5 Adjustable bottle shelf 15

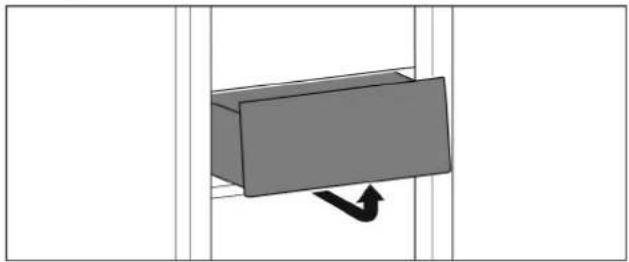

7.6 Drawers.... 15

7.7 Fruit & Vegetable safe cover.... 16

7.8 Adjusting the moisture levels.... 16

7.9 Accessories.... 17

8 Maintenance.... 17

8.1 FreshAir carbon filter.... 17

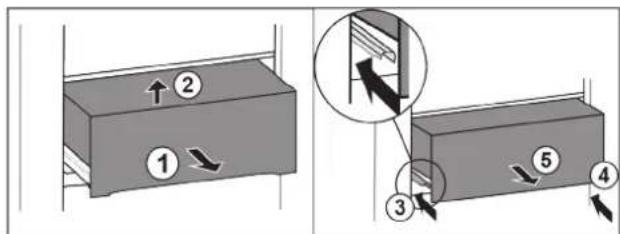

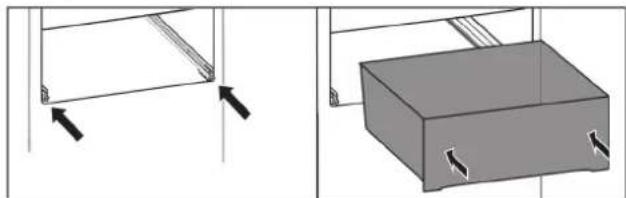

8.2 Disassembling / assembling pull-out systems..... 18

8.3 Defrosting the appliance.... 18

8.4 Cleaning the appliance.... 18

9 Customer help.... 19

9.1 Technical specifications.... 19

9.2 Operating noises.... 19

9.3 Technical fault.... 19

9.4 Customer Services.... 20

9.5 Model plate 20

10 Shutting down.... 21

11 Disposal.... 21

11.1 Preparing appliance for disposal.... 21

11.2 Disposing of the appliance in an environmentally friendly manner.... 21

The manufacturer is continually working on the further development of all types and models. Please be aware that we reserve the right to make changes to the shape, equipment and technology.

Symbol	Explanation
	Read instructionsPlease read the information in these instructions carefully to understand all of the benefits of your new appliance.
	Full instructions on the internetYou can find detailed instructions on the internet using the QR code on the front of these instruction or by entering the service number athome.liebherr.com/fridge-manuals.The service number can be found on the serial tag:[IMAGE]Fig. Example illustration
	Check applianceCheck all parts for transport damage. If you have any complaints, please contact your agent or customer service.
Symbol Explanation
	DifferencesThese instructions apply to a range of models, so differences are possible. Sections that apply to certain models only are marked with an asterisk (*).
	Instructions and resultsInstructions are marked with a ▶Results are marked with a ▷
	VideosVideos about the appliances are available on the YouTube channels of Liebherr-Hausgeräte.

These operating instructions apply to:

IRBh 51..

1 Appliance at a glance

1.1 Scope of delivery

Check all parts for damage during transport. If you have any complaints, please contact your retailer or Customer Services (see 9.4 Customer Services).

Your new appliance comes with the following parts:

• Built-in appliance
• Features (depending on the model)
• Installation materials (depending on the model)
• User Guide
• Installation Guide

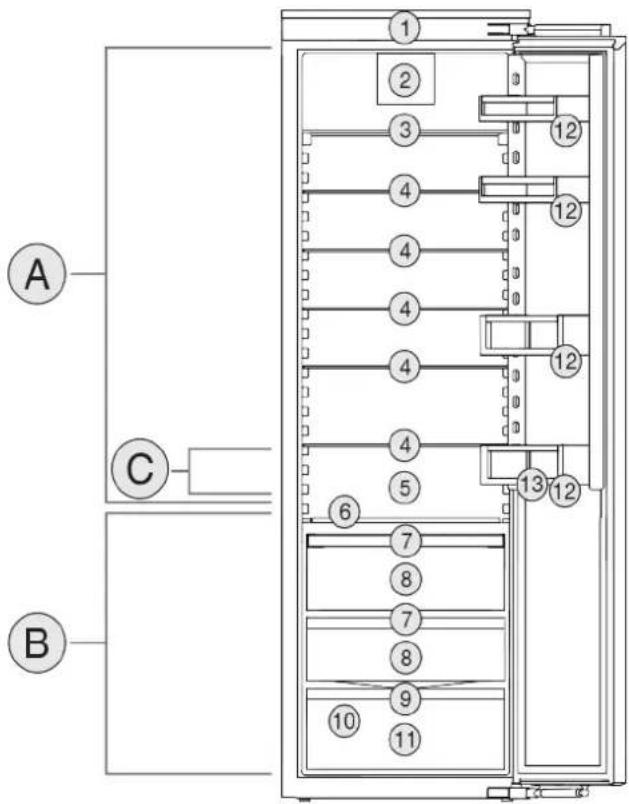

1.2 Overview of the appliance and equipment

A C B

Fig. 1 Example illustration

Temperature range

(A) Fridge compartment (B) BioFresh
(C) Coldest zone

Equipment

(1) Controls (8) Fruit & Vegetable-Safe
(2) Fan with FreshAir activated charcoal filter (9) Drain outlet
(3) Separable storage shelf (10) Serial tag
(4) Storage shelf (11) Meat & Dairy-Safe
(5) Space for baking tray (12) Door shelf
(6) Adjustable bottle shelf (13) Bottle holder

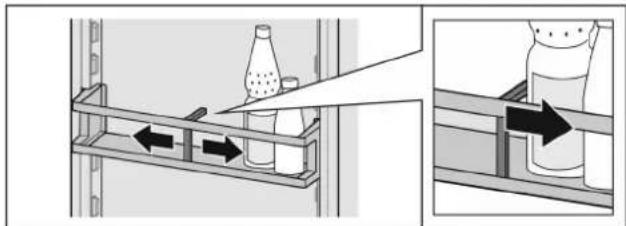

(7) Lid for Fruit & Vegetable-Safe

Note

▶ Shelves, drawers and baskets are arranged for optimum energy efficiency when the appliance is delivered. Changing how the shelves, for example, are inserted in the fridge compartment does not have any impact on energy consumption.

1.3 SmartDevice

SmartDevice is the networking solution for your refrigerator. If your appliance SmartDevice-enabled or compatible, you can quickly and easily connect your appliance to your WiFi. With the SmartDevice app, you can operate your appliance from a mobile device. Additional functions and setting options are available in the SmartDevice SmartDevice app.

SmartDevice-compatible appliance:

Your appliance is compatible for use with the SmartDeviceBox. You must first purchase and install the SmartDeviceBox. In order to connect your appliance to the WiFi, you need to download the SmartDevice app.

More information smartdevice.liebherr.com about SmartDevice:

Purchasing the home.liebherr.com/shop/de/deu/smartDeviceBox.html SmartDeviceBox in the Liebherr- Hausgeräte store:

Downloading the SmartDevice-app:

After installing and configuring the SmartDevice, you can connect your appliance to the WiFi using the SmartDevice app and the WiFi appliance function (see WiFi).

Note

You cannot use the SmartDeviceBox in the following countries: Belarus, Kazakhstan, Russia. The SmartDevice function is not available.

1.4 Appliance range of use

Intended use

The appliance is only suitable for cooling food products in a domestic or household-like environment. This includes, for example, use:

• in staff kitchens, bed and breakfast establishments,
• by guests in country houses, hotels, motels and other accommodation,
• for catering and similar services in the wholesale trade.

The appliance is not suitable for freezing food;

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly forbidden:

• Storing and refrigerating medicines, blood plasma, laboratory preparations or similar substances and products based on the Medical Device Directive 2007/47/EC
• Use in outdoor areas with very high humidity
• Use in areas at risk of explosions

Misusing the appliance may lead to damage to the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the appliance is designed to operate in restricted ambient temperatures. The climate classification applying to your appliance is printed on the rating plate.

Note

▶Keep to the specified ambient temperatures in order to guarantee that the appliance works properly.

Climate classification	for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
SN-ST 10 °C to 38 °C
SN-T 10 °C to 43 °C

1.5 Conformity

The refrigerant circuit has been tested for leaks. When installed, the appliance complies with the applicable safety regulations and with the corresponding directives.

The full text of the EU Declaration of Conformity is available on the following website: www.Liebherr.com

The BioFresh compartment meets the requirements of a cold storage compartment as set out in DIN EN 62552:2020.

2 General safety instructions

Please keep these instructions in a safe place and pass them on to any subsequent owners.

Read these operating instructions carefully before use to ensure safe and correct use of the appliance. Follow the instructions, safety instructions and warning messages included at all times. They are important for ensuring you can operate and install the appliance safely and without any problems.

Danger for the user:

- This device can be used by children and people with impaired physical, sensory or mental abilities or with a lack of experience and knowledge provided that they are supervised or have received instruction in the safe use of this device, and about the resulting hazards. Children must not play with this appliance. Cleaning and user maintenance work must not be carried out by children without adult supervision. Children aged between 3 and 8 are allowed to load and unload the appliance. Children below the age of 3 must be kept away from the appliance unless they are under continuous adult supervision.

• The socket must be easily accessible so that the appliance can be disconnected quickly from the electricity in an emergency. It must not be located in the area behind the appliance.
• When disconnecting the appliance from the supply, always take hold of the plug. Do not pull the cable.
• In the event of a fault pull out the mains plug or deactivate the fuse.
• Do not damage the mains power cable. Do not operate the appliance with a defective mains power cable.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• Only customer service or other specially trained staff may repair or perform other operations on the appliance.
• Only install, connect and dispose of the appliance according to the instructions.
• Only use the appliance when is installed.
• Special lights, such as LED lights on the appliance, are used to illuminate the inte-

rior of the appliance and are not suitable for room lighting.

Fire hazard:

• This appliance contains a refrigerant which is environmentally friendly, but flammable. Leaking refrigerant may ignite. It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland, the authorised Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs where the gas system is being opened or charged.

• The coolant used (information on the model plate) is ecofriendly but also flammable. Any leaking coolant may ignite.

• Do not damage the refrigerant circuit pipes.

• Do not handle ignition sources inside the appliance.
• Do not use electrical appliances inside the appliance (e.g. steam cleaners, heaters, ice cream makers, etc.).

• If the refrigerant leaks: remove any naked flames or ignition sources from the vicinity of the leakage point. Properly air the room. Inform customer services.

• Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components.

• Keep burning candles, lamps and other items with naked flames away from the appliance so that they do not set the appliance on fire.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• Please be sure to store alcoholic drinks or other packaging containing alcohol in tightly closed containers. Any alcohol that leaks out may be ignited by electrical components.

Danger of tipping and falling:

- Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particularly to children.

Danger of food poisoning:

- Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

• Avoid prolonged skin contact with cold surfaces or refrigerated/frozen goods or take protective measures, e.g wear gloves.
• Do not consume ice cream, water ice or ice cubes immediately and do not consume them too cold.

Danger of injury and damage:

• Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment, open flames or defrosting sprays to defrost.
• Do not use sharp implements to remove the ice.

Risk of crushing:

- Do not hold the hinge when opening and closing the door. Fingers may get caught.

Symbols on the appliance:

This symbol may be located on the compressor. It relates to the oil in the compressor and makes reference to the risk that: Swallowing or inhaling can be fatal. This advice is only relevant to recycling. There is no danger in normal operation.

This symbol is located on the compressor and indicates the danger of flammable materials. Do not remove the sticker.

This or a similar sticker may be located on the rear of the appliance. It refers to the foam-padded panels in the door and/or the housing. This advice is only relevant to recycling. Do not remove the sticker.

Please note the warning messages and other specific advice in the other chapters:

	DANGER	indicates an immediately hazardous situation which will lead to death or serious injuries if it is not avoided.
	WARNING ind	icates a hazardous situation which may lead to death or serious injuries if it is not avoided.
	CAUTION ind	icates a hazardous situation which may lead to minor or moderate injuries if it is not avoided.

	NOTICE indicates a hazardous situation which may lead to damage to property if it is not avoided.
	Note indicates useful instructions and tips.

3 Putting into operation

3.1 Switching on appliance

Ensure that the following conditions are met:

☐ Appliance is installed and connected according to installation instructions.
☐ All adhesive strips, adhesive and protective films as well as transport safety devices in and on the appliance are removed.
☐ All marketing leaflets are removed from the drawers.

Fig. 2

▶ Switch on the appliance using the control panel next to the display.
▷ The status display appears.

The appliance starts in DemoMode:

If the appliance starts in DemoMode, you can deactivate DemoMode within the next 5 minutes.

Demo 3:14 < > 3s

Fig. 3

▶ Press Confirm next to the display for 3 seconds.
▷ DemoMode is deactivated.

Note

The manufacturer recommends:

▶ Place the food inside: Wait for around 6 hours until the set temperature is reached.

3.2 Inserting the components

▶ Insert the supplied components to make the most of your appliance.

Note

You can purchase accessories from the Liebherr household appliance store (home.liebherr.com).

4 Foods management

4.1 Storing food

WARNING

Risk of fire

▶ Do not use any electrical appliances in the food area of the appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power goes down if ventilation is not sufficient.

▶ Always keep air slots clear.

When storing food, always observe the following:

☐ Air vents on the inside rear wall are unobstructed.
☐ Air vents on the fan are unobstructed.
☐ Food is in sealed packaging.
☐ Foods that easily absorb or give off smell or taste are stored in sealed containers or covered.
☐ Raw meat and fish are in clean, sealed containers to prevent them coming into contact with or dripping onto other foods.
☐ Liquids are in sealed containers.
☐ Foods are not stored too closely together, as the air needs to circulate.

Note

Failure to follow these guidelines can lead to food perishing.

4.1.1 Fridge section

The natural air circulation creates a range of temperatures.

Arrange your food as follows:

▶ In the top section and in the door: butter and cheese, preserves and tubes.
▶ In the coldest zone Fig. 1 (C): easily perishable food such as prepared meals.

4.1.2 BioFresh

BioFresh helps certain fresh foods stay fresh for longer compared to conventional cooling methods.

In the case of foods with a minimum shelf life, the date indicated on the packaging still applies.

Note

If the temperatures drop below 0 °C foods may freeze to each other.

▶ Store cold-sensitive vegetables such as cucumbers, aubergines, courgettes, and cold-sensitive tropical fruit, in the fridge compartment.

Fruit & Vegetable-Safe

This provides a fresh storage climate with the lid closed. A moist climate is suitable for storing loose foods with a high moisture content (e.g. salad, vegetables, fruit).

The air moisture in the compartment depends on the moisture content of the items being stored and the number of times the door is opened. You can adjust the air moisture.

Arrange your food as follows:

▶ Store your loose fruit and vegetables.

▶ Excessive air moisture: Regulate the air humidity (see 7.8 Adjusting the moisture levels).

Meat & Dairy-Safe

Here a relatively dry storage climate is set. A dry climate is great for dry or packaged foods (e.g. dairy products, meat, fish, sausage).

Arrange your food as follows:

▶ Place the dry or packaged foods inside.

4.2 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date indicated on the packaging still applies.

4.2.1 Fridge section

Always follow the best-before date stated on the packaging.

4.2.2 BioFresh

Recommended storage periods in the Meat & Dairy-Safe
Butter at 1 °C up to 90 days
Hard cheese at 1 °C up to 110 days
Milk at 1 °C up to 12 days
Sausage, cold meats at 1 °C up to 8 days
Poultry at 1 °C up to 6 days
Pork at 1 °C up to 6 days
Beef at 1 °C up to 6 days
Game at 1 °C up to 6 days

Note

Remember that high-protein foods perish quicker; shell-fish and crustaceans do not last as long as fish, and fish does not last as long as meat.

Recommended storage periods in the Fruit & Vegetable-Safe
Vegetables, salads
Artichokes at 1 °C up to	14 days
Celery at 1 °C up to 28 days
Cauliflower at 1 °C up to	21 days
Broccoli at 1 °C up to 13 days
Chicory at 1 °C up to 27 days
Lettuce at 1 °C up to 19 days
Peas	at 1 °C up to	14 days
Kale	at 1 °C up to	14 days
Carrots	at 1 °C up to	80 days
Garlic at 1 °C up to 160 days
Turnip	at 1 °C up to	14 days
Lettuce at 1 °C up to 13 days
Herbs	at 1 °C up to	13 days
Leeks	at 1 °C up to	29 days
Mushrooms	at 1 °C up to	7 days
Radishes	at 1 °C up to	10 days
Brussels sprouts at 1 °C up to 20 days
Asparagus at 1 °C up to	18 days

Recommended storage periods in the Fruit & Vegetable-Safe
Spinach	at 1 °C up to	13 days
Savoy	at 1 °C up to	20 days
Fruit
Apricots	at 1 °C up to	13 days
Apples	at 1 °C up to	80 days
Pears	at 1 °C up to	55 days
Blackberries at 1 °C up to 3 days
Dates	at 1 °C up to	180 days
Strawberries	at 1 °C up to	7 days
Figs	at 1 °C up to	7 days
Blueberries at 1 °C up to 9 days
Raspberries	at 1 °C up to	3 days
Currants	at 1 °C up to	7 days
Sweet cherries	at 1 °C up to	14 days
Kiwis	at 1 °C up to	80 days
Peaches	at 1 °C up to	13 days
Plums	at 1 °C up to	20 days
Cranberries	at 1 °C up to	60 days
Rhubarb	at 1 °C up to	13 days
Gooseberries	at 1 °C up to	13 days
Grapes	at 1 °C up to	29 days

5 Saving energy

• Pay attention to good ventilation. Do not cover ventilation holes or grids.
• Always keep the fan air slits clear.
• Do not install the appliance in direct sunlight, next to an oven, radiator or similar.
• Energy consumption depends on the installation conditions, e.g. the ambient temperature (see 1.4 Appliance range of use). A warmer ambient temperature can increase the energy consumption.
• Open the appliance for as short a time as possible.
• The lower the temperature is set the higher the energy consumption.
• Sort your food: home.liebherr.com/food.
• Keep all food properly packed and covered. This prevents frost from forming.
• Only take food out for as long as necessary so that it doesn't warm up too much.
• Inserting warm food: allow to cool down to room temperature first.
• For longer periods of absence, use HolidayMode (see HolidayMode).

6 Controls

6.1 Controls and displays

The display provides a quick overview of the temperature setting and the status of functions and settings. You can control the functions and settings either by deactivating/activating them or by selecting a value.

6.1.1 Status display

Fig. 4

(1) Temperature display of the fridge section

The Status display shows the set temperature and is the home display. From there, you can navigate to the options and settings.

6.1.2 Navigation

Navigate in the menu to access the individual functions. An audible signal sounds after confirming a function or setting. If no selection is made after 10 seconds the display switches to the Status display.

The appliance is operated with the buttons next to the display.

Fig. 5

(1) Navigation arrow left/right (2) Confirm

Navigation arrow left/right Fig. 5 (1):

- Navigating in the menu. After the last menu page, it goes back to the first one.

Confirm Fig. 5 (2):

• Activating/deactivating a function.
• Open a submenu.
• Confirm a selection. After confirmation the display switches back to the menu.

Back to Status display: in the fastest manner:

• Close and open the door.
• or wait 10 seconds. The display switches to the Status display.

6.1.3 Operating structure

The controls are explained by a template. The display changes depending on the function or settings.

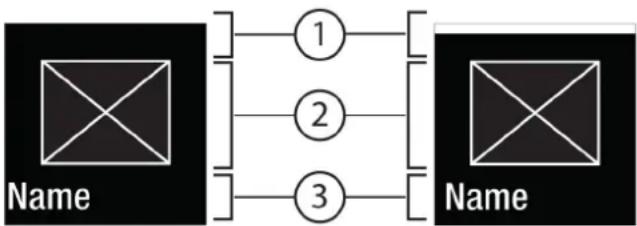

Menus without a submenu

Fig. 6

(1) Status deactivated / status activated white bar in the top area
(2) Symbol or activated value

(3) Menu: Function name or menu: Setting name

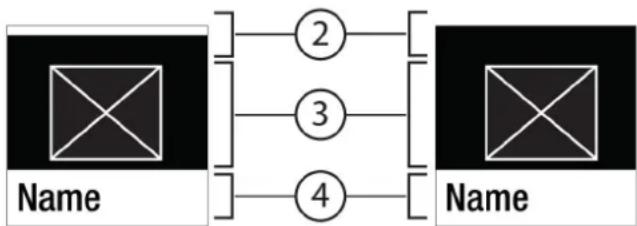

Menus with a submenu

Name 1

Fig. 7

(1) Menu: Function name or menu: Setting name
(3) Symbol or activated value
(2) Status (4) Submenu: function name or submenu: Setting name

(2) off / on

You can navigation as follows:

• Press the left/right Fig. 5 (1) arrow to navigate.

• Press Confirm Fig. 5 (2) to open the submenu Fig. 7 (4).

• Press the left/right Fig. 5 (1) arrow to navigate.

• Set a new value: Press Confirm Fig. 5 (2) to select an active value Fig. 6 (1).
• Back to the menu: Press Confirm Fig. 5 (2) to select the active value Fig. 6 (2).

6.1.4 Display symbols

Display symbols provide information on the current appli-ance status:

Symbol	Appliance status
	StandbyThe appliance or temperature zone is switched off.
	Flashing numberAppliance is working. Temperature flashes until the set value is reached.
	Flashing symbolAppliance is working. Setting is made.
	Bar grows steadilyFunction is activated.

6.2 Control concept

6.2.1 Activating/deactivating the function

You can activate/deactivate the following functions:

Symbol Function

SuperCool ^x

Symbol Function

PartyMode ^x

HolidayMode

E-Saver

^x When function is on, the appliance works harder. This means appliance noise when operating may be louder for a short while, and more energy will be consumed.

▶ Press the navigation arrows Fig. 5 (1) repeatedly until the function is displayed.
▶ Press Confirm Fig. 5 (2).
▷ You hear the confirmation tone.
▷ Status appears in the menu.
▷ Function is on/off.

6.2.2 Selecting function value

With the following functions you can set a value in the submenu:

Symbol
Function

5 °C

Setting the temperature

Switch the appliance on/off

▶ Tap the navigation arrows Fig. 5 (1) repeatedly until the function is displayed.
▶ Press Confirm Fig. 5 (2).
▶ Select the setting value with the navigation arrows Fig. 5 (1).

Setting the temperature

▶ Press Confirm Fig. 5 (2).
▷ You hear the confirmation tone.
▷ Status: On Fig. 6 (1) appears briefly in the submenu Fig. 7 (4).
▷ Display switches back to the menu.

6.2.3 Activating/deactivating settings

You can activate/deactivate the following settings:

Symbol
Setting

WiFi ^1

Entry lock ^2

SabbathMode ^2

Cleaning Mode ^2

Reminders ^1

Reset ^2

Switch off ^2

▶ Tap the navigation arrows Fig. 5 (1) repeatedly until the settings appear.

▶ Press Confirm Fig. 5 (2).

▶ Tap the navigation arrows Fig. 5 (1) repeatedly until the desired setting is displayed.

^1 Activate setting (shortpress)

▶ Press Confirm Fig. 5 (2).
▷ You hear the confirmation tone.
▷ Status appears in the menu.
▷ Setting is on / off.

^2 Activate setting (longpress)

▶ To Confirm Fig. 5 (2), press for 3 seconds.
▷ You hear the confirmation tone.
▷ Status appears in the menu.
▷ Display changes.

6.2.4 Selecting the setting value

With the following settings you can set a value in the submenu:

Symbol
Settings

Brightness

Door alarm

▶ Tap the navigation arrows Fig. 5 (1) repeatedly until settings ☐ appears.
▶ Press Confirm Fig. 5 (2).
▶ Tap the navigation arrows Fig. 5 (1) repeatedly until the desired setting is displayed.
▶ Press Confirm Fig. 5 (2).
▶ Select the setting value with the navigation arrows Fig. 5 (1).
▶ Press Confirm Fig. 5 (2).
▷ You hear the confirmation tone.
▷ Status appears briefly in the submenu.
▷ Display switches back to the menu.

6.2.5 Go to the Customer menu

You can see the following settings in the Customer menu:

Symbol
Function

BioFresh B-Value ^1

D-Value ^1

Software

▶ Press the navigation arrows Fig. 5 (1) repeatedly until the settings appear.

▶ Press Confirm Fig. 5 (2).

▶ Press the navigation arrows Fig. 5 (1) repeatedly until the appliance information appears in the display.

▶ Press Confirm Fig. 5 (2).
▶ Enter the numerical code 151.
▷ The customer menu appears.
▶ Press the navigation arrows Fig. 5 (1) repeatedly in the customer menu until the desired setting appears.

^1 Select the value

▶ Press Confirm Fig. 5 (2).
▷ You hear the confirmation tone.
▷ Status appears briefly in the display.
▷ Display switches back to the menu.

^2 Activate the setting

▶ ToConfirm Fig. 5 (2), press for 3 seconds.
▷ You hear the confirmation tone.
▷ Status appears on the display.
▷ The symbol flashes as long as the appliance is working.

6.3 Functions

Turn off appliance

This setting turns off the whole appliance.

Switching off the entire appliance

Fig. 8
▶ Activating/deactivating (see 6.2 Control concept).
▷ Off: Display goes black.

WiFi

Use this function to connect your appliance to the WiFi. You can then operate it via the SmartDevice app on a mobile device. You can also use this function to disconnect or reset the WiFi connection. To connect your appliance to the WiFi, you need the SmartDeviceBox. For more information about the SmartDeviceBox and how to use the SmartDevice app: (see 1.3 SmartDevice)

Note

You cannot use the SmartDeviceBox in the following countries: Belarus, Kazakhstan, Russia. The SmartDevice function is not available.

Establishing a WiFi connection

Make sure that the following requirements are fulfilled:

☐ You have purchased and inserted a SmartDeviceBox. (see 1.3 SmartDevice)
☐ You have installed the SmartDevice app (see apps.home.liebherr.com).

Fig. 9
▶ Activate the setting. (see 6.2 Control concept)
▷ Connection is established: Status: activated Fig. 6 (1) and WiFi connecting appears. The symbol flashes.

▷ Connection is established: Status: activated Fig. 6 (1) appears.
▷ Connection failed: Status and Connect appear. The symbol is permanently visible.

Disconnecting from the WiFi
▶ Deactivate the setting. (see 6.2 Control concept)

Fig. 10

There is no connection: Symbol is permanently visible.

Resetting the WiFi connection
▶ Reset settings. (see 6.2 Control concept)

Fig. 11

▷ The connection and other settings are reset to the factory settings.

Temperature

The temperature depends on the following factors:

• The amount of times the door is opened
• How long the door is open for
• The room temperature of the installation site
• The type, temperature and amount of food

Temperature zone Recommended setting

Fridge section

5^ C

BioFresh

(see BioFresh B-Value)

Setting the temperature

Fig. 12
▶ Set the value. (see 6.2 Control concept).
▷ Set temperature is shown at the bottom right of the display.

Setting the temperature in the BioFresh

You can set the temperature using the BioFresh B-Value in the customer menu. (see BioFresh B-Value)

BioFresh B-Value

When delivered, the temperature in the BioFresh compartment is set to B5. The status indicator on the display shows the appropriate target temperature in the BioFresh.

You can change this value slightly if a higher or lower ambient temperature makes it necessary. When setting the value, note:

Value	Description
B1 Lowest temperature
B1-B4	The temperature can drop to under 0 °C, so food can freeze easily.
B5 Default temperature
B9 Highest temperature

BioFresh B-Value

Choose the setting

▶ Set the size in the Customer menu (see 6.2 Control concept).

D-Value

The D-Value is preset for your appliance and may not be changed.

SuperCool

This function selects the lowest cooling temperature. This gives you colder storage temperatures.

This function is relevant to the fridge section Fig. 1 (A)

Use:

- Cool large amounts of food quickly.

Activating/deactivating the function

▶ Using the fridge section: activate the function when you add the goods.
▶ Activating/deactivating (see 6.2 Control concept).

The function automatically turns off. The appliance goes back to normal mode. The temperature adjusts itself to the set level.

PartyMode

This option offers an assortment of special functions and settings that are useful if you are having a party.

The following functions are on:

- SuperCool

All the functions can be adjusted flexibly and separately. Changes are discarded when the function turns off.

Activating/deactivating the function

▶ Activating/deactivating (see 6.2 Control concept).
▷ On: All functions are activated at the same time.
▷ Deactivated: Previously set temperatures are restored.

After 24 hours the function turns off automatically.

HolidayMode

This function minimises the energy consumption during an extended absence. The temperature of the refrigerator compartment is set to 15 °C and this is displayed on the status screen when the temperature has been reached.

Use:

• Save energy if you plan to be away for a while.
• Avoid coming home to bad smells and mould.

Activating/deactivating the function

▶ Empty everything from the fridge section.
▶ Activating/deactivating (see 6.2 Control concept).
▷ On: Fridge temperature is raised.
▷ Off: the previously set temperature is restored.

SabbathMode

With this function you can activate or deactivate the SabbathMode. If you activate this function, some electronic functions will be switched off. This allows your appliance to meet religious requirements on Jewish holidays such as the Sabbath and comply with STAR-K Kosher certification.

Appliance status with active SabbathMode

The status display continuously shows SabbathMode.

All functions in the display except the Deactivate SabbathMode function are locked.

Active functions remain active.

The display stays lit when you close the door.

The interior lighting is off.

Reminders are disabled. The set time intervals are paused.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The defrost cycle only works for the specified time without taking account of appliance use.

After a power failure, the appliance returns to SabbathMode.

Appliance status

Note

This appliance has certification from the “Institute for Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure occurs, no message appears in the status display about the power failure. Once the power is restored, the appliance continues to operate in SabbathMode. The power failure may mean that food spoils and the consumption of this food could lead to food poisoning.

After a power failure:

▶ Do not consume food that was frozen and has thawed out.
▶ Call up the settings menu. (see 6.2 Control concept)
▶ Tap the navigation arrow repeatedly until the corresponding function is displayed.

Fig. 13

▶ Complete the steps (see Fig. 97).
▷ SabbathMode is activated.
▷ Status display continuously shows SabbathMode.

Deactivating SabbathMode

▶ Call up the settings menu. (see 6.2 Control concept)
▶ Tap the navigation arrow repeatedly until the corresponding function is displayed.

Fig. 14

▶ Complete the steps (see Fig. 98).
▷ SabbathMode is deactivated.

E-Saver

This function reduces energy consumption. If you activate this function, the cooling temperature increases.

Temperature zone	Recommended setting (see Temperature)	Temperature when E-Saver activated
5 °Fridge compartment	5 °C 7 °C

Use:

- Save energy.

Activating/deactivating the function

▶ Activating/deactivating (see 6.2 Control concept).

▶ Activated: Higher temperatures are set in all temperature zones.
▷ Deactivated: Previously set temperatures are restored.

CleaningMode

Use this setting to easily clean the appliance.

This setting refers to the fridge section Fig. 1 (A).

Use:

- Clean the fridge section by hand.

What happens on the appliance when this setting is on:

• The fridge section is switched off.
• The internal light is on.
• Reminders and warnings are not shown. There is no acoustic signal.

Activating/deactivating settings

▶ Activating/deactivating the setting (see 6.2 Control concept).
▷ On: fridge section is off. Light stays on.
▷ Off: preset temperature is restored.

After 60 min the setting turns off automatically. The appliance then continues running in normal mode.

Display brightness

Set the brightness level of the display.

You can set the following brightness levels:

• 40%
• 60%
• 80%
• 100%

Choose the setting

▶ Set the level (see 6.2 Control concept).

Door alarm

Set the time before the door alarm (see Close the door) sounds.

The options are as follows:

• 1 min
• 2 min
• 3 min
• Off

Choose the setting

▶ Set the time (see 6.4 Fault messages).

Entry lock

This setting prevents unintentional use of the appliance, e.g. by children.

Use:

• Avoid settings being changed unintentionally.
• Avoid the appliance being switched off unintentionally.
• Avoid the temperature being changed unintentionally.

Activating/deactivating settings

▶ Activating/deactivating. (see 6.2 Control concept)

Info

This setting allows the appliance information to be read out as well as access to the customer menu.

It provides the following information:

• Model name
• Index
• Serial number
• Service number

Show appliance data

▶ Tap the navigation arrows Fig. 5 (1) repeatedly until the
settings appear.
▶ Press Confirm Fig. 5 (2).
▶ Tap the navigation arrows Fig. 5 (1) repeatedly until the information is displayed.
▶ Read the appliance info.

Reminder

Reminders are given out acoustically by a beep and visually by a symbol in the display. The signal gets louder until the alert stops.

Replace FreshAir active carbon filter

This message appears when the air filter needs replacing.

▶ Change the air filter every six months.
▶ Confirm the message with OK.
▷ The service interval resets.
The air filter guarantees the air quality in the fridge.

Activating the setting

▶ Activating/deactivating (see 6.2 Control concept).

Reset

This function resets all settings to the factory settings. All settings that you have made thus far will be reset to their original values.

Activating the setting

▶ Activate (see 6.2 Control concept).

6.4 Fault messages

Fault messages appear in the display. There are two categories of fault message:

Category	Meaning
Message	Reminder of general procedures. You can carry out these procedures to eliminate the message.

Category	Meaning
Warning	Appears when there are malfunctions. A signal sounds in addition to the display. The signal becomes louder until you acknowledge by tapping the display. You can eliminate simple defects yourself. For more serious defects, you must contact customer service.

6.4.1 Warnings

Close the door

This message appears if the door is open for too long.

You can set how long it takes for this message to appear.

▶ Stop alarm: Confirm the message.
-or-
▶ Close the door.

Error

This message appears if there is a fault with the appliance. An appliance component indicates a fault.

▶ Open the door.
▶ Note down the fault code.
▶ Confirm the message.
▷ The signal tone stops.
▷ The status display appears.
▶ Close the door.
▶ Contact customer service. (see 9.4 Customer Services)

6.4.2 DemoMode

If "D" appears on the display, demo mode is on. This option is designed for retailers, as it turns off all the cooling functions.

Stopping DemoMode

If you see the following running in the display:

▶ Confirm the display within the countdown.
▷ DemoMode is off.
If the timer is not running:
▶ Unplug the appliance.
▶ Plug the appliance in again.
▷ DemoMode is off.

7 Features

7.1 Door rack

7.1.1 Move/remove the door rack

Two identical diagrams showing a metal bracket with two black arrows pointing downward, mounted on a vertical wall (no text or symbols present)

Fig. 15

▶ Slide the rack upwards.
▶ Pull forwards.
▶ Re-insert it in reverse order.

7.1.2 Disassembling the door rack

The door rack can be taken apart for cleaning.

Four-panel diagram showing a mechanical assembly with arrows indicating rotational motion (no text or symbols)

Fig. 16
▶ Disassemble the door rack.

7.2 Shelves

7.2.1 Adjusting/removing the shelves

The shelves are prevented from being pulled out accidentally by pull out stops.

Diagram showing a mechanical or fluid system with labeled components 1, 2, and 3, including directional arrows and a textured surface.

Fig. 17

▶ Lift the shelf and pull forward.
▷ Line up the side runner.
▶ Adjust the height of the shelf: Lift or lower it to the desired height and slide it in.

-or-

Diagram illustrating three steps of folding a flatboard, labeled with numbers 1 to 3 and directional arrows indicating movement.

Fig. 18

▶ Remove the shelf completely: Pull it out to the front.

▶ Easier removal: Set the shelf at an angle.

▶ Insert the shelf again: Slide it in all the way.

The pull-out stoppers point downwards.

The pull-out stoppers are behind the front support.

7.3 Dividing shelf

7.3.1 Using the dividing shelf

The shelves are prevented from being pulled out accidentally by pull out stops.

Diagram showing a hand interacting with a wall-mounted device, no text or symbols present

Fig. 19

▶ Push the dividing shelf underneath as shown.

Technical diagram showing structural components with numbered parts and directional arrows indicating L and R directions.

Fig. 20

Adjusting the height:

▶ Pull the glass panels out Fig. 20 (1) from the front, one at a time.
▶ Release the support rails and click in at the height you want.
▶ Slide in the glass panels one at a time.
▷ Flat pull-out stoppers at the front, right behind the support rails.
▷ High pull-out stoppers at the back.

Using both shelves:

▶ Hold the glass panel with one hand and pull it to the front.
The glass panel Fig. 20 (1) and trim strip are at the front.
▷ The stops Fig. 20 (3) point down.

7.4 Space for baking tray

There is space for a baking tray Fig. 1 (5) above the drawers.

Pure diagram of a rectangular object inside a container with no text or symbols

Fig. 21

Ensure that the following conditions are met:

☐ Max. baking tray dimensions are adhered to (see 9.1 Technical specifications).
☐ Baking tray is cooled to room temperature.
☐ The lowest door rack is set at least one position higher.
With the door open to 90°:

▶ Slide the baking tray onto the lower side runners.

-or-

If baking tray is uneven:

▶ Use the supplied support rails.

L R

Fig. 22

▶ Snap support rails into the lowest runners.
With the door open to 90°:
▶ Slide the baking tray in on the support rails.

7.5 Adjustable bottle shelf

7.5.1 Using the bottle shelf

In the bottom of the fridge section you can either use the variable bottle shelf or the glass panel.

Cross-sectional diagram of a mechanical assembly with multiple cylindrical components inside a housing (no text or labels)

Fig. 23

▶ Remove the glass panel and store in a safe place.
▶ Lay bottles with their base towards the rear wall.

Note

If the bottles are protruding over the front of the bottle shelf:

▶ Move the lower door rack up a place.

7.5.2 Removing the bottle shelf

You can remove the bottle shelf for cleaning.

▶ Remove the glass panel above the bottle shelf.

Diagram of a storage unit with a downward arrow indicating compression or cooling process (no text or symbols present)

Fig. 24

▶ Lift the bottle shelf at the front and pull out.

Note

Liebherr recommends the following:

Do not place any goods on the drawer cover below.

7.5.3 Inserting the bottle shelf

Diagram of a storage or cooling system with arrows indicating flow direction (no text or symbols)

Fig. 25

▶ Slide in the bottle shelf until it engages and push down.

7.6 Drawers

You can remove the drawers for cleaning.

The way to remove/insert the drawers varies depending on the pull-out system. Your appliance can contain various pull-out systems.

Note

The energy consumption increases and the cooling power goes down if ventilation is not sufficient.

▶ Always leave the fan air vents clear on the back wall!

7.6.1 Drawer on rails

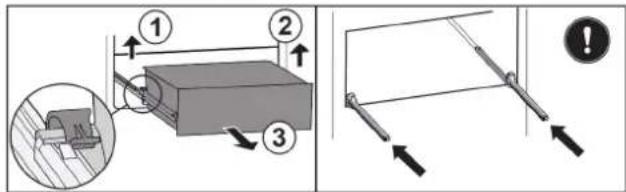

Removing drawer

Simple 3D diagram of a rectangular block with an arrow indicating direction, no text or symbols present

Fig. 26

▶ Remove drawer as shown in the illustration.

Inserting drawer

Pure diagram of a mechanical component with a curved arrow indicating direction, no text or symbols present

Fig. 27

▶ Insert drawer as shown in the illustration.

7.6.2 Drawer on telescopic rails

The drawer runs on extendible rails (telescopic rails). There are fully extendible telescopic rails and telescopic rails with partial pull-out. Drawers which are fully extendible can be pulled out fully from the appliance. Drawers with partial pull-out cannot be removed fully from the appliance. The system in your appliance depends on the type of appliance.

Fully extendible\*

If you have fully extendible rails, there is a clamp located at the back on the left and right of the rail.

Removing drawer

Technical diagram showing mechanical assembly steps with numbered components and a warning symbol

Fig. 28

▶ Pull out drawer as far as it will go.
▶ Lift left clamp and simultaneously pull drawer forwards on the left. Fig. 28 (1)
▶ Lift right clamp and simultaneously pull drawer forwards on the right. Fig. 28 (2)
▶ Remove drawer to the front. Fig. 28 (3)
▶ Slide rails in.

Inserting drawer

Diagram showing two mechanical components with directional arrows indicating movement (no text or symbols)

Fig. 29

▶ Slide rails in.
▶ Place drawer on rails.
▶ Slide in drawer to the back.
▷ Drawer latches in audibly at the back.

Partial pull-out fridge compartment\*

Removing drawer

Diagram illustrating a mechanical or structural change with numbered components and directional arrows indicating movement or force.

Fig. 30

▶ Pull out drawer half-way. Fig. 30 (1)
▶ Lift up drawer at the front. Fig. 30 (2)
▶ Insert left rail. Fig. 30 (3)
▶ Insert right rail. Fig. 30 (4)
▶ Remove drawer to the front. Fig. 30 (5)

Diagram showing two mechanical components with arrows indicating movement, one with a warning symbol (no text or labels present)

Fig. 31

If the rails are not yet fully inserted after removing the drawer:

▶ Push rails in completely.

Inserting drawer

Technical illustration of a mechanical assembly with two views: one showing a bracket and arrow indicator, the other showing a box with cutouts (no text or symbols)

Fig. 32

▶ Slide rails in.
▶ Place drawer on rails.
▶ Slide in drawer to the back.

7.7 Fruit & Vegetable safe cover

You can remove the compartment cover for cleaning.

7.7.1 Removing the compartment cover

Ensure that the following conditions are met:

☐ Bottle shelf is removed (see 7.5 Adjustable bottle shelf).

1 2 THIS SIDE UP

Fig. 33

When the drawers are removed:

▶ Pull the lid up at the front to the opening in the retaining parts Fig. 33 (1).
▶ Lift from the back and pull it up and out Fig. 33 (2).

7.7.2 Inserting the compartment cover

THIS SIDE UP THIS SIDE UP

Fig. 34

If the text THIS SIDE UP points upwards:

▶ Insert the lip of the cover over the opening of the rear bracket Fig. 34 (1) and click into place Fig. 34 (2).
▶ Position the cover where you want it (see 7.8 Adjusting the moisture levels).

7.8 Adjusting the moisture levels

You can adjust the moisture in the drawer yourself by adjusting the compartment cover.

The compartment lid is attached to the drawer and can be hidden by a shelf or additional drawers.

Illustration of a hand inserting a slot into a rectangular block (no text or symbols)

Fig. 35

Low air humidity

▶ Open the drawer.
▶ Slide the compartment cover forwards.
▷ With the drawer closed: Gap between the cover and the compartment.
The air moisture in the Safe decreases.

High air moisture

▶ Open the drawer.
▶ Slide the cover back.
▷ With the drawer closed: The cover seals the compartment.
The air moisture in the Safe increases.
If there is too much moisture in the compartment:
▶ Choose the setting "low air moisture".
-or-
▶ Remove any excess moisture with a cloth.

Note

You can apply the "low air moisture" setting to the Fruit & Vegetable-Safe and the Meat & Dairy-Safe.

▶ Set the "low air moisture" option.

7.9 Accessories

7.9.1 Egg rack

You can pull out and turn the egg rack. You can use both sides of the egg rack so you can label specifics like the purchase date.

Using the egg rack

Isometric illustration of two rectangular plastic crates with circular holes, showing internal structure and directional arrows (no text or symbols)

Fig. 36

▶ Top layer: for storing hen eggs.
▶ Bottom layer: for storing quail eggs.

7.9.2 Bottle holder

Using the bottle holder

Diagram illustrating a mechanical or fluid system with directional arrows indicating movement or force, alongside a close-up of a bottle container.

Fig. 37

▶ Push the bottle holder onto the bottles.
▷ The bottles are prevented from falling over.

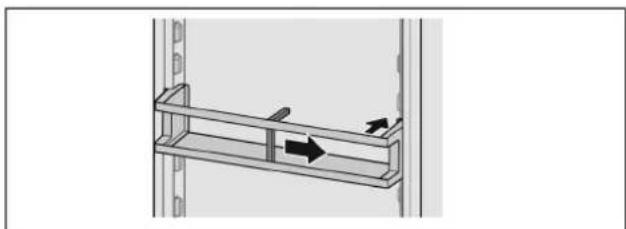

Removing the bottle holder

Diagram of a metal shelf with directional arrows indicating movement or force (no text or symbols)

Fig. 38

▶ Move the bottle holder all the way to the right.
▶ Push the bottle holder to the back to remove.

8 Maintenance

8.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the fan.

It guarantees the best air quality.

☐ Replace the carbon filter every 6 months.
With the Reminder setting on, a message on the display prompts you to replace it.
☐ The carbon filter can be disposed of with the regular household waste.

Note

You can purchase the FreshAir carbon filter from the Liebherr household appliance store (home.liebherr.com).

8.1.1 Removing the FreshAir carbon filter

Diagram showing two components: a connector with labeled arrow (②) and a battery-like device with labeled arrow (①)

Fig. 39

▶ Pull out the compartment Fig. 39 (1).
▶ Remove the carbon filter Fig. 39 (2).

8.1.2 Inserting the FreshAir carbon filter

Diagram showing two components of a battery or printer with labeled parts and directional arrows indicating process flow.

Fig. 40
▶ Insert the carbon filter as shown in the diagram Fig. 40 (1).
The carbon filter clicks into place. If the carbon filter is pointing downwards:
▶ Push the compartment in Fig. 40 (2).
The carbon filter is now ready for use.

8.2 Disassembling / assembling pull-out systems

8.2.1 Notes on disassembly

You can disassemble some of the pull-out systems for cleaning. Your appliance can contain a variety of pull-out systems.

The following pull-out systems can be disassembled or cannot be disassembled:

Pull-out system	can be disassembled / cannot be disassembled
Drawer on rails cannot be disassembled
Fully extendible* cannot be disassembled*
Partial pull-out fridge compartment*	cannot be disassembled*

8.3 Defrosting the appliance

WARNING

Improper defrosting of the appliance! Injuries and damage.

▶ Do not use mechanical equipment or other methods to speed up the defrosting process other than those recommended by the manufacturer.
▶ Do not use electrical heating or steam-cleaning appliances, naked flames or defroster sprays to defrost.
▶ Do not use sharp objects to remove ice.

Defrosting is performed automatically. The water from the thawing process drains through the outlet and evaporates.

▶ Clean the drain opening regularly (see 8.4 Cleaning the appliance).

8.4 Cleaning the appliance

8.4.1 Ready

WARNING

Danger of electric shock!

▶ Remove the refrigerator connector or interrupt the power supply.

WARNING

Risk of fire

▶ Do not damage the refrigeration circuit.

▶ Empty the appliance.
▶ Remove mains connector.

-or-

▶ Activate CleaningMode. (see CleaningMode)

8.4.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

▶ Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
▶ Do not uses abrasive sponges or steel wool which may cause scratches.
▶ Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

▶ Plastic surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.
▶ Metal surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.
▶ Drain hole: remove deposits using a thin item (for example a cotton bud).

8.4.3 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

▶ Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
▶ Do not uses abrasive sponges or steel wool which may cause scratches.
▶ Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some detergent:

• Door rack
• Shelf
• Dividing shelf
• Fruit & Vegetable safe cover
• Drawer
• Adjustable bottle shelf

Clean with a damp cloth:

- Retractable rails

Please note: The grease in the tracks is used for lubrication and must not be removed!

Wash in the dishwasher up to 60 °C:

• Bottle rack
• Holder of the dividing shelf
• Egg rack
  ▶ To disassemble components: see the relevant section.
  ▶ Clean the components.

8.4.4 After cleaning

▶ Wipe the appliance and the components dry.
▶ Connect and switch on the appliance.
The temperature is cold enough:
▶ Place the food inside.
▶ Repeat cleaning regularly.

9 Customer help

9.1 Technical specifications

Temperature range
Cooling 3 °C to 9 °C
BioFresh 0 °C to 3 °C
Maximum size baking tray
Width 466 mm
Depth 386 mm
Height 50 mm

9.2 Operating noises

The appliance makes different noises when it is on.

• At higher temperatures the appliance uses less energy but works for longer. It is quieter.
• At lower temperatures the food is cooled faster. It is louder.

Examples:

• Functions on (see 6.3 Functions)
- Fan running
- Food recently added
• High ambient temperature
- Door open for a while

Noise	Possible cause Type	of noise
Bubbling and splashing	Coolant flowing into the cooling circuit.	Normal operating noise
Hissing Coolant	sprays into the cooling circuit.	Normal operating noise

Noise Possible cause	Type of noise
Humming The	appliance is cooling. The volume depends on the cooling output.	Normal operating noise
Suction noises Soft	-closing door is being opened and closed.	Normal operating noise
Humming and rustling	The fan is running.	Normal operating noise
Clicking Components	are switched on and off.	Normal switching noise
Rattling or humming	Valves or flaps are working.	Normal switching noise

Noise	Possible cause	Type of noise	Lifting
Vibration	Improper installation	Defective noise	Check the installation.Level the appliance.
Rattling	Components, items inside the appliance	Defective noise	Secure components.Leave enough space between the items.

9.3 Technical fault

Your appliance is designed and built to ensure it works reliably and has a long service life. In the unlikely event that a fault occurs during operation, please check whether it is due to an operating error. If so, you will be charged for the callout and repair costs even if it falls within the warranty period.

You can fix the following faults yourself.

9.3.1 Appliance function

Defect	Cause	Remedy
The appliance is not working.	→ The appliance is not switched on.	▸ Switch the appliance on.
	→ The power plug is not properly plugged into the socket.	▸ Check the power plug.
	→ There is something wrong with the power outlet fuse.	▸ Check the fuse.
	→ Power cut	▸ Keep the appliance closed.▸ Protecting food: Lay freezer packs on top of the food or use another freezer if the power is off for a prolonged period.▸ Do not re-freeze defrosted food,
	→ The appliance plug does not fit the appliance properly.	▸ Check the appliance plug.
Defect Cause Remedy
Temperature is not cold enough.	→ The appliance door is not closed properly.	▸ Close the appliance door.
	→ Not enough ventilation.	▸ Keep ventilation grille clear, and clean it.
	→ The ambient temperature is too high.	▸ Solution: (see 1.4 Appliance range of use).
	→ The appliance was opened too many times or for too long.	▸ Wait to see if the required temperature corrects itself. If not, contact Customer Service (see 9.4 Customer Services).
	→ The temperature is set incorrectly.	▸ Turn down the temperature and check after 24 hours.
	→ The appliance is too close to a heat source (oven, radiator, etc).	▸ Move the appliance or the heat source.
	→ The appliance was not correctly installed in the recess.	▸ Check if the appliance was installed correctly and that the door closes properly.
The door seal is defective or needs to be replaced for another reason.	→ The door seal can be replaced. It can be replaced without the need for special tools.	▸ Contact Customer Services (see 9.4 Customer Services).
The appliance builds up too much ice or condensation.	→ The door seal may have slipped out of its groove.	▸ Check that the door seal is well fitted in the groove.

9.3.2 Features

Defect Cause Remedy
The internal light does not come on.	→ The appliance is not switched on.	► Switch the appliance on.
	→ The door was open for longer than 15 minutes.	► Interior lighting turns off automatically after approx. 15 min. with the door open.
	→ The LED interior light is faulty or the lid is damaged.	► Contact customer service (see 9.4 Customer Services).

9.4 Customer Services

First check if you can fix the error yourself (see 9 Customer help). If you can't, contact Customer Services.

Please refer to the enclosed "Liebherr-Service" brochure for the address.

WARNING

Unprofessional repair! Injuries.

▶ Have any repairs and action - not expressly specified - on the appliance and mains cable carried out by service personnel only. (see 8 Maintenance)
▶ A damaged mains cable may only be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person.
▶ In the case of appliances with an IEC connector, the change may be made by the customer.

9.4.1 Contact Customer Services

Make sure you have the following appliance data at the ready:

☐ Appliance name (model and index)

□ Service no. (Service)
Serial no. (S no.)

▶ Look up the appliance information on the display (see Info).

-or-

▶ Referring to appliance info on the nameplate (see 9.5 Model plate).
▶ Note down the appliance information.
▶ Notify Customer Services of the following: Give us the appliance data.
▷ This will help us to provide you with a faster, more accurate service.
▶ Follow any further instructions given by Customer Services.

9.5 Model plate

The model plate is behind the drawers on the inside of the appliance.

Service-Nr. No. Service Index 88/88 Service-100/100 Service-100/100 Service-100/100 Service-100/100 Service-100/100 Service-100/100 Service-100/100 Service-100/100 Service-100/100 Service-100/100 Service-100/100 Service-100/100 Service #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14 #15 #16 #17 #18 #19 #20 #21 #22 #23 #24 #25 #26 #27 #28 #29 #30 #31 #32 #33 #34 #35 #36 #37 #38 #39 #40 #41 #42 #43 #44 #45 #46 #47 #48 #49 #50 #51 #52 #53 #54 #55 #56 #57 #58 #59 #60 #61 #62 #63 #64 #65 #66 #67 #68 #69 #70 #71 #72 #73 #74 #75 #76 #77 #78 #79 #80 #81 #82 #83 #84 #85 #86 #87 #88 #89 #90 #91 #92 #93 #94 #95 #96 #97 #98 #99 #100

Fig. 41

(1) Appliance description (3) Serial no.
(2) Service no.
▶ Note the data on the model plate.

10 Shutting down

▶ Empty the appliance.
▶ Turn off the appliance
▶ Remove mains connector.
▶ Remove appliance connector if required: Remove and move from left to right at the same time.
▶ Clean the appliance (see 8.4 Cleaning the appliance).
▶ Leave the door open to avoid bad smells building up.

11 Disposal

11.1 Preparing appliance for disposal

Liebherr uses batteries in some of its appliances. In the EU, for environmental reasons, legislation obliges the end user to remove these batteries before disposing of old appliances. If your appliance contains batteries, a corresponding notice is attached.

Lamps If you can remove the lamps yourself without destroying them, also remove these before disposal.

▶ Take the appliance out of operation.
▶ Appliances with batteries: remove the batteries. For description, see Maintenance chapter.
▶ If possible: remove lamps without destroying them.

11.2 Disposing of the appliance in an environmentally friendly manner

The appliance still contains valuable materials and must be disposed of separately from unsorted municipal waste.

Dispose of batteries separately from the old appliance. To do this, you can return the batteries free of charge to retailers as well as recycling centres and collection centres for recyclable materials.

Lamps Dispose of removed lamps via the respective collection systems.

WARNING

Leaking coolant and oil!

Fire. The coolant contained in the appliance is eco-friendly, but also flammable. The oil contained in the appliance is flammable. Escaping coolant and oil can ignite if the concentration is high enough and in contact with an external heat source.

▶ Do not damage the pipelines of the coolant circuit and the compressor.
▶ Transport the appliance without damaging it.
▶ Dispose of batteries, lamps and the appliance according to the above specifications.

Image showing a QR code and a document icon with an information symbol, likely representing a link or information transfer process.

home.liebherr.com/fridge-manuals

EN integrated fridge with BioFresh

Issue date: 20221222

Part number index: 7088284-00
