30cm Desk Fan

Model: DCDF30A

For domestic household use only.

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY

Please read the operating instructions carefully before using your fan for the first time and keep them in a safe place.

WARNING - This appliance must not be used in a bathroom.

WARNING - Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool.

• If the mains lead is damaged it must only be replaced by the manufacturers service agent or a similarly qualified person in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• The fan must always be switched OFF and disconnected from a power supply before removing the guard for cleaning.
• Never immerse the appliance in water or other liquids.
• Operate this unit only on a firm, flat surface.
• Do not place on soft, unstable or non-horizontal/angled surfaces.
• Never operate the appliance if a cable or connector has been damaged, after appliance malfunction or if the appliance was dropped or is otherwise damaged.
• Please ask a professional service agent to repair the product. Improper repair may cause danger to users.
• Disconnect the appliance from mains power whenever it is not in use, before relocating it, and before cleaning.
• Operate the appliance only at the voltage specified on the rating label.
• Only connect the unit to a properly installed and easily accessible socket so that you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension lead.
• This fan is only intended for INDOOR RESIDENTIAL applications. This fan should not be used for commercial or industrial or leisure applications

or in small enclosed spaces.

• Never use the mains lead as a carrying strap or pulling lead.
• To avoid a fire or electrocution hazard, NEVER put the cord near heat registers, radiator, stoves or heaters.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the cord away from traffic areas and where it will not be a tripping hazard.
• DO NOT use the unit near windows or where water collects. Rain and water collection may lead to a risk of fire or electric shock.
• Only operate this appliance with a minimum of 50cm clearance all around i.e. away from walls, furniture and overhanging objects such as curtains or a shelf.
• WARNING: To avoid danger of suffocation please remove all packaging materials particularly plastic and EPS and keep these away from vulnerable people, children and babies.
• NEVER drop or insert any object or fingers into any openings.
• Do not use the appliance in locations where paint, petrol or other flammable liquids are used or stored.
• Do not use bug sprays or other flammable cleansers/vapour sprays on or around the unit.
  • Always switch off the unit and take the plug out of the socket:
• If you are not using the unit
• Before you clean or carry out maintenance on the unit
• If a fault occurs
  • In the event of an electrical storm.
• Avoid electromagnetic interference. Keep the unit at least 1 metre away from electrical appliances such as televisions & radios.
• DO NOT use this appliance with an extension lead or power board.

Symbol with red X and Y axes crossed out of a geometric frame, indicating prohibition or exclusion.

Exposed to the weather outdoors

Prohibition sign with faucet and water drop symbol crossed by red X

Near water If the power cable wires are frayed or cut

Prohibition sign with red X and black curved line crossing, indicating no change or rejection

wires are frayed or cut

Black silhouette of a person running with a red X symbol crossed out (no text or numbers present)

Where small children may be left unattended

Prohibition sign with crossed-out electrical plug and cable symbols, indicating no protection or disapproval

No extension leads or power boards

Prohibition sign with black road intersection symbol crossed out by red diagonal lines

Where the power cable may be damaged

Pure black cross symbol with red diagonal lines, no text or numbers present

On a slope or uneven surface

Warning symbol with flame and red X mark, indicating no fire or explosion hazard

Where there is risk of fire or close to a naked flame

Prohibition sign with crossed-out red 'X' and black silhouette of a bucket pouring liquid into a container

Where it may be damaged by chemicals

Where there is a risk of interference by foreign objects

This product is not made for DIY repair

Warning sign with red prohibition crossed over a black box containing water droplets and falling drops

If there is a risk of water falling on the unit

Specification

Model no. DCDF30A
Colour	Anthracite
Power supply	220-240V~, 50Hz
Rated power	45W
Speed settings	3
Modes -
Timer -
Air volume 35m3/min
Adjustable height N
Tilt adjustable head Y
Horizontal oscillation Y
Noise level (MAX)	62dB(A)
Weight (net) 2.9kg
Dimensions (w x d x h) 340 x 260 x 415mm

- For greater precision, please always refer to the rating label placed on the product.

Parts

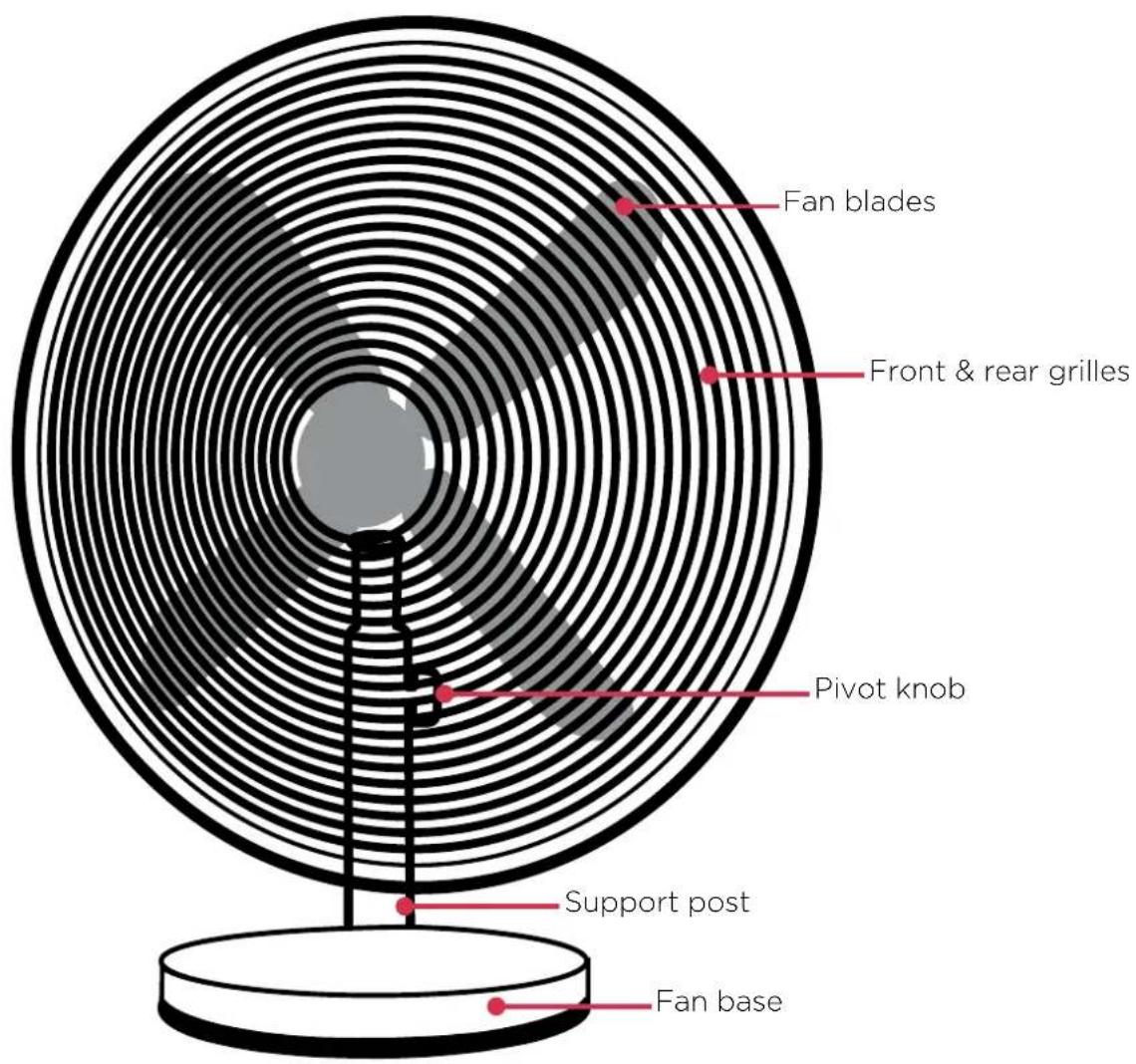

Fan blades Front & rear grilles Pivot knob Support post Fan base

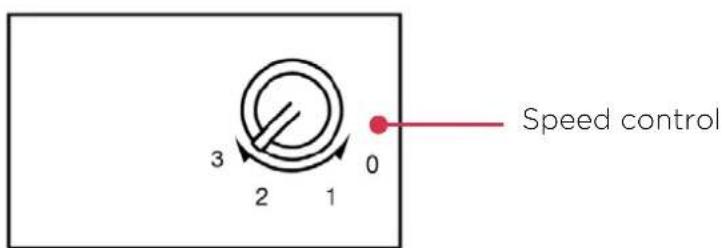

Speed control 3 2 1 0

Assembly

Your new fan has been packed and shipped fully assembled and ready for use.

Please take care of the below precautions prior to first use:

• This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. In the event that the packaging is to be disposed of, please recycle where possible.
• Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach and disposed of safely.
• Unwind the cord and inspect it for damage. Do not use the appliance if the appliance or cord has been damaged or is not working properly.
• Make sure you have read and understood all instructions and warnings in this manual. Refer to the illustrations to familiarise yourself with the product and identify all parts. Pay particular attention to the safety instructions on the previous pages.

Operation

1. Place the fan on a firm level surface and ensure the speed control knob is set to "O" - OFF. Connect the plug to a power supply and switch on the power.
2. Turn the fan ON by rotating the speed control knob on the motor housing in clockwise direction.
3. The fan has 3 SPEEDS to choose from, "1" - Low, "2" - Medium, "3" - High.
4. The airflow direction can be adjusted upward/downward by lifting up or pressing down the motor housing.

NOTE: Only adjust the fan head when the unit is OFF. Be careful not to insert your fingers through the guard.

1. Push the oscillating knob on the motor housing down to start OSCILLATION. Pull the oscillation knob up to stop OSCILLATION.

2. Turn the speed control knob anti-clockwise to the "0" position to turn the fan OFF.

Cleaning

Over time, dust can accumulate on the front & rear grille cover and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month.

1. Turn the unit OFF and disconnect the appliance from the power supply.
2. Remove any dust build up with a soft brush.
3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used for any stubborn marks.

Do not use abrasive sponges, scouring pads, or a stiff brush to clean this product.

IMPORTANT

The control panel and other parts must not come into contact with water or any other liquids.

Storage

If not using the unit for an extended period of time. After cleaning please:

• Turn the unit off, unplug and take care of the mains lead & plug.
• Cover the unit and store it upright in a location where it will not receive direct sunlight. We recommend storing in the original box.
• NB- Prolonged exposure to direct sunlight will discolour the enclosure.

Maintenance

If the unit fails to operate efficiently, is broken or other problems arise, unplug and do not operate. Ask for advice by calling your local after sales service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824 (NZ).

Warranty

Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below.

Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd

8 Lakeview Drive, 38 Harris Road, East Tamaki,

Scoresby 3179, Victoria Auckland 2013

Australia New Zealand

Ph: 1300 556 816 Ph: 0800 666 2824

Symbol of a trash bin crossed with two diagonal lines, representing waste sorting or disposal (no text or labels)

Recycling: Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water, polluting the food chain and damaging health and well-being.

DCDimplex®

Customer Care: 1300 556 816

[e-mail]

www.dimplex.com.au

Supplied by Glen Dimplex Australia

8 Lakeview Drive, Scoresby, Victoria, 3179

© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.

DCDF30A REV1
