USER MANUAL UVW8364SPSS Café

SAFETY INFORMATION....3

USING THE HOOD

Controls....5

Wi-Fi Connect 6

Filters 7

CARE AND CLEANING

Surfaces 8

Lights 8

INSTALLATION INSTRUCTIONS...9

TROUBLESHOOTING TIPS 25

LIMITED WARRANTY 26

ACCESSORIES 27

CONSUMER SUPPORT 28

Write the model and serial numbers here:

Model # ____

Serial # ____

You can find them on a label on the inside of the hood.

OWNER'S MANUAL & INSTALLATION INSTRUCTIONS

UVW8304

UVW8364

THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.

Whether you grew up with GE Appliances, or this is your first, we're happy to have you in the family.

We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them.

Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner's Manual. You may also mail in the pre-printed registration card included in the packing material.

GE APPLIANCES

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
C. Do not use this unit with any solid-state speed control device.
D. This unit must be grounded.

CAUTION

FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.

CAUTION

TO REDUCE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE. DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL SPACES OR GARAGES.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

A. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels—a violent steam explosion will result.
D. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
   * Based on "Kitchen Fire Safety" published by NFPA.

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING

WARNING

TO REDUCE THE RISK OF A

RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on medium settings.
B. Always turn hood ON when cooking at high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING

TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.

C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances.com for available makeup air solutions.
F. Turn off breaker to adjacent rooms while working.

WARNING

TO REDUCE THE RISK OF FIRE,

USE ONLY METAL DUCTWORK.

■ Do not attempt to repair or replace any part of your hood unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

How to Remove Protective Shipping Film and Packaging Tape

Carefully grasp a corner of the protective shipping film with your fingers and slowly peel it from the appliance surface. Do not use any sharp items to remove the film. Remove all of the film before using the appliance for the first time.

To assure no damage is done to the finish of the product, the safest way to remove the adhesive from packaging tape on new appliances is an application of a household liquid dishwashing detergent. Apply with a soft cloth and allow to soak. NOTE: If surface is still not clean, see page 8 for more cleaning options.

NOTE: The adhesive must be removed from all parts.

PROPER DISPOSAL OF YOUR APPLIANCE

Dispose of or recycle your appliance in accordance with Federal and Local Regulations. Contact your local authorities for the environmentally safe disposal or recycling of your appliance.

READ AND SAVE THESE INSTRUCTIONS

Controls

1. Rangehood Control Panel: The control panel is located under the front edge of the canopy. The position and function of each control button are noted below.
2. Fan On/Off: On/Off switch for the fan. The fan can be operated by pressing any of the fan setting buttons. Hold Power for 3 seconds to activate Delay Off feature, which automatically turns the fan off after 15 minutes. Low, Med and High buttons LEDs will rolling blink to indicate Delay Off feature is activated.
3. Fan Settings: Speed control for fan. Fan speed is powered by QuietBoost™ Technology. This unique technology is designed to minimize ventilation noise and enhance motor efficiency for a peacefully-quiet, odor-free kitchen. Press the button Low for LOW speed, Med for MEDIUM speed, and High for HIGH speed. Hold down the High button for 3 seconds to activate the Boost speed that will run for 15 minutes. High button LED will blink on/off to indicate Boost feature is activated.

Chef Connect

1. Light: Off/On/Night Light switch for the LED lights. Press the Light button to turn the lights on, again to set the lights to night light setting, and again to turn the lights off.
2. Chef Connect: This is a Bluetooth® pairing feature for use with other compatible Chef Connect enabled products on a cooktop or range. When the device is paired, the default sync settings will be activated upon receiving a command from the range or cooktop. To change the default sync setting, refer to the Chef Connect section.

To pair devices, hold down the Light button for 3 seconds. To turn it back off, hold the button down for another 3 seconds. See the Chef Connect section for more details.

1. IR Sensor: Remote control receiver when used with remote control kit.
2. Wi-Fi: Hold down the Low button for 3 seconds to initiate the Wi-Fi connection. The Wi-Fi indicator light turns on when connected, see the Wi-Fi Connect section for details.

Chef Connect Operation Bluetooth® Connection

To pair with another device:

To start the pairing process on the hood, press and hold the Light button for 3 seconds. The backlight for all the icons will flash until the hood is paired with the range or other device. If the pairing is successful, the backlights of all buttons will flash simultaneously three times and then turn off. The hood lights and fan default sync setting will be activated.

It will time out after 2 minutes if the pairing is not completed, after which the pairing sequence will need to be restarted.

To cancel pairing:

To cancel the pairing, hold the Light button down for 3 seconds and then turn off the hood.

Default Sync Settings:

The factory default setting for the light will be the brightest.

The factory default setting for the fan sync will be OFF.

The user can change the Default Sync Settings by pressing and holding the Med button for 3 seconds. This will enter the Default Settings Mode. Once in this mode, the backlights for all buttons will blink on/off indefinitely and the fan and light will switch to the current Default Sync Setting, so the user knows what the current default value is. At this time, set the light and fan to the desired default levels. Once the user is satisfied with the selection, press and hold the Power button for 3 seconds. This will exit this mode. At that time the backlights will stop blinking and the state of the fan and light will change back to their prior state before entering the Default Settings Mode.

Connecting your Wi-Fi Connect Enabled hood (on some models)

Your GE Appliances hood is designed to provide you with two-way communication between your appliance and smart device. By using the GE Appliances Wi-Fi Connect features, you will be able to control essential hood operations such as fan speed, light functions, delay off and filter notification using your smartphone or tablet.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired Operation.

What you will need

Your GE Appliances hood uses your existing home Wi-Fi network to communicate between the appliance and your smart device. In order to setup your GE Appliances hood, you will need to gather some information:

1. Each GE Appliances hood has a connected appliance information label that includes an Appliance Network Name and Password. These are the two important details that you will need to connect to the appliance. The label is located on the side of the unit behind the filters.

Connected Appliance Information

FCC ID: ZKJ-WCATA005	Network:**********
IC: 10229A-WCATA001	Password:**********
MAC ID: **********

Sample Label

1. Have your smart phone or tablet ready with the ability to access the internet and download apps.
2. You will need to know the password of your home Wi-Fi router. Have this password ready while you are setting up your GE Appliances hood.

Connect your GE Appliances hood

1. On your smart phone or tablet visit GEAppliances.com/connect to learn more about connected appliance features and to download the appropriate app.
2. Follow the app onscreen instructions to connect your GE Appliances hood.
3. Once the process is complete, the indicator light located on your GE Appliances hood display will stay on solid and the app will confirm you are connected.
4. If the indicator light does not turn on or is blinking, follow the instructions on the app to reconnect. If issues continue please call 800.220.6899 and ask for assistance regarding hood wireless connectivity.

To connect additional smart devices, repeat steps 1 and 2.

Note that any changes or modifications to the remote enable device installed on this hood that are not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Enhanced Wi-Fi Features

Once your product is connected to Wi-Fi, you have access to enhanced features via the phone app.

Delay Off Timer: This feature allows the user to adjust delay off time from 1 minute to 15 minutes. The default delay off time is 15 minutes.

Boost Timer: This feature allows the user to adjust the boost time from 1 minute to 15 minutes. The default boost time is 15 minutes

Night Light Timer: This feature allows the user to set time for the night light to turn on and off automatically.

Grease/Charcoal Filter Notifications: This feature sends a regular reminder to the user to clean their grease filters, and/or to replace their charcoal filter, if the hood is setup in recirculation mode.

Filters

Be sure the circuit breaker is off and all surfaces are cool before cleaning or servicing any part of the vent hood.

Grease Filter

The filter traps grease released by foods from cooking.

The filters must ALWAYS be in place when the hood is in use. The grease filters are dishwasher-safe and should be cleaned every month, or as needed.

To remove:

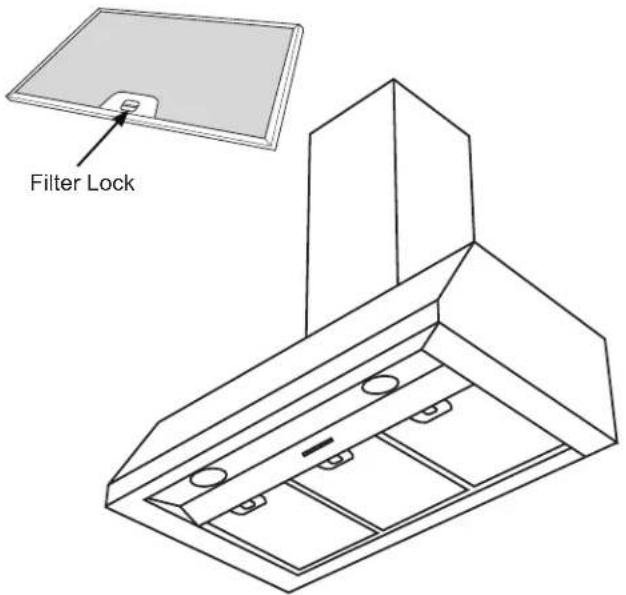

Pull downward on the filter lock to release the filter.

To replace:

Fit the tabs at the bottom of the filter behind the ledge of the filter opening. Lift up the front side of the filter, push downward on the filter lock, and push gently until the filter is in place. Release the filter lock to secure the filter in place.

To clean, swish the filter in hot soapy water and rinse in clean water or wash it in the dishwasher. Do not use abrasive cleansers.

NOTE: Some discoloration may occur to the grease filters in the dishwasher.

Filter Lock

Charcoal Filter (for recirculation installation only)

NOTE: DO NOT rinse, or put charcoal filter in an automatic dishwasher.

The charcoal filter is NOT included with the unit. Order charcoal filter UXCF91. It cannot be cleaned; it must be replaced. It is recommended that the charcoal filter be replaced every 6 months or if it is noticeably dirty or discolored.

To reduce the risk of fire and shock, when used in recirculation mode, use only charcoal filter UXCF91.

To inquire about purchasing replacement charcoal filters or to find the location of a dealer nearest you, please call our toll-free number:

National Parts Center 800.626.2002

To Install

1. Remove the grease filters. See Filters section.

2. Install the charcoal filter mounts to either side of the motor using three screws per side.

3. Insert the tab on the charcoal filter into the triangular slot on the mount.

4. Clip the charcoal filter in until it is locked
5. Repeat with second filter on the other side of the motor.
6. Reattach the metal filters. See Filters section.

To Remove

1. Remove grease filters-See Filters section
2. Unclip the charcoal filter by pressing the release clip.
3. Carefully remove charcoal filter from tab.

Charcoal Filter Mount

Surfaces

Stainless Steel Surfaces (on some models)

Do not use a steel wool pad; it will scratch the surface.

To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the brush line. Follow the cleaner instructions for cleaning the stainless steel surface. Cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove surface rust, tarnish, and small blemishes. Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge.

To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number:

National Parts Center

800.626.2002

GEApplianceParts.com

Lights

To change the LED lamps, schedule a service appointment. See Consumer Support page in the front of this manual for a list of websites and contact information.

Installation Instructions

Range Hoods

If you have questions, visit GEAppliances.com, or call GE Appliances at 833-4BODEWELL (833-426-3393).

BEFORE YOU BEGIN

Read these instructions completely and carefully.

■IMPORTANT — Save these instructions for local inspector's use.
■IMPORTANT — Observe all governing codes and ordinances.
■ Note to Installer – Be sure to leave these instructions with the Consumer.
■ Note to Consumer – Keep these instructions for future reference.
■ Skill level – Installation of this vent hood requires basic mechanical and electrical skills.
■ Completion time – Approximately 1 to 3 hours
■ Proper installation is the responsibility of the installer.
■ Product failure due to improper installation is not covered under the Warranty.

CAUTION

Due to the weight and size of

these vent hoods and to reduce the risk of personal injury or damage to the product, TWO PEOPLE ARE REQUIRED FOR PROPER INSTALLATION.

FOR YOUR SAFETY

⚠ WARNING

Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

WARNING

TO REDUCE THE RISK OF FIRE,

ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. Turn off breaker to adjacent rooms while working.

WARNING

TO REDUCE THE RISK OF FIRE,

USE ONLY METAL DUCT WORK.

⚠ WARNING

Disconnect all electrical power at the main circuit breaker or fuse box before installing.

OPTIONAL POWER CORD KIT JXHC1

An optional power cord kit, model JXHC1, is available at extra cost from your GE Appliances supplier for installation using a standard 3-prong, grounded wall outlet. Follow the installation instructions packed with the kit to connect the power cord to the range hood.

Installation Preparation

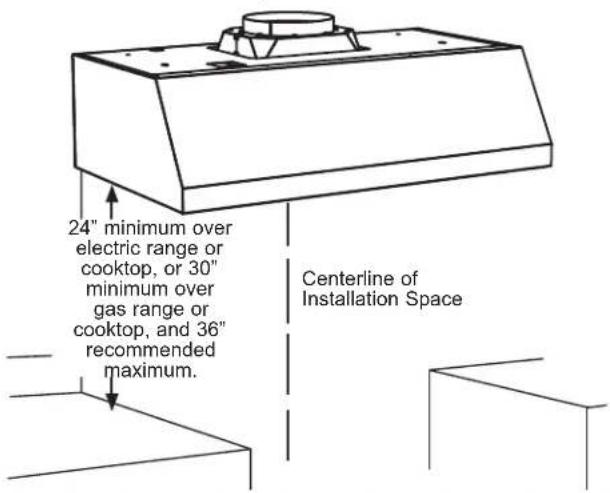

PRODUCT DIMENSIONS

30" Models

Requires a 30" opening.

10" 16-1/2" 21" 30"

36" Models

Requires a 36" opening.

10" 16-1/2" 21" 36"

TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED)

Pencil and tape measure

Safety glasses

Level

Phillips screwdriver with at least 6" shank

Electric drill with #2 Phillips and 1/8" and 5/16" drill bits

Wire cutter/stripper

UL listed wire nuts

Aluminized duct tape

8" round duct

Strain relief for junction box

Gloves

REMOVE THE PACKAGING

CAUTION

Wear gloves to protect against

sharp edges.

■ Remove the hardware bag, literature package and other boxed parts.
■ Remove and properly discard the protective plastic wrapping and other packaging materials.
■ Consider recycling options for your appliance packaging material.

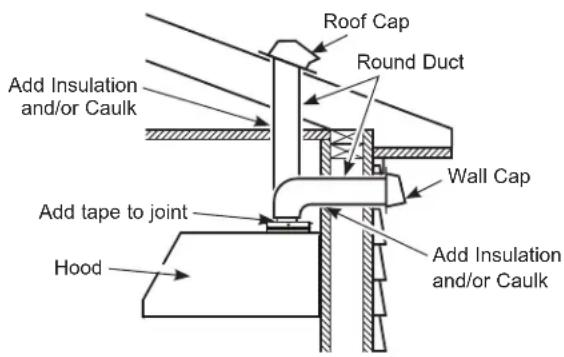

PLAN THE INSTALLATION

CAUTION

To reduce risk of fire and to

properly exhaust air, be sure to duct the air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

PARTS SUPPLIED FOR INSTALLATION

■ 1 Hardware Package
■ 1 Literature Package
■ 1 Installation Template

PARTS NEEDED FOR INSTALLATION

■ 1 Strain Relief
■ 1 Wall or Roof Cap (for vented installation only)
■ All Metal Ductwork

WARNING

PERSONAL INJURY HAZARD

Because of the weight and size of the rangehood canopy. It is recommended that 2 people are used to install the range hood. Failure to properly lift rangehood could result in damage to the product or personal injury.

NOTE: This rangehood can be installed as either ducted or recirculation. In a ducted application, this rangehood can be vented through the wall or ceiling. When installed for recirculation, the rangehood vents out the sides of the duct cover.

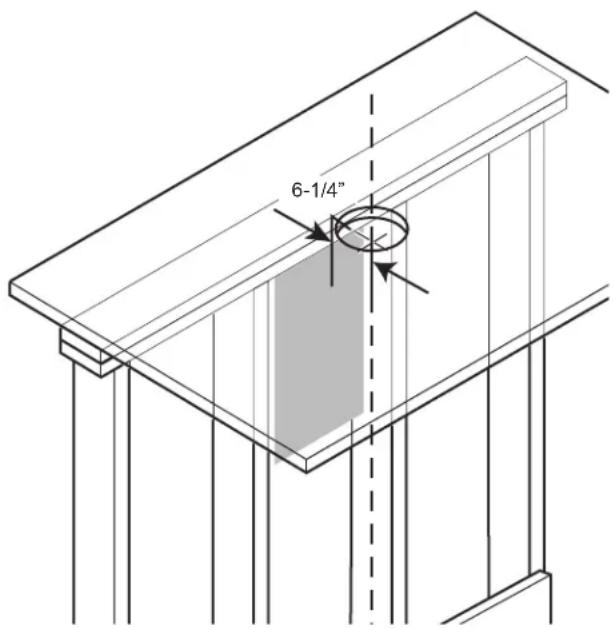

NOTE: Before making any cuts or holes for installation, determine which venting method will be used and carefully calculate all measurements.

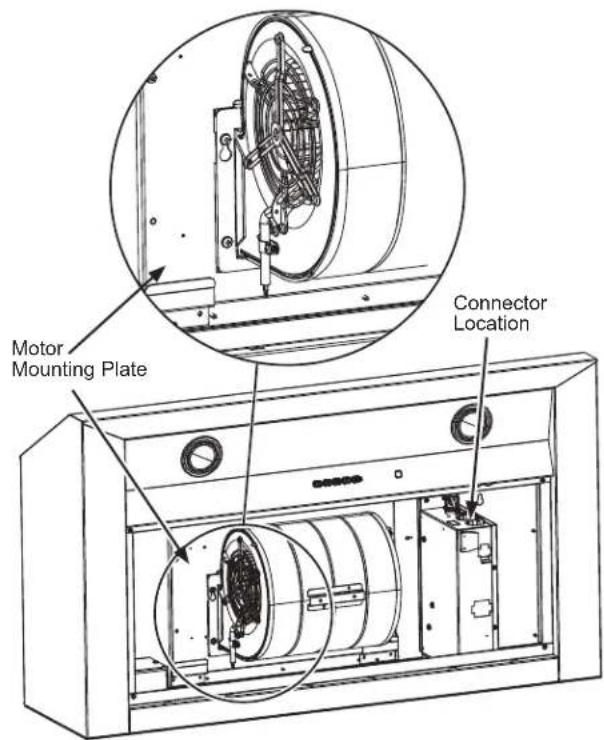

PARTS PROVIDED

Locate the parts packed with the hood.

Top Damper

Motor

Technical line drawing of a hood body component (no text or symbols on the diagram itself)

2 Grease Filters (3 with 36" model)

Wooden Installation Bar

HARDWARE PACKAGE

Locate and check contents.

A

(QTY: 4) 8 x 1-3/4" AB Screw. Used to mount the installation bar. Use 1/8" drill for pilot hole.

B

(QTY: 4) 2.9mm x 6mm PZ screws. Used to attach the damper

D

(QTY: 4) M4 screws. Used to mount motor

C

(QTY: 2) 3/16" dry wall anchors with screws. Used for hood bottom mounting screw holes. Use 5/16" drill for pilot hole.

DUCT COVER REQUIREMENTS

Duct Cover Kit must be purchased separately. We recommend that the vent hood and duct cover (if used) be on site before final framing and wall finishing. This will help to accurately locate studs, ductwork, and electrical service.

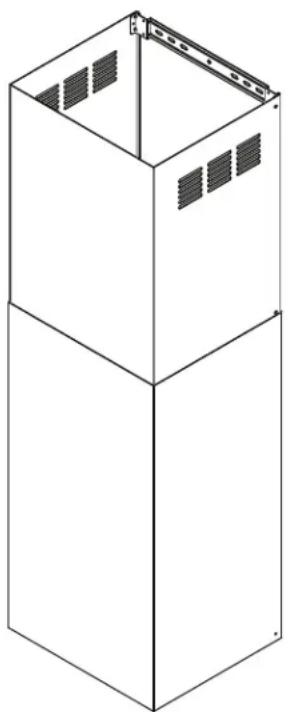

Isometric line drawing of a three-tiered cabinet or enclosure with ventilation grilles (no text or symbols)

• Duct cover accessory comes with a lower and upper duct cover and installation hardware.
• The installation hardware includes mounting brackets to secure duct covers to the wall.
• When not recirculating, holes can be hidden by turning the upper duct cover upside-down.
• For ceiling installations up to 10' 8", use the 10' High Ceiling Duct Cover kit CX10DC9SPSS.
• For higher ceiling installations up to 12' 8", use the 12' High Ceiling Duct Cover kit CX12DC9SPSS.
• See the next page for duct cover installation height information.

INSTALLATION DIMENSIONS

The hood duct covers can be adjusted for different ceiling heights depending on the distance between the bottom of the hood and the cooktop (distance X). See Installation Height Table on the next page.

5" Min 25" Max Upper Duct Cover Lower Duct Cover 19-1/2" 10" X Required Min & Recommended Max Ceiling Height Examples for 10' Duct Cover Kit (Vented) Electric Gas X = 24" Min Y = 7' 6" Max Y = 9' 2" X = 30" Min Y = 8' 2" Max Y = 9' 10" X = 36" Min Y = 8' 8" Max Y = 10' 4" X = Distance from hood to cooktop. (Varies depending on the installation) Required 24" minimum over electric range or 30" minimum over gas range. The recommended maximum is 36". Typical Range NOTE: 36" for typical electric range and 38" for gas range.

Installation Preparation

INSTALLATION HEIGHT TABLE
	CX10DC9SPSS CX12DC9SPSS				Cover up to
	High Ceiling Duct Cover up to 10 ft. High Ceiling Duct C					2 ft.
	Installation Over Gas Range		Installation Over Electric Range			Installation Over Gas Range		Installation Over Electric Range
Ceiling Height (ft./in.)	Recirculation Installation Height	Vented Installation Height (Recirculation holes hidden)	Recirculation Installation Height	Vented Installation Height (Recirculation holes hidden)	Ceiling Height (ft./in.)	Recirculation Installation Height	Vented Installation Height (Recirculation holes hidden)	Recirculation Installation Height	Vented Installation Height (Recirculation holes hidden)
7' 6" 24	8' 7" 24
7' 7" 25	8' 8" 24-25
7' 8" 26	8' 9" 24-26
7' 9" 27	8' 10" 24-27
7' 10" 28	8' 11"		24	24-28
7' 11" 29	9' 0"		24-25	24-29
8' 0"			24	24, 30	9' 1"			24-26	24-30
8' 1"			24-25	24-25, 31	9' 2"			24-27	24-31
8' 2"		30	24-26	24-26, 32	9' 3"		30	24-28	24-32
8' 3"		30-31	24-27	24-27, 33	9' 4"		30-31	24-29	24-33
8' 4"		30-32	24-28	24-28, 34	9' 5"		30-32	24-30	24-34
8' 5"		30-33	24-29	24-29, 35	9' 6"		30-33	24-31	24-35
8' 6"		30-34	24-30	24-30, 36	9' 7"	30	30-34	24-32	24-36
8' 7"		30-35	24-31	24-31	9' 8"	30-31	30-35	24-33
8' 8"	30	30-36	24-32	24-32	9' 9"	30-32	30-36	24-34
8' 9"	30-31		24-33	24-33	9' 10"	30-33		24-35
8' 10"	30-32		24-34	24-34	9' 11"	30-34		24-36
8' 11"	30-33		24-35	24-35	10' 0"	30-35
9' 0"	30-34		24-36	24-36	10' 1"	30-36
9' 1"	30-35				10' 2"
9' 2"	30-36				10' 3"
9' 3"				25-36	10' 4"
9' 4"				26-36	10' 5"
9' 5"				27-36	10' 6"
9' 6"				28-36	10' 7"
9' 7"			25-36	29-36	10' 8"
9' 8"			26-36	30-36	10' 9"
9' 9"			27-36	31-36	10' 10"
9' 10"			28-36	32-36	10' 11"
9' 11"		31-36	29-36	33-36	11' 0"
10' 0"		32-36	30-36	34-36	11' 1"
10' 1"		33-36	31-36	35,36	11' 2"
10' 2"		34-36	32-36	36	11' 3"
10' 3"	31-36	35-36	33-36		11' 4"				25-36
10' 4"	32-36	36	34-36		11' 5"				26-36
10' 5"	33-36		35-36		11' 6"				27-36
10' 6"	34-36		36		11' 7"		25-36	28-36
10' 7"	35-36				11' 8"		26-36	29-36
10' 8"	36				11' 9"		27-36	30-36
					11' 10"		28-36	31-36
					11' 11"		29-36	32-36
					12' 0"		31-36	30-36	33-36
					12' 1"		32-36	31-36	34-36
					12' 2"		33-36	32-36	35-36
					12' 3"	31-36	34-36	33-36	36
					12' 4"	32-36	35-36	34-36
					12' 5"	33-36	36	35-36
					12' 6"	34-36		36
					12' 7"	35-36
					12' 8"	36

ADVANCE PLANNING

Duct Install Planning

This hood is designed to be vented vertically through the ceiling with a 8" round duct or backwall using an 90° elbow and 8" round duct.
■ Use metal ductwork only.
■ Plan the route for venting exhaust to the outdoors. To maximize the ventilation performance of the vent system:

1. Minimize the duct run length and number of transitions and elbows.
2. Maintain a constant duct size.
3. Seal all joints with duct tape to prevent any leaks.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduces performance.

■ Maximum equivalent duct length for 100 CFM: 150 foot for vent hoods.
■ Install a wall cap or roof cap with damper at the exterior opening. Purchase the wall or roof cap and any transition and length of duct needed in advance.
■ When applicable, install any makeup (replacement) air system in accordance with local building code requirements. 8" or 10" round duct universal make up air kit can be purchased locally.

Vent system can terminate either through the roof or the wall. To vent through a wall, a 90° elbow is needed and installed immediately above the hood.

Add Insulation and/or Caulk Add tape to joint Hood Roof Cap Round Duct Wall Cap Add Insulation and/or Caulk

Recirculation Install Planning

A recirculation duct and charcoal filter are necessary for recirculation installation and must be purchased separately.

Power Supply Planning

The location of the power supply connection is called out in the section, House Wiring Location

POWER SUPPLY

IMPORTANT – (Please read carefully)

WARNING

FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.

Remove house fuse or open circuit breaker before beginning installation.

Do not use an extension cord or adapter plug with this appliance. Follow National Electrical Codes or prevailing local codes and ordinances.

Electrical supply

These vent hoods must be supplied with 120V, 60Hz, and connected to a properly grounded branch circuit, and protected by a 15 or 20 amp circuit breaker or time delay fuse.

■ Wiring must be 2 wire with ground.

■ If the electrical supply does not meet the above requirements, call a licensed electrician before proceeding.
■ Route house wiring as close to the installation location as possible in the ceiling or wall.
■ Connect the wiring to the house wiring in accordance with local codes.

Grounding instructions

The grounding conductor must be connected to a ground metal, permanent wiring system, or an equipment-grounding terminal or lead on the hood.

WARNING

The improper connection of the

equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

NEW CONSTRUCTION, PRE-PLANNING, OR REMODELING

NOTE: For existing construction, skip to the section below.

■ For ducted installation through the top, the 8" diameter hole for the duct in the ceiling must be centered 6-1/4" away from the finished rear wall in the installation space
■ The hood junction box knockout is located 10-1/2" to the left from center of the hood. Ensure enough wire length is available to make electrical connection.

6-1/4"

DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS

• This hood can be installed onto the wall or underneath the soffit or cabinet.
• For installing the hood to soffit or cabinet, refer to page 18 for alternate mounting method."
• Measure desired distance from the bottom of the hood to the cooking surface, 24" minimum over electric range or 30" minimum over gas range, and 36" recommended maximum.
• Use a level to draw a horizontal line indicating the bottom of the hood.
• Use a level to draw the cooktop or range centerline location.
• Measure 9" up from the horizontal line for the bottom of the hood. Draw another horizontal line to indicate the bottom of the installation bar.

For Vertical (Straight Up) Ducting:

• If venting out the ceiling, extend the centerline forward on the ceiling.
• Measure 6-1/4" from drywall to mark center point for an 8" diameter duct hole on the ceiling.
• Cut an 8" dia. duct hole on the ceiling

Venting Through a Soffit or Cabinet:

- Follow the same procedure for vertical (straight-up) ducting through the top of the soffit or cabinet.

Top of Hood 8" Round Bottom of Hood 9"

For Ducting Through Rear Wall:

NOTE: In order to vent through the rear wall, a 90° elbow is needed and installed above the hood damper.

- Measure the height from the top of the hood to the center of the elbow.

- Draw a horizontal line on the wall intersecting the centerline.

- Cut an 8" diameter hole at the intersection point for ducting.

DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS (Cont.)

House Wiring Location:

- The junction box is located inside the hood body on the left side. See Illustrations for hood knockout locations.

House wiring may enter the junction box from the rear or the top of the hood at the right side.

To route house wiring through the ceiling,soffit, or cabinet:

- Cut a hole approximately 1-1/4" dia., forward on the ceiling at a distance 9-3/4" to the left of the centerline.

To route house wiring through the wall:

• Measure 7-3/4" from the bottom of the hood. and mark location.
• Cut a hole approximately 1-1/4" dia., at the marked location at a distance 9-3/4" to the left of the centerline.
• Remove top or rear knockout depending on your installation.

9-3/4" 1-1/4" Top View

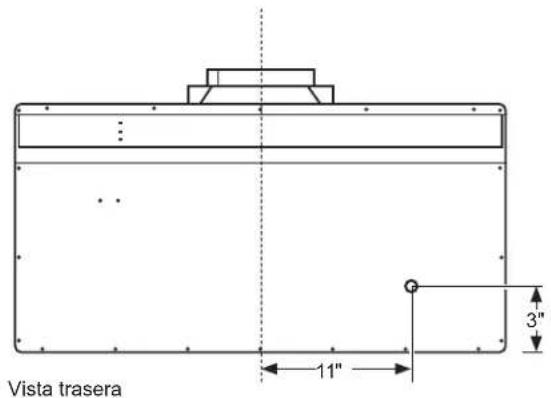

Rear View 11" 3"

1 INSTALL HOOD SUPPORT

IMPORTANT: Framing must be capable of supporting 100 lbs.

• Locate at least 2 vertical studs for the installation bar by tapping drywall with a hammer or use a stud finder.
• Level the installation bar and center left to right above the marked line. Hold bar against the wall.

Installation Bar 9" 24" minimum over electric range or cooktop, or 30" minimum over gas range or cooktop, and 36" recommended maximum. Centerline of Installation Space

- Drill 1/8" pilot holes at the 2 vertical stud locations through holes in the installation bracket. Secure the installation bar with supplied screws (A) as shown above.

Drill Bottom Mounting Hole Locations:

• Hang hood on installation bar or use the table below to mark the screw hole locations. NOTE: if installing to the soffit or cabinet, push hood flush to the soffit or cabinet before marking screw hole locations.
• Remove the hood and drill 5/16" clearance holes at marked locations "A" and "B".

Centerline of Installation Space A B Bottom of Hood "A" 30" Model 8-3/4" 36" Model 4"

	“A”“B”
30" Model	8-3/4"	1-5/8"
36" Model	14"

1 INSTALL HOOD SUPPORT (cont)

• Install wall anchors (C) by tapping the anchors with a hammer to seat the teeth of the flanges into the wall. This keeps anchor from rotating.
- Drive the anchor screws until the barrels crimp against the inside of the wall.
- Remove the screws from the wall anchors before installing the hood.

2 INSTALL DAMPER

IMPORTANT: Remove shipping tape from damper and check that the damper moves freely.

• Install the damper to the hood body using screws

(B) from the top of the hood, as shown in image below

• Use duct tape to seal the connection.

Technical line drawing of a mechanical assembly with no visible text or symbols

3 INSTALL HOOD ONTO WALL

• Pull house wiring through knockout at the back or top of the hood.
• Lift the hood and place over the hooks on the installation bar. Allow the hood to slide down into position.
• Check to be sure the hood is level and centered.
• Tighten wall anchor screws (C) to finish hood body installation to the wall.
• Remove cover from junction box inside the hood.

24" minimum over electric range or cooktop, or 30" minimum over gas range or cooktop, and 36" recommended maximum. Centerline of Installation Space

4 (Alternate Mounting Method) INSTALL HOOD TO SOFFIT OR CABINET

SKIP THIS STEP IF USING WALL MOUNTING METHOD

IMPORTANT: Soffit or cabinet framing must be capable of supporting 100 lbs.

When necessary the hood may be installed so that it is supported by the soffit or cabinet.

• The soffit should be constructed with 2"x4"s.
• Use a level to draw the cooktop or range center line.
• Continue the centerline forward on the bottom of the soffit.
• Install horizontal wood supports between the 2"x4", at distance A to the left and right, as per the table below.

B A A C

	“A” Centerline to Center of Stud	“B” Opening for Ductwork
30" Models 8-3/4"		8-3/8" x 11-1/4"
36" Models 14"

• Drill two 1/8" pilot holes at a distance of 10" from the back wall in the horizontal wood supports. This is the vertical distance between mounting keyholes and back wall as shown in Figure C.
• Drill two more 1/8" pilot holes at a distance of 2-3/4" from the back wall in the horizontal wood supports. This is the vertical distance between mounting screw holes and back wall as shown in Figure C.
• For top venting, allow minimum opening (Dim. B) to accommodate damper in soffit or cabinet.

Back Wall 10" 2-3/4" + Keyholes for Soffit or Cabinet Mounting Figure C

- Drive mounting Screws (A) into the studs until they protrude 1/4". This 1/4" gap will provide clearance to engage the keyhole slots in the top of the hood.

- The hood must also be secured to the back wall. Follow instructions on page 17, "Drill Bottom Mounting Hole Locations", for installation to the back wall.

- Follow instructions on page 16 "House Wiring Locations" for wiring setup.

- Lift hood onto mounting screws. Slide back against the rear wall.

- Pull house wiring through the knockout at the rear or top of the hood.

- Tighten mounting screws (A).

- Once the hood is secured to the soffit or cabinet, drive screws (C) to secure the hood to the back wall.

Soffit or Cabinet 1/4" Gap Engage Keyhole Slots and Push Back at Wall Back Wall

5 INSTALL MOTOR

1. Align the motor exhaust with the top damper as shown in figure below.

Technical line drawing of a mechanical component with a circular feature and an upward arrow (no text or symbols)

1. Secure the motor to motor mounting plate using screws (D).

Motor Mounting Plate Connector Location

1. Plug the motor connector into the mating connector on top of the control housing.

6 CONNECT ELECTRICAL

Verify that power is tured off at the source.

WARNING

If house wiring is not 2-wire with

a ground wire, a ground must be provided by the installer. When house wiring is aluminum, be sure to use UL approved anti-oxidant compound and aluminum-to-copper connections.

- Remove junction box cover.

Simple line drawing of a rectangular box with a circular top and three side holes (no text or symbols)

Line drawing of a rectangular industrial enclosure with internal components and mounting holes (no text or symbols)

- Pull the house wiring through the knockout at the top or back of the hood and secure with the strain relief.

Technical line drawing of a mechanical component with threaded end and central shaft (no text or symbols)

- Use UL listed wire nuts to connect incoming white to white, and black to black wires.

- Loosen the green grounding screw (with grounding bracket) in the junction box. Loop solid copper house wire clockwise around the green grounding screw and above the bracket. Firmly tighten the screw over the loop.

Grounding Bracket Green Grounding Screw

- Replace junction box cover and ensure wires are not pinched.

NOTE:

For corded installation: Use only with rangehood cord-connection kits that have been investigated and found acceptable for use with this model rangehood.

7 CONNECT DUCTWORK

A. Vented Installation

• Connect the house ducting to the top damper as shown in image below.
• Seal all connections with duct tape.

House Ducting Ceiling

CAUTION

Do not use sheet metal screws at the transition to ductwork connection. Doing so will prevent proper damper operations. Seal connection with tape only.

B. Recirculation (non-vented) Installation

NOTE: A recirculation duct (WB34X30519), and Charcoal Filter (UXCF91), are not included with the hood and are necessary for recirculation installation.

1. Attach the recirculation duct to the duct cover mounting bracket with screws provided.
2. Connect the ducting from the exhaust outlet on the hood to the recirculation duct. Use duct tape to seal the connections.

Recirculation Duct Duct Cover Mounting Bracket Use tape (Do not use screws.)

8 INSTALL DUCT COVERS

• Duct Cover Accessories are available at GEApplianceparts.com or by calling 877.959.8688. See Accessories on page 27.
• Follow instructions included with the duct cover accessory to install duct covers.

9 INSTALL FILTERS

- Follow instructions on page 7 "Filters" to install or remove filters.

Filter Lock

MAKE UP AIR TECHNOLOGY

This operation must be performed by a qualified technician or installer.

Note to Installers and Inspectors : This product comes equipped with a simple installation feature that limits maximum CFM levels in order to comply with certain local codes or regulations. This installation method may not be necessary for all installations, please refer to your codes for further guidelines.

CAUTION

Hood must be disconnected from main power prior to performing the conversion instructions

listed below. Failure to do so could result in personal injury or damage to the product.

To modify unit (if needed for local codesl):

390CFM

By design, the maximum blower speed is greater than 400 CFM. For local codes requiring reduced CFM, modify the wiring as described below:

1. Remove the grease filters.
2. Disconnect all the harnesses from the top control box located on right side of motor.
3. Loosen the screws on top of control box and slide out to remove it from the hood.

4. Uninstall the control box cover.

5. For a maximum of 390 CFM with 4 speeds (Low, Medium, High and Boost):

i. Disconnect connectors of the BROWN wire.
ii. Remove the cap attached to the connector of the RED wire.
iii. Connect the mating connector of the BROWN wire and the RED wire.
iv. Attach the cap to the open BROWN wire connector.

1. Install the control box and secure it to bracket in the hood using the two screws.

2. Connect all harnesses on top of the control box.

3. Reinstall the Grease filters.

Note to Inspectors: To verify this product installation, check motor wiring connections as described above.

Top-down schematic of a device layout with labeled components (no text or symbols)

Motor Harness Connector

Red Brown Brown Motor Harness

Factory Installed Wiring Setup

Red Brown Brown Motor Harness

Max 390 CFM Boost Wiring Setup

Troubleshooting Tips ... Before you call for service

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Cause What To Do
Fan/Light does not operate when button is turned ON	A house fuse may be blown or a circuit breaker tripped.	Replace fuse or reset circuit breaker.
Loud or abnormal airflow noise	Wrong duct size used in installation. This	hood requires 8" ducting to perform optimally. Using smaller duct pipe will cause reduced venting. Minimize the duct run length and number of transitions and elbows. GE Appliances service technicians cannot correct this issue if installed improperly.
Fan fails to circulate air or moves air slower than normal and/or fan is making loud or abnormal airflow noise	Obstructions in duct work. Make sure nothing is blocking the vent. Make sure your wall or roof cap has a blade or door.
	Damper blade on wall or roof cap may not be open.	Make sure damper swings freely. Damper blades may flip over and will not fully open when this happens. Adjust to original position.
	Metal grease filter and charcoal filter (if present) may be dirty.	Clean the metal grease filter and replace charcoal filter (if present). See Care and Cleaning of the Vent Hood.
Fan keeps going off and on	The motor is probably overheating and turning itself off. This can be harmful to the motor.	Check to be sure the filters are clean. If off and on cycling continues, call for service.
Hood will not work remotely	Router issues, no wireless signal, etc. For	assistance with hood wireless network connectivity, please call 800.220.6899.
	Hood is not connected.

GE Appliances Vented Range Hood Warranty

GEAppliances.com

All warranty service is provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service online, visit us at bodewell.com/schedule-repair-service, or call GE Appliances at 833-4BODEWELL (833-426-3393). Please have your serial number and your model number available when calling for service.

Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Appliances factory service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be sent to GE Appliances, please advise your technician not to submit the data to GE Appliances at the time of service.

For the period of GE Appliances will replace
One yearFrom the dateof the originalpurchase	Any part of the cooking product which fails due to a defect in materials or workmanship.During this limited one-year warranty, GE Appliances will provide, free of charge, all laborand related service costs to replace the defective part.

What GE Appliances will not cover:

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery, or maintenance.
■ Failure of the product if it is abused, misused, modified, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods, or acts of God.

■ Damage to finish, such as surface rust, tarnish, or small blemishes not reported within 48 hours of delivery.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
■ Service to repair or replace light bulbs, except for LED lamps.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier company

Louisville, KY 40225

Extended Warranties: Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it online anytime at

GEAppliances.com/extended-warranty

or call 800.626.2224 during normal business hours. GE Appliances Service will still be there after your warranty expires.

Looking For Something More?

GE Appliances offers a variety of accessories to improve your cooking and maintenance experiences!

Refer to the Consumer Support page for phone numbers and website information.

The following products and more are available:

Parts

Grease filters

Duct Covers

Charcoal Filters

Recirculation Kit

Remote Control

15" cabinet filler panel

Power Cord kit

Cleaning Supplies

CitruShineTM Stainless Steel Wipes

Stainless Steel Appliance Cleaner

Bar Keepers Friend Soft CleanserTM

Consumer Support

GE Appliances Website

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for your convenience. GEAppliances.com

Register Your Appliance

Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. GEAppliances.com/register

Schedule Service

Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year.

bodewell.com/schedule-repair-service or call 833-4BODEWELL (833-426-3393) during normal business hours.

Extended Warranties

Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime. GE Appliances Services will still be there after your warranty expires. bodewellcareplan.com or call 800.626.2224 during normal business hours.

Remote Connectivity

For assistance with wireless network connectivity (for models with remote enable), visit our website at GEAppliances.com/connect or call 800.220.6899.

Parts and Accessories

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.

GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us

If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including your phone number, or write to:

General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225

GEAppliances.com/contact or call 800.626.2000

Connected Appliance Information

FCC ID: ZKJ-WCATA005

Network: ********

IC: 10229A-WCATA001

Password: ********

MAC ID: ********

Ejemplo de Etiqueta

Technical line drawings of two mechanical components with circular and radial features (no text or symbols)

Superficies

10" 16-1/2" 21" 30"

Modelos de 36"

10" 16-1/2" 21" 36"

Technical line drawing of a 3D mechanical housing or enclosure with a central recess and mounting holes (no text or symbols)

Isometric line drawing of a three-tiered rectangular enclosure with ventilation grilles (no text or symbols)

9-3/4" 1-1/4" Vista superior

Vista trasera 11" 3"

Technical line drawing of a mechanical assembly with mounting brackets and a central circular component (no text or symbols)

3 INSTALE LA CAMPANA EN LA PARED

Technical line drawing of a mechanical component with a flange and central hub (no text or symbols)

Pared Trasera 10" Keyholes for Soffit or Cabinet Mounting 2-3/4" A Figura C

Technical line drawing of a mechanical component with a circular feature and an upward arrow (no text or symbols)

Isometric line drawing of a cube with a circular top and three corner holes (no text or symbols)

Line drawing of a rectangular box with internal compartments and circular cutouts (no text or symbols)

Technical line drawing of a mechanical component with threaded end and internal shaft (no text or symbols)

GEAppliances.com/extended-warranty

General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225

GEAppliances.com/contact o comuníquese al 800.626.2000
