Section 56. Controller Area Network with Flexible Data-rate (CAN FD)

This section of the manual contains the following major topics:

56.1 Introduction 56-2
56.2 CAN FD Message Frames....56-5
56.3 Control Registers 56-9
56.4 Modes of Operation 56-74
56.5 Configuration....56-80
56.6 Message Transmission 56-89
56.7 Transmit Event FIFO – TEF 56-98
56.8 Message Filtering....56-105
56.9 Message Reception 56-110
56.10 FIFO Behavior.... 56-117
56.11 Timestamping....56-129
56.12 Interrupts....56-130
56.13 Error Handling....56-137
56.14 Related Application Notes....56-139
56.15 Revision History 56-140

Note: This family reference manual section is meant to serve as a complement to device data sheets. Depending on the device variant, this manual section may not apply to all PIC32 devices.

Please consult the note at the beginning of the "Controller Area Network with Flexible Data-rate (CAN FD)" chapter in the current device data sheet to determine whether this document supports the device you are using.

Device data sheets and family reference manual sections are available for download from the Microchip Web site at: http://www.microchip.com

56.1 INTRODUCTION

CAN Flexible Data-Rate (FD) addresses the increasing demand for bandwidth on CAN buses. The two enhancements over CAN 2.0B are consists of the following:

• Increased data field up to 64 data bytes (currently 8 bytes)
• Option to switch to faster bit rate after the arbitration field

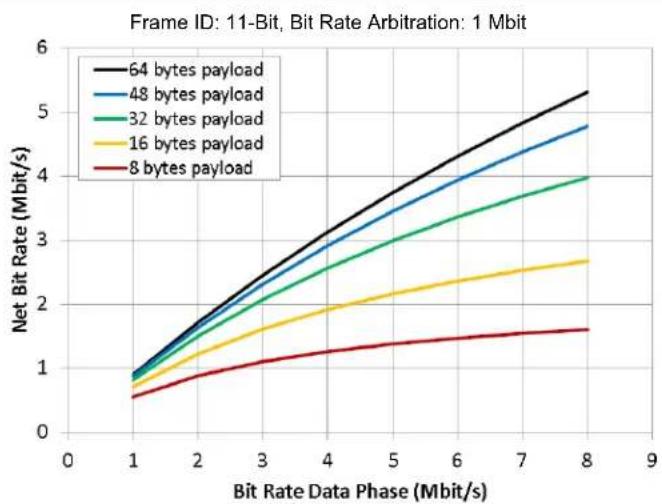

Figure 56-1 shows the possible increase in net bit rate due to higher Data Bit Rate (DBR) and increased data bytes per frame (© Robert Bosch GmbH).
Figure 56-1: Net CAN FD Bit Rate

The CAN FD protocol is defined to allow CAN 2.0 and CAN FD messages to co-exist on the same bus. This does not imply that non CAN FD controllers can be mixed with CAN FD controllers on the same bus. Non CAN FD controllers will generate error frames while receiving a CAN FD message.

56.1.1 Features

The CAN FD module has the following features:

General

• Nominal (Arbitration) Bit Rate up to 1 Mbps
• Data Bit Rate up to 8 Mbps
• CAN FD Controller modes:
- Mixed CAN 2.0B and CAN FD mode
- CAN 2.0B mode
• Conforms to ISO11898-1:2015

Message FIFOs

• 31 FIFOs Configurable as transmit or receive FIFOs
• One Transmit Queue (TXQ)
- Transmit Event FIFO (TEF) with 32-bit Timestamp

Message Transmission

• Message Transmission Prioritization is based on any one or both of these:
• Based on priority bit field
• Message with lowest ID gets transmitted first using the TXQ
• Programmable Automatic Retransmission Attempts: Unlimited, 3 Attempts or Disabled

Message Reception

• 32 Flexible Filter and Mask Objects
• Each Object can be Configured to Filter using any of these:

- Standard ID and first 18 data bits

- Extended ID

• 32-Bit Timestamp

- The CAN FD Bit Stream Processor (BSP) implements the Medium Access Control of the CAN FD protocol as described in ISO11898-1:2015. It serializes and deserializes the bit stream, encodes and decodes the CAN FD frames, manages the medium access, Acknowledges frames, and detects and signals errors.

- The TX handler prioritizes the messages that are requested for transmission by the transmit FIFOs. It uses the RAM interface to fetch the transmit data from RAM and provides it to the BSP for transmission.

- The BSP provides received messages to the RX handler. The RX handler uses an acceptance filter to filter the messages that will be stored in the receive FIFOs. It uses the RAM interface to store received data into RAM.

- Each FIFO can be configured either as a transmit or receive FIFO. The FIFO control keeps track of the FIFO head and tail, and calculates the user address. In a TX FIFO, the user address points to the address in RAM where the data for the next transmit message is stored. In an RX FIFO, the user address points to the address in RAM where the data of the next receive message will be read. The user notifies the FIFO that a message is written to or read from RAM by incrementing the head or tail of the FIFO.

- The TXQ is a special transmit FIFO that transmits the messages based on the ID of the messages stored in the queue.

- The TEF stores the message IDs of the transmitted messages.

- A free-running Time Base Counter (TBC) is used to timestamp received messages. Messages in the TEF can also be timestamped.

- The CAN FD controller module generates interrupts when new messages are received or when messages are transmitted successfully.

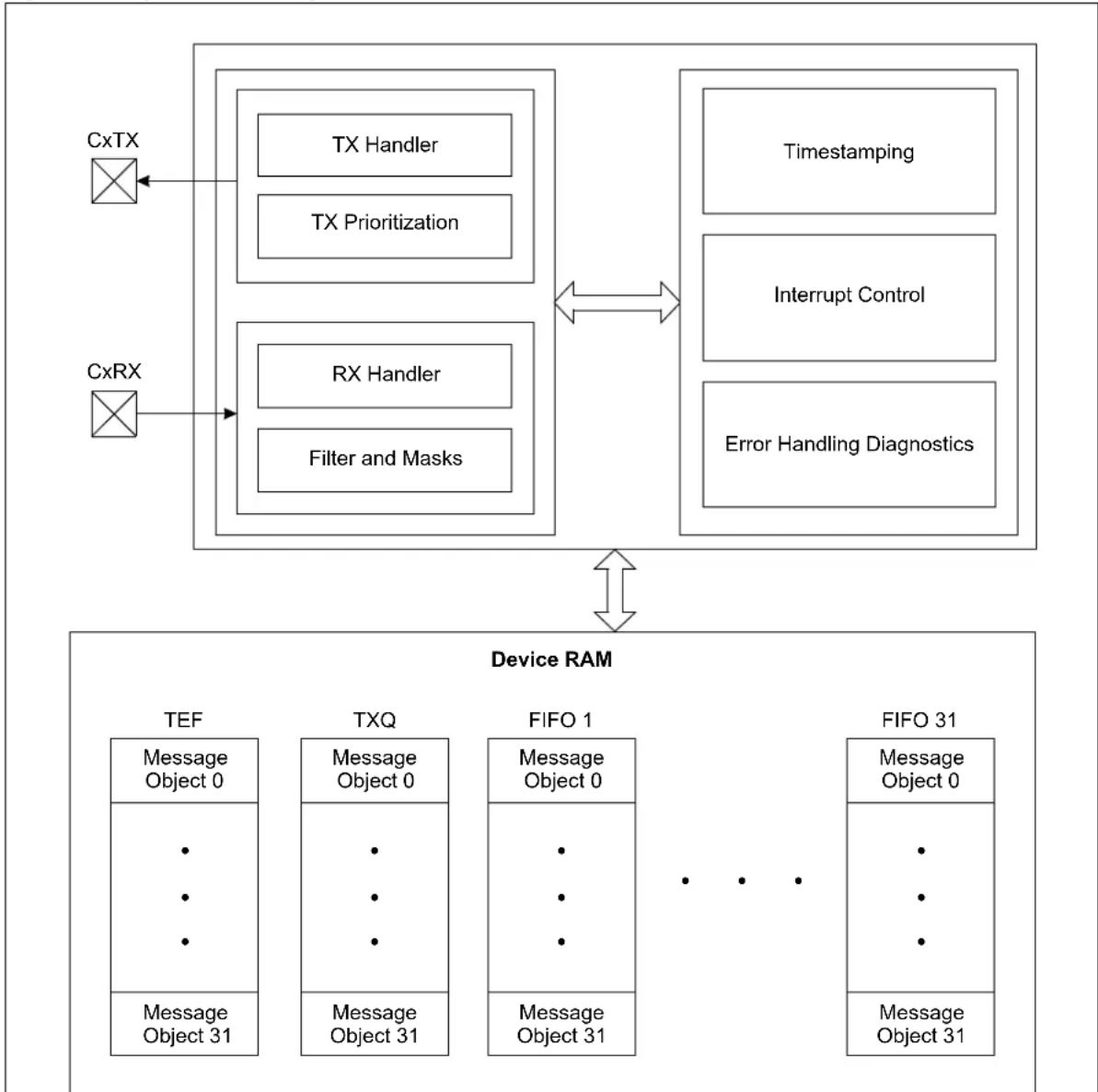

Figure 56-2 shows the System Block Diagram.
Figure 56-2: System Block Diagram

56.2 CAN FD MESSAGE FRAMES

The ISO11898-1:2015 describes the different CAN message frames in detail. Figure 56-3 through Figure 56-8 explain and summarize the construction of the messages and fields.

The following are four different CAN data or remote frames (see Figure 56-4):

• CAN Base Frame: Classic CAN 2.0 frame using Standard ID
• CAN FD Base Frame: CAN FD frame using Standard ID
• CAN Extended Frame: Classic CAN 2.0 frame using Extended ID
• CAN FD Extended Frame: CAN FD frame using Extended ID

There are no remote frames in CAN FD frames; therefore, the RTR bit is replaced with the RRS bit (see Figure 56-4). The RRS bit in the CAN FD base frame can be used to extend the SID to 12 bits. When enabled, it is referred to as SID11, it is the LSB of SID<11:0>.

Figure 56-5 specifies the control field of the different CAN messages. Before CAN FD was added to the ISO11898-1:2015, the FDF bit was a reserved bit. Now the FDF bit selects between Classic and CAN FD formats.

The BRS bit selects, if the bit rate should be switched in the data phase of CAN FD frames.

Figure 56-8 illustrates the error and overload frames. These special frames do not change.

Note: If an error is detected during the data phase of a CAN FD frame, the bit rate will be switched back to the Nominal Bit Rate (NBR). Error frames are always transmitted at the arbitration bit rate.

56.2.1 ISO vs. NON-ISO CRC

To support the system validation of non-ISO CRC ECUs, the CAN FD controller module supports both ISO CRC (according to ISO11898-1:2015) and non-ISO CRC (see Figure 56-6 and Figure 56-7). The CRC field is selectable using the ISOCRCEN bit (CFDxCON<5>). The ISO CRC field contains the stuff count. This count was not included in the original CAN FD specification; It was added to fix a minor issue in the error detection of the original specification.

CAN FD frames use two different lengths of CRC: 17-bit for up to 16 data bytes and 21-bit for 20 or more data bytes. Technically, there are a total of six different CAN data/remove frames in the CAN FD.

Figure 56-3: General Data Frame

DATA FRAME

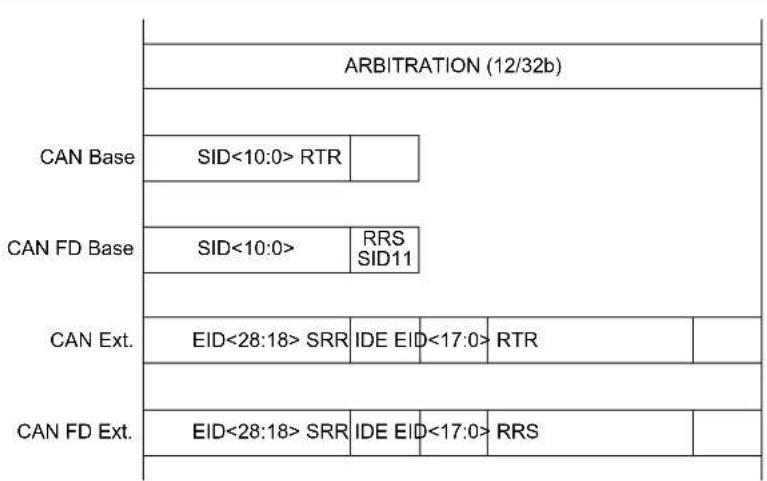

IFS (= 3b)	SOF (1b)	ARBITRATION (12/32b)	CTRL (6/8/9b)	DATA (0 to 64b)	CRC (16/18/22b) CRC (16/22/26b)	ACK (2b)	EOF (7b)	IFS (= 3b)

Figure 56-4: Arbitration Field

Figure 56-5: Control Field

CTRL (6/8/9b) CAN Base IDE FDF DLC<3:0> CAN FD Base IDE E SFDF BRS DLC<3:0> CAN Ext. FDF DLC<3:0> CAN FD Ext. FDF E SHCL Figure 56-6: ISO CRC Field  Figure 56-7: NON-ISO CRC Field

CRC (16/18/22b) CAN Base CRC (15b) CRC DEL CAN FD Base CRC (17/21b) CRC DEL CAN Ext. CRC (15b) CRC DEL CAN FD Ext. CRC (17/21b) CRC DEL

Figure 56-8: Error and Overload Frame

ERROR ANYWHERE WITHIN DATA FRAME ERRFLAG (6b) ERRDEL (8b) IFS (= 3b) or OVL OVERLOAD EOF or ERRDEL or OVLDEL OVLFLAG (6b) OVLDEL (8b) IFS (= 3b) or OVL

56.2.1.1 DLC ENCODING

The Data Length Code (DLC) specifies the number of data bytes a message frame contains. Table 56-1 provides the encoding details. Table 56-1: DLC Encoding

Frame	DLC	Number of Data Bytes
CAN 2.0 and CAN FD	0 0
	1	1
	2	2
	3	3
	4	4
	5	5
	6	6
	7	7
	8	8
CAN 2.0	9-15	8
Frame DLC Number	of Data Bytes
CAN FD 9 12
	10 16
	11 20
	12 24
	13 32
	14 48
	15 64

56.3 CONTROL REGISTERS

The PIC32 CAN FD module has the following Special Function Registers (SFRs): \- CFDxcon: can control register ('x' = 1-4) This register controls the basic operation of the respective CAN-FD modules, including delay between consecutive transmissions, operation mode, signaling abort transmission to all transmit buffers of the respective module, define number of retransmission attempts, operation in Idle mode, configure wake up filter, select clock source, and enable OR disable the module. \- CFDxnbtcfg: nominal bit time configuration register ('x' = 1-4) This register configures the nominal bit timing (arbitration phase) of the respective CAN-FD module. \- CFDxdbtcfg: data bit time configuration register ('x' = 1-4) This register configures the data bit time (data phase) of the respective CAN-FD module. \- CFDxtdc: transmitter delay compensation register ('x' = 1-4) This register enables compensation for transmitter delay. \- CFDxtbc: can time base counter register ('x' = 1-4) This register holds the 32 bit count of the time stamp timer. \- CFDxtscon: can time stamp control register ('x' = 1-4) This register controls the operation of the time stamp timer. \- CFDxvec: interrupt code register ('x' = 1-4) This register identifies the pending interrupt sources of the CAN module. \- CFDxint: interrupt register ('x' = 1-4) This register allows enabling/disabling of interrupts within the CAN-FD module. \- CFDxrxif: receive interrupt status register ('x' = 1-4) This register identifies the pending receive FIFO interrupts. \- CFDxrxovif: receive overflow interrupt status register ('x' = 1-4) This register identifies the pending receive FIFO overflow interrupts. \- CFDxtxif: transmit interrupt status register ('x' = 1-4) This register identifies the pending transmit FIFO interrupts. \- CFDxtxatif: transmit attempt interrupt status register ('x' = 1-4) This register identifies the pending transmit FIFO attempt interrupts. \- CFDxtxreq: transmit request register ('x' = 1-4) This register allows queuing of transmissions for each transmit FIFO. \- CFDxfifoba: message memory base address register ('x' = 1-4) This register defines the base address of the Transmit Event FIFO. \- CFDxtxqcon: transmit queue control register ('x' = 1-4) This register configures and controls transmit queue. \- CFDxtxqsta: transmit queue status register ('x' = 1-4) This register reflects the transmit queue status. \- CFDxfifoconn: fifo control register ('x' = 1-4; 'n' = 1-31) This register configures and controls the FIFO. \- CFDxfifostan: fifo status register ('x' = 1-4; 'n' = 1-31) This register reflects the FIFO status. \- CFDxtefcon: transmit event fifo control register ('x' = 1-4) This register configures and controls Transmit Event FIFO. \- CFDxtefsta: transmit event fifo status register ('x' = 1-4) This register reflects the transmit event FIFO status. \- CFDxfifouan: definition register ('x' = 1-4; 'n' = 1-31) This register allows defining of each FIFO as transmit or receive buffer. \- CFDxtefua: transmit event fifo user address register ('x' = 1-4) This register provides the address from where the next event is to be read. \- CFDxtxqua: transmit queue user address register ('x' = 1-4) This register provides the address of the next message in the transmit queue. \- CFDxtrec: transmit/receive error count register ('x' = 1-4) This register provides transmit and receive error counts. \- CFDxbdiag0: bus diagnostics register 0 ('x' = 1-4) This register keeps track of bus transmit and receive errors during nominal and data bit rate phases, separately. \- CFDxbdiag1: bus diagnostics register 1 ('x' = 1-4) This register counts the number of error free messages on the bus. Every read of this register clears its count. The register also identifies the types of errors that occurred since the last register read. \- CFDxfltcon0: filter control register ('x' = 1-4) This register enables or disables the message filter 0-3. This register also points to the FIFO where the message is stored upon filter match for message filter 0-3. \- CFDxfltcon1: filter control register ('x' = 1-4) This register enables or disables message filter 4-7. This register also points to the FIFO where the message is stored upon filter match for message filter 4-7. \- CFDxfltcon2: filter control register ('x' = 1-4) This register enables or disables message filter 8-11. This register also points to the FIFO where the message is stored upon filter match for message filter 8-11. \- CFDxfltcon3: filter control register ('x' = 1-4) This register enables or disables message filter 12-15. This register also points to the FIFO where the message is stored upon filter match for message filter 12-15. \- CFDxfltcon4: filter control register ('x' = 1-4) This register enables or disables message filter 16-19. This register also points to the FIFO where the message is stored upon filter match for message filter 16-19. \- CFDxfltcon5: filter control register ('x' = 1-4) This register enables or disables message filter 20-23. This register also points to the FIFO where the message is stored upon filter match for message filter 20-23. \- CFDxfltcon6: filter control register ('x' = 1-4) This register enables or disables message filter 24-27. This register also points to the FIFO where the message is stored upon filter match for message filter 24-27. \- CFDxfltcon7: filter control register ('x' = 1-4) This register enables or disables message filter 28-31. This register also points to the FIFO where the message is stored upon filter match for message filter 28-31. \- CFDxfltobjn: filter object register ('x' = 1-4; 'n' = 0-31) This register sets the filter object of the message filter. \- CFDxmaskn: mask register ('x' = 1-4; 'n' = 0-31) This register sets the mask object of the message filter. TABLE 56-2: CAN FD PERIPHERAL REGISTER SUMMARY

Register Name

Bit Range

Bits

31/15 30/14 29/13 28/12 27/11 26/10 25/9 24/8 23/7 22/6 21/5 20/4 19/3 18/2 17/1 16/0

OPMOD<2.0>

TXQEN

STEF

SERR2LOM

ESIGM

RTXAT

CFD1CON

31:16

TXBWS<3.0>

ABAT

REQOP<2.0>

OPMOD<2.0>

TXQEN

STEF

SERR2LOM

ESIGM

RTXAT

15:0

ON

—

SIDL

BRSDIS

BUSY

WFT<1.0>

WAKFIL

CLKSEL0

PXEDIS

ISOCRCEN

DNCNT<4.0>

CFD1NBTCFG

31:16

BRP<7.0>

TSEG1<7.0>

15:0

—

TSEG2<5.0>

—

—

—

TSEG2<4.0>

CFD1DBTCFG

31:16

BRP<7.0>

—

—

—

—

—

—

TDCMOD<1.0>

15:0

—

—

—

—

TSEG2<3.0>

—

—

—

—

—

—

TDCMOD<1.0>

CFD1TDC

31:16

—

—

—

—

—

—

EDGFLTEN

SID11EN

—

—

—

—

—

—

TDCMOD<1.0>

15:0

—

TDCO<5.0>

—

—

TDCV<5.0>

CFD1TBC

31:16

TBC<31.16>

15:0

TBC<15.0>

CFD1TSCON

31:16

—

—

—

—

—

—

—

—

—

—

—

—

—

TSRES

TSEOF

TBCEN

15:0

—

—

—

—

—

—

—

TBCPRE<9.0>

CFD1VEC

31:16

—

RXCODE<6.0>

—

TXCODE<6.0>

15:0

—

—

—

—

FILHIT<4.0>

—

ICODE<6.0>

CFD1INT

31:16

IVMIE

WAKIE

CERRIE

SERRIE

RXOVIE

TXATIE

—

—

—

—

TEFIE

MODIE

TBCIE

RXIE

TXIE

15:0

IVMIF

WAKIF

CERRIF

SERRIF

RXOVIF

TXATIF

—

—

—

—

TEFIF

MODIF

TBCIF

RXIF

TXIF

CFD1RXIF

31:16

RFIF<31.16>

15:0

RFIF<15.1>

—

CFD1TXIF

31:16

TFIF<31.16>

15:0

TFIF<15.0>

CFD1RXOVIF

31:16

RFOVIF<31.16>

15:0

RFOVIF<15.1>

—

CFD1TXATIF

31:16

TFATIF<31.16>

15:0

TFATIF<15.0>

CFD1TXREQ

31:16

TXREQ<31.16>

15:0

TXREQ<15.0>

CFD1TREC

31:16

—

—

—

—

—

—

—

—

—

—

TXBO

TXBP

RXBP

TXWARN

RXWARN

EWARN

15:0

TERRCNT<7.0>

RERRCNT<7.0>

CFD1BDIAG0

31:16

DTERRCNT<7.0>

DRERRCNT<7.0>

15:0

NTERRCNT<7.0>

NRERRCNT<7.0>

CFD1BDIAG1

31:16

DLCMM

ESI

DCRCERR

DSTUFERR

DFORMERR

—

DBITIERR

DBIT0ERR

—

—

NCRCERR

NSTUFERR

NFORMERR

NACKERR

NBITIERR

NBIT0ERR

15:0

EFMSGCNT<15.0>

CFD1TEFCON

31:16

—

—

—

—

FSIZE<4.0>

—

—

—

—

—

—

—

—

15:0

—

—

—

—

—

FRESET

—

UINC

—

—

TEFTSEN

—

TEFOVIE

TEFFIE

TEFHIE

TEFNEIE

CFD1TEFSTA

31:16

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

15:0

—

—

—

—

—

—

—

—

—

—

—

—

TEFOVIE

TEFFIE

TEFHIE

TEFNEIE

CFD1TEFUA

31:16

TEFUA<31.16>

15:0

TEFUA<15.0>

CFD1FIFOBA

31:16

FIFOBA<31.16>

15:0

FIFOBA<15.0>

CFD1TXQCON

31:16

PLSIZE<2.0>

FSIZE<4.0>

—

TXAT<1.0>

TXPR<4.0>

15:0

—

—

—

—

—

FRESET

TXREQ

UINC

TXEN

—

—

TXATIE

—

TXOEIE

—

TXQNIE

Legend: x = unknown value on Reset; — = unimplemented, read as '0'. Reset values are shown in hexadecimal. Note 1: The lower order byte of the 3' bit register reader at the low order address. Note 1. The lower order byte of the 32-bit register resides at the low-order address. TABLE 56-2: CAN FD PERIPHERAL REGISTER SUMMARY (CONTINUED)
