Preface

NOTICE TO CUSTOMERS

All documentation becomes dated, and this manual is no exception. Microchip tools and documentation are constantly evolving to meet customer needs, so some actual dialogs and/or tool descriptions may differ from those in this document. Please refer to our website (www.microchip.com) to obtain the latest documentation available.

Documents are identified with a "DS" number. This number is located on the bottom of each page, in front of the page number. The numbering convention for the DS number is "DSXXXXXXXXA", where "XXXXXXXXX" is the document number and "A" is the revision level of the document.

For the most up-to-date information on development tools, see the MPLAB ^® IDE online help. Select the Help menu, and then Topics to open a list of available online help files.

INTRODUCTION

This chapter contains general information that will be useful to know before using the MCP9984 Evaluation Board. Items discussed in this chapter include:

• Document Layout
  • Conventions Used in this Guide
  • Recommended Reading
  • The Microchip Website
  • Product Change Notification Service
• Customer Support
  • Document Revision History

DOCUMENT LAYOUT

This document describes how to use the MCP9984 Evaluation Board as a development tool to emulate and debug firmware on a target board. The manual layout is as follows:

• Chapter 1. "Product Overview" – Important information about the MCP9984 Evaluation Board.
• Chapter 2. "Installation and Operation" – This chapter includes a detailed description of each function of the MCP9984 Evaluation Board and instructions on how to use it.
• Chapter 3. "Software GUI Description" – Includes instructions to evaluate the MCP9984 for temperature sensing applications.
• Appendix 1. "Schematic and Layouts" – Shows the schematic and layout diagrams for the MCP9984 Evaluation Board.
• Appendix 1. "Bill of Materials (BOM)" – Lists the parts used to build the MCP9984 Evaluation Board.

CONVENTIONS USED IN THIS GUIDE

This manual uses the following documentation conventions:

DOCUMENTATION CONVENTIONS

Description Represents Examples
Arial font:
Italic characters Referenced books	oks MPLAB	^ IDE User's Guide
	Emphasized text ...is the only compiler...
Initial caps A window the Output	window
	A dialog the Settings dialog
	A menu selection select Enable	Programmer
Quotes A field name in a window or dialog		"Save project before build"
Underlined, italic text with right angle bracket	A menu path File>Save	—
Bold characters	A dialog button	Click OK
	A tab	Click the Power tab
N'Rnnnn	A number in verilog format, where N is the total number of digits, R is the radix and n is a digit.	4'b0010, 2'hF1
Text in angle brackets <>	A key on the keyboard	Press,,
Courier New font:
Plain Courier New	Sample source code	#define START
	Filenames	autoexec.bat
	File paths	c:\mccl8\h
	Keywords	_asm, _endasm, static
	Command-line options	-Opa+, -Opa-
	Bit values	0, 1
	Constants	0xFF, 'A'
Italic Courier New	A variable argument	file.o, where file can be any valid filename
Square brackets []	Optional arguments	mccl8 [options] file [options]
Curly brackets and pipe character: { | }	Choice of mutually exclusive arguments; an OR selection	errorlevel {0|1}
Ellipses...	Replaces repeated text	var_name [, var_name...]
	Represents code supplied by user	void main (void) { ... }

RECOMMENDED READING

This user's guide describes how to use the MCP9984 Evaluation Board. Another useful document is listed below. The following Microchip document is available and recommended as a supplemental reference resource:

- MCP998X/MCP9933/MCP998XD/MCP9933D Data Sheet – “2-Wire, ±1.0°C Accurate Multichannel Automotive Temperature Monitor” (DS20006827).

THE MICROCHIP WEBSITE

Microchip provides online support via our website at www.microchip.com. This website is used as a means to make files and information easily available to customers. Accessible by using your favorite internet browser, the website contains the following information:

• Product Support – Data sheets and errata, application notes and sample programs, design resources, user's guides and hardware support documents, latest software releases and archived software
• General Technical Support – Frequently Asked Questions (FAQs), technical support requests, online discussion groups, Microchip consultant program member listing
• Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

PRODUCT CHANGE NOTIFICATION SERVICE

Microchip's customer notification service helps keep customers current on Microchip products. Subscribers will receive email notifications whenever there are changes, updates, revisions or errata related to a specified product family or development tool of interest.

To register, access the Microchip website at www.microchip.com, click on Product Change Notification and follow the registration instructions.

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative
- Local Sales Office
• Field Application Engineer (FAE)
- Technical Support

Customers should contact their distributor, representative or FAE for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.

Technical support is available through the website at: http://www.microchip.com/support

DOCUMENT REVISION HISTORY

Revision A (January 2024)

- Initial release of this document.

NOTES:

Chapter 1. Product Overview

1.1 INTRODUCTION

This chapter provides an overview of the MCP9984 Evaluation Board and covers the following topics:

• MCP9984 Device Short Overview
• What is the MCP9984 Evaluation Board?
• MCP9984 Evaluation Board Kit Contents

1.2 MCP9984 DEVICE SHORT OVERVIEW

The MCP9984 Evaluation Board is used to evaluate the MCP998X family of remote diode temperature monitors. Users can now easily evaluate many of the integrated features of the MCP998X device family. The MCP9984 Evaluation Board has the MCP9984-A, which has the SMBus address decode capability. The MCP9984 Evaluation Board also has on-board connectors to allow for diode-connected transistors used for off-board temperature measurements.

In addition, the MCP9984 Evaluation Board connects to the PC through a USB interface. Temperature can be data-logged using the Microchip Thermal Management Software Graphical User Interface (GUI).

1.3 WHAT IS THE MCP9984 EVALUATION BOARD?

The MCP9984 Evaluation Board enables users to easily evaluate many custom programmable features such as Temperature Alert Limit settings, Temperature Conversion Rate, Resistance Error Correction (REC) and Power Modes.

Figure 1-1 shows the top and bottom views of the MCP9984 Evaluation Board.

C7 J1 GND VDD I2C Activity LD2 R2 U1 C1 5V Power R1 LD1 MCP9984 Evaluation Board U3 C9 Alert LD3 R12 Therm LD4 R3 External 1 External 2/3 J4 J3 C3C4 U2 C6 Client Address J5 78h 38h D8h 98h B8h F8h C10 C8 Q1 R4 VDD GND SDA SCL J2 UK CA CE RoHS 50 LABEL1 MICROCHIP EV23P16A 04-12024-R1

FIGURE 1-1: MCP9984 Evaluation Board - Top and Bottom Views.

1.4 MCP9984 EVALUATION BOARD KIT CONTENTS

The MCP9984 Evaluation Board Kit includes the following items:

• MCP9984 Evaluation Board (EV23P16A);
- USB cable for PC connectivity;
• (2) 2N3904TA transistor (TO-92 package).

Chapter 2. Installation and Operation

2.1 GETTING STARTED

This chapter describes how to power-up and interface with the MCP9984 Evaluation Board device. Items discussed in this chapter include:

• System and Configuration Requirements
• MCP9984 Evaluation Board Setup
- Software Setup

2.2 SYSTEM AND CONFIGURATION REQUIREMENTS

The MCP9984 Evaluation Board is designed to be used with a personal computer (desktop or laptop) running Microsoft ^® Windows ^® XP or later. For USB connectivity, the minimal physical requirement for the PC is a standard type-A USB 2.0 port.

2.3 MCP9984 EVALUATION BOARD SETUP

Before the MCP9984 Evaluation Board can be used, a few steps must be performed to install the PC software and configure the MCP9984 Evaluation Board's hardware.

1. Download the support material (PC application) that can be found on the EV23P16A board page, at www.microchip.com. Unzip the archive and install the executable.
2. When evaluating the MCP9984, ensure a jumper is populated at J5 to select the address decode resistance. Use Table 2-1 as a reference.

TABLE 2-1: MCP9984 ADDRESS DECODE

Resistance Selected at J5 SMBus Address
4.7 kΩ	1111_100 (r/w)	)b
6.8 kΩ	1011_100 (r/w)b	—
10 kΩ	1001_100 (r/w)	)b
15 kΩ	1101_100 (r/w)	)b
22 kΩ	0011_100 (r/w)b	—
33 kΩ	0111_100 (r/w)	)b

2.3.1 Hardware Setup and Description

Follow these steps to set up the hardware:

1. The MCP9984 Evaluation Board kit provides a micro-USB cable for PC interface. Connect the USB cable to a PC.
2. Start the Thermal Management Software GUI to evaluate the sensor board features.

This MCP9984 Evaluation Board is fully powered from PC USB source at 5V. Once power is applied via USB and the USB is successfully enumerated, then the MCP2221A USB to I²C Bridge is ready to receive commands from the host PC to program the MCP9984 Evaluation Board settings or transfer temperature data.

FIGURE 2-1: MCP9984 Evaluation Board Circuit Block Diagram.

The block diagram in Figure 2-1 shows that the MCP9984 device is able to monitor and report the ambient temperature of three external diode-connected transistors. One diode is installed on the PCB for the MCP9984. Two-pin connectors allow the user to connect additional transistors to the MCP9984 for evaluation of off-board temperature applications. The Alert and Therm outputs, SDA, SCL and V_DD are connected to test points for external connections.

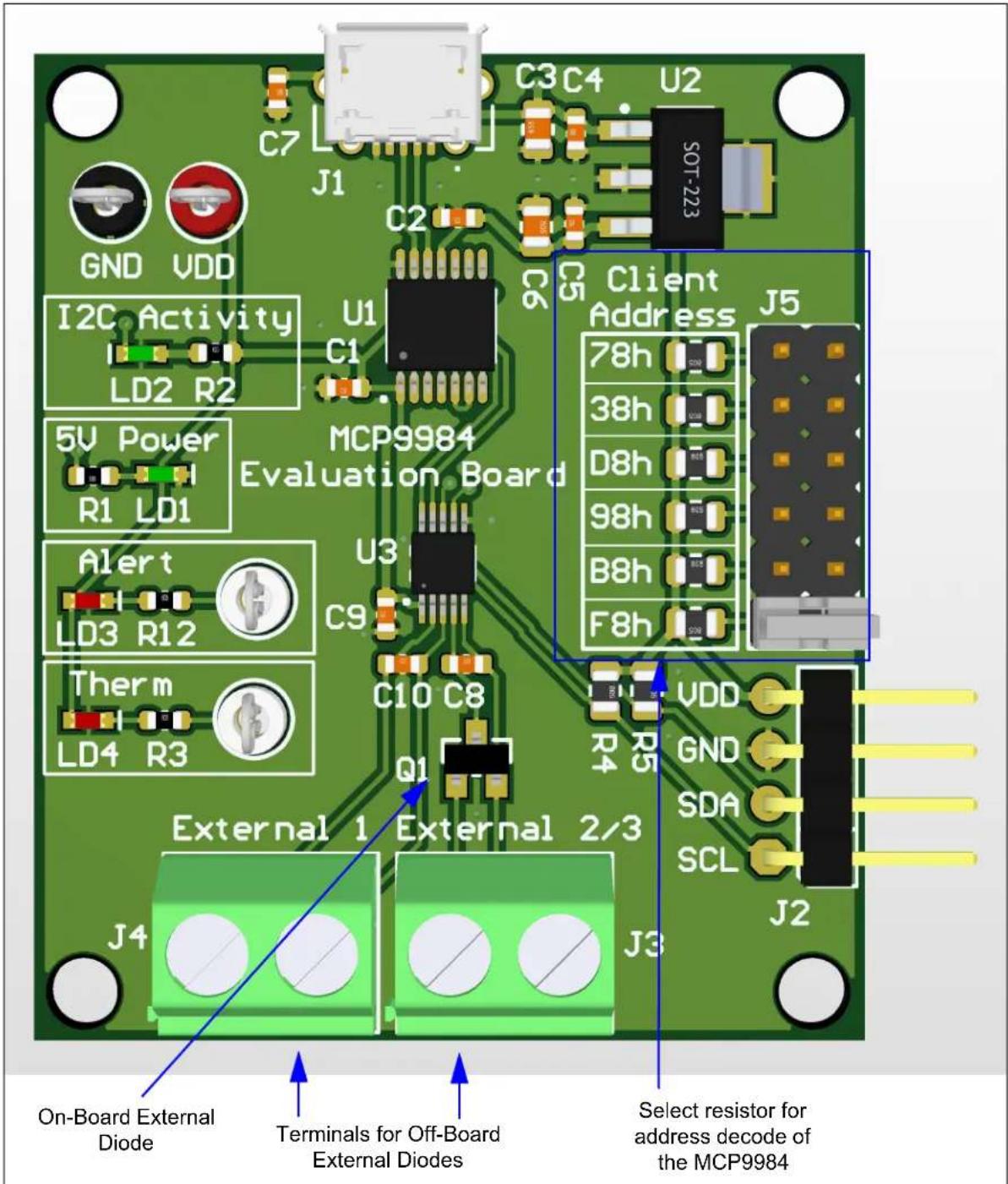

C3 C4 U2 C7 J1 GND VDD I2C Activity U1 LD2 R2 C1 5V Power MCP9984 R1 LD1 Evaluation Board Client Address J5 78h 38h D8h 98h B8h F8h Alert U3 LD3 R12 C9 Therm C10 C8 LD4 R3 Q1 External 1 External 2/3 J4 J3 J2 On-Board External Diode Terminals for Off-Board External Diodes Select resistor for address decode of the MCP9984

FIGURE 2-2: Top view of the MCP9984 Evaluation Board with Component Descriptions.
Figure 2-2 shows the top view of the MCP9984 Evaluation Board. See Table 2-2 for a more detailed description of each component.

TABLE 2-2: COMPONENT DESCRIPTIONS

Component Name	Description
VDD 3.3V
GND Ground
Alert Test point for the ALERT pin
Therm Test point for the THERM pin
J1 Micro-USB Connection
J2 I2C/SMBus Connections
J3 Terminal connection for External Channel 3 off-board diode connected transistor
J4 Terminal connection for External Channel 1 off-board diode connected transistor
J5 Address decode selection
Q1 On-board diode connected transistor for External Channel 2
U1 MCP2221A: USB to I2C Bridge
U2 MCP1703/3.3V: 3.3V Voltage regulator
U3 MCP9984: Temperature sensor device

2.4 SOFTWARE SETUP

Follow these steps to complete the Microchip Thermal Management Utility software installation and setup:

1. Open the Thermal Management Utility.exe then click Next in the Application Install window.

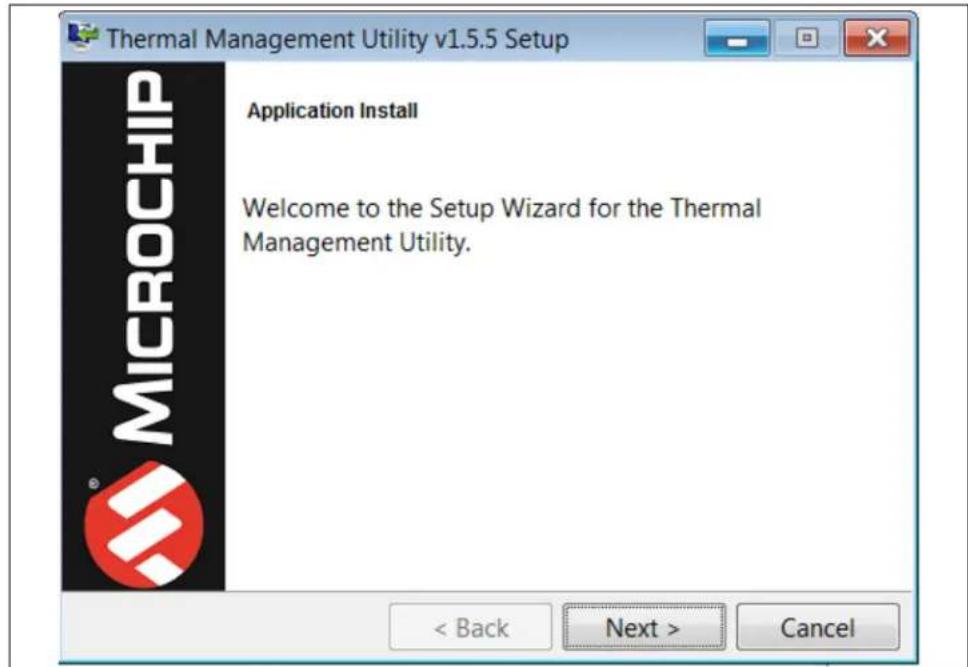

FIGURE 2-3: APPLICATION INSTALL DIALOG BOX

Thermal Management Utility v1.5.5 Setup Application Install Welcome to the Setup Wizard for the Thermal Management Utility. < Back Next > Cancel

1. Read and Accept the License Agreement, then click Next.

FIGURE 2-4: LICENSE AGREEMENT DIALOG BOX

Thermal Management Utility v1.5.5 Setup License Agreement Please read the following License Agreement. You must accept the terms of this agreement before continuing with the installation. MICROCHIP SOFTWARE NOTICE AND DISCLAIMER: You may use this software, and any derivatives created by any person or entity by or on your behalf, exclusively with Microchips products. Microchip and its licensors retain all ownership and intellectual property rights in the accompanying software and in all derivatives hereto. Do you accept this license? ● I accept the agreement ○ I do not accept the agreement BitRock Installer < Back Next > Cancel

1. Select an installation directory and click Next. A default installation directory is provided.

FIGURE 2-5: INSTALLATION DIRECTORY DIALOG BOX

Thermal Management Utility v1.5.5 Setup Installation Directory Please specify the directory where the Thermal Management Utility will be installed. Installation Directory C:\Program Files (x86)\Microchip\ThermalManag BitRock Installer < Back Next > Cancel

1. Select Next to install the Microchip Thermal Management Utility.

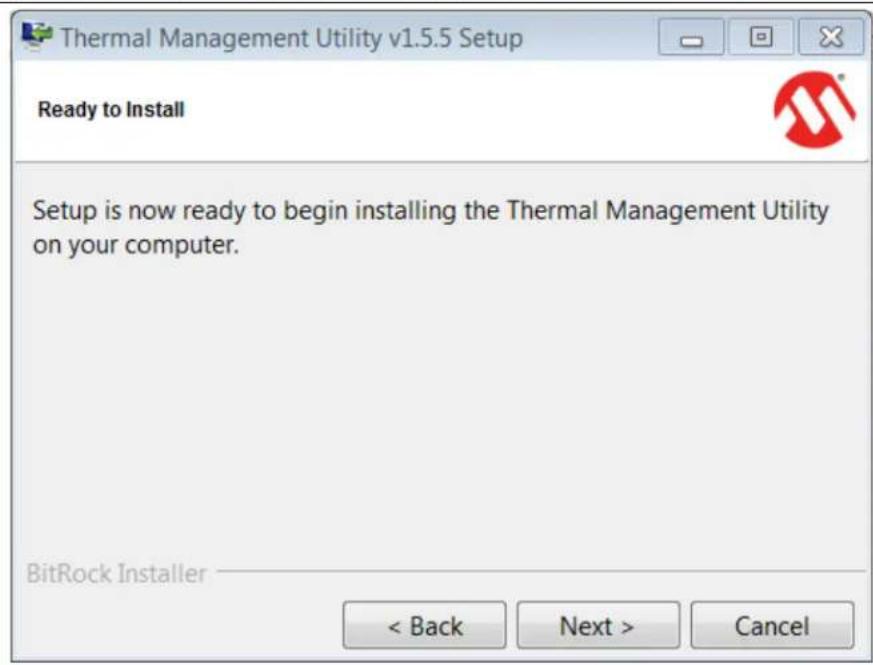

FIGURE 2-6: READY TO INSTALL DIALOG BOX

Thermal Management Utility v1.5.5 Setup Ready to Install Setup is now ready to begin installing the Thermal Management Utility on your computer. BitRock Installer < Back Next > Cancel

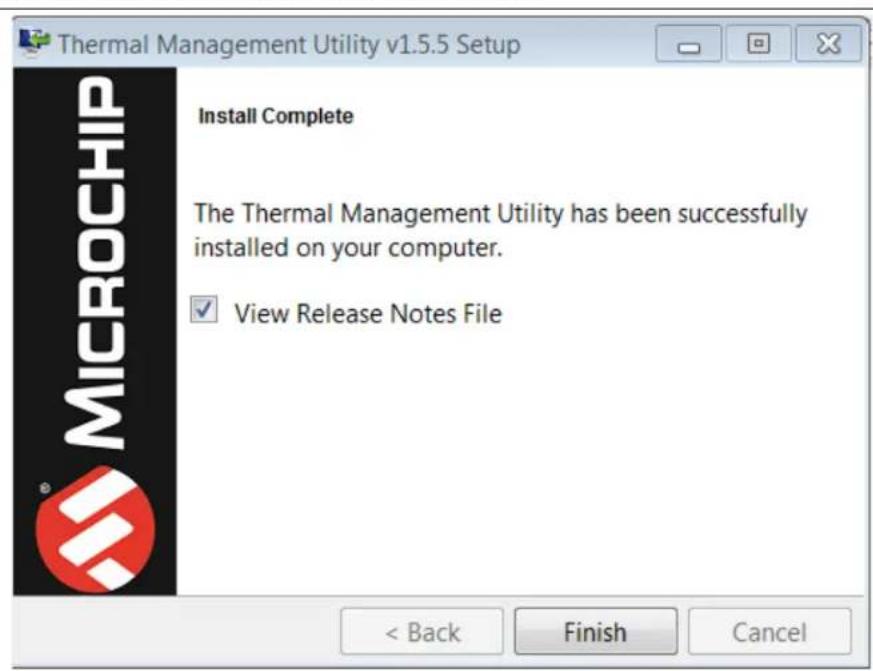

1. In the Install Complete dialog box click Finish to finalize installation.

FIGURE 2-7: INSTALL COMPLETE DIALOG BOX

Thermal Management Utility v1.5.5 Setup Install Complete The Thermal Management Utility has been successfully installed on your computer. ✓ View Release Notes File < Back Finish Cancel

Chapter 3. Software GUI Description

3.1 THERMAL MANAGEMENT UTILITY - [MCP9984] SOFTWARE GUI OVERVIEW

The Microchip Thermal Management Software GUI allows users to evaluate the MCP9984 for temperature sensing applications. Once the hardware is connected, the software recognizes the board ID and displays the corresponding GUI for the MCP9984 Evaluation Board. Disconnecting the USB closes the GUI. This tool enables users to evaluate the sensor features and perform temperature data-logging. Figure 3-1 depicts the Thermal Managemen Utility - [MCP9984] GUI.

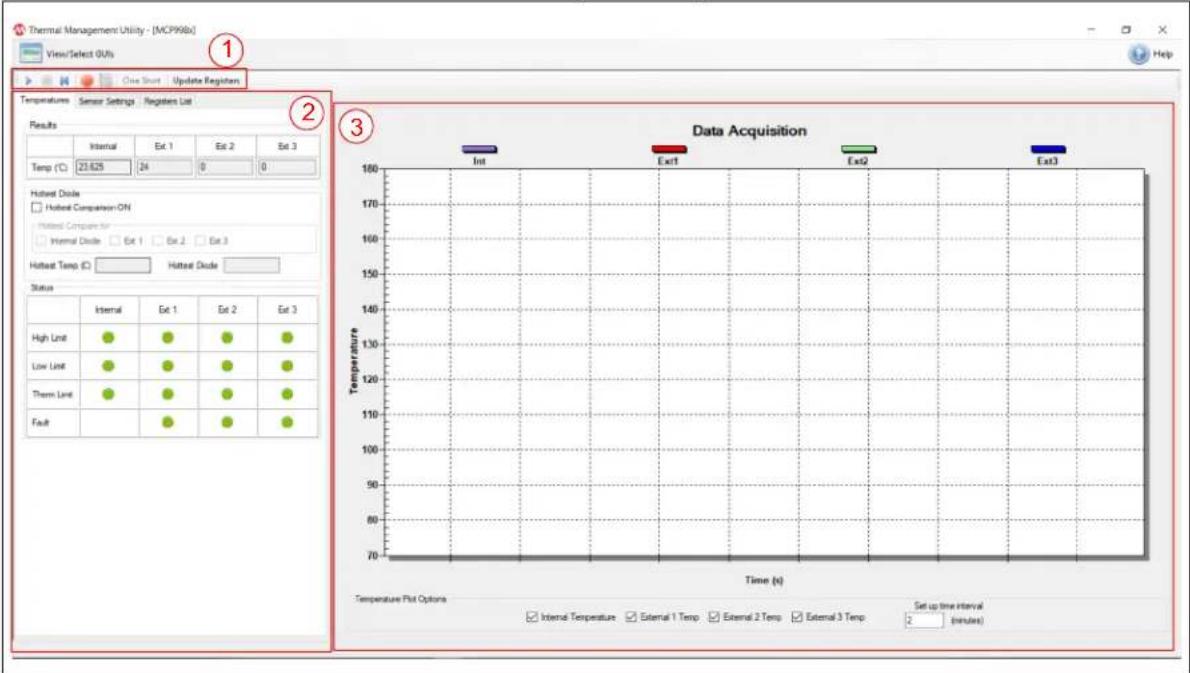

FIGURE 3-1: THERMAL MANAGEMENT UTILITY - [MCP9984] GUI

Thermal Management Utility - [MCP99b] View/Select OUs One Start Update Register 1 Temperature Sensor Settings Registers List Results Internal Ext 1 Ext 2 Ext 3 Temp (°C) 23.625 24 0 0 Hollowed Dode Hollowed Comparison-ON Hollowed Compare for Internal Dode Ext 1 Ext 2 Ext 3 Hollowed Temp (°C) Hollowed Dode Status Internal Ext 1 Ext 2 Ext 3 High Unit Low Unit Therm Unit Fault Data Acquisition 180 170 160 150 140 130 120 110 100 90 80 70 Time (s) Temperature Plot Options Internal Temperature External 1 Temp External 2 Temp External 3 Temp Set up time interval 2 minutes

As displayed in Figure 3-1, the GUI can be divided into three sections as follows:

1. Real-Time Acquisition action buttons
2. Temperatures, Sensor Settings and Registers List tabs
3. Data Acquisition Charting area

The features and functionality of the GUI are described below.

3.2 REAL-TIME ACQUISITION ACTION BUTTONS

The Play, Pause and Reset icons (Figure 3-2) can be used to perform continuous data acquisitions.

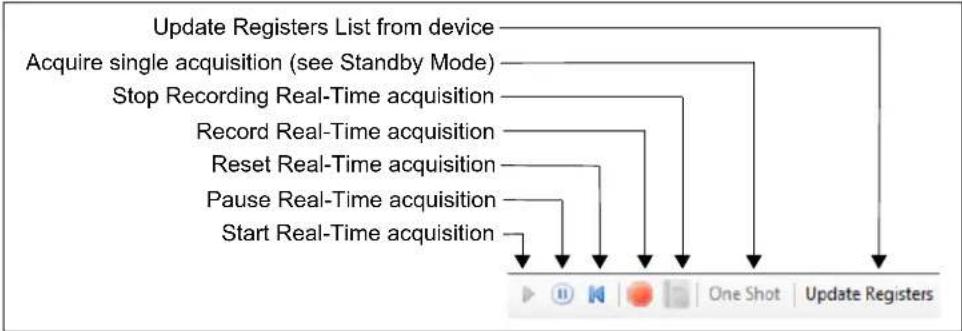

FIGURE 3-2: REAL-TIME ACQUISITION BUTTONS

To initiate data logging, click the Record Acquisitions button (red button). The system displays the Save As window (see Figure 3-3), where users must select a file name and a location, then click the Save button.

FIGURE 3-3: SAVE AS WINDOW FOR RECORDING ACQUISITIONS

Save As Microchip Technology Inc ▶ Thermal Management Utility ▶ 1.5.4.0 Search 1.5.4.0 Organize ▶ New folder Favorites Downloads Recent Plac Libraries Documents Music Pictures Subversion Videos Computer Name Date modified Type Size No items match your search. File name: temp Save as type: Data File (*.txt) Hide Folders Save Cancel

To stop the data logging click the Stop Recording button. Users can now go to the file's location to view the file.

Clicking the Update Registers button updates the GUI with all the registers of the selected device (see the Registers List tab for all register values).

3.3 TEMPERATURES, SENSOR SETTINGS AND REGISTERS LIST TABS

3.3.1 Temperatures Tab

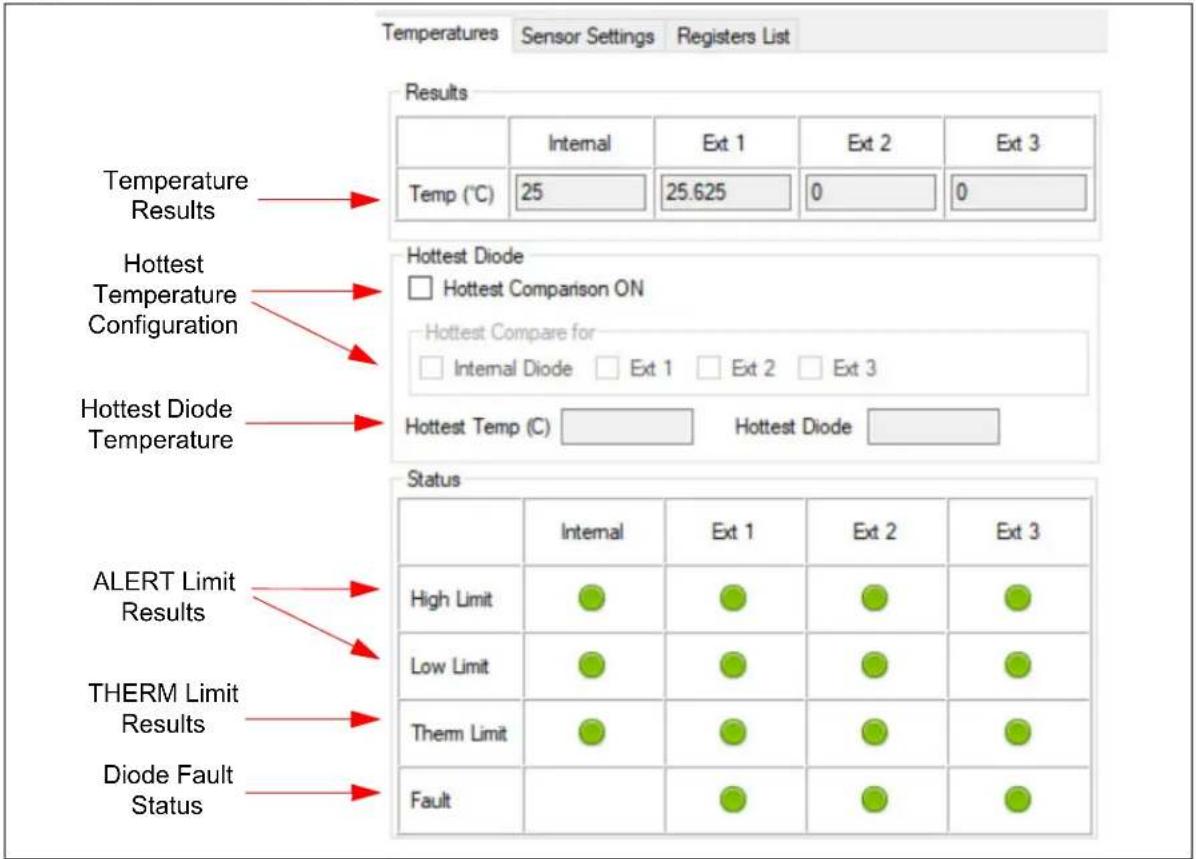

The Temperatures tab displayed in Figure 3-4 shows the results of the MCP9984 temperature channels. This tab also displays the results of the various user programmable features of the MCP9984 Evaluation Board, such as the temperature ALERT and THERM status, Diode Fault status and hottest diode comparison.

FIGURE 3-4: TEMPERATURES TAB

Temperatures Sensor Settings Registers List Results Internal Ext 1 Ext 2 Ext 3 Temp (°C) 25 25.625 0 0 Hottest Diode □ Hottest Comparison ON Hottest Compare for □ Internal Diode □ Ext 1 □ Ext 2 □ Ext 3 Hottest Temp (°C) _________ Hottest Diode _________ Status Internal Ext 1 Ext 2 Ext 3 High Limit ● ● ● ● Low Limit ● ● ● ● Therm Limit ● ● ● ● Fault ● ● ● ● THERM Limit Results Diode Fault Status ALERT Limit Results

3.3.2 Sensor Settings Tab

The Sensor Settings tab is divided into two sections:

• General Settings
• Beta & Ideality

3.3.2.1 GENERAL SETTINGS

Figure 3-5 displays the General Settings section under the Sensor Settings tab. This is where the user configures various features of the device.

Refer to the MCP998X data sheet for detailed information on the operation of these features and settings.

FIGURE 3-5: SENSOR SETTINGS TAB - GENERAL SETTINGS

Temperatures Sensor Settings Registers List Beta & Ideality General Settings Select or clear the check boxes to enable and disable features Temperature hysteresis value for ALERT and THERM I2C/SMBus Settings Sensor Settings Dynamic Averaging On Active Mode Run REC D1/D2 On Range (C) 0..127.875 Anti Parallel Diode On Consecutive Alert 1 Therm Hysteresis 10 Consecutive Therm 4 I2C/SMBus Settings Conversion Rate 4 SMBus PEC On Ext 1 Filter Disabled I2C Timeout On Limit Settings (C) Internal Ext 1 Ext 2 Ext 3 High 85 85 85 0 Low 0 0 0 0 Therm 85 85 85 0 Alerts Mask All Alert Pin Mode Interrupt Mask Individual Settings Internal Diode Ext Diode 1 Ext Diode 2 Ext Diode 3

3.3.2.1.1 Standby Mode (One Shot)

Selecting Standby in the Active Mode drop-down menu puts the selected device in Standby mode. While in this mode, the device does not continuously acquire new data acquisitions. Instead, the device only acquires data when a One Shot command is issued. This is done by clicking on the One Shot button in the Real-Time Acquisition Action Buttons bar.

3.3.2.2 BETA & IDEALITY

Figure 3-6 displays the Beta and Ideality tab under the Sensor Settings tab. In this section, the user can manage the Auto-Beta Detection feature and ideality factor of the selected device. The Beta Value, which is determined by the device, is read-only. The ideality factor can be changed by the user.

FIGURE 3-6: BETA AND IDEALITY TAB

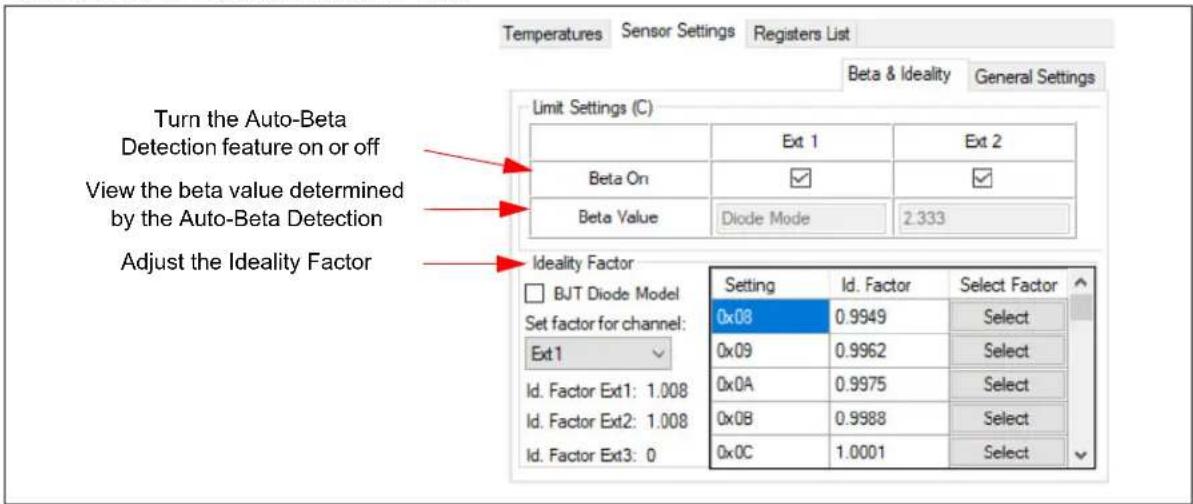

Turn the Auto-Beta Detection feature on or off View the beta value determined by the Auto-Beta Detection Adjust the Ideality Factor Limit Settings (C) Ext 1 Ext 2 Beta On ✓ ✓ Beta Value Diode Mode 2.333 Ideality Factor BJT Diode Model Set factor for channel: Ext1 Id. Factor Ext1: 1.008 Id. Factor Ext2: 1.008 Id. Factor Ext3: 0 Setting Id. Factor Select Factor 0x08 0.9949 Select 0x09 0.9962 Select 0x0A 0.9975 Select 0x0B 0.9988 Select 0x0C 1.0001 Select

3.3.3 Registers List Tab

The Registers List tab (Figure 3-7) contains a read/write table that contains all the user registers.

3.3.3.1 READING AND WRITING TO REGISTERS

Read

To read all registers, simply click the Update Registers button at the top of the GUI. To read an individual register, highlight the row of the register that you want to read, right-click, then select read.

Write

To write to a register, enter the value you wish to write to the corresponding Data High or Data Low cell. Then, click out of the cell and highlight the entire row, including the cell that was just written to. Then, right-click and select write. If the cell that is being written to is not highlighted blue with the rest of the row, the write function does not take place.

FIGURE 3-7: REGISTERS LIST TAB

Temperatures Sensor Settings Registers List
User Registers
Name	Address High	Address Low	Data High	Data Low
Internal Temp	0x00	0x01	0x19	0x20
Ext 1 Temp	0x02	0x03	0x19	0xC0
Ext 2 Temp	0x04	0x05	0x00	0x00
Ext 3 Temp	0x06	0x07	0x00	0x00
Ext 4 Temp	0x08	0x09	0x00	0x00
Open Shot	-	0x0A	-	0x00
Internal Diode High Limit	-	0x0B	-	0x55
Internal Diode Low Limit	-	0x0C	-	0x00
Ext 1 High Limit	0x0D	0x0E	0x55	0x00
Ext 1 Low Limit	0x0F	0x10	0x00	0x00
Ext 2 High Limit	0x11	0x12	0x55	0x00
Ext 2 Low Limit	0x13	0x14	0x00	0x00
Ext 3 High Limit	0x15	0x16	0x00	0x00
Ext 3 Low Limit	0x17	0x18	0x00	0x00
Ext 4 High Limit	0x19	0x1A	0x00	0x00
Ext 4 Low Limit	0x1B	0x1C	0x00	0x00
Internal Therm Limit	-	0x1D	-	0x55
Ext 1 Therm Limit	-	0x1E	-	0x55
Ext 2 Therm Limit	-	0x1F	-	0x55
Ext 3 Therm Limit	-	0x20	-	0x00
Ext 4 Therm Limit	-	0x21	-	0x00
Config	-	0x22	-	0x00
Config 2	-	0x23	-	0x00
Convert	-	0x24	-	0x06
Therm Hyst	-	0x25	-	0xOA
Consecutive Alert	-	0x26	-	0x70
Diode Alert Mask	-	0x27	-	0xOO
Filter Select

3.4 DATA ACQUISITION CHARTING AREA

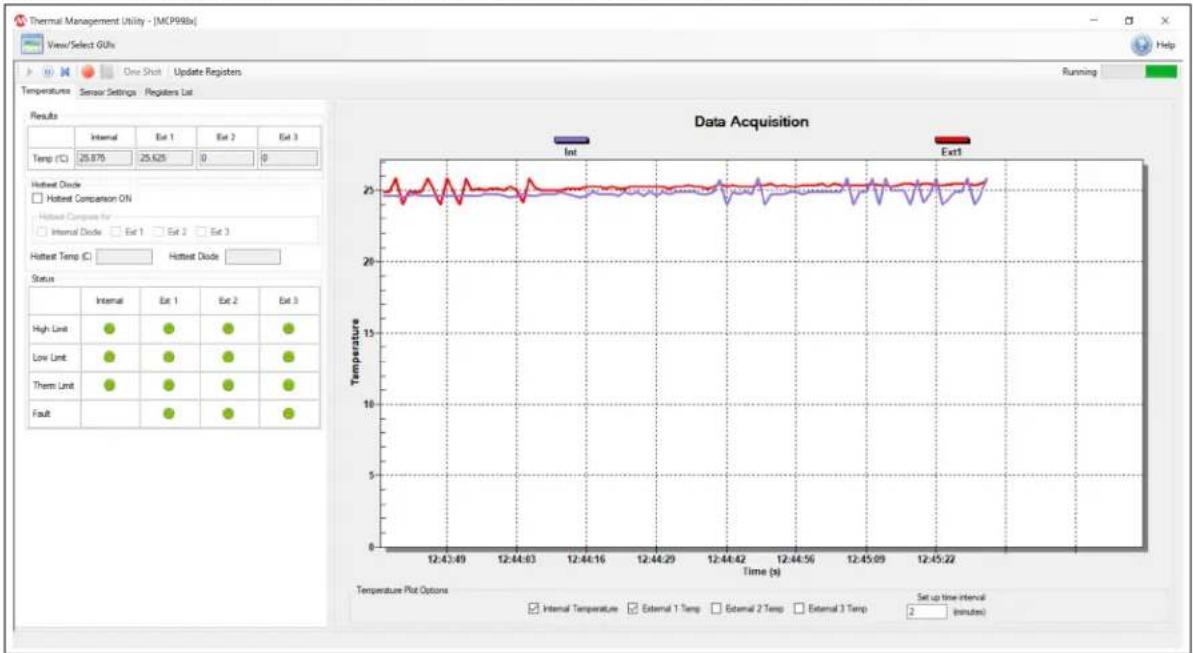

Figure 3-8 shows the Data Acquisition interface with a plot of the MCP9984 Evaluation Board's temperature channels.
FIGURE 3-8: MICROCHIP THERMAL MANAGEMENT UTILITY GUI DATA PLOT

The logging interval can be adjusted using the interval scroll bar from 100 ms to 30s, as shown in Figure 3-8.

The data acquisition charting area (Figure 3-8) can be customized by double clicking the chart. Performing this action opens the Data Acquisition Customization window, shown in Figure 3-9.

Users can also zoom into a specific plot range by clicking and dragging the section. The data in the chart can also be exported by right-clicking the plot and selecting the Export dialog button.

FIGURE 3-9: DATA ACQUISITION CUSTOMIZATION WINDOW

Data Acquisition Customization... General | Plot | Subsets | Points | Axis | Font | Color | Style | Main Title: Data Acquisition Show Annotations Sub Title: Border Style No Border Line Shadow 3D Inset Numeric Precision 0 1 2 3 Viewing Style Color Monochrome Monochrome + Symbols Grid Lines Both Y X None Grid in front of data Display Graph Table Both Font Size Large Medium Small OK Cancel Apply Help Export... Maximize...

3.4.0.1 DATA ACQUISITION CUSTOMIZATION WINDOW DESCRIPTION

The Data Acquisition Customization window contains eight tabs with several options allowing users to customize the data acquisition charting area.

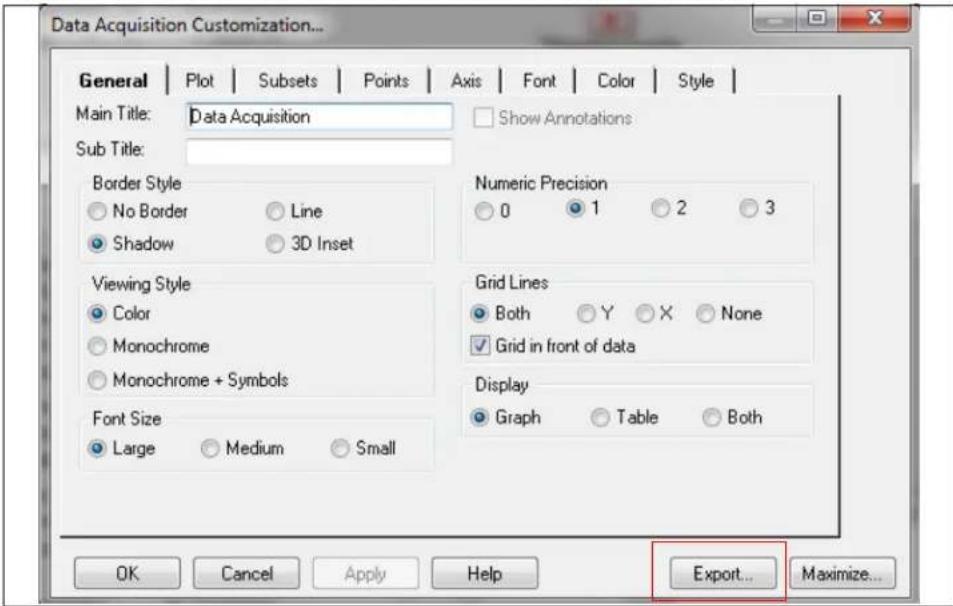

The General tab (Figure 3-9) determines how the data acquisition charting area is displayed. General options include the border style, viewing style, font size, numeric precision and grid lines.

The Display option determines how the data acquisition charting area is generated: a graph, a table, or both.

The Plot tab, displayed in Figure 3-10, allows users to customize the appearance of the data sensor plots.

FIGURE 3-10: DATA ACQUISITION CUSTOMIZATION - PLOT TAB

Data Acquisition Customization... General Plot Subsets Points Axis Font Color Style All Subsets Internal Temp Ext1 Temp Ext2 Temp 3D Off Shadow 3D Mark Data Points Plot Style Area Bar Line Points Points+BestFitCurve Points+BestFitCurve II Points+BestFitLine Points+BestFitLine II Points+Line Points+Spline Spline OK Cancel Apply Export Maximize...

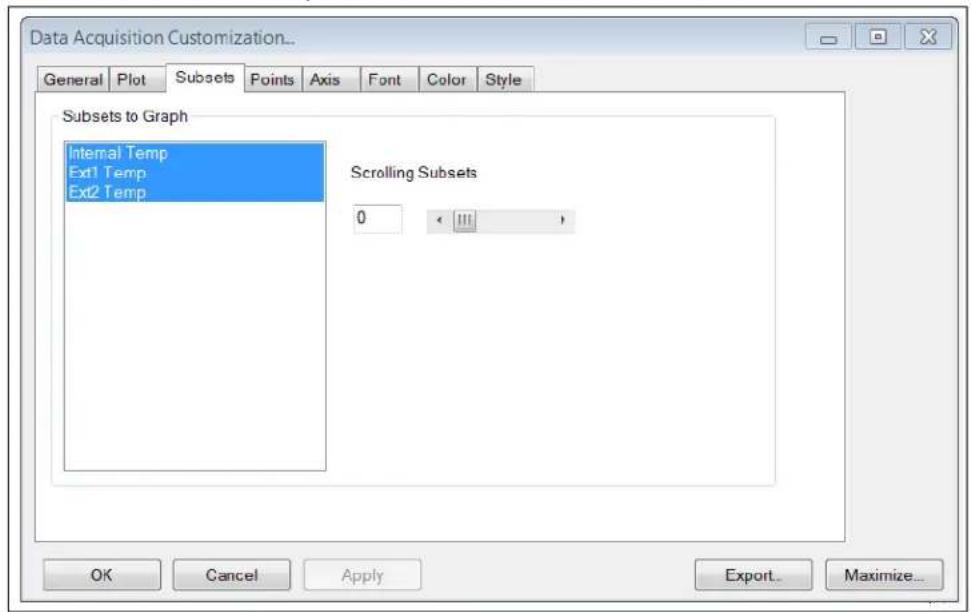

Users can also control the appearance of the subsets plots using the Subsets tab, displayed in Figure 3-11.

FIGURE 3-11: DATA ACQUISITION WINDOW - SUBSETS TAB

Data Acquisition Customization... General Plot Subsets Points Axis Font Color Style Subsets to Graph Internal Temp Ext1 Temp Ext2 Temp Scrolling Subsets 0 < III > OK Cancel Apply Export Maximize...

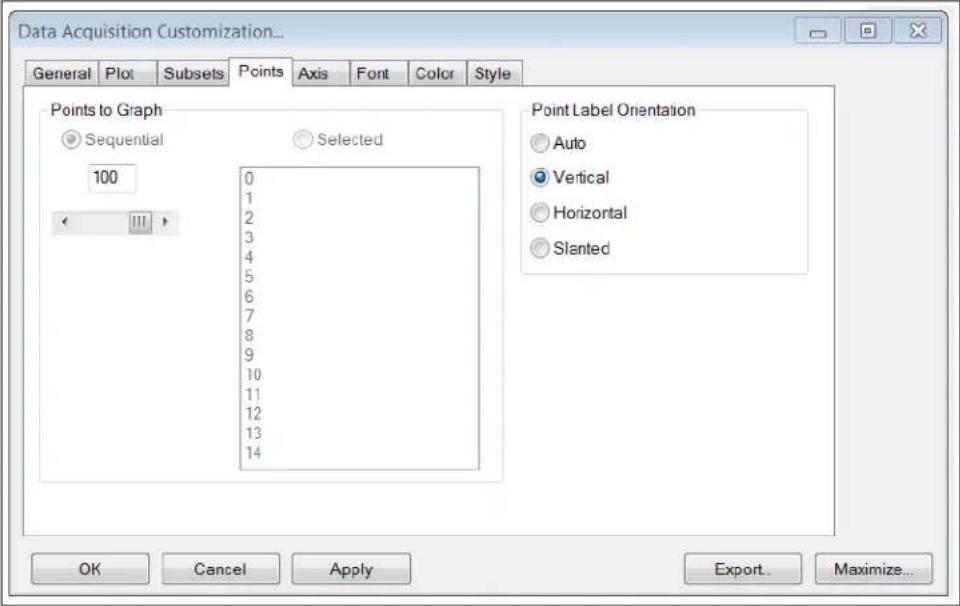

The Points tab, displayed in Figure 3-12, controls the number of data points displayed in the graph and the orientation of the labels on the X-Axis.

FIGURE 3-12: DATA ACQUISITION WINDOW - POINTS TAB

Data Acquisition Customization... General Plot Subsets Points Axis Font Color Style Points to Graph Sequential Selected 100 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Point Label Orientation Auto Vertical Horizontal Slanted OK Cancel Apply Export... Maximize...

The Axis tab, displayed in Figure 3-13, determines the scale and range of the Y-Axis.

FIGURE 3-13: DATA ACQUISITION WINDOW - AXIS TAB.

Data Acquisition Customization... General Plot Subsets Points Axis Font Color Style Y Axis Linear Auto Log Min Max Min/Max Min Max -40.0000 100 OK Cancel Apply Export... Maximize...

The user can modify the options in the Font tab, displayed in Figure 3-14, to change the size, font and style of the text that appears in the data acquisition charting area. A sample text is also provided for preview before applying the changes to the charting area.

FIGURE 3-14: DATA ACQUISITION WINDOW - FONT TAB

Data Acquisition Customization... General Plot Subsets Points Axis Font Color Style Main Title: Times New Roman □ bold □ italic □ underline Sub-Title: Times New Roman □ bold □ italic □ underline Subset / Point / Axis Labels: Arial Baltic □ bold □ italic □ underline Table Data: Arial sample: AaBbCcDdEeFfGg OK Cancel Apply Export... Maximize...

The Color tab, displayed in Figure 3-15, determines which colors are used by the system. Optionally, users can select a pre-configured style in the Quick Styles section.

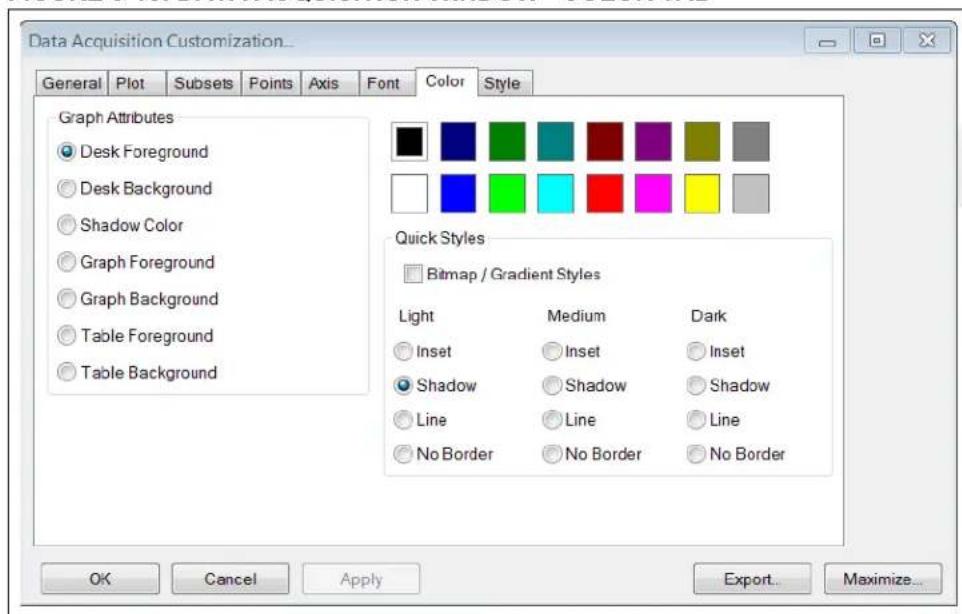

FIGURE 3-15: DATA ACQUISITION WINDOW - COLOR TAB

Data Acquisition Customization... General Plot Subsets Points Axis Font Color Style Graph Attributes Desk Foreground Desk Background Shadow Color Graph Foreground Graph Background Table Foreground Table Background Quick Styles Bitmap / Gradient Styles Light Medium Dark Inset Inset Inset Shadow Shadow Shadow Line Line Line No Border No Border No Border OK Cancel Apply Export...Maximize...

Through the Style tab, displayed in Figure 3-16, users can customize the line style, color and data point type for each temperature plot.

FIGURE 3-16: DATA ACQUISITION WINDOW - STYLE TAB

Data Acquisition Customization... General Plot Subsets Points Axis Font Color Style Internal Temp Ext1 Temp Ext2 Temp Point Type: Solid Circle Line Type: OK Cancel Apply Export Maximize...

Appendix 1. Schematic and Layouts

1.1 INTRODUCTION

This appendix contains the following schematics and layouts for the MCP9984 Evaluation Board:

• MCP9984 Evaluation Board – Schematic
- Board – Top Silk
• Board – Top Copper and Silk
- Board – Top Copper
- Board – Bottom Copper
• Board – Bottom Copper and Silk
- Board – Bottom Silk

1.2 MCP9984 EVALUATION BOARD - SCHEMATIC

VDD C2 0.1uF 10V 0603 GND U1 VDD VUSB GPI GP1 GP2 GP3 D- D1 RNT UART RX UART TX SDA SCL VSS MCP221A GND C1 0.47uF 10V 0603 GND UART RX UART TX SDA SCL VSS MCP221A U2 VDD AC1/VIT 8k 803 1% LD2 R2 VDD -5V USB C3 4.3uF 10V 8805 C4 0.1uF 10V 6603 VIN VOU1 GND C5 8.1uF 10V 6603 GND C6 4.7uF 10V 6603 GND VDD L12 MCP17935.3V VIN VDD LED3 ALERT REC R12 6.8k 0603 TS LD4 THERM REC R3 6.8k 0603 TS VDD VDD C9 0.1uF GND 10V 0602 VDD DP1 DN1 DP2/DN3 4 DN2/DPJ 5 SPA 8 SDA 9 SDA 10SCL 11 THERM/ADDR GND 6 ALERT 7 THERM/ADDR GND 6 U3 C10 DPI 8603 220pF 16V DN1 TERMINAL 1x2 J3 C8 20pF 50V 6603 THI 1Q1 MMDT3904 7.F DN2/DPJ 2 DP2/DN3 1 Q1 MMDT3904 7.F DN2/DPJ 3 TP2 2 TP LOOP Black White TP3 LOOP White TP4 TP U7 TP THERM/ADDR CTTL2 USB A to USB Micro-B Cable JP1 Shunt 2.54mm 1x2 Handle Q3 2 Q4 2N3904TA 2N3904TA MCP9984-A (Address Decode Version) I2C Decode ALRT/ADDR R6 R7 R8 R9 R10 R11 R7 6.8k 10k 0805 15k 22k 0805 0805 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1% 1%

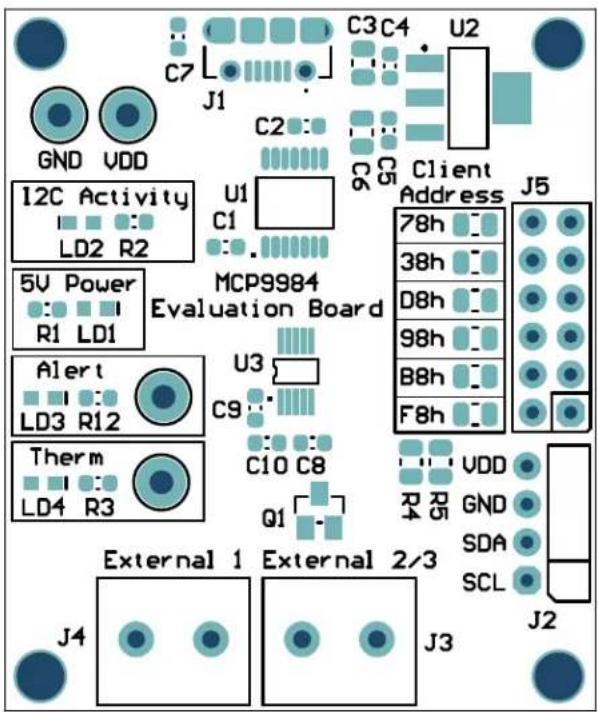

1.3 BOARD - TOP SILK

GND VDD I2C Activity LD2 R2 5V Power R1 LD1 A1ert LD3 R12 Therm LD4 R3 MCP9984 Evaluation Board U1 C1 U3 C9 C10 C8 Q1 External 1 External 2/3 J4 J3 C7 C3 C4 U2 C2 C5 Client Address J5 78h 38h D8h 98h B8h F8h VDD GND SDA SCL J2

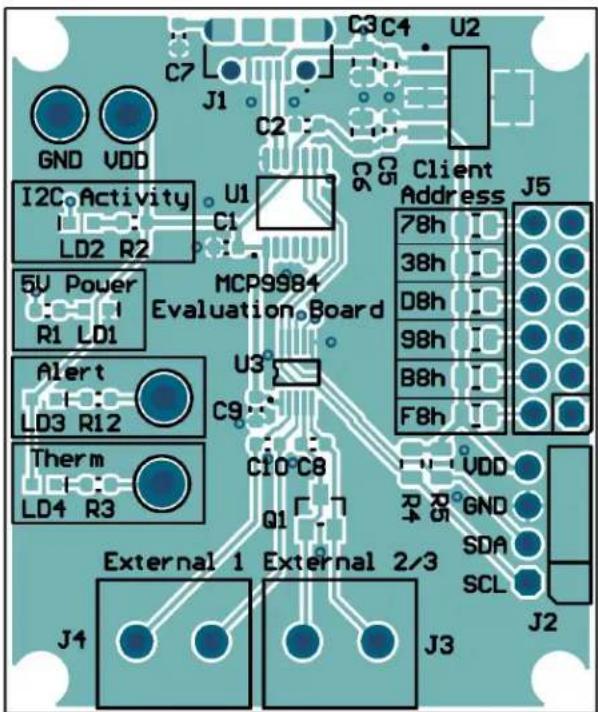

1.4 BOARD - TOP COPPER AND SILK

C7 GND VDD I2C Activity LD2 R2 U1 C1 5V Power R1 LD1 MCP9984 Evaluation Board U3 C9 Alert LD3 R12 Therm LD4 R3 CI0 C8 Q1 External 1 External 2/3 J4 J3 C3 C4 U2 C6 Client Address J5 78h 38h D8h 98h B8h F8h VDD GND SDA SCL J2

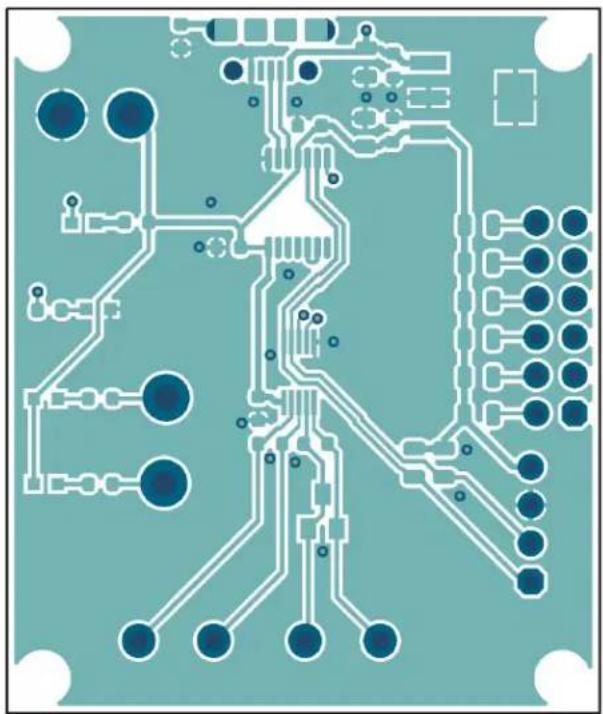

1.5 BOARD - TOP COPPER

Pure electrical circuit lines without any symbols

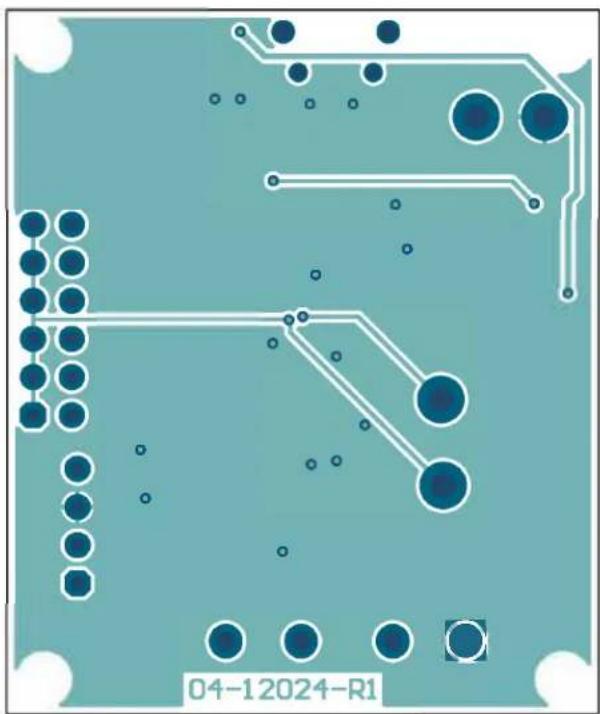

1.6 BOARD - BOTTOM COPPER

PCB layout diagram with circuit traces and circular components (no readable text or symbols)

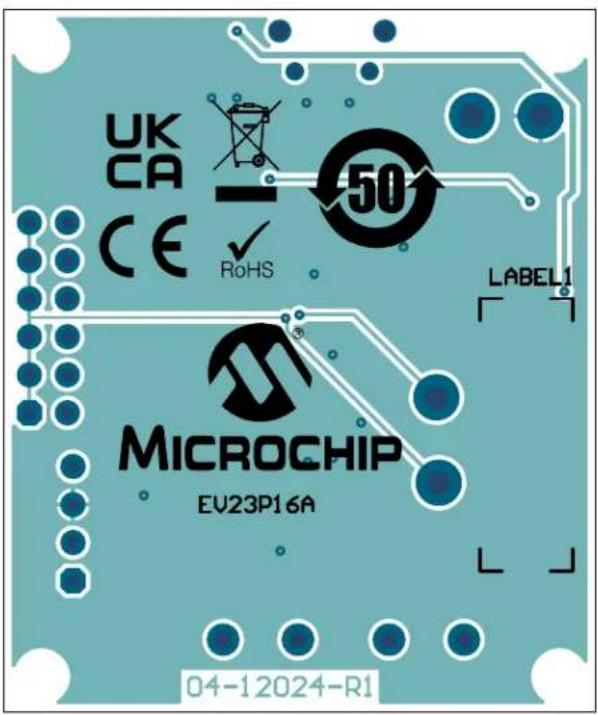

1.7 BOARD - BOTTOM COPPER AND SILK

UK CA CE RoHS 50 LABEL1 MICROCHIP EV23P16A 04-12024-R1

1.8 BOARD - BOTTOM SILK

UK CA CE RoHS 50 LABEL1 MICROCHIP EV23P16A

NOTES:

Appendix 1. Bill of Materials (BOM)

1.1 MCP9984 EVALUATION BOARD - BILL OF MATERIALS (BOM)

TABLE 1-1: MCP9984 EVALUATION BOARD - BOM

Qty.	Reference	Description	Manufacturer	Part	Number
1 C1	Ceramic Capacitor, 0	47 μF, 10V, 10%, X5R, Surface-Mount, 0603		KEMET C0603C47	4K8PACTU
1 C10	Ceramic Capacitor,	2200 pF, 16V, 10%, X7R, Surface-Mount, 0603		AVX Corporation	0603YC222KAT2A
5 C2, C4, C5, C7, C9		Ceramic Capacitor, 0.1 μF, 10V, 10%, X7R, Surface-Mount, 0603		KEMET C0603C10	4K8RACTU
2	C3, C6	Ceramic Capacitor, 4.7 μF, 10V, 10%, X5R, Surface-Mount, 0805		Wurth Elektronik	885012107009
1 C8	Ceramic Capacitor, 2	00 pF, 50V, 5%, C0G, Surface-Mount, 0603		Murata Electronics®	GRM1885C1H201JA01D
1 J1	Connector, USB 2.0,	Micro-B, Female, Through-Hole/Surface-Mount, Right-Angle		FCI	10118194-0001LF
1 J2	Connector, HDR-2.54	Male, 1x4, Gold 5.84 MH, Through-Hole, Right-Angle		Samtec, Inc. TSW-	104-08-S-S-RA
2 J3, J4	Connector, Terminal, 5 mm, 1x2, Female, 12-26AWG, 18A, Through-Hole, Right-Angle			Phoenix Contact	1935161
1 J5	Connector, HDR-2.54	Male, 2x6, Tin, 5.84 MH, Through-Hole, Vertical		Amphenol ICC (FCI)	67996-412HLF
2 LD1,	LD2 Diode	LED, Green, 3.2V, 20 mA, 430 mcd, Clear, Surface-Mount, 0603		Wurth Elektronik	150060GS75000
2 LD3,	LD4 Diode	LED, Red, 2V, 20 mA, 250 mcd, Clear, Surface-Mount, 0603		Wurth Elektronik	150060RS75000
1 PCB1	MCP9984 Evaluation Board - Printed Circuit Board			Microchip Technology Inc.	04-12024-R1
1 Q1	Transistor, BJT, NPN, MMBT3904-7-F, 40V, 0.2A, Surface-Mount, SOT23-3			Diodes Incorporated®	MMBT3904-7-F
1 R1	Resistor, Thick Film,	10 kΩ, 1%, 1/10W, Surface-Mount, 0603		Panasonic Industry Co., Ltd.	ERJ-3EKF1002V
1	R10	Resistor, Thick Film, 22 kΩ, 1%, 1/8W, Surface-Mount, 0805, AEC-Q200		Stackpole Electronics, Inc.	RMCF0805FT22K0
1	R11	Resistor, Thick Film, 33 kΩ, 1%, 1/16W, Surface-Mount, 0805		Stackpole Electronics, Inc.	RMCF 1/10 33K 1% R
3	R2, R3, R12	Resistor, Thick Film, 6.8 kΩ, 1%, 1/10W, Surface-Mount, 0603		Panasonic Industry Co., Ltd.	ERJ-3EKF6801V
3	R4, R5, R8	Resistor, Thick Film, 10 kΩ, 1%, 1/8W, Surface-Mount, 0805		Panasonic Industry Co., Ltd.	ERJ-6ENF1002V

Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM used in manufacturing uses all RoHS-compliant components.

TABLE 1-1: MCP9984 EVALUATION BOARD - BOM (CONTINUED)

Qty.	Reference	Description	Manufacturer	Part Number
1 R6 Resistor, Thick Film, 4	.7 kΩ, 1%, 1/8W, Surface-Mount, 0805		Yageo Corporation	RC0805FR-074K7L
1 R7 Resistor, 6.8 kΩ, 1%,	1/8W, Surface-Mount, 0805		Yageo Corporation	RC0805FR-076K8L
1	R9	Resistor, Thick Film, 15 kΩ, 1%, 1/8W, Surface-Mount, 0805	Yageo Corporation	RC0805FR-0715KL
1 TP1 Connector, Test Point, Loop, Red, Through-Hole			Keystone® Electronics Corp.	5010
1 TP2 Connector, Test Point, Loop, Black, Through-Hole			Keystone Electronics Corp.	5011
2 TP3, TP4 Connector, Test Point, Loop, White, Through-Hole			Keystone Electronics Corp.	5012
1 U1 MCHP Interface USB, I ^2C , UART, MCP2221A-I/ST, TSSOP-14			Microchip Technology Inc.	MCP2221A-I/ST
1 U2 MCHP Analog LDO, 3.3V, MCP1703T-3302E/DB, SOT-223-3			Microchip Technology Inc.	MCP1703T-3302E/DB
1 U3 MCP9984-AE/E3, 2-Wire, ±1°C, Accuracy Remote Diode Temperature Monitor MSOP-10			Microchip Technology Inc.	MCP9984-AE/E3

Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM used in manufacturing uses all RoHS-compliant components.

1.2 MCP9984 EVALUATION BOARD - BOM MECHANICAL PARTS

TABLE 1-2: MCP9984 EVALUATION BOARD - BOM MECHANICAL PARTS

Qty.	Reference	Description	Manufacturer	Part Number
1	CBL2	Mechanical, Headings & Wires Cable, USB Male-A to USB Male Micro-B, 0.91M	Dongguan Zhanxin Electronic Technology Co., Ltd	A006ZX028
1	JP1	Mechanical, Headings & Wires Jumper, 2.54 mm, 1x2, Handle, Gold	TE Connectivity AMP	881545-2
2	Q3, Q4	Transistor, BJT, NPN, 2N3904TA, 40V, 0.2A, 0.625W, TO-92-3	Fairchild Semiconductor®	2N3904TA

Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM used in manufacturing uses all RoHS-compliant components.

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://www.microchip.com/

support

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: [phone]

Fax: [phone]

Austin, TX

Tel: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, IL

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Novi, MI

Tel: [phone]

Houston, TX

Tel: [phone]

Indianapolis

Noblesville, IN

Tel: [phone]

Fax: [phone]

Tel: [phone]

Los Angeles

Mission Viejo, CA

Tel: [phone]

Fax: [phone]

Tel: [phone]

Raleigh, NC

Tel: [phone]

New York, NY

Tel: [phone]

San Jose, CA

Tel: [phone]

Tel: [phone]

Canada - Toronto

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

Australia - Sydney

Tel: [phone]

China - Beijing

Tel: [phone]

China - Chengdu

Tel: [phone]

China - Chongqing

Tel: [phone]

China - Dongguan

Tel: [phone]

China - Guangzhou

Tel: [phone]

China - Hangzhou

Tel: [phone]

China - Hong Kong SAR

Tel: [phone]

China - Nanjing

Tel: [phone]

China - Qingdao

Tel: [phone]

China - Shanghai

Tel: [phone]

China - Shenyang

Tel: [phone]

China - Shenzhen

Tel: [phone]

China - Suzhou

Tel: [phone]

China - Wuhan

Tel: [phone]

China - Xian

Tel: [phone]

China - Xiamen

Tel: [phone]

China - Zhuhai

Tel: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

India - New Delhi

Tel: [phone]

India - Pune

Tel: [phone]

Japan - Osaka

Tel: [phone]

Japan - Tokyo

Tel: [phone]

Korea - Daegu

Tel: [phone]

Korea - Seoul

Tel: [phone]

Malaysia - Kuala Lumpur

Tel: [phone]

Malaysia - Penang

Tel: [phone]

Philippines - Manila

Tel: [phone]

Singapore

Tel: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Taiwan - Taipei

Tel: [phone]

Thailand - Bangkok

Tel: [phone]

Tel: [phone]

Fax: [phone]

Denmark - Copenhagen

Tel: [phone]

Fax: [phone]

Finland - Espoo

Tel: [phone]

France - Paris

Tel: [phone]

Fax: [phone]

Germany - Garching

Tel: [phone]

Germany - Haan

Tel: [phone]

Germany - Heilbronn

Tel: [phone]

Germany - Karlsruhe

Tel: [phone]

Germany - Munich

Tel: [phone]

Fax: [phone]

Germany - Rosenheim

Tel: [phone]

Israel - Ra'anana

Tel: [phone]

Italy - Milan

Tel: [phone]

Fax: [phone]

Italy - Padova

Tel: [phone]

Netherlands - Drunen

Tel: [phone]

Fax: [phone]

Norway - Trondheim

Tel: [phone]

Poland - Warsaw

Tel: [phone]

Romania - Bucharest

Tel: [phone]

Spain - Madrid

Tel: [phone]

Fax: [phone]

Sweden - Gothenberg

Tel: [phone]

Sweden - Stockholm

Tel: [phone]

UK - Wokingham

Tel: [phone]

Fax: [phone]
