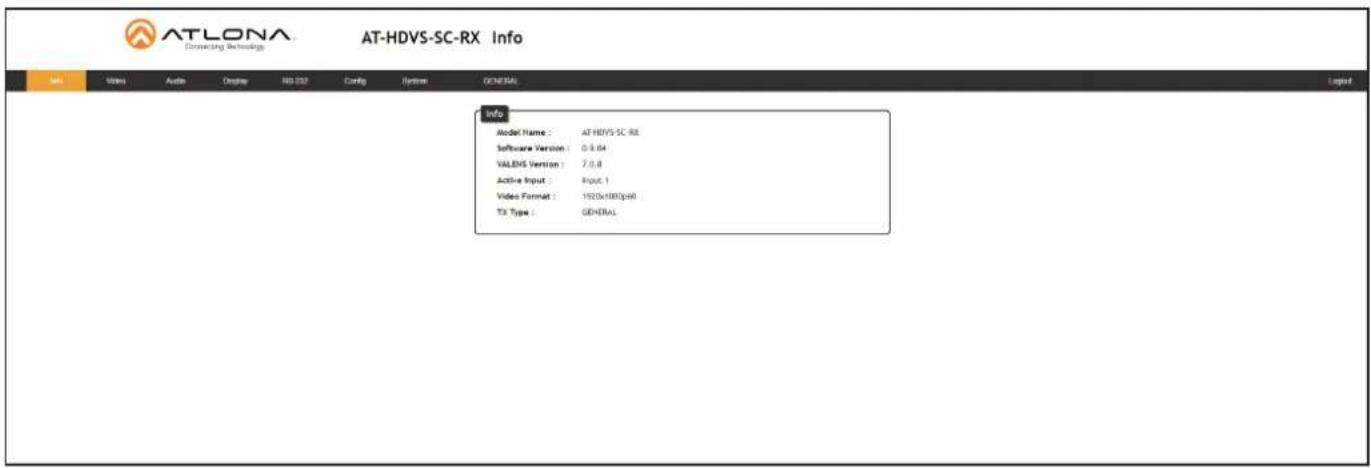

Info page 18

Video page 19

Audio page 22

Display page 23

RS-232 page 27

Config page 29

System page 30

Updating the Firmware 32

Using the Web GUI 32

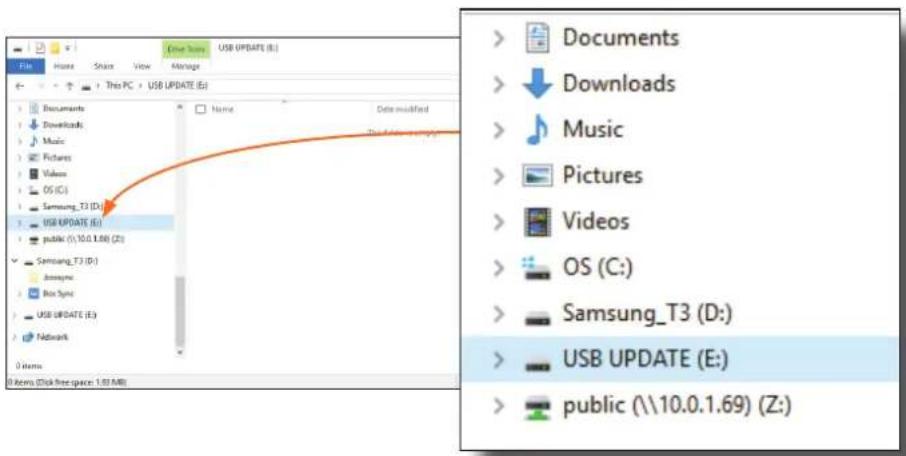

Using USB 34

Default Settings 35

Specifications 36

Introduction

The Atlona AT-HDVS-SC-RX is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. It receives HDBaseT for video output up to 4K/30 4:4:4, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). The HDVS-SC-RX features Atlona CrystalScale technology with high-quality downscaling and upscaling, as well as advanced image optimization capabilities plus internal test patterns for setup and troubleshooting. The HDVS-SC-RX is ideal for 4K presentation applications with HDVS-200 and Omega™ Series switching transmitters, EX Series transmitters, Atlona AV switchers with HDBaseT outputs, and local HDMI sources, and the Gain™ 60 amplifier. The HDVS-SC-RX and HDVS-200 or Omega Series transmitter together serve as a compact, fully automated AV system with the convenience of automatic input selection, display control, remote transmitter powering through Power over Ethernet (PoE), and 4K/UHD scaling.

Features

• HDBaseT™ receiver with local HDMI® input
• Advanced 4K/UHD scaling featuring all-new, Atlona CrystalScale™ technology
• Pristine-quality downscaling and upscaling
• Aspect ratio control
  • Image optimization for flat-panel and LED tiled displays
• Advanced motion-adaptive deinterlacing for 1080i input signals
  • Exclusive image-optimization features for flat panel and LED tiled displays
• Internal video test patterns for setup, calibration, and troubleshooting
  • Automatic input selection and automatic display control using IP, RS-232, or CEC
• Contact closure for screen or display lift control
  • Audio de-embedding

Package Contents

1 x AT-HDVS-SC-RX
1 x Captive screw connector, 2-pin
1 x Captive screw connector, 3-pin
2 x Captive screw connectors, 5-pin
1 x 24 V DC power supply
1 x Installation Guide

Panel Description

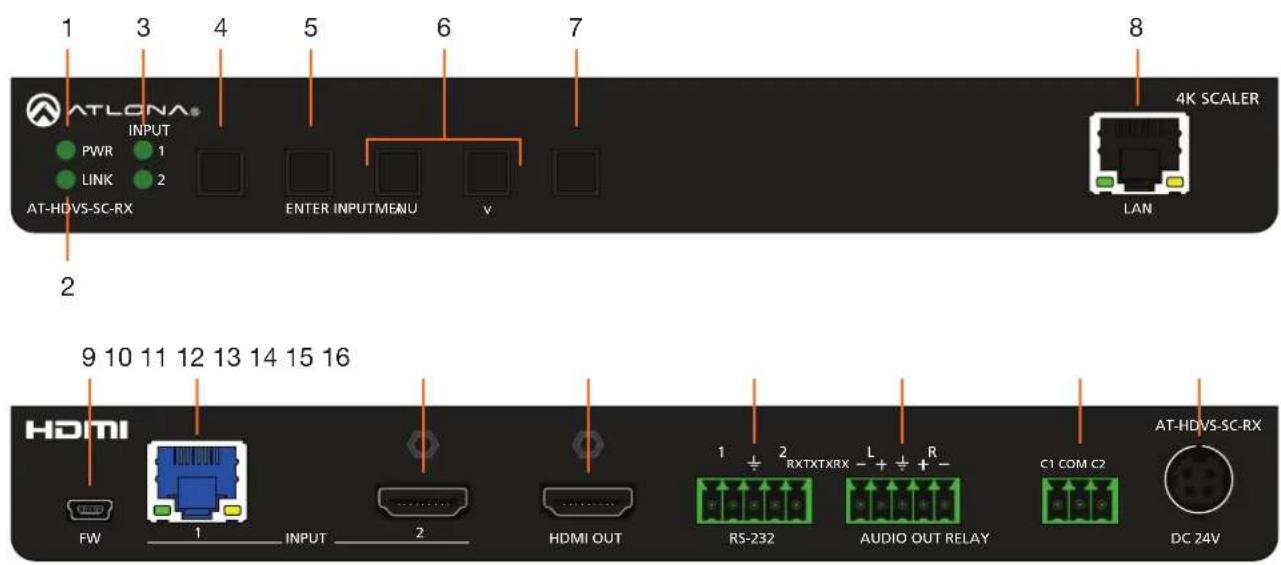

ATLCA INPUT PWR 1 LINK 2 AT-HDVS-SC-RX ENTER INPUTMENU v LAN 4K SCALER HDMI FW 1 INPUT 2 HDMI OUT RS-232 AUDIO OUT RELAY C1 COM C2 AT-HDVS-SC-RX DC 24V

1 PWR

This LED indicator glows solid green when the unit is powered. When set to standby mode, this LED indicator glows solid amber.

2 LINK

This LED indicator displays the link status.

3 INPUT 1 / 2

These LED indicators display the currently selected input. The active input will be indicated by a solid green LED.

4 MENU

Press this button to display the built-in menu system.

5 ENTER

Press this button to confirm the highlighted selection in the menu system.

6 UP / DOWN

Press these buttons to highlight the desired options in the menu system.

7 INPUT

Press and release this button to toggle between INPUT 1 and INPUT 2 ports. The INPUT 1 and INPUT 2 LED indicators will toggle, based on the selected input.

8 LAN

Connect an Ethernet cable from this port to the Local Area Network.

9 FW

Connect a mini USB cable to this port to update the firmware.

10 HDBaseT Input

Connect an HDBaseT transmitter, such as the AT-HDVS-210-TX or AT-UHD-CLSO-840, to this port using an Ethernet cable.

11 HDMI Input

Connect a UHD/HD source to this port using an HDMI cable.

12 HDMI OUT

Connect an HDMI cable from this port to a display or other sink device.

13 RS-232

Connect to a control system such as Atlona Velocity ^™ .

14 AUDIO OUT

Connect the included 5-pin captive screw connector to this port. Use the included 5-pin captive screw block to connect to an audio amplifier, such as an AT-GAIN-60. Refer to Analog Audio Connector (page 8) for wiring information.

15 RELAY

Connect one of the included 3-pin captive screw connectors to this port to control screens, drapes, lights, or other devices. Refer to Relay Connector (page 9) for wiring information.

16 DC 24V

Connect the included 24 V DC locking power supply to this power receptacle.

Installation

RS-232 Connector

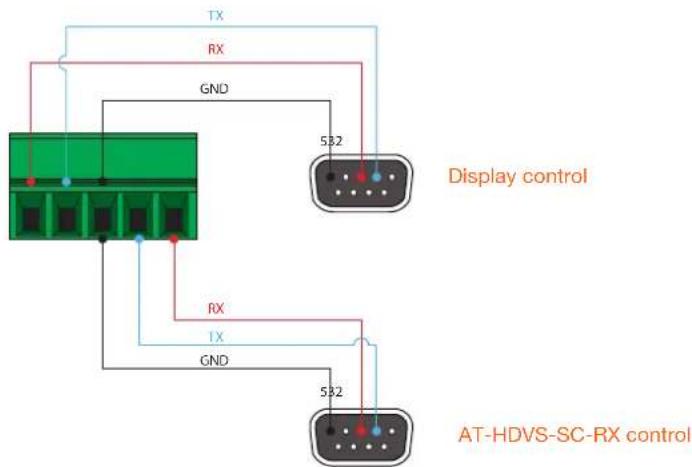

The AT-HDVS-SC-RX provides RS-232 control between an automation system and an RS-232 device or display control. RS-232 1 is for display control and RS-232 2 is used to control the AT-HDVS-SC-RX. This step is optional.

1. Use wire strippers to remove a portion of the cable jacket.
2. Remove at least 3/16" (5 mm) from the insulation of the RX, TX, and GND wires.
3. Insert the TX, RX, and GND wires into correct terminal on the included captive screw connector.

Green 3D component with multiple circular slots and vertical fins (no text or symbols)

TX RX GND 532 Display control RX 1X GND 532 AT-HDVS-SC-RX control

Analog Audio Connector

The AUDIO OUT connector on the AT-HDVS-SC-RX provides de-embedded line-level output to an audio amplifier or other audio device, using the included 5-pin captive screw connector. Balanced and unbalanced audio is supported.

Balanced audio connections use two signal wires and a ground to minimize interference in audio signals. Unbalanced audio connections use one signal wire and a ground and are used if system components don't support balanced signals.

Green 3D model of a green terminal block with three circular slots (no text or symbols)

Balanced Audio using XLR Connectors

GND GND Rear View 2 1 3 + - + - Rear View

Unbalanced Audio using RCA Connectors

Side Wave Side View CND CND

Installation

Relay Connector

The AT-HDVS-SC-RX provides a RELAY port, allowing the control of screens, curtains, and other devices. Use a 48 V DC relay with no more than 1 A current draw.

When the AT-HDVS-SC-RX is powered-on or rebooted, C1 and C2 are set to the Normally Open (NO) state.

Green 3D model of a mechanical connector or terminal block (no text or symbols visible)

C1 COM C2

Installation

Connection Instructions

1. Connect an Ethernet cable from an HDBaseT-capable device to INPUT 1 on the rear of the unit.
2. Connect an HDMI cable from the INPUT 2 port to a UHD/HD source.
3. Connect an HDMI cable from HDMI OUT port to a UHD/HD display.
4. Connect an RS-232 control and/or display device to the RS-232 port using the included 5-pin captive screw connector. Each RS-232 port serves a different function.

- RS-232 1

Used to control an external display device.

- RS-232 2

Used to control the AT-HDVS-SC-RX.

1. Connect an amplifier, such as the AT-GAIN-60, to the AUDIO OUT port using the included 5-pin captive screw connector.
2. Connect the relay leads from the control motors of the projection screen, blinds, or curtains, of the relay outputs to the RELAY port, using the included 3-pin captive screw connector. Use a 48 V DC relay with no more than 1 A current draw.
3. Connect an Ethernet cable from the LAN port to a network switch for set-up and control of the unit.
4. Connect the included power supply to the DC 24V power receptacle.
5. Connect the IEC power cable to an available 120 / 240 V AC outlet.

Refer to the tables below for recommended cabling when using Altona products with HDBaseT technology. The green bars indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars. These table are for guidance, only. Performance may vary, based on environmental factors.

Core	Shielding	CAT5e	CAT6	CAT6a	CAT7
Solid UTP (unshielded) N/A
		STP (sheilded)

Cable Max. Distance @ 4K Max. Distance @ 1080p
CAT5e / CAT6 230 feet (70 meters)	330 feet (100 meters)
CAT6a / CAT7 330 feet (100 meters)	330 feet (100 meters)

IMPORTANT: Stranded or patch cable is not recommended due to performance issues. Sheilded cables are strongly recommended to minimize signal noise and interference.

Installation

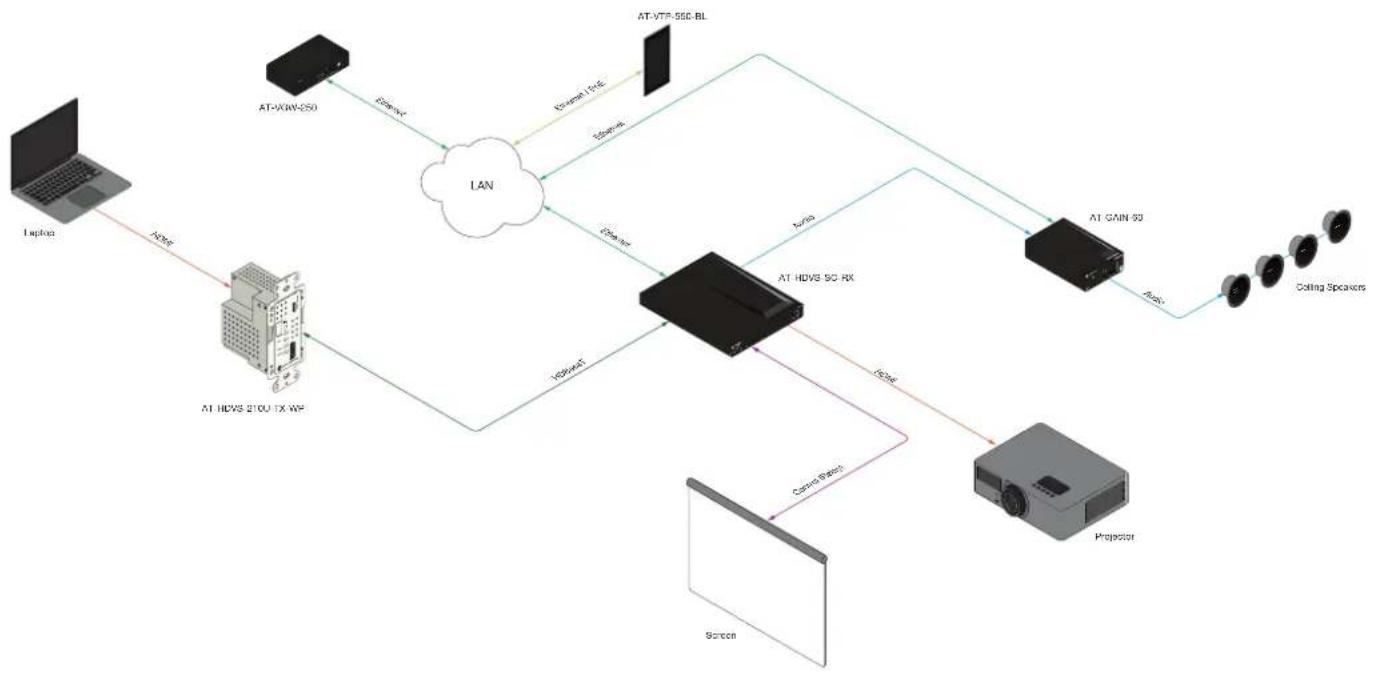

Connection Diagram

Standard Application


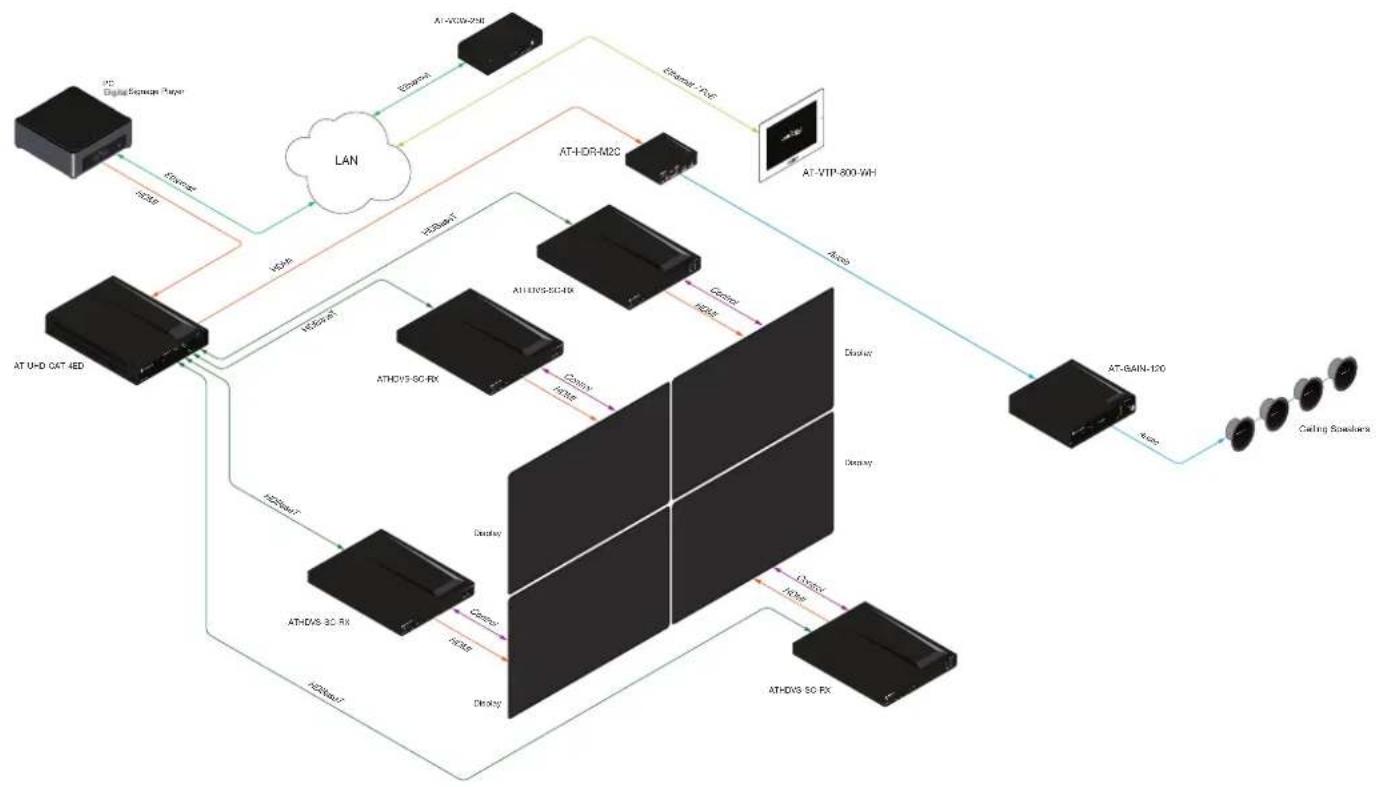

Video Wall Application

IP Configuration

The AT-HDVS-SC-RX is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. Execute the arp -a command at the Windows command line or use an IP scanner to locate the AT-HDVS-SC-RX on the network.

If the AT-HDVS-SC-RX is unable to detect a DHCP server, within 15 seconds, then the unit will be placed in APAPI mode and assigned the following IP address and subnet mask:

• IP address 169.254.0.0
- Subnet mask 255.255.0.0

To manual change the IP settings or switch between DHCP and static IP mode, use one of the methods below

Using the OSD

1. Make sure the AT-HDVS-SC-RX is powered.
2. Connect an HDMI cable from the HDMI OUT port on the AT-HDVS-SC-RX to the HDMI input port on a display.
3. Press the MENU button on the front panel of the AT-HDVS-SC-RX to display the menu system.

The Change IP address should be highlighted. If not, press the UP or DOWN cursor buttons on the front panel to select this option.

Main menu Change IP address Sys reset Select input Select HDCP mode Set Scaler mode Volume up and down Information Exit

ATLONA INPUT PWR 1 LINK 2 AT-HDV5-SCRX ENTER INPUT/MBU V 4K SCALER LAN UP / DOWN cursor buttons

1. Press the ENTER button. The IP Mode option will be highlighted.
2. Press the ENTER button to select the IP Mode option. The IP Mode option will be highlighted in green.

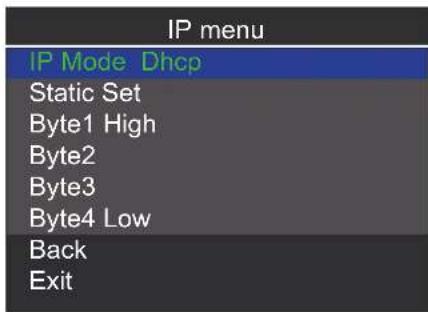

IP menu IP Mode Dhcp Static Set Byte1 High Byte2 Byte3 Byte4 Low Back Exit

Installation

1. Press the UP or DOWN cursor buttons on the front panel to toggle between Dhcp and Static.
2. Press the ENTER button to set the desired IP mode.

When set to Static mode, each byte of the IP address can be set: Press the UP or DOWN cursor buttons to highlight the desired field, then press ENTER to select the field. Press the UP or DOWN buttons to change the byte value. Press the ENTER button to confirm the value.

IP menu
IP Mode Static
Static Set IP
Byte1 High	192
Byte2	168
Byte3	1
Byte4 Low	254
Back
Exit

Setting the IP Address Using Commands

Use the IPStatic and IPDHCP commands to switch between DHCP and IP mode through RS-232 or Telnet. Refer to API documentation for more information. All commands and their arguments are case-sensitive.

- Setting static IP mode

1. Connect to the AT-HDVS-SC-RX using RS-232 or Telnet.
2. At the command line, execute the IPDHCP command using the off argument, as shown.

IPDHCP off

1. Execute the IPStatic command. This command requires three arguments: the desired IP address of the AT-HDVS-SC-RX, the subnet mask, and the gateway address. All arguments must be entered in dot-decimal notation. The following is an example:

IPStatic 192.168.1.112 255.255.255.0 192.168.1.1 IP address Subnet mask Gateway

- Setting DHCP mode

1. Connect to the AT-HDVS-SC-RX using RS-232 or Telnet.
2. At the command line, execute the IPDHCP command using the on argument, as shown. All characters are case-sensitive.
   IPDHCP on
   Once DHCP is enabled, the unit will be assigned an IP address by the DHCP server (if present).

Installation

Setting the IP Address using the Web GUI

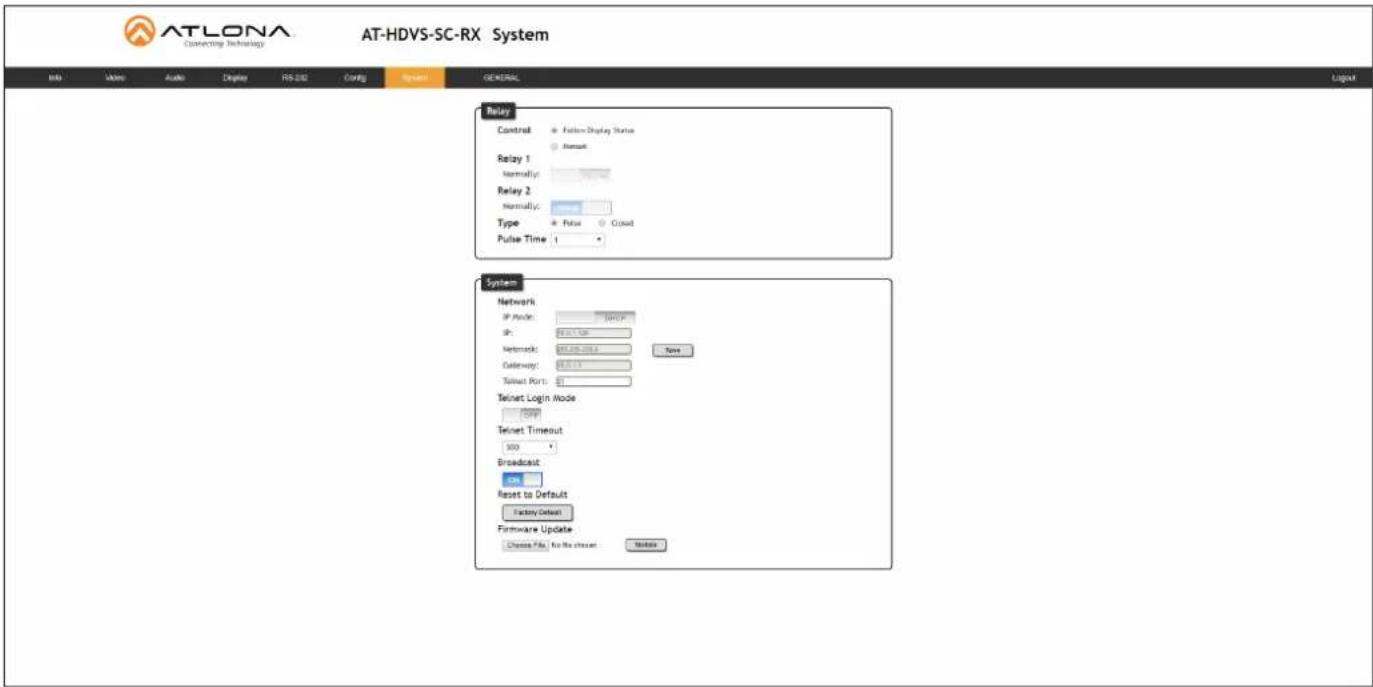

The System page (page 30), in the web GUI, allows the AT-HDVS-SC-RX to use either DHCP or static IP mode. In order to access the web GUI, the IP address of the AT-HDVS-SC-RX must be known.

1. Open the desired web browser and enter the IP address of the AT-HDVS-SC-RX.

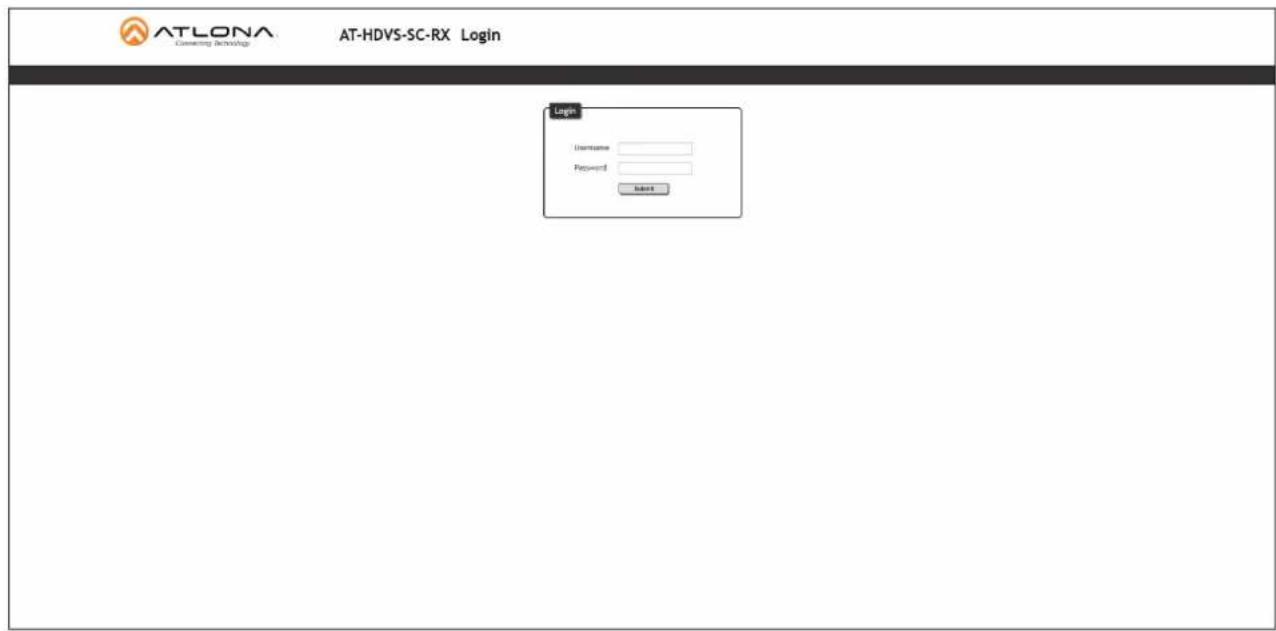

2. Log in, using the required credentials. The factory-default username and password are listed below:

Username: root

Password: Atlona

1. Click System in the menu bar.

ATLONA Connecting Technology AT-HDVS-SC-RX System File Video Audio Display RS-232 Config System GENERAL Login Relay Control Follow Display Status Actual Relay 1 NormalUp Relay 2 NormalUp Type False Closed Pulse Time 1 System Network IP Mode: STATIC IP IP: 10.0.1.120 Network: 255.255.255.0 Gateway: 10.0.1.1 Telnet Port: 23 Network IP Mode: STATIC IP IP: 10.0.1.120 Netmask: 255.255.255.0 Gateway: 10.0.1.1 Telnet Port: 23

1. Click the IP Mode toggle to switch between the DHCP and STATIC IP setting. When set to STATIC IP, the IP, Netmask, and Gateway fields can be modified.
2. Click the Save button to save the changes.

Basic Operation

Managing Users

The AT-HDVS-SC-RX allows the admin user to create, edit, and remove additional TCP/IP users. All users have the same level of access to control the AT-OME-TX21-WP-E. However, only the admin user is allowed to manage other users. Up to three additional users can be created.

Adding Users

1. Open the desired web browser and enter the IP address of the AT-HDVS-SC-RX.
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below:

Username: root

Password: Atlona

1. Click Config in the menu bar.

AT-LONA Connecting Technology AT-HDVS-SC-RX Config File Edit Audio Display PS-232 Tools Search CFM7045 Configuration Web & Telnet Login Settings Old Username : not Old Password : New Username : not $600 New Password : Confirm New Password : All User Login Settings Username Password List Del ADD Passcode ADD Passcode ADD Passcode

1. Click the Add button, under the Edit column.
2. Enter the desired username and password in the Username&Password Edit dialog box.

Username&Password Edit Username minion1 Password 12345678 Save Change Cancel

1. Click the Save Change button to commit changes or click the Cancel button to return to the Config page without adding the user.

Once created, the new user and the associated password will appear under the All User Login Settings section. To login with the new username, click Logout in the upper-right corner of the screen, then enter the login credentials for the user on the Login page.

Editing / Deleting Users

The username and password of a user can be changed using this method.

1. Open the desired web browser and enter the IP address of the AT-HDVS-SC-RX.
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below:

Username: root

Password: Atlona

AT-LONA Consulting Technology AT-HDVS-SC-RX Config File Video Audio Display RS-25C LAML System GENERAL Layout Configuration Web & Telnet Login Settings Old Username: not Old Password: New Username: not New Password: Confirm New Password: All User Login Settings Service: Record Buy Del email: Quick Edit Remove Add Remove Add Remove

Editing Users

a. Click Config in the menu bar.
b. Click the Edit button next to the user to be changed.
c. Enter the new information for the user in the Username&Password Edit dialog box.
d. Click the Save Change button to commit changes or click the Cancel button to return to the Config page without making changes.

Username&Password Edit Username minion2 Password 12345678 Save Change Cancel

Deleting Users

a. Click the Remove button next to the user to be deleted.

The Web GUI

Accessing the Web GUI

The AT-HDVS-SC-RX includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-HDVS-SC-RX, as it provides intuitive management of all features.

The AT-HDVS-SC-RX is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. Use an IP scanner to determine the IP address of the AT-HDVS-SC-RX. If a static IP address is desired, refer to IP Configuration (page 12). The default static IP address of the AT-HDVS-SC-RX is 192.168.1.254.

1. Launch a web browser.
2. In the address bar, type the IP address of the AT-HDVS-SC-RX.
3. The Login page will be displayed.

ATLONA Consulting Technology AT-HDVS-SC-RX Login Login Description Protocol S###

1. Type root, using lower-case characters, in the Username field.
2. Type Atlona in the Password field. This is the default password and is case-sensitive. When the password is entered, it will be masked. The password can be changed, if desired. Refer to the Config page (page 29) for more information.
3. Click the Submit button or press the ENTER key on the keyboard.

Login Username root Password .......... Submit

Info page

After logging in, the Info page is the first page to be displayed. The Info page displays information such as the model name, software, and active input, and output video resolution.

ATLONA Connecting Technology AT-HDVS-SC-RX Info Info Video Audio Display RD 237 Config Systems GENERAL Info Model Name : AT HDVS-SC-RX Software Version : 0.3.04 VALEDS Version : 7.0.8 Active Input : Input 1 Video Format : 1925x100fps60 TX Type : GENERAL

Model Name

The model SKU of this product.

Software Version

The version of firmware that the AT-HDVS-SC-RX is running. Always make sure to check the AT-HDVS-SC-RX product page, on the Atlona web site, for the latest version of firmware.

VALENS Version

Displays the version of firmware used by the Valens chipset.

Active Input

The currently selected input on the AT-HDVS-SC-RX.

Video Format

Displays the output resolution on the HDMI OUT port.

TX Type

The model of the connected PoE-compatible transmitter (TX) that is connected to the AT-HDVS-SC-RX.

Note that if the AT-HDVS-SC-RX is connected to a transmitter, then the model of the Atlona transmitter will be displayed in the menu bar, to the right of the HDBT menu. If no transmitter is connected, the text "GENERAL" will be displayed.

Video page

ATLONA Connecting Technology AT-HDVS-SC-RX Video Info Audio Delete PS-250 Config System GENERAL Input Prefer Timing Input 1 Niche Input 2 Niche HDCP Settings Input 1 ON Input 2 ON Auto Switch Auto Switch mode Fallback TimetSec 10 Output Input Selection Input 1 Scaler Pass-Through Format 1920x1000x60 Aspect FILL Overscan Enable H Size 0 % V Size 0 % Picture Brightness 30 Contrast 50 Saturation 50 Hue 50 Reset Pictures Reset all pictures

Prefer Timing

Click this drop-down list to select the desired input resolution.

Available Resolutions
Native 1280x720 1440x900	1920x1200
800x600 1280x800 1600x900	0 2560x1440
1024x768 1366x768 1920x1	080 3840x2160

HDCP Settings

HDCP can be controlled on each input. Set this toggle switch to the ON position to set the HDCP reporting mode of each input (HDMI IN, HDBaseT). Some devices will automatically send HDCP content if an HDCP-compliant display is detected. Setting this toggle switch to the OFF position, will force the device to ignore detection of HDCP-compliant displays, allowing non-HDCP content to be transmitted from the source. Note that setting this feature to the OFF position does not decrypt HDCP content.

Auto Switch

• Click the Auto Switch mode to the ON position to enable auto-switching. If the AT-HDVS-SC-RX detects a signal loss at one of the inputs, then it will automatically switch to the opposite input. Set to the OFF position to disable auto-switching.
• Click the Fallback Time drop-down list to select the fallback time interval. The AT-HDVS-SC-TX will wait until the fallback timer expires before auto-switching to the other input. Range: 3 - 600 seconds.

NOTE: When setting the fallback time interval, make sure that the Auto Power Off timer is at least six seconds longer than the fallback time interval. Refer to the Display page (page 23) for more information.

The Web GUI

Input Selection

Click this drop-down list to select the desired active input. In addition to selecting an input, internal video test patterns can also be selected.

Inputs
Input 1 HDBaseT
Input 2 HDMI
Internal Pattern 1		Color BarsThis pattern is used to calibrate color settings on the display device.
Internal Pattern 2		Gray ScaleThis pattern is used to calibrate brightness and contrast.
Internal Pattern 3		Moving BarThis pattern is can be applied when troubleshooting video walls, by making sure all displays are in phase with one another. If all displays are in phase, there will be no “lag” in the moving bar.
Internal Pattern 4		GridThis pattern is used mainly for detection of corner convergence (“pin cushions”). Corner convergence is represented by the “bending” of the horizontal and vertical lines in the corners of the screen.

The Web GUI

Scaler Pass-Through

Click this toggle switch to the ON position to pass-through the source signal without scaling or image processing.

Format

Click this drop-down list to set the output resolution of the scaler. This option is not available when the Scaler Pass-Through option is set to ON.

Format
640x480p60	1280x768p60	1920x1080i50 2048x1080p60
800x600p60	1280x800p60	1920x1080i60 2048x1200p60
848x480p60	1280x1024p60	1920x1080p24 3840x2160p24
1024x768p60	1360x768p60	1920x1080p25 3840x2160p25
1152x870p75	1366x768p60	1920x1080p30 3840x2160p30
1280x720p30	1440x900p60	1920x1080p50 4096x2160p24
1280x720p50	1680x1050p60	1920x1080p60 4096x2160p25
1280x720p60	1600x1200p60	1920x1200p60 4096x2160p30

Aspect

Click this drop-down list to set the aspect ratio of the output signal. This option is not available when the Scaler Pass-Through option is set to OFF.

Overscan

Click this toggle switch to the ON position to enable overscan. When this feature is enabled, click and drag the H Size and V Size slider bars to adjust the horizontal and vertical overscan percentage, respectively. When both slider bars are set to 0 %, then no horizontal or vertical overscan is applied to the output signal.


Click and drag each of these slider bars to adjust the Brightness, Contrast, Saturation, and Hue of the output signal. The default value for both slider bars is 50.

Reset all Picture

Click this button to set all picture settings to the factory-default value.

Audio page

ATLONA Converting Technology AT-HDVS-SC-RX Audio Info Video audio Display RS-232 Compl System GENERAL Audio Output Audio Note HDMI Audio L/R Audio Output Volume Output 0 Output Base 0 Output Table 0

Mute

Click this toggle switch to the ON position to mute all audio on the output.

HDMI Audio

Click this toggle switch to the OFF position to mute only the audio on the HDMI output.

L/R Audio

Click this toggle switch to the OFF position to mute only the audio on the AUDIO OUT port.

Output

Click and drag this slider bar to adjust the audio output volume. Range: -80 to 0. Values are in decibels.

Output Bass

Click and drag this slider bar to adjust the bass of the audio output. Range: -15 to 15.

Output Treble

Click and drag this slider bar to adjust the treble of the audio output. Range: -15 to 15.

Display page

ATLONA Connecting Technology AT-HDVS-SC-RX Display Info Video Audio System FCS-202 Config System GENERAL Layout CEC CEC Command Power ON OFF Volume - - - - - - - System Settings Display Auto Power On Display Auto Power Off Lamp cool down timer(Sec.) 5 Auto power off timer 15 Seconds Power on delay timer(Sec.) 5 Control Type RS-210 Feedback Verify USB Display Mode Display/Icon Volume/Mute AutoOut TCP/IP Settings of Controlled Device IP Mode Non-Lopen IP Address T92, NIE.1.1 Port 23 Username User Password None RS-232/IP commands Display commands Send Mode ANOS ON Test Set command Name Feedback None OFF Test Set command Name Feedback None Volume+ Test Set command Name Volumer Test Set command None Muto Test Set command Name Feedback None Reset Cost Parameters

Power

Click the ON or OFF button to power-on or power-off the display using CEC.

Volume

Click the + or - button to increase or decrease the audio output volume, respectively. Click the Mute button to mute the output audio.

Consumer Electronics Control (CEC) Notice:

Atlona has confirmed proper CEC functionality with several current models of Samsung, Panasonic, and Sony displays. However, it is not guaranteed that CEC will work with all displays. Many manufacturers do not support the CEC “off” command, and older displays use proprietary commands. Atlona only supports displays that use the CEC command structure defined in HDMI 1.2a. It is recommended that dealers request an evaluation product from Atlona, before designing a system using the CEC protocol. If this is not possible, then other control methods will need to be considered, in order to control displays using Atlona products.

The Web GUI

Display Auto Power On

Click this toggle switch to ENABLE to send the command to power-on the display when an A/V signal is detected. Otherwise, set to DISABLE to turn this feature off.

Display Auto Power Off

Click this toggle switch to ENABLE to send the command to power-off the display when an A/V signal is no longer present. Otherwise, set to DISABLE to turn this feature off.

Lamp cool down timer (Sec.)

Sets the cool-down interval, in seconds, before the projector can be powered-off. During this time interval, the projector will not accept any "power on" or "power off" commands until the last "power off" command has been processed and the projector lamp has completed the cool-down cycle. Range: 0 to 300.

Auto power off timer

Sets the time interval, in seconds, between when the loss of A/V signal is detected and when the "Display Off" command is sent. Range: 5 seconds to 1 hour.

NOTE: If using this timer with the Fallback Time interval (Auto-Switching), this value should be at least six seconds longer that the Fallback Time interval. Refer to the Video page (page 19) for more information.

Control Type

Sets the control method for sending commands. The following options are available: RS-232, IP, CEC.

Setting Description
RS-232 RS-232 is used to send commands.
IP Commands are sent over IP.
CEC Uses CEC to send commands.

Feedback Verify

Sets the feedback verification state. Click the toggle to enable or disable this feature. The following options are available.

Setting Description
On This is the default setting.	The AT-HDVS-SC-RX will make four attempts to send the command, if the feedback string is not acknowledged. After the fourth attempt, the process will fail.
Off Sends the command and ignores the feedback string.

The Web GUI

Display Mode

Click this drop-down list to select the behavior of the display when a source is connected.

Setting Description
DispSW AVon Display switches	on/off, source audio/video signal is always on.
DispSW AVSW Display switches	on/off, source audio/video signal switches on/off.
AV SW	Display is always on, source audio/video signal switches on/off; Lamp cool down timer (Sec.) and Power on delay timer (Sec.) are ignored.

IP Mode

Click this drop-down list to select the login mode.

Setting Description
Non-login Does not require a username and password when using TCP/IP to control the display.
Login Requires a username and password to control the display through TCP/IP.

IP Address

Enter the IP address of the device in this field.

Port

Enter the listening port of the device in this field.

Username

Enter the username for login. If the IP Mode is set to Non-Login, then this information will not be required.

Password

Enter the password for login. If the IP Mode is set to Non-Login, then this information will not be required.

Save

Click this button to save all changes in this window group.

The Web GUI

Send Mode

Sets the display format for the commands in the web GUI. In Hex mode, non-valid characters are not accepted.

Options: ASCII, Hex.

On/Off/Volume+/Volume-/Mute

• Set command
  Enter the command in this field.

- Feedback

Enter the feedback string in this field.

- CR-LF

Click this drop-down list to select the desired end-of-line characters to be sent.

- Test

Click this button to test the command line and/or feedback.

Setting Description
None No end-of-line characters included
CR Carriage return
LF Line feed
CR-LF Carriage return + Line feed
Space Space character
STX Start-of-text character
ETX End-of-text character
Null Null character (binary zero)

Save

Click this button to save all changes in this window group.

RS-232 page

ATLONA Connecting Technology AT-HDVS-SC-RX RS-232 Info Video Audio Display Reg.000 Config System GNDCTL RS-232 RS-232 Parameter Setting RX RS232 1 Band rate: 9600 Data bit: 0 Parity: None Stop bit: 1 RS RS232 2 Band rate: 115000 Data bit: 0 Parity: None Stop bit: 1 Zone Band rate: 115000 Data bit: 0 Parity: None Stop bit: 1 Save Save

Zone

When the AT-HDVS-SC-RX is connected to the AT-HDVS-SC-RX, the drop-down list boxes will be disabled and the HDBaseT baud rate will be locked at 115200.

If the AT-HDVS-SC-RX is connected to another HDBaseT device, such as the AT-UHD-CLSO-824, each of these drop-down list boxes can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device. Click the Save button to accept the settings.

TX RS-232

When the AT-HDVS-SC-RX is connected to the AT-HDVS-SC-RX, the drop-down list boxes will be disabled and the HDBaseT baud rate will be locked at 115200.

If the AT-HDVS-SC-RX is connected to another HDBaseT device, such as the AT-UHD-CLSO-824, each of these drop-down list boxes can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device. Click the Save button to accept the settings.

Setting Description
Baud rate Sets the baud rate.	The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.
Data bit Sets the number of data bits used to represent each character of data.	The following options are available: 7 or 8.
Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data.	The following options are available: None, Odd, or Even.
Stop bit Sets the stop bit.	Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

The Web GUI

RX RS-232 Zone 1

Each of these drop-down lists refer to the setting for the RS-232 1 port on the receiver. Click the Save button to accept the settings.

Setting Description
Baud rate Sets the baud rate.	The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.
Data bit Sets the number of data bits used to represent each character of data.	The following options are available: 7 or 8.
Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data.	The following options are available: None, Odd, or Even.
Stop bit Sets the stop bit.	Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

Config page

ATLONA Connecting Technology AT-HDVS-SC-RX Config Info Audio Audio Digital FSS-200 Family Systems GENERAL Layout Configuration Web & Telnet Login Settings Old Username: max Old Password: New Username: min New Password: Confirm New Password: All User Login Settings Name Password TFS No. Add Remove Add Remove Add Remove

Old Username

This field cannot be changed. "admin" is the administrator user.

Old Password

Enter the current password for the "admin" username in this field. The default password is "Atlona".

New Username

This field cannot be changed.

Save

Click this button to save all changes.

New Password

Enter the new password for the "admin" username in this field.

Confirm New Password

Verify the new password by retyping it in this field.

All User Login Settings

- Username

Displays the username.

- Password

Displays the password for the associated username.

- Edit

Click the Add button, in this column, to edit the username and password in the row.

• Del

Click the Remove button to delete the user in the row. This button will only be available if both a username and password have been created.

System page

ATLONA Connecting Technology AT-HDVS-SC-RX System Info Audio Audio Display FS-2021 Config Summary GENERAL Layout Relay Control Follow Display Status Normat Relay 1 Normally: Relay 2 Normally: Type Pulse Cloud Pulse Time System Network IP Node: TCP/IP IP: 86.01.7345 Network: TCP/IP/2021 Gateway: 86.01.73 Tailnet Port: Telnet Login Mode TCP Telnet Ttimeout 300 Broadcast OK Reset to Default Facing Default Firmware Update Choose File For the chosen Mobile

Control

Click this radio button to select the behavior of the relays. Each relay has two states: normally open (NO) and normally closed (NC).

Setting Description
Follow Display The relays will toggle, based on the state of the AT-HDVS-SC-RX. For example, when the system is powered on, the relay will power-on the display. If the system is powered off, then the display will be powered off.
Manual Relays can be triggered manually using the web GUI or using the RelayAct and RelayAuto commands. Refer to the API documentation for more information.

Relay 1

Click this toggle switch to Relay 1 to the OPEN (NO) or CLOSE (NC) state.

Relay 2

Click this toggle switch to Relay 2 to the OPEN (NO) or CLOSE (NC) state.

Type

Click this radio button to select the type of relay.

Type Description
Pulse The pulse relay is a (also called a “latch” relay) maintains either contact position, without power being applied. Relay contacts retain this setting across a power outage.
Closed This type of relay toggles between NO and NC, when triggered.

The Web GUI

IP Mode

Click this toggle switch to set the IP mode of the AT-HDVS-SC-RX. By default, the AT-HDVS-SC-RX is set to DHCP mode.

IP

Enter the IP address of the AT-HDVS-SC-RX in this field. This field will only be available if IP Mode is set to STATIC IP.

Netmask

Enter the subnet mask in this field. This field will only be available if IP Mode is set to STATIC IP.

Gateway

Enter the gateway (router) address in this field. This field will only be available if IP Mode is set to STATIC IP.

Telnet Port

Enter the Telnet port in this field.

Telnet Login Mode

Click this toggle switch to set the login mode to ON or OFF. If this feature is set to ON, then the AT-HDVS-SC-RX will prompt for both the username and password. Use the same login credentials as the web GUI.

Telnet Timeout

Click this drop-down list to select the timeout interval, in seconds, before the Telnet connection is automatically closed after no activity. Range: 1 to 3600.

Broadcast

By default, broadcast mode is set to ON. When set to ON, changes in the web GUI will also be affected on the control system (if connected), via TCP/IP. To separate control between web GUI and Telnet, set this feature OFF.

Reset to Default

Click the Factory Default button to set the AT-HDVS-SC-RX to factory-default settings.

Firmware Update

Click the Choose File button to select the firmware file, when upgrading the firmware on the AT-HDVS-SC-RX. Once the firmware file is selected, click the Update button. Refer to Updating the Firmware (page 32) for more information.

Updating the Firmware

Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-HDVS-SC-RX firmware can be updated using a USB-A to USB mini-B cable.

Using the Web GUI

Requirements:

• AT-HDVS-SC-RX
• Firmware file

• Computer

• Connect an Ethernet cable from the computer, containing the firmware, to the same network where the AT-HDVS-SC-RX is connected.

• Go to the System page (page 30) in the web GUI.

AT-LONA Connecting Technology AT-HDVS-SC-RX System File Video Audio Display RS-232 Config System ORCALAL Logat Relay Control ● Follow-Display Status ○ Annual Relay 1 Normally: Relay 2 Normally: Type: ● Pulse ○ Closed Pulse Time: System Network IP Mode: ● DHCP IP: ● 0.01.00 Networks: ● 0.01.00 Gateway: ● 0.01.00 Telnet Part: ● 0.01.00 Telnet Login Mode: ● HTTP Telnet Timeout: 500 Broadcast: OK Reset to Default ● Reset to Default ● Reset Connection Hardware Update: Choose File, No file chosen Choose File button

1. Click the Choose File button, under the Firmware Update section.
2. Browse to the location of the firmware file, select it, and click the Open button.
3. Click the Update button, under the Firmware Update section.
4. The following message box will be displayed.

10.0.1.107 says: Are you Sure want to update Firmware? OK Cancel

Appendix

1. Click the OK button to begin the firmware update process. Click the Cancel button to cancel the process.

During the firmware update process, the PWR LED indicator will flash, rapidly.

PWR LED indicator ATLONA® INPUT PWR 1 LINK 2 AT HDVS SC RX ENTER INPUTMENU V 4K SCALER LAN

NOTE: The firmware update process may take up to five minutes to complete. When completed, the PWR and INPUT 1 LED indicators will glow solid green, and the backlight on the MENU button will glow solid blue. Do not disconnect the power during the firmware update procedure.

1. After the firmware update process is complete, the Login screen will be displayed.

ATLONA Connecting Technology AT-HDVS-SC-RX Login Login Username Password Insert

Appendix

Using USB

Requirements:

• AT-HDVS-SC-RX

• Firmware file
  • Computer running Windows
  • USB-A to USB mini-B cable

• Make sure the unit is powered, using the included power supply.

• Press and hold the MENU key. While depressing the MENU button, connect the USB cable between the FW port on the AT-HDVS-SC-RX and the computer containing the firmware.

ATLONA® INPUT PWR 1 LINK 2 AT-HDVS-SC-RX ENTER INPUTMENU V 4K SCALER LAN FW port HDMI FW 1 INPUT 2 HDMI OUT R5-232 AUDIO OUT RELAY C1 COM C2 AT-HDVS-SC-RX DC 24V

1. The USB UPDATE folder will be displayed.

If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer.

Screenshot of a file explorer window showing USB UPDATE files with category labels and a timeline arrow.

1. Delete all files from the USB UPDATE drive, if any are present.
2. Drag-and-drop the firmware file to the drive folder. The PWR LED indicator will flash green during the update procedure.
3. Disconnect the USB cable from the AT-HDVS-SC-RX.
4. The AT-HDVS-SC-RX will automatically reboot. When the PWR LED indicator is solid green, the firmware update process will be complete. The unit is now ready for use.

Default Settings

The following tables list the factory-default settings for the AT-HDVS-SC-RX.

Feature Settings
A/V Settings Input Selection	Auto Switch Mode	Input 1
		ON
	Fallback Port	Previous
	Fallback Time	5 (seconds)
	HDCP Setting (Input 1)	ON
	HDCP Setting (Input 2)	ON
	Audio Output	ON
System Settings Display	Auto Power On	Disabled
	Display Auto Power Off	Disabled
	Lamp Cool Down Timer	5 (seconds)
	Auto Power Off Timer	15 (seconds)
	Power On Delay Timer	5 (seconds)
	Control Type	RS-232
	Feedback Verify	ON
	Display Mode	DispSW AVon
	IP Mode	Non-Login
	IP Address	255.255.255.255
	Port	65535
RS-232 Zone
	Baud rate	115200
	Data bit	8
	Parity	None
	Stop bit	1
	TX RS-232
	Baud rate	115200
	Data bit	8
	Parity	None
	Stop bit	1
	RX RS-232 Zone 1
	Baud rate	9600
	Data bit	8
	Parity	None
	Stop bit	1
EDID Input 1		Default (1920x1080p @ 60 Hz)
	Input 2	Default (1920x1080p @ 60 Hz)
	Output	---
Config Username (default)		root
		Password (default)
System IP Mode		DHCP
	Static IP Address (default)	192.168.1.254
	Netmask	255.255.255.0
	Gateway	192.168.1.1
	Telnet Port	23
	Telnet Login Mode	OFF
	Telnet Timeout	300 (seconds)
	Broadcast	ON
	Power	ON

Specifications

Video
Signal Input - HDMI	Input - HDBaseTOutput - HDMI
Copy Protection HDCP 1.4 / 2.2
Pixel Clock 300 MHz
UHD/HD/SD 4096x2160 (DCI) @ 24/25/30 Hz	720x576p @ 50 Hz
3840x2160 (UHD) @ 24/25/30 Hz	720x576i @ 50 Hz
1920x1080p @ 23.97/24/25/29.97/30/50/59.94/60 Hz	720x480p @ 59.94/60 Hz
1920x1080i @ 50/59.94/60 Hz	640x480p @ 60 Hz
1280x720p @ 30/50/60 Hz
VESA	2560x1600 @ 60 Hz (RB)	1366x768 @ 60 Hz
All resolutions are 60Hz	2048x1536 @ 60 Hz	1360x768 @ 60 Hz
	2048x1200 @ 60 Hz	1280x1024 @ 60 Hz
	2048x1080 @ 60 Hz	1280x800 @ 60 Hz
	1920x1200 @ 60 Hz (RB)	1280x768 @ 60 Hz
	1920x1080 @ 60 Hz (RB)	1280x720 @ 60 Hz
	1680x1050 @ 60 Hz	1152x870 @ 75 Hz
	1600x1200 @ 60 Hz	1024x768 @ 60 Hz
	1600x900 @ 60 Hz	848x480 @ 60 Hz
	1440x900 @ 60 Hz	800x600 @ 60 Hz
	1400x1050 @ 60 Hz	640x480 @ 60 Hz
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDR HDR10, Hybrid-Log Gamma (HLG), and Dolby® VisionTM @ 60 Hz		(1)

Audio
HDMI / HDBaseTPass-Through Formats	PCM 2.0LPCM 5.1LPCM 7.1	Dolby® DigitalDolby Digital PlusTMDolby TrueHDDolby Atmos®	DTS® Digital SurroundTM DTS-HD Master AudioTM DTS:X®
Bit Depth Up to 24 bits
Analog Audio
Format Stereo 2-Channel
Balanced Output +4 dBu nominal gain, +20 dB headroom
Frequency Response 20 Hz to 20 kHz, ± 0.5 dB
THD+N < 0.004% at 20 Hz to 20 kHz
SNR	>105 dB at 1 kHz, zero clipping @ 0 dBFS, unweighted
Sample Rate	32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Resolution / Distance	4K/UHD - Feet / Meters		1080p - Feet / Meters
HDMI IN/OUT	15	5	30	10
CAT5e/6	230	70	330	100
CAT6a/7	330	100	330	100

Appendix

Control
RS-232 Device control and configuration Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
IP	Protocols: HTTP, Telnet, mDNS Modes: DHCP, Static - selectable through webGUI
Relay	Device triggering
CEC Support	Yes

Buttons and Indicators
Buttons:MENU, ENTER,UP, DN, INPUT	5 x momentary, tact-type
Indicators:POWER, LINK1, 2	4 x LED, green

Connectors
HDMI IN 1 x Type A, 19-pin female
HDBaseT IN 1 x RJ45
HDMI OUT 1 x Type A, 19-pin female
LAN ^2)	1 x RJ45
RS-232 1 x 6-pin captive screw	(2 x RS-232 ports, bidirectional)
AUDIO OUT 1 x 5-pin captive screw, balanced / unbalanced 2-channel
RELAY 1 x 3-pin captive screw
FW 1 x Type mini-B, 5-pin female
DC 24V 1 x 4-pin DIN connector, locking

Environmental Fahrenheit Celsius
Operating Temperature +32 to +122 0 to +50
Storage Temperature -4 to +140 -20 to +60
Operating Humidity (RH)	20% to 90%, non-condensing

Power
Consumption	24.75 W
External Power Supply	100 - 240 V AC, 50/60 HzOutput: 24 V / 2.7 A DC

Dimensions (H x W x D)	Inches	Millimeters
Unit	1.02 x 8.40 x 9.17 26 x 213 x 233
Unit (with feet)	1.22 x 8.40 x 9.17 31 x 213 x 233
Power Supply (AT-PS-54-C)	1.20 x 2.00 x 3.20 30 x 50 x 81

Weight	Pounds	Kilograms
Device	2.97	1.35

Certification
Device	CE, FCC
Power Supply	CE, FCC, Level VI, RoHS, cULus, RCM, CCC

Compliance
NDAA-899	Yes
