USER MANUAL FDRM 202051-E Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

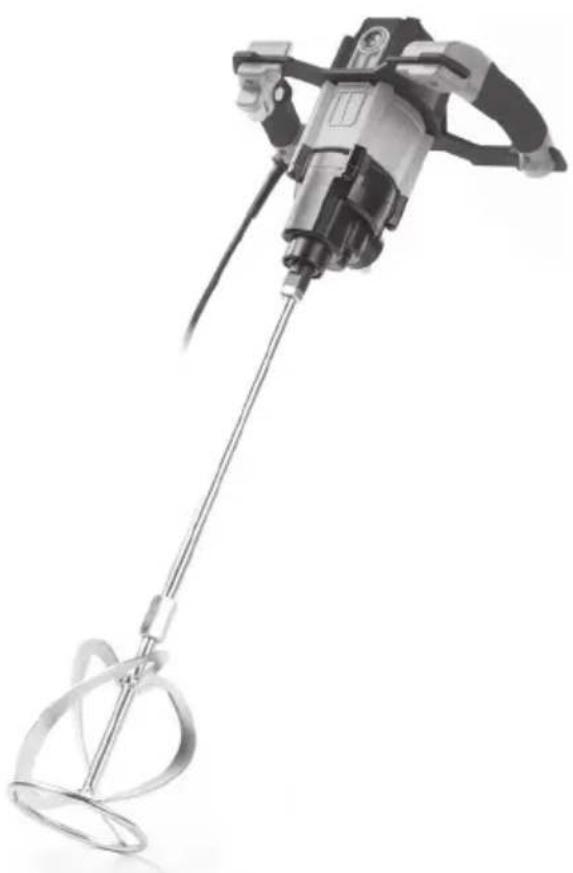

Mechanical mixing tool with a rotating handle and metal frame (no text or symbols visible)

FDRM 202051-E

English 6-17

Čeština 18-29

Slovenčina 30-41

Magyarul 42-53

Polski 54-65

1 B A E C D F

2

Diagram illustrating a hand operating a device with rotating components, accompanied by a magnified view of the device's rotation.

Illustration of a hand holding a tool with a black arrow pointing downward (no text or symbols)

3

Illustration of a hand pressing down on a piece of paper with an arrow indicating pressure (no text or symbols present)

Illustration of a hand holding a medical device with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a piece of paper with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a tool with a downward arrow, no text or symbols present

4

Two laboratory apparatuses: a vertical rod and a coiled tube with a bulb (no text or symbols visible)

Illustration of a hand holding a metal detector with a curved arrow indicating rotation (no text or symbols)

Illustration of two hands using a cart with a speedometer (no text or symbols)

Hand turning a curved arrow on a mechanical component (no text or symbols visible)

Person holding a small object with a rod, possibly a tool or device (no visible text or symbols)

5

Close-up of a metallic industrial component with a circular opening and ventilation slots (no visible text or symbols)

6

Close-up of a mechanical component with a dark rectangular slot, possibly a valve or bracket (no visible text or symbols)

Electric mixer

INSTRUCTION MANUAL

Thank you for your purchase of the Electric mixer. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference.

CONTENTS

1. GENERAL SAFETY INSTRUCTIONS....7
2. SYMBOLS....11
3. GENERAL DESCRIPTION....12
4. TECHNICAL SPECIFICATIONS....14
5. DISPOSAL....16

1. GENERAL SAFETY INSTRUCTIONS

WARNING!

Carefully read the instruction manual before use.

Important safety warnings

* Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product.
Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, fire and/or a serious injury.

Packaging

The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.

Instructions for use

Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum. For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station).

Note:

If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.

The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual.

Carefully read, remember and keep these safety instructions

WARNING!

In the use of electric machines and power tools, it is necessary to respect and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of fire. The term "power tool" in the instructions below refers both to mains-operated (corded) power tool or battery-operated (cordless) power tool. Save all warnings and instructions for future reference.

Workplace

• Keep the work area clean and well lit. Cluttered or dark areas in the workplace invite accidents. Store power tools that you don't currently use.
  Do not operate power tools in environments with danger of occurrence of a fire or explosion, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
  * Keep unauthorised persons, especially children, away from the work area while operating a power tool! Distractions can cause you to lose control over the performed activity. In no event leave your power tool unattended. Keep the equipment away from animals.

Electrical Safety

Power tool plugs must match the mains socket outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Undamaged plugs and matching outlets will reduce risk of electric shock. Damaged or fouled supply cables increase the risk of electric shock. If the power cord is damaged, it must be replaced by a new power cord which is available at the authorised service centre or the importer.
Avoid body contact with earthed or grounded surfaces such as pipes, radiators, cooking ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Never touch the power tool with wet hands. Never wash the power tool under running water or immerse it in water.
* Never use the supply cable for other than intended purposes. Never use the cord for carrying or pulling the power tool. Never unplug the plug from the outlet by pulling the cable. Keep electric cables away from sharp or hot objects to prevent mechanical damage.
The power tool was designed to be powered solely by alternating electric current. Always check if the electric voltage matches the information specified in the type label of the power tool.
* Never use power tool with damaged electric cable or plug or which has been dropped or is in any way damaged.
If an extension cord is used, always check whether its technical parameters match the information specified in the type label of the power tool. When operating a power tool outdoors, use an extension cord suitable for outdoor use. If extension drums are used, these must be rolled out to prevent overheating of the cord.
If a power tool is operated in a damp location or outdoors, its operation is only permitted if connected to an electric circuit protected by a residual current device <30 mA. Use of residual current device (RCD) reduces the risk of electric shock.
Hold the power tool by insulated gripping surfaces only as the cutting or drilling tool may contact hidden wiring or its own power cord during operation.

Personal Safety

Be careful, stay alert and watch what you are doing when operating a power tool. Concentrate on your work. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. Do not eat, drink and smoke while operating a power tool.
Use personal protective equipment. Always wear eye protection. Use protective equipment corresponding to the type of work you are doing. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used in accordance with the working conditions will reduce the risk of personal injury.
* Prevent unintentional starting. Do not carry the power tool while it is energised or with your finger on the switch or trigger. Ensure the switch or trigger is in the "off" position before connecting to power source. Carrying power tools with your finger on the switch or energising power tools that have the switch on may result in serious injuries.
Remove any adjusting key or wrench before turning the power tool on. An adjusting wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Keep proper footing and balance at all times. Do not overreach. Never overestimate your own capabilities. Never use power tools while you are fired.
* Dress properly. Wear work clothes. Do not wear loose clothing or jewellery. Keep your hair, clothing, gloves and other part of your body away from moving or hot parts of the power tool.
Connect the equipment to dust exhaustion. If the tools are provided for the connection of dust collection or exhaustion devices, ensure these are properly connected and used. Use of such devices can reduce dust-related hazards.
* Fix the work-piece tightly. Use a cabinet clamp or a cramp to fix the work-piece you are about to machine.
* Never use power tools if you are under the influence of alcohol, drugs, medication or other narcotic or addictive substances.
This equipment is not intended for use by persons (including children) with limited physical, sensual or mental capacities or lack of experience or knowledge unless they are supervised or instructed about the use of the equipment by a person responsible for their safety. Children must be supervised to make sure they are not playing with the equipment.

Power Tool Use and Maintenance

Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way.

Immediately stop working if the power tool generates abnormal noise or smell.

Do not overload the power tool. The power tool will operate better and safer if it is used at the rate for which it was designed. Use correct power tool which is intended for the given activity. The correct power tool will do the job it was designed for better and safer.

Do not use the power tool if it cannot be safely turned on and off using the control switch. Use of such power tool is dangerous. Defective switches must be repaired by a certified service provider.

* Disconnect the tool from the power source before making any adjustments, changing accessories or maintenance. Such preventive safety measure prevents the risk of starting the power tool accidentally.

Store idle power tools out of the reach of children and unauthorised persons. Power tools can be dangerous in the hands of untrained users. Store the power tools in a dry and safe place.

* Keep the power tool in good condition. Check the adjustment of moving parts and their mobility. Check for any damage to the protective guards or other parts which could affect safe operation of the power tool. If

damaged, have the power tool properly repaired before further use. Many accidents are caused by poorly maintained power tools.

* Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges facilitate work, reduce the risk of injury and are easier to control. Use of accessories other than those specified in the instructions for use could result in damage to the power tool and cause injuries.
Use the power tool, accessories and tool bits etc. in accordance with these instructions and in the manner intended for the particular type of power tool taking into account the working conditions and the work to be performed. Use of the power tool for purposes other than those the power tool was intended for could result in hazardous situations.

Use of Cordless Power Tools

Before inserting the battery, make sure the switch is in the "O-OFF" position. Inserting a battery into a switched-on power tool could result in hazardous situations.

Charge batteries only using the chargers prescribed by the manufacturer. Using a charger intended for other battery type could result in its damage and occurrence of fire.

Use only batteries intended for particular power tool. Use of different batteries could cause injury or occurrence of fire.

If the battery is not used, keep it separately from metal objects such as clamps, keys, bolts and other small metal items which could cause connection of one battery contact with the other. Short-circuiting the battery could result in injury, burns or occurrence of fire.

* Handle the batteries with care. Rough handling could result in leak of chemical substance from the battery. Avoid contact with such substance and if, nonetheless, any contact occurs wash the affected area under running water. If eyes get into contact with the chemical substance seek immediately medical aid. Chemical substance from the battery can cause serious injuries.

Service

Do not replace parts of the power tool, do not make any repairs or interfere in any way with the construction of the power tool. Have your power tool repaired by qualified repair persons.
* Any repair or modification of the product without our company's authorisation is impermissible (it could cause injury or damage to the user).
* Always have your power tool repaired in a certified service centre. Use only original or recommended replacement parts. This will ensure that your safety and the safety of your power tool is maintained.

2. SYMBOLS

The product complies with the applicable standards and regulations.

Read the Instruction Manual attentively prior to use.

Double-insulated.

Use eyes protective equipment.

Use ears protective equipment.

Wear a breathing mask.

Subjected to recycling.

3. GENERAL DESCRIPTION

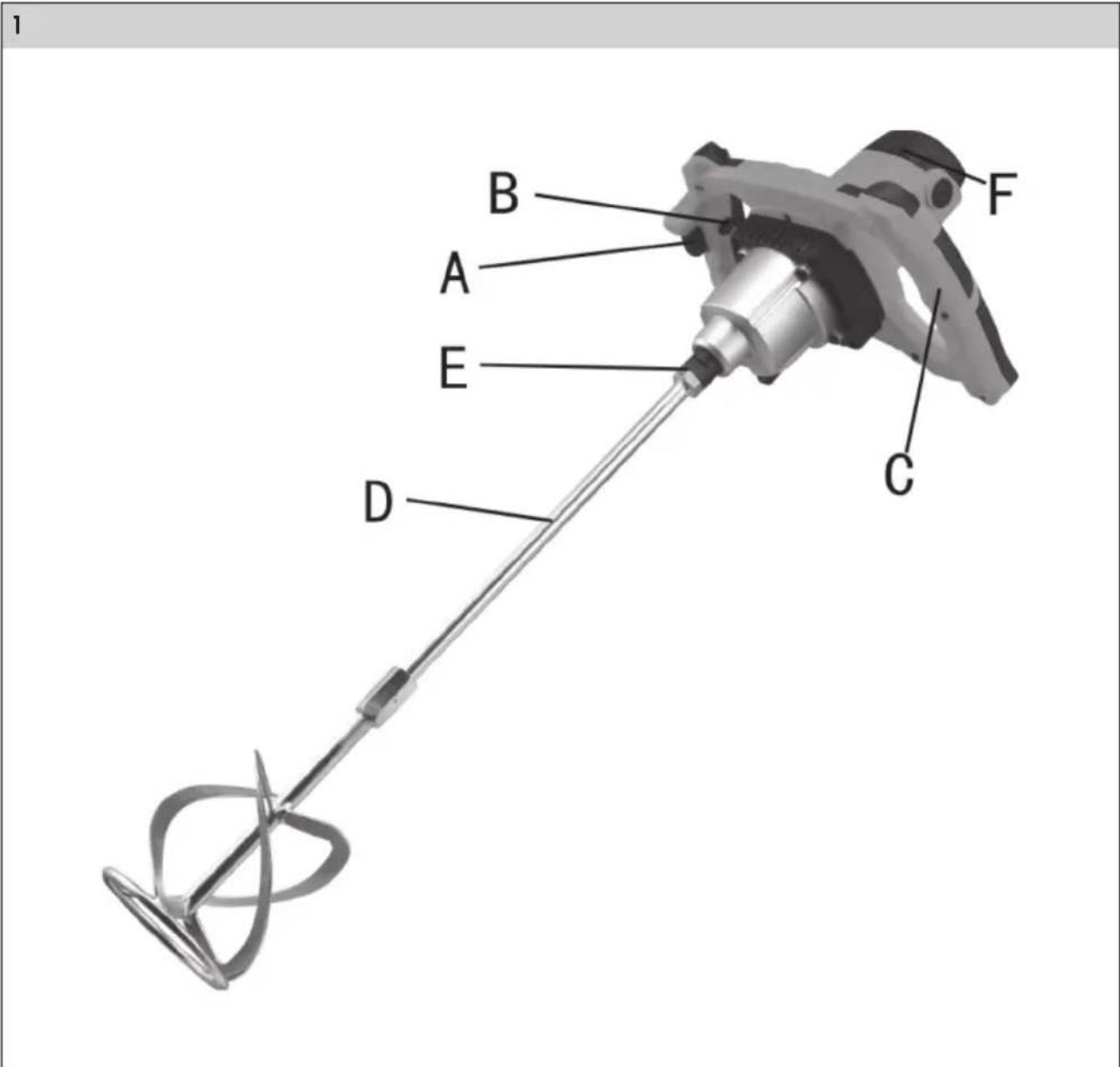

DESCRIPTION AND LOCATION OF MACHINE PARTS

FIG. 1

A. Switch for on/off and speed control
B. Button for switch locking
C. Main Handle
D. Mixing paddle
E. Spindle
F. Ventilation slots

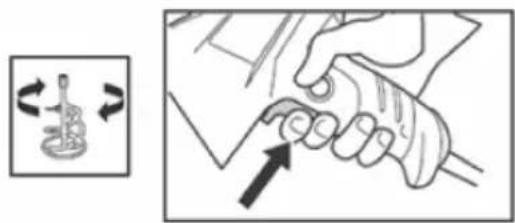

On/off (Pic.2)

Switch locking for continuous use (Pic.3)

Be aware of the forces that occur as a result of jamming; hold the tool firmly with both hands and take a secure stance!

Speed control for smooth starting

* for protecting the fool
* for guiding the fool
* for puffing aside the fool in a simple way

Ensure that the tool is switched off!

* mount mixing paddle D onto spindle E as illustrated (Pic.4)
* connect plug to power source
* ensure the mixing container is securely positioned on the floor
* dip the mixing paddle info the blending substance before switching on the fool, and then gradually increase the blending speed by puffing more pressure on trigger A(Pic.1) (so that the substance will not splash around and the tool will not be overloaded).

Mechanical speed regulator operation instruction: (pic. 5)

When the machine is under STOP condition, please turn the Knob switch to change the speed
When you can not finish changing speed completely by turn the Knob switch, plese turn the shaft paddles slightly and change speed.

Electronic speed regulator operation instruction: (pic. 6)

* Turn on the power switch first, then turn the regulator switch which located in the left handle to get your wanted speed.

Switch the tool off only when the mixing paddle is in the mixing container!

Holding and guiding the tool

While working, always hold the tool at the grey-colored grip area(s)!

Always hold the tool firmly with both hands!

4. TECHNICAL SPECIFICATIONS

FDRM 202051-E ELECTRIC MIXER
Nominal frequency and power 230V/50Hz
Nominal power: 2050W
No-load speed: I:0–660 rpm / II:0–900rpm
Acoustic pressure level: 92 dB(A)
Hand/arm vibration level 3.157 m/s	^2
Acoustic power level 103 dB(A)
Insulation class II
Weight 3,4 kg

Instructions Manual - language version only.

Amendments to text and technical parameters are reserved.

Changes in the text, design and technical specifications may change without prior notice and we reserve the right to make these changes.

Troubleshooting

Suspected malfunctions are often due to causes the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly.

WARNING!

Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service centre or a similarly qualified specialist if you cannot solve the problem yourself!

Problem Possible Cause Solution
1. Product does not start 1.1 Not connected to power supply1.2 Power cord or plug is defective1.3 Other electrical defect to the product	1.1 Connect to power supply1.2 Check by a specialist electrician1.3 Check by a specialist electrician
2. Product does not reach full power	2.1 Extension cord is not suitable for operation with this product.2.2 Power source (e.g. generator) has too low voltage2.3 Air vents are blocked 2.3 Clean	2.1 Use a proper extension cord2.2 Connect to another power sourcethe air vents
3. Unsatisfactory result 3.1 Disk bit	dull/damaged 3.1 Replace with new one3.2 Disk bit is not suitable for work piece material	one3.2 Use proper drill bit
4. Excessive vibration or noise 4.1	Disk bit is dull/damaged 4.1 Replace with a new one4.2 Bolts/nuts are loose	4.2 Tighten bolts/nuts

5. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT

This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.

FOR COMPANIES IN THE EUROPEAN UNION COUNTRIES

Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information.

DISPOSAL IN OTHER COUNTRIES OUTSIDE THE EUROPEAN UNION

Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method

This product fulfils all basic requirements of the EU directives that apply to it.

Text, design and technical specifications can change without prior notice and we reserve the right for their change.

FAST®

FAST ČR, a.s.

U Sanitasu 1621, 251 01 Říčany, Czech Republic

tel.: [phone], fax: [phone]

EU DECLARATION OF CONFORMITY

Product / brand: Electric Hand Mixer / FIELDMANN

Type / model: FDRM 202051-E as factory model ZY-HM-1402S

AC 230V, 50Hz, 2050W, Class II, IPXO

L_PA = 94,7 dB(A), L_WA = 105,7 dB(A)

Manufacturer: FAST ČR, a.s.

U Sanitasu 1621, 251 01 Říčany, Czech Republic

VAT no: CZ24777749

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

Directive MD 2006/42/EC Directive EMC 2014/30/EU

Directive NEOE 2000/14/EC Directive RoHS 2011/65/EU

The relevant harmonized standards and the other technical specifications:

EN 62841-1:2015 EN IEC 55014-1:2021

EN 62841-2-10:2017 EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1

EN IEC 61000-3-11:2019

Place of issuance: Prague

Date of issuance: 01.04.2022

Name: Petr Uher - Responsible Person
