Product Type	Studio Strip Softbox (BoomBox)
Model Number	BB-ST-1024-V2
Brand	Angler
Shape	Strip (rectangular)
Dimensions	10 x 24 in (25.4 x 61 cm)
Weight	1 lb (0.45 kg)
Mount Type	Bowens S-mount (compatible with V2 adapter rings for Broncolor, Elinchrom, Profoto)
Included Accessories	Inner diffuser, outer diffuser, deflector plate and extension
Optional Accessories	Adapter rings (BBAR-PRO-144, BBAR-BRL-144, BBAR-EL-144), Grid (BB-G-1024-V2)
Material	Fabric (nylon/ polyester) with metal frame and adapter ring
Warranty	One-year limited warranty from date of purchase
Country of Origin	Designed and marketed by Gradus Group LLC, USA
Intended Use	Softening and shaping light from studio strobes or monolights with Bowens mount
Diffusion Levels	Two levels (inner and outer diffusers) plus deflector
Deflector Function	Adjustable for different light spread (curved side in or out)
Setup	Open umbrella-style; push center ring over shaft; lock into Bowens mount
Orientation Adjustment	Loosen adapter ring thumbscrew, rotate, tighten
Cleaning	Wipe with dry cloth; avoid solvents; store in dry place
Compatible Lights	Studio strobes and monolights with Bowens mount (up to 144 mm adapter ring)
Repairability	Adapter ring replaceable with Philips screwdriver; contact Angler for service

Frequently Asked Questions - BB-ST-1024-V2 Angler

How do I attach the Angler BB-ST-1024-V2 to my studio light?

Align the mounting tabs of the BoomBox with the Bowens mount on your light. Insert and turn clockwise until it locks. The adapter ring must be compatible (V2 144 mm).

Can I use the BB-ST-1024-V2 without the diffusers?

Yes, you can use it without diffusers for a harder light. However, the inner and outer diffusers soften and spread light for an even effect. They can be used with or without the deflector.

How do I remove the BoomBox from the light?

Press the light's Bowens release button, then turn the BoomBox counterclockwise and remove it. If needed, remove diffusers, deflector, and extension, then close by pulling the center ring.

What adapter rings are compatible?

Use V2 (144 mm) adapter rings: BBAR-PRO-144 for Profoto, BBAR-BRL-144 for Broncolor, and BBAR-EL-144 for Elinchrom. The included ring is for Bowens.

How do I change the adapter ring?

Unzip and pull back the fabric around the adapter ring. Remove the screws, washers, and thumbscrew with a Philips screwdriver. Swap the ring and reassemble with screws and thumbscrew in the recessed hole.

What grid is compatible with this model?

The BB-G-1024-V2 grid is specifically designed for the BB-ST-1024-V2 strip box. It helps control light spill and create a more directed beam.

How do I attach the deflector?

Screw the deflector extension into the center stem of the BoomBox. Then slide the deflector plate onto the extension. Experiment with the curved side facing in or out for different effects.

Can I use this BoomBox with any Bowens mount light?

Yes, as long as the light has a standard Bowens mount. The BoomBox uses a V2 (144 mm) adapter ring. Ensure the ring is properly attached before mounting.

How do I clean and maintain the softbox?

Wipe the fabric with a dry, lint-free cloth. Avoid using solvents or water. Store in a dry place when not in use. Check screws and thumbscrew periodically for tightness.

What is the warranty coverage?

Angler provides a one-year limited warranty from the original purchase date against defects in materials and workmanship. Contact customer service at 212-594-2353 or visit anglerlights.com for RMA.

USER MANUAL BB-ST-1024-V2 Angler

BoomBox for Bowens Mount

BB-26DB-V2/BB-36DB-V2/BB-48DB-V2

BB-ST-1024-V2/BB-ST-1236-V2/BB-ST-1255-V2

BB-RE-2436-V2

INSTRUCTIONS

Black octagonal studio lighting umbrella with silver filter bands (no text or symbols visible)

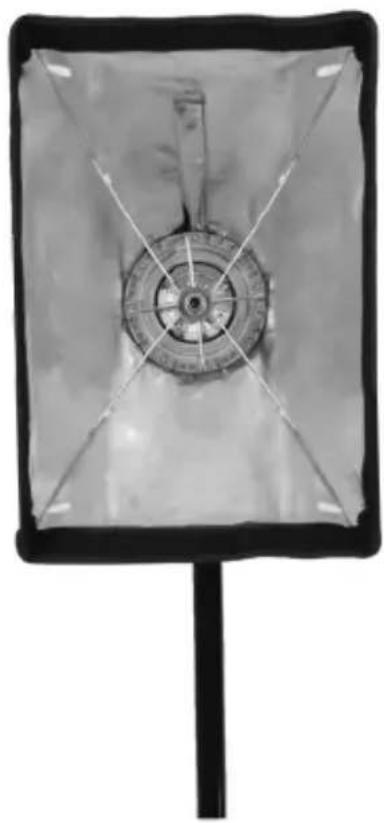

Black-and-white photo of a rectangular device with a central circular component and radial lines, mounted on a stand (no visible text or symbols)

Close-up of a metallic cylindrical device with internal components and wiring, no visible text or symbols

angler®

Setting Up the BoomBox

1. For Monolights and studio strobes with Bowens mounts, align the mounting tabs with the Bowens mount and insert the BoomBox into the Bowens mount. Turn the BoomBox clockwise until it locks.

2. Open the BoomBox, and push the center ring over the shaft until it's all the way in, just like an umbrella.

Tip: You may find it easier to hold the base of the shaft through the side opening while pushing the center ring over it.

1. Adjust the BoomBox's orientation by loosening the adapter ring's thumbscrew and rotating the BoomBox. Tighten the thumbscrew until secure.

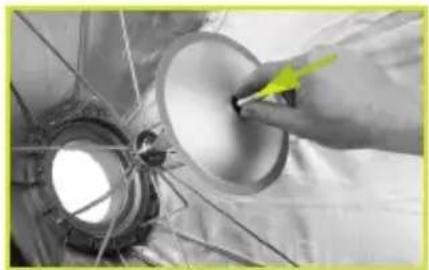

Optional: To add the deflector to the BoomBox, screw the deflector extension into the center stem. Once it's attached, slide the deflector plate onto the extension.

Try experimenting with the curved side of the deflector facing out or in, and by varying the distance from the light source.

Close-up of a gloved hand adjusting a circular mechanical component with wires (no visible text or symbols)

Close-up of a hand holding a small object with a green arrow indicating rotation (no text or symbols visible)

Close-up of a hand using a tool to adjust or inspect a mechanical component (no visible text or symbols)

Close-up of a hand adjusting a circular component with a yellow arrow pointing to it, against a metallic structure (no text or symbols visible)

Attaching the Diffusers

The inner and outer diffusers add two levels of diffusion that soften and spread the light for an even and flattering effect. The diffusers can be used with or without the deflector plate.

1. Attach the inner diffuser by attaching the diffuser's touch-connect strips to the touch connect tabs inside the BoomBox.

2. Attach the outer diffuser by pressing the touch-connect strips against the inner rim of the BoomBox.

Person in white gloves handling a circular object inside a dark box (no visible text or symbols)

Removing the BoomBox

To remove the BoomBox from a Bowens mount:

1. Press the light fixture's Bowens release.
2. Turn the BoomBox counterclockwise and remove it from the light.

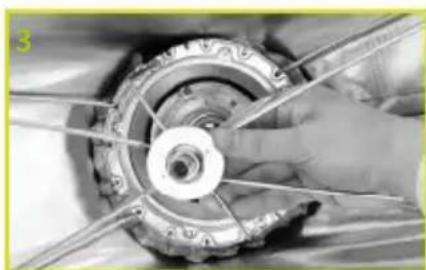

3. If necessary, remove the diffuser, deflector, and extension. Then close the BoomBox by carefully pulling on the center ring.

Close-up of a hand pressing down on a mechanical component with a yellow arrow indicating motion (no text or symbols visible)

Close-up of a hand holding a mechanical component with visible gears and blades (no text or symbols)

Changing the Adapter Ring

Adapter Rings for Broncolor, Elinchrom, and Profoto are available separately. Make sure to use V2 (144 mm) adapter rings.

1. Unfasten the zipper and pull back the fabric around the BoomBox adapter ring.
2. Use a Philips screwdriver to remove the screws and washers, then remove the thumbscrew and washer.
3. Remove the adapter ring from the BoomBox.
4. Insert the replacement adapter ring.
5. Replace the washers and screws. Make sure to insert the thumbscrew in the recessed hole. Tighten until secure.

Close-up of a garment collar with a yellow star marking the waist area (no text or symbols visible)

Close-up of a mechanical component with a circular highlight and a yellow arrow, no visible text or symbols

Close-up of a mechanical component being lifted by a tool, showing internal structure (no text or symbols visible)

Close-up of a hand holding a small object over a metallic cylindrical component, with a green circle highlighting a specific area (no text or symbols visible)

Specifications

BB-26DB-V2 BB-36DB-V2 BB-48DB-V2 BB-RE-2436-V2
SIZE	26 IN.(66 CM)	36 IN.(91.4 CM)	48 IN.(121.9 CM)	24×36 IN.(61×91.4 CM)
SHAPE OCTAGONAL OCTAGONAL OCTAGONAL RECTANGULAR
WEIGHT	1.9 LB.(0.84 KG)	2.5 LB.(1.2 KG)	3.4 LB.(1.54 KG)	3 LB.(1.4 KG)

BB-ST-1024-V2 BB-ST-1236-V2 BB-ST-1255-V2
SIZE	10×24 IN.(25.4×61 CM)	12×36 IN.(30.5×91.4 CM)	12×55 IN.(30.5×139.7 CM)
SHAPE STRIP STRIP STRIP
WEIGHT	1 LB.(0.45 KG)	2.5 LB.(1.1 KG)	2.3 LB.(1 KG)

Recommended Accessories

Metallic circular mechanical component with central hole and flange (no text or symbols visible)

ADAPTER RINGS

MODEL # MOUNT TYPE

BBAR-PRO-144 PROFOTO

BBAR-BRL-144 BRONCOLOR

BBAR-EL-144 ELINCHROM

Octagonal grid pattern with black and white lines forming a mesh structure (no text or symbols)

GRIDS

MODEL # COMPATIBLE BOOMBOX

BB-G26-V2 BB-26DB-V2

BB-G36-V2 BB-36DB-V2

BB-G48-V2 BB-48DB-V2

BB-G-2436-V2 BB-RE-2436-V2

BB-G-1024-V2 BB-ST-1024-V2

BB-G-1236-V2 BB-ST-1236-V2

BB-G-1255-V2 BB-ST-1255-V2

One-Year Limited Warranty

This Angler product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Angler Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Angler along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.anglerlights.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Angler is a registered trademark of the Gradus Group.

© 2023 Gradus Group LLC. All Rights Reserved.
