USER MANUAL X11SDC-8C Supermicro

The information in this user's manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0

Release Date: April 16, 2021

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2021 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About This Manual

This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the X11SDC-4C/8C/16C module board.

About This Motherboard

The Supermicro X11SDC-4C/8C/16C module board supports an Intel® Xeon D-2100 processor. This a high performance, proprietary form factor module board that is ideal for super compact servers requiring high computing power. The X11SDC-4C/8C/16C is designed based on the PICMG® COM-HPC form factor. This module board works together with the AOM-COMH-TEST carrier board. Please note that this module board is intended to be installed and serviced by professional technicians only. For processor/memory updates, please refer to our website at http://www.supermicro.com/products/.

Manual Organization

Chapter 1 describes the features, specifications and performance of the module board, and provides detailed information on the processor.

Chapter 2 provides hardware installation instructions. Read this chapter when installing the processor, memory modules, and other hardware components into the system.

If you encounter any problems, see Chapter 3, which describes troubleshooting procedures for video, memory, and system setup stored in the CMOS.

Chapter 4 includes an introduction to the BIOS and provides detailed information on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists software program installation instructions.

Appendix C lists standardized warning statements in various languages.

Appendix D provides UEFI BIOS Recovery instructions.

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Table of Contents

Chapter 1 Introduction

1.1 Checklist....8

Top Layout....11

Bottom Layout....11

Quick Reference 12

Top Layout....12

Bottom Layout....12

Quick Reference Table for X11SDC-4C/8C/16C....13

Quick Reference Table for AOM-COMH-TEST....15

Module Board Features....17

Carrier Board Features....19

1.2 Processor Overview ....21

1.3 Special Features ....21

Recovery from AC Power Loss....21

1.4 System Health Monitoring....21

Onboard Voltage Monitors 22

Fan Status Monitor with Firmware Control 22

Environmental Temperature Control 22

System Resource Alert....22

1.5 ACPI Features....23

1.6 Power Supply 23

1.7 Serial Port....23

Chapter 2 Installation

2.1 Static-Sensitive Devices....24

Precautions ......24

Unpacking 24

2.2 Module Board Installation....25

Tools Needed 25

Location of Mounting Holes 25

Installing the Module Board ....26

2.3 Memory Support and Population....27

Memory Support....27

DIMM Module Population Configuration....27

DIMM Module Population Sequence 28

DIMM Installation 29

DIMM Removal 29

2.4 Connectors and Headers for X11SDC....30

2.5 Jumper Settings for X11SDC 35

How Jumpers Work....35

2.6 Rear I/O Ports for AOM-COMH-TEST 37

2.7 Front Control Panel for AOM-COMH-TEST 41

2.8 Connectors and Headers For AOM-COMH-TEST 46

2.9 Jumper Settings for AOM-COMH-TEST....56

How Jumpers Work....56

2.10 LED Indicators for AOM-COMH-TEST....60

Chapter 3 Troubleshooting

3.1 Troubleshooting Procedures ......62

Before Power On 62

No Power 62

No Video 62

System Boot Failure....63

Memory Errors 63

Losing the System's Setup Configuration....64

When the System Becomes Unstable....64

3.2 Technical Support Procedures 66

3.3 Frequently Asked Questions ....67

3.4 Battery Removal and Installation 68

Battery Removal....68

Proper Battery Disposal....68

Battery Installation....68

3.5 Returning Merchandise for Service....69

Chapter 4 UEFI BIOS

4.1 Introduction....70
Starting the Setup Utility 70
4.2 Main Setup....71
4.3 Advanced....73
4.4 Event Logs ....100
4.5 IPMI 102
4.6 Security....106
4.7 Boot....110
4.8 Save & Exit....112

Appendix A BIOS Codes

A.1 BIOS Error POST (Beep) Codes....114
A.2 Additional BIOS POST Codes....115

Appendix B Software Installation

B.1 Installing Software Programs .... 116
B.2 SuperDoctor® 5....117

Appendix C Standardized Warning Statements

Battery Handling....118
Product Disposal....120

Appendix D UEFI BIOS Recovery

D.1 Overview....121
D.2 Recovering the UEFI BIOS Image....121
D.3 Recovering the Main BIOS Block with a USB Device 122

Chapter 1

Introduction

Congratulations on purchasing your computer module board from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your module board. If anything listed here is damaged or missing, contact your retailer. The following items are included in the retail box:

1.1 Checklist

Main Parts List (included in the retail box)
Description Part Number Quantity
Supermicro Module Board X11SDC-4C/8C/16C 1

Important Links

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
- Product drivers and utilities: https://www.supermicro.com/wdl/driver/
- Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
- A secure data deletion tool designed to fully erase all data from storage devices can be found at our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wdl/utility/Lot9_Secure_Data_Deletion_Utility/
- If you have any questions, please contact our support team at: [e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

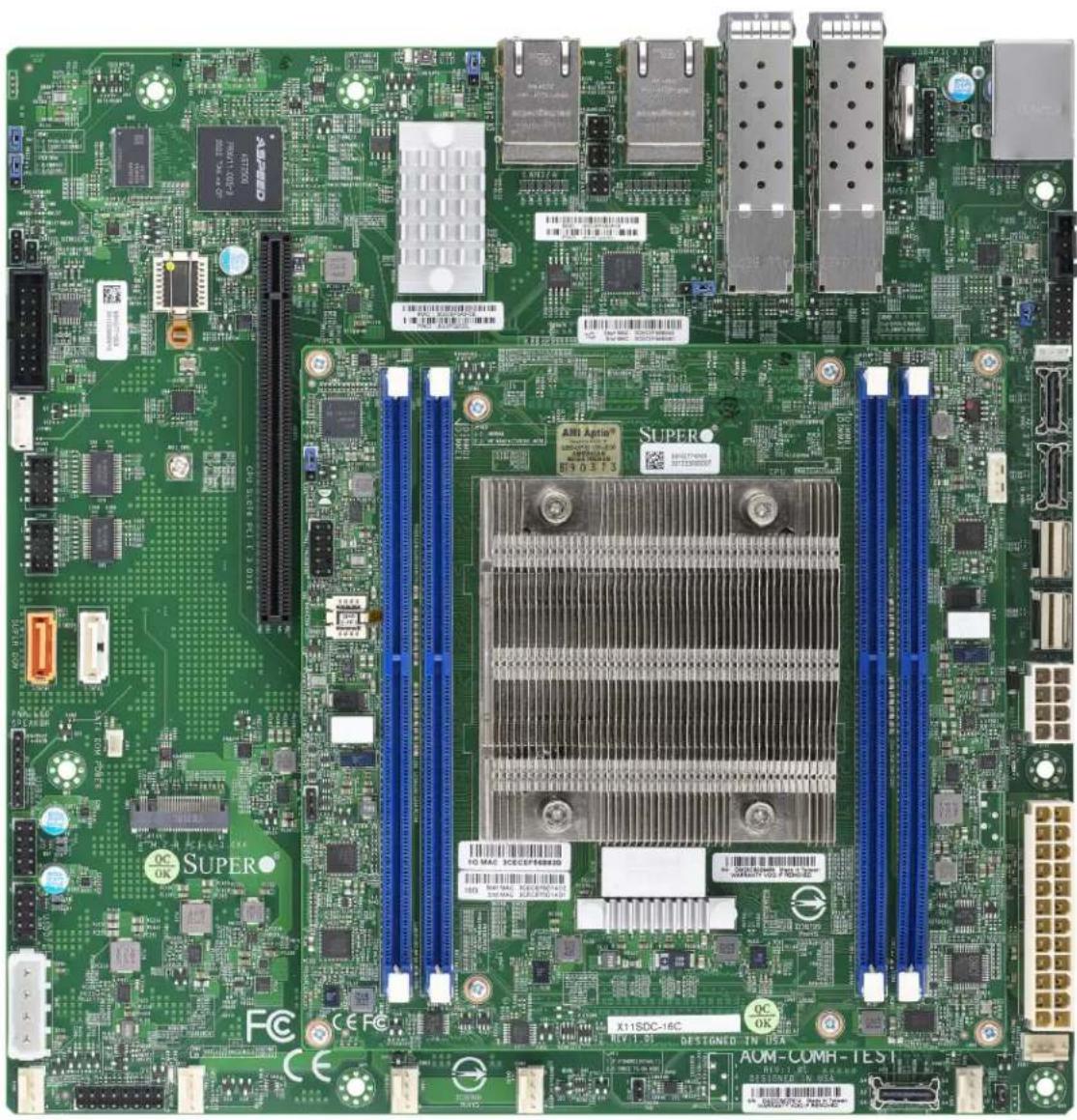

Figure 1-1. X11SDC-4C/8C/16C Module Board Image

Green computer motherboard with CPU socket, RAM slots, and various connectors (no readable text or symbols)

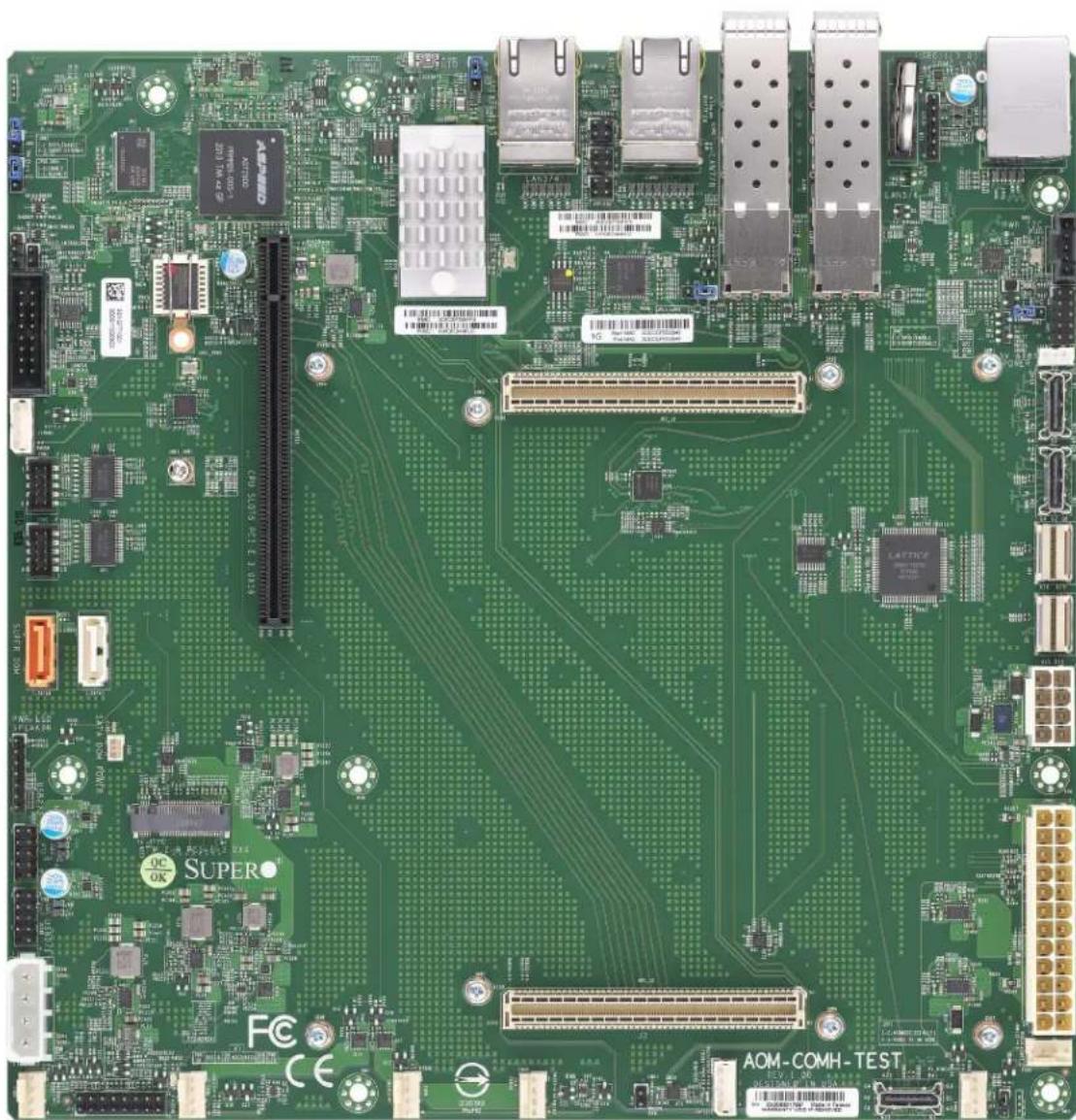

Figure 1-2. AOM-COMH-TEST Carrier Board Image

Green printed circuit board with various electronic components and connectors (no readable text or symbols)

Figure 1-3. X11SDC-4C/8C/16C Module Board Layout

(not drawn to scale)

Top Layout

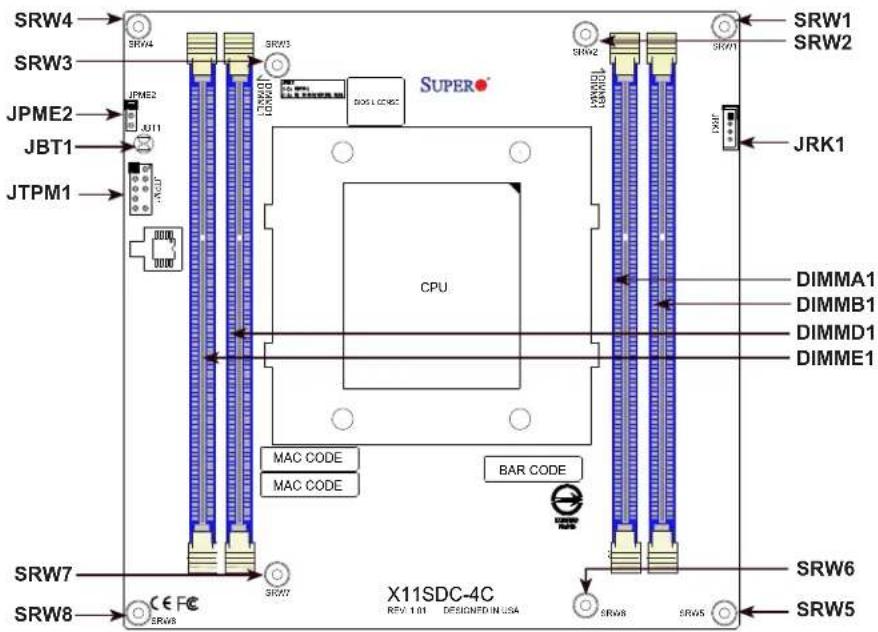

SRW4 JPME2 B11 JCPA CPU MAC CODE MAC CODE BAR CODE X11SDC-4C REV: 1.01 DESIGNED IN USA SRW6 SRW5

Bottom Layout

Technical drawing of a mechanical component with mounting holes and internal square feature (no text or symbols)

Note: Components not documented are for internal testing only.

Quick Reference

Top Layout

SRW4 SRW3 JPME2 JBT1 JTPM1 SRW7 SRW8 CE FC SRW8 X11SDC-4C REV 101 DESIGNED IN USA CPU MAC CODE MAC CODE BAR CODE SRW6 SRW5 SRW7 SRW8 SRW9 SRW10 SRW11 SRW12 SRW13 SRW14 SRW15 SRW16 SRW17 SRW18 SRW19 SRW20 SRW21 SRW22 SRW23 SRW24 SRW25 SRW26 SRW27 SRW28 SRW29 SRW30 SPEROS DIMMA1 DIMMB1 DIMMD1 DIMME1

Bottom Layout

J1 J2

Notes:

• See Chapter 2 for detailed information on jumpers, LED indicators, and I/O ports. Jumpers and LEDs not indicated are used for testing only.
- "indicates the location of Pin 1."

Quick Reference Table for X11SDC-4C/8C/16C

Jumper Description Default Setting

JBT1 CMOS Clear Open (Normal)

JPME2 Manufacturing Mode Select Pins 1-2 (Normal)

Connector Description

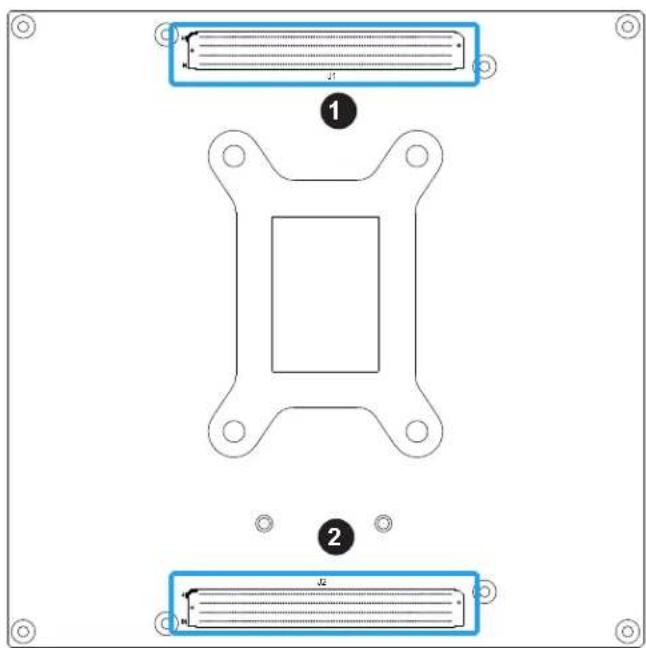

J1, J2 Module Board Connector

JRK1 Intel RAID Key Header

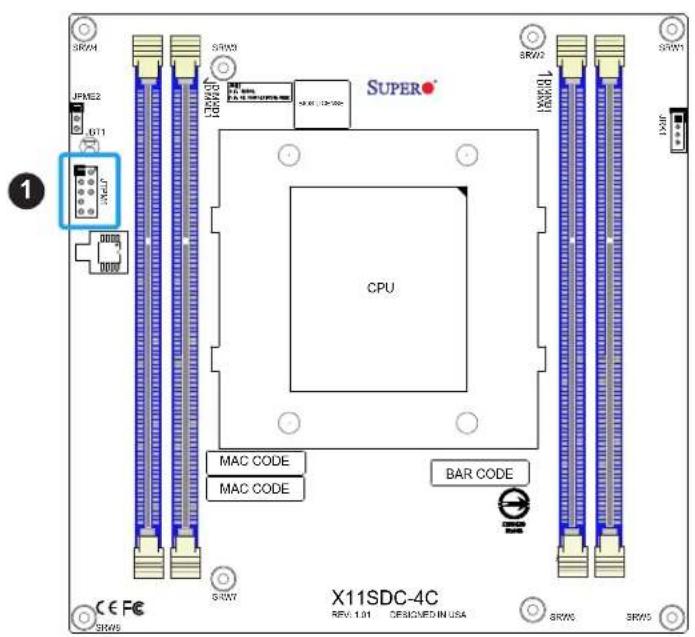

JTPM1 Trusted Platform Module (TPM)/Port 80 Connector

SRW1 - SRW8 Module Holding Screws

Figure 1-4. AOM-COMH-TEST Carrier Board Layout

(not drawn to scale)

Quick Reference Table for AOM-COMH-TEST

Jumper Description Default Setting

JBM1 IPMI Share LAN Enable/Disable Open (Enabled)

JBM2 IPMI Dedicated LAN Enable/Disable Open (Enabled)

JPF1 Power Mode Selection Pins 1-2 (ATX Mode)

JPG1 Onboard VGA Enable/Disable Pins 1-2 (Enabled)

JPL1 LAN1 Enable/Disable Pins 1-2 (Enabled)

JPL2 LAN3/4 Enable/Disable Pins 1-2 (Enabled)

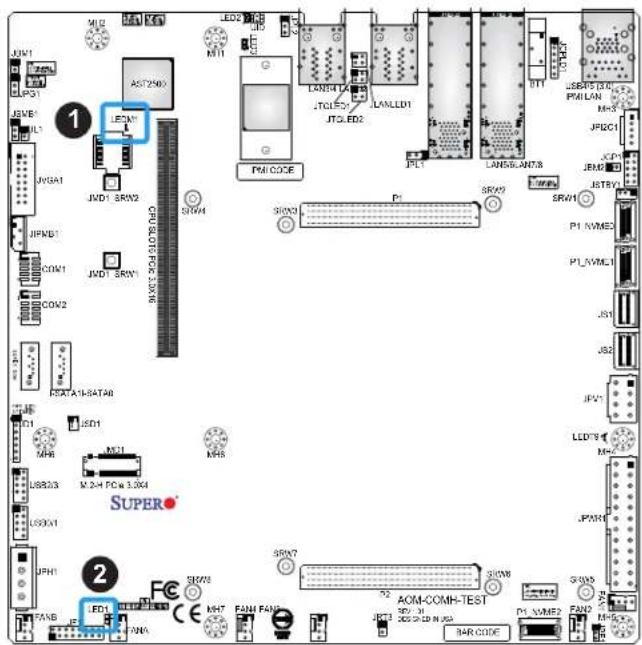

LED Description Status

LED1 Power LED		Solid Green: Power On

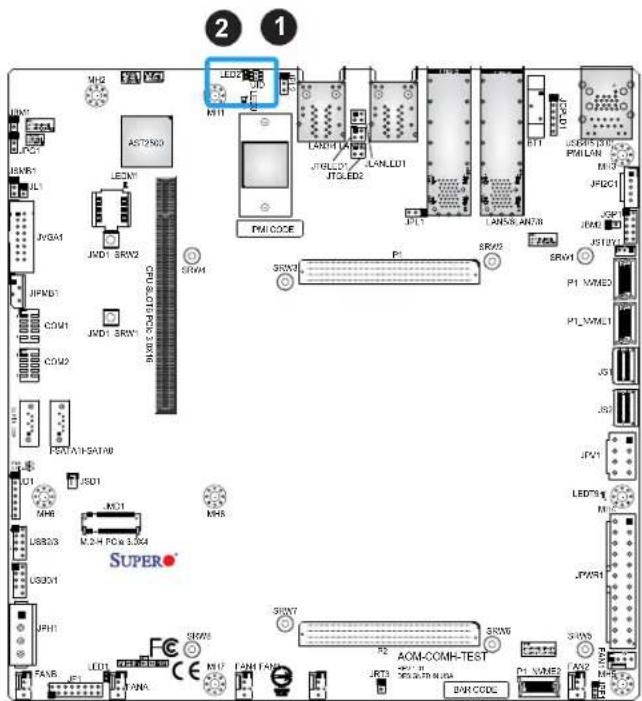

LED2	UID LED	Solid Blue: Unit Identified
LED3 Overheat/Power Fail/Fan Fail LED		Solid Red: OverheatBlinking Red: Power/Fan Fail
LEDM1	BMC Heartbeat LED	Blinking Green: Device Working

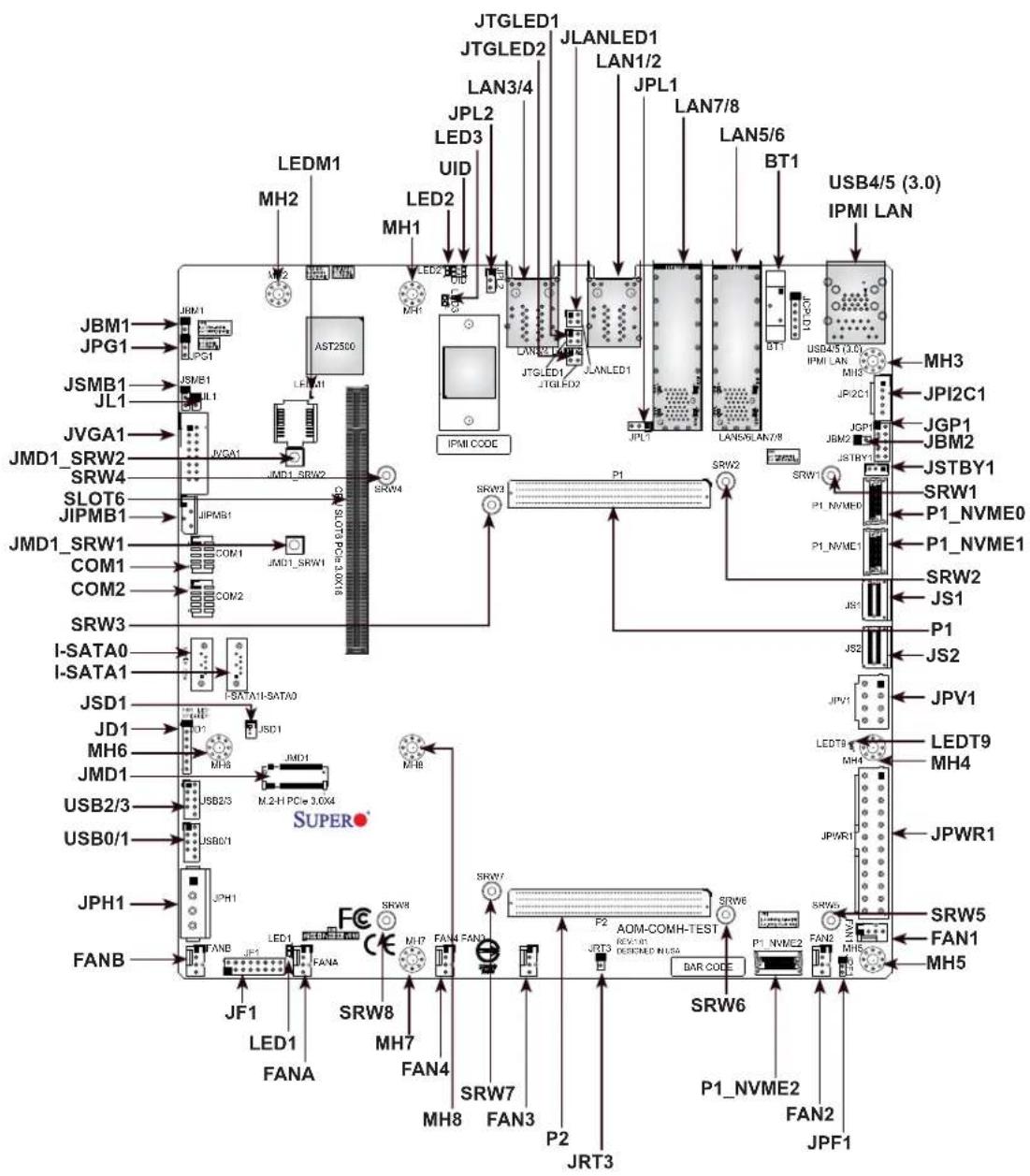

Connector	Description
BT1	Onboard Battery
COM1, COM2	COM Port Header
FAN1 - FAN4, FANA, FANB	CPU/System Fan Headers (FAN1: CPU Fan)
I-SATA0, I-SATA1	SATA 3.0 Ports
IPMI LAN	Dedicated IPMI LAN Port
JD1	Power LED/Speaker Header (Pins 1-3: Power LED, Pins 4-7: Speaker)
JF1	Front Control Panel Header
JGP1	General Purpose I/O Header
JIPMB1	System Management Bus Header (for IPMI only)
JL1	Chassis Intrusion Header
JLANLED1	LAN3/4 Activity LED Header
JMD1	M.2 Slot M-Key 2280/22110 (PCIe x4)
JMD1_SRW1, JMD1_SRW2	M.2 Mounting Screws for JMD1
JPH1	4-pin HDD Power Connector
JPI^2C1	Power I^2C System Management Bus (Power SMB) Header
JPWR1	24-pin ATX Power Connector (Required)
JPV1	8-pin CPU Power Connector (Required)
JRT3	Temperature Sensor Header
JS1, JS2	SlimSAS PCIe 3.0 x4 Connectors
JSD1	SATA DOM Power Connector
JSMB1	System Management Bus Header
JSTBY1	5V Standby Power Header

Note: The table above is continued on the next page.

Connector Description

JTGLED1 LAN5/6 Activity LED Header

JTGLED2 LAN7/8 Activity LED Header

JVGA1 VGA Header

LAN1/2, LAN3/4 1GbE LAN Ports

LAN5/6, LAN7/8 10GbE LAN Ports

MH1 - MH8 Mounting Holes

P1, P2 Carrier Board Connectors

P1_NVME0, P1_NVME1,

OCulink PCIe 3.0 x4 Connectors

P1_NVME2

SLOT6 CPU SLOT6 PCIe 3.0 x16

SRW1 - SRW8 Module Holding Screws

UID Unit Identifier Switch

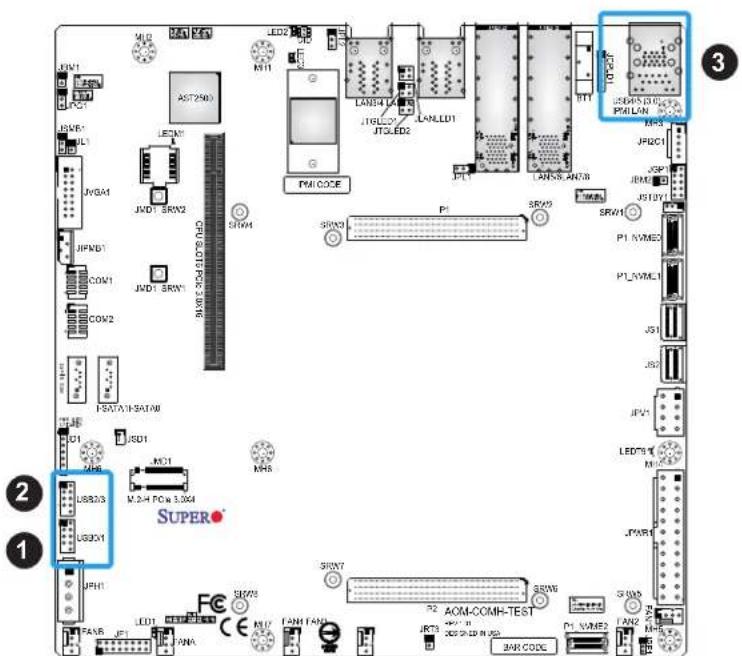

USB0/1, USB2/3 Front Accessible USB 2.0 Headers

USB4/5 Back panel USB 3.0 Ports

Module Board Features

CPU

• Supports Intel® Xeon D-2100 SoC Series SoC with TDP of up to 100W

Memory

• Supports up to 256GB of RDIMM or 512GB of ECC LRDIMM DDR4 memory with speeds of up to 2400MHz

DIMM Size

• 4GB, 8GB, 16GB, 32GB, 64GB

Network

- Intel i210-IT

Baseboard Management Controller (BMC)

- ASpeed AST2500

BIOS

• 256Mb AMI BIOS® SPI Flash BIOS

• Plug and Play (PnP), ACPI 6.2, UEFI 2.7, SMBIOS 2.8 and 3.2, PCI F/W 3.1

Power Management

• ACPI power management

• CPU fan auto-off in sleep mode

• Power button override mechanism

• Power-on mode for AC power recovery

System Health Monitoring

- Onboard voltage monitors for CPU cores, +1.8V, +3.3V, +5V, +/-12V, +3.3V Stby, +5V Stby, VBAT, HT, Memory, PCH temperature, system temperature, and memory temperature

• CPU phase switching voltage regulator

• CPU/System overheat control

• CPU Thermal Trip support

Other

• RoHS

Dimensions

• Proprietary form factor (160 mm x 160 mm)

Note 1: The CPU maximum thermal design power (TDP) is subject to chassis and heatsink cooling restrictions. For proper thermal management, please check the chassis and heatsink specifications for proper CPU TDP sizing.

Note 2: For IPMI configuration instructions, please refer to the Embedded IPMI Configuration User's Guide available at http://www.supermicro.com/support/manuals/.

Carrier Board Features

Expansion Slots

• One M.2 M-Key 2280/22110 (PCIe 3.0 x4)
• One PCIe 3.0 x16 Slot

I/O Devices

• SATA 3.0
  • OCulink
• SlimSAS

• Two SATA 3.0 Ports
• Three PCIe 3.0 x4 OCulink connectors
• Two PCIe 3.0 x4 slimSAS connectors

Peripheral Devices

• Two Front Accessible USB 2.0 Headers (USB0/1, USB2/3)
• Two Back Panel USB 3.0 Ports (USB4/5)

System Health Monitoring

• Onboard voltage monitors for CPU cores, +1.8V, +3.3V, +5V, +/-12V, +3.3V Stby, +5V Stby, VBAT, HT, Memory, PCH temperature, system temperature, and memory temperature
  • CPU phase switching voltage regulator
  • CPU Thermal Trip support
  • CPU/System overheat control
  • Platform Environment Control Interface (PECI)/TSI

Fan Control

• Fan status monitoring with firmware
• Multi-speed fan control via BMC

System Management

• Platform Environment Control Interface (PECI) 3.2 support
• Intel Node Manager
• IPMI 2.0 with KVM support
- SuperDoctor® 5
• Chassis Intrusion header and detection
• Power supply monitoring

LED Indicators

• CPU/System Overheat LED
• Power/Suspend State Indicator LED
- Fan Fail LED
- UID/Remote UID
- HDD Activity LED
• LAN Activity LED

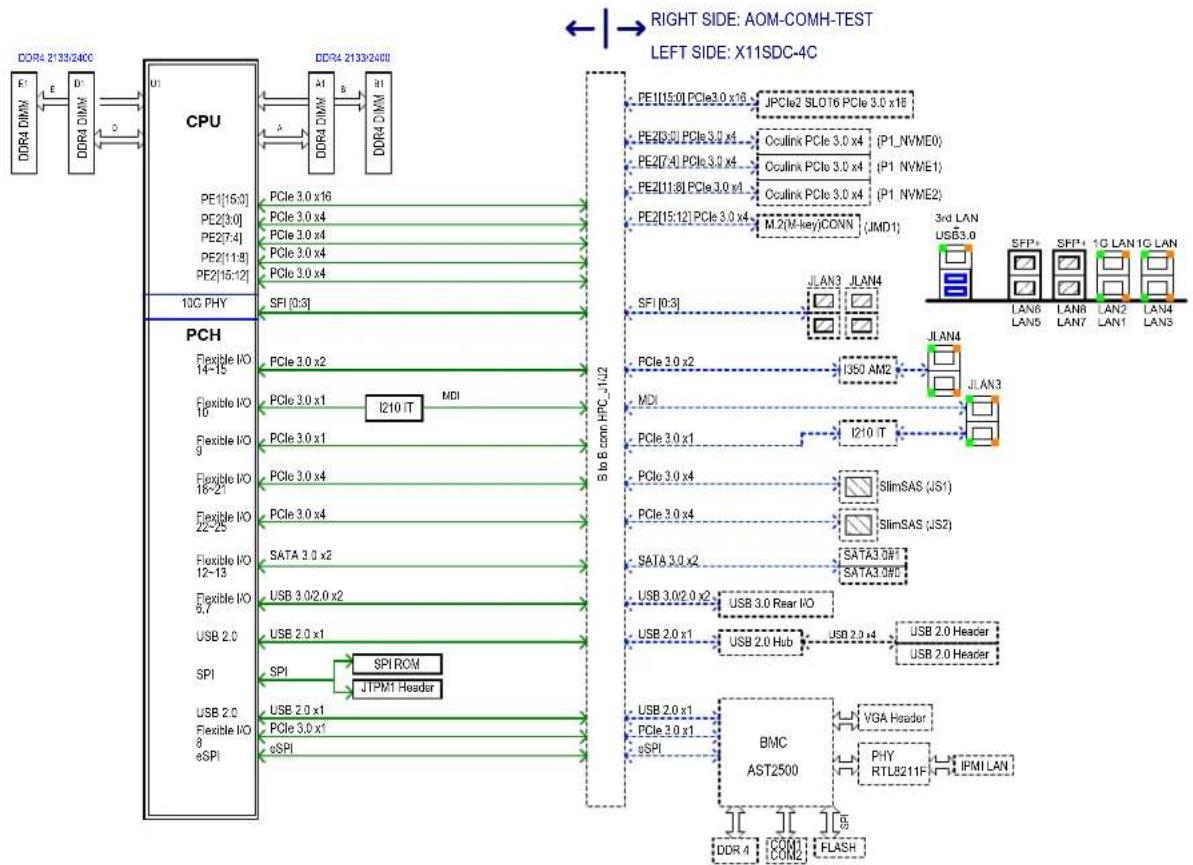

Figure 1-5. Chipset Block Diagram
Note: This is a general block diagram and may not exactly represent the features on your module board. See the previous pages for the actual specifications of your module board.

1.2 Processor Overview

The Intel Xeon D-2100 series SoC processor family, with up to 16 cores and up to 100W of power, offers performance, reliability, and high intelligence. As a low-power system-on-a-chip module board, the X11SDC-4C/8C/16C is optimized for a variety of workloads that requires high compute power in a compact form factor.

• ACPI Power Management Logic Support Rev. 4.0a
• Intel Turbo Boost Technology
• Adaptive Thermal Management/Monitoring
• PCIe 3.0, SATA 3.0, NVMe
• System Management Bus (SMBus) Specification Version 2.0
• Intel Trusted Execution Technology (Intel TXT)
• Intel Rapid Storage Technology
• Intel Virtualization Technology for Directed I/O (Intel VT-d)

1.3 Special Features

This section describes the health monitoring features of the module board. The module board has an onboard System Hardware Monitor chip that supports system health monitoring.

Recovery from AC Power Loss

The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on), or for it to automatically return to the power-on state. See the Advanced BIOS Setup section for this setting. The default setting is Last State.

1.4 System Health Monitoring

The module board has an onboard Baseboard Management Controller (BMC) chip that supports system health monitoring.

Onboard Voltage Monitors

The onboard voltage monitor will continuously scan crucial voltage levels. Once a voltage becomes unstable, it will give a warning or send an error message to the screen. Users can adjust the voltage thresholds to define the sensitivity of the voltage monitor. Real time readings of these voltage levels are all displayed in IPMI.

Fan Status Monitor with Firmware Control

The system health monitor chip can check the RPM status of a cooling fan. The CPU and chassis fans are controlled by BIOS Thermal Management through the BMC. Refer to the below table for available fan modes to choose the most appropriate one for nominal operation.

Environmental Temperature Control

System Health sensors monitor temperatures and voltage settings of onboard processors and the system in real time via the IPMI interface. Whenever the temperature of the CPU or the system exceeds a user-defined threshold, system/CPU cooling fans will be turned on to prevent the CPU or the system from overheating.

Figure 1-7. Fan Speed Modes

Fan Mode Description
Full Speed Use	this mode to set fan speed at full speed for maximum system cooling
Standard Use th	is mode to set fan speed for normal system cooling
Heavy I/O Use	this mode to set fan speed for higher PCIe add-on card area cooling

Note: To avoid possible system overheating, please provide adequate airflow to your system.

System Resource Alert

This feature is available when used with SuperDoctor 5® in the Windows OS or in the Linux environment. SuperDoctor is used to notify the user of certain system events. For example, you can configure SuperDoctor to provide you with warnings when the system temperature, CPU temperatures, voltages and fan speeds go beyond a predefined range.

1.5 ACPI Features

The Advanced Configuration and Power Interface (ACPI) specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system, including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as CD-ROMs, network cards, hard disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also provides a generic system event mechanism for Plug and Play and an operating system-independent interface for configuration control. ACPI leverages the Plug and Play BIOS data structures, while providing a processor architecture-independent implementation that is compatible with Windows 2012/R2 and 2016 Server operating systems.

1.6 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates. In areas where noisy power transmission is present, you may choose to install a line filter to shield the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges.

The module board supports an 8-pin 12V DC input power supply at JPV1 for custom system design. When used in conjunction with PN: AOM-COMH-TEST, the input power source will come from the AOM via the board to board connectors (P1, P2). Over current power usage may cause damage to the module board.

1.7 Serial Port

The X11SDC-4C/8C/16C supports two serial communication connections through AOM-COMH-TEST, either via the serial console connector or micro USB connector. COM Port can be used for input/output or console redirection. The UART provides legacy speeds with a baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support high-speed serial communication devices.

Chapter 2

Installation

2.1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your module board, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing the board from the antistatic bag.
• Handle the board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the module board and peripherals back into their antistatic bags when not in use.
• For grounding purposes, make sure your computer chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the module board.
• Use only the correct type of onboard CMOS battery. Do not install the onboard battery upside down to avoid possible explosion.

Unpacking

The module board is shipped in antistatic packaging to avoid static damage. When unpacking it, make sure that you are static protected.

2.2 Module Board Installation

All module boards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the module board and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the module board to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Phillips Screwdriver (1)

Phillips Screws (8)

Standoffs (8) Only if Needed

Tools Needed

SRW4 JPME2 JBT1 LTDt 3000 SRW3 SRW2 SUPER CPU MAC CODE MAC CODE BAR CODE X11SDC-4C REV 1.01 DESIGNED IN USA SRW6 SRW5

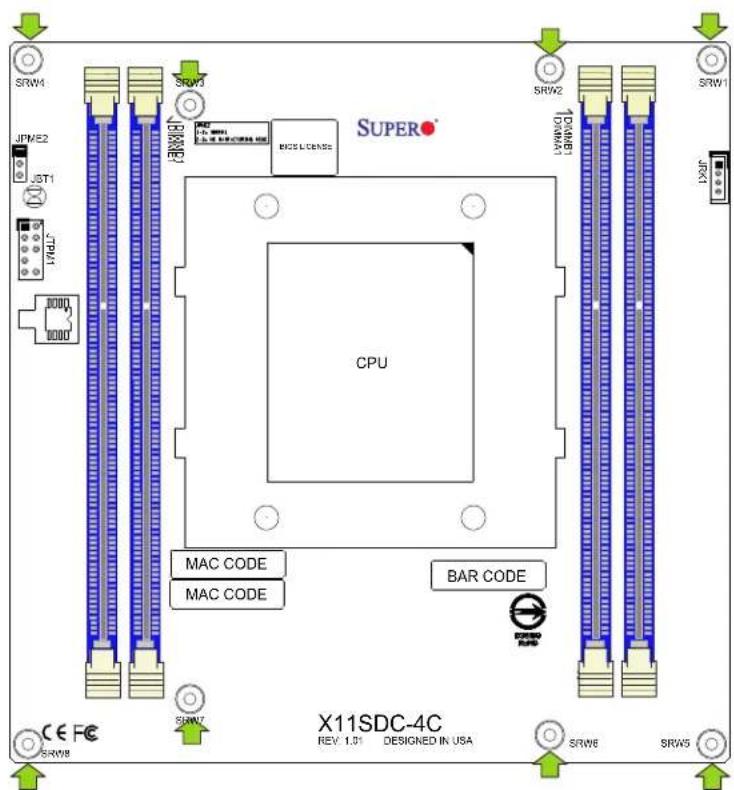

Location of Mounting Holes

Note: 1) To avoid damaging the module board and its components, please do not use a force greater than 8 lb/inch on each mounting screw during module board installation. 2) Some components are very close to the mounting holes. Please take precautionary measures to avoid damaging these components when installing the module board to the chassis.

Installing the Module Board

1. Locate the mounting holes on the module board. See the previous page for the location.

Chassis Chassis

1. Locate the matching mounting holes on the chassis. Align the mounting holes on the module board against the mounting holes on the chassis.

3x5 Motherboard Chassis 3x5 Motherboard Chassis

1. Install standoffs in the chassis as needed.

2. Install the module board into the chassis carefully to avoid damaging other module board components.

3. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on the module board and its matching mounting hole on the chassis.

4. Repeat Step 5 to insert #6 screws into all mounting holes.

5. Make sure that the module board is securely placed in the chassis.

Note: Images displayed are for illustration only. Your chassis or components might look different from those shown in this manual.

2.3 Memory Support and Population

Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.

Memory Support

The module board supports up to 256GB of RDIMM or 512GB of ECC LRDIMM DDR4 memory in four memory slots. Populating these DIMM slots with memory modules of the same type and size will result in interleaved memory, which will improve memory performance.

DIMM Module Population Configuration

For optimal memory performance, follow the table below when populating memory.

Memory Population (Balanced)
DIMMA1 D	MMB1 DIMMD	D1 DIMME1		Total System Memory
4GB 4GB	8GB
4GB 4GB	4GB 16GB
8GB 8GB	16GB
4GB 4GB	4GB 16GB
8GB 8GB	8GB 24GB
8GB 8GB	8GB 8GB 32GB
16GB 16GB	32GB
16GB 16GB	16GB 48GB
16GB 16GB	16GB 16GB	64GB
32GB 32GB	64GB
32GB 32GB	32GB 96GB
32GB 32GB	32GB 32GB	128GB
64GB 64GB	128GB
64GB 64GB	64GB 192GB
64GB 64GB	64GB 64GB	256GB
128GB	128GB			256GB
128GB	128GB	128GB		384GB
128GB	128GB	128GB	128GB	512GB

DIMM Module Population Sequence

When installing memory modules, the DIMM slots should be populated in the following order: DIMMA1, DIMMB1, DIMMD1, DIMME1.

• Always use DDR4 DIMM modules of the same type and speed.
- Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
- The module board will support odd-numbered modules (one or three modules installed). However, for best memory performance, install DIMM modules in pairs to activate memory interleaving.

SRW4 JPM2 JBT1 1/RTI CPU MAC CODE MAC CODE BAR CODE X11SDC-4C REV 1.01 DESIGNED IN USA SRW5 SRW6 SRW7 SPER 12CMW01 (EMBA1) SRW2 SRW1 DIMMA1 DIMMB1 DIMMD1 DIMME1 CE FC SRW6

DIMM Installation

1. Insert the desired number of DIMMs into the memory slots, starting with DIMMA1, DIMMB1, DIMMD1, DIMME1. For best performance, please use the memory modules of the same type and speed.
2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.
3. Align the key of the DIMM module with the receptive point on the memory slot.
4. Align the notches on both ends of the module against the receptive points on the ends of the slot.
5. Press both ends of the module straight down into the slot until the module snaps into place.
6. Press the release tabs to the lock positions to secure the DIMM module into the slot.

DIMM Removal

Press both release tabs on the ends of the DIMM module to unlock it. Once the DIMM module is loosened, remove it from the memory slot.

SUPER CPU MAC CODE MAC CODE BAR CODE X11SDC-4C

Technical illustration of a mechanical component with no visible text or symbols

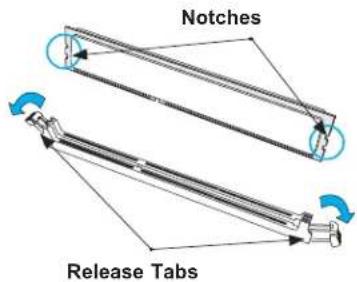

Notches Release Tabs

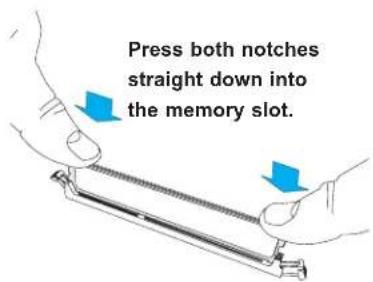

Press both notches straight down into the memory slot.

2.4 Connectors and Headers for X11SDC

Intel RAID Key Header

The JRK1 header allows you to enable RAID functions for NVMe connections. Refer to the table below for pin definitions.

Intel RAID Key HeaderPin Definitions
Pin# Definition
1 GND
2 PU 3.3V Stdby
3	GND
4	PCH RAID KEY

SIPW JPM2.2 LBT1 I/O CPU MAC CODE MAC CODE BAR CODE X11SDC-4C REV: 1.01 DESIGNED IN USA SRWS SRWS SPER IDWA1 IDWA2 SRWS SRWS 1

1. Intel RAID Key Header

J1 and J2

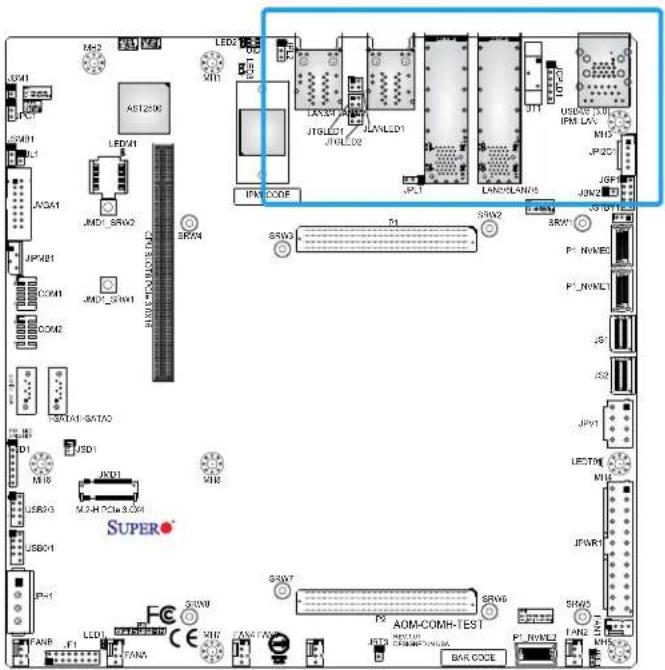

Connect J1 and J2 to P1 and P2 of the AOM-COMH-TEST carrier board to form the module board. The pin definition table for J1 is on page 32 and the table for J2 is on page 33.

Technical diagram showing two labeled components (1 and 2) with internal structure and mounting holes, likely for mechanical or electrical assembly reference.

1. Module Board Connector
2. Module Board Connector

Primary (lower) Connector J1 Pin Definitions
Pin#	Row A	Row B	Row C	Row D	Pin#	Row A	Row B	Row C	Row D
1 VCC	VCC VCC VCC 51	eSPI_IO1 GND
2	VCC	PWRBTN#	RSTBTN#	VCC	52	eSPI_IO2	eSPI_ALERT0#		SATA0_TX-
3 VCC	VCC VCC VCC 53	eSPI_IO3					eSPI_ALERT0#(RSVD)		SATA0_TX+
4	VCC	THERMTRIP#		VCC	54	eSPI_CLK	eSPI_CS0#		GND
5	VCC	VCC	VCC	VCC	55	GND	eSPI_CS1#(RSVD)	GND	SATA1_RX-
6	VCC	TAMPER#	VIN_PWROK	VCC	56	PCIe_CLKREQ0# (RSVD)	eSPI_RST#	PCIe_REFCLK0_HI-	SATA1_RX+
7 VCC	VCC VCC VCC 57					PCIe_CLKREQ1# (RSVD)	GND	PCIe_REFCLK0_HI-	GND
8	VCC	SUS_S3#	SUS_S4_S5#	VCC	58	GND	PCIe_BMC_RX-	GND	SATA1_TX-
9 VCC	VCC VCC VCC 59	PCIe_BMC_TX-	PCIe_BMC_RX+					PCIe_REFCLK0_LO-	SATA1_TX+
10	GND		GND	WAKE0#	60	PCIe_BMC_TX+	GND	PCIe_REFCLK0_LO+	GND
11				WAKE1#	61	GND	PCIe08_RX-	GND	PCIe00_TX-
12	PLTRST#	GND		GND	62	PCIe08_TX-	PCIe08_RX+	PCIe00_RX-	PCIe00_TX+
13	GND	USB5-	GND		63	PCIe08_TX+	GND	PCIe00_RX+	GND
14		USB5+	USB3-		64	GND	PCIe09_RX-	GND	PCIe01_TX-
15		GND	USB3+	GND	65	PCIe09_TX-	PCIe09_RX+	PCIe01_RX-	PCIe01_TX+
16	GND	USB4-	GND		66	PCIe09_TX+	GND	PCIe01_RX+	GND
17		USB4+	USB2-		67	GND	PCIe10_RX-	GND	PCIe02_TX-
18		GND	USB2+		68	PCIe10_TX-	PCIe10_RX+	PCIe02_RX-	PCIe02_TX+
19	GND	ETH0_I2C_CLK	GND	ETH0_RX-	69	PCIe10_TX+	GND	PCIe02_RX+	GND
20		ETH0_I2C_DAT	ETH0_TX-	ETH0_RX+	70	GND	PCIe11_RX-	GND	PCIe03_TX-
21			ETH0_TX+	GND	71	PCIe11_TX-	PCIe11_RX+	PCIe03_RX-	PCIe03_TX+
22	GND	VCC_5V_SBY	GND	ETH1_RX-	72	PCIe11_TX+	GND	PCIe03_RX+	GND
23		VCC_5V_SBY	ETH1_TX-	ETH1_RX+	73	GND	PCIe12_RX-	GND	PCIe04_TX-
24		VCC_5V_SBY	ETH1_TX+	GND	74	PCIe12_TX-	PCIe12_RX+	PCIe04_RX-	PCIe04_TX+
25	GND	USB67_OC#	GND	ETH2_RX-	75	PCIe12_TX+	GND	PCIe04_RX+	GND
26		USB45_OC#	ETH2_TX-	ETH2_RX+	76	GND	PCIe13_RX-	GND	PCIe05_TX-
27		USB23_OC#	ETH2_TX+	GND	77	PCIe13_TX-	PCIe13_RX+	PCIe05_RX-	PCIe05_TX+
28	GND	USB01_OC#	GND	ETH3_RX-	78	PCIe13_TX+	GND	PCIe05_RX+	GND
29	ETH1_I2C_CLK	SML1_CLK	ETH3_TX-	ETH3_RX+	79	GND	PCIe14_RX-	GND	PCIe06_TX-
30	ETH1_I2C_DAT	SML1_DAT	ETH3_TX+	GND	80	PCIe14_TX-	PCIe14_RX+	PCIe06_RX-	PCIe06_TX+
31	GND		GND	USB3_SSTX-	81	PCIe14_TX+	GND	PCIe06_RX+	GND
32	ETH2_I2C_CLK	SML0_CLK	USB3_SSRX-	USB3_SSTX+	82	GND	PCIe15_RX-	GND	PCIe07_TX-
33	ETH2_I2C_DAT	SML0_DAT	USB3_SSRX+	GND	83	PCIe15_TX-	PCIe15_RX+	PCIe07_RX-	PCIe07_TX+
34	GND		GND	USB2_SSTX-	84	PCIe15_TX+	GND	PCIe07_RX+	GND
35	ETH3_I2C_CLK		USB2_SSRX-	USB2_SSTX+	85	GND		GND	NBASET0_MDI0-
36	ETH3_I2C_DAT		USB2_SSRX+	GND	86	VCC_RTC		SMB_CLK	NBASET0_MDI0+
37	GND		GND		87	SUS_CLK		SMB_DAT	GND
38					88 GFIO_00			SMB_ALERT#(RSVD)	NBASET0_MDI1-
39				GND	89 GFIO_01		UART0_TX	NASETO_MDI1+
40	GND		GND		90	GPIO_02		UART0_RX	GND
41					91 GFIO_03				NBASET0_MDI2-
42		GND		GND	92 GFIO_04				NBASET0_MDI2+
43	GND		GND		93	GPIO_05		I2C0_CLK	GND
44					94 GFIO_06		I2C0_DAT	NASETO_MDI3-
45				GND	95 GFIO_07				NASETO_MDI3+
46			GND		96 GFIO_08			GND
47					97 GFIO_09				NASETO_LINK_MAX#
48				GND	98 GFIO_10				NASETO_LINK MID#
49 GND		GND		99 GPIO_11					NASETO_LINK_ACT#
50	eSPI_IO0			SATAO_RX+	100	PINOUT_TYPE0		PINOUT_TYPE1	PINOUT_TYPE2
Secondary (upper) Connector J2 Pin Definitions
Pin# Row E Row F Row		G Row H Pin# Row E Row F Row		G Row H
1 ETH-2_SDP 51 PCIe18		TX-PCIe18_RX+	PCIe26_RX-PCIe26_TX+
2	VCC	ETH3_SDP			52	PCIe18_TX+	GND	PCIe26_RX+	GND
3					53	GND	PCIe19_RX-	GND	PCIe27_TX-
4					54 PCIe19_TX-PCIe19_RX+	PCIe27_RX-PCIe27_TX+
5	GND				55	PCIe19_TX+	GND	PCIe27_RX+	GND
6					56	GND	PCIe20_RX-	GND	PCIe28_TX-
7					57 PCIe20_TX-PCIe20_RX+	PCIe28_RX-PCIe28_TX+
8	GND				58	PCIe20_TX+	GND	PCIe28_RX+	GND
9					59	GND	PCIe21_RX-	GND	PCIe29_TX-
10					60 PCIe21_TX-PCIe21_RX+	PCIe29_RX-PCIe29_TX+
11	GND				61	PCIe21_TX+	GND	PCIe29_RX+	GND
12					62	GND	PCIe22_RX-	GND	PCIe30_TX-
13					63 PCIe22_TX-PCIe22_RX+	PCIe30_RX-PCIe30_TX+
14	GND		GND		64	PCIe22_TX+	GND	PCIe30_RX+	GND
15					65	GND	PCIe23_RX-	GND	PCIe31_TX-
16					66 PCIe23_TX-PCIe23_RX+	PCIe31_RX-PCIe31_TX+
17	GND				67	PCIe23_TX+	GND	PCIe31_RX+	GND
18					68	GND	PCIe48_RX-	GND	PCIe56_TX-
19		GND		GND 69 PCIe48_TX-	PCIe48_RX+PCIe56_RX-	PCIe56_TX+
20	GND	PCIe32_RX-	GND	PCIe40_TX-	70	PCIe48_TX+	GND	PCIe56_RX+	GND
21	PCIe32_TX-	PCIe32_RX+	PCIe40_RX-	PCIe40_TX+	71	GND		GND
22 PCIe32_TX+ GND PCIe40_RX+ GND 72
23	GND	PCIe33_RX-	GND	PCIe41_TX-	73		GND		GND
24	PCIe33_TX-	PCIe33_RX+	PCIe41_RX-	PCIe41_TX+	74	GND		GND
25 PCIe33_TX+ GND PCIe41_RX+ GND 75
26	GND	PCIe34_RX-	GND	PCIe42_TX-	76		GND		GND
27	PCIe34_TX-	PCIe34_RX+	PCIe42_RX-	PCIe42_TX+	77	GND		GND
28 PCIe34_TX+ GND PCIe42_RX+ GND 78
29	GND	PCIe35_RX-	GND	PCIe43_TX-	79		GND		GND
30	PCIe35_TX-	PCIe35_RX+	PCIe43_RX-	PCIe43_TX+	80	GND		GND
31 PCIe35_TX+ GND PCIe43_RX+ GND 81
32	GND	PCIe36_RX-	GND		82		GND		GND
33 PCIe36_TX- PCIe36_RX+ 83 GND GND GND
34 PCIe36_TX+ GND GND 84
35	GND	PCIe37_RX-	GND		85		GND		GND
36 PCIe37_TX- PCIe37_RX+ 86 GND GND GND
37 PCIe37_TX+ GND GND 87
38	GND	PCIe38_RX-	GND		88		GND		GND
39 PCIe38_TX- PCIe38_RX+ 89 GND GND GND
40 PCIe38_TX+ GND GND 90
41	GND	PCIe39_RX-	GND		91		GND		GND
42	PCIe39_TX-	PCIe39_RX+			92	GND	PCIe_REFCLK2-
43	PCIe39_TX+	GND		GND	93	PCIe_REFCLK1-	PCIe_REFCLK2+	PCIe_REFCLK3-
44	GND	PCIe16_RX-	GND	PCIe24_TX-	94	PCIe_REFCLK1+	GND	PCIe_REFCLK3+	GND
45	PCIe16_TX-	PCIe16_RX+	PCIe24_RX-	PCIe24_TX+	95	GND	PCIe_CLKREQ3#(RSVD)	GND
46 PCIe16_TX+ GND PCIe24_RX+ GND 96						PCIE_CLKREQ2#(RSVD)
47 GND PCIe17_RX- GND PCIe25_TX- 97						PCIE_CLKREQ3#(RSVD)			GND
48	PCIe17_TX-	PCIe17_RX+	PCIe25_RX-	PCIe25_TX+	98
49	PCIe17_TX+	GND	PCIe25_RX+	GND	99		ETH0_SDP
50	GND	PCIe18_RX-	GND	PCIe26_TX-	100		ETH1_SDP

TPM/Port 80 Header

A Trusted Platform Module (TPM)/Port 80 header is located at JTPM1 to provide TPM support and Port 80 connection. Use this header to enhance system performance and data security. Refer to the table below for pin definitions. Please go to the following link for more information on the TPM: http://www.supermicro.com/manuals/other/TPM.pdf.

Trusted Platform Module HeaderPin Definitions
Pin# Definition Pin# Definition
1 +3.3V 2 SPI_CS#
3 RESET# 4 SPI_MISO
5 SPI_CLK 6 GND
7 SPI_MOSI 8 NC
9 +3.3V Stdby 10 SPI_IRQ#

SRW4 JPM2 GT1 JPM3 CPU MAC CODE MAC CODE BAR CODE X11SDC-4C REV: 1.01 DESIGNED IN USA SRW5 SRW6 SRW7 SPER 10/WR91 10/WR81 SRW1 10/WR7 10/WR6 SRW5 CE FE SRW5 X11SDC-4C

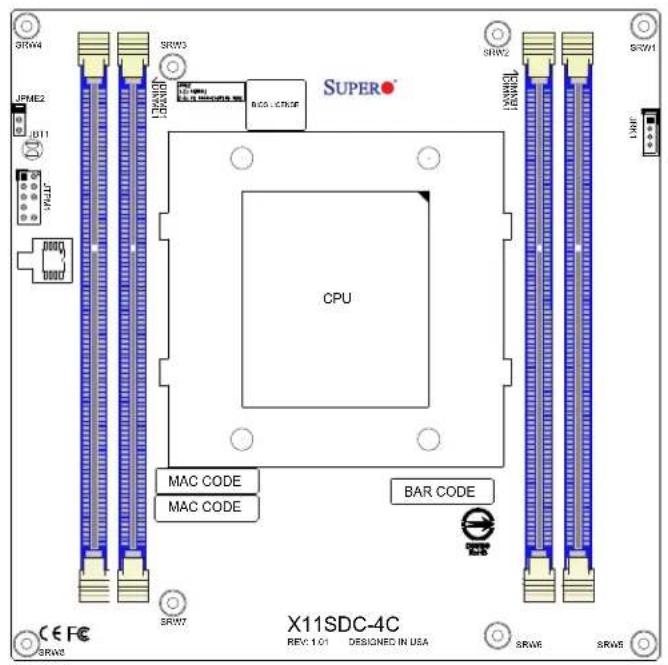

1. TPM Header

2.5 Jumper Settings for X11SDC

How Jumpers Work

To modify the operation of the module board, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2. Refer to the module board layout page for jumper locations.

Note: On two-pin jumpers, Closed means the jumper is on the pins and Open means the jumper is off.

Connector Pins Jumper Setting 3 2 1 ● ● ■ 3 2 1

CMOS Clear

JBT1 is used to clear the CMOS. Instead of pins, this jumper consists of contact pads to prevent accidental clearing of the CMOS. To clear the CMOS, use a metal object such as a small screwdriver to touch both pads at the same time to short the connection.

Note: Shut down the system and then short JBT1 to clear the CMOS.

Manufacturing Mode Select

Close pins 2-3 of jumper JPME2 to bypass SPI flash security and force the system to operate in the manufacturing mode, which will allow you to flash the system firmware from a host server for system setting modifications. Refer to the table below for jumper settings.

Manufacturing ModeJumper Settings

Jumper Setting Definition

Pins 1-2 Normal (Default)

Pins 2-3 Manufacturing Mode

JPM2 JPM3 SPWR1 SPWR2 SPWR3 SPWR4 CPU MAC CODE MAC CODE BAR CODE X11SDC-4C REV: 1.01 DESIGNED IN USA CE F€ SWWS X11SDC-4C REV: 1.01 DESIGNED IN USA SRWS SRWS

1. CMOS Clear
2. Manufacturing Mode

2.6 Rear I/O Ports for AOM-COMH-TEST

See Figure 2-1 below for the locations and descriptions of the various I/O ports on the rear of the carrier board.

LED2 XT1 LED3 XT2 LED4 XT3 LED5 XT4 LED6 XT5 LED7 XT6 LED8 XT7 LED9 XT8 LED10 XT9 LED11 XT10 LED12 XT11 LED13 XT12 LED14 XT13 LED15 XT14 LED16 XT15 LED17 XT16 LED18 XT17 LED19 XT20 LED21 XT21 LED22 XT22 LED23 XT23 LED24 XT24 LED25 XT25 LED26 XT26 LED27 XT27 LED28 XT28 LED29 XT29 LED30 XT30 LED31 XT31 LED32 XT32 LED33 XT33 LED34 XT34 LED35 XT35 LED36 XT36 LED37 XT37 LED38 XT38 LED39 XT39 LED40 XT40 LED41 XT41 LED42 XT42 LED43 XT43 LED44 XT44 LED45 XT45 LED46 XT46 LED47 XT47 LED48 XT48 LED49 XT49 LED50 XT50 LED51 XT51 LED52 XT52 LED53 XT53 LED54 XT54 LED55 XT55 LED56 XT56 LED57 XT57 LED58 XT58 LED59 XT59 LED60 XT60 XT60 LED61 XT61 LED62 XT62 LED63 XT63 LED64 XT64 LED65 XT65 LED66 XT66 LED67 XT67 LED68 XT68 LED69 XT69 LED70 XT70 LED71 XT71 LED72 XT72 LED73 XT73 LED74 XT74 LED75 XT75 LED76 XT76 LED77 XT77 LED78 XT78 LED79 XT79 LED80 XT80 XT80

Figure 2-1. I/O Port Locations and Definitions

Diagram showing 12 labeled network device units with internal components and connection points

I/O Back Panel Description
#	Description	#	Description	#	Description
1. IPMI LAN 6. LAN8 11. LAN3
2. USB5 (USB3.0) 7. LAN7		12. UID	Switch
3. USB4 (USB3.0) 8. LAN2
4. LAN6 9. LAN1
5. LAN5 10. LAN4

LAN Ports

The carrier board has 8 LAN ports. LAN1 – LAN4 are 1G ports, and LAN5 - LAN8 are 10G SFP+ ports. In addition to the LAN ports, the carrier board offers a dedicated IPMI LAN port. Refer to the table below for the pin definitions.

LAN PortPin Definition
Pin# Definition Pin# Definition
1 TX_D1+ 5 BI_D3-
2 TX_D1- 6 RX_D2-
3 RX_D2+ 7 BI_D4+
4 BI_D3+ 8 BI_D4-

2 1 3 4 JW1 JW2 JW3 JW4 JW5 JW6 JW7 JW8 JW9 JW10 JW11 JW12 JW13 JW14 JW15 JW16 JW17 JW18 JW19 JW20 JW21 JW22 JW23 JW24 JW25 JW26 JW27 JW28 JW29 JW30 JW31 JW32 JW33 JW34 JW35 JW36 JW37 JW38 JW39 JW40 JW41 JW42 JW43 JW44 JW45 JW46 JW47 JW48 JW49 JW50 JW51 JW52 JW53 JW54 JW55 JW56 JW57 JW58 JW59 JW60 JW61 JW62 JW63 JW64 JW65 JW66 JW67 JW68 JW69 JW70 JW71 JW72 JW73 JW74 JW75 JW76 JW77 JW78 JW79 JW80 JW81 JW82 JW83 JW84 JW85 JW86 JW87 JW88 JW89 JW90 JW91 JW92 JW93 JW94 JW95 JW96 JW97 JW98 JW99 AOM-COMH-TEST

1. LAN1/2 (1G RJ45 Type)
2. LAN3/4 (1G RJ45 Type)
3. LAN5/6/7/8 (10G SFP+)
4. IPMI LAN

Unit Identifier Switch/UID LED Indicator

A Unit Identifier (UID) switch and an LED indicator are located on the carrier board. The UID switch is located at UID and the UID LED is at LED2. When you press the UID switch, the LED will be turned on. Press the UID switch again to turn off the LED indicator. The UID Indicator provides easy identification of a system unit that may be in need of service.

Note: UID can also be triggered via IPMI on the module board. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at http://www.supermicro.com/support/manuals/.

UID Button Pin Definitions

Pin# Definition

1 Ground

2 Ground

3 Button In

4 Button In

UID LEDPin Definitions

Color Status

Blue: On Unit Identified

2 1 LED3 M11 AS72503 LED1 JVD1 SRW2 JVGA1 JVD1 SRW2 JFWD1 COM1 COM2 POTAN-SAT48 JSD1 MHB USB203 USB3X1 JPH1 FAAR LED1 FANA SWM5 M17 F2MH FAN9 SIW7 R2 AOM-COMH-TEST JRT3 JDS-20 N JSA DIN CODE LANHD1 JTGLED1 JTGLED2 LANLD1 JPLT LANSS-ANDB SPN3 P1 SRW2 SRW1 P1 VMMED P1_VMMET JS1 JS2 JPX1 LEDTS9 M17 JPWR1 P1 VMMED P1 VMMED JPMI JPMI JPMI JPMI

1. UID Switch
2. UID LED

Universal Serial Bus (USB) Ports

The carrier board has two USB 3.0 Gen 1 ports (USB4/5) on the I/O back panel. There are two USB 2.0 headers (USB0/1, USB2/3). These onboard headers can be used to provide front side USB access with a cable (not included).

Back Panel USB 3.0 Ports(USB4/5)Pin Definitions
Pin# Definition
A1 VBUS
A2 D-
A3 D+
A4 GND
A5 Stda	SSRX-
A6 Stda	SSRX+
A7 GND
A8 Stda	SSTX-
A9 Stda	SSTX+

Front Panel USB 2.0 Header(USB0/1, USB2/3)Pin Definitions
Pin# Definition Pin# Definition
1 +5V	2 +5V
3 USB	PN2 4 USB	PN3
5 USB	PP2 6 USB	PP3
7 Ground	8 Ground
9 Key	10 NC

2 1 3 2 1 LED2 M11 LED4 JTGLED2 JPL1 JPL2 JPL3 JPL4 JPL5 JPL6 JPL7 JPL8 JPL9 JPL10 JPL11 JPL12 JPL13 JPL14 JPL15 JPL16 JPL17 JPL18 JPL19 JPL20 JPL21 JPL22 JPL23 JPL24 JPL25 JPL26 JPL27 JPL28 JPL29 JPL30 JPL31 JPL32 JPL33 JPL34 JPL35 JPL36 JPL37 JPL38 JPL39 JPL40 JPL41 JPL42 JPL43 JPL44 JPL45 JPL46 JPL47 JPL48 JPL49 JPL50 JPL51 JPL52 JPL53 JPL54 JPL55 JPL56 JPL57 JPL58 JPL59 JPL60 JPL61 JPL62 JPL63 JPL64 JPL65 JPL66 JPL67 JPL68 JPL69 JPL70 JPL71 JPL72 JPL73 JPL74 JPL75 JPL76 JPL77 JPL78 JPL79 JPL80 JPL81 JPL82 JPL83 JPL84 JPL85 JPL86 JPL87 JPL88 JPL89 JPL90 JPL91 JPL92 JPL93 JPL94 JPL95 JPL96 JPL97 JPL98 JPL99 JPL100

1. USB0/1
2. USB2/3
3. USB4/5

2.7 Front Control Panel for AOM-COMH-TEST

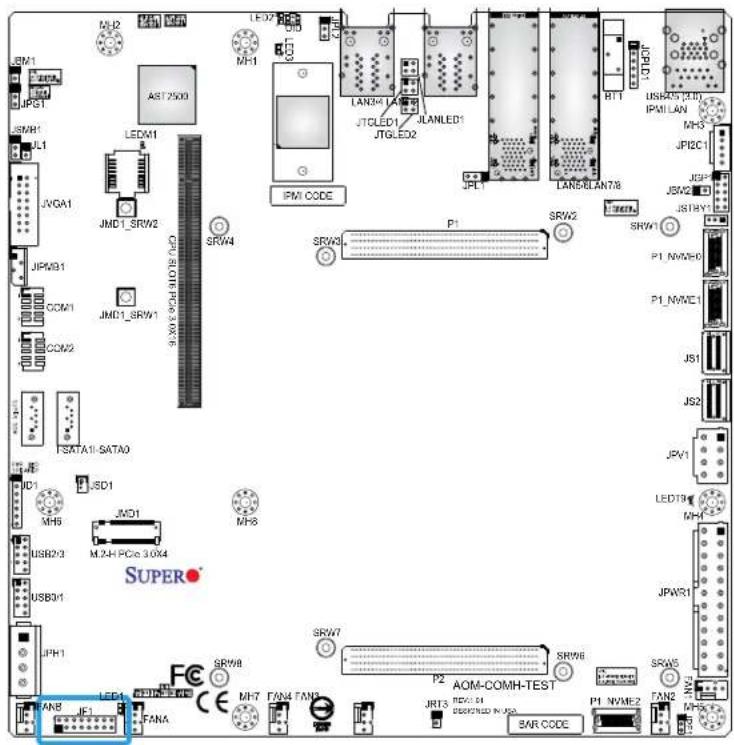

JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with a Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.

JPG1 JVG1 JVGA1 JPM1 CCM1 CCM2 SATA11-SATA0 ID1 MH5 USB2/3 USB3/1 JPH1 JAN8 LED4 FANA AS7500 LED3 MH1 JMD1_SRW2 JMD1_SRW1 JMD1_SRW4 SRW4 PMT CODE LAN34-LA JTCLLED1 JTGLD2 JLANLED1 JTLLED2 JPL1 P1 SRW2 SRW3 P1_NVMH-6 P1_NVME1 JS1 JS2 JPWR1 LEDT9 MH-F JPWR2 SRW6 P2 AOM-COMH-TEST JRT3 SPR0.01 SPR0.02 SPR0.03 SPR0.04 SPR0.05 SPR0.06 SPR0.07 SPR0.08 SPR0.09 SPR0.10 SPR0.11 SPR0.12 SPR0.13 SPR0.14 SPR0.15 SPR0.16 SPR0.17 SPR0.18 SPR0.19 SPR0.20 SPR0.21 SPR0.22 SPR0.23 SPR0.24 SPR0.25 SPR0.26 SPR0.27 SPR0.28 SPR0.29 SPR0.30 SPR0.31 SPR0.32 SPR0.33 SPR0.34 SPR0.35 SPR0.36 SPR0.37 SPR0.38 SPR0.39 SPR0.40 SPR0.41 SPR0.42 SPR0.43 SPR0.44 SPR0.45 SPR0.46 SPR0.47 SPR0.48 SPR0.49 SPR0.50

Figure 2-2. JF1 Header Definitions

PWR Reset Power Button Reset Button 3.3V UID 3.3V Stby 3.3V Stby 3.3V Stby 15 16 Ground Ground Power Fail LED OH/Fan Fail LED NIC2 Activity LED NIC1 Activity LED HDD LED PWR LED

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS - see Chapter 4). To turn off the power when the system is in suspend mode, press the button for 4 seconds or longer. Refer to the table below for pin definitions.

Power ButtonPin Definitions (JF1)

Pin# Definition

1 Signal

2 Ground

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case to reset the system. Refer to the table below for pin definitions.

Reset ButtonPin Definitions (JF1)

Pin# Definition

3 Reset

4 Ground

1 PWR Power Button 2 Reset Reset Button 3.3V UID 3.3V Stby 3.3V Stby 3.3V Stby 15 16 Ground Ground Power Fail LED OH/Fan Fail LED NIC2 Activity LED NIC1 Activity LED HDD LED PWR LED

1. PWR Button
2. Reset Button

Power Fail LED

The Power Fail LED connection is located at pins 5 and 6. Refer to the table below for pin definitions.

Power Fail LEDPin Definitions (JF1)
Pin# Definition
5 3.3V
6 Power Fail LED

UID LED

The UID LED connection is on pins 7 and 8. Connect a cable here to show the UID activity. Refer to the table below for pin definitions.

UID LEDPin Definitions (JF1)
Pin# Definition
7 UID	LED Cathode
8 UID	LED Anode

PWR Power Button Reset Reset Button 3.3V 2 UID 3.3V Stby 3.3V Stby 3.3V Stby 15 16 Ground Ground Power Fail LED ① OH/Fan Fail LED NIC2 Activity LED NIC1 Activity LED HDD LED PWR LED

1. Power Fail LED

2. UID LED

Overheat (OH)/Fan Fail

Connect an LED cable to pins 7 and 8 to use the Overheat/Fan Fail LED connections. The LED on pin 8 provides warnings of overheating or fan failure. Refer to the tables below for pin definitions.

UID LEDPin Definitions (JF1)
Pin#	Definition
7 UID	LED Cathode
8 UID	LED Anode

OH/Fan Fail LEDPin Definitions (JF1)
Pin#	Definition
7 +3	3V
8 OH	/Fan Fail LED

OH/Fan Fail Indicator Status
State	Definition
Off Normal
On Overheat
Flashing	Fan Fail

The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and LAN port 2 is on pins 9 and 10. Attach the NIC LED cables here to display network activity. Refer to the table below for pin definitions.

LAN1/LAN2 LEDPin Definitions (JF1)

Pin# Definition

9/11 3.3V Stby

10/12 NIC Activity LED

PWR Power Button Reset Reset Button 3.3V UID 3.3V Stby 3.3V Stby 3.3V Stby 3.3V Ground Ground Power Fail LED OH/Fan Fail LED ① NIC2 Activity LED ③ NIC1 Activity LED ② HDD LED PWR LED 15 16

1. Overheat/Fan Fail LED
2. NIC1 Activity LED
3. NIC2 Activity LED

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable to pin 14 to show hard drive activity status. Refer to the table below for pin definitions.

HDD LEDPin Definitions (JF1)

Pins Definition

13 3.3V

14 HDD LED

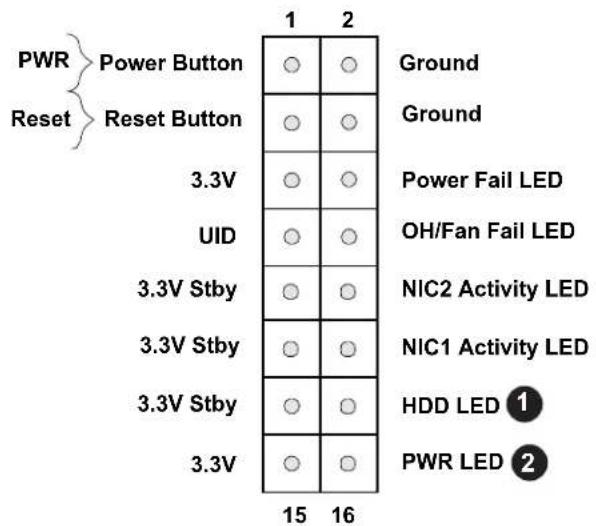

Power LED

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below for pin definitions.

Power LEDPin Definitions (JF1)

Pins Definition

15 +3.3V Stby

16 PWR LED

PWR Power Button Reset Reset Button 3.3V UID 3.3V Stby 3.3V Stby 3.3V 15 16 Ground Ground Power Fail LED OH/Fan Fail LED NIC2 Activity LED NIC1 Activity LED HDD LED ① PWR LED ②

1. HDD LED
2. Power LED

2.8 Connectors and Headers For AOM-COMH-TEST

ATX and 12V Power Connector

JPWR1 is the ATX power connector and JPV1 is the 12V DC power connector. They provide power to the carrier board.

8-pin 12V Power Pin Definitions

Pins Definition

1 - 4 Ground

5 - 8 +12V

ATX Power 24-pin Connector Pin Definitions
Pin# Definition Pin# Definition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground	3 Ground
16 PS_ON	4 +5V
17 Ground	5 Ground
18 Ground	6 +5V
19 Ground	7 Ground
20 Res (NC)	8 PWR_OK
21 +5V	9 5 VSB
22 +5V	10 +12V
23 +5V	11 +12V
24 Ground	12 +3.3V

4-pin HDD Connector

JPH1 is a 4-pin HDD power connector that provides power to onboard hard disk drives.

4-pin HDD Power Pin Definitions
Pins Definition
1 12V
2-3 Ground
4 5V

Circuit board layout diagram with labeled components and connectors, including Super, I/O, and memory chips

1. 24-pin ATX Power
2. 8-Pin 12V Power
3. 4-pin HDD Power

Fan Headers

The AOM-COMH-TEST has six 4-pin fan headers (FAN1 - FAN4, FANA, FANB). These headers are backwards-compatible with the traditional 3-pin fans. However, fan speed control is available for 4-pin fans only by the Thermal Management via the IPMI 2.0 interface. Refer to the table below for pin definitions.

Fan HeaderPin Definitions

Pin# Definition

1 Ground (Black)

2 2.5A/+12V (Red)

3 Tachometer

4 PWM_Control

Zone 1: FAN1/2/3/4

Zone 2: FANA/B

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the carrier board. Attach the appropriate cable from the chassis to inform you of a chassis intrusion when the chassis is opened. Refer to the table below for pin definitions.

Chassis Intrusion Pin Definitions

Pin# Definition

1 Intrusion Input

2 Ground

7 1 6 5 4 3 2 1 LED2 M11 LED2 M10 LED1 JND1 SRN2 JND1 SRN1 JND1 SRN0 JND1 SRN1 JND1 SRN2 JND1 SRN3 JND1 SRN4 JND1 SRN5 JND1 SRN6 JND1 SRN7 JND1 SRN8 JND1 SRN9 JND1 SRN10 JND1 SRN11 JND1 SRN12 JND1 SRN13 JND1 SRN14 JND1 SRN15 JND1 SRN16 JND1 SRN17 JND1 SRN18 JND1 SRN19 JND1 SRN20 JND1 SRN21 JND1 SRN22 JND1 SRN23 JND1 SRN24 JND1 SRN25 JND1 SRN26 JND1 SRN27 JND1 SRN28 JND1 SRN29 JND1 SRN30 JND1 SRN31 JND1 SRN32 JND1 SRN33 JND1 SRN34 JND1 SRN35 JND1 SRN36 JND1 SRN37 JND1 SRN38 JND1 SRN39 JND1 SRN40 JND1 SRN41 JND1 SRN42 JND1 SRN43 JND1 SRN44 JND1 SRN45 JND1 SRN46 JND1 SRN47 JND1 SRN48 JND1 SRN49 JND1 SRN50 JND1 SRN51 JND1 SRN52 JND1 SRN53 JND1 SRN54 JND1 SRN55 JND1 SRN56 JND1 SRN57 JND1 SRN58 JND1 SRN59 JND1 SRN60 JND1 SRN61 JND1 SRN62 JND1 SRN63 JND1 SRN64 JND1 SRN65 JND1 SRN66 JND1 SRN67 JND1 SRN68 JND1 SRN69 JND1 SRN70 JND1 SRN71 JND1 SRN72 JND1 SRN73 JND1 SRN74 JND1 SRN75 JND1 SRN76 JND1 SRN77 JND1 SRN78 JND1 SRN79 JND1 SRN80 JND1 SRN81 JND1 SRN82 JND1 SRN83 JND1 SRN84 JND1 SRN85 JND1 SRN86 JND1 SRN87 JND1 SRN88 JND1 SRN89 JND1 SRN90 JND1 SRN91 JND1 SRN92 JND1 SRN93 JND1 SRN94 JND1 SRN95 JND1 SRN96 JND1 SRN97 JND1 SRN98 JND1 SRN99 JND1 SRN99.5

1. FAN1

2. FAN2

3. FAN3

4. FAN4

5. FANA

6. FANB

7. Chassis Intrusion

SATA Ports

The carrier board has two I-SATA 3.0 ports. SATA ports provide serial link signal connections, which are faster than the connections of Parallel ATA. Refer to the tables below for pin definitions.

SATA 3.0 PortPin Definitions

Pin# Signal

1 Ground

2 SATA_TXP

3 SATA_TXN

4 Ground

5 SATA_RXN

6 SATA_RXP

7 Ground

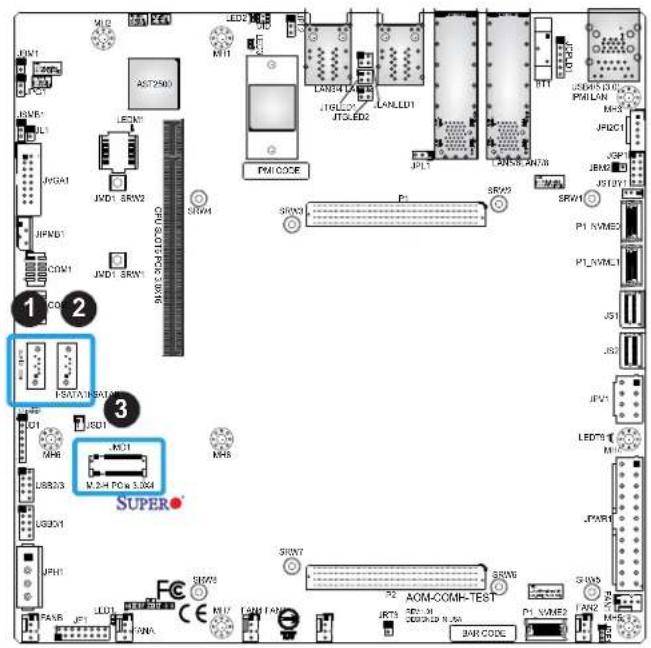

M.2 Slot

The carrier board has one M.2 slot. M.2 was formerly known as Next Generation Form Factor (NGFF) and serves to replace mini PCIe. M.2 allows for a variety of card sizes, increased functionality, and spatial efficiency. The M.2 slot at JMD1 is an M-Key that supports PCIe 3.0 x4 in 2280 and 22110 form factors.

1 2 3 SUPER 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. I-SATA0
2. I-SATA1
3. JMD1 - M.2 M-Key

Power SMB (I²C) Header

The Power System Management Bus (I²C) connector (JPI²C1) monitors the power supply, fan, and system temperatures. Refer to the table below for pin definitions.

Power SMB HeaderPin Definitions
Pin#	Definition
1	Clock
2	Data
3	PMBUS_Alert
4	Ground
5	NC

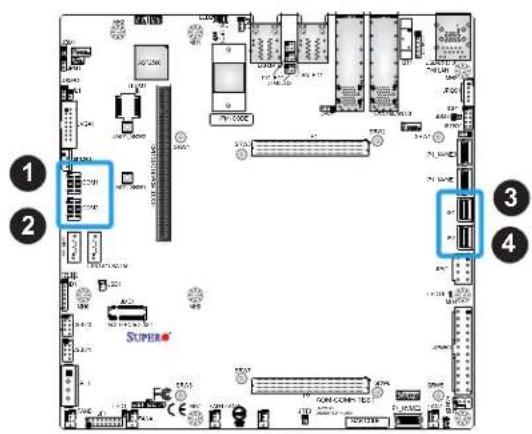

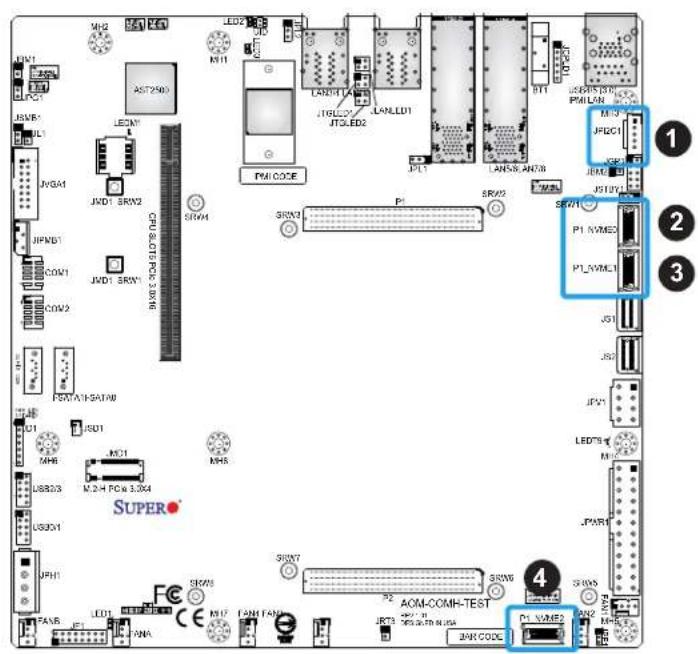

OCulink Connectors

The carrier board has three OCulink connectors. Use these connectors to attach an OCulink device.

M12 LED3 M11 J757240 AS7240 JN8A1 JN8A1 SRN2 JN8A1 SRN1 JN8A1 SRN1 JN8A1 SRN1 JN8A1 SRN1 JN8A1 SRN1 JN8A1 SRN1 JN8A1 SRN1 JN8A1 SRN1 JN8A1 SRN1 JN8A1 SRN1 JN8A1 SRN1 JN8A1 SRN1 PAM CODE LANTHTA JTGLED2 JTOLED2 PLT LANS-RANDB SRW3 P1 SRW5 SPAT SPAT P1_VIME2 P1_VIME1 JS1 JS2 JS3 JS4 JPN JPN LEDS M JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN JPN SUPER SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT SPAT

1. Power SMB Header
2. P1_NVME0
3. P1_NVME1
4. P1_NVME2

VGA Header

Connect an IDC 16-pin VGA extension cable to JVGA1 for a VGA connection (PN: CBL-CDAT-0850).

SATA 3.0 PortPin Definitions
Pin# Signal Pin# Signal
1 VGA	RED 2 VGA_GRE
3 VGA	BLE 4 N/C
5 GND	6 VGA_DET (GND)
7 GND	8 GND
9 5V	10 GND
11	N/C	12 DDCSDA
13 HSYNC		14 VSYNC
15 DDCSCL		16 N/C

Power LED/Speaker Header

Pins 1-3 are for the power LED and pins 4-7 are for the speaker. Please note that the speaker connector pins (4-7) are used with an external speaker. Refer to the table below for pin definitions.

Speaker Connector Pin Definitions

Pin# Signal

1-3 Power LED

4-7 Speaker

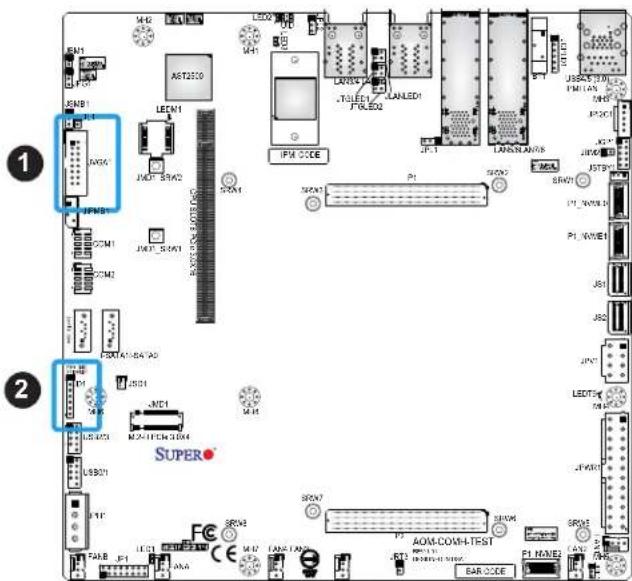

Circuit board layout diagram with labeled components and connectors, including I2M1, LED, and Super ports

1. VGA Header

2. Power LED/Speaker Header

5V Standby Power Header

The Standby Power header is located at JSTBY1. You must have a card with a Standby Power connector and a cable to use this feature. Refer to the table below for pin definitions.

Standby Power Pin Definitions
Pin# Definition
1 +5V	Standby
2 Ground
3 No Connection

Disk-On-Module Power Connector

The Disk On Module (DOM) power connector at JSD1 provides 5V power to a solid-state DOM storage device connected to one of the SATA ports. Refer to the table below for pin definitions.

DOM Power Pin Definitions
Pin# Definition
1 5V
2 Ground
3 Ground

LED1 M12 LED2 M11 AS72900 JNVS JL1 JVGA1 JWD1 SRN2 SPW4 JFWD1 COM1 JWD1 SRN1 SPW3 COM2 JSD1 MHB USB203 USB31 JPH1 LED1 LED2 M17 M24 M25 M26 M27 M28 M29 M30 M31 M32 M33 M34 M35 M36 M37 M38 M39 M40 M41 M42 M43 M44 M45 M46 M47 M48 M49 M50 M51 M52 M53 M54 M55 M56 M57 M58 M59 M60 M61 M62 M63 M64 M65 M66 M67 M68 M69 M70 M71 M72 M73 M74 M75 M76 M77 M78 M79 M80 M81 M82 M83 M84 M85 M86 M87 M88 M89 M90 M91 M92 M93 M94 M95 M96 M97 M98 M99 M100

1. 5V Standby Power Header
2. SATA DOM

System Management Bus Header

A System Management Bus header for additional slave devices or sensors is located at JSMB1. Refer to the table below for pin definitions.

SMBus Header Pin Definitions
Pin# Definition
1 Data
2 Ground
3 Clock

4-pin BMC External I²C Header

A System Management Bus header for IPMI 2.0 is located at JIPMB1. Connect the appropriate cable here to use the IPMB I ^2 C connection on your system. Refer to the table below for pin definitions.

External I2C Header Pin Definitions
Pin#	Definition
1	Data
2	Ground
3	Clock
4	No Connection

Circuit board layout diagram with labeled components and connectors, including CPU, memory, and control modules

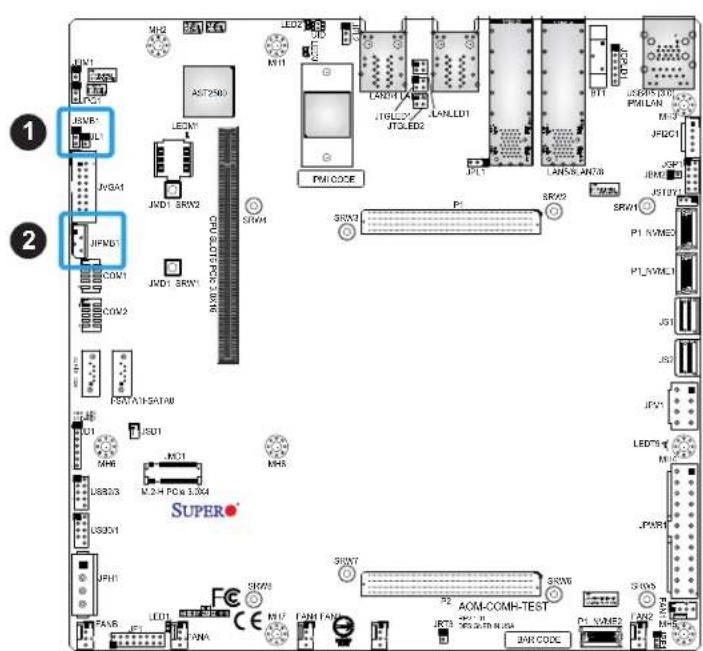

1. SMBus Header

2. BMC External I2C Header

COM Port Headers

The carrier board has two COM headers to provide serial connections.

COM HeaderPin Definitions
Pin# Definition Pin#
1 SP_DCDA 6 SP_DSRA
3 SP_RXDA 7 SP_RTSA
5 SP_TXDA 8 SP_STSA
7 SP_DTRA 9 SP_RIA
9 GND 10 NC

SlimSAS Connectors

JS1 and JS2 are the SlimSAS PCIe 3.0 x4 connectors.

SlimSAS Connector Pin Definitions
Pin#	Definition	Pin#	Definition
A1	GND	B1	GND
A2	RX0P	B2	TX0P
A3	RX0N	B3	TX0N
A4	GND	B4	GND
A5	RX1P	B5	TX1P
A6	RX1N	B6	TX1N
A7	GND	B7	GND
A8	SB7	B8	SB0
A9	SB4	B9	SB1
A10	GND	B10	GND
A11	SB+	B11	SB5
A12	SB-	B12	SB6
A13	GND	B13	GND
A14	RX2P	B14	TX2P
A15	RX2N	B15	TX2N
A16	GND	B16	GND
A17	RX3P	B17	TX3P
A18	RX3N	B18	TX3N
A19	GND	B19	GND

Diagram of a computer system layout with labeled components and numbered annotations

1. COM Port 1 Header
2. COM Port 2 Header
3. JS1 - SlimSAS
4. JS2 - SlimSAS

General Purpose I/O Header

The JGP1 (General Purpose Input/Output) header is a general purpose I/O expander on a pin header via the SMBus. Refer to the table below for pin definitions.

JGP1 HeaderPin Definitions
Pin#	Definition
1	P3V3_DUAL
2	Ground
3	GP1_0
4	GP1_4
5	GP1_1
6	GP1_5
7	GP1_2
8	GP1_6
9	GP1_3
10	GP1_7

1 AOM-COMH-TEST JCP-2 LED2 MDI M11 AS72903 LED1 JVD1 SRIN2 SRIN4 JPGA1 JPGD1 JPGD_SRW1 JPGD_SRW2 JPGD_SRW3 JPGD_SRW4 JPGD_SRW5 JPGD_SRW6 JPGD_SRW7 JPGD_SRW8 JPGD_SRW9 JPGD_SRW10 JPGD_SRW11 JPGD_SRW12 JPGD_SRW13 JPGD_SRW14 JPGD_SRW15 JPGD_SRW16 JPGD_SRW17 JPGD_SRW18 JPGD_SRW19 JPGD_SRW20 JPGD_SRW21 JPGD_SRW22 JPGD_SRW23 JPGD_SRW24 JPGD_SRW25 JPGD_SRW26 JPGD_SRW27 JPGD_SRW28 JPGD_SRW29 JPGD_SRW30 JPGD_SRW31 JPGD_SRW32 JPGD_SRW33 JPGD_SRW34 JPGD_SRW35 JPGD_SRW36 JPGD_SRW37 JPGD_SRW38 JPGD_SRW39 JPGD_SRW40 JPGD_SRW41 JPGD_SRW42 JPGD_SRW43 JPGD_SRW44 JPGD_SRW45 JPGD_SRW46 JPGD_SRW47 JPGD_SRW48 JPGD_SRW49 JPGD_SRW50 JPGD_SRW51 JPGD_SRW52 JPGD_SRW53 JPGD_SRW54 JPGD_SRW55 JPGD_SRW56 JPGD_SRW57 JPGD_SRW58 JPGD_SRW59 JPGD_SRW60 JPGD_SRW61 JPGD_SRW62 JPGD_SRW63 JPGD_SRW64 JPGD_SRW65 JPGD_SRW66 JPGD_SRW67 JPGD_SRW68 JPGD_SRW69 JPGD_SRW70 JPGD_SRW71 JPGD_SRW72 JPGD_SRW73 JPGD_SRW74 JPGD_SRW75 JPGD_SRW76 JPGD_SRW77 JPGD_SRW78 JPGD_SRW79 JPGD_SRW80

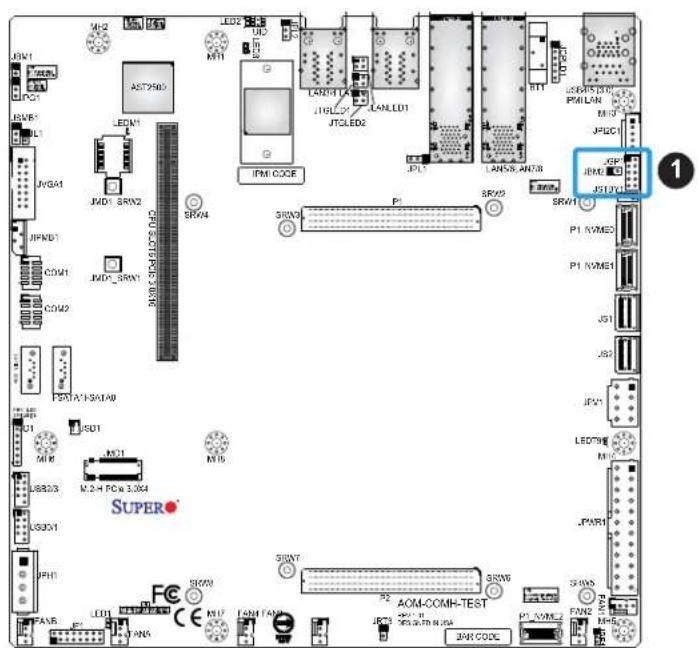

1. General Purpose Header

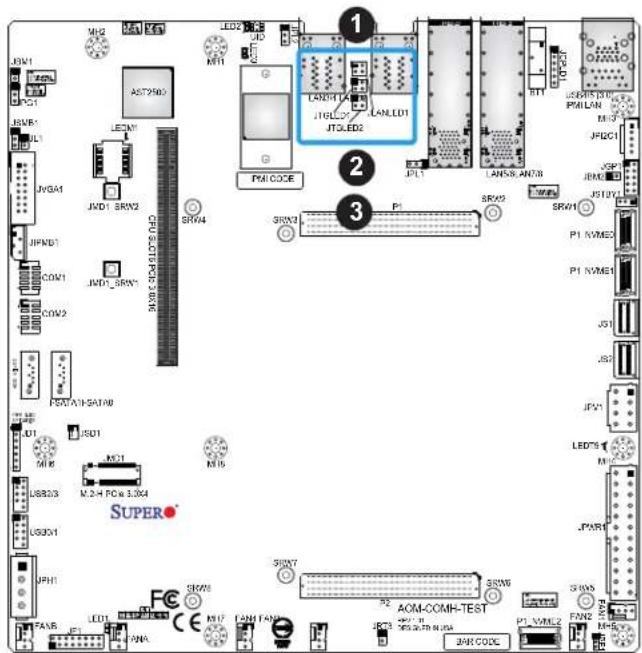

LAN Port Activity LED

JLANLED1 is the activity LED for LAN3/4, JTGLED1 is the activity LED for LAN5/6, and JTGLED2 is the activity LED for LAN7/8.

JLANLED1 Header Pin Definitions

Pin# Definition

1 P3V3_DUAL

2 LINK3_ACT_N

3 P3V3_DUAL

4 LINK4_ACT_N

JTGLED1 HeaderPin Definitions
Pin#	Definition
1	P3V3_DUAL
2	10G_P0_ACT_N
3	P3V3_DUAL
4	10G_P1_ACT_N

JTGLED2 HeaderPin Definitions
Pin#	Definition
1	P3V3_DUAL
2	10G_P2_ACT_N
3	P3V3_DUAL
4	10G_P3_ACT_N

Labeled diagram of an electronic circuit board with component labels and connectors

2.9 Jumper Settings for AOM-COMH-TEST

How Jumpers Work

To modify the operation of the carrier board, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2. Refer to the carrier board layout page for jumper locations.

Note: On two-pin jumpers, Closed means the jumper is on the pins and Open means the jumper is off.

Connector Pins Jumper Setting 3 2 1 3 2 1

Onboard VGA Enable/Disable

JPG1 allows you to enable or disable the VGA port using the onboard graphics controller. The default setting is Enabled.

VGA Enable/Disable Jumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

LAN Port Enable/Disable

Use JPL1 to enable or disable LAN1, and JPL2 to enable or disable LA3/4. The default setting is Enabled.

LAN Port Enable/Disable Jumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

1 JNK1 JNCK JNCK1 JNCK2 JNCK3 JNCK4 JNCK5 JNCK6 JNCK7 JNCK8 JNCK9 JNCK10 JNCK11 JNCK12 JNCK13 JNCK14 JNCK15 JNCK16 JNCK17 JNCK18 JNCK19 JNCK20 JNCK21 JNCK22 JNCK23 JNCK24 JNCK25 JNCK26 JNCK27 JNCK28 JNCK29 JNCK30 JNCK31 JNCK32 JNCK33 JNCK34 JNCK35 JNCK36 JNCK37 JNCK38 JNCK39 JNCK40 JNCK41 JNCK42 JNCK43 JNCK44 JNCK45 JNCK46 JNCK47 JNCK48 JNCK49 JNCK50 JNCK51 JNCK52 JNCK53 JNCK54 JNCK55 JNCK56 JNCK57 JNCK58 JNCK59 JNCK60 JNCK61 JNCK62 JNCK63 JNCK64 JNCK65 JNCK66 JNCK67 JNCK68 JNCK69 JNCK70 JNCK71 JNCK72 JNCK73 JNCK74 JNCK75 JNCK76 JNCK77 JNCK78 JNCK79 JNCK80 JNCK81 JNCK82 JNCK83 JNCK84 JNCK85 JNCK86 JNCK87 JNCK88 JNCK89 JNCK90 JNCK91 JNCK92 JNCK93 JNCK94 JNCK95 JNCK96 JNCK97 JNCK98 JNCK99 JNCK100

1. Onboard VGA Enable/Disable
2. LAN1 Enable/Disable
3. LAN3/4 Enable/Disable

IPMI Share LAN Enable/Disable

Set the JBM1 jumper to enabled to share i210 LAN with IPMI.

Shared IPMI LAN Enable/Disable Jumper Settings

Jumper Setting Definition

Pins 1-2 (Open) Enabled (Default)

Pins 1-2 (Short) Disabled

IPMI Dedicated LAN Enable/Disable

Use JBM2 to enable or disable the dedicated IPMI LAN port. Refer to the table below for jumper settings.

IPMI Dedicated LANEnable/DisableJumper Settings

Jumper Setting Definition

Pins 1-2 (Open) Enabled (Default)

Pins 1-2 (Short) Disabled

1 JUN1 PCI RSVR1 JL1 JN5A1 JFND1 COM1 COM2 TSATAI-3ATM D1 AHB USB33 UG3X1 JFH1 FAAR LED1 JPT AST2400 LED2 JL1 MT1 CPU 3.0/PGK 3.0V6 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND1 3RW7 JND2 JL1 MT1 MT2 MT3 MT4 MT5 MT6 MT7 MT8 MT9 MT10 MT11 MT12 MT13 MT14 MT15 MT16 MT17 MT18 MT19 MT20 MT21 MT22 MT23 MT24 MT25 MT26 MT27 MT28 MT29 MT30 MT31 MT32 MT33 MT34 MT35 MT36 MT37 MT38 MT39 MT40 MT41 MT42 MT43 MT44 MT45 MT46 MT47 MT48 MT49 MT50 MT51 MT52 MT53 MT54 MT55 MT56 MT57 MT58 MT59 MT60 MT61 MT62 MT63 MT64 MT65 MT66 MT67 MT68 MT69 MT70 MT71 MT72 JUN1/LED1/LED2/LED3/LED4/LED5/LED6/LED7/LED8/LED9/LED10/LED11/LED12/LED13/LED14/LED15/LED16/LED17/LED18/LED19/LED20/LED21/LED22/LED23/LED24/LED25/LED26/LED27/LED28/LED29/LED30/LED31/LED32/LED33/LED34/LED35/LED36/LED37/LED38/LED39/LED40/LED41/LED42/LED43/LED44/LED45/LED46/LED47/LED48/LED49/LED50/LED51/LED52/LED53/LED54/LED55/LED56/LED57/LED58/LED59/LED60/LED61/LED62/LED63/LED64/LED65/LED66/LED67/LED68/LED69/LED70/LED71/LED72/LED73/LED74/LED75/LED76/LED77/LED78/LED79/LED80/LED81/LED82/LED83/LED84/LED85/LED86/LED87/LED88/LED89/LED90/LED91/LED92/LED93/LED94/LED95/LED96/LED97/LED98/LED99/LED100/ JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S/I/G/V/I/G/W/I/G X/Y/Z/Y/Z/X/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/Z/Y/ JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S/I/G/S/I/G/V/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S(I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (I) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (II) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) / (III) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S/I/G/S/I/G/S/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S/I/G/S/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S/I/G/S/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S(I) JUN2/A/C/D/A/E/G/H/I/G/L/I/G/S(I) JUN2/A(C/D/A)/G/H/T/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K/K.K/M

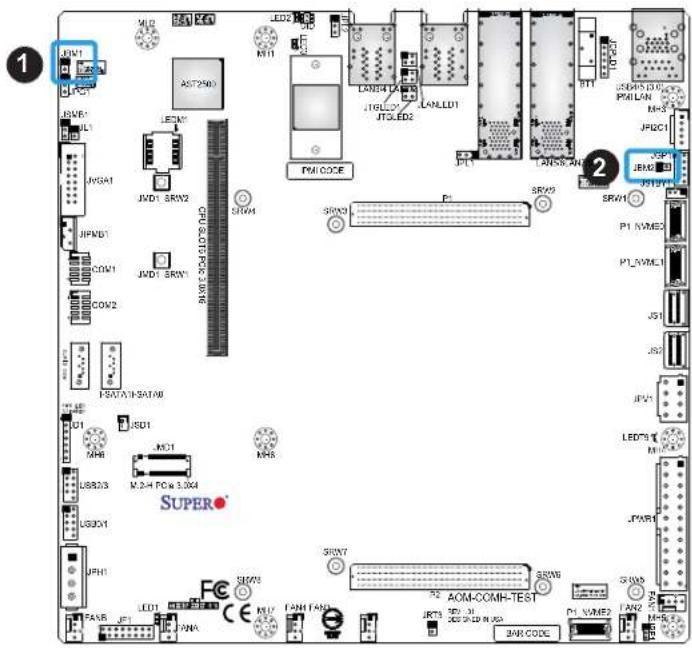

1. IPMI Share LAN Enable/Disable
2. IPMI Dedicated LAN Enable/Disable

Power Mode Selection

Use jumper JPF1 to do a force-turn-on with the power supply.

Power Mode OnJumper Settings

Jumper Setting Definition

Pins 1-2 ATX (Default)

Pins 2-3 Force PS-ON Mode

JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1 JPM1

1. Power Mode Selection

2.10 LED Indicators for AOM-COMH-TEST

BMC Heartbeat LED

LEDM1 is the BMC heartbeat LED. When the LED is blinking green, BMC is working. Refer to the table below for the LED status.

Onboard Power LED Indicator

LED Color Definition

Blinking Green BMC Normal

Power LED

LED1 is the Power LED. When this LED is lit, it means power is present on the carrier board. In suspend mode, this LED will blink on and off. Be sure to turn off the system and unplug the power cord(s) before removing or installing components.

Onboard Power LED Indicator
LED Color Definition
Off	System Off(power cable not connected)
Green System	On

Circuit board layout diagram with labeled components and connectors, including microcontroller, memory chips, and I/O interfaces

1. BMC Heartbeat LED
2. Power LED

Overheat/ Power Fail/ FAN Fail LED

When the light for LED3 is solid red, it means overheating. When the LED is blinking red, it means a power failure or fan failure.

Overheat/Power Fail/Fan FailLED Indicator
LED Color Definition
Solid Red Overheat
Blinking Red	Power Failure/Fan Failure

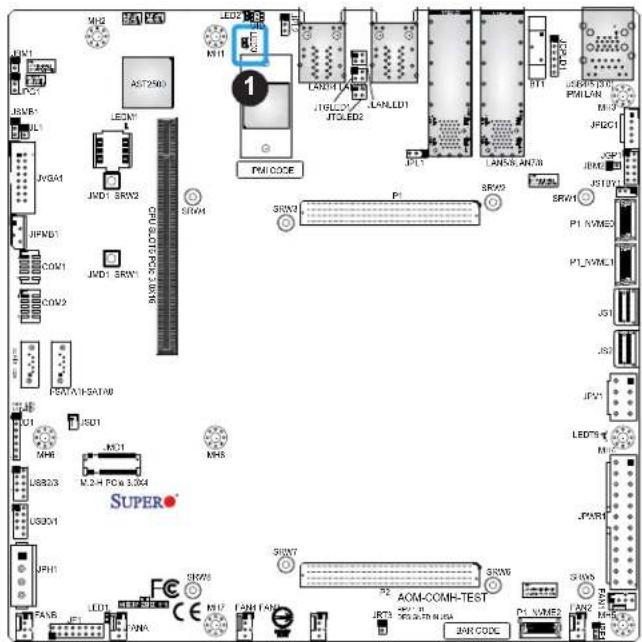

Circuit board layout diagram with labeled components including LEDs, switches, and microcontroller interface

1. Overheat/Power Fail/FAN Fail LED

Chapter 3

Troubleshooting

3.1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the 'Technical Support Procedures' and/or 'Returning Merchandise for Service' section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

Before Power On

1. Make sure that there are no short circuits between the module board and chassis.
2. Disconnect all ribbon/wire cables from the module board, including those for the keyboard and mouse.
3. Remove all add-on cards.
4. Connect the front panel connectors to the module board.

No Power

1. Make sure that there are no short circuits between the module board and the chassis.
2. Make sure that the 12V DC and/or ATX power connectors are properly connected.
3. Check that the 115V/230V switch, if available, on the power supply is properly set.
4. Turn the power switch on and off to test the system, if applicable.
5. The battery on your module board may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all add-on cards and cables.

2. Use the speaker to determine if any beep codes are present. Refer to Appendix A for details on beep codes.

3. Remove all memory modules and turn on the system (if the alarm is on, check the specs of memory modules, reset the memory or try a different one).

System Boot Failure

If the system does not display POST or does not respond after the power is turned on, check the following:

1. Check for any error beep from the module board speaker.

- If there is no error beep, try to turn on the system without DIMM modules installed. If there is still no error beep, replace the module board.

- If there are error beeps, clear the CMOS settings by unplugging the power cord and contacting both pads on the CMOS clear jumper (JBT1). (Refer to Section 2-7 in Chapter 2.)

1. Remove all components from the module board, especially the DIMM modules. Make sure that system power is on and that memory error beeps are activated.

2. Turn on the system with only one DIMM module installed. If the system boots, check for bad DIMM modules or slots by following the Memory Errors Troubleshooting procedure in this chapter.

Memory Errors

When a no-memory beep code is issued by the system, check the following:

1. Make sure that the memory modules are compatible with the system and that the DIMMs are properly and fully installed. Click on the Tested Memory List link on the module board product page to see a list of supported memory.

2. Check if different speeds of DIMMs have been installed. It is strongly recommended that you use the same RAM type and speed for all DIMMs in the system.

3. Make sure that you are using the correct type of ECC DDR4 RDIMM modules recommended by the manufacturer.

4. Check for bad DIMM modules or slots by swapping a single module among all memory slots and check the results.

5. Make sure that all memory modules are fully seated in their slots. Follow the instructions given in Section 2-3 in Chapter 2.

6. Please follow the instructions given in the DIMM population tables listed in Section 2-3 to install your memory modules.

Losing the System's Setup Configuration

1. Make sure that you are using a high-quality power supply. A poor-quality power supply may cause the system to lose the CMOS setup information. Refer to Section 2-7 for details on recommended power supplies.
2. The battery on your module board may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one. If the above steps do not fix the setup configuration problem, contact your vendor for repairs.

When the System Becomes Unstable

A. If the system becomes unstable during or after OS installation, check the following:

1. CPU/BIOS support: Make sure that your CPU is supported and that you have the latest BIOS installed in your system.
2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility.

Note: Click on the Tested Memory List link on the module board product page to see a list of supported memory.

1. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.
2. System cooling: Check the system cooling to make sure that all heatsink fans and CPU/system fans, etc., work properly. Check the hardware monitoring settings in the IPMI to make sure that the CPU and system temperatures are within the normal range. Also check the front panel Overheat LED and make sure that it is not on.
3. Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected. Please refer to our website for more information on the minimum power requirements.
4. Proper software support: Make sure that the correct drivers are used.

B. If the system becomes unstable before or during OS installation, check the following:

1. Source of installation: Make sure that the devices used for installation are working properly, including boot devices such as CD/DVD.

2. Cable connection: Check to make sure that all cables are connected and working properly.

3. Using the minimum configuration for troubleshooting: Remove all unnecessary components (starting with add-on cards first), and use the minimum configuration (but with the CPU and a memory module installed) to identify the trouble areas. Refer to the steps listed in Section A above for proper troubleshooting procedures.

4. Identifying bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one.
5. Check and change one component at a time instead of changing several items at the same time. This will help isolate and identify the problem.
6. To find out if a component is good, swap this component with a new one to see if the system will work properly. If so, then the old component is bad. You can also install the component in question in another system. If the new system works, the component is good and the old system has problems.

3.2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, please note that as a module board manufacturer, Supermicro also sells module boards through its channels, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problems with the specific system configuration that was sold to you.

1. Please go through the Troubleshooting Procedures and Frequently Asked Questions (FAQ) sections in this chapter or see the FAQs on our website (http://www.supermicro.com/FAQ/index.php) before contacting Technical Support.
2. BIOS upgrades can be downloaded from our website (http://www.supermicro.com/ResourceApps/BIOS_IPMI_Intel.html).

3. If you still cannot resolve the problem, include the following information when contacting Supermicro for technical support:

4. Module board model and PCB revision number

5. BIOS release date/version (This can be seen on the initial display when your system first boots up.)

6. System configuration

7. An example of a Technical Support form is on our website at http://www.supermicro.com/RmaForm/.

- Distributors: For immediate assistance, please have your account number ready when placing a call to our Technical Support department. We can be reached by email at [e-mail].

3.3 Frequently Asked Questions

Question: What type of memory does my module board support?

Answer: The module board supports up to 256GB of RDIMM or 512GB of ECC LRDIMM DDR4 memory. To enhance memory performance, do not mix memory modules of different speeds and sizes. Please follow all memory installation instructions given on Section 2-3 in Chapter 2.

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are not experiencing any problems with your system. Updated BIOS files are located on our website at http://www.supermicro.com/ResourceApps/BIOS_IPMI_Intel.html. Please check our BIOS warning message and the information on how to update your BIOS on our website. Select your module board model and download the BIOS file to your computer. Also, check the current BIOS revision to make sure that it is newer than your BIOS before downloading. Unzip the BIOS file onto a bootable USB device in the UEFI shell. Run the batch file using the format FLASH. NSH filename.rom from your bootable USB device in the UEFI shell to flash the BIOS. Then your system will automatically reboot.

Warning: Do not shut down or reset the system while updating the BIOS to prevent possible system boot failure!)

Note: The SPI BIOS chip used on this module board cannot be removed. Send your module board back to our RMA Department at Supermicro for repair. For BIOS Recovery instructions, please refer to the AMI BIOS Recovery Instructions posted at http://www.supermicro.com/support/manuals/.

3.4 Battery Removal and Installation

Battery Removal

To remove the onboard battery, follow the steps below:

1. Power off your system and unplug your power cable.
2. Locate the onboard battery as shown below.
3. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it. Once unlocked, the battery will pop out from the holder.
4. Remove the battery.

Proper Battery Disposal

Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

Battery Installation

1. To install an onboard battery, follow steps 1 and 2 above and continue below:
2. Identify the battery's polarity. The positive (+) side should be facing up.
3. Insert the battery into the battery holder and push it down until you hear a click to ensure that the battery is securely locked.

Important: When replacing a battery, be sure to only replace it with the same type.

LITHIUM BATTERY BATTERY HOLDER OR LITHIUM BATTERY BATTERY HOLDER

3.5 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.supermicro.com/support/rma/).

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Chapter 4

UEFI BIOS

4.1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the X11SDC-4C/8C/16C module board. The BIOS is stored on a chip and can be easily upgraded using a flash program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our website for any changes to BIOS that may not be reflected in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the key while the system is booting-up. (In most cases, the key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as , , etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A "▶" indicates a submenu. Highlighting such an item and pressing the key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (, , , keys, etc.) can be used at any time during the setup navigation process.

4.2 Main Setup

When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below and the following features will be displayed:

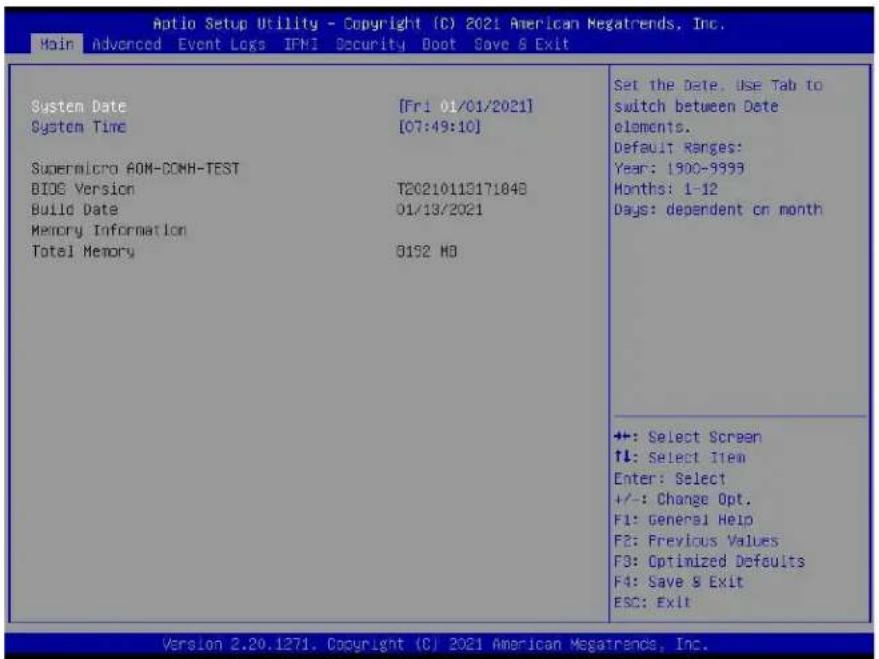

Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced Event Logs IFMI Security Boot Save & Exit System Date [Fri 01/01/2021] System Time [07:49:10] Supermicro AOM-CONH-TEST BIOG Version T20210115171843 Build Date 01/13/2021 Memory Information Total Memory 0192 MB Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 1900-9999 Months: 1-12 Days: dependent on month +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2021 American Megatrends, Inc.

System Date/System Time

Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after RTC reset.

Supermicro AOM-COMH-TEST

BIOS Version

This feature displays the version of the BIOS ROM used in the system.

Build Date

This feature displays the date when the version of the BIOS ROM used in the system was built.

CPLD Version

This feature displays the CPLD version.

Memory Information

Total Memory

This feature displays the total size of memory available in the system.

Memory Speed

This feature displays the speed of the memory detected by the system.

4.3 Advanced

Use this menu to configure advanced settings.

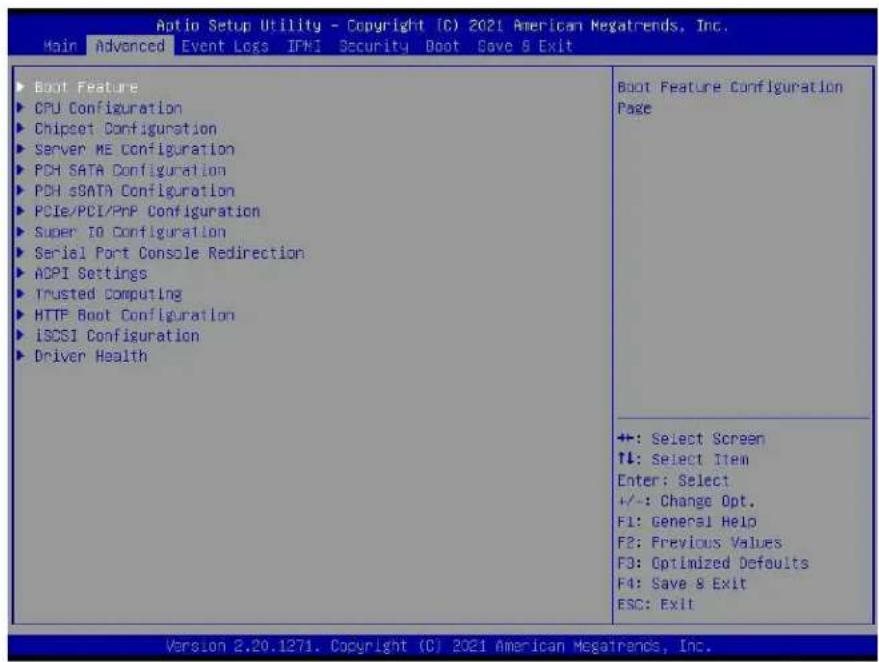

Auto Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main | Advanced | Event Logs | IFMI | Security | Boot | Save & Exit ▶ Boot Feature ▶ CPU Configuration ▶ Chipset Configuration ▶ Server ME Configuration ▶ PDH SATA Configuration ▶ PDH sSATA Configuration ▶ PCIe/PCI/PrP Configuration ▶ Super IO Configuration ▶ Serial Port Console Redirection ▶ ACPI Settings ▶ Trusted Computing ▶ HTTP Boot Configuration ▶ iSCSI Configuration ▶ Driver Health Boot Feature Configuration Page +: Select Screen TL: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2021 American Megatrends, Inc.

Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction. When this occurs, restore to default manufacturer settings.

▶Boot Feature

Quiet Boot

Use this feature to select the screen display between POST messages or the OEM logo at bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.

Option ROM Messages

Use this feature to set the display mode for the Option ROM. The options are Force BIOS and Keep Current.

Bootup NumLock State

Use this feature to set the Power-on state for the Numlock key. The options are Off and On.

Wait For "F1" If Error

This feature forces the system to wait until the F1 key is pressed if an error occurs. The options are Disabled and Enabled.

Interrupt 19 Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this feature is set to Immediate, the ROM BIOS of the host adapters will "capture" Interrupt 19 at bootup immediately and allow the drives that are attached to these host adapters to function as bootable disks. If this feature is set to Postponed, the ROM BIOS of the host adapters will not capture Interrupt 19 immediately and allow the drives attached to these adapters to function as bootable devices at bootup. The options are Immediate and Postponed.

Re-try Boot

If this feature is enabled, the BIOS automatically reboots the system from a specified boot device after its initial boot failure. The options are Disabled and EFI Boot.

Port 61h bit-4 Emulation

Select Enabled to enable the emulation of Port 61h bit-4 toggling in SMM (System Management Mode). The options are Disabled and Enabled.

Power Configuration

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override to power off the system after pressing and holding the power button for four seconds or longer. Select Instant Off to instantly power off the system as soon as you press the power button. The options are Instant Off and 4 Seconds Override.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power Off for the system power to remain off after a power loss. Select Power On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power On, and Last State.

▶CPU Configuration

The following CPU information is displayed:

• Processor BSP Revision
• Processor Socket
• Processor ID
• Processor Frequency
• Processor Max Ratio

• Processor Min Ratio

• Microcode Revision

• L1 Cache RAM
• L2 Cache RAM
• L3 Cache RAM
• Processor 0 Version

Hyper-Threading (ALL)

Select Enabled to support Intel Hyper-threading Technology to enhance CPU performance. The options are Disable and Enable.

Cores Enabled

Set a numeric value to enable the number of cores. Refer to Intel's website for more information. Enter 0 to enable all cores.

Execute Disable Bit (Available if supported by the OS & the CPU)

Set to Enable for Execute Disable Bit support, which allows the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during a virus attack. The options are Disable and Enable.

Intel Virtualization Technology

Use this feature to enable the Vanderpool Technology. This technology allows the system to run several operating systems simultaneously. The options are Disable and Enable.

PPIN Control

Select Unlock/Enable to use the Protected Processor Inventory Number (PPIN) in the system. The options are Unlock/Disable and Unlock/Enable.

Hardware Prefetcher (Available when supported by the CPU)

If set to Enable, the hardware prefetcher prefetches streams of data and instructions from the main memory to the L2 cache to improve CPU performance. The options are Enable and Disable.

Adjacent Cache Prefetch (Available when supported by the CPU)

The CPU prefetches the cache line for 64 bytes if this feature is set to Disabled. The CPU prefetches both cache lines for 128 bytes as comprised if this feature is set to Enable. The options are Enable and Disable.

DCU Streamer Prefetcher (Available when supported by the CPU)

Select Enable to enable the Data Cache Unit (DCU) Streamer Prefetcher which streams and prefetches data and sends it to the Level 1 data cache to improve data processing and system performance. The options are Enable and Disable.

DCU IP Prefetcher (Available when supported by the CPU)

Select Enable for Data Cache Unit (DCU) IP Prefetcher support, which prefetches IP addresses to improve network connectivity and system performance. The options are Enable and Disable.

LLC Prefetch

If set to Enable, the hardware prefetcher prefetches streams of data and instructions from the main memory to the L3 cache to improve CPU performance. The options are Disable and Enable.

Extended APIC

Select Enable to activate Advanced Programmable Interrupt Controller (APIC) support. The options are Disable and Enable.

AES-NI

Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Disable and Enable.

▶Advanced Power Management Configuration

Power Technology

This feature allows you to configure CPU power management settings. The options are Disable, Energy Efficient, and Custom.

*If the feature above is set to Custom, the following feature is available for configuration:

Power Performance Tuning

This feature allows you to set whether the operating system or the BIOS controls the Energy Performance BIAS (EPB). The options are OS Controls EPB and BIOS Controls EPB.

*If the feature above is set to BIOS Controls EPB, the following feature is available for configuration:

ENERGY\_PERF\_BIAS\_CFG Mode

The Energy Performance BIAS (EPB) feature allows you to configure CPU power and performance settings. Select Maximum Performance to set the highest performance. Select Performance to optimize performance over energy efficiency. Select Balanced Performance to prioritize performance optimization while conserving energy. Select Balanced Power to prioritize energy conservation while maintaining good performance. Select Power to optimize energy efficiency over performance. The options are Maximum Performance, Performance, Balanced Performance, Balanced Power, and Power.

▶CPU P State Control

Use this submenu to configure the following CPU power settings:

Uncore Freq Scaling (UFS)

Use this feature to enable or disable autonomous uncore frequency. The options are Enable and Disable.

SpeedStep (Pstates)

Intel SpeedStep Technology allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation. The options are Disable and Enable. This feature must be set to Enable to be able to configure the next two features.

Config TDP

Use this feature to select the TDP level. The options are Nominal, Level 1, and Level 2.

EIST PSD Function

This feature allows you to choose between Hardware and Software to control the processor's frequency and performance (P-state). In HW_ALL mode, the processor hardware is responsible for coordinating the P-state, and the OS is responsible for keeping the P-state request up to date on all Logical Processors. In SW_ALL mode, the OS Power Manager is responsible for coordinating the P-state, and must initiate the transition on all Logical Processors. In SW_ANY mode, the OS Power Manager is responsible for coordinating the P-state and may initiate the transition on any Logical Processors. The options are HW_ALL, SW_ALL, and SW_ANY.

Energy Efficient Turbo

Use this feature to enable energy efficient turbo mode. The options are Enable and Disable.

Turbo Mode

This feature enables dynamic control of the processor, allowing it to run above stock frequency. The options are Disable and Enable.

▶Hardware PM State Control

Hardware P-States

This setting allows you to select between OS and hardware-controlled P-states. Selecting Native Mode allows the OS to choose a P-state. Selecting Out of Band Mode allows the hardware to autonomously choose a P-state without OS guidance. Selecting Native Mode with No Legacy Support functions as Native Mode with no support for older hardware. The options are Disable, Native Mode, Out of Band Mode, and Native Mode with No Legacy Support.

▶CPU C State Control

Autonomous Core C-State

Enabling this setting allows the hardware to autonomously choose to enter a C-state based on power consumption and clock speed. The options are Disable and Enable. This feature must be set to Disable to be able to configure the next two features.

CPU C6 report

Select Enable to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system. During the CPU C6 State, the power to all cache is turned off. The options are Disable, Enable, and Auto.

Enhanced Halt State (C1E)

Select Enable to use Enhanced Halt State technology, which significantly reduces the CPU's power consumption by reducing its clock cycle and voltage during a Halt state. The options are Disable and Enable.

▶Package C State Control

Package C State

This feature allows you to set the limit on the C State package register. The options are C0/C1 State, C2 State, C6 (Non Retention) State, C6 (Retention) State, No Limit, and Auto.

▶CPU T State Control

Software Controlled T-States

Use this feature to enable Software Controlled T-States. The options are Disable and Enable.

▶Chipset Configuration

Warning: Setting the wrong values in the sections below may cause the system to malfunction.

▶North Bridge Configuration

▶ Memory Configuration

Enforce POR

Select POR (Plan of Record) to enforce POR restrictions on DDR4 frequency and voltage programming. The options are POR and Disable.

Memory Frequency

Use this feature to set the maximum memory frequency for onboard memory modules. The options are Auto, 2133, 2400, and 2666.

Refresh Watermarks

Use this feature to select Low or High Watermarks. Low Watermarks mitigate power delivery issues with 128GB and larger DIMMS, while High Watermarks provide better performance when power delivery and row hammer are not a concern. The options are Auto, High WM, and Low WM.

Data Scrambling for DDR4

Use this feature to enable or disable data scrambling for DDR4 memory. The options are Auto, Disable, and Enable.

tCCD\_L Relaxation

Select Auto to get TCDD settings from Serial Presence Detect (SPD) into memory RC code to improve system reliability. Select Disable for TCCD to follow Intel POR. The options are Disable and Auto.

2X REFRESH

Use this feature to select the memory controller refresh rate to 2x refresh mode. The options are Auto and Enable.

▶ Memory Topology

This feature displays the information of memory modules detected by the BIOS.

▶ Memory RAS Configuration

Static Virtual Lockstep Mode

Select Enable to run the system's memory channels in lockstep mode to minimize memory access latency. The options are Disable and Enable.

Mirror Mode

This feature allows memory to be mirrored between two channels, providing 100% redundancy. The options are Disable and Enable Mirror Mode (1LM).

*If the feature above is set to Enable Mirror Mode, Multi Rank Sparing and ADDDC Sparing are available for configuration:

Memory Rank Sparing

Select Enable to enable memory-sparing support for memory ranks to improve memory performance. The options are Disable and Enable.

*If the feature above is set to Enable, Multi Rank Sparing is available for configuration:

Multi Rank Sparing

Use this feature to indicate how many memory ranks to reserve in case of memory failure. The options are One Rank and Two Rank.

Correctable Error Threshold

Use this feature to specify the threshold value for correctable memory error logging, which sets a limit on the maximum number of events that can be logged in the memory error log at a given time. The default setting is 100.

SDDC

Single device data correction +1 (SDDC Plus One) organizes data in a single bundle (x4/x8 DRAM). If any or all of the bits become corrupted, corrections occur. The x4 condition is corrected on all cases. The x8 condition is corrected only if the system is in Lockstep Mode. The options are Disable and Enable.

ADDDC Sparing

Adaptive Double Device Data Correction (ADDDC) Sparing detects when the predetermined threshold for correctable errors is reached, copying the contents of the failing DIMM to spare memory. The failing DIMM or memory rank is then disabled. The options are Disable and Enable.

Patrol Scrub

Patrol Scrub is a process that allows the CPU to correct correctable memory errors detected on a memory module and send the correction to the requestor (the original source). When this feature is set to Enable, the IO hub reads and writes back one cache line every 16K cycles if there is no delay caused by internal processing. By using this method, roughly 64 GB of memory behind the IO hub is scrubbed every day. The options are Disable and Enable.

*If the feature above is set to Enable, Patrol Scrub Interval is available for configuration:

Patrol Scrub Interval

This feature allows you to decide how many hours the system should wait before the next complete patrol scrub is performed. Use the keyboard to enter a value from 0-24. The default setting is 24.

Patrol Scrub

Use this feature to downgrade patrol scrubbing uncorrectable errors to correctable errors. The options are Disable and Enable.

▶IIO Configuration

EV DFX Features

When this feature is set to Enable, the EV_DFX Lock Bits that are located on a processor will always remain clear during electric tuning. The options are Disable and Enable.

▶CPU Configuration

IOU0 (II0 PCIe Br1)

Use this feature to configure the PCIe port Bifuraction setting for the specified PCIe port. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

IOU1 (II0 PCIe Br2)

Use this feature to configure the PCIe port Bifuraction setting for the specified PCIe port. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

IOU2 (II0 PCIe Br3)

Use this feature to configure the PCIe port Bifuraction setting for the specified PCIe port. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto.

▶CPU1 PcieBr1D00F0 - Port 1A
▶CPU1 PcieBr1D00F0 - Port 2A
▶CPU1 PcieBr1D01F0 - Port 2B
▶CPU1 PcieBr1D02F0 - Port 2C
▶CPU1 PcieBr1D03F0 - Port 2D

Link Speed

Use this feature to select the link speed for this port. The options are Auto, Gen 1 (2.5 GT/s), Gen 2 (5 GT/s), and Gen 3 (8 GT/s).

PCIe Port Link Status

This feature shows the status of the device plugged into this slot.

PCIe Port Link Max

This feature shows the status of the device plugged into this slot.

PCIe Port Link Speed

This feature shows the status of the device plugged into this slot.

PCIe Port Max Payload Size

Use this feature to select the maximum payload size for this port. The options are 128B, 256B, and Auto.

▶ IOAT Configuration

Disable TPH

Transparent Huge Pages (TPH) is a Linux memory management system that enables communication in larger blocks (pages). Enabling this feature increases performance. The options are No and Yes.

*If the feature above is set to No, Relax Ordering is available for configuration:

Prioritize TPH

Select Yes to prioritize TPL requests that allows the hints to be sent to help facilitate and optimize the processing of certain transactions in the system memory. The options are Enable and Disable.

Relaxed Ordering

Select Enable to enable Relaxed Ordering support, which allows certain transactions to violate the strict-ordering rules of PCI bus for a transaction to be completed prior to other transactions that have already been enqueued. The options are Disable and Enable.

▶Intel® VT for Directed I/O (VT-d)

Intel® VT for Directed I/O (VT-d)

Select Enable to use Intel Virtualization Technology for Direct I/O VT-d support by reporting the I/O device assignments to the Virtual Machine Monitor (VMM) through the DMAR ACPI tables. This feature offers fully-protected I/O resource sharing across Intel platforms, providing greater reliability, security, and availability in networking and data-sharing. The options are Enable and Disable.

*If the feature above is set to Enable, the five features below are available for configuration:

Interrupt Remapping

Use this feature to enable Interrupt Remapping support, which detects and controls external interrupt requests. The options are Enable and Disable.

PassThrough DMA

Use this feature to allow devices such as network cards to access the system memory without using a processor. Select Enable to use the Non-Isoch VT-d Engine Pass Through Direct Memory Access (DMA) support. The options are Enable and Disable.

ATS

Use this feature to enable Non-Isoch VT-d Engine Address Translation Services (ATS) support. ATS translates virtual addresses to physical addresses. The options are Enable and Disable.

Posted Interrupt

Use this feature to enable VT-d Posted Interrupt. The options are Enable and Disable.

Coherency Support (Non-Isoch)

Use this feature to maintain setting coherency between processors or other devices. Select Enable for the Non-Isoch VT-d engine to pass through DMA to enhance system performance. The options are Enable and Disable.

Intel® VMD Technology

Note: After you've enabled VMD on a PCIe slot of your choice, this PCIe slot is dedicated for NVMe storage devices use only, and it will no longer support PCIe devices of other functionalities. To re-activate this slot for PCIe use, please disable VMD.

Intel® VMD for Volume Management Device on CPU

VMD Config for PStack0

Intel® VMD for Volume Management Device

Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable.

*If the feature above is set to Enable, the following features are available for configuration:

VMD port 1A - 1D (Available when detected by the system)

Select Enable to use the Intel Volume Management Device Technology for this specific root port. The options are Disable and Enable.

VMD Config for PStack1

Intel® VMD for Volume Management Device

Select Enable to use the Intel Volume Management Device Technology for this stack. The options are Disable and Enable.

*If the feature above is set to Enable, the following features are available for configuration:

VMD port 2A - 2D (Available when detected by the system)

Select Enable to use the Intel Volume Management Device Technology for this specific root port. The options are Disable and Enable.

PCIe Completion Timeout Disable

Use this feature to enable PCIe Completion Timeout support for electric tuning. The options are Yes, No, and Per-Port.

▶ South Bridge Configuration

The following South Bridge information is displayed:

• USB Module Version
• USB Devices

Legacy USB Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options are Enabled, Disabled, and Auto.

XHCI Hand-off

This is a workaround solution for operating systems that do not support Extensible Host Controller Interface (XHCI) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The settings are Enabled and Disabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn provides complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options are Disabled and Enabled.

▶Server ME Configuration

• Oper. Firmware Version
• Backup Firmware Version
• Recovery Firmware Version
• ME Firmware Status #1
• ME Firmware Status #2
- Current State
- Error Code

▶PCH SATA Configuration

When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following features:

SATA Controller

Use this feature to enable or disable the onboard SATA controller supported by the Intel PCH chip. The options are Disable and Enable.

*If the feature above is set to Enable, SATA HDD Unlock is available for configuration:

SATA HDD Unlock

Select enabled to unlock the HDD with a password. The options are Disable and Enable.

Aggressive Link Power Management

When this feature is set to Enable, the SATA AHCI controller manages the power usage of the SATA link. The controller puts the link in a low power mode during extended periods of I/O inactivity, and returns the link to an active state when I/O activity resumes. The options are Disable and Enable.

▶PCH sSATA Configuration

When this submenu is selected, the AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the following features:

sSATA Controller

Use this feature to enable or disable the onboard SATA controller supported by the Intel PCH chip. The options are Disable and Enable.

*If the feature above is set to Enable, the next two features are available for configuration:

Configure sSATA as

Select AHCI to configure an sSATA drive as an AHCI drive. Select RAID to configure an sSATA drive as a RAID drive. The options are AHCI and RAID.

*If the feature above is set to RAID, SATA RSTe Boot Into and SATA RAID Option ROM/UEFI Driver are available for configuration:

SATA HDD Unlock

This feature allows you to remove any password-protected SATA disk drives. The options are Enable and Disable.

SATA RSTe Boot Info

Select Enable to provide full int13h support for the devices attached to the SATA controller. The options are Disable and Enable.

Aggressive Link Power Management

When this feature is set to Enable, the SATA AHCI controller manages the power usage of the SATA link. The controller puts the link in a low power mode during extended periods of I/O inactivity, and returns the link to an active state when I/O activity resumes. The options are Disable and Enable.

sSATA RAID Option ROM/UEFI Driver

Select UEFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disable, EFI, and Legacy.

SATA Port 0/1

This feature displays the information detected on the installed SATA drive on the particular SATA port.

Hot Plug

Set this feature to Enable for hot plug support, which allows you to replace a SATA drive without shutting down the system. The options are Disable and Enable.

Spin Up Device

Set this feature to enable or disable the PCH to initialize the device. The options are Disable and Enable.

SATA Device Type

Use this feature to specify if the SATA port specified should be connected to a Solid State Drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

▶PCIe/PCI/PnP Configuration

The following information is displayed:

• PCI Bus Driver Version
• PCI Devices Common Settings:

Above 4G Decoding (Available if the system supports 64-bit PCI decoding)

Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled.

SR-IOV Support

Use this feature to enable or disable Single Root IO Virtualization Support. The options are Disabled and Enabled.

BME DMA Mitigation

Use this feature to enable the Bus Master, which enables the Bus Master Attribute for DMA transaction. The options are Disabled and Enabled.

MMIO High Base

Use this feature to select the base memory size according to memory-address mapping for the IO hub. The options are 56T, 40T, 24T, 16T, 4T, and 1T.

MMIO High Granularity Size

Use this feature to select the high memory size according to memory-address mapping for the IO hub. The options are 1G, 4G, 16G, 64G, 256G, and 1024G.

Maximum Read Request

Use this feature to select the Maximum Read Request size of the PCIe device, or select Auto to allow the System BIOS to determine the value. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.

MMCFG Base

Use this feature to select the low base address for PCIe adapters to increase base memory. The options are 1G, 1.5G, 1.75G, 2G, 2.25G, and 3G.

NVMe Firmware Source

The feature determines which type of NVMe firmware should be used in your system. The options are Vendor Defined Firmware and AMI Native Support.

VGA Priority

Use this feature to select VGA priority when multiple VGA devices are detected. Select On-board to give priority to your onboard video device. Select Offboard to give priority to your graphics card. The options are Onboard and Offboard.

Consistent Device Name Support

Use this feature to enable ACPI_DSM device name support for onboard devices. The options are Disabled and Enabled.

CPU SLOT6 PCIe 3.0 X16 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled and Legacy (if the Boot Mode Select feature under the Boot tab is set to Legacy), Disabled and EFI (if the Boot Mode Select feature under the Boot tab is set to UEFI), and Disabled, Legacy, and EFI (if the Boot Mode Select feature under the Boot tab is set to Dual).

CPU P1\_NVME0 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled and Legacy (if the Boot Mode Select feature under the Boot tab is set to Legacy), Disabled and EFI (if the Boot Mode Select feature under the Boot tab is set to UEFI), and Disabled, Legacy, and EFI (if the Boot Mode Select feature under the Boot tab is set to Dual).

CPU P1\_NVME1 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled and Legacy (if the Boot Mode Select feature under the Boot tab is set to Legacy), Disabled and EFI (if the Boot Mode Select feature under the Boot tab is set to UEFI), and Disabled, Legacy, and EFI (if the Boot Mode Select feature under the Boot tab is set to Dual).

CPU P1\_NVME2 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled and Legacy (if the Boot Mode Select feature under the Boot tab is set to Legacy), Disabled and EFI (if the Boot Mode Select feature under the Boot tab is set to UEFI), and Disabled, Legacy, and EFI (if the Boot Mode Select feature under the Boot tab is set to Dual).

CPU M.2-H PCIe 3.0 X4 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled and Legacy (if the Boot Mode Select feature under the Boot tab is set to Legacy), Disabled and EFI (if the Boot Mode Select feature under the Boot tab is set to UEFI), and Disabled, Legacy, and EFI (if the Boot Mode Select feature under the Boot tab is set to Dual).

PCH JS1 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled and Legacy (if the Boot Mode Select feature under the Boot tab is set to Legacy), Disabled and EFI (if the Boot Mode Select feature under the Boot tab is set to UEFI), and Disabled, Legacy, and EFI (if the Boot Mode Select feature under the Boot tab is set to Dual).

PCH JS2 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled and Legacy (if the Boot Mode Select feature under the Boot tab is set to Legacy), Disabled and EFI (if the Boot Mode Select feature under the Boot tab is set to UEFI), and Disabled, Legacy, and EFI (if the Boot Mode Select feature under the Boot tab is set to Dual).

Onboard LAN Option ROM Type

Use this feature to select which firmware type to be loaded for onboard LAN devices. The options Legacy and EFI.

Onboard LAN1 OPROM

Use this feature to select which firmware function to be loaded for the specified LAN port used for system boot. The options are Disabled, PXE, and iSCSI.

Onboard LAN2 - LAN8 OPROM

Use this feature to select which firmware function to be loaded for the specified LAN port used for system boot. The options are Disabled and PXE.

Onboard Video Option ROM

Use this feature to select which firmware function to be loaded for LAN1 used for system boot. The options are Disabled and Legacy (if the Boot Mode Select feature under the Boot tab is set to Legacy), Disabled and EFI (if the Boot Mode Select feature under the Boot tab is set to UEFI), and Disabled, Legacy, and EFI (if the Boot Mode Select feature under the Boot tab is set to Dual).

▶Network Stack Configuration

Network Stack

Select Enabled to enable Preboot Execution Environment (PXE) or Unified Extensible Firmware Interface (UEFI) for network stack support. The options are Enabled and Disabled.

*If the feature above is set to Enabled, the next six features are available for configuration:

Ipv4 PXE Support

Select Enabled to enable IPv4 PXE boot support. The options are Disabled and Enabled.

Ipv4 HTTP Support

Select Enabled to enable IPv4 HTTP boot support. The options are Disabled and Enabled.

Ipv6 PXE Support

Select Enabled to enable IPv6 PXE boot support. The options are Disabled and Enabled.

Ipv6 HTTP Support

Select Enabled to enable IPv6 HTTP boot support. The options are Disabled and Enabled.

PXE boot wait time

Use this feature to specify the wait time to press the ESC key to abort the PXE boot. Press "+" or "-" on the keyboard to change the value. The default setting is 0.

Media detect count

Use this feature to specify the number of times media is checked. Press "+" or "-" on the keyboard to change the value. The default setting is 1.

▶ Super IO Configuration

Super IO Chip AST2500

▶ Serial Port 1 Configuration

Serial Port 1

Select Enabled to enable the specified onboard serial port. The options are Disabled and Enabled. Enable this feature for the next two features to display and only the Change Settings feature is available for configuration.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of the serial port.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=3F8h; IRQ=4); (IO=2F8h; IRQ=4); (IO=3E8h; IRQ=4); and (IO=2E8h; IRQ=4).

▶ Serial Port 2 Configuration

Serial Port 2

Select Enabled to enable the specified onboard serial port. The options are Disabled and Enabled. Enable this feature for the next two features to display and only the Change Settings feature is available for configuration.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of the serial port.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=2F8h; IRQ=3); (IO=3F8h; IRQ=3); (IO=3E8h; IRQ=3); and (IO=2E8h; IRQ=3).

Serial Port 2 Attribute

Select SOL to use COM Port 2 as a Serial Over LAN (SOL) port for console redirection. The options are SOL and COM.

▶ Serial Port Console Redirection

COM1

Console Redirection

Select Enabled to enable COM Port 1 for Console Redirection, which allows a client machine to be connected to a host machine at a remote site for networking. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features are available for configuration:

▶Console Redirection Settings

Terminal Type

This feature allows you to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200.

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

COM2/SOL

Console Redirection

Select Enabled to use the SOL port for Console Redirection. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features are available for configuration:

▶Console Redirection Settings

Use this feature to specify how the host computer exchanges data with the client computer, which is the remote computer.

COM2/SOL

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200.

Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS POST

Use this feature to enable or disable legacy console redirection after BIOS POST. When set to BootLoader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and BootLoader.

Legacy Console Redirection

Redirection COM Port

Use this feature to select a COM port to display redirection of Legacy OS and Legacy OPROM messages. The options are COM1 and COM2/SOL.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

This submenu allows you to configure Console Redirection settings to support Out-of-Band Serial Port management.

Console Redirection

Select Enabled to use a COM port for EMS Console Redirection. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following features are available for configuration:

▶Console Redirection Settings

This feature allows you to specify how the host computer exchanges data with the client computer, which is the remote computer.

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL/COM2.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

This feature sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits

Parity

Stop Bits

▶ ACPI Settings

Headless Support

Select Enabled for the system to run without a keyboard or mouse detected. The options are Disabled and Enabled.

WHEA Support

Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment in order to reduce system crashes and enhance system recovery and health monitoring. The options are Disabled and Enabled.

High Precision Event Timer

Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Disabled and Enabled.

▶Trusted Computing

The module board supports TPM 2.0. The following Trusted Platform Module (TPM) information is displayed if a TPM 2.0 module is detected:

• Vendor Name
• Firmware Version

Security Device Support

If this feature and the TPM jumper on the module board are both set to Enabled, onboard security devices are enabled for Trusted Platform Module (TPM) support to enhance data integrity and network security. Reboot the system for changes to take effect. The options are Disable and Enable.

• Active PCR Bank
• Available PCR banks

SHA-1 PCR Bank

Use this feature to disable or enable the SHA-1 Platform Configuration Register (PCR) bank for the installed TPM device. The options are Disabled and Enabled.

SHA256 PCR Bank

Use this feature to disable or enable the SHA256 Platform Configuration Register (PCR) bank for the installed TPM device. The options are Disabled and Enabled.

Pending Operation

Use this feature to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system reboots to carry out a pending TPM operation. The options are None and TPM Clear.

Platform Hierarchy

Use this feature to disable or enable platform hierarchy for platform protection. The options are Disabled and Enabled.

Storage Hierarchy

Use this feature to disable or enable storage hierarchy for cryptographic protection. The options are Disabled and Enabled.

Endorsement Hierarchy

Use this feature to disable or enable endorsement hierarchy for privacy control. The options are Disabled and Enabled.

TPM 20 Interface Type

PH Randomization

Use this feature to disable or enable Platform Hierarchy (PH) Randomization. The options are Disabled and Enabled.

SMCI BIOS-Based TPM Provision Support

Use this feature to enable the Supermicro TPM Provision support. The options are Disabled and Enabled.

TXT Support

Intel Trusted Execution Technology (TXT) helps protect against software-based attacks and ensures protection, confidentiality, and integrity of data stored or created on the system. The options are Disabled and Enabled.

▶HTTP Boot Configuration

HTTP Boot Configuration

HTTP Boot Policy

Use this feature to select the boot policy. The options are Apply to all LANs, Apply to each LAN, and Boot Priority #1 instantly.

Priority of HTTP Boot:

Instance of Priority 1:

Use this feature to set the rank target port. The default value is 1.

Select IPv4 or IPv6

Use this feature to select which LAN port to boot from. The options are IPv4 and IPv6.

Boot Description

Highlight the feature and press enter to create a boot description. The description cannot be more than 75 characters.

Boot URI

Highlight the feature and press enter to create a boot URI.

Instance of Priority 2 - Priority 8:

Use this feature to set the rank target port. The default value is 0.

▶iSCSI Configuration

▶Attempt Priority

Attempt Priority

Use this feature to set the attempt priorities. The options are Host Attempt, Redfish Attempt, and Rsd Attempt.

Commit Changes and Exit

Select this feature to save the changes and exit.

▶Host iSCSI Configuration

iSCSI Initiator Name

This feature allows you to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following features.

▶ Add an Attempt
▶ Delete Attempts
▶ Change Attempt Order

▶Driver Health

This submenu provides the health status for the network drivers and controllers, and all UEFI drivers detected by the system.

▶Apache Pass 1.0.0.1970 Driver

4.4 Event Logs

Use this menu to configure Event Log settings.

Auto Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced Event Logs IFMI Security Boot Save & Exit Change SMDIOS Event Log Settings View SMDIOS Event Log Press (Enter) to change the SMDIOS Event Log configuration. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2021 American Megatrends, Inc.

▶Change SMBIOS Event Log Settings

Enabling/Disabling Options

SMBIOS Event Log

Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Disabled and Enabled.

Erasing Settings

Erase Event Log

If No is selected, data stored in the event log will not be erased. Select Yes, Next Reset, data in the event log will be erased upon next system reboot. Select Yes, Every Reset, data in the event log will be erased upon every system reboot. The options are No, Yes, Next reset, and Yes, Every reset.

When Log is Full

Select Erase Immediately for all messages to be automatically erased from the event log when the event log memory is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

This option toggles the System Boot Event logging to enabled or disabled. The options are Disabled and Enabled.

MECI

The Multiple Event Count Increment (MECI) counter counts the number of occurrences that a duplicate event must happen before the MECI counter is incremented. This is a numeric value. The default value is 1.

METW

The Multiple Event Time Window (METW) defines the number of minutes that must pass between duplicate log events before MECI is incremented. This is in minutes, from 0 to 99. The default value is 60.

Note: After making changes on a setting, reboot the system for the changes to take effect.

▶View SMBIOS Event Log

Select this submenu and press enter to see the contents of the SMBIOS event log. The following information is displayed: Date/Time/Error Codes/Severity.

4.5 IPMI

Use this menu to configure Intelligent Platform Management Interface (IPMI) settings.

Auto Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit BMC Firmware Revision 03.75.01 IPMI STATUS Working System Event Log BMC Network Configuration IPMI Extended Instruction [Enabled] Press (Enter) to change the SEL event log configuration. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2021 American Megatrends, Inc.

IPMI Firmware Revision

This feature displays the IPMI firmware revision in your system.

Status of BMC

This feature displays the status of the IPMI firmware installed in your system.

▶System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled for all system event logging at bootup. The options are Disabled and Enabled.

Erasing Settings

Erase SEL

Select "Yes, On next reset" to erase all system event logs upon next system reboot. Select "Yes, On every reset" to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, "Yes, On next reset," and "Yes, On every reset."

When SEL is Full

This feature allows you to determine what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

Note: Reboot the system for the changes to take effect.

▶BMC Network Configuration

Update IPMI LAN Configuration

Select Yes for the BIOS to implement all IP/MAC address changes at the next system boot. The options are No and Yes.

*If the feature above is set to Yes, Configuration Address Source, VLAN, and IPV6 Support are available for configuration:

• IPMI LAN Selection
  • IPMI Network Link Status

Configuration Address Source

Use this feature to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options are Static and DHCP.

*If the feature above is set to Static, the Station IP Address/Subnet Mask/Gateway IP Address features are available for configuration:

Station IP Address

This feature displays the Station IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

Subnet Mask

This feature displays the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255.

Gateway IP Address

This feature displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

VLAN

This feature is configurable if the Update IPMI LAN Configuration feature is set to Yes. Use this feature to enable or disable the IPMI VLAN function. The options are Disable and Enable.

*If the feature above is set to Enable, the VLAN ID feature below is available for configuration:

VLAN ID

Use this feature to select a value for VLAN ID.

IPMI LAN Selection

Use this feature to select the IPMI LAN mode. The options are Dedicated LAN, Share LAN, and Failover.

Configure IPV6 support

IPV6 Support

Use this feature to enable IPV6 support. The options are Enabled and Disabled.

*If the feature above is set to Enable, the features below are available for configuration:

Configuration Address Source

Use this feature to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that it is attached to and request the next available IP address for this computer. The options are Unspecified, Static, and DHCP.

*If the feature above is set to Static, the Station IP Address/Prefix Length/IPV6 Router1 IP Address features are available for configuration:

Station IPV6 Address

Use this feature to enter the IPV6 address.

Prefix Length

Use this feature to change the prefix length.

IPV6 Router1 IP Address

Use this feature to change the IPV6 Router1 IP address.

IPMI Extended Instruction

The options of this feature are Enabled and Disabled. When this feature is Disabled, the system powers on quickly by removing BIOS support for IPMI extended instruction features. The bootup time is faster when the option is Disabled. When this feature is disabled, you cannot use Supermicro Update Manager (SUM) out of band (OOB) to update the BIOS, nor utilize the extended IPMI features such as AOC and PCIe sensor readings, and the BMC network configuration in the BIOS setup is also disabled. The general BMC function like fan control and module board health monitor that offer the basic sensor reading of the CPU, system memory, and some onboard devices still function. You can use Supermicro IPMI utilities such as IPMICFG and IPMIVIEW for sensor readings and to know what the normal sensor output information is. You need to wait for one minute after the system powers on completely to obtain readings from those two sensors.

4.6 Security

Use this menu to configure the security settings.

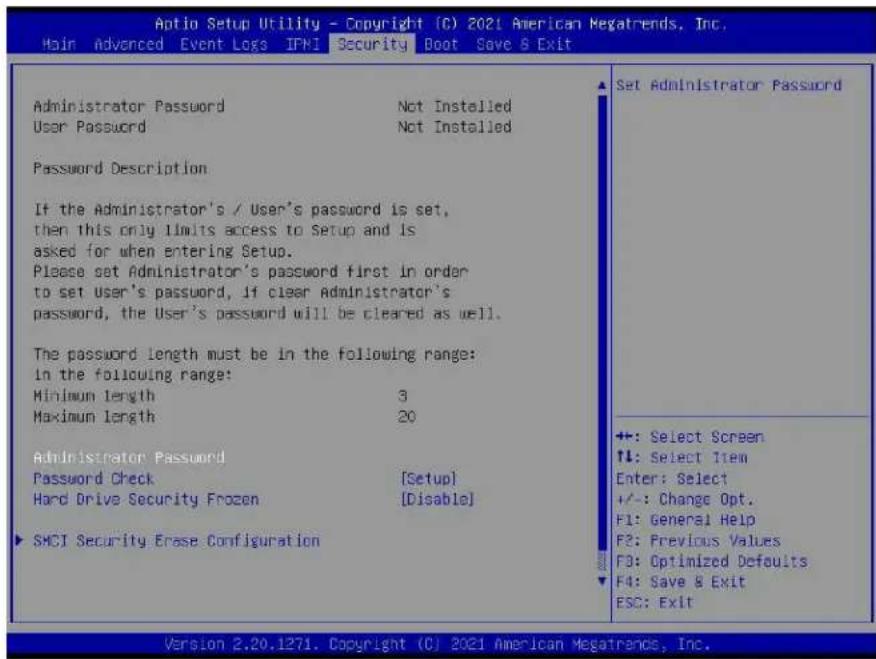

Antio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit Administrator Password Not Installed User Password Not Installed Password Description If the Administrator's / User's password is set, then this only limits access to Setup and is asked for when entering Setup. Please set Administrator's password first in order to set User's password, if clear Administrator's password, the User's password will be cleared as well. The password length must be in the following range: in the following range: Minimum length 3 Maximum length 20 Administrator Password Password Check [Setup] Hard Drive Security Frozen [Disable] SMCI Security Erase Configuration Set Administrator Password +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2021 American Megatrends, Inc.

Administrator Password

Use this feature to set the administrator password which is required to enter the BIOS setup utility. The length of the password should be from three to 20 characters long.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always.

Hard Drive Security Frozen

Use this feature to enable or disable the BIOS security frozen command for SATA and NVMe devices. The options are Enable and Disable.

▶SMCI Security Erase Configuration

This section displays information if a storage device is detected by the system.

• HDD Name
  • HDD Serial Number

• Security Mode

• TCG Device Type
  • Estimated Time
• Admin Pwd Status

Security Function

Use this feature to enable or disable the BIOS security frozen command for SATA and NVMe devices. The options are Disable, Set Password, Security Erase - Password, Security Erase - PSID, and Security Erase - Wtihout Password.

Password

Use this feature to set a password for the Supermicro HDD Security Function.

Lockdown Mode

Use this feature to put the BIOS into lockdown mode. The options are Enabled and Disabled.

▶Secure Boot

System Mode

Secure Boot

Select Enable for secure boot support to ensure system security at bootup. The options are Disabled and Enabled.

Secure Boot Mode

This feature allows you to select the desired secure boot mode for the system. The options are Standard and Custom.

*If Secure Boot Mode is set to Custom, Key Management features are available for configuration:

CSM Support

This feature is for manufacturing debugging purposes.

Select Yes to restore all factory keys to the default settings. The options are Yes and No.

▶ Reset to Setup Mode

Select Yes to delete all Secure Boot key databases and force the system to Setup Mode. The options are Yes and No.

▶Key Management

This submenu allows you to configure the following Key Management settings.

Factory Key Provision

Select Enabled to install the default Secure Boot keys set by the manufacturer. The options are Disabled and Enabled.

*If the feature above is set to Enabled, all features below are available for configuration:

Select Yes to restore all factory keys to the default settings. The options are Yes and No.

▶ Reset to Setup Mode

Select Yes to delete all Secure Boot key databases and force the system to Setup Mode. The options are Yes and No.

▶ Export Secure Boot variables

Use this feature to copy the NVRAM contents of the secure boot variables to a file.

▶Enroll Efi Image

This feature allows the image to run in Secure Boot mode.

Device Guard Ready

▶Remove 'UEFI CA' from DB

Use this feature to remove the Microsoft UEFI CA certificate from the database. The options are Yes and No.

Select Yes to restore the DB defaults.

▶ Platform Key (PK)

Update

Select Yes to load a factory default PK or No to load from a file on an external media.

▶Key Exchange Keys (KEK)

Update

Select Yes to load a factory default KEK or No to load from a file on an external media.

Append

Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.

▶ Authorized Signatures

Update

Select Yes to load a factory default db or No to load from a file on an external media.

Append

Select Yes to add the db from the manufacturer's defaults list to the existing db. Select No to load the db from a file. The options are Yes and No.

▶Forbidden Signatures

Update

Select Yes to load a factory default dbx or No to load from a file on an external media.

Append

Select Yes to add the dbx from the manufacturer's defaults list to the existing dbx. Select No to load the dbx from a file. The options are Yes and No.

▶ Authorized TimeStamps

Update

Select Yes to load a factory default dbt or No to load from a file on an external media.

Append

Select Yes to add the dbt from the manufacturer's defaults list to the existing dbt. Select No to load the dbt from a file. The options are Yes and No.

▶OsRecovery Signatures

Update

Select Yes to load a factory default dbr or No to load from a file on an external media.

Append

Select Yes to add the dbr from the manufacturer's defaults list to the existing dbr. Select No to load the dbr from a file. The options are Yes and No.

4.7 Boot

Use this menu to configure boot settings:

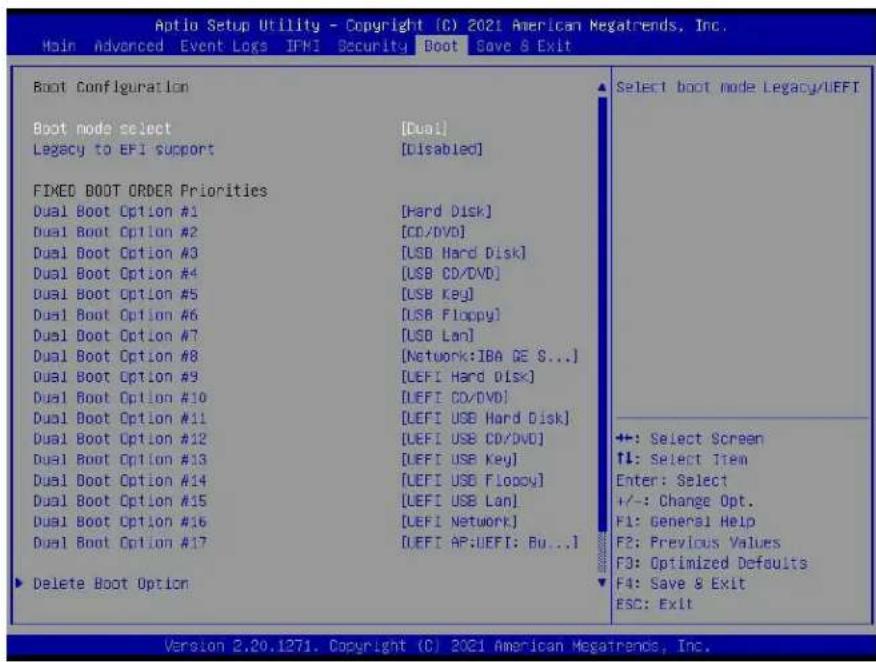

Auto Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced Event Logs IFMI Security Boot Save & Exit Boot Configuration Boot mode select [Dual] Legacy to EFI support [Disabled] FIXED BOOT ORDER Priorities Dual Boot Option #1 [Hard Disk] Dual Boot Option #2 [CD/DVD] Dual Boot Option #3 [USB Hard Disk] Dual Boot Option #4 [USB CD/DVD] Dual Boot Option #5 [USB Key] Dual Boot Option #6 [USB Floppy] Dual Boot Option #7 [USB Lan] Dual Boot Option #8 [Network: IBA GE S...] Dual Boot Option #9 [LEFI Hard Disk] Dual Boot Option #10 [LEFI CD/DVD] Dual Boot Option #11 [LEFI USB Hard Disk] Dual Boot Option #12 [LEFI USB CD/DVD] Dual Boot Option #13 [LEFI USB Key] Dual Boot Option #14 [LEFI USB Floppy] Dual Boot Option #15 [LEFI USB Lan] Dual Boot Option #16 [LEFI Network] Dual Boot Option #17 [LEFI AP:UEFI: Bu...] Delete Boot Option Select boot mode Legacy/UEFI +: Select Screen ↑1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.20.1271. Copyright (C) 2021 American Megatrends, Inc.

Boot mode select

Use this feature to select the boot mode. The options are Legacy, UEFI, and Dual.

LEGACY to EFI Support

Select Enabled to boot EFI OS support after Legacy boot order has failed. The options are Disabled and Enabled.

Fixed BOOT ORDER Priorities

This option prioritizes the order of bootable devices that the system will boot from. Press on each entry from top to bottom to select devices.

• Boot Option #1
• Boot Option #2
• Boot Option #3
• Boot Option #4
• Boot Option #5
• Boot Option #6
• Boot Option #7

• Boot Option #8

• Boot Option #9

• Boot Option #10
• Boot Option #11
• Boot Option #12
• Boot Option #13
• Boot Option #14
• Boot Option #15
• Boot Option #16
• Boot Option #17

▶ Delete Boot Option

Use this feature to select a boot device to delete from the boot priority list.

▶UEFI Application Boot Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disabled.

▶ NETWORK Drive BBS Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disabled.

4.8 Save & Exit

Use this menu to configure save and exit settings.

Antio Setup Utility - Copyright (C) 2021 American Megatrends, Inc. Main Advanced Event Logs IFMI Security Boot Save & Exit Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Optimized Defaults Save as User Defaults Restore User Defaults Boot Override IBA GE Slot 0400 v1404 UEF1: Built-in EFI Shell Launch EFI Shell from filesystem device Exit system setup without saving any changes. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 8.20.1271. Copyright (C) 2021 American Megatrends, Inc.

Save Options

Discard Changes and Exit

Select this feature to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press .

Save Changes and Reset

When you have completed the system configuration changes, select this option to save all changes made and reset the system.

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this feature and press to discard all the changes and return to the AMI BIOS Utility Program.

Default Options

Restore Optimized Defaults

To set this feature, select Restore Optimized Defaults and press . These are factory settings designed for maximum system performance but not for maximum stability.

Save as User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables you to save any changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined settings that were saved previously.

Boot Override

Other boot options are listed in this section. The system will boot to the selected option.

IBA GE Slot 0400 v1404

UEFI: Built-in EFI Shell

Launch EFI Shell from filesystem device

Appendix A

BIOS Codes

A.1 BIOS Error POST (Beep) Codes

During the POST (Power-On Self-Test) routines, which are performed upon each system boot, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue to boot. These error messages normally appear on the screen.

Fatal errors will not allow the system to continue with bootup. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The table below lists some common errors and their corresponding beep codes encountered by users.

BIOS Beep (POST) Codes
Beep Code Error	Message Description
1 beep Refresh Circuits have been reset (Ready to power up)
5 short, 1 long Memory error No memory detected in system
5 long, 2 short Display memory read/write error Video adapter missing or with faulty memory
1 long continuous System OH System overheat condition

A.2 Additional BIOS POST Codes

The AMI BIOS supplies additional checkpoint codes, which are documented online at http://www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide").

When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOM-SPI80-V).

For information on AMI updates, please refer to http://www.ami.com/products/.

Appendix B

Software Installation

B.1 Installing Software Programs

The Supermicro website that contains drivers and utilities for your system is at https://www.supermicro.com/wdl/driver/. Some of these must be installed, such as the chipset driver.

After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your module board. Download this file to create a DVD of the drivers and utilities it contains. (You may also use a utility to extract the ISO file if preferred.)

After creating a DVD with the ISO files, insert the disk into the DVD drive on your system and the display shown in Figure B-1 should appear.

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your module board here, where you may download individual drivers and utilities to your hard drive or a USB flash drive and install from there.

Note: To install the Windows operating system, please refer to the instructions posted on our website at http://www.supermicro.com/support/manuals/.

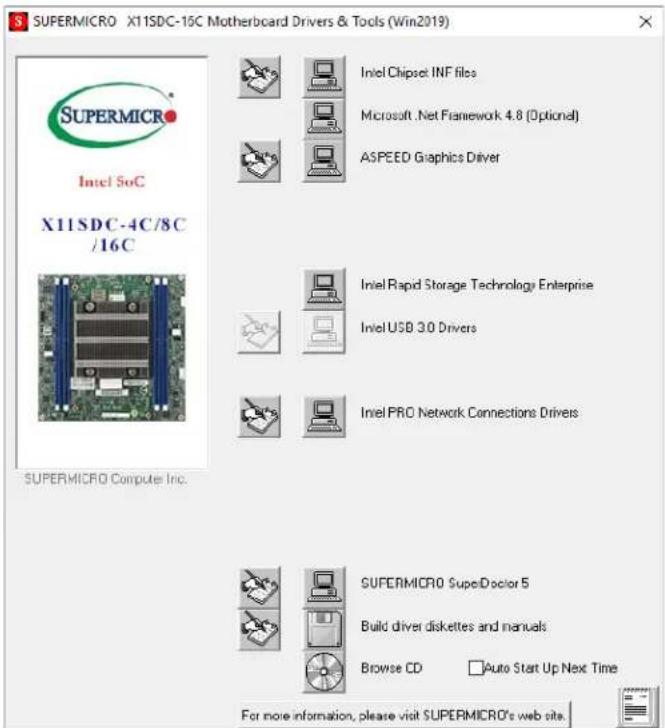

SUPERMICRO X11SDC-16C Motherboard Drivers & Tools (Win2019) SUPERMICRO Intel SoC X11SDC-4C/8C /16C SUPERMICRO Computer Inc. Intel Chipset INF files Microsoft .Net Framework 4.8 (Optional) ASPEED Graphics Driver Intel Rapid Storage Technology Enterprise Intel USB 30 Drivers Intel PRO Network Connections Drivers SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

Figure B-1. Driver/Tool Installation Display Screen

Click the icons showing a hand writing on the paper to view the readme files for each item. Click a computer icon to the right of an item to install an item (from top to bottom) one at a time. After installing each item, you must reboot the system before proceeding with the next item on the list. The bottom icon with a DVD on it allows you to view the entire contents of the DVD.

When making a storage driver disk by booting into a driver DVD, please set the SATA Configuration to "Compatible Mode" and configure SATA as IDE in the BIOS Setup. After making the driver disk, be sure to change the SATA settings back to your original settings.

B.2 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SD5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

SuperDoctor 5 Methenbrant: C70361-CK-88 Voltage Temperature Hard Chain Memory Status C:\Program Files\Instruments\Copyright\Software\Hardware\Services\Memory\System\Microsoft\Software\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Services\Service 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 6000 6100 6200 6300 6400 6500 6600 6700 6800 6900 7000 7100 7200 7300 7400 7500 7600 7700 7800 7900 8000 8100 8200 8300 8400 8500 8600 8700 8800 8900 9000 9100 9200 9300 9400 9500 9600 9700 9800 9900 1.1VOL/1.2VOL/1.3VOL/1.4VOL/1.5VOL/1.6VOL/1.7VOL/1.8VOL/1.9VOL/2.1VOL/2.2VOL/2.3VOL/2.4VOL/2.5VOL/2.6VOL/2.7VOL/2.8VOL/2.9VOL/3.1VOL/3.2VOL/3.3VOL/3.4VOL/3.5VOL/3.6VOL/3.7VOL/3.8VOL/3.9VOL/4.1VOL/4.2VOL/4.3VOL/4.4VOL/4.5VOL/4.6VOL/4.7VOL/4.8VOL/4.9VOL/5.1VOL/5.2VOL/5.3VOL/5.4VOL/5.5VOL/5.6VOL/5.7VOL/5.8VOL/5.9VOL/6.1VOL/6.2VOL/6.3VOL/6.4VOL/6.5VOL/6.6VOL/6.7VOL/6.8VOL/6.9VOL/7.1VOL/7.2VOL/7.3VOL/7.4VOL/7.5VOL/7.6VOL/7.7VOL/7.8VOL/7.9VOL/8.1VOL/8.2VOL/8.3VOL/8.4VOL/8.5VOL/8.6VOL/8.7VOL/8.8VOL/8.9VOL/9.1VOL/9.2VOL/9.3VOL/9.4VOL/9.5VOL/9.6VOL/9.7VOL/9.8VOL/9.9VOL 1

Figure B-2. SuperDoctor 5 Interface Display Screen (Health Information)

Note: The SuperDoctor 5 program and user's manual can be downloaded from the Supermicro website at http://www.supermicro.com/products/nfo/sms_sd5.cfm.

Appendix C

Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this section in its entirety before installing or configuring components.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Battery Handling

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.

D.1 Overview

The Unified Extensible Firmware Interface (UEFI) provides a software-based interface between the operating system and the platform firmware in the pre-boot environment. The UEFI specification supports an architecture-independent mechanism that will allow the UEFI OS loader stored in an add-on card to boot the system. The UEFI offers clean, hands-off management to a computer during system boot.

D.2 Recovering the UEFI BIOS Image

A UEFI BIOS flash chip consists of a recovery BIOS block and a main BIOS block (a main BIOS image). The recovery block contains critical BIOS codes, including memory detection and recovery codes for the user to flash a healthy BIOS image if the original main BIOS image is corrupted. When the system power is turned on, the recovery block codes execute first. Once this process is complete, the main BIOS code will continue with system initialization and the remaining POST (Power-On Self-Test) routines.

Note 1: Follow the BIOS recovery instructions below for BIOS recovery when the main BIOS block crashes.

Note 2: When the BIOS recovery block crashes, you will need to follow the procedures to make a Returned Merchandise Authorization (RMA) request. (For a RMA request, please see section 3.5 for more information). Also, you may use the Supermicro Update Manager (SUM) Out-of-Band (OOB) (https://www.supermicro.com.tw/products/nfo/SMS_SUM.cfm) to reflash the BIOS.

D.3 Recovering the Main BIOS Block with a USB Device

This feature allows the user to recover the main BIOS image using a USB-attached device without additional utilities used. A USB flash device such as a USB Flash Drive, or a USB CD/DVD ROM device can be used for this purpose. However, a USB Hard Disk drive cannot be used for BIOS recovery at this time.

The file system supported by the recovery block is FAT (including FAT12, FAT16, and FAT32) which is installed on a bootable or non-bootable USB-attached device. However, the BIOS might need several minutes to locate the SUPER.ROM file if the media size becomes too large due to the huge volumes of folders and files stored in the device.

To perform UEFI BIOS recovery using a USB-attached device, follow the instructions below.

1. Using a different machine, copy the "Super.ROM" binary image file into the Root "\" directory of a USB device or a writable CD/DVD.

Note 1: If you cannot locate the "Super.ROM" file in your drive disk, visit our website at www.supermicro.com to download the BIOS package. Extract the BIOS binary image into a USB flash device and rename it "Super.ROM" for the BIOS recovery use.

Note 2: Before recovering the main BIOS image, confirm that the "Super.ROM" binary image file you download is the same version or a close version meant for your module board.

PEI-- BMC IP:10.132.168.92 PEI--Could Not Find Recovery Image... 07

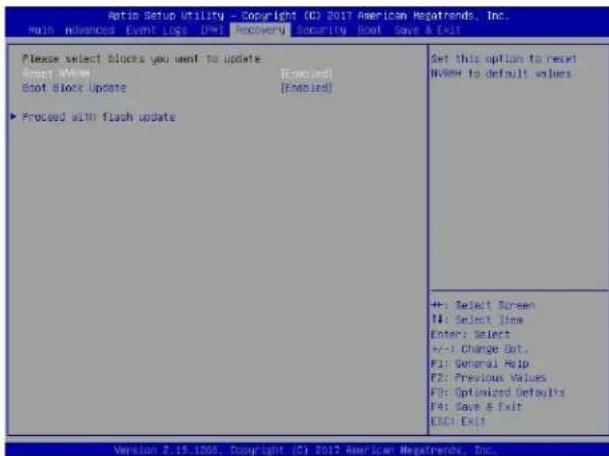

Option Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main:advanced Event Log [PM] Recovery Security Boot Save & Exit Please select blocks you want to update Boot Block Update [Enabled] Boot Block Update [Enabled] ►Proceed with flash update Get this option to reset INAMR to default values +: Select Screen T4: Select Item Enter: Select +/-: Change Dot. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit END: Exit Version 2.19.1006. Copyright (C) 2017 American Megatrends, Inc.

1. Insert the USB device that contains the new BIOS image ("Super.ROM") into your USB drive and reset the system when the following screen appears.

2. After locating the healthy BIOS binary image, the system will enter the BIOS Recovery menu as shown below.

Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.

Aroio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Recovery WARNING System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF !!! Once firmware update is completed press any key to reboot the system Program new data write new boot block... 178 +: Select Screen 14: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults M4: Save & Exit ESC: Exit Version 2.15.1266. Copyright (C) 2017 American Megatrends, Inc.

1. When the screen as shown above displays, use the arrow keys to select the item "Proceed with flash update" and press the key. You will see the BIOS recovery progress as shown in the screen below.

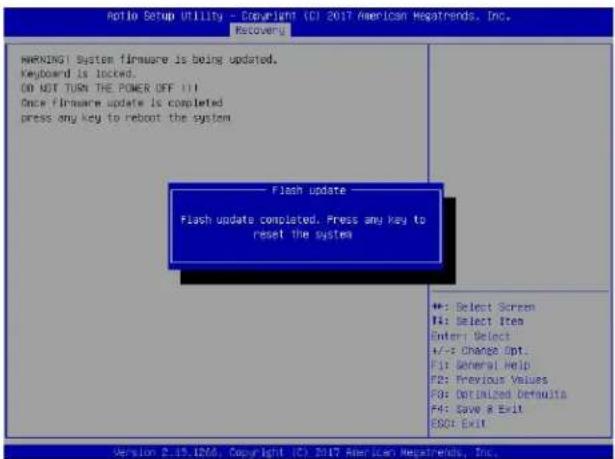

Rotio Setup UTILITY - Copyright (C) 2017 American Hcpatrends, Inc. Recovery WARNING System firmware is being updated. Keyboard is locked. DO NOT TURN THE POWER OFF !!! Once firmware update is completed press any key to reboot the system Flash update Flash update completed. Press any key to reset the system +: Select Screen F1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save R Exit ESC: Exit Version 2.15.1266, Copyright (C) 2017 American Hcpatrends, Inc.

Note: Do not interrupt the BIOS flashing process until it has completed.

1. After the BIOS recovery process is complete, press any key to reboot the system.
2. Using a different system, extract the BIOS package into a USB flash drive.
3. Press continuously during system boot to enter the BIOS Setup utility. From the top of the tool bar, select Boot to enter the submenu. From the submenu list, select Boot Option #1 as shown below. Then, set Boot Option #1 to [UEFI AP:UEFI: Built-in EFI Shell]. Press to save the settings and exit the BIOS Setup utility.

Aptio Setup Utility - Copyright (CI 2017 American Megatrends, Inc. main Advanced Event Lost IPM Security Boot Save & Exit Boot Configuration Boot mode select LEGACY TO EFI Support [DWAL] [Disabled] FIXED BOOT ORDER Priorities Boot Option #1 [DEFI USB/DVD] [DSV/DVD] Boot Option #2 [USB Hard Disk] Boot Option #3 [USB CD/DVD] Boot Option #4 [USB Key/Sand Disk] Boot Option #5 [USB Floppy] Boot Option #6 [USB Lan] Boot Option #7 [Network: IBM GE SI...] Boot Option #8 [UEFI Hard Disk] Boot Option #9 [UEFI CD/DVD] Boot Option #10 [UEFI USB Hard Disk] Boot Option #11 [UEFI USB CD/DVD] Boot Option #12 [UEFI USB Key/UEFI...] Boot Option #13 [UEFI USB Floppy] Boot Option #14 [UEFI USB Lan] Boot Option #15 [UEFI Network] Boot Option #16 [Hard Disk] Add New Boot Option Sets the system boot order ++: Select Screen T4: Select Item Enter: Select +/-: Change Opt. F1: General) Hold F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2017 American Megatrends, Inc.

1. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 6. Enter flash.nsh BIOSname.### at the prompt to start the BIOS update process.

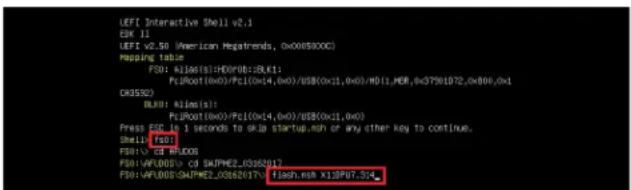

LEFI Interactive Shell v2.1 ESK 11 LEFI v2.50 (American Regatrends, 0x0089000) Mapping table F50: K166(5):HD(0x0):BLK1: PcROOT(0x0):PCI(0x14,0x0):USB(0x11,0x0):MD(1)_MDR_0x0791D72,0x806,0x1 CR3592) BLK1: K166(5): PcROOT(0x0):PCI(0x14,0x0):USB(0x11,0x0) Press FSK to 1 seconds to skills startup.shr or any other key to continue. Shell: F501 F501: VAPLOOS: cd SAPMHE2_03562012 F50: VAPLOOS:SAPMHE2_03626017: flash.nsh X13P07.5X4

Note: Do not interrupt this process until the BIOS flashing is complete.

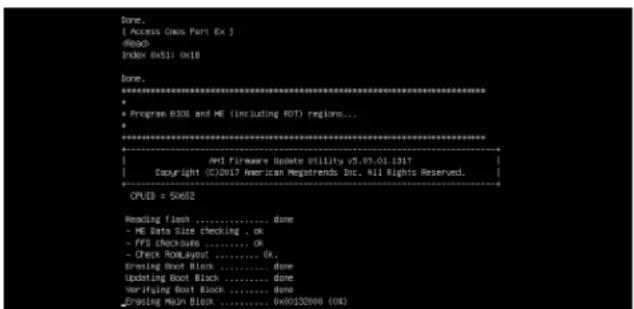

Done. Access Oxxo Part Ex J 4Box0 Index Ex51: Ex10 Done. ********************************************************************** * Program BIOS and ME (including ROT) regions... ********************************************************************** Antl Firmware Update Utility v5.09.01.1317 Copyright ©2017 American Registrends Dic. All Rights Reserved. OPUD = 50692 Reading Flash ....... done - ME Data Size checking . ok - PFS checksums ....... ok - Check RootLayout ....... ok, Eraving Boot Block ....... done Updating Boot Block ....... done Verifying Boot Block ....... done Frasing Mesh Block ....... 0x001S2000 (OD)

Verifying HCM Block ......... done - Update success for FOR - Update success for IS. - Successful Update Recovery Loader to IPRx!! - Successful Update MFSB11- - Successful Update IFRx!! - Successful Update NFS, [001 and IWS21] - Successful Update F500 and UTOX1 - ME Entire Image update success!! WARNING : System must power-off to have the changes take effect! Moving FS01:AFUDOS/S4MPRE2_0316207x/dtx64,efi -> FS01:AFUDOS/S4MPRE2_0316201Yf df.smc - [ok] Moving FS01:AFUDOS/S4MPRE2_0316207x/afexf/w64,efi -> FS01:AFUDOS/S4MPRE2_0316201 ?rafue1.smc - [ok] ********************************************************************** * • Please ignore this 'shell cannot read from file - device error' • Warning message due to it does not impact flashing process. * ********************************************************************** * Delating ' Delete successful. F500>

1. The screen above indicates that the BIOS update process is complete. When you see the screen above, unplug the AC power cable from the power supply, clear CMOS, and plug the AC power cable in the power supply again to power on the system.
2. Press continuously to enter the BIOS Setup utility.
3. Press to load the default settings.
4. After loading the default settings, press to save the settings and exit the BIOS Setup utility.
