USER MANUAL Cornerview SHEN-8140400-04 DreamLine

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. Please refer to the model's web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details.

Isometric line drawing of a 3D shower enclosure with vertical panels and grid walls (no text or symbols)

Cornerview Model#
SHEN-8134340-01 (chrome)
SHEN-8140400-01
SHEN-8134340-04 (brushed nickel)
SHEN-8140400-04

Isometric line drawing of a 3D window structure with grid panels and corner brackets (no text or symbols)

French Corner Model#
SHEN-8134340-89 (satin black)
SHEN-8140400-89

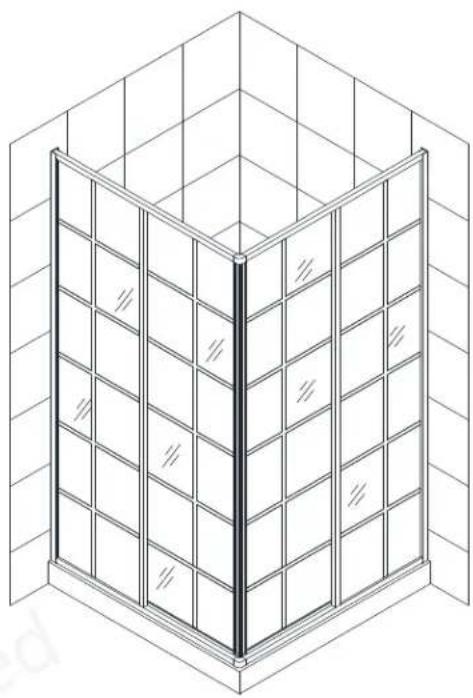

Isometric line drawing of a 3D wall-mounted window or enclosure structure (no text or symbols)

French Corner Model#
SHEN-8134340-00 (white)

Please review this entire manual prior to installation

Questions?

Please Call DreamLine Customer Support: 1-855-831-2126

Hours of Operation M-F 8AM - 7PM EST and Saturday 9AM - 5PM EST

[e-mail]

For more information about DreamLine® Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

Table of Contents

Section title	Page #
Preparation	2
Tools	3
Detailed Diagram of Shower Enclosure Components	4
Parts List & Shower Enclosure Plan Overview	5
Installation Steps	6-11
Product Maintenance 12

This product should be installed by someone familiar with the construction requirements for this type of project and the care necessary for the safe installation and operation of the product.

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece count with the packing slip. After opening all boxes and packages read this introduction carefully. Check that all of the necessary parts are included in the package by checking off the components on the "Detailed Diagram of Shower Door Components". If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Contact DreamLine® if you have any questions, and please provide an order number, job name or other proof of purchase to help identify the original order.

2. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, please install all of the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation

4. Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Note that some adjustments and drilling will be necessary during the installation process.

5. Protect all primary surfaces of the product during installation. Never set the glass down directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. This model has 1/2" of adjustment for out-of-plumb wall conditions within the wall profiles.

8. This model requires a minimum of 1" of flat threshold space for installation.

9. Professional installation recommended.

This enclosure is available with clear glass as the "Cornerview", or with patterned glass as the "French Corner". The installation of the "Cornerview" modelwith clear glass will be used as an example throughout this manual.

Tools

Level

Tape Measure

Pencil

Phillips Screwdriver

Drill bit ∅5/16" (8mm)

Drill bit ∅1/8" (3mm)

Power Drill

Soft Head Hammer

Carpenter's Square

Razor Knife

100% Silicone

Work Gloves

Safety Glasses

Tip: Measure the finished opening before proceeding with the installation to be sure that the correct model size has been ordered.

Tip: Prior to installation, cover the shower/tub drain with tape to prevent losing screws or small parts.

Tip: Set screw gun clutch to low setting when installing screws and bolts to prevent stripping the heads.

Threshold must be level.

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed diagram and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in your model configuration.

NOTE: Retain these installation instructions for future reference.

Detailed Diagram of Shower Enclosure Components

Technical diagram of a mechanical assembly with numbered components and a central circular component, likely for assembly or maintenance.

Parts List

Part#	Part#DESCRIPTION	QTYQTY
01	Wall profile	2pcs	07	ST4.2x10 Pan head screw	4pcs
02	Panel Glass Assembly	2pcs	08	Decorative cover and washer	4pcs
03	Door Glass Assembly	2pcs	09	Wall anchor	8pcs
04	Rail connector	2pcs	10	M5x8 Bolt	8pcs
05	ST4.2x40 Truss head screw	8pcs	11	Roller wheel	8pcs
06	ST4.2x10 Truss head screw	4pcs

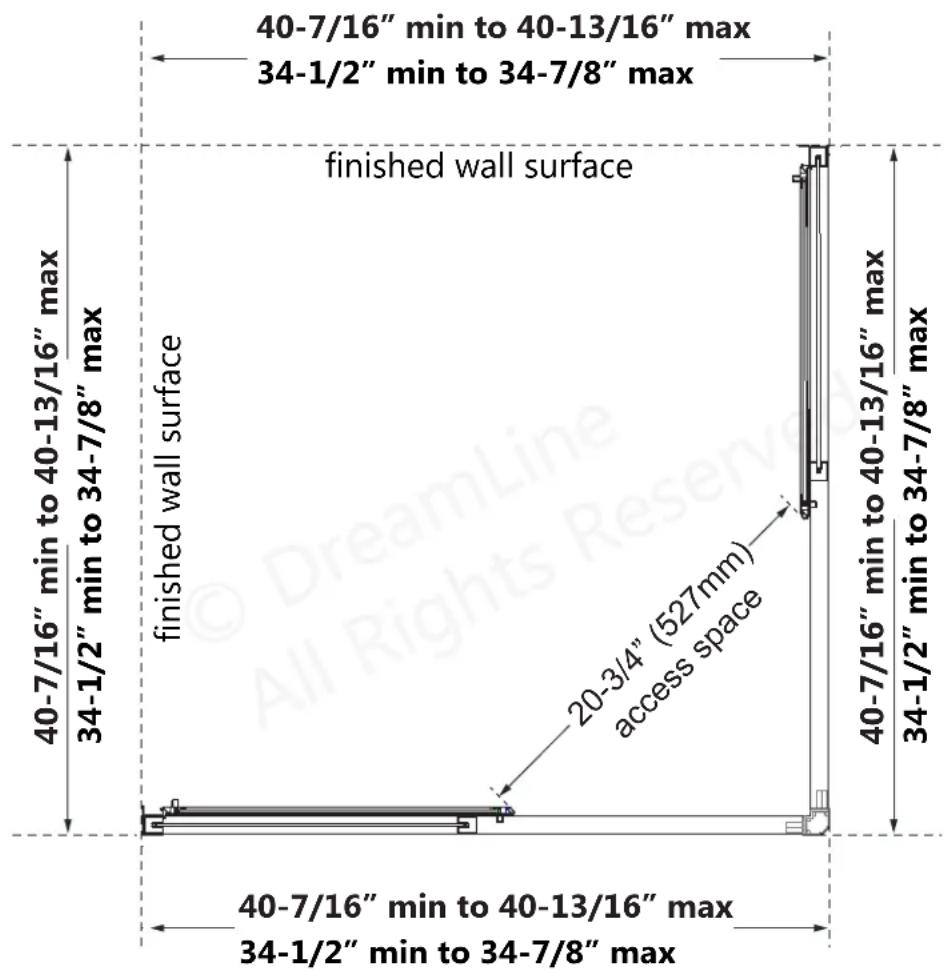

Shower Enclosure Plan Overview
SHEN-8134340-## / SHEN-8140400-##

40-7/16" min to 40-13/16" max 34-1/2" min to 34-7/8" max 40-7/16" min to 40-13/16" max 34-1/2" min to 34-7/8" max finished wall surface 40-7/16" min to 40-13/16" max 34-1/2" min to 34-7/8" max 40-7/16" min to 40-13/16" max 34-1/2" min to 34-7/8" max 20-3/4" (527mm) access space

Installation steps

1. Place the Wall Profiles (#01) onto the threshold at a distance of 34-1/2" or 40-7/16" (depending on the model size). Measure from the finished corner of the opening and mark the position on the wall at the threshold. Use a level to align the Wall Profiles (#01) vertically and mark the wall.

(Refer to the Shower Enclosure Plan on page 5 and Fig 1)

outside outside 40-7/16" or 34-1/2" 40-7/16" or 34-1/2" Fig 1

Measure from the finished corner of the shower to the outside of the wall profile at the threshold and draw a plumb line up from there.

1. Mark the drilling holes on the wall through the predrilled holes in the Wall Profiles (#01). Drill the holes in the wall using a 5/16" drill bit and insert the Wall Anchors (#09). Run a bead of silicone along the back surface of the Wall Profiles (#01) and around the holes in the wall. Attach the Wall Profiles (#01) to the wall using the ST4.2 x 40 Truss Head Screw (#05). (Fig 2)

1 inside

2 Ø5/16"

Simple line drawing of a hammer and a small object with a dashed vertical line, no text or symbols present

4

5 inside

Fig 2

1. Insert the Rail Connector (#04) into the guide rails of the Panel Glass Assembly (#02). Drill a hole into the outer layer of the Rail Connector (#04), through the predrilled hole in the guide rails using an ∅1/8" drill bit.

Fasten the top and bottom Rail Connector (#04) to the guide rails with the ST4.2×10 Truss Head Screws (#06). (Fig 3a and Fig 3b)

NOTE: To prevent damaging the Rail Connector (#04), tighten but Do Not overtighten the screws.

Technical line drawing of a mechanical bracket assembly with an arrow indicating direction (no text or symbols)

2 Ø1/8"

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly with an arrow indicating direction (no text or symbols)

5 Ø1/8"

Technical line drawing of a mechanical joint or bracket assembly (no text or symbols)

Fig 3a

Isometric line drawing of a 3D rectangular frame with vertical supports and horizontal edges, no text or symbols present.

Fig 3b

1. Align the assembled Panel Glass Panels (#02) onto the Shower base and slide the Glass Profiles into the installed Wall Profiles (#01). (Fig 4)

Wall Profile Glass Profile

Fig 4

1. Insert the Roller Wheels (#11) into the groove of the Upper Guide Rail, then attach the Door Glass Assemblies (#03) to the Roller Wheels (#11) using the M5×8 Bolts (#10). Repeat this procedure to attach the Door Glass Assemblies (#03) to the Roller Wheels (#11) in the Bottom Guide Rail. Be sure to install the doors so that the magnetic vinyl seals will meet in the corner. (See Step#6 for details regarding adjusting the rollers.) (Fig 5a and Fig 5b)

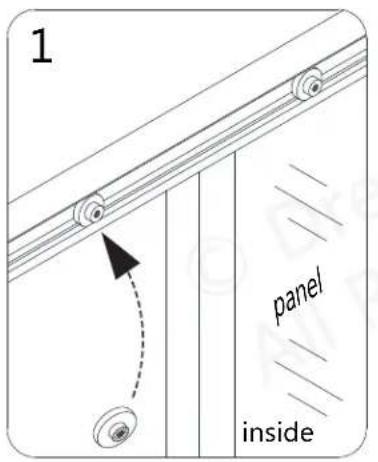

1 panel inside

2 magnetic vinyl seal door

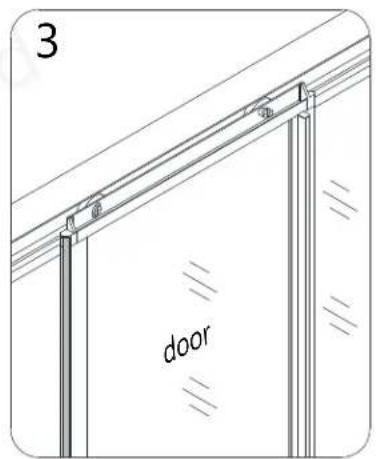

3 door

Fig 5a

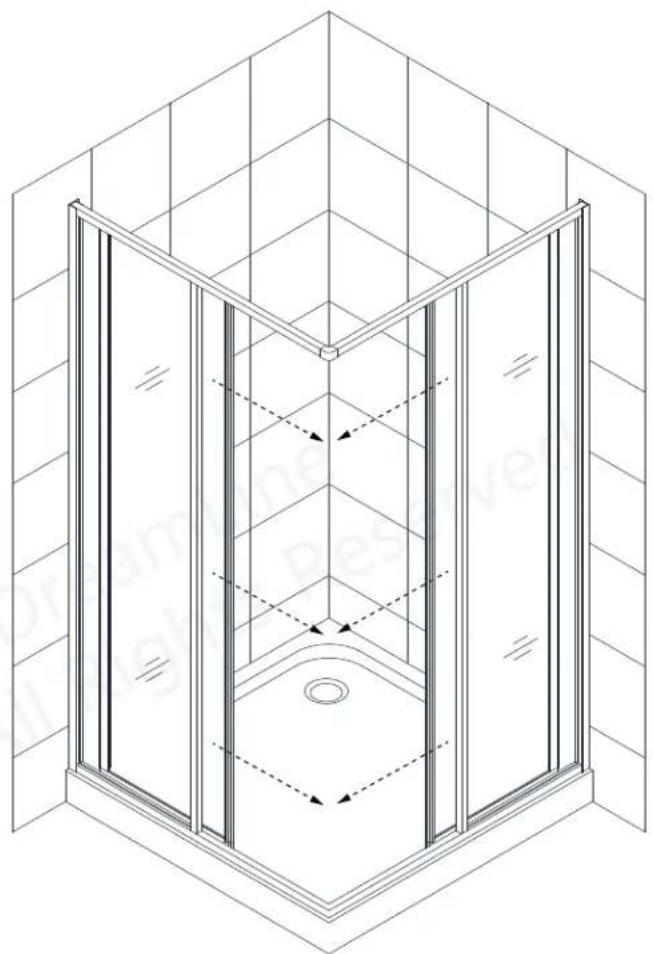

Isometric line drawing of a 3D shower enclosure with glass doors and ventilation ducts (no text or symbols)

Test the operation of the doors to make sure that the magnets make full contact and create a seal when in the closed position

Fig 5b

1. If necessary, adjust the position of the Roller Wheels (#11) within the slot(s) in the top and bottom rails of the Door Glass Assemblies (#03). (Fig 6.1)

Perform any final adjustments of the assembled unit within the Wall Profiles (#01) and make certain that the bottom rails are tight to the threshold.

From inside the shower, drill holes into the first layer of the Wall Profile and the Glass Profile (Fig 6.2) using an 01/8" drill bit.

Secure the Glass Profile to the Wall Profile (#01) using the Pan Head Screws ST4.2×10 (#07) and Washers (#08) and cover the exposed screws and washers with the Decorative Covers (#08). (Fig 6)

NOTE: Do not drill the profiles throughout, only through the first layer.

1 adjust (if necessary)

2 Ø1/8" 1/2"

decorative cap

screw

washer

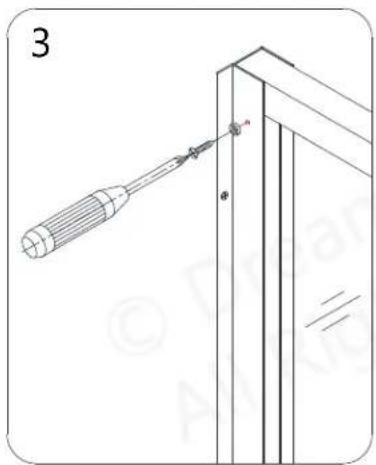

3 θ

4 Line ts Resi

Fig 6

1. Use a good quality mildew-resistant silicone to seal the connections between the Wall Profiles and the walls, and where the Bottom Guide Rail meets the threshold. (Fig 7)

NOTE: The surfaces need to be clean and free of debris before applying silicone.

Allow 24 hours for the silicone to cure before using the shower.

24 Hours

Fig 7

Product Maintenance

BASES and BACKWALLS: To ensure long-lasting life for your acrylic back walls, wipe them off after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long-lasting life for your glass shower products, wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long-lasting finish, wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft cloth.

Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass and all hardware for misalignment, proper attachment, and/or damage. Contact DreamLine® with any questions or concerns.

DreamLine® shower doors and enclosures are designed not to leak when installed properly and the flow of water is not pointed directly at the vinyl seals.

Maintenance checklist

☐ Periodically inspect the roller wheels and tigten if necessary
