USER MANUAL Linea D3234720HX-09 DreamLine

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice. For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer to your model's web page on DreamLine.com

Isometric line drawing of a 3D grid structure with a central vertical panel (no text or symbols)

TOULON
SHDR-3234721-89

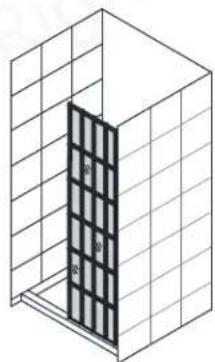

Isometric line drawing of a 3D room with a grid structure and a central panel (no text or symbols)

RHONE
SHDR-3234721-87

Isometric line drawing of a window or door structure with grid pattern (no text or symbols)

AVIGNON
SHDR-3234721-86

Isometric line drawing of a 3D rectangular prism with a vertical slanted cutout, no text or symbols present

OMBRE
D3234720PXB-01 (chrome)

D3234720PXB-09 (satin black)

Isometric line drawing of a window with a tree inside, no text or symbols present

BLOSSOM
D3234720ZNB-09

Isometric line drawing of a 3D grid cube with a vertical brick wall section (no text or symbols)

HEXA
D3234720HX-09

Right wall installation shown

PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION

Questions?

Please Call DreamLine Customer Support: 1-855-831-2126

Hours of Operation M-F 8AM - 7PM EST and Saturday 9AM - 5PM EST

[e-mail]

For more information about DreamLine® Shower Doors & Tub Doors please visit DreamLine.com

DREAMLINE® dream in style

LEARMAX™

This model is treated with DreamLine's exclusive ClearMax^TM Glass technology. This is a specially formulated coating that prevents the build up of soap and water spots.

Install the surface with the ClearMax™ label towards the inside of the shower. Please note that depending on the model, the glass may be coated on either one or both surfaces.

For best results, squeegee the glass after each use and dry with a soft cloth.

Table of Contents

Section Title	Page #
Preparation	2
Tools	4
Model Diagram	5
Detailed Diagram of Shower Panel Components	6
Parts List	6
Installation Steps	7-10
Product Maintenance	11

Isometric line drawing of a window with grid pattern and a black panel on the front wall (no text or symbols)

Left wall installation Right wall installation

Isometric line drawing of a 3D room corner with a grid-patterned door and adjacent wall (no text or symbols)

NOTE: This model is fully reversible. The Toulon model with a Left wall installation is shown as an example throughout this manual. For Right wall installation, simply reverse the orientation of the installation and begin on the opposite wall.

Preparation

1. Prior to installation, examine all boxes and packages for shipping damage and compare piece count with your packing slip. After opening all boxes and packages, read this introduction carefully. Check that all of the needed parts are included in the package by marking all the components on the "Detailed Diagram of Shower Door Components". If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine® will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Feel free to contact DreamLine® if you have any questions and please provide a purchase order #, name or other proof of purchase to help identify the original order.
2. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine® is not responsible for code compliance standards for your project and will not accept any returns.
3. If this unit is going to be installed in new construction, please install all of the required plumbing and drainage before installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.
4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of side walls will result in serious problems for your installation. Please, note that some adjustments and drilling might be necessary during the installation process.
5. Please protect all primary surfaces of the product during installation. Never set your glass down directly onto a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.
6. Installation of this model requires that you drill down into the threshold or shower base. Contact the manufacturer of the base or threshold material with any questions regarding the drilling of holes into their product.
7. Stationary panel size of 34" is a nominal dimension referring to the overall size of the panel after installation and not the actual glass size.
8. The vertical (wall) u-channel will allow up to 1/2" of out-of-plumb adjustment. Do not exceed this tolerance.
9. This model requires a minimum 5/8" of flat level threshold space for installation.
10. Installation into a stud behind the wall is recommended.
11. Professional installation recommended.

To prevent serious injury, do not lean against the installed panel glass.

This product should be installed by someone familiar with the construction requirements for this type of project and the care necessary for the safe installation and operation of the product.

Tools

Level

Tape Measure

Pencil

Phillips Screwdriver

Drill bit (∅5/16")

Drill bit (∅1/8")

100% Silicone

Power Drill

Soft Head Hammer

Mallet Wood

Carpenter's Square

Professional Grade Glass Suction Cup

Miter saw or Hacksaw

Metal File

Work Gloves

Safety Glasses

Tip: Measure the finished opening before proceeding with the installation to be sure that the correct model size has been ordered.

Tip: Prior to installation, cover the shower/tub drain with tape to prevent losing screws or small parts.

Tip: Set screw gun clutch to low setting when installing screws and bolts to prevent stripping the heads.

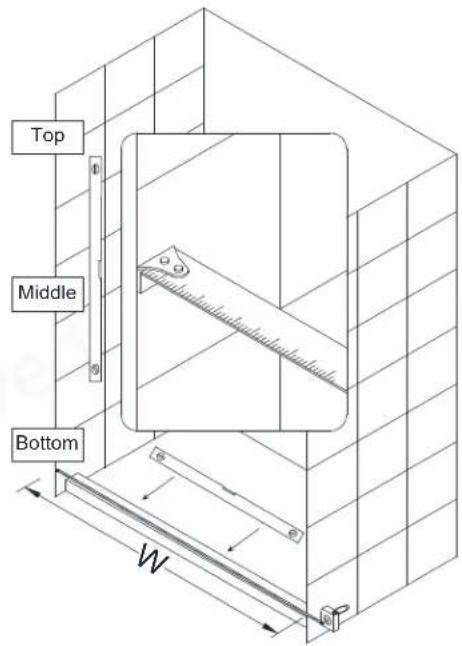

Threshold must be level.

Pure technical diagram showing a mechanical component with diagonal lines and an exclamation mark (no text or symbols)

Top Middle Bottom W

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed diagram and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in your model configuration.

NOTE: Retain these installation instructions for future reference.

Model Diagram

72" *22" minimum 34" 34" *22"

*22" minimum access space recommended

NOTE: It is recommended to install this 34" x 72" stationary panel into a finished opening (>56") that will allow for at least 22" of unobstructed access into the shower area.

Detailed Diagram of shower panel components

11 13 23 34 29 9

The patterned surface of the glass must be installed toward the outside of the shower

The glass surface with the ClearMax™ label must be installed to face inside of the shower

Glass with Toulon pattern shown as an example

Parts List

Part#	DESCRIPTION	Qty	Part#	DESCRIPTION	Qty
09 1pc	U-Channel (vertical) (73") Countersunk Screw23T4.2x40				8pcs
11	Stationary Glass (34")	1pc	29	U-Channel (bottom) (36")	1pc
13	∅5/16" Wall Anchor	8pcs	34	0.5mm PVC Glass Spacer (36")	1pc

Installation steps

1. Check the wall for plumb and the threshold for level. Draw a line on the threshold and on the wall to represent the centerline of the U-Channel. Make sure the line on the threshold is parallel to the outside edge. (Fig 1)

2. Use a miter saw or hacksaw to cut the Vertical U-Channel (#09) to 71". If the wall is plumb, cut the Bottom U-Channel (#29) to 34" (if the wall is out-of-plumb at the bottom, see the Note** below). Use a metal file to file off any burrs on the cut end. (Fig 2)

Model height of 72" Carpenter's Square

Fig 1

Vertical U-Channel 71" Miter saw or Hacksaw Metal File Bottom U-Channel** **34" Fig 2 Plumb line OUT-of-plumb at the bottom Less than 90° A Plumb line TE: wall is out-of-plumb at bottom, measure that usion as (A) and add (A) finished cut length of channel (1/2" max): ed cut length= Width + 3/16" + (A)

\*\*NOTE:

If the wall is out-of-plumb at the bottom, measure that dimension as (A) and add (A) to the finished cut length of the U-channel (1/2" max):

Finished cut length= Glass Width + 3/16" + (A)

1. Position the U-Channels onto the centerlines to mark the holes for drilling. (Fig 3)

2. Mark the hole positions through the holes in the U-Channels onto the centerline on the wall and threshold. (Fig 4)

NOTE: The vertical u-channel sits on top of the bottom u-channel

Technical diagram showing a vertical structure with directional arrows and dashed reference lines, labeled 'Dre' in the top right corner.

Technical diagram showing a wall-mounted rod assembly with labeled components and a close-up inset of the component detail.

Fig 4Fig 3

1. Drill ∅5/16" holes into the wall and install the wall anchors.

Drill ∅1/8" holes into an acrylic threshold (or drill ∅5/16" holes and anchors for a tile threshold). (Fig 5)

1. Apply silicone to the back of the U-Channels and the screw holes, then install the U-Channels using the ST4.2 x 40mm Screws (#23). (Fig 6)

Ø5/16" Ø1/8" (or Ø5/16" & anchor for tile)

NOTE: If installing into a tile threshold, drill ∅5/16" holes and insert anchors.

Fig 6Fig 5

1. Apply a bead of silicone into the length of the U-Channels first. Then, cut and add 2" pieces of the 0.5mm PVC Glass Spacers (#34) into the Bottom U-Channel (#29) to protect the bottom and corners of the glass. (Fig 7)

NOTE: Additional 0.5mm PVC Glass Spacers (#34) can be used in the bottom u-channel (up to 1/4" max) to assist in leveling the glass.

cut 2"pcs 0.5mm Bottom Spacer Strip (#34)

Fig 7

DO NOT install one long continuous strip of the 0.5mm PVC Glass spacer into the bottom rail.

1. Install the Stationary Glass (#11) into the Vertical U-Channel (#09) first and then slide it down into the Bottom U-Channel (#29).

Check for level and plumb. (Fig 8)

The French Linea patterned surface of the glass must be installed toward the outside of the shower

Technical diagram showing a panel installation with labeled components and directional arrows indicating flow or movement.

Fig 8

1. Apply a good quality mildew-resistant silicone along the U-Channel where it meets the wall and threshold from inside of the shower. You may also apply silicone along the outside if desired. (Fig 9)

Surfaces must be clean and free of debris before applying silicone. Allow 24 hours for the silicone to cure before using the shower.

24 Hours Fig 9

To prevent serious injury, do not lean against the installed panel glass.

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off after each use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents. Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft cloth. Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion). After cleaning the polished finishes, rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the glass and all hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns.
