Brand	Infinity
Model	Kappa 462.7CFP
Product Type	4" x 6" 2-Way Custom-Fit Plate Speaker
Speaker Impedance	2 ohms
Power Handling (RMS)	60W
Power Handling (Peak)	180W
Sensitivity	94dB (2.83V, 1m)
Frequency Response	75Hz – 25kHz
Mounting Depth	1-13/16" (47mm)
Cut-Out Dimensions	3-5/8" x 5-3/8" (93mm x 137mm)
Woofer Size	4" x 6" oval
Tweeter Type	Rotating tweeter (not available on this model? Actually no Unipivot for 462.7cfp)
Tweeter Level Adjustment	Yes, +/- 3dB via twisting faceplate
Crossover	Not included (full-range design)
Installation	Under factory grille (no grille included)
Application	Automotive audio
Compliance	CE, EN 61000-6-3:2001, EN 61000-6-1:2001
Safety Warning	Risk of hearing loss; use low volume while driving
Warranty	Valid serial number required for coverage

Frequently Asked Questions - Kappa 462.7CFP INFINITY

What is the impedance of the Infinity Kappa 462.7CFP speaker?

The speaker impedance is 2 ohms. This low impedance allows for higher power output from compatible amplifiers.

What is the power handling of the Kappa 462.7CFP?

It handles 60W RMS and 180W peak power. RMS is the continuous power rating, while peak handles short bursts.

Does the Kappa 462.7CFP include a crossover?

No, the 462.7cfp is a full-range plate speaker and does not include an external crossover. It is designed to be used without one.

What are the mounting dimensions for the 462.7CFP?

Mounting depth is 1-13/16" (47mm) and cut-out dimensions are 3-5/8" x 5-3/8" (93mm x 137mm). Make sure your vehicle has clearance.

Can I adjust the tweeter level on the Kappa 462.7CFP?

Yes, you can adjust the tweeter level by twisting the faceplate between 0dB and +3dB to suit your preference.

Is the Kappa 462.7CFP suitable for marine or outdoor use?

No, the manual warns not to mount speakers where they will get wet. It is designed for interior automotive use.

What tools are needed for installation?

You'll need protective eyewear, a utility knife, drill or saw for cutting holes, pliers for detaching tabs, and screwdrivers. Disconnect the battery negative terminal first.

How do I mount the 462.7CFP without a grille?

The 462.7cfp is designed to be installed under factory grilles. If your vehicle has factory grilles, mount it behind them. No grilles are included.

What is the sensitivity rating of this speaker?

Sensitivity is 94dB at 2.83V and 1m, meaning it produces high volume with relatively low power input.

Does the Kappa 462.7CFP require a subwoofer?

It can be used without a subwoofer as it covers down to 75Hz, but for deeper bass, adding a subwoofer is recommended.

USER MANUAL Kappa 462.7CFP INFINITY

42.7i,52.7i,62.7i,63.7i,652.7i,653 692.7i,693.7i,32.7cf,462.7cfp,682

Top-down view of a speaker grille with two speakers and a circular head (no text or symbols visible)

Technical illustration of a speaker with two circular components, shown from front and side views (no text or symbols)

Infinity®

instructions

kappa series

INSTALLATIONWARNINGSANDTIPS

THANK YOU for purchasing Infinity's Kappa Series multielement automotive loudspeakers. We've organized this manual to make their installation as simple and trouble-free as possible. Please read it thoroughly before proceeding.

Remember to keep your sales receipt with this manual in a safe place so both are available for future reference.

ABOUT THESE INSTRUCTIONS

Installation of automotive stereo components can require extensive experience with a variety of mechanical and electrical procedures. Although these instructions explain how to install Kappa Series multi-element speakers in a general sense, they do not show the exact installation methods for your particular vehicle. If you do not feel you have the experience, do not attempt the installation yourself, but instead ask your authorized Infinity car audio dealer about professional installation options.

LOUD MUSIC AND HEARING

Playing loud music in an automobile can hinder your ability to hear traffic as well as permanently damage your hearing. The maximum volume levels achievable with Infinity speakers, combined with high power amplification, may exceed safe levels for extended listening. We recommend using low volume levels when driving. Infinity accepts no liability for hearing loss, bodily injury, or property damage as a result of use or misuse of this product.

REAR DECK PRECAUTION

In some cars, fuel tanks may be located directly beneath the rear deck. Before installation, make sure there is adequate speaker basket clearance before considering this location!

ABOUT THE CROSSOVER

Except for the 462.7cfp, each Kappa Series multi-element speaker includes a crossover for in-line connection to an amplifier output and is required for proper operation (see Figure 8 on the next page). The attached crossover wires are keyed and color-coded to aid in correct polarity connections. Do not omit the crossover or substitute another one - doing so will damage the speaker.

INSTALLATION TIPS

• Always wear protective eyewear when using any tools.

• Turn off all audio components and other electrical devices before you start. Disconnect the (-) negative lead from your vehicle's battery.
• Keep speakers in their package until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.
• Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.
• At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.
• Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl, to keep material from snagging in a drill bit or saw.
• For door installations, check the clearance with the windows throughout the range of the window's travel, and verify that a mounted speaker will not interfere with the window crank or power window mechanism.
• If mounting speakers elsewhere, check for clearance around rear deck torsion bars, glove box or other structural elements.
• Do not mount speakers where they will get wet.

INSTALLATION

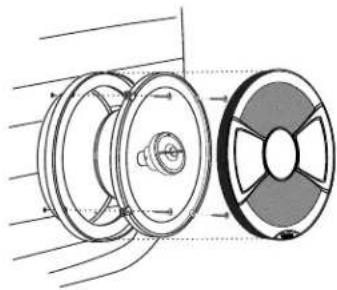

Figure 1. Mounting the 42.7i, 52.7i, 62.7i, 63.7i, 692.7i, 693.7i, 32.7cf or 682.7cf.

NOTE: The 32.7cf, 462.7cfp and 682.7cf speakers are designed to be installed under factory grilles. Consequently, no grilles are packaged with these models.

Technical line drawing of a mechanical assembly with rollers and a pulley (no text or symbols)

Figure 2. Modifying the 42.7i to be installed in locations requiring fewer than 4 mounting "ears". (The 62.7i and 63.7i may be similarly modified.)

NOTE: Grip the tab with pliers and bend to detach it from the speaker.

Line drawing of a hand holding a speaker component with a rotating knob (no text or symbols)

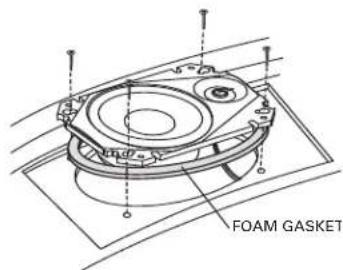

Figure 3. Mounting the 572.7cf or 462.7cfp. The 32.7cf (not shown) is mounted in a similar way.

Figure 3a.

INSTALLATION

Figure 4. Mounting the 62.5i with the grille.

Technical line drawing of a mechanical pulley system with three wheels and a central hub (no text or symbols)

Figure 5. Mounting the 62.5i in a 165mm speaker location.

Figure 6. Mounting the 62.5i in a standard speaker location.

Figure 7. Tweeter level adjustment.

INTERMOUNT III MOUNTING RINGS

The Kappa 62.7 and 63.7 speakers are packaged with two different speaker adaptor rings. The rings will allow the speakers to be installed into various factories, 6/16/17th and 6/24th openings.

various factory 6, 6-1/2 and 6-3/4 openings. See Figure 5. The metal ring can be mounted in many European vehicles, Japanese vehicles or vehicles with 6" speaker locations. The plastic ring can be mounted in many vehicles using 6-3/4" speaker locations or three-point mounting frames.

UNIPIVOT ROTATING TWEETER

In order to rotate the tweeter on select Kappa speakers, (1) push the tweeter post inward and (2) then rotate. Once in position, release the tweeter to lock in position (Figure 6). This feature is only available on the Kappa 52.7, 62.7, 692.7 and 682.7cf speakers.

TWEETER LEVEL ADJUSTMENT

All Kappa series multielement speakers are equipped with an adjustable tweeter level. On all two-way speakers, slightly twist the tweeter faceplate to either the +3dB or 0dB position (Figure 7). All three-way speakers have a push button to adjust the tweeter level between the +3dB and 0dB setting (Figure 7). Adjust to personal preference.

CONNECTIONS

Figure 8. Connecting an in-line crossover to a 62.7i and an amplifier output. Other speaker models are connected in a similar way.

kappa series To Amp Output

SPECIFICATIONS

42.7i

Type: 4" 2-Way

Speaker Impedance: 2 ohms

Power Handling: 50W RMS, 150W Peak

Sensitivity (2.83V, 1m): 93dB

Frequency Response: 75Hz - 25kHz

Mounting Depth: 1-13/16" (47mm

Cut-Out Diameter: 3-7/16" (88mm)

52.7i

Type: 5-1/4" 2-Way

Speaker Impedance: 2 ohms

Power Handling: 55W RMS, 165W Peak

Sensitivity (2.83V, 1m): 94dB

Frequency Response: 55Hz - 25kHz

Mounting Depth: 2-1/16" (53mm)

Cut-Out Diameter: 4-11/16" (120mm)

62.7i

Type: 6-1/2" 2-Way

Speaker Impedance: 2 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 45Hz - 25kHz

Mounting Depth: 2-3'16" (56mm)

Cut-Out Diameter: 5" (127mm)

63.7i

Type: 6-1/2" 3-Way

Speaker Impedance: 2 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 45Hz - 25kHz

Mounting Depth: 2-3/16" (56mm)

Cut-Out Diameter: 5" (127mm)

652.7i

Type: 165mm 2-Way

Speaker Impedance: 2 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 45Hz – 25kHz

Mounting Depth: 2-1/4" (58mm)

Cut-Out Diameter: 5-5/8" (143mm)

653.7i

Type: 165mm 3-Way

Speaker Impedance: 2 ohms

Power Handling: 75W RMS, 225W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 45Hz – 25kHz

Mounting Depth: 2-1/4" (58mm)

Cut-Out Diameter: 5-5/8" (143mm)

692.7i

Type: 6" x 9" 2-Way

Speaker Impedance: 2 ohms

Power Handling: 110W RMS, 330W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 35Hz - 25kHz

Mounting Depth: 3-3'16" (81mm)

Cut-Out Diameter: 5-7/8" x 8-11/16"

(150mm x 221mm)

693.7i

Type: 6" x 9" 3-Way

Speaker Impedance: 2 ohms

Power Handling: 110W RMS, 330W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 35Hz – 25kHz

Mounting Depth: 3-3/16" (81mm)

Cut-Out Diameter: 5-7/8" x 8-1 1/16"

(150mm x 221mm)

32.7cf

Type: 3-1/2" 2-Way,

Custom-Fit

Speaker Impedance: 2 ohms

Power Handling: 35 W RMS, 105W Peak

Sensitivity (2.83V, 1m): 95dB

Frequency Response: 85Hz - 25kHz

Mounting Depth: 1-9/16" (40mm)

Cut-Out Diameter: 3-1/4" (83mm)

462.7cfp

Type: 4" x 6" 2-Way,

Custom-Fit Plate

Speaker Impedance: 2 ohms

Power Handling: 60W RMS, 180W Peak

Sensitivity (2.83V, 1m): 94dB

Frequency Response: 75Hz – 25kHz

Mounting Depth: 1-13/16" (47mm)

Cut-Out Diameter: 3-5/8" x 5-3/8"

(93mm x 137mm)

682.7cf

Type: 6" x 8," 5" x 7" 2-Way

Custom-Fit

Speaker Impedance: 2 ohms

Power Handling: 100W RMS, 300W Peak

Sensitivity (2.83V, 1m): 94dB

Frequency Response: 40Hz - 25kHz

Mounting Depth: 2-1/4" (58mm)

Cut-Out Diameter: 4-7/8" x 7-1/8

(124mm × 181mm)

A valid serial number is required for warranty coverage.

Features, specifications and appearance are subject to change without notice.

Intermount III patent no. 6,505,705.

Infinity Systems, 250 Crossways Park Drive, Woodbury, NY 11797 USA

516.674.4463 • FAX [phone] • www.infinitysystems.com

© 2005 Harman International Industries, Incorporated • Part No. KAPSEROM2/05

H A Harman International Company
