Product Type	2-Way Speaker Upgrade Kit
Brand	Phoenix Gold
Model	ZDSKF1
Speaker Size	6.5" (165 mm) woofer, 0.78" (20 mm) tweeter
Power Handling (RMS)	75W
Power Handling (MAX)	150W
Impedance	4 Ω
Sensitivity	89 dB (1W/1m)
Frequency Response	60 Hz - 20 kHz
Fs (Resonant Frequency)	62 Hz
Qts (Total Q Factor)	0.593
Voice Coil Diameter	1" (25 mm)
Cone Material	Polypropylene with rubber surround
Crossover Type	Inline crossovers (LP4000 and HP5000-6)
Included Components	2x Speakers, 2x Tweeters, 2x Adapter Rings, 2x Speaker Harnesses, 2x Tweeter Harnesses, 2x ZZF-LP4000 filters, 2x ZZF-HP5000-6 filters
Fitment	Ford Ranger 2011-2022+ (front doors)
Installation	Plug & Play design with adapter rings and harnesses
Warranty	1 year limited warranty against defects in materials and workmanship
Maintenance	Clean gently with a dry cloth; avoid moisture and direct sunlight
Safety Warning	Ensure speaker is securely attached; Phoenix Gold not responsible for improper installation

Frequently Asked Questions - ZDSKF1 PHOENIX GOLD

What is included in the Phoenix Gold ZDSKF1 kit?

The kit includes 2x speakers, 2x tweeters, 2x adapter rings, 2x speaker harnesses, 2x tweeter harnesses, 2x ZZF-LP4000 low-pass filters, and 2x ZZF-HP5000-6 high-pass filters.

What vehicles are compatible with the ZDSKF1 speaker kit?

The kit is designed for Ford Ranger models from 2011 onward, specifically front doors. Check the latest fitment list from Phoenix Gold for updates.

What is the power handling of the ZDSKF1 speakers?

The speakers handle 75W RMS and 150W MAX power.

Are the crossovers included?

Yes, the kit includes inline crossovers: ZZF-LP4000 for the woofer and ZZF-HP5000-6 for the tweeter.

How do I install the ZDSKF1 speakers?

The kit is Plug & Play with adapter rings and harnesses. Follow the Quick Start Guide: mount the speaker to the adapter, connect the filter, then harness, and similarly for the tweeter. Ensure secure attachment.

What is the impedance of these speakers?

The impedance is 4 ohms.

What is the frequency response of the ZDSKF1?

The frequency response is 60 Hz - 20 kHz.

Does the ZDSKF1 kit come with a warranty?

Yes, Phoenix Gold offers a 1-year limited warranty against defects in materials and workmanship for the original purchaser.

What is the sensitivity of the speakers?

Sensitivity is 89 dB (1W/1m).

Can I use the ZDSKF1 kit in other vehicles besides Ford Ranger?

The kit is specifically designed for Ford Ranger models listed in the fitment guide. Using it in other vehicles may require custom installation and is not guaranteed.

USER MANUAL ZDSKF1 PHOENIX GOLD

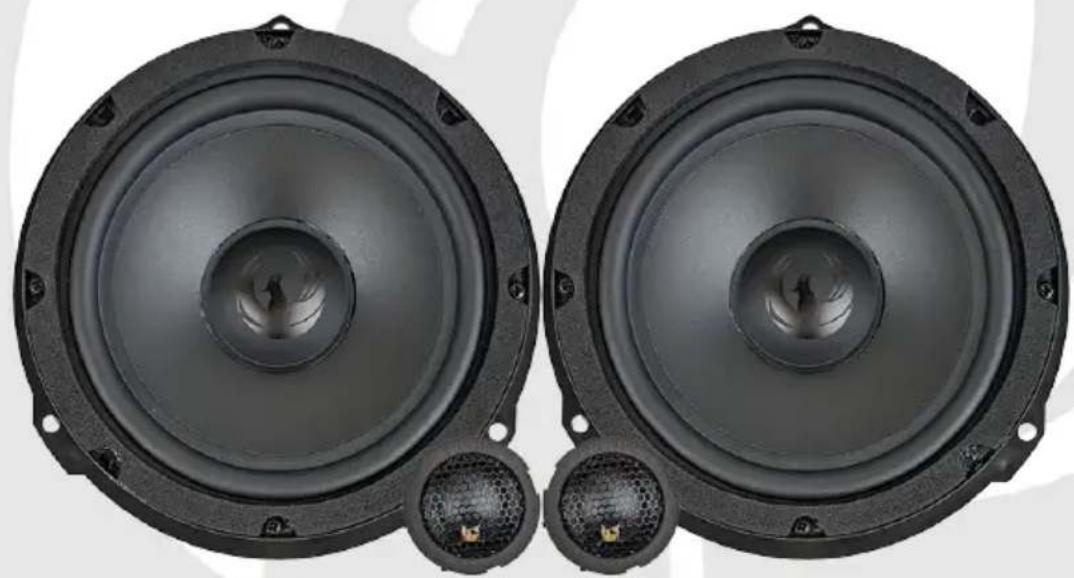

Two black speaker amplifiers with visible sound waves and connectors, shown from different angles (no text or symbols)

ZDSKF1

Plug & Play 2-Way Speaker Upgrade Kit

150W MAX POWER

75W RMS

2x Speaker 2x Adapter Ring 2x Tweeter

Close-up of a black speaker cone with concentric rings and mounting holes (no text or symbols visible)

2x Tweeter Adapter

Circular black plastic ring component with mounting holes, no text or symbols visible

Circular black plastic ring with four mounting holes, no text or symbols present

Circular black hexagonal mesh component with a small yellow object at the center (no text or symbols visible)

2x Speaker Harness 2x

Circular mechanical component with segmented outer ring (no text or symbols)

2x Tweeter Harness

2x ZZF-LP4000 2x ZZF-HP5000-6

Simple line drawing of a black and red electrical connector with wires (no text or symbols)

Simple line drawing of two black connectors with red wires, no text or symbols present

Close-up of a black and red electrical cable with a logo, tied with a small USB port (no visible text or symbols)

Close-up of a black and red electrical clamp tool with a metallic connector (no visible text or symbols)

Quick Start Guide

1

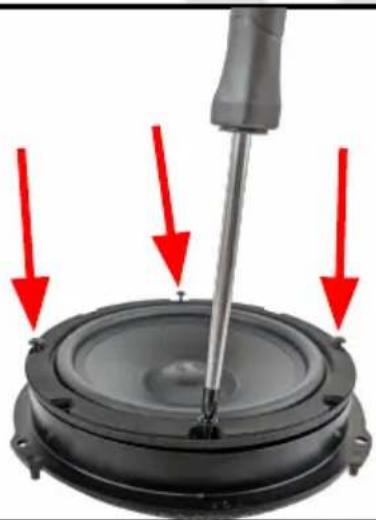

Screw the speaker into the speaker adapter.

Close-up of a speaker with a screwdriver inserted, showing red arrows indicating motion (no text or symbols present)

2

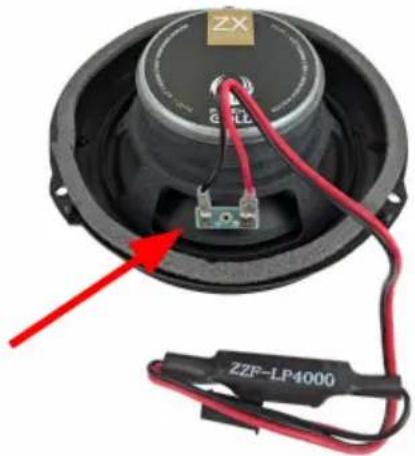

Connect the ZZF-LP4000 filter to the speaker.

Close-up of a speaker head with red wiring and a ZFP-LP4000 clamp, no visible text or symbols on the component itself.

3

Connect the speaker harness to ZZF-LP4000 filter.

Close-up of a black speaker with red and black wires, labeled ZX and Z2F-LP4000, connected to a white terminal block (no readable text beyond labels)

Quick Start Guide

4

Put the tweeter into the tweeter adapter.

5

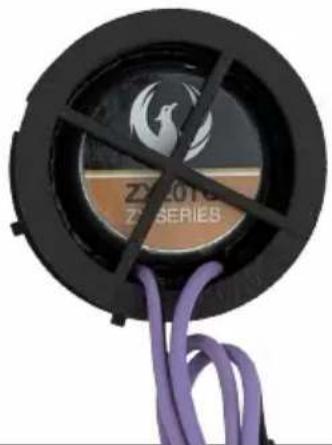

Attach the bottom plate to the back of the tweeter adapter.

Close-up of a circular black object with a white bird logo and purple cord, no visible text or symbols.

6

Twist the bottom plate to secure it.

3D-printed mechanical component with purple wire and red directional arrow indicating movement (no text or symbols)

Quick Start Guide

7

Connect the ZZF-HP5000-6 filter to the tweeter.

Close-up of a black ZZF-HP5000-6 electrical connector with red and purple wires, no visible text or symbols on the device itself.

8

Connect the tweeter harness to the ZZF-HP5000-6 filter.

Close-up of a black ZZF-HP5000-6 electronic device with red and purple wires, no visible text or symbols on the device itself.

9

ZDSKF1 is ready to be installed in the vehicle.

Exterior view of a white Ford Truck (no visible text or symbols)

Specifications

Speaker Type: 2-Way Speaker Kit
Speaker Size: 6.5” (165mm) / 0.78”
Frequency Response: 60Hz - 20kHz
Power Handling (RMS): 75W
Power Handling (MAX): 150W
Impedance: 4Ω
Sensitivity: 89dB (1W/1m)
Fs: 62Hz
Qts: 0.593
Crossover: Inline Crossovers
1” (25mm) Voice Coil
Polypropylene cone with rubber surround

Fitment List

Make Model Year Fitment
Ford Ranger 2011 - 2015 (T6) Front Doors
Ford Ranger 2015 -2019 (T6.1) (Facelift) Front Doors
Ford Ranger 2019 - 2022 (T6.1) (2nd Facelift) Front Doors
Ford Ranger 2022 → Front Doors
See the latest updated compatibility list in the PG ZD Fitment List

Disclaimer

Always ensure the speaker is securely attached. Phoenix Gold accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

Phoenix Gold Product Warranty

LIMITED WARRANTY ON SPEAKERS

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold or it's Country distributor / reseller will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
