Product Type	Raceway Channel Accessory
Brand	Panduit
Model	AFR4JB2S
Material	PVC (estimated)
Color	White or gray (typical)
Cable Types Supported	Electrical (THN/THWN/T90), Data Grade (Cat 6, Cat 6A, Cat 6A SD)
Maximum Fill Capacity (Outer Channels)	40% for 24 AWG, 60% for larger cables
Maximum Fill Capacity (Inner Channels)	40% for 24 AWG, 60% for larger cables
Mounting Surface	Concrete (screws provided), drywall, wood
Included Hardware	Concrete screws, mounting brackets, transition boots, couplers
Compatible Fittings	Coupler, Right Angle, Transition to T70, End Cap, Junction Box, Wall Transition, Table Leg
Installation Type	Surface mount, floor-to-table, wall transition
UL Temperature Rise Test	Passed (cable fill per spec)
Conductor Sizes Supported	14, 12, 10 AWG electrical; 24 AWG data
Cover Type	Tamper-proof cover (not intended for easy removal)
Width	Approximately 4 inches (based on model number)
Height	Approximately 2 inches (estimated)
Length	Varies (cut to length, standard 10 ft sections)
Weight	Approximately 2-3 lbs per 10 ft section
Operating Temperature	0°C to 60°C (estimated)
Flammability Rating	UL 94 V-0 (typical for Panduit raceway)
Compliance	UL Listed, CSA Certified

Frequently Asked Questions - AFR4JB2S Panduit

What tools are needed for installation?

You will need a 5/32" concrete drill bit for concrete screws, a drill, screwdriver, level, and measuring tape. For drywall, a drywall saw or hole saw may be required.

Can this raceway be used for both power and data cables?

Yes, the raceway has separate inner and outer channels for power and data cables. Follow the fill capacity guidelines to maintain separation and avoid interference.

How do I cut the raceway to length?

Use a fine-tooth saw or raceway cutter. Measure and mark the desired length, then cut squarely. Deburr edges with a file to prevent cable damage.

What is the maximum fill capacity for Cat 6A cables?

For Cat 6A cables in outer channels, the maximum fill is 60% at 0.3" diameter. In inner channels, also 60% at 0.3". Do not exceed these limits.

Are the screws provided suitable for all mounting surfaces?

No, the provided concrete screws are intended for concrete surfaces. For wood or metal, use appropriate fasteners (screws or bolts) suited to the mounting surface.

How do I install the junction box?

The junction box can be assembled between two raceway paths using two coupler fittings. Ensure end caps and couplers connect as shown in the manual (8 places). It does not require direct screwing into infrastructure.

Can the raceway be installed on existing drywall?

Yes, for brownfield applications, cut a hole in the drywall to the specified dimensions, then secure the base to the sole board and route cables.

What is the maximum distance the base can extend beyond the cover?

When installing the end cap, the maximum allowable distance the base can extend beyond the cover is 0.3 inches.

Is the cover removable after installation?

No, the covers are tamper-proof and not intended for easy removal. Route all cables before installing the cover.

How do I secure the raceway for a table leg installation?

Center the table leg transition fitting about 3-1/4" from the edge of the raceway cover. Secure mounting bracket to the table underside using provided hardware. Ensure the channel is level and pre-drill holes if needed.

USER MANUAL AFR4JB2S Panduit

Raceway Channel	See Fig.	Electrical Cables			Data Grade Cables
		14	12	10	24 AWG		24 AWG		24 AWG
		THN/THWN/T90			Cat 6		Cat 6A		Cat 6A (SD)
		0.111	0.13	0.164	0.24		0.3		0.24
		Fill			Fill		Fill		Fill
		Max	Max	Max	Spec	Max	Spec	Max	Spec	Max
		UL Temp Rise Test			40%	60%	40%	60%	40%	60%

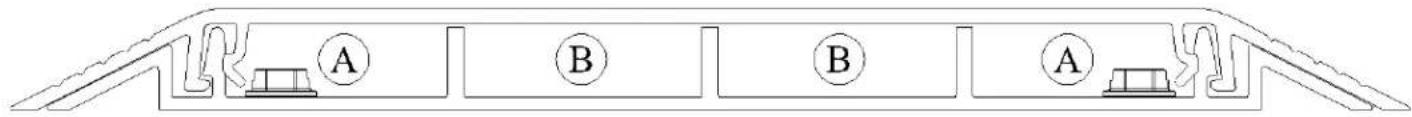

Outer Channels (with screws installed)	A	21	15	10	3	4	2	3	3	4
Inner Channels	B	24	17	11	3	5	2	3	3	5

Three circular diagrams showing different types of screw heads, with no text or symbols present.

Themountinghardwareusedtosecure theracewayshallbeappropriateforthe mountingsurface.

Screwsprovidedwithracewayare intendedforinstallationonaconcrete surface.

NOTES:

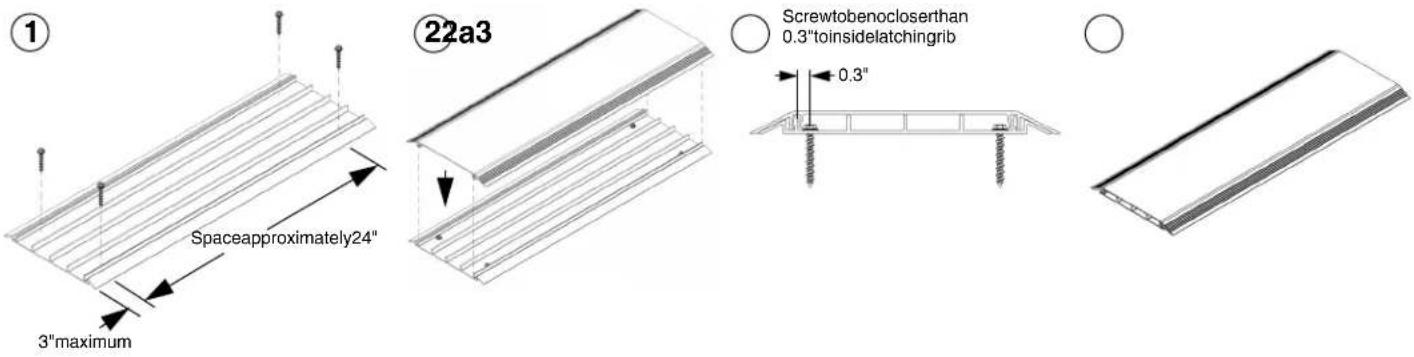

• An adhesive strip may serve only as a positioning aid during the installation process. The raceway shall be secured by mechanical fasteningmeans.
• Holes for mounting raceway and associated fittings should be predrilled into infrastructure prior to the installation of the mounting hardware.
  •A5/32"concretedrillbitisneededfortheprovidedconcretescrews.

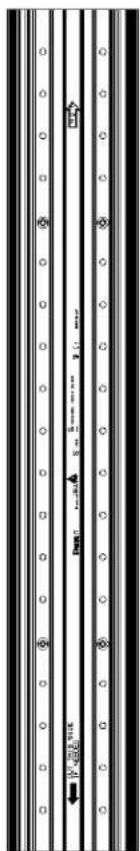

BASE&COVER

COUPLER

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a rectangular object with a circular element above it (no text or symbols)

Technical line drawing of a structural component with layered materials and an open circle (no text or symbols)

Staggerbase jointandcover couplingjointto strengthen assembly.

RIGHTANGLE

Technical line drawing of a multi-tiered mechanical component with screw holes and mounting holes (no text or symbols)

Diagram of a mechanical or structural assembly with two symmetrical components and directional arrows indicating flow or movement (no text or symbols)

Technical diagram of a layered structure with directional arrows indicating flow or movement (no text or symbols present)

Diagram of a mechanical or architectural component with layered structure and directional arrows (no text or symbols)

Pure diagram of a V-shaped structure with layered edges, no text or symbols present

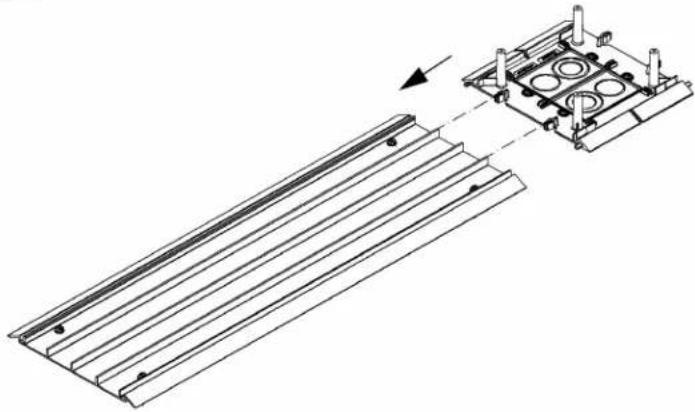

TRANSITIONTOT70

Technical diagram showing a structural assembly with arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with numbered components (no text or symbols)

Technical diagram showing a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a vertical structural component with a base and side panel (no text or symbols)

ENDCAP

1a
Ensureendcapandcoverarefullyengagedasshown.0.3"ismaximumallowabledistancebasecanextendbeyondcoverwheninstalling cap.

Line drawing of a rectangular metal frame with internal grooves and ridges, labeled with number 2 (no text or symbols on the frame itself)

JUNCTIONBOX
①

Technical line drawing of a mechanical housing assembly with mounting brackets and internal components (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and a magnified inset view (no text or symbols)

1a
Ensureendcapand coupler(s)connectto junctionboxcoveras shown[8places]
Note: JunctionBoxcanbeassembledbetweenworacewaypathswiththeuseoftwocouplerfittings. Endcapinstallationsshownasreference.

②

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

③

Technical line drawing of a metal beam assembly with mounting holes and internal circular components (no text or symbols)

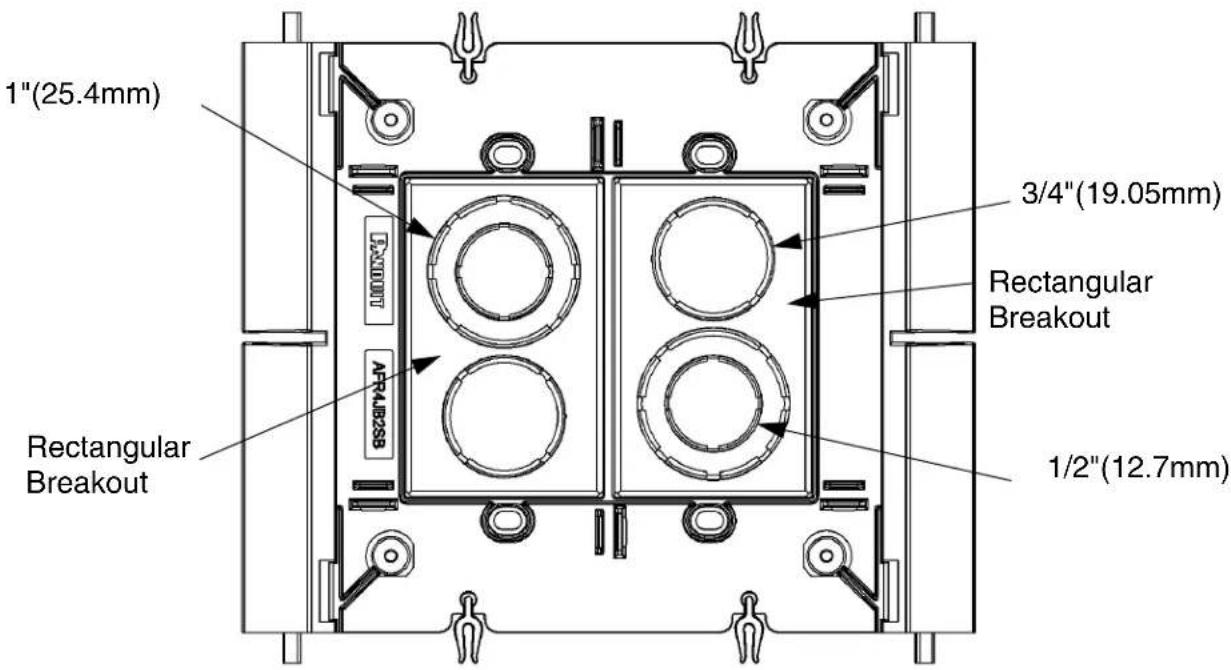

BREAKOUTSFORCONDUITAPPLICATIONS

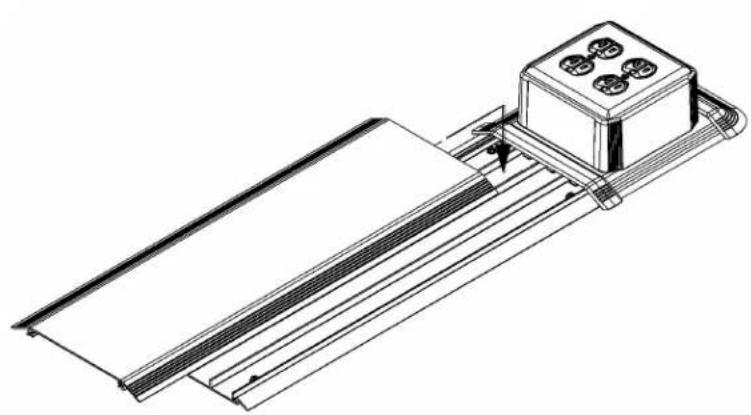

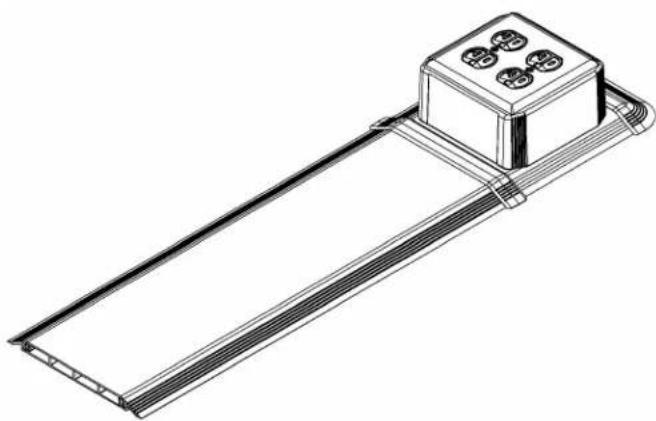

DIVIDEDINSERTAPPLICATIONPOWER/DATAAPPLICATIONDATAAPPLICATIONPOWERAPPLICATION

4

5

6

Technical line drawing of a mechanical device with a control panel and roller assembly (no text or symbols)

Technical line drawing of a mechanical device with a rectangular housing and ribbed base (no text or symbols)

WALLTRANSITION

GREENFIELDAPPLICATIONS-NEWCONSTRUCTION

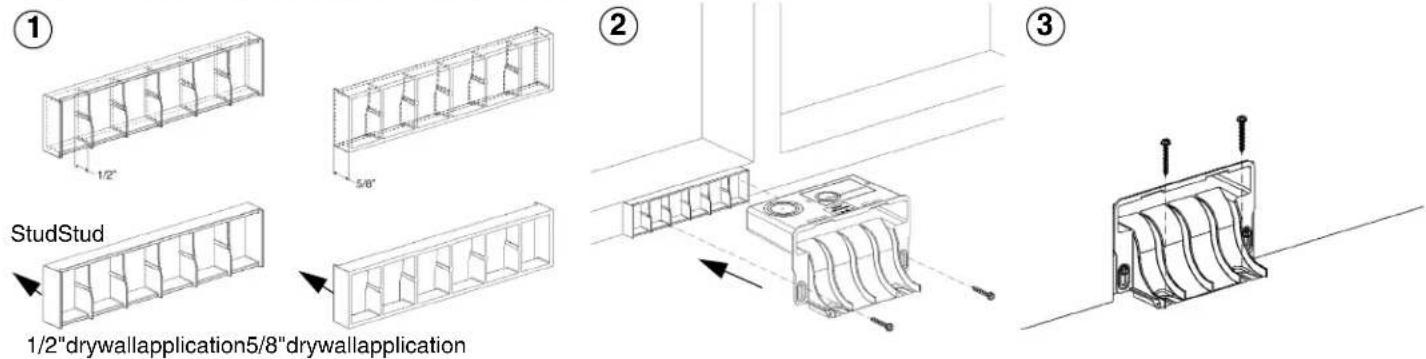

1/2"drywallapplication5/8"drywallapplication
Determine if you will use 1/2" or 5/8" drywall. Orient standoffasshownfordesiredapplication.
Ifinstallingintoexistinginfrastructure,continuetoBrownfieldapplicationinstructions.
Securebasetosoleboardandroute cablesandwiringasdesired.Donot overtightenscrewsasflooringinstallationmayrequireadjustments.
Adjustwalltransitionfittingbaseheight duringflooringinstallation.Afterdrywall andflooringhavebeeninstalled,secure transitionfittingbasetothefloorusing appropriatehardware.

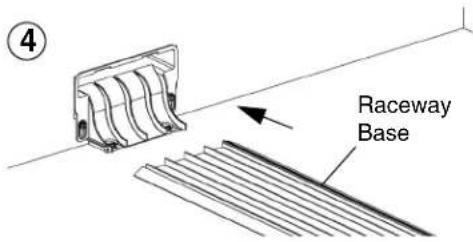

ContinuewithStep4ofBrownfieldapplicationinstructions.

**OnlyusestandofforGreenfield applications**

BROWNFIELDAPPLICATIONS-EXISTINGINFRASTRUCTURE

Cutholeindrywallbetweenstudstothe dimensionsshown.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a bent metal bracket with a diagonal line extending from its side (no text or symbols)

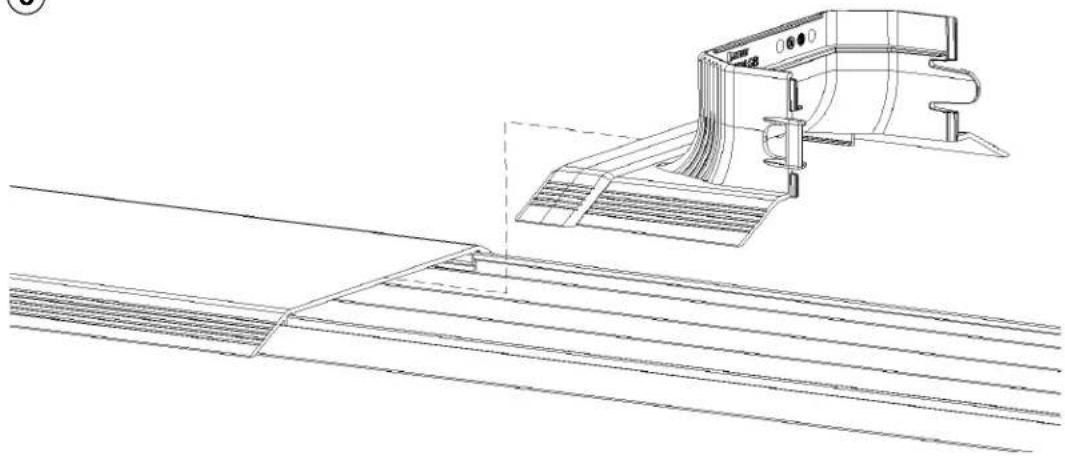

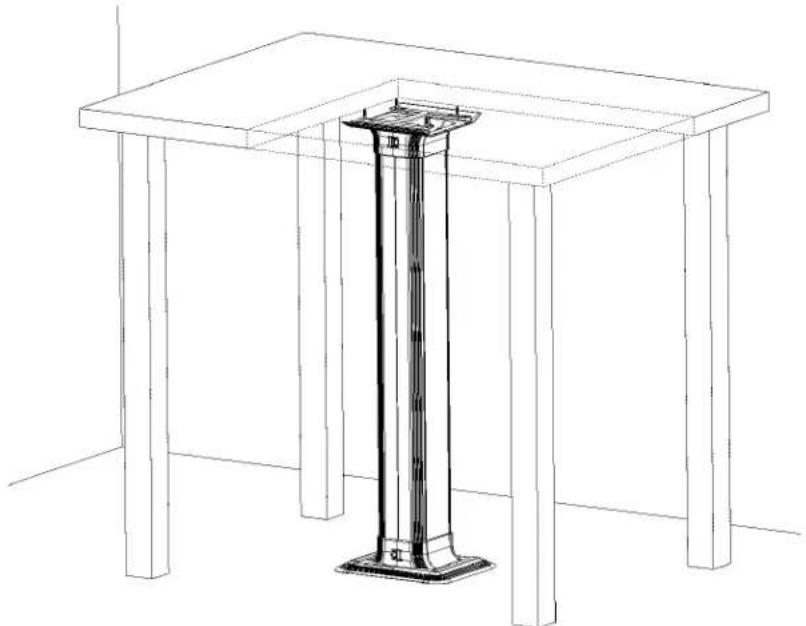

TABLELEG

INSTALLATIONBETWEEN2RACEWAYCHANNELS

Technical line drawing of a structural support frame with vertical and horizontal components (no text or symbols)

①

Centeroftablelegtransitionfittingwillsitapproximately3-1/4"fromtheedgeoftheracewaycover.
Routecablespriortoinstallingtheracewaycover.
NOTE: Desired hole in table should be offset from table leg center to accommodate proper mountingoftableleg.

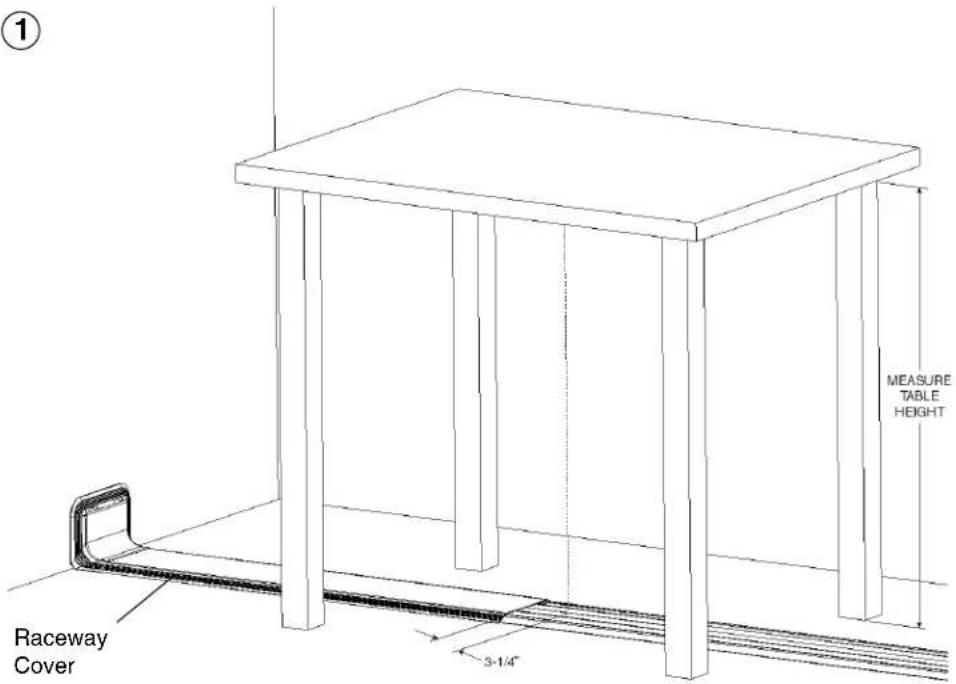

Measuretheheight fromthefloortothe undersideofthetable. Channelshouldbe between3-1/2"to4" shorterthanthemeasuredheight.Ifnecessary,cutchannelfrom bottomedgetoaccommodate.

2

③

④

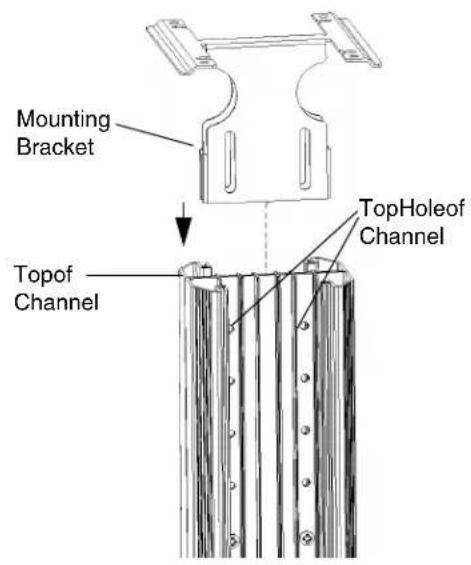

Securemountingbrackettotopofchannelusingprovidedhardware. Usethetopholeofthechannelforassembly.Donotfullytightenthe mountingbracketatthistime.

5

Technical line drawing of a mechanical assembly with no visible text or symbols

5A

Technical line drawing of a mechanical bracket with mounting holes and a close-up inset showing a control panel (no text or symbols)

Ensurecouplersconnecttobottomtransition bootsasshown. [4Places]

6

Technical line drawing of a mechanical component with grid lines and a bracket (no text or symbols)

Routecablespriortoinstallingcovers.Coversaretamper-proof andarenotintendedforeasyremoval.

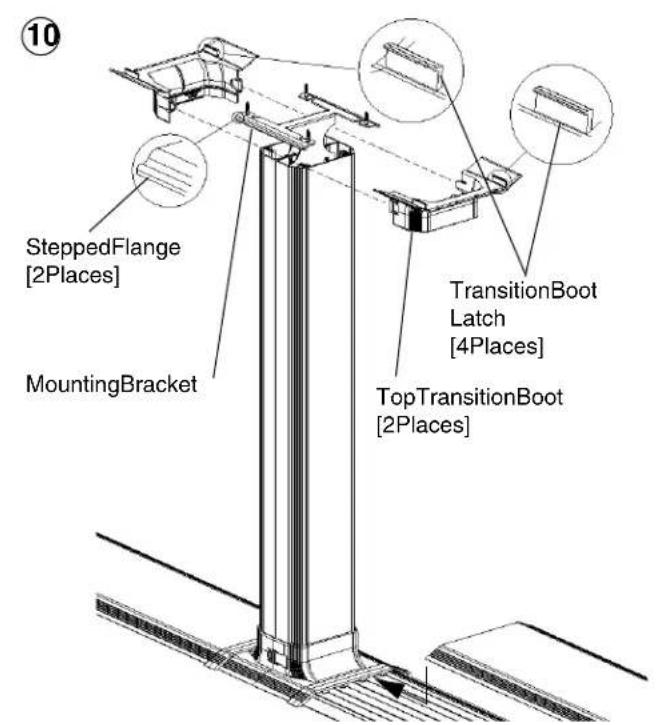

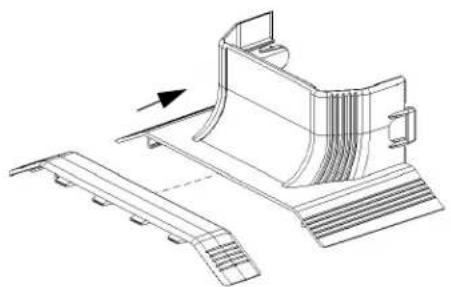

Assembletoptransitionbootstoeachother. Transitionbootlatcheswill mounttothesteppedflangesofthemountingbracket.
Ifaddedstiffnessisdesired,securebottomofchannelusingprovidedhardwareinthelowermostholesofthechannel.

11

Technical line drawing of a mechanical assembly with a vertical column and support structure (no text or symbols)

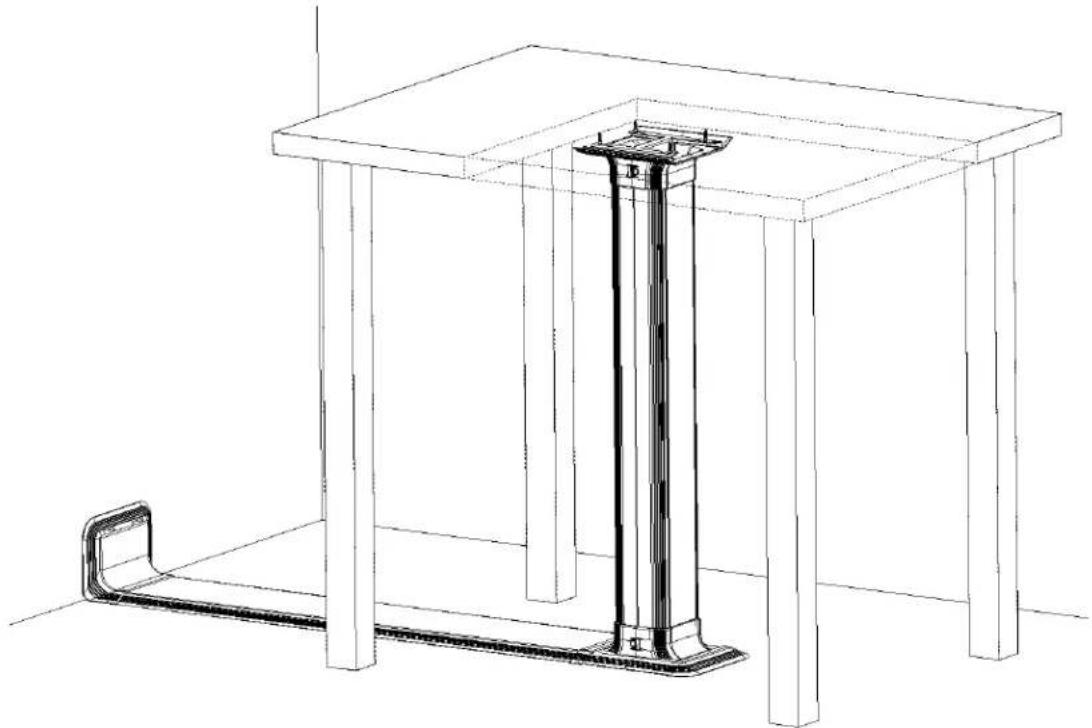

INSTALLATIONASSTANDALONEORWITHSINGLESIDERACEWAYCHANNEL

Technical line drawing of a table with columns and a vertical support structure (no text or symbols)

NOTE: For single side raceway application; above floor raceway should be mounted prior to table leg installation. Centeroftablelegwillsitapproximately3-1/4"fromtheedgeoftheracewaycover.Routecablespriorto installingtheracewaycover.

Line drawing of a simple table with a vertical metal column and support structure (no text or symbols)

NOTE: Desired hole in table should be offset from table leg center to accommodate proper mounting of table leg.

NOTE: Desired hole in table should be offset from table leg center to accommodate proper mounting of table leg.

4

Securemountingbracketstotopandbottomofchannelusingprovided hardware. Usetheholesclosesttotheendsofthechannelforassembly. Donotfullytightenthemountingbracketatthistime.

Pre-drillholesininfrastructureifnecessary.Secure bottommountingbrackettofloorwithproperhardware.(Concretescrewsprovided)

6

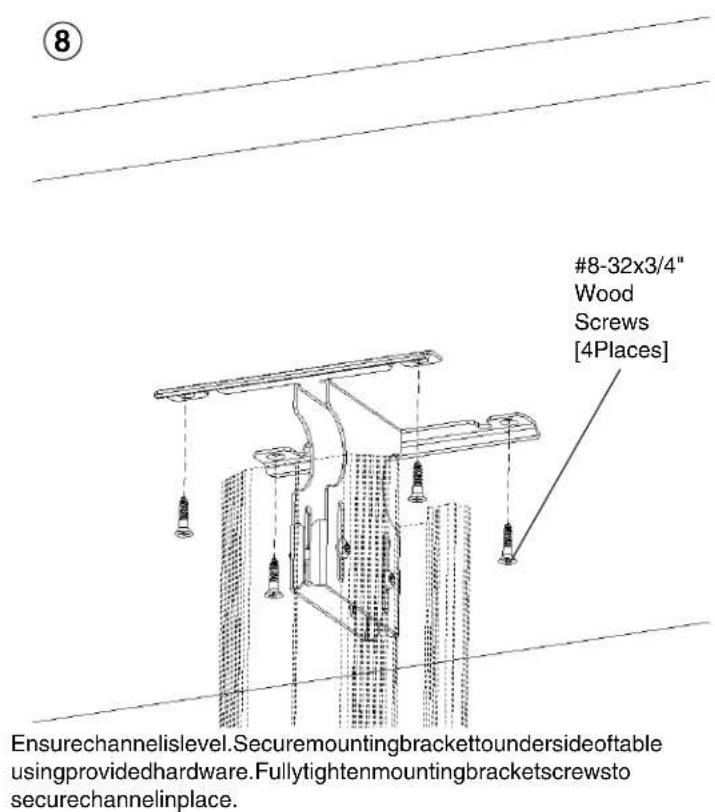

Ensurechannelislevel.Securetopmounting brackettoundersideoftableusingprovided hardware.

TransitionBootLatch

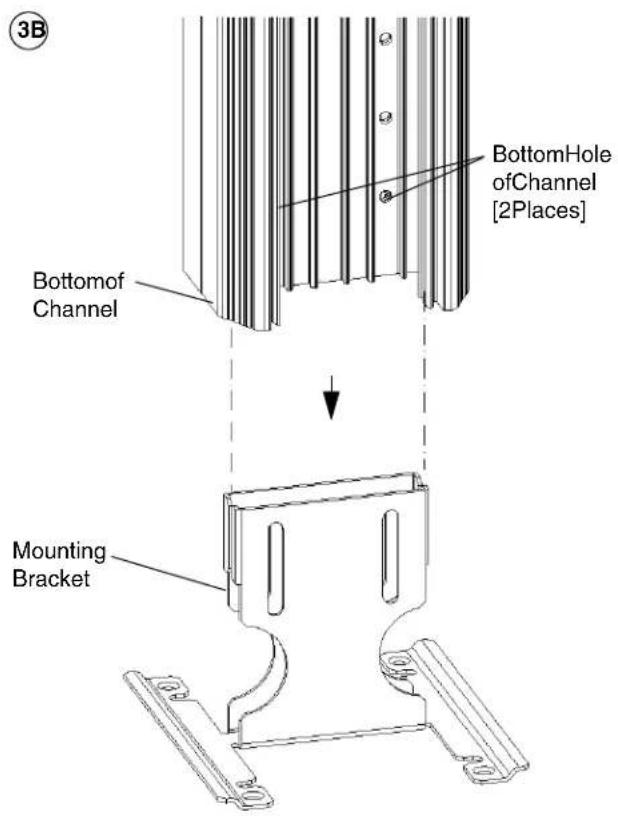

Assemblebottomtransitionbootstogether.Transitionboot latches(showninstep7)willmountosteppedflangesofthe mountingbrackets.Placebottomofchannelontopofcap-tureledgeoftransitionboots.
Tightenallmountingbracketscrewstothechannelatthis time.

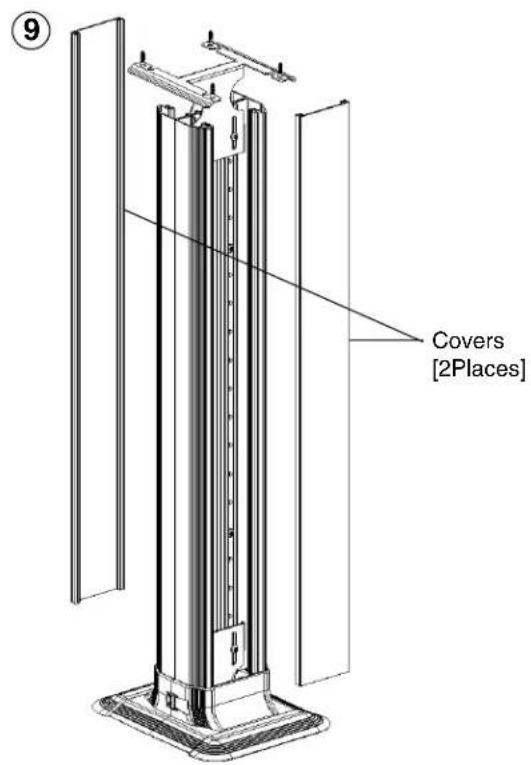

Routecablespriortoinstallingcovers.Coversaretamper proofandarenotintendedforeasyremoval.

11

Line drawing of a simple table with four legs and a vertical cylindrical structure on top (no text or symbols)
