Product Type	Angled Faceplate
Brand	Panduit
Model	AFR4TBLG
Color	Electric Ivory
Number of Ports	4
Angle	45° angled
Material	High-impact ABS plastic
Standards Compliance	TIA/EIA-568-B
Dimensions (H x W)	4.5 in x 2.75 in (114.3 mm x 69.85 mm)
Weight	0.1 lb (45 g)
Mounting Type	Wall plate, flush mount
Compatible Connectors	Keystone jacks (standard)
Operating Temperature	-10°C to 60°C
Storage Temperature	-40°C to 70°C
Flame Rating	UL 94 V-0
Screw Type	#6-32 (included)
Package Quantity	1 faceplate
Cleaning Instructions	Wipe with a damp cloth; no solvents
Warranty	Standard Panduit product warranty

Frequently Asked Questions - AFR4TBLG Panduit

What is the Panduit AFR4TBLG used for?

It is an angled faceplate designed to mount up to 4 keystone jacks in a wall plate, providing a neat and low-profile cable management solution.

Does the AFR4TBLG come with screws?

Yes, it includes two #6-32 mounting screws for attachment to standard electrical boxes.

What color is the AFR4TBLG?

The color is Electric Ivory, a light beige shade that blends with standard wall paint.

Is this faceplate compatible with all keystone jacks?

It is compatible with standard keystone jacks (TIA/EIA-568-B) from Panduit and most other brands.

Can I mount this faceplate on a mud ring or old work box?

Yes, it fits standard NEMA single-gang wall boxes and mud rings.

What is the angle of the faceplate?

The faceplate is angled at 45 degrees to help manage cable bend radius and reduce strain.

What material is the AFR4TBLG made of?

It is made of high-impact ABS plastic with a UL 94 V-0 flame rating.

How do I clean the faceplate?

Clean with a soft, damp cloth. Do not use abrasive cleaners or solvents.

What is the warranty on this product?

It comes with Panduit's standard warranty covering defects in materials and workmanship.

How many ports does the AFR4TBLG have?

It has 4 ports, allowing installation of up to 4 keystone jacks.

USER MANUAL AFR4TBLG Panduit

Raceway Channel	See Fig.	Electrical Cables			Data Grade Cables
		14	12	10	24 AWG		24 AWG		24 AWG
		THN/THWN/T90			Cat 6		Cat 6A		Cat 6A (SD)
		0.111	0.13	0.164	0.24		0.3		0.24
		Fill			Fill		Fill		Fill
		Max	Max	Max	Spec	Max	Spec	Max	Spec	Max
		UL Temp Rise Test			40%	60%	40%	60%	40%	60%

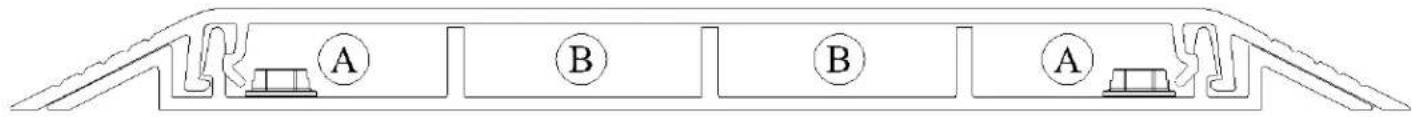

Outer Channels (with screws installed)	A	21	15	10	3	4	2	3	3	4
Inner Channels	B	24	17	11	3	5	2	3	3	5

A B B A

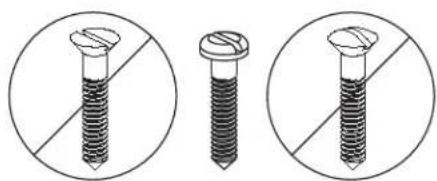

Three circular diagrams showing different types of screw heads, with no text or symbols present.

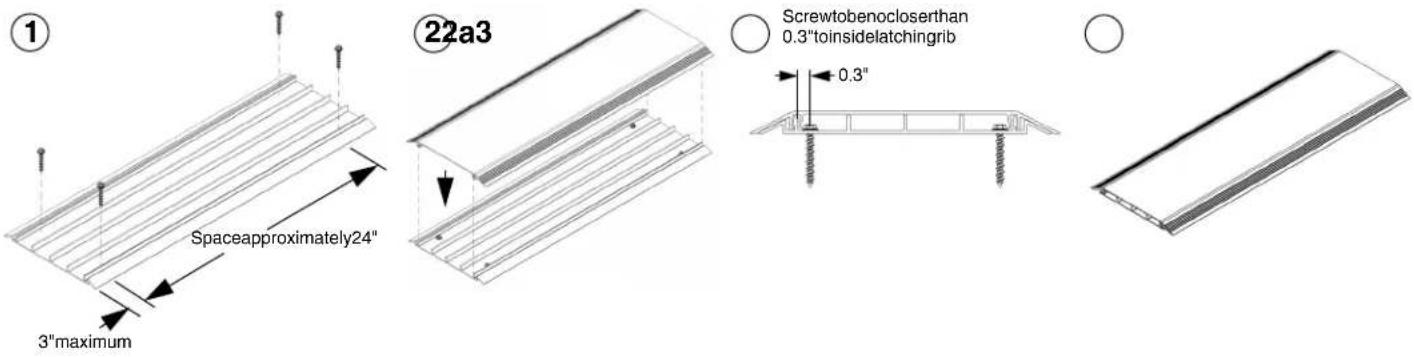

Themountinghardwareusedtosecure theracewayshallbeappropriateforthe mountingsurface.

Screwsprovidedwithracewayare intendedforinstallationonaconcrete surface.

NOTES:

• An adhesive strip may serve only as a positioning aid during the installation process. The raceway shall be secured by mechanical fastening means.
• Holes for mounting raceway and associated fittings should be predrilled into infrastructure prior to the installation of the mounting hardware.
  •A5/32"concretedrillbitisneededfortheprovidedconcretescrews.

BASE&COVER

COUPLER

122a34

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Ensurecouplerisfully engagedwithcover

Simple line drawing of a rectangular object with a circular element above it (no text or symbols)

Technical line drawing of a structural component with an arrow indicating direction (no text or symbols)

Staggerbase jointandcover couplingjointto strengthen assembly.

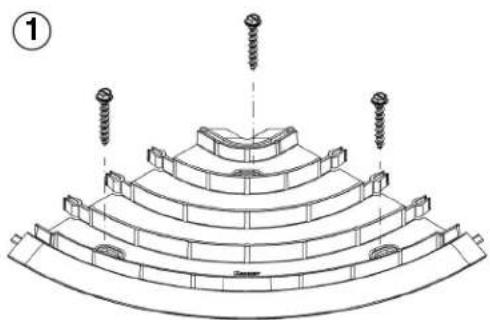

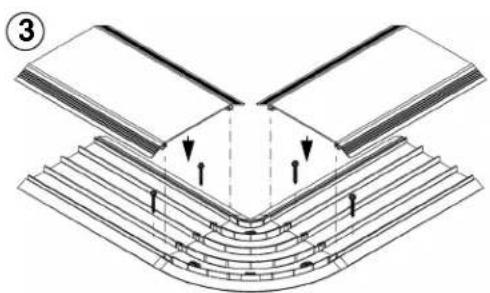

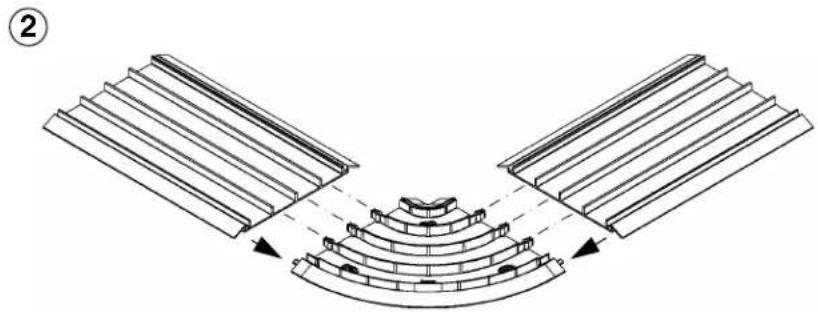

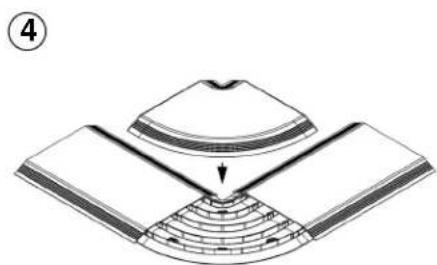

RIGHTANGLE

Technical line drawing of a multi-tiered mechanical component with screw holes and mounting holes (no text or symbols)

Diagram of a mechanical or structural assembly with two symmetrical components and directional arrows indicating flow or movement (no text or symbols)

Technical diagram of a layered structure with directional arrows indicating flow or movement (no text or symbols present)

Diagram of a mechanical or architectural component with layered structure and directional arrows, no visible text or symbols

Pure technical line drawing of a V-shaped component without any text, numbers, or symbols

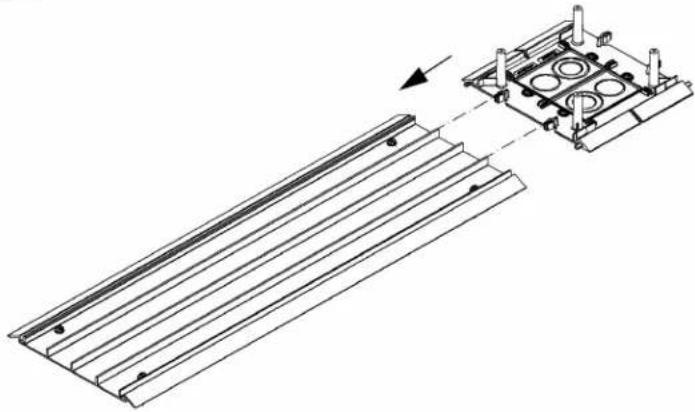

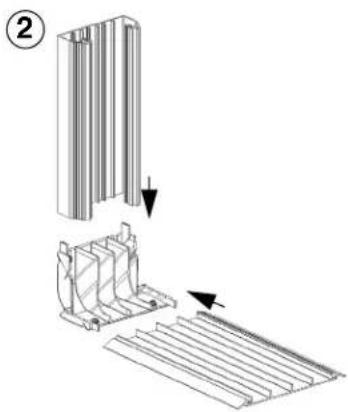

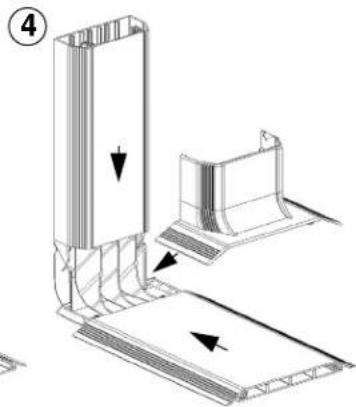

TRANSITIONTOT70

Technical diagram showing a structural assembly with arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with numbered components (no text or symbols)

Technical diagram showing a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

Technical line drawing of a vertical structural component with a base and side panel (no text or symbols)

ENDCAP

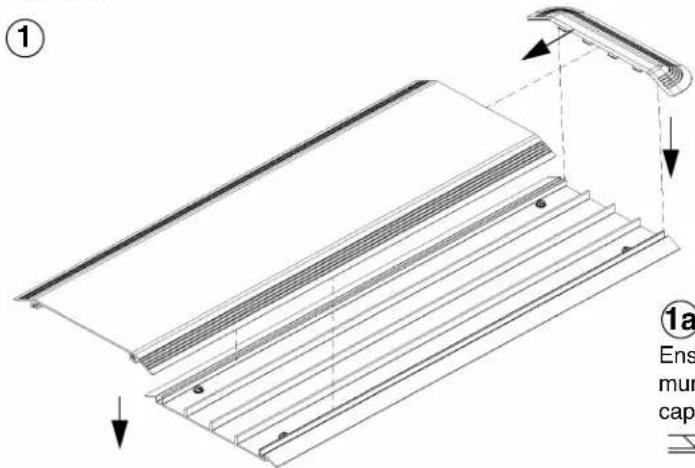

(1) 1a Ens mur cap

1a

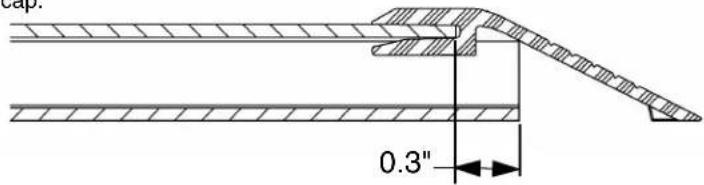

Ensureendcapandcoverarefullyengagedasshown.0.3"ismaximumallowabledistancebasecanextendbeyondcoverwheninstalling cap.

cap. 0.3"

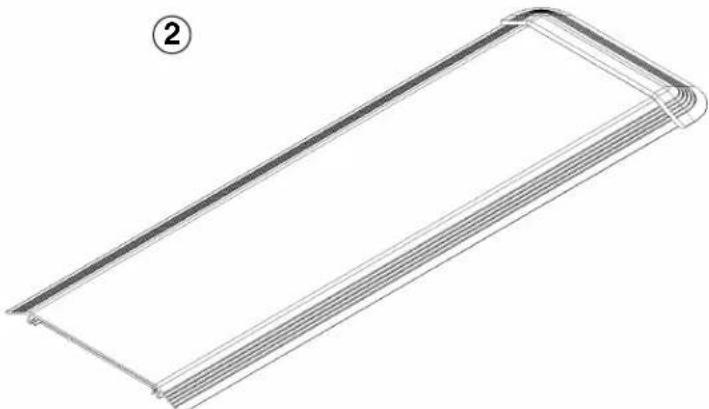

Line drawing of a rectangular metal frame with internal grooves and ridges, labeled with number 2 (no text or symbols on the frame itself)

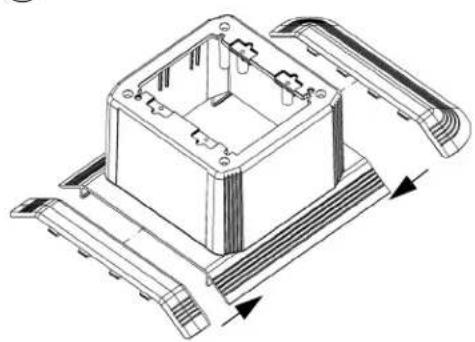

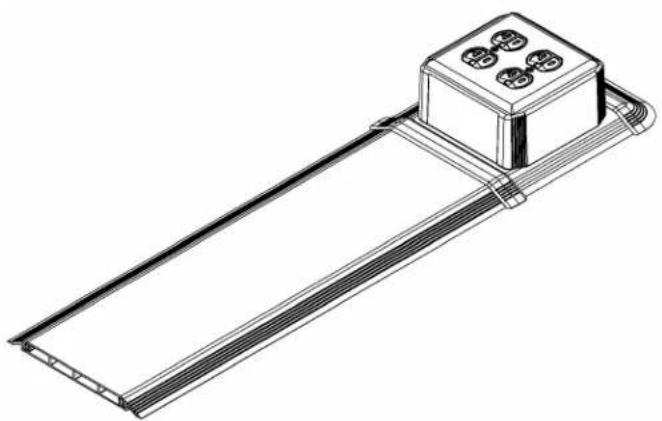

JUNCTIONBOX
①

Technical line drawing of a mechanical housing assembly with mounting brackets and internal components (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and a magnified inset view (no text or symbols)

1a

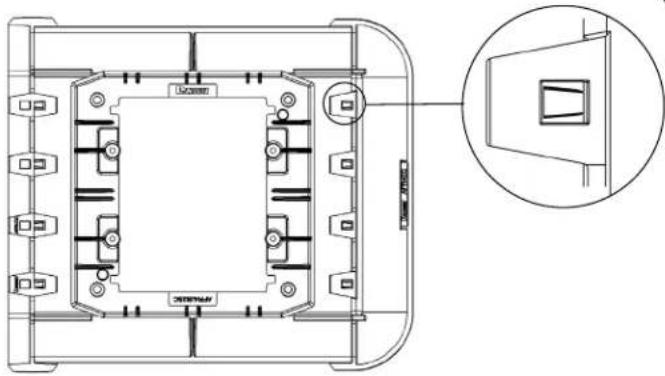

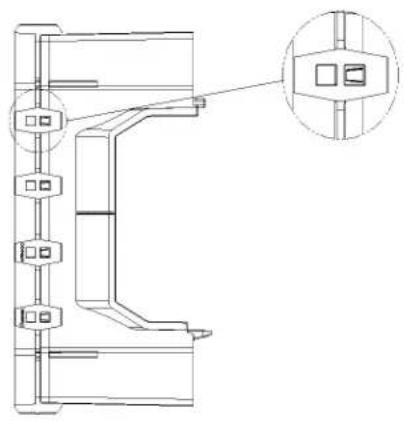

Ensureendcapand coupler(s)connectto junctionboxcoveras shown[8places]
Note: JunctionBoxcanbeassembledbetweenworacewaypathswiththeuseoftwocouplerfittings. Endcapinstallationsshownasreference.

②

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

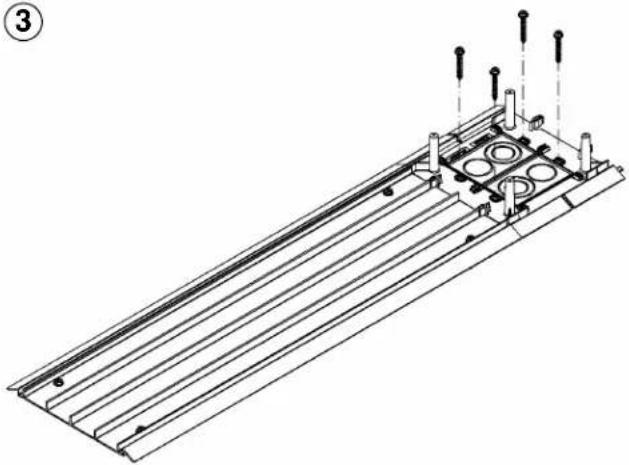

③

Technical line drawing of a metal beam assembly with mounting holes and structural supports (no text or symbols)

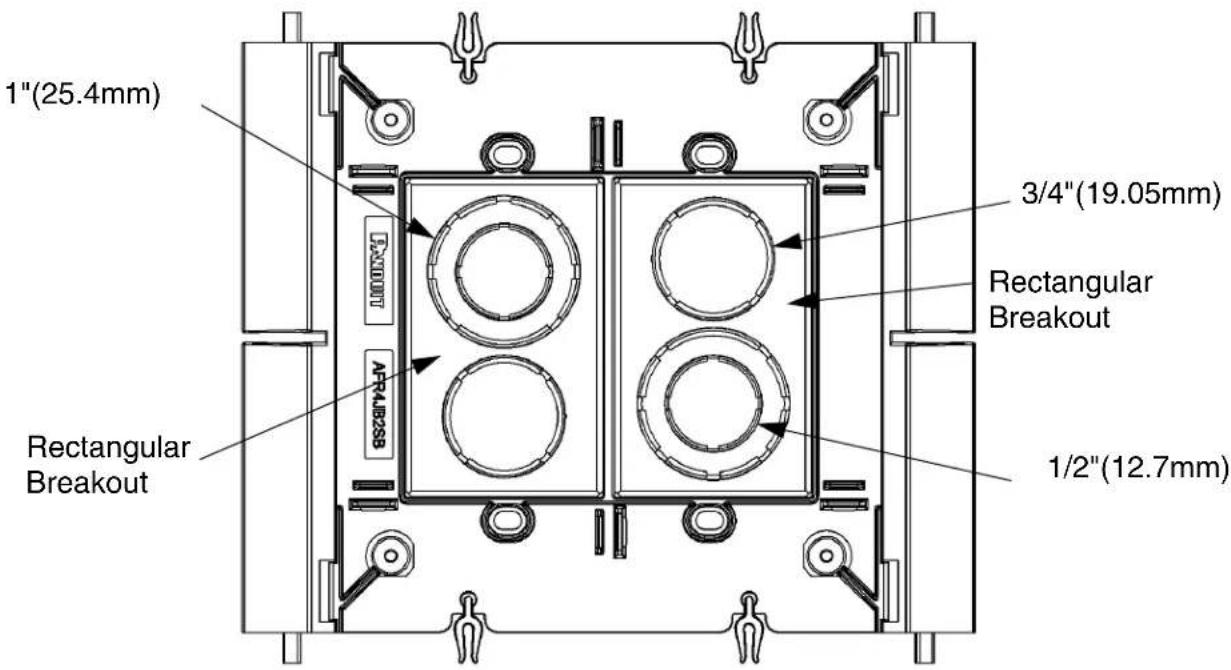

1"(25.4mm) 3/4"(19.05mm) Rectangular Breakout 1/2"(12.7mm) Rectangular Breakout

BREAKOUTSFORCONDUITAPPLICATIONS

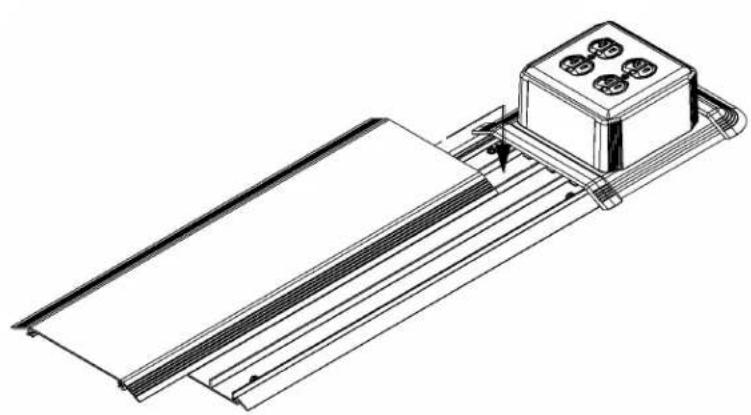

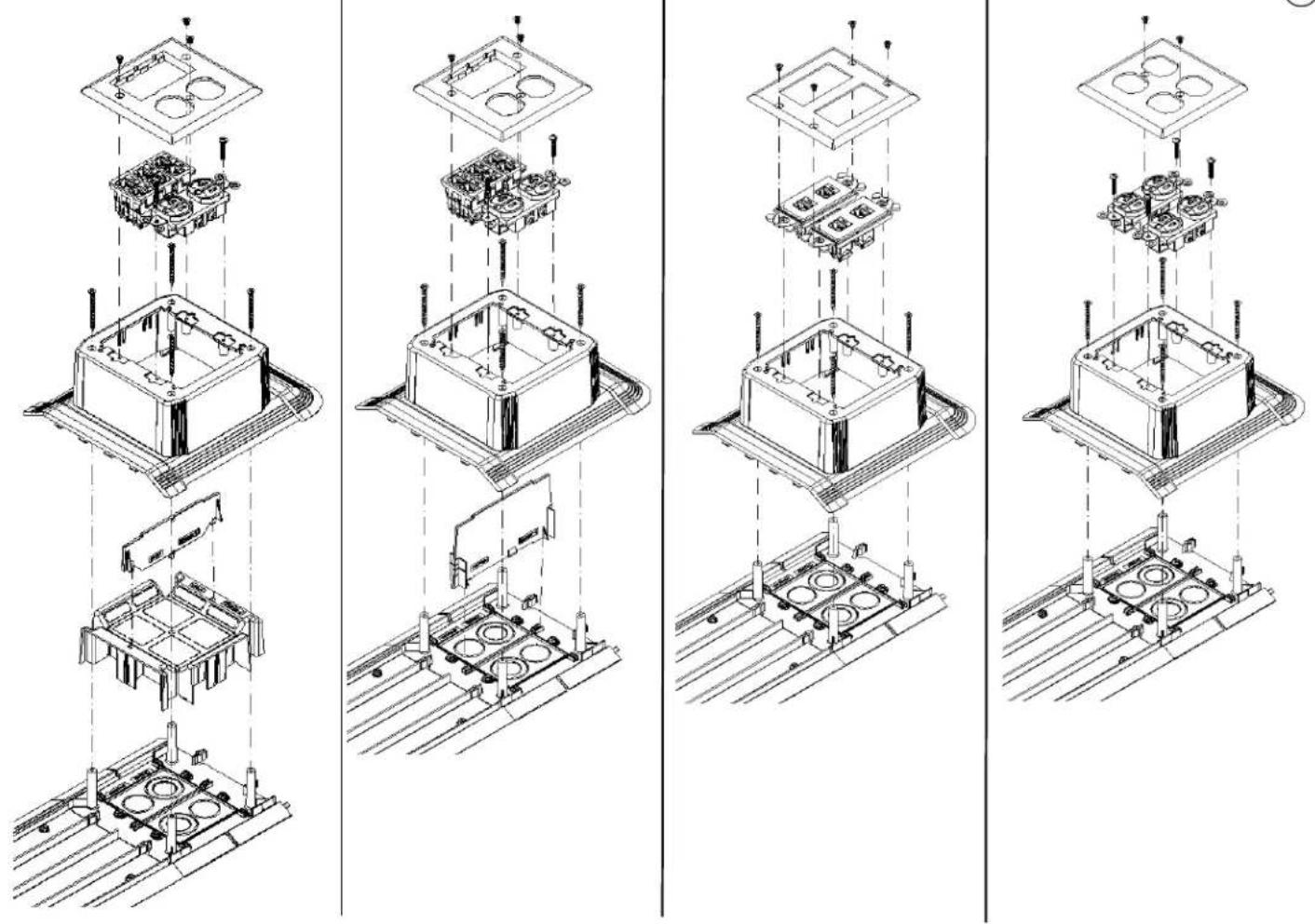

DIVIDEDINSERTAPPLICATIONPOWER/DATAAPPLICATIONDATAAPPLICATIONPOWERAPPLICATION

4

5

6

Technical line drawing of a mechanical device with a tray and mounting base (no text or symbols)

Technical line drawing of a mechanical component with a rectangular base and a small rectangular housing (no text or symbols)

WALLTRANSITION

GREENFIELD APPLICATIONS - NEW CONSTRUCTION

1

Isometric line drawing of a rectangular structure with internal vertical supports, labeled '5/8' at the base (no text or symbols on the diagram itself)

1/2" drywall application 5/8" drywall application

Determine if you will use 1/2" or 5/8" drywall. Orient standoff as shown for desired application.

**OnlyusestandofforGreenfield applications**

lfinstallingintoexistinginfrastructure,continuetoBrownfieldapplicationinstructions.

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

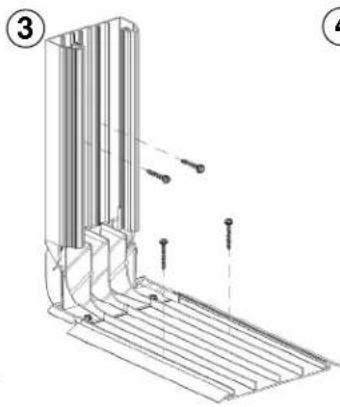

3

Technical line drawing of a mechanical bracket or support structure with mounting holes (no text or symbols)

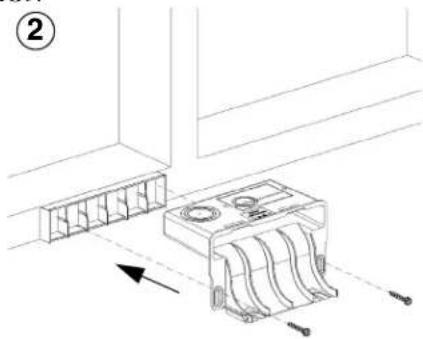

Secure base to sole board and route cables and wiring as desired. Do not overtighten screws as flooring installation may require adjustments.

Adjust wall transition fitting base height during flooring installation. After drywall and flooring have been installed, secure transition fitting base to the floor using appropriate hardware.

Continue with Step 4 of Brownfield application instructions.

BROWNFIELD APPLICATIONS - EXISTING INFRASTRUCTURE

① 6-1/2" 3-3/4" 1-1/2"

Technical line drawing of a mechanical component with directional arrows and labeled section (no text or symbols)

③

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Cut hole in drywall between studs to the dimensions shown.

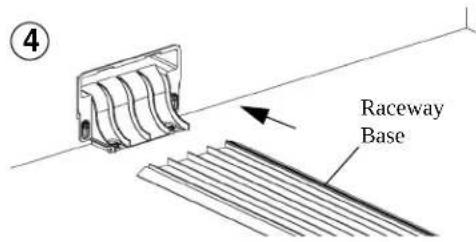

④ Raceway Base

⑤

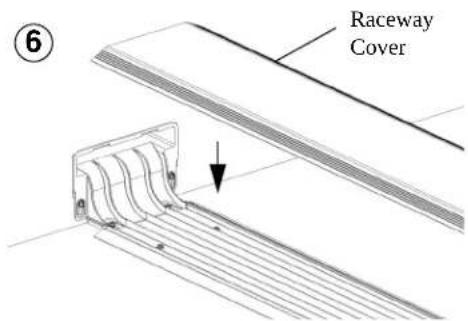

Raceway Cover ⑥

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a bent metal bracket with a diagonal line extending from its side (no text or symbols)

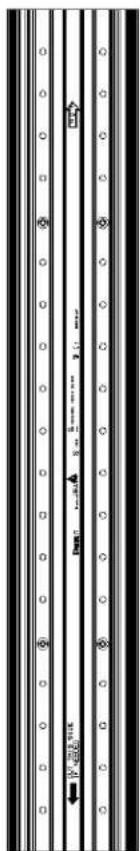

TABLELEG

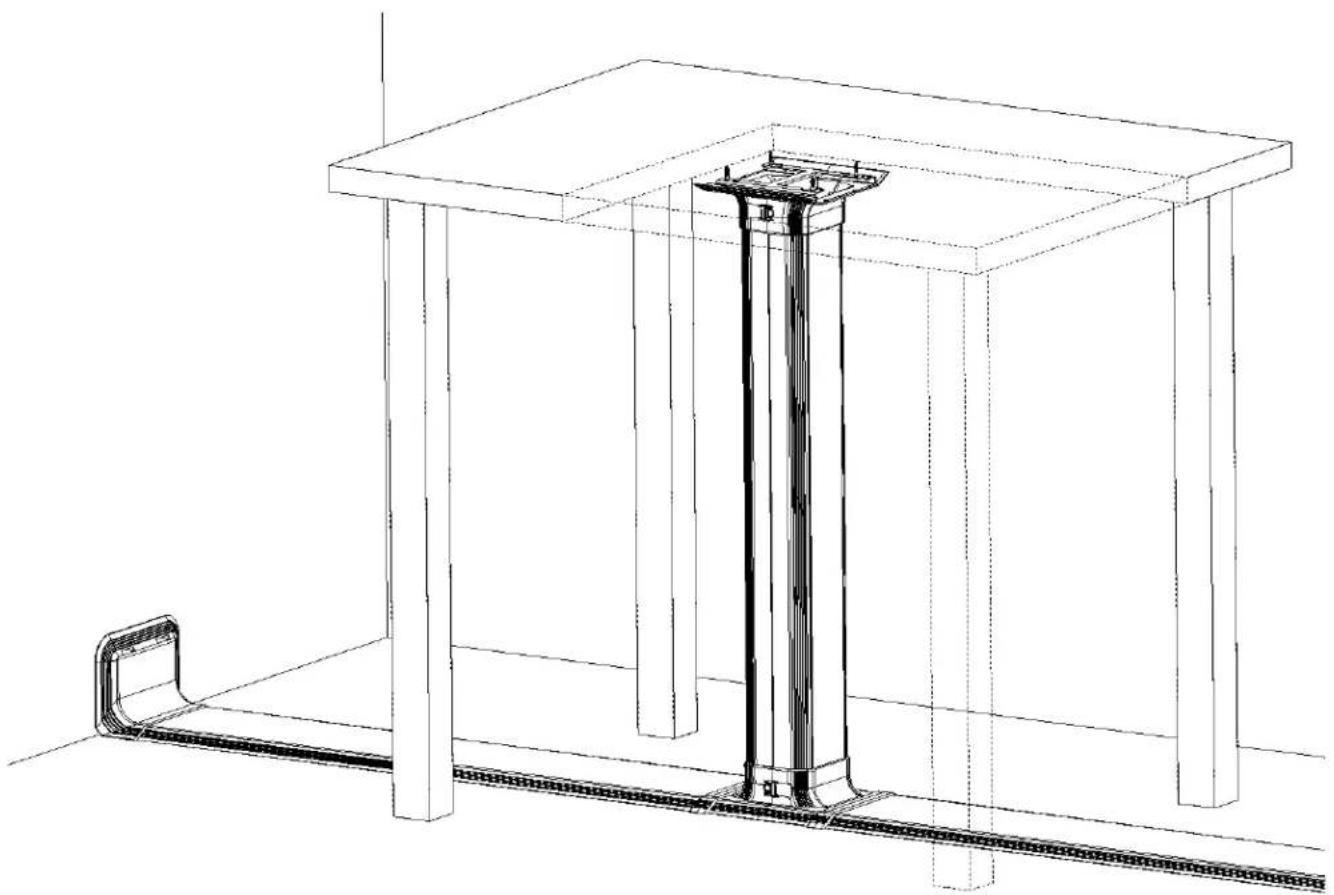

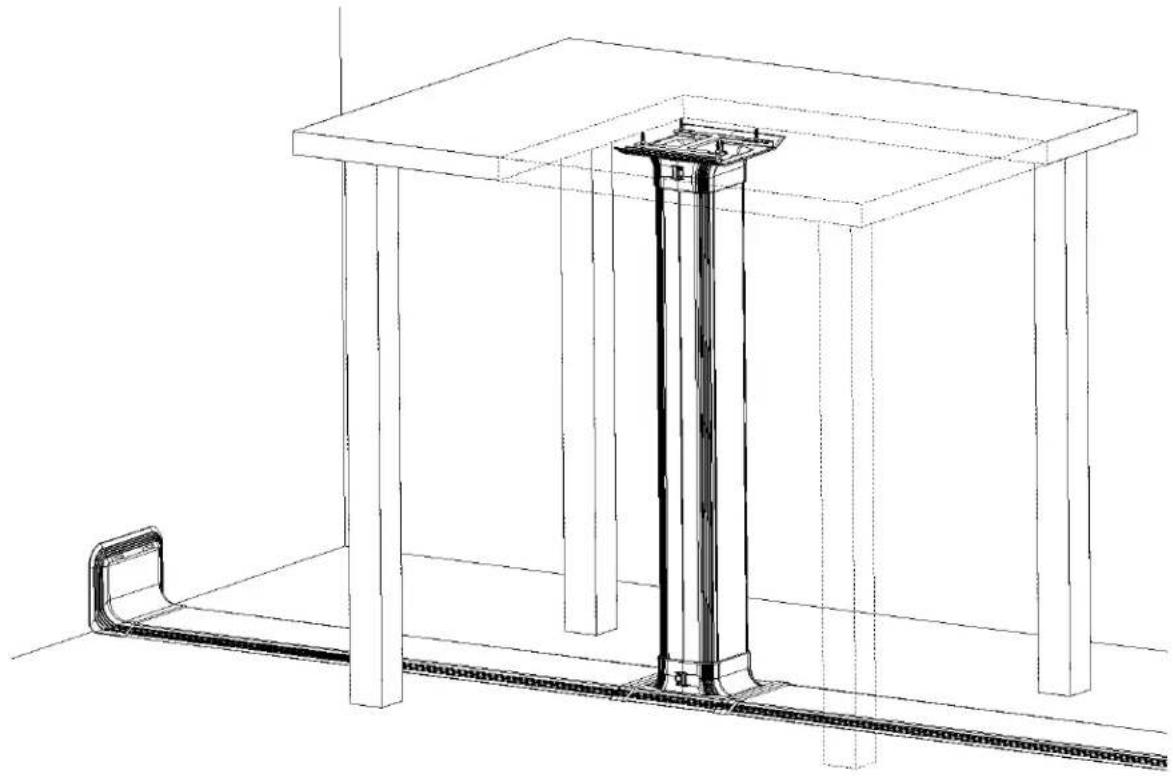

INSTALLATIONBETWEEN2RACEWAYCHANNELS

Technical line drawing of a structural support frame with columns and a vertical column (no text or symbols)

①

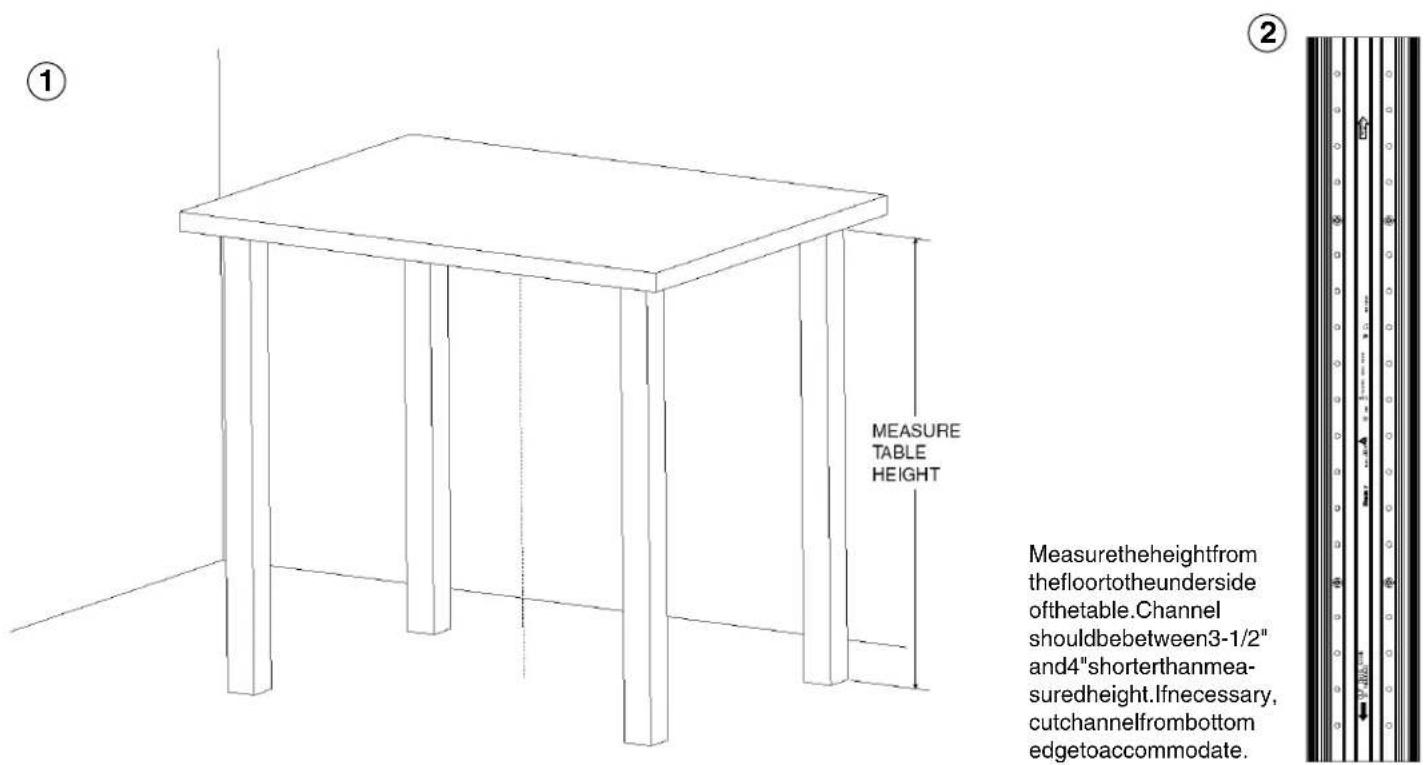

① MEASURE TABLE HEIGHT Raceway Cover 3-1/4"

Centeroftablelegtransitionfittingwillsitapproximately3-1/4"fromtheedgeoftheracewaycover.
Routecablespriortoinstallingtheracewaycover.
NOTE: Desired hole in table should be offset from table leg center to accommodate proper mountingoftableleg.
Measuretheheight fromthefloortothe undersideofthetable. Channelshouldbe between3-1/2"to4" shorterthanthemeasuredheight.Ifnecessary,cutchannelfrom bottomedgetoaccommodate.

2

0 0 0 ① 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

③

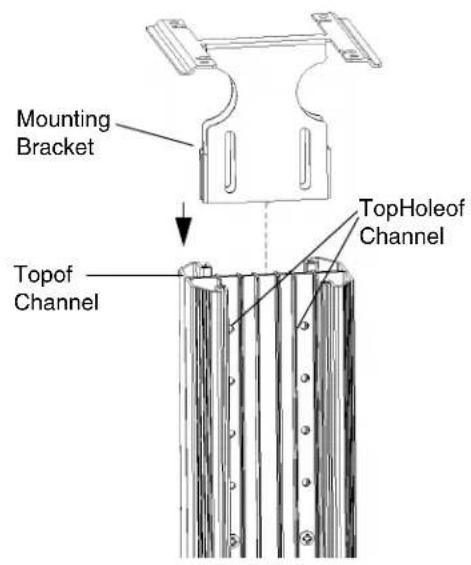

Mounting Bracket TopHoleof Channel Topof Channel

④

#10-32HexNuts #10-32x1"Screws

Securemountingbrackettotopofchannelusingprovidedhardware. Usethetopholeofthechannelforassembly.Donotfullytightenthe mountingbracketatthistime.

5

Technical line drawing of a mechanical assembly with no visible text or symbols

5A

Technical line drawing of a mechanical bracket with mounting holes and a close-up inset showing a control panel (no text or symbols)

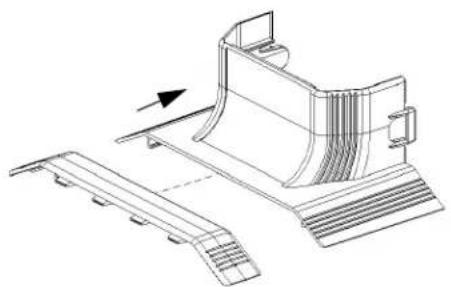

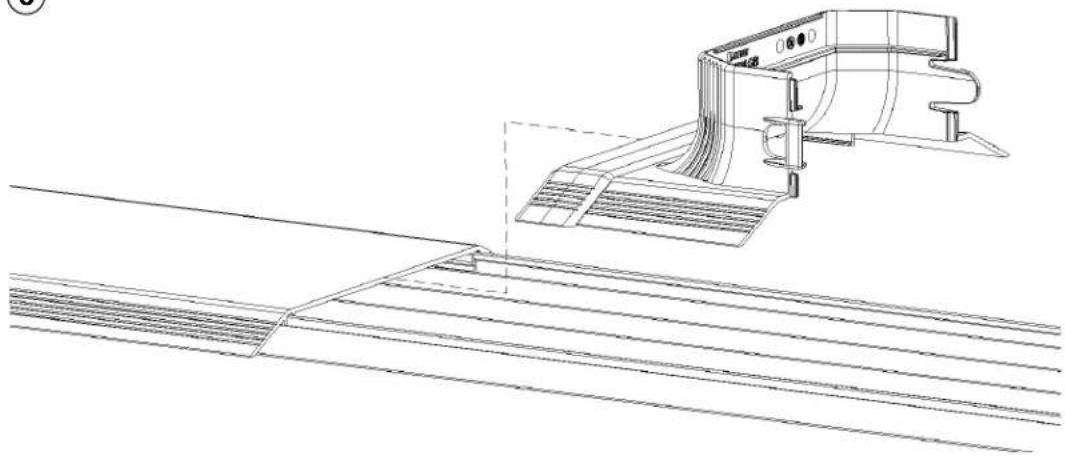

Ensurecouplersconnecttobottomtransition bootsasshown. [4Places]

6

Technical line drawing of a mechanical component with grid lines and a bracket (no text or symbols)

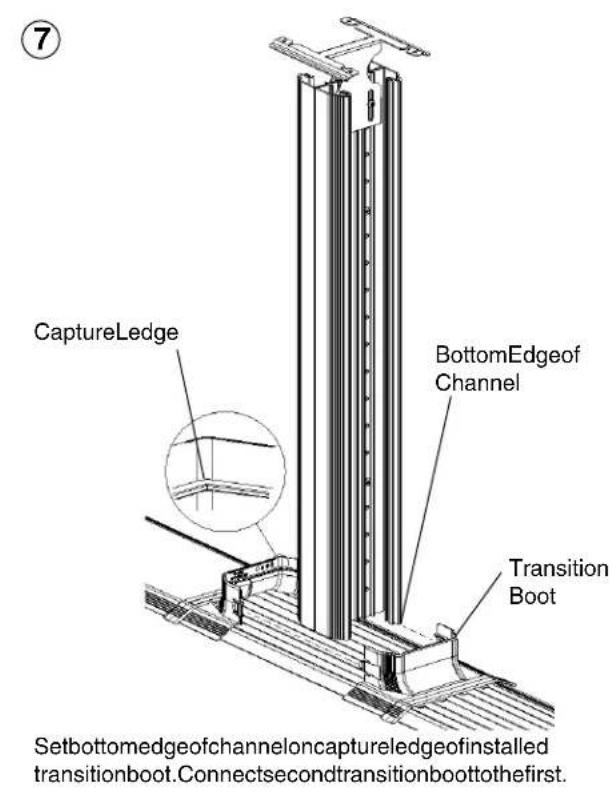

CaptureLedge BottomEdgeof Channel Transition Boot Setbottomedgeofchanneloncaptureledgeofinstalled transitionboot.Connectsecondtransitionboottothefirst.

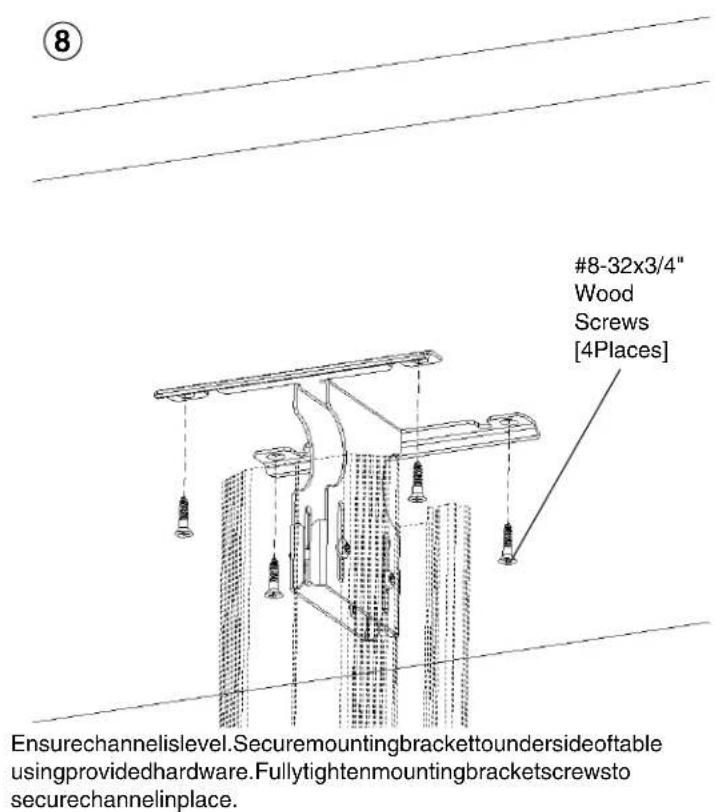

#8-32x3/4" Wood Screws [4Places] Ensurechannelislevel.Securemountingbrackettoundersideoftable usingprovidedhardware.Fullytightenmountingbracketscrewsto securechannelinplace.

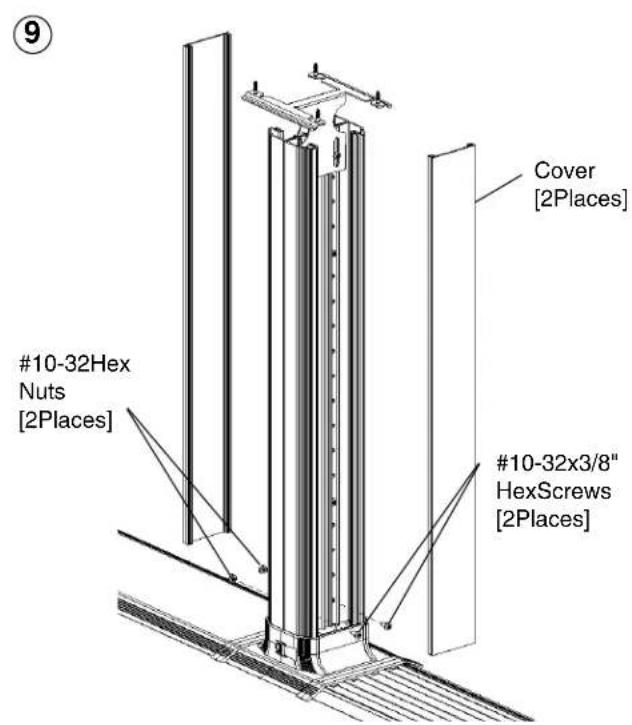

#10-32Hex Nuts [2Places] #10-32x3/8" HexScrews [2Places] Cover [2Places]

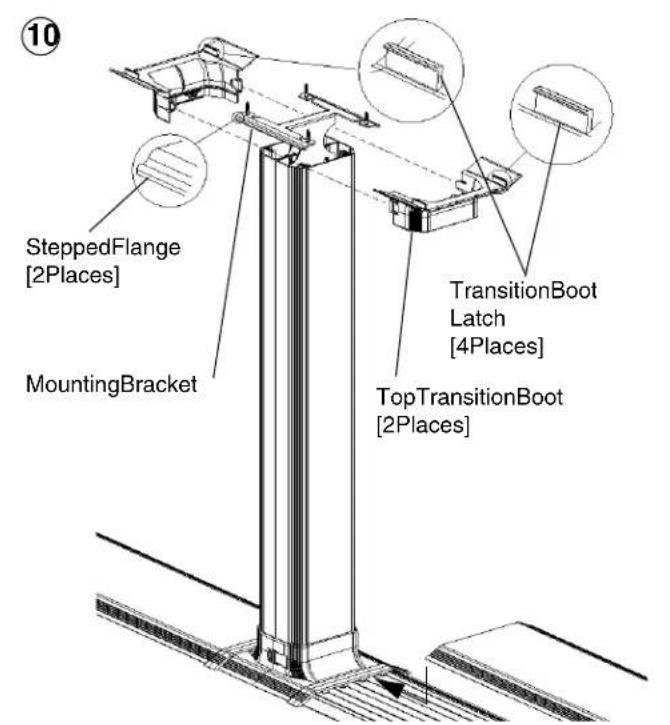

10 SteppedFlange [2Places] MountingBracket TransitionBoot Latch [4Places] TopTransitionBoot [2Places]

Routecablespriortoinstallingcovers.Coversaretamper-proof andarenotintendedforeasyremoval.
Assembletoptransitionbootstoeachother. Transitionbootlatcheswill mounttothesteppedflangesofthemountingbracket.
Ifaddedstiffnessisdesired,securebottomofchannelusingprovidedhardwareinthelowermostholesofthechannel.

11

Technical line drawing of a simple structural frame with columns and a vertical column, no text or symbols present

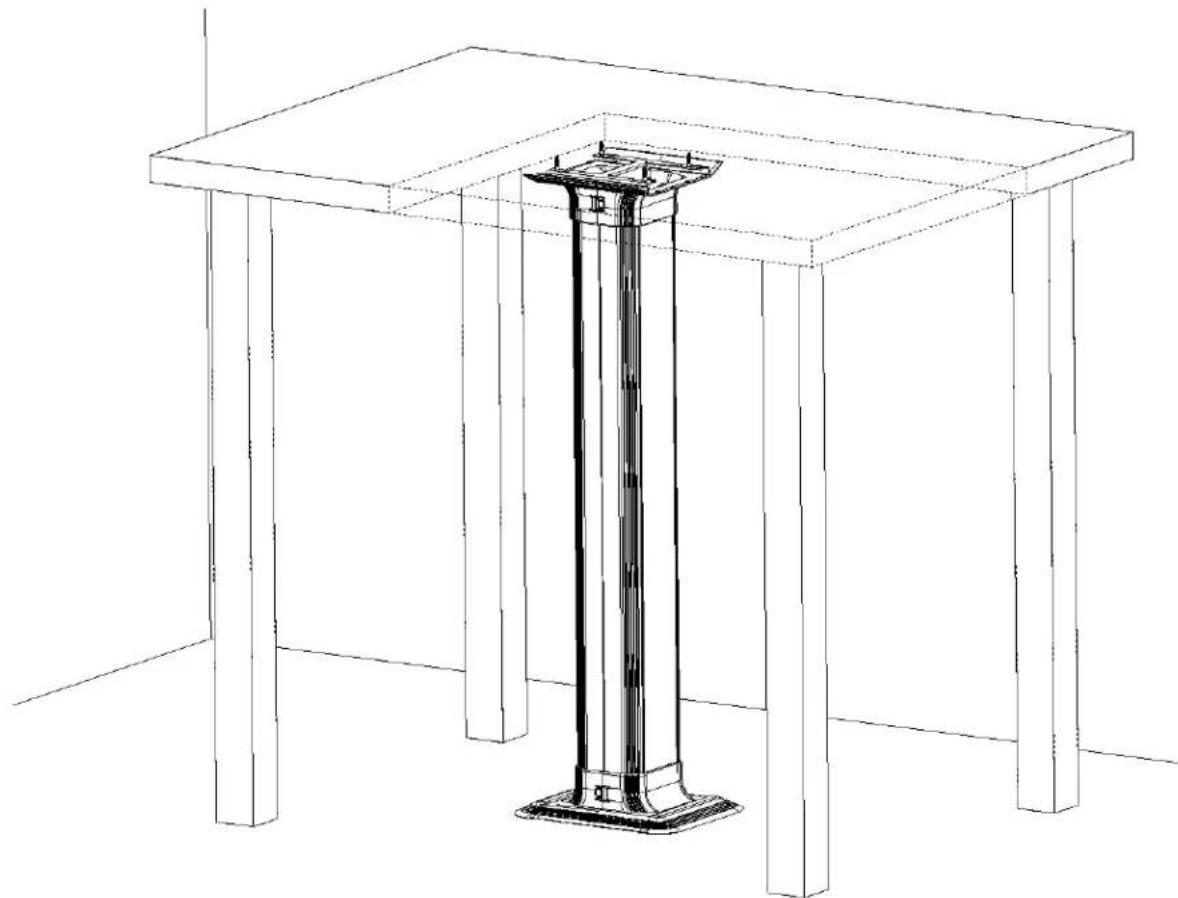

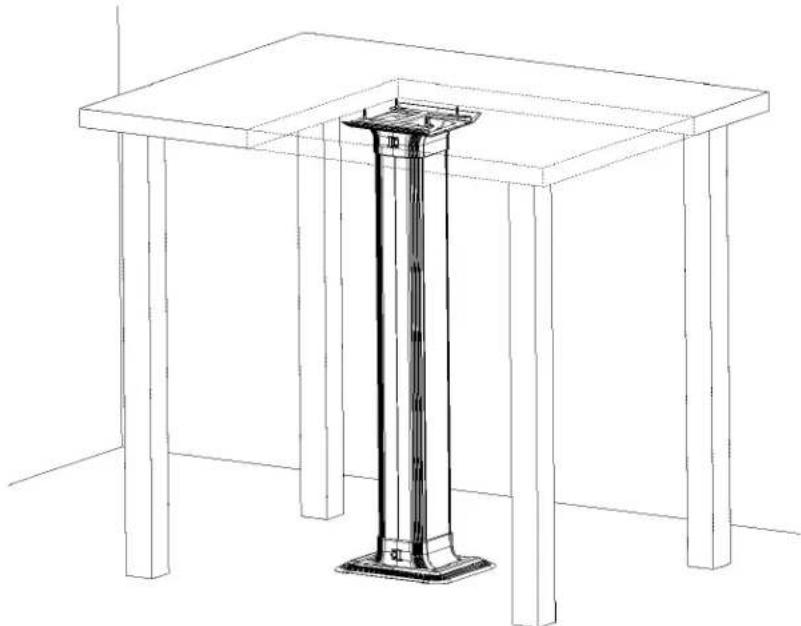

INSTALLATIONASSTANDALONEORWITHSINGLESIDERACEWAYCHANNEL

Technical line drawing of a table with columns and a vertical support structure (no text or symbols)

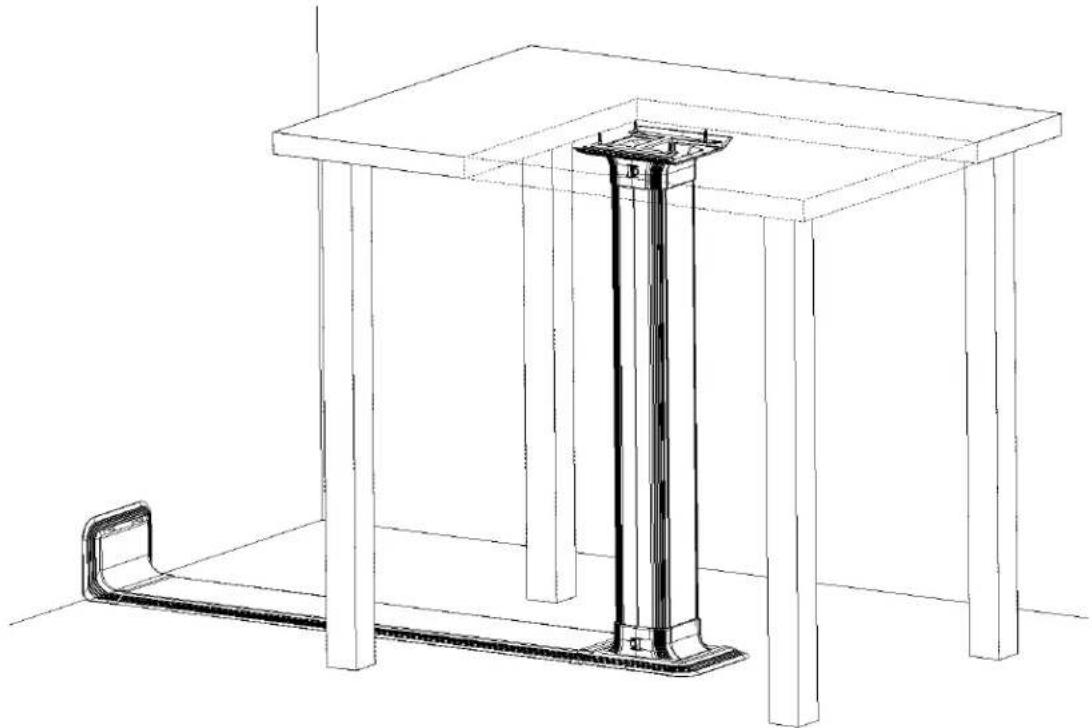

NOTE: For single side raceway application; above floor raceway should be mounted prior to table leg installation. Centeroftablelegwillsitapproximately3-1/4"fromtheedgeoftheracewaycover.Routecablespriorto installingtheracewaycover.

Line drawing of a simple table with a vertical metal column mounted on top, no text or symbols present

NOTE: Desired hole in table should be offset from table leg center to accommodate proper mounting of table leg.

① MEASURE TABLE HEIGHT ② Measuretheheightfrom thefloortotheunderside ofthetable.Channel shouldbebetween3-1/2" and4"shorterthanmea- suredheight.Ifnecessary, cutchannelfrombottom edgetoaccommodate.

NOTE: Desired hole in table should be offset from table leg center to accommodate proper mounting of table leg.

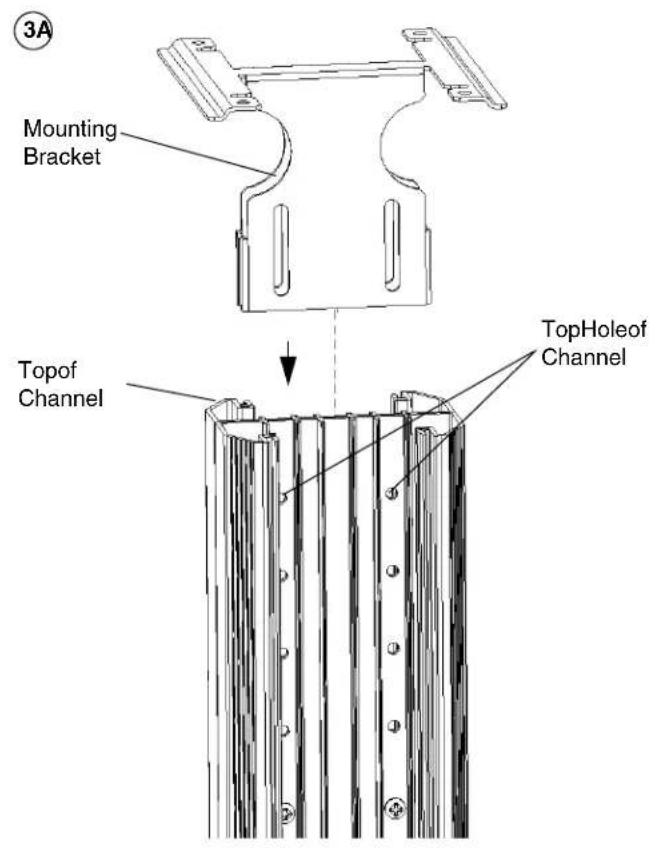

3A Mounting Bracket Topof Channel TopHoleof Channel

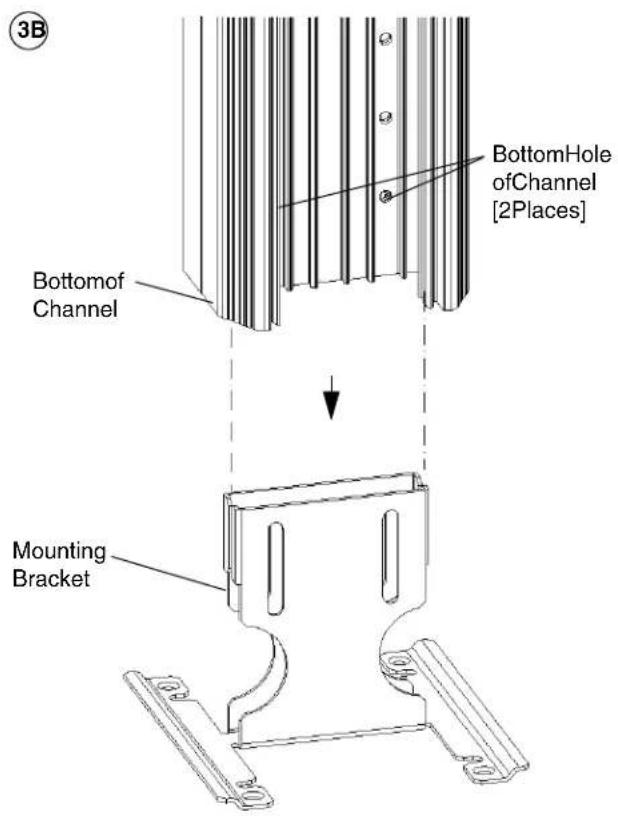

3B Bottomof Channel BottomHole ofChannel [2Places] Mounting Bracket

©PanduitCorp.2019

INSTALLATIONINSTRUCTIONS

PN616B

4

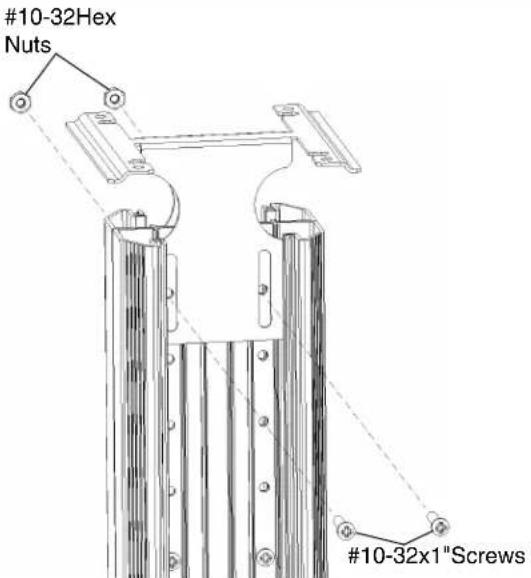

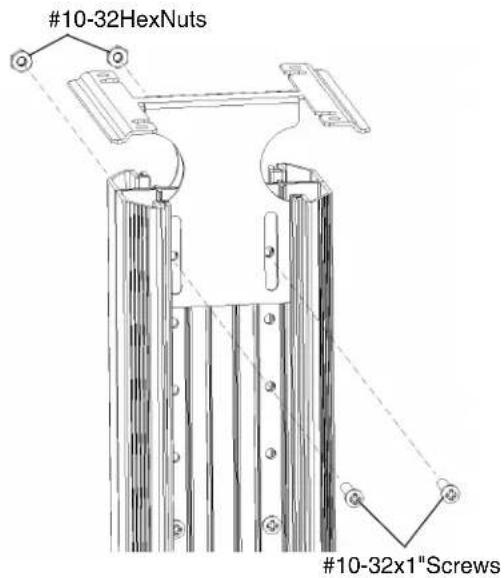

#10-32Hex Nuts #10-32x1"Screws

Securemountingbracketstotopandbottomofchannelusingprovided hardware. Usetheholesclosesttotheendsofthechannelforassembly. Donotfullytightenthemountingbracketatthistime.

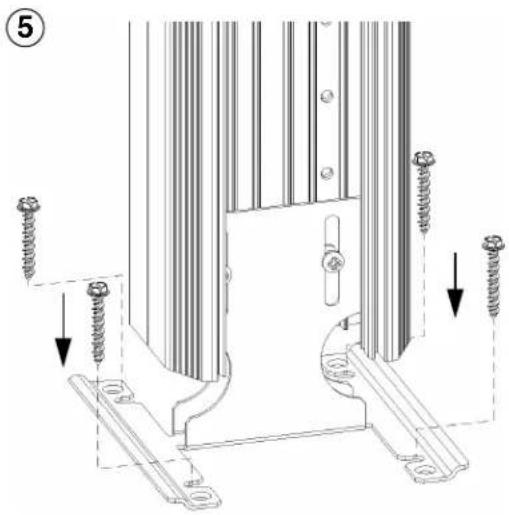

Technical diagram showing mechanical assembly with screws and mounting brackets, labeled with number 5

Pre-drillholesininfrastructureifnecessary.Secure bottommountingbrackettofloorwithproperhardware.(Concretescrewsprovided)

6

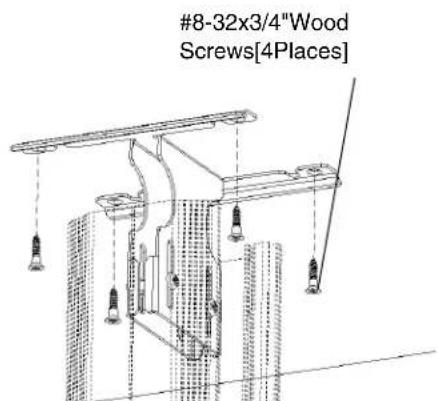

#8-32x3/4"Wood Screws[4Places]

Ensurechannelislevel.Securetopmounting brackettoundersideoftableusingprovided hardware.

Technical diagram of a mechanical device with labeled components and magnified views

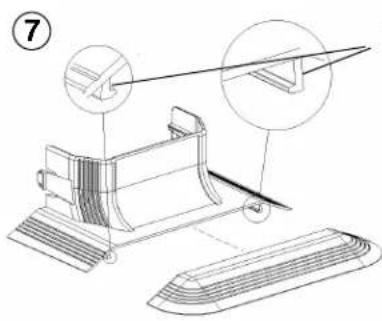

TransitionBootLatch

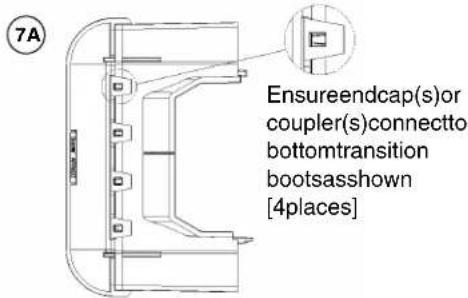

7A Ensureendcap(s)or coupler(s)connectto bottomtransition bootsasshown [4places]

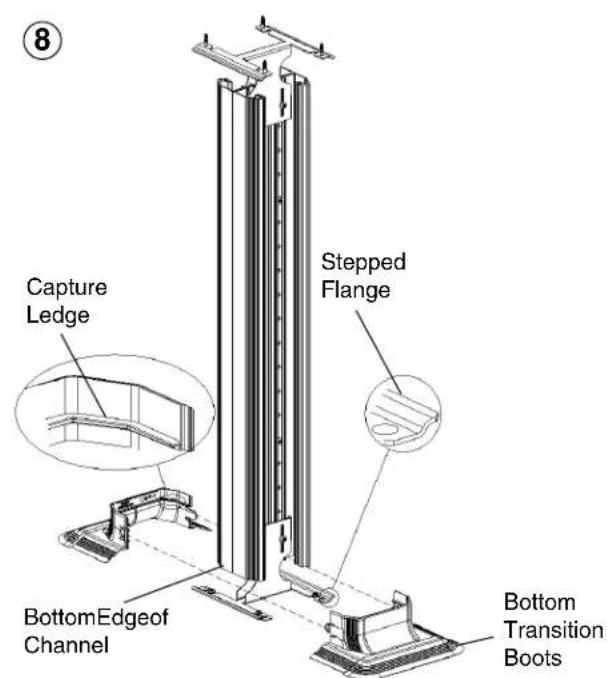

⑧ Capture Ledge Stepped Flange BottomEdgeof Channel Bottom Transition Boots

Assemblebottomtransitionbootstogether.Transitionboot latches(showninstep7)willmountosteppedflangesofthe mountingbrackets.Placebottomofchannelontopofcap-tureledgeoftransitionboots.
Tightenallmountingbracketscrewstothechannelatthis time.

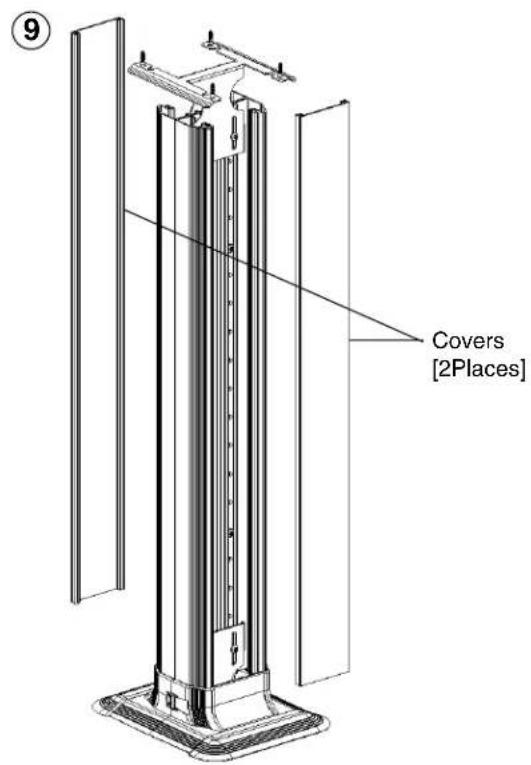

⑨ Covers [2Places]

Routecablespriortoinstallingcovers.Coversaretamper proofandarenotintendedforeasyremoval.

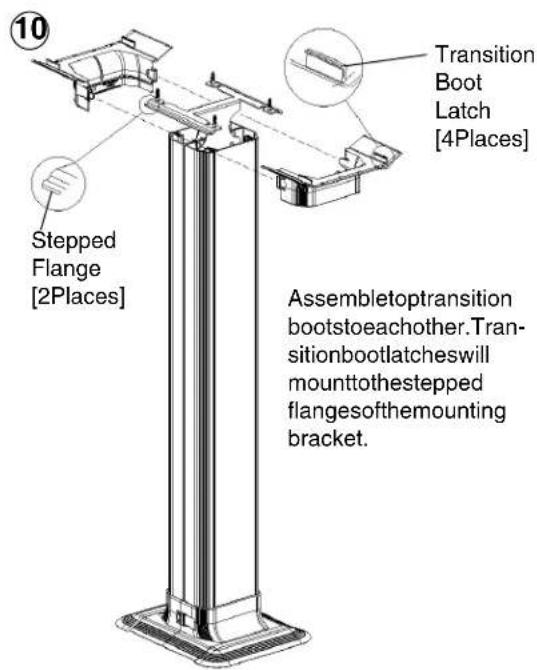

10 Stepped Flange [2Places] Transition Boot Latch [4Places] Assembletoptransition bootstoeachother.Transitionbootlatcheswill mounttothestepped flangesofthemounting bracket.

11

Line drawing of a simple table with four legs and a vertical column base (no text or symbols)
