MONOGRAM 30" STAINLESS STORAGE DRAWER

ZXS900PSNSS

MONOGRAM

THE MONOGRAM STATEMENT COLLECTION

The gleaming stainless steel finish brings traditional style with unparalleled performance.

LARGE-CAPACITY STORAGE DRAWER

Offering a contemporary yet functional design, this spacious 1.9 cu. ft. drawer stores all your cookware beautifully.

PUSH-TO-OPEN DRAWER

Handle-free, push-to-open drawer adds a touch of elegant simplicity and stylish convenience.

SPECIFICATIONS

Overall Width 29 3/4" (75.5 cm)

Overall Height 6 11/16" (16.9 cm)

Overall Depth 23 7/16" (59.5 cm)

Drawer Capacity 190 cu. ft. (538 l)

Standard Cut-out Width 28 1/2" (72.4 cm)

Standard Cut-out Height 5 5/16" (15.1 cm)

Standard Cut-out Depth 22 1/8" (53.6 cm)

Net Weight 54 lbs. (24.5 kg)

Approx. Shipping Weight 60 lbs. (27.2 kg)

For more details refer to the installation instructions for this product.

OVERALL DIMENSIONS

29 3/4" 6 11/16" PRODUCT FRONT VIEW

28 1/8" 23 7/16" PRODUCT TOP VIEW

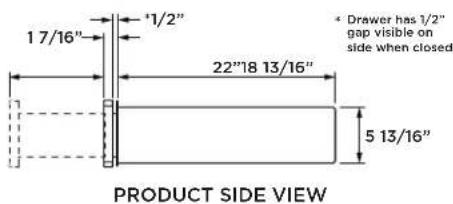

17/16" '1/2" 22"18 13/16" 5 13/16" * Drawer has 1/2" gap visible on side when closed. PRODUCT SIDE VIEW

Actual product dimensions may vary due to manufacturing tolerances.

STANDARD INSTALLATION

22 1/8" Min Opening depth 5 5/8" Anti-Tip Block Drawer front has 1/2" gap to cabinet front. This will be visible in standard installation.

STANDARD INSTALLATION SIDE VIEW

28 1/2" Opening width 7/16" Product Overlap 5 7/8" Opening height 5/8" Product Overlap 3/8" Product Overlap A D

STANDARD INSTALLATION FRONT VIEW

FLUSH INSET INSTALLATION

23 9/16" Min Flush inset depth Top cleat Side cleat Bottom cleat 5 5/8" Anti-Tip Block

FLUSH INSET INSTALLATION SIDE VIEW

28 1/2" Cutout width 1/2" Top cleat 6 15/16" Flush inset height 3/4" Side cleats 5 15/16" Opening height 1/2" Bottom cleat (Extends full depth of cabinet)

FLUSH INSET INSTALLATION FRONT VIEW

Side cleat Side cleat 1 7/16" Cleat depth 30" flush inset width with 1/8" reveals

FLUSH INSET INSTALLATION TOP VIEW

HELPFUL TIPS

A If you are installing in frameless cabinets, it may be necessary to install 1/2" wide cleats to accept drawer mounting screws. See drawer for mounting screw locations.
Install an anti-tip block against rear wall, 5 5/8" from floor of cutout to bottom of block. The anti-tip block must be installed to prevent the drawer from tipping forward when opened and loaded. Failure to add the anti-tip block could result in personal injury.
When installing the storage drawer below a cabinet drawer, a solid barrier must be installed at least above the storage drawer to block access. Use any solid material such as 1/4" thick plywood. Allow at least 1/4" air gap between the barrier and the top of the storage drawer. Observe the 3/8" min. above the toe kick installation height.
The storage drawer may be supported by either a solid bottom or 2"x2" or 2"x4" runners. The support must be level and rigidly mounted, flush with the bottom edge of the cut-out (there is no way to level the drawer once it has been installed, so make sure that the supports are level). The floor or runners must be capable of supporting at least 65 lbs.
Cabinet surfaces must be an appearance finished surface for flush installation.
F Cleats may be visible and should be finished to match cabinetry.

For more details refer to the installation instructions for this product.

INSTALLATION BELOW COOKTOP

1" Min Bottom of cooktop to top of cutout 3/8" Min From cutout to top of toe kick 5 5/8" Anti-Tip Block A D C STANDARD INSTALLATION SIDE VIEW

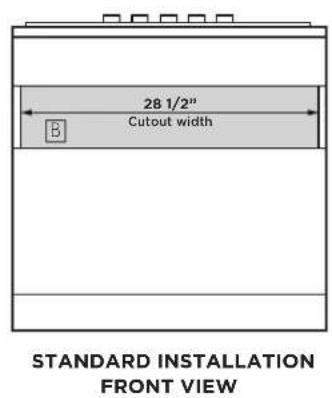

28 1/2" Cutout width STANDARD INSTALLATION FRONT VIEW

E 1 3/8" Min Between cutouts

HELPFUL TIPS

A Additional clearance between cut-outs may be required. Check to be sure that oven supports above the storage drawer location do not obstruct the required interior 23-1/2" depth and 5-7/8" height.
B If you are installing in frameless cabinets, it may be necessary to install 1/2" wide cleats to accept drawer mounting screws. See drawer for mounting screw locations.
Install an anti-tip block against rear wall, 5 5/8" from floor of cutout to bottom of block. The anti-tip block must be installed to prevent the drawer from tipping forward when opened and loaded. Failure to add the anti-tip block could result in personal injury.
When installing the storage drawer below a cooktop, a solid barrier must be installed at least 1" from the lowest point of the bottom of cooktop burner box to the top of the cut-out. Use any solid material such as 1/4" thick plywood. Allow at least 1/4" air gap between the barrier and the top of the storage drawer. Observe the 3/8" min. above the toe kick installation height.
When installing two storage drawers side by side, install them in separate cut-outs and allow a 1-3/4" min. gap between each cut-out.

For more details refer to the installation instructions for this product.

INSTALLATION WITH BOTTOM TRIM

1 7/16" 1/2" 22"18 13/16" 5 13/16" * Drawer has 1/2 gap visible on side when clos

PRODUCT SIDE VIEW

PRODUCT FRONT VIEW

28 1/8" 23 7/16"

PRODUCT TOP VIEW

23 9/16" Min Flush inset depth Top cleat 5 Al Side cleat Bottom cleat (Bottom cleat is set back from top and side cleats.) 2 3/4" B

FLUSH INSET INSTALLATION SIDE VIEW (WITH ACCESSORY TRIM)

28 1/2" Cutout width 1/2" Top cleat 8 1/4" flush inset height 6 5/16" Side cleat height *1 3/4" 3/4" Side cleats 5 15/16" Opening height *Side cleats must allow 1 3/4" bottom clearance for bracket and trim. 1 13/16" Bottom cleat extends full depth of cabinet and is set back 2 3/4" from cabinet face.

FLUSH INSET INSTALLATION FRONT VIEW (WITH ACCESSORY TRIM)

Bottom cleat can be either solid platform or 4" wide runners. 2 3/4" Bottom cleat depth Side cleat 17/16" Top & side cleat depth 30" flush inset width with1/8" reveals Side cleat

FLUSH INSET INSTALLATION TOP VIEW (WITH ACCESSORY TRIM)

HELPFUL TIPS

Install an anti-tip block against rear wall, 5 5/8" from floor of cutout to bottom of block. The anti-tip block must be installed to prevent the drawer from tipping forward when opened and loaded. Failure to add the anti-tip block could result in personal injury.
When installing the storage drawer below a cabinet drawer, a solid barrier must be installed at least above the storage drawer to block access. Use any solid material such as 1/4" thick plywood. Allow at least 1/4" air gap between the barrier and the top of the storage drawer. Observe the 3/8" min. above the toe kick installation height.
The storage drawer may be supported by either a solid bottom or 2"x2" or 2"x4" runners. The support must be level and rigidly mounted, flush with the bottom edge of the cut-out (there is no way to level the drawer once it has been installed, so make sure that the supports are level). The floor or runners must be capable of supporting at least 65 lbs.
☐ Cabinet surfaces must be an appearance finished surface for flush installation.
E Cleats may be visible and should be finished to match cabinetry.

For more details refer to the installation instructions for this product.

INSTALLATION WITH STATEMENT WALL OVEN AND STATEMENT ADVANTIUM

1/8" 29 3/4"29 3/4" 28 3/8" 20 1/4" 27 1/16" 1/8" 6 11/16" 1 5/16"

PRODUCT FRONT VIEW (WALL OVEN & DRAWER HAVE ACCESSORY FLUSH WALL OVEN TRIM)

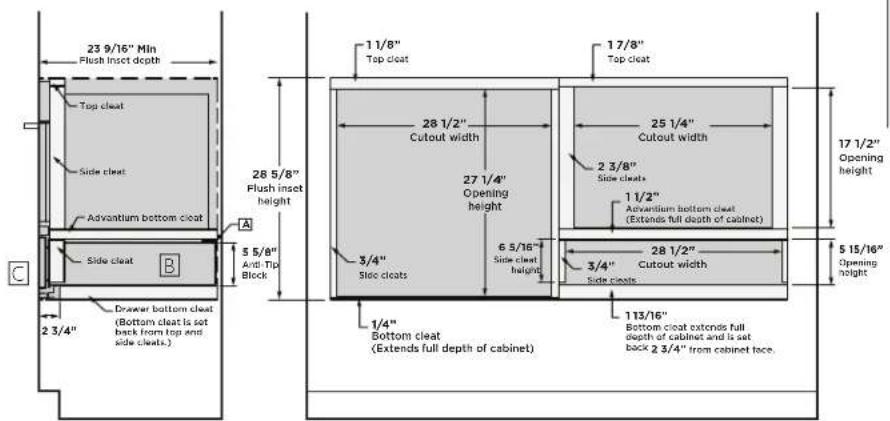

23 9/16" Min Flush inset depth Top cleat Side cleat Advantium bottom cleat A 5 5/8" Anti-Tip Block B 2 3/4" Drawer bottom cleat (Bottom cleat is set back from top and side cleats.) 1 1/8" Top cleat 28 5/8" Flush inset height 27 1/4" Opening height 3/4" Side cleats 6 5/16" Side cleat height 1/4" Bottom cleat (Extends full depth of cabinet) 113/16" Bottom cleat extends full depth of cabinet and is set back 2 3/4" from cabinet face. 17 1/2" Opening height 2 3/8" Side cleats 25 1/4" Cutout width 11/2" Advantium bottom cleat (Extends full clath of cabinet) 2 3/8" Cutout width 3/4" Side cleats 17 1/2" Opening height 5 15/16" Opening height

FLUSH INSET INSTALLATION SIDE VIEW
FLUSH INSET INSTALLATION FRONT VIEW

Side cleat 17/16" Cleat depth Center cleat 17/16" Cleat depth Bottom cleat can be either solid platform or 4" wide runners. 2 3/4" Drawer bottom cleat depth Side cleat 59 7/8" flush inset width with 1/8" reveals

FLUSH INSET INSTALLATION TOP VIEW

HELPFUL TIPS

Install an anti-tip block against rear wall, 5 5/8" from floor of cutout to bottom of block. The anti-tip block must be installed to prevent the drawer from tipping forward when opened and loaded. Failure to add the anti-tip block could result in personal injury.
B The storage drawer may be supported by either a solid bottom or 2"x2" or 2"x4" runners. The support must be level and rigidly mounted, flush with the bottom edge of the cut-out (there is no way to level the drawer once it has been installed, so make sure that the supports are level). The floor or runners must be capable of supporting at least 65 lbs.
Cabinet surfaces must be an appearance finished surface for flush installation. Cleats may be visible and should be finished to match cabinetry.
For optimal finished appearance, Wall Oven must use ZX30VT1 flush vent trim accessory.

For more details refer to the installation instructions for this product.

INSTALLATION UNDER STATEMENT WALL OVEN

29 3/4" 28 3/8" 35 3/16" 1/8" 6 11/16"

PRODUCT FRONT VIEW

24 7/8" Min Flush inset depth Top cleat Side cleat Wall Oven Bottom cleat 34 5/16" Flush inset height 5 5/8" Anti-Tip Block A B C 11/8" Top cleat 3/4" Side cleats 5/8" Wall Oven bottom cleat (Extends full depth of cabinet) 28 1/2" Cutout width 3/4" Side cleats 1/2" Bottom cleat (Extends full depth of cabinet) 27 1/4" Opening height 5 15/16" Opening height FLUSH INSET INSTALLATION SIDE VIEW FLUSH INSET INSTALLATION FRONT VIEW

1 7/16" Cleat depth Side cleat Side cleat 30" flush inset width with 1/8" reveals FLUSH INSET INSTALLATION TOP VIEW

HELPFUL TIPS

A Install an anti-tip block against rear wall, 5 5/8" from floor of cutout to bottom of block. The anti-tip block must be installed to prevent the drawer from tipping forward when opened and loaded. Failure to add the anti-tip block could result in personal injury.
B The storage drawer may be supported by either a solid bottom or 2"x2" or 2"x4" runners. The support must be level and rigidly mounted, flush with the bottom edge of the cut-out (there is no way to level the drawer once it has been installed, so make sure that the supports are level). The floor or runners must be capable of supporting at least 65 lbs.
Cabinet surfaces must be an appearance finished surface for flush installation. Cleats may be visible and should be finished to match cabinetry.

For more details refer to the installation instructions for this product.
