USER MANUAL KASMSTRLTFA Kogan

Line drawing of a portable electronic device with a dome-shaped top and control knobs (no text or symbols)

KOGAN SMARTERHOME™ AURORA & STAR LIGHT PROJECTOR

WITH BLUETOOTH SPEAKER

KASMSTRLTFA

COMPONENTS

• Projector
  • USB-A to USB-C cable
• User guide

OVERVIEW

1 2 3 4 5 6

1 USB-C input port (DC 5V/2A)
2 USB-A output port
3 Meteor dial
4 Star dial (adjustable)
5 Planet pattern selector (select from 14 planet patterns)
6 Projection angle adjustor (90°/75°/60°)

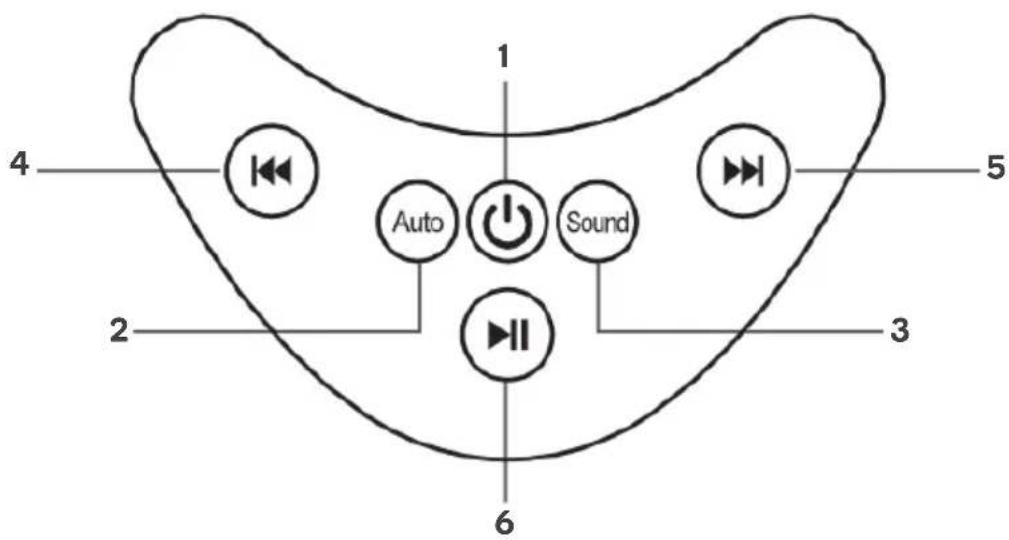

1 2 3 4 5 6 Auto Sound

1	Power	Press to turn the projector on/off.Press and hold for 5 seconds to enter pairing mode.
2	Automatic Mode	Continuously press to cycle through multiple scenarios.
3	Voice Control	Continuously press to cycle through multiple music rhythms.
4	Previous/Volume-	Press to return to the previous song.Press and hold to turn the volume down.
5	Next/Volume +	Press to skip to the next song.Press and hold to turn the volume up.
6	Play/Pause	Press to play/pause.Press and hold for 5 seconds to connect/disconnect Bluetooth.

CONNECT TO SMARTERHOME™ APP

Install App

Download the "Kogan SmarterHome" app from the Play Store (Android) or App Store (iOS).

QR code image containing encoded data, no visible human-readable text

Play Store (Android)

QR code image containing encoded data, no visible human-readable text

App Store (iOS)

To register:

1. If you already have a SmarterHome account, select 'Log In'. To register a new account, select 'Sign Up'.
2. The system will automatically recognise your country. If needed, you can manually select your country from the drop-down box. Enter your email address and tap 'Get Verification Code' to continue.
3. A 6-digit code will be sent to the submitted email address. Enter this code before the one-minute timer expires.
4. Continue to the next page and complete your SmarterHome profile.

Log In Sign Up

Register Australia Email Address

Enter Verification Code I If verification code has been sent to you later all Didn't get a code?

Set Device in Pairing Mode

When the device is first turned on, it may automatically enter pairing mode (you will hear a voice prompt saying 'Bluetooth Mode').

If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the 'Power' button for 5 seconds until you hear a voice prompt saying 'Bluetooth Mode'.

Add Device Through Network

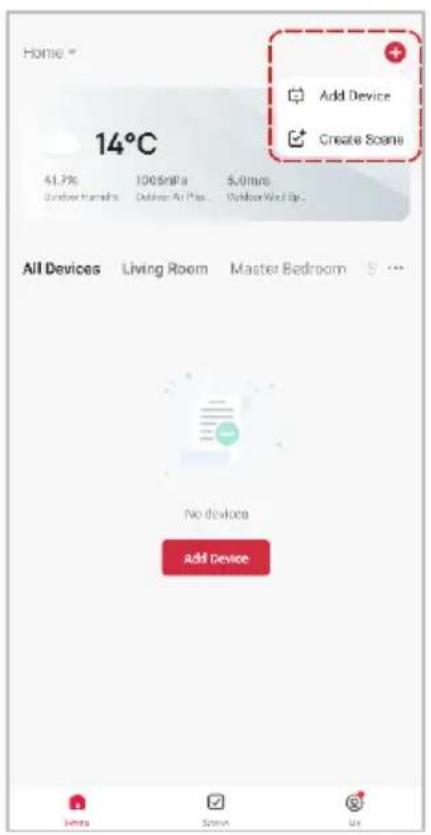

1. Once registered, tap "Add Device" on the app's home page, or the "+" in the upper right corner, to add a new device through the network.

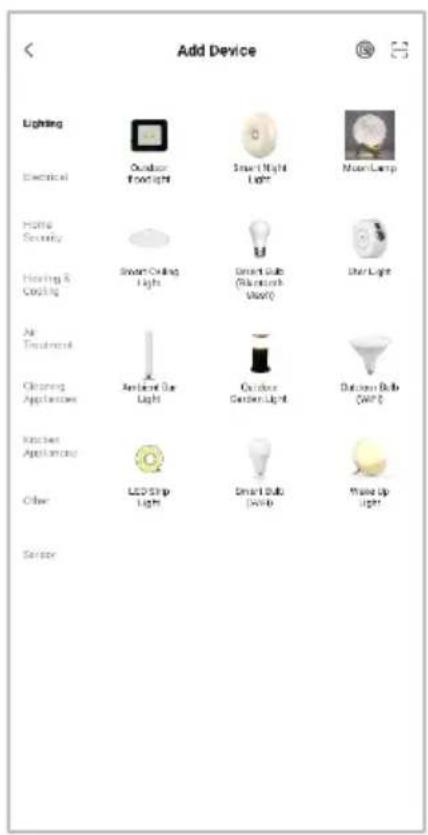

2. Select the product type from the list of options in the app (Lighting > Star Light).

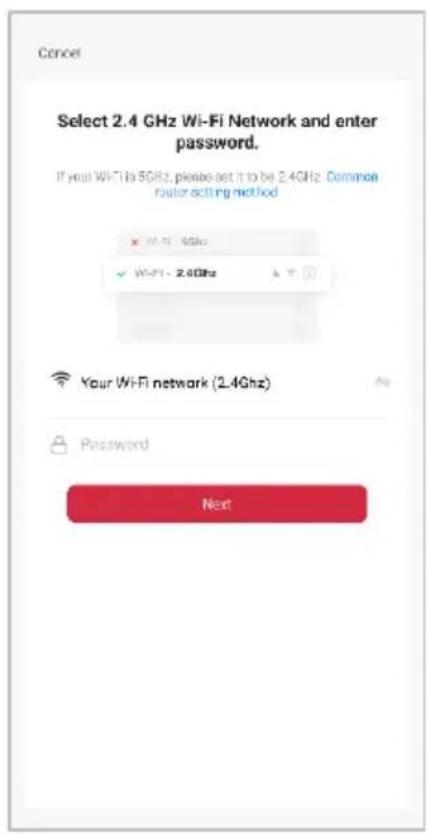

3. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup.

Home * 14°C 41.7% 100kPa 5.0m/s Add Device Create Scans All Devices Living Room Master Bedroom 19 ... No devices add device

Add Device Lighting Electrical Outdoor Footlight Smart Night Light Main Lamp Home Security Lighting & Cooling Smart Ceiling Light Smart Sub (Relentree) Light Air Treatment Cleaning Appliances Ambient Day Light Outdoor Garden Light Diameter Bulb Light Knicker Appliances LCD Strip Light Smart Sub Light Make Up Light Other Sensor

Cancel Select 2.4 GHz Wi-Fi Network and enter password. If your Wi-Fi is 5GHz, please set it to be 2.4GHz Common router setting method ✓ Wi-Fi - 2.4GHz Your Wi-Fi network (2.4GHz) Password Next

Notes:

• The device and the app have to use the same Wi-Fi network.
• The device is only compatible with 2.4Ghz networks.
- Depending on the product, Steps 3 and 4 may be in opposite order.

1. Ensure that the device is in pairing mode, with the voice prompt saying 'Bluetooth Mode, and tap "Confirm light is rapidly flashing".

2. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.

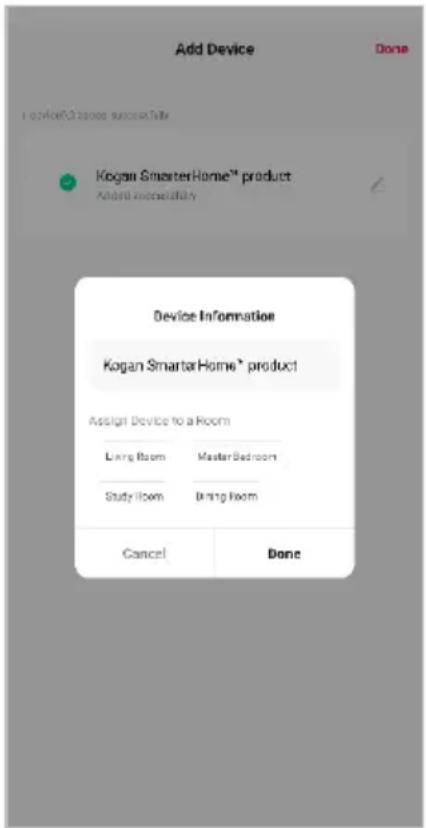

3. After successfully being added, you will have the option to rename the device and assign it to a location. It will now be listed on the app's home page. Tap the device listing to enter its control page.

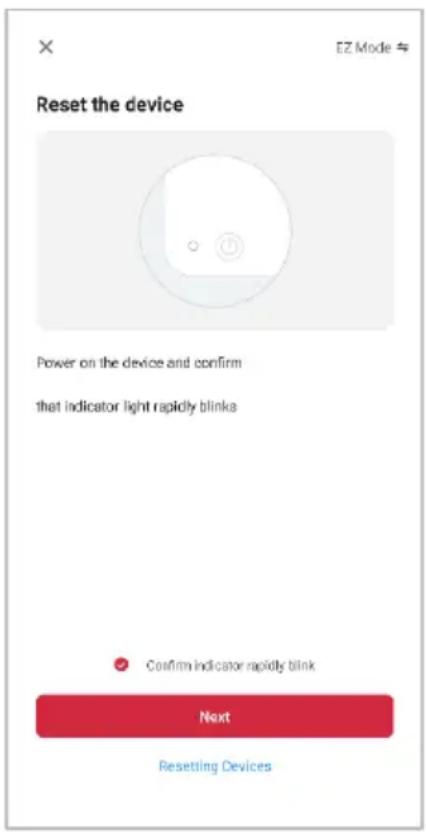

Reset the device Power on the device and confirm that indicator light rapidly blinks Confirm indicator rapidly blink Next Resetting Devices

Cancel Adding device... Ensure that the Wi-Fi signal is good. 01:56 Scan devices Regulations Court Initiate No Device

Add Device Done I recommend/2000 successfully Kogan SmartarHome™ product Added immediately Device Information Kogan Smartar Home® product Assign Device to a Room Living Room Master Bedroom Study Room Bring Room Cancel Done

Note:

Once connected, you can select Create Scene from the “+” in the upper right corner (or from the Scene tab) to group connected SmarterHome™ products and automate their functions.

GOOGLE HOME CONTROL

Note:

You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device.

Adding "SmarterHome" to the Google Home App

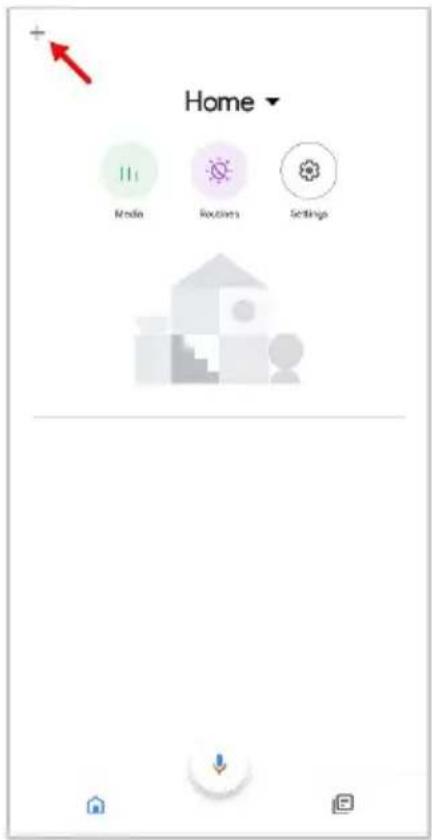

1. From the home page of the Google Home app, select the "+" icon (top left corner, see arrow in the below screenshot) to access the 'Add and manage' page.
2. Select 'Set up device', then select the 'Works with Google' option.

Home Media Routes Settings

Add and manage Add to home Setup device Invite home member Create speaker group Create new home Manage services Music Video Podcasts Next Awana Rebates and rewards Pro services Offers Offers

Set up a device Set up a new device or add an existing device or service to your home New device Add something new, like a Chromecast, Google Nest speaker or display or a barrier device, including those labelled Seamless Setup with the Google Home App. Works with Google Link one of your existing devices or services, such as connected light buttons or plugs.

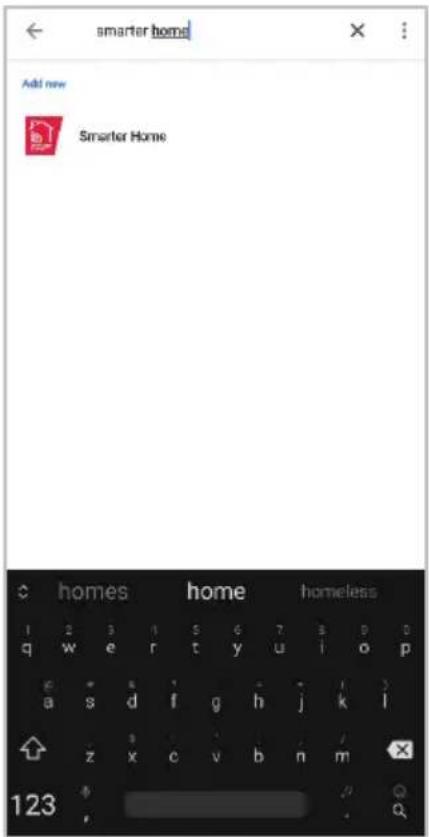

1. Select the search bar and type 'Smarter Home' to locate the Kogan SmarterHome™ service.

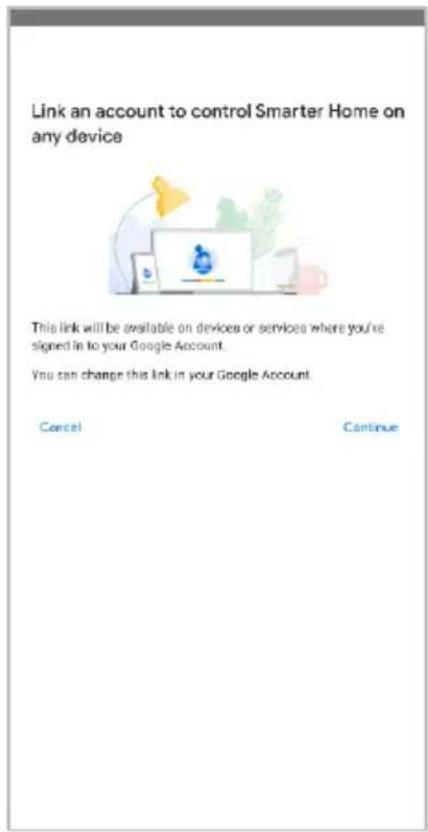

2. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.

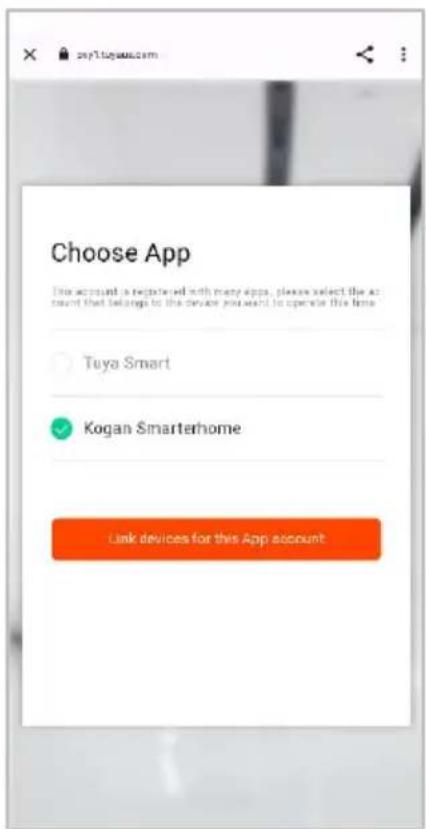

3. Select "Kogan SmarterHome™" from the app options.

smarter home Add new Smarter Home homes home homeless 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p e * s i * j k l a s d f g h j k l z x c v b n m 123

Link an account to control Smarter Home on any device This link will be available on devices or services where you're signed in to your Google Account. You can change this link in your Google Account. Cancel Cancel

Choose App This account is registered with many apps, please select the account that belongs to the device you want to operate this time. Tuya Smart Kogan Smarterhome Link devices for this App account

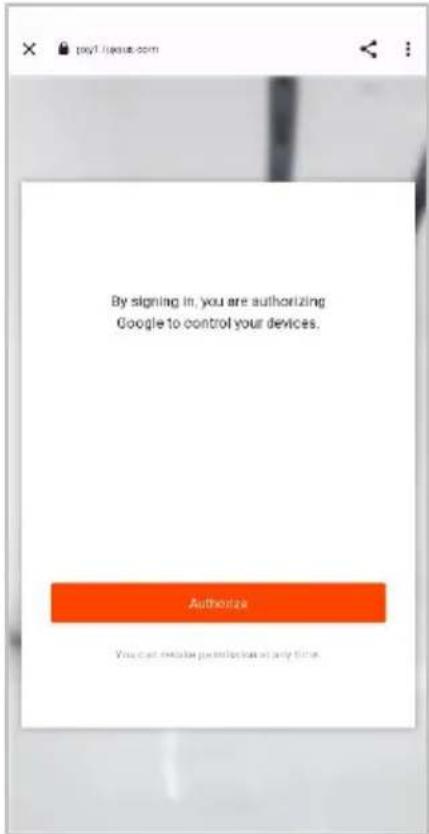

1. Tap 'Authorise' to grant Google permission to access the SmarterHome™ app and your devices.

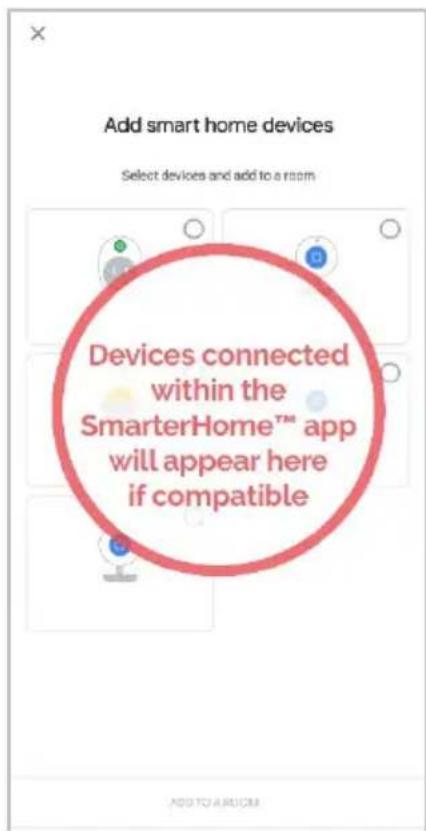

2. Once connected, the app will display any compatible devices linked to your SmarterHome™ account. From here you can assign them to rooms and set up any routines. Tap on any of the devices to view a list of available commands.

By signing in, you are authorizing Google to control your devices. Authorize You can make permission at any time.

Add smart home devices Select devices and add to a room Devices connected within the SmarterHome™ app will appear here if compatible

Note:

Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product's smart functionality, please use the Kogan SmarterHome™ app.

AMAZON ALEXA CONTROL

Note:

You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device.

Adding "SmarterHome" to the Alexa App

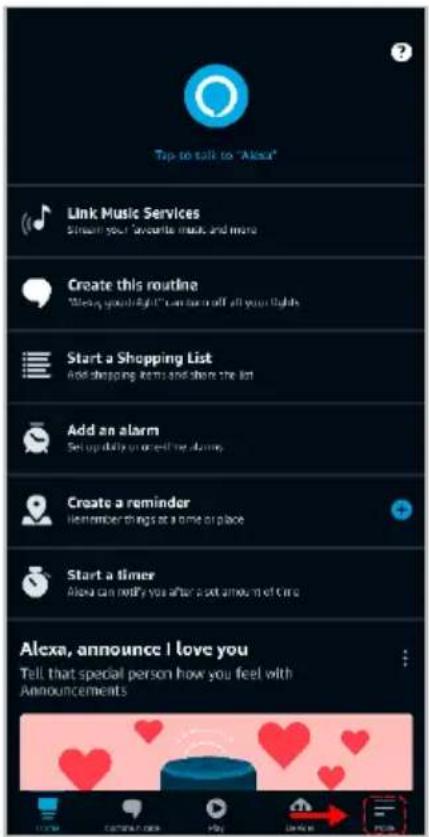

1. From the home page of the Alexa app, select the “≡” icon in the bottom-right and select “Skills & Games” from the sidebar.
2. Select the search bar and type 'Smarter Home' to locate the Kogan SmarterHome™ skill.

Tap to talk to "Alexa" Link Music Services Simien your favorite music and more Create this routine "Alexa's your right" can be seen all your lights Start a Shopping List Add shopping items and share the list Add an alarm Set up daily or once call my journey Create a reminder Remember things at a time or place Start a timer Alexa can notify you after a post amount of time Alexa, announce I love you Tell that special person how you feel with Announcements

Add a Device Lists & Notes Reminders Alarms & Timers Routines Skills & Games See More Settings Activity Help & Feedback

SEARCH Search Keyword or skill name: Kogan smartphone Sort: relevance Smarter Home "Alexa, dim the bedroom light to 50%." Smart Home smarteshome 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p @ a & * - + = ( ) a s d f g h j k l - $ : : / z x c v b n m 123

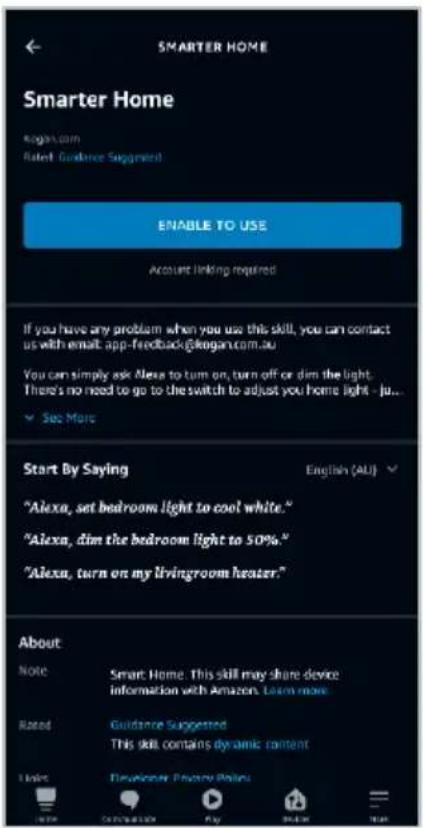

1. Tap 'Enable to Use' to add the Kogan SmarterHome™ skill to Alexa.
2. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.

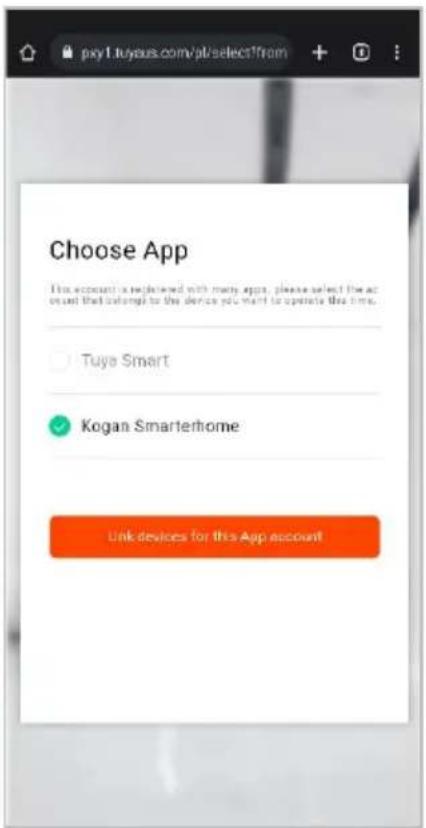

3. Select "Kogan SmarterHome™" from the app options.

SMARTER HOME Smarter Home logis.com Rated Guidance Suggested! ENABLE TO USE Account linking required If you have any problem when you use this skill, you can contact us with email: [e-mail] You can simply ask Alexa to turn on, turn off or dim the light. There's no need to go to the switch to adjust you home light - ju... ✓ See More Start By Saying English (AU) "Alexa, set bedroom light to cool white." "Alexa, dim the bedroom light to 50%." "Alexa, turn on my livingroom heater." About Note Smart Home This skill may share device information with Amazon. Learn more. Rated Guidance Suggested This skill contains dynamic content Light Developer Privacy Policy

pxy1.tuyaus.com/pl?from-kogs English Australia Prior Number/Email Address Next Step

pxy1.tuyaus.com/pt/selectfrom Choose App This account is registered with many apps, please select the account that allows to the device you want to operate this time. Tuya Smart Kogan Smarterhome Link devices for this App account

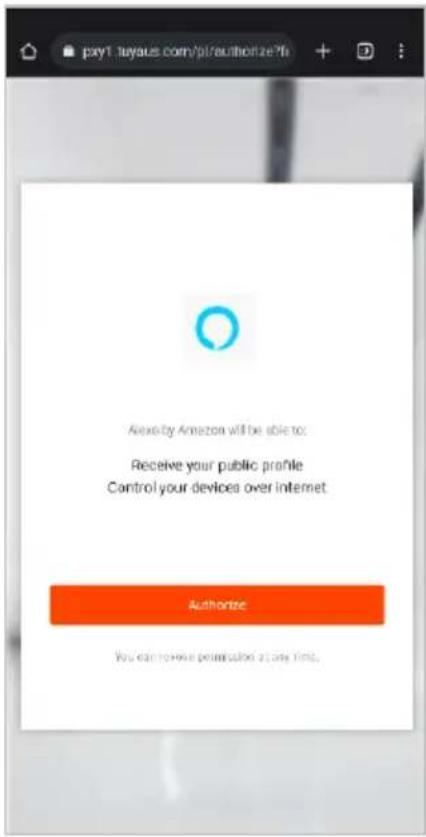

1. Tap 'Authorise' to grant Alexa permission to access the SmarterHome™ app and your devices.
2. Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa's voice commands.

pxy1.tuyaus.com/p/authorization?fi Alexia by Amazon will be able to: Receive your public profile Control your devices over internet Authorize You can review permission at any time.

ACCOUNT LINKING Your Smarter Home account has been successfully linked. What to do next. Close this window to discover smart home devices you can control with Alexa. CLOSE

Note:

Please note that Alexa can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product's smart functionality, please use the Kogan SmarterHome™ app.

OPERATION

Powering the Projector

• Plug the USB-C end of the provided USB-C to USB-A cable into the USB-C input port of the projector, and the USB-A end into a power adapter (not provided).
• External devices can be charged using the USB-A output port.

Bluetooth Mode

• Ensure your phone is not connected to any Bluetooth devices. After successfully pairing to the projector, connecting to other Bluetooth devices will not be affected.
• If the projector goes out of the Wi-Fi range of the router or if the router is turned off, the projector will automatically switch to Bluetooth mode within 5 minutes.

Setting Up the Projector as a Bluetooth Speaker

1. Bluetooth mode is turned on by default. When you turn on the projector, you will hear a voice prompt saying 'Bluetooth Mode'. If the projector is not in pairing mode when powered on, press and hold the 'Power' button for 5 seconds until you hear the voice prompt saying 'Bluetooth Mode'.
2. Turn on Bluetooth on your smartphone, tablet, computer, or other device and set it to search for new devices.
3. Select 'Galaxy Starship' from the list of available devices.
4. Once paired, you will hear a voice prompt saying, 'The Bluetooth device is connected successfully'.

Using the Smarterhome™ App

1 2 3 4 5

1 Power
2 Edit LED colour and laser speed
3 Choose a profile
4 Adjust the music
5 Timer/countdown

SPECIFICATIONS

Input Power AC 110-240V

Output Power 5V/2A

Laser Power 30mW 515nm Green

LED Power

Housing material ABS

Red: 1W, Green: 1W, Blue: 1W

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
