USER MANUAL SRK-CHR15H PAC

INTEGRATED MULTIMEDIA DISPLAY

Chrysler 300 | Dodge Challanger/Charger

USER GUIDE

MAX A/C A/C MAX A/C Auto Sync 101° Outside 78° F 1 2 3 4 5 6 7 Balance Settings LO H1 + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Works with

Apple CarPlay

androidauto

((Siriusxm))

READY

Bluetooth®

HDMI®

HIGH-DIRECTION MULTIDEND INTERFACE

WELCOME TO YOUR NEW

HEIGH10 ^8

Enjoy the ride

Three modern sports cars in black, red, and orange colors displayed side by side (no visible text or symbols)

THE BASICS

The Controls....4

Getting Started....6

Selecting a Source....7

Selling the Clock....7

Setting the Tabs......8

VEHICLE SPECIFIC

Climate Control....9

Vehicle Info....10

Gauges....11

Performance....12

Drive Modes....13

UserSettings....14

Vehicle Settings.....15

Factory Camera....16

Media Hub....17

THE SOURCES GENERAL SETTINGS TECH SPECS

AM/FM Radio....18

BluetoothPhone....19

Pairing a Device....20

BT Device Settings.....21

Contacts/Call Log....22

Bluetooth Music....23

SiriusXM ^※ ......24

SiriusXM Replay™ 27

SiriusXM Lock Code......28

USB Media....29

Apple CarPlay ^® ......30

Android Auto™ 31

iPod 32

HDMI....33

AV In....33

Cameras....34

Navigation....35

Display Off....35

Settings....36

Clock....36

System Settings....36

Illumination....37

Backgrounds....38

Display....38

Tabs....38

Cameras....39

AUDIO SETTINGS

Audio Settings......40

Equalizer....41

Factory EQ....41

Crossover....42

Time Correction....43

Toslink....44

Gain/Volume....44

Reset Button....45

Troubleshooting.....46

Specifications....48

Technical Support.....49

Stinger®

HEIGH10®

THE CONTROLS

iPhone X MENU 11:11 AM Radio USB BT Music Phone Apple CarPlay Android Auto SiriusXM iPod Camera Settings HDMI AV IN (SiriusXM)

Home Button Access the Home Menu Press & hold for Navigation Tune/Track Down Button Media control: Previous, Back, Seek Press & hold function for select sources Multifunction Knob Press & hold to Power On/Off Turn to adjust Volume Up/Down Press to Mute/Unmute Voice Button Launches Voice Control Tune/Track Up Button Media control: Next, Forward, Seek Press & hold function for select sources

Mute/Unmute Screen Off MUTE SCREEN OFF DRIVE LAUNCH PULL OFF TUNF BROWSE ENTER VOLUME Volume Up/Down Tune Up/Down

CONTROL USING THE FACTORY CONTROLS

HEIGH10®

GETTING STARTED

Information Bar Source/Info Temperature/ Time iPhone Radio Outside 101°F 09:35 AM 105.1 ST FM1 One Night Standards by Asl COUNTRY AM/FM AUTO PRESET OK 90.7 91.5 92.3 93.1 94.7 95.5 HOME Button Power ON/OFF Swipe Up To Open TABS

POWER UP!

With the vehicle ignition in the ON or ACC position, Press and hold the knob for 2 seconds to power ON/OFF.

The source will automatically default to the last source used prior to powering down.

You can adjust the audio volume at start-up in Sound Settings on page 44.

The Information Bar is located at the top of the screen. Depending on the SOURCE, it will provide information or content-sensitive controls. It also displays temperature, time, phone info and may contain BACK ARROW and EXIT buttons.

Customizable TABS can be accessed by swiping the up arrow ▲ at the bottom of the screen. Tabs give direct access to sources/setlings and can be customized as shown on Page 8.

The active Tab will be highlighted, and sources that are not available will be dimmed out. Once the Tabs are opened, they will auto-close after 5 seconds, or press the down arrow ▼ to close the tabs.

SELECTING A SOURCE

To select a source, press the HOME button.

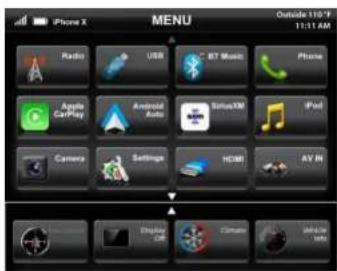

The HOME MENU displays all Sources, along with Settings, Audio, Camera and Vehicle options.

SOURCES that are not currently available are dimmed out.

QUICK TIP

There are multiple ways to scroll... Swipling Up/Down, Up/Down Arrows

SETTING THE TIME

1) Touch and hold the Time Display on the Information Bar for 2 seconds to access the clock settings.
2) Swipe or click the arrows to set time and format.
3) Touch the BACK ARROW or EXIT to save and exit.

iPhone X MENU Outside 110°F 11:11 AM Radio USB BT Music Phone Apple CarPlay Android Auto SonusXM iPod Camera Settings HDMI AY IN Display iOS Climate Mn-Do info

09:45 AM

Back Arrow Exit

SETTINGS Settings 3 0 2 0 2 1 0 1 3 0 1 2 4 OK Cancel OK Cancel

HEIGH10®

CUSTOMIZING THE TABS CLIMATE CONTROL

HOME BUTTON > SETTINGS > TABS

The Tabs can be configured to provide quick access to your favorite sources or settings. The steps below show changing Favorites to Climate. Vehicle Info is another option to consider adding to the Tabs.

To Program a Tab:

1) Press the HOME button and select SETTINGS
2) From the SETTINGS menu, select TABS [1]

iPhone X SETTINGS Clock System Settings Illumination Background Display Settings Control Settings Camera Settings Vehicle Settings 1

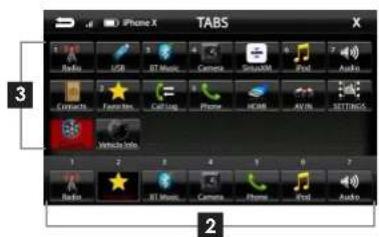

3) Select a Tab position (1-7) on the bottom row. [2]
4) Select the desired source or setting from the options on the top rows. [3]

TABS 3 2 3 2

Now Favorites in position 2 is replaced with Climate. Continue customizing or touch EXIT (X) to return to current source or the BACK arrow to return to SETTINGS.

BACK iPhone X TABS Exchange... Favorites... Call-up... Phone... HOME... AVIN... SETTINGS Climate... Vehicle info. 1 2 3 4 5 6 7 Radio... Climate... BT Music... Camera... Phone... Find... Audio

HOME BUTTON > CLIMATE

If your vehicle is equipped with Automatic Climate Controls, you can view and adjust the climate control settings from the touchscreen display as well as operate the heated/cooled seats and heated steering wheel, if equipped. The factory climate controls located below the display continues to function, and any changes made with the factory controls are reflected on the screen.

All climate control functions are explained in your vehicles Owner's Manual if you need more information.

A/C 7F Outside 1D 12 3 4 5 6 Auto Sync

MAX A/C A/C MAX LED 101° Outside 72°F 72°F Auto Sync

Current settings will be highlighted. You can change the highlight color in HOME > Settings > Illumination on Page 37.

MAX A/C A/C 6P F 70° Outside 6P F Auto bpm

SETTINGS Climate Blue Airflow Line Temp Max 65° Red Airflow Line Temp Min 70° Vehicle Settings

Selecting Climate Settings will allow you to personalize the climate display by entering the temperature values that indicate hot, cold and in between. The settings shown above will display Blue Airflow up to 65°, and White Airflow from 66°-69° and Red Airflow from 70° and up. If no White Airflow is preferred, set the temperatures 1° apart and the display will switch from Blue to Red only.

HEIGH10®

Vehicle Info

HOME BUTTON > Vehicle Info

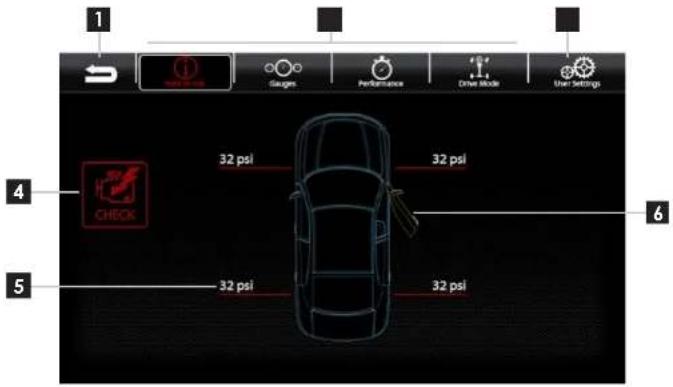

Selecting Vehicle Info from the HOME Menu or Tabs will display information and status for various vehicle systems.

1 Camera Ginger Performance Driver Mode User Settings 4 CHECK 32 psi 32 psi 6 5 32 psi 32 psi

Vehicle Info > Gauges

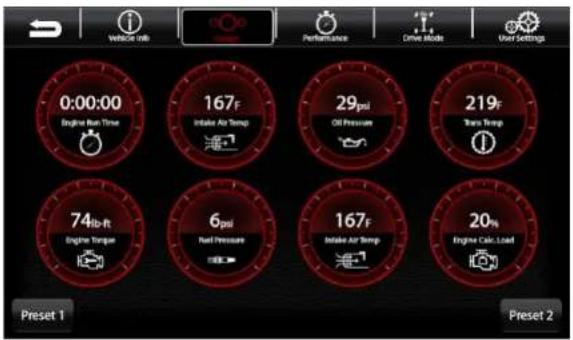

Selecting Gauges from the Vehicle Info Menu will display eight gauges that can be user defined and saved.

0:00:00 Engine Run Time 167F Intake Air Temp 29psi Oil Pressure 219F Trans Temp 74ft Engine Tongue 6psi Fuel Pressure 167F Intake Air Temp 20% Engine Calc Load Preset 1 Preset 2

1 BACK - Return to the previous screen.
2 Vehicle Info Menu - Provides access to various vehicle display modes. The current mode will be highlighted.
3 User Settings - Access lire pressure, camera and GPS options.
4 Malfunction Indicator - Displays current malfunction indicators. Touch the indicator for more information.
5 Tire Pressure - Provides tire pressure and low pressure warnings. Low pressure warnings can be customized in User Settings.

6 Door Closed/Opened - Indicates doors, hood and trunk status.

To Change the Gauge Type:

Lightly tapping any gauge cycles through the available gauge types.

Saving a Gauge Setup:

Press and hold either of the two Preset buttons in the bottom comers to save and later recall a gauge combination.

NOTE: To change the color of the gauges, see Illumination Page 37

NOTE: To change the Units used for the gauges, see Vehicle Settings on Page 15.

Available Gauge Types:

Battery Voltage

Oil Temperature

Oil Pressure

Transmission Temperature

Coolant Temperature

Fuel Pressure

Intake Air Temperature

Engine Calculated Load

Barometric Pressure

Intake Manifold

Fuel Pressure

Absolute Load

Ignition Timing

Engine Run Time

HEIGH10®

Vehicle Info > Performance Vehicle Info > Drive Mode

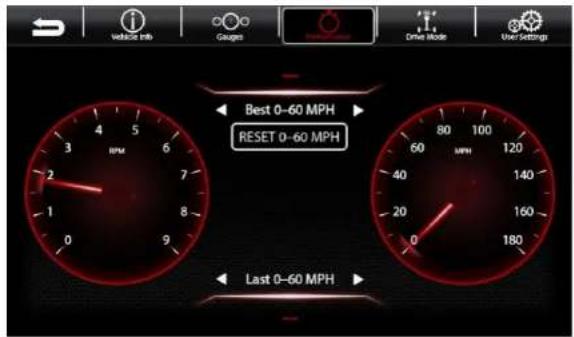

Selecting Performance from the Vehicle Info Menu will display a digital speedometer and tachometer along with performance measurement options.

Vehicle Info Gauges Drive Mode User Settings Best 0–60 MPH RESET 0–60 MPH Last 0–60 MPH

Best 0–60 MPH / Best 14 Mile / Best 60–0

Whenever a performance measurement is achieved,

the results will be displayed. Use the left and right

arrows to recall Best measurements.

RESET

The RESET button will reset both Best and Last results.

Last 0–60 MPH / Last ¼ Mlle / Last 60–0

Use the left and right arrows to recall the Last measurement for each option.

Selecting Drive Mode from the Vehicle Info Menu will allow you to enable, disable, and customize the functionality of the vehicle's Drive Modes. See the Performance Control section of the vehicle's owners manual for more information regarding Drive Mode features and settings.

Track Sport Custom Drive Mode: Auto Transmission: Street Paddles: On Traction: Street Steering: Street Eco Auto Set Up

Auto Set-Up Transmission Paddles Traction Steering

Track Sport Custom Auto Drive Mode: Track Transmission: Track Paddles: On Traction: Track Steering: Track Track Set Up

Track Drive Mode: Sport Transmission: Sport Paddles: On Traction: Sport Steering: Sport Custom Auto Sport Set Up

Track Sport Auto Drive Mode: Custom Transmission: Street Paddles: On Traction: Street Steering: Street Custom Set-Up

Custom Set-Up Transmission Paddles Traction Steering

HEIGH10®

Vehicle Info > User Settings

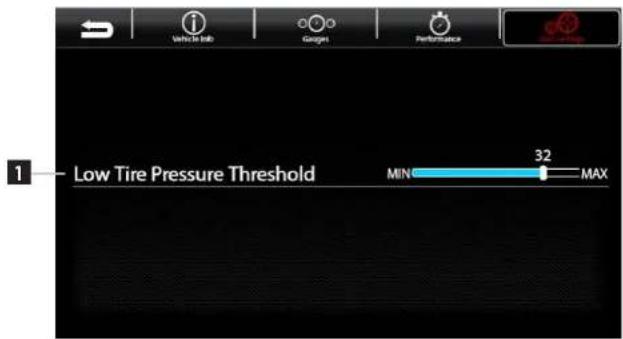

1 Low Tire Pressure Threshold MIN 32 MAX

1 Low Tire Pressure Threshold [0–40 PSI] Sets the threshold, in PSI, for the low tire pressure warning shown on the Vehicle Info display.

Note: This does not change the factory low fire pressure warning shown in the instrument cluster.

Vehicle Settings

HOME BUTTON > Settings > Vehicle Settings

The Vehicle Settings are all the factory vehicle settings retained from the factory radio. Since these are factory settings, these are all explained in detail in the uConnect section of the Owner's Manual.

NOTE: The listed settings are based on how the vehicle is equipped. For example, Park Sense will not be present if the vehicle is not equipped with Park Sense.

iPhone X SETTINGS Clock System Settings Reflection Background* Display Settings Signal Settings Take Current Settings

VEHICLE SETTINGS Language Units Camera Safety Driving Assistance Mirrors and Wipers Lights Door Locks Auto Comfort Engine Off Options

VEHICLE SETTINGS Safety Driving Assistance Park Sense Mode Rear Park Sense Volume Hill Start Assist Blindspot Alert Light Only Light/Chase

HEIGH10®

Factory Camera

HOME BUTTON > Camera

If equipped, the factory rear camera will continue to automatically display when in reverse and can also be activated at any time by selecting Camera from the HOME Menu or Tabs.

When a camera is manually activated, there will be menu bars at the top and bottom of the display. The top menu bar contains the BACK arrow to return to the previous screen and selecting the Camera Settings button will open up the Camera Settings menu.

The bottom menu bar displays available cameras. Touch any available camera to switch camera views.

NOTE: The top and bottom menu bars will auto-hide after five seconds, and tapping the screen will re-display the menu bars.

Road view with two yellow-green directional arrows pointing to a white road line (no text or symbols visible)

Street photo with visible road markings and vehicle detection overlays

Media Hub

HOME BUTTON > USB

As part of the PAC SRK-CHR15H Integration Kit, an upgraded media hub is installed in the center console in place of the factory USB panel. The media hub includes 2 USB ports, HDMI and a 3.5mm AUX A/V port.

Apple CarPlay and Android Auto require a dedicated USB port. Only one of USB ports inside the center console will function for Apple Carplay/Android Auto, and the other USB port can be used for USB thumb drives and charging only.

To determine which USB port is used for Apple CarPlay and Android Auto, plug an Apple or Android device into one of the USB ports. The Apple CarPlay or Android Auto application will automatically launch when the device is plugged into the correct USB port.

If neither USB port launches the applications, see Trouble Shooting on Page 47.

Close-up of a hand inserting a blue cable into a black car seat (no text or symbols visible)

HEIGH10®

AM/FM RADIO

4 5 6 Radio 105.1 ST FM1 Outside 79°F 09:35 AM Now Playing One Night Stan COUNTRY AM/FM AUTO PRESET OK 90.7 91.5 92.3 93.1 94.7 95.5 11

Bluetooth PHONE

6 Galaxy 510x Phone Outside 110 °F 11:31 AM 5 Favorites Contacts 4 Call Log Settings 9 Clear 3 2 1 10

Press the HOME BUTTON > Radio to select the Radio

1 Station Presets - To assign a preset, tune to the desired station, press and hold a preset location until the preset button highlights and station frequency appears. A total of 18 FM and 12 AM stations can be stored in memory.
2 AM/FM - Press to cycle through AM/FM presets (FM1-FM2-FM3-AM1-AM2)
3 PTY Program Type - Indicates radio station type.
4 Tune/Seek Down - Press and release to Tune Down. Press and hold to Seek the next available radio station.
5 Station Display - Displays current frequency.

6 ST Indicator - Indicates when the current radio station is in Stereo.
7 Tune/Seek Up - Press and release to Tune Up. Press and hold to Seek the next available radio station.
8 Preset Bank - Indicates current preset bank.
9 RT Info- Station/title/artist information.
10 DX/LOC - Changes the radio tuner sensitivity. Touch to toggle between Distant (DX) and Local (LOC).
11 Auto Preset - Touch to automatically set the 6 presets with current location radio stations.

Press the HOME BUTTON > Phone to select the Phone

1 Number Pad - Touch to launch the number pad for dialing phone numbers.
2 Speaker/Phone - Switches phone calls between the car speakers and the phone handset.
3 Clear - Clear/delete last number entered.
4 Call/Answer - Dials the number entered on the phone or on the number pod. Answers an incoming call.
5 End/Decline - Press to end an active call or decline an incoming call.

6 Device Info - Displays the name of the currently paired device, signal strength and battery status.
7 Favorites - Customizable list of favorite contacts.
8 Contacts - List of contacts from the paired phone. Not supported by all phones.
Settings - List of devices and settings. Add or Delete devices.
10 Call Log - Recent Dialed, Received and Missed calls.

HEIGH10®

Bluetooth PHONE Bluetooth PHONE

Pairing a Device

1 Select Settings from the Phone main menu to go to BT Device Settings.
2 Select Devices ▶ on the BT Device settings page.
Place your device in Discoverable Mode.
3 Select ADD on the Devices page.
4 Select your device from the list.

NOTE!

If your device does not appear in the device list, confirm it is discoverable and select Retry

5 Select Connect to initiate pairing.

Phone Outside 120 MHz 11:11 AM Clear Settings

1

Phone Outside 110 V 11:11 AM BT Device Settings Devices Auto Connect Pin Code 1234 Microphone Microphone Gain Version AEF5I-20190820_6753

2

Phone Devices Add Add Add Add Add Outside 150 F 11:11 AM

3

5

Phone Find Complete iPhone Connect Retry Outside: 11:31 AM 11:31 AM

4

6 Select Pair when prompted.

Confirm the Key Code on device and select Pair on the device.

If prompted, select Allow to share contacts.

NOTE!

Once a device is paired, it will automatically connect whenever the system is turned on and the device is within range. To manually connect or connect to a different device, go to Phone > Settings > Devices

Phone Outside 110 P 11:11 AM Bluetooth pairing request To pair with Phone Make sure the device is showing this key922189 Cancel Pair Close

6

BT Device Settings

Once a device is paired and connected, settings can be set on the BT Device Settings page.

Devices ▶

Access list of all devices in memory. Connect/Add/Delete devices.

Auto Connect [ON/OFF]

Set to ON if you want the device to automatically connect when the system is turned on.

Pin Code [CHANGE]

Change the pin code for Bluetooth connection. The default pin code is "1234".

Microphone [Internal/External]

Set to External if external microphone is installed. Set to internal to use the microphone located on the front of the display.

Microphone Gain [0-6]

Adjusts the volume (sensitivity) of the microphone when using hands free phone.

BT Device Settings Devices Auto Connect Pin Code 1234 Microphone Microphone Gain Version A6EF5I-20190820_r6753 Outside 110 °F 11:11 AM

HEIGH10®

Bluetooth PHONE

Bluetooth MUSIC

Contacts

While a device is paired, Contacts can be accessed by selecting Contacts from the Phone main menu. It may take several minutes to load all contacts. When a contact is selected from the list, all associated numbers (Home/Work/Mobile) will be displayed on the left side of the screen. Touch the number you want to dial.

To add a contact number to the Favorites list, touch FAVORITES next to the contact phone number and it will be added to your Favorites list.

The Favorites list can be accessed from the Phone main menu.

To Search your contact list, select the keyboard icon on the Information Bar.

Call Log

The Call Log lists recently Dialed, Received and Missed calls. Touch the contact or phone number to dial a number.

Search Contacts

Galaxy 531 Phone Contacts Dial Number Add by Contacts 6054756971 8667404531 6054756962 4. Emie 5. Javier 6. Kevin 7. Marie 8. Mark Outside 110°F 11:11 AM

Contacts Dial Number 6054756962 Add to Favorites 4. Emie 5. Javier 4. Kevin 7. Marie 8. Mark Outside 110°F 11:11 AM

Call Log Dialed Calls Received Calls Missed Calls Contacts Favorites 1. Emie 7272050436 2. Mark 6054756962 3. Marie 6054756959 4. Kevin 6054756964 5. Dave 8667662267 Outside 110°F 11:11 AM

4

Bluetooth Aculeus Changing The Game Stinger 3 2 1 Outside 110 °F 11:11 AM

Press the HOME BUTTON > BT Music to select the BT Music source

1 Next Track/Program - Touch to advance to the next track/program.
2 Play/Pause - Touch to play or pause the audio.
3 Previous Track/Program - Touch once to restart current track; touch again for previous track.
4 Song/Program Information - Displays information for the current track.

HEIGH10®

®Satelite Radio (OPTIONAL)

Only SiriusXM brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com

Activating your SiriusXM Subscription

After installing your SiriusXM Connect Vehicle Tuner and antenna, power on your radio and select SiriusXM mode. You should be able to hear the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instructions to make sure your SiriusXM Connect tuner is properly installed.

After you can hear the preview channel, tune to Channel 0 to find the Radio ID of your tuner. The Radio ID is also located on the bottom of the SiriusXM Connect Vehicle Tuner and its packaging. You will need this number to activate your subscription. Write the number down for reference.

Note: the SiriusXM Radio ID does not include the letters I, O, S or F.

In the USA, you can activate online or by calling SiriusXM Listener Care:

- Visit www.siriusxm.com/activatenow

• Call SiriusXM Listener Care at 1-866-635-2349

For Canadian Subscriptions, please contact:

- Visit www.siriusxm.ca/activatexm

• Call XM Customer Care at 1-877-438-9677

As part of the activation process, the SiriusXM satellites will send an activation message to your tuner. When your radio detects that the tuner has received the activation message, your radio will display: Subscription Updated. Once subscribed, you can tune to channels in your subscription plan. Please note that the activation process usually takes 10 to 15 minutes, but may take up to an hour. Your radio will need to be powered on and receiving the SiriusXM signal to receive the activation message.

SiriusXM Satellite RadioSiri

iPhone SiriusXM Outside 101°F 09:34 AM sxm 50s on 5 Frankie Lymon/Teenager Why Do Fools Fall In Lov Pop CH 005 SXM1 -01.52 Live Hits 1 xLPndora 50s on 5 70s on 7 80s on 8 90s on 9 13 12 11 9 2 1 5 6 7 8

Press the HOME BUTTON > SiriusXM to select the SiriusXM source.

1 Channel Presets - To assign a preset, go to the desired channel, press and hold a preset location until the preset button highlights and channel name appears. A total of 18 channels can be stored in memory.
2 Channel Down/Up - Touch to go to previous channel / advance to next channel. Touching and holding either button will rapidly browse through the channels.
3 Signal Strength - Displays tuner signal strength, 0-3 bars.
4 Keypad - Touch to display keypad for direct channel number entry.
5 SiriusXM Info - Displays current channel category, channel number and preset bank number.
6 Channel Info - Displays channel name, song/content info.

7 Pause/Play - Pause live broadcast/Play stored audio.
8 LIVE - Select to return to live broadcast when listening to stored audio.
9 Fast Forward/Track Up - Move forward through stored audio.
10 Rewind/Track Down - Move backwards through stored audio.
11 CAT - Touch to display a list of channel Categories.
12 CH - Touch to display a list of available channels with channel information.
13 BAND - Press to cycle through SXM preset banks [SXM1-SXM2-SXM3]

HEIGH10®

SiriusXM Satellite Radio SiriusXM

Satelite Radio

Channels [CH]

Displays a list of available SiriusXM channels in numerical order. Swipe up/down to navigate and touch to select desired channel. Selecting Content Info, Artist or Song buttons will toggle the information displayed.

Return to SiriusXM main screen Channel Artist Song Content Info 001 SXM Preview 002 Hits 1 003 xL Pandora Now 004 SoulCycle Radio 005 50's on 5 SiriusXM Outside 110-7 11:11 AM

Categories [CAT]

Displays a list of channel categories. When a category is selected, a list of matching channels will display. Selecting All Channels will display all channels in numerical order.

SiriusXM Outside 110°F 11:11 AM Category All Channels Pop Rock Hip-Hop/R&B Dance/Electronic

Direct Tuning

Selecting the Keypad Icon on the Information Bar will launch a numeric keypad for direct channel number entry (See Page 28 for Parental Control function).

Keyboard SiriusXM Outside 110 P 11:31 AM Enter Channel Number Named Control 1 2 3 4 5 6 7 8 9 0 OK

SiriusXM Replay™

Replay allows you to pause, rewind and replay up to 1 hour of live SiriusXM Satellite Radio.

Pressing Pause or Rewind while listening to a live broadcast will enable Replay mode.

The Replay Time Bar will appear when Replay is active.

When you reach the end of the stored audio buffer, you will return to the live broadcast. Or, touch the LIVE button in the Replay view to return to the live broadcast of the current channel.

Replay Controls

Touch for Previous Song Touch & Hold for Rewind

Play

II Pause

Touch for Next Song Touch & Hold for Fast Forward

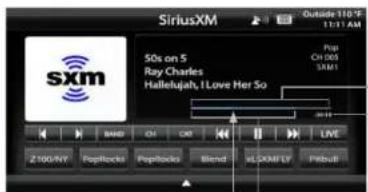

SiriusXM 50s on 5 Ray Charles Hallelujah, I Love Her So Pop CH:165 3M1 Z100/NY PopSongs Popibooks Blend VLXOM/FY Print

1 2

1 Current Replay Point
2 Buffer Range (Light Blue line)
3 Replay Range
4 Time to Live

SiriusXM 50s on 5 Ricky Nelson Never Be Anyone Else But Pays CH:005 SXM1 Hi: 1 Hi:ndcrs 50s on 5 Hi: on 7 60s on 8 Preview

Replay Controls

HEIGH10®

SiriusXM Satellite Radio

USB Media

Parental Control

The SiriusXM Parental Control feature allows you to prevent access to inappropriate mature content for a younger listener. When enabled, the Parental Control feature requires you to enter a passcode to access the channels that are rated as Mature Channels.

By default, all channels are Unlocked and the Lock Code is 1234.

Lock Mature Channels:

1. Touch the Keyboard icon on the Information Bar.
2. Touch the Parental Control button.
3. Select Lock Mature Channels.
4. Enter 4 digit lock code.

Unlock Mature Channels:

1. Touch the Keyboard icon on the Information Bar.
2. Touch the Parental Control button.
3. Select Unlock Mature Channels.
4. Enter 4 digit lock code.

Set/Change Lock Code:

Select Sel Lock Code, enter the old code and then enter the new code.

Reset Lock Code:

To reset the Lock Code to default code (1234), go to System Settings > Load Defaults. The reset process takes 5–7 minutes and will reset ALL saved settings to factory default.

Keyboard Icon

SiriusXM Outside 11:47 AM 11:11 AM Enter Channel Number Parental Control 1 2 3 4 5 6 7 8 9 0 OK

Parental Control

SiriusXM To work access to channels with Mature Center, touch the Lock Mature Channels button before. Doing so will require a lock code to be entered to unlock these channels. Lock Mature Channels Set Lock Code

SiriusXM Outside 110°F 11:11 AM Mixture channels are currently locked. To enable this feature, touch the Unlock Mature Channels buttons below and enter the valid lock code. Unlock Mature Channels Set Lock Code

SiriusXM Enter your lock code 1 2 3 4 5 6 7 8 9 0 OK

USB Outside 110 °F 11:11 AM Aculeus Changing The Game Stinger 00:31 00:31 1 4 7

With a USB drive plugged in, press the HOME BUTTON > USB to select USB.

From the USB Root Menu, you can browse Audio, Video and Image files. See page 49 for a list of supported file types.

Touch to select a file to view/play.

1 Previous Track - Touch once to restart current track; touch again for Previous track.
2 Play/Pause - Touch to play or pause the audio.
3 Next Track - Touch to advance to the Next track.
4 Browse - Browse artist, album or songs.
5 Keyboard - Direct input song search
6 Repeat - Press once to repeat the current track (1); press again to repeat album/folder (F).
7 Shuffle - Plays tracks in random order.

USB Root Menu

USB Outside 110 °F 1:11 AM Audio Video Picture

Video / Image Files

USB Outside 110 F 11:11 AM

HEIGH10®

Apple CarPlay®

Set up Apple CarPlay

You can use Apple CarPlay to get directions, make calls, send and receive text messages, and more.

You need an iPhone 5 or later to use Apple CarPlay. Also, make sure that you're in an area that supports Apple CarPlay and that Siri is on. To turn on Siri on your phone, go to Settings > Siri & Search.

With the your vehicle running, plug your iPhone into the Apple CarPlay USB port. Apple CarPlay will launch automatically.

If your iPhone is already plugged into the USB, press the HOME BUTTON > Apple CarPlay to launch Apple CarPlay.

NOTE: If Apple CarPlay will not launch, see Troubleshooting.

The display will show available apps. Only apps that are supported by Apple CarPlay will appear.

To add, remove, or customize the order that the apps are in, follow these steps on your iOS device:

1. Go to Settings > General, and tap CarPlay.

2. Select UN1810.

3. Select Customize.

4. Use the add or delete icons to add or remove apps. Tap and drag an app to change the icon order.

To exit Apple CarPlay, press the Stinger Main Menu icon.

For details about Apple CarPlay, visit https://support.apple.com/en-us/HT205634

CarPlay Home

10:24 eL.LTE Phone Music Maps Messages New Playing Main Menu Podcasts Audiobooks Calendar Settings

Toggle CarPlay Home / Dashboard

CarPlay Dashboard

10:27 ROUTE Home $ France... $ France... Changing The Game BLOOMA

Press & Hold for Siri

Ask Siri for what you need. Press the Voice Control button or the Home/

Dashboard button in Apple CarPlay until Siri appears on the display, then say what you need.

Screenshot of a mobile app interface showing a location pin with a blue circular icon and status bar icons in Chinese.

Android Auto™

Set up Andriod Auto

Make sure your phone is running Android 5.0 (Lollipop) or later. Download the Android Auto app from Google Play on your device. Once the app is installed, open the app and follow the setup steps.

Connect your phone

Before you connect your phone for the first time, turn on your car. Make sure it's in park (P) and that you have time to set up Android Auto.

1. Unlock your phone's screen.

2. Connect your phone using a USB cable.

3. Your phone might ask you to download or update certain apps, like Google Maps.

4. Review the Safety Information and Android Auto permissions to access your apps.

5. Tum on notifications for Android Auto. For the best experience, we recommend accepting all requests.

Your phone's Bluetooth will be turned on automatically when Android Auto is connected to the car via USB.

To exit Android Auto, touch the Exit icon.

For details about AndroidAuto, visit https://www.android.com/auto/

1:51 Waze TIDAL Play Music Phone Exit Amazon Mu... Apple Music Calendar

1 Home Button
2 Audio Controls
3 Notifications
4 Voice Command

1:47 Contacts E Emie Mobile J Javier Mobile K Kevin Mobile

1:03 1100 feet S Normandie Ave 2:06 PM 52 m. 1:03 h > S Normandie Ave HoHSale Ave 25 25 25 25

HEIGH10®

iPod®

HDMI INPUT

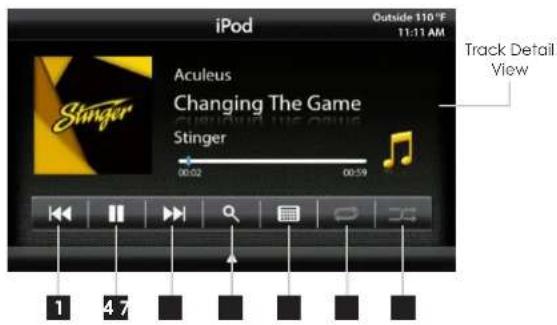

iPod Outside 110°F 11:11 AM Aculeus Changing The Game Stinger 00:02 00:59 Track Detail View 1 47

Press the HOME BUTTON > HDMI to switch to the HDMI input.

The HDMI input can be used for an external DVD player, streaming sticks, media players and smartphone mirroring.

You can only view HDMI content with the vehicle in Park and the parking brake ON.

When viewing HDMI content, the Information Bar will auto-hide. To access the Information Bar, touch anywhere on the screen.

Scenic landscape photo of a river valley with green hills and mist, captured in an outdoor setting (no text or symbols visible)

AV IN

Press MENU > iPod to select iPod as the source.

1 Previous Track - Touch once to restart current track; touch again for Previous track.
2 Play/Pause - Touch to play or pause the audio.
3 Next Track - Touch to advance to the Next track.
4 Browse - Browse artist, album or songs.
5 Keyboard - Direct input song search.
6 Repeat - Press once to repeat the current track (1); press again to repeat album/folder.
7 Shuffle - Plays tracks in random order.

iPod Root Menu

iPod Outside 110 F $1:11 AM Playlists Artists Albums Songs Podcasts

Return to Track Detail View

iPod Songs Readouts Are Packkill On Route 3? 2 On (Best: Schlossburg 0) 34K Magic 8010 6 Foot 7 Foot (Best: City Guard)

Browse and Select by
Artists, Albums, Playlists, Songs...

Press the HOME BUTTON > AV IN to switch to the AV input.

You can only view the AV input with the vehicle in Park and the parking brake ON.

When viewing the AV IN, the Information Bar will auto-hide. To access the Information Bar, touch anywhere on the screen.

AVIN Outside 29°F 09:31 AM 30000 490

WARNING!

A driver is prohibited by law from viewing a video signal on any in-dash monitor while the vehicle is in motion.

HEIGH10®

CAMERAS

In addition to the factory rear camera, HEIGHT can support up to three additional cameras. To access any installed camera, press the HOME BUTTON > Cameras or open the TABS and select Camera.

When a camera is first activated, there will be menu bars at the top and bottom of the display. The bottom menu bar displays available cameras. Touch any available camera to switch camera views.

The top menu bar contains the BACK arrow to return to the previous screen, Camera Settings and additional features that relate to certain cameras when selected. For example: the Front Camera Park Assist On/Off button will only appear when the front camera is selected.

NOTE The top and bottom menu bars will auto-hide after five seconds, and tapping the screen will re-display the menu bars.

Selecting the Camera Settings button will open up the Camera Settings menu.

Camera Settings

The Camera Settings page displays all enabled cameras. Cameras can be shut off using the Trigger selection.

Front view of a highway with visible lane markings and traffic flow indicators (no readable text or symbols)

Exterior view of a modern office building (no signage)

SETTINGS Camera Settings Camera 1 Fear Trigger Camera 4 Fear Trigger

To access the optional Navigation, press the HOME BUTTON > Navigation

The User Manual for iGO Navigation can be found on StingerElectronics.com

To add navigation, ask your dealer about Stinger's pre-loaded iGO Navigation SD Card (Part Number: SE-P14).

Press the HOME BUTTON > Display Off or Screen Off on the factory controls to turn off the LCD display.

This is useful at night to prevent eye fatigue.

Tap anywhere on the screen to return to the regular display.

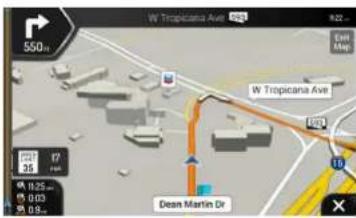

iGO NAVIGATION (OPTIONAL)

W Tropicana Ave W Tropicana Ave Dean Martin Dr

DISPLAY OFF

Completely black image with no visible content or text.

HEIGH10®

SETTINGS

SETTINGS

Press the HOME BUTTON > Settings

to access the Settings main menu.

Clock

System Settings

Illumination

Background

Display Settings

Sound Settings

Tabs

Camera Settings

EXIT current screen

SETTINGS Clock Spearman Settings Blurredness Background Display Settings Signal Settings Table Camera Settings

Settings > System Settings > Apple CarPlay

Device Mode [OFF-CarPlay-iPod]

Determines how iPhone will be used when plugged into USB port. OFF is charging only

Mic Gain [LOW-MED-HIGH]

Sets microphone gain (sensitivity) when using Apple CarPlay.

SETTINGS iPhone Settings Device Mode Mic Gain

Settings > Clock

Clock Settings [OFF-12HR-24HR]

Select time format. Swipe or click arrows to set the time.

-BACK to previous screen

SETTINGS Clock Settings 0 2 : 0 2 1 0 : 1 3 0 1 : 2 4

Settings > System Settings > Android Auto

Android Auto [ON-OFF]

Set to OFF for charging only with Android devices.

Auto Launch [ON-OFF]

When set to ON, Android Auto will automatically launch when a compatible Android device is plugged into USB port.

SETTINGS Android Auto Settings Android Auto Auto Launch

Settings > System Settings

Beep [OFF-LOW-MED-HIGH]

Sets volume of confirmation beeps.

Language [ENGLISH FRENCH SPANISH] Set display language

Apple CarPlay [See Page 30]

Android Auto [See Page 31]

Load Defaults [RESET]

Selecting Reset will reset all settings to factory defaults. This process takes 5-7 minutes and system must NOT be shut down during the reset.

Installer Settings [ENTER]

See Installation Guide or Firmware Update

instructions for more information.

SETTINGS Main Settings Beep Language Apple Carplay Android Auto Load Defaults Installer Settings

Settings > Illumination

Illumination[OFF-ON-AUTO]

Turn button illumination ON/OFF. Set to AUTO for buttons to illuminate only when vehicle lights are on.

Illumination Brightness[0-20]

Set brightness of button illumination.

Highlight Colors

[AMBER-RED-AQUA-GREEN-BLUE-WHITE] Set on-screen highlight color.

Illumination Color

[AMBER-RED-AQUA-GREEN-BLUE-WHITE] Set button illumination color.

Custom Illumination [OFF-ON]

When Custom illumination is set to ON, it allows custom illumination color based on RGB values.

SETTINGS Illumination Settings Illumination Illumination Brightness 20 MAX Highlight Colors a=0.01 Illumination Color a=0.01 Custom Illumination

SETTINGS Illumination Settings Illumination Illumination Brightness Highlight Colors Illumination Color Custom Illumination Red 255 Green 255 Blue 255 +

HEIGH10®

SETTINGSSE1

Settings > Background

Allows you to change the background image. Touch image thumbnail to select. You can upload up to 3 of your own images. To upload an image(s), copy images onto a USB thumb drive and connect the drive to one of the USB ports. Touch the @symbol and select a file. Images should be JPG or PNG file format and 1024x600 resolution

SETTINGS

Settings > Camera Settings

Displays all enabled cameras. Camera triggers can be shut off using the Trigger selection. When a Trigger is set to OFF, the camera will only activate manually.

For example, if the Rear camera trigger is set to OFF, the Rear camera will not automatically turn on when the vehicle is put in reverse.

SETTINGS Camera Settings Camera 1 Rear Trigger Camera 3 Bird Trigger Camera 4 Front Trigger

Settings > Display Settings

Brightness [0-20]

Adjusts Day and Night brightness of the LCD display. To adjust Night brightness level, turn on vehicle's lights and then adjust brightness.

Auto Brightness [ON-OFF]

When set to ON, the display screen will automatically dim when vehicle's lights are turned on.

AV [OFF-USB-AV]

Determines which source is routed to the AV outputs.

SETTINGS Display Settings Brightness 10 MAX Auto Brightness AV Out OFF OK Cancel

NOTE: Adding cameras and assigning triggers (presets) is done through the Installer Settings. Refer to the SRK-CHR15H Installer Set-Up Guide for detailed information.

SETTINGS Camera Preset Camera 1 Front Rear Left Right Slider Inside Outside Ave Bed Entry

Installer Settings > Camera Presets

Settings > Tabs

The Tabs are customizable and can be configured to include favorite sources or settings.

To Program a Tab:

1) Select a Tab position (1–7) on the bottom row. 2) Select the desired source or setting from the options on the top rows.

TABS Radio USB MT Music Camera Satellite iPod Audio Connects Insertions Call Sound Phone HDMI 80 Hz RCT9600x Radio Audio iT Music Camera Phone iPod Audio

HEIGH10®

SOUND SETTINGS

SOUND SETTINGS

4

Audio Settings Equator Crossover Time Correction Factory EQ BAL:0 FAD:0 Advanced Settings Loudness Subwoofer Phase Sub: Level MIN MAX 3 2 1 5 6 7 8 9

Settings > Sound Settings

1 Balance [-9 - 0 - 9] Using the Left and Right arrows, adjusts the speaker balance Left/Right.
2 Fader [-9 - 0 - 9] Using the Up and Down arrows fades the speakers Front/Rear.
3 Center Press to set balance and fade to zero (0).
4 Audio Menu Bar Access to Equalizers, Crossovers and Time Correction.

5 Advanced Settings Access to gain/volume settings, Toslink, and microphone settings. (See page 44).
6 Loudness [ON-OFF] When ON, boosts low and high frequencies when listening at lower volume.
7 Subwoofer [ON-OFF] Turns subwoofer output ON/OFF.
8 Phase [0°-180°] Changes the phase of subwoofer signal.
9 Sub Level [0-15] Adjusts volume level of the subwoofer output.

Sound Settings > Equalizer

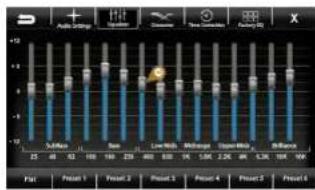

Selecting Equalizer from the Audio Menu Bar will bring up the 15 band graphic equalizer and presets. Frequency adjustments can be made by touching and sliding the frequency sliders up/cown. Once the desired sound is achieved, it can be saved as a Preset.

Saving EQ Settings

There are 6 user Presels that can be used to save EQ settings. This is useful for having EQ settings for different types of music and volume levels or for different sources. When you are done adjusting the EQ, touch and hold a Preset location to save the settings. The Preset will highlight.

Audio Settings Soundline Bell Drillers Soundline Bell Drillers Soundline Bell Drillers Soundline Bell Drillers Soundline Bell Drillers Soundline Bell Drillers Soundline Bell Drillers Soundline Bell Drillers Soundline Bell Drillers Soundline Bell Drillers Soundline Bell Drillers Soundline Bell Drillers

Sound Settings > Factory EQ

Selecting Factory EQ from the Audio Menu Bar will access factory equalizer presets for different music types:

Rock - Hip-Hop - Electronic - Jazz - Pop When a Factory EQ preset is selected, it can be fine-tuned using the Equalizer and then re-saved as a User Preset.

Auto Settings Rock Hip-Hop Electronic Jazz Pop Flat

HEIGH10®

SOUND SETTINGS SOUND SETTINGS

Sound Settings > Crossover

Selecting Crossover from the Audio Menu Bar will access the internal electronic variable crossover. Crossover settings can be saved and recalled via Presets.

Front/Rear/Subwoofer Channels Select Front, Rear or Subwoofer to set crossover.

Slope [6dB-12dB-18dB]

Adjusts the slope of the crossover.

Frequency

[BYPASS-25-40-63-80-100-160-250Hz] Adjusts crossover frequency. Front and Rear channels are High Pass and Subwoofer is Low Pass.

Level [-12-0]

Adjusts signal level. Channel levels can be adjusted regardless of crossover settings.

Saving Crossover Settings

There are 6 user Presets that can be used to save Crossover settings.

When you are done adjusting the Crossover, touch and hold a Preset location to save the settings. The Preset will highlight.

NOTE: If the vehicle is equipped with a factory amplifier, Crossover is not selectable by default.

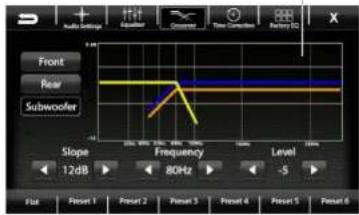

Graphical representation of crossover Slope, Frequency and Level.

Audio Settings Audio Gianto Time Compressor Battery 10 Front Poor Subwoofer Slope 1.2dB Frequency 80Hz Level -5 Flut Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Preset 6

Front Channel = Blue Rear Channel = Orange Subwoofer = Green Active (Selected) = Yellow

Sound Settings > Time Correction

Selecting Time Correction from the Audio Menu Bar will access the Time Correction settings. Time Correction settings can be saved and recalled via Presets.

Time Correction compensates for the uneven distances between the speakers and a listeners ears. Time Correction delays signals from the closest speaker(s), so that all the sound arrives at the listening position at the same time, giving the listener a more accurate, life-like stereo image.

To set Time Correction, select a listening position, for example the driver's seat headrest. Then, measure from each speaker to the listening position. Set Units to Inch, and input the speaker distance values into the appropriate positions using the +/- buttons.

Saving Time Correction Settings

There are 6 user Presets that can be used to save settings. When you are done adjusting the Time Correction, touch and hold a Preset location to save the settings. The Preset will highlight.

Select milliseconds or inches

Time Correction Unit Front L 17 Rear L 101 Sub WL 0 Sub WR 0 Front R 0 Rear R 97 0 OFF Presat 1 Presat 2 Presat 3 Presat 4 Presat 5 Presat 6

Audio Settings Monitor Customer Time Correction Unit ms inch Front L 1.3 Time Correction Unit ms inch Front R 0.0 Rear L 7.5 Sub WL 0.0 Sub WR 0.0 Rear R 7.3 Off Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Preset 6

NOTE: If the vehicle is equipped with a factory amplifier, Time Correction is not selectable by default.

HEIGH10®

SOUND SETTINGS

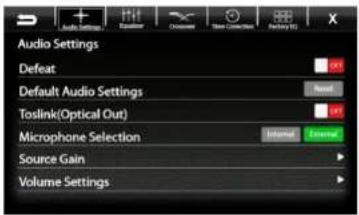

Settings > Sound Settings > Advanced Settings

Selecting Advanced Settings ▶ from the Audio Settings screen will access the following settings:

Defeat [ON-OFF]

When set to ON, this will defeat/bypass all equalizer, crossover and speaker settings. This is useful when connecting to a DSP.

Default Audio Settings [Reset] Press to Reset all audio settings to default.

Toslink (Optical Out) [ON-OFF] Turns variable digital output ON/OFF.

Microphone Selection [INTERNAL-EXTERNAL] Select External if external microphone is installed. Select Internal to use the built-in microphone.

Audio Settings Defeat Default Audio Settings Toslink(Optical Out) Microphone Selection Source Gain Volume Settings

Source Gain Settings ▶

Selecting Source Gain from the Advanced Audio Settings will allow gain/volume adjustments for individual sources. For example, if AM/FM is much louder than BT Music, lower AM/FM and/or raise BT Music to even out the volume levels.

Source Gain Settings AM/FM Reverse Camera Android Auto Apple CarPlay USB Audio USB Video MIN 9 MAX 11 11 9 11 12 MAX

Volume Settings ▶

Selecting Volume Settings from the Advanced Audio Settings will access the following Volume settings:

Arrow down for additional sources

Start Volume [LAST-CUSTOM]

LAST will be same level as when unit was shut off. CUSTOM will be a preset level adjusted below.

Volume Slider [0-40]

Adjusts CUSTOM volume level to a specific level.

The Volume Mode is adjustable for Bluetooth(BT). Navigation (NAV) and Voice using the same procedure.

Volume Settings Start Volume BT Volume NAV Volume Voice Volume

Reset Button

The Reset Button is located on the lower right hand corner of the display. To reset the unit, the power must be on, use a paper clip or similar to push the reset button for 2 seconds and release. The reset will take a few minutes; do not turn of power during this time.

GPS HDMI AV IN (Sinus XMM)

Reset Button

HEIGH10®

TROUBLE SHOOTING

Black Screen with Audio

Touch the screen anywhere as it may have been turned off (see Page 35).

Ensure the cables on the back of the screen are fully locked into place and also properly connected at the back of the radio module.

Check for damaged/kinked cables.

Press the HOME Button.

Bluetooth

Device will not Pair

Ensure Bluetooth is turned ON in your device settings. Delete all unused devices. Delete any "Stinger" device. Restart/Reboot device and try pairing again (see Page 20).

Music Volume is low

- Turn up volume on device.

- Turn up volume on head unit.

- Turn up BT Volume Gain (see page 44).

Phone Volume is low

- Turn up volume on device.

- Tum up volume on head unit.

- Turn up BT Volume Gain (see page 44).

- Tum up Mic Gain (see Page 21).

Phone Microphone not working

- Verify microphone setting (see page 21).

Video/Cameras

Rear Camera not displaying in reverse

- Make sure rear camera trigger is ON (see Page 34)

- If display is showing NO SIGNAL in reverse, ensure camera RCA is plugged into the correct RCA input (CAMERA IN).

- Confirm camera has power and ground. - Confirm camera trigger is receiving positive 12V signal.

Note: NTSC and PAL video formats only.

SiriusXM Satellite RadioGene

Check Antenna

The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged.

- Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner.

- Inspect the antenna cable for damage and kinks.

Replace the antenna if the cable is damaged. SiriusXM products are available at your local car audio retailer or online at www.shop.siriusxm.com.

Check Tuner

The radio is having difficulty communicating with the SiriusXM Connect Vehicle Tuner. The tuner may be disconnected or damaged.

- Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the radio.

No Signal

The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM satellite signal.

- Verify that your vehicle is outdoors with a clear view of the sky.

- Verify that the SiriusXM magnetic mount antenna is mounted on a metal surface on the outside of the vehicle.

- Move the SiriusXM antenna away from any obstructions. Inspect the antenna cable for damage and kinks.

- Consult the SiriusXM Connect vehicle tuner installation manual for more information on antenna installation.

Replace the antenna if the cable is damaged. SiriusXM products are available at your local car audio retailer or online at www.shop.siriusxm.com.

Channel Locked

The channel that you have requested is Locked by the radio Parental Control feature. See the Parental Control section on Page 28 for more information on the Parental Control feature and how to access locked channels.

TROUBLE SHOOTING

Subscription Updated

The radio has detected a change in your SiriusXM subscription status.

- Press anywhere on the screen to clear the message.

In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription. In Canada, visit www.

siriusxm.ca or call 1-877-438-9677 if you have questions about your subscription.

Channel Unavailable

The channel that you have requested is not a valid SiriusXM channel or the channel that you were listening to is no longer available. You may also see this message briefly when first connecting a new SiriusXM Connect Vehicle tuner.

Visit www.siriusxm.com for more information about the SiriusXM channel lineup.

Memory End

This message will display when the beginning of stored audio has been reached. You cannot rewind any further.

Memory Full

The stored audio memory has become full while audio was paused. Resume playback.

Channel Unsubscribed

The channel that you have requested is not included in your SiriusXM subscription package or the channel that you were listening to is no longer included in your SiriusXM subscription package.

In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription package or would like to subscribe to this channel. In Canada, visit www.siriusxm.ca or call 1-877-438-9677.

Apple CarPlaySiriusXM Satellit

Apple CarPlay will not start/launch

- Ensure you are using a Apple-certified cable.

- Make sure you are plugged into the correct USB port.

- Make sure Apple CarPlay is turned ON (see Page 30).

Android Auto

Android Auto

- Ensure you are using a USB certified cable - Make sure Android Auto app is

downloaded and installed on your device.

- Make sure you are plugged into the correct USB port.

- Make sure Android Auto is turned ON (see Page 31).

HEIGH10®

SPECIFICATIONS SPECIFICATIONS

GENERAL

Operating Voltage: 9.0VDC to 18VDC

Grounding system: Negative Ground

Max current consumption; 10A fused

DIMENSIONS

Radio Module:

178 mm x 100 mm x 116 mm (W x H x D)

Display:

247.2 mm x 180.6 mm x 48.5 mm (W x H x D)

DISPLAY

10-inch Diagonal

16:9 aspect ratio

1024×600

Pixels: 1,843,200

Active area: 222.72 (W) x 125.28 (H) mm

Operating Temperature (C): -20° to 70°

AUDIO

Peak power output: 50W x 4ch/4Ω

Load impedance: 4Ω nominal / 2Ω allowable

Continuous power output:

25W x 4ch/4Ω 20Hz to 20KHz,

1% THD at 14.4V

Audio output level (max): 4.0V preout

EQ: (15-band)

25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/

630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/

10KHz/16KHz

Gain: ±12dB (2dB/slep)

HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz

Slope: 6dB, 12dB, 18dB

AUDIO (cont.)

Subwoofer Preout

LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz

Slope: 6dB, 12dB, 18dB

Gain: -14dB to 7dB (1dB/step)

Phase: 0 or 180

Speaker level: ±9dB (1dB/slep)

Time correction: 0 to 133 step (inch/ms)

USB

USB 2.0

Max current supply: 1.5A

USB Class:

MSC (Mass Storage Class),

MTP (Media Transfer Protocol)

File system: FAT32, NTFS

64GB Max

BLUETOOTH

V4.2 dual

4dBm Class2

2.4GHz to 2.48GHz

FM TUNER

87.9MHz to 107.9MHz

Usable sensitive 0dB (mono S/N: 30dB)

SNR: 65dB

AM TUNER

530KHz to 1710KHz

Usable sensitive 0dB (mono S/N:20dB)

SNR: 58dB

CAMERA(S) VIDEO INPUTS

NTSC OR PAL video formats

HDMI INPUT

Supported HDMI Resolutions:

640*480p, 720*480p, 1280*720p,

1920*1080i, 1920^1080p

TOSLINK (OPTICAL)

Output: 48khz Variable

BACKGROUND IMAGE (USER)

File Format: JPG / PNG

Resolution: 1024 x 600

File size is not limited

AUDIO/VIDEO FORMATS

AUDIO

MPEG-1 Audio Layer-3 (.mp3)

FLAC (.flac)

MPEG-2 Advanced Audio (.aac)

MPEG-4 Audio (.m4a)

Windows Audio (.wav)

OGG Audio (.ogg)

VIDEO

QuickTime (.mov)

MPEG-4 Video (.mp4)

Microsoft AVI (.avi)

MPG Video (.mpg)

MPEG Video 1/2 (.mpeg)

VOB DVD (.vob)

Flash Video (.lv)


JPEG (.jpg)

CompuServe GIF (.gif)

PNG (.png)

JPEG (.jpeg)

Bitmap (.bmp)

Works with Apple CarPlay

androidauto™

((SiriusXM) READY

Bluetooth®

Apple CarPlay is a trademark of Apple Inc Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that the use of this product with iPhone, iPod, or iPad may affect wireless performance.

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. iPad, iPhone, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

SiriusXM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.

HDMI® HIGH-DEFINITION MULTIMEDIA INTERFACE

Android, Android Auto, Google Play and other marks are trademarks of Google LLC.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, INC. and any use of such marks by AAMP Global is under license.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries

Stinger and the Stinger logo are trademarks or registered trademarks of AAMP Global in the United States and other countries.

HEIGH10 and the HEIGH10 logo are trademarks or registered trademarks of AAMP Global in the United States and other countries.

Visit StingerElectronics.com for updates and further detailed information.

TECHNICAL SUPPORT:

800-477-2267

[e-mail]

CUSTOMER SOLUTIONS:

800-477-2267

[e-mail]

AAMP

—ADVANCING VEHICLE TECHNOLOGY—

Stinger is a Power Brand of AAMP Global

15500 Lightwave Drive, Suite 202

Clearwater, Florida 33760

AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use and with all State and Federal laws. STINGER provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conjunction with those instructions or other misuse of its product. If you do not agree, please discontinue use and contact STINGER. This product is intended for off-road use and passenger use only.
