APPLICATIONS

Visit axxessinterfaces.com for current application list

Toyota DSP Interface With Pre-Wired Harness 2012-2016

INTERFACE FEATURES

• Includes a DSP (Digital Signal Processor)
• 31 Band graphic EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
- Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
- Clipping detection and limiting circuits
- Designed for amplified models
- Easy behind the radio installation with pre-wired harness
- Bass knob included for level control of subwoofer amp
- Settings adjusted via Bluetooth Ⓤ in a smart device application (tablet or mobile phone), compatible with both Android and Apple devices
- Read, write, and store configurations for future recall
- Password protect feature available in the mobile app
- Micro-B USB updatable

TABLE OF CONTENTS

Installation Options 2
Installation 2
Connections 3-4
Mobile App 5-13
Specifications 14

INTERFACE COMPONENTS

• AXDSPX-TY4 interface
• AXDSPX-TY4 interface harness
• AXDSPX-TY4 vehicle T-harness • Bass knob

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun, solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter

Google Play Store

Apple App Store iOS 12.1 or higher

INSTALLATION OPTIONS I N STALL AT

Adding a sub to a factory system:

This feature offers the ability to add a subwoofer to a factory system. (refer to page 3)

Adding a full-range amp & sub to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system. (refer to page 4)

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

N

1. Remove the factory radio , then unplug all connectors.
2. Install the AX-DSPX-TY4 vehicle T-harness to the vehicle and make all necessary connections, but leave the amp turn-on wire disconnected.
3. Plug the AX-DSPX-TY4 vehicle T-harness to the AX-DSPX-TY4 interface.
4. Plug the AX-DSPX-TY4 interface harness to the AX-DSPX-TY4 interface.
5. Download and install the AXDSP-X app from the Google Play Store or Apple App Store.
6. Open the app then select the Bluetooth Connection tab. Follow the instructions to pair the mobile device to the interface. Refer to page 6 for more information.
7. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down 1 button to save the configuration. Refer to page 7 for more information.
8. Connect the amp turn-on wire.
9. Adjust the settings in the app as desired. Press the Lock Down + button to save any new configurations.
   ^† Refer to Metra online for dash disassembly. If Metra makes a dash kit for the vehicle, disassembly will be within those instructions.
   ‡ Anytime the interface is locked down the key must be cycled off then back on

ADDING A SUB TO A FACTORY SYSTEM

Factory Radio Bass Knob Black - Ground Orange - Control Any remaining wires tape off and disregard Vehicle T-Harness Factory Radio Harness Interface Keep Connected Any remaining wires tape off and disregard These outputs can be used for additional sub amps, or for adding onto the system at a later date RCA Jacks (sold separately) Blue/White - Amp Turn-On Wire

REV. 7/26/21 INSTAXDSPX-TY4

ADDING A FULL-RANGE AMP & SUB TO A FACTORY SYSTEM

MOBILE APP

Setup Instructions

SETUP INSTRUCTIONS CROSSOVER ADJUST BLUETOOTH CONNECTION EQUALIZER ADJUST CONFIGURATION DELAY ADJUST OUTPUTS INPUTS/LEVELS Using the vehicle specific harness, install the AX-DSP. The high level outputs from the OEM radio go to the inputs of the AX-DSP. The AX-DSP outputs are low level and should be connected to the amplifier inputs. - Power on the system, and verify audio to the front (left and right), rear (left and right), and Subwoofer. - Set the OEM radio bass and treble controls for flat frequency response. - Set the left/right balance to center. - Set the front/rear fader to center. Detailed installation instructions are available on-line. Click the button below to view the instructions VIEW INSTRUCTIONS

- General information tab for installing the interface.

Continued on the next page

MOBILE APP (CONT.)

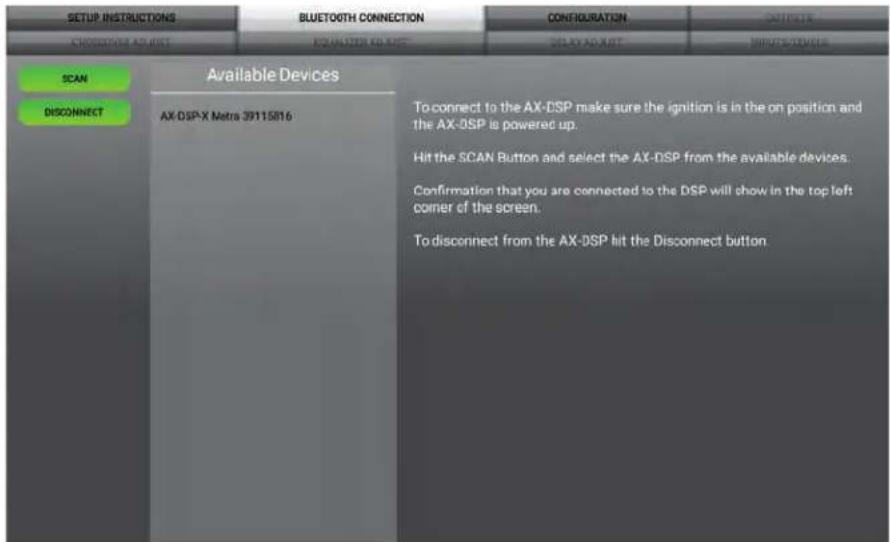

Bluetooth Connection

SETUP INSTRUCTIONS BLUETOOTH CONNECTION CONFIGURATION OUTPUTS CHINA'S HEAD EXAMOUNT BEETROOT SCAN DISCONNECT Available Devices AX-DSP-X Metra 39115816 To connect to the AX-DSP make sure the ignition is in the on position and the AX-DSP is powered up. Hit the SCAN Button and select the AX-DSP from the available devices. Confirmation that you are connected to the DSP will show in the top left corner of the screen. To disconnect from the AX-DSP hit the Disconnect button.

- Scan - Press this button to start the Bluetooth pairing process, then select the interface once it is found. "Connected" will appear in the top left corner of the app once paired.

- Disconnect - Disconnects the interface from the app.

Note: The ignition must be cycled on during this process.

Continued on the next page

MOBILE APP (CONT.)

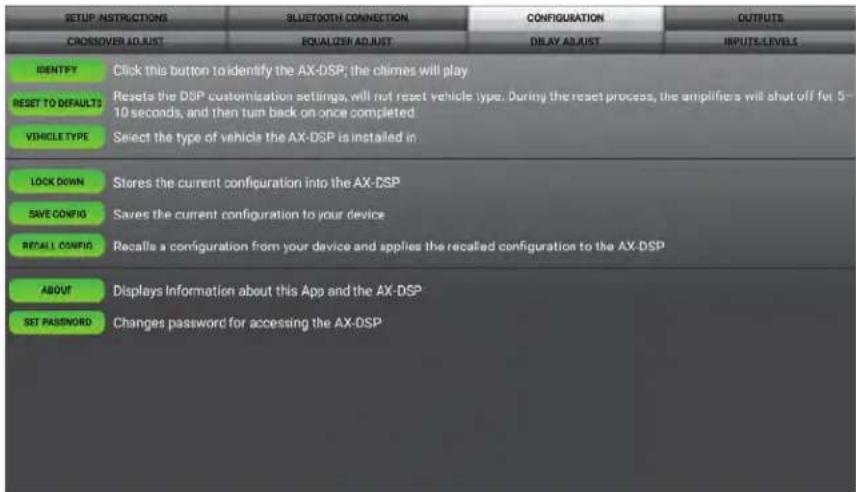

Configuration

SETUP INSTRICTIONS CROSSOVER ADJUST BLUETOOTH CONNECTION CONFIGURATION DILAY ADJUST OUTPUTS INPUTS LEVELS IDENTIFY Click this button to identify the AX-DSP, the chimes will play RESET TO DEFAULT? Repeats the DSP customisation settings, will not reset vehicle type. During the reset process, the amplifiers will shut off for 5-10 seconds, and then turn back on once completed VEHICLE TYPE Select the type of vehicle the AX-DSP is installed in LOCK DOWN Stores the current configuration into the AX-DSP SAVE CONFIG Saves the current configuration to your device RETAIL CONFIG Recalls a configuration from your device and applies the recalled configuration to the AX-DSP ABOUT Displays Information about this App and the AX-DSP SET PASSWORD Changes password for accessing the AX-DSP

• Identify - Click this button to send a test tone to the front left speaker*.
  * Only installations using the front left output (white RCA jack).
• Reset to Defaults - Resets the interface to factory settings. During the reset process the amp(s) will shut off for 5-10 seconds.
• Vehicle Type - Select the vehicle type from the drop down box, then click the apply button
• Lock Down - Click this button to save the selected settings.

Attention! This must be done before closing the app or cycling the key otherwise all new changes will be lost!

• Save Configuration - Saves the current configuration to the mobile device.
• Recall Configuration - Recalls a configuration from the mobile device.
• About - Displays information about the app, vehicle, interface, and mobile device.
• Set Password - Assign a 4-digit password to lock the interface. If no password is desired, use "0000". This will clear out any currently set password. It is not necessary to lock down the interface when setting a password.

Note: A 4-digit only password must be chosen otherwise the interface will show "password not valid for this device".

Continued on the next page

MOBILE APP (CONT.)

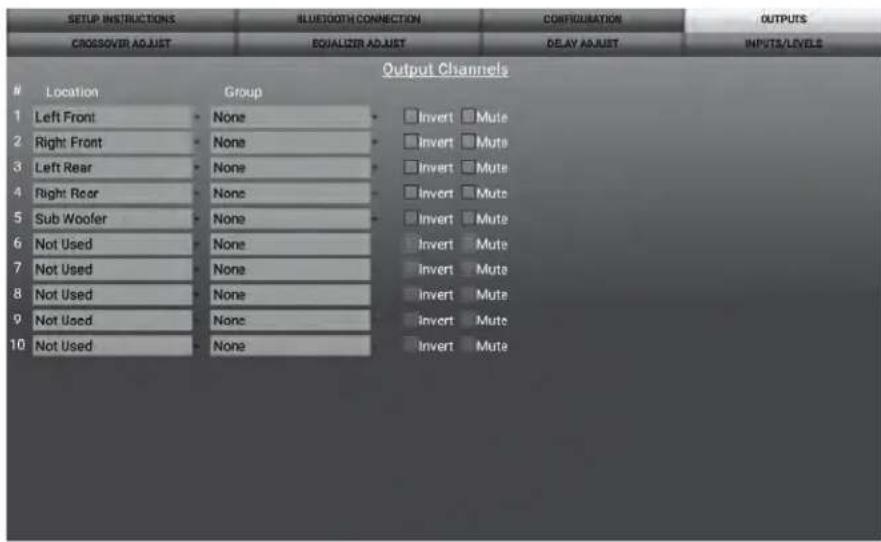

Outputs

SETUP INSTRUCTIONS CROSOVER ADJUST BLUETOOTH CONNECTION EQUALIZER ADJUST CONFIGURATION DELAY ADJUST OUTPUTS INPUTS/LEVELS

Location Group

1 Left Front None 2 Right Front None 3 Left Rear None 4 Right Rear None 5 Sub Woofer None 6 Not Used None 7 Not Used None 8 Not Used None 9 Not Used None 10 Not Used None Output Channels Invert Mute Invert Mute Invert Mute Invert Mute Invert Mute Invert Mute Invert Mute

Output Channels

• Location - Location of speaker.

• Group - Used to join channels together for simple equalization. Example, left front woofer/midrange and left front tweeter will be considered simply left front. The letter M indicates the speaker assigned as the master speaker.

• Invert - Will invert the phase of the speaker.

• Mute - Will mute desired channel(s) for tuning individual channels.

Continued on the next page

MOBILE APP (CONT.)

Crossover Adjust

SETUP INSTRUCTIONS BLUETOOTH CONNECTION CONFIGURATION OUTPUTS CROSSOVER ADJUST EXUALGER ADJUST DELAY ADJUST INPUTS/LEVELS Left Front Low Pass Lower Freq: 100 Hz Band Pass High Pass Right Front Low Pass Lower Freq: 100 Hz Band Pass High Pass Left Rear Low Pass Lower Freq: 100 Hz Band Pass High Pass Right Rear Low Pass Lower Freq: 100 Hz Band Pass High Pass Sub Woofer Low Pass Upper Freq: 100 Hz Band Pass High Pass

• If installing a subwoofer, the front and rear outputs will default to a 100Hz high pass filter to keep the low frequency signals out. If a subwoofer is not being installed, change the front and rear crossover points down to 20Hz for a full range signal, or to the lowest frequency the speakers will play down to.
• Selecting High Pass and Low Pass will provide one crossover frequency adjustment. Selecting Band Pass will provide two crossover frequency adjustments, one for low pass, and one for high pass.

Continued on the next page

MOBILE APP (CONT.)

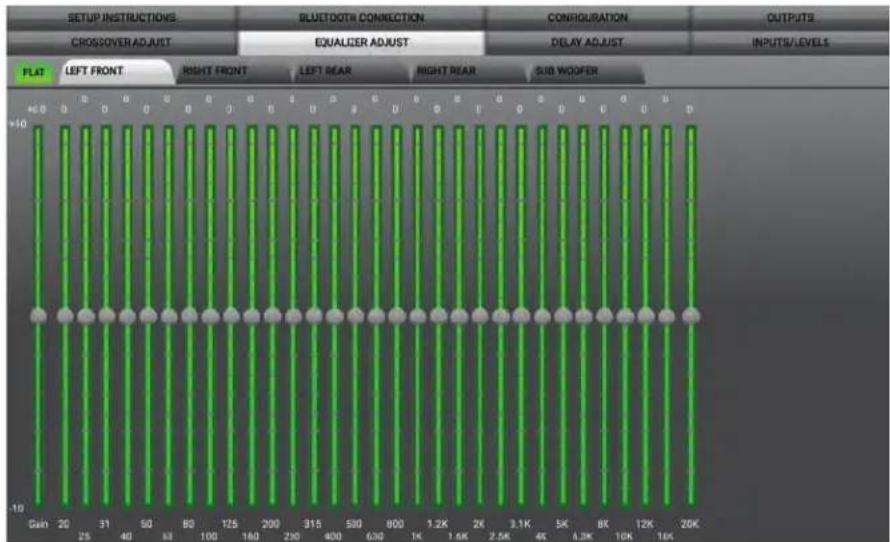

Equalizer Adjust

SETUP INSTRUCTIONS CROSSOVER ADJUST BLUETOOTH CONNECTION EQUALIZER ADJUST CONFIGURATION DELAY ADJUST OUTPUTS INPUTS/LEVELS FLAT LEFT FRONT RIGHT FRONT LEFT REAR RIGHT REAR SUB WOOFER +10 Gain 20 31 40 50 60 75 80 95 100 115 125 135 145 155 165 175 185 195 205 215 225 235 245 255 265 275 285 295 305 315 325 335 345 355 365 375 385 395 405 415 425 435 445 455 465 475 485 495 505 515 525 535 545 555 565 575 585 595 605 615 625 635 645 655 665 675 685 695 705 715 725 735 745 755 765 775 785 795 805 815 825 835 845 855 865 875 885 895 905 20K -10 BLUETOOTH CONNECTION OUTPUTS CROSSOVER ADJUST EQUALIZER ADJUST OUTPUTS INPUTS/LEVELS

• All channels can be adjusted independently within this tab with 31 bands of available equalization. It is best to tune this by using an RTA (Real Time Analyzer).
• The Gain slider on the far left is for the channel selected.

Continued on the next page

AXXESS

MOBILE APP (CONT.)

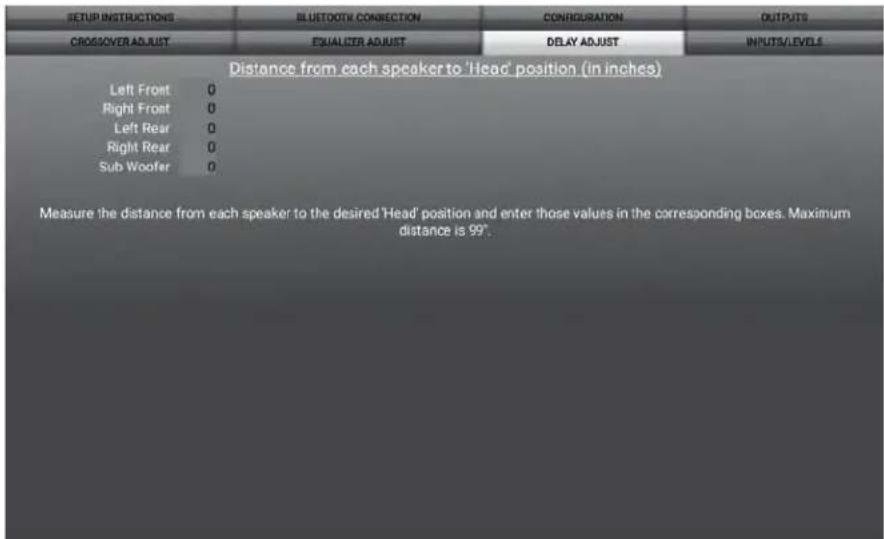

Delay Adjust

SETUP INSTRUCTIONS BLUETOOTH CONNECTION CONFIGURATION OUTPUTS CROSSOVER ADJUST EQUALITER ADJUST DELAY ADJUST INPUTS/LEVELS Distance from each speaker to 'Head' position (in inches) Left Front 0 Right Front 0 Left Rear 0 Right Rear 0 Sub Woofer 0 Measure the distance from each speaker to the desired 'Head' position and enter those values in the corresponding boxes. Maximum distance is 99°.

- Allows a delay of each channel. If a delay is desired, first measure the distance (in inches) from each speaker to the listening position, then enter those values to the corresponding speaker. Add (in inches) to the desired speaker to delay it.

Continued on the next page

MOBILE APP (CONT.)

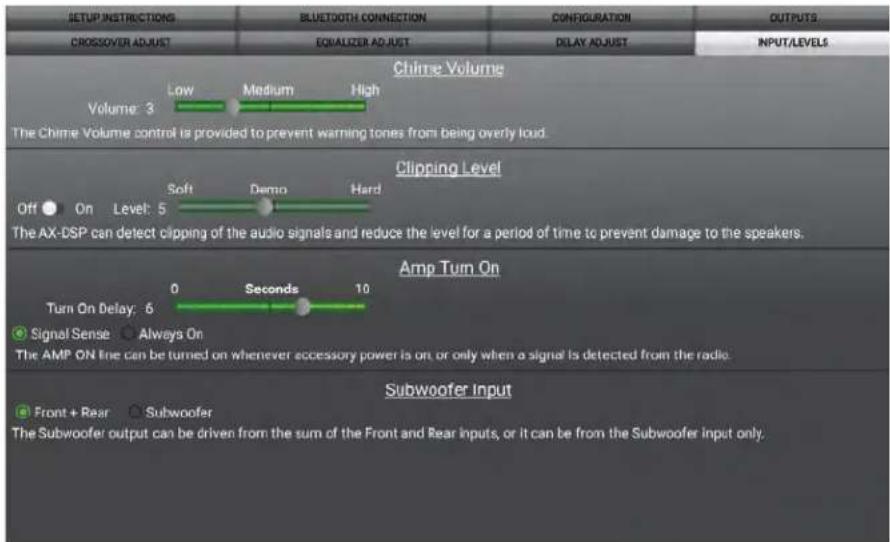

Inputs/Levels

SETUP INSTRUCTIONS BLUETOOTH CONNECTION CONFIGURATION OUTPUTS CROSSOVER ADJUST EQUALIZER ADJUST DILAY ADJUST INPUT/LEVELS Chime Volume Volume: 3 Low Medium High The Chime Volume control is provided to prevent warning tones from being overly loud. Clipping Level Off On Level: 5 Soft Demo Hard The AX-DSP can detect clipping of the audio signals and reduce the level for a period of time to prevent damage to the speakers. Amp Turn On Turn On Delay: 6 0 Seconds 10 Signal Sense Always On The AMP ON line can be turned on whenever accessory power is on or only when a signal is detected from the radio. Subwoofer Input Front + Rear Subwoofer The Subwoofer output can be driven from the sum of the Front and Rear inputs, or it can be from the Subwoofer input only.

• Chime Volume - Not applicable in this application.
• Clipping Level - Use this feature to protect sensitive speakers like tweeters from being driven past their capabilities. If the output signal of the interface clips the audio will be reduced by 20dB. Turning down the stereo will allow the audio to come back at a normal level. The sensitivity of this feature can be adjusted to the listening preference of the user.

- Amp Turn On

• Signal Sense - Will turn the amp(s) on when an audio signal is detected, and keep on for 10 seconds after the last signal. This ensures the amp(s) won't shut off between tracks.
• Always On - Will keep the amp(s) on as long as the ignition is cycled on.
• Turn on Delay - Can be used to delay audio output to avoid turn-on pops.
• Subwoofer Input - Select Front + Rear

Continued on the next page

MOBILE APP (CONT.)

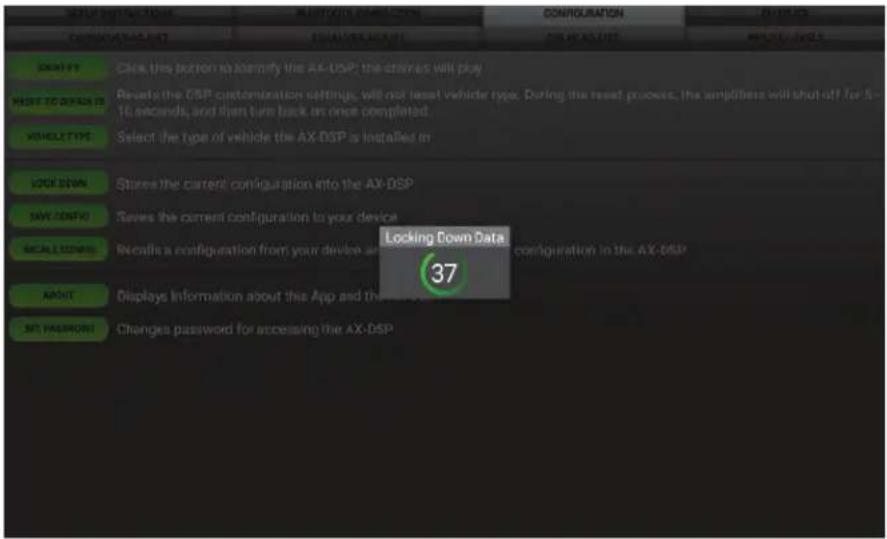

Locking Down Data

STARTING TIME CONTINUING ITEMS CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENT CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURENET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE NET CONFIGURE TOUT TO RESET THE AX-DSP: the driver will play. Reiterate the DSP customization settings, will not reset vehicle type. During the reset process, the amplifier will shut off for 5-16 seconds, and then turn back on once completed. VehicleType Select the type of vehicle the AX-DSP is installed in: LOCK DOWN Stores the current configuration into the AX-DSP SAVE CONFIG Saves the current configuration to your device. RECALL CONFIG Recalls a configuration from your device and then press any configuration to the AX-DSP. ABOUT Displays Information about this App and then press any configuration to the AX-DSP. SET PASSWORD Changes password for accessing the AX-DSP

Last and the most important. You must lock down your configuration and cycle the key!!!

SPECIFICATIONS

Input Impedance 1M Ohm

Input Channels 6

Input Options High Level or Low Level

Input Type Differential balanced

Input Voltage 0 - 28-volts (peak-to-peak)

(high level range)

Input Voltage 0 - 4.9-volts (peak-to-peak)

(low level range)

Ouput Channels 10

Output Voltage Up to 5-volts RMS

Output Impedance 50 Ohms

Equalizer Type 31 Band Graphic EQ, +/- 10dB

THD <0.03%

Frequency Response 20Hz - 20kHz

Crossover 3-Way LPF, BPF, HPF THP per channel

Crossover Type Linkwitz-Riley 24db slope

Sampling 48kHz

S/N Ratio 105dB @ 5-volts RMS

Operating Voltage 10-16 volts DC

Standby Current Draw 7mA

Operation Current Draw 150mA

Adjustments/Controls Application via Bluetooth

Remote Output 12 volts DC (signal sense

AXDSPX-TY4 INSTALLATION INSTRUCTIONS
