USER MANUAL RR19J2103SE SAMSUNG
Refrigerator user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
SAFETY INFORMATION 2
SETTING UP YOUR REFRIGERATOR 12
OPERATING YOUR REFRIGERATOR 14
TROUBLESHOOTING....20
safety information
SAFETY INFORMATION
- Before operating the appliance, please read this manual thoroughly and retain it for your reference.
- Use this appliance only for its intended purpose as described in this instruction manual.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
- Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
- Because these following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information online at www.samsung.com.
- R-600a or R-134a is used as a refrigerant.
Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator.
When this product contains flammable gas (Refrigerant
R-600a), contact your local authority in regard to safe disposal of this product.
Important safety symbols and precautions:
| WARNING | Hazards or unsafe practices that may result in severe personal injury or death. |
| CAUTION | Hazards or unsafe practices that may result in minor personal injury or property damage. |
| Do NOT attempt. | |
| Do NOT disassemble. | |
| Do NOT touch. | |
| Follow directions carefully. | |
| Unplug the power plug from the wall socket. | |
| Make sure the machine is grounded to prevent electric shock. | |
| Call the contact center for help. | |
| Note. |
These warning signs are here to prevent injury to you and others.
Please follow them carefully. After reading this section, keep it in a safe place for future reference.
SEVERE WARNING SIGNS FOR INSTALLATION
- Do not plug several appliances into the same multiple power board. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matched the rating plate.
- This provides the best performance and also prevents overloading house wiring circuits, which could cause a fire hazard from overheated wires.
- If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock or fire.
- Do not use a cord that
shows cracks or abrasion damage along its length or at either end.
- Do not bend the power cord excessively or place heavy articles on it.
- Do not use aerosols near the refrigerator.
- Aerosols used near the refrigerator may cause an explosion or fire.
- Connect the power plug in proper position with the cord hanging down.
- If you connect the power plug upside down, wire can get cut off and cause fire or electric shock.
- Make sure that the power plug is not squashed or damaged by the back of the refrigerator.
- When moving the refrigerator, be careful not to roll over or damage the power cord.
- This constitutes a fire hazard.
- This appliance should be positioned in such a way that it is accessible to the power plug.
- Failing to do so may result in an electric shock or fire due to electric leakage.
• This appliance must be properly grounded.
- Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator.
- This may result in an electric shock, fire, explosion, or problems with the product.
- Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- The fuse on the refrigerator must be changed by a qualified technician or service company.
- Failing to do so may result in an electric shock or personal injury.
SEVERE WARNING SIGNS FOR USING
- Do not touch the power plug with wet hands.
- This may result in an electric shock.
- Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and cause a personal injury and/or material damage.
- Do not put a container filled with water on the refrigerator.
- If spilled, there is a risk of fire or electric shock.
• Children should be supervised to ensure that they do not play with the appliance.
- Keep fingers out of “pinch point” areas: clearances between the doors and cabinet are necessarily small. Be careful when you open the doors when children are in the area.
- Do not let children hang on the door. If not, a serious injury may occur.
- There is a Risk of children entrapment. Do not let children enter
inside the refrigerator.
- Do not keep volatile or inflammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas and other such products etc.) in the refrigerator.
- This refrigerator is for storing food only.
- This may result in fire or explosion.
- Do not place or use electrical appliance inside the refrigerator, unless they are of a type recommended by the manufacturer.
- Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator for removing bad odours.
- This may result in an electric shock or fire.
- Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
- This may cause frostbite.
- Do not use mechanical devices or any other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Fill the water tank, ice tray, water cubes only with potable water.
- This product is intended only for the storage of food in a domestic environment.
- Bottles should be stored tightly together so that they do not fall out.
- Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury.
- Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.
- When repairing or reinstalling the appliance is required,
contact your nearest service center.
- Failing to do so may result in an electric shock, fire, problems with the product, or injury.
- If the appliance generates a strange noise, a burning or smell or smoke, unplug the power plug immediately and contact your nearest service center.
- Failing to do so may result in an electric or fire hazards.
- Pull the power plug out of the socket before changing the interior lamps of the refrigerator.
- Otherwise, there is a risk of electric shock.
- If any dust or water is in the refrigerator, pull out power plug and contact your Samsung Electronics service center.
- Otherwise there is a risk of fire.
CAUTION SIGNS FOR INSTALLATION
- Keep ventilation opening in the appliance enclosure or mounting structure clear of obstruction.
- Allow the appliance to stand for 2 hours before loading foods after installation and turning on.
- The installation or any service of this appliance is recommended by a qualified technician or service company.
- Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.
CAUTION SIGNS FOR USING
- Allow the appliance to stand for 2 hours after installation.
• To get Best performance from the product,
- Do not place foods too closely in front of the vents at the rear of the appliance
as it can obstruct free air circulation in the freezer compartment.
- Wrap the food up properly or place it in airtight containers before putting it into the fridge or freezer.
- Do not put any newly introduced food for freezing near to already existing food.
- Do not place glass or bottles or carbonated beverages into the freezer.
- The container may freeze and break, and this may result in injury.
- Please observe maximum storage times and expiry dates of frozen goods.
- There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks.
But, remove all the food if you are going away for the three weeks or more.
Unplug the refrigerator and clean it, rinse and dry.
CAUTION SIGNS FOR CLEANING AND MAINTENANCE
- Do not clean the appliance by spraying water directly onto it.
- Do not use benzene, thinner, or Clorox, Chloride for cleaning.
- They may damage the surface of the appliance and may cause a fire.
- Do not spray inflammable gas near the refrigerator.
- There is a risk of explosion or fire.
- Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failing to do so may result in an electric shock or fire.
- Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in an electric shock or fire.
SEVERE WARNING SIGNS FOR DISPOSAL
- Leave the shelves in place so that children may not easily climb inside.
- Ensure that none of the pipes on the back of the appliance are damaged prior to disposal. - R-600a or R-134a is used as a refrigerant.
Check the compressor label on the rear of the appliance or the rating label inside the refrigerator to see which refrigerant is used for your refrigerator.
When this product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
Cyclopentane is used as an insulation blowing gas. The gases in insulation material require special disposal procedure.
Please contact your local authorities in regard to the environmentally safe disposal of this product.
Ensure that none of the pipes on the back of the appliances are damaged prior to disposal. pipes shall be broken in the open space.
- When disposing of this or other refrigerator/s, remove the door/door seals, door latch so that children or animals cannot become trapped inside.
Children should be supervised to ensure that they do not enter and play with the appliance.
- If trapped inside, the child may become injury and suffocate to death.
- Please dispose of the packaging material for this product in an environmentally friendly manner.
ADDITIONAL TIPS FOR PROPER USAGE
- In the event of a power failure, call the local office of your Electricity Company and ask how long it is going to last.
- Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.
- But should the power failure last more than 24 hours, remove all frozen food.
- If the key is provided with refrigerator, the keys should be kept out of the reach of children and not be in the vicinity of the appliance.
- The appliance might not operate consistently (possibility of defrosting of co tents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the
refrigerating appliance is designed.
- In case of particular foods, keeping it under refrigeration can have a bad effect on preservation due to its properties.
- Your appliance is frost free, which means there is no need to manually defrost your appliance, as this will be carried out automatically.
- Temperature rise during defrosting can comply with ISO requirements. But if you want to prevent an undue rise in the temperature of the frozen food while defrosting the appliance, please wrap the frozen food up in several layers of newspaper.
- Do not re-freeze frozen foods that have thawed completely.
- Contains fluorinated greenhouse gases covered by the Kyoto Protocol.
- Hermetically sealed system.
- Do not vent gases into the atmosphere.
- Refrigerant type: R-134a Quantity: 0.065 kg Global Warming Potential (GWP) = 1300
Saving Energy Tips
- Install the appliance in a cool, dry room with adequate ventilation.
Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (radiator, for example).
- Not to block any vents and grilles is recommended for energy efficiency.
- Allow warm food to cool down before placing it in the appliance.
- Put frozen food in the refrigerator to thaw.
You can then use the low temperatures of the frozen products to cool food in the refrigerator.
- Do not keep the door of the appliance open for too long when putting food in or taking food out.
The shorter time for which the door is open, the less ice will form in the freezer.
- It is recommended to install the refrigerator with clearance to the back and sides. This will help reduce power consumption and keep your energy bills lower.
This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications
setting up your refrigerator
GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on your purchase of the Samsung refrigerator.
We hope you enjoy the state-of-art features and efficiencies that this new appliance offers.
Selecting the best location for the Refrigerator
- Select a location with easy access to a water supply.
- Select a location without direct exposure to sunlight.
- Select a location with level (or nearly level) flooring.
- Select a location with enough space for the refrigerator doors to open easily.
- Select a location that allows sufficient space to the right, left, back, and top for air circulation.
- Select a location that allows you to move the refrigerator easily if it needs maintenance or service.
- Do not install the refrigerator in locations where the temperature is over 43 °C or below 5 °C.
Basic Model
| Basic Stand Basic Stand Basic Stand | ||||||
| Depth “A” | 564 mm | 564 mm 564 | mm 564 mm | 564 mm 564 mm | ||
| Width “B” | 532 mm | 548 mm 532 | mm 548 mm | 532 mm 548 mm | ||
| Height “C” | 1167 mm | 1286 mm 1282 | mm 1381 | mm 1357 mm | 1476 mm | |
| Overall Height “D” | 1209 mm | 1329 mm 1304 | mm 1424 | mm 1399 mm | 1519 mm | |
| Depth “E” | 594 mm | 594 mm 594 | mm 594 mm | 594 mm 594 mm | ||
• Each measurement based on the design dimension, so it may differ depending on the measuring method.
When installing, servicing, or cleaning CAUTION behind the refrigerator, be sure to pull the unit straight out and push back in straight after finishing.
Also, make sure your floor supports the full-load refrigerator.
Otherwise, it may cause floor damage.
⚠️ Please tie up the extra length of the power CAUTION cord at the back of the refrigerator so as not to be touched on the floor preventing the power cord from being crushed by the rollers upon relocation.
FLOORING
For proper installation, this refrigerator must be placed on a level surface of hard material that has the same height as the rest of the flooring.
This surface should be strong enough to support a fully loaded refrigerator.
To protect the floor finish, cut a large section of the cardboard carton and place it under the refrigerator where you are working.

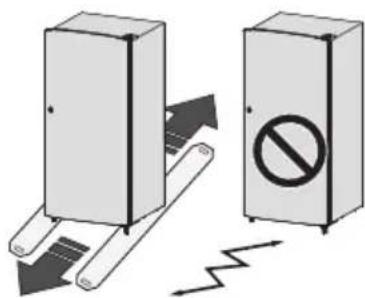

Pulling or pushing the refrigerator may damage the floor.
Moving the refrigerator after installation may damage the floor.
Failing to do so may result in the refrigerator tipping and a personal injury.
If the front of the appliance is slightly higher than the rear, the door can be opened and closed more easily.
- Turn the left adjusting leg in the direction of the arrow until the appliance is level.
Case 2) The appliance tilts down to the right.
- Turn the right adjusting leg in the direction of the arrow until the appliance is level.
operating your refrigerator
ADJUSTING THE TEMPERATURE CONTROL
- To maintain optimum temperature for food storage, set the control dial at the "4" Position.
DIAL At "Coldest" POINT
- When setting the control dial at the "Coldest" Position, the Refrigerator is coming coldest.
- When large quantities of food is stored, for quick ice making set the control dial at the "Coldest" Position.
DIAL At "Cold" POINT:
- When setting the control dial at the "Cold" Position, the Refrigerator becomes warmer.
- When small quantities of food is stored.
- If the temperature where the Refrigerator is placed is lower than 5 °C, set the temperature control to COLD. Because the temperature of the Refrigerator is affected by the temperature around the Refrigerator and it will be lower than the set value.
- Apart from knob settings mentioned above, if you desire to increase or reduce the cooling, turn the knob clockwise or anticlockwise to the degrees you want.
HOW TO DEFROST
- Check the layer thickness of the frost/ice formed on the walls of the ice making compartment. If more frost is formed, please defrost.


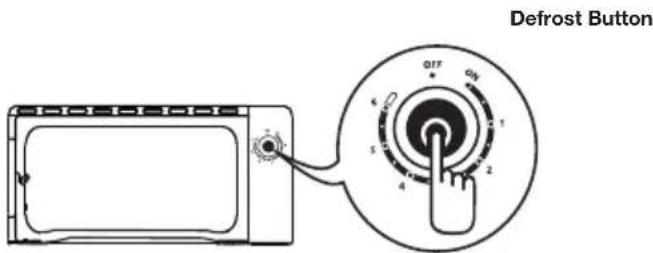

Defrost Indicator Gleek-ice-Layer Thickness- Push the Defrost button to defrost. Frost on the surface of the evaporator will begin to melt and can be easily removed. After defrosting is finished, the refrigerator will start automatically.
Chiller tray cool pack

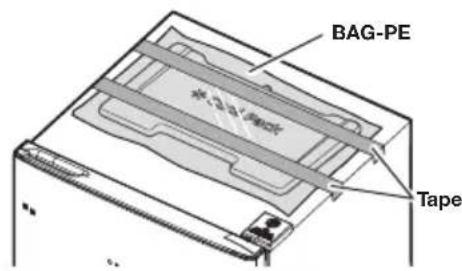

- Remove the plastic bag and tape from the Chilled Tray Cool Pack in the top part of the refrigerator.


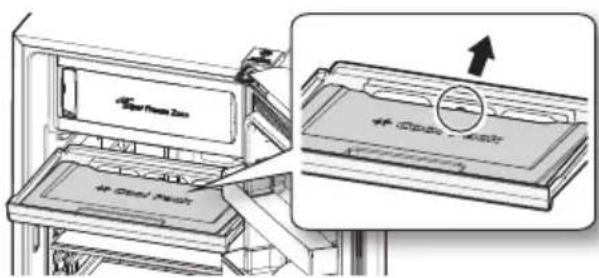

Super Power Zint Super Power Zint- Put the Cool Pack in the Chilled Room tray as shown.
EVAP cool pack
- Remove the plastic bag and tape from the EVAP Cool Pack in the top part of the refrigerator.


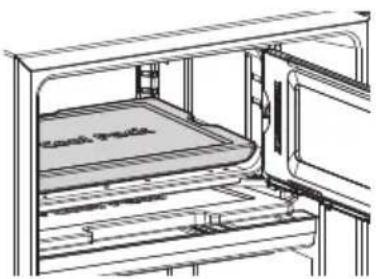

BAG-PE *cool pool Tape- Open the cover of the freezer inside the refrigerator and incline the EVAP Cool Pack diagonally to insert.
- Fill the tray up to 80 % with water level.
- Place the ice tray in the top freezer drawer.
- Wait until the ice cubes are formed.
- Twist the ice tray slightly to take out the ice cubes.
Freezing time
It is recommended that you wait about 1\~2 hours after setting MAX of Freezer or COLDEST of temperature control for the ice cubes to form.
Danger of explosion
- The coldest part of the Refrigerator is the super freezer zone. This is the best place to store delicate foodstuffs.
- Glass bottles containing liquids should never be stored in the freezer as the glass can shatter when the contents freeze.


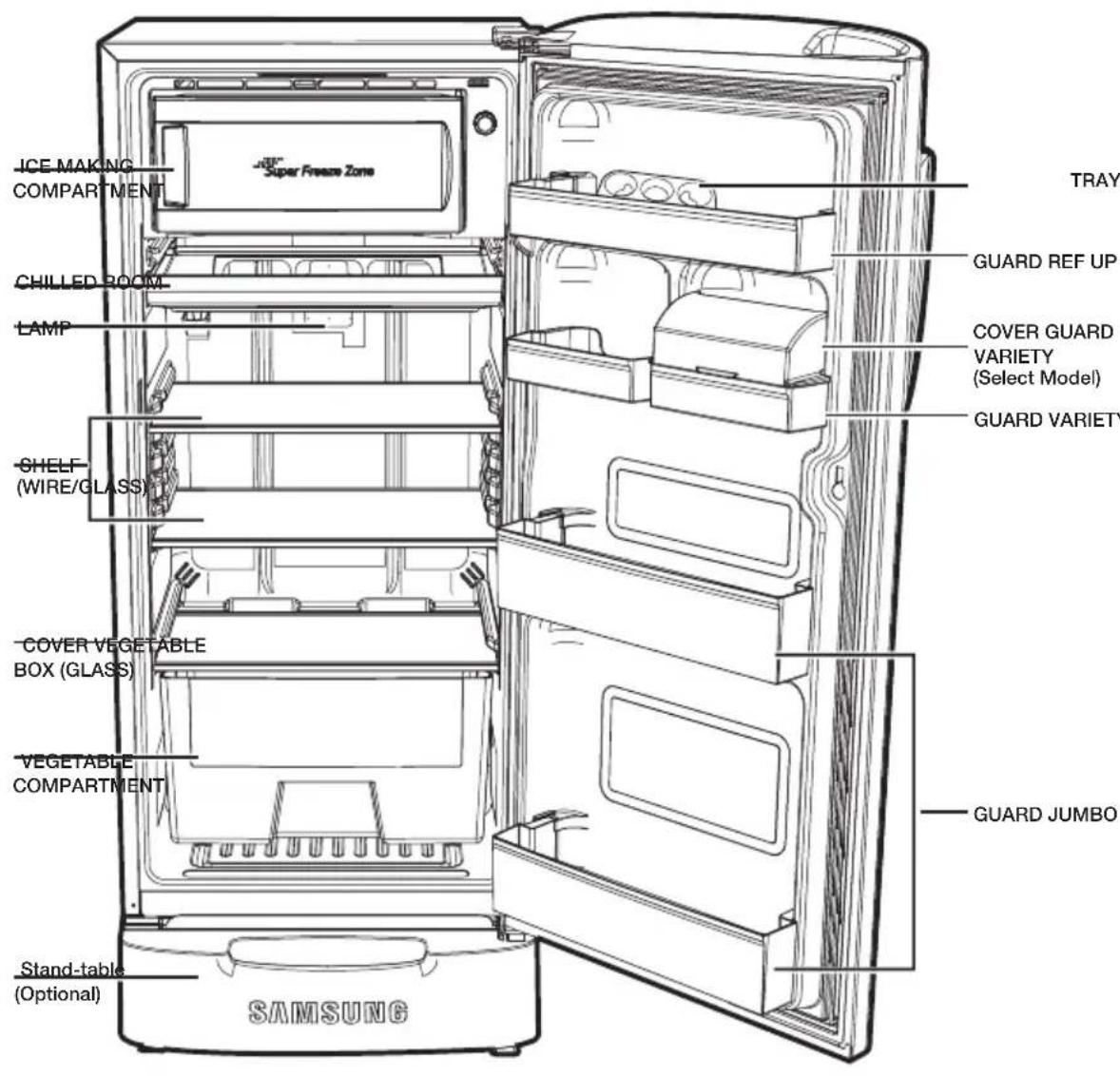

ICE MAKING COMPARTMENT Super Freeze Zone CHILLED ROOM LAMP SHELF (WIRE/GLASS) COVER VEGETABLE BOX (GLASS) VEGETABLE COMPARTMENT Stand-table (Optional) TRAY GUARD REF UP COVER GUARD VARIETY (Select Model) GUARD VARIETY GUARD JUMBO SAMSUNG
Some parts in the picture may differ from your refrigerator, depending of the model and option.
- If you plan to go away for a significant time, empty the refrigerator and turn it off. Wipe the excess moisture from the inside of the appliance and leave the doors open. This helps keep odour and mold from developing.
- If the refrigerator is not to be used for a long period of time, pull out the power plug.
REMOVING THE INTERIOR PARTS

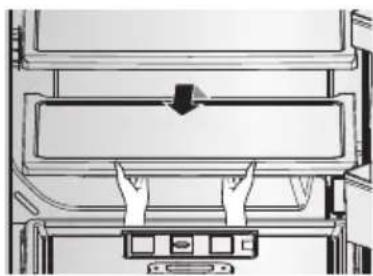

Refrigerator Shelf
Pull the shelf forward until it meets the stopper. Tilt the front of the shelf up and pull it out.
Pull the moisturizing veg box forward and take it out of the Refrigerator. Lift the cover up and pull it out of the Refrigerator.


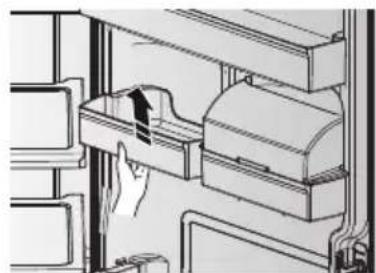

Lift the Guard Variety up and side it out. (This utility guard is adjustable and may be positioned to best fit your needs.)


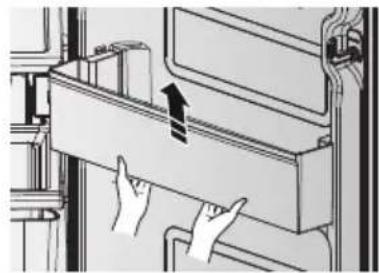

Lift the guard up and slide it out. (This Guard Jumbo is not adjustable; it fits in only one position.)


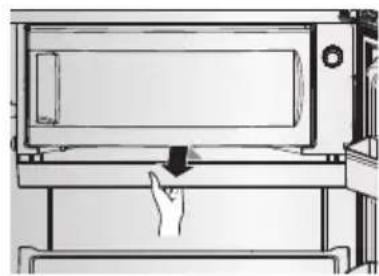

Pull the chiller compartment towards you until it meets the stopper. Tilt the front upward and pull the compartment out.
Do not use Benzene, Thinner or Clorox ^TM for cleaning.
They may damage the surface of the appliance and can create a risk of fire.
REPLACING THE LED LAMP
- Unplug the power cord from the socket.
- Remove Tray partition and shelf.
- Push the Lamp cover hook on both side and then take Lamp cover out.
- Turn the lamp counter clockwise.
- Replace with new lamp same specification as original one.
Disconnect power supply before replacing the lamp.
troubleshooting
| PROBLEM SOLUTION | |
| The appliance is not operating at all or the temperature is too high or low. | Check that the power plug is correctly connected.Is the temperature control on the front panel correctly set?Is the appliance in direct sunlight or located near a heat source.?If so, it may not be able to cool as well. Please put it in a place that is out of direct sunlight and not near a heat source.Is the back of the appliance too close to the wall?If so, it may not be able to cool sufficiently. Keep it an appropriate distance from the wall.Is there too much food inside so that the food is blocking the outlet vent? To keep the refrigerator at a suitable temperature, do not fill the refrigerator with too much food. |
| The food in the Refrigerator is frozen. | Is the temperature control or control panel set to the coldest temperature?Is the surrounding temperature too low? |
| There are unusual noises. | Check if the appliance is installed on a stable and even floor.Is the back of the appliance too close to the wall?Have any foreign objects fallen behind or under the appliance?Is the noise coming from the compressor in the appliance?A ticking sound occurs when the various accessories contract or expand. |
| The front corners and sides of the appliance are warm and condensation starts to form. | Heat-proof pipes are installed in the front corners of the appliance to prevent condensation from forming.When the surrounding temperature rises, this may not always be effective.However, this is not abnormal.In very humid weather, condensation may form on the outer surface of the appliance when the moisture in the air comes into contact with the cool surface of the appliance. |
| You can hear a liquid bubbling in the appliance. | This is the refrigerant, which cools the inside of the appliance. |
| There is a bad smell inside the appliance. | Has a food item spoiled?Make sure that strong smelling food (for example, fish) is wrapped so that it is airtight.Clean out your Freezer periodically and throw away any spoiled food.When cleaning the inside of the fridge, store food elsewhere and unplug the appliance. Wipe with a dry dishcloth after 2-3 hours and then circulate air inside the refrigerator. |
| There is a layer of frost on the appliances walls. | Are the air outlet vents blocked by food stored inside the Refrigerator?Space the food out as much as possible to improve ventilation.If the freezer drawer is not completely closed or is blocked, humidity from outside may enter and cause severe frost to form. |
| Condensation forms on the inside wall of the appliance and around vegetables. | Food with a high water content is stored uncovered with a high humidity level or the door has been left open for a long time.Store the food with a cover or in sealed containers. |
| The lamps in the freezer and refrigerator are not turned on. | The lamps may not be turned back on if the doors of the freezer and refrigerator remain opened side by side for 2 seconds or longer. Close the doors and then open them again. |
memo
Ambient Room Temperature Limits
This refrigerator is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.
| Class Symbol | Ambient Temperature range (°C) | ||
| IEC 62552 (ISO 15502) ISO 8561 | |||
| Extended Temperate SN | +10 to +32 +10 to +32 | ||
| Temperate N +16 to +32 +16 to +32 | |||
| Subtropical ST +16 to +38 +18 to +38 | |||
| Tropical T +16 to +43 +18 to +43 | |||
Internal temperatures may be affected by such factors as the location of the fridge/freezer, ambient temperature and the frequency with which you open the door.
Adjust the temperature as required to compensate for these factors.
English
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
Samsung India Electronics Pvt. Ltd. 2nd, 3rd & 4th Floor, Tower-C, Vipul Tech Square,
Sector 43, Golf Course Road, Gurgaon, Haryana, India-122002
1800 3000 8282 - Toll Free
1800 266 8282 - Toll Free
