Product Type	Ultra HD 4K Smart LED TV
Screen Size	70 inches (177 cm)
Display Resolution	3840 x 2160 (4K UHD)
Sound Output	20 W (2 channels)
Power Supply	AC100-240 V ~ 50/60 Hz
Power Consumption (Typical)	240 W
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing
Smart TV Platform	Samsung Smart Hub (Tizen)
Wireless Connectivity	Wi-Fi, Bluetooth
HDMI Ports	3 (typical)
USB Ports	2 (typical)
Ethernet (LAN)	Yes (CAT 7 recommended)
TV Controller	Button at bottom of TV
Remote Control	Standard remote or Samsung Smart Remote (depending on model)
Eco Sensor	Yes (auto brightness adjustment)
VESA Mount Compatible	Yes (refer to Quick Setup Guide for dimensions)
Weight (Approximate)	25 kg (without stand) - estimated
Dimensions (W x H x D) without Stand	156.0 x 89.7 x 2.5 cm - estimated
Cleaning Instructions	Use soft dry cloth; no chemicals
Safety Features	Anti-fall device support, ventilation gap 10 cm
HEVC Support	Yes (HEVCAvance™)

Frequently Asked Questions - UE70AU7500U SAMSUNG

How do I turn on the TV if the remote is not working?

Press the TV Controller button located at the bottom center of the TV. This button can turn the TV on/off and open the control menu.

Why won't my TV turn on?

Ensure the power cable is securely connected to both the TV and a working wall outlet. Check if the remote control sensor at the bottom of the TV glows solid red. Try pressing the TV Controller button directly.

How do I pair the Samsung Smart Remote?

If your TV came with a Bluetooth Smart Remote, point it at the TV and press the Return and Guide buttons simultaneously for a few seconds until the pairing is confirmed.

What should I do if the remote control doesn't work?

Replace the batteries with fresh alkaline ones (check polarity). For Smart Remotes, try charging by exposing the solar panel to light or using the USB port. Ensure you are within 1.5-1.8 m of the TV.

How can I reduce power consumption?

Enable Brightness Optimisation via Settings > General > Power and Energy Saving. You can also unplug the TV when not in use for long periods to avoid standby power draw.

How do I clean the TV screen safely?

Unplug the TV and use a soft, dry cloth to wipe the screen and exterior. Do not use chemicals like alcohol, benzene, or detergents, as they may damage the coating.

Can I mount the TV on a wall?

Yes, use a VESA-compatible wall mount kit (see Quick Setup Guide for screw dimensions). Ensure the wall can support the weight, and follow the instructions to prevent tipping. Use screws that are not too long.

Why does the screen brightness change automatically?

The TV has an Eco Sensor at the bottom that measures ambient light and adjusts brightness to save energy. You can disable it in Settings > General > Power and Energy Saving > Brightness Optimisation.

What should I do if there is no sound?

Check the volume level and ensure mute is off. Verify that external devices are properly connected. If using an optical or HDMI ARC connection, check the audio output settings in the TV menu.

How do I update the TV software?

Go to Settings > Support > Software Update. Select Update Now to check for updates immediately, or enable Auto Update to install updates automatically when the TV is in standby.

USER MANUAL UE70AU7500U SAMSUNG

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Simple line drawing of a rectangular frame with a small square inside and two labeled points A and B at the top (no text or symbols beyond labels)

Simple line drawing of a rectangular frame with a small square and two labeled points A and B (no text or symbols)

A Меню управления

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™ HIGH-DEFINED MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at www.samsung.com

Model ____ Serial No. ____

Before Reading This User Manual

This TV comes with this User Manual and an embedded e-Manual

Warning! Important Safety Instructions

Please read the Safety Instructions before using your TV. Refer to the table below for an explanation of symbols which may be on your Samsung product.

CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
	This symbol indicates that this product has included important literature concerning operation and maintenance.
	Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required. If this symbol is not present on a product with a mains lead, the product MUST have a reliable connection to protective earth (ground).
	AC voltage: Rated voltage marked with this symbol is AC voltage.
	DC voltage: Rated voltage marked with this symbol is DC voltage.
	Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

Power

- Do not overload wall outlets, extension cords, or adaptors beyond their voltage and capacity. It may cause fire or electric shock.

Refer to the power specifications section of the manual and/or the power supply label on the product for voltage and amperage information.

• Power-supply cords should be placed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at the plug end, at wall outlets, and at the point where they exit from the appliance.
• Never insert anything metallic into the open parts of this apparatus. This may cause electric shock.
  • To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.
• Be sure to plug in the power cord until it is firmly seated. When unplugging the power cord from a wall outlet, always pull on the power cord's plug. Never unplug it by pulling on the power cord. Do not touch the power cord with wet hands.
• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorised dealer or Samsung service centre.
• To protect this apparatus from a lightning storm, or to leave it unattended and unused for a long time (especially when a kid, the elderly, or the disabled is left alone), be sure to unplug it from the wall outlet and disconnect the antenna or cable system.

–Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat or by causing the insulation to deteriorate.

- Use only a properly grounded plug and wall outlet.

- An improper ground may cause electric shock or equipment damage. (Class I Equipment only.)

- To turn off this apparatus completely, disconnect it from the wall outlet. To ensure you can unplug this apparatus quickly if necessary, make sure that the wall outlet and power plug are readily accessible.

Installation

• Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.
• Do not place vessels (vases etc.) containing water on this apparatus, as this can result in a fire or electric shock.
• Do not expose this apparatus to rain or moisture.
• Be sure to contact an authorised Samsung service centre for information if you intend to install your TV in a location with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a train station, etc. Failure to do so may lead to serious damage to your TV.
• Do not expose this apparatus to dripping or splashing.

Mounting the TV on a wall

If you mount this TV on a wall, follow the instructions exactly as set out by the manufacturer. If it is not correctly mounted, the TV may slide or fall and cause serious injury to a child or adult and serious damage to the TV.

• To order the Samsung wall mount kit, contact Samsung service centre.
• Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you choose to install the wall mount on your own.
• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or when the consumer fails to follow the product installation instructions.
• You can install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than plaster board, contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted wall, it may fall and result in severe personal injury.
• When installing a wall mount kit, we recommend you fasten all four VESA screws.
• If you want to install a wall mount kit that attaches to the wall using two top screws only, be sure to use a Samsung wall mount kit that supports this type of installation. (You may not be able to purchase this type of wall mount kit, depending on the geographical area.)
• Do not mount the TV at more than a 15 degree tilt.
• Standard dimensions for wall mount kits are shown in the table on the Quick Setup Guide.

Do not install your wall mount kit while your TV is turned on. This may result in personal injury from electric shock.

• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
• Always have two people mount the TV onto a wall.
• For 82 inch or larger models, have four people mount the TV onto a wall.

Providing proper ventilation for your TV

When you install your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.

- When you install your TV with a stand or a wall mount, we strongly recommend you use parts provided by Samsung Electronics only. Using parts provided by another manufacturer may cause difficulties with the product or result in injury caused by the product falling.

Safety Precaution

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang on or destabilise the TV. This action may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the Safety Flyer included with your TV. For added stability and safety, you can purchase and install the anti-fall device, referring to "Preventing the TV from falling".

WARNING: Never place a television set in an unstable location. The television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Always use cabinets or stands or mounting methods recommended by Samsung.
• Always use furniture that can safely support the television set.
• Always ensure the television set is not overhanging the edge of the supporting furniture.
• Always educate children about the dangers of climbing on furniture to reach the television set or its controls.
• Always route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.
- Never place a television set in an unstable location.
- Never place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
- Never place the television set on cloth or other materials that may be located between the television set and supporting furniture.
- Never place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.
If the existing television set is going to be retained and relocated, the same considerations as above should be applied.
- When you have to relocate or lift the TV for replacement or cleaning, be sure not to pull out the stand.

Preventing the TV from falling

1. Using the appropriate screws, firmly fasten a set of brackets to the wall. Confirm that the screws are firmly attached to the wall.

- You may need additional material such as wall anchors depending on the type of wall.

1. Using the appropriately sized screws, firmly fasten a set of brackets to the TV.

- For the screw specifications, refer to the standard screw part in the table on the Quick Setup Guide.

1. Connect the brackets fixed to the TV and the brackets fixed to the wall with a durable, heavy-duty string, and then tie the string tightly.

-Install the TV near the wall so that it does not fall backwards.

-Connect the string so that the brackets fixed to the wall are at the same height as or lower than the brackets fixed to the TV.

Operation

- This apparatus uses batteries. In your community, there might be environmental regulations that require you to dispose of these batteries properly. Please contact your local authorities for disposal or recycling information.

- Store the accessories (remote control, batteries, or etc.) in a location safely out of the reach of children.

- Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a Samsung service centre.

- Do not dispose of remote control or batteries in a fire.

- Do not short-circuit, disassemble, or overheat the batteries.

- CAUTION: There is danger of an explosion if you replace the batteries used in the remote with the wrong type of battery. Replace only with the same or equivalent type.

- WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES AND OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

Caring for the TV

• To clean this apparatus, unplug the power cord from the wall outlet and wipe the product with a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, aerial fresheners, lubricants, or detergents. These chemicals can damage the appearance of the TV or erase the printing on the product.

- The exterior and screen of the TV can get scratched during cleaning. Be sure to wipe the exterior and screen carefully using a soft cloth to prevent scratches.

- Do not spray water or any liquid directly onto the TV. Any liquid that goes into the product may cause a failure, fire, or electric shock.

01 What's in the Box?

Make sure the following items are included with your TV. If any items are missing, contact your dealer.

• Remote Control & Batteries (Depending on the model)
• Samsung Smart Remote & Batteries (Depending on the model)
• User Manual
• CI Card Adapter

• Warranty Card / Regulatory Guide (Not available in some locations)
  • TV Power Cable

• The type of battery may vary depending on the model.

• The items' colours and shapes may vary depending on the models.
  • Cables not included can be purchased separately.
• Check for any accessories hidden behind or in the packing materials when opening the box.

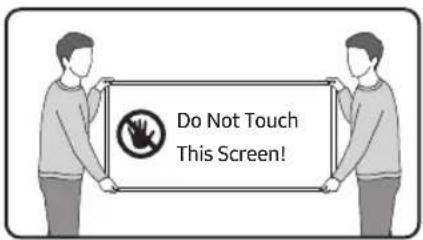

Warning: Screens can be damaged from direct pressure when handled incorrectly. We recommend lifting the TV at the edges, as shown. For more information about handling, refer to the Quick Setup Guide came with this product.

02 Initial Setup

When you turn on your TV for the first time, it immediately starts the Initial Setup. Follow the instructions displayed on the screen and configure the TV's basic settings to suit your viewing environment.

Using the TV Controller

You can turn on the TV with the TV Controller button at the bottom of the TV, and then use the Control menu. The Control menu appears when the TV Controller button is pressed while the TV is On.

- The screen may dim if the protective film on the SAMSUNG logo or the bottom of the TV is not detached. Please remove the protective film.

Simple line drawing of a rectangular frame with two labeled points A and B, no text or symbols present.

Simple line drawing of a rectangular frame with two labeled points A and B, no text or symbols present.

A Control menu

B TV Controller button / Remote control sensor

Setting the sound sensor

• This function is supported only in Q7*A/Q8*A/QN8*A/QN9*A Series.

You can turn on or off the sound sensor by using its button at the bottom of the TV.

With the TV on, you can push the button to the left (or backward) to turn on the sound sensor or to the right (or forward) to turn off it.

See the pop-up window on the TV to check whether the sound sensor is turned on or off.

• The position and shape of the sound sensor may differ depending on the model.
• During analysis using data from the sound sensor, the data is not saved.

03 Troubleshooting and Maintenance

Troubleshooting

For more information, see "Troubleshooting" or "FAQ" in the e-Manual.

Settings > e-Manual > Troubleshooting or FAQ

If none of the troubleshooting tips apply, please visit "www.samsung.com" and click Support or contact the Samsung service centre.

- This TFT LED panel is made up of sub pixels which require sophisticated technology to produce. There may be, however, a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

- To keep your TV in optimum condition, upgrade to the latest software. Use the Update Now or Auto update functions on the TV's menu ( Ⓜ > Settings > Support > Software Update > Update Now or Auto update).

The TV won't turn on.

• Make sure that the AC power cable is securely plugged in to the TV and the wall outlet.
• Make sure that the wall outlet is working and the remote control sensor at the bottom of the TV is lit and glowing a solid red.
• Try pressing the TV Controller button at the bottom of the TV to make sure that the problem is not with the remote control. If the TV turns on, refer to "The remote control does not work".

The remote control does not work.

• Check if the remote control sensor at the bottom of the TV blinks when you press the remote's Power button.
• AU Series: If it does not blink, replace the remote control's batteries. Make sure that the batteries are installed with their poles (+/-) in the correct direction. Alkaline batteries are recommended for longer battery life.
• Q Series: When the remote's battery is discharged, turn over the remote control to charge with indoor light, or use the USB charging port.

• Try pointing the remote directly at the TV from 1.5-1.8 m away.

- If your TV came with a Samsung Smart Remote (Bluetooth Remote), make sure to pair the remote to the TV.

Eco Sensor and screen brightness

Eco Sensor adjusts the brightness of the TV automatically. This feature measures the light in your room and optimises the brightness of the TV automatically to reduce power consumption. If you want to turn this off, go to > Settings > General > Power and Energy Saving > Brightness Optimisation.

- The eco sensor is located at the bottom of the TV. Do not block the sensor with any object. This can decrease picture brightness.

04 Specifications and Other Information

Specifications

Display Resolution

3840 × 2160

Sound (Output)

AU7/AU8/AU9/Q6*A/Q7*A Series: 20 W

Q8*A/QN8*A Series: 60 W

QN9*A Series (50"): 40 W, QN9*A Series (55"-85"): 60 W

Power Supply

AC100-240V\~50/60Hz

Power Consumption

UE43AU7100U / UE43AU7140U / UE43AU7160U /

UE43AU7170U / UE43AU7500U / UE43AU7540U /

UE43AU7560U / UE43AU7570U: 130 W

UE50AU7100U / UE50AU7140U / UE50AU7160U /

UE50AU7170U / UE50AU7500U / UE50AU7540U /

UE50AU7560U / UE50AU7570U: 145 W

UE55AU7100U / UE55AU7140U / UE55AU7160U /

UE55AU7170U / UE55AU7500U / UE55AU7540U /

UE55AU7560U / UE55AU7570U: 150 W

UE58AU7100U / UE58AU7160U / UE58AU7170U /

QE85Q70AAU / QE85Q77AAU: 365 W

QE55Q80AAU: 240 W, QE65Q80AAU: 285 W

QE75Q80AAU: 390 W

QE55QN85AAU / QE55QN87AAU: 205 W

QE65QN85AAU / QE65QN87AAU: 250 W

QE75QN85AAU / QE75QN87AAU: 255 W

QE85QN85AAU / QE85QN87AAU: 325 W

QE50QN90AAU:175 W, QE55QN90AAU:230 W

QE65QN90AAU: 295 W, QE75QN90AAU: 305 W

QE85QN90AAU: 385 W

Operating Temperature

10 °C to 40 °C (50 °F to 104 °F)

Operating Humidity

10 % to 80 %, non-condensing

Storage Temperature

-20 °C to 45 °C (-4 °F to 113 °F)

Storage Humidity

5 % to 95 %, non-condensing

Notes

• This device is a Class B digital apparatus.
• For information about the power supply, and more information about power consumption, refer to the information on the label attached to the product.

- On most models, the label is attached to the back of the TV.

(On some models, the label is inside the cover terminal.)

• To connect a LAN cable, use a CAT 7 (*STP type) cable for the connection. (100/10 Mbps)
  * Shielded Twisted Pair
• The images and specifications of the Quick Setup Guide may differ from the actual product.
• An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user manual has not been read).
(b) You bring the unit to the Samsung service centre, but it is found that the product has no defect (i.e., where the user manual has not been read).
- You will be informed of the administration fee amount before a technician visits.

* Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may change without notice.

Decreasing power consumption

When you shut the TV off, it enters Standby mode. In Standby mode, it continues to draw a small amount of power. To decrease power consumption, unplug the power cord when you don't intend to use the TV for a long time.

Licences

Dolby Audio

POWERED BY

QUICK SET®

rovi guide

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™ HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Recommendation - EU Only

CE

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements.

The full text of the declaration of conformity is available at the following internet address:

http://www.samsung.com go to Support and enter the model name.

This equipment may be operated in all EU countries and in the UK.

SAMSUNG

Simple line drawing of a rectangular frame with an internal rectangle and two labeled points A and B (no text or symbols beyond labels)

Simple line drawing of a rectangular frame with a small square inside and two labeled points A and B at the bottom (no text or symbols beyond labels)

A Баскару мәзірі

* Shielded Twisted Pair

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

1. Mos keladigan vintlar yordamida skobkalar to'plamini devorga mahkamlang. Vintlar devorga mahkam qotganiga amin bo'ling.

-Devorning turiga qarab, anker singari qo'shimcha materiallar kerak bo'lishi mumkin.

1. Mos o'lchamli vintlar yordamida skobkalar to'plamini televizorga mahkamlang.

Simple 3D diagram of a rectangular frame with two labeled points A and B, no text or symbols present.

Simple line drawing of a rectangular frame with a small square inside and two labeled points A and B at the bottom (no text or symbols)

A Boshqaruv menyusi

B Televizor boshqaruvi tugma / Masofadan boshqarish datchigi

Tovush datchigini sozlash

- Bu funksiya faqat Q7*A/Q8*A/QN8*A/QN9*A seriyalarda qo'llab-quvvatlanadi.

O'zgaruvchan tok 100-240V\~ 50/60Gs

Energiya sarfi

UE43AU7100U / UE43AU7140U / UE43AU7160U /

UE43AU7170U / UE43AU7500U / UE43AU7540U /

UE43AU7560U / UE43AU7570U: 130 Vt

UE50AU7100U / UE50AU7140U / UE50AU7160U /

UE50AU7170U / UE50AU7500U / UE50AU7540U /

UE50AU7560U / UE50AU7570U: 145 Vt

UE55AU7100U / UE55AU7140U / UE55AU7160U /

UE55AU7170U / UE55AU7500U / UE55AU7540U /

UE55AU7560U / UE55AU7570U: 150 Vt

UE58AU7100U / UE58AU7160U / UE58AU7170U /

UE58AU7500U / UE58AU7570U: 175 Vt

UE65AU7100U / UE65AU7140U / UE65AU7170U /

UE65AU7540U / UE65AU7570U / UE65AU7500U: 200 Vt

UE70AU7100U / UE70AU7170U / UE70AU7500U /

UE70AU7570U: 240 Vt

UE75AU7100U / UE75AU7170U / UE75AU7500U /

UE75AU7570U: 260 Vt

UE85AU7100U / UE85AU7170U / UE85AU7500U: 300 Vt

UE43AU8000U / UE43AU8040U: 135 Vt

UE50AU8000U / UE50AU8040U: 145 Vt

UE55AU8000U / UE55AU8040U: 165 Vt

UE60AU8000U: 180 Vt, UE65AU8000U: 215 Vt

UE75AU8000U: 260 Vt

UE85AU8000U / UE85AU8070U: 320 Vt

UE43AU9000U / UE43AU9010U / UE43AU9070U: 135 Vt

UE50AU9000U / UE50AU9010U / UE50AU9070U: 145 Vt

UE55AU9000U / UE55AU9070U: 165 Vt

UE65AU9000U / UE65AU9070U: 215 Vt

UE75AU9000U / UE75AU9070U: 260 Vt

QE43Q60AAU / QE43Q67AAU: 130 Vt

QE50Q60AAU / QE50Q67AAU: 145 Vt

QE55Q60AAU / QE55Q67AAU: 150 Vt

QE60Q60AAU / QE60Q65AAU / QE60Q67AAU: 175 Vt

QE65Q60AAU / QE65Q67AAU: 175 Vt

QE75Q60AAU / QE75Q67AAU: 235 Vt

QE85Q60AAU / QE85Q67AAU: 285 Vt

QE55Q70AAU / QE55Q77AAU: 210 Vt

QE65Q70AAU / QE65Q77AAU: 250 Vt

QE75Q70AAU / QE75Q77AAU: 330 Vt

QE85Q70AAU / QE85Q77AAU: 365 Vt

QE55Q80AAU: 240 Vt, QE65Q80AAU: 285 Vt

QE75Q80AAU: 390 Vt

QE55QN85AAU / QE55QN87AAU: 205 Vt

QE65QN85AAU / QE65QN87AAU: 250 Vt

QE75QN85AAU / QE75QN87AAU: 255 Vt

QE85QN85AAU / QE85QN87AAU: 325 Vt

QE50QN90AAU: 175 Vt, QE55QN90AAU: 230 Vt

QE65QN90AAU: 295 Vt, QE75QN90AAU: 305 Vt

QE85QN90AAU: 385 Vt

Ishlatish harorati

10^ircC-40^ircC(50^ircF-104^ircF)

Ishlatish namligi

10 % – 80 %, kondensatlanmaydi

Saqlash harorati

-20 °C - 45 °C (-4 °F - 113 °F)

Saqlash namligi

5 % – 95 %, kondensatlanmaydi

Eslatmalar

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI ^TM

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Tavsiya – faqat YI

CE

Samsung shuni bayonot beradiki, ushbu radio qurilmasi 2014/53/EU direktivasi va Buyuk Britaniyaning tegishli qonuniy talablariga muvofiq keladi.

Mos kelish to'g'risidagi bayonotning to'liq mantini quyidagi internet manzilidan olish mumkin:

http://www.samsung.com Yordam qismiga borib, model nomini kiriting.

Bu jihoz barcha Yel mamlakatlari va Buyuk Brintaniyada ishlatilishi mumkin.

SAMSUNG

Diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

Simple 3D diagram of a rectangular plate with labeled points A and B, no text or symbols present

Simple line drawing of a rectangular frame with an internal rectangle and two labeled points A and B (no text or symbols)

A Удирдлагын цэс

* Shielded Twisted Pair

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
