USER MANUAL ALFD24WBVPANTRY Summit

SUMMIT® APPLIANCE

PRODUCE & PANTRY STORAGE DUAL ZONE REFRIGERATOR

User Manual

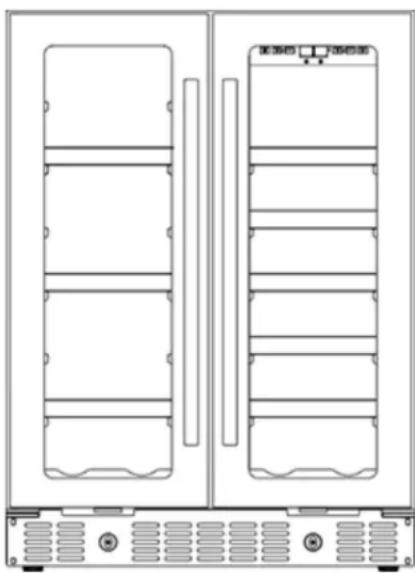

Technical line drawing of a dual-chamber refrigerator unit with front and back views (no text or symbols)

Models:

ALFD24WBVPANTRY

ALFD24WBVCSSPANTRY

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING NSTRUCTIONS.

Model Number:

Serial Number:

Felix Storch, Inc.

An ISO 9001:2015 registered company

770 Garrison Ave

Bronx, New York 10474

www.summitappliance.com

TABLE OF CONTENTS

Appliance Safety 3

Important Safeguards 3-4

Disposal 5

Location of Parts 7

Electrical Connection 6

Installation Instructions 8-12

Before Using your Appliance 8

Installation of your Appliance 8

Built-in Under-Counter Instructions 8

Adjusting the Height of your Appliance 9

Adjusting the Kickplate 9

Anti-tip Bracket Installation 9

Installing the Stainless Steel Handles 9

Full Overlay Panel Installation 10-12

Operating your Appliance 13-15

Control Panel 13

Setting the Temperature Control 13-14

Interior Light 14

Sabbath Mode 14

Temperature Memory Function 14

Temperature Alarm/Door Alarm 15

DynaClima / Silent Mode 15

Door Lock 15

Shelves / Baskets 15

Humidity Trays 15

Defrosting 15

Cleaning and Maintenance 16

Cleaning your Appliance 16

Cleaning the Humidity Tray 16

Vacations 16

Moving your Appliance 16

Energy-Saving Tips 16

Troubleshooting 17-18

Limited Warranty 20

APPLIANCE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words DANGER or WARNING.

DANGER

WARNING

DANGER means that failure to heed this safety statement may result in severe personal injury or death.

WARNING means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precautions, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• Replace all panels before operating.
• It is recommended that a separate circuit serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

A3

Warning: Risk of Fire / Flammable Materials.

R600a

- This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a) which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect. Care must be taken during transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes. In the event of any damage:

• Avoid open flames and anything that creates a spark,
  ○ Disconnect from the electrical power line,
• Air the room in which the appliance is located for several minutes, and
• Contact the Service Department for advice.

- The more coolant there is in an appliance, the larger the room it should be installed in. In the event of a leakage, if the appliance is in a small room, there is the danger of combustible gases building up. For every ounce of coolant at least 325 cubic feet of room space is required. The amount of coolant in the appliance is stated on the data plate inside the appliance. It is hazardous for anyone other than an Authorized Service Person to carry out servicing or repairs to this appliance.

- Take serious care when handling, moving, and using the appliance to avoid either damaging the refrigerant tubing or increasing the risk of a leak.

- Replacing component parts and servicing shall be done by factory-authorized service personnel so as to minimize the risk of possible ignition due to incorrect parts or improper service.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

WARNING

FOLLOW WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install appliance. Failure to do so can result in back or other injury.
- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- WARNING: The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.
- WARNING: Do not pierce or burn. Do not damage the refrigerant circuit.
- WARNING: Be aware that refrigerants may not contain an odor.
- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
- WARNING: Danger of injury from LED lamp. If the cover is defective: do not look directly into the illumination with optical lenses from close proximity. The eyes can be injured.
- CAUTION: Use this appliance only for its intended purpose. This equipment is intended for the storage and display of packaged products only.
- To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 72°F (23°C) and below 78°F (26°C).
• The appliance should not be located next to ovens, grills, or other sources of high heat.
- The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances, is required.
- Do not kink or pinch the power supply cord of the appliance
• The size of the fuse (or circuit breaker) should be 15 amperes.
- It is important that the appliance be leveled in order to work properly. You may need to make several adjustments to level it.
• All installations must be in accordance with local plumbing code requirements.
• Make certain that the pipes are not pinched, kinked, or damaged during installation.
- Check for leaks after connection.
- Never allow children to operate, play with or crawl inside the appliance.
- Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor the

interior.

• Use this appliance only for its intended purpose as described in this Instruction Manual.
- Keep fingers out of the "pinch point" areas. Clearances between the door and cabinet are necessarily small. Be careful closing the door when children are in the area.

- SAVE THESE INSTRUCTIONS -

DISPOSAL

Dispose of your appliance packaging properly. Ensure that any plastic wrappings, bags, etc., are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!

Refrigeration equipment must be properly disposed of in a professional and appropriate way, in accordance with the current local regulations and laws which protect the environment. This applies to your old appliance and to your new unit once it has reached the end of its service life.

WARNING: Please ensure that old, worn appliances are rendered unusable before disposal by removing the doors, removing the plug, cutting the network cable, and removing or destroying any snap fastenings or bolts. Leave shelving in place. You will thus prevent children from locking themselves in the appliance during play (risk of suffocation) or endangering their lives in any other way. DO NOT dispose of the appliance in landfill as the insulation (Cyclopentane) and refrigerant gas (R600a) contained in these appliances are flammable.

Disposal instructions:

• The appliance must not be disposed of in the dustbin or with normal household rubbish.
• The coolant circuit, particularly the heat exchanger at the back/bottom of the unit, must not be damaged.
• The appliance is not to be handled as normal household waste but is to be taken to a recycling collection point for electrical and electronic goods. By correctly disposing of this product, you are contributing to the protection of the environment and to the health of your fellow human beings. Improper disposal endangers health and the environment. Further information about the recycling of the product may be obtained from your town hall, refuse collection department or the store where you purchased the product.

DANGER

Risk of child entrapment!

Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit for a few days”.

Before discarding your old refrigerator:

• Take off the doors
- Leave the shelves in place so that children may not easily climb inside.

Electrical Connection

WARNING

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by a qualified electrician or an authorized service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third (ground) prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115/120 Volt AC \~60Hz three-prong grounded electrical outlet. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

To prevent accidental injury, the cord should be secured behind the appliance and not left exposed or dangling.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevents overloading house wiring circuits that could cause a fire hazard from overheating. Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

Extension Cord

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

LOCATION OF PARTS

Cold Zone (36-43°F) Pantry Zone (41-68°F) LED Light Digital Control Panel LED Light Handle Glass Door Pantry Baskets Humidity Trays Adjustable Legs Lock Kickplate

NOTE: This appliance features two temperature zones: a 36-43°F Cold Zone for meats, cheeses, beverages, and a variety of fruits and vegetables, and a 41-68°F Pantry Zone for wine and produce best stored in conditions warmer than a refrigerator but cooler than room temperature. For detailed specifications on how to store fruits and vegetables, please refer to the Produce Storage Guide included with your Pantry.
NOTE: Cosmetic details and some specifications may vary from pictured unit.

INSTALLATION INSTRUCTIONS

Before Using your Appliance

- Remove the exterior and interior packing.

CAUTION: After unpacking you MUST allow this appliance to stand upright for at least 2 hours to allow the lubricant and refrigerant to drain back into the compressor and stabilize. Failure to do so may adversely affect performance and the lifetime of the unit.

• Clean the interior surface with lukewarm water using a soft cloth.
  • Install the handles on the doors (See Installing the Stainless Steel Handle).

Installation of your Appliance

• The appliance is designed for built-in, recessed or free-standing installation for indoor use only.

NOTE: Do not store or install the appliance outdoors.

• Place your appliance on a floor that is strong enough to support it when it is fully loaded. To level the unit, adjust the front adjustable legs.\
• For freestanding installation, 5" (127mm) of space at the back and sides of the unit and 4"(102mm) at the top are suggested, which allows the proper air circulation to cool the compressor and condenser for energy saving. Even for built-in installation, it is a must to keep at least 3/16" (5mm) of space on each side, 2" (50mm) at the back and 1/16" (1.6mm) at the top to ensure proper service access and ventilation. The air vent at the front of the appliance must never be covered or blocked in any way.

NOTE: Do not install the appliance near an oven, radiator or other heating source. Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Do not install in a location where the temperature will fall below 60^ F ( 16^ C). For best performance, do not install the appliance behind a cabinet door or block the base grille.

• Avoid placing the unit in moist areas.
• Plug the appliance into an exclusive, properly grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.

Built-in Under-Counter Instructions

Make sure your installation does not block the front ventilation grille. The unit is designed to fit under worktops, using the height-adjustable ventilation grille to ensure that the feet are concealed from front view.

If the unit is fully integrated to be installed for fitting kitchen plinth, make sure that the ventilation gaps in the plinth are at least 300 square centimeters and remove the ventilation grilles, so that warm air can disperse unhindered. Otherwise, the appliance has to work harder, resulting in an increase in electricity consumption.

NOTE: When pushing the appliance into the niche, make sure that the mains cable does not get trapped. Confirm that the door can open and close properly in the selected location.

2θ C c b 47(10mm) 37(20mm)

Model No.	a. (Inch/mm)	b. (Inch/mm)	c. (Inch/mm)	A. (Inch/mm)	B. (Inch/mm)	C. (Inch/mm)
ALFD24WBVPANTRYALFD24WBVCSSPANTRY	32" / 813	22 34 " / 575	23 12 " / 596	32 18 " / 816	22 34 " / 575	23 58 " / 600

Adjusting the Height your Appliance

The height of the unit can be increased by up to 3" by turning the adjustable legs. Once the desired height has been achieved, the gap between the kick-plate and the floor can be covered by inserting a kick-plate extender, which is described in the next section.

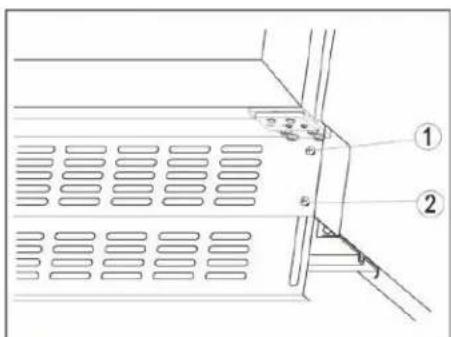

Adjusting the Kick Plate

This appliance includes an adjustable kick-plate extender that is not required to operate the unit. In order to adjust the kick-plate height, follow the instructions below:

1. Remove the screws (2) from both the bottom left-and bottom right-hand sides of the kick-plate installed on the unit.
2. Loosen the screws (1) from both the top left- and top right-hand sides of the kick-plate installed on the unit.
3. Carefully insert the kick-plate extender under the kick-plate until the desired height is achieved.
4. Reinsert screws and tighten them.

Technical diagram showing a structural component with labeled parts 1 and 2, including hatched patterns and dimension lines.

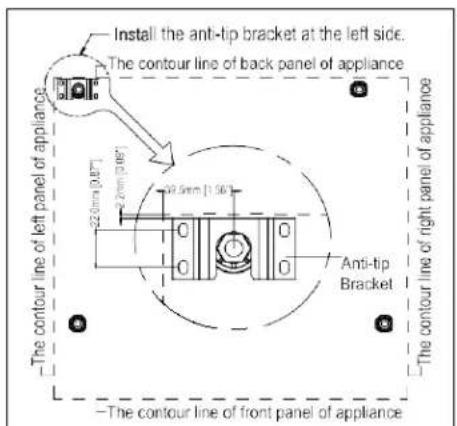

Anti-tip Bracket Installation

To reduce the risk of tipping the unit by abnormal usage or improper loading, the appliance must be secured by properly installing the anti-tip device packed with the appliance.

• Place the anti-tip bracket on the floor as shown in the figure. An anti-tip bracket must be installed at the left side.
• Mark the locations of the 4 holes of the anti-tip bracket on the floor.
• Use a 5/16" masonry drill bit and insert plastic anchors.
• Secure brackets to the floor using screws.
• Slide the appliance into position and make sure the leg engages the anti-tip bracket.

NOTE: If the unit is relocated, the bracket must be removed and installed in the new location.

Install the anti-tip bracket at the left side. The contour line of back panel of appliance -22.0mm [0.87" -22.0mm [0.96] -32.5mm [1.56] Anti-tip Bracket -The contour line of left panel of appliance -The contour line of right panel of appliance -The contour line of front panel of appliance

Anti-tip Bracket Move the appliance to the final position.

Installing a Stainless Steel Handle

This appliance includes a stainless steel handle that is not required to operate the unit. To install the handle, follow the instructions below:

Locate the handle (1) over the mounting stub (3) of the door and using the supplied Allen key, tighten the securing grub screws (2) to fix the handle.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or force.

Full Overlay Panel Installation Instructions

These models are designed for field-installed overlay panel. The overlay panel covers the stainless steel to give a built-in appearance. The overlay panel and appropriate hardware are not included with the unit and the end user needs to prepare them themselves. Please follow the instructions below for installation:

Door Panel Preparation

Prepare the overlay panel to the dimensions shown below.

W 19mm [3/4"] H 54mm [2 1/8"] 54mm [2 1/8"] 6-§ 12.5mm [§ 11/10"] 6mm[15/64"] DEEP 14.5mm [37/64"]

IMPORTANT:

1. H = Height of door + 1mm [3/80"]
2. W = Width of door + 4mm [5/32"]
3. Thickness = 34
4. It is important to ensure that all drilled holes are drilled to the correct depth in order to avoid splits in the wood when hardware is installed.

Model	Door Dimensions (Width x Height)
ALFD24WBVPANTRY ALFD24WBVCSSPANTRY	11 1/2" x 28 3/8" (292 x 720)

Door Panel Installation

NOTE: This design will leave a 3mm gap between the panel and the unit door.

If you do not want the 3mm gap, you will have the option to route the wood according to the bracket's dimensions. Then proceed to install the bracket following the instructions below.

Installing the Handle on the Overlay Panel

If reusing the handle that came with the unit:

1. Unscrew the studs located on the front face of the door and set them aside for later use.
2. Remove the screws from the door and proceed to mark their positions on the overlay panel by using the handle as a guide.
3. Use a 3/16" (5mm) drill bit to the make the holes on the overlay panel for the screws.
4. Insert the screws, making sure to leave the head of the screw flush with the surface of the panel (countersink screws if necessary).
5. Take the studs you saved in Step 1 and screw them back. They are now projecting from the face of the panel.
6. Place the handle over the mounting studs and, using the supplied Allen key, tighten the securing grub screws to fix the handle. Refer to "Installing a Stainless Steel Handle" (Refer to page 13).

If using a customer supplied handle(s):

1. Attach the handle to the overlay panel by using flat head or countersunk screws.
2. Unscrew the studs located on the front face of the door and save them for later possible use.

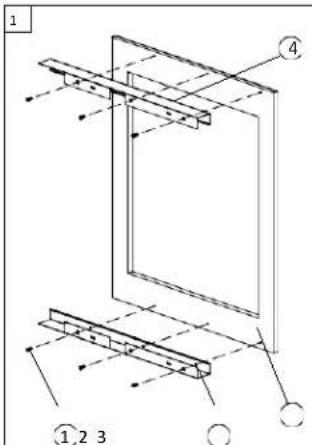

Installing the Bracket

Included in the Bracket Kit
1			9
Phillips self-tapping screw (6)	Bottom bracket (1)	Top brackets (1)	Phillips self-tapping screw (6)

1 ① 2 3 ④

Technical diagram showing two views of a rectangular panel with numbered annotations and directional arrows indicating movement or assembly.

Technical line drawing of a rectangular frame with mounting brackets and dimension lines (no text or symbols)

1. Lay the wooden panel (3) on a flat surface.
2. Place the bottom bracket (2) along the edge of the panel.
3. Attach the bracket (2) to the wooden panel by using three 12 " Phillips self-tapping screws (1).
4. Repeat steps 2-3 for the top bracket.

NOTE: The two brackets must be horizontally spaced according to the specific dimensions of your unit's door.

1. Prepare the unit for panel installation, by removing the lock bracket (8) and magnetic activator (5) from the bottom of the door and remove the magnetic activator (4) & hole plugs (6) from the top of the door. This is done by removing the screws that attach the lock bracket and magnetic activators to the door.
2. We recommend you leave the factory-installed protective film to protect the door and prevent scratching while installing the panel.
3. Open the unit's door all the way. Then, carefully slide the bracketed wooden panel onto the unit's door (7).
4. Attach the bracket to the door by inserting four 12 " Phillips self-tapping screws (9) through the bracket and into the unit's door, two on each end of the bracket.
5. Reinstall the lock bracket, hole plugs, and magnetic activators.

OPERATING YOUR APPLIANCE

It is recommended you install the appliance in a place where the ambient temperature is between 72^ and 78^ F ( 23^-26^ C). If the ambient temperature is above or below the recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extremely cold or hot conditions may cause interior temperatures to fluctuate. The desired temperature range may not be reached.

Control Panel with LED Display

8 12.00 + - + -

ON/OFF Power

To turn the appliance off, press and hold the key for 5 seconds until the temperature display goes out. To turn the appliance on, press and hold the key for 1 second until the temperature display lights up.

NOTE: Pressing the POWER key once can switch off the audible alarm when the alarm is on.

LIGHT

Turn the interior light on and off with this switch.

UP +

Used to increase (warm) the set temperature by 1^ C/ 1^ F.

DOWN _

Used to decrease (cool) the set temperature by 1^ C/ 1^ F.

Indicator Light

The indicator light is the dot at the bottom right of the display. The indicator light will be on when a multi-key function is selected. To perform a multi-key function, press and hold the first key, then press the second key for at least 5 seconds and then release both keys.

°F/°C Selector

Select the temperature display setting in Fahrenheit or Celsius degree. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the LIGHT key for 5 seconds.

Display

is for the LEFT temperature zone and is for the RIGHT temperature zone.

Setting the Temperature Control

• The unit has two separate temperature zones. The temperature of both zones can be set between 5°C and 20°C (41°F and 68°F). It can be used as a wine maturing cabinet or a wine serving cabinet. For maturing wine, the recommended temperature setting ranges of both zones should be between 11°C and 14°C (52°F and 57°F). For serving wine, the recommended temperature setting range of UPPER/LEFT zone should be between 5°C and 10°C (41°F and 50°F) which is ideal for serving champagne & white wine and the recommended temperature setting range of LOWER/RIGHT zone should be between 15°C and 20°C (58°F and 68°F) which is ideal for serving red wine.

• When the unit is plugged in for the first time, the unit will power up automatically to the preset defaults. The preset temperature at the factory for UPPER/LEFT temperature zone is 8°C (46°F) and for LOWER/RIGHT temperature zone is 12°C (54°F).

• You can touch the left side UP and DOWN keys to control the internal temperature of the UPPER/LEFT temperature zone and touch the right side UP and DOWN keys to control the internal temperature of the LOWER/RIGHT temperature zone. When you touch either key at the first time, the display will show the last temperature set previously.

• IMPORTANT: For non-Twin Wine Conditioning System, the temperature set for the LOWER temperature zone must always be just as high as or higher than that in the UPPER temperature zone.
• The temperature that you desire to set will increase 1^ C or 1^ F if you touch the UP key once, on the contrary the temperature will decrease 1^ C or 1^ F if you touch the DOWN key once. The display flashes while you make the setting.
• After the temperature has been set, the display shows the current inner temperature of the particular temperature zone.
• To view the set temperature at any time, touch the UP or DOWN key, the set temperature will temporarily flash in the display for 5 seconds. Then the display shows the current inner temperature again.

NOTES:

• If the unit is unplugged, or power is lost or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the unit will not start.
• When you use the unit for the first time or restart the unit after it has been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and is due to the length of the activation time. There should not be a problem once the unit has been running for a few hours.

Interior Light

The interior light makes it easy to view your stored items and enhances the display of your stored items. The LIGHT switch allows you to toggle between 2 modes of operation for the internal lights: functional (default) mode and showcase mode. If you are in functional (default) mode (also named Energy Saving Mode), the lights will turn on only when the door is open. If you are in showcase mode, the lights will be on whether or not the door is open.

NOTE: Some types of produce are better stored under darker conditions and should not be displayed in showcase mode. For more information, consult the Produce Storage Guide.

The unit is fitted with an LED light system. To change the LED light fitting, please contact the service department.

NOTE: Please use only the same type of LED light fittings originally provided by the manufacturer.

Sabbath Mode

Sabbath mode is available for the observance of certain religious holidays. This mode turns off the displays, interior light and audible alarms and prevents them from turning on again. Normal cooling operations will still take place.

• To initiate Sabbath mode, press the POWER and LIGHT keys at the same time for at least 5 seconds. The indicator light (the dot at the bottom right of the display) will flash four times and confirm that Sabbath mode is ON.
• Sabbath mode can be canceled by repeating the above process. Sabbath Mode will automatically turn off after 96 hours.

Temperature Memory Function

In the event of a power interruption (power surge, breaker switch, etc.), the unit will remember the previous temperature settings, and when the power is recovered, the cabinet temperature will return to the same setting as before the power went off.

Temperature Alarm/Door Alarm

• The audible alarm sounds if the storage temperature is not cold enough. The temperature display flashes at the same time.
  • The cause of the temperature being too high may be:

o Warm fresh items were placed inside
- Too much warm ambient air flowed in when rearranging or removing food
- Power failure for some time
- The appliance is faulty

• The audible alarm is automatically silenced and the temperature display stops flashing when the temperature is sufficiently cold again.
• If the door has been left open for more than 60 seconds, the alarm will sound. Pressing the POWER key once will switch off the audible alarm.

DynaClima / Silent Mode

The appliance has two different running modes. In Silent mode once the required temperature is reached, the appliance will run without the fan. In DynaClima mode the fan cycles on and off to circulate the air even after the required temperature is reached. This ensures consistent humidity and temperature distribution in the wine cooler, creating perfect conditions for long term storage.

Using DynaClima mode increases the level of noise in operation.

Door Locks

The unit has a lock, the keys are located inside the plastic bag that contains the User Manual. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door, do the reverse operation, making sure the metal pin is engaged completely. Remove the key and put it in a secure place for safekeeping.

Shelves/Baskets

The unit includes shelves and wire produce baskets.

• The left cabinet includes 3 glass shelves.
- The right cabinet includes 2 wire baskets and 1 supporting shelf.

Arranging the right compartment:

1. Insert the supporting shelf on the bottom rails to protect the compressor.

2. Place one basket on top of the supporting shelf.

3. Slide the second basket onto the top rail.

4. Always open the door fully before removing shelves or baskets to avoid damaging the door gasket.

5. For easier access to stored items, the shelf can be pulled halfway out along the rails. A plastic post on each side of the track prevents items from sliding off.
6. Before removing shelves or baskets, empty their contents. To remove a shelf, pull it forward until the notches align with the plastic posts, then tilt the shelf clear of the posts. To reinstall, reverse the procedure.
7. The baskets slide freely along the tracks and can be removed by pulling them straight out.

Humidity Trays

The unit includes two humidity trays, which are recommended for use in the Pantry (right) side of the unit.

1. Fill the humidity trays with water to increase the humidity inside either zone of the unit. Increased humidity is ideal for broccoli, carrots, cucumbers, cauliflower, eggplant, green beans, herbs, peppers, strawberries, and watermelon.
2. Place the tray on the floor of the cabinet or on top of the compressor step.

Defrosting

• The unit defrosts automatically under normal operating conditions.
• The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in the drainage channel behind the rear wall of the unit and flows through the drainage hole into the drip tray by the compressor where it evaporates.
• However, frost may accumulate on the evaporator if the unit is repeatedly opened in a high heat or high humidity location. If this frost pattern does not clear within 24 hours, your unit will require manual defrosting.

CARE AND MAINTENANCE

Cleaning your Appliance

• Turn off the power, unplug the appliance, and remove all items, including shelves.
- Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of baking soda to a quart of water).
- Wash wire shelves with a mild detergent solution. Wipe wooden shelves with a clean, damp cloth. Dry thoroughly.
- Wring excess water out of the sponge or cloth when cleaning the area where the controls are located, or any electrical parts.
- Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.
- Do not use steel wool or a steel brush on stainless steel.

Cleaning the Humidity Tray

The water in the humidity tray should be changed daily to prevent the buildup of mold. The tray is dishwasher safe for easy cleaning.

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect the contents.

Vacations

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the doors open slightly, blocking open if necessary.

Moving your Appliance

1. Remove all items.
2. Securely tape down all loose items (shelves) inside your appliance.
3. Turn the adjustable legs up to the base to avoid damage.
4. Tape the door(s) shut.
5. Be sure the appliance stays secure in the upright position during transportation. Also, protect the outside of the appliance with a blanket or similar item.

Energy-Saving Tips

• The appliance should be located in the coolest area of the room, away from heat-producing appliances and out of direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover air vents.
• Do not keep the doors open any longer than necessary.

TROUBLESHOOTING

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

PROBLEM	POSSIBLE CAUSE	REMEDY
Appliance does not operate.	·Appliance is not connected to a power supply.·The appliance is turned off.·Tripped circuit breaker or blown fuse.	·Connect the appliance.·Switch on the appliance.·Switch on the circuit breaker or replace the fuse.
Appliance is not cold enough.	·The temperature is not set correctly.·The ambient temperature could require a lower temperature setting.·The doors were opened too often.·The doors were not closed completely.·Door is not hermetically sealed.·The condenser is too dirty.·The ventilation opening is blocked or too dusty.	·Check the set temperature.·Set a lower temperature.·Do not open the doors more often than necessary.·Close doors properly.·Check the door seal and clean or replace.·Clean the condenser when necessary.·Clear the obstructions and wipe off the dust.
Appliance turns itself on and off frequently.	·The room temperature is higher than average.·A large number of bottles have been added to the unit.·The doors are opened too often.·A door is not closed completely.·The door gasket does not seal properly.	·Put the appliance in a cooler place.·Leave the appliance to work for a while until the set temperature has been reached.·Do not open the doors more often than necessary.·Close door properly.·Check the door seal and clean or replace.
The light does not work.	·Appliance is not connected to a power supply.·Tripped circuit breaker or a blown fuse.·The light was switched off on the control panel.	·Connect the appliance.·Switch on the circuit breaker or replace the fuse.·Switch on the light.
Vibrations	·The appliance is not properly leveled.	·Level the appliance with the adjustable feet.
The appliance seems to make too much noise.	A rattling noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your appliance. If temperature fluctuations occur, the contraction and expansion of the inner walls may cause popping and crackling noises.
	·The appliance is not properly leveled.	·Level the appliance with the adjustable feet.
The doors will not close properly.	· The appliance is not properly leveled.· The gaskets are dirty.· The shelves are out of position.	· Level the appliance with the adjustable feet.· Clean the door gaskets.· Check the shelves and refit correctly.
Display “E0”, “E1”. “E2”, “E3”, “E4”, “E5” or “E7”.	· “E0” indicates a communication error for 3-zone models.· “E1” or “E2” indicates that the air temperature sensor has failed.· “E3” or “E4” indicates that the defrost sensor in the evaporator has failed.· “E5” indicates defrost heater failure.· “E7” indicates door switch failure.	· Call for service.
The alarm sounds and the temperature display flashes.	Has an appliance door been open for longer than 60 seconds? If not, then the temperature has risen higher or fallen lower than the temperature that has been set. This could be due to:· The appliance doors being opened too often.· The ventilation opening being covered or too dusty.· A lengthy interruption to the power supply.· A large number of bottles have been added to the unit.	If yes, close the door.· Do not open the doors more often than necessary.· Clear the obstructions and remove the dust.· Leave the appliance to work for a while until the set temperature has been reached.
The icon “--” is lit up and flashing in the temperature display.	· The display temperature is out of range.	· Only temperatures within the range 0~99°F/-9~37°C can be displayed. If the temperature is not within this range, the icon “--” will be displayed instead. This is normal.

If you have checked the information above and you still need help with your appliance, call our Customer Service facility at 800-932-4267 (Ext. 513) between 9:00 AM and 5:00 PM ET or visit our website summitappliance.com/support at any time. We will do our best to answer your questions.

To order replacement parts, visit our website: summitapplianceparts.com

CALIFORNIA CARB/SNAP DISCLOSURE

This product uses eco-friendly hydrocarbon refrigerant and fully complies with California CARB regulations.

However, we are required by California Law to provide the following disclosure statement in every product sold in California.

"This equipment is prohibited from use in California with any refrigerants on the 'List of Prohibited Substances' for that specific end-use, in accordance with California Code of Regulations, title 17, section 95374. This disclosure statement has been reviewed and approved by Felix Storch, Inc. and Felix Storch, Inc. attests, under penalty of perjury, that these statements are true and accurate."

This product does not use any refrigerants on the 'List of Prohibited Substances"

NOTES

LIMITED WARRANTY

ONE-YEAR LIMITED WARRANTY

Warranty coverage is available within the 48 contiguous United States, along with select areas of Alaska, Hawaii, and Canada. For locations not covered, consumers can either contact a local provider or coordinate with Felix Storch, Inc. to find nearby service options, which may qualify for partial reimbursement.

The warranty for this appliance is valid for one year from the date of purchase, provided the appliance is operated and maintained according to the instructions included with the product. The warrantor will cover the cost of factory-specified parts and repair labor needed to correct defects in materials or workmanship. Service must be performed by a designated service company.

All parts, except the compressor, are warranted for one year against manufacturing defects. Plastic parts, shelves, and cabinets are produced to commercially acceptable standards but are not covered for damages incurred during handling or for breakage.

5-YEAR COMPRESSOR WARRANTY

1. The compressor is covered for 5 years.
2. Replacement does not include labor.
3. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace or repair fuses or to correct wiring or plumbing.
4. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as filters) are excluded from warranty coverage.
5. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by warrantor.
6. Replacement parts or repair labor costs for units operated outside the 48 contiguous United States, along with select areas of Alaska, Hawaii, and Canada.
7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
8. Expenses for travel and transportation for product service in remote locations.
9. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.

ITEMS WARRANTOR WILL NOT PAY FOR:

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR. WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

WARNING: This product can expose you to chemicals including Nickel (Metallic) which is known to the State of California to cause cancer.

For more information go to www.P65Warnings.ca.gov

Note: Nickel is a component in all stainless steel and some other metallic compositions.

For parts and accessory ordering, troubleshooting and helpful hints, visit: www.summitappliance.com/support

Revised: 2025-09-30
