USER MANUAL CNPS2XL ZALMAN

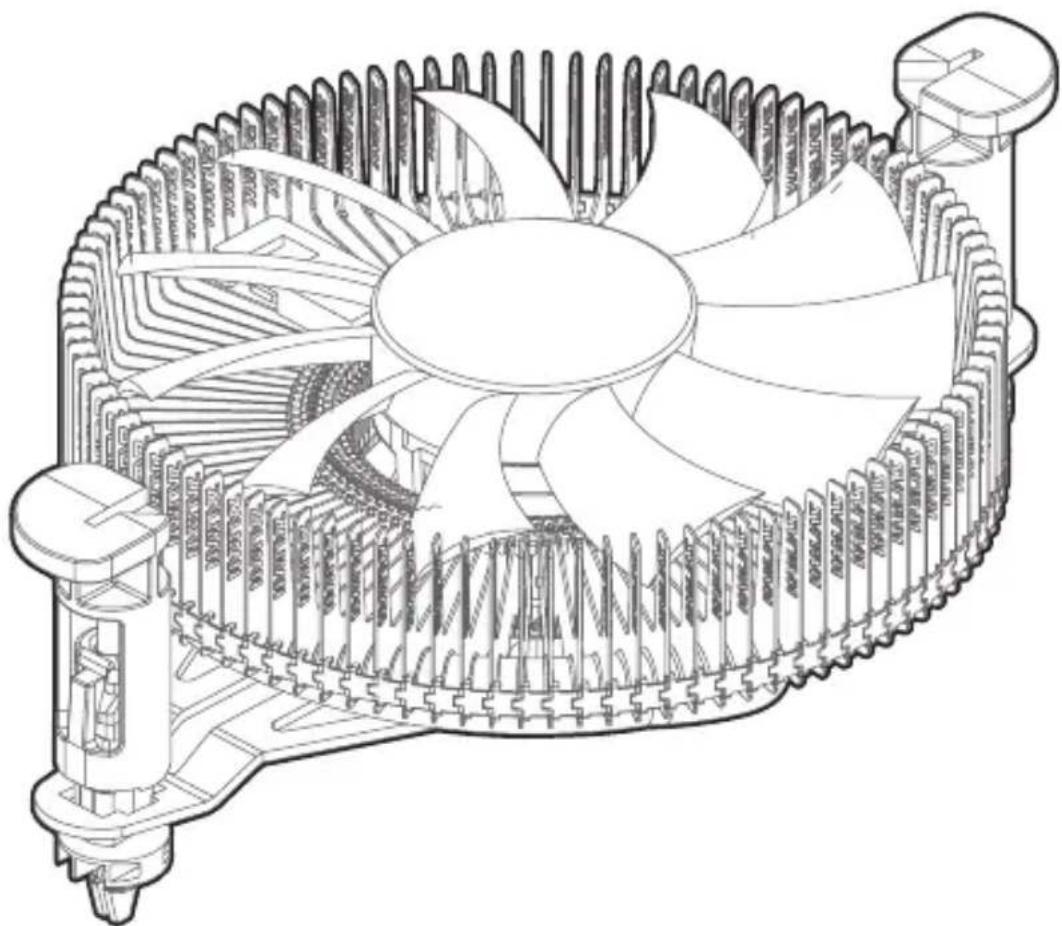

ULTRA THIN CPU COOLER CNPS2XL
User's Manual
Intel Ready
Ver. 051019
Intel Socket LGA1156/1155/1150 CPUs
* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.
Precautions
English
■ Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
■ To prevent possible injuries, gloves must be worn while handling this product.
■ Excessive force exerted on the fan may cause damage to the fan and/or system.
■ Use and keep product away from reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
■ Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
■ During transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
■ Product design and specifications may be changed to improve quality and performance without notice.
Précautions
Français
| Model CNPS2XL | ||
| Dimensions 84(L) x 84(W) x 27(H)mm | ||
| Weight 83g | ||
| Material Pure Copper, Aluminum | ||
| Fan | Dimensions 80mm | |
| Speed 1,500~2,600 ±10% RPM | ||
| Max Noise Level 27 dBA ±10% | ||
| Bearing Type EBR Bearing | ||
| Control Method PWM Control | ||
| Connector 4-Pin | ||
| Rated Voltage 12 V DC | ||
| Max Airflow 21.5 CFM | ||
| Socket Intel LGA1156/1155/1150 CPUs | ||
Dimensions
Common Components
Push-Pins & Clips
Screws
Thermal Grease

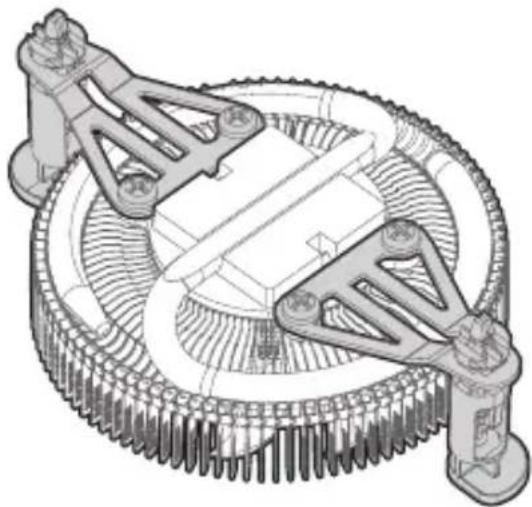

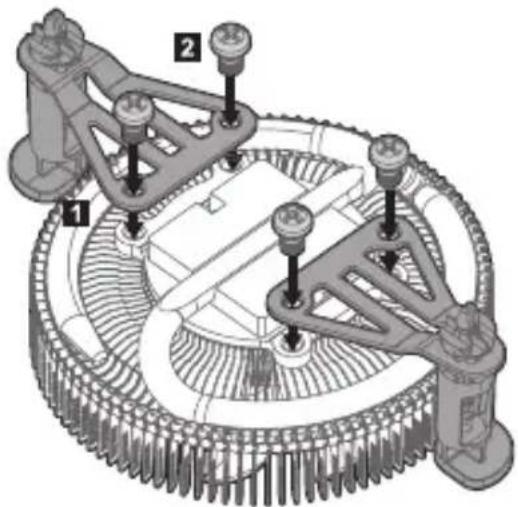

Installed
LGA1156/1155/1150
Screws x 4
Push-Pins
& Clips x 2


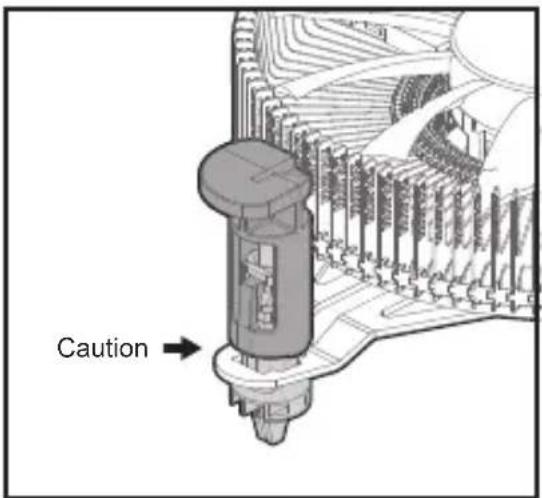

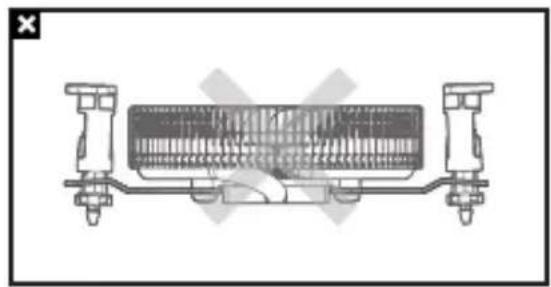

Technical line drawing of a vehicle chassis with wheels and structural components (no text or symbols)※ Caution
Take note of the orientation of the clips.


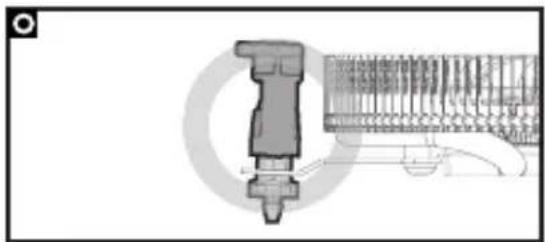

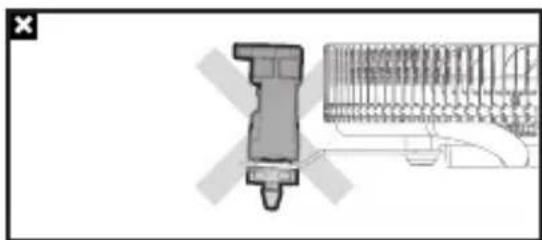

Technical diagram of a mechanical component with cross-sectional view (no text or symbols)※ Caution
Do not press the push-pin before the installation.
Thermal Grease


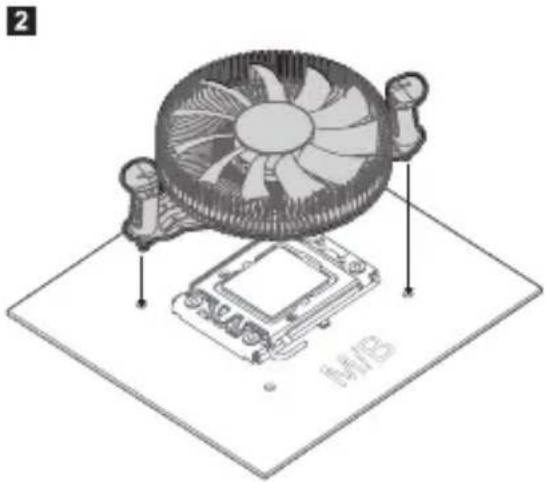

2 电源/123


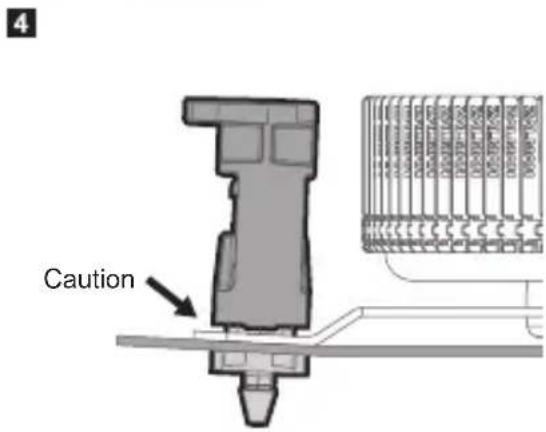

Caution※ Caution
Press the push-pin until it clicks.
※ Caution

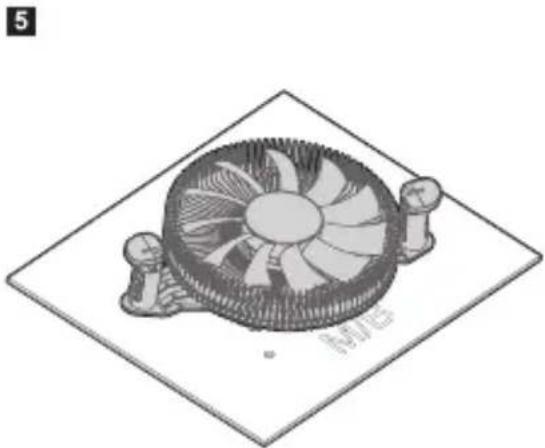

Please make sure that the product is firmly fixed.


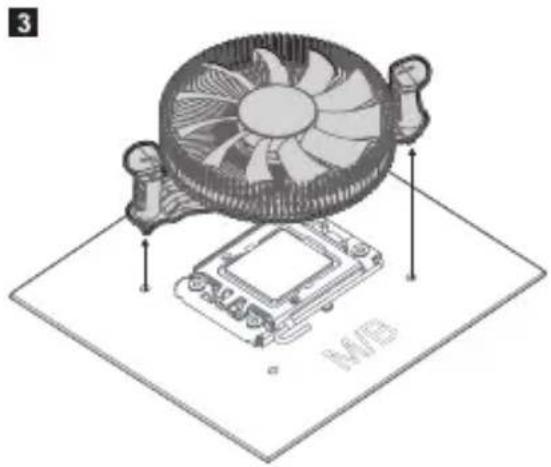

6 MIBDismantling


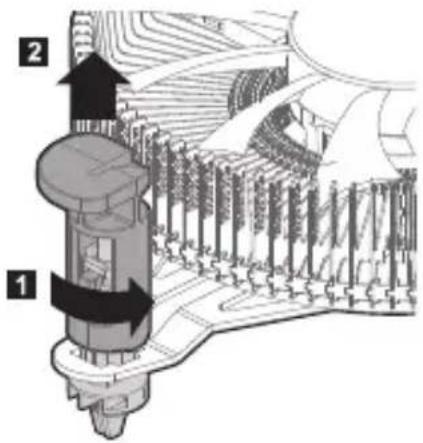

Rotate the push-pin in the direction of the arrow and pull it out.
제품 보증서
This mark, designed by ZALMAN, indicates product compliance with the European Union's RoHS (Restriction of Hazardous Substances) Directive.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
